Data Ingestion from a Data Lake: The Case of Document-oriented

NoSQL Databases

Fatma Abdelhedi

, Rym Jemmali

1,2

and Gilles Zurfluh

CBI², Trimane, Paris, France

IRIT CNRS (UMR 5505), Toulouse University, Toulouse, France

Keywords: Data Lake, Data Warehouse, NoSQL Databases, Big Data.

Abstract: Nowadays, there is a growing need to collect and analyze data from different databases. Our work is part of

a medical application that must allow health professionals to analyze complex data for decision making. We

propose mechanisms to extract data from a data lake and store them in a NoSQL data warehouse. This will

allow us to perform, in a second time, decisional analysis facilitated by the features offered by NoSQL systems

(richness of data structures, query language, access performances). In this paper, we present a process to ingest

data from a Data Lake into a warehouse. The ingestion consists in (1) transferring NoSQL DBs extracted from

the Data Lake into a single NoSQL DB (the warehouse), (2) merging so-called "similar" classes, and (3)

converting the links into references between objects. An experiment has been performed for a medical

application.

INTRODUCTION

The last few years have seen an explosion of data

generated and stored by a large number of computing

devices. The resulting databases are referred to as

"Big Data", which refers to the so-called "3V" rule:

volume, variety, and velocity. This rule characterizes

data lakes (Couto et al., 2019) that can bring together

several databases of different types and formats such

as relational databases, NoSQL databases (Not only

SQL), CSV files, text files and spreadsheets. This

massive and complex data represents an essential

reservoir of knowledge for decision-makers;

however, the volume of data as well as the diversity

of structures and formats constitute a major obstacle

to decision processing. In order to facilitate the

decision analysis of a data lake, we propose to

integrate the data in a NoSQL (Not only SQL) data

warehouse. It should be noted that the problem

statement presented in this article has been

voluntarily restricted to the ingestion of the only

document-oriented NoSQL DBs contained in the

Data Lake; neither is the selection of the data in the

Data Lake treated, i.e., the totality of each DB is

transferred into the Data Warehouse. Our work is part

of a medical application for health insurance

companies.

The remainder of the paper is structured as

follows: Section 2 presents the medical application

that justifies the interest of our work. Section 3

reviews the state of the art. Section 4 presents our

contribution which consists in ingesting the DBs of a

Data Lake into a NoSQL Data Warehouse. Section 5

details the development of our prototype and

describes the experimentation of our process. Finally,

Section 6 concludes the paper and announces future

work.

CASE STUDY AND PROBLEM

STATEMENT

Our work is motivated by a project developed in the

health field for a group of mutual health insurance

companies. These insurance companies, stemming

from the social and solidarity economy, propose to

their customers a coverage of the medical expenses

which comes in complement of those refunded by a

public institution: the health insurance fund. To

ensure the management of their clients, these mutual

health insurance companies are faced with a

significant increase in the volume of data processed.

This is all the more true since some of these

companies act as social security centers, i.e., clients

226

Abdelhedi, F., Jemmali, R. and Zurﬂuh, G.

Data Ingestion from a Data Lake: The Case of Document-oriented NoSQL Databases.

DOI: 10.5220/0011068300003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 226-233

ISBN: 978-989-758-569-2; ISSN: 2184-4992

transmit the entire reimbursement file to a mutual

insurance company, which performs all the data

processing related to the file. In order to monitor these

files, numerous exchanges are necessary between the

health insurance fund, the mutual insurance

companies and the health professionals. Under the

impetus of the State, the health insurance fund has

developed a Digital Health Space

(ENS). The ENS

stores the medical data of each insured person. This

data is confidential in nature, but the holder may

authorize a health professional or institution to

consult or add to his ENS. All access and actions

carried out on the ENS by non-holders are traced.

Mutual health insurance companies therefore have

limited access to the ENS from which they can extract

data in order to process the files of their policyholders

and, more generally, to carry out analyses of any kind

(in compliance with confidentiality rules). For each

insured person, the ENS contains administrative data,

medical records (measurements, medical imaging

archives, reports, therapeutic follow-up, etc.),

reimbursement history and questionnaires. When the

ENS is fully deployed at the national level, its volume

will be considerable since it concerns 67 million

insured persons.

In the context of this project, the ENS constitutes

a real Data Lake because of (1) the diversity of data

types, media, and formats (2) the volumes stored

which can reach several terabytes and (3) the raw

nature of the data. The objective of the project is to

study the mechanisms for extracting data from the

ENS and organizing it to facilitate analysis (Big Data

Analytics). Our work aims to develop a system that

allows insurance companies to build a data warehouse

from an existing data lake. In this paper, we limit the

scope of our study as follows:

•

The ENS Data the source of our process and

contains massive structured and unstructured

data. In this article, we limit ourselves to

document-oriented NoSQL databases managed

by the MongoDB system. Indeed, this category

of datasets represents an important part of the

ENS data. The Data Lake contains various

datasets concerning in particular the files of the

insured, the activity of the doctors, the medical

follow-ups.

•

The Data Warehouse generated by our process

is a document-oriented NoSQL DB; at this stage

of our study, the Data Warehouse is not

organized according to a multidimensional

model. Moreover, although MongoDB is the

most widely used NoSQL system in the industry

today (DB- Engines Ranking, s. d.) we chose

OrientDB

to manage the Data Warehouse.

Indeed, this NoSQL system offers advanced

functionalities, notably the possibility of

expressing several types of semantic links. It will

thus be easier to restructure the data of the Data

Warehouse to facilitate decisional treatments

(the works on decisional treatments are not

discussed in this article).

RELATED WORKS

Our study consists in extracting data from a Data

Lake containing several MongoDB databases and

then integrating them into a NoSQL Data Warehouse.

In this section, we review existing works that address

this problem.

The papers (Kuszera et al., 2019; Liyanaarachchi

et al., 2016; Mahmood, 2018), have proposed

techniques to transfer a relational database into a

document-oriented NoSQL DB. In particular, the

proposed algorithms transform foreign keys into

nested data. In (Mallek et al., 2018), the authors

propose to transfer data from a NoSQL DB into a

multidimensional warehouse using MapReduce to

accelerate the data transformation. Furthermore, the

work (Maity et al., 2018) specify a generic process to

transfer data from a NoSQL DB (especially

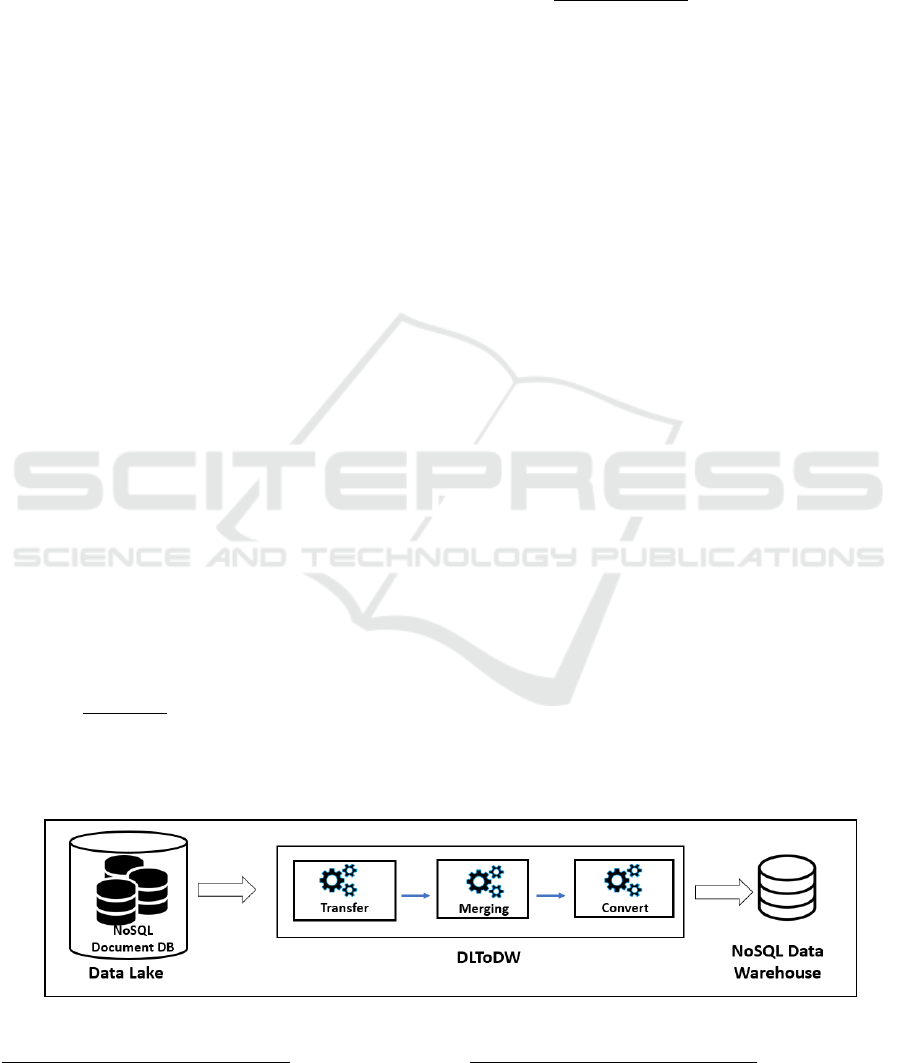

Figure 1: Overall architecture of the DLToDW data lake extraction process.

https://gnius.esante.gouv.fr/reglementation/fiches-

reglementation/mon-espace-sante

https://orientdb.org/

Data Ingestion from a Data Lake: The Case of Document-oriented NoSQL Databases

227

document-oriented or graph-oriented) to a relational

DB. This type of transfer allows benefiting from the

functionalities of relational data management.

Conversely, the authors in (Yangui et al., 2017) used

Talend software to implement rules for transforming

a multidimensional data model into a document-

oriented NoSQL DB. This takes advantage of the Big

Data context and in particular of the MapReduce

operation. Facts are stored in a table and dimensional

links are translated by nesting dimensions into facts.

Finally, the authors in (Dabbèchi et al., 2021)

proposed a process to integrate social media data in a

NoSQL Data Warehouse. The data is extracted from

a data lake containing column-oriented and

document-oriented NoSQL databases. The paper

defines matching rules to transfer this data into the

NoSQL warehouse.

The works, which we have just presented, have

proposed mechanisms allowing the transfer of data

between datasets of different types. Thus, the articles

(Kuszera et al., 2019; Liyanaarachchi et al., 2016;

Mahmood, 2018) integrate a relational DB into a

NoSQL DB. Other works (Mallek et al., 2018; Maity

et al., 2018; Yangui et al., 2017) ensure the transfer

from a NoSQL DB to a multidimensional warehouse

or vice versa. Finally, the process presented in

(Dabbèchi et al., 2021) allows the integration of

NoSQL DBs into a NoSQL data warehouse. Overall,

this state of the art shows the difficulty of exploiting

complex and massive data and the need to reorganize

these data in a form adapted to decision analysis. The

proposed processes mainly concern the integration of

data in NoSQL systems which offer interesting object

functionalities for decision support. However, these

solutions only partially solve our problem as our

medical case study includes specificities that are not

resolved in the proposed processes. Thus, in our

application, "similar" data belonging to different

datasets must be merged. Moreover, the numerous

semantic links between objects cannot only be

translated into nested data structures.

In this paper, we propose a new automatic

approach to ingesting document-oriented NoSQL

DBs into a NoSQL data warehouse by supporting

"similar" data merging and link conversion.

THE DLToDW INGESTION

PROCESS

Our objective is to automate the ingestion of several

NoSQL databases present in a Data Lake; the

https://www.omg.org/spec/UML/2.5.1/About-UML/

extracted data are transferred to a NoSQL Data

Warehouse. We have developed the DLToDW

process that successively transfers the data from the

Data Lake to the target DB (the Data Warehouse),

converts the semantic links in the target and merges

the so-called "equivalent" objects. Figure 1 shows the

three modules of our process.

The I/O of our process, i.e., the NoSQL DBs

contained in the Data Lake and the NoSQL Data

Warehouse, follow the same document-oriented

model. The metamodel describing these databases is

presented in Figure 2 and is formalized with the

UML

class model. The rectangles describe object

classes, and the arcs represent association,

composition, and inheritance links.

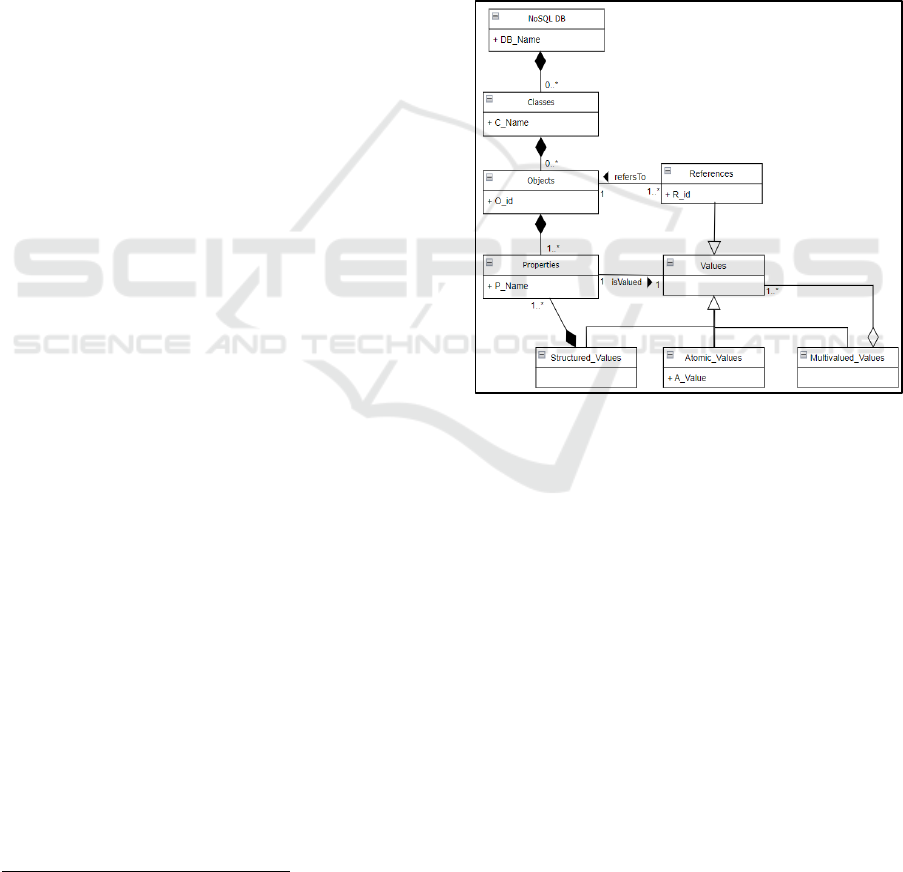

Figure 2: Meta model of a document-oriented NoSQL

database.

This metamodel shows that any class groups

objects (also called Document or Record). Each

object has an identifier and contains a set of properties

in the form of couples (Name, Value). A value can be

atomic, multivalued, or structured.

In the following sections, we describe the

DLToDW process by presenting the three modules

that comprise it.

4.1 The Transfer Module

This process transfers the DBs from the data lake to a

single data warehouse. The Data Lake, the source of

the transfer, normally contains data of different

formats such as relational DBs, NoSQL DBs or CSV

files; however, in this article we have restricted the

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

228

source to document-oriented NoSQL DBs. The target

of the transfer is also a document-oriented NoSQL

DB.

In our case study presented in Section 2, the

(restricted) Data Lake consists of MongoDB NoSQL

DBs and the Data Warehouse is an OrientDB NoSQL

DB. MongoDB and OrientDB share the same

document-oriented model using different

vocabularies; however, the underlying concepts in

terms of data representation are identical and

consistent with the metamodel in Figure 2. Note that

OrientDB offers a richer description capability,

especially in terms of link expression. For the sake of

clarity of presentation, we will use the MongoDB

vocabulary for the source and the OrientDB

vocabulary for the target (Table 1).

Table 1: Correspondence of the source and target

vocabularies.

MongoDB (source) OrientDB (target)

Collection Class

Document Record

Fields Property

DBRef link Reference

Oid (Object identifier) Rid (Record identifier)

The Transfer module therefore consists of

"copying/pasting" data from several databases

(source) into a single database (target). This data

transfer must however follow certain rules to allow

the treatments that we will carry out later.

Rule 1: the names of the transferred classes are

prefixed by the name of the source database from

which they originate; this avoids the synonymity of

class names in the data warehouse.

Rule 2: when transferring documents, the original

identifiers are kept as they are; thus, the identifier of

a document is stored in a property of the target record,

in the form (Oid, value of the identifier). This

identifier will be used in the Convert module and then

deleted in the record.

Rule 3: the links contained in the documents

(DBRef links) are stored as they are in the target

records; they will be transformed into references in the

Convert module. The transferred links will be

prefixed by the key word "DBRef".

According to rule 2 above, any record r that is

stored in the Data Warehouse has a property

containing the MongoDB identifier of the original

document. If we consider the set of OrientDB

identifiers (E_Rid) assigned to the records and the set

of MongoDB identifiers (E_Oid) present in the

source, then there exists a bijection of E_Oid into

E_Rid that we will note as follows: Rb: E_Oid →

E_Rid. This property is important because it allows

MongoDB links to convert into OrientDB links.

4.2 The Merging Module

The Data Lake is generally made up of a set of

separate databases managed independently. The data

warehouse resulting from the Transfer module may

contain "similar" data sets. For example, in our

medical application, descriptions of insured persons

or lists of doctors appear in several databases in the

Data Lake. These data may concern the same entities

in the real world but do not necessarily have the same

structures (different properties).

The Data Warehouse can therefore include

subsets containing classes linked by the equivalence

relation; they "describe the same entities"; each

subset is called an equivalence group. For example,

in the ENS Data Warehouse of our application, the

classes B1.Doctors, B2.Therapists and

B3.Practitioner constitute an equivalence group (the

prefixes B1, B2 and B3 correspond to the names of

the original databases in the Data Lake).

For each equivalence group in the data warehouse,

the module will cause all classes in the group to be

deleted and replaced by the resulting class 𝑋. The

transformation from 𝐺 to 𝑋 is based on the use of a

domain ontology created with the help of business

experts; the ontology automatically builds the 𝑋 class.

The experts (administrators, managers, decision-

makers, etc.) have in-depth knowledge of one or more

databases contained in the Data Lake.

They are asked to specify the possible semantic

correspondences between the data of the different

databases. For example, in the ENS Data Lake, three

databases contain data describing individuals insured

by mutual insurance companies. The ontology will

indicate an equivalence relation between these data.

The similarity relations between data are stored in a

domain ontology, called "Onto”, in the form of a

graph; they are obtained from the specifications

provided by the business experts.

The business experts must define a primary key

(in the sense of the relational model) among the

attributes of the classes of the same group. This key,

made up of a minimal set of properties, makes it

possible to distinguish records and to establish inter-

class correspondences within a group. For example,

the classes of a group containing descriptions of

Data Ingestion from a Data Lake: The Case of Document-oriented NoSQL Databases

229

doctors have the national professional identification

number of doctors as a key. This key allows records

about the same real-world entity to be grouped. In

addition, the experts examine the other properties

present in the classes and indicate whether it is

appropriate to keep them in the data warehouse

(Properties class). These properties are transferred by

the Merging module to the resulting 𝑋 class.

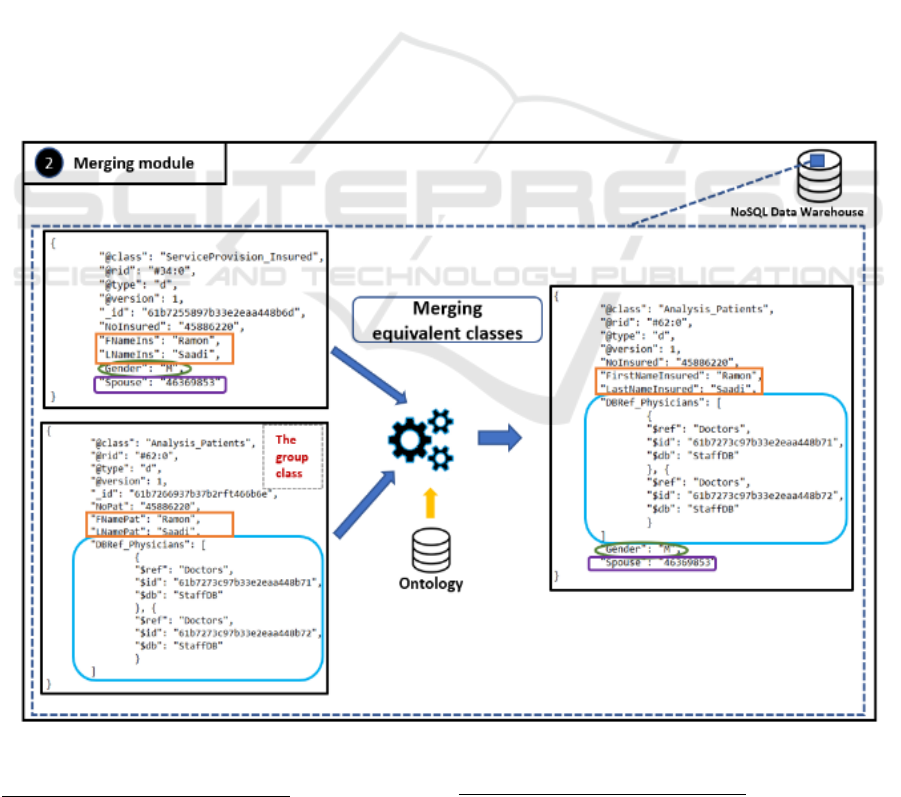

To transform the classes of a group into a single

class 𝑋, a transfer of values from the group to 𝑋 must

be specified. Thus, for each property to be transferred,

the experts indicate in the ontology the class of the

group that is the source of the transfer and that is

likely to ensure optimal data quality; this is the class

of the group that is considered by the experts as the

most reliable. This source may vary for different

properties of 𝑋.

The Merging module of our process aims at

substituting each group of equivalence classes by a

unique class. We have the “Onto” ontology and the

Data Warehouse (DW) at our disposal. The ontology

describes the composition of each group and the

characteristics of the resulting class 𝑋. The Data

Warehouse contains the classes that will be merged

by the Merging module. This module produces a new

version of the NoSQL Data Warehouse on which the

Convert processing is applied, responsible for

transforming DBRef type links (specific to

MongoDB) into links in the form of references

between objects (present in OrientDB).

4.3 The Convert Module

The MongoDB system offers the possibility of

establishing links between documents in collections;

the links are expressed by means of structured data

marked with the DBRef reserved word. This form of

linkage is compatible with all document-oriented

NoSQL systems insofar as these systems accept

structured properties and referential integrity is not

assured. A DBRef link is monovalent or multivalent;

it can be located at the first level of the properties of

a collection or nested in a structured property. For the

needs of our case study, which requires good data

quality, we have chosen to transform these links in the

data warehouse. We use references between objects

with referential integrity control according to the

principles of the object standard defined by the

ODMG

. This reference mechanism is available in the

OrientDB system.

http://www.odbms.org/odmg-standard/

In a DB, a link is a relationship that maps an object

(record or document) to one or more other objects.

During the transfer of documents, each MongoDB

link was stored as is (without transformation) in the

form of a property in a record in the data warehouse,

in accordance with rule 3 applied by the Transfer

module (see section 4.1). At this stage, the links

cannot be used in the data warehouse. The Convert

module is therefore responsible for substituting each

MongoDB link with an OrientDB link.

Before the execution of the Convert module:

among the properties of any record, one or more

MongoDB links can be found. Such a link-property is

characterized by a structured value containing the

DBRef keyword and a name giving the link

semantics.

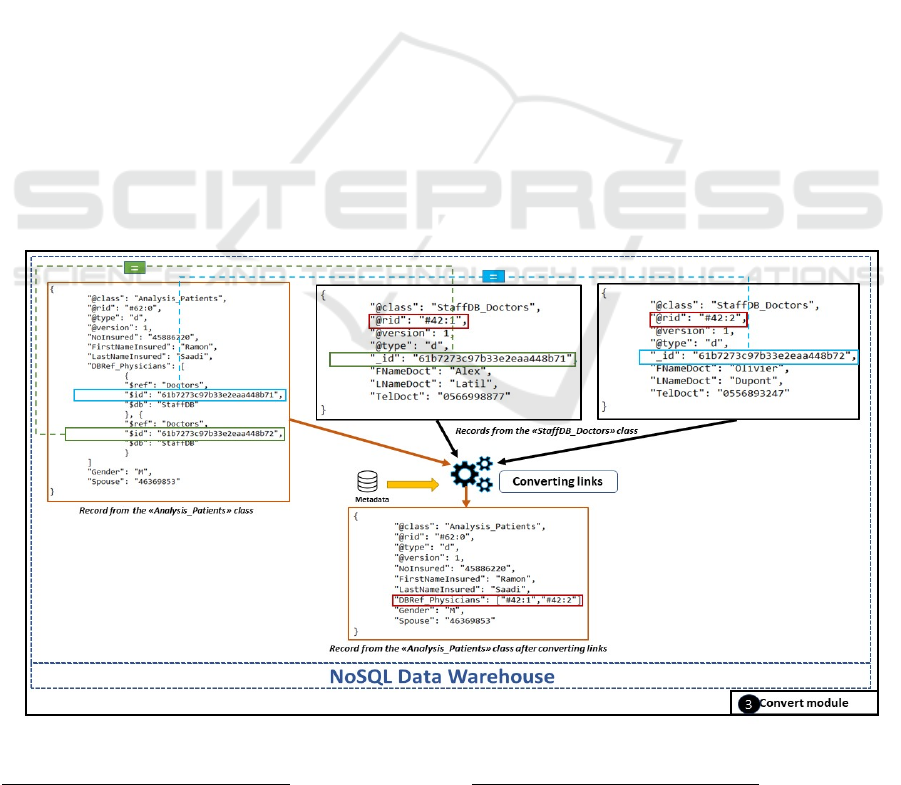

The Convert module will transform each

MongoDB link into an OrientDB link thanks to the

bijective application Rb between E_Oid and E_Rid.

The value of the MongoDB link 𝑂𝑖𝑑 ∈ 𝐸_𝑂𝑖𝑑 Oid will

be substituted by the 𝑅𝑖𝑑 ∈ 𝐸_𝑅𝑖𝑑 of the Data

Warehouse record in which the MongoDB identifier

is located.

PROTOTYPE DEVELOPMENT

AND EXPERIMENTATION

To implement the DLToDW process, we have

developed a prototype allowing the ingestion of

several NoSQL databases according to the principles

outlined above. Our process includes the three

modules Transfer, Merging and Convert which are

implemented successively. We have chosen the

OMG

Model Driven Architecture (MDA) to develop

the Transfer module. The two modules Convert, and

Merging are based on algorithmic processing coded

in Java. We implemented our prototype with the data

from the medical application presented in Section 2.

5.1 Data Transfer

We used the MDA to develop the Transfer module

because this component is part of the production of a

larger software system not described in this article.

Indeed, our case study is based on a Data Lake

containing, in addition to the NoSQL DBs presented

here, relational DBs, Json files, and spreadsheets. In

this application framework, MDA offers on the one

hand a great flexibility for the development: modeling

of inputs and outputs and expression of model

The Object Management Group (OMG)

https://www.omg.org

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

230

transformation rules. On the other hand, it facilitates

the development and maintenance of the software by

ensuring the generalization of the processes

developed: the same principles are applied to each

data set. According to the MDA approach, software

development consists of describing separately the

functional specifications and the implementation on a

platform. It is based on three models representing the

levels of abstraction of the application: (1) the

requirements model (CIM for Computation

Independent Model) in which no IT considerations

appear, (2) the analysis and design model (PIM for

Platform Independent Model) independent of the

technical details of the execution platforms and (3)

the code model (PSM for Platform Specific Model)

specific to a particular platform. Our work is located

at the PSM level where the physical schemas are

described. In our application, the principles of MDA

consist in modeling the input and output of a process

and in providing a set of transformation rules applied

to the models to go from input to output. In order to

preserve a certain generality of the treatments, the

input and output models are represented by

metamodels.

The Transfer module has been translated into two

metamodels (one input and one output) and a set of

model transformation rules expressed in the

declarative language QVT

(Query/View/Transform)

specified by the OMG.

We used the EMF

(Eclipse

Modeling Framework) development environment

with the Ecore metamodeling language. The input

(MongoDB) and output (OrientDB) metamodels

expressed in Ecore are consistent with the UML

diagram in Figure 2. Ecore relies on XMI to

instantiate the models.

This module therefore transfers the NoSQL

databases from the Data Lake into a warehouse which

is a single NoSQL database. At the end of the

processing, the warehouse contains a set of classes

with the following properties:

•

The number of classes in the warehouse is equal

to the sum of the number of collections

contained in the Data Lake (all databases

combined)

•

Each class takes the name of the original

collection prefixed by the name of the DB in the

Data Lake

Figure 3: Data flow and processing in the Merging module.

https://www.omg.org/spec/QVT/1.2/PDF

https://www.eclipse.org/modeling/emf/

Data Ingestion from a Data Lake: The Case of Document-oriented NoSQL Databases

231

•

Each record of a class has an identifier (Rid)

assigned by the system managing the warehouse

(OrientDB)

•

The links contained in the warehouse records

have been stored in their original format

(MongoDB DBRef links).

5.2 Merging of Similar Classes

In a second step, the Merging module is applied to the

warehouse and its objective is to merge the classes

considered as "similar". To perform the merging, this

module uses a domain ontology

provided by experts

of our case study. This ontology has been stored in a

PostgreSQL

relational database. For example, the

ontology indicates that the classes

"ServiceProvision_Insured"and "Analysis_Patients"

belong to the same equivalence group. These two

classes come from two distinct DBs

("ServiceProvision" and "Analysis") in the Data

Lake. The ontology provides all the properties of the

unique class X elaborated by the Merging module and

specifies the class from which these properties will be

extracted. In the case where "similar" properties (for

example the Name of the insured) are found in several

classes, the ontology indicates the class that will be

chosen to extract the values and save them in X. The

class X is the result of the merging of several classes;

its name, which appears in the ontology, was assigned

by the experts. Figure 3 shows the merging of 2

records in the data warehouse.

5.3 Link Conversion

The Transfer module has stored all the links in the

warehouse in their original format (MongoDB DBRef

link). The Convert module will transform each of

these links into Rid references between records; these

links in the form of references conform to the object

principles set out by the ODMG. This conversion of

links requires a complete scan of the warehouse. In

fact, we did not think it wise to perform this treatment

when the warehouse is fed (Transfer module)

because:

the dispersion of referenced records (which

requires that all classes be created at the

beginning of the process)

the number of links per record; in our

application, every record contains at least one

link. For example, in Figure 4, the

"DBRef_Physicians" field of the

"Analysis_Patients" Class corresponds to a

multivalued value of DBRef, so each DBRef

structure will be replaced by the Rid of the

referenced record of the "Doctors" collection

from the "StaffDB".

Figure 4: Data flow and processing in the Convert module.

The principles of exploitation of the ontology are not

detailed in this article

https://www.postgresql.org/

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

232

CONCLUSION

We have proposed a process for ingesting data from

a Data Lake to a Data Warehouse; the latter consists

of a single NoSQL DB while the Data Lake contains

several DBs. Thus, the article by (Yangui et al., 2017)

deals with the transformation of a multidimensional

DB into a NoSQL document data warehouse and does

not consider specific links to MongoDB (DBRef). On

the other hand, the work (Dabbèchi et al., 2021)

proposes a process to transfer data stored in NoSQL

databases (the Data Lake) and feed a NoSQL Data

Warehouse. The links between objects are not

materialized in the target as references. In order to

focus this paper on a limited problem, we have limited

the content of the Data Lake to document-oriented

NoSQL DBs. Three modules were implemented

successively to ensure the ingestion of data. The

Transfer module transforms the Data Lake databases

into a NoSQL database; its development is based on

the MDA. The Merging module merges classes

considered semantically equivalent and belonging to

different Data Lake databases; this merger is based on

an ontology provided by business experts. Finally, the

Convert module translates the links in MongoDB into

references according to the principles of object

databases supported by the OrientDB system. Our

process has been implemented in an application for

health professionals. Currently, we are extending the

DLToDW process both upstream (the Data Lake) and

downstream (the Data Warehouse). In particular, we

are defining a generic model and approach to

integrate the other types of datasets that make up the

Data Lake.

REFERENCES

Couto, J., Borges, O., Ruiz, D. D., Marczak, S., &

Prikladnicki, R. (2019). A Mapping Study about Data

Lakes : An Improved Definition and Possible

Architectures. 453‑458.

Dabbèchi, H., Haddar, N., Elghazel, H., & Haddar, K.

(2021). Social Media Data Integration : From Data

Lake to NoSQL Data Warehouse 701-710.

DB-Engines Ranking. (s. d.). DB-Engines. https://db-

engines.com/en/ranking/document+store

Kuszera, E. M., Peres, L. M., & Fabro, M. D. D. (2019).

Toward RDB to NoSQL : Transforming data with

metamorfoseframework. Proceedings of the 34th

ACM/SIGAPP Symposium on Applied Computing,

456‑463.

Liyanaarachchi, G., Kasun, L., Nimesha, M., Lahiru, K., &

Karunasena, A. (2016). MigDB - relational to NoSQL

mapper. 2016 IEEE International Conference on

Information and Automation for Sustainability

(ICIAfS), 1‑6.

Mahmood, A. A. (2018). Automated Algorithm for Data

Migration from Relational to NoSQL Databases.

Al-Nahrain Journal for Engineering Sciences, 21, 60‑65.

Maity, B., Acharya, A., Goto, T., & Sen, S. (2018).

A Framework to Convert NoSQ L to Relational Model.

ACIT 2018: Proceedings of the 6th ACM/ACIS

International Conference on Applied Computing and

Information Technology, 1‑6.

Mallek, H., Ghozzi, F., Teste, O., & Gargouri, F. (2018).

BigDimETL with NoSQL Database. Procedia

Computer Science, 126, 798‑807.

Yangui, R., Nabli, A., & Gargouri, F. (2017). ETL Based

Framework for NoSQL Warehousing. In M.

Themistocleous & V. Morabito (Éds.), Information

Systems (p. 40‑53). Springer International Publishing.

Data Ingestion from a Data Lake: The Case of Document-oriented NoSQL Databases

233
