Live Migration of Containers in the Edge

Rohit Das

and Subhajit Sidhanta

Radisys India Pvt. Ltd, Bengaluru, India

Dept. of Electrical Eng. and Computer Science, Indian Institute of Technology Bhilai, Raipur, India

Keywords:

Edge Cloud and Fog Computing, Cloud Computing Enabling Technology, Cloud Operations, Cloud Migra-

tion, Cluster Management.

Abstract:

Being comprised of resource-constrained edge devices, live migration is a necessary feature in edge clusters for

migrating the state of an entire machine in case of machine failures and network partitions without disrupting

the continued availability of services. While most of the prior work in this area has provided solutions for

live migration on clusters comprised of resource-rich servers or fog servers with high computing power, there

is a general lack of research on live migration on the low-end ARM devices comprised in edge clusters. To

that end, we propose a lightweight algorithm for performing live migration on resource-constrained edge

clusters. We provide an open-source implementation of the above algorithm for migrating Linux containers.

We demonstrate, using simulations as well as benchmark experiments, that our algorithm outperforms state-

of-the-art live migration algorithms on resource-constrained edge clusters with network partitions and device

failures.

1 INTRODUCTION

In the edge computing paradigm, part or whole of the

computations is performed closer to the source of the

data, i.e. in the edge devices itself, which result in a

drastic reduction of latency by effectively minimizing

the communication delay between the edge devices

and the public cloud while increasing the certainty

of the results meeting the Service Level Agreement

(SLA). Usually most enterprises today run on a hy-

brid cloud, where a model is trained in a public cloud

and passed to a cluster of edge devices that form a pri-

vate cloud, often referred to as fog. The fog performs

some inference tasks based on the above model and

the input from the IoT devices, and sends results back

to the IoT devices which act as actuators that respond

to results.

Mission-critical edge analytical applications have

stringent Service Level Agreement (SLA) guarantees

which enforce that the application processes a given

workloads in near real-time, and is always available.

Achieving the Service Level Agreement (SLA) guar-

antees imposed by the services hosted in a given edge

cluster becomes harder when we consider the fact

that the edge devices are intrinsically mobile in na-

ture, failure-prone, and work with intermittent net-

work connectivity. In that case, the above mecha-

nisms must be able to adapt to conditions like edge

devices leaving and joining the cluster or existing de-

vices changing their location. Some devices will be

overburdened with processes taking up a lot of re-

sources, like applications involving deep-learning or

neural networks, object-recognition from a live video

feed, so uniform distribution of workload among the

cluster of devices is essential. In case of failure of

a device due to network partition, device failure, or

overloading, the container running on the failed de-

vice must be migrated before-hand to a standby de-

vice, and the new device must be up and running with

as little downtime as possible. This mandates as ad-

equately smooth, robust, and lightweight live migra-

tion algorithm to manage device failures in edge clus-

ters with frequent overloading and reconﬁguration.

To that end, this paper makes the following contri-

butions:

• It presents LIMOCE - a novel lightweight algo-

rithm to perform a seamless live migration of a

container from one edge device to another one in

an edge cluster with minimal overhead.

• We present the design of an open-source middle-

ware that implements LIMOCE.

• Using simulations as well as benchmark experi-

ments, we demonstrate that LIMOCE can provide

seamless live migration in a resource-constrained

edge cluster as opposed to the state-of-the-art mi-

Das, R. and Sidhanta, S.

Live Migration of Containers in the Edge.

DOI: 10.5220/0011060800003200

In Proceedings of the 12th International Conference on Cloud Computing and Services Science (CLOSER 2022), pages 51-62

ISBN: 978-989-758-570-8; ISSN: 2184-5042

gration algorithms designed for typical cloud en-

vironments.

2 RELATED WORK

While live migration is deemed an appropriate solu-

tion for systems set up over LAN having bandwidths

in the range of 1-40 Gbps, there are some challenges

in networks with lower bandwidth. The work on VM

hand-off (Ha et al., 2017) focuses mainly on edge

clusters connected over a WAN of bandwidth 5 to

25 Mbps. While (Ha et al., 2017) leverages delta

migration, their approach does not involve resource-

constrained edge clusters.

Redundancy live migration (Govindaraj and Arte-

menko, 2018) is a signiﬁcant improvement over the

pre-copy, post-copy or the hybrid live migration al-

gorithm by leveraging check-pointing and buffering

mechanisms.

Though the algorithm proposed is network, appli-

cation, or platform agnostic, but it still needs a ﬁxed

and minimum bandwidth to send over the container

copy, and keep downtime to a speciﬁed minimum, as

agreed in the Service-Level Agreement (SLA). Also,

with ARM devices having low resources, implement-

ing this algorithm will not feasible.

Live Service Migration (Machen et al., 2018)

proposes migration algorithms for clusters com-

prised of mobile devices which resemble a resource-

constrained edge device closely, but there is mostly

no scaling involved. Also, the Pi cluster will be deal-

ing with faltering and unstable bandwidth, and may

or may not be mobile.

Dynamic Provisioning of resources (Urgaonkar

et al., 2005) for a resource-constrained cluster deals

with situations like ﬂash crowds when a sudden

amount of huge trafﬁc overwhelms the cluster by re-

arranging the topography of the cluster devices to ac-

commodate for the sudden surge.

VM Clusters have been set up to provide cloud

services and maintain Service-Level Agreements

(SLA) (Voorsluys et al., 2009). The test bed clus-

ter had been setup on resources, unlike single-board

Raspberry Pis (RPis). The resource-constrained clus-

ter may often run out of resources or crash, and

the network may be unreliable. Hence the need for

lightweight containers over VMs, which will be eas-

ier on the devices for migration.

(Hajji and Tso, 2016) talks about the performance

of a single-device and clustered Raspberry Pis, having

a master and worker device setup. They mostly fo-

cus on the performance of running Spark and HDFS

on the cluster natively as well in Docker containers.

However, they mostly depend on the robustness of

Spark, while our cluster is intended towards support-

ing most types of computation over runC

containers

for ease of robustness and migration. The Glasgow

Pi Cloud is one of the notable experiments on setting

up Cloud servers using single-board ‘toy’ computers

(Tso et al., 2013). The limitation in the experiment,

one that we intend to overcome here is the lack of re-

dundancy to mitigate failure, and lack of research on

container live migration in Raspberry Pis. Linux Con-

tainers (LXC) have yet to implement checkpoints of

network namespaces, which is easily possible using

runC.

3 SOLUTION DESIGN

3.1 System Model

Following the standard three-layered architecture of

edge computing, we consider a cluster of resource-

constrained computing devices comprising of an edge

cluster that runs analytical workloads on data col-

lected from a group of IoT devices with the option

to ofﬂoad computation to a public cloud. We assume

that the above analytical workloads are run on con-

tainers created using state-of-the-art containerization

technologies to leverage the associated beneﬁts such

as ﬂexibility, ease of deployment, and portability in

terms of dependencies. Regarding the composition of

the edge cluster, we consider a homogeneous

cluster

where the devices roughly possess a uniform speciﬁ-

cation. We also assume that an edge cluster is often

prone to intermittent network partitions and commu-

nication failures. The devices are also failure-prone

with chances of frequent crashes and switch off due to

overheating. The workloads that we consider are typ-

ically real-time in nature, i.e., require a low response

time. They do not usually tolerate large delays and

long downtime. The workloads are typically com-

pute and data intensive in nature, i.e., they process a

large volume of data and perform relatively intensive

computations. Lastly, we assume that there are some

devices in the cluster that have higher reliability and

have signiﬁcantly more computing resources than the

rest of the devices. Experiments have shown that hav-

ing a super-peer with at least 4 GB RAM prevent the

Along with CRIU, runC can be used to easily manage,

conﬁgure and migrate a container, along with its network

namespace from one host to another.

This is a standard assumption made in prior research in

the ﬁeld of distributed systems in general. But our solution

can theoretically be applied to heterogeneous cluster as well

(Urgaonkar et al., 2005).

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

device from crashing due to overload.

The above group of devices are designated as

super-peer devices, while the rest of the devices in the

cluster are referred to as worker devices. Hence an

edge cluster is comprised of a group of super-peers,

referred to as the master cluster, and a worker clus-

ter comprised of the rest of the devices in the edge

cluster. The super-peers maintain a list of live worker

devices and corresponding standby device. A smaller

number of edge devices are designated as standby

super-peers to act as redundant devices for the super-

peers. In case of failures of a live super-peer, it sends

a notiﬁcation to standby super-peers, which are acti-

vated to take the place of the failed live super-peers.

We assume that leader-election protocols are applied

to elect a new super-peer as soon as possible to reduce

delay and downtime. We assume that the live super-

peers send the state of the container to the standby

super-peers at a regular interval to minimize the delay

while migrating the said container.

3.2 Design Principles

To enable the resource-constrained edge cluster to

handle data and compute-intensive workloads despite

frequent failures, the LIMOCE algorithm supports

live migration of failed devices under the following

design principles. To enable uninterrupted processing

of edge computing workloads, LIMOCE is designed

to perform smooth migration of containers running

on the failed devices during system crashes and net-

work failures while maintaining downtime as low as

possible between detection of failure and subsequent

resumption of the service. We consider resource-

constrained devices where resources include network

bandwidth, and hence the algorithm must be able

to work with lower bandwidth for communication

amongst devices comprised in the cluster. LIMOCE

must be able to enable the cluster to scale up and down

seamlessly, responding appropriately to the dynamic

nature of the workload and network condition.

LIMOCE is comprised of two tasks - failure han-

dling and overload management. As already men-

tioned in Section 3.1, an entire edge cluster will be

segregated into two parts - the master cluster com-

prised of super-peers, and the worker cluster com-

prised on rest of the devices. LIMOCE leverages

the delta migration technique proposed in (Ha et al.,

2017). We improve delta migration by enabling de-

tection of failure of active nodes using the timestamps

of the incremental container state received. When the

active node is alive and running, the timestamps be-

tween consecutive container states received are used

to calculate the average time between receiving each

state. This is then used to detect timeout when con-

tainer data has not been received for a duration ex-

ceeding the average interval. Alongside incremental

state transfer, we demonstrate that the timeout helps

optimize network bandwidth usage, as constant mon-

itoring by the standby node also incurs higher down-

time. Instead of using custom tools to create spe-

cialised containers to migrate, we leverage CRIU

and runC to create highly optimised containers using

bare-metal Linux-based tools. This, in turn, makes

our solution inherently lightweight and and able to

deal with resource constrained situations. Further, by

incrementally sending only diff values from the state

from source to target instances, we are able to handle

bandwidth constrained network connections. In the

next section, we discuss how LIMOCE handles de-

vice failures by migrating a failed or crashed active

device to a standby device.

Table 1: List of Parameters used.

Parameters Description

hash_list Hash Table to store state info

like availability and associated

devices in devices to enable

data access in O(1) time.

standby_device_MAC MAC address of the associated

standby device.

last_state Last incremental container

state received from the active

device.

Mem

thresh

Memory usage threshold, set

by the user, usually as a per-

centage of total memory avail-

able.

Disk

thresh

Disk usage threshold, set by the

user, usually as a percentage of

total disk space available.

3.3 Failure Handling

In an edge computing environment, any edge device

may fail due to random crashes, overloading, or en-

vironmental factors such as network failures. With

LIMOCE, each worker device will have an associated

standby device to fall back on in case of device fail-

ure. Following from the delta compressed live mi-

gration approach (Svärd et al., 2011), we apply the

Checkpoint/Restore In Userspace (CRIU) is a Linux

software that can freeze a running container (or an indi-

vidual application) and checkpoint its state to disk (Open

Source, 2012).

Live Migration of Containers in the Edge

delta compression technique to compress the memory

pages and disk content to transfer during live migra-

tion. Hence, we refer to our approach as delta migra-

tion. Frequent delta migration of data encapsulated

by containers among devices at a regular interval will

prevent data loss and mitigate downtime. Delta mi-

gration not only reduces bandwidth usage but using

a suite of compression algorithms, helps reduce VM

hand-off time, which in turn, reduces the total down-

time as well. According to our algorithm, the mas-

ter cluster, containing the super-peer devices, as well

as the worker cluster, containing the worker devices,

will be having a replication factor of n + k, n being

the cluster size of each type, to maintain redundancy

for mitigating unpredictable failures. Further, each

worker device will be allocated a standby device from

a group of unused devices in the respective cluster.

Container information like current memory and disk

state shall be sent over after every interval of T sec-

onds after the application of delta migration.

Algorithm 1: Device Activation on Worker device.

1: function ACTIVATE_DEVICE(standby_device_MAC)

2:  Checks if active device is down

3: while time.now() < last_seen + T + t do

4: last_state ← curr_device_state

5: last_seen ← time.now()

6: sleep (T )

7: end while

8:  The Active device has failed

9: send msg(MAC,active_device) to curr_master

10:  Standby device takes over

11: restart container from last_state_recvd

12: send container data to the new standby device

13: end function

A super-peer from the master cluster will allocate

a standby device from the pool and the new device

will pick up from where the failed device left off. At

the initial step, the algorithm sends the entire con-

tainer information to the assigned standby device in

an asynchronous manner in the background. Follow-

ing the delta compression approach, the delta differ-

ence between the states of each active device and its

standby counterpart is sent from the former to the lat-

ter in consecutive intervals. That way, the volume of

information is minimized, allowing the edge cluster

to continue processing compute/data-intensive analyt-

ical workloads over an unreliable network with lim-

ited overall bandwidth. To avoid the constant over-

head involved in probing cluster endpoints in a proac-

tive approach of cluster management, we follow a re-

active approach in detecting outages due to network

partition or crash of cluster devices. Each designated

standby device listens for signals from its correspond-

ing active device to determine whether the latter is ac-

tive or not within an assigned timeout interval. When

a standby device does not receive any information

from its counterpart active device after T +t seconds,

t being the failure tolerance interval assigned by the

user, it signals the active master to take over from the

failed active device and marks itself as an active de-

vice.

In algorithm 1, which runs on the standby device,

lines 3-6 are responsible for checking if a respective

active device is down. A timeout is signaled based

on the assigned timeout interval and the timestamp

of the last state received from the active device. If

a timeout does not occur, it simply updates the last

seen timestamp, and the last state received. Once a

timeout occurs, lines 9-12 illustrate the actions taken

by the standby device in informing the current master

device of the failure, and subsequently restoring the

last state received from the active device. If the mas-

ter allocates a new standby device, the active device

sends delta differences of container state to this new

standby device.

Algorithm 2: Device Activation on Master device.

1: function ACTIVATE_DEVICE(standby_device_MAC)

2:  Marks respective active device as down

3: active_device ← hash_list [standby_device_MAC]

4: hash_list [active_device].alive = FALSE

5: for devices in hash_list do

6: if hash_list [device].state == "FREE" AND

7: hash_list [device].alive != FALSE then

8: hash_list[standby_device_MAC].state =

"ACTIVE"

9: standby_device_MAC.activate_device (de-

vice)

10: exit

11: end if

12: end for

13: end function

Algorithm 2 deals with how the current master

device will handle the failure of an active device.

When it receives information of device failure from

a standby device, in lines 3-4, it marks the currently

active device as dead. It then proceeds to ﬁnd a new

free device from the pool of devices available, marks

the reporting standby device as active, and assigns a

free device as the new standby of the newly activated

device (lines 5-9).

For a master device, two devices will be on

standby and will receive delta differences from the

active master. When the active master device fails,

a bully leader election (Garcia-Molina, 1982) will de-

cide the new master device, which will then broadcast

its own MAC address to the worker cluster. A list

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

of available devices with their hostname and MAC

address will be maintained at every device. It will

also contain important information on the devices like

their status (dead or alive), if they are an active or

standby device, their corresponding standby or ac-

tive device, etc. When a worker device fails, only

the active master can change the status of that worker

in its record to mark that the device as inactive. It

can choose a new master through leader election and

broadcast the newly elected master device after every

interval. When a master device fails, the new mas-

ter device will broadcast itself as the new master and

make the changes in its record, thus reducing band-

width usage.

Algorithm 3: Additional device Allocation.

1: function ALLOCATE_DEVICE(active_device_MAC,stats)

2:  Checks if stats are above threshold

3: if stats.memory > Mem

thresh.

OR stats.disk_usage

> Disk

thresh.

then

4: active_device = NULL

5: standby_device = NULL

6: for devices in hash_list do

7: if hash_list [device].state == "FREE" AND

8: hash_list [device].state.alive == TRUE then

9: if active_device == NULL then

10: active_device = device

11: end if

12: if standby_device == NULL AND de-

vice != active_device then

13: standby_device = device

14: else

15: print("No free device left!")

16: end if

17: end if

18: end for

19: end if

20: end function

3.4 Overload Management

LIMOCE also supports proactive monitoring of the

edge devices in the cluster to prevent sudden failure

due to overloading. Any under-utilized devices from

the cluster can be removed to optimize resource us-

age. Using YourKit, memory and disk usage can be

monitored on each device. When resource usage is

above a certain threshold, the active device can re-

quest the active master to add more devices to the

cluster to distribute the jobs and prevent overloading.

If two free devices are found in the pool, the master

assigns one as the active device, and the other as a

standby device, and adds them both to the cluster. If

only one free device is found, the device will be as-

signed as an active device and added to the cluster.

An existing standby device may be reassigned to this

active device. If no free device is found, one of the

standby devices will be assigned as an active device,

and a standby device will be reassigned from the clus-

ter.

In algorithm 3, line 3 checks if the resource usage

is surpassing either the memory or disk usage thresh-

old, or both. If so, lines 6-8 look for free devices

through the pool, and then in lines 7-13, an active de-

vice is added ﬁrst, since that will be responsible for

performing the actual computation. In the next itera-

tion, if another device is found, it is assigned as the

standby device, else the user is informed that there is

no free device left. Similarly, when resource usage

falls below the lower threshold, devices can be unas-

signed to scale down the cluster. Important informa-

tion on the eliminated device will be broadcast to all

workers before taking it out.

4 CORRECTNESS PROOF

Following the formal semantics used in (Mulyadi and

Akkarajitsakul, 2019), we denote our proposed live-

migration algorithm LIMOCE as an undirected, con-

nected graph. The vertices in the graph denote edge

devices and the graph edges represent communication

between devices. We denote the CPU utilization in

each edge device by a variable x:u associated with the

vertex u in the graph corresponding to the edge de-

vice. There is always at least one edge in the graph be-

tween the pair of vertices representing one active de-

vice and its standby counterpart. One edge represents

the communication with the active devices to check

whether they are active or going to fail. The other

edge is created when the delta differences are sent

from the active device to the corresponding standby

device in case of failure of the active device. The

overload management algorithm is executed in every

step at each device in the graph. During the migration

of an edge device, it starts execution in the state im-

mediately before it and yields a different state upon

execution. Optimality of the algorithm implies that if

the sequence of steps is ﬁnite then the ﬁnal step of the

computation yields a ﬁxpoint state, i.e., a state that

remains unchanged upon execution of any (arbitrarily

chosen) migration step.

Our goal is to suggest correctness criteria for for-

mally verifying our proposed live migration algo-

rithm. These correctness criteria guarantee desir-

able algorithm behavior even if very lax assumptions

are made about the behavior of the environment, the

topology of the network, and the states of the edge

devices. In particular, they allow the environment to

Live Migration of Containers in the Edge

produce or consume loads at any time in an arbitrary

manner. Moreover, these correctness criteria are not

unduly restrictive, which we demonstrate that our al-

gorithm meets these criteria.

A live migration algorithm is ‘correct’ if the ﬂow

of the algorithm satisﬁes the following conditions.

State Lag: At each instant, the lag between the states

of each pair of the active devices and its correspond-

ing standby device is bounded by a ﬁxed state lag ∆,

which is a function of the value of the application

variables plus the metadata. Load: At each instant,

the CPU utilization in each device in the cluster is

bounded by a pre-deﬁned threshold. Convergence: At

the end of each migration step, all devices in the clus-

ter are in ‘sync’, i.e., all variables and metadata are in

a matching state.

Starting from any state, algorithm execution is

guaranteed to terminate in a ﬁnite number of steps in a

state where the states of an active device and its desig-

nated standby are identical. The assignment statement

last_state ← curr_device_state (1)

iteratively assigns the state of the active device to

a counterpart standby device. Each time the above

states are synchronized a timestamp are updated as

last_seen ← time.now() (2)

Hence eventually, the while condition

time.now() < last_seen + T +t (3)

evaluates to true resulting in the algorithm to exit the

while loop. The core efﬁcacy of live migration in-

volves successfully sending the latest state of one ac-

tive device to its standby counterpart. Hence we look

at the termination condition for executing the while

loop in lines 3-7 in Algorithm 1. Since eventually the

condition

time.now() < last

seen

+ T + td (4)

evaluates to false, subsequent Lines 9-12 are exe-

cuted, which results the state of the standby device

to match that of the corresponding active device af-

ter execution of the algorithm. Hence, conditions on

State Lag, Load, and Converge hold simultaneously,

and hence correctness of the algorithm is proved.

5 IMPLEMENTATION

To deal with the possibility of device outage and low-

bandwidth and/or faulty network prevalent in edge

clusters, the network model has been set up to min-

imize and optimize communication as much as pos-

sible. Since the robustness of the cluster largely de-

pends on successful checkpoint transfer and restora-

tion on the target device, our middle-ware implements

an automated check-pointing mechanism to support

seamless migration of edge devices.

5.1 Architecture

By design, our algorithm addresses live migration of

containers in clusters comprised of low-power single-

board computers, e.g. Raspberry Pis. For this pa-

per, we have considered a cluster of Raspberry Pi 4,

which consists of a quad-core processor, 2 - 8 GB

RAM, with support for both 2.4 and 5 GHz wireless

with at least 15 W of power for feasible operations

(Raspberry Pi Foundation, 2019). Each device will be

running a variant of Linux, i.e. Ubuntu or Raspbian.

From our initial proof of concept experiments with a

cluster of Pis, we observed that 4 GB RAM is the min-

imum requirement in each Pi to allow for sufﬁcient

memory to run analytical workloads. Each device can

be powered either with a compatible charger as per the

speciﬁcations of the Pis or over Power-over-Ethernet

(PoE). In the cluster, during initial setup, one device is

designated as the super-peer, which is responsible for

setting up active and standby devices from the device

pool available. The number of active devices and their

corresponding standby devices can be accepted from

users as command-line arguments to the super-peer.

For the purpose of security, key pairs are generated

on each device, and public keys are shared across the

entire cluster by the super-peer for maintaining inter-

device communication during cluster reconﬁguration.

5.2 Network Model

For the purpose of this paper, we are assuming that the

network would be failure-prone and the bandwidth is

limited, i.e., typically varying between 5 - 50 Mbps.

We also assume that the devices will mostly be con-

nected over a wireless connection for easier and faster

setup, better mobility, serviceability, and scalability.

The super-peer will initially broadcast an initial-

ization command to designate the rest of the de-

vices as active or standby, i.e., assign some devices

as standby to each active device. Consecutively,

the standby devices will receive delta differences as

heartbeat messages sent from active devices, and keep

track of whether the respective device is alive or inac-

tive, and will inform the super-peer in case of any fail-

ure based on a timeout. One active device can be con-

nected to multiple standby devices to maintain redun-

dancy to deal with failures, and each standby device

may receive heartbeat messages from multiple active

devices to migrate the containers being used. The

timeout for the migration is calculated from the times-

tamps of the last heartbeat received from active de-

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

vices to conserve bandwidth and prevent unnecessary

trafﬁc. When an active device goes down, the super-

peer parses the heartbeat from all the standby devices

attached to it and picks the ﬁrst reporting standby as

the new active device.

5.3 Migration Model

Containers and virtual machines (VMs) are widely

used these days to encapsulate a computational unit

for ﬂexibility, ease of deployment, and smooth main-

tenance. Containers hold the edge over VMs being

the smaller unit that packages an application along

with its dependencies. Following the above trend,

LIMOCE performs migration of an application pack-

aged in a container, as opposed to VMs, which are

resource-intensive and result in more downtime while

migration, as depicted by the result of a comparison

on the basis of the usage of bandwidth and RAM dur-

ing migration in (Machen et al., 2018).

It cannot be used directly by the user but exposes

an API that is currently utilized by standard container

management tools to facilitate checkpoint and restore.

For CRIU to work properly, some features of the

Linux kernel must be set, and the kernel needs to be

recompiled. The list of key features of CRIU can be

found on the CRIU website.

The initial choice for containers was Linux Con-

tainers (LXC) (Canonical Ltd., 2008). LXC is a

CLI (command-line interface) tool that is widely used

given the ease of managing and handling containers

with it. The containers are a true encapsulation of a

Linux-based system, and they support checkpointing

and migration of a running container. However, since

the containers are running on devices in an edge clus-

ter, the lack of check-pointing facilities for network

namespaces makes it unsuited for our purpose.

Another popular CLI tool for managing containers

is runC. runC provides a more granular level of con-

trol over the container, such as conﬁguring the startup

scripts and processes, setting up network namespaces,

and much more. However, runC also has a steeper

learning curve compared to LXC. It is not exactly an

encapsulation of an entire Linux-based system, but

more application-speciﬁc. If the underlying comput-

ing process needs to be changed, so does the conﬁgu-

ration and initial setup.

The advantage runC has over LXC, is that it sup-

ports checkpointing for network namespaces, and as

a result, containers can be seamlessly migrated be-

tween devices. It generates a checkpoint folder, which

the user can send to the destination device using ﬁle-

transfer tools like rsync, which has support for incre-

mental data transfer. The container can then be re-

stored in the target device, and processes resume. For

ease of setup, runC containers can be conﬁgured us-

ing docker images of applications, either pre-existing

or user-deﬁned, by simply exporting them. A net-

work namespace is needed to be created for each runC

container to be able to connect to the network using

the host network namespace. When a container will

be migrated, the network namespace will also be mi-

grated to restore connection and computations on the

destination device. That way, even if the address of

the active host changes, the super-peer can keep track

of it and the container network remains preserved.

6 EVALUATION USING

SIMULATION

First, we evaluate our migration algorithm using sim-

ulation, where we construct different edge computing

scenarios comprising standard edge topology using

and the algorithm is implemented using a simulation

tool.

6.1 Experimental Setup

The above algorithms were implemented using the

widely used Mininet simulation framework. The

Mininet scripts were run on Mininet VMs on an edge

cluster topology constructed using the Python-based

API exposed by the popular open-source software-

deﬁned networks - OpenFlow SDN.

Network Topography: We set up a simple single-

switch network of 10 hosts, with one controller and

one switch using OpenFlow. We assigned one host as

the master device, 5 as active devices, 3 as standby

devices monitoring the active devices, and 1 as a free

device. Overall, for each active device in the cluster,

we assign two standby devices that maintain replicas

of states of the active device.

Device Management: A server script (Mininet

script) ran on all the standby devices on IP 0.0.0.0.

This is the server where the active devices would send

the current state of the computation. On the active

device, another script incremented a number (can be

passed as an argument by the user) and wrote it to a

ﬁle to simulate a simple computation. Another script

is used to send the ﬁle to the standby device using

rsync (which needs keys to be exchanged to work) for

simulating the transfer of delta differences between

states, and also send the hostname and a text to the

server running on the standby. Rsync has an option

that can be used to send incremental delta differences,

suited to our purpose.

Live Migration of Containers in the Edge

On the standby device, we use a script to check for

entries sent by an allotted active device to the server,

and notify when the active device has not responded

within a certain time period (determined by the user)

and caused a timeout. This was extended further to

inform the master device about the dead active de-

vice. The idea was to keep a list of active devices in

a ﬁle on the standby device, and vice versa on the ac-

tive device. The entries would include the hostname

and private IP of the devices since they are all in the

same network. Similarly, on the master device, active,

standby, and another list of devices would be man-

aged in ﬁles.

Each active device will perform its computation

(simple incremental addition) and report its status

with the current timestamp. Its corresponding standby

devices will monitor its status, and when the active

device has not reported its status in a long time, a fail-

ure is reported to the master device. The master de-

vice then stops all threads corresponding to the failed

active device, assigns the ﬁrst standby device that re-

ported the failure as the newly active device, stops

monitoring threads run by it previously, and reassigns

standby devices to all the active devices out of the ex-

isting ones.

Python API Implementation: We use Python-based

API exposed by Mininet to implement different varia-

tions in the control ﬂow in an edge cluster to simulate

different scenarios for live migration. Since Mininet

does not create hosts as a separate process, with its re-

source constraints, a custom Python code is developed

to allot a thread to each host for simulating various

actions, such as performing a computation, announc-

ing its live status, reporting failure, etc. There is a

master thread that monitors the whole cluster, active

threads for active devices, standby threads for standby

devices, and a printer thread to print out the current

status of each device. A global Python dict is main-

tained, containing the status, action, associated de-

vices for each device in the cluster, and queues having

alive, dead, free devices in them for easier allocation

and access.

We also implemented various functions of the

master device in the simulation code. The master de-

vice can detect failure from its requests, select the

failed active device, mark it as dead, select the ﬁrst

standby device that reported the failure, remove it as

standby and mark it as the new active device. The

master thread was not able to wait for the active

threads to stop since it was not the parent thread. The

changes in host data is printed on a separate terminal

for better debugging.

We used threads instead of processes, since pro-

cesses don’t share data among themselves, but make

their own separate copy and work on it. Each thread

now had its ﬂag, which indicated if a thread was run-

ning, and could be used to stop the thread as well.

The master thread was able to handle multiple device

failures now. A separate thread to consistently print

the status of all hosts had been created, which wrote

the status to a ﬁle, and a bash script showed the latest

updated lines.

6.2 Evaluation Methodology

The active devices, along with their hostname, IP, and

current state, also reported the current timestamp to

their respective standby devices. Any form of com-

munication between any of the devices had a times-

tamp attached to it, which is logged locally in the

devices. These timestamps have been used to calcu-

late the time between each communication from the

active device to the corresponding standby device(s),

which is used to calculate the timeout on the standby

device(s) as well. The difference between the times-

tamp when a failure of an active device is reported,

and when a standby resumes the computation from

the last state received has been used to calculate the

downtime during a random device failure. Since the

timestamps are recorded at the granularity of each

communication, the duration of operations like how

long it takes for the master device to ﬁnd a free device

and allot it as the new standby, or how long it takes for

the standby device to resume operation could also be

obtained and observed for further improvement and

optimization.

6.3 Simulation Results

We have implemented two variants of the device al-

location algorithm (refer to Algorithm 3), and have

done a comparative evaluation of them. One variant

exactly matches Algorithm 3, while the other one was

assigned a dedicated standby device to each active de-

vice. In the latter variant, each standby device regu-

larly checks with its corresponding active device to

determine if it is alive. However, this approach has

the following pitfall. The standby devices transmit

broadcast messages to probe the active devices, which

results in overhead exceeding 7 seconds in case of

loss of response. The above overhead comprises the

timeout interval for the broadcast and the delay in de-

tection of outage of an active device from a respec-

tive standby device. On the other hand, the overhead

with the former approach is the interval between the

exchange of broadcast messages from active devices

notifying consecutive changes in the status.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

(a)

(b)

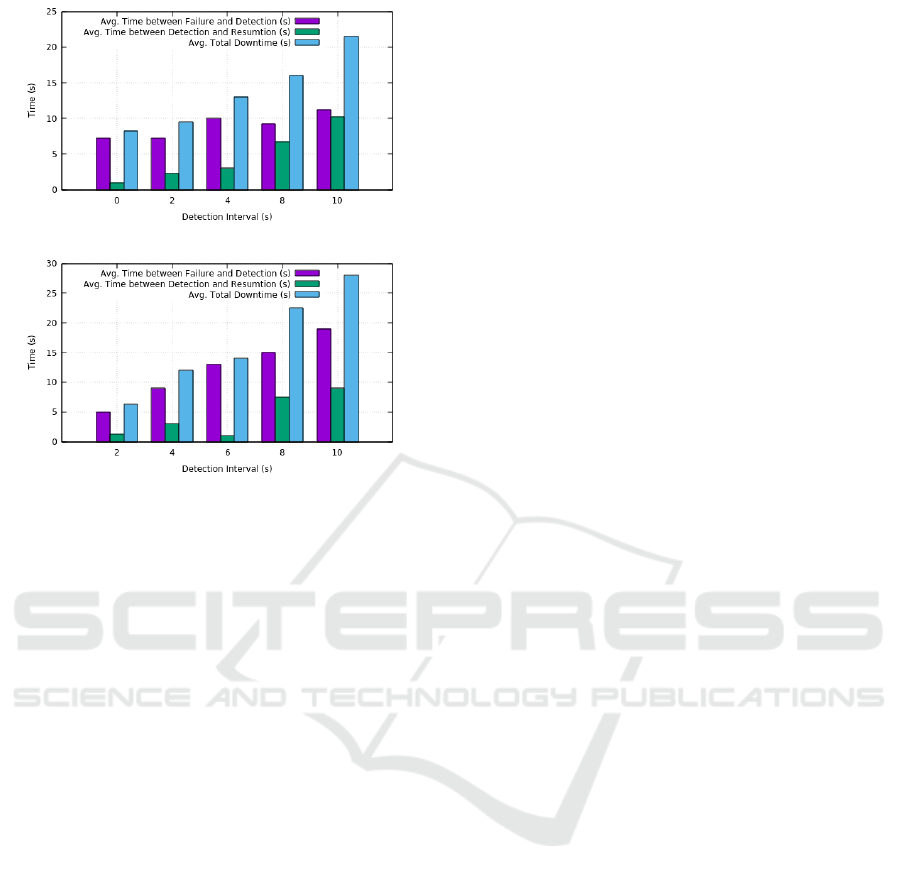

Figure 1: Detection interval against avg. time between fail-

ure, detection ,and resumption, and total downtime for (a)

standby devices ping active devices, and (b) active devices

announce their live status.

(Ha et al., 2017) illustrates the reduction in VM

Handoff time, and consequently, the resultant de-

crease in downtime, using Delta Migration (Ha et al.,

2017). The graphs in Figure 1 demonstrate how

downtime changes with respect to change in intervals

between consecutive live device detection runs. From

close inspection of the ﬁgure, we conclude that the

second approach performs better.

7 EVALUATION USING

BENCH- MARKING

EXPERIMENTS

In the benchmarking experiments, we follow the eval-

uation strategy of prior researchers (Ha et al., 2017)

to run synthetic benchmark workloads on a cluster

of edge devices emulated by resource-constrained vir-

tual machines from the public cloud.

7.1 Experimental Setup

To benchmark our proposed migration algorithm in a

real-world edge computing scenario, synthetic bench-

mark workloads generated by YCSB (Yahoo Cloud

Serving Benchmark) (Cooper et al., 2010) are exe-

cuted on a cluster of nodes comprised of resource-

constrained edge devices has been emulated using vir-

tual machines provided by Amazon Web Services.

Each of the host devices are comprised of EC2 (Elas-

tic Compute Cloud) instances of type A1.large in-

stances comprised of 4 GB of RAM and AWS Gravi-

ton processors comprising two 64 bit Arm Neoverse

cores running Ubuntu 18.04 as the host OS. All the

instances are located in the North Virginia (us-east-

1) location. For enabling seamless operation of the

Checkpoint/Restore-In-Userspace (CRIU) tool used

in our implementation, we have loaded the instances

with the Linux kernel version 5.10, with relevant con-

ﬁguration options turned on to enable checkpoint-

based dumping of process states and network names-

paces.

The CLI (Command Line Interface) tool runC has

been installed on all the EC2 instances for spawning

and running our containers. To emulate real-life edge

workloads, YCSB will be run on the instances for

generating synthetic workload patterns, with a Mon-

goDB server hosted on one of the instances for pro-

cessing the above workload. The YCSB client accepts

arguments from the console and generates a series of

synthetic workloads, comprised of a combination of

read/write/update statements, which are executed on

the MongoDB backend.

One of the challenges with using the tools runC

and CRIU for migration is making sure that the un-

derlying Linux-based kernel of the host is conﬁgured

and pre-compiled to support check-pointing. Though

container managers like LXC and Docker are openly

available, LXC does not support network check-

points, and Docker is not suitable for our purpose due

to the experimental state of its check-pointing fea-

tures. However, the latter can be used to set up the ﬁle

system for our desired container with all libraries pre-

installed. Since runC is a bare-metal container run-

time, most of the libraries and networking support do

not come pre-installed, but it also allows a lot of ﬁne-

grained control over various aspects of the container.

Additionally, to enable communication with ex-

ternal networks, we add routing rules to allow the in-

stances to connect to the default interface eth0 (in this

case) or any other interface conﬁgured. Both incom-

ing and outgoing packets need to be forwarded to and

from the newly created network namespace to the ex-

ternal network via eth0. Since the YCSB client pro-

cesses only outgoing connections to the underlying

MongoDB server, we do not need to add a rule for

allowing connections to the MongoDB port. Lastly.

we add the path to this new namespace in the con-

ﬁg.json ﬁle of the corresponding runC container to

enable communication.

Live Migration of Containers in the Edge

7.1.1 Running the YCSB Benchmark

The YCSB client is executed on a runC container

loaded on a separate active node. The network names-

pace is conﬁgured as described earlier. The client ex-

ecutes workloads A through F according to the alpha-

betical order of the name of the workload type.

Each active node will be associated with a standby

node, which will monitor the status of the active node.

An active node will send a packet every 4s to indicate

its status to the corresponding standby node since we

have observed from empirical results collected from

our experiments that this time interval (i.e., 4s) can

result in saturating the network as well as keeping the

downtime low. Check-pointing is done between each

operation of load and run, as well as between exe-

cution of different workloads. Incremental data from

different checkpoints collected on an active node will

be transferred to the corresponding standby node as

well. When an active node goes down, its standby

will detect the outage through an observed timeout,

and restore the container from the latest checkpoint

received, and inform the master node as well. For this

paper, we assume only soft crashes in case of fail-

ures such that some failure resolution tasks can be

performed before the active node completely dies and

the container is migrated to a standby node. In case

of a hard crash, the standby node will have to restart

from an older checkpoint, and the requests may not

be processed in real-time. Also, rsync may be used to

be transfer ﬁles in an asynchronous manner, and live

status may be sent to the standby node as a separate

service.

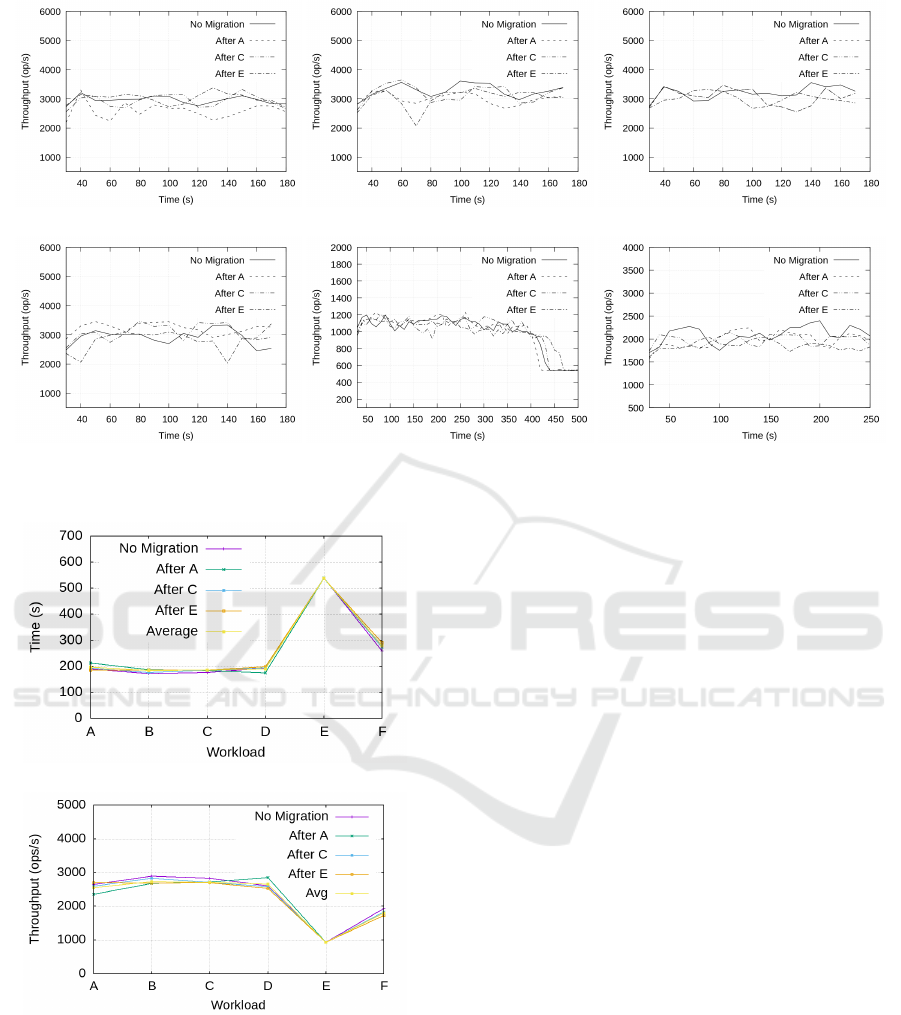

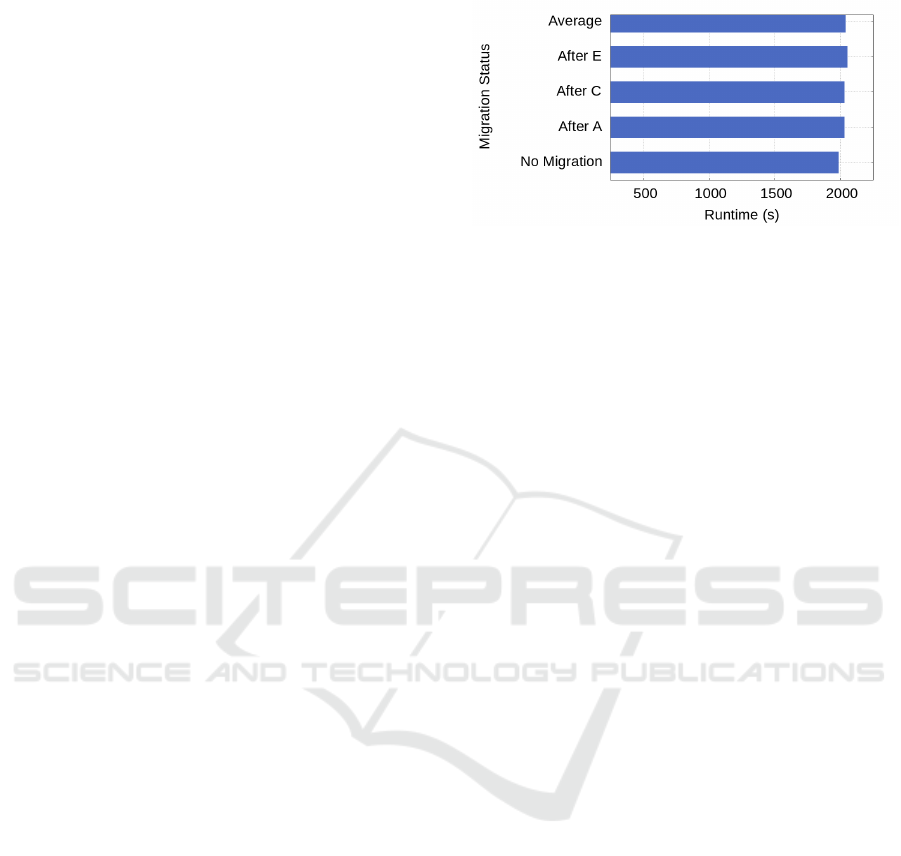

7.2 Analysis of Benchmarking Results

The benchmarking experiments on the AWS instances

were done following the second approach outlined in

Section 6.3, where the active nodes send their data to

the standby nodes, and the latter node is assigned the

responsibility to indicate whether the former is alive.

The tool rsync was used to transfer ﬁles over the net-

work as its design closely follows that of the delta

transfer technique which we follow. While the initial

stage of the transfer takes a considerably large time,

transfer times of subsequent ﬁles are not arbitrarily

high. However, to enable rsync ﬁle transfer key ex-

change among all the devices is performed since the

algorithm does not assign a ﬁxed device as a master

or standby, or active. The downtime observed with

varying time intervals of data transfer of 2s, 4s, etc.,

were similar to the results obtained with Mininet sim-

ulation illustrated in Figures 1a and 1b, albeit taking

a bit more time due to a real-life network and devices

in the cluster.

Figure 2: Runtime (in seconds) for the entire workload in

various migration scenarios.

Figure 2 illustrates the overall runtime observed

with the given YCSB workload sequence for both

with and without migration. The bar labeled "No Mi-

gration" corresponds to the observation without our

proposed algorithm which acts as a control against

which we compare the results with migration imple-

mented. As is evident from the graph, with migration,

the observed runtimes after workloads A, C, and E are

almost comparable with the runtimes observed with-

out migration. Workload E experiences the maximum

runtime due to the nature of workload E since it is

more resource-intensive than the others.

Figures 4a and 4b depict the variations in observed

runtime and throughput for each workload type with

and without migration. For Figure 4a, as explained

before, workload E uses the maximum resources, and

hence the runtime exceeds that observed with the

other workload types in all cases. In Figure 3, the

time-series variation of throughput for each type of

workload is depicted. As can be seen from the results

presented, all the migration scenario data closely fol-

low the observations without migration given by the

solid line. In all the results illustrated here, we can

notice a signiﬁcant drop in throughput or a sharp in-

crease in runtime whenever migration is being per-

formed. Each migration is performed between a load

and run operation for each workload, keeping in con-

sideration how YCSB workloads connect to the Mon-

goDB server and run the workload. However, the drop

in performance is marginal compared to the over-

all picture presented here. We can safely say that

even with migration, the performance and overall run-

times of the workloads, as well as the sequence of

workloads, remain the same as in a no-migration sce-

nario. This also shows the feasibility of resource-

constrained edge clusters in that, even with nodes

prone to failure, highly intensive computations can be

performed with relative ease and reliability.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

(a) (b) (c)

(d) (e) (f)

Figure 3: Throughput variation against time for each type of workload.

(a)

(b)

Figure 4: Comparison for (a) runtime (in seconds), and (b)

throughput (ops/sec) for various YCSB workloads in vari-

ous scenarios.

8 CONCLUSION

We have presented a novel algorithm for live mi-

gration in network failure-prone clusters compris-

ing resource-constrained edge devices and an open-

source implementation of the same.

ACKNOWLEDGEMENTS

This research has received funding under the NetApp

Faculty Fellowship scheme from NetApp Inc.

REFERENCES

Canonical Ltd. (2008). Linux Containers. https://

linuxcontainers.org.

Cooper, B. F., Silberstein, A., Tam, E., Ramakrishnan, R.,

and Sears, R. (2010). Benchmarking cloud serving

systems with ycsb. In Proceedings of the 1st ACM

symposium on Cloud computing, pages 143–154.

Garcia-Molina, H. (1982). Elections in a distributed com-

puting system. IEEE Computer Architecture Letters,

31(01):48–59.

Govindaraj, K. and Artemenko, A. (2018). Container Live

Migration for Latency Critical Industrial Applications

on Edge Computing. In 2018 IEEE 23rd International

Conference on Emerging Technologies and Factory

Automation (ETFA), volume 1, pages 83–90.

Ha, K., Abe, Y., Eiszler, T., Chen, Z., Hu, W., Amos, B.,

Upadhyaya, R., Pillai, P., and Satyanarayanan, M.

(2017). You Can Teach Elephants to Dance: Agile

VM Handoff for Edge Computing. In Proceedings

of the Second ACM/IEEE Symposium on Edge Com-

puting, SEC ’17, New York, NY, USA. Association

Live Migration of Containers in the Edge

for Computing Machinery. https://doi.org/10.1145/

3132211.3134453.

Hajji, W. and Tso, P. (2016). Understanding the perfor-

mance of low power raspberry pi cloud for big data.

Electronics, 5:29.

Machen, A., Wang, S., Leung, K. K., Ko, B. J., and Saloni-

dis, T. (2018). Live Service Migration in Mobile Edge

Clouds. IEEE Wireless Communications, 25(1):140–

147.

Mulyadi, F. and Akkarajitsakul, K. (2019). Non-

Cooperative and Cooperative Game Approaches

for Load Balancing in Distributed Systems, page

252–257. Association for Computing Machinery,

New York, NY, USA.

Open Source (2012). Checkpoint Restore in Userspace.

https://www.criu.org/Main_Page.

Raspberry Pi Foundation (2019). Raspberry Pi 4

Tech Specs. https://www.raspberrypi.org/products/

raspberry-pi-4-model-b/speciﬁcations/.

Svärd, P., Hudzia, B., Tordsson, J., and Elmroth, E. (2011).

Evaluation of delta compression techniques for efﬁ-

cient live migration of large virtual machines. In Pro-

ceedings of the 7th ACM SIGPLAN/SIGOPS interna-

tional conference on Virtual execution environments,

pages 111–120.

Tso, F. P., White, D. R., Jouet, S., Singer, J., and Pezaros,

D. P. (2013). The glasgow raspberry pi cloud: A scale

model for cloud computing infrastructures. In 2013

IEEE 33rd International Conference on Distributed

Computing Systems Workshops, pages 108–112.

Urgaonkar, B., Shenoy, P., Chandra, A., and Goyal, P.

(2005). Dynamic Provisioning of Multi-tier Internet

Applications. In Second International Conference on

Autonomic Computing (ICAC’05), pages 217–228.

Voorsluys, W., Broberg, J., Venugopal, S., and Buyya, R.

(2009). Cost of virtual machine live migration in

clouds: A performance evaluation. In Jaatun, M. G.,

Zhao, G., and Rong, C., editors, Cloud Computing,

pages 254–265, Berlin, Heidelberg. Springer Berlin

Heidelberg.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science
