Learning Embeddings from Free-text Triage Notes using Pretrained

Transformer Models

Émilien Arnaud

, Mahmoud Elbattah

2,3

Maxime Gignon

and Gilles Dequen

Emergency Department, Amiens-Picardy University, Amiens, France

Laboratoire MIS, Université de Picardie Jules Verne, Amiens, France

Faculty of Environment and Technology, University of the West of England, Bristol, U.K.

Keywords: Natural Language Processing, BERT, Transformers, Clustering, Healthcare Analytics.

Abstract: The advent of transformer models has allowed for tremendous progress in the Natural Language Processing

(NLP) domain. Pretrained transformers could successfully deliver the state-of-the-art performance in a myriad

of NLP tasks. This study presents an application of transformers to learn contextual embeddings from free-

text triage notes, widely recorded at the emergency department. A large-scale retrospective cohort of triage

notes of more than 260K records was provided by the University Hospital of Amiens-Picardy in France. We

utilize a set of Bidirectional Encoder Representations from Transformers (BERT) for the French language.

The quality of embeddings is empirically examined based on a set of clustering models. In this regard, we

provide a comparative analysis of popular models including CamemBERT, FlauBERT, and mBART. The study

could be generally regarded as an addition to the ongoing contributions of applying the BERT approach in

the healthcare context.

1 INTRODUCTION

Artificial Intelligence (AI) is being intensively used

for a multitude of tasks in the healthcare arena.

Healthcare is typically delivered in data-rich settings

where abundant amounts of data are generated

continuously. In this respect, Machine Learning (ML)

solutions could provide high benefits to help develop

strategies for improving the quality of services or

curbing costs, for example.

Natural Language Processing (NLP) has received

particular attention since clinical data are largely

accumulated into unstructured notes made by

physicians or nurses along the patient journey. Novel

approaches of NLP have made a translational impact

for a variety of healthcare applications (e.g. Ambrosy

et al. 2021; Viani et al. 2021; Arnaud et al. 2021).

Several studies discussed the role of NLP in this

regard (e.g., Elbattah et al. 2021; Hao et al 2021).

With advances in Deep Learning, large-scale

language models have been developed to achieve the

state-of-the-art performance. Deep architectures of

Convolutional Neural Networks (CNNs) have

allowed for learning feature representations from raw

data automatically (LeCun et al. 1989; LeCun,

Bottou, Bengio, and Haffner, 1998).

Moreover, Transfer Learning (TL) is being

increasingly adopted for a variety of healthcare and

medical applications. The TL concept has deemed as

an attractive path in situations where data paucity and

imbalance inherently exist. Pretrained models allow

for transferring knowledge from one or more source

tasks towards the application to another target task

(Pan, and Yang, 2009). In this regard, recent studies

utilized the Bidirectional Encoder Representations

from Transformers (BERT), a state-of-the-art NLP

model (Devlin et al. 2019). The BERT approach

brings the advantage of allowing pre-trained models

to tackle a broad set of NLP tasks.

The present study seeks to employ transformer

models to extract contextual embeddings from free-

text triage notes. The study is based on a large-scale

dataset collected by the Amiens-Picardy University

Hospital in France. The dataset contained about 260K

ED records collected over more than four years.

The study aims to contribute towards providing a

comparative analysis of popular BERT models as a

mechanism for learning embeddings from clinical

notes. We present an exemplary case of triage notes

in the French language, whereas the literature still

generally lacks similar studies using languages other

than English.

Arnaud, É., Elbattah, M., Gignon, M. and Dequen, G.

Learning Embeddings from Free-text Triage Notes using Pretrained Transformer Models.

DOI: 10.5220/0011012800003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 5: HEALTHINF, pages 835-841

ISBN: 978-989-758-552-4; ISSN: 2184-4305

 2022 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

835

2 RELATED WORK

A growing body of studies seeks to implement

transformer models for a variety of healthcare-related

NLP tasks. This section aims to explore the recent

developments in this regard. In general, the review

sheds insights into the potential applications of

transformers in the healthcare domain. Thus, the

review is largely selective rather than exhaustive.

One study developed a BERT-based framework for

transforming free-text descriptions into a standardized

form based on the Health Level 7 (HL7) standards

(Peterson, Jiang, and Liu, 2020). They utilized a

combination of domain-specific knowledgebases

along with BERT models. It was demonstrated that the

BERT-based representation of language contributed

significantly to improving the model performance.

(Rasmy et al., 2021) introduced the Med-BERT

model, which adapted the BERT approach to the EHR

data. Med-BERT provided contextualized embeddings

pretrained on an EHR dataset including more than 28M

patients. Their experiments demonstrated that fine-

tuning Med-BERT could improve the prediction

accuracy in two disease prediction tasks from two

clinical databases. They reported improvement in the

area under the receiver operating characteristics (ROC)

curve by 1.21–6.14%. As well, (Cai et al., 2021)

proposed another BERT-based model, named as

EMBERT, for text mining of Chinese medical data.

Other studies implemented transformer-based

approaches to perform the tasks of entity recognition

and relation extraction from medical text. For

instance, (Xue et al., 2019) integrated the BERT

language model to extract relations from medical text

in Chinese. They used a dataset related to coronary

angiography collected from the Shuguang Hospital in

Shanghai. Their results were claimed to outperform

the state-of-the-art methods for entity recognition and

relation classification by 1.65% and 1.22%,

respectively. Likewise, (Kim and Lee, 2020) utilized

a BERT model to extract clinical entities from an QA

dataset for medical diagnosis in the Korean language.

In addition, BERT models were used to extract

embeddings from clinical documents for developing

predictive models. For example, (Tahayori, Chini-

Foroush, and Akhlaghi, 2021) used a retrospective

cohort of ED triage notes from St Vincent's Hospital

in Melbourne. The BERT embeddings were utilized

to develop a Deep Learning model to predict the

disposition of patients. By the same token, (Chang,

Hong, and Taylor, 2020) used a BERT model to

extract embeddings from ED notes.

Furthermore, part of the recent contributions has

been positioned within the COVID-19 context. For

example, (Wang et al., 2020) utilized a BERT model

for sentiment analysis of posts on Sina Weibo, a

popular social media platform in China. About 1M

COVID-related posts were analyzed. The literature

includes many studies that used BERT models for

different NLP tasks such as (Chintalapudi, Battineni,

and Amenta, 2021), and (Liu et al. 2021).

The present work attempts to add to the ongoing

contributions towards making use of BERT models in

the healthcare domain. We focus on analyzing the

performance of popular pretrained transformers to

extract embeddings from triage notes in the French

language. To the best of our knowledge, the literature

still lacks the application of BERT to triage notes,

especially for languages rather than English.

3 DATA DESCRIPTION

The dataset under consideration was provided by the

Amiens-Picardy University Hospital in France. The

authors had obtained the necessary permissions for

accessing the dataset and conducting research. The

study has been specifically approved by the Hors Loi

Jarde Committee (PI2019_843_0066 reference).

Moreover, all personal information was fully

anonymized to ensure the privacy of patients.

The dataset contained more than 260K ED records

spanning more than four years from January 2015 to

June 2019. Each record was associated with a binary

label representing the outcome at triage (i.e.

hospitalization or discharge). The average length of

stay (LOS) in ED was 4h23m. While the average LOS

of discharged patients was around 4h04m.

The dataset included a variety of numeric and

categorical variables, and textual notes. Numeric

variables mainly described vital signs such as

temperature, heart rate, etc. While the categorical

variables described general information about

patients such as gender, origin, family status, etc. In

addition, a set of four textual fields provided the

triage observations, surgical history, psychiatric

history, and medical history of patients. The free-text

notes were input in the French language by nurses or

physicians at the ED stage. Our focus was exclusively

on the textual fields as to be elaborated later.

As well, the data records indicated the specialty

assigned to hospitalized patients. The majority of

specialties can be grouped into three broad categories

including short-term hospitalization unit, surgery, or

medical specialties (e.g., cardiology, neurology).

Table 1 provides statistics of specialties among

hospitalized patients in the dataset.

Scale-IT-up 2022 - Workshop on Scaling-Up Health-IT

836

Figure 1: The text preprocessing pipeline.

Table 1: Summary of medical specialties.

Specialty / Label Hospitalization %

Surgery / CHIR

19.7%

Short-Term Hospitalization

Unit / UHCD

42.4%

Medical Specialty / MED

33%

Other

4.9%

4 FEATURE EXTRACTION

4.1 Experimental Set-up

The BERT experiments were conducted using a

Nvidia GPU, which was essential for implementing

Deep Learning in a timely manner. While the

clustering experiments were implemented using a

standard Xeon processor of 2.00GHz.

4.2 Text Normalization

The initial step included the pre-processing and

anonymization of patient records. The process of text

normalization was conducted over a set of stepwise

procedures as follows. Initially, we had to exclude the

dataset records that contained blank triage notes.

More specifically, about 70K records did not include

any textual information at all.

Secondly, the four columns of triage notes were

merged into a single text field. The merged text can

be regarded as a unique document including

observations, surgical history, psychiatric history,

and medical history for each patient.

Eventually, typical procedures of text

normalization were applied to clean and standardize

the textual notes. The procedures included case

conversion, removing stop words, and spell checking.

The normalization process was implemented using

standard Python libraries including NLTK (Bird,

Klein, and Loper, 2009). The spell checking was

facilitated thanks to the pyspellchecker library

(Barrus, 2021), which supports the French language.

4.3 Transformer Models

A set of pretrained transformer models were

experimented for the feature extraction process. The

models were originally pretrained using large-scale

text datasets in French. Specifically, our experiments

included the following models:

• CamemBERT (Martin et al. 2019): One of

the state-of-the-art language models for

French. It is based on the RoBERTa

architecture (Liu et al. 2019). It was pretrained

on the French corpus, which is part of OSCAR

dataset, a huge multilingual corpus data

(Suárez, Sagot, and Romary, 2019). The

CamemBERT currently includes six variants

with varying number of parameters, amount of

pretraining data, and pretraining source

domains. In our case, we used the camembert-

base model.

• FlauBERT (Le et al. 2019): a BERT-based

model pretrained on a very large and

heterogeneous French corpus. The FlauBERT

includes different four versions, which were

trained using the Jean Zay supercomputer in

France. We specifically used the flaubert-base-

uncased version.

• mBART (Liu et al. 2020): mBART is based

on the Bidirectional and Auto-Regressive

Transformer approach (Lewis et al. 2019). It is

a multilingual encoder-decoder sequence-to-

sequence model, primarily intended for

translation tasks. The mBART includes 12

layers of encoder and decoder trained on

monolingual corpuses of 25 languages.

All models were accessed through the

HuggingFace repository (Wolf et al. 2019), which is

widely used for the distribution of pretrained

transformer models. The SentenceTransformers

library was utilized as well (Reimers, and Gurevych,

2019), which facilitated the usage of models.

We adopted a Transfer-Learning approach for the

feature extraction process. As such, the default

parameters were fully transferred into the target task.

Learning Embeddings from Free-text Triage Notes using Pretrained Transformer Models

837

The mBART model included the largest number of

parameters and embedding dimension, and

accordingly the longest runtime. Table 2 describes the

transformer models used in our experiments.

Table 2: Summary of experimental models.

Model Params

Embedding

Dimension

Runtime

CamemBERT 110M 768 31 min

FlauBERT 137 M 768 32 min

MBART 610M 1024 64 min

Eventually, Principal Component Analysis (PCA)

was applied to the feature maps extracted by each

model. The PCA provided a compact transformation

of features, which was more amenable for developing

clustering models as discussed in the next section.

The Scikit-Learn library (Pedregosa et al. 2011) was

used to perform the PCA transformation. Figure 1

summarizes the pipeline of feature extraction.

5 CLUSTERING EXPERIMENTS

5.1 K-Means Clustering

The goal of this empirical part was to cluster patient

records exclusively based on the embeddings

extracted from the triage notes. In this regard, the

feature sets learned by transformers were utilized to

develop standard K-Means clustering models.

The dataset included the whole dataset excluding

the records of blank notes. Roughly, about 194K

samples were used for clustering. The dataset was

relatively imbalanced, about 63% of hospitalization.

The clustering models were experimented with

different values of K ranging from 2 to 10. The

models were implemented using the Scikit-Learn

library (Pedregosa et al. 2011). Table 3 gives the

parameters used in the experiments.

Table 3: K-Means parameters.

Parameter Value

Number of Clusters (K) 2–10

Centroid Initialisation k-means++

Similarity Metric Euclidian Distance

Number of Iterations 200

5.2 Evaluation of Clusters

The quality of clusters was examined based on two

metrics including the Silhouette score (Rousseeuw,

1987), and the Fowlkes-Mallows (FM) score

(Fowlkes, and Mallows, 1983).

The Silhouette score has been widely used in

clustering-related studies as an objective means to

measure the robustness of cluster membership. It is

represented as a continuous range of [-1, 1], where

scores near +1 positively indicate that a point is far

away from neighboring clusters. In contrast, values

closer to 0 can be interpreted as being on or very close

to the decision boundary between neighboring

clusters, while negative scores would strongly

suggest that the point may have been assigned to the

wrong cluster. The score can be calculated for each

point as follows:

𝑺

(

𝒊

)

(

𝒃(𝒊) − 𝒂(𝒊)

)

𝐦𝐚𝐱 (𝒂(𝒊), 𝒃(𝒊))

Where a(i) is the average distance of point i to all

other points in containing cluster, and b(i) is the

smallest average distance of point i to points in

another cluster.

While the FM score can be used when ground-

truth labels are known, which applied to our case. It

is defined as the geometric mean of the pairwise

precision and recall as below:

FM SCORE =



(TP + FP)(TP + FN)

Where TP is the number of True Positives, FP is

the number of False Positives, and FN is the number

of False Negatives.

On the one hand, Figure 2 compares the Silhouette

scores achieved by the clustering models for K=2:10.

As it appears, the highest score could be achieved

when K=2 in all cases. However, the quality of

clusters declined while applying further partitioning

of clusters (i.e. K=3, 4). This goes well with the fact

that we had a binary grouping of patients (i.e.

hospitalized or discharged). In addition, it should be

noted that the mBART-based features could provide

the highest coherence of clusters while K=2 and 3.

The FlauBERT performed generally better for

K>3.While the quality of CamemBERT-based

clusters was inferior in general.

On the other hand, Figure 3 analyzes the FM

scores. The mBART-based clusters notably achieved

a high score, around 0.62 for K=2. As well, the

FlauBERT and CamemBERT provided a comparable

performance of about 0.56 and 0.57, respectively.

This generally translates that the clusters were largely

coherent compared to the original binary grouping of

patients. However, the quality of clusters declined

significantly by increasing K towards 10.

Scale-IT-up 2022 - Workshop on Scaling-Up Health-IT

838

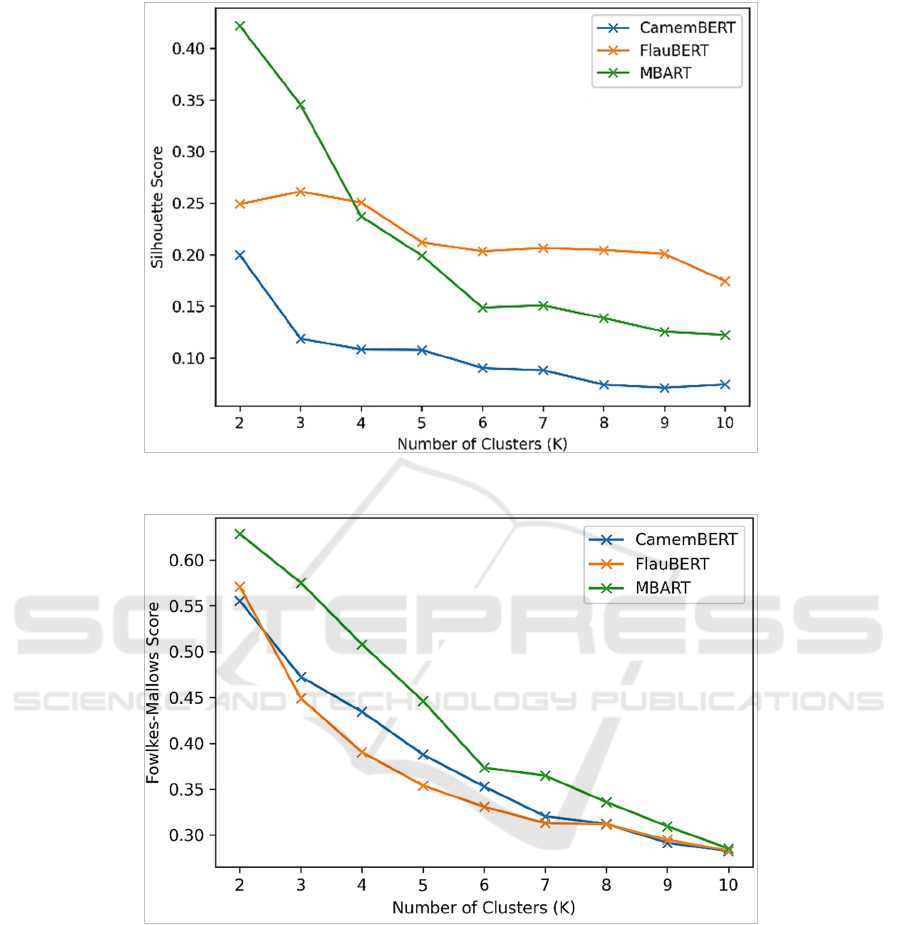

Figure 2: Silhouette score of clusters.

Figure 3: Fowlkes-Mallows score of clusters.

6 CONCLUSIONS

This study experimented a set of pretrained BERT

models to learn contextual embeddings from free-text

triage notes. The embeddings were utilized to develop

multiple K-Means clustering models. The BERT-

based embeddings could be employed for developing

clusters of good coherence in general.

Accordingly, the empirical experiments could

largely validate the suitability of Transfer Leaning in

this context. Pretrained transformers can serve as an

effective mechanism for learning contextual

embeddings from a variety of free-text notes, which

exist ubiquitously in the healthcare environment. The

present work could open several avenues for further

investigation as well. For example, the BERT-based

embeddings can also be used to develop predictive

models, such as predicting patient hospitalization or

medical specialties at the triage stage.

Learning Embeddings from Free-text Triage Notes using Pretrained Transformer Models

839

REFERENCES

Ambrosy, A. P., Parikh, R. V., Sung, S. H., Narayanan, A.,

Masson, R., Lam, P. Q., ... & Go, A. S. (2021). A

Natural Language Processing–Based Approach for

Identifying Hospitalizations for Worsening Heart

Failure Within an Integrated Health Care Delivery

System. JAMA Network Open, 4(11), e2135152-

e2135152.

Arnaud, É., Elbattah, M., Gignon, M., & Dequen, G. (2021).

NLP-Based Prediction of Medical Specialties at

Hospital Admission Using Triage Notes. In

Proceedings of the 9th International Conference on

Healthcare Informatics (ICHI) (pp. 548-553). IEEE.

Barrus, T. (2021). GitHub Repo:

https://github.com/barrust/pyspellchecker

Bird, S., Klein, E., & Loper, E. (2009). Natural language

processing with Python: analyzing text with the natural

language toolkit. O'Reilly Media, Inc.

Cai, Z., Zhang, T., Wang, C., & He, X. (2021). EMBERT:

A Pre-trained Language Model for Chinese Medical

Text Mining. In Proceedings of Joint International

Conference on Web and Big Data (pp. 242-257).

Springer, Cham.

Chang, D., Hong, W. S., & Taylor, R. A. (2020). Generating

contextual embeddings for emergency department chief

complaints. JAMIA Open, 3(2), 160-166.

Chintalapudi, N., Battineni, G., & Amenta, F. (2021).

Sentimental Analysis of COVID-19 Tweets Using

Deep Learning Models. Infectious Disease Reports,

13(2), 329-339.

Devlin, J., Chang, M., Lee, K., & Toutanova, K. (2019).

BERT: Pre-training of Deep Bidirectional

Transformers for Language Understanding. In

Proceedings of the Annual Conference of the North

American Chapter of the Association for

Computational Linguistics (NAACL-HLT).

Elbattah, M., Arnaud, E., Gignon, M., & Dequen, G.

(2021). The role of text analytics in healthcare: A

review of recent developments and applications. In

Proceedings of the 14th International Joint Conf. on

Biomedical Engineering Systems and Technologies

(BIOSTEC).

Fowlkes, E. B., & Mallows, C. L. (1983). A method for

comparing two hierarchical clusterings. Journal of the

American Statistical Association, 78(383), 553-569.

Hao, T., Huang, Z., Liang, L., Weng, H., & Tang, B. (2021).

Health Natural Language Processing: Methodology

Development and Applications. JMIR Medical

Informatics, 9(10), e23898.

Kim, Y. M., & Lee, T. H. (2020). Korean clinical entity

recognition from diagnosis text using BERT. BMC

Medical Informatics and Decision Making, 20(7), 1-9.

Le, H., Vial, L., Frej, J., Segonne, V., Coavoux, M.,

Lecouteux, B., ... & Schwab, D. (2019). Flaubert:

Unsupervised language model pre-training for French.

arXiv preprint arXiv:1912.05372.

LeCun, Y., Boser, B. E., Denker, J. S., Henderson, D.,

Howard, R. E., Hubbard, W. E., and Jackel, L. D.

(1989). Handwritten digit recognition with a back-

propagation network. In Proceedings of Advances in

Neural Information Processing Systems (NIPS) (pp.

396-404).

LeCun, Y., Bottou, L., Bengio, Y., & Haffner, P. (1998).

Gradient-based learning applied to document

recognition.

In Proceedings of the IEEE, 86(11), 2278-

2324.

Lewis, M., Liu, Y., Goyal, N., Ghazvininejad, M.,

Mohamed, A., Levy, O., ... & Zettlemoyer, L. (2019).

Bart: Denoising sequence-to-sequence pre-training for

natural language generation, translation, and

comprehension. arXiv preprint arXiv:1910.13461.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen, D., ...

& Stoyanov, V. (2019). Roberta: A robustly optimized

bert pretraining approach. arXiv preprint

arXiv:1907.11692.

Liu, Y., Gu, J., Goyal, N., Li, X., Edunov, S., Ghazvininejad,

M., ... & Zettlemoyer, L. (2020). Multilingual denoising

pre-training for neural machine translation.

Transactions of the Association for Computational

Linguistics, 8, 726-742.

Liu, G., Liao, Y., Wang, F., Zhang, B., Zhang, L., Liang,

X., ... & Cui, S. (2021). Medical-vlbert: Medical visual

language BERT for COVID-19 CT report generation

with alternate learning. IEEE Transactions on Neural

Networks and Learning Systems, 32(9), 3786-3797.

Martin, L., Muller, B., Suárez, P. J. O., Dupont, Y., Romary,

L., de La Clergerie, É. V., ... & Sagot, B. (2019).

Camembert: a tasty French language model. arXiv

preprint arXiv:1911.03894.

Pan, S. J., & Yang, Q. (2009). A survey on transfer learning.

IEEE Transactions on Knowledge and Data

Engineering, 22(10), 1345-1359.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., ... & Duchesnay, E. (2011).

Scikit-learn: Machine learning in Python. Journal of

Machine Learning Research, 12, 2825-2830.

Peterson, K. J., Jiang, G., & Liu, H. (2020). A corpus-driven

standardization framework for encoding clinical

problems with HL7 FHIR. Journal of Biomedical

Informatics, 110, 103541.

Rasmy, L., Xiang, Y., Xie, Z., Tao, C., & Zhi, D. (2021).

Med-BERT: pretrained contextualized embeddings on

large-scale structured electronic health records for

disease prediction. NPJ Digital Medicine, 4(1), 1-13.

Reimers, N., & Gurevych, I. (2019). Sentence-BERT:

Sentence embeddings using siamese bert-networks.

arXiv preprint arXiv:1908.10084.

Rousseeuw, P. J. (1987). Silhouettes: a graphical aid to the

interpretation and validation of cluster analysis. Journal

of Computational and Applied Mathematics, 20, 53-65.

Suárez, P. J. O., Sagot, B., & Romary, L. (2019).

Asynchronous pipeline for processing huge corpora on

medium to low resource infrastructures. In Proceedings

of the 7th Workshop on the Challenges in the

Management of Large Corpora (CMLC-7).

Tahayori, B., Chini-Foroush, N., & Akhlaghi, H. (2021).

Advanced natural language processing technique to

predict patient disposition based on emergency triage

Scale-IT-up 2022 - Workshop on Scaling-Up Health-IT

840

notes. Emergency Medicine Australasia, 33(3), 480-

484.

Viani, N., Botelle, R., Kerwin, J., Yin, L., Patel, R., Stewart,

R., & Velupillai, S. (2021). A natural language

processing approach for identifying temporal disease

onset information from mental healthcare text.

Scientific Reports, 11(1), 1-12.

Wang, T., Lu, K., Chow, K. P., & Zhu, Q. (2020). COVID-

19 sensing: Negative sentiment analysis on social

media in China via BERT model. IEEE Access, 8,

138162-138169.

Wolf, T., Debut, L., Sanh, V., Chaumond, J., Delangue, C.,

Moi, A., ... & Rush, A. M. (2019). Huggingface's

transformers: State-of-the-art natural language

processing. arXiv preprint arXiv:1910.03771.

Xue, K., Zhou, Y., Ma, Z., Ruan, T., Zhang, H., & He, P.

(2019). Fine-tuning BERT for joint entity and relation

extraction in Chinese medical text. In Proceedings of

the IEEE International Conference on Bioinformatics

and Biomedicine (BIBM) (pp. 892-897). IEEE.

Learning Embeddings from Free-text Triage Notes using Pretrained Transformer Models

841
