MDD4REST: Model-Driven Methodology for Developing RESTful

Web Services

Amirhossein Deljouyi and Raman Ramsin

Department of Computer Engineering, Sharif University of Technology, Tehran, Iran

Keywords: Model-Driven Development, Domain-Driven Design, Web Engineering, REST Architectural Style, Model

Transformation, Automatic Code Generation.

Abstract: Web services based on the REpresentational State Transfer (REST) architectural style have become

increasingly popular in recent years. REST provides several desirable features, such as simplicity and

scalability; however, developing RESTful web services involves repetitive and trivial tasks that can be

avoided through automatic code generation. Model-Driven Development (MDD) can be used to this aim, as

it facilitates the construction of complex applications and can provide automatic code generation through

transformations of models. This paper presents MDD4REST as a model-driven methodology, consisting of a

framework and a process, for developing RESTful web services. MDD4REST takes advantage of Domain-

Driven Design (DDD) to produce a rich domain model for web services. It provides an effective method for

designing RESTful web services using modeling languages, and supports automatic code generation through

transformation of models. In addition, MDD4REST has the capability to support modern web architectures

and patterns, such as Microservice, Event-Driven, and CQRS.

1 INTRODUCTION

Offering software in the form of web services has

gained immense popularity due to the evolution of

cloud architectures. REpresentational State Transfer

(REST) comprises a set of rules and practices that

provide simple and comprehensible APIs, clear

representational structures, and scalable services for

use in web services engineering. Due to its simplicity

and scalability, the REST architecture has become

increasingly popular among web-service developers.

Among the architectures used in web service design

(REST, WSDL, SOAP), REST is the most common;

it has significantly changed how systems are

developed based on web services (Fielding and

Taylor, 2000; Mulloy, 2013; Ong et al., 2015;

Richardson and Ruby, 2008; Rodriguez, 2008).

Model-Driven Development (MDD) is a software

engineering approach in which models are construed

as primary artifacts of the software development

process, from requirements engineering to analysis,

design, and implementation. MDD facilitates the

construction of complex applications and supports

automatic code generation through transformation of

models (Hailpern and Tarr, 2006; Siegel, 2014;

https://orcid.org/0000-0003-1996-9906

Truyen, 2006); its potential has therefore been

recognized in designing RESTful web services by

using modeling languages (Zolotas et al., 2017).

On the other hand, Domain-Driven Design

(DDD) is an effective method for producing a rich

domain model for web services by focusing on the

problem domain. DDD can take advantage of MDD

best practices in order to develop a system based on

models (Evans and Evans, 2004).

Web services can address functional or non-

functional requirements. Functional requirements can

be expressed through visual models or text, based on

which the domain model is formed. Non-functional

requirements can be addressed by designing

appropriate architectures. Architectural styles and

patterns, including Microservice, Event-Driven, and

CQRS, help enhance the scalability and performance

of web services (Fowler, 2002, 2017; Greg Young,

2010; Newman, 2015; Rademacher et al., 2017).

Despite their merits, existing MDD methods for

web services engineering do not adequately cover the

web services development process and fail to produce

all of its artifacts. Also, they fail to support high-level

modeling at an adequately abstract level, and fail to

provide adequate complexity management features.

Deljouyi, A. and Ramsin, R.

MDD4REST: Model-Driven Methodology for Developing RESTful Web Services.

DOI: 10.5220/0011006300003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 93-104

ISBN: 978-989-758-550-0; ISSN: 2184-4348

We propose a model-driven methodology, which

we have chosen to call MDD4REST, for developing

RESTful web services. Modeling levels and model

transformation rules are precisely defined in

MDD4REST, and DDD is applied for producing the

domain model. MDD4REST has been evaluated by

applying four different categories of criteria in order

to evaluate its different aspects. Furthermore, it has

been empirically validated through application to a

web development project in a software development

company; this case study has demonstrated the degree

of applicability of the proposed methodology, and has

helped identify its strengths and weaknesses.

The rest of this paper is structured as follows:

Section 2 provides an outline of the related works;

Section 3 presents an overview of MDD4REST;

modeling levels and transformation rules are

explained in Section 4; Section 5 presents a process

for applying the MDD4REST framework; Section 6

provides the evaluation results; and Section 7 presents

the conclusion and a discussion of the future work.

2 RELATED WORKS

In order to elicit the target methodology, the different

facets of an MDD methodology for developing

RESTful web services have been studied. In this

section, existing approaches are briefly reviewed,

along with three high-level frameworks for MDD and

web engineering.

2.1 Existing MDD/DDD Approaches

for Developing RESTful Web

Services

Valverde and Pastor have produced a methodology by

extending the OO-Method methodology with a basic

meta-model for generating RESTful web services

(Valverde and Pastor, 2009). Schreier has introduced

meta-models for modeling structural and behavioral

aspects of RESTful applications (Schreier, 2011).

Haupt et al. have presented a meta-model for REST

constraints (Haupt et al., 2014). Ed-Douibi et al. have

proposed a method for developing RESTful web

services by taking advantage of MDD and combining

REST principles with the Eclipse Modeling

Framework (EMF) (Ed-Douibi et al., 2015); EMF

allows the construction of meta-models using the

Ecore language (Steinberg et al., 2008). Ed-Douibi et

al. have also addressed various challenges of RESTful

web services development, including testing and

integration of APIs, through MDD (Ed-Douibi, 2019).

Zolotas et al. have proposed a methodology for

generating RESTful web services based on software

requirements (Zolotas et al., 2017); in this approach,

informal specifications or use-cases are used for

modeling functional requirements, and behavioral

requirements are modeled in activity diagrams or

storyboards. Gonçalves and Azevedo have introduced

a model-driven approach in which a DSL is proposed

for developing OpenAPI specifications; this enables

developers to utilize the first-design approach,

focusing on the definition of resources and

relationships (Gonçalves and Azevedo, 2018). Koren

and Klamma have developed a method for creating

front-end pages from OpenAPI specifications (Koren

and Klamma, 2018). Hernandez-Mendez et al. have

proposed an MDD method for consumption of

RESTful APIs in single-page applications, which

aggregates RESTful APIs through a query service

meta-model (Hernandez-Mendez et al., 2018).

Jegadeesan has proposed an approach for

generating web services of various granularities in

which requirements are obtained through DDD

(Jegadeesan, 2009). Kapferer has introduced a DDD-

driven approach for strategic design of systems and

decomposition of web services (Kapferer, 2020).

Terzić et al. have addressed the challenges of

RESTful web services in a microservice architecture

(such as routing, and microservice auto-discovery and

registering) (Terzić et al., 2018).

2.2 High-level Process Frameworks for

MDD and Web Engineering

We have used three high-level process frameworks as

bases for developing our proposed methodology;

these frameworks are briefly introduced in this

section.

Babanezhad et al. have proposed a high-level

process framework consisting of process patterns for

developing web-based systems (Babanezhad et al.,

2010). By applying abstraction to existing MDD

methodologies, Asadi et al. have devised a generic

framework of process patterns for MDD (Asadi et al.,

2010). Blake has provided a lightweight framework

for development of web services (Blake, 2006).

3 OVERVIEW OF PROPOSED

MDD4REST METHODOLOGY

As mentioned before, MDD4REST consists of two

parts, a modeling framework (shown in Figure 1) and

a process.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

Level 2: PIMLevel 3: PSM

Level 4:

PSM

Backend

Models

Level 5: Artifacts

Legend

Model

Document

Primary

Test Document Front-EndAPI

Static Model

Dynamic-

Security

Model

Configuration

Model

Service

Model

Deployment

Model

OAI model

Sculptor

Model

JDL model

Btdesign Files JDL Files

YAML Files

Front-End

Test

Server &

Client APIs

Back-End

API

Specification

Artifact

Transformation

Automatic

Transformation

Semi-Automatic

Transformation

Manual

Transformation

Level 1: CIM

Linked

Ontology

Computation Independent Model Ontologies

Requirements

Dynamic

Ontology

Static

Ontology

Activity

Storming

Model

CIM DSL

Domain

Model

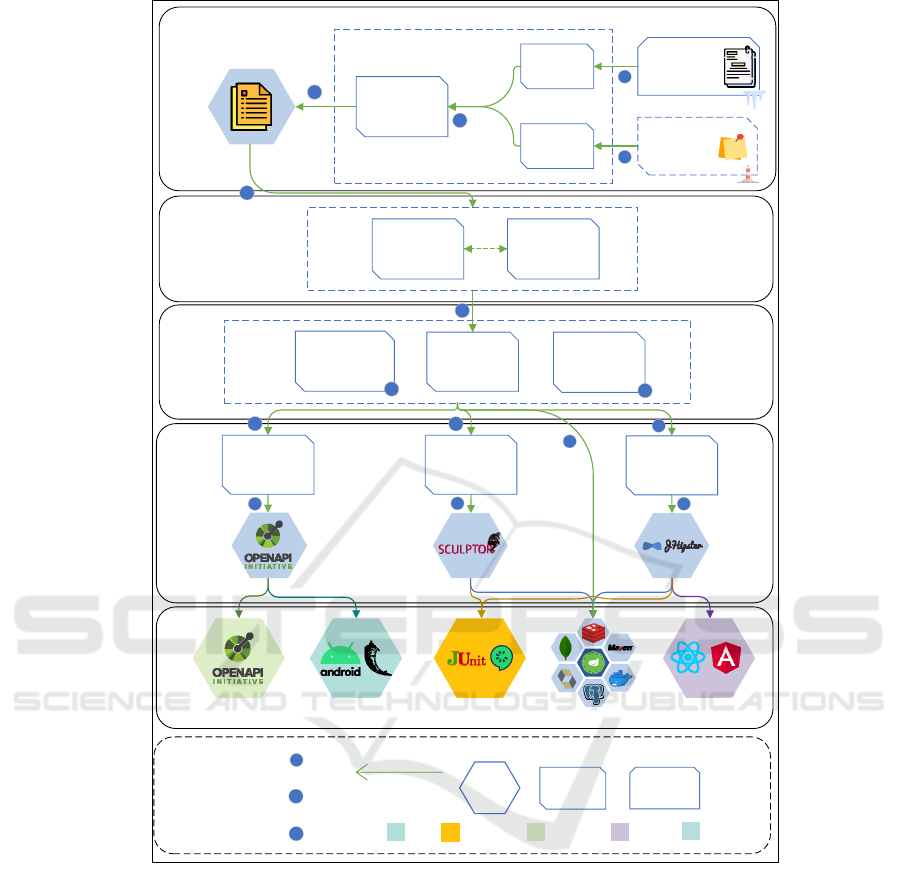

Figure 1: MDD4REST modeling framework.

The modeling framework supports modeling the

target web system. It consists of four levels of

abstraction and was defined based on the results of

the literature review. A fifth level houses the artifacts

of the end product (components of the generated

system). The framework provides a set of model

transformations that supports semi-automatic

construction of target models from source models,

producing the detailed design of RESTful web

services. All modeling levels are thoroughly

described in Section 4. A process was also proposed

for applying the MDD4REST framework that will be

explained in Section 5.

Software Architectures. The MDD4REST

framework supports various architectural styles and

patterns for complex web applications. The system

generated through applying the MDD4REST

framework will be based on an onion architecture.

Code generators support architectural styles such as

Microservice and Event-Driven. Also, command and

query concepts are split from the first level to support

more advanced patterns, including CQRS.

Tool Support. Several tools have been developed to

facilitate using the MDD4REST framework; these

tools are depicted in Figure 2: 1) mdd4rest-annotater,

which is mainly based on BRAT (Stenetorp et al.,

MDD4REST: Model-Driven Methodology for Developing RESTful Web Services

2012), annotates software requirements and generates

the static ontology; 2) mdd4rest-activity-storming,

which is based on Eugenia (Kolovos , 2017), provides

a modeling tool and meta-model for exploring,

visualizing, designing, and formalizing the business

domain; 3) mdd4rest-generator, which is mainly

based on the Eclipse Epsilon family of model

transformation and management languages

(including ETL, EOL, EML, and EGL), provides a set

of transformation rules for generating models; 4)

mdd4rest-cli is a command-line interface for

facilitating the use of the mdd4rest-generator; 5)

mdd4rest-metamodels contains a set of EMF meta-

models for the framework's modeling levels. All the

projects for MDD4REST, and the case study’s

artifacts, are available online (Deljouyi, 2021).

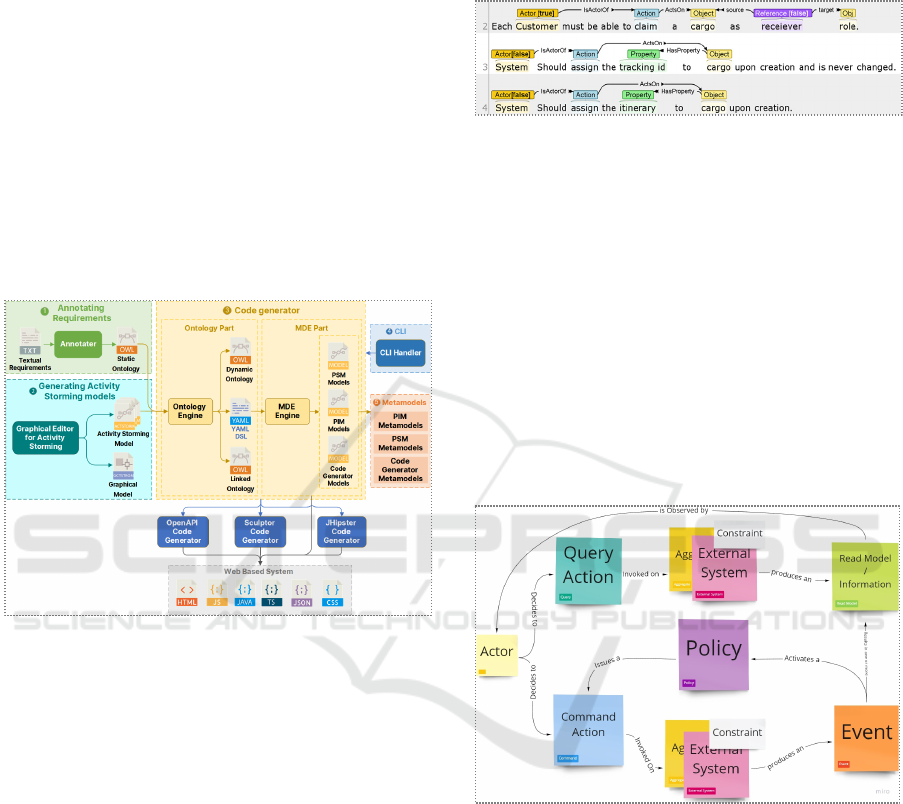

Figure 2: MDD4REST Framework Tools.

4 MDD4REST FRAMEWORK

This section introduces the four modeling levels of

the MDD4REST framework. Examples of the models

produced are presented in Section 6.1 (Case Study).

4.1 Level 1: Computation-Independent

Model (CIM)

At level 1, system requirements are identified and

modeled, and the system’s domain model is thus

formed. Two approaches are used at the first level for

domain modeling: textual requirements specifications

and activity storming models.

4.1.1 Textual Requirements Specifications

Due to the fact that textual specifications of the

requirements are prevalently utilized in software

development projects, they are good sources for

structural modeling of a system. mdd4rest-annotator

can annotate textual requirements and parse

annotations into a static ontology (Figure 3).

Figure 3: An example of textual requirements specifications

and annotations.

4.1.2 Activity Storming Diagrams

For behavioral modeling, we have developed a new

diagram named “Activity Storming” via combining

UML Activity Diagram elements with concepts taken

from Event Storming (Brandolini, 2013). Activity

diagrams provide formalization, and Event Storming

covers DDD concepts. Activity Storming thus

provides both formalization and support of DDD

concepts. In addition, our mdd4rest-activity-storming

tool comes as an Eclipse plugin to explore, visualize,

and design Activity Storming models. The elements

of Activity Storming are shown in Figure 4.

Figure 4: Elements of Activity Storming.

4.1.3 Ontologies

MDD4REST incorporates three ontologies regarding

different views of the system: 1) Static Ontology,

representing a structural view; 2) Dynamic Ontology,

representing a dynamic view; 3) Linked Ontology,

combining structural and dynamic views. mdd4rest-

generator transforms activity storming models into a

dynamic ontology, and then aggregates the static and

dynamic ontologies to produce a linked ontology.

Ultimately, mdd4rest-generator transforms the

linked ontology into a YAML-based Domain-

Specific Language (DSL).

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

4.2 Level 2: Platform-Independent

Model (PIM)

The focus of level 2 is on the REST architecture and

contains resource-oriented concepts. Two models are

produced at this level: Static and Dynamic-Security

models. At this level, mdd4rest-generator semi-

automatically transforms the YAML-based DSL

produced at level 1 into the models of level 2. Figure

5 shows the architecture of this level. As Static and

Dynamic models have common elements, EOL rules

are developed for synchronizing them.

Figure 5: PIM’s architecture.

4.3 Level 3: Platform-Specific Model

(PSM) of the Architecture

Levels 3 and 4 are both platform-specific. At level 3,

the architecture of the system will be determined;

PIM models are merged into a service model, and the

user can create deployment and configuration models

manually. There are two types of architectural views

at the third level: intra-application and inter-

application. Intra-application represents the

architecture of each application, which may be simple

or CQRS. Inter-application describes the architecture

between the applications, as several microservice

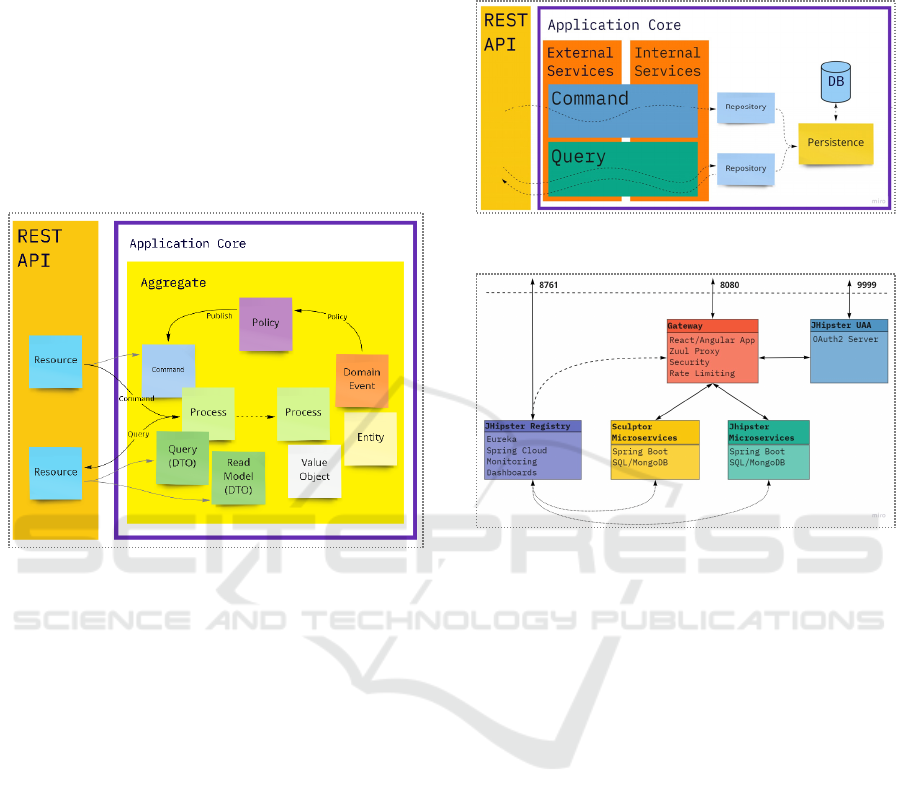

applications can comprise the system. Figure 6 and

Figure 7 demonstrate intra-application and inter-

application views, respectively.

4.4 Level 4: Platform-Specific Model

(PSM) for Code Generators

Level 4 contains models and DSLs for code

generators, namely Jhipster, Sculptor, and OpenAPI.

mdd4rest-generator transforms level-3 models into

code generator models, and DSLs are then generated

by applying EGL rules on these models. Code

generators use these level-4 products to generate the

final artifacts of the target system (residing at level 5).

Figure 6: CQRS Intra-Application view.

Figure 7: Inter-Application architecture view.

5 MDD4REST PROCESS

In order to define an MDD methodology, a process

must be defined for applying the modeling

framework. The process that we propose (shown in

Figure 8) consists of four phases: Start-up,

Construction, Transition, and Maintenance. The

process is primarily based on the Web Engineering

Process Framework of (Babanezhad et al., 2010). The

phases are performed serially, but they are broken

down into stages that are executed iteratively.

The goal of the Start-up phase is to acquire

knowledge about the target system and perform the

essential activities for initiating the project.

The Construction phase is aimed at developing

the target system in several iterations, and consists of

three coarse-grained stages: Analysis, Model-Driven

Development, and Implementation. Construction is

where modeling is performed based on the different

levels of the MDD4REST framework. In the Analysis

stage (level 1), the functional and non-functional

requirements of the system are elicited, estimation

and prioritization are performed, and higher-priority

requirements are selected for the iterations.

MDD4REST: Model-Driven Methodology for Developing RESTful Web Services

Planning &

Proce ss

Selec tion

Chartering

Domain

Modeling

Automat ic

Gene rat ion of

Dynamic

Ontology

Semi- Automat ic

Generat ion of

YAML DSL

Text Annotation

& A uto mat ic

Sta tic Ont ology

Generation

Req uir em en ts

Engine er ing

Automat ic

Generation of

Lin ke d

Ont ology

Complete

Bac k- e nd

Implement ation

Design and

Implement ation

of UI

Te st in the

small

Archite ct ural

Sty le s and

Patt erns

Selection

Iteration

Planning

Rev ie w

Semi-Automatic

Generation of

Dynamic-

Security Model

Semi- Automat ic

Generation of

Static Model

Sta tic an d

Dyna mic Models

Sync hron iz at ion

Architecturalƈ

andƈDe signƈ

Pattern sƈ

Selec tion

Semi-Automatic

Generation of

Servic e M odel

Semi -Automat icƈ

Gene rat ionƈof ƈ

Conf igurat ionƈ

Model

PSM Models

Sync hron iz at i

Semi- Automat ic

Generat ion of

Development

model

Automat icƈ

Gene rat ionƈof ƈ

Generat orsƈ

Models

Semi -Automaticƈ

GenerationƈofƈCodeƈ

Gene rat orsƈDSLs

Re wo rk

Te st in the

large

Deployment

Traditional

Maintenance

Web

Maintenance

Continuous

Deliver y

Gene rat e

Code s by Code

Generat ors

Stage

Splitt ing and

Combining

Applicat ions

Optional

Stage

Ma nage me nt

Technical

Ontology

Base d

Model-Driven

Cont inuousƈ

Integration

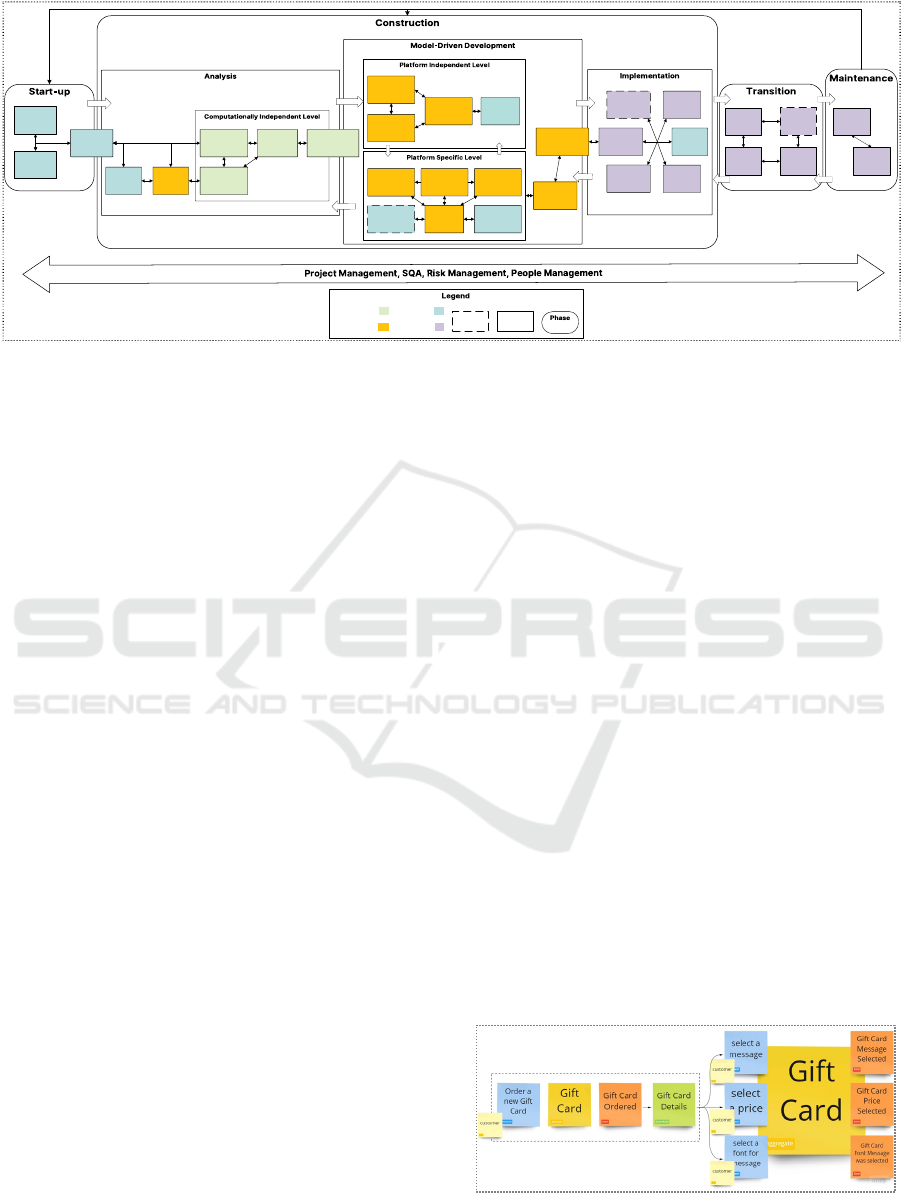

Figure 8: MDD4REST process.

In the Model-Driven Development stage,

activities related to levels 2 to 4, including the

transformations, are performed. In the

Implementation stage, code is generated by code

generators, and is then completed by developers

(level 5).

The Transition phase is focused on deploying the

developed system into the user environment. The

Maintenance phase focuses on maintenance and

support activities. Umbrella activities are also

considered in this process, shown on the arrow at the

bottom of Figure 8.

Two types of roles are involved in this process:

mandatory and optional. The mandatory roles are:

user, product owner, coach, domain expert, and

developer. The optional roles are: architecture owner,

tester, modeler, user interface designer, and

infrastructure expert.

6 EVALUATION

To assess the applicability and effectiveness of

MDD4REST, a case study was conducted and criteria-

based evaluation was applied. The research questions

were as follows: RQ1. How logical and accurate are

the modeling levels and model transformations?

RQ2. Does MDD4REST facilitate the design and

development of RESTful web services? RQ3. Are the

concerns of RESTful web service well covered?

RQ4. How applicable are the tools in MDD4REST?

6.1 Case Study

The case was a web development project in a software

development company that specializes in producing

software solutions for medium to large businesses.

MDD4REST was used to develop a virtual gift card

generator system. A technical manager of the

company was actively involved in the study, both as

product owner and user. The first author was involved

in the project and carried out the activities prescribed

by MDD4REST in collaboration with the technical

manager. The development took about 30 working

days, and all the products were delivered to the

technical manager to acquire his feedback and

confirmation. A questionnaire was designed to collect

the final feedback from the technical manager.

6.1.1 Definition

The virtual gift card generator system provides the

following services: 1) browsing gift card designs and

categories; 2) buying gift cards; 3) receiving the list

of orders of a customer; 4) setting a second password

for a gift card.

6.1.2 Requirements Engineering

Requirements were elicited and expressed as textual

specifications and event storming models. An excerpt

of the event storming model of the "buying a gift

card" scenario is depicted in Figure 9.

Figure 9: Scenario for buying a gift card.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

6.1.3 Level 1

Text Annotation and Automatic Generation of

Static Ontology. The textual specifications of

requirements were annotated using mdd4rest-

annotator; an excerpt of the annotation result is

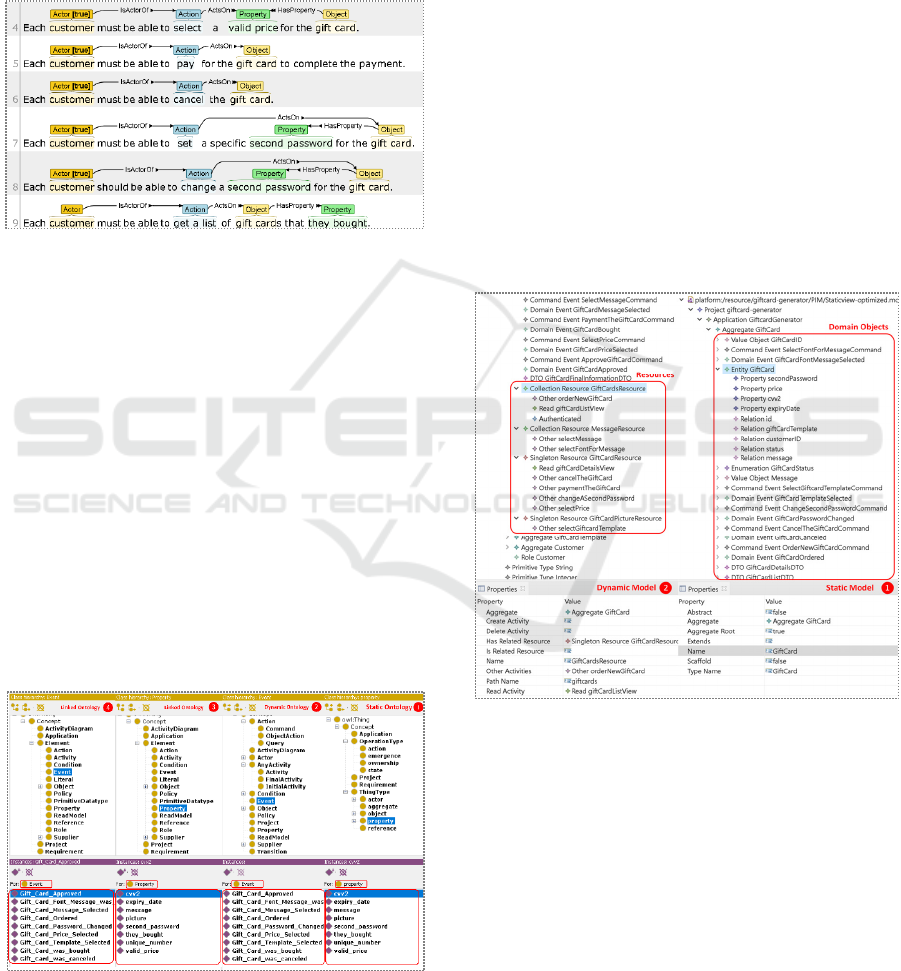

shown in Figure 10. The static ontology (Figure 11)

was later generated by mdd4rest-annotator.

Figure 10: An excerpt of the annotation of the system.

Domain Modeling and Automatic Generation of

Dynamic Ontology. Problem domain modeling was

performed by designing Activity Storming models.

Event Storming models can be used for producing

Activity Storming models; however, Event Storming

models are optional, and Activity Storming models

can be designed directly. The dynamic ontology

(Figure 11) was later generated.

Automatic Generation of Linked Ontology.

After creating the static and dynamic ontologies,

mdd4rest-generator merged them into the linked

ontology. Figure 11 shows the mapping of static and

dynamic ontologies onto the linked ontology. The

"property" attribute is mapped from the static

ontology to the linked ontology in parts 1 and 3, and

the "event" element is mapped from the dynamic

ontology to the linked ontology in parts 2 and 4.

Figure 11: Static, Dynamic, and Linked ontologies.

Semi-automatic Generation of YAML DSL. The

mdd4-rest-generator transformed the linked ontology

into a YAML-based DSL. This DSL must be

reviewed and evaluated and is considered as the

system's high-level design.

6.1.4 Level 2

The YAML DSL was given as input to the model-

driven engine of mdd4rest-generator, and the Static

and Dynamic-Security models were generated. The

attributes and relationships of the domain and

aggregation objects are modeled in the Static model,

whereas processes and operations are modeled in the

Dynamic-Security model. In this phase, the generated

resources are completed; the relationships between

resources, operations, and processes are defined. In

addition, policies for accessing the resources and the

access level of roles are modeled in the Dynamic-

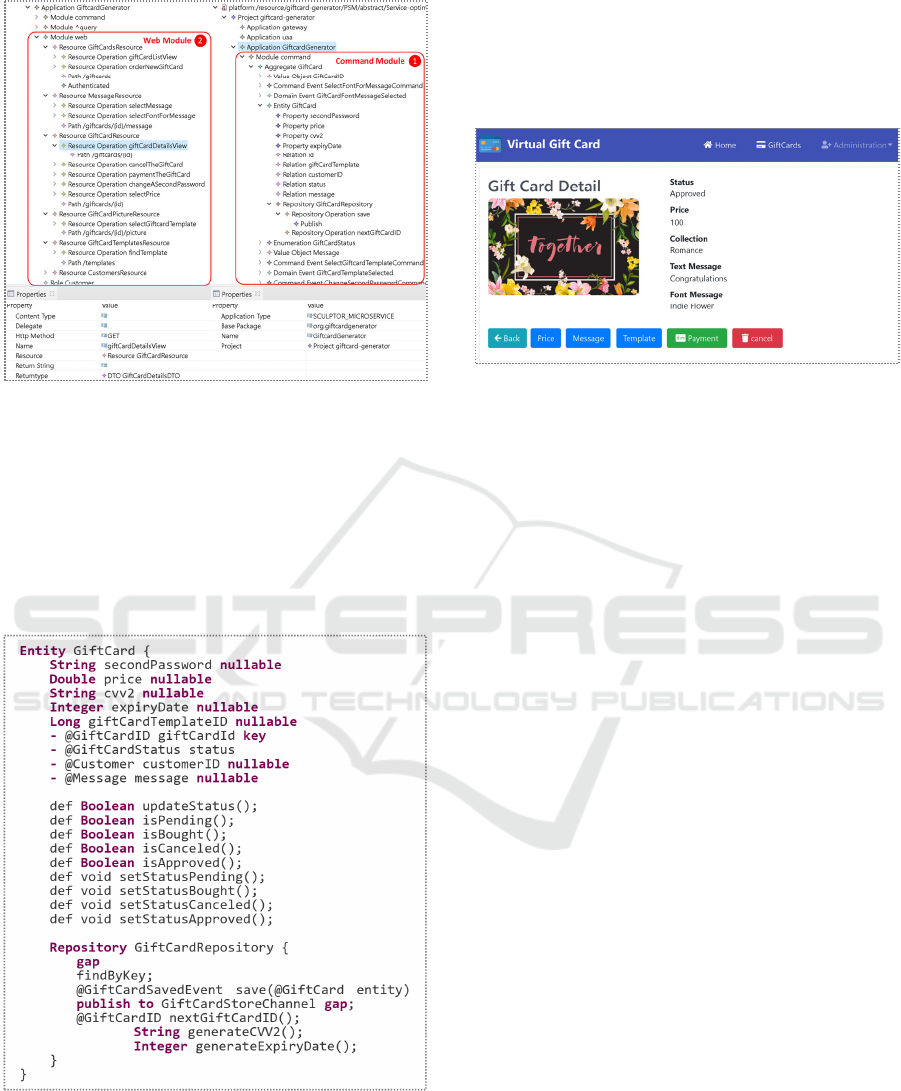

Security model. An excerpt of the generated Static

and Dynamic-Security models is shown in Figure 12.

Figure 12: Static and Dynamic-Security models.

6.1.5 Level 3

At this level, mdd4rest-generator merged the Static

and Dynamic-Security models and transformed them

into PSM models (Service, Configuration, and

Deployment). In order to generate a system with the

CQRS architecture, three modules, namely

command, query, and web, were generated as

constituents of the Service model (partially shown in

Figure 13). Consequently, the domain objects,

operations, internal/external services, and resources

were completed; the Configuration and Deployment

models were enhanced accordingly.

MDD4REST: Model-Driven Methodology for Developing RESTful Web Services

Figure 13: Modules in the Service model.

6.1.6 Level 4

At this level, level-3 models were transformed into

models specific to each supported code generator, and

DSLs for each code generator were subsequently

generated. These DSLs are reviewed and modified as

necessary. An excerpt of the Sculptor’s DSL is shown

in Figure 14.

Figure 14: The DSL of the Sculptor Code generator.

6.1.7 Implementation

At this stage, the code was generated by the three

code generators, and the body of functions of the

generated back-end code was completed. In order to

access the front-end services, a single-page

application was generated by the Jhipster code

generator, which was then improved. Figure 15 shows

the appearance of the gift-card generator system.

Figure 15: Appearance of the single-page application for

the gift-card generator system.

6.1.8 Questionnaire-based Interviews

The participants involved in the case study were

interviewed using a specially designed questionnaire.

The questionnaire was designed to summarize the

opinions of the participants, particularly regarding the

research questions; a partial view of the questionnaire

is shown in Table 1. Furthermore, the advantages and

drawbacks of MDD4REST were discussed with the

participants for future improvement.

6.2 Evaluation Criteria

We developed a set of evaluation criteria to assess

MDD4REST in a systematic manner, particularly

regarding the research questions. There are four

groups of criteria: general criteria, model-driven

criteria, model-driven web engineering criteria, and

RESTful web services criteria. As some groups are

quite populous (containing more than 20 criteria),

showing the whole sets of results is not possible in

this paper. However, excerpts of the criteria and

evaluation results are shown in Tables 2 to 5.

6.3 Analysis of Results

The analysis results are presented in the order of the

research questions:

Answering RQ1- Adequacy of MDD4REST from

an MDD perspective: the evaluation results shown in

Tables 3 and 5 indicate that modeling levels are

defined accurately and distinguishably. However,

support for round-trip engineering is low.

Answering RQ2- Usability of MDD4REST: the

case study demonstrated that MDD4REST improves

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

100

quality and comprehensibility in design and

modeling. As a result of these features and the

automation provided, the web services development

process is significantly easier to use in comparison

with common approaches; this was confirmed by the

results of the questionnaire-based interviews.

Answering RQ3- Addressing the concerns of

RESTful web services development: the results

obtained from criteria-based evaluation (Table 4) and

questionnaire-based interviews indicate that there is

an adequate level of coverage. The primary

deficiency is the maintenance of the generated

systems. This issue will be tackled by supporting

round-trip engineering in future work.

Answering RQ4- Applicability of MDD4REST

tools: the results obtained from criteria-based

evaluation (Tables 3 and 4) and questionnaire-based

interviews indicate that the tool support is adequate,

and provides convenient employment of MDD4REST

at all levels. In fact, tool support is one of the

strengths of MDD4REST.

6.4 Comparative Analysis

MDD4REST has overcome many of the shortcomings

of previous methods. Here are a few issues that have

been addressed:

Coverage of web services development lifecycle-

Previous methods for generating RESTful web

services either do not provide full coverage of the web

services development lifecycle, or fail to define a

development process at all. In contrast, MDD4REST

incorporates a detailed process that covers the entire

lifecycle, from analysis to maintenance.

Coverage of MDD abstraction levels- Existing

methods lack sufficient modeling and abstraction

levels, and only a few of them support the CIM Level.

In contrast, the MDD4REST modeling framework

supports modeling at all levels, including CIM, PIM,

and PSM.

Rich domain model- Existing methods cover

CRUD operations only, whereas MDD4REST is not

limited to CRUD operations. A rich domain model is

produced in MDD4REST based on DDD concepts.

Generating the artifacts necessary for RESTful

web services- Existing methods do not create all the

products needed for web services development based

on the REST architecture. In contrast, MDD4REST

generates code, API specifications, and tests.

Supporting common architectures- Existing

approaches do not address the architectures common

in modern web systems, such as microservices and

event-driven. In contrast, MDD4REST covers

prevalent architectural styles and patterns.

7 CONCLUSIONS

The MDD4REST methodology was developed as a

comprehensive model-driven methodology for

developing RESTful web services. It is

comprehensive in that it provides a multilevel

modeling framework along with a process for

applying it. Transformation rules have been

implemented to generate the models so that the

transitions between modeling levels are smooth and

trouble-free. Furthermore, we have developed several

tools to support MDD4REST. For future work, we

plan to support other diagrams for domain modeling,

improve the textual annotation process by using NLP

methods, cover strategic concepts of DDD, and

support reverse-engineering from DSLs to models.

Table 1: Part of the designed questionnaire.

General evaluation of the approach

Strongly

Agree

Agree Neutral Disagree

Strongly

Disagree

1 The approach can be used easily in organizations.

2 Others can extend the approach.

The approach can improve the quality of code and decrease errors

in web services.

4 Technical people are enthusiastic about this approach.

Technical evaluation of the approach

Strongly

Agree

Agree Neutral Disagree

Strongly

Disagree

1 The approach helps developers and designers significantly.

2 The approach designs web services adequately.

3 The approach deploys the systems efficiently and automatically.

4 The approach can maintain the systems efficiently.

The developed tools are able to improve the automation of the

transformation and generation of models.

6 Common architectures in web engineering are supported.

MDD4REST: Model-Driven Methodology for Developing RESTful Web Services

101

Table 2: Partial view of the results of assessment based on General methodology evaluation criteria.

Criterion Result Description of possible values

Lifecycle

Coverage

Requirements Engineering

Analysis

Design

Implementation

Test

Deployment

Maintenance

A: Supported with detailed instructions.

B: Supported with general guidelines.

C: Not Supported.

Coverage of

Umbrella

Activities

Project Management

Risk Management

Quality Management

A: Supported with detailed instructions.

B: Supported with general guidelines.

C: Not Supported.

Clarity of Development Process

Definition

Work-products, actors, and activities are: A: entirely supported and precisely

described. B: partially supported or just mentioned. C: weakly supported.

Seamlessness and Smoothness of

Transition between Phases

A: Both provided; B: Only seamlessness provided. C: Only smoothness provided.

D: None provided.

Encouragement of Active User

Involvement

A: The methodology explicitly provides an atmosphere in which the user is actively

involved. B: The methodology provides a number of guidelines for involving the

user. C: The methodology does not provide any support.

Manageability of complexity A

A: The methodology explicitly provides coping mechanisms. B: Some guidelines

are defined in order to manage complexity. C: This feature is weakly supported.

Process Definition Type

Process-

Centered

Process-Centered: The lifecycle phases, stages, and activities are considered, and

other aspects are described as secondary. Product-Centered: Products are taken

into consideration, and other aspects are described as secondary. Role-Centered:

roles are taken into consideration, and other aspects are described as secondary.

Table 3: Partial view of the results of assessing support for Model-Driven Development.

Criterion Result Description of possible values

Transparency of modeling

levels

The boundary between levels: A: is accurately distinguishable. B: is relatively transparent. C:

cannot be distinguished.

Classification of the

modeling levels' data

A A: accurate classification. B: Relative classification. C: lack of classification.

Support for abstraction

levels (CIM, PIM, PSM)

A: abstraction levels and transitions are fully supported. B: All abstraction levels are defined,

but transitions between them are not supported. C: some abstraction levels are not supported.

Structural, Behavioral,

Functional modeling

A A: All the system’s aspects are modeled. B: some aspects of the system are not modeled.

Model Transformation type Both

Vertical: The source and target models are at different levels of abstraction.

Horizontal: The source and target models are at the same level of abstraction.

Automation level of

transformations

Medium High: Fully-automated. Medium: Semi-automated. Low: Manual.

Automatic code generation B

A: All parts of the code are automatically generated. B: Most parts of the code are automatically

generated. C: some parts of the code are automatically generated.

Tool support B

A: A complete toolset is provided, or precise guidelines are defined to select alternative tools. B:

A complete toolset is not provided, but general guidelines are provided to select alternative

tools. C: No specific tools or guidelines are provided.

Round-trip engineering,

Synchronization of source

and target models,

Verification/Validation

A: Detailed procedures are specified for the task in the methodology. B: Only general guidelines

are provided for the task. C: The task is not covered by the methodology.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

102

Table 4: Partial view of the results of assessing support for RESTful Web Services.

Criterion Result Status of MDD4REST based on the criterion

General Modeling of RESTful Web Services

(Structural, Behavioral, Functional)

A All aspects of modeling RESTful web services are considered.

RESTful Practices modeling (Resource, REST API

Specification, Query, Third-Party API Integration)

All aspects relating to REST architecture are precisely defined. However,

only guidelines are defined for third-party API Integration.

Security

Modeling

Access Levels to Resources

Access Levels to Resource Operations

Definition of Roles

In Dynamic-security and Service models, access levels are defined for

resources and roles, but access controls to resource operations are not

supported.

Domain-Driven

Modeling

Tactical Design

Strategic Design

The bounded context concept is not covered in MDD4REST. However,

similar concepts, including application and module, are supported.

Web Engineering

Architectures

Event-Driven

Microservice

Layered

In MDD4REST, the common Web architectures, including event-driven,

microservices, and layered, are supported. The presentation layer must be

completed by developers.

Process: CI/CD, First-API Design, Rich Domain

Model

A All of these activities are precisely defined in the process of MDD4REST.

Services: Service Integration and Service

Granularity

The external services layer integrates internal services with third-party

APIs. The Services are also divided into two layers: internal and external.

Operations: CRUD and Non-CRUD Operations,

REST constraints, Error handling, Pagination,

Filters

MDD4REST provides guidelines for all of these activities.

Test: Unit-Test, Integration-Test, API-Test, Test

Case Generation

By default, the code generator will produce unit and API tests, but

developers should also produce other types of tests.

Tools

Support for SQL and NoSQL Databases

Support for Query Languages

Use of Standard Technologies

Diversity of Programming Languages

MDD4REST uses popular code generators capable of supporting a wide

range of products and programming languages.

Legend- A: Fully Supported; B: Partially supported; C: Not Supported.

Table 5: Partial view of the results of assessing support for Model-Driven Web Engineering.

Criterion Result Status of MDD4REST based on the criterion

Existence of the Models Necessary

for Web Development

Except for the presentation model, all the models necessary for designing web systems are

supported.

Data Model

(CIM, PIM, PSM)

Domain objects representing system data are obtained from the beginning in the form of

ontologies and static models.

Business Model

(CIM, PIM, PSM)

Business logic is provided in the form of Activity Storming models at the CIM level. At the

following levels, this aspect can be seen in the Dynamic-Security and Service models.

Navigation Model

(CIM, PIM, PSM)

Service navigation has been considered in the modeling levels of MDD4REST. However,

presentation navigation has not been addressed, as the presentation aspect is outside the

scope of MDD4REST.

Presentation Model

(CIM, PIM, PSM)

In MDD4REST, the focus is on generating web services, and addressing the presentation

aspect is outside the scope of MDD4REST.

Legend- A: Fully Supported; B: Partially supported; C: Not Supported.

REFERENCES

Asadi, M., Esfahani, N., & Ramsin, R. (2010). Process

patterns for MDA-based software development. In

ACIS International Conference on Software

Engineering Research, Management and Applications,

190–197.

Babanezhad, R., Bibalan, Y.M., & Ramsin, R. (2010).

Process patterns for web engineering. In IEEE Annual

Computer Software and Applications Conference, 477–

486.

Blake, M. B. (2006). A lightweight software design process

for web services workflows. In IEEE International

Conference on Web Services, 411–418.

MDD4REST: Model-Driven Methodology for Developing RESTful Web Services

103

Brandolini, A. (2013). Introducing event storming. blog,

Ziobrando’s Lair, 18.

Deljouyi, A. (2021). MDD4REST Labs. Retrieved from

https://github.com/MDD4REST

Ed-Douibi, H. (2019). Model-driven round-trip

engineering of REST APIs (PhD Thesis, Network and

Information Technologies Doctoral Programme,

Universitat Oberta de Catalunya).

Ed-Douibi, H., Izquierdo, J. L. C., Gómez, A., Tisi, M., &

Cabot, J. (2015). EMF-REST: Generation of RESTful

APIs from Models. In Annual ACM Symposium on

Applied Computing, 1446–1453.

Evans, E. J., & Evans, E. (2004). Domain-driven design:

Tackling complexity in the heart of software. Addison-

Wesley Professional.

Fielding, R. T., & Taylor, R. N. (2000). Architectural styles

and the design of network-based software architectures

(Vol. 7). (PhD Thesis, University of California, Irvine).

Fowler, M. (2002). Patterns of enterprise application

architecture. Addison-Wesley Longman Publishing

Co.

Fowler, M. (2017). What do you mean by “Event-Driven”?

Retrieved from https://martinfowler.com/articles/2017

01-event-driven.html

Gonçalves, R. C. da C., & Azevedo, I. (2018). RESTful Web

Services Development With a Model-Driven

Engineering Approach. (M.S. Thesis, Instituto Superior

de Engenharia do Porto)

Greg Young. (2010). CQRS Documents by Greg Young.

Hailpern, B., & Tarr, P. (2006). Model-driven

development: The good, the bad, and the ugly. IBM

Systems Journal, 45(3), 451–461.

Haupt, F., Karastoyanova, D., Leymann, F., & Schroth, B.

(2014). A model-driven approach for REST compliant

services. In International Conference on Web Services,

129–136.

Hernandez-Mendez, A., Scholz, N., & Matthes, F. (2018).

A Model-driven Approach for Generating RESTful

Web Services in Single-Page Applications. In

International Conference on Model-Driven

Engineering and Software Development, 480–487.

Jegadeesan, H. (2009). Towards a Model-Driven Approach

to Support SOA-Based Web-Business Platforms. (Ph.D.

Thesis, BITS Pilani).

Kapferer, S. (2020). A Modeling Framework for Strategic

Domain-driven Design and Service Decomposition.

(M.S. Thesis, University of Applied Sciences of

Eastern Switzerland).

Kolovos, D. S., Garcia-Dominguez, A., Rose, L. M., &

Paige, R. F. (2017). Eugenia: Towards disciplined and

automated development of GMF-based graphical

model editors. Software & Systems Modeling, 16(1),

229–255.

Koren, I., & Klamma, R. (2018). The Exploitation of

OpenAPI Documentation for the Generation of Web

Frontends. In Web Conference, 781–787.

Mulloy, B. (2013). Web API design. Academic Press.

Newman, S. (2015).

Building microservices: Designing

fine-grained systems. O’Reilly Media, Inc.

Ong, S. P. et al. (2015). The Materials Application

Programming Interface (API): A simple, flexible and

efficient API for materials data based on

REpresentational State Transfer (REST) principles.

Computational Materials Science, 97, 209–215.

Rademacher, F., Sachweh, S., & Zündorf, A. (2017).

Differences between model-driven development of

service-oriented and microservice architecture. In IEEE

International Conference on Software Architecture

Workshops, 38–45.

Richardson, L., & Ruby, S. (2008). RESTful web services.

O’Reilly Media, Inc.

Rodriguez, A. (2008). RESTful web services: The basics,

33, 18 (Technical Report, IBM DeveloperWorks).

Schreier, S. (2011). Modeling RESTful applications. In

International Workshop on Restful Design, 15–21.

Siegel, J. M. (2014). Model driven architecture (MDA)-

MDA Guide rev. 2.0. (Technical Report, Object

Management Group).

Steinberg, D., Budinsky, F., Merks, E., & Paternostro, M.

(2008). EMF: Eclipse Modeling Framework. Pearson

Education.

Stenetorp, P., Pyysalo, S., Topić, G., Ohta, T., Ananiadou,

S., & Tsujii, J. (2012). BRAT: A web-based tool for

NLP-assisted text annotation. In Demonstrations

Session at European Chapter of the Association for

Computational Linguistics.

Terzić, B., Dimitrieski, V., Kordić, S., Milosavljević, G., &

Luković, I. (2018). Development and evaluation of

MicroBuilder: A Model-Driven tool for the

specification of REST Microservice Software

Architectures. Enterprise Information Systems, 12(8–

9), 1034–1057.

Truyen, F. (2006). The fast guide to model driven

architecture. Cephas Consulting Corp.

Valverde, F., & Pastor, O. (2009). Dealing with REST

services in model-driven web engineering methods. V

Jornadas Cientifico-Técnicas en Servicios Web y SOA,

243–250.

Zolotas, C., Diamantopoulos, T., Chatzidimitriou, K. C., &

Symeonidis, A. L. (2017). From requirements to source

code: A Model-Driven Engineering approach for

RESTful web services. Automated Software

Engineering, 24(4), 791–838

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

104
