Proﬁle Hidden Markov Model Malware Detection and API Call

Obfuscation

Muhammad Ali

, Monem Hamid

, Jacob Jasser

, Joachim Lerman

, Samod Shetty

and Fabio Di Troia

2 a

Department of Computer Engineering, San Jose State University, San Jose, CA, U.S.A.

Department of Computer Science, San Jose State University, San Jose, CA, U.S.A.

Keywords:

PHMM, Malware Detection, Malware Obfuscation, API Calls, Dynamic Detection, Machine Learning.

Abstract:

Proﬁle Hidden Markov Models (PHMM) have been used to detect malware samples based on their behavior on

the host system and obtained promising results. Since PHMMs are a novel way of categorizing malware and

there is limited research work on such detection method, there is no data on the impact that certain obfuscation

techniques have on PHMMs. An obfuscation tool that could weaken PHMM based detection has not yet

been proposed. Our novel approach is based on applying PHMM detection by training the machine learning

models on API calls that are dynamically extracted from the malware samples, and then attempting to elude

detection by the same models using obfuscation techniques. Hence, in our paper, we created a PHMM model

trained on API call sequences extracted by running malware in a sandbox, then we tried to undermine the

detection effectiveness by applying different state-of-the-art API obfuscation techniques to the malware. By

implementing sophisticated API calls obfuscation techniques, we were able to reduce the PHMM detection

rate from 1.0, without API call obfuscation, to 0.68.

1 INTRODUCTION

Malicious software (malware) has been with us since

the dawn of computer development. There are re-

ports of malware being detected as far back as the

1970s (Suenaga, 2009), and since then they continue

to evolve and infect various devices while increasing

in quantity. It is a constant race between threat actors

and security analysts to ﬁnd an edge over the other.

Malware threats have evolved from harmless annoy-

ances to serious breaches such as ransomware and cy-

berterrorism (McKnight, 2017). Traditional approach

for malware detection is based on signature detection,

which relies on static analysis of malware before-

hand, and security analysis software detecting mal-

ware based on those signatures (Sathyanarayan et al.,

2008). Over time, however, malicious software has

become increasingly complex, and signature detec-

tion cannot be trusted anymore for hundred percent

accuracy in detection. That is where dynamic anal-

ysis and machine learning come into play. Recent

advancements in machine learning techniques have

provided the opportunity of applying it in the area of

https://orcid.org/0000-0003-2355-7146

malware detection. There has been a lot of research

into using statistical models, such as Hidden Markov

Models trained on existing malware by extracting API

calls (Alqurashi and Batarﬁ, 2017). This paper fo-

cused on the possibility of using PHMMs, and ex-

plored any weaknesses in its efﬁciency in catching un-

known malware samples by applying state-of-the-art

obfuscation techniques.

The remainder of this paper is organized as fol-

lows. In Section 2 we provide a selective survey of

relevant work in this area. In Section 3, background

topics are discussed, with a focus on the machine

learning technique employed in this research. Sec-

tion 4 covers the methodology used, with a descrip-

tion of the project architecture and its implementa-

tion. Section 5 gives our experimental results and

analysis. Finally, Section 6 summarizes our results

and includes a discussion of possible directions for

future work.

688

Ali, M., Hamid, M., Jasser, J., Lerman, J., Shetty, S. and Di Troia, F.

Proﬁle Hidden Markov Model Malware Detection and API Call Obfuscation.

DOI: 10.5220/0011005800003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 688-695

ISBN: 978-989-758-553-1; ISSN: 2184-4356

2 RELATED WORK

Looking at the literature of malware detection, there

are generally three approaches. The ﬁrst is done by

taking large surveys where the authors take broad

known obfuscation techniques and compare them to

detection methods currently deployed, such as in (You

and Yim, 2010). The second approach is based

on using new techniques in the ﬁeld of malware

detection, such as Proﬁle Hidden Markov Models

(PHMM) algorithms, and pairing them with currently

known methods of analysis such as dynamic anal-

ysis (Alkhateeb, 2017), API calls and constructing

birthmarks (Vemparala et al., 2016). These methods

aid in trying to improve detection quality and create a

more robust malware detection framework. The third

approach taken by the literature is using malware de-

tection as a baseline and applying novel techniques

to obfuscate itself and escape detection, for example

in (Srivastava et al., 2008). While the former ap-

proach provides a favorable overview of the state of

current techniques, the latter two approaches to lit-

erature are in a sort of arms race. One side is try-

ing to create methods to evade detection while the

other side is creating methods to detect them. As it

stands currently, there are many papers for obfusca-

tion of a malware’s signature, and there is substan-

tial research for its detection. However, there is cur-

rently no research on how to obfuscate malware sam-

ples to hamper PHMM based detection. The majority

of research work is broad and more surface level. It

does not deepen into a technique, but rather it tests

and measures a wide variety of techniques. Research

is extensive for exactly how polymorphic and meta-

morphic malware uses techniques to modify itself in

intelligent ways to evade detection at a high success

rate (Singh and Singh, 2018). For example, they take

certain types of evasion techniques commonly imple-

mented by polymorphic and metamorphic malware,

such as adding dead code, transposing code, or re-

ordering subroutines (You and Yim, 2010). There is

more research showing how there are already various

techniques for malware detection, both static and dy-

namic to render common signature based detection

obsolete, for example, the work in (Damodaran et al.,

2017). This research mostly gives analysis on the

arms race between malware detection and obfusca-

tion, and provides good context and data to compare

different methods of detection or obfuscation. There

is also novel research being performed to evade de-

tection. In fact, novel techniques such as conditional

code obfuscation were developed and determined to

evade state-of-the-art malware detection (Sharif et al.,

2008). With new obfuscation schemes, new meth-

ods of detection are needed if malware can defeat

detection and can hide malicious behavior and activ-

ity. With novel obfuscation techniques being devel-

oped, there are also novel detection methods being

researched, particularly by using bioinformatics tools

to analyze and catch how malware evolves (Wad-

kar et al., 2020). There is research done for spe-

ciﬁc kinds of evasions of malware where the mal-

ware’s behavior will change if it thinks it is being an-

alyzed (Kirat and Vigna, 2015). Additionally, there

is research being done with using PHMM for mal-

ware detection. PHMM is usually used for catego-

rizing protein families, but it has been found to be

very effective in catching and categorizing malware

families. PHMM has been used to detect malware

in many different ways. PHMM has been incorpo-

rated in malware detection by using dynamic birth-

marks (Vemparala et al., 2016) and has been used

to classify known malware (Pranamulia et al., 2017).

While some research obtained high sensitivity scores,

they had a high false positive rate as well. Newer re-

search has been performed and reached high accuracy

and conﬁdence in detection with a very low false pos-

itive rate (Alipour and Ansari, 2020). PHMM has

also been used in a variety of ways to tackle detec-

tion using static and dynamic forms of analysis such

as analyzing system call sequences (Pranamulia et al.,

2017), behavior based analysis (Ravi et al., 2013),

static analysis based on opcode sequences (Alipour

and Ansari, 2020), and using dynamic analysis tech-

niques (Vemparala, 2015). In parallel, there is also a

lot of research being achieved for extracting API calls

and using those calls for malware analysis. PHMM

in particular has also been shown to be robust on a

variety of operating systems and successfully detects

malware using API extractions on various platforms

such as Android (Sasidharan and Thomas, 2021). Re-

search has been done for static detection of malware

based on the binary’s executable (Fu et al., 2008).

Furthermore, there has been plenty of work demon-

strating efﬁcacy in extracting API calls and being able

to classify them based on API sequences (Uppal et al.,

2014), or based on API call frequency (Garg and Ya-

dav, 2019). These methods are often paired with ma-

chine learning and yield promising results. Combin-

ing this approach with PHMM has shown to be very

efﬁcacious for detecting malware. Malware detection

using dynamic birthmarks and PHMM has been mea-

sured to be very effective by using a windows sand-

boxing tool called Buster Sandbox Analyzer(Buster,

2021) to dynamically extract API calls (Damodaran

et al., 2017).

Proﬁle Hidden Markov Model Malware Detection and API Call Obfuscation

689

3 BACKGROUND

In this Section, we brieﬂy introduce the PHMM algo-

rithm and the obfuscation techniques implemented in

our experiments. A more detailed description of our

implementation can be found in Section 4.

3.1 Proﬁle Hidden Markov Model

Proﬁle Hidden Markov Models (PHMMs) are proba-

bilistic models that we used to train and test malware

API calls. It could be seen as an advanced version

of Hidden Markov Models (HMMs). In fact, one of

the drawbacks of HMM is the Markov assumption,

i.e. the current state depends only on the previous

state. PHMMs, instead, uses positional information

of sequences/symbols, and thereby gives a better ﬁt

for dynamic malware detection that looks at API calls

being generated by malware (Stamp, 2017). PHMM

algorithm is mainly based on two steps, that is, the

pairwise alignment and the multiple sequence align-

ment (MSA). Pairwise alignment is a technique to

align two sequences, where a substitution matrix and

gap penalty function are used to align such sequences.

In this paper, we used local alignment where two

pairs are aligned locally using dynamic programming.

MSA is generated from a collection of pairwise align-

ments. In this paper, we used Kruskal algorithm to

construct a minimum spanning tree of pairwise align-

ments from highest scored pair to lowest sequence.

Starting from the highest scoring pair, MSA is pro-

gressively aligned to include each sequence in every

iteration. PHMM is then derived directly from MSA.

More details about PHMM can be found in (Stamp,

2017), while implementation details followed in this

paper are described more in in depth in Section 4.

3.2 Obfuscation Techniques

One of the obfuscation techniques that we imple-

mented was to change the instructions after decompil-

ing the malware samples, resulting in a change in the

sample appearance while its core functionality stays

unchanged. Our expectation was to get variable API

logs with the changed instructions and, thus, hamper-

ing the dynamic detection based on such sequences.

We also tested some existing state-of-the-art obfus-

cation tools, such as running malware ﬁles through

Enigma Protector (The Enigma Protector Developers

Team, 2021), which injects itself at the start of the

code ﬂow, and padding and copying API calls (Sue-

naga, 2009). Another tool that we tested was Cal-

lObfuscator (Mahmood, M., 2021). The tool works

by replacing speciﬁc API calls in any of the DLLs in

windows API, while keeping the functionality of the

original PE intact.

4 METHODOLOGY AND

PROJECT ARCHITECTURE

Architecture for PHMM based malware detection has

multiple set-ups involving different subsystems for

API call logs collections, deriving PHMM, and train-

ing and testing the models. Architecture is modular-

ized into subsystems with different set-ups. Each sub-

system is responsible for its function. Here, we see a

brief description of each.

API Logs Collector. This set-up leverages Sand-

boxie and Buster Sandbox Analyzer to collect API

call logs from malware and application execution.

Derive PHMM. API call logs collected by the above

set-up are translated into sequences. These se-

quences are used to generate pairwise alignments

and MSA. PHMM is then derived from MSA to

be trained.

Train and Test PHMM. This system trains the

PHMM using API call sequences belonging to

various malware families. Once trained, we test

the model against other malware and application

API call sequences.

Obfuscate to Avoid Detection. In order to test

PHMM efﬁciency and how effective it is at

dynamic analysis of suspected malware samples,

it is suggested to explore relevant obfuscation

techniques and attempt to defeat the trained ML

model that was developed.

A depiction of this architecture is given in Figure 1.

4.1 Implementation

In a Windows 10 virtual machine, we installed Buster

Sandbox Analyzer and Sandboxie Classic (Sand-

boxie, 2021). On every new boot of the VM, we

made sure to disable Windows Real-time protection

as this would unintentionally delete malware test ﬁles

in the operating system. This can cause issues if

tested malware ﬁles are deleted, since our malware

ﬁles come pre-packaged and compressed. Under

“C:\Windows\Sandboxie.ini”, we added the follow-

ing conﬁgurations for a chosen sandbox:

InjectDll=[path to bsa’s logapi32.dll]

InjectDll=[path to bsa’s logapi64.dll]

OpenWinClass=TFormBSA

NotifyDirectDiskAccess=y

ForSE 2022 - 6th International Special Session on FORmal methods for Security Engineering

690

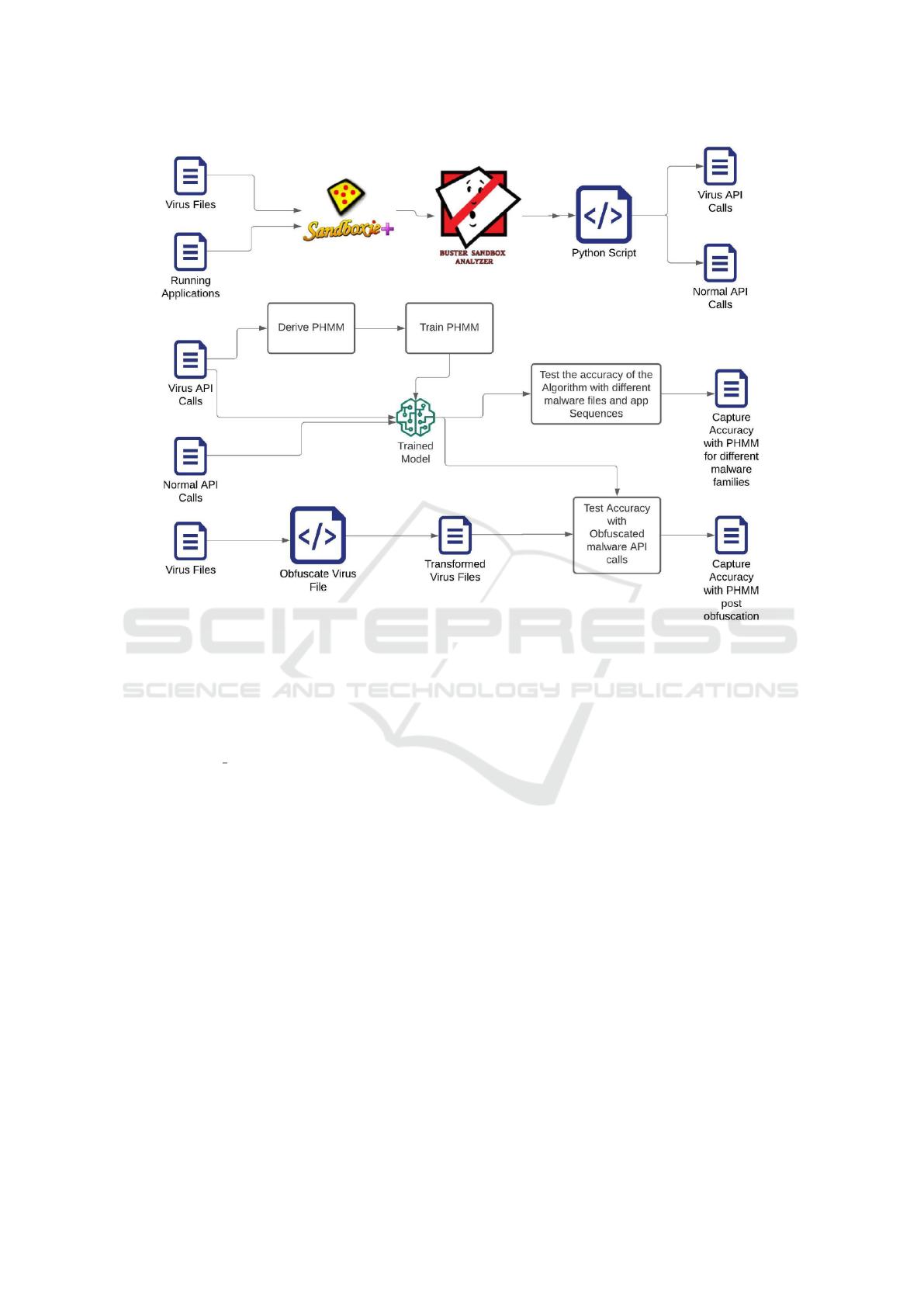

Figure 1: Architecture for PHMM Virus Detection and Obfuscation.

Then, we started Buster Sandbox Analyzer (BSA)

and selected the Sandboxie folder containing the mal-

ware samples. We allowed the malware to run and,

when it completed its execution, the malware log

APIs was produced in the “Reports” directory in a

ﬁle called “LOG API.txt”. A script was created to

run BSA on a whole directory of applications.

After collecting API data on the malware families,

we took the 36 most common API calls and assigned

them an alphanumeric character. All other less com-

mon API calls where given the “*” character. The

value 36 is the optimal number of most common API

calls based on the work in (Vemparala et al., 2016).

In fact, the top 36 API calls constitute more than the

99.8% of the total API calls for each family tested.

A python script was implemented to convert the API

logs generated from the Log API collection step to its

corresponding character, then a shell script was used

to convert all log ﬁles into a sequence ﬁle for a given

malware family. Another Python program was writ-

ten to generate the sequences from API call logs.

4.1.1 Pairwise Alignment

MSA Pairwise Alignment is a method of aligning

sequences. This is a ﬁrst step in generating MSA.

For analyzing the performance of PHMM against dif-

ferent malware families, we generated an MSA for

each malware family and a consolidated MSA repre-

senting all malware families. From the API log se-

quences generated by the script above, we shortlisted

10 sequences belonging to each malware family. Ev-

ery pair of sequences was aligned locally with the

score. We used a substitution matrix with a match

having score of 10 and no-match having score of -

10. We used a linear gap penalty function where

“-” in the initial gap and extension of gap had the

same penalty of -5. A python script and the Biopy-

thon library (Biopython, 2021) were used to align se-

quences as mentioned above. Biopython has a “pair-

wise2” module that has various functions that help

in aligning the sequences. Based on the score asso-

ciated with each pair, a minimum spanning tree is

constructed with the highest scoring pair at the top.

Each pair was translated into edges, and Kruskal al-

gorithm was used to derive the highest performing

minimum spanning tree. Nine pairs representing all

10 sequences were formed. A Multiple Sequence

Proﬁle Hidden Markov Model Malware Detection and API Call Obfuscation

691

Alignment (MSA) is constructed by implementing the

Feng-Doolittle algorithm with progressive alignment

of sequences. We followed the method explained

in (Attaluri et al., 2009). In this method, alignment is

accomplished in the order dictated by pairwise align-

ments in a minimum spanning tree. MSA is itera-

tively constructed with the highest scoring pair being

the ﬁrst to be added. Each pair is then progressively

added to MSA, each time aligning the sequences. Fig-

ure 2 depicts the process to generate MSA.

This program outputs a “malware family msa.txt”

ﬁle that will have an MSA which is going to be used

to derive PHMM and training the model. More pre-

cisely, once we had MSA for each malware family,

we loaded these MSAs into R. We used the aphid

library (RDocumentation, 2021) to derive PHMM.

PHMM was derived with residues consisting of al-

phanumeric characters (A-Z, 0-9) and an asterisk (*).

The k value of 2 was chosen. Once PHMM was de-

rived, it was trained using the BaumWelch algorithm.

More than 600 malware samples were used to train

this model. This trained model was saved onto the

disk for future use to test malware detection. The

PHMM model that was trained above was used for

malware detection. We had separate test data consist-

ing of more than 150 malware samples used to obtain

metrics on the performance of the model. Forward

algorithm (Stamp, 2017) was used to test the model

against these samples. The algorithm returned the

probability score. We also tested the model against

the application logs and noted down the probability

score. Later, both the results were fed into an AUC

function to get the AUC score. Details on AUC score

and the performance of the PHMM model can be

found in Section 5. The code used in this research

can be accessed at (Ali et al., 2021b) and (Ali et al.,

2021a).

4.2 Dataset

The dataset is made of ﬁve families, that is, ZeroAc-

cess, Zbot, Harebot, Trojan, and Winwebsec, for a to-

tal of 730 malware ﬁles split among the such fami-

lies, plus 40 benign applications. To train the models,

600 malware samples are used, while the rest of the

malicious ﬁles plus the benign samples are used for

testing. The malware samples are part of the Malicia

project (IMDEA Software Istitute, 2013).

5 EXPERIMENTS AND RESULTS

In this Section, we describe the experiments accom-

plished in this research. These experiments are based

on three different ways to obfuscate API calls, to

which we applied a trained PHMM model to quantify

its ability to detect the obfuscated samples.

In the ﬁrst experiment, we used a disassembler

tool to explore compiled executables ﬁles (malware).

This helped us in opening ﬁles, disassembly, and

reading the code (assembly code). After decompil-

ing the malware sample, instructions were added ran-

domly at different places in the decompiled. The

goal was to conﬁrm that adding instructions would

not change the API calls sequence. After recompiling

a malware sample with additional instructions at dif-

ferent points, we ran the same sample in Sandboxie

and captured the API logs via BSA. We conﬁrmed

that there was no change in the actual API call log for

those obfuscated samples. This proved that obfuscat-

ing the code by changing the list of instructions does

not affect the sequence of API calls.

In the second experiment, we swapped certain API

calls with others in the Windows DLL IAT (Mah-

mood, M., 2021) with similar ones, thus to not al-

ter the original behavior of the program. Hence, we

modiﬁed the virus ﬁles so that the sequence of API

calls when logged through BSA would change con-

siderably. First we ran an unmodiﬁed malware ﬁle

through BSA to capture the API call sequence. Next,

we ran the dump to obtain the API calls list without

obfuscation. Next, we chose an API call to swap,

and modiﬁed the PE. Lastly, we reran the unmodi-

ﬁed ﬁle through BSA to obtain the new obfuscated

API call sequence. The resulting “API LOG” was

then rerun through a sequence mapping script, and

the sequence was tested against the trained malware

detection model to observe the result. The model was

trained on the non-obfuscated version of the samples.

What we observed was that such API modiﬁcations

did not change the sequence enough to avoid detec-

tion, and dropped further obfuscation efforts through

this tool. The results of this last experiment are shown

in Figure 3, 4, 5, 6, and 7 for, respectively, Zeroac-

cess, Zbot, Winwebsec, Trojan, and Harebot family.

In Figure 8, instead, we see the results of our mul-

ticlass classiﬁcation experiment with all such fami-

lies. Performance of the PHMM model is measured

by drawing the ROC curve and measuring the area

under it. PHMM performance is signiﬁcantly better

in malware families like Zeroaccess, Zbot, and Win-

websec (1.0, 0.97, and 0.95 AUC, respectively) com-

pared to Trojan (0.82 AUC), that is the only family

that has been affected considerably by the tested ob-

ForSE 2022 - 6th International Special Session on FORmal methods for Security Engineering

692

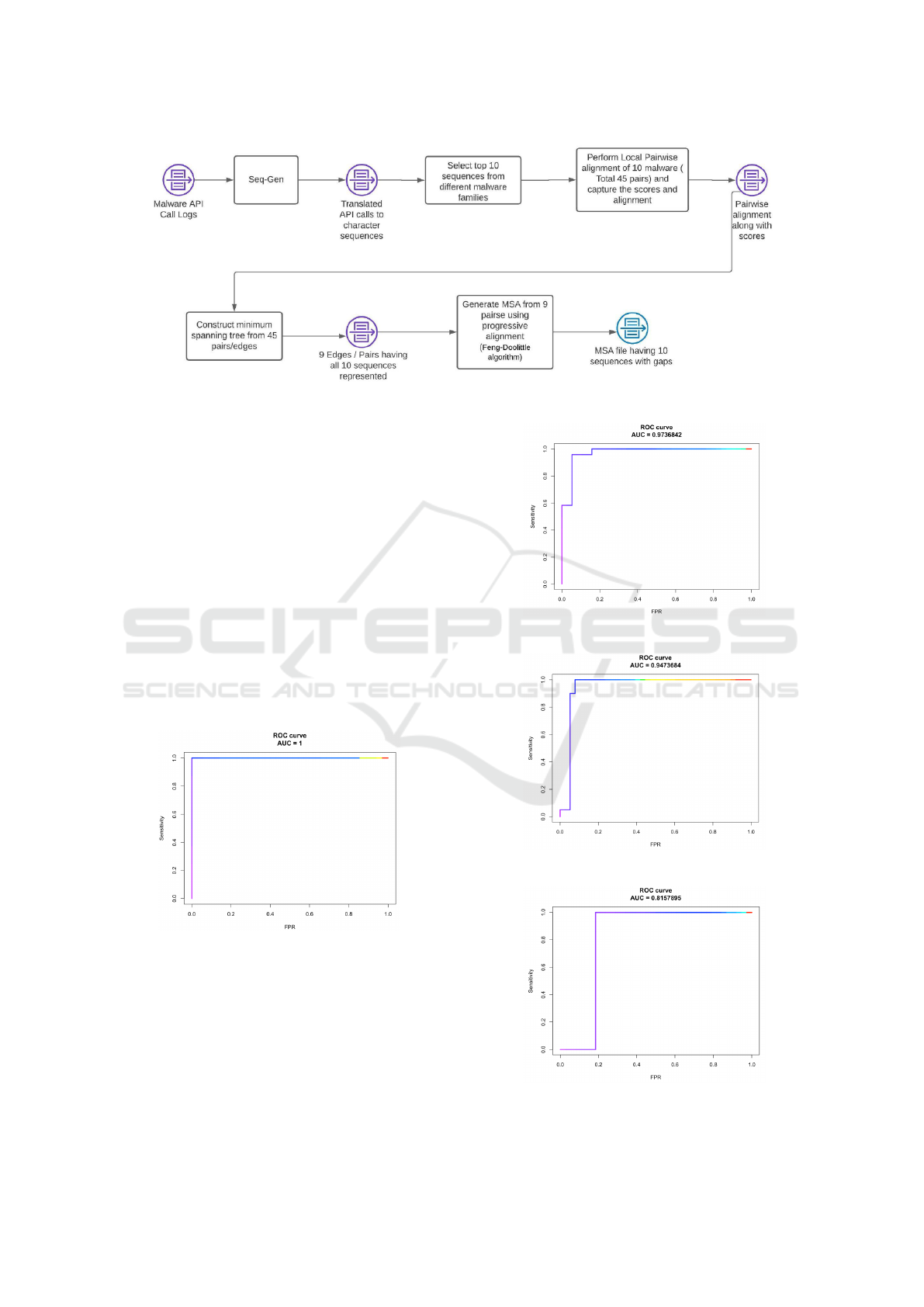

Figure 2: Generating MSA.

fuscation technique. As a mean of comparison, we

ran our model against the non-obfuscated version of

the malware samples. The results obtained were all

compatible to the work in (Vemparala et al., 2016),

with a consistent 1.0 AUC for all the families. A sum-

mary of this experiment is given in Table 1.

In the third experiment, we attempted differ-

ent techniques for obfuscation using callObfuscator,

manually changing DLL instructions, and enigmaPro-

tector. Out of all the various techniques, obfusca-

tion achieved using enigmaProtector resulted in sig-

niﬁcant reduction of the AUC score when we utilized

the API call logs from the obfuscated malware. Fig-

ure 9 shows the ROC curve for our multiclass exper-

iment with obfuscated malware via enigmaProtector,

which signiﬁcantly reduced the AUC score from 0.92

(swapping the API calls with alternative ones) to 0.68.

Figure 3: ROC curve for Zeroaccess family.

6 CONCLUSIONS

There is no evidence in literature of the inﬂu-

ence of obfuscation strategies to evade PHMM-based

malware detection. The potential shortcomings of

PHMM-based detection, as well as how to circum-

vent detection, were yet to be proved using an ob-

Figure 4: ROC curve for Zbot family.

Figure 5: ROC curve for Winwebsec family.

Figure 6: ROC curve for Trojan family.

Proﬁle Hidden Markov Model Malware Detection and API Call Obfuscation

693

Table 1: Malware Family AUC Scores.

Malware Family AUC Score (obfuscated

with enigmaProtector)

AUC Score (obfuscated

with API swapping)

AUC Score (non-obfuscated)

ZeroAccess 0.77 1.0 1

Winwebsec 0.95 0.95 1

Zbot 0.53 0.97 1

Harebot 0.79 0.92 1

Trojan 0.61 0.82 1

Multiclass 0.68 0.92 1

Figure 7: ROC curve for Harebot family.

Figure 8: ROC curve for our multiclass experiment.

Figure 9: ROC curve after obfuscating the samples with

enigmaProtector (multiclass).

fuscation tool. It is possible, in theory, to build ma-

chine learning models based on API calls collected

from known malware samples, and then use malware

obfuscation to evade detection by the same models.

To test this strategy, we used PHMM to detect differ-

ent malware families based on the API calls, and then

tried a few state-of-the-art obfuscation techniques to

evade detection. We used a tool called enigmaProtec-

tor which uses padded and copied API obfuscation,

we decompiled the samples, added dummy instruc-

tions (such as NOPs) at different places within each

sample, and then re-compiled the modiﬁed samples

so that we could run it using our model. Finally, we

tried modifying the malware executables with Cal-

lObfuscator which modiﬁes the Import Address Ta-

ble. We did not obtained much success with NOPs

and CallObfuscator, however, by using enigmaProtec-

tor we got positive results in terms of evading detec-

tion. In fact, it reduced the AUC score from 0.92 to

0.68 which shows moderate effectiveness to evading

detection from PHMMs.

Further research would include scripting custom

malware obfuscation techniques such as dead code in-

sertion, instruction changes, substitution, and padding

to observe their effect on the list of API calls. Fur-

thermore, utilizing additional malware families to ob-

serve the AUC resuls would be beneﬁcial, also, ob-

serving the accuracy of the classiﬁcation by integrat-

ing the dataset with both benign and malicious pro-

grams. Finally, expanding the feature set by extract-

ing API calls both dynamically and statically, with the

introduction of additional features to oppose the effect

of enigmaProtector on the PHMM model.

REFERENCES

Ali, M., Hamid, M., Jasser, J., Lerman, J., Shetty,

S., and Di Troia, F. (2021a). Malware-training-

detection. https://github.com/SJSU-PHMM/

ForSE 2022 - 6th International Special Session on FORmal methods for Security Engineering

694

malware-training-detection. Online; accessed

November 2021.

Ali, M., Hamid, M., Jasser, J., Lerman, J., Shetty, S., and

Di Troia, F. (2021b). MSA-gen. https://github.com/

SJSU-PHMM/msa-gen. Online; accessed November

2021.

Alipour, A. A. and Ansari, E. (2020). An advanced proﬁle

hidden markov model for malware detection. Intelli-

gent Data Analysis, 24(4):759–778.

Alkhateeb, E. M. S. (2017). Dynamic malware detection us-

ing api similarity. In 2017 IEEE International Confer-

ence on Computer and Information Technology (CIT),

pages 297–301. IEEE.

Alqurashi, S. and Batarﬁ, O. (2017). A comparison between

api call sequences and opcode sequences as reﬂectors

of malware behavior. In 2017 12th International Con-

ference for Internet Technology and Secured Transac-

tions (ICITST), pages 105–110. IEEE.

Attaluri, S., McGhee, S., and Stamp, M. (2009). Proﬁle hid-

den markov models and metamorphic virus detection.

Journal in computer virology, 5(2):151–169.

Biopython (2021). Biopython. https://biopython.org/. On-

line; accessed November 2021.

Buster (2021). Buster Sandbox Analyzer. https://bsa.

isoftware.nl/. Online; accessed November 2021.

Damodaran, A., Di Troia, F., Visaggio, C. A., Austin,

T. H., and Stamp, M. (2017). A comparison of

static, dynamic, and hybrid analysis for malware de-

tection. Journal of Computer Virology and Hacking

Techniques, 13(1):1–12.

Fu, W., Pang, J., Zhao, R., Zhang, Y., and Wei, B.

(2008). Static detection of api-calling behavior from

malicious binary executables. In 2008 International

Conference on Computer and Electrical Engineering,

pages 388–392. IEEE.

Garg, V. and Yadav, R. K. (2019). Malware detection based

on api calls frequency. In 2019 4th International Con-

ference on Information Systems and Computer Net-

works (ISCON), pages 400–404. IEEE.

IMDEA Software Istitute (2013). Malicia. http://www.

malicia-project.com/dataset.html. Online; accessed

November 2021.

Kirat, D. and Vigna, G. (2015). Malgene: Automatic ex-

traction of malware analysis evasion signature. In

Proceedings of the 22nd ACM SIGSAC Conference on

Computer and Communications Security, pages 769–

780.

Mahmood, M. (2021). CallObfuscator: Obfuscate speciﬁc

windows apis with different apis. https://github.com/

d35ha/CallObfuscator. Online; accessed November

2021.

McKnight, J. (2017). The evolution of ransomware and

breadth of its economic impact. PhD thesis, Utica Col-

lege.

Pranamulia, R., Asnar, Y., and Perdana, R. S. (2017).

Proﬁle hidden markov model for malware classiﬁ-

cation—usage of system call sequence for malware

classiﬁcation. In 2017 International Conference on

Data and Software Engineering (ICoDSE), pages 1–

5. IEEE.

Ravi, S., Balakrishnan, N., and Venkatesh, B. (2013).

Behavior-based malware analysis using proﬁle hidden

markov models. In 2013 International Conference on

Security and Cryptography (SECRYPT), pages 1–12.

IEEE.

RDocumentation (2021). Aphid. https://www.

rdocumentation.org/packages/aphid/. Online;

accessed November 2021.

Sandboxie (2021). Sandboxie classic. https://

sandboxie-plus.com/sandboxie/. Online; accessed

November 2021.

Sasidharan, S. K. and Thomas, C. (2021). Prodroid—an an-

droid malware detection framework based on proﬁle

hidden markov model. Pervasive and Mobile Com-

puting, 72:101336.

Sathyanarayan, V. S., Kohli, P., and Bruhadeshwar, B.

(2008). Signature generation and detection of mal-

ware families. In Australasian Conference on In-

formation Security and Privacy, pages 336–349.

Springer.

Sharif, M. I., Lanzi, A., Gifﬁn, J. T., and Lee, W. (2008).

Impeding malware analysis using conditional code

obfuscation. In NDSS. Citeseer.

Singh, J. and Singh, J. (2018). Challenge of malware anal-

ysis: malware obfuscation techniques. International

Journal of Information Security Science, 7(3):100–

110.

Srivastava, A., Lanzi, A., and Gifﬁn, J. (2008). System call

api obfuscation. In International Workshop on Re-

cent Advances in Intrusion Detection, pages 421–422.

Springer.

Stamp, M. (2017). Introduction to machine learning with

applications in information security. Chapman and

Hall/CRC.

Suenaga, M. (2009). A museum of api obfuscation on

win32. Symantec Security Response.

The Enigma Protector Developers Team (2021). Enigma

Protector. https://www.enigmaprotector.com/. Online;

accessed November 2021.

Uppal, D., Sinha, R., Mehra, V., and Jain, V. (2014). Mal-

ware detection and classiﬁcation based on extraction

of api sequences. In 2014 International conference

on advances in computing, communications and in-

formatics (ICACCI), pages 2337–2342. IEEE.

Vemparala, S. (2015). Malware detection using dynamic

analysis. Master’s thesis.

Vemparala, S., Di Troia, F., Visaggio, A. C., Austin, T. H.,

and Stamp, M. (2016). Malware detection using dy-

namic birthmarks. In Proceedings of the 2016 ACM on

international workshop on security and privacy ana-

lytics, pages 41–46.

Wadkar, M., Di Troia, F., and Stamp, M. (2020). Detect-

ing malware evolution using support vector machines.

Expert Systems with Applications, 143:113022.

You, I. and Yim, K. (2010). Malware obfuscation tech-

niques: A brief survey. In 2010 International con-

ference on broadband, wireless computing, communi-

cation and applications, pages 297–300. IEEE.

Proﬁle Hidden Markov Model Malware Detection and API Call Obfuscation

695
