SERIES: A Task Modelling Notation for Resource-driven Adaptation

Paul A. Akiki, Andrea Zisman and Amel Bennaceur

School of Computing and Communications, The Open University, Milton Keynes, U.K.

Keywords: Task Modelling Notation, Resource-driven Adaptation, Enterprise System.

Abstract: Enterprise Systems (ESs) can make use of tasks that depend on various types of resources such as robots and

raw materials. The variability of resources can cause losses to enterprises. For example, the malfunctioning

of robots at automated warehouses could delay product deliveries and cause financial losses. These losses can

be avoided if resource-driven adaptation is supported. In order to support resource-driven adaptation in ESs,

this paper presents a task modelling notation called SERIES, which is used for specifying the tasks of ESs at

design time and the enterprise-specific task variants and property values at runtime. SERIES is complemented

by a visual tool. We assessed the usability of SERIES using the cognitive dimensions framework. We also

evaluated SERIES by developing resource-driven adaptation examples and measuring the performance over-

head and source-code intrusiveness. The results showed that SERIES does not hinder performance and is non-

intrusive.

1 INTRODUCTION

Enterprise Systems (ESs) can make use of tasks that

represent activities, which depend on various types of

resources. There are several reasons for resources to

be variable. Examples are unexpected hardware fail-

ures, excess workloads, or lack of (raw) materials. It

is costly to over-provision resources to compensate

for short-term resource variability. The lack of re-

sources prevents ESs from executing important tasks

on time, thereby, causing losses to enterprises and

people. For example, the malfunctioning of robots at

automated warehouses could delay product deliveries

and drive customers to buy from a competitor. Medi-

cally-critical tasks could be obstructed if low-priority

tasks deplete medical supplies facing shortages.

Resource-driven adaptation is a type of self-adap-

tation (Cheng et al., 2009; De Lemos et al., 2013)

driven by resource variability. The unavailability of

resources to carry out a certain task may trigger an

adaptation that involves the execution of a similar

task that requires less resources, substitution of alter-

native resources, execution of tasks in a different or-

der, or even cancelling execution of low-priority tasks.

Existing resource-driven adaptation approaches

work in different ways like disabling optional compo-

nents (Xu & Buyya, 2019), reducing the data returned

by a query (Gotz et al., 2015), changing system con-

figurations through policies (Keeney & Cahill, 2003),

and reducing source-code that consumes a lot of com-

putational resources (Christi et al., 2017). While the

abovementioned approaches do not focus on tasks in

their decision-making process, others do (Perttunen et

al., 2007; Sousa et al., 2006). However, these ap-

proaches do not consider characteristics that are im-

portant to support enterprise-specific adaptation deci-

sions, as explained next.

ESs execute tasks that support enterprises from

different domains (Lucas et al., 2013). Given that

these tasks are different and that the needs of enter-

prises vary, adaptation decisions should consider

characteristics like (i) task priorities; (ii) applicability

of an adaptation type to a task; and (iii) task variants

that differ according to parameter values, user roles,

and resource consumption. The priority of tasks can

be different due to corporate decisions. Additionally,

parameter values and user roles, that distinguish task

variants, differ based on enterprises’ data. Hence, a

task modelling notation is needed for specifying tasks

in ESs at design time and for setting enterprise-spe-

cific task variants and properties at runtime.

The abovementioned resource-driven adaptation

approaches that focus on tasks do not offer a task

modelling notation. Furthermore, existing task mod-

elling notations, like ConcurTaskTrees CTT (Paterno

et al., 1997) and HAMSTERS (Martinie et al., 2011),

also have missing characteristics (i)-(iii) above that

are useful for resource-driven adaptation, as dis-

cussed in this paper.

Akiki, P., Zisman, A. and Bennaceur, A.

SERIES: A Task Modelling Notation for Resource-driven Adaptation.

DOI: 10.5220/0011001800003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 2, pages 29-39

ISBN: 978-989-758-569-2; ISSN: 2184-4992

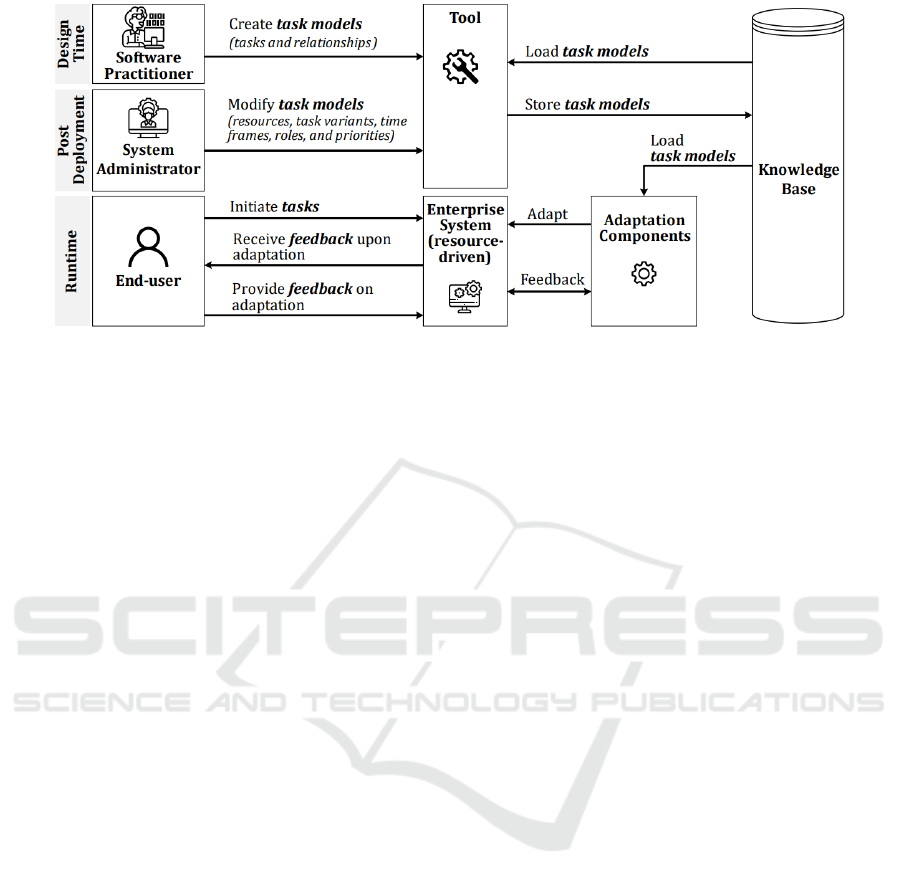

Figure 1: Architecture summarising the use of SERIES task models for resource-driven adaptation.

Given the limitations of existing task modelling

notations in terms of what they can represent, in this

paper, we propose SERIES (taSk modElling notation

for Resource-driven adaptatIon of Enterprise Sys-

tems). SERIES is a task modelling notation that sup-

ports resource-driven adaptation during the develop-

ment and runtime configuration of ESs. SERIES is

based on CTT (Paterno et al., 1997) - a notation for

representing task models hierarchically using a

graphical syntax. SERIES has a supporting tool to be

used by software practitioners and system administra-

tors, as shown in Figure 1. Software practitioners can

create, at design time, task models that contain the

tasks of an ES; and system administrators can extend

these models, at runtime, by adding enterprise-spe-

cific information such as task priorities, task variants,

and properties related to end-user feedback.

We assessed the usability of SERIES and its tool

using the cognitive dimensions framework (Green &

Petre, 1996). We also evaluated SERIES by develop-

ing resource-driven adaptation examples and measur-

ing its performance overhead and source-code intru-

siveness. This evaluation was executed by using ad-

aptation components (Figure 1) we proposed in pre-

vious work (Akiki et al., 2021). These components

were integrated into the source code of a prototype

system using .NET actions filters (Larkin et al., 2021).

The results of the evaluation showed that the use

of SERIES does not hinder performance and is non-

intrusive. The contributions of this paper are:

 a task modelling notation for resource-driven ad-

aptation; and

 a tool for software practitioners and system ad-

ministrators to create and modify task models us-

ing the proposed notation.

The remainder of this paper is structured as fol-

lows. In Section 2 we discuss existing task modelling

notations. In Sections 3 and 4 we present SERIES and

its supporting tool, respectively. In Section 5 we eval-

uate the work in terms of usability, performance, and

intrusiveness. Finally, in Section 6, we conclude our

work and discuss directions for future work.

2 RELATED WORK

This section provides a brief overview of existing task

modelling notations and their shortcomings in the de-

velopment of ESs that use resource-driven adaptation.

This section also briefly discusses feature modelling

notations.

2.1 Task Modelling Notations

Task modelling notations are used to represent task

models, which comprise tasks and relationships that

describe how to perform activities. These notations

have been used by various model-based development

approaches that target user interfaces (Calvary et al.,

2003), serious games (Vidani & Chittaro, 2009), and

collaborative learning systems (Molina et al., 2014).

Several task modelling notations were proposed

as described by existing surveys (Guerrero-García et

al., 2012; Limbourg & Vanderdonckt, 2004; Martinie

et al., 2019). Some notations like UAN (Hartson &

Gray, 1992) and GOMS (Kieras, 2004) are textual,

while other notations like CTT and HAMSTERS are

graphical. In general, task modelling notations follow

a hierarchical structure. Hence, graphical notations

are used to visualise a hierarchy of tasks and relation-

ships in a way that is easier to interpret (e.g., by soft-

ware practitioners and system administrators).

Task modelling notations support various model-

ling operators and task types. Some notations offer

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

more operators than others. For example, AMBOSS

(Giese et al., 2008), HTA (Annett, 2003), GTA (Van

Der Veer et al., 1996), and Diane+ (Tarby & Barthet,

1996) have more operators than TSK (Johnson &

Hyde, 2003), GOMS, and UAN. CTT and UsiXML

(Limbourg et al., 2004) are notations that offer the

most types of operators. Examples of these operators

include interruption and optionality, which describe

tasks and their relationships. With the interruption op-

erator, a task is suspended until another task finishes

its work, or a task is completely disabled by another

one. The optionality operator either specifies that a

task is optional or gives a choice between multiple

tasks so that when one task starts the others are disa-

bled. HAMSTERS offers a wider variety of task types

and supports extending task types with new ones.

Existing task modelling notations are useful for

representing tasks and relationships (Martinie et al.,

2019) but are not sufficient for developing ESs that

support resource-driven adaptation. Existing nota-

tions do not support the association of resource types

and priorities with tasks, which are important to iden-

tify potentially adaptable tasks due to variations in

certain resource types. Furthermore, these notations

do not support task variants that differ according to

priorities, resource consumption, user roles, and pa-

rameters. In situations in which there are variations in

resources only tasks with lower priorities would be

adapted, rather than adapting the task in all cases.

Another issue is concerned with the lack of stere-

otypes (tags) indicating which adaptation types apply

to a task. If a task requires only a certain type of re-

source, the system cannot perform resource substitu-

tion as an adaptation action and should consider an-

other type of adaptation (e.g., delay the task until the

resource becomes available).

Furthermore, in the case of an adaptation action,

it is useful to give feedback to end-users about the ra-

tionale for the action and to get feedback from them

to inform the system whether it should improve its

adaptation type choices. However, existing notations

do not support properties for specifying how a system

should present and receive adaptation-related feed-

back to and from end-users.

2.2 Feature Modelling Notations

A Feature Model is a hierarchical organisation repre-

senting the constraints for valid configurations in a

Software Product Line (Hallsteinsen et al., 2008).

Similar to existing task modelling notations, fea-

ture modelling notations do not support resource-

driven adaptation. More specifically, feature model-

ling notations do not allow for the representation of

resource types; priorities that differ according to pa-

rameter values, user roles, timeframes, and resource

intensiveness; information that affects which adapta-

tion types are applicable; and configuration infor-

mation regarding whether and how feedback is elic-

ited from the end-users and presented to them.

While modelling of variants is required to support

resource-driven adaptation, those variants are used to

distinguish among different ways of executing a task,

and not to distinguish among different products. Our

aim is to be able to represent explicit concrete tasks

rather than high-level features. Task models support

temporal operators that are useful for anticipating

which task will be executed next and, therefore, sup-

port adaptation decisions.

2.3 Why We Chose to Extend CTT

As we explained in Section 2.1, existing task model-

ling notations have useful features such as tasks and

relationships, but they also lack some characteristics

that are important for supporting resource-driven ad-

aptation for ESs. Based on our study of existing nota-

tions, we realised that notations like CTT, HAM-

STERS, and UsiXML could be extended to support

resource-driven adaptation. We decided to propose

SERIES as an extension of CTT given its wide use in

academia, government, and industry: its tool has been

downloaded over 26,000 times and has over 10,000

registered users (Vigo et al., 2017).

Additionally, CTT supports useful task types like

the system task that SERIES extends with variants.

Furthermore, CTT tasks can be associated with User

Interface (UI) elements (Calvary et al., 2003). This is

useful for displaying adaptation-related feedback to

end-users on the UI. Rigole et al. (2007) used CTT in

an approach for gradual component deployment to

avoid needless consumption of computing resources

on mobile devices. However, they do not propose any

extensions of CTT as we shall do in this paper.

3 THE SERIES NOTATION

SERIES offers task types and properties that support

resource-driven adaptation. Its meta-model is shown

in Figure 2. The concepts from this meta-model are

illustrated by examples in Figure 3 as excerpts of SE-

RIES task models. Figure 3 shows examples of a re-

tail store website and an automated warehouse system.

SERIES task models represent information that is in-

terpreted by resource-driven adaptation components

(refer to Figure 1). However, SERIES does not aim to

represent procedural logic like the Business Process

SERIES: A Task Modelling Notation for Resource-driven Adaptation

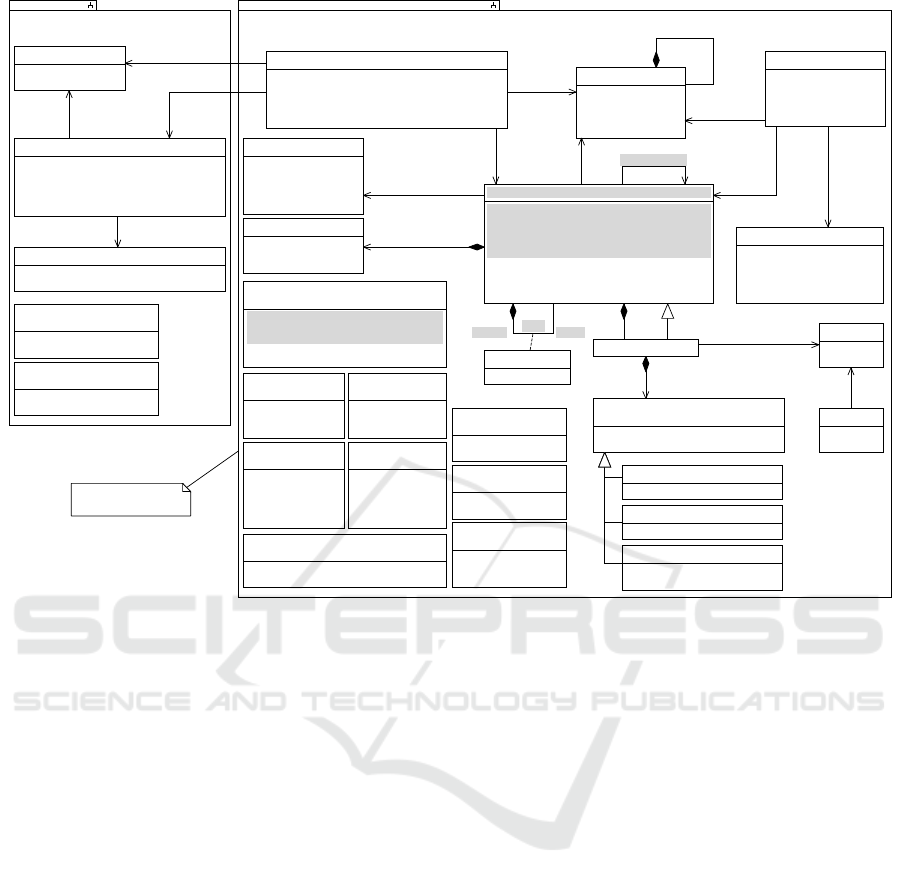

Figure 2: Meta-model of SERIES represented as a class diagram.

Model and Notation (von Rosing et al., 2015). The

term behaviour in “ResourceBehaviourType” on the

meta-model (Figure 2) is an enumeration for a con-

figuration property and does not indicate that SERIES

aims to support procedural logic. In the following text,

the names of the meta-model elements are italicised.

3.1 What SERIES Uses from CTT

SERIES incorporates from CTT the concepts of tasks

and relationships with temporal operators, which are

represented in Figure 2 by the Task class and its self-

association “is followed by” and property Following-

TaskTemporalOperator. Tasks are connected using

relationships that are annotated with temporal opera-

tors, which express how the Tasks relate to each other.

As shown in Figure 3(a), the Task “Search for Item”

enables the Task “Get Item Details”.

SERIES also incorporates from CTT three task

types: abstract, interaction, and application, which are

represented within the TaskType enumeration (Figure

2). Abstract tasks require complex actions and are

broken down into child (sub) Tasks, which are repre-

sented on the Task class by the parent-child self-com-

position and ParentTask association class (Figure 2).

Examples of abstract tasks are “Get Item Details” and

“Prepare Order” from Figure 3 (a) and (b) respec-

tively. Interaction tasks involve user interactions with

the system like “Search for Item” from Figure 3(a).

Application tasks are performed entirely by the sys-

tem. An example of an application Task is “Get Item

Information” (Figure 3(a)). All the other concepts

from the meta-model are characteristics of SERIES.

3.2 SERIES Meta-model

The SERIES meta-model (Figure 2) includes various

concepts that are needed for supporting resource-

driven adaptation in ESs. These concepts are ex-

plained in the following subsections alongside exam-

ples from the task models shown in Figure 3.

3.2.1 Resource Types

ResourceTypes represent the varieties of resources re-

quired by Tasks. A ResourceType has a Consumption-

Type (reusable or depletable) and a BehaviourType

(static or dynamic). A reusable ResourceType is

available to another Task after the Task that is using

it is done, whereas a depletable one is used once. A

static ResourceType does not have a behaviour

whereas a dynamic one has a behaviour. Adaptation

Tasks

Task

+Id: int {id}

+Name: string

+Desc ription: str in g

+Type: TaskType

+ExecutionType: TaskExecutionType

+FollowingTaskTemporalOperator: TemporalOperator

+AdaptationTypeChoice: AdaptationTypeChoice

+FeedbackFromUser: FeedbackFromUser

+FeedbackLocation: FeedbackLocation

TaskCategory

+Id: int {id}

+Name: string

+IsMonitored: bool

+Has

1..*

+Has

+Parent

0..1

+Child

0..*

+Has

+Parent

0..1

+Child

0..*

+Has

0..*

0..1

+Has

0..* 0..1

Parameter

+Id: int {id}

+Name: string

+DataType: string

+IsOptional: bool

+Type: ParameterType

+Has

0..*

TaskVariant

+Is Followed By

0..1

TaskParent

+IsMandatory: bool

+Has

0..* 1..*

1..*

+Has

1..*

+Has

0..*

«abstract»

ParameterCondition

+Id: int {id}

+ComparisonOperator: ComparisonOperator

ValueSetParameterCondition

+ValueSet: L ist<string>

RangeParameterCondition

+FromValue: string

+ToValue: string

SingleValueParameterCondition

+Value: string

+Has

0..*0..1

+Has

1..*

+Has

0..*

0..1

ServiceMethod

+Id: int {id}

+ServiceName: string

+MethodName: string

«enumeration»

TaskType

Abstract

Interaction

Application

SubstitutableApplicationTaskVariant

NonSubstitutableApplicationTaskVariant

«enumeration»

TaskExecutionType

FollowedByInteraction

FireAndForget

«enumeration»

TaskPriority

Low

Medium

High

«enumeration»

ComparisonOperator

Equal

NotEqual

NotIn

Between

«enumeration»

ParameterType

Input

InputChangeable

TaskResourceTypeAssignment

+Id: int {id}

+AppliesToChildTasks: bool

+ResourceIntensiveness: double

+Substitutability: ResourceTypeSubstitutability

«optional»+Quantity: double

TaskPriorityAssignment

+Id: int {id}

+PriorityValue: TaskPriority

+Has

0..*

Resources

+Has

1..*

ResourceTypeCategory

+Id: int {id}

+Name: string

ResourceType

+Id: int {id}

+Name: string

+ConsumptionType: ResourceConsumptionType

+BehaviourType: ResourceBehaviourType

+AvailableQuantity: double

+Has

1..*

MeasurementUnit

+Id: int {id}

+Name: string

«enumeration»

ResourceConsumptionType

Reusable

Depletable

«enumeration»

ResourceBehaviourType

Static

Dynamic

+Has

0..1

0..*

+Has

0..*

0..1

«enumeration»

ResourceTypeSubstitutabilty

Strict

Flexible

TimeFrame

+Id: int {id}

+FromTime : Time

+ToTime: Time

«optional»+FromDayOfWeek: int

«optional»+ToDayOfWeek: int

User

+Id: int {id}

+Name: string

Role

+Id: int {id}

+Name: string

«enumeration»

AdaptationTypeChoice

Automated

User

«enumeration»

FeedbackFromUser

Request

Disable

«enumeration»

FeedbackLocation

UIElement

Panel

None

The grey parts are from

the CTT notation.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

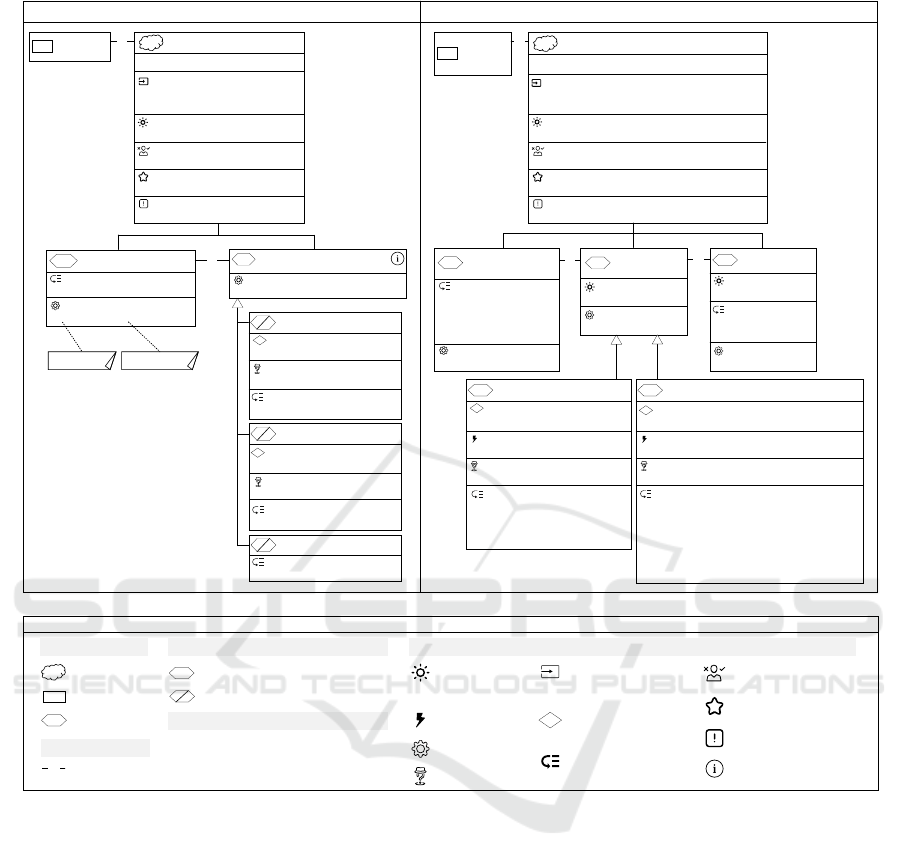

Figure 3: SERIES notation demonstrated by excerpts of two task model examples.

choices are done based on the ConsumptionType and

BehaviourType. For example, certain Tasks are

preemptively restricted from using scarce depletable

resources. A ResourceType has an AvailableQuantity

specified in terms of a MeasurementUnit (e.g., litres).

Tasks are associated with their required Resource-

Types as denoted by TaskResourceAssignment in Fig-

ure 2. The ResourceTypes that are assigned to Tasks

are marked as either strict or flexible. Strict Resource-

Types cannot be substituted with alternatives. Hence,

in resource variability situations the system should

seek another adaptation choice. Flexible Resource-

Types are substitutable with alternatives.

Example. As Figure 3 shows, the Tasks “Get Item

Details”, “Prepare Order”, and “Pack Items in a Box”

require CPUs, robots, and boxes respectively. CPUs

are reusable static, robots are reusable dynamic, and

boxes are depletable static. Additionally, as shown in

Figure 3(b), “Box” is marked as strict for the Task

“Pack Items in a Box” whereas “Stickers” is marked

as flexible for the Task “Decorate Box”.

3.2.2 Service Methods, Parameters, and

Task Execution Types

Each Task has a ServiceMethod, which represents the

function in the ES’s source code that is called when

the Task is executed. Method calls are intercepted by

the system to make adaptation decisions. The method

call’s corresponding Task is partly identified by relat-

ing the method’s code name to a ServiceMethod in the

task model. Tasks have Parameters that represent

data values, which are passed to the corresponding

ServiceMethod and are available during its execution.

GetItemDetails

Parameters

SearchText : string <<input>>

ItemType: string <<input>>

GetRecommendedItems

Roles

VIP-Customer, Administrator

Variant1

Priority

High

Default

GetItemInformation

<<followed-by-interaction>>

Priority

High

ParameterConditions

ItemType in (Books, Media)

Roles

Any

Variant2

ResourceTypes

CPU <<strict>>

Searc h

forItem

Interaction task

Legend

Application task

V Substitutable application task variant

Abstract task

<<followed-by-interaction>>

<<fire-and-forget>>

CTTtasktypes

SERIES extendedtasktypes

Resource Types

Parameters

Priority

(High, Medium, Low) for

Time Frame [From, To]

and Parameter Condition

SERIESextendedtaskproperties

Roles (of users)

Service Method

<<input>>

<<strict>>

<<flexible>>

ServiceMethod

Item.GetItemInformation

ServiceMethod

Item.GetItemRecommendations

RetailStoreWebsite AutomatedWarehouseSystem

V Non-substitutable application task variant

Resource

Intensiveness

PackItems

inaBox

ParameterConditions

PackMode = “Random”

Roles

Any

PackRandomly

Priority

High

{TimeFrame=8:00 to 16:00}

Medium

{TimeFrame=16:01 to 7:59}

LocateItems

inWarehouse

<<fire-and-forget>>

Priority

High

{TimeFrame=8:00 to 16:00}

Medium

{TimeFrame= 16:01 to 7:59}

ParameterConditions

PackMode = “ByItemType”

PackbyItemType

PrepareOrder

Parameters

PackMode : PackModelEnum <<input, changeable>>

Order.CustomerType: CustomerType <<input>>

Priority

High

{TimeFrame=8:00 to 16:00, CustomerType=”VIP”}

Medium

{TimeFrame=16:01 to 7:59, CustomerType=”VIP”}

Low

{TimeFrame=Any, CustomerType!=”VIP”}

ResourceTypes

Robot, Quantity=1 <<flexible>>

ResourceTypes

Box <strict>>

ServiceMethod

Order.PackItems

DecorateBox

ResourceTypes

Stickers <<flexible>>

ResourceIntensiveness

Robot = RI1

Priority

Low

{TimeFrame=Any}

Task enabling

(a) (b)

(c)

Roles

Any

ParameterConditions

None

Priority

High

Priority

Low

ResourceIntensiveness

Robot = RI2

Parameter Conditions

ServiceMethod

Order.LocateItems

ServiceMethod

Order.DecorateBox

CTTrel ationship

Execute

Order

Batch

Adaptation Type Choice

(Automated, User)

Feedback from User

(Request, Disable)

Feedback Location

(UI Element, Panel, None)

AdaptationTypeChoice

Automated

Feed backfromUser

Request

Feed backLocation

UI Element

AdaptationTypeChoice

Automated

Feed backfromUser

Request

Feed backLocation

Panel

Class Name Method Name

<<input, changeable>>

Description of a task’s

purpose

SERIES extendedtaskexecutiontypes

SERIES: A Task Modelling Notation for Resource-driven Adaptation

Each Task has a TaskExecutionType that is either

fire-and-forget or followed-by-interaction. The re-

sults of a fire-and-forget Task can be viewed at a later

stage. On the other hand, the results of a followed-by-

interaction Task are needed directly after the Task is

done because the end-users need to perform addi-

tional interactions with the system based on these re-

sults. TaskExecutionTypes are used to determine

whether delaying a Task is a viable adaptation option

when resources are unavailable.

Example. As shown in Figure 3(a), the TaskExe-

cutionType of “Get Item Details” is “followed-by-in-

teraction”. Hence, once the results of this Task are

shown the end-users will perform interactions like se-

lecting an item from the results or searching for other

items. On the other hand, as shown in Figure 3(b), the

TaskExecutionType of “Prepare Order” is “fire-and-

forget” because this Task is executed as part of a batch

and its results are viewed later.

3.2.3 Task Priorities, Task Variants, Roles,

and Parameter Conditions and Types

TaskPriorities indicate the importance of Tasks and

are needed to decide on which Tasks should execute

and gain access to the resources they require and

which ones should be adapted. A TaskPriorityAssign-

ment represents the TaskPriority (high, medium, or

low) that is assigned to a Task. The assigned priority

differs by TimeFrames, which represent time inter-

vals that are meaningful for a certain enterprise and

domain. For example, in an automated warehouse

system, order preparation has a higher priority during

the daytime, when most of the orders are shipped.

A TaskVariant is a special case of a Task and is

needed to (1) avoid treating all Task executions

equally when adapting and (2) to identify how to ex-

ecute a Task with fewer resources. TaskVariants dif-

fer in terms of Parameter values (refer to Section

3.2.2), the Role of the initiating User, TaskPriority,

and resource consumption, as explained next.

As shown in Figure 2, a TaskVariant is associated

with ParameterConditions that are needed to identify

the Parameter values that differentiate the variants. A

ParameterCondition works on a single value, a set of

values, or range of values (e.g., “PackMode = Ran-

dom”, “ItemType in (Books, Media)”, and “Amount

between 1 and 100”). A TaskVariant is also associ-

ated with Roles to indicate its target Users. A

TaskVariant is more important when it is executed by

a User with a privileged Role (e.g., manager). As pre-

viously explained, a Task is assigned a priority. When

Tasks have TaskVariants, the priorities are assigned

to the variants. ResourceIntensiveness values are as-

signed for the ResourceTypes that a TaskVariant uses.

ResourceIntensiveness is required to compare

TaskVariants in terms of resource consumption to

adapt by executing the less resource-intensive vari-

ants when needed. Examples of TaskVaraints are

shown in Figure 3 and explained as follows.

Example. The Task “Get Recommended Items”

has three TaskVariants (Figure 3(a)). Instead of deac-

tivating this Task for all cases or random Users, as is

done by brownout approaches for components (Xu &

Buyya, 2019), its importance is more accurately rep-

resented using prioritised TaskVariants. The first var-

iant of “Get Recommended Items” has a high priority

for any Parameter values when the Role of the User

who is initiating the Task is either VIP-customer or

administrator. The second variant has a high priority

for any Role if the value of the “item type” parameter

is either books or media, as specified by the Parame-

terCondition. The third (default) variant, which rep-

resents all other cases, has a low priority.

Example. The Task “Pack Items in a Box” has

two variants (Figure 3(b)). The variant “Pack Ran-

domly” instructs robots to pack items in a box in a

random order to improve packing speed. The variant

“Pack by Item Type” instructs robots to stack items

by type (e.g., shirts together). The method of packing

items by type provides a better aesthetic outcome but

consumes more of a robot’s time. Hence, the Re-

sourceIntensiveness for the robot is higher for “Pack

by Item Type” (RI2) than for “Pack Randomly” (RI1).

The variants of “Pack Items in a Box” are differenti-

ated by the value of the “pack mode” Parameter that

is either “Random” or “ByItemType”, as the Param-

eterConditions specify. In this example, the Priorities

of the variants are the same for any Role but differ for

TimeFrames and customer type. For example, “Pack

by Item Type” has a high priority for VIP customers

and when a Task is executed between 8:00 and 16:00.

TaskVariants are either Substitutable or Nonsub-

stitutable as shown by TaskType in Figure 2. Both

types enable the system to identify different modes of

executing a Task to avoid treating Task executions

equally. A Substitutable TaskVariant can be executed

instead of another to reduce resource consumption.

Example. Figure 3 shows examples of both Sub-

stitutable and Nonsubstitutable TaskVariants. The

variants of “Get Recommended Items” are Nonsub-

stitutable. Hence, for example, if the search was is-

sued for items of the type shoes it is not possible to

execute the variant related to books and media. On the

other hand, the variants of “Pack Items in a Box” are

Substitutable because it is possible to pack items ran-

domly instead of by type to avoid straining the robots.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

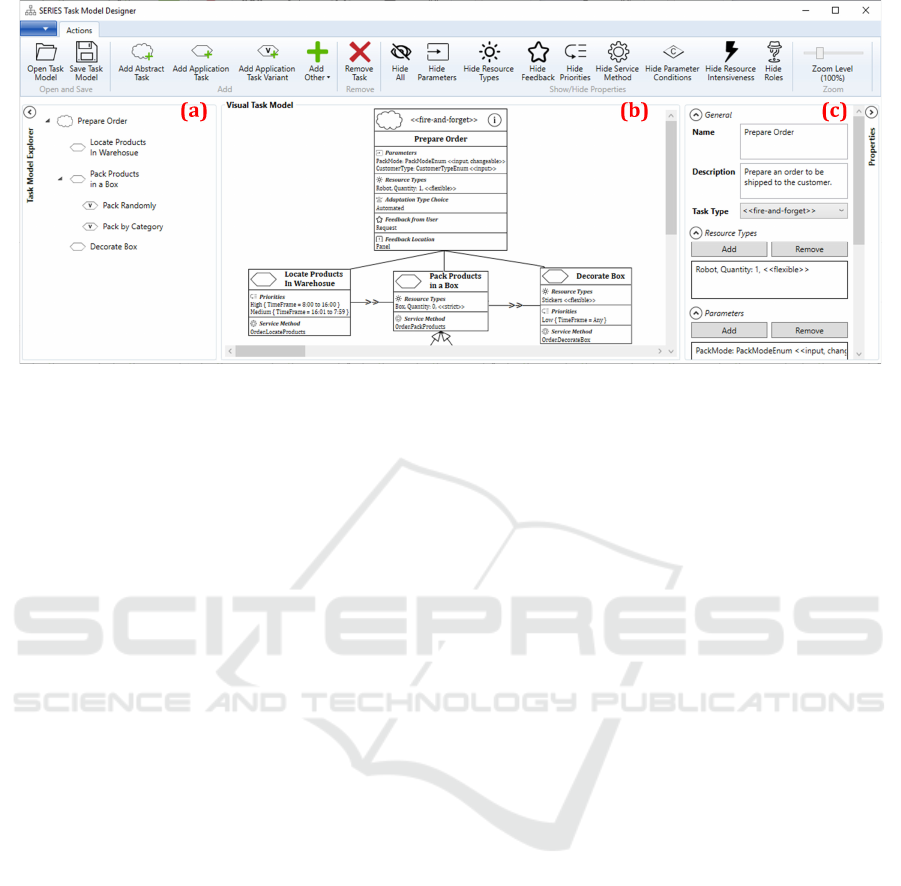

Figure 4: Tool for creating tasks models using SERIES.

It is possible to execute a task variant that is less

resource-intensive. For example, in the case in which

robots are malfunctioning due to hardware failures, or

when there are excess workloads (e.g., robots are ex-

pected to pack orders and to sort returned items, but

there is a high number of returned items). In such

cases, the execution of a less resource-intensive task

variant for low-priority tasks reduces the strain on the

robots and dedicates more capacity to the execution

of high-priority tasks.

ParameterTypes are needed to decide if it is pos-

sible to change a Parameter’s value when a Substitut-

able TaskVariant is changed to another one. Parame-

terTypes include Input and InputChangeable. Input

Parameters are read-only. The system can change the

values of InputChangeable Parameters.

Example. The Input Parameter “SearchText”

from “Get Item Details” is read-only (Figure 3(a)).

The value of the InputChangeable Parameter “Pack

Mode” is changed from “ByItemType” to “Random”

when the TaskVariant “Pack by Item Type” is

changed to “Pack Randomly” (Figure 3(b)).

3.2.4 Feedback from and to End-users

A system could keep end-users informed by giving

them feedback about the reasons for self-adapting. It

could also improve adaptation decisions based on

feedback given by end-users to indicate whether an

adaptation hindered their ability to perform a Task. As

shown in Figure 2, a Task has three feedback proper-

ties: AdaptationTypeChoice, FeedbackFromUser,

and FeedbackLocation. These properties are used to

configure how the system manages end-user feedback.

The property “AdaptationTypeChoice” indicates

whether the adaptation type is selected automatically

by the system or manually by the end-user (refer to

Section 1 for examples of adaptation types). The au-

tomated selection of adaptation types relieves end-us-

ers from having to frequently make manual choices.

Adaptation types can be automatically selected based

on costs (Akiki et al., 2021). However, if multiple ad-

aptation types share the lowest cost and the “Adapta-

tionTypeChoice” property was set to “User” then the

system prompts users to select one of the least costly

adaptation types. Otherwise, the system automati-

cally selects one of the least costly adaptation types.

If the property “FeedbackFromUser” was set to

“Request”, then the system would request feedback

from end-users on how the adaptations affected their

work and use this feedback to adjust the costs of the

adaptation types. If a Task only has one applicable ad-

aptation type, then this property will be automatically

set to “Disable”. An example is a Task that cannot be

delayed because its ExecutionType is “followed-by-

interaction”, its required ResourceTypes are strict and

hence non-substitutable, it has no substitutable vari-

ants, and the only choice for the system is to block it.

The “FeedbackLocation” property indicates if the

system should display feedback messages to the end-

users on a task’s corresponding UI or in a separate

panel. The first option is suitable when end-users

need immediate feedback as they work, while the sec-

ond option groups feedback so it can be checked later.

Example. If the Task “Get Recommended Items”

(Figure 3(a)) was blocked from executing, the system

could display a message on the UI where the recom-

mendations were supposed to appear. The mapping

between task models and UI widgets has been ad-

dressed by existing work (Calvary et al., 2003). If the

Task “Pack by Item Type” (Figure 3(a)) was changed

to its variant “Pack Randomly” a feedback message

SERIES: A Task Modelling Notation for Resource-driven Adaptation

could be displayed in a separate UI panel for the end-

users to check after a batch of orders is prepared. End-

users give feedback to the system via a rating widget

that is shown next to the feedback messages.

3.2.5 Task Categories, Resource Type

Categories, and Default Values

TaskCategories and ResourceTypeCategories group

Tasks and ResourceTypes respectively (Figure 2).

This categorisation is needed to speed up the work of

system administrators by assigning Priorities and Re-

sourceTypeCategories to TaskCategories when Tasks

that belong to the same TaskCategory have common

Priorities and ResourceTypes. As shown in Figure 2,

the classes TaskResourceAssignment and TaskPrior-

ityAssignment are associated with ResourceType and

ResourceTypeCategory and Task and TaskCategory

respectively. Therefore, assignments that are done at

the level of a category apply to all its corresponding

ResourceTypes or Tasks. For example, assume that

several tasks depend on RAM and CPU. System ad-

ministrators could place these Tasks under a TaskCat-

egory that is associated with a computer hardware

(RAM and CPU) ResourceTypeCategory.

The property values that are set on a parent task

also apply to its child tasks, unless specified other-

wise (overridden).

Example. The Parameters, ResourceTypes, and

feedback properties that are specified for the Tasks

“Get Item Details” (Figure 3(a)) and “Prepare Order”

(Figure 3(b)), apply to their subtasks. Similarly, the

ServiceMethod specified for the Task “Pack Items in

a Box” (Figure 3(b)) applies to its variants “Pack Ran-

domly” and “Pack by Item Type”.

4 TOOL SUPPORT

SERIES is supported by a visual tool, shown in Fig-

ure 4, which enables software practitioners and sys-

tem administrators to create and modify task models.

This tool was developed using C#, and it stores task

models as data in a SQL Server database (Figure 1).

The tool is composed of three main panels,

namely: (a) Task Model Explorer, (b) Visual Task

Model, and (c) Properties. The Task Model Explorer

offers a compact hierarchical view of the tasks (Fig-

ure 4(a)). The Visual Task Model panel displays task

models, using the visual notation of SERIES, and

supports dragging, dropping, and selecting elements

(Figure 4(b)). The Properties panel, shown in Figure

4(c), allows for specifying the characteristics of tasks.

Software practitioners can use the tool at design

time to define the tasks and their relationships based

on their systems’ specifications. System administra-

tors can modify the task models at runtime based on

the needs of their enterprises. User roles and parame-

ter values differ among enterprises and are, therefore,

added at runtime. For example, roles like “VIP-Cus-

tomer” from “Variant1”, shown in Figure 3(a), are

created by system administrators at runtime via their

ESs. Hence, the association of roles with tasks is also

done at runtime. Consider that “Get Recommended

Items” (Figure 3(a)), could be blocked to reduce CPU

consumption. Some enterprises could decide to keep

the recommended items for certain item types like

books and media as indicated on “Variant2” in Figure

3(a). However, these choices differ among enterprises

and are therefore specified at runtime.

5 EVALUATION

We assessed the usability of SERIES and evaluated

its performance overhead and source-code intrusive-

ness as explained in the following subsections.

5.1 Usability

SERIES extends CTT and the visual representation of

its extended elements is also inspired by UML class

diagrams. SERIES uses the shape-based icons of CTT

to represent the interaction and application task types.

However, it is also possible to use the alternative

graphical icons (Paterno et al., 1997). We assessed

SERIES based on the recommendations of the cogni-

tive-dimensions framework (Green & Petre, 1996). In

the following text, the names of the dimensions are

shown in bold.

SERIES represents tasks consistently using boxes

with multiple parts, which are based on UML classes.

These box parts represent properties that support re-

source-driven adaptation (Figure 3(c)).

SERIES is abstraction-tolerant since it supports

the representation of task models using predefined

visual elements of tasks, properties, and relationships.

It is not possible to add new visual elements.

However, new abstractions are defined in the form of

parent tasks that comprise default property values,

which do not need to be specified for the child tasks.

A premature commitment is not needed since a

SERIES task model may comprise part of the tasks

and property values at design time. Task variants and

properties, like roles and priorities, are set at runtime

when their corresponding data is available (refer to

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

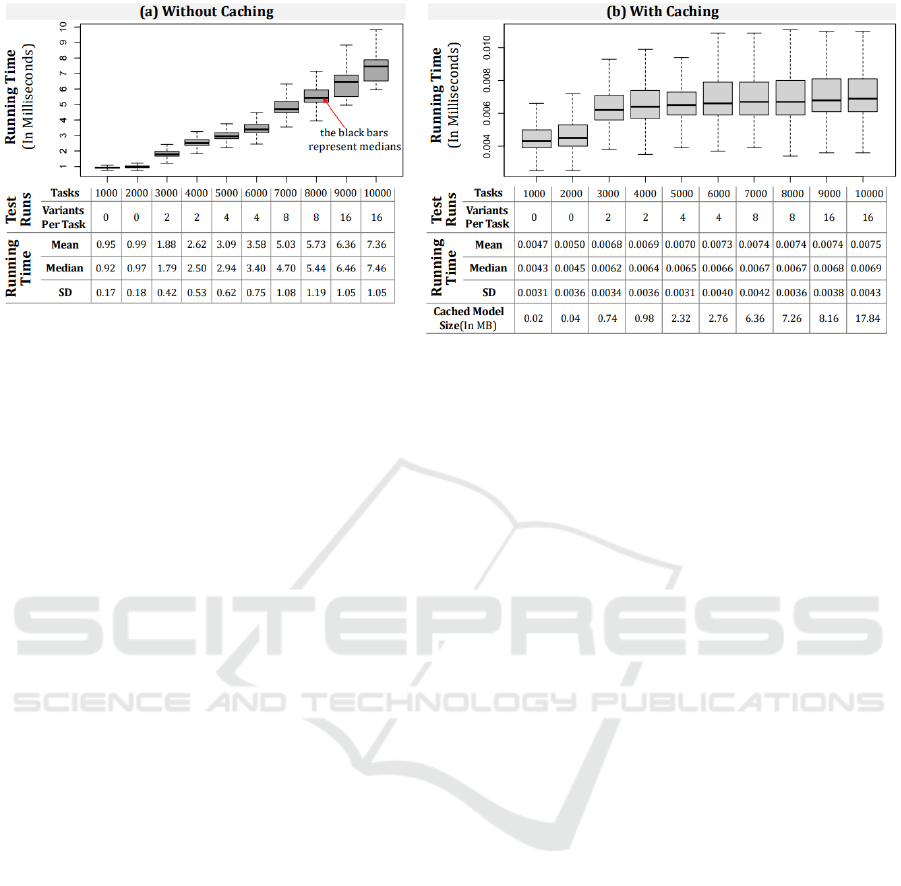

Figure 5: Performance evaluation for the identification of tasks and variants from SERIES task models.

Section 4). Furthermore, a SERIES task model is

arranged hierarchically to avoid “visual spaghetti”

that could occur with some box-and-line notations.

Even in the case in which new tasks are introduced at

a later stage, the model is automatically rearranged

without needing to look ahead to avoid a messy layout.

Concerning diffuseness, each meaning of a task

or property in SERIES is denoted by one box part that

has an icon and a description that makes it easy to re-

member. The ability to add default property values at

the parent task level reduces the number of properties

in the boxes. This improves the overall visibility of

the task model and makes the visual notation terse

(compact) enough to represent multiple tasks on the

screen. Furthermore, it is possible to suppress a group

of task properties by hiding its box parts as is done

with UML class diagrams. Hence, the notation sup-

ports different levels of terseness that are changeable

according to how much detail a person wants to see.

SERIES does not have complex conditionals that

create hard mental operations. Parameter condi-

tions are defined as simple textual statements such as

“PackMode = Random”. Hence, these conditions do

not use complex line connections that cause software

practitioners and system administrators to resort to

tracking what is happening with their fingers.

There are no hidden dependencies between the

elements of a SERIES task model. The dependencies

between tasks are shown as relationships. For exam-

ple, task variants are linked to their base task using

relationships that resemble UML generalisation to in-

dicate that the variants are special cases of a general

case. Furthermore, properties like parameter condi-

tions and priorities are shown on the model without

hidden formulas (e.g., like the ones in spreadsheets).

Concerning role-expressiveness, a task’s name

indicates its purpose. A description can also be added

to a task to further explain its purpose. This descrip-

tion is a secondary notation and is viewed by click-

ing on an information icon, which appears on tasks

that have a description as shown on the “Get Recom-

mended Items” task in Figure 3(a).

SERIES has a low viscosity since little effort is

needed to change tasks and properties using the task

model explorer and properties box (refer to Section 4).

5.2 Performance and Intrusiveness

We used SERIES to develop working resource-driven

adaptation examples that build on an adaptation ap-

proach we proposed in previous work (Akiki et al.,

2021). We measured the performance overhead and

source-code intrusiveness of SERIES task models.

For evaluating the performance, we used

NBomber (NBomber, 2021) to simulate user requests

to C# web service methods representing tasks in an

ES. We measured the time it took to identify the tasks

and variants from a SERIES task model correspond-

ing to the service methods being called.

The identification of tasks and variants is a step in

the adaptation process concerning how and when an

adaptation should occur. This step involves compar-

ing the source-code name of the service method being

called to the service methods from the task model, dy-

namically evaluating whether the parameter condi-

tions from the task model match the parameter values

passed to the service method and comparing the

role(s) of the end-user to the roles in the task model.

Figure 5 shows the results of this evaluation, in-

cluding multiple test runs with an increasing number

of tasks and variants ranging from 1000 to 10,000

tasks and 0 to 16 variants per task. The evaluation was

done with two implementations, one that caches the

task models in memory and another one that does not

SERIES: A Task Modelling Notation for Resource-driven Adaptation

perform caching. NBomber simulated user requests

for 10 minutes per test run. The mean running time

was measured in milliseconds and ranged between

0.95 and 7.36 without caching and 0.0047 and 0.0075

with caching. Both results show a small overhead that

does not hinder a system’s performance. For example,

web users find it tolerable to wait for 2 to 4 seconds

(Nah, 2004). Both fitting curves of the mean running

times are polynomial with R

= 0.9924 (without cach-

ing) and 0.9797 (with caching). We favour using

caching since it improves performance without bur-

dening the memory (cached model size ranged from

0.02 MB to 17.84 MB—Figure 5(b)). This evaluation

was done on a Windows 10 computer with a Core i7

1.8 GHz CPU and 16 GB of RAM.

Intrusiveness is evaluated in terms of the LOC and

source-code files that are added or modified to inte-

grate resource-driven adaptation into an ES. If minor

changes are needed, then the integration is non-intru-

sive. It is more desirable to perform the integration

with minor changes because this means that less ef-

fort is needed and there is less chance of introducing

errors into the source code of the ES.

We used .NET actions filters (Larkin et al., 2021)

to intercept the service method calls and execute the

code that we implemented to identify tasks and vari-

ants. Our implementation included one action filter

with either 112 LOC (without caching) or 136 LOC

(with caching), which are global for the entire system.

We can say that the integration is non-intrusive be-

cause we only needed to add 136 LOC in two source-

code files to make our approach work for any number

of tasks. We did not modify task-specific source code

(e.g., business logic). This makes it easier to integrate

resource-driven adaptation capabilities into ESs that

comprise thousands of tasks. If we had to add or mod-

ify LOC in several source-code files per task, then the

integration would become more intrusive as the num-

ber of tasks increases, due to the widespread changes.

6 CONCLUSION AND FUTURE

WORK

This paper presented a task modelling notation called

SERIES, which offers task types and properties re-

quired for the development of ESs that support re-

source-driven adaptation. SERIES is complemented

by a tool that enables software practitioners to define

task models at design time, and system administrators

to extend these models at runtime, based on enter-

prises’ needs.

We assessed the usability of SERIES following

the cognitive dimensions framework (Green & Petre,

1996). We also evaluated SERIES by using it to de-

velop working examples that build on an existing re-

source-driven adaptation approach and measure its

performance overhead and source-code intrusiveness.

The results showed that SERIES does not hinder per-

formance and is non-intrusive. Although we evalu-

ated SERIES with an adaptation approach, this nota-

tion is also useful for other approaches.

In the future, we aim to extend the tool by sup-

porting the generation of code that corresponds to the

tasks’ service methods. We also aim to implement a

technique that reads the feedback properties from SE-

RIES task models to present and elicit adaptation-re-

lated feedback to and from end-users. It could be pos-

sible to extend SERIES with additional properties af-

ter investigating end-user feedback preferences.

Other areas for future work include usability study of

SERIES with software practitioners and the use of the

Physics of Notations (Moody, 2009) as part of our

evaluation. We also plan to extend the evaluation to

include case studies across multiple domains.

ACKNOWLEDGEMENTS

This work was supported by the Engineering and

Physical Sciences Research Council [grant numbers

EP/V026747/1, EP/R013144/1].

REFERENCES

Akiki, P. A., Zisman, A., & Bennaceur, A. (2021). Work

With What You’ve Got: An Approach for Resource-

Driven Adaptation. 2021 IEEE International Confer-

ence on Autonomic Computing and Self-Organizing

Systems Companion (ACSOS-C), 105–110.

Annett, J. (2003). Hierarchical task analysis. Handbook of

Cognitive Task Design, 2, 17–35.

Calvary, G., Coutaz, J., Thevenin, D., Limbourg, Q., Bouil-

lon, L., & Vanderdonckt, J. (2003). A unifying refer-

ence framework for multi-target user interfaces. Inter-

acting with Computers, 15(3), 289–308.

Cheng, B. H. C., de Lemos, R., Giese, H., Inverardi, P.,

Magee, J., Andersson, J., Becker, B., Bencomo, N.,

Brun, Y., Cukic, B., Di Marzo Serugendo, G., Dustdar,

S., Finkelstein, A., Gacek, C., Geihs, K., Grassi, V.,

Karsai, G., Kienle, H. M., Kramer, J., … Whittle, J.

(2009). Software Engineering for Self-Adaptive Sys-

tems: A Research Roadmap. In B. H. C. Cheng, R. de

Lemos, H. Giese, P. Inverardi, & J. Magee (Eds.), Soft-

ware Engineering for Self-Adaptive Systems (Vol.

5525, pp. 1–26). Springer Berlin Heidelberg.

https://doi.org/10.1007/978-3-642-02161-9_1

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

Christi, A., Groce, A., & Gopinath, R. (2017). Resource ad-

aptation via test-based software minimization. 2017

IEEE 11th International Conference on Self-Adaptive

and Self-Organizing Systems (SASO), 61–70.

https://doi.org/10.1109/SASO.2017.15

De Lemos, R., Giese, H., Müller, H. A., Shaw, M., Anders-

son, J., Litoiu, M., Schmerl, B., Tamura, G., Villegas,

N. M., Vogel, T., & others. (2013). Software engineer-

ing for self-adaptive systems: A second research

roadmap. In Software Engineering for Self-Adaptive

Systems II (pp. 1–32). Springer.

Giese, M., Mistrzyk, T., Pfau, A., Szwillus, G., & Von

Detten, M. (2008). AMBOSS: a task modeling ap-

proach for safety-critical systems. In Engineering Inter-

active Systems (pp. 98–109). Springer.

Gotz, S., Gerostathopoulos, I., Krikava, F., Shahzada, A., &

Spalazzese, R. (2015). Adaptive Exchange of Distrib-

uted Partial Models@run.time for Highly Dynamic

Systems. 2015 IEEE/ACM 10th International Sympo-

sium on Software Engineering for Adaptive and Self-

Managing Systems, 64–70. https://doi.org/10.1109/

SEAMS.2015.25

Green, T. R. G., & Petre, M. (1996). Usability analysis of

visual programming environments: A ‘cognitive di-

mensions’ framework. Journal of Visual Languages &

Computing, 7(2), 131–174.

Guerrero-García, J., González-Calleros, J., & Vander-

donckt, J. (2012). A Comparative Analysis of Task

Modeling Notations. Acta Universitaria, 22, 90–97.

Hallsteinsen, S., Hinchey, M., Park, S., & Schmid, K.

(2008). Dynamic software product lines. Computer,

41(4), 93–95.

Hartson, H. R., & Gray, P. D. (1992). Temporal aspects of

tasks in the user action notation. Human-Computer In-

teraction, 7(1), 1–45.

Johnson, H., & Hyde, J. (2003). Towards modeling individ-

ual and collaborative construction of jigsaws using task

knowledge structures (TKS). ACM Transactions on

Computer-Human Interaction (TOCHI), 10(4), 339–387.

Keeney, J., & Cahill, V. (2003). Chisel: A policy-driven, con-

text-aware, dynamic adaptation framework. Proceedings

POLICY 2003. IEEE 4th International Workshop on Pol-

icies for Distributed Systems and Networks, 3–14.

Kieras, D. (2004). GOMS Models for Task Analysis. The

Handbook of Task Analysis for Human-Computer In-

teraction, Ed. Dan Diaper, Neville A. Stanton. Law-

rence Erlbaum Associates.

Larkin, K., Anderson, R., Dykstra, T., & Smith, S. (2021).

Filters in ASP.NET Core. https://docs.microsoft.com/

en-us/aspnet/core/mvc/controllers/filters?view=aspnet

core-5.0

Limbourg, Q., & Vanderdonckt, J. (2004). Comparing task

models for user interface design. The Handbook of Task

Analysis for Human-Computer Interaction, 6, 135–154.

Limbourg, Q., Vanderdonckt, J., Michotte, B., Bouillon, L.,

& Lopez-Jaquero, V. (2004). USIXML: A language

supporting multi-path development of user interfaces.

IFIP International Conference on Engineering for Hu-

man-Computer Interaction, 200–220.

Lucas, W. T., Xu, J., & Babaian, T. (2013). Visualizing

ERP Usage Logs in Real Time. ICEIS (3)

, 83–90.

Martinie, C., Palanque, P., Bouzekri, E., Cockburn, A.,

Canny, A., & Barboni, E. (2019). Analysing and

demonstrating tool-supported customizable task nota-

tions. Proceedings of the ACM on Human-Computer

Interaction, 3(EICS), 1–26.

Martinie, C., Palanque, P., & Winckler, M. (2011). Struc-

turing and composition mechanisms to address scalabil-

ity issues in task models. IFIP Conference on Human-

Computer Interaction, 589–609.

Molina, A. I., Redondo, M. A., Ortega, M., & Lacave, C.

(2014). Evaluating a graphical notation for modeling

collaborative learning activities: A family of experi-

ments. Science of Computer Programming, 88, 54–81.

Moody, D. (2009). The “physics” of notations: Toward a

scientific basis for constructing visual notations in soft-

ware engineering. IEEE Transactions on Software En-

gineering, 35(6), 756–779.

Nah, F. F.-H. (2004). A study on tolerable waiting time:

How long are web users willing to wait? Behaviour &

Information Technology, 23(3), 153–163.

NBomber. (2021). https://nbomber.com/

Paterno, F., Mancini, C., & Meniconi, S. (1997). Concur-

TaskTrees: A diagrammatic notation for specifying task

models. Human-Computer Interaction INTERACT’97,

362–369.

Perttunen, M., Jurmu, M., & Riekki, J. (2007). A QoS

model for task-based service composition. Proc. 4th In-

ternational Workshop on Managing Ubiquitous Com-

munications and Services, 11.

Rigole, P., Clerckx, T., Berbers, Y., & Coninx, K. (2007).

Task-driven automated component deployment for am-

bient intelligence environments. Pervasive and Mobile

Computing, 3(3), 276–299.

Sousa, J. P., Poladian, V., Garlan, D., Schmerl, B., & Shaw,

M. (2006). Task-based adaptation for ubiquitous com-

puting. IEEE Transactions on Systems, Man, and Cy-

bernetics, Part C (Applications and Reviews), 36(3),

328–340. https://doi.org/10.1109/TSMCC.2006.871588

Tarby, J.-C., & Barthet, M.-F. (1996). The DIANE+

Method. CADUI, 96, 95–119.

Van Der Veer, G. C., Lenting, B. F., & Bergevoet, B. A.

(1996). GTA: Groupware task analysis—Modeling

complexity. Acta Psychologica, 91(3), 297–322.

Vidani, A. C., & Chittaro, L. (2009). Using a task modeling

formalism in the design of serious games for emergency

medical procedures. 2009 Conference in Games and

Virtual Worlds for Serious Applications, 95–102.

Vigo, M., Santoro, C., & Paternò, F. (2017). The usability

of task modeling tools. 2017 IEEE Symposium on Vis-

ual Languages and Human-Centric Computing

(VL/HCC), 95–99.

von Rosing, M., White, S., Cummins, F., & de Man, H.

(2015). Business Process Model and Notation-BPMN.

Xu, M., & Buyya, R. (2019). Brownout approach for adap-

tive management of resources and applications in cloud

computing systems: A taxonomy and future directions.

ACM Computing Surveys (CSUR), 52(1), 1–27.

SERIES: A Task Modelling Notation for Resource-driven Adaptation
