Apply Deep Learning in Real-time Customer Detection and

Classification System for Advertisement Decision Making at

Supermarket

Dang Thi Phuc

, Dau Sy Hieu

, Nguyen Manh Hoang

and Tran Thi Minh Khoa

Department of Computer Science, Faculty of Information Technology, Industrial University of Ho Chi Minh City,

Ho Chi Minh City, Vietnam

Department of Applied Physics, University of Technology, Vietnam National University HCMC,

Ho Chi Minh City, Vietnam

Keywords: Internet of Thing, Artificial Intelligence, YOLOv4, Embedded System, Jetson Nano.

Abstract: Shopping in shopping malls and supermarket is gradually increasing and replacing traditional market because

of the convenient conditions such as full of products, clean place with all time air-conditioner, modern

environment, etc. Supermarket owner always want to find the way that attract more and more customers come

to the supermarket as well as advertise their products to the customers as many as possible. In order to offer

relevant and attractive advertising to customers, detection and classification customers entering to the

supermarket is taken into consideration. Due to the characteristics different customer groups, the relevant

products should be showed to attract customer, help them save the time for finding products. In this paper,

we build a real-time customer detection and classification system at the supermarket. The goal of this proposed

Internet of Things (IoT) system is automatically show the suitable advertising clips to many customers at the

right time. We build a classification model using deep learning with a large amount of data. The dataset is

collected from reality and labelled with five different object classes. To ensure reliability, 7000 images are

collected from different conditions such as variations in camera used, bad lighting, angles, and not stable

background. The data is trained on YOLOv4 and YOLOv4-tiny models. The models are deployed on the

embedded system with the Jetson Nano device as the processor. We compare the accuracy and speed of the

two models on the same embedded system, analyse the results, and chose the best model according to the

specific system requirements.

1 INTRODUCTION

Automatically detecting and classifying customer

groups entering to the shopping malls or

supermarkets is very interesting as well as profitable

for suppliers advertising their products to customers.

Based on the detecting and classifying results,

advertising system can quickly pick suitable

advertisements clips to be displayed on the certain

screens which are close to customers position to

facilitate customers choosing products or suggest

more available products that may suit to the

customers needs. In this research, we aim to develop

a real-time customer detection and classification

https://orcid.org/0000-0003-0984-3912

https://orcid.org/0000-0003-4507-7856

https://orcid.org/0000-0002-2668-5998

system for supermarket advertising using deep

learning. This system requires high accuracy of

detecting and classifying different types of customers,

and in some different conditions such as lighting,

camera quality, too many customers at the same time,

and fast real-time execution speed, etc. In addition,

the devices need to be compact enough in order to be

easily mounted to the available system in the

supermarket. Therefore, the system face to the two

important problems:

- Build a detection and classification model must

satisfy with the above requirements.

- Deploy the model to a compact system and

ensure real-time data processing.

Phuc, D., Hieu, D., Hoang, N. and Khoa, T.

Apply Deep Learning in Real-time Customer Detection and Classiﬁcation System for Advertisement Decision Making at Supermarket.

DOI: 10.5220/0010993600003203

In Proceedings of the 11th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2022), pages 94-102

ISBN: 978-989-758-572-2; ISSN: 2184-4968

There are many IoT systems were built for

detecting and classifying objects extracting from a

real-time camera using image processing techniques

(Dorothy et al., 2017). The problem can only detect a

few of large and clear objects (Rane et al., 2017) but

under different conditions of environment, especially

in the lighting condition, the system’s efficiency was

quite strongly affected. A new research direction

helps IoT systems become more flexible and

intelligent is adding Artificial intelligence (AI)

algorithms to the system. Some AI algorithms can

improve the efficiency of computer vision methods

are Artificial Neural Network (ANN) (Ahmed et

al.,2020), Support Vector Machine (SVM) (Lalitha et

al., 2021)… For images processing, deep learning

technique (Convolutional Neural Networks (CNN))

is an effective algorithm for object classification

problem whether there is impact from the

environment such as noise, changing in distance

between object and the camera (Hsieh and Jeng,

2018). Deep learning models for effective object

detection and classification with high accuracy and

achieved remarkable achievements in problems

requiring accuracy such as in medicine (Saadawy et

al., 2021), industry or robotics (Hosseini et al., 2020)

are VGG16 (Simonyan and Zisserman, 2015),

AlexNet (Krizhevsky et al., 2012), Xception (Chollet

et al.,2017)… However, the disadvantages of these

models includes cumbersome, implementation time

and real-time problem. In other hand, they require

powerful hardware for deployment and operating.

Therefore, it faces challenge to deploy these models

to current common Internet of things (IoT) systems.

One of solutions for the above problems is deploy

the model on a powerful servers. Images taken from

cameras are pushed to server for processing, and then

send results back to devices. However, the processing

and transmission time surely affect and lead to a long

latency that may not be suitable for many applications

(Hsieh and Jeng, 2018). In order to meet the real-time

requirement, we prefer to process at the device so that

the system can avoid the time for transferring data and

ensure processing speed (Lalitha et al., 2020).

Many deep learning models were created for real-

time problems such as proposed Region

Convolutional Neural Networks (R-CNN), Fast R-

CNN (Girshick, 2015), Mask R-CNN (He et

al.,2015), Single Shot Multi Box Detector (SSD) (Liu

et al.,2016), RetinaNet (Lin et al., 2020), You Only

Look Once (YOLO) (Redmon et al., 2016). YOLOv4

is the new YOLO algorithm created by Alexey

Bochkovskiy, Chien-Yao Wang, Hong-Yuan Mark

Liao announced on April 23, 2020, with outstanding

advantages such as easy-to-access model

architecture, ensuring very fast speed, suitable for real

time. Compared with the state-of-art models

mentioned above on the MS COCO dataset, YOLOv4

achieved the best results : YOLOv4 hit 43.5% AP

(average precision) on MS COCO dataset at 65 FPS

(frame per second) on Tesla V100 GPU

(Bochkovskiy et al., 2020). In addition, YOLO also

has tiny versions with simpler network architecture to

increase processing speed and still ensure accuracy

such as YOLOv3-tiny, YOLOv4-tiny (Jiang et al.,

2020).

In this paper, we propose two models in YOLOv4

and YOLOv4-tiny solving the problem of real-time

people detection and classification in video capturing

by digital camera. Training dataset is created with

7000 images collected by digital camera under

different conditions to ensure the accuracy of the

model. We recommend the Jetson Nano as a device

for deployment the YOLOv4 model in order to ensure

accuracy, speed and compactness (Uddin et al.,

2021). It is compact with a reasonable price with a

powerful and modern configuration which well

supports TensorRT library that allows to optimize

deep learning models, accelerate and ensure

accuracy.

2 RELATED WORKS

2.1 Deep Learning Model for Object

Recognition and Classification

Problem

Convolutional Neural Network (CNN) is one of the

deep learning algorithms that gives the best results in

most of machine vision problems such as

classification and recognition (Ahmed et al., 2020).

CNN is designed by combining multiple

convolutional layers, pooling layers, and fully

connected layer. In which, convolution layers play the

role of extracting diverse features of the image using

combination of different filters, pooling layer reduces

the number of parameters to help speed up the

calculation and fully connected layer classifies

objects based on probability. The advantage of the

CNN is that it can process large images, can achieve

high accuracy but the network architecture of CNN

use to be quite cumbersome. Training CNN model

usually requires high costs. Moreover, operating the

model requires a powerful hardware configuration.

Our propose system requires not only the accuracy

but also the ability to perform real-time on compact

and less-powerful devices. In order to meet the above

Apply Deep Learning in Real-time Customer Detection and Classiﬁcation System for Advertisement Decision Making at Supermarket

requirements, we aim to design a suitable network

architecture for the CNN models. Additionally, the

proposed system classifies not only objects but also

identifies which objects are detected in each frame in

a not stable background caused by surrounding

environment.

Many advanced CNN algorithms that can be used

for object detection such as R-CNN series, SSD,

YOLO, RetinaNet. R-CNN uses AlexNet network

architecture to detect and classify images from

bounding boxes packed by selective search algorithm

and classify by SVM or full connected. R-CNN is

limited in speed and number of classified objects of

about 2000 objects. Other improvements help to

overcome this drawback can be listed out such as

Faster R-CNN, Fastest R-CNN by using Region

Proposal Networks (RPN) to predict bounding box.

Those are predicted can achieves high efficiency in

processing image regions that contain objects and can

be applied in real-time problems. However, the

weakness of this network is the prediction of the

bounding box and the classification of objects in the

box do not take place at the same time (Girshick,

2015). SSD, YOLO, and RetinaNet have a more

modern network architecture than R-CNN in which

those can combine bounding box prediction and

object detection at the same time. SSD detects objects

using a regression algorithm can increase processing

speed, but the probability of object detection is

reduced. SSD uses VGG16 network model for feature

extraction and objects detection in 2 stages: feature

extraction and convolutional filter application for

object detection (Liu et al., 2016). RetinaNet uses

additional Focal Loss to increase accuracy of

predicting the object’s location (Lin et al., 2020).

YOLO divides the image into grid cells, on each grid

cell runs a feature extraction algorithm and image

classification and restriction. Compared to R-CNN,

SSD and YOLO have made great improvements over

the versions, especially YOLOv4 with high accuracy

and outstanding speed. YOLOv4 use to be chosen for

solving fast-paced problems and small objects

identification. One more advantage of YOLO is its

open source so that researchers can easily used for AI

applications, for example self-driving cars, cancer

detection, etc… (Srivastava et al., 2021).

You Only Look One (YOLO) model was first

described by Joseph Redmon, et al. in 2015. Unlike

R-CNN, YOLO divides image into grid cells and then

traverses each grid cell, classifies object classes, and

bounding box each object in the image. The improved

version YOLOv2 proposed in 2016 is capable for

predicting up to 9000 different types of objects.

YOLOv2 uses Darknet-19 network architecture.

YOLOv3 2018 improves to the Darknet-53 network

model to increase accuracy, predicts an objectness

score for each bounding box using logistic regression

(Redmon and Farhadi, 2018). Darknet-53 is built on

53 layers, and so, it improves both accuracy and speed

by 2 times compared to ResNet-152. YOLOv4 is

more completed in network architecture with the

result of increasing accuracy and speed by 10-12 %

compare to YOLOv3.

In this paper, we propose a detection and

classification system using YOLO model, especially

YOLOv4, to reach our system requirements. The

network architecture of YOLOv4 is depicted in

Figure 1. The model consists of three main parts: the

Darknet-53 CSP backbone, the neck part and the

YOLO head.

The Darknet-53 CSP backbone increases

computation speed and accuracy. The CSPNet

architecture reduces the number of parameters.

Moreover, the Mish activation function improves

accuracy of object classification for YOLOv4.

The neck part includes SPP block (He et al., 2015)

and PANet model (Liu et al., 2018). SPP blocks

extracts important feature regions without slowing

down the model. However, the deeper neural

networks, the easier to lose information. There are

many approach are proposed to detect small objects.

PAN, an improvement of FPN, is one of them.

PANnet connects the learned local with global

features of an object for more accurate prediction.

Figure 1: Network architecture of YOLOv4.

SMARTGREENS 2022 - 11th International Conference on Smart Cities and Green ICT Systems

The YOLO head is used to increase feature

discrimination for object classification and bounding

box objects. Same to YOLOv3, YOLOv4 predicts

object and bounding-box using logistic regression.

They also classifies objects using independent

logistic classifier instead of softmax function.

YOLOv4 calculates Loss Value using Complete

Intersection over Union (CIoU) value. CIoU can

achieve better convergence speed and accuracy of

bounding box regression problem based on below

formulas (Du et al.,2021):



 1 – CioU (1)

where,

CIoU  IoU







,









αυ, (2)

𝛼





, (3)

υ









arctan









arctan









(4)

where: 𝛼 - a positive trade-off parameter; υ - the

consistency of aspect ratio; w

with h

- the width

and height of the real frame; w, h - the width and

height of the prediction box; ρ(.) - Euclidean distance;

b, b

- center point coordinates of prediction box and

real frame; c - diagonal distance of the minimum

rectangle that can cover real frame and prediction box

simultaneously.

𝐼𝑜𝑈 

  ∩  

  ∪ 

- Intersection ratio - the ratio of

the two boxes A and B. The IoU is used to evaluate

the distance between the predict box and the ground-

truth (Nowozin et al.,2014).

To evaluate the accuracy of the YOLOv4 model,

we also use mAP (mean Average Precision) in the

classification task. The mAP is the average of the

average precision values for all categories. Average

Precision(AP) for each category can be computed on

below formula:

R





(5)

P





(6)

R – recall, is the proportion of the number correctly

recognized by the network for each category; P –

precision, is the number of correct results identified

by the network; 𝑇𝑃 – true positive samples; 𝐹𝑃- false

positive samples; 𝐹𝑁– false negative samples.

P

∑





𝑘



R𝑘1



∗P𝑘





(7)

The mAP is obtained by formula:

mAP 





∑

𝐴P







(8)

To evaluate performance of model when deploying

on embedded devices, we use FPS (frames per

second). FPS denotes the number of images that can

be detected successfully in one second.

To improve the real-time of object detection, other

thin and light versions of YOLO such as YOLOv2-

tiny, YOLOv3-tiny, YOLOv4-tiny were created.

YOLOv2-tiny delete convolution layers in Darknet19

network to 9 layers to reduce the network complexity.

YOLOv3-tiny is proposed by compressing the

network model of YOLOv3, using seven layers of

convolutional networks and six layers of maximum

aggregation instead of the ResBlock structure in the

DarkNet53 network. YOLOv4-tiny uses

CSPDarknet53-tiny instead of CSPDarknet53

network. CSPDarknet53- tiny uses the LeakyReLU

function as the activation function instead of the Mish

activation function, which simplifies the calculation

process. However, with this network architecture,

YOLOv4-tiny gives low prediction efficiency

compared to YOLOv4 model.

Based on the advantages and disadvantages of the

models, we decided training our model on the two

models YOLOv4 and YOLOv4-tiny. Also, we deploy

the model on device and make an evaluation. And

then, we select the best results based on the criteria of

our system requirements.

Hardware: In this implementation, we use

NVIDIA Jetson Nano development toolkit with 4GB

RAM version, shown in Figure 2, that support object

recognition using AI algorithms. It is a compact

integrated AI computer with extremely powerful that

allows to run multiple neural networks in parallel for

image processing applications. However, the greatest

strength of Jetson Nano is the Nvidia's GPU-128-core

Maxwell inside that allows the deployment of deep

learning algorithms much more smoothly. Besides,

Jetson Nano is also capable for decoding 8 video

streams extract from the high resolution camera.

Figure 2: Jetson Nano and its camera.

Apply Deep Learning in Real-time Customer Detection and Classiﬁcation System for Advertisement Decision Making at Supermarket

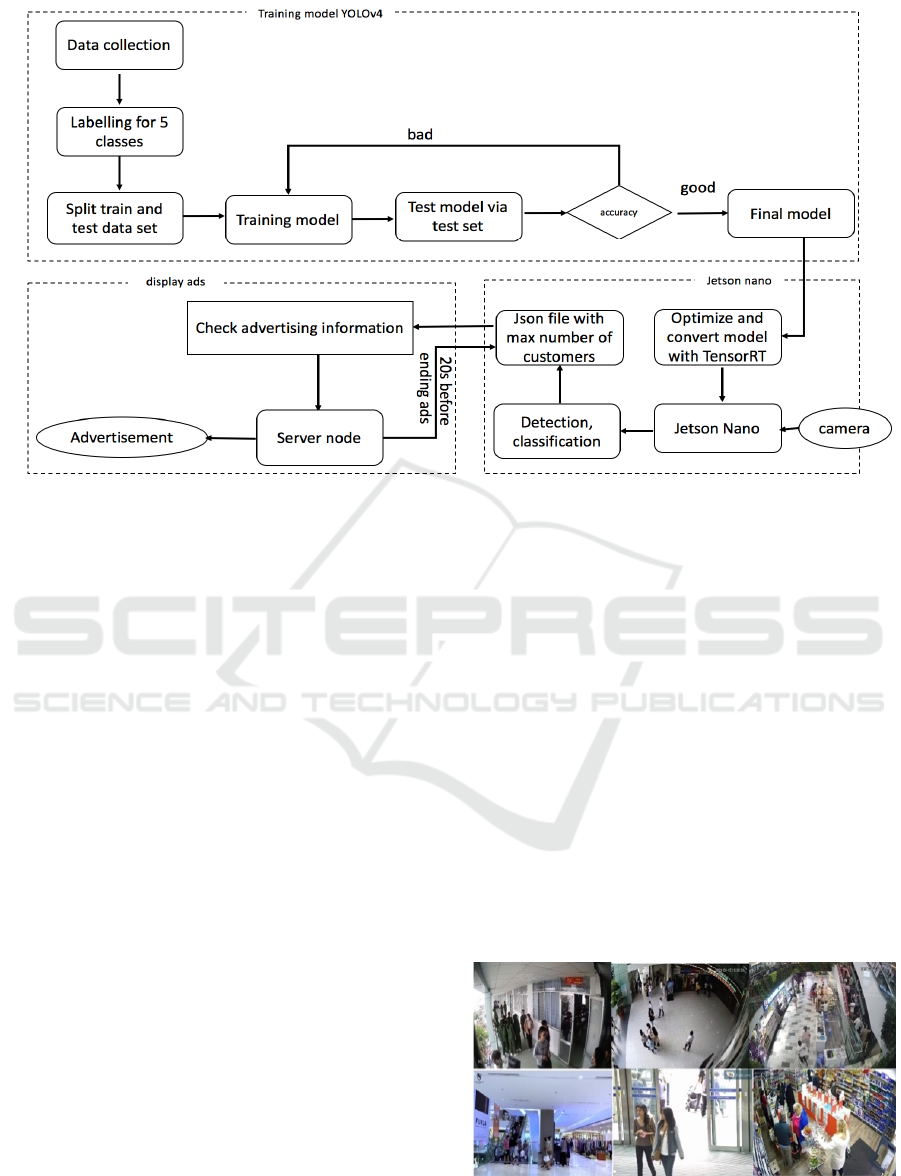

Figure 3: System architecture.

2.2 System Architecture

The system architecture is show in Figure 3. The

customer classification using deep learning is solve in

two stages:

Stage 1: Train the deep learning model.

Stage2: Deploy the model to the real-time

guarantee system.

In model training stage, we perform following

steps:

Data Collection: Due to our research on customer

types and their needed products when they come into

the supermarkets or shopping malls, we split

customers into 4 main groups: male from 18-35 years

old, female from 18-35 years old, the elder and

children. Besides, we target peoples who is entering

supermarket, it means we need to classify those who

have a direction towards the supermarket only.

Hence, we must classify total of 5 groups object of

customer: one group of not-coming customer and four

main groups of in-coming customer. For each certain

group, advertising system have suitable advertising

clips of products that can attract the customer. When

the classification process finish, the system counts the

number of customers of each group. The advertising

system will decide to play advertising clip which

suitable for the biggest group entering supermarket at

that moment.

In order to ensure the accuracy of customer

classification, we collect data from many different

areas such as: Industrial University of Ho Chi Minh

City, Gigamall Thu Duc, Saigon CENTER, CCTV in

Shopping Mall. From the recorded videos, images are

extracted at different moment to avoid data

duplication. Cameras were mounted in different

locations, with the right distances to create diverse

data sources (see Figure 4). Our total classification

class consists of 5 classes corresponding to the 5

customer groups. Except for 80% actual collected

data, we also add 20% data collected images and

videos from the internet to increase the data’s

diversity. The total of collected data is 7000 photos.

Data Labeling for 5 Classes: Our collected

images will be labeled with the 5 corresponding

classes as above. We determined coordinates of the

boxes containing the customer object and labeled

thems with LabelImg tool.

We divide collected data it into 6000 images for

training and 1000 images for testing.

Figure 4: Images taken in different place and conditions.

SMARTGREENS 2022 - 11th International Conference on Smart Cities and Green ICT Systems

Model Training: We use 2 models for training:

YOLOv4 and YOLOv4-tiny. During the training

process, we refine the model hyperparameter, add

data and continue training many times to achieve the

most optimal model. Models were trained using

Google Colab, accuracy is evaluated based on the

following values: Loss function, CIOU avg, mAP.

Based on the training results, we evaluate the

advantages and disadvantages of YOLOv4 and

YOLOv4-tiny models, and then choose the better one

to deploy to Jetson Nano.

Deploying the Model to Jetson Nano: The

current YOLOv4 and YOLOv4-tiny models running

on an existing NVIDIA Jetson Nano give a very low

FPS (less than 1) that’s not acceptable for real-time

requirement. To solve this problem, we provide a

solution to improve the FPS of the model by

compressing and optimizing the model using the

TensorRT library. TensorRT is built on the parallel

programming model of CUDA and NVIDIA. It

allows optimization of libraries, development tools,

and technologies in CUDA-X for AI. It aslo optimizes

deep learning models and archive high performance

of the system.

Display Advertising: Videos extracted from the

camera will be sent to Jetson Nano for prediction.

Prediction results include information such as: object

identification, object classification and statistics the

number objects of each type. The advertising system

will check the biggest group of customer and pick the

suitable advertising clips to show on the display

screen. 20 seconds before current advertising clip

end, the advertising system will send a request to

Jetson Nano for new prediction result, select biggest

group and play the next clip.

3 RESULTS

3.1 Model Training Results

For a dataset of 7000 images classified on 5 classes:

Man: 18-35 years old male, Girl: 18-35 years old

female, Children: under 15 years old children, Elder:

Old people and Person - customers do not go into the

supermarket. We divide dataset into 6000 images for

training set and 1000 images for testing set. YOLOv4

and YOLOv4-tiny models were trained with the

parameters: momentum of the stochastic gradient

descent was set as 0.949 and the learning rate 0.001,

the weight decay was set as 0.0005. The batch size

was set to 64 to improve the utilization of the GPU

and its memory. The input image will be resized to

416 x 416 x 3. Models were trained using Google

Colab. The training process of both models is 15000

iterations. Training time on YOLOv4 and on

YOLOv4-tiny are 84 hours and 22 hours respectively.

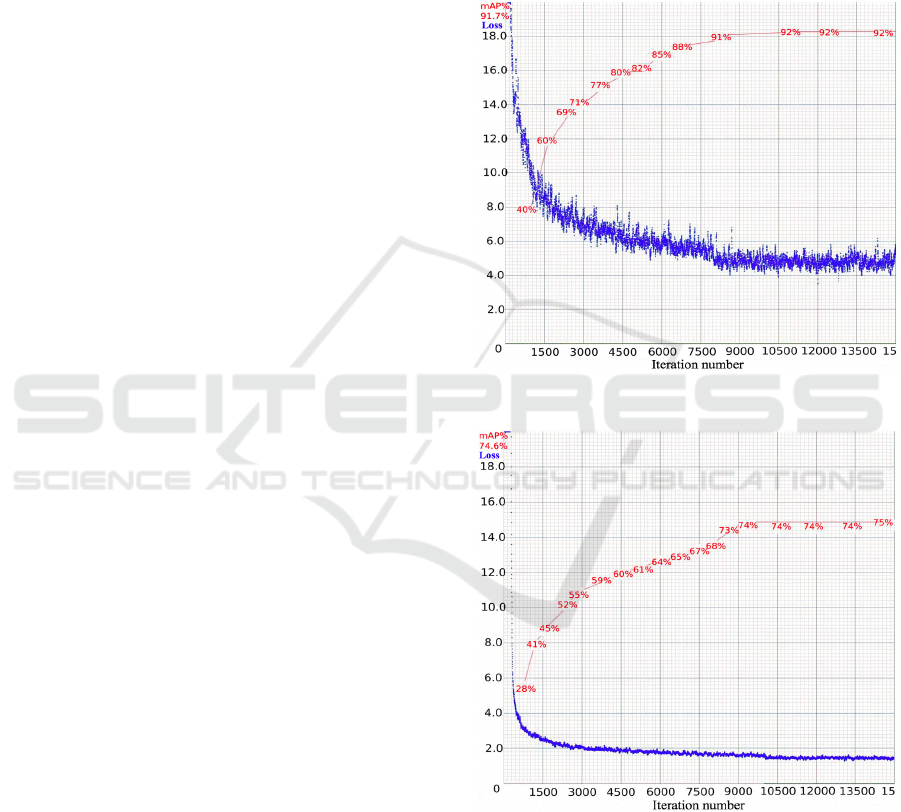

Figure 5 shows that YOLOv4 model achieves mAP

value after 15000 iterations of 91.7%, with avg loss

of 5.3869. Figure 6 shows that the YOLOv4-tiny

model achieved mAP value after 15000 iterations of

74.6%, avg loss value of 1.7. Both two models

converge well.

Figure 5: Model training graph of YOLOv4.

Figure 6: Model training graph of YOLOv4-tiny.

The accuracy values of the corresponding classes of

the YOLOv4 and YOLOv4-tiny models are described

in Table 1. Results shown that all the feature classes

of the YOLOv4 model are superior to the YOLOv4-

tiny model.

Apply Deep Learning in Real-time Customer Detection and Classiﬁcation System for Advertisement Decision Making at Supermarket

Table 1: Accuracies (%) of YOLOv4 and YOLOv4-tiny

models.

Class YOLOv4 YOLOv4-tiny

Man 93.74 78.72

Girl 90.41 67.96

Elder 88.66 75.88

Children 95.69 81.43

Person 89.97 68.87

Based on the results of testing dataset (Figure 7

and Figure 8), the YOLOv4 model recognizes more

objects than the

YOLOv4-tiny model, even objects far

away from the camera. Moreover, the accuracy of

object recognition is also higher than YOLOv4-tiny

model. Some objects are misidentified with

YOLOv4-tiny.

Figure 7: Test results on the model YOLOv4.

Figure 8: Test results on the model YOLOv4-tiny.

In the bad lighting condition, the results of object

recognition with YOLOv4 model is also reach the

high accuracy, shown in Figure 9.

Figure 9: Recognition results in different lighting

conditions of YOLOv4.

3.2 Deployment Result

We optimize 2 models YOLOv4 and YOLOv4-tiny

using TensorRT library, and deploy to Jetson Nano.

The compare deployment results is shown in Table 2.

Table 2: Deployment results to Jetson Nano.

Model File weight

(

)

FPS mAP(%)

YOLOv4 224.2 4.19 91.7

YOLOv4-tiny 22.5 40 74.57

Since the YOLOv4 model has a more complex

architecture than the YOLOv4-tiny model, a larger

file weight capacity is obtained after training process.

Therefore, it run slower than YOLOv4-tiny when

deployment to Jetson Nano. However, the accuracy

of YOLOv4 model is higher than that of YOLOv4-

tiny.

The proposed system requirements focus on

accuracy and speed. We can see from the above

experimental results that the speed of the YOLOv4-

tiny model is faster than YOLOv4. However, in both

of object detection and classification, the YOLOv4-

tiny is worse than YOLOv4 in terms of accuracy. This

surely affects to make decision on choosing

advertising clip.

The YOLOv4 model is better in term of object

recognition and classification capabilities, even with

difficult cases of small and fuzzy objects. This

advantage is more suitable for the initial

requirements. Since the objects are walking with

normal speed and there is a gap time among

advertising clips, the continuous identification is not

needed. Hence, disadvantage of YOLOv4’s speed is

still acceptable.

SMARTGREENS 2022 - 11th International Conference on Smart Cities and Green ICT Systems

100

3.3 Advertising Clips Displaying

The advertising clips displaying process is described

in Figure 10. Images are extracted from camera.

Using YOLOv4 model deployed on Jetson Nano to

identify objects. Base on recognition results, the

system can define certain group with largest number

of objects type. Then, system make decision for

playing the corresponding advertising.

Figure 10: The advertising displaying process.

4 CONCLUSIONS

In this paper, we build an IoT system of detecting and

classifying customer groups from video recorded by

a digital camera. Based on the results, advertising

displaying system can make decision on playing

advertising clips related to certain group of people (in

this propose, the advertising clip is chosen for the

customer group with largest number of peoples come

into the supermarket). We propose a deep learning

technique with 2 models YOLOv4 and YOLOv4-tiny

for object classification and detection. Our collected

data set from the reality with 7000 images under

different conditions. Final results show that the

YOLOv4 model reach a high accuracy of 91,7%. It

also can identify small objects far from camera and in

the poor lighting conditions. Meanwhile, the

YOLOv4-tiny model has a lower accuracy of 74%. It

still has some limitations in object recognition and in

different conditions. However, with a smaller model

size and when deploy to Jetson Nano embedded

system, the YOLOv4-tiny model achieves higher

speeds than the YOLOv4 model.

In order to reach the goal of a real-time detection

and classification system with high accuracy and fast

decision making, the YOLOv4 is better for

advertising clip making decision system. Some

limitations in the this propose includes: the data set

needs to be more diverse to increase the accuracy of

the model in many different conditions. This model

also needs to be tested with other deep learning

models to get more results. Besides, the hardware

configuration can also be considered in order to

improving system's ability.

REFERENCES

Ahmed, I., Din, S., Jeon, G., Piccialli, F. (2020). Exploring

Deep Learning Models for Overhead View Multiple

Object Detection. In IEEE Internet of Things Journal,

vol. 7, no. 7, pp. 5737-5744, doi:

10.1109/JIOT.2019.2951365.

Bochkovskiy, A., Wang, C., & Liao, H.M. (2020).

YOLOv4: Optimal Speed and Accuracy of Object

Detection. ArXiv, abs/2004.10934.

Chollet, F. (2017). Xception: Deep learning with depthwise

separable convolutions. In Proc. IEEE Conf. Comput.

Vis. Pattern Recognit., pp. 1251-1258.

Cortes, C., Vapnik, V. (1995). Support vector machine.

Mach. Learn., vol. 20, no. 3, pp. 273-297.

Dorothy, A. B., Kumar, S. B. R. and Sharmila, J. J. (2017).

IoT Based Home Security through Digital Image

Processing Algorithms. In World Congress on

Computing and Communication Technologies

(WCCCT), 2017, pp. 20-23, doi:

10.1109/WCCCT.2016.15.

Du, S., Zhang, B., Zhang, P., Xiang, P. (2021). An

Improved Bounding Box Regression Loss Function

Based on CIOU Loss for Multi-scale Object Detection.

In 2021 IEEE 2nd International Conference on Pattern

Recognition and Machine Learning (PRML), pp. 92-98,

doi: 10.1109/PRML52754.2021.9520717.

El-Saadawy, Tantawi, M., Shedeed, H. A., Tolba, M. F.

(2021). A Hybrid Two-Stage GNG–Modified VGG

Method for Bone X-Rays Classification and

Abnormality Detection. In IEEE Access, vol. 9, pp.

76649-76661, doi: 10.1109/ACCESS.2021.3081915.

Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE

international conference on computer vision, p. 1440–

He, K., Gkioxari, G., Dollár, P., Girshick, R. (2017). Mask

R-CNN. In Proc. IEEE Int. Conf. Comput. Vis., pp.

2961-2969.

He, K., Zhang, X., Ren, S., Sun, J. (2015). Spatial pyramid

pooling in deep convolutional networks for visual

recognition. In IEEE Trans. Pattern Anal.Mach. Intell.,

vol. 37, no. 9, pp. 1904–1916.

Hosseini, H., Masouleh, M. T., Kalhor, A. (2020).

Improving the Successful Robotic Grasp Detection

Using Convolutional Neural Networks. In 6th Irnnian

Conference on Signal Processing and Intelligent

Systems (ICSPIS), pp. 1-6, doi:

10.1109/ICSPIS51611.2020.9349542.

Hsieh, Y., Jeng, Y. (2018). Development of Home

Intelligent Fall Detection IoT System Based on

Apply Deep Learning in Real-time Customer Detection and Classiﬁcation System for Advertisement Decision Making at Supermarket

101

Feedback Optical Flow Convolutional Neural Network.

In IEEE Access, vol. 6, pp. 6048-6057, doi:

10.1109/ACCESS.2017.2771389.

Jiang, Z., Zhao, L., Li, S., & Jia, Y. (2020). Real-time object

detection method based on improved YOLOv4-

tiny. ArXiv, abs/2011.04244.

Krizhevsky, A., Sutskever, I. & Hinton, G. E. (2012).

ImageNet Classification with Deep Convolutional

Neural Networks. In F. Pereira, C. J. C. Burges, L.

Bottou & K. Q. Weinberger (ed.), Advances in Neural

Information Processing Systems 25 (pp. 1097--1105) .

Curran Associates, Inc.

Kumar, A., Kalia, A., Sharma, A. et al. (2021). A hybrid

tiny YOLO v4-SPP module based improved face mask

detection vision system. In J Ambient Intell Human

Comput (2021). https://doi.org/10.1007/s12652-021-

03541-x

Lalitha, V. L., Raju, S. H., Sonti, V. K., Mohan, V. M.

(2021). Customized Smart Object Detection: Statistics

of detected objects using IoT. In International

Conference on Artificial Intelligence and Smart

Systems (ICAIS), pp. 1397-1405, doi:

10.1109/ICAIS50930.2021.9395913.

Lin, T., Dollár, P., Girshick, R., He, K., Hariharan, B.,

Belongie, S. (2017). Feature Pyramid Networks for

Object Detection. In 2017 IEEE Conference on

Computer Vision and Pattern Recognition (CVPR), pp.

936-944, doi: 10.1109/CVPR.2017.106.

Lin, T., Goyal, P., Girshick, R., He, K., Dollár, P. (2020).

Focal Loss for Dense Object Detection. In IEEE

Transactions on Pattern Analysis and Machine

Intelligence, vol. 42, no. 2, pp. 318-327, doi:

10.1109/TPAMI.2018.2858826.

Liu W, Anguelov D, Erhan D, SzegedyC, Reed S, Fu CY,

Berg, A. (2016).SSD: single shot MultiBox detector.

arXiv. https://arxiv.org/abs/1512.02325.

Liu, S., Qi, L., Qin, H., Shi, J., Jia, J. (2018). Path

Aggregation Network for Instance Segmentation. In

2018 IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pp. 8759-8768, doi:

10.1109/CVPR.2018.00913.

Nowozin S. (2014). Optimal decisions from probabilistic

models: the intersection-over-union case. In

Proceedings of the 2014 IEEE Conference on

Computer Vision and Pattern Recognition, pp 548–555.

https://doi.org/10.1109/CVPR.2014.7.

Rane, S., Dubey, A., Parida, T. (2017). Design of IoT based

intelligent parking system using image processing

algorithms. In International Conference on Computing

Methodologies and Communication (ICCMC), pp.

1049-1053, doi: 10.1109/ICCMC.2017.8282631.

Redmon J, Divvala S, Girshick R, Farhadi A. (2016). You

only look once: unified, real-time object detection. In

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), Las Vegas,

NV, USA 2016, pp 779–788. https://doi.org/10.1109/

CVPR.2016.91.

Redmon J, Farhadi A. (2017). YOLO9000: better, faster,

stronger. In 2017 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), Honolulu, HI, USA,

pp 6517–6525. https://doi.org/10.1109/CVPR.2017.6

90.

Redmon, J., Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Simonyan, K. and Zisserman, A. (2015). Very Deep

Convolutional Networks for Large-Scale Image

Recognition. In The 3rd International Conference on

Learning Representations (ICLR2015).

https://arxiv.org/abs/1409.1556.

Srivastava, S., Divekar, A.V., Anilkumar, C. et al. (2021).

Comparative analysis of deep learning image detection

algorithms. In J Big Data 8, 66

https://doi.org/10.1186/s40537-021-00434-w

Uddin, M. I., Alamgir, M. S., Rahman, M. M., Bhuiyan, M.

S., Moral, M. A. (2021). AI Traffic Control System

Based on Deepstream and IoT Using NVIDIA Jetson

Nano. In 2nd International Conference on Robotics,

Electrical and Signal Processing Techniques

(ICREST), pp. 115-119, doi:

10.1109/ICREST51555.2021.9331256.

Wu, X., Xu, H., Wei, X., Wu, Q., Zhang, W., Han, X.

(2020). Damage Identification of Low Emissivity

Coating Based on Convolution Neural Network.

In IEEE Access, vol. 8, pp. 156792-156800, doi:

10.1109/ACCESS.2020.3019484.

Zhang, Y., Zhao, P., Li, D., Konstantin, K. (2020). Spatial

Attention Based Real-Time Object Detection Network

for Internet of Things Devices. In IEEE Access, vol. 8,

pp. 165863-165871, doi:

10.1109/ACCESS.2020.3022645.

SMARTGREENS 2022 - 11th International Conference on Smart Cities and Green ICT Systems

102
