Evaluation of an Augmented Reality Approach to Better Understanding

Diverse End User Website Usage Challenges

Minh Hieu Vu, Joshua (Shuki) Wyman and John Grundy

Department of Software Systems and Cybersecurity, Monash University, Australia

Keywords:

Human Computer Interaction, Accessibility, Human Aspects, Disability Simulation, Software Engineering.

Abstract:

End users with disabilities face many limitations with online accessibility. Efforts to tackle the problems of

testing for these problems have not yet been sufﬁcient. In this paper we describe an evaluation of Funkify,

an augmented reality tool to simulate diverse end users’ experiences and challenges when interacting with

software. The research evaluates the tool’s effectiveness for software engineers use in emulating four diverse

end user challenges using a heuristics-based evaluation and cognitive walk-throughs on three target websites.

Our results show that the tool successfully simulates the target personas’ challenges varying extent, with some

noticeable limitations. We provide suggestions for extensions to Funkify as well as AR tools in general.

1 INTRODUCTION

An estimated 1 in 6 Australians lives with a disabil-

ity(Green et al., 2021). In an online world that de-

mands ever greater online access to services since the

onset of the COVID-19 pandemic, it’s imperative that

websites be conscious and accommodating of these

diverse end users. Unfortunately, the problem is per-

vasive. Almost all of the top 1,000 free Android apps

have been shown to have many severe accessibility

issues (Alshayban et al., 2020). The top 100 banking

websites in the US have approximately 6 accessibility

violations each on average (Wentz et al., 2019).

Research into accessibility has traditionally fo-

cused on the development of tools to automate issue

identiﬁcation and verify compliance with accessibil-

ity guidelines such as the Web Content Accessibility

Guidelines (WCAG) (Abascal et al., 2019). However,

the issue continues to be severe. The US saw 3,500

website accessibility lawsuits ﬁled in 2020, and the

rate has risen 64% in the ﬁrst half of 2021(Alc

antara,

2021; Lazar, 2019). A possible underlying cause of

this trend is a lack of understanding amongst software

engineers for people different from themselves. De-

velopers may lack the insight to fully grasp how dif-

ferent types of end users would be interacting with

their system, making it very difﬁcult to design and

build suitably accessible products (Bi et al., 2022).

In this paper we evaluate the suitability of an Aug-

https://orcid.org/0000-0003-4928-7076

mented Reality (AR) approach to providing develop-

ers with an experience of how diverse end users in-

teract with their system. In contrast with the body

of prior research, rather than highlight suggested

changes or accessibility improvements, the aim is to

elicit a lasting empathetic response from the devel-

oper and a deeper understanding of their users’ needs.

To do this, we used a browser plugin to mimic a vari-

ety of diverse end user challenges. Funkify is a pub-

licly available extension for Google Chrome that of-

fers a range of simulators for vision, motor, and cog-

nition impairment as well as dyslexia(Funkify, 2021).

The extension breaks users down into personas, with

each representing a class of challenged end users.

Some available personas are shown in Figure 1.

Figure 1: Examples of Funkify Personas.

We evaluated Funkify Premium, which is avail-

able on a subscription basis and provides access to 4

Vu, M., Wyman, J. and Grundy, J.

Evaluation of an Augmented Reality Approach to Better Understanding Diverse End User Website Usage Challenges.

DOI: 10.5220/0010989900003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 50-61

ISBN: 978-989-758-568-5; ISSN: 2184-4895

additional personas, the ability to manually adjust the

sensitivity of each of the personas, and the ability to

deﬁne new personas using a combination of any of

the simulators. The free version of Funkify limits the

colour-blindness simulator to a single type of colour

blindness, whereas Premium allows the user to select

between 7 different types of colour blindness to ﬁl-

ter the screen for. Similar levels of customisation are

available for each of the personas.

Section 2 outlines key related work to date in help-

ing address accessibility challenges. Section 3 de-

scribes our research methodology, and Section 4 our

study design details. Section 5 presents the details of

our Funkify evaluation, and Section 6 discusses key

ﬁndings and makes a number of recommendations for

enhancement of the tool.

2 RELATED WORK

Humans are different and many have diverse chal-

lenges when making use of software solutions

(Grundy, 2021). Some of these are related to physical

and mental challenges of the users and software not

designed taking these into account will suffer accessi-

bility problems (Rutter et al., 2007; Harper and Chen,

2012). Currently software engineers lack tools and

techniques for adequately modelling end users with

diverse challenges that impact accessibility.

Alshayban et al. (Alshayban et al., 2020) devel-

oped an automated accessibility evaluation tool that

they used to evaluate 1135 free Android applications

and conducted a follow-up survey of Android devel-

opers. They found that accessibility issues are preva-

lent and pervasive throughout all categories of apps,

and that these issues are not limited to affecting a sin-

gle type of user disability. Although they surveyed a

relatively small sample of 66 developers, it was found

that the respondents lacked awareness of accessibil-

ity issues or training to address them. It’s notewor-

thy that the minimum amount of development experi-

ence among respondents was 0.25 years, a very short

amount of time that may raise questions about the

ability to generalise this result. An interesting ob-

servation was that no existing accessibility analysis

tools are prioritising issues by severity or importance,

leading developers to either overlook critical ﬂaws or

be overwhelmed with the quantity and variety. They

identiﬁed accessibility issues within half of the tem-

plates provided directly by Android Studio. Develop-

ers view these templates as a trustworthy foundation

and build their apps around them, thereby propagat-

ing the issues. This raises the question of whether

a similar phenomenon may be occurring in the web-

site space, for example with front-end component li-

braries or popular website templates.

Bai et al. (Bai et al., 2019) investigated and com-

pared six accessibility testing methods for software

development teams. They evaluated these methods

in terms of their usefulness, satisfaction, ease of use

and ease of learning to determine the methods that

would yield the best engagement for the participants,

investigated how different software roles and devel-

opment phases would affect the choice of appropri-

ate testing methods. The sample size of participants

was relatively small (53 participants) with 74% were

male, and it would be interesting to see how this fact

relates to the empathy of developers towards end-

users. A notable observation was that there are no set

rules to determine the types of issues a testing method

best identiﬁes, which made it difﬁcult to choose a

method and resulted in developers neglecting testing

entirely. The de facto method for the participants was

WCAG walk-through. However, the assessment of

this method yielded the lowest result in terms of satis-

faction and ease of use with a hostile attitude in many

responses. This poses a question of whether enforc-

ing use of a speciﬁc testing method is appropriate to

engage the developers. The research highlights how

different software roles prefer different methods.

Schulz and Fuglerud (Schulz and Fuglerud, 2012)

introduced methods to create personas more compre-

hensively. They presented the potential barriers, pro-

posed multiple techniques, and discussed the appli-

cation in their studies. A notable observation made

was that if personas are simply recycled or imitated,

then the empathy and engagement from developers is

lost. Also, personas are not complete replacements

of true end users, and misconceptions are possible

when personas are developed without prior real in-

teractions. Schulz and Fuglerud provided in-depth

details to some commonly known methods and con-

ducted research on real-world use cases. They made

suggestions for persona creators to be mindful when

using different Assistive Technology versions, and

aim at creating personas with the same learning at-

titudes as focus groups.

Several design approaches have been developed

speciﬁcally for visually impaired and blind users, en-

compassing a range of sight related accessibility chal-

lenges (Sierra and Togores, 2012; Jacko and Sears,

1998). Dyslexia is another accessibility challenge

faced by a range of users but with limited research on

solutions to date (Wery and Diliberto, 2017). A num-

ber of recent works have looked to to help software

engineers take better account of diverse end users dur-

ing development. This includes use of enhanced per-

sonas capturing user differences that allow software

Evaluation of an Augmented Reality Approach to Better Understanding Diverse End User Website Usage Challenges

engineers to more easily examine accessibility con-

siderations at all stages of development without re-

quiring the overhead of ﬁnding many varied live users

(Li et al., 2021). It also includes work extending

modelling languages documenting different end user

accessibility-related and other human-centric related

challenges (Jim et al., 2021). Recent work has in-

vestigated how to support users with mild cognitive

impairments (Jamieson et al., 2020).

Some work has investigated use of augmented

reality-based interfaces to aid improved accessibility

in software development. Biswas et al. (Biswas et al.,

2012) discussed different user modelling approaches

in regard to designing inclusive interfaces for elderly

and disabled people. They proposed a simulator to ad-

dress the limitations of existing modelling techniques

in predicting likely interaction patterns and estimat-

ing the time needed to complete an action for users

with disabilities. Stearns at al. (Stearns et al., 2018)

design and evaluate an AR-based magniﬁcation aid

for sight challenged end users to improve accessibil-

ity. Such approaches aim to ﬁll the gaps in limited

existing user modelling techniques by breaking inter-

actions up into smaller components and combining

different approaches in each component, while con-

sidering the needs of challenged people with visual or

mobility impairments. In Biswas et al., roughly 30%

of situations had more than 50% relative error. This

raises the question of whether these case studies are

sufﬁcient to determine the validity of such simulators.

3 METHODOLOGY

In this work we wanted to answer the following re-

search questions:

RQ1: Can a browser-based augmented reality

simulation tool such as Funkify personas give soft-

ware engineers a useful experience of diverse end user

web accessibility challenges?

RQ2: How comparable are Funkify’s simulations

to documented experiences of web accessibility chal-

lenges?

RQ3: What extensions to tools such as Funkify

would enhance their usability for more human-centric

software engineering?

3.1 Our Approach

The research was divided into three major steps.

• Identiﬁcation of a range of exemplar websites re-

quiring diverse end user accessibility.

• Identiﬁcation of a range of Funkify personas rep-

resenting diverse end users with quite different ac-

cessibility challenges.

• Evaluation of Funkify Premium personas on sev-

eral representative websites.

• Identiﬁcation of needed improvements to the cur-

rent state of Funkify.

The range and number of personas and websites eval-

uated were chosen with regards to a diverse, repre-

sentative set of digital services needed by many in the

community and relatively common end user accessi-

bility challenges.

3.2 Funkify Persona Selection

Personas are ﬁctional proﬁles of characters, created

to represent different types of users with the aim to

provide a perspective, or observations about differ-

ent challenges or experiences diverse users face, ulti-

mately building empathy from developers and design-

ers towards their end users (Pruitt and Grudin, 2003).

In our research, these personas represent users with a

disability or multiple disabilities that affects the users’

experience while interacting with software, whether

they be visual, motor and/or cognitive impairments.

Our set of target personas were selected on the ba-

sis of (i) covering a wide range of user’s challenges,

and (ii) relatively common disabilities that would

have the most effect on users’ experience and would

be difﬁcult to simulate effectively and thoroughly

with an augmented reality tool such as Funkify. From

the 10 personas that Funkify provides, 4 personas

were selected to conduct our evaluation, consisting of:

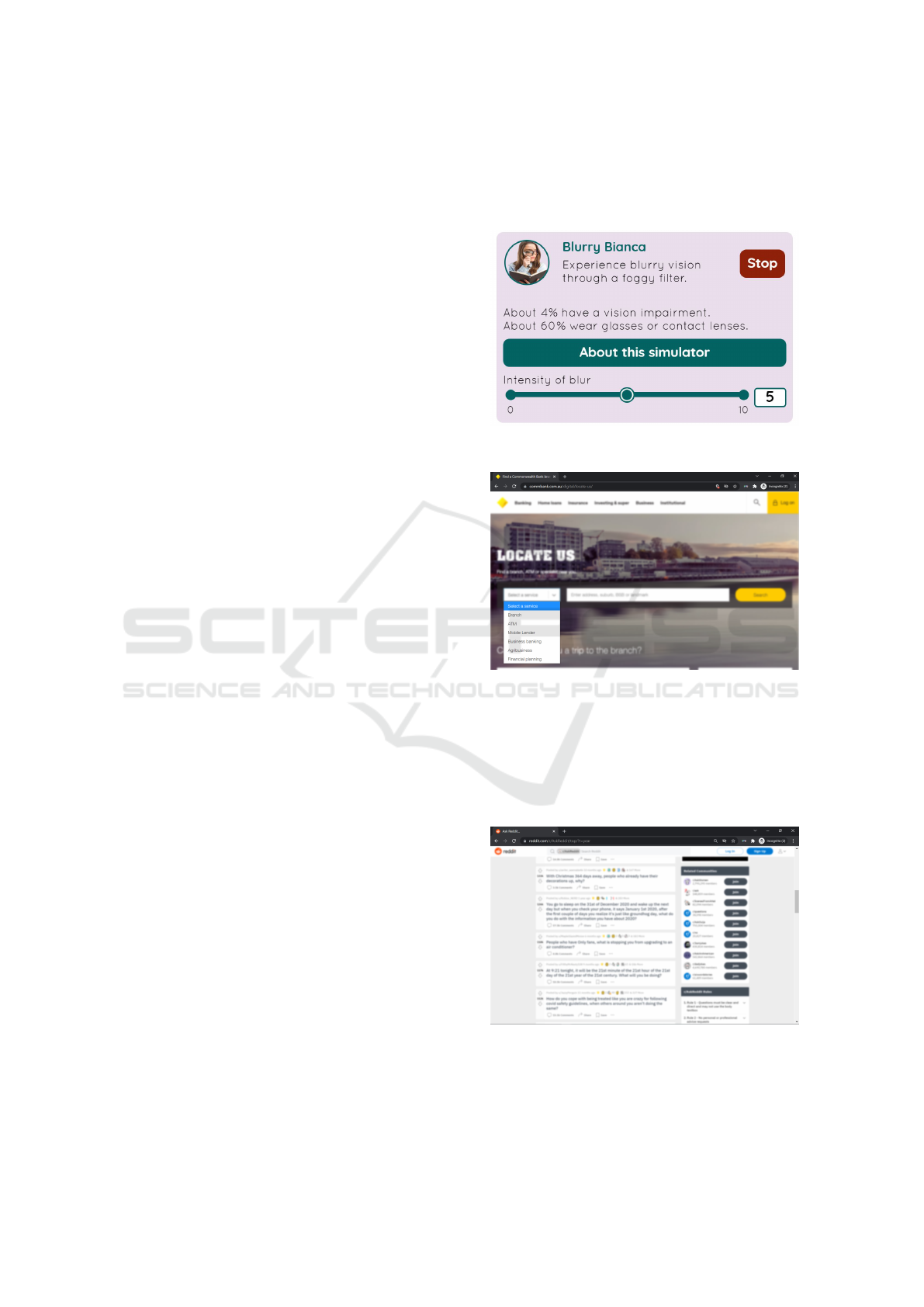

Blurred Vision: Blurred vision can have a negative

effect on a persons’ entire line of sight or partially

affect one’s vision. It could include peripheral vi-

sion, or how a person sees to the left or right of their

ﬁeld of vision, it can also be possible to experience

blurred vision in one eye only. It is often caused

by refractive errors (nearsightedness, farsightedness),

abrasions to the cornea, age-related macular degener-

ation, migraine, trauma or injuries to the eye, infec-

tious retinitis (Zhou et al., 2020).

A person with blurred vision can have their func-

tional status and overall well-being severely im-

pacted, according to P. Lee et al. They stated that

blurred vision can have a substantially greater impact

in role limitations due to physical health problems

than that of hypertension or type II diabetes. It is also

stated to be of signiﬁcantly worse impact on energy

than type I diabetes mellitus, on social function than

indigestion, and on physical functioning than trouble

urinating(Lee et al., 1997).

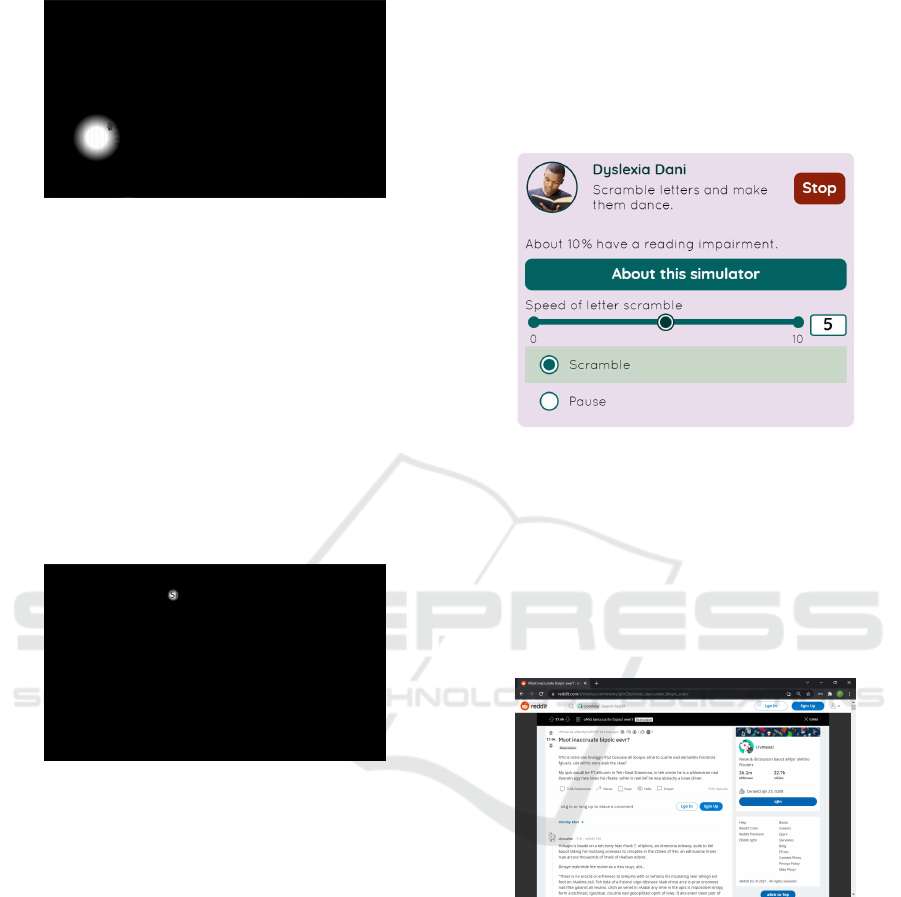

Dyslexia: Dyslexia is considered as a language-based

learning difference that affects the organization in the

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

brain which controls the ability to process the way

language is heard, read, spelled, or spoken. Dyslexia

can also have negative effects on a person’s working

memory, attention, and organization. Davis’s research

reported 37 common traits of a dyslexic that spans

across vision, speech, hearing, writing, motor, math

and time management, cognition, behaviour, person-

ality... Davis stated that people with dyslexia exhibit

about 10 of the common traits and behaviours and

these characteristics vary inconsistently(Davis, 2004).

According to Davis, some notable traits and charac-

teristics of people with dyslexia include:

• Reading or writing shows repetitions, additions,

transpositions, omissions, substitutions, and re-

versals in letters, numbers and/or words.

• Complains of feeling or seeing non-existent

movement while reading, writing, or copying.

• Extended hearing: hear things that are not said or

apparent to others; easily distracted by sound.

• Difﬁculties with ﬁne and/or gross motor skills and

tasks.

• Poor memory for sequences, facts and informa-

tion that has not been experienced.

• Extremely disorderly or compulsively orderly.

• Mistakes and symptoms increase dramatically

with confusion, time pressure, emotional stress,

or poor health.

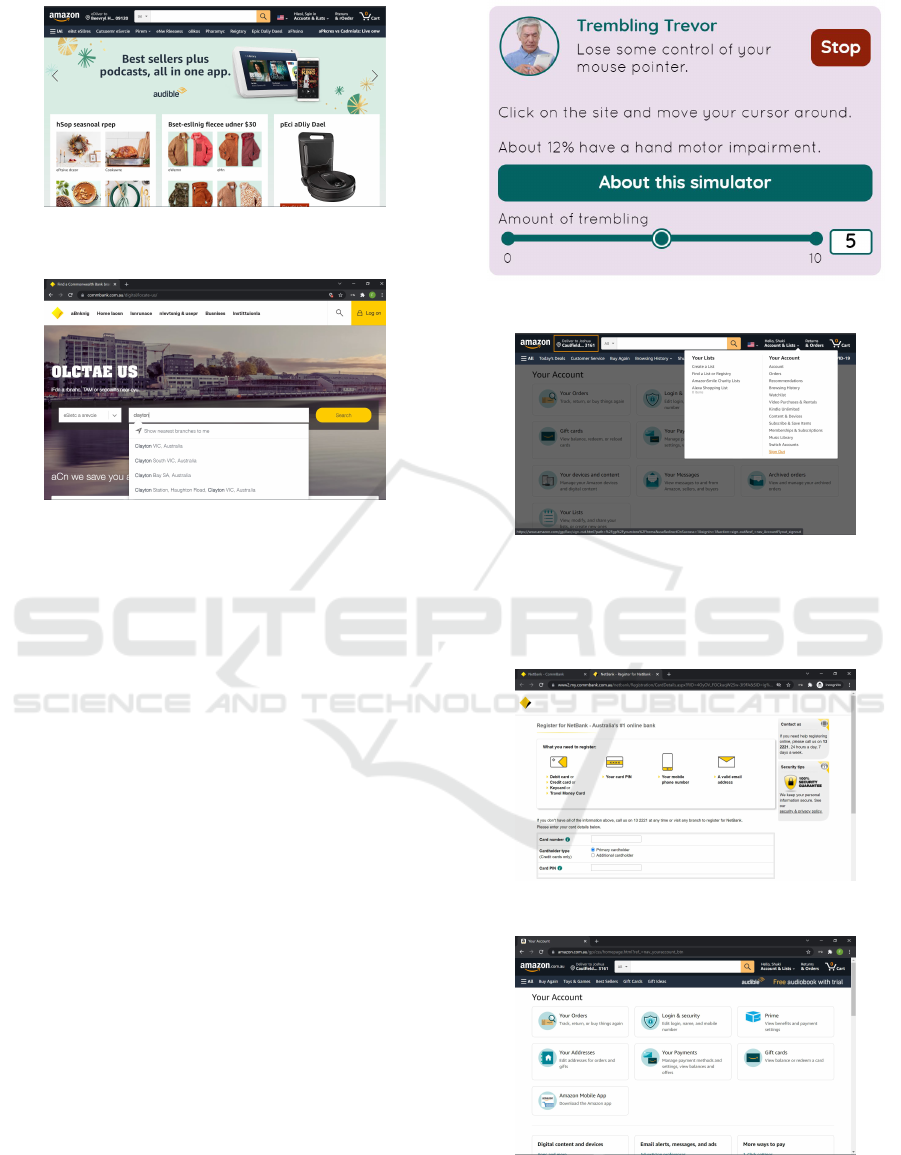

Tremor: Tremor is characterised by shaking move-

ments in a part of the body caused by involuntary

muscle contractions. One of the most common neu-

rological diseases, tremor can occur on its own or in

conjunction with another neurological disease such as

Parkinson’s, MS, or stroke. For Parkinson’s alone, 1

in every 100 Australians over the age of 60 lives with

the disease (Dorsey et al., 2007). Tremors are classi-

ﬁed as either rest or action, with action further sub-

divided to give 7 types of tremors, each with their

own typical frequency and amplitude.(Sirisena and

Williams, 2009). Designing apps to support people

with tremor has been shown to be challenging (Zhong

et al., 2015).

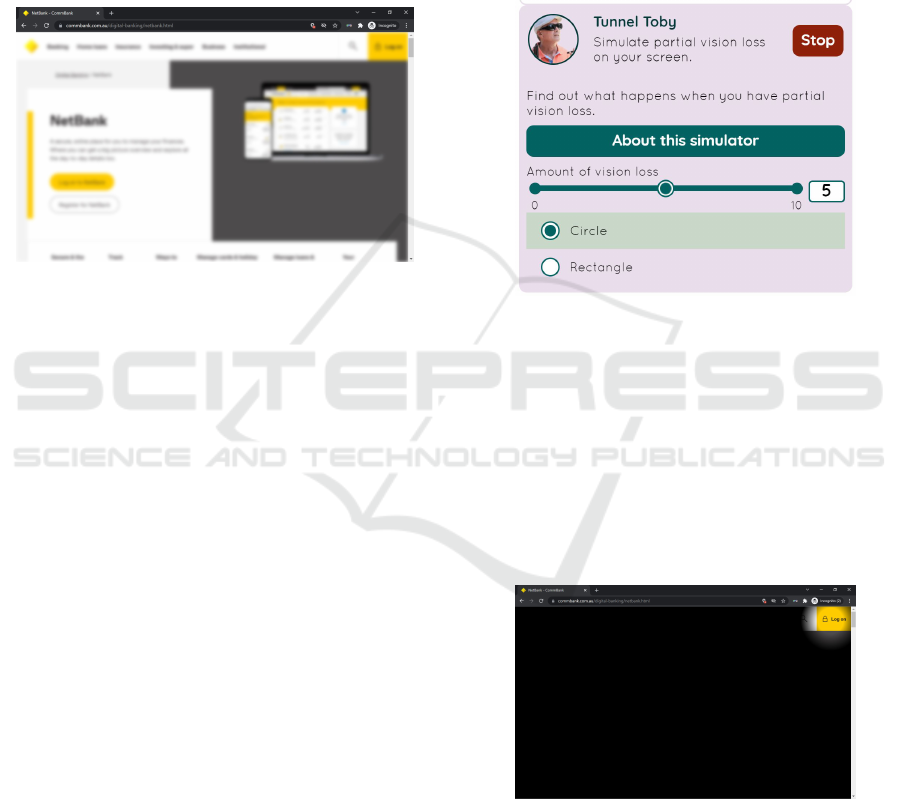

Tunnel Vision: Tunnel vision is a colloquial name

for peripheral vision loss, a narrowing of the ﬁeld of

view to the extent that the individual can only see di-

rectly ahead.(tun, 2019) It is most commonly seen in

patients with retinitis pigmentosa or glaucoma, with

glaucoma alone affecting over 300,000 Australians.

Limited work to date has been done on design guide-

lines and support for users suffering from tunnel vi-

sion (Kamikubo et al., 2018).

3.3 Target Websites

To perform the evaluation on the selected personas, a

set of target websites were chosen. Our approach to

choosing these websites were to cover a wide range

of topics, layouts, content of the sites (content-heavy

news sites, websites with a lot of interactions, pic-

tures...) The websites were chosen to also differ in

user needs when using them, spanning from recre-

ational purposes to daily fundamental needs. In the

end, a set of 3 such target websites were selected:

Commonwealth NetBank: Commonwealth Bank of

Australia (CBA) is one of the most popular banks

in the country and has an online system to support

all the fundamental banking tasks like checking your

balance, making a transaction, ﬁnding an ATM or

branch, and so on. These are tasks that most people

do almost every day, and can have direct detrimental

effects on a person who is unable to do them effec-

tively and accurately.

Reddit: Reddit is a social news platform with a large

user community, covering a wide range of topics and

subjects. Its website is very content-heavy consist-

ing of mainly text and pictures with a lot of interac-

tions between interactions. Reddit was selected to as-

sess the experiences of diverse end users on a content-

heavy site where most of the interactions and content

are casual using a lot of colloquial language.

Amazon: Amazon is the world’s largest e-commerce

website with more than 1.5 million transactions every

day. Amazon was selected to evaluate how one of the

largest and most visited websites in the world design

their platform in regard to accessibility for diverse end

users.

4 STUDY DESIGN

4.1 Method

We conducted a heuristics evaluation of our selected

personas using Funkify Premium applying a set of

evaluation criteria, including:

• What range of diverse end user challenges does

Funkify support? How do such challenges mani-

fest in the browser?

• How well does the tool work with our selected

websites when performing tasks?

• How is the AR environment produced by the tool

for developers comparable to the documented ex-

periences of end users with these challenges?

• Does the modiﬁcation of website interaction ap-

pear to be based on actual evidence or literature?

Evaluation of an Augmented Reality Approach to Better Understanding Diverse End User Website Usage Challenges

• Do Funkify personas provide a software devel-

oper a good idea of how someone using the web-

site with this challenge would ﬁnd the experience?

Can the software developer “empathise” with this

target end user’s accessibility-related challenges?

• Can users with multiple accessibility-related chal-

lenges be addressed, and how feasible and efﬁ-

cient does the tool address users with such multi-

ple challenges?

• What new challenges (combination of challenges)

are we able to add to the tool? What challenges

are not possible to add?

To support the evaluation of this set of criteria, we

conducted cognitive walk-throughs with each per-

sona on all the target websites. From the results of

the cognitive walk-throughs, we assessed how effec-

tive the persona’s challenges manifest in the browser

with Funkify, what the notable limitations of the tool

for a persona/target website are, and how the per-

sonas challenges relate to real users’ experience based

on existing accessibility studies and literature on the

disabilities. From these we identiﬁed opportunities

for improvement in Funkify’s augmented reality ap-

proach for better supporting software engineers in de-

signing and building interfaces for diverse end users.

4.2 Cognitive Walk-through

Cognitive walk-through is a method primarily used in

usability evaluation to look for usability issues in in-

teractive systems, with a focus on task completion for

novice users (Blackmon et al., 2002). Its emphasis is

on studying how easy it is for new or infrequent users

to learn a system. It was ﬁrst used as a tool to eval-

uate systems such as ATMs or interactive exhibits in

museums where users will generally have little to no

prior experience or training. Due to its ease of use

and feasibility, the method’s usage has been extended

to complex software systems including CAD and soft-

ware development tools.(Rieman et al., 1995)

Cognitive walk-throughs were conducted, one for

each selected persona and website combination. We

chose a set of tasks for each website and conducted

the walk-throughs. Our approach to selecting these

tasks for each target website was to select those that

were the most basic and relevant for all the web-

sites (e.g., logging on, registering) and the most ma-

jor tasks for each site (e.g., make a transaction). A

series of 4-6 major tasks were chosen for each of the

target websites. The next step was to deﬁne a goal

or success criteria for each of the tasks to determine

how effective can the task be done in the augmented

environment created using Funkify for each of the

personas. After ﬁnalising the tasks and their respec-

tive deﬁnition of success, we would then conduct the

walk-throughs for each of the personas on all the tar-

get websites and tasks.

Each persona was be assessed as to how it affects

the tasks’ feasibility, whether the task could still be

done with the Funkify ﬁlter active at different inten-

sity settings or if it proved to be impossible to com-

plete the task when Funkify is active, based on the

deﬁned success criteria. The results of each task and

target website from the walk-throughs could then be

generalised into the feasibility and effectiveness of the

Funkify persona in terms of how well it achieves the

simulation of the persona’s challenges and what the

major limitations of the tool are or in general the lim-

itations of augmented reality tools in simulating di-

verse end users’ experience.

The evaluators of the websites and Funkify per-

sonas were software engineering students with real-

world software practitioner experience. Each has ex-

pertise in software engineering processes and tools,

UX/UI design, web and app development, but no par-

ticular training in designing for accessibility.

4.3 Websites

All of the target websites have similar tasks for log-

ging on and registering a new user where the def-

inition of success is straightforward and consistent

among all websites. Key tasks which differ across the

websites are as follows:

Commonwealth NetBank Tasks:

Make a Transaction: this is the most common and

fundamental task to be completed on a banking web-

site. The deﬁnition of success was to be able make

a transaction for the correct amount of money from

a speciﬁc account to the correct recipient. The

user would need to navigate to the transaction page,

choose the correct ‘To’ and ‘From’ accounts and in-

put the correct amount to complete the task.

Find a Branch or ATM: Commonwealth NetBank

provides a feature to show a map of ATM or branches

nearby or to selected set of ﬁlter options. How this

task is considered as done can vary between use cases,

so we chose to deﬁne success for this task to be able

to navigate around the map effectively and be able to

ﬁnd a speciﬁc CBA branch on the map.

Reddit Tasks:

Join and Navigate Subreddits: Reddit is a social news

platform where each subreddit represents a commu-

nity that focuses on a speciﬁc category or topic. It

was difﬁcult to deﬁne a tangible success criterion for

navigating through the subreddits, so we focused on

joining a subreddit while assessing how the Funkify

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

ﬁlters affect the experience of navigating through sub-

reddits.

Read Comments on Posts: comments are a large pro-

portion of all content and interactions on Reddit posts.

Users need to successfully read comments, navigate

through all comments and replies, and be able to fol-

low and understand comment threads.

Post on Subreddit: A Reddit post can be simple as a

sentence or it can consist of pictures, links, various

font options... We decided to assess the task’s com-

pletion on the user’s accessibility and effectiveness in

using these additional options when posting.

Post Comments: this task involves composing a com-

ment relating to a post and is relatively simple, so a

deﬁnition of success is not required.

Amazon Tasks:

Find a Product (Example - an HDMI Cable): Being

an e-commerce site, Amazon’s most fundamental task

would be to ﬁnd a product. The deﬁnition of success

was to be able to search for a product (an HDMI ca-

ble was selected for this task) and effectively compare

all the search results (in terms of descriptions, prices,

quantities...).

Buy a Product: conventionally buying a product on

Amazon involves selecting the product, comparing

and choosing the products’ options if any, adding it

to the user’s cart, and checking out with the required

user billing details. For this research, we deﬁne this

task as completed when user has selected the right

product, read its descriptions effectively, compared

between product’s options, and add it to their cart.

5 EVALUATION RESULTS

For each persona we describe how Funkify attempts

to simulate the underlying accessibility issue, report

key ﬁndings from the cognitive walk-throughs [RQ1],

and discuss the extent to which the experience pro-

vided by Funkify mirrors the documented experiences

of diverse end users with these challenges [RQ2]. No-

tably, Funkify only augments the browser window un-

derneath the title bar, so any changes to the url or open

tabs are not concealed. A limitation of the tool is that

it only applies to the view within the page so all the

other components in the browser UI are not affected

such as tabs’ names, browser menu, settings. This is

of course not consistent with the real-world experi-

ence of a person with blurred vision.

5.1 Blurred Vision Augmentation

Blurred vision is the most common sight challenge,

but varies in level. Funkify applies a blur ﬁlter to the

entire window, with intensity being able to be varyied

on a 0-10 scale. Figure 2 shows the persona and Fig-

ure 3 how this manifests for the CommBank website

ATM locator page.

Figure 2: Blurry Bianca UI.

Figure 3: NetBank ATM search dropdown.

While there were isolated instances like Figure 3

of components such as drop-down selections appear-

ing as normal on top of the ﬁlter, overall the simulator

performed consistently well. It immersed the user in

the persona and allowed them to identify areas where

the site design led to user frustration.

Figure 4: Reddit with Blurry Bianca ﬁlter, 2.5 intensity.

For content-heavy websites like Amazon and Red-

dit (Figure 4), the visual strain made browsing partic-

ularly difﬁcult and tiring. However, fatigue was also

Evaluation of an Augmented Reality Approach to Better Understanding Diverse End User Website Usage Challenges

experienced when navigating NetBank, with lower in-

formation density. Amazon, with many busy pages,

description blocks and copious amounts of small,

clickable, text was very taxing to navigate. Product

titles and costs, as the top elements of Amazon’s ty-

pographic hierarchy, are the only readable parts of the

page at 1.5 intensity. Even Amazon’s captcha posed

a difﬁculty. Although the registration process allows

the user to select an audio challenge, the explanation

of what is required is shown in unreadably small font.

Figure 5: NetBank login colour highlights the most impor-

tant interactions.

As navigation was tiring, accessible and bold de-

sign choices stood out for their ease of use. The use

of contrasting and vibrant colours drew the user’s fo-

cus more easily, and was used to good effect by Net-

Bank’s yellow log in button as shown in Figure 5. It

also highlighted the beneﬁt of iconography and logos

as opposed to reliance on text. Reddit’s login modal

has the Google and Apple logos alongside their login

options. The text became unreadable at 1.8 intensity,

whereas the logos remained recognisable until 3.0, re-

ducing the cognitive strain.

The experience produced by the tool was very

comparable to that of a short-sighted person when not

using prescription glasses. A noticeable takeaway is

that for most of the evaluated websites and tasks, it

is almost impossible to read any content or text on

the screen when the intensity reaches 3.0, so a large

portion of the intensity spectrum will yield the same

results when using this augmentation. And the char-

acteristic of the blur ﬁlter is the same for all the web-

sites and all the intensity levels (a blur effect to the en-

tire screen) which might not be the experience for all

users with blurred vision (partial blurred vision, left

or right blurred vision, short-sightedness compared to

age-related causes...).

5.2 Tunnel Vision Augmentation

The Tunnel Toby Funkify persona, shown in ﬁgure

6, shrinks the visible area in the browser window to

either a circle or rectangle centered at the current po-

sition of the user’s mouse. The remainder of the win-

dow is covered by an opaque black ﬁlter. A sensitivity

slider from 0-10 is provided to change the amount of

vision loss desired. We evaluated the circular option

intended to simulate peripheral vision loss.

Figure 6: Tunnel Toby UI.

Evaluating this simulator was found to be a very

confronting and intensely uncomfortable experience.

Although solely isolated to the browser window, and

with the user able to stop at any time, prolonged ex-

posure to this persona repeatedly led the evaluators to

spikes of anxiety and claustrophobia. On unfamiliar

sites navigation times were dramatically slowed due

to the need to systematically scan each page, build-

ing a mental picture of the structure and ensuring key

details were not overlooked.

Figure 7: NetBank login button placement.

To compensate, there was a noted reliance on es-

tablished UI norms. For example, assuming a button

to login would be in the top right corner of the win-

dow (shown in Figure 7). Similarly, visual identiﬁers

of page structure helped with maintaining an under-

standing of position. As shown in Figure 8, Red-

dit displays its nested comment hierarchy with par-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

Figure 8: Reddit hierarchy lines.

allel vertical lines signifying the level of indentation,

where clicking on a line navigates the user to the par-

ent comment of that level. Without such a visual aid it

would be extremely difﬁcult to follow conversations.

This confusion manifested when evaluating Ama-

zon’s product search. Products were arranged incon-

sistently, alternating between a single product per row

and three separate products side-by-side. Advertise-

ments and sponsored products were interlaced at un-

predictable intervals. Product images were larger than

the visible circle, and product names were long and

technical in nature. All of these factors combined to

make comparisons between products difﬁcult.

Figure 9: Tunnel Toby sensitivity 10.

A number of bugs were identiﬁed with Funkify’s

tunnel vision augmentation. When using the persona,

the mouse could not enter the Reddit login modal and

lagged signiﬁcantly when Reddit posts were opened.

Scrolling on a page moved the visible area in tandem,

as opposed to it sticking to the mouse position. This

resulted in most scrolling occurring with an entirely

black screen, only refreshing on mouse move.

Funkify provides a 0-10 slider for amount of vi-

sion loss, however this scale is quite a narrow range.

0 is no vision loss at all, but 0.1 is already signiﬁ-

cant impairment. 10, demonstrated in Figure 9 is al-

most complete vision loss. To better reﬂect reality

this range should be much wider, with lower numbers

just showing some darkening around the edges of the

screen and gradually decreasing the vision.

5.3 Dyslexia Augmentation

Funkify attempts a simulation of dyslexia by scram-

bling text on the web page. Scrambling is localised to

a word with the exact characters swapping at random.

Figure 10 illustrates this persona.

Figure 10: Dyslexia Dani UI.

It was found that content-heavy sites such as Ama-

zon are difﬁcult to read, and small site elements esca-

late the challenge. It became difﬁcult to ascertain and

remember product names when trying to ﬁnd a prod-

uct that had been seen previously. Evaluating Reddit

(Figure 11) exposed a set of challenges around com-

prehending slang and internet colloquialisms, which

proved to be barriers to entering the conversation.

Figure 11: Browsing Reddit with Dyslexia Dani.

The simulator only changes page text, and there-

fore it does not scramble any text in images, branding,

tooltips, and certain buttons. It fails to work on Red-

dit’s login modal and seems to not scramble two-digit

numbers, even when they appear as text. Additionally

text typed into websites remains unaltered. Figure 13

shows the ATM search stage of a NetBank evalua-

tion, where neither the input text or dropdown list are

scrambled. These limitations cumulatively limit the

immersive experience of the simulator, as in Figure

12 where the focal point of the screen is text embed-

ded in an image.

With each letter generally not moving far rela-

Evaluation of an Augmented Reality Approach to Better Understanding Diverse End User Website Usage Challenges

Figure 12: Amazon home page - banner unaffected by

dyslexia ﬁlter.

Figure 13: Dropdown item and form inputs do not scramble.

tive to their correct position; words with 2 or less

characters stay the same during the simulation. The

tool’s capability is only limited to the visual aspects of

dyslexia, so it is not comprehensible enough to gener-

alize the whole set of challenges a dyslexic person ex-

periences. The tool is not able to cover other aspects

related to the persona including hearing, writing, mo-

tor, especially behavioral traits. It is not clear that all

people with dyslexia experience reading in this man-

ner, and some have simulated dyslexia by removing

lines from normal lettering (Bai et al., 2019).

5.4 Tremor Augmentation

The Trembling Trevor Funkify persona simulates

tremor by moving the mouse involuntarily and unpre-

dictably in all directions. As the mouse continues to

move without user input it would be classiﬁed as a

resting tremor, as is commonly seen in Parkinson’s

disease. The amount of tremor is adjustable on a 0-10

scale. Figure 14 shows the persona from Funkify.

While using the persona, accurately selecting

small targets posed a signiﬁcant challenge. This was

most prevalent in the Amazon walk-through, due to

the abundance of clickable text. When searching for

products the ﬁlter options are inaccessibly small, as is

the breadcrumb navigation in the user proﬁle section.

Critically, signing out of an account necessitates

clicking on a small piece of text at the bottom of a

dropdown menu, as shown in Fig. 15. It requires ﬁne

motor control to accurately click the correct button,

Figure 14: Trembling Trevor UI.

Figure 15: Amazon sign out button.

with the additional frustration that unintended move-

ments that cause the cursor to move outside of the box

results in the dropdown menu collapsing.

Figure 16: NetBank registration form radio buttons.

Figure 17: Amazon proﬁle page.

Similarly, when applying to register for NetBank

(Figure 16), the user is prompted to select between ra-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

dio button options, which were basically unclickable

with this Funkify persona enabled. The most accessi-

ble pages had large, separated buttons, like on Ama-

zon’s user proﬁle page shown in Figure 17.

The sensitivity adjustment is a 10-point sliding

scale of an ill-deﬁned “amount of trembling”. Al-

though probably sufﬁcient to emulate the experience

of navigating with a tremor, this could be broken

down into frequency and amplitude to better align

with the medical literature. An advanced feature set

could also break it down by tremor type.

6 DISCUSSION

Cognitive walk-throughs with Funkify provided both

valuable insights into accessibility issues on the eval-

uated sites and also a lasting impression on the eval-

uators of the constraints experienced by end-users

who live with the examined disabilities. The lessons

learned were applicable beyond the local scope of one

website, and the tool elicited the desired empathetic

response above and beyond accessibility issue iden-

tiﬁcation. We recommend its use in further research

that can explore this relationship further and to iden-

tify whether it can lead to improved long-term im-

proved accessibility outcomes.

Funkify as it currently exists is a straightforward

and easy to use extension that offers ﬂexibility and

customisation across a wide range of disabilities. Per-

sonas are toggled with a single button click and any

combination of existing simulators can be combined

into a new persona. Having all of the functionality

neatly packaged in a single plugin allows Funkify to

add value if included in future projects that use per-

sonas to model diverse end users. However, a number

of potential limitations were found, and a number of

extensions to Funkify identiﬁed that would enhance

its suitability as a basis for future research [RQ3].

6.1 Expanded Personas

Prior research on the use of personas to understand

end users includes more biographical and emotional

context than Funkify currently allows. Other work

has proposed personas that are tailored to the needs

of the development team and express the background,

goals, and frustrations of the modelled end user to

speciﬁc problem domains (Li et al., 2021). We

propose that another button be created underneath

”About this simulator” for each Funkify persona,

where the user will be able to read and edit more

of the human aspects of the persona. This ability to

enrich Funkify personas by deﬁning more contextual

data would improve the quality and utility of the per-

sonas for testing purposes, and simultaneously pro-

vide a mechanism by which to instantly simulate the

perspective of the previously text-based persona.

6.2 Sharing Capability

As a Chrome extension, any custom personas or

changes to sensitivity settings are localised to a single

account. To facilitate repeatable testing and consis-

tency amongst team members, support is needed for

sharing personas with other Funkify users. This could

be combined with extending persona human aspects

to provide richer, more contextual personas.

6.3 Predeﬁned Intensities

At present, Funkify Premium always allows the user

to adjust the simulator intensity. However as we move

to richer personas we may, for consistency, want to

specify the exact desired values and disable the ability

of users to deviate from it. Therefore we suggest that

the screen to make or edit a new persona should con-

tain a ﬁeld for whether the intensity values are locked.

It will always be possible to return to the edit screen to

unlock them, but this feature would prevent accidental

miscalibration. If this implementation is not possible,

we would suggest a button in the persona window that

would return all values to a preset default.

6.4 Broader Range of Intensities

A ﬁnding of our cognitive walk-throughs was that the

range of intensity options provided for each persona

was too narrow, often resulting in the user solely util-

ising the lower end of the spectrum. For example the

minimum amount of vision loss (0.1) for the Tunnel

Toby persona shown in Figure 9 is already quite ad-

vanced peripheral vision loss whereas the circle size

in upper half of the range (> 5) is too small to be

useful. The sensitivity range should be re-calibrated

to allow the minimums to represent a far more gentle

form of the disability.

6.5 Combining Personas

Funkify provides a limited ability to deﬁne new per-

sonas and some target end users have multiple chal-

lenges that would be good to be able simulate con-

currently. As Funkify uses different approaches to its

augmented reality-based simulations, this may be dif-

ﬁcult if not impossible for some multiple challenge

personas. This may require a more sophisticated aug-

mented reality-based approach.

Evaluation of an Augmented Reality Approach to Better Understanding Diverse End User Website Usage Challenges

6.6 New Simulators

Finally, we would add new simulators to Funkify tar-

geting aspects of dyscalculia, hearing impairment,

and developmental disabilities including autism.

While these conditions may not be able to be repli-

cated precisely, we would implement targeted parts

of their documented end user experience from other

studies and medical literature. As above, we would

aim to leverage Funkify’s ability to combine simula-

tors in order to scaffold a more holistic persona from

constituent symptom personas.

6.7 Limitations and Future Work

One major limitation in this research was limiting our

evaluation to Funkify. This opens further potential re-

search paths and questions as to whether all of the per-

sonas provided by Funkify yield the same evaluation

results as other comparable tools, or if there are better

performing tools compared to Funkify to simulate di-

verse end users’ experience for some challenges. Al-

though our selection approach was to cover the widest

range of personas and websites possible, there are of

course many other widely used websites and tasks that

could be evaluated with Funkify’s augmentation ap-

proaches. The small number of people doing the cog-

nitive walk-through-based evaluations is also a limi-

tation. This can result in the lack of integrity between

each cognitive walk-throughs as members would have

had some prior experience with the target websites

and tasks. With the evaluation only done internally

by research team members with experience in soft-

ware engineering, UI/UX and web development, this

may not reﬂect actual experience of target end users.

However a major aim of our work was to see how

software engineers perceived the augmented browser-

based interfaces, and whether they could help iden-

tify key usability challenges for such target end users.

We also wanted to see if software engineers could

gain a more empathetic understanding of these target

end users by using Funkify’s persona and augmented

browser-based interface approach.

Another limitation in our study was the lack of

real end user involvement. This can be overcome

in the future by conducting user studies with actual

visual-impaired users. It would also help to over-

come the limitation of possible bias in current partic-

ipants since they were from a software engineering

background. A comparison of task completion be-

tween real versus simulated user groups may reveal

further interesting insights. However, we did com-

pare Funkify’s augmented interfaces to the impacts of

different user challenges reported in prior studies and

medical literature. Further studies into evaluating a

wide range of users at different levels/manifestations

of the disabilities are also necessary to assess the im-

pact on their web usage and study different UI solu-

tions required to cater to different range of users with

the same disabilities (e.g., different levels of tunnel

vision, different manifestations of dyslexia).

The effect on software developers and designers

after using tools such as Funkify on their design pro-

cess is an important area to study. Some studies have

shown having able-bodied people experience disabil-

ity simulators can reinforce negative stereotypes and

attitudes to these challenged people.(Nario-Redmond

et al., 2017). It would be interesting to see how de-

velopers assess their existing UI designs using the

Funkify personas, and how this might inﬂuence their

designs to better accommodate more diverse chal-

lenged end users and empathise better with them af-

ter experience with these tools. A notable perspec-

tive raised by Huynh et al. was the use of personas

of developers with their own challenges(Huynh et al.,

2021), and how they would diagnose and ﬁx UI prob-

lems differently to other developers. Future research

could focus on using these different software engineer

personas to evaluate Funkify.

7 SUMMARY

We conducted a heuristics-based evaluation of

Funkify, an augmented reality-based simulator, to as-

sertain its suitability as a tool to simulate diverse chal-

lenged end users’ web experience. Four user per-

sonas (Dyslexia, Blurred Vision, Tremor, and Tun-

nel Vision) were selected to carry cognitive walk-

throughs on three target websites (Amazon, Reddit,

Commonwealth NetBank). We found the evaluated

personas provided an overall good representation of

users’ challenges. There are notable limitations relat-

ing to speciﬁc components of the web page (modals,

drop-downs...) where the tool might fail to apply the

persona ﬁlter. Future work can investigate the other

personas Funkify provides as well as other similar

tools on a wider range of target websites. It would

be good to compare the assessment of real users with

target challenges to those of developers using Funkify

simulations to see if the same problematic accessibil-

ity issues are detected. We also want to evaluate the

simulation environment created by these tools as to

their effect on eliciting developers’ greater empathy

towards diverse end users.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

ACNOWLEDGEMENTS

Grundy is supported by ARC Laureate Fellowship

FL190100035.

REFERENCES

(2019). Tunnel vision: What peripheral vision loss feels

like – https://www.webmd.com/eye-health/common-

causes-peripheral-vision-loss.

Abascal, J., Arrue, M., and Valencia, X. (2019). Tools

for web accessibility evaluation. In Web Accessibil-

ity, pages 479–503. Springer.

Alc

antara, A.-M. (2021). Lawsuits over digital accessibility

for people with disabilities are rising.

Alshayban, A., Ahmed, I., and Malek, S. (2020). Acces-

sibility issues in android apps: state of affairs, senti-

ments, and ways forward. In ICSE. IEEE.

Bai, A., Stray, V., and Mork, H. (2019). What methods

software teams prefer when testing web accessibility.

Advances in Human-Computer Interaction, 2019.

Bi, T., Xia, X., Lo, D., Grundy, J. C., Zimmermann, T., and

Ford, D. (2022). Accessibility in software practice: A

practitioner’s perspective. to appear in ACM Transac-

tions on Software Engineering and Methodology.

Biswas, P., Robinson, P., and Langdon, P. (2012). Design-

ing inclusive interfaces through user modeling and

simulation. Int. J. of Human-Computer Interaction,

28(1):1–33.

Blackmon, M. H., Polson, P. G., Kitajima, M., and Lewis,

C. (2002). Cognitive walkthrough for the web. In CHI,

pages 463–470.

Davis, R. (2004). The gift of dyslexia. Education Horizons,

8(3):12–13.

Dorsey, E. a., Constantinescu, R., Thompson, J., Biglan,

K., Holloway, R., Kieburtz, K., et al. (2007). Pro-

jected number of people with parkinson disease in the

most populous nations, 2005 through 2030. Neurol-

ogy, 68(5):384–386.

Funkify (2021). Funkify – a disability simulator for the web

- https://www.funkify.org/.

Green, C., Dickinson, H., Carey, G., and Joyce, A. (2021).

Barriers to policy action on social determinants of

health for people with disability in australia. Disabil-

ity & Society, pages 1–25.

Grundy, J. C. (2021). Impact of end user human aspects on

software engineering. In ENASE, pages 9–20.

Harper, S. and Chen, A. Q. (2012). Web accessibility guide-

lines. World Wide Web, 15(1):61–88.

Huynh, K., Benarivo, J., Da Xuan, C., Sharma, G. G., Kang,

J., Madugalla, A., and Grundy, J. (2021). Improving

human-centric software defect evaluation, reporting,

and ﬁxing. In COMPSAC, pages 408–417. IEEE.

Jacko, J. A. and Sears, A. (1998). Designing interfaces for

an overlooked user group: Considering the visual pro-

ﬁles of partially sighted users. In ACM Conf. on As-

sistive technologies, pages 75–77.

Jamieson, M., Cullen, B., Lennon, M., Brewster, S., and

Evans, J. (2020). Designing appltree: usable schedul-

ing software for people with cognitive impairments.

Disability and Rehabilitation: Assistive Technology.

Jim, A. Y., Shim, H., Wang, J., Wijaya, L. R., Xu, R., Khala-

jzadeh, H., Grundy, J., and Kanij, T. (2021). Improv-

ing the modelling of human-centric aspects of soft-

ware systems: A case study of modelling end user age

in wirefame designs. In ENASE, pages 68–79.

Kamikubo, R., Higuchi, K., Yonetani, R., Koike, H., and

Sato, Y. (2018). Exploring the role of tunnel vision

simulation in the design cycle of accessible interfaces.

In 15th Int. Web for All Conf., pages 1–10.

Lazar, J. (2019). The potential role of us consumer protec-

tion laws in improving digital accessibility for people

with disabilities. U. Pa. JL & Soc. Change, 22:185.

Lee, P. P., Spritzer, K., and Hays, R. D. (1997). The im-

pact of blurred vision on functioning and well-being.

Ophthalmology, 104(3):390–396.

Li, C., Yu, Y., Leckning, J., Xing, W., Fong, C. L., Grundy,

J., Karolita, D., McIntosh, J., and Obie, H. O. (2021).

A human-centric approach to building a smarter and

better parking application. In COMPSAC, pages 514–

519. IEEE.

Nario-Redmond, M. R., Gospodinov, D., and Cobb, A.

(2017). Crip for a day: The unintended negative con-

sequences of disability simulations. Rehabilitation

psychology, 62(3):324.

Pruitt, J. and Grudin, J. (2003). Personas: practice and the-

ory. In Designing for User Experiences, pages 1–15.

Rieman, J., Franzke, M., and Redmiles, D. (1995). Us-

ability evaluation with the cognitive walkthrough. In

Human factors in computing systems, pages 387–388.

Rutter, R., Lauke, P. H., Waddell, C., Thatcher, J., Henry,

S. L., Lawson, B., Kirkpatrick, A., Heilmann, C.,

Burks, M. R., Regan, B., et al. (2007). Web acces-

sibility: Web standards and regulatory compliance.

Apress.

Schulz, T. and Fuglerud, K. S. (2012). Creating personas

with disabilities. In Int. Conf. on Computers for Hand-

icapped Persons, pages 145–152. Springer.

Sierra, J. S. and Togores, J. (2012). Designing mobile apps

for visually impaired and blind users. In 5th Int. Conf.

on Advances in Computer-human Interactions, pages

47–52. Citeseer.

Sirisena, D. and Williams, D. R. (2009). My hands shake:

Classiﬁcation and treatment of tremor. Australian

family physician, 38(9):678–683.

Stearns, L., Findlater, L., and Froehlich, J. E. (2018). De-

sign of an augmented reality magniﬁcation aid for low

vision users. In SIGACCESS, pages 28–39.

Wentz, B., Pham, D., Feaser, E., Smith, D., Smith, J., and

Wilson, A. (2019). Documenting the accessibility of

100 us bank and ﬁnance websites. Universal Access

in the Information Society, 18(4):871–880.

Wery, J. J. and Diliberto, J. A. (2017). The effect of a spe-

cialized dyslexia font, opendyslexic, on reading rate

and accuracy. Annals of dyslexia, 67(2):114–127.

Zhong, Y., Weber, A., Burkhardt, C., Weaver, P., and

Bigham, J. P. (2015). Enhancing android accessibility

for users with hand tremor by reducing ﬁne pointing

and steady tapping. In 12th Int. Web for All Conf.

Zhou, S., Carroll, E., Nicholson, S., and Vize, C. J. (2020).

Blurred vision. BMJ, 368.

Evaluation of an Augmented Reality Approach to Better Understanding Diverse End User Website Usage Challenges
