SecTL: Secure and Veriﬁable Transfer Learning-based inference

Abbass Madi, Oana Stan, Renaud Sirdey and C

edric Gouy-Pailler

Universit

e Paris-Saclay, CEA, List, F-91120, Palaiseau, France

Keywords:

Homomorphic Encryption, Veriﬁable Computing,Transfer Learning.

Abstract:

This paper investigates the possibility of realizing complex machine learning tasks over encrypted inputs with

guaranteed integrity. Our approach combines Fully Homomorphic Encryption (FHE) and Veriﬁable Comput-

ing (VC) to achieve these properties. To workaround the practical difﬁculties when using these techniques -

high computational cost for FHE and limited expressivity for VC, we leverage on transfer learning as a mean to

(legitimately) decrease the footprint of encrypted domain calculations without jeopardizing the target security

properties. In that sense, our approach demonstrates that scaling conﬁdential and veriﬁable encrypted domain

calculations to complex machine learning functions does not necessarily require scaling these techniques to

the evaluation of large models. We furthermore demonstrate the practicality of our approach on an image

classiﬁcation task.

1 INTRODUCTION

In recent years, a major domain of research con-

cerns the machine learning (ML) methods and the ef-

forts in having high quality predictive models.(Yin

et al., 2006; Kuncheva and Rodriguez, 2007; Bar-

alis et al., 2007). Yet, in practical usage scenario,

it is often necessary to evaluate these models in a

privacy-preserving fashion, for example by evaluat-

ing a model on a server over encrypted data, the in-

puts or the derived predictions are not disclosed to the

server. In this context, this paper studies how complex

machine learning can be performed securely in prac-

tice by combining Fully Homomorphic Encryption

(for computing over encrypted data), Veriﬁable Com-

puting (for integrity guarantees) as well as Transfer

Learning (as a means for scaling without prohibitively

large volumes of costly encrypted operations). The

common point of the most previous works in the Ma-

chine Learning domain is that the training data and

testing data enjoy precisely the same feature space

and identical data distributions. In contrast, Transfer

Learning (TL) aims to build an effective model that

transfers knowledge in one context to enhance learn-

ing in a different context. Therefore, it predicts even

if the data distribution is not identical with the previ-

ous one, without constructing a new model from the

scratch. This is interesting for various reasons such as

saving efforts, energy, and time.

Classiﬁcation is one of the most investigated ap-

plications of transfer learning (Tommasi and Caputo,

2009; Tommasi et al., 2010; Wang et al., 2011; Ay-

tar and Zisserman, 2011; Jie et al., 2011; Zhu et al.,

2011; Kuzborskij et al., 2013; Long et al., 2013; Pa-

tricia and Caputo, 2014; Rohrbach et al., 2013; Sri-

vastava and Salakhutdinov, 2013; Wang et al., 2015).

The problem of lacking sufﬁcient labeled or unlabeled

data in a target domain can be solved by the trans-

fer learning, which also leads to more reliable clas-

siﬁcation results. Other typical applications exploit-

ing TL have been proposed in recent years, such as

pedestrian detection (Cao et al., 2013), improved im-

age recognition in the medical ﬁeld (Romera-Paredes

et al., 2013), improving visual tracking (Gao et al.,

2014), and features selection (Kuzborskij et al., 2015;

Kuzborskij et al., 2017). In the machine learning con-

text, one important issue is data conﬁdentiality and

model integrity. Homomorphic Encryption is one of

the methods to ensure the data privacy that allows to

apply an operation over encrypted data without de-

crypting it ﬁrst. The integrity of computation on en-

crypted data or clear data can be further on veriﬁed

using veriﬁable computing techniques.

In this context, this paper against addresses the

conﬁdentiality threat and the leakage of information

in the transfer learning process. We leverage homo-

morphic encryption and veriﬁable computing to pro-

vide solutions for the secure evaluation step of the

transfer learning. Our contributions are as follows:

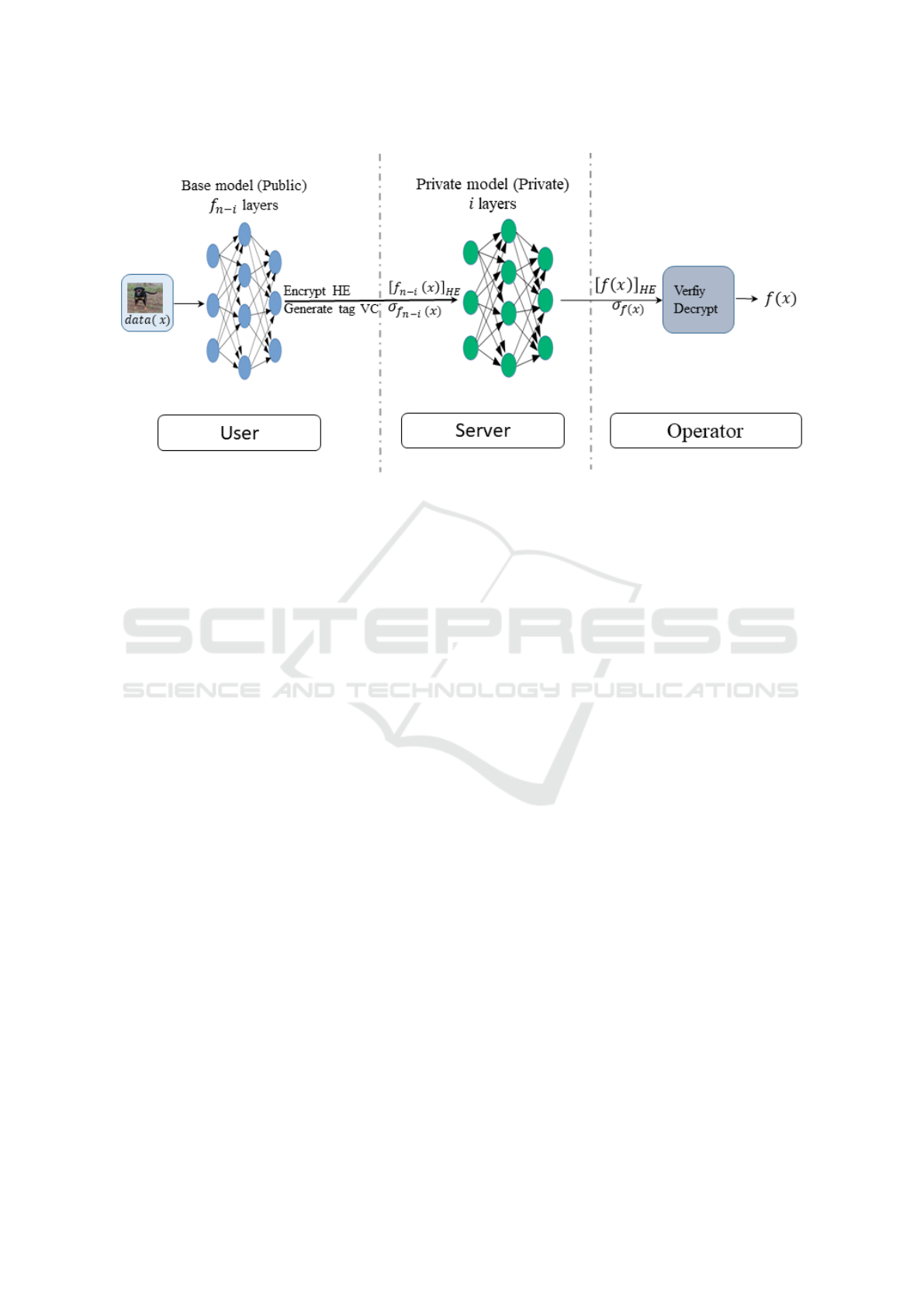

• Propose a secure architecture for privacy-

preserving and veriﬁable TL by means on Ho-

220

Madi, A., Stan, O., Sirdey, R. and Gouy-Pailler, C.

SecTL: Secure and Veriﬁable Transfer Learning-based inference.

DOI: 10.5220/0010987700003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 220-229

ISBN: 978-989-758-553-1; ISSN: 2184-4356

momorphic Encryption and Veriﬁable Comput-

ing. Beside this architecture, we also give an ex-

ample of a practical medical use case for our se-

cure transfer learning solution.

• Provide an instantiation of our framework using

the VC protocol from (Fiore et al., 2014) with the

BFV (Fan and Vercauteren, 2012) homomorphic

encryption scheme, to classify an encrypted im-

age into two classes (dogs and cats)

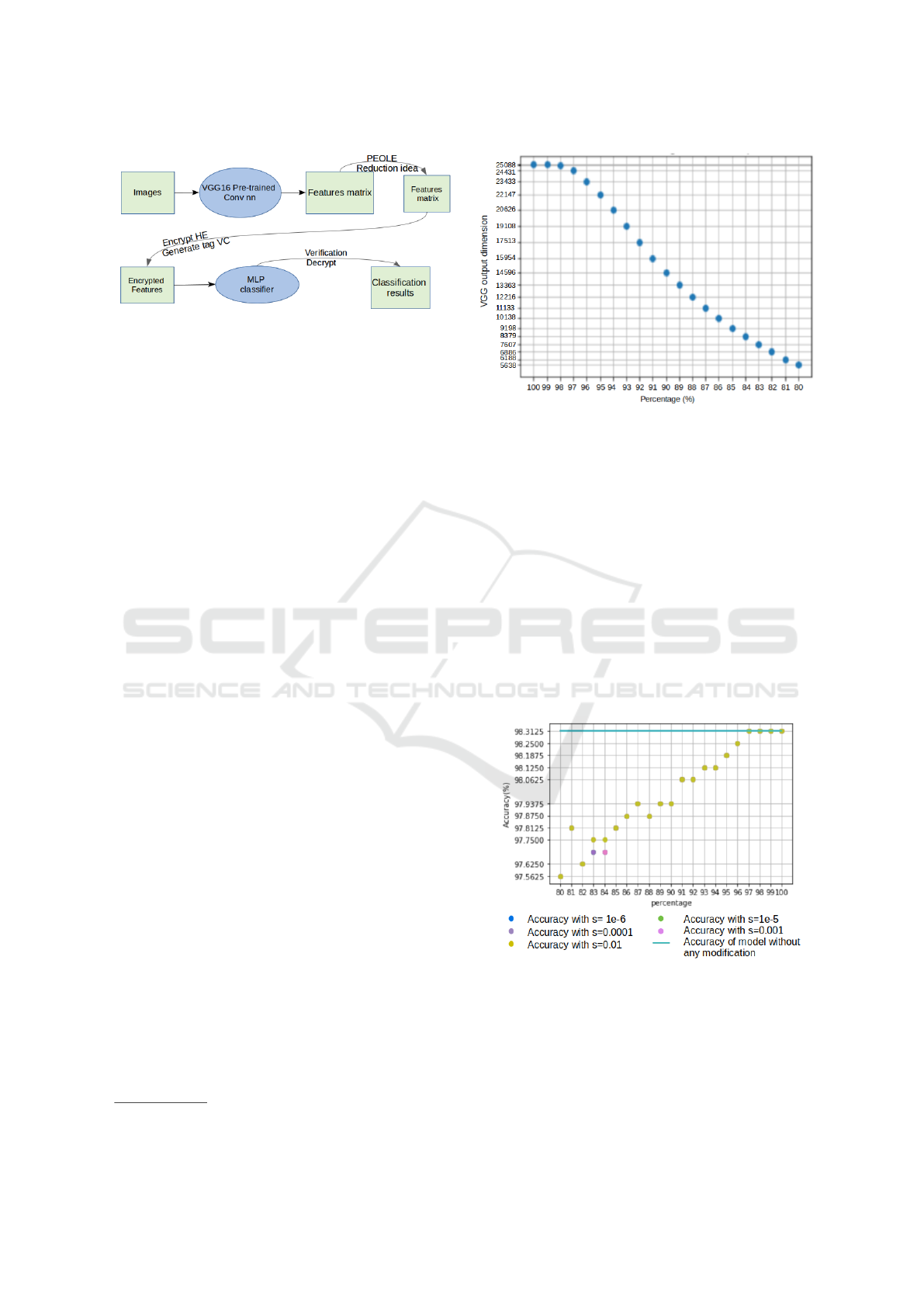

• Propose PEOLE, a method of dimension reduc-

tion of the features space in order to efﬁciently ap-

ply the homomorphic encryption techniques with-

out a signiﬁcant accuracy loss.

• Evaluate the practical performances of our archi-

tecture (≈2 min for prediction an encrypted im-

age) by several classiﬁcation experiments consist-

ing in extracting the featurea from a pre-trained

model VGG16 (Simonyan and Zisserman, 2014)

for image classiﬁcation and train a MLP (Multi-

Layer Perceptron) classiﬁer on top of it.

2 RELATED WORK

It is worth noting that most of the studies in the pri-

vacy of data to machine learning consisting of ap-

plying homomorphic encryption to machine learning

models concentrates on making the inference on pri-

vate data (e.g. CryptoNets (Gilad-Bachrach et al.,

2016), TAPAS (Sanyal et al., 2018), NED (Hesam-

ifard et al., 2019)) and not so much on the train-

ing phase. Other notable works (Zhu, 2005; Nigam

et al., 2000; Blum and Mitchell, 1998; Joachims et al.,

1999). Zhu and Wu. (Zhu and Wu, 2006) have ﬁne-

studied how to deal with noisy class label problems

in the line of research between supervised and unsu-

pervised learning. In another line of research, Yang et

al. (Yang et al., 2006) have studied the cost of learn-

ing when the additional tests can be made to future

samples.

A particularly interesting application approach us-

ing encryption for performing machine learning for

Deep Neural Network nets (DNNs) has been done in

(Tanaka, 2018) where all the images used for train-

ing are encrypted using a tailored-made cryptosys-

tem called Tanaka. Sirichotedumrong, Kinoshita, and

Kiya (SKK) scheme (Sirichotedumrong et al., 2019)

proposed a privacy-preserving scheme for DNN that

encrypts the images ( pixel-based image encryption

method) under different keys, and allows one to use

data augmentation in the encrypted domain. Glyph

Dataset available at https://www.kaggle.com/shivamb/

cnn-architectures-vgg-resnet-inception-tl/data.

(Lou et al., 2019) is another approach, based on ho-

momorphic encryption, allowing to fast and accu-

rately train DNNs on encrypted data by switching be-

tween TFHE (Fast Fully Homomorphic Encryption

over the Torus) and BGV cryptosystems.

The problem of ensuring privacy and veriﬁability

in a deep learning system is examined in a few works

such as SafetyNets (Ghodsi et al., 2017), and Slalom

(Tramer and Boneh, 2018). However, these schemes

(SafetyNets, Slalom) propose only a small variety of

activation functions or require additional hardware as-

sistance as in (Tramer and Boneh, 2018). An interest-

ing architecture proposed by Madi et al. (Madi et al.,

2020) to achieve both conﬁdentiality and integrity for

the inference step of a neural network is comprised

of three entities: client, server, and operator. Even

if similar to ours, in their case, the server executes

the ﬁrst layers privately (using FHE and VC) and it is

the operator which is performing on clear the last lay-

ers of the NN. As such, they cannot take advantage

of a public pre-trained model and moreover, they are

obliged to use an adversarial learning model against

the leakage of information after decryption on the op-

erator side.

To the best of our knowledge, this is the ﬁrst work

to use the application of the veriﬁable computing and

homomorphic encryption for the transfer learning set-

ting (i.e. verify the integrity of the encrypted predic-

tion results returned by the model).

3 BACKGROUND

3.1 Transfer Learning (TL)

Transfer Learning (TL) is the process of learning to

solve a problem in a ”target” domain using part of the

knowledge acquired on the reference problem to solve

a similar target problem. In this context, we can dis-

tinguish several approaches depending on what, when

and how we want to transfer. The application of this

idea in ML implies reusing all or part of a model

learned on reference data to solve a target problem

by re-learning on the target data. This is attractive

for several purposes, such as learning about sensitive

data, while respecting privacy policies and business

requirements and in different domains like the health

or the autonomous driving ﬁeld.

In a Transfer Learning setting, some labeled data

src

are available in a source domain, while only

unlabeled data D

tar

are available in the target do-

main. We denote the source domain data as D

src

{(x

src

),.. .,(x

src

)}, where x

src

∈ R

the input data and y

src

is the corresponding label.

SecTL: Secure and Veriﬁable Transfer Learning-based inference

221

Furthermore, we indicate the target domain data as

tar

= {x

tar

,.. .,x

tar

}, and, without loss the gener-

ality, we suppose the input x

tar

in R

. Let P (X

src

)

and Q (X

tar

) (denoted by P, and Q in short) being the

marginal distributions of X

src

and X

tar

, respectively.

Generally, they can be different. The task of transfer

learning is then to predict the labels y

tar

correspond-

ing to the inputs x

tar

∈ D

tar

3.2 Homomorphic Encryption (HE)

Fully Homomorphic Encryption (FHE) schemes al-

low to perform arbitrary computations directly over

encrypted data. That is, with a fully homomorphic

encryption scheme E, we can compute E(m

+ m

)

and E(m

× m

) from encrypted messages E(m

) and

E(m

In this section we recall the general principles of

the BFV homomorphic cryptosystem (Fan and Ver-

cauteren, 2012), which we use in combination with a

VC scheme. Since we know in advance the function

to be evaluated homomorphically, we can restrain to

the somewhat homomorphic version described below.

The biggest problem of Homomorphic Encryp-

tion, especially in the homomorphic multiplicative is

the size of the ciphertext that is growing exponentially

in the number of operations, which can have a great

inﬂuence on the correctness and the capability of de-

cryption. For this reason for some HE scheme, there

exists a relinearisation operation to solve the growth

of error rate. We skip the description of the relineari-

sation step for the BFV since this is not needed for our

usage - we evaluate only multi-variate quadratic poly-

nomials of degree at most 2 (i.e. at most 2 multiplica-

tions and a modular reduction which can be realized

upon decryption).

Let R = Z [x]/Φ

(x) denote the polynomial ring

modulo the m-cyclotomic polynomial with n

= ϕ(m).

The ciphertexts in the scheme are elements of polyno-

mial ring R

, where R

is the set of polynomials in R

with coefﬁcients in Z

. The plaintexts are polynomi-

als belonging to the ring R

= R/tR.

As such, BFV scheme is deﬁned by the following

probabilistic polynomial-time algorithms:

BFV.ParamGen(λ): → (n

,q,t,χ

key

,χ

err

,w).

It uses the security parameter λ to ﬁx several other

parameters such as n

, the degree of the polynomials,

the ciphertext modulus q, the plaintext modulus t, the

error distributions, etc.

BFV.KeyGen(n

,q,t,χ

key

,χ

err

,w):→ (pk,sk, evk).

Taking as input the parameters generated in

BFV.ParamGen, it calculates the private, pub-

lic and evaluation key. Besides the public and the

private keys, an evaluation key is generated to be

used during computation on ciphertexts in order to

reduce the noise.

BFV.Enc

(m):→ c = (c

= 0)

It produces a ciphertext c according to BFV-

cryptosystem for a plaintext m using the public key

pk.

BFV.Dec

(c):→ m

It computes the plaintext m from the ciphertext c, us-

ing private key sk.

BFV.Eval

pk,evk

( f , c

,.. . ,c

):→ c, with

c =BFV.Enc

( f (m

,.. . ,m

)), where

=BFV.Enc

), and f has n inputs and has

degree at most two.

It allows the homomorphic evaluation of f , gate-

by-gate over c

using the following functions:

BFV.Add(c

) and BFV.Mul

evk

For further details on this scheme, we refer the

reader to the paper (Fan and Vercauteren, 2012).

Let us just note that a BFV ciphertext c can be

seen as an element in R

[y] = Z/qZ[X,Y ]/Φ

(x) with

a degree at most 2 (i.e., c = c

+ c

y + c

3.3 Veriﬁable Computing (VC)

Veriﬁable computation VC techniques allow to prove

and verify the integrity of computations on authenti-

cated data. A Veriﬁable Computation scheme is de-

ﬁned as a protocol in which a client (usually weak)

has a function f and some data denoted x and del-

egates to another client (in most cases a server) the

computation of y = f (x). Then the same client or an-

other one can receive the result y plus a short proof

of its correctness. More in details, a user generates

an authentication tag σ

associated with his/her data x

with his/her secret key and the server computes an au-

thentication tag σ

f ,y

that certiﬁes the value y = f (x)

as an output of the function f . Now, anyone using

the veriﬁcation key (public or secret) can verify y to

check that y is indeed the result of f (x).

A VC scheme includes the following algorithms:

1. (PK,SK)←KeyGen( f ,λ): Taking as input the se-

curity parameter λ and a function f , this random-

ized key generation algorithm generates a public

key (that encodes the target function f ) used by

the server to compute f . It also computes a match-

ing secret key, kept private by the client.

2. (σ

,τ

)←ProbGen

(x): The problem generation

algorithm uses the secret key SK to encode the

input x as a public value σ

, given to the server to

compute with, and a secret value τ

which is kept

private by the client.

3. σ

←Compute

(σ

): Using the client’s public

key and the encoded input, the server computes an

encoded version for the function output y = f (x).

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

222

4. (acc,y) ←Verify

(τ

,σ

): Using the secret key

SK and the secret τ

, this algorithm converts the

server output into a bit acc and a string y. If acc =

1 we say that the client accepts y = f (x), meaning

that the proof is correct, else (i.e. acc = 0) we say

that the client rejects it.

4 PROPOSED APPROACH

4.1 Our Model

We begin by explaining our proposal for an architec-

ture allowing to deploy the secure transfer learning

model using homomorphic encryption and veriﬁable

computing. Our architecture is composed of three en-

tities: user, server, and operator. In the following, we

describe a high-level view of our TL design with the

role of each entity as revealed in the Figure 1. Let us

denote by f , the global Machine Learning model de-

ployed by our architecture, consisting of n layers and

taking as input the data x.

1. The user - owner of some data denoted x - starts

the process by applying the ﬁrst (n-i) layers of the

model, i.e. f

n−i

(x) When the result is calculated,

the user encrypts homomorphically f

n−i

(x) , and

she generates the associated integrity tag. These

encryption data and the associated tag are sent to

the server.

2. The server has the task of evaluating in the homo-

morphic domain, the remaining layers of the neu-

ral network over the private data [ f

n−i

(x)]

. Due

to the restrictions imposed by the Veriﬁable Com-

puting protocol used in our approach (i.e. abil-

ity to evaluate the correctness of the evaluation of

multi-variate polynomials of degree at most two),

in our case the server will homomorphically eval-

uate only a quadratic function (which is totally

feasible and with really good performances by ex-

isting FHE means). Now, the homomorphic eval-

uation of the private part of the model along with

the associated integrity proof is sent to the opera-

tor.

3. The operator has access to the evaluation of the

server evaluation, and to the result of the TL

model. Therefore, it can check the validity of the

server computation. If it is correct it decrypts the

result, and then employs it as it wants.

We note that the number of layer i evaluated on

the server side depends directly on the limitation of

the VC and FHE methods.

4.2 Security Guarantees and Threats

Unlike other works using homomorphic encryption

for private inference, we set up our study in the case

of a malicious server, which can possible alter the

results of the evaluation (e.g. by not running the

speciﬁed algorithm). We argue that it is necessary

to have integrity guarantees against threats coming

from this adversary in addition to the conﬁdential-

ity offered by the homomorphic encryption.The mali-

cious adversaries may conduct arbitrarily (i.e. execute

any computation) for stealing, corrupting, and modi-

fying data, without any speciﬁcations, and may com-

pute any function over data instead of the required

computation (function delegated). For this goal, in

our approach, we use veriﬁable computing technique,

in particular the VC protocol of Fiore et al. (Fiore

et al., 2014), that allows anyone to check efﬁciently

the calculation evaluated on the server over encrypted

data, in order to check that the server correctly cal-

culates the layers delegated to it. To the best of our

knowledge, this VC is the most practical veriﬁable

computing protocol to address the validity of com-

putation over encrypted data with the limitation that

it evaluates mutivariate functions of degree at most

. Therefore, this constraint restrains the number of

layers that can be delegated to the server in our archi-

tecture (i.e. the server can evaluate homomorphically

maximum the last quadratic layers of a model).

In our architecture, unlike other works using ho-

momorphic encryption, especially Glyph (Lou et al.,

2019) and Madi et al. work (Madi et al., 2020),

the server evaluates in the homomorphic domain the

last layers of the model as knowing the encrypted of

n−i

(x) to obtain the encryption of f (x). The operator,

after receiving the encryption result decrypts f (x),

which is contrary to the Glyph and Madi approach,

where they compute the ﬁrst layers of the model and

send this encrypted to the operator that decrypts this

result and obtain f

(x) and complete model. There-

fore, at the level of leakage information, it is clear

that our model is the best in the prevention of reduce

the leakage of information. In summary, using our ar-

chitecture we prevent threats coming from the server

executing the last layer and wanting to infer informa-

tion about the learning.

4.3 Medical Use-case

As quickly described in (Mormont et al., 2018), imag-

ine a scenario where a radiologist (user) has just ac-

This is due to the need to go beyond bilinear maps

to achieve higher degrees in the underlying cryptographic

primitives involved in both VC and FE.

SecTL: Secure and Veriﬁable Transfer Learning-based inference

223

Figure 1: Our architecture for a conﬁdentiality & integrity preserving inference phase of transfer learning.

quired images from the body of one of its patient and

needs to interact with a remote proprietary diagnostic

service (server) to get some insights. The service it-

self is expecting images as input and crunches them

through an advanced deep neural network which out-

puts highly reliable insights in terms of the pathology

the patient is suffering from as well as personalized

treatment approaches. Clearly, as health-related data,

the patient images and data are considered sensitive

and cannot be shared without protecting their conﬁ-

dentiality. On the other hand, the neural network has

been carefully crafted by the service provider using a

lot of precious hard-earned training data and is con-

sidered critical intellectual property. In this scenario,

it is thus acceptable neither that the service provider is

granted access to the patient data (or to a by-product

of these) nor that the radiologist is disclosed the net-

work. Thus without additional means to prevent dis-

closure of these assets, a high value service is pre-

vented to exist.

One way to resolve these conﬂicting requirements

is by bringing privacy preserving FHE calculations

into the picture. In principle, in the above scenario,

the radiologist may be the owner of a FHE cryptosys-

tem and send its patient’s data encrypted under that

cryptosystem to the service provider. The service

provider then evaluates its neural network directly

over these encrypted data, producing results which are

sealed under the radiologist’s cryptosystem. The ﬁnal

results are then sent back to the radiologist who is the

only party able to decrypt them. So we are done. The

patient data are not disclosed to the service provider

(since they, and their by-products, are sealed under

a cryptographic layer at all time) and the network is

not disclosed to the radiologist since it stays on the

service provider computing premises. Unfortunately,

this na

ıve view is impractical since, despite the ad-

vances made and yet to be made in FHE operators

efﬁciency, it is unlikely that they will be sufﬁcient to

enable practical homomorphic evaluation of the large

scale neural nets involved in advanced machine learn-

ing tasks. Fortunately, as we shall now see, scaling

FHE calculations to complex machine learning tasks

does not necessarily mean scaling FHE calculations

to large scale models.

Now let us assume that the service provider has

followed the transfer learning philosophy to build its

neural network. As such, its network can thus be split

in two parts:

• A ﬁrst preprocessing network (e.g. VGG16)

which is publicly available and has no dependen-

cies on the precious hard-earned training data of

the service provider.

• A second much smaller decisional network

trained on the service provider sensitive data

which turns VGG16 ouputs into the highly reli-

able insights expected by the radiologist.

In light of the above, we can now rework our sce-

nario to make it much more FHE friendly. Indeed, the

publicly available preprocessing network can be dis-

closed to the radiologist’s information system and run

in the clear domain before encryption. So rather than

sending FHE-encrypted images, the radiologist(’s in-

formation system) only sends a FHE-encryption of

the resulting feature vector(s), which is furthermore

of much smaller size than high-resolution images. On

the service provider side, only the smaller decisional

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

224

network has to be run in the encrypted domain there-

fore dramatically decreasing the footprint of FHE-

calculations and resulting de facto in much better scal-

ing properties. Since transfer learning techniques are

widely applicable and applied in the neural network

community we can therefore claim that performing

advanced machine learning tasks over encrypted data

does not require scaling encrypted-domain calcula-

tion to large networks, as, as argued above, the fact

of running the preprocessing on the user/radiologist

side does not impact the conﬁdentiality properties of

the setup.

5 DIMENSIONALITY

REDUCTION OF TARGET

DOMAIN

In order to provide a good TL model, that can be used

with our architecture, we propose a dimensionality re-

duction method of the target domain D

tar

The proposed TL dimensionality reduction, which

will be called Probability Elimination of Output with

Light Effect (PEOLE) uses a projection map ψ :

→ R

that eliminates the features extracted by

the public model of the public model. It consists in

ﬁnding the minimal dimension of the feature space

such that there is not a very high of accuracy in the

prediction of the ﬁnal model (i.e. ﬁnding m

s.t.

= ψ(R

) ).

We note by X ∈ R

×m

the matrix representing the

tar

where we put the x

tar

in the i − th line of X. We

want to ﬁnd the new matrix X

∈ R

×m

respresenting

the D

tar

Our method consists in performing of two steps:

First Step. For any column, we calculate the percent-

age of element less than a chosen threshold s(s can be

for example 10

−6

Second Step. Eliminate the column that has a per-

centage bigger than a chosen percentage p for exam-

ple for p = 90% , and s = 10

−6

, we eliminate the

column that has more than 90% elements small than

−6

For a percentage p and a sill s, if we delete all

the columns of X that have a percentage more than p

elements small than s, so we do not lose a remarkable

amount of accuracy

6 EXPERIMENTAL EVALUATION

In our experiments, we want to evaluate our architec-

ture for the case where we extract the features from

a pre-trained model for image classiﬁcation and train

a classiﬁer on top of it. We note that the ML imple-

mentations in this chapter are done on Google Collab.

We use a dataset consisting in images containing only

2 types of animals (dogs and cats)

where the train

folder contains 12500 images for each class. Each im-

age in this folder has the label as part of the ﬁlename.

The test dataset contains 12,500 images, named ac-

cording to a numeric id.

As for the public pre-trained model, we used the

VGG16 model (Simonyan and Zisserman, 2014) to

extract the data features, which is a convolutional

neural network model proposed by K. Simonyan and

A. Zisserman (Simonyan and Zisserman, 2014). We

note that this model is trained over the ImageNet

a dataset of 14 million images belonging to 1000

classes. Our evaluation metric was the accuracy of

prediction for the test sets.

The VGG16 architecture consists of:

1. A total of 16 layers in which weights and bias pa-

rameters are learnt.

2. This network contains a total of 13 convolutional

layers with 3 ∗ 3 kernel size, and increasing num-

bers of ﬁlters corresponding to the layers, with

3 dense layers for classiﬁcation (comprises of

4096,4096, and 1000 nodes each).

3. Each convolutional layers is followed by a ReLu

activation, and a ﬁnal softmax output layer

(25,088 total parameters).

4. A 2 ∗ 2 max pooling applied at different steps (af-

ter the: 2nd, 4th, 7th, 10th, 13th convolution layer

) to obtain the informative features.

We state that, in our experimentation, we do not

want to add the last layer of VGG16 architecture,

since we add a classiﬁer, essentially a Multilayer per-

ceptron.

On top of the VGG16 model, we build our own

private model, a simple neural network - MLP (Multi-

Layer Perceptron) to classify over our own dataset

(images of dogs and cats). Then, our private model

is a MLP composed of one hidden layer with 55 neu-

rons with an identity activation function that trains us-

ing the pre-trained features by VGG16. We note that

the weight matrix for the ﬁrst layer is 25, 088×55 and

the hidden layer consists of 55 × 1 weight vector. We

recall that the features extracted from VGG16 are in

the form of a vector of length 25,088. The Figure 2

represents the different steps in our test architecture.

The ﬁrst step of our experiment is to encrypt the

extracted features using VGG16 and to generate the

Dataset available at https://www.kaggle.com/shivamb/

cnn-architectures-vgg-resnet-inception-tl/data.

Dataset available at https://www.image-net.org/

SecTL: Secure and Veriﬁable Transfer Learning-based inference

225

Figure 2: Our test architecture.

corresponding authentication tags. Afterwards, we

evaluate the MLP model over these encrypted data

and their tags (the server private computation part)

and send the encrypted result with the computed re-

sult tag to an operator that can verify (over the result

tag) that the calculation is correct, and decrypt this

result if the veriﬁcation passed.

We build two distinct sets of experimentation. On

one hand, we aimed at reducing the output of VGG16

of 25088 features to an acceptable size which permits

us to encrypt it using a homomorphic encryption sys-

tem and to improve the speedup of the prediction over

encrypted features. Using our PEOLE method we

tried to ﬁnd the best set of parameters (s, p)

while

preserving the accuracy level. Let us emphasise that

our main focus was on the evaluation of the tech-

niques for privacy and integrity (i.e. homomorphic

encryption and respectively VC) in order to achieve a

secure transfer learning model without degrading its

performance.

6.1 Transfer Learning Parameters

To evaluate the speedup of the prediction process rel-

ative to the TL parameter and to accelerate the com-

putation of the private model over encrypted data, we

start our experiments by describing the variation of

the dimension of the target domain (more precisely

the output of VGG16) corresponding to the elimina-

tion of the column depending on the percentage p of

elements with value less than s = 10

−2

. As expected,

the dimension of the features vector after elimination

is reduced, as seen in Figure 3. For example, we re-

mark that the dimension of the output VGG vector is

decreased by 75% for p=80% meaning that its size

decreases from 25088 to 5638.

To show a complete view of our method and

its importance, we need to describe the accuracy

modiﬁcation using PEOLE with different values for

the percentage p. Figure 4 describes the evolu-

tion of the accuracy with p ∈ [80,100] and s ∈

Notations are those introduced in section 5

Figure 3: Variation of VGG16 output vs percentage using

our idea PEOLE.

{10

−6

,10

−5

,10

−4

,10

−3

,10

−2

}. As we can see in

this ﬁgure the accuracy for (s, p) = (10

−2

,80) is

97.5625 for an initial accuracy of 98.3125 (without

PEOLE) and then it is an small decrease of accu-

racy of accuracy(0,75%).We remark that the accuracy

can be the same for multiple choices of s and p, e.g.

p=83,84 and s = 10

−3

,10

−4

where we obtain an ac-

curacy different from the other s and p.

As such, PEOLE method is a relatively easy way

to explore the features space obtained with the initial

public model and to diminish its dimension without

small loss in the accuracy of the ﬁnal model - i.e. as

seen in the Figure 4, for p = 80% and s = 10

−2

, the

accuracy becomes 97.5625.

Figure 4: Evolution of the model testing accuracy with

respect to the percentage p and different s with PEOLE

method.

As for the homomorphic encryption the plaintext

are polynomials from the ring R

= R/tR with inte-

ger coefﬁcients modulo t, where R = Z [x]/Φ

(x) de-

note the polynomial ring modulo the m-cyclotomic

polynomial. One has to encode the features and

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

226

the parameters of the model before performing ho-

momorphic operations on top of them. As such,

we also conducted experiments to analyze the im-

pact of this quantization on the accuracy of the ﬁnal

model. In this test we ﬁxed the parameters s and p

to (10

−2

,80%). The accuracy varies depending on the

precision of both features (output of VGG16) and the

weights of each layer. In Table 1, we focus on the per-

formance deterioration due to the approximations on

both w

and f

by showing the accuracy for the model

with regards to the rounding precision for the weights

and the features.

Table 1 describes the evolution of accuracy de-

pending on the approximation of both: weight and

features with ﬁxed (p,s) = (80%,10

−2

). We draw

your attention that when we refer to a precision of an

element of 10

for exemple, then we round it to the

nearest integer element by taking only the two-digit

after the ﬂoating point (i.e; for a feature value of 12,

345 the approximated value will be 1234). As you

see in this table the accuracy varies from 97.5625%

to 97.5 %, then with loss = 0.0625 %, with preci-

sion 10

of features for any precision of weights, but

it is unremarkable variance. For this reason, and tak-

ing into account all of the results for the previously

mentioned experiments, we work with the following

parameters: s = 10

−2

, p = 80% that produces a fea-

ture vector of length 5638, with a good accuracy 97.5

(loss equal 0.8125 %).

6.2 Performance of Our Architecture

In the beginning, let us specify that all tests pre-

sented in this section were performed on a 2016

DELL PC(Genuine-Intel Core i7 − 6600U, 4 cores at

2.60GHz with 16GB RAM at 2.13GHz), on Ubuntu

(Linux kernel 4.15.0 − 91 − generic, with the archi-

tecture x86 − 64 ) as an operating system. Finally we

used the C++ language to implement the encryption

and veriﬁable computing part of our architecture.

In our experiments, we encrypt and decrypt homo-

morphically the data with the SEAL (SEAL, 2018) li-

brary and we use the HAL (Zuber and Fiore, 2017)

library for authentication but for BFV encrypted data.

We note that we choose the security parameters in the

way that achieve a 128 bits of security

Table 2 shows the sequential evaluation times for

the different steps of our architecture to predict the

class of one image after applying our PEOLE method

for a percentage p = 80% and a sill s = 10

−2

. Then,

the dimension of the features extracted using VGG16

passes from 25088 to 5638. As presented in this ta-

ble the encryption of this vector of 5638 takes 36.6 s

and the generation of the tag for authentication takes

0.005 s. The last one is the cost of generation for a

single tag since we note that the tags can be generated

in parallel for each encrypted element. The applica-

tion of MLP over this encryption data takes about one

minute and the execution of MLP over the tag takes

about 2 seconds (1.48 s), we also note that the evalua-

tion of the MLP model and the tag can be executed in

parallel. Finally, the veriﬁcation of authentication the

result is very fast and it takes about 0.027 s.

7 CONCLUSION AND FUTURE

WORK

The architecture proposed in this paper is the ﬁrst in

the TL domain to address both integrity and conﬁden-

tiality threats by means of homomorphic and veriﬁ-

able computing techniques. To validate our approach,

we evaluated for the evaluation of the last layer of a

ML model using using unencrypted weights and en-

crypted feature data. In this scenario, we prevent the

threats coming from the server executing the last layer

and wanting information about the learning, poten-

tially interested in infering. We create our architec-

ture using the Keras (Chollet et al., 2015) library to

build the VGG16 trained over the Imagenet, and test

our approach using the MLP with one hidden layer of

55 neurons that show a good accuracy for the private

prediction of the class for one image (∼ 97 % ) in an

acceptable time (∼ 2 min=(2min for HE and in par-

allel 1.512 min for VC) ) with a fast veriﬁcation of

result.

Our architecture remains generic and can be eas-

ily extended to further deployments where the private

evaluation of the neural network model delegated to

the server is more complex (more layers, other acti-

vation functions, etc). In order to go further, there are

several interesing directions to follow. First, a con-

crete optimization idea consists in the use of the VC

protocols for the homomorphic schemes in batched

mode which can improve the performance and reduce

the memory used for the encryption data. Other idea

is to use newer and more complex veriﬁable comput-

ing protocols, in order to be able to evaluate more than

quadratic multivariate polynomials. Finally, we hope

that this paper opens the door to further work cov-

ering a more general threat model for the secure AI

applications using homomorphic encryption.

REFERENCES

Aytar, Y. and Zisserman, A. (2011). Tabula rasa: Model

transfer for object category detection. In 2011 inter-

SecTL: Secure and Veriﬁable Transfer Learning-based inference

227

Table 1: Accuracy of model after application of our PEOLE method with (p,s) = (80%, 10

−2

) depending on precision on

both w

and f e.

precision on w

97.5 % 97.5% 97.5% 97.5% 97.5%

97.5625 % 97.5625% 97.5625% 97.5625% 97.5625%

precision

on f e

97.5625 % 97.5625% 97.5625% 97.5625% 97.5625%

Table 2: Costs (in seconds) for our architecture, where x = (x

,... , x

785

User-side Server-side Operator-side

Operation Enc GenTag MLP(Enc(x)) MLP(σ

,.. . ,σ

) Veri f y Dec

times 36.11 0.005 66.3 1.48 0.027 0.002

national conference on computer vision, pages 2252–

2259. IEEE.

Baralis, E., Chiusano, S., and Garza, P. (2007). A

lazy approach to associative classiﬁcation. IEEE

Transactions on Knowledge and Data Engineering,

20(2):156–171.

Blum, A. and Mitchell, T. (1998). Combining labeled and

unlabeled data with co-training. In Proceedings of the

eleventh annual conference on Computational learn-

ing theory, pages 92–100.

Cao, X., Wang, Z., Yan, P., and Li, X. (2013). Transfer

learning for pedestrian detection. Neurocomputing,

100:51–57.

Chollet, F. et al. (2015). Keras. https://github.com/fchollet/

keras.

Fan, J. and Vercauteren, F. (2012). Somewhat practical fully

homomorphic encryption. IACR Cryptology ePrint

Archive, 2012:144.

Fiore, D., Gennaro, R., and Pastro, V. (2014). Efﬁciently

veriﬁable computation on encrypted data. In Proceed-

ings of the 2014 ACM SIGSAC Conference on Com-

puter and Communications Security, pages 844–855.

Gao, J., Ling, H., Hu, W., and Xing, J. (2014). Transfer

learning based visual tracking with gaussian processes

regression. In European conference on computer vi-

sion, pages 188–203. Springer.

Ghodsi, Z., Gu, T., and Garg, S. (2017). Safetynets: Ver-

iﬁable execution of deep neural networks on an un-

trusted cloud. In Advances in Neural Information Pro-

cessing Systems, pages 4672–4681.

Gilad-Bachrach, R., Dowlin, N., Laine, K., Lauter, K.,

Naehrig, M., and Wernsing, J. (2016). CryptoNets:

Applying neural networks to encrypted data with high

throughput and accuracy. In ICML, pages 201–210.

Hesamifard, E., Takabi, H., and Ghasemi, M. (2019). Deep

neural networks classiﬁcation over encrypted data. In

ACM CODASPY, page 97–108.

Jie, L., Tommasi, T., and Caputo, B. (2011). Multiclass

transfer learning from unconstrained priors. In 2011

International Conference on Computer Vision, pages

1863–1870. IEEE.

Joachims, T. et al. (1999). Transductive inference for text

classiﬁcation using support vector machines. In Icml,

volume 99, pages 200–209.

Kuncheva, L. I. and Rodriguez, J. J. (2007). Classi-

ﬁer ensembles with a random linear oracle. IEEE

Transactions on Knowledge and Data Engineering,

19(4):500–508.

Kuzborskij, I., Orabona, F., and Caputo, B. (2013). From

n to n+ 1: Multiclass transfer incremental learning.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 3358–3365.

Kuzborskij, I., Orabona, F., and Caputo, B. (2015). Transfer

learning through greedy subset selection. In Interna-

tional Conference on Image Analysis and Processing,

pages 3–14. Springer.

Kuzborskij, I., Orabona, F., and Caputo, B. (2017). Scalable

greedy algorithms for transfer learning. Computer Vi-

sion and Image Understanding, 156:174–185.

Long, M., Wang, J., Ding, G., Sun, J., and Yu, P. S. (2013).

Transfer feature learning with joint distribution adap-

tation. In Proceedings of the IEEE international con-

ference on computer vision, pages 2200–2207.

Lou, Q., Feng, B., Fox, G. C., and Jiang, L. (2019). Glyph:

Fast and accurately training deep neural networks on

encrypted data. arXiv preprint arXiv:1911.07101.

Madi, A., Sirdey, R., and Stan, O. (2020). Computing neural

networks with homomorphic encryption and veriﬁable

computing. In International Conference on Applied

Cryptography and Network Security, pages 295–317.

Springer.

Mormont, R., Geurts, P., and Mar

ee, R. (2018). Com-

parison of deep transfer learning strategies for digital

pathology. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition Workshops,

pages 2262–2271.

Nigam, K., McCallum, A. K., Thrun, S., and Mitchell, T.

(2000). Text classiﬁcation from labeled and unlabeled

documents using em. Machine learning, 39(2):103–

134.

Patricia, N. and Caputo, B. (2014). Learning to learn, from

transfer learning to domain adaptation: A unifying

perspective. In Proceedings of the IEEE Conference

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

228

on Computer Vision and Pattern Recognition, pages

1442–1449.

Rohrbach, M., Ebert, S., and Schiele, B. (2013). Transfer

learning in a transductive setting. Advances in neural

information processing systems, 26:46–54.

Romera-Paredes, B., Aung, M. S., Pontil, M., Bianchi-

Berthouze, N., Williams, A. C. d. C., and Watson, P.

(2013). Transfer learning to account for idiosyncrasy

in face and body expressions. In 2013 10th IEEE In-

ternational Conference and Workshops on Automatic

Face and Gesture Recognition (FG), pages 1–6. IEEE.

Sanyal, A., Kusner, M., Gasc

on, A., and Kanade, V. (2018).

TAPAS: Tricks to accelerate (encrypted) prediction as

a service. In ICML.

SEAL (2018). Microsoft SEAL (release 3.0). http://

sealcrypto.org. Microsoft Research, Redmond, WA.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Sirichotedumrong, W., Maekawa, T., Kinoshita, Y., and

Kiya, H. (2019). Privacy-preserving deep neural net-

works with pixel-based image encryption considering

data augmentation in the encrypted domain. In 2019

IEEE International Conference on Image Processing

(ICIP), pages 674–678. IEEE.

Srivastava, N. and Salakhutdinov, R. (2013). Discrimina-

tive transfer learning with tree-based priors. In NIPS,

volume 3, page 8. Citeseer.

Tanaka, M. (2018). Learnable image encryption. In

2018 IEEE International Conference on Consumer

Electronics-Taiwan (ICCE-TW), pages 1–2. IEEE.

Tommasi, T. and Caputo, B. (2009). The more you know,

the less you learn: from knowledge transfer to one-

shot learning of object categories. In BMVC, number

CONF.

Tommasi, T., Orabona, F., and Caputo, B. (2010). Safety

in numbers: Learning categories from few examples

with multi model knowledge transfer. In 2010 IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition, pages 3081–3088. IEEE.

Tramer, F. and Boneh, D. (2018). Slalom: Fast, veriﬁable

and private execution of neural networks in trusted

hardware. arXiv preprint arXiv:1806.03287.

Wang, H., Nie, F., Huang, H., and Ding, C. (2011). Dyadic

transfer learning for cross-domain image classiﬁca-

tion. In 2011 International conference on computer

vision, pages 551–556. IEEE.

Wang, W., Wang, H., Zhang, C., and Xu, F. (2015). Trans-

fer feature representation via multiple kernel learning.

In Twenty-Ninth AAAI Conference on Artiﬁcial Intel-

ligence.

Yang, Q., Ling, C., Chai, X., and Pan, R. (2006). Test-

cost sensitive classiﬁcation on data with missing val-

ues. IEEE Transactions on Knowledge and Data En-

gineering, 18(5):626–638.

Yin, X., Han, J., Yang, J., and Yu, P. S. (2006). Efﬁ-

cient classiﬁcation across multiple database relations:

A crossmine approach. IEEE Transactions on Knowl-

edge and Data Engineering, 18(6):770–783.

Zhu, X. and Wu, X. (2006). Class noise handling for ef-

fective cost-sensitive learning by cost-guided iterative

classiﬁcation ﬁltering. IEEE Transactions on Knowl-

edge and Data Engineering, 18(10):1435–1440.

Zhu, X. J. (2005). Semi-supervised learning literature sur-

vey.

Zhu, Y., Chen, Y., Lu, Z., Pan, S. J., Xue, G.-R., Yu, Y.,

and Yang, Q. (2011). Heterogeneous transfer learning

for image classiﬁcation. In Twenty-Fifth AAAI Con-

ference on Artiﬁcial Intelligence.

Zuber, M. and Fiore, D. (2016-2017). Hal: A library for

homomorphic authentication. http://www.myurl.com.

SecTL: Secure and Veriﬁable Transfer Learning-based inference

229
