Evaluation of Language Runtimes in Open-source Serverless Platforms

Karim Djemame

1 a

, Daniel Datsev

and Vasilios Kelefouras

2 b

School of Computing, University of Leeds, Leeds, U.K.

School of Engineering, Computing and Mathematics, University of Plymouth, Plymouth, U.K.

Keywords:

Serverless Architecture, Openwhisk, Fission, Cloud Computing, Containerisation, Performance Evaluation.

Abstract:

Serverless computing is revolutionising cloud application development as it offers the ability to create modular,

highly-scalable, fault-tolerant applications, with minimal operational management. In order to contribute

to its widespread adoption of serverless platforms, the design and performance of language runtimes that

are available in Function-as-a-Service (FaaS) serverless platforms is key. This paper aims to investigate the

performance impact of language runtimes in open-source serverless platforms, deployable on local clusters.

A suite of experiments is developed and deployed on two selected platforms: OpenWhisk and Fission. The

results show a clear distinction between compiled and dynamic languages in cold starts but a pretty close

overall performance in warm starts. Comparisons with similar evaluations for commercial platforms reveal

that warm start performance is competitive for certain languages, while cold starts are lagging behind by a wide

margin. Overall, the evaluation yielded usable results in regards to preferable choice of language runtime for

each platform.

1 INTRODUCTION

Cloud computing has emerged as one of the most

successful technologies in bringing processing power

to the general public. The computer utilities vision

has shaped most recent developments in the ﬁeld and

brought forth a variety of paradigms for doing dis-

tributed computations in the cloud. Serverless com-

puting (Kritikos and Skrzypek, 2018) offers the il-

lusion of inﬁnite resources that are dynamically pro-

visioned by cloud providers, allowing users to invest

less effort and capital on infrastructure management.

This type of elastic provisioning becomes automatic,

eliminating the need for resource planning and pre-

dictive analysis of resource demand, giving the ability

to run scalable, fault-tolerant functions in response to

triggers.

The serverless architecture has seen widespread

adoption from tech industry giants such as Ama-

zon (Amazon Web Services, 2015), Google (Google,

2021) and Microsoft (Azure, 2021), as well as the

public domain, with open-source projects such as

Apache OpenWhisk (OpenWhisk, 2021), Fission (Fis-

sion, 2021b) and OpenFaaS (OpenFaaS, 2021).

https://orcid.org/0001-5811-5263

https://orcid.org/0002-3340-3792

A serverless computing system is an ideal solution

to build and optimise any Internet of Things (IoT) op-

eration with zero infrastructure and maintenance costs

and little-to-no operating expense (Großmann et al.,

2019) as it allows IoT businesses to ofﬂoad all of a

server’s typical operational backend responsibilities.

Moreover, such a system is a natural ﬁt for edge com-

puting applications as serverless computing also sup-

ports the protocols which IoT devices require in actual

deployment conditions (Mistry et al., 2020).

Although a serverless architecture offers scalabil-

ity, fault tolerance and cost beneﬁts, it also comes

with a set of drawbacks related to the execution envi-

ronment that affects the viability and design of appli-

cations (Baldini et al., 2017). Investigations into var-

ious aspects of the serverless architecture are there-

fore required to guide the decision making process

of users, and highlight problem areas for future re-

search. One of the most detrimental factors affecting

performance in serverless architectures is the notion

of cold start that happens when the ﬁrst incoming re-

quest to an application leads to a time-consuming al-

location of resources which delays the response and

leads to bad user experience (Mohan et al., 2019).

Subsequently, the choice of language runtime plays a

non-trivial role in the performance of serverless ap-

plications. In particular, the cold start times differ

Djemame, K., Datsev, D. and Kelefouras, V.

Evaluation of Language Runtimes in Open-source Serverless Platforms.

DOI: 10.5220/0010983000003200

In Proceedings of the 12th International Conference on Cloud Computing and Services Science (CLOSER 2022), pages 123-132

ISBN: 978-989-758-570-8; ISSN: 2184-5042

123

signiﬁcantly across different languages and platforms

(Jackson and Clynch, 2018).

Investigations focus mainly on commercial plat-

forms, while research in the open-source domain is

lacking (see section 2). Entities may wish to leverage

their existing infrastructure to develop services based

on the serverless paradigm, while also avoiding ven-

dor lock-in, inherent in proprietary ecosystems (Bal-

dini et al., 2017). Their options are many but compar-

isons between them are few, which can lead to a trial-

and-error approach and an associated increase in de-

velopment costs. Combined, these two factors make a

great case for a performance evaluation and compar-

ison of language runtimes in open-source serverless

platforms. Even if the request overhead introduced by

a particular language is minimal, it is a constant fac-

tor on each invocation and has signiﬁcant cumulative

impact in terms of cost, and noticeable effect on user

experience for low-latency real-time applications.

The aim of this paper is to evaluate the perfor-

mance impact the choice of language runtime has on

function execution in local deployments of two open-

source serverless frameworks, Apache OpenWhisk

(OpenWhisk, 2021) and Fission (Fission, 2021b), by

measuring runtime overhead through the use of empty

functions. Both frameworks are chosen for their sup-

port to code serverless functions in any language, and

have them run on a Kubernetes cluster (Fission) and

non-Kubernetes (Openwhisk). The vision is to pro-

vide insight into the viability of each supported lan-

guage in various use cases, and offer comparisons to

established industry platforms by utilising published

results from similar research investigations. The pa-

per makes the following contributions:

• it proposes a cloud-based technical solution for

benchmarking and analysis of two open source

serverless platform using a set of test functions;

• it evaluates the language runtimes of these open

source serverless platforms, demonstrating their

performance in terms of effectiveness and efﬁ-

ciency;

• it makes recommendations on the suitability of the

language runtimes, taking into consideration com-

mercial offerings.

The paper is structured as follows: section 2 re-

views the related work and looks into the techno-

logical and research landscape surrounding serverless

computing and runtime evaluation. Research ques-

tions are set in section 3 as well as an outline of the ex-

perimental design that will address them. The exper-

imental environment setup and the test functions for

various serverless use cases are described in section

4. In section 5 the experiment results are presented

with a discussion on their signiﬁcance and how they

compare to existing research. It also reﬂects on the

research outcomes and any limitations encountered.

Section 6 concludes with a summary of the research

ﬁndings and suggestions for future work.

2 RELATED WORK

There has been extensive research around factors

affecting function execution performance (Scheuner

and Leitner, 2020) as well as some evaluations of

open-source serverless frameworks, including the

ones investigated in this work (Djemame et al., 2020).

In regards to language runtime evaluation, Jackson

and Clynch (Jackson and Clynch, 2018) do a perfor-

mance and cost analysis of language choice on AWS

Lambda and Azure Functions. Findings are unex-

pected, with Python and .NET C# performing bet-

ter than the other language runtimes on AWS, and

contrary to conclusions by Manner (Manner et al.,

2018) a just-in-time dynamic language outperforms

the compiled alternatives. Additionally, C# has the

worst cold start times on AWS which makes it much

less lucrative due to high cost and worse user experi-

ence. Microsoft’s Azure platform has a much better

runtime for C# (Jackson and Clynch, 2018), perform-

ing close to six times faster than functions on AWS,

and with much better cold start latency, showcasing

the importance of a well-optimised runtime.

Vojta (Vojta, 2016) documents his ﬁndings on

factors inﬂuencing function performance and does a

comparison of three interpreted languages on AWS

Lambda, noting minimal difference in warm start re-

sponse times. The research however is not systematic

and doesn’t compare other factors such as cold starts

or compiled languages. Wang et al. (Wang et al.,

2018) perform a comprehensive study of resource

provisioning and how it affects performance on three

commercial platforms(AWS Lambda, Azure, Google

Functions). Among the investigations cold/warm start

latency is considered for different language runtimes

with results that are in line with (Jackson and Clynch,

2018). Virtual Machine (VM) instance size and mem-

ory are identiﬁed as factors affecting the severity of

the cold start problem. Cui (Sbarski et al., 2022)

also ran experiments on AWS Lambda, comparing

dynamic and compiled languages with ﬁndings sim-

ilar to (Jackson and Clynch, 2018) and (Wang et al.,

2018), as expected due to them being performed on

the same platform. The cold start times of statically

typed languages appear to be almost 100 times slower

than dynamic, although the method of measuring cold

starts appears dubious, and might be biased since the

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

124

cold starts are forced by redeploying the function in-

stance, which might not simulate the usual conditions

for cold start invocation, adding potential overhead.

The increase in memory size of the function instance

correlating linearly with a decrease in cold start times

was observed. A few notes on the general literature

landscape and how this research ﬁts in:

• Platform choice is predominantly AWS and

Azure, and little research on the topic was found

for open-source serverless platforms. This re-

search aims to amend that, and provide insights

into runtime performance of on-premise server-

less deployments.

• Measurements are obtained either through plat-

form metrics, or client-side using a stress-testing

tool. This research aims to compare the two types

and explore how this difference can affect server-

less applications.

• Language choice is often limited with a few main

options being investigated. This leads to a skewed

view of the available landscape, as less popular

languages are being overlooked. This research

aims to investigate all default runtimes offered by

each platform, allowing for a broader insight into

available options.

3 PROPOSED APPROACH AND

RESEARCH QUESTIONS

This investigation is about performing an evaluation

of open-source serverless frameworks that are to be

deployed on private infrastructures, based on factual

data that can be measured so a quantitative experi-

mental methodology using direct experiments is se-

lected. Furthermore, the research methodology en-

sures a uniﬁed cloud testing environment and has the

ability to modify the investigated variable (language

runtime), so an experimental design is feasible when

it comes to accuracy of measurements.

In order to establish the relevance and usefulness

of this research the following Research Questions

(RQ) are formulated as an anchor for the discussions:

RQ1: What impact does choice of language have

on function execution time? Consequently, this will

reveal if there exists a preferable choice of runtime

when considering a particular platform. Additionally,

a direct comparison between the platforms can indi-

cate if there is an overall better choice for local de-

ployments.

RQ2: What overhead does the API mechanism incur?

This is an extension to the previous question and aims

to investigate if the built-in web request mechanism

for each platform has a detrimental impact on func-

tion execution. Furthermore, this will reveal if lan-

guage choice has any effect on the overhead by com-

paring with platform results from RQ1.

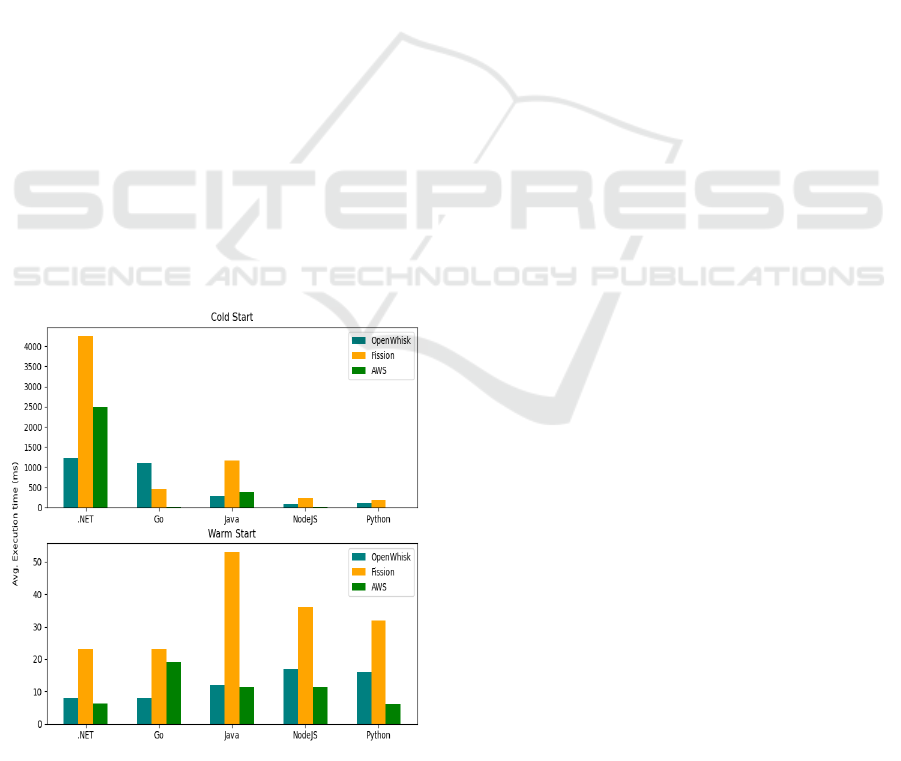

RQ3: Are results competitive with commercial plat-

forms? A comparison with published results can un-

cover trends and show if a locally-deployed open-

source platform can compete with existing commer-

cial alternatives.

For presenting the results, the median method is

chosen, and in particular the boxplot representation to

summarise the ﬁndings for each platform. This gives

a compact way to present all platform language re-

sults, without sacriﬁcing information. The mean is

also used when comparing with published research as

this is the method most often seen in literature. As

for the automation and evaluation tooling, the deploy-

ment procedure for Openwhisk and Fission platforms

does not require extensive conﬁguration and can be

done manually and easily veriﬁed. For metric col-

lection and visualisation a single execution variable,

function execution time, is tracked.

4 EXPERIMENT DESIGN

Empty Functions. In order to measure the impact

of a language runtime on function execution, any ad-

ditional execution overhead needs to be eliminated.

Since the runtime overhead cannot be obtained di-

rectly, the function execution of completely empty

functions is measured. Since no time is spent within

the function itself, by measuring the execution time

this implicitly provides the runtime overhead.

Languages. The language runtimes to be tested have

been chosen based on language popularity and avail-

ability on each platform. An effort has been made

to test all available ones, but a few have been ex-

cluded, in particular Custom runtimes for OpenWhisk

and Fission. Both platforms support the use of custom

containers, allowing the use of any language, custom

executables and scripts. This is however outside of the

scope of this paper as the interest is in measuring the

overhead of the optimised runtime containers offered

by the default installations. Table 1 summarises the

ﬁnal candidates. There is signiﬁcant language over-

lap, which helps with comparisons across platforms.

It should however be noted that in most cases lan-

guage versions differ – the latest available ones were

selected for each platform.

Cold Start. Cold start of function containers is

a major performance bottleneck and a by-product

of the nature of serverless platforms that need to

conserve resources while offering seemingly inﬁ-

Evaluation of Language Runtimes in Open-source Serverless Platforms

125

Table 1: Supported versions of chosen language runtimes.

OpenWhisk Fission

Python 3 Python 3

Go 1.11 Go 1.9

Java 8 Java 8

NodeJS 12 NodeJS 8

.NET 2.2 .NET 2.0

PHP 7.4 PHP 7.3

Ruby 2.5 Ruby 2.6

Rust 1.34 Perl 5.32

Swift 4.2

nite auto-scaling capabilities to users (Baldini et al.,

2017)(Lloyd et al., 2018). Functions are being exe-

cuted in containers that are instantiated on demand,

and depending on continued use of the function, are

shut down to free resources for other tasks. The

startup time of containers is therefore important to

measure in order to establish the overhead incurred.

Furthermore, choice of runtime has been shown to

signiﬁcantly affect container startup time (Jackson

and Clynch, 2018). The cold start tests are based on

the work in (Jackson and Clynch, 2018). First, the

cold start timeout has to be identiﬁed for each plat-

form. An exponential backoff strategy was used to

ﬁnd the time needed to wait between function invo-

cations to ensure a new container is instantiated. For

OpenWhisk this was found to be 10 minutes, while

the default Fission installation appears to keep con-

tainers warm for 3 minutes.

A test suite was developed to measure the cold

start times for each language runtime. A total of 144

cold start invocations on empty functions were per-

formed per language, per framework. Invocations are

10 minutes apart, running for a total of 24 hours per

language. This is done to ensure accurate measure-

ments of the average latency, regardless of ﬂuctua-

tions that might depend on time of day or current load

of the host machine. The measurement is the exe-

cution latency as logged internally by each platform,

ensuring unbiased results.

Warm Start. Warm starts occur when a previously

instantiated container is reused for a function execu-

tion. In practice this leads to much faster execution

times, since the expensive container bootup process

has already been performed. Warm starts are pre-

ferred by serverless users since they offer the best

possible performance and there are many examples

of strategies for ”pre-warming” containers in antici-

pation of trafﬁc (Silva et al., 2020). They are also the

most accurate representation of runtime overhead for

the average case of functions that are invoked often,

such as in a Web application that has multiple concur-

rent users at any point in time.

A test suite was designed to ensure that each in-

vocation would lead to container reuse, while also

ensuring accuracy by taking multiple measurements

throughout the day. A set of 3 test runs were per-

formed for each language, each consisting of 120 in-

vocations on empty functions, 1 minute apart. There

is a wait period of 2 hours between each run. Over-

all the entire test includes 360 invocations that cover

12 hours in sets of 2 with 2 hours in between. The de-

sign was also inspired by (Jackson and Clynch, 2018),

where a similar approach was used. Again, the spread

of the test runs was done to ensure results unbiased by

external factors.

API Access. As serverless platforms use an event-

driven model of operation one very popular applica-

tion for FaaS is an API server, built as a set of func-

tions that take the role of endpoint request handlers.

Both OpenWhisk and Fission provide a built-in mech-

anism for making it easier to access functions via Web

requests. OpenWhisk uses Web actions that can be

triggered via an API (OpenWhisk, 2021), while Fis-

sion introduces the concept of HTTP triggers (Fis-

sion, 2021b).

The previous two experiments focused on raw

function execution time as measured internally by

each platform. This eliminated any hidden API la-

tency that might distort the results, and addressed

RQ1. It is also worth investigating the overhead in-

curred by the API layer offered by the platforms,

as well as identify any potential correlation with the

choice of language runtime. This experiment ad-

dresses RQ2.

In order to measure API access latency and com-

pare with existing results the experiments were de-

signed as identical to the cold and warm start sce-

narios described in the previous sections. In particu-

lar, the 144 cold start and 360 warm start invocations

were repeated with the same timings; the only dif-

ference being that instead of triggering the functions

internally, using the provided command line tools and

obtaining the logged metrics directly from the plat-

form logs, each empty function will be tied to an API

trigger and called via an HTTP request. The execu-

tion latency will then be measured externally by a spe-

cialised API load testing tool.

Hypotheses. Throughout the experimental design the

following hypotheses were formulated based on ob-

servation of similar research:

• Hypothesis 1: Compiled languages will perform

worse than dynamic languages in cold start sce-

narios. This is based on overwhelming evidence

in literature where on commercial platforms com-

piled languages like Java or .NET take longer to

initialise the environment container (Wang et al.,

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

126

2018). A few outliers have been identiﬁed, most

notably Go (Jackson and Clynch, 2018).

• Hypothesis 2: Warm start results will be close

together, regardless of language. Similarly to

H1, this was formulated based on observed trends

in literature (Jackson and Clynch, 2018),(Vojta,

2016), so another hypothesis is that something

similar will be observed.

• Hypothesis 3: API overhead will be minimal and

constant across all languages. This one is more

of a conjecture, as there is no signiﬁcant research

being done in this area, however, the overhead

should be minimal otherwise it would be imprac-

tical for actual applications.

Cloud Testbed In order to provision the physical

and virtual resources required to ensure their proper

operation, the experimentation was performed on a

Cloud testbed available at the University of Leeds

comprising a 14 node cluster. It uses OpenNebula

4.10.2 (OpenNebula, 2021) as a virtual infrastructure

manager to offer virtual resources, including VMs

and storage volumes. The typical node that was con-

sidered for measurement is a Dell PowerEdge R430

Server commodity server with two 2.4GHz Intel Xeon

E5-2630 v3 CPUs with 128GB of RAM, a 120GB

SSD hard disk and an iDRAC Port Card.

5 PERFORMANCE EVALUATION

5.1 Openwhisk and Fission

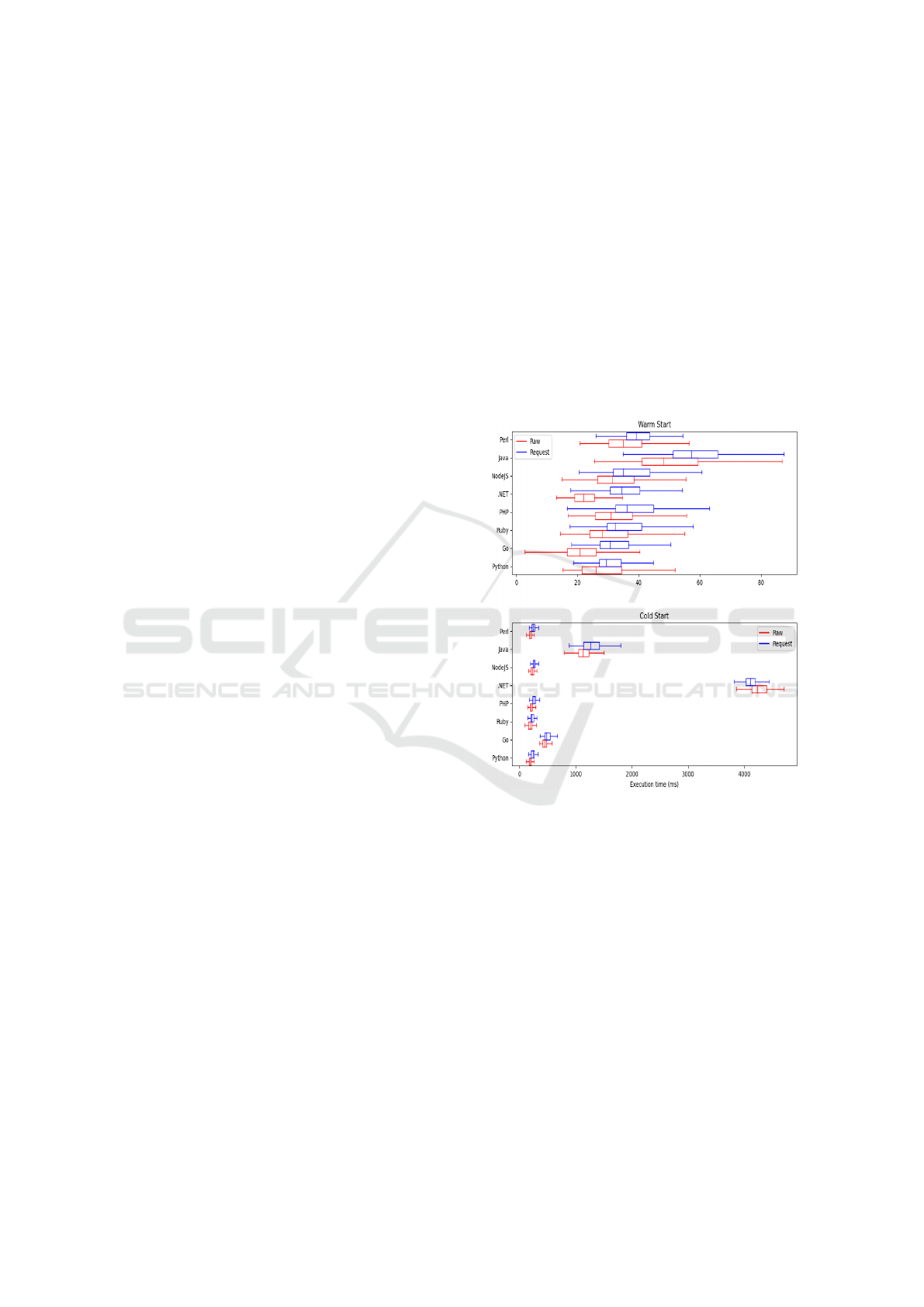

A summary of the experiment results for Fission is

shown in Figure 1. For warm starts a relatively stable

performance is observed across languages with aver-

age execution time in the 20-60ms range. Of note

is that compiled languages are not necessarily slower

than dynamic in warm start scenarios - Golang is the

best performer, with .NET a close second. Java is per-

forming the worst and also has the most ﬂuctuation in

the results. Request times are slightly higher, as ex-

pected, but overall follow the same trend as raw exe-

cution times, with a few minor exceptions which will

looked at more closely later in this section.

For cold starts some patterns are observed:

• Compiled languages (.NET C#, Golang, Java) are

slower than their dynamic counterparts across the

board. In particular, .NET performs very poorly

with average cold start execution time over 4 sec-

onds. This is in stark contrast with the warm start

tests, where .NET was one of the top performers.

• .NET has the only inconsistency in the entire

dataset when it comes to raw vs request execu-

tion times. Usually request times are slower but

in this case .NET displays the opposite. Further-

more, it appears that Fission’s API mechanism

adds very little overhead, so the reversed behav-

ior is attributed to statistical ﬂuctuation.

• Overall cold start performance is fast, with most

languages staying under 500ms execution time.

This is attributed to the executor type used for

instantiating environment containers – PoolMan-

ager, the strategy to keep a small pool of warm

generic containers that can quickly be specialised

for the particular runtime requested. Having such

pool in place, the overhead is expected to be less

prominent than in a full initialisation.

Figure 1: Summary results for Fission, both raw and request

executions, presented with boxplots using Q3-Q1 interquar-

tile range (IQR).

Overall, all Fission runtimes appear consistent in

warm start scenarios. For cold starts, .NET and to a

lesser extent Java are not recommended. Golang is

the best performing compiled language, while Python

is the winner in terms of overall performance. API

mechanism appears very lightweight, adding minimal

overhead.

Figure 2 contains the same summary for the Open-

Whisk experiments. Warm starts show a similar con-

sistency as in Fission, except for Ruby, which has sur-

prisingly slow execution time averaging over 500ms.

When compared to Fission for the same language the

results are not repeated, which points to some sort of

inefﬁciency in the implementation of the Ruby run-

time for OpenWhisk. Again, compiled languages are

Evaluation of Language Runtimes in Open-source Serverless Platforms

127

seen performing slightly better overall for warm starts

with Rust, Swift, .NET and Golang tied for ﬁrst place

with PHP being the only dynamic language to achieve

similar performance. Raw requests are also very con-

sistent as seen from the low variance. Finally, the con-

siderable overhead that the API mechanism incurs is

observed, compared to Fission.

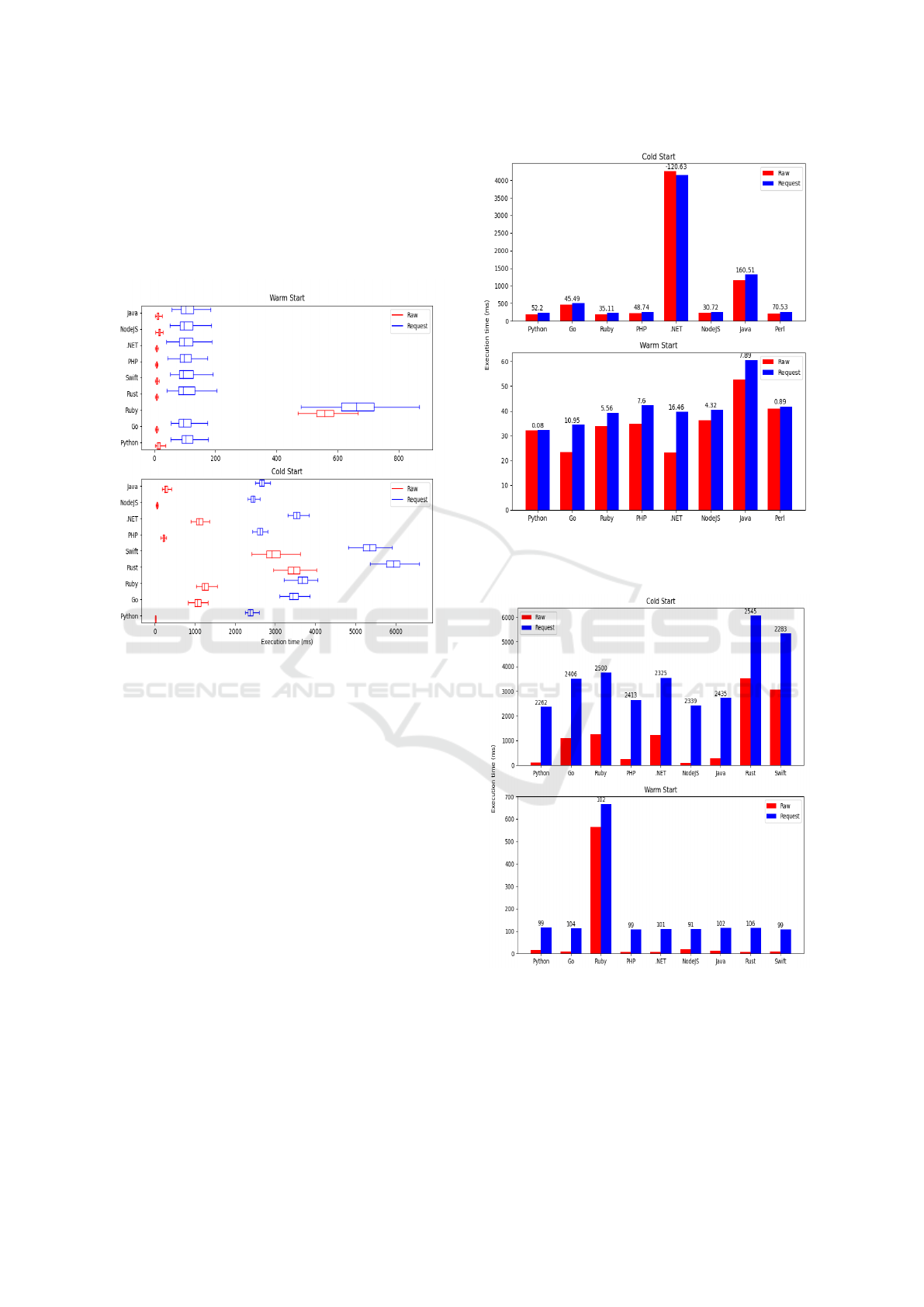

Figure 2: Summary results for OpenWhisk, both raw and

request executions, presented with boxplots using Q3-Q1

IQR.

For cold starts, Rust and Swift are the slowest lan-

guages, averaging around 3 seconds cold start for raw

requests. However, Ruby is the next slowest, which

can be linked to the bad performance observed during

warm starts, further solidifying the issue with that par-

ticular runtime. Java however performs on par with

dynamic languages such as PHP and NodeJS. Over-

all, Python and NodeJS are the clear winners in terms

of cold start performance, averaging around 100ms

overhead. The disparity between raw and request ex-

ecution times is even bigger and more pronounced.

Figure 3 compares the raw and request execution

times for Fission, in order to showcase the differ-

ences observed between the two modes of operation.

Cold and warm starts present similar results, with re-

quest times being slightly above their raw counter-

parts, which at ﬁrst glance points at minimal overhead

in Fission’s API mechanism. However, there is an

inconsistency in the cold start performance of .NET,

with raw execution being around 120ms slower on av-

erage than requests. This is not a signiﬁcant differ-

ence however as the overall execution time is around 4

Figure 3: Raw/request difference in average execution times

for Fission. Number above each pair is (Request time - Raw

time) in milliseconds.

Figure 4: Raw/request difference in average execution times

for OpenWhisk.

seconds for that particular case and is attributed to sta-

tistical ﬂuctuation. For warm starts Python and Perl

times are extremely close, with a sub millisecond av-

erage difference between the two modes, further rein-

forcing the view that times being measured are very

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

128

close together and a small anomaly in any one direc-

tion is attributed to statistical error.

The results for Fission can be interpreted as an in-

sight into the logging mechanisms that are used to im-

plicitly obtain the raw measurements. The metrics ob-

tained through Prometheus (Fission, 2021a) are lever-

aged, which in turn uses data logged internally by Fis-

sion into an InﬂuxDB time-series database. Further-

more, runtime environments in Fission always come

with an HTTP server for receiving function execu-

tion requests. It is therefore reasonable to assume

that the execution times logged in the database are

retrieved from the web server request logs residing in

each function pod and include the roundtrip time from

the runtime container to the web server. Furthermore,

when using HTTP triggers to test the API function-

ality, the router component which directly communi-

cates to the function pods is exposed; a lot of overhead

is skipped by bypassing the controller. This explains

the closeness of the results of the two modes of oper-

ation, as in the case of API requests. The extra time

it takes for the router to route the request to the func-

tion pod is simply measured, which could be minimal,

especially in the warm start scenarios where the func-

tion pod addresses are already in the router cache.

Overall, due to the closeness of the results and in-

consistencies that do not present any clear pattern, it

is concluded that Fission raw results do not measure

purely the function execution time and cannot there-

fore comment on the API overhead incurred by the

HTTP triggers. The two modes of operation have

similar performance and make general comparisons

between languages.

OpenWhisk is a different story and Fig. 4 plots the

same data as in the Fission case. The request times are

always slower, and by a relatively consistent amount

of 100ms for warm starts and 2300-2500ms for cold

starts. This is an unexpected slowdown, especially

for cold starts, since it imposes a signiﬁcant over-

head to an otherwise competitive raw performance,

and points to an inefﬁciency in the request routing.

One reason for this disparity is the fact that API

access in OpenWhisk is facilitated the same way as

any other request, through its top level HTTP web

server. Therefore, it needs to go through more sys-

tem layers to reach the invoker and function contain-

ers. Additionally, unlike in Fission, OpenWhisk’s

architecture is built around asynchronous invocation

and has a Kafka message queue at the core of its

system where function invocation messages are sent

and await to be picked up by an appropriate invoker.

This asynchronous design has some inherent delay

whenever synchronously block waiting for the result

is tried.

Overall, API access in OpenWhisk has a clear and

consistent overhead across all languages and test sce-

narios, and is much more pronounced in cold start

scenarios.

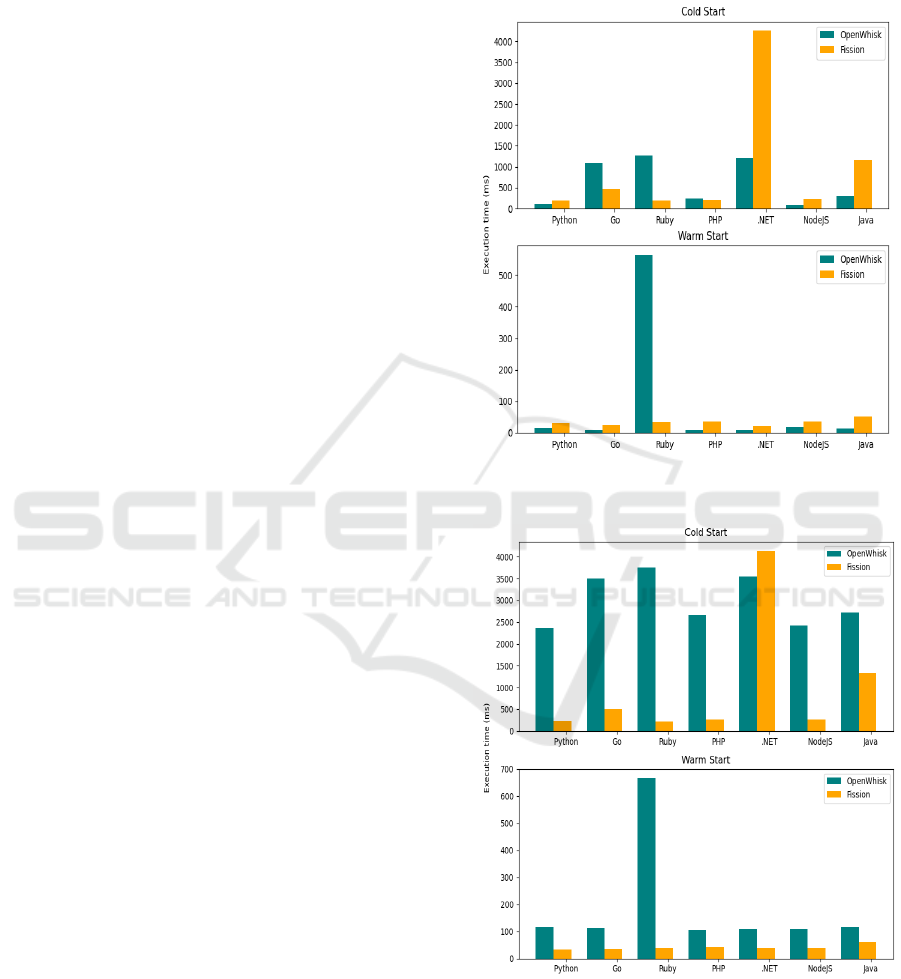

Figure 5: Average raw execution times for common lan-

guages.

Figure 6: Average request time for common languages.

Figure 5 does a platform comparison for the raw

execution scenarios of common languages between

OpenWhisk and Fission. With the exception of the

outlier Ruby, Golang and PHP are the only languages

that perform better for Fission in cold start scenar-

Evaluation of Language Runtimes in Open-source Serverless Platforms

129

ios. The divide is most prominent for .NET with a

3 second difference. For warm starts, OpenWhisk is

the clear winner (except for Ruby), but as observed

previously, the comparison between the two frame-

works is not entirely fair in the raw experiments, so

any deﬁnitive conclusions cannot be made, especially

since warm start performance is so close.

API requests are measured using the same tool so

the results in ﬁgure 6 can be compared more conﬁ-

dently. OpenWhisk’s API overhead is clearly show-

ing in all cases, with the only exception being .NET

in cold starts, further showcasing the runtime’s bad

performance on Fission.

5.2 Comparison with AWS Lambda

In order to address RQ3, a comparison with published

research on commercial platforms is performed to es-

tablish any discrepancies. In particular, Jackson and

Clynch (Jackson and Clynch, 2018) run benchmarks

considering empty functions on AWS and Azure for

.NET 2, Go, Python, Java and NodeJS, with complete

overlap on the languages that are tested in this paper.

For the purpose of the comparison only raw execu-

tion times are considered, since those are the results

presented in the relevant literature. Another impor-

tant point to consider is that AWS Lambda uses Fire-

cracker micro-VMs (Firecracker, 2021) which pro-

vide enhanced security and workload isolation over

traditional VMs, while enabling the speed and re-

source efﬁciency of containers.

Figure 7: Comparison of common languages with (Jackson

and Clynch, 2018).

In particular, focusing on the AWS results, warm

starts have a consistently low runtime overhead, with

Go being the slowest at 19ms average time, while

Python and .NET performing the best with around

6ms. OpenWhisk’s fastest times are mainly all com-

piled languages at 8ms while the dynamic languages

go up to 17ms, except Ruby, which for the purpose

of the comparisons will be excluded as an extreme

outlier. Similarly for Fission, Python, Go and .NET

are the top performers, contradicting the bad perfor-

mance of Go on AWS. However the overall warm start

times in Fission are much slower than the ones pre-

sented by Jackson and Clynch, with the fastest aver-

aging 23ms. For cold starts in (Jackson and Clynch,

2018) Java and .NET are the slowest with a signiﬁ-

cant margin. Go appears as an outlier as it performs

better in cold starts than in warm starts at about 9ms,

while Python is the clear winner at just below 3ms.

OpenWhisk results show a clear distinction between

compiled and dynamic languages; Java is the only one

that is considered an outlier with an average execu-

tion time of 289ms. The faster language is NodeJS

with 82ms, while the slowest ones (Swift and Rust)

are much slower by about 500-1000ms than the worst

performer on AWS, .NET. Fission also has a clear dis-

tinction between the slower compiled languages, with

the fastest being Go, however still not performing as

well as in AWS, and furthermore the cold start times

for Fission are a bit higher than OpenWhisk on aver-

age.

The results are summarised in Figure 7. General

observations include : 1) OpenWhisk’s warm start

performance on compiled languages rivals those on

AWS, while Fission exhibits some delays, especially

for Java, NodeJS and Python; 2) the unexpected cold

start performance of Go on AWS was not replicated

in the experiments, although Go was amongst the top

2 compiled languages on both platforms; 3) Fission

has a generally larger overhead, although this is at-

tributed to the uncertain nature of the logging records

for the raw measurements; 4) Cold start performance

of dynamic languages on AWS could not be matched,

and 5) With the exception of Go, the general trend of

compiled languages performing worse in cold starts

matches the observations.

Note that the investigation of AWS cold start

runtime performance in (Sbarski et al., 2022) re-

ports .NET and Java with the worst cold start perfor-

mance while NodeJS and Python with the best results,

Python displaying sub-millisecond cold start average

for most memory sizes.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

130

5.3 Evaluation of Research Hypotheses

The hypotheses formulated in section 4 are evaluated

in light of the research ﬁndings.

Hypothesis 1: Compiled languages will perform

worse than dynamic languages in cold start scenar-

ios. For the most part this turned out to be correct.

A few compiled languages came close to overturning

this hypothesis, namely Go for Fission and Java for

OpenWhisk. However, with the exception of Ruby on

OpenWhisk, no compiled language had a better av-

erage performance than a dynamic one in cold start

scenarios.

Hypothesis 2: Warm start results will be close to-

gether, regardless of language: This also turned out to

be correct, with most languages averaging similar per-

formance. Compiled languages on OpenWhisk had a

particularly good showing in this regard, while on Fis-

sion Java and Perl were lagging a bit behind. However

the differences were not signiﬁcant enough to warrant

a closer investigation. Ruby on OpenWhisk was once

again excluded from this comparison since it appears

to be an extreme outlier.

Hypothesis 3: API overhead will be minimal and con-

stant across all languages. This hypothesis was the

only one not informed directly by the literature and

it turned out to be incorrect for OpenWhisk. The

overhead imposed by the API mechanism was ex-

tremely large at 100ms for warm and 2.5s for cold

starts. However it did not appear to be affected by a

particular language as it was constant throughout. Fis-

sion results were closer to expectations but the analy-

sis showed that the raw measurements might include

hidden overhead which prevents from performing a

comparison.

5.4 Review of Research Questions

The performance results mostly follow the research

performed in (Jackson and Clynch, 2018),(Sbarski

et al., 2022),(Wang et al., 2018). The few differences

that were identiﬁed were mostly related to the supe-

rior performance of AWS, which was expected. The

research questions posed in section 3 are reviewed in

order to evaluate to what degree they were answered.

RQ1: What impact does choice of language have

on function execution time? The choice of language

has a signiﬁcant impact, depending on the use case

and platform. OpenWhisk has the overall best per-

formance when measuring raw execution. Ruby is

a problematic runtime for that platform and should

be avoided. Otherwise all languages perform about

the same in warm starts. For cold starts the choice

is much more meaningful; languages like Rust or

Swift incur a much bigger overhead over choices like

Python or NodeJS. As a general rule of thumb, com-

piled languages are slower although to differing de-

grees. Fission has the same consistent performance

in warm starts across all available runtimes, with Java

being a little bit on the slower side. Cold starts fol-

low the same trend of compiled versus dynamic, but

with less variability than in OpenWhisk - .NET is the

slowest by a large margin, followed by Java, while Go

is almost on par with the dynamic languages.

RQ2: What overhead does the API mechanism incur?

This was answered for OpenWhisk, and the results

were useful for comparing the two platforms. Open-

Whisk has a prohibitively large overhead when the

function is invoked through a web action; it is some-

what acceptable for warm starts but cold starts add

a pretty noticeable delay which can deﬁnitely impact

the performance of real-time applications. Fission’s

API overhead could not be established due to the na-

ture of the logging facilities and concerns about the

validity of the raw measurements. However, the over-

all performance is superior to OpenWhisk by a large

margin for all but one language – .NET. Additionally,

based on these ﬁndings it is concluded that any over-

head present does not appear to be correlated with the

choice of runtime.

RQ3: Are results competitive with commercial plat-

forms? Considering raw execution times, the open-

source platforms investigated are not at the same level

but still have a decent performance and can deﬁnitely

be optimised further. OpenWhisk has very competi-

tive warm start execution times, especially for com-

piled languages, surpassing some of the results seen

in literature for languages like Java or Go. Cold starts

are also faster for certain compiled languages but the

best performers on AWS are ahead by a signiﬁcant

margin. Fission is generally slower in warm and cold

starts than OpenWhisk with the exception of a couple

languages like Go and Ruby. It is still far behind the

top performers on AWS and Azure.

6 CONCLUSION

This paper investigated the impact the choice of lan-

guage runtime has on function performance in lo-

cal deployments of Apache OpenWhisk and Fission.

Overall, compiled languages perform better in warm

starts and worse in cold starts, but the difference in

the latter is signiﬁcant, making dynamic languages

the overall better choice – Python being the best com-

mon denominator. When using the recommended

languages OpenWhisk performs better than Fission

in raw measurements, while Fission is the superior

Evaluation of Language Runtimes in Open-source Serverless Platforms

131

choice for applications using HTTP triggers.

Some areas for further research include: 1) evalua-

tion of more trigger types for invoking functions (e.g.

database updates, timers, message queues); 2) eval-

uation of more platforms (e.g. Knative, OpenFaaS,

Kubeless and Iron Functions); 3) investigation of per-

formance under different conﬁguration (e.g. differ-

ent container sizes); 4) performance evaluation under

load (e.g. a high-trafﬁc scenario when server scal-

ing is introduced may give insight into platform per-

formance under stress; 5) further dive into Fission’s

internals in terms of provisioning new container types

and 6) custom runtimes: both platforms offer the abil-

ity for a custom executable to be used as a runtime en-

vironment. Therefore, a comparison with the default

offerings is useful to understand the performance im-

pact.

ACKNOWLEDGEMENTS

The authors would like to thank the European Next

Generation Internet Program for Open INTErnet Ren-

ovation (NGI-Pointer 2) for supporting this work un-

der contract 871528 (EDGENESS Project).

REFERENCES

Amazon Web Services (2015). AWS Serverless Multi-Tier

Architectures With Amazon API Gateway and AWS

Lambda. Technical report, Amazon Web Services.

Azure (2021). Azure functions.

https://docs.microsoft.com/en-us/azure/azure-

functions/.

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R., Slominski, A., and Suter, P. (2017). Serverless

computing: Current trends and open problems. CoRR,

abs/1706.03178.

Djemame, K., Parker, M., and Datsev, D. (2020). Open-

source serverless architectures: an evaluation of

apache openwhisk. In 2020 IEEE/ACM 13th Inter-

national Conference on Utility and Cloud Computing

(UCC), pages 329–335.

Firecracker (2021). Firecracker: Secure and fast mi-

crovms for serverless computing. https://ﬁrecracker-

microvm.github.io/.

Fission (2021a). Fission: Metrics with prometheus.

https://docs.ﬁssion.io/docs/observability/prometheus/.

Fission (2021b). Open source, kubernetes-native serverless

framework. https://ﬁssion.io.

Google (2021). Cloud functions.

https://cloud.google.com/functions.

Großmann, M., Ioannidis, C., and Le, D. (2019). Appli-

cability of Serverless Computing in Fog Computing

Environments for IoT Scenarios. In Proc. of the 12th

IEEE/ACM International Conference on Utility and

Cloud Computing, page 29–34, Auckland, NZ. ACM.

Jackson, D. and Clynch, G. (2018). An investigation of the

impact of language runtime on the performance and

cost of serverless functions. In 2018 IEEE/ACM Inter-

national Conference on Utility and Cloud Computing

Companion, pages 154–160.

Kritikos, K. and Skrzypek, P. (2018). A review of serverless

frameworks. In 2018 IEEE/ACM International Con-

ference on Utility and Cloud Computing Companion

(UCC Companion), pages 161–168.

Lloyd, W., Ramesh, S., Chinthalapati, S., Ly, L., and Pal-

lickara, S. (2018). Serverless computing: An in-

vestigation of factors inﬂuencing microservice perfor-

mance. In 2018 IEEE International Conference on

Cloud Engineering (IC2E), pages 159–169.

Manner, J., Endreß, M., Heckel, T., and Wirtz, G. (2018).

Cold start inﬂuencing factors in function as a service.

In 2018 IEEE/ACM International Conference on Util-

ity and Cloud Computing Companion, pages 181–188.

Mistry, C., Stelea, B., Kumar, V., and Pasquier, T. (2020).

Demonstrating the practicality of unikernels to build a

serverless platform at the edge. In 2020 IEEE Inter-

national Conference on Cloud Computing Technology

and Science (CloudCom), pages 25–32.

Mohan, A., Sane, H., Doshi, K., Edupuganti, S., Nayak,

N., and Sukhomlinov, V. (2019). Agile cold starts for

scalable serverless. In 11th USENIX Workshop on Hot

Topics in Cloud Computing (HotCloud 19), Renton,

WA. USENIX Association.

OpenFaaS (2021). Openfaas - serverless functions, made

simple. https://openfaas.com/.

OpenNebula (2021). Open source cloud computing and

edge computing platform. https://opennebula.io/.

OpenWhisk (2021). Open source serverless cloud platform.

https://openwhisk.apache.org/documentation.html.

Sbarski, P., Cui, Y., and Nair, A. (2022). Serverless Archi-

tectures on AWS. Manning, 2nd edition. To appear.

Scheuner, J. and Leitner, P. (2020). Function-as-a-service

performance evaluation: A multivocal literature re-

view. Journal of Systems and Software, 170:110708.

Silva, P., Fireman, D., and Pereira, T. (2020). Prebaking

functions to warm the serverless cold start. In Proc. of

the 21st International Middleware Conference, Mid-

dleware ’20, page 1–13, NY. ACM.

Vojta, R. (2016). AWS journey — API gateway & Lambda

& VPC performance. https://www.zrzka.dev/aws-

journey-api-gateway-lambda-vpc-performance/.

Wang, L., Li, M., Zhang, Y., Ristenpart, T., and Swift, M.

(2018). Peeking behind the curtains of serverless plat-

forms. In Proceedings of the 2018 USENIX Annual

Technical Conference, page 133–145, USA. USENIX

Association.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

132
