Code Generation by Example

Kevin Lano

and Qiaomu Xue

King’s College London, London, U.K.

Keywords:

Code Generation, MDE, MTBE, CGBE.

Abstract:

Code generation is a key technique for model-driven engineering approaches of software construction. Code

generation enables the synthesis of applications in executable programming languages from high-level speci-

ﬁcations in UML or a domain-speciﬁc language. Specialised code-generation languages and tools have been

deﬁned, such as Epsilon EGL and Acceleo, however the task of writing a code generator remains a sub-

stantial undertaking, requiring a high degree of expertise in both the source and target languages, and in the

code-generation language. In this paper we show how symbolic machine learning techniques can be used to

reduce the time and effort for developing code generators. We apply the techniques to the development of a

UML-to-Java code generator.

1 INTRODUCTION

Code generation involves the automated synthesis of

executable code, usually in a 3GL such as Java, C,

C++ or Swift, from a software speciﬁcation deﬁned

as one or more models in a modelling language such

as UML/OCL or a domain-speciﬁc language (DSL).

Code generators may directly produce target lan-

guage text (M2T approaches) (Epsilon project, 2021),

or produce a model that represents the target code

(M2M approaches) (Greiner et al., 2016; Lano et al.,

2017). More recently, text-to-text (T2T) code genera-

tors have been deﬁned (Lano et al., 2020).

At present, code generation is often carried out

by utilising template-based M2T languages such as

EGL (Epsilon project, 2021) and Acceleo (Acceleo

project, 2021). In these, templates for target language

elements such as classes and methods are speciﬁed,

with the data of instantiated templates being com-

puted using expressions involving source model ele-

ments. Thus, a developer of a template-based code

generator needs to understand the source language

metamodel, the target language syntax, and the tem-

plate language.

A M2M code generation approach separates code

generation into two steps: (i) a model transformation

from the source language metamodel to the target lan-

guage metamodel (Greiner et al., 2016), and (ii) text

production from a target model. In this case, the au-

thor of the code generator must know both the source

https://orcid.org/0000-0002-9706-1410

and target language metamodels, the model transfor-

mation language, and the target language syntax.

A T2T approach to code generation speciﬁes the

translation from source to target languages in terms

of the source and target language concrete syntax or

grammars, and does not depend upon metamodels

(abstract syntax) of the languages.

In order to reduce the knowledge and resources

needed to develop code generators, we propose a

symbolic machine learning (ML) approach to auto-

matically create code-generation rules based on trans-

lation examples (Section 3). The rules are represented

in the CS T L T2T code-generation language (Section

2). We provide an evaluation of the approach in Sec-

tion 4, a summary of related work in Section 5, and

conclusions in Section 6.

2 CSTL

C S T L transformations map elements of a source lan-

guage L

into the textual form of elements of a target

language L

. C S T L rules have the form

LHS |--> RHS <when> condition

where the LHS and RHS are schematic text represen-

tations of corresponding elements of L

and L

, and

the optional condition can place restrictions on when

the rule is applicable.

Neither the source or target metamodel is referred

to, instead, a rule LHS can be regarded as a pattern for

matching nodes in a parse tree of L

elements (such

Lano, K. and Xue, Q.

Code Generation by Example.

DOI: 10.5220/0010973600003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 84-92

ISBN: 978-989-758-550-0; ISSN: 2184-4348

as types, expressions or statements). When the trans-

formation is applied to a particular parse tree s, rules

are tested to determine if they match s, if so, the ﬁrst

matching rule is applied to s. Rules are grouped into

rulesets, based on the syntactic categories of L

For example, some rules for translating OCL

(OMG, 2014) types to Java 7+ could be:

OclType::

Integer |-->BigInteger

Real |-->BigDecimal

OclAny |-->Object

Boolean |-->boolean

String |-->String

Set(_1) |-->HashSet<_1>

Sequence(_1) |-->ArrayList<_1>

Map(_1,_2) |-->HashMap<_1,_2>

Variables 1, ..., 9 represent subnodes of an L

syn-

tax tree node s. If s matches an LHS containing vari-

ables, these variables are bound to the corresponding

subnodes of s, and these subnodes are then translated

in turn, in order to construct the subparts of the RHS

denoted by the variable name.

Thus for the above ruleset OclType, applied to

the OCL type Map(Integer, String), the ﬁnal rule

matches against the type, with 1 bound to Integer

and 2 bound to String. These are translated to

BigInteger and String respectively, and hence the out-

put is HashMap < BigInteger, String >.

The special variable ∗ denotes a list of subnodes.

For example, the rule

Set{_*} |-->Ocl.initialiseSet(_*)

translates OCL set expressions with a list of argu-

ments, into a corresponding call on the static method

initialiseSet of the Java Ocl.java library. Elements of

the list bound to ∗ are translated according to their

own syntax category, and separators are preserved.

Conditions are a conjunction of predicates, sepa-

rated by commas. Individual predicates have the form

_i S

_i not S

for a stereotype S, which can constrain the kind of

element bound to i. For example, the type of i can

be tested by using stereotypes Integer, Real, Boolean,

Object, Sequence, etc.

A ruleset r can be explicitly applied to variable

i by the notation i‘r. ∗ ‘r denotes the application

of r to each element of ∗. This facility enables the

use of auxiliary functions within a code generator. In

addition, a separate set of rulesets in a ﬁle f .cstl can

be invoked on i by the notation i‘f .

By default, if no rule in a ruleset applied to source

element s matches to s, s is copied unchanged to the

result. Thus the rule String 7−→ String above is not

necessary. Because rules are matched in the order of

their listing in their ruleset, more speciﬁc rules should

precede more general rules. A transitive partial order

relation r1 @ r2 can be deﬁned on rules, which is true

iff r1 is strictly more speciﬁc than r2. For example,

if the LHS of r2 and r1 are equal but r1 has stronger

conditions than r2.

C S T L is a simpler notation than template-based

code generation formalisms, in the sense that no refer-

ence is made to source or target language metamod-

els, and no interweaving of target language text and

code-generation language text is necessary. The tar-

get language syntax and the structure of the source

language grammar need to be known, in order to write

and modify the rules.

C S T L has been applied to the generation of Swift

5 and Java 8 code, to support mobile app synthe-

sis (Lano et al., 2021a). It has also been applied to

natural language processing and reverse-engineering

tasks. However, a signiﬁcant effort is still required

to deﬁne the C S T L rules and organise the transfor-

mation structure. In the next section we discuss how

this effort can be reduced by automated learning of

a C S T L code generator from pairs of corresponding

source language, target language texts. This removes

the need for C S T L users to understand the details of

the source language grammar.

3 SYNTHESIS OF CODE

GENERATORS FROM

EXAMPLES

The goal of our machine learning procedure is to auto-

matically derive a C S T L code generator g mapping a

software language L

to a different language L

, based

on a set D of examples of corresponding texts from L

and L

. The generated g should be correct wrt D, ie.,

it should correctly translate the source part of each

example d ∈ D to the corresponding target part of d.

In addition, g should also be able to correctly

translate the source elements of a validation dataset

V of (L

, L

) examples, disjoint from D.

We term this process code generation by-example

or CGBE.

Thus, from a dataset

Integer int

Real double

Boolean boolean

Set(Integer) HashSet<int>

Code Generation by Example

Set(Boolean) HashSet<boolean>

Sequence(Integer) ArrayList<int>

Sequence(Real) ArrayList<double>

it should be possible to derive a speciﬁcation equiva-

lent to:

OclType::

Integer |-->int

Real |-->double

Boolean |-->boolean

Set(_1) |-->HashSet<_1>

Sequence(_1) |-->ArrayList<_1>

The datasets D will be organised in the same man-

ner as datasets of paired texts for ML of natural lan-

guage translators

: each line of D holds one example

pair, and the source and target texts are separated by

one or more tab characters \t.

Because software languages are generally organ-

ised hierarchically into sublanguages, eg., concerning

types, expressions, statements, operations/functions,

classes, etc., D will typically be divided into parts cor-

responding to the main source language divisions.

3.1 Symbolic versus Non-symbolic

Machine Learning

ML for machine translation of natural languages typ-

ically makes use of a recurrent neural net machine

learning technology such as LSTM. Adaptions of

LSTM and other neural net approaches to learn map-

pings of software languages have been deﬁned (Bur-

gueno et al., 2019; Chen et al., 2018). These ap-

proaches are not suitable for our goal, since the

learned translators are not represented explicitly, but

only implicitly in the internal parameters of the neu-

ral net. Thus it is difﬁcult to formally verify the

translators, or to manually adapt them. In addition,

neural net approaches typically require large training

datasets (eg., over 100MB) and long training times.

This impairs agility and also has resource and envi-

ronmental implications.

Symbolic ML approaches include inductive logic

programming (ILP) (Balogh and Varro, 2008) and the

MTBE approach of (Lano et al., 2021b). These typi-

cally use considerably smaller (ie., KB-scale) training

datasets compared to non-symbolic ML. One disad-

vantage of ILP is that counter-examples of a relation

to be learned need to be provided, in addition to pos-

itive examples. The approach of (Lano et al., 2021b)

uses only positive examples. It is able to learn in-

dividual String-to-String functions and Sequence-to-

Sequence functions from small numbers (usually un-

der 10) of examples of the function. In this paper,

www.tensorﬂow.org/text/tutorials/nmt with attention

we extend this MTBE approach to learn functions of

software language parse trees.

The approach of (Lano et al., 2021b) takes as

input metamodels for the source and target lan-

guages, and an initial mapping of source metaclasses

to target classes. In our adaption of the tool, we

use the language element categories of L

and L

as the source and target metamodels. The initial

mapping is deﬁned to indicate which L

categories

map to L

categories. For example, in mapping

UML/OCL to Java, there could be OCL language

categories OclLambdaExpr and OclConditionalExpr

(subcategories of OclExpression), and Java category

JavaExpr, with the outline mappings

OclLambdaExpr 7−→ JavaExpr

OclConditionalExpr 7−→ JavaExpr

The process also takes as input a model m containing

example instances of the source and target languages,

and a mapping relation 7→ deﬁning which source and

target elements correspond. For example:

x1 : OclLambdaExpr

x1.text = "lambda x : String in x+x"

y1 : JavaExpr

y1.text = "x->(x+x)"

x1 |-> y1

In order to infer functional mappings from source

data such as OclLambdaExpr::text to type-compatible

target data such as JavaExpr::text, at least 2 exam-

ples of each SC 7−→ TC language category correspon-

dence must be present in the model. String-to-String

mappings of several forms can be discovered by the

MTBE approach of (Lano et al., 2021b): where the

target data are formed by preﬁxing, inﬁxing or ap-

pending a constant string to the source data; by re-

versing the source data; by replacing particular char-

acters by a ﬁxed string, etc. Similarly, functions of

other datatypes can be proposed based on relatively

few examples.

3.2 Machine Learning of Parse-tree

Mappings

Different forms of software representation could be

used for CGBE:

• Text, eg.: “sq[i] + k”

• Sequences of tokens, eg.: ‘sq’, ‘[’, ‘i’, ‘]’, ‘+’, ‘k’

• Syntax/parse trees:

(OclBinaryExpression

(OclBasicExpression

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

(OclBasicExpression sq)

[ (OclBasicExpression i) ])

(OclBasicExpression k))

Parse trees generally express more detailed informa-

tion about the software element, speciﬁcally its in-

ternal structure in terms of the grammar of the lan-

guage. As (Chen et al., 2018) discuss, this represen-

tation therefore provides a more effective basis for

ML of language mappings, compared to token se-

quences or raw text. For example, it is difﬁcult to in-

fer a String-to-String mapping between OCL expres-

sions and Java expressions represented as text, as the

lambda expression example of the preceding section

demonstrates.

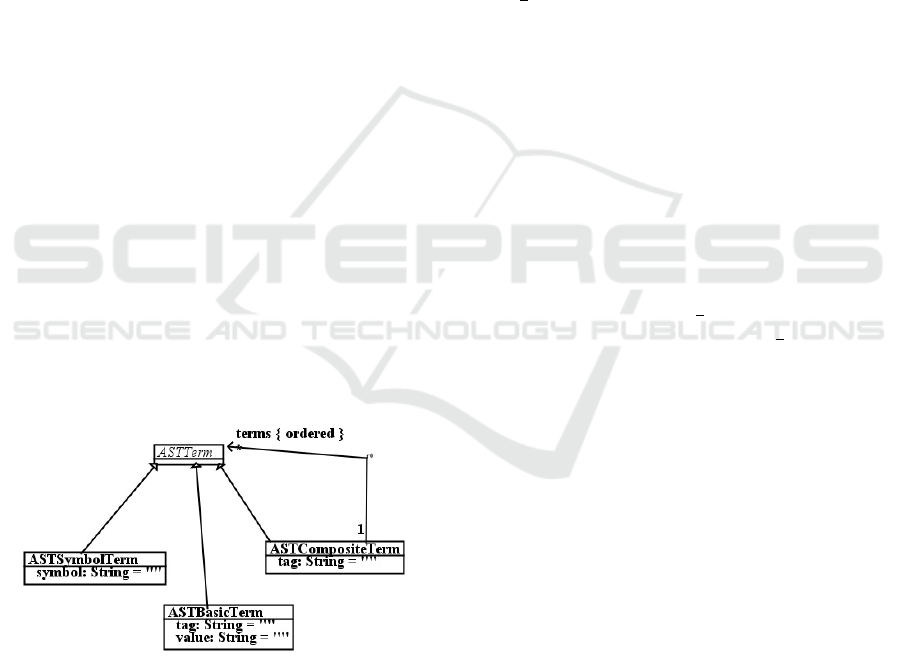

Figure 1 shows the metamodel which we use for

parse trees (ie., AST terms). This metamodel is of

wide applicability, not only for representation and

processing of software language artefacts, but also

for natural language artefacts. ASTSymbolTerm repre-

sents individual symbols such as ‘[’ in the above ex-

ample. ASTBasicTerm represents other terminal parse

tree nodes. For example (OclBasicExpression

sq). ASTCompositeTerm represents non-terminal

nodes, such as the root OclBinaryExpression node of

the example. The tag of a basic or composite term

is the identiﬁer immediately following the initial (, in

the text representation of parse trees. The arity of a

symbol is 0, of a basic term is 1, and of a compos-

ite term is the size of terms (the direct subnodes of

the tree node). The tag is used as the syntactic cate-

gory name of the tree, when the tree is processed by

a C S T L script – ie., rules in the ruleset of this name

are applied to the tree if possible.

Figure 1: Metamodel of parse trees.

Model elements representing software language

elements are given an ast : ASTTerm attribute, whose

value is a parse tree of the software element. For ex-

ample:

x1 : OclLambdaExpr

x1.ast = (OclUnaryExpression

lambda x :

(OclType String) in

(OclBinaryExpression

(OclBasicExpression x) +

(OclBasicExpression x)))

Based on examples of translation between Java

and UML/OCL, we identiﬁed a family of relevant

tree-to-tree mappings of parse trees, which our CGBE

process should be able to recognise from examples.

These mappings include structure elaborations (eg.,

more levels of structure are present in the parse trees

of elements in one language, compared to the trees

of corresponding elements in the other language); ad-

dition of new constant elements to tree nodes; re-

ordering the subnodes of tree nodes; functional map-

pings of source symbols to target symbols, etc.

We document tree-to-tree mappings by using vari-

ables i for digit i to represent the parts of source el-

ement trees x.ast for x : SC which vary. i is the index

of the part in the subnode list x.ast.terms.

A typical example of structural elaboration arises

when mapping OCL basic expressions to Java expres-

sions. An OCL parse tree

(OclBasicExpression i)

representing a variable i maps to

(expression (primary i))

as a Java expression parse tree. As a mapping

from the source language category OclIdentiﬁer to

JavaExpr this is denoted

(OclBasicExpression 1) 7−→

(expression (primary 1))

In other words, this translation of source trees to tar-

get trees is assumed to be valid for all OclIdentiﬁer

elements with the same structure, regardless of the

identiﬁer in the ﬁrst subnode of the source element

parse tree.

New subnodes of the target trees can be introduced

when a simple OCL expression is represented by a

more complex Java expression. For example, an array

access sq[i] in OCL becomes sq[i−1] in Java, because

Java arrays are 0-indexed. As parse trees, this means

that:

(OclBasicExpression

(OclBasicExpression sq) [

(OclBasicExpression i) ])

maps to:

(expression (expression (primary sq)) [

(expression (expression (primary i)) -

(expression (integerLiteral 1)) ) ])

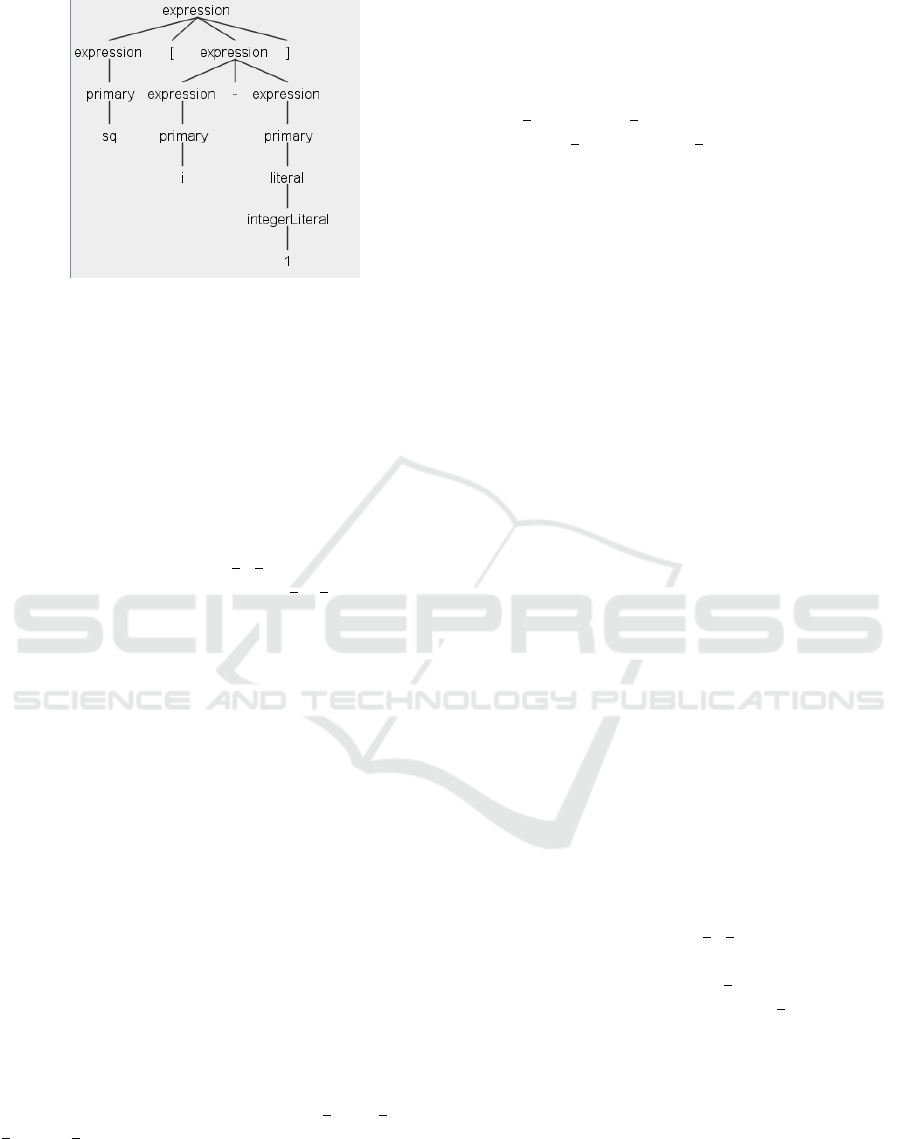

Figure 2 shows the graphical version of the Java

parse tree.

Functional mappings of symbols arise when op-

erators are represented by different symbols in the

Code Generation by Example

Figure 2: Java parse tree.

source and target languages. For example, OCL unary

preﬁx expressions

(OclUnaryExpression op expr)

map to

(expression f(op) expr’)

in Java, where expr maps to expr

and f (not) is !, f (−)

is −, f (+) is +.

Schematically this can be represented as

(OclUnaryExpression 1 2) 7−→

(expression f ( 1) 2)

More complex cases involve re-ordering the subn-

odes of a tree; embedding the source tree as a subn-

ode of the target tree, etc. Tree-to-tree mappings can

be constructed and speciﬁed recursively.

In order to recognise such mappings, our CGBE

procedure operates successively on each postu-

lated category-to-category mapping between two lan-

guages:

SC 7−→ TC

The ast values of all linked instances x : SC and y : TC

are compared, ie., for all such pairs with x 7→ y, the

values x.ast and y.ast are checked to see if a consistent

relationship holds between the value pairs. At least

2 instances x

, x

of SC linked to TC elements must

exist for this check to be made.

The basic mappings of trees consisting of single

symbols are:

• Identical source and target symbols: s 7−→ s

• Functional mapping of symbols: s 7−→ f (s)

These are schematically represented as i 7−→ i and

i 7−→ f ( i) where the source symbol s is the ith subn-

ode of its parent node.

Composed tree-to-tree mappings are formed as

follows. Firstly, for target trees of arity 1, if s 7−→ t

has been recognised as a valid tree-to-tree mapping in

dataset D, then the following are also valid mappings:

• s 7−→ (tag t) for any tag

• (tag1 s) 7−→ (tag2 t) for any tag1, tag2.

These are expressed as

1 7−→ (tag 1)

(tag1 1) 7−→ (tag2 1)

If target trees t have the form (tag2 t

... t

) and

source terms s have the form (tag1 s

... s

), with the

same arities n and m for all examples under consid-

eration, ie., for each x : SC, y : TC with x 7→ y and

s = x.ast, t = y.ast, then s 7−→ t is recognised as a

valid mapping if each t

is either:

• A constant K for all considered y

• A symbol equal to or a function of some s

• Mapped from s

: s

7−→ t

• Mapped from the entire source: s 7−→ t

As an example, unary arrow operator OCL expres-

sions such as

(OclUnaryExpression expr ->front ( ))

are consistently mapped to

(expression Ocl .

(methodCall front (

(expressionList expr’) ) ) )

where expr 7−→ expr

. The Java expression repre-

sents a call Ocl.front(e) of a Java library for the OCL

collection operations. Here the ﬁrst and second terms

‘Ocl’ and ‘.’ of the target trees are constants, and the

third term has four subterms. The ﬁrst term is the

method name, eg., ‘front’, and this is a function of the

second term, the operation name such as ‘→front’, of

the source tree; the second is constant ‘(’; the third

is mapped from the ﬁrst term of the source; and the

fourth ‘)’ is constant.

Generalising over all unary arrow operators, the

schematic form of this mapping is:

(OclUnaryExpression 1 2 ( ) ) 7−→

(expression K .

(methodCall f ( 2)

((expressionList 1) ) ) )

where K is constant. This shows that the mapping

involves embedding of the source node as a subtree of

the target, and re-ordering of nodes, plus a functional

mapping of the operator symbols.

Finally, there can be cases where related source

and target trees have variable numbers of subnodes.

For example, in Java, a parse tree (expressionList

...) representing a comma-separated list of expres-

sions can have any number n ≥ 1 of direct subnodes

. Such trees should be recognised as being mapped

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

from source (tag ...) trees which also have n di-

rect subterms s

, if each t

is mapped from s

Eg: (OclSetExpression Set {

(OclElementList ...) }) will map

to (expression Ocl . (methodCall

initialiseSet ( (expressionList ...)

) ) ) for any number of corresponding sub-

trees within the list nodes (OclElementList ...) and

(expressionList ...), provided that the arities of these

two nodes are equal for all corresponding source

and target elements. Schematically, this mapping is

represented as

(OclSetExpression Set

{(OclElementList ∗)}) 7−→

(expression Ocl .

(methodCall initialiseSet

( (expressionList ∗) )))

There may also be replacement or removal of sep-

arator symbols and other transformations when map-

ping from source lists to target lists. In this case the

mapping has the form

(slistTag ∗) 7−→ (tlistTag f ( ∗))

for a suitable function f .

3.3 Implementation of CGBE

The above MTBE inference of tree-to-tree mappings

is the core step of CGBE, which involves three stages:

1. Pre-processing the text dataset D to generate parse

trees of the UML/OCL and program elements,

and to store these in a model ﬁle m of examples for

input to the MTBE step. The AgileUML toolset is

used to parse the UML/OCL examples and gener-

ate parse trees (Eclipse Agile UML project, 2021),

and the Antlr toolset with a Java grammar ﬁle is

used to parse the program examples (in the case

of Java code) and generate Java parse trees (Antlr,

2021);

2. Recognition of tree-to-tree mappings between the

parse trees of corresponding examples, using

MTBE;

3. Conversion of the tree-to-tree mappings to C S T L

rules.

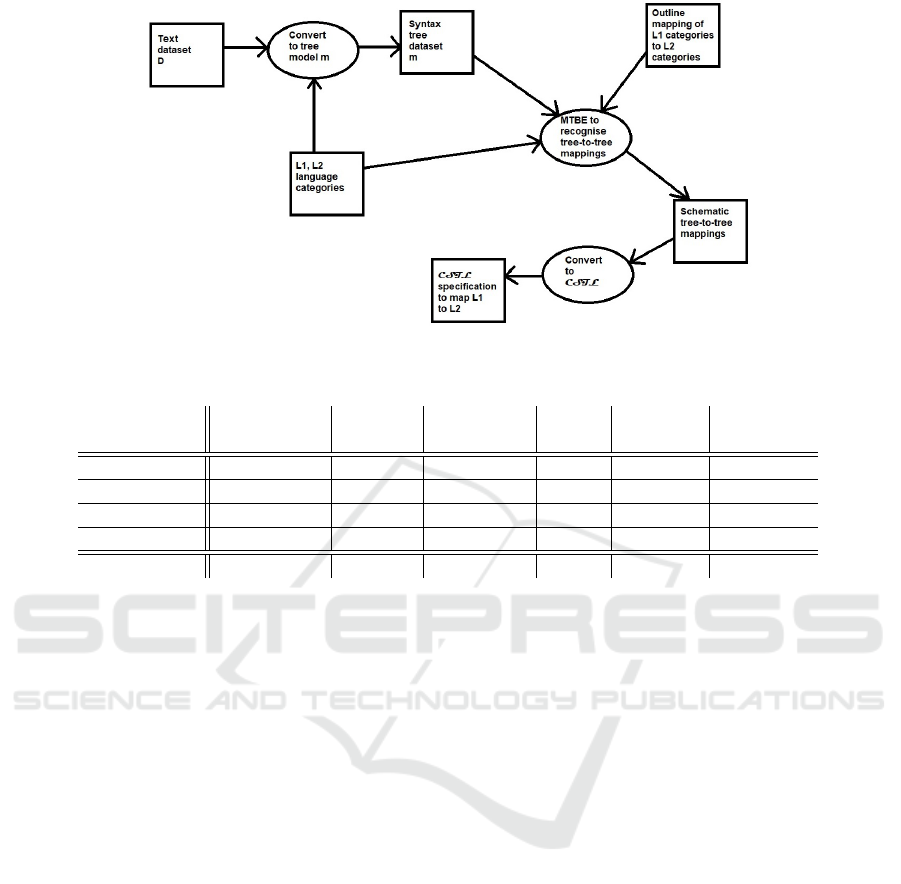

Figure 3 shows the steps of this process.

We use the SOIL notation (Buttner and Gogolla,

2014) as a procedural OCL language, ie., as the

OclStatement category of L

The ﬁnal step involves producing the C S T L tex-

tual form of the schematic source to target parse tree

rules produced by MTBE. This is carried out by a left

to right preorder traversal of the two trees, discarding

tags and returning the content of symbol and basic

terms. Spaces are inserted where necessary. Appli-

cations f ( v) of functions f to schematic variables are

expressed as v‘f in C S T L notation.

For example, the schematic mapping:

(OclUnaryExpression 1 2 ( ) ) 7−→

(expression K .

(methodCall f ( 2)

((expressionList 1) ) ) )

becomes the C S T L rule:

_1 _2 ( ) |-->Ocl._2‘f(_1)

Rules l 7−→ r are inserted into a ruleset for the syn-

tactic category SC of l. They are inserted in @ order,

so that more speciﬁc rules occur prior to more general

rules in the same category. New function symbols

f introduced for functional symbol-to-symbol map-

pings are also represented as rulesets with the same

name as f , and containing the individual functional

mappings v 7−→ f (v) of f as their rules.

4 EVALUATION

We evaluated the approach by constructing a code

generator from OCL and UML to Java, based on text

examples. The example dataset D was separated into

four ﬁles: for type examples, expression examples,

statement examples, and declaration examples,

including operation and attribute declarations and

declarations of complete classes. Table 1 shows

the size of these ﬁles in terms of number of ex-

amples, the number of generated rules, and the

accuracy of the generated code generator, in terms

of the F-measure of the generator results on valida-

tion datasets typeValidation, expressionValidation,

statementValidation, declarationValidation, com-

pared to the correct reference results given

in these datasets. F =

2∗p∗r

p+r

where precision

p =

correct translations

total translated

and recall r =

correct translations

total correct

The large size of the expressions dataset is due to

the need to include an example for each unary and

binary operator of (OMG, 2014).

In order to demonstrate the versatility of our ap-

proach, we also generated a UML to ANSI C code

generator using CGBE (Table 2). The structure of

the C grammar is substantially different to the Java

grammar. In this case we only considered the types,

expressions and statements subparts of the source lan-

guage.

Table 3 compares the person-hours expended in

the CGBE approach with that required for manually-

coded C S T L generators. The effort is signiﬁcantly

Code Generation by Example

Figure 3: CGBE process steps.

Table 1: Evaluation on UML/OCL to Java code generation.

Sublanguage D size Training Generator Recall Precision F-measure

(#examples) time (s) size (LOC)

Types 21 8.5 23 1.0 1.0 1.0

Expressions 91 56.2 122 1.0 1.0 1.0

Statements 30 11.6 22 0.8 0.9 0.85

Declarations 25 11 44 1.0 1.0 1.0

Averages 42 21.8 52.8 0.95 0.98 0.96

reduced by the use of CGBE, as the creator of the

code generator does not need to design a C S T L spec-

iﬁcation. In this respect it is a ‘low code’ approach

requiring no explicit programming.

The creator of the code generator must however

have devised a coherent strategy for the translation

from source to target language, and they need to select

examples which convey accurately and comprehen-

sively the chosen strategy (eg., that OCL sequences

are to be represented by Java array lists, sets by hash

sets, etc). We do not include the time for strategy de-

design in CS T L or to express it in suitable examples.

The basic requirement on the training dataset D is

that it provides at least two examples for each source

syntactic category. To learn a context-sensitive map-

ping f of symbols, one example of use of each dif-

ferent source symbol in the context must be provided.

For example, to learn the mapping of unary preﬁx op-

erators

func ::

‘−

7−→ ‘−

‘+

7−→ ‘+

‘not

7−→ ‘!

an example of each case must be included in D:

-x -x

+1 +1

not p !p

In addition to these numeric constraints on D, the

source and target examples must be syntactically cor-

rect for their languages and category. There should

also be sufﬁcient diversity in the examples so that

rules of sufﬁcient generality to process new examples

are induced. Speciﬁcally, not all examples of the same

category should have the same literal value in any one

argument place. Thus

-x -x

+x +x

not x !x

would be an insufﬁciently diverse example set for pre-

ﬁx unary expressions: the rule

_1 x |-->_1‘func x

would be produced, instead of

_1 _2 |-->_1‘func _2

One current limitation is that training model data

should be organised so that examples of composite

elements only use subelements which have been pre-

viously introduced. Thus an example

if b then 0 else 1 endif

of a conditional expression should use expressions

(here, basic expressions) which are examples in their

own category.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

Table 2: Evaluation on UML/OCL to C code generation.

Sublanguage D size Training Generator Recall Precision F-measure

(#examples) time (s) size (LOC)

Types 21 1.5 15 1.0 1.0 1.0

Expressions 33 3.5 26 0.78 1.0 0.88

Statements 14 1.3 8 1.0 1.0 1.0

Averages 22.7 2.1 16.3 0.93 1 0.96

Table 3: Effort of manual/CGBE code generators.

Code Approach Effort

generator (person hours)

UML2Java C S T L (CGBE) 16

UML2C C S T L (CGBE) 6

UML2Java8 C S T L (manual) 42

UML2Swift C S T L (manual) 56

Currently the approach is oriented to the produc-

tion of code generators from UML/OCL to 3GLs.

It is particularly designed to work with target lan-

guages supported by Antlr Version 4 parsers, and with

context-free grammars. Antlr parsers are available

for over 200 different software languages, so this is

not a strong restriction

. In order to apply CGBE to

target language T, the user needs to supply scripts

parseProgramType.bat, etc, which parse the corre-

sponding program elements of language T. The out-

line mapping of syntactic categories may also need to

be modiﬁed.

In principle, the approach could be generalised to

any source language with an available grammar and

parser. In future work, we will investigate the appli-

cation of the approach for the code generation of other

languages, and its application for abstraction (reverse-

engineering) in addition to code generation.

All the datasets and code used in this paper are

available at https://www.zenodo.org/record/5803090.

5 RELATED WORK

Our work is related to model transformation by-

example approaches such as (Balogh and Varro, 2008;

Burgueno et al., 2019), and to program translation

work utilising machine learning (Chen et al., 2018;

Facebook Research, 2021; Lachaux et al., 2020). The

approach of (Balogh and Varro, 2008) uses ILP to

learn model transformation rules. ILP appears to be

appropriate for the task of learning tree-to-tree map-

pings, since trees are naturally representable as Prolog

terms. In contrast to our approach, ILP requires the

user to manually provide counter-examples for invalid

https://github.com/antlr/grammars-v4

mappings. Neural network-based ML approaches

have achieved successful results for MTBE (Bur-

gueno et al., 2019) and language translation (Chen

et al., 2018) tasks. In contrast to our approach, these

do not produce explicit transformation or translation

rules, and they also require large training datasets of

corresponding examples. The Transcoder language

translation approach developed by Facebook (Face-

book Research, 2021; Lachaux et al., 2020) uses in-

stead monolingual training datasets. The approach

is based on recognising common aspects of differ-

ent languages, eg., common loop and conditional pro-

gram structures. As with the bilingual neural net ap-

proaches, large datasets are necessary, and only im-

plicit representations of learnt language mappings are

produced. In our view, neural net approaches are suit-

able for situations where precise rules do not exist

or cannot be identiﬁed (for example, translation be-

tween natural languages). However for discovering

precise translations, such as code generation map-

pings, a symbolic ML approach seems more appro-

priate.

Our approach utilises the MTBE approach of

(Lano et al., 2021b), by representing collections of

language categories as simple metamodels, and by

mapping paired text examples to instance models of

these metamodels. We extend the MTBE approach

with the capability to recognise tree-to-tree mappings,

and the facility to translate the resulting mappings to

C S T L.

6 CONCLUSIONS

We have described a process for synthesising code

generator transformations from datasets of text exam-

ples. The approach uses symbolic machine learning

in order to produce explicit speciﬁcations of the code

generators.

We have shown that this approach can produce

correct and effective code generators, with a signiﬁ-

cant reduction in effort compared to manual construc-

tion of code generators.

Code Generation by Example

REFERENCES

Acceleo project (2021). https://www.eclipse.org/acceleo,

accessed 27.11.2021.

Antlr (2021). https://www.antlr.org.

Balogh, Z. and Varro, D. (2008). Model transformation by

example using inductive logic programming. SoSyM.

Burgueno, L., Cabot, J., and Gerard, S. (2019). An LSTM-

based neural network architecture for model transfor-

mations. In MODELS ’19, pages 294–299.

Buttner, F. and Gogolla, M. (2014). On OCL-based imper-

ative languages. Science of Computer Programming,

92:162–178.

Chen, X., Liu, C., and Song, D. (2018). Tree-to-tree neu-

ral networks for program translation. In 32nd Con-

ference on Neural Information Processing Systems

(NIPS 2018).

Eclipse Agile UML project (2021).

projects.eclipse.org/projects/modeling.agileuml,

accessed 27.11.2021.

Epsilon project (2021). https://projects.eclipse.org/projects/

modeling.epsilon. Accessed 27.11.2021.

Facebook Research (2021). TransCoder, github.com/ face-

bookresearch/TransCoder.

Greiner, S., Buchmann, T., and Westfechtel, B. (2016).

Bidirectional transformations with QVT-R: a case

study in round-trip engineering UML class models

and Java source code. In Modelsward 2016.

Lachaux, M.-A., Roziere, B., Chanussot, L., and Lample,

G. (2020). Unsupervised translation of programming

languages. arXiv:2006.03511v3.

Lano, K., Kolahdouz-Rahimi, S., and Alwakeel, L. (2021a).

Synthesis of mobile applications using AgileUML. In

ISEC 2021.

Lano, K., Kolahdouz-Rahimi, S., and Fang, S. (2021b).

Model Transformation Development using Auto-

mated Requirements Analysis, Metamodel Match-

ing and Transformation By-Example. ACM TOSEM,

31(2):1–71.

Lano, K., Xue, Q., and Kolahdouz-Rahimi, S. (2020). Ag-

ile speciﬁcation of code generators for model-driven

engineering. In ICSEA 2020.

Lano, K., Yassipour-Tehrani, S., Alfraihi, H., and

Kolahdouz-Rahimi, S. (2017). Translating from

UML-RSDS OCL to ANSI C. In OCL 2017, STAF

2017, pages 317–330.

OMG (2014). Object Constraint Language (OCL) 2.4 Spec-

iﬁcation.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development
