The Challenges of Deﬁning and Parsing Multi-Layer DMLA Models

Norbert Somogyi

and Gergely Mezei

Budapest University of Technology and Economics, M

uegyetem rkp. 3, Budapest, Hungary

Keywords:

DMLA, Multi-Layer Parsing, Domain-speciﬁc Languages.

Abstract:

Parsing is a principal step of processing languages. The nature of the language tends to determine the chal-

lenges that parsers must overcome. For example, parsing procedural or object-oriented languages often require

approaches that may be speciﬁc to the targeted paradigm. For this reason, the properties of the given language

may also affect the capabilities of the parser. The Dynamic Multi-Layer Algebra (DMLA) is a multi-layer

metamodeling approach that aims to improve upon the ﬂexibility of traditional meta-modeling methods. In

addition, DMLA ensures rigorous validation of domain rules. In DMLA, domain models and validation logic

are described in D#, a domain speciﬁc language designed speciﬁcally for this purpose. Scripts written in D#

are parsed and an inner, 4-tuple representation is built. However, due to the multi-layer background and the

completely modeled language, parsing DMLA models raises non-conventional difﬁculties that must be over-

come. Reaching a satisfying balance between the expressive power and the concisity of the language is also

desirable. In this paper, we present the parsing process of DMLA, its peculiarities and the solutions we have

employed to deal with them.

1 INTRODUCTION

The original motivation behind multi-level modeling

was to create a modeling paradigm (i) to reduce acci-

dental complexity (Atkinson and K

uhne, 2008), and

(ii) to improve the general comprehension of mod-

els. In this context, accidental complexity means that

model elements are created solely for the sake of ex-

pressing the multi-level nature of the target domain

tasks, rather than capturing some aspect of the do-

main. For this purpose, multi-level modeling has in-

troduced the concept of unlimited instantiation levels

and various other notions that are based on the unlim-

ited nature of levels. Approaches that acknowledge

the existence of explicit modeling levels are often re-

ferred to as level-adjuvant. Similar yet highly differ-

ent approaches have also emerged in the form of level-

blind approaches, which do not acknowledge explicit

instantiation levels, although they can still implicitly

implement the concept of levels.

Dynamic Multi-Layer Algebra (DMLA) is a level-

blind, multi-layer modeling approach based on the

Abstract State Machines (ASM) formalism (B

orger

and St

ark, 2003). DMLA offers a highly ﬂexible and

customizable modeling structure capable of dealing

https://orcid.org/0000-0001-6908-7907

https://orcid.org/0000-0001-9464-7128

with design-time and run-time aspects of modeling.

(Mezei et al., 2018; Somogyi et al., 2019)

To describe domain models, DMLA uses a do-

main speciﬁc language (DSL) (Fowler, 2010) called

D#. A crucial step of constructing DMLA models is

to parse scripts written in D# and to create a repre-

sentation that conforms to the theoretical ASM for-

malisms of DMLA. However, due to the nature of

the ASM formalism and DMLA itself, parsing and

constructing models has some peculiarities and non-

conventional difﬁculties that must be dealt with. In

particular, without making the parser aware of spe-

ciﬁc cases in D# scripts, the language becomes highly

complex and uncomfortable for use in practice. This

paper reports on these difﬁculties and the solutions we

have employed to deal with them.

The paper is structured as follows. Section 2 high-

lights the basic concepts of multi-level modeling and

the way two well-known multi-level modeling tools

deﬁne models in practice. Section 3 introduces the

main concepts of DMLA and how models are de-

scribed. Section 4 presents how operations are used

to achieve dynamic behaviour in DMLA and the rela-

tions between static data and dynamic behaviour. Sec-

tion 5 presents the difﬁculties and different aspects of

constructing DMLA models. Section 6 concludes the

paper and highlights some future work.

358

Somogyi, N. and Mezei, G.

The Challenges of Deﬁning and Parsing Multi-Layer DMLA Models.

DOI: 10.5220/0010918900003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 358-363

ISBN: 978-989-758-550-0; ISSN: 2184-4348

2 RELATED WORK

Multi-level modeling is a modeling approach that

aims to improve upon the shortcomings of traditional

modeling approaches, such as OMG’s Meta Object

Facility (MOF) (MOF, 2005). The key idea behind

multi-level modeling is deep instantiation (Atkinson

and K

uhne, 2001). As opposed to classic approaches

with a ﬁxed number of levels, in multi-level modeling,

instantiation may concern an arbitrary amount of lev-

els. Instantiation chains are formed, until a concrete

model element is created. Consequently, a model el-

ement may be the meta-type of another element on a

lower level and the instance of an element at a higher

level. For this reason, model elements may be con-

sidered as both classes and objects at the same time

and are often referred to as clabjects (Atkinson and

uhne, 2000).

MELANEE (Lange and Atkinson, 2018) is a do-

main speciﬁc language workbench that supports vi-

sualizations of multi-level model editing. It achieves

multi-level modeling by extending the traditional 2-

level modeling approach of Eclipse Ecore. The visu-

alizations can also be context aware, e.g. the back-

ground color of an entity can be dynamically deter-

mined. MELANEE uses DeepOCL to query model

elements as well as impose and execute constraints

upon them. Moreover, it also introduces DeepATL,

a multi-level extension of the original ATL (Atlas

Transformation Language). This can be used to de-

clare and execute model transformations on existing

multi-level models.

XModeler (Clark and Frank, 2020) is a multi-

level modeling framework. Similarly to MELANEE,

it provides a graphical editor to create models in prac-

tice. However, XModeler also supplies FMML

which is a multi-level modelling and execution lan-

guage that extends Eclipse XCore. Thus, this lan-

guage can be used to deﬁne multi-level models tex-

tually.

When compared to these tools, DMLA supports

text-based creation of models only. In MELANEE,

models are deﬁned by using various graphical for-

mats. In XModeler, a graphical editor and a textual

language can also be used to deﬁne models. Thus,

the language FMML

also has to be parsed and mod-

els must be created based upon it. MELANEE and

XModeler use DeepOCL and XOCL, respectively,

that are textual, but are used only to declare and ex-

ecute constraints upon the model or query the model,

not to deﬁne the model itself. Similarly, although

MELANEE uses DeepATL, it is used only to dynam-

ically modify an existing model, not to deﬁne it. In

contrast, the scripting language of DMLA is com-

pletely modeled and dynamic. This way, more rigor-

ous and ﬂexible validation of models may be achieved

when compared to other multi-level tools. The down-

side of it is that this leads to several challenges that

must be dealt with, which do not arise in other tools.

3 BACKGROUND

The Dynamic Multi-Layer Algebra (DMLA) is a

multi-layer modeling framework inspired by the core

ideas of multi-level modeling. DMLA consists of two

essential basic parts: the Core and the Bootstrap. The

Core deﬁnes the basic modeling structure describing

the model elements (nodes and edges), along with

low-level functions to access and modify them (Mezei

et al., 2019). In DMLA, the model elements are called

entities. The theoretical formalism of entities is de-

ﬁned in the Core. Every entity is represented as 4-

tuples containing various information about the ele-

ment: (i) the ID of the entity, (ii) a reference to the

meta of the given entity, (iii) values assigned to the

element (reference to another entity, or a primitive

string, number or bool literal), and (iv) attributes as-

signed to the element. Entities may contain other en-

tities, in this case, the attributes hold the references to

the contained entities.

The Bootstrap (Mezei et al., 2019) is a set of enti-

ties deﬁning basic modeling facilities. The Bootstrap

makes it possible to use DMLA to actually create do-

main models in practice. It deﬁnes not only the ba-

sic entities, but also the basics of validation and thus

the semantics of reﬁnement itself. Consequently, it is

possible to create different Bootstraps following dif-

ferent modeling paradigms. It is also the Bootstrap

that deﬁnes basic modeling entities that are used to

create domain models.

In DMLA, entities are similar to object-oriented

classes. An entity has one explicit, direct correspond-

ing meta and may have several indirect metas (the

meta of its meta, etc). Marking an entity as its meta

means a reﬁnement relationship between the entities

that has several peculiarities. For example, suppose

one would like to model bicycles. In DMLA, we

start at the highest abstraction level and gradually re-

ﬁne the concepts until a concrete product is achieved.

Thus, at ﬁrst, we would deﬁne an entity NCycle, that

contains a frame and any number of wheels represent-

ing all kinds of bicycle variants (e.g. unicycles, tan-

dem bikes, etc.). Next, a Bicycle would reﬁne NCycle

by restricting the number of wheels to exactly two. Fi-

nally, a MyFavoriteBicycle would reﬁne Bicycle and

assign a concrete frame (e.g. a mountain bike frame)

and two concrete wheels as its parts.

The Challenges of Deﬁning and Parsing Multi-Layer DMLA Models

359

Whenever a model entity claims another entity

as its meta, the framework automatically validates if

there is indeed a valid reﬁnement between the two.

Both the main validation logic and the constraints

used by the validation are modeled in the Bootstrap,

not hard-coded in the framework. Since the mod-

eled validation logic deﬁnes DMLA’s inherent reﬁne-

ment semantics, the reﬁnement itself is Bootstrap-

dependent.

Entities may contain attributes referred to as

slots, similarly to classes having properties in object-

oriented programming. Slots are basic value holders,

with customizable life-cycles, e.g. they can be re-

ﬁned, or omitted. Reﬁning a slot means restricting

its validation rules (e.g. reﬁning its type), assigning a

concrete value to the slot, or dividing it into multiple

slots.

Both slots and entities may have additional con-

straints on them. A constraint is a restriction imposed

upon the element and thus it helps in restricting the

semantics of the given slot, or entity. Constraints are

checked automatically during model validation. The

most commonly used constraints are cardinality and

type constraints.

As mentioned before, in DMLA, the Bootstrap de-

ﬁnes the basic modeling elements that are used to cre-

ate domain models. The entity ComplexEntity is the

implicit base of all future entities and its slot Com-

plexEntity.Fields is the implicit base of all future slots.

We refer to domain models as the actual models that

one wishes to create using DMLA. For example, the

former example of bicycles is a domain model, where

the entity NCycle reﬁnes ComplexEntity.

4 DYNAMIC BEHAVIOUR

In DMLA, operations are used for describing dy-

namic behavior and for validation logic. Even the

semantics of validation and thus the constraints are

deﬁned as operations. Operation logic is composed

from atomic programming constructs (e.g. condi-

tional branch, variable declaration) just like in tradi-

tional programming languages. However, in DMLA,

all of these constructs are modeled entities (e.g. we

have an entity ”IF”), and thus the abstract syntax tree

(AST) built from operation deﬁnitions can be repre-

sented as a tree of entities. When the operation is

executed, this tree built from entities is eventually in-

terpreted and executed by a virtual machine. From

this point of view, operations describing the dynamic

behavior and semantics can also be handled as mod-

eling structure. For example, operation deﬁnitions are

translated into tuple-representations similarly to other

entities. Thus, the border between static data and dy-

namic behavior is particularly thin.

Although, entities may have operations similarly

to the methods of object-oriented classes, the cou-

pling between operations and entities are not that

strong: operations are handled as global functions ref-

erenced from entities. When an operation is added

to an entity, a wrapper slot is created and the opera-

tion deﬁnition is contained by this slot. Wrapping op-

erations in slots separates its life-cycle management

from the actual operation deﬁnition. This is impor-

tant due to the shared usage of operations in entities.

The wrapper slot makes it possible to add constraints

on the operations and thus makes it possible to reﬁne

operations during reﬁnement without affecting other

entities using the operation deﬁnition. In some ways,

operation reﬁnement is similar to overriding a method

in object-oriented languages. The fundamental dif-

ference is that in DMLA, the rules of the type sys-

tem are parts of the rules of valid reﬁnement and thus

they are also deﬁned in the Bootstrap. Essentially,

whenever an operation reﬁnement is to be validated,

the virtual machine executes the appropriate valida-

tion operation deﬁned in the Bootstrap. Therefore,

the semantics of valid operation reﬁnement is deﬁned

in the Bootstrap, not hard-coded in the framework.

Reﬁnement may follow the same semantics as over-

riding does in object-oriented languages, or it may be

entirely different. For example, beyond reﬁning the

types of the parameters, it is absolutely valid to create

a Bootstrap that allows the addition of parameters to

an operation and thus changing its signature from an

object-oriented point of view.

It should also be noted that, since operations are

wrapped in hidden slots by the parser, reﬁning an

operation in fact means reﬁning the wrapper slot as

well. This is the second reason why the operation

reﬁnement of DMLA may be entirely different from

that of object-oriented languages. As the connec-

tion between the original and the reﬁning operation

is not based on a naming convention, an operation

may override another operation despite having a dif-

ferent name. Moreover, an operation may even be

split into multiple operations. Taking all this into ac-

count implies that parsing D# has to deal with non-

conventional difﬁculties that do not arise in traditional

programming languages.

5 PARSING DMLA MODELS

Using the ASM formalism indirectly to create and

manipulate DMLA entities would be very trouble-

some in practice. The reason for this is that it is a

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

360

low-level mathematical formalism that is not suitable

for practical use indirectly. Instead, DMLA uses a

high-level domain speciﬁc language called D# to de-

scribe models. It is essentially a high-level abstrac-

tion over the ASM formalism, but the virtual ma-

chine of DMLA relies on the tuple structure, thus the

scripts need to be transformed to the tuple format. The

parsing process of DMLA is illustrated in Figure 1.

In order to create DMLA models, scripts written in

the D# language are parsed and various artifacts are

created. Firstly, the 4-tuple representations are con-

structed. Secondly, various auxiliary data-structures

are created. Thirdly, special AST-s are built that are

later used as the base for interpreting the model on a

virtual machine. In terms of the concrete technology

stack, the parser and the virtual machine are imple-

mented in the Kotlin language and ecosystem and D#

itself is deﬁned using ANTLR (Parr, 2013).

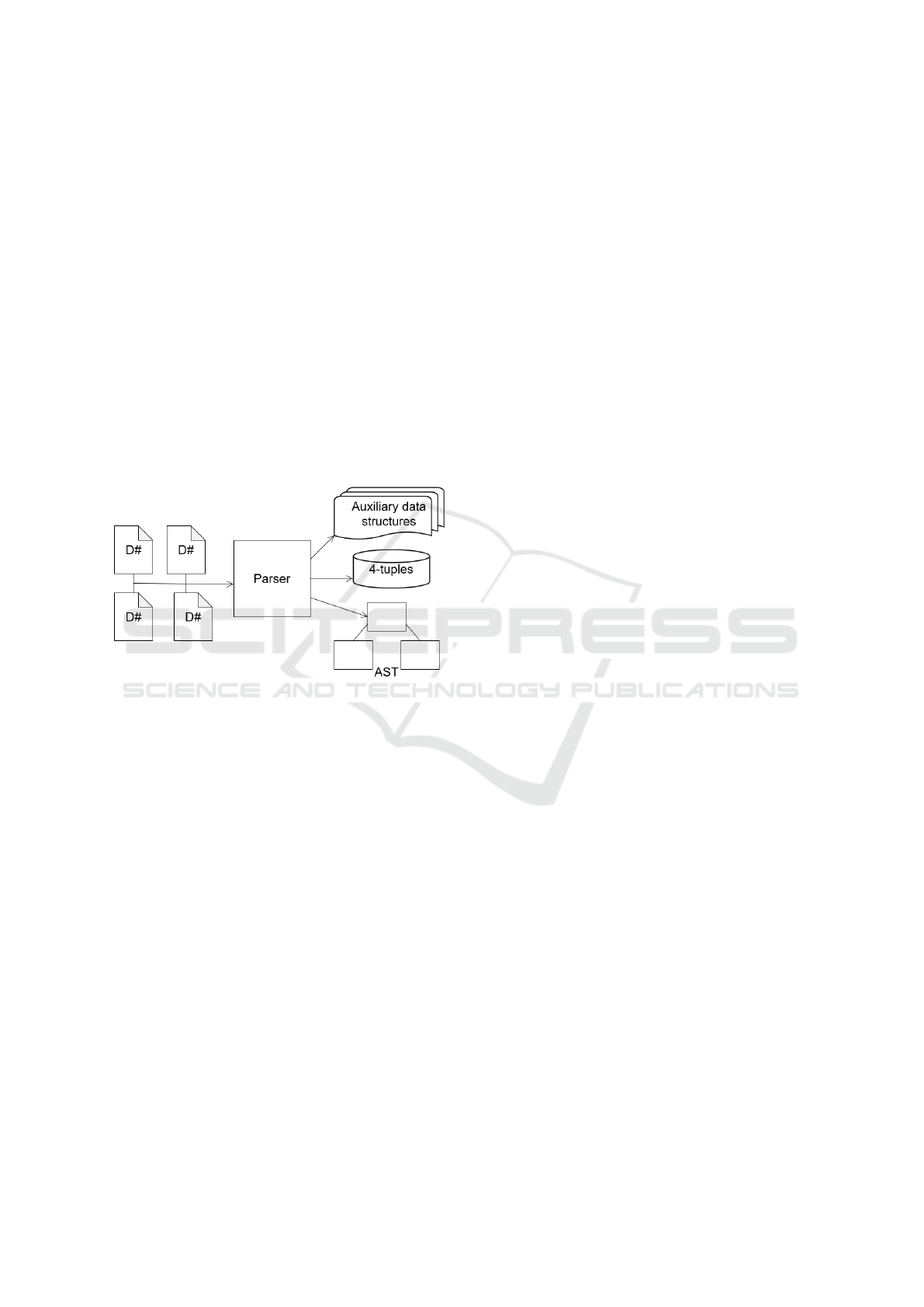

Figure 1: The parsing process of DMLA.

5.1 Deﬁning Domain Models

Listing 1 illustrates domain models using the pre-

viously mentioned bicycle example. NCycle reﬁnes

ComplexEntity, the base for all domain speciﬁc enti-

ties. NCycle has a slot for its wheels and a slot for its

frame. Both have a type constraint and a cardinality

constraint deﬁned on them stating that every NCycle

must have at least one wheel of type Wheel and ex-

actly one frame of type Frame. UniCycle further re-

ﬁnes NCycle by tightening the cardinality constraint

of the wheels slot to having exactly 1 wheel. Simi-

larly Bicycle reﬁnes NCycle to have exactly 2 wheels.

It also deﬁnes an operation CheckFrame which takes

a Frame as parameter and does something with it.

Finally, RoadBicycle reﬁnes Bicycle by dividing the

parameter of the CheckFrame operation into two in-

stances of Frame.

As seen in this example, adding every necessary

information to the script leads to an overly compli-

cated code that is highly uncomfortable both to write

and read. However, this could be alleviated by adding

1 entit y C omp lex E n ti t y : Bas e

2 {

3 @Type : B a s e

4 @ C a rd i n al i t y : 0..*

5 sl o t Fi e l d s ;

6 }

7 entity NC y c l e : C o m p l e x E n t i ty {

8 @Type : Wheel

9 @ C a rd i n al i t y : 1..*

10 sl o t Wh e e l s :

11 Co m p le x E nt i t y . Fi e l d s ;

13 @Type : Frame

14 @ C a rd i n al i t y : 1..1

15 sl o t Fr a m e :

16 Co m p le x E nt i t y . Fi e l d s ;

17 }

18 entity Un i C yc l e : N C y c le {

19 @Type : Wheel

20 @ C a rd i n al i t y : 1..1

21 sl o t Wh e e l s : NCycle . Wh e e l s ;

23 @Type : Frame

24 @ C a rd i n al i t y : 1..1

25 sl o t Fr a m e :

26 C o m pl e x E n t i t y . F i e l d s ;

27 }

28 entity Bi c y c l e : N C y c l e {

29 @Type : Wheel

30 @ C a rd i n al i t y : 2..2

31 sl o t Wh e e l s : NCycle . Wh e e l s ;

33 @Type : Frame

34 @ C a rd i n al i t y : 1..1

35 sl o t Fr a m e :

36 C o m pl e x E n t i t y . F i e l d s ;

38 @Type : O p e r a t i o n D e f i n i t i o n

39 @ C a rd i n al i t y : 1..1

40 sl o t Ch e c k F r a m e W r a p p e r S l o t

41 : B a se . Op e r a t i o n s =

42 o p e r a ti o n vo i d Ch ec k F r am e

43 ( F r a m e fr a me ) { . . . } ;

44 }

45 entity Ro ad B i c y c l e : B i c y c l e {

46 @Type : Wheel

47 @ C a rd i n al i t y : 2..2

48 s l o t Wh e e l s : NCycle . Wh e e l s ;

50 @Type : Frame

51 @ C a rd i n al i t y : 1..1

52 s l o t Fr a m e :

53 C o m pl e x E n t i t y . F i e l d s ;

55 @Type : O p e r a t i o n D e f i n it i on

56 @ C a rd i n al i t y : 1..1

57 s l o t Ch e c k F r a m e W r a p p e r S l o t

58 : B icyc l e . C h e c k F r a m e W r a p p e r S l o t =

59 o p e r a ti o n vo i d Ch ec k F r am e

60 ( C ar b o n F r a m e lowerHal f ,

61 Gol d F r ame uppe r H a l f ) { . . . }

62 }

Listing 1: An example domain model deﬁned in D#.

extra functionality into the parser. By handling spe-

ciﬁc parts of the code specially, the concisity of the

language could be improved at the cost of its ex-

pressive power. The loss of expressive power has

The Challenges of Deﬁning and Parsing Multi-Layer DMLA Models

361

to be compensated by making the parser collect vari-

ous information about the model automatically, which

makes parsing slightly slower as well. Thus, a trade-

off has to be made between an easy-to-use language

and a simple, efﬁcient parser.

5.2 Slots

When an entity reﬁnes another, for each slot in the

meta, it must declare whether the slot is cloned (re-

used without any modiﬁcation), or reﬁned. Every

other slot not explicitly declared is considered omit-

ted. Notice that much of the complexity seen in

the previous example stems from requiring to declare

cloned slots in all entities. Let us reverse this thought

process: every slot is considered cloned unless they

are marked explicitly as omitted and a slot should

only be declared if they are actually reﬁned in some

way. This way, duplicating the declaration of the slots

is entirely avoidable. In the example, lines 23-26, 33-

36 and 50-53 could be removed. Therefore, in D#,

collecting all slots in the meta entities and cloning

them in the instance is the responsibility of the parser.

Moreover, when reﬁning a slot, declaring its meta is

also redundant. This information can be found auto-

matically by the parser based on a naming conven-

tion. For example, in lines 21 and 31 declaring NCy-

cle.Wheels as the meta slot is no longer necessary.

Naturally, meta-slots are to be declared if the name

of the slot is changed during the reﬁnement.

5.2.1 Operations

As mentioned before, entities may deﬁne operations,

which are wrapped in slots. Operations must always

be of type OperationDeﬁnition, which is a special en-

tity in the Bootstrap reserved speciﬁcally for opera-

tions. The cardinality of an operation is always 1..1

and the meta of an operation wrapper slot should be

Base.Operations, unless it overrides an existing op-

eration. Base.Operations is the base of all operation

wrapper slots. Finally, the operation deﬁnition is set

as the value of its wrapper slot. For every opera-

tion deﬁning all this information manually is not ef-

ﬁcient: all this information can be automatically gen-

erated when an operation deﬁnition is encountered.

The parser can automatically handle this, thus wrap-

per slots are not needed to be handled manually. In

the example, lines 38-41 and 55-58 can be avoided.

5.2.2 Overriding Operations

When an operation is reﬁned, the meta of the re-

ﬁning operation’s wrapper slot becomes the wrap-

per slot of the operation that was reﬁned. In

the previous example, at line 64, the meta

of RoadBicycle.CheckFrameWrapperSlot is Bicy-

cle.CheckFrameWrapperSlot. However, as it is not

needed to manually declare the operation wrapper

slots, it is no longer possible to express in the code

exactly which operation one would like to reﬁne. For

this reason, we have introduced the keyword over-

ride. Similarly to slots, having to explicitly declare

the name of the overriden operation would be redun-

dant (if it follows the default naming convention).

Thus, it is the parser that automatically ﬁnds the orig-

inal operation to be overriden.

5.2.3 Summary

The steps presented in this section can signiﬁcantly

reduce redundancy in the language. Listing 2 illus-

trates the code we obtain after applying every step.

Note that the lines of code needed to deﬁne the same

model have decreased from 62 to 35, which is roughly

a 40% reduction. According to our preliminary test,

in terms of larger and more complicated models, this

reduction would be even more spectacular.

1 entity Co m p l e x E n ti t y : Bas e

2 {

3 @Type : Ba s e

4 @ C a rd i n al i t y : 0..*

5 s l o t Fi e l d s ;

6 }

7 entity NC y c l e : C o m p l e x E n t i t y {

8 @Type : Wheel

9 @ C a rd i n al i t y : 1..*

10 s l o t Wh e e l s :

11 C o m pl e x E n t i t y . F i e l d s ;

13 @Type : Frame

14 @ C a rd i n al i t y : 1..1

15 s l o t Fr a m e : C o m p l e x E n t i t y . Fi elds ;

16 }

17 entity Un i C yc l e : N C y cle {

18 @ C a rd i n al i t y : 1..1

19 s l o t Wh e e l s ;

20 }

21 entity Bi c y c l e : N C y c l e {

22 @ C a rd i n al i t y : 2..2

23 s l o t Wh e e l s ;

25 o p e r a ti o n vo i d Ch ec k F r am e

26 ( F r a m e fr a me ) { . . . }

27 }

28 entity Ro ad B i c y c l e : B i c y c l e {

29 ov e r r i d e op e ra t i o n

30 v o i d Chec k F r am e

31 ( C ar b o n F r a m e lowerHal f ,

32 Gol d F r ame uppe r H a l f ) { . . . }

33 }

Listing 2: The reduced example model deﬁned in D#.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

362

6 CONCLUSION

Dynamic Multi-Layer Algebra (DMLA) is a multi-

layer modeling approach aiming at providing an ef-

ﬁcient and ﬂexible solution for multi-level modeling.

In this paper, we have brieﬂy introduced D#, a domain

speciﬁc language that we use for deﬁning DMLA do-

main models. We have also presented the peculiari-

ties and the non-conventional difﬁculties of the pars-

ing process of DMLA. One of the main challenges

was making a trade-off between the concisity and ex-

pressive power of the scripting language. By omitting

redundant information, the language becomes much

easier and more comfortable to use. In turn, this raises

the need for the parser to be able to handle numer-

ous problematic cases automatically. When parsing

slots, slots deﬁned in the meta entities must be auto-

matically cloned by the parser. In some cases, auto-

matically ﬁnding a slot’s appropriate meta slot is also

required. In the case of operations, a container slot

should automatically be generated by the parser and

the operation should be wrapped in it. Overriding an

operation in DMLA means further reﬁning a meta op-

eration. When an operation reﬁnes another, it should

be marked with the override keyword, which signals

the parser to automatically ﬁnd the operation that it

reﬁnes. This reﬁnement may be semantically similar

to object-oriented languages, or completely different

depending on the Bootstrap. The steps efﬁciently re-

duced the redundancy in D# scripts, but sometimes at

the cost of making the parser more complicated and

slightly less efﬁcient.

In terms of future work, there exist many promis-

ing aspects that could be explored upon. Analyzing

the efﬁciency of the parser and measuring the loss of

performance introduced with the reduction of the lan-

guage remains our top priority. Extending the parser

to support incremental parsing (Ghezzi and Mandri-

oli, 1979) would also be desirable. This means that

instead of fully parsing scripts every time, only the

difference should be processed when compared to the

previous state. Dynamically changing the structure of

models using operations should also be supported.

ACKNOWLEDGEMENT

The work presented in this paper has been carried

out in the frame of project no. 2019-1.1.1-PIACI-

KFI-2019-00263, which has been implemented with

the support provided from the National Research, De-

velopment and Innovation Fund of Hungary, ﬁnanced

under the 2019-1.1. funding scheme.

REFERENCES

Atkinson, C. and K

uhne, T. (2000). Meta-level indepen-

dent modelling. In International Workshop on Model

Engineering at 14th European Conference on Object-

Oriented Programming, pages 1–4.

Atkinson, C. and K

uhne, T. (2001). The essence of multi-

level metamodeling. In Proceedings of the 4th Inter-

national Conference on The Uniﬁed Modeling Lan-

guage, Modeling Languages, Concepts, and Tools,

pages 19–33, Berlin, Heidelberg. Springer-Verlag.

Atkinson, C. and K

uhne, T. (2008). Reducing accidental

complexity in domain models. Software & Systems

Modeling, 7(3):345–359.

orger, E. and St

ark, R. (2003). Abstract State Machines:

A Method for High-Level System Design and Analysis.

Springer-Verlag New York, Inc., 1st edition.

Clark, T. and Frank, U. (2020). Multi-level modelling with

the fmmlx and the xmodelerml. In Bork, D., Kara-

giannis, D., and Mayr, H. C., editors, Modellierung

2020, pages 191–192, Bonn. Gesellschaft f

ur Infor-

matik e.V.

Fowler, M. (2010). Domain Speciﬁc Languages. Addison-

Wesley Professional, 1st edition.

Ghezzi, C. and Mandrioli, D. (1979). Incremental parsing.

ACM Trans. Program. Lang. Syst., 1(1):58–70.

Lange, A. and Atkinson, C. (2018). Multi-level modeling

with melanee a contribution to the multi 2018 chal-

lenge.

Mezei, G., Somogyi, F. A., Theisz, Z., Urb

an, D., B

acsi,

S., and Palatinszky, D. (2019). A bootstrap for self-

describing, self-validating multi-layer metamodeling.

In Proceedings of the Automation and Applied Com-

puter Science Workshop, pages 28–38.

Mezei, G., Theisz, Z., Urb

an, D., and B

acsi, S. (2018). The

bicycle challenge in dmla, where validation means

correct modeling. In Proceedings of MODELS 2018

Workshops: 21st International Conference on Model

Driven Engineering Languages and Systems (MOD-

ELS 2018), volume 2245 of CEUR Workshop Pro-

ceedings, pages 643–652.

MOF (2005). OMG: MetaObject Facility.

http://www.omg.org/mof/. Accessed:2021-11-07.

Parr, T. (2013). The Deﬁnitive ANTLR 4 Reference. Prag-

matic Bookshelf, 2nd edition.

Somogyi, F. A., Mezei, G., Urb

an, D., Theisz, Z., B

acsi, S.,

and Palatinszky, D. (2019). Multi-level modeling with

DMLA - A contribution to the MULTI process chal-

lenge. In 22nd ACM/IEEE International Conference

on Model Driven Engineering Languages and Systems

Companion, MODELS 2019, pages 119–127. IEEE.

The Challenges of Deﬁning and Parsing Multi-Layer DMLA Models

363
