Detecting Obfuscated Malware using Memory Feature Engineering

Tristan Carrier

, Princy Victor

, Ali Tekeoglu

2 a

and Arash Habibi Lashkari

1 b

Canadian Institute for Cybersecurity (CIC), University of New Brunswick (UNB), Fredericton, NB, Canada

Johns Hopkins University Applied Physics Laboratory, Critical Infrastructure Protection Group, Maryland, U.S.A.

Keywords:

Obfuscated Malware, Memory Analysis, Ensemble Learning, Malware Detection, Stacking, Machine

Learning

Abstract:

Memory analysis is critical in detecting malicious processes as it can capture various characteristics and behav-

iors. However, while there is much research in the ﬁeld, there are also some signiﬁcant obstacles in malware

detection, such as detection rate and advanced malware obfuscation. As advanced malware uses obfuscation

and other techniques to stay hidden from the detection methods, there is a strong need for an efﬁcient frame-

work that focuses on detecting obfuscation and hidden malware. In this research, the advancement of the

VolMemLyzer, as one of the most updated memory feature extractors for learning systems, has been extended

to focus on hidden and obfuscated malware used with a stacked ensemble machine learning model to create

a framework for efﬁciently detecting malware. Also, a speciﬁc malware memory dataset (MalMemAnalysis-

2022) was created to test and evaluate this framework, focusing on simulating real-world obfuscated malware

as close as possible. The results show that the proposed solution can detect obfuscated and hidden malware

using memory feature engineering extremely fast with an Accuracy and F1-Score of 99.00% and 99.02%,

respectively.

1 INTRODUCTION

Since the advent of Malware in the 1980s, it has be-

come one of the focal points in the ﬁeld of cyberse-

curity. Malware is any malicious software used by

cybercriminals that harms the system or user by per-

forming various criminal activities. With the fast ad-

vancement of technology and internet access, mal-

ware has also evolved regardless of the available se-

curity measures (Statista, 2021). Morever, their abil-

ity to evade from the detection methods has made the

process of malware detection complex. With diver-

sity in malware categories and families, it is essential

to cover all the bases.

There are several Malware categories such as

Worms, Viruses, Bots, Botnets, Trojan Horses, Ran-

somware, Spyware, Rootkits, etc. As malware fami-

lies has several functionalities like inﬁltrating the sys-

tem, gaining access to information, preventing access

for authorized users, or performing other cybercrimes

within each category, the best solution to detect them

should focus on both categories and families to pre-

vent and stop them in the future.

https://orcid.org/0000-0001-7638-0941

https://orcid.org/0000-0002-1240-6433

As the complexity and time consumption of man-

ual detection methods are very high, different learning

systems like machine learning and deep learning are

used, which can produce intelligent insights from the

data automatically. The primary importance of these

learning systems is ﬁguring out which training data to

feed to the system to make the quickest and most ac-

curate assessment. Machine learning systems take in

a set of features that can be looked at with a large sam-

ple size to compare and contrast differences. Further-

more, these features can be input in different formats,

which is a factor in determining the machine learn-

ing system that should be used. While some machine

learning algorithms are focused on speed, others are

focused on accuracy and precision. Therefore, select-

ing the different algorithms that correspond to the ob-

jective and input type has an enormous impact on the

results of the system. Ensemble machine learning is

one such model in machine learning that correlates

well with these goals of detection and characteriza-

tion.

There exists several approaches for obfuscated

malware detection based on memory analysis. How-

ever, in most of the works, the complexity and time

consumption are high, which makes them not suitable

Carrier, T., Victor, P., Tekeoglu, A. and Lashkari, A.

Detecting Obfuscated Malware using Memory Feature Engineering.

DOI: 10.5220/0010908200003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 177-188

ISBN: 978-989-758-553-1; ISSN: 2184-4356

177

for real-world application. This is the motivation to

propose a fast, efﬁcient and easy to develop solution

for obfuscated malware detection by making use of

the most effective features captured through memory

analysis.

Main Contributions: The main contributions of

this research include:

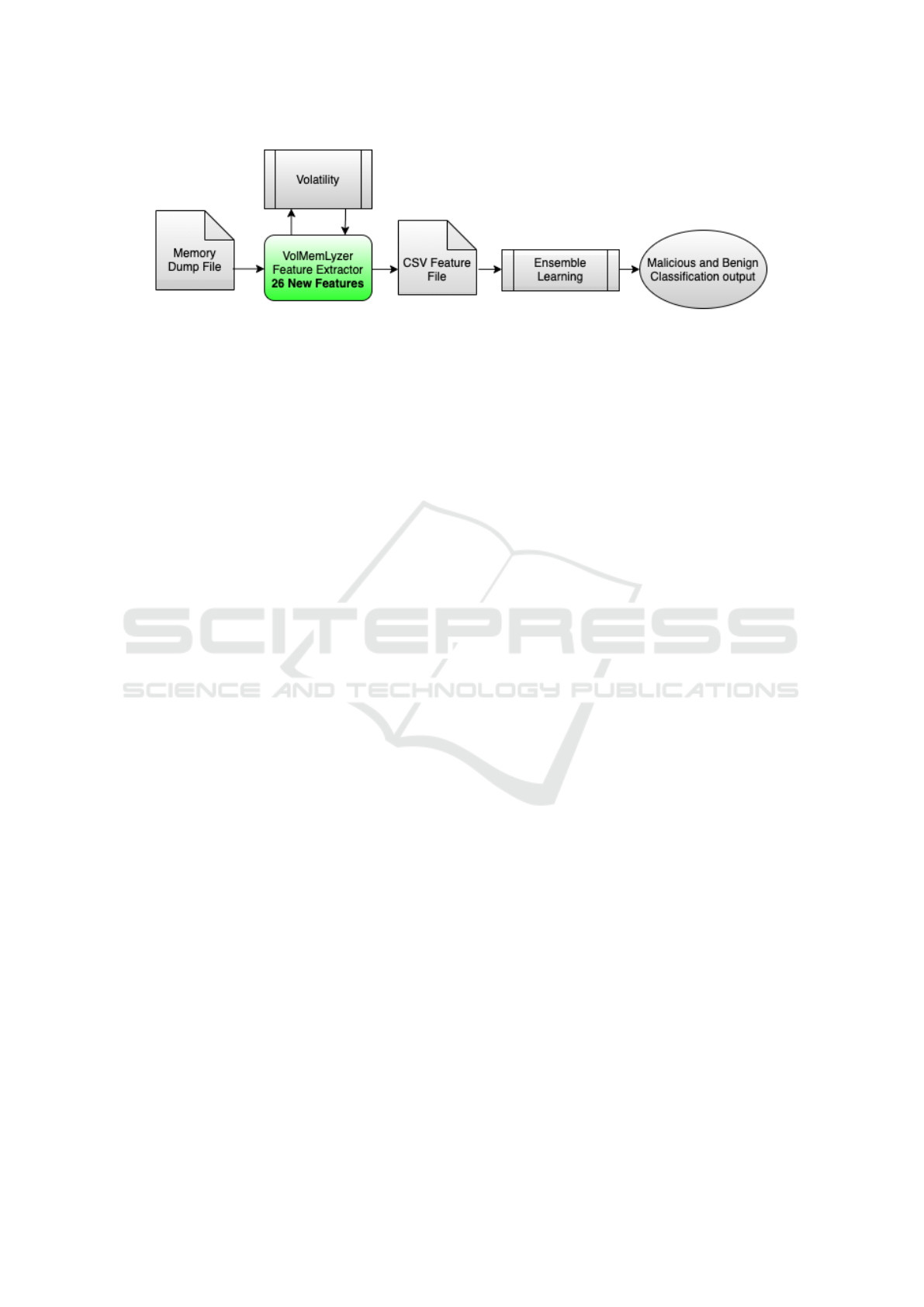

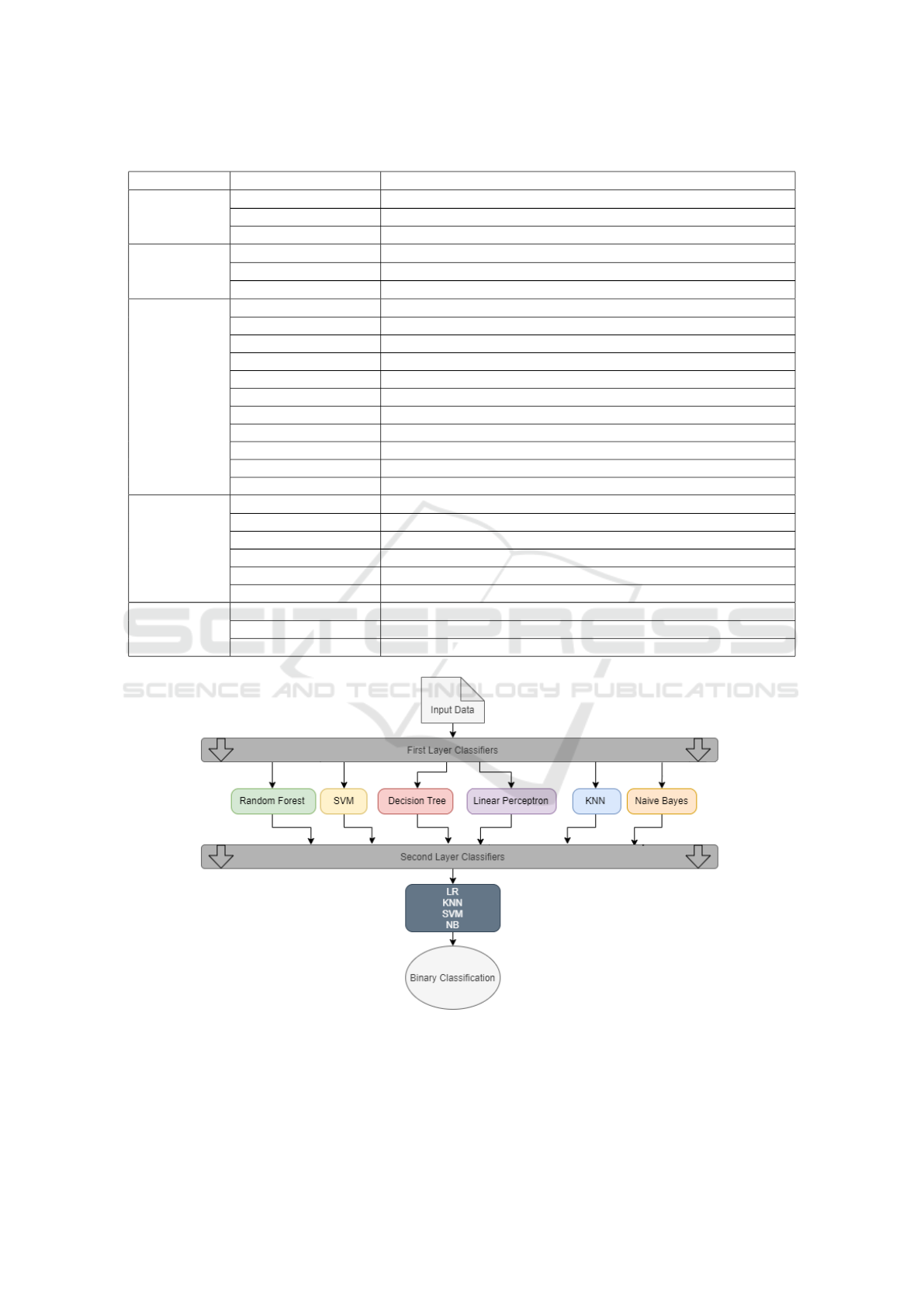

• Proposing a malware analysis framework that

uses a two-layer stacked ensemble learning model

to improve the current obfuscated or hidden mal-

ware detection solution.

• Proposing 26 new memory-based features for

the only available open-source memory analyzer

for learning systems, VolMemLyzer, by focusing

speciﬁcally on the obfuscated and hidden malware

detection and implementing the new version of

the open-source project, VolMemLyzer-V2.

• Generating and releasing a comprehensive dataset

by executing more than 2500 malware samples

on three common obfuscated and hidden cate-

gories, including Spyware, Ransomware, and Tro-

jan Horse, to test and evaluate the proposed frame-

work.

The structure of this paper is shown as follows.

Section 2 introduces the related works on memory

analysis models that used machine learning and deep

learning for malware detection. Section 3 proposes an

obfuscated and hidden malware detection framework

that tackles the challenges identiﬁed in this study.

Section 4 presents the dataset creation process and the

malware types, families, and samples, while section 5

presents the experimental analysis. Finally, section

6 concludes the paper by discussing the ﬁndings and

future works.

2 LITERATURE REVIEW

Since the inception of malware, it has gained enor-

mous attention in the cybersecurity ﬁeld due to its

various delivery methods and categories. Although

there exist several detection methods, each carries its

challenges. This section highlights the related works

on malware detection through memory analysis and

discusses the remaining issues and challenges in this

research ﬁeld.

2.1 Malware Memory Analysis

Memory analysis is a method that provides a strong

understanding of the activities in the system by cap-

turing memory snapshots and extracting features from

them. (Shree et al., 2021) discusses the reliability

in malware memory analysis since all critical infor-

mation is stored in memory. The memory analysis

that is not performed live needs snapshots, and ob-

taining these snapshots is essential to ensure that the

memory ﬁles are not affected. Affected memory ﬁles

could change the results of the memory analysis pro-

cess and would remove the reliability of the analysis

taking place.

(St

uttgen and Cohen, 2014) proposed a frame-

work that shows how to capture a memory from a

Linux system with minimal impact by using a relo-

cation hooking that can copy the information safely.

Furthermore, since this technique doesn’t require the

installation of an environment on the system, those

tasks will not be in the analyzed memory. In addi-

tion to the memory snapshot capturing difﬁculties, au-

tomation and the complexity of the analysis process

are other challenges. As a solution for this, (Socala

and Cohen, 2016) explains the method of automatic

proﬁle generation for live memory analysis, which

can automate the analysis process in a viable manner.

Moreover, the work by (Okolica and Peterson,

2010) discusses the importance of having a highly

ﬂexible memory analysis process that can work on

different platforms and systems as this would signiﬁ-

cantly reduce the amount of time needed to match the

system with the proﬁle. Furthermore, the work also

discovered debugging structures on memory analysis

to allow the tools to run on more systems. In another

work, (Block and Dewald, 2017) introduced a mem-

ory analysis plugin that can use to simplify the analy-

sis process. This plugin focuses on the details of the

heap objects in memory, and these heap objects can

help a memory analysis professional understand what

undergoes in the system memory.

When the memory has been successfully captured,

the next step to consider is how to extract the data

from within it. (Okolica and Peterson, 2011) ex-

plains the importance of DLLs and Windows drivers,

which are difﬁcult to extract with no entry point to

gain access, especially with no export functions. To

get the information from these drivers, a huge work

is needed from a memory forensic professional. The

authors show the method of reversing the drivers to

gain quicker and more efﬁcient access to the driver

information.

A work by (Dolan-Gavitt, 2008) discusses the im-

portance of gaining access to the full registry in mem-

ory with the use of cell indexes. Similarly, (Zhang

et al., 2011) also explains the extraction of registry

information from physical memory for Windows sys-

tems and the importance of understanding the ﬁle

structure. In the other work by (Zhang et al., 2009),

the use of the data structure, Kernel Processor Con-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

178

trol Region, is explained for translating the differ-

ence from virtual to physical memory in the address

space, thus improving the memory forensics on win-

dows machines. (Zhang et al., 2010) also did their

study on converting virtual to physical addresses by

using the paging structure for 2MB pages in a Win-

dows 7 system.

Memory analysis can be used in many differ-

ent ways to ﬁnd out what happened to a victim.

(Thantilage and Jeyamohan, 2017) discuss the usage

of volatile memory analysis to gain information on

social media evidence. The developed application fo-

cuses speciﬁcally on targeting volatile memory anal-

ysis to obtain social media evidence.

Updating lots of systems in an industry can be ex-

pensive and often goes unnoticed until an attack oc-

curs. For this, (Sharafaldin et al., 2017) proposes a

new tool called BotViz that uses a hybrid approach

for detecting bots in a network. In addition to that,

this model uses hooks to strengthen bot detection.

The work by Martin-Perez (Martin-Perez et al., 2021)

presents an interesting concept of memory dump pre-

processing with two different strategies that can relo-

cate ﬁle objects to make the analysis process quicker

and easier. The ﬁrst strategy, called Guided De-

Relocation, speciﬁcally selects a new space for the

information. The second strategy is Linear Sweep

De-Relocation, which sweeps through the memory to

ﬁnd a storage spot. Memory forensic tools have dras-

tically changed how memory analysis is performed;

however, they can still be reﬁned and improved to

be faster, more efﬁcient, and easier to use. (Lewis

et al., 2018) discusses the method by which the de-

fects are ﬁxed and improvements are added to pro-

fessional tools such as Volatility. Improving mem-

ory forensic algorithms to adapt to current standards

is also needed as they explain many novel memory

analysis algorithms.

2.2 Malware Detection Using Memory

Analysis

Sometimes, dynamic and static methods of malware

classiﬁcation can be both inaccurate and imprecise.

According to (Dai et al., 2018), the idea of using

an extracted malware memory dump ﬁle that is con-

verted into grayscale image results in higher accuracy

and precision than static and dynamic methods. Re-

sults show a 20 percent increase in accuracy when

converting to a grayscale image before comparison

with other known malware.

According to (Yucel and Koltuksuz, 2019), using

a three-dimensional heat mapping system can reduce

the time it takes to classify malware along with in-

creasing its accuracy. The work discussed layering

the levels on top of each other, which shows the in-

tensity of malware in each section of the malware

memory dump. Moreover, this heat map can be com-

pared to other malware systems to show a higher ac-

curacy detection and classiﬁcation rate. As Malware

classiﬁcation analysis can be costly in time and accu-

racy, (Kang et al., 2019), suggests the use of vector-

ing assembly source code using the Long Short-Term

Memory-Based (LSTM) method for classifying mal-

ware. Using word2vec with the LSTM system, the

increase in accuracy reached 0.5 percent higher than

other methodologies.

Malware detection and analysis are difﬁcult for

advanced systems; however, malware detection in a

cloud is even more difﬁcult with more liabilities. It

can be hard to examine if malicious acts are happen-

ing with constant live processes running, especially

while taking privacy into account. Using an unbiased

training set, the minHash method was able to have a

nearly perfect detection rate. With increasing cloud

operations, using the minHash method can increase

efﬁciency and reliability, as shown in the numerous

experiments as (Nissima et al., 2019) has shown. In

this work, the results are drastically different in detec-

tion across the different classiﬁers, which shows the

impact of the classiﬁers based on the different types

of malware being input into the system. To reduce this

variance, classiﬁers can work together to make up for

their weaknesses.

The current direction of remote computing leads

to more information stored in the cloud; as such, they

have been a bigger target for malware with an increase

in demand for security. With the static and dynamic

approaches not being applicable for cloud comput-

ing, the need for new security methods has increased

for specialized cloud computing security. (Li et al.,

2019) suggests a deep learning approach that collects

a memory snapshot of the system and converts it into

a grayscale image. The convolutional neural network

then models the system and trains deep learning to

differentiate between malicious and benign memory

snapshots. Results showed that this process reduces

runtime for analysis as well as accurately identiﬁes

malware. After obtaining the target virtual machine

introspection, it is fed to the extracting model, which

converts it to the grayscale image passed from the tar-

get VM to the secure VM for analysis.

(Sai et al., 2019) developed the concept of manag-

ing memory with API call mining. This method ana-

lyzes API calls that access the system’s memory and

observes the transitions in the memory to watch the

management and ensure that the system does not con-

tain any malicious activity. This method can check the

Detecting Obfuscated Malware using Memory Feature Engineering

179

allocated memory during runtime and detect roughly

95 percent of all malicious programs from the system

memory behavior.

The importance of detecting new malware is ex-

tremely high to prevent new attacks from harm-

ing systems. Many techniques have high detection

rates on known malware using in-depth training tech-

niques. However, while comparing previous works, it

can be identiﬁed that the works do not deal with new

never seen before malware. As a solution for this, (Si-

hwail et al., 2019) suggests using memory forensics to

extract artifacts from memory combined with mem-

ory feature extraction. Based on past known mal-

ware and the extracted artifacts, the framework can

determine what future malware will consist of. Re-

sults showed that the model has an extremely high

detection rate and accuracy while still keeping a low

amount of time needed to run.

As some malware like Objective-C malware, also

known as userland, puts MacOS X systems at risk,

(Case and Richard, 2016) proposed a plugin for the

Volatility framework that focuses on automatically

analyzing the artifacts of the system that have impor-

tance. This is done by monitoring the Objective-C

at runtime and outputting a ﬁle that can be analyzed.

Based on this ﬁle, it can be examined and determined

how to deal with the current situation. This results

in a fast analysis time and less work for the analysts,

thus allowing more systems to be monitored in the

same amount of time. As typical Malware detection

and unpacking tools can be detected from the mal-

ware debuggers, malware stays dormant during scans

and avoids malware detection methods.

However, according to (Kawakoya et al., 2010),

while using the stealth debugger, malware is not

aware when to stay dormant or when to run to avoid

malware detection scans. In addition to that, the

stealth debugger takes the virtual machine memory

and sends it to the guest operating system. After

which, it runs the analysis to identify the true origins

of the code. Since most malware is advanced enough

to contain obfuscation methods, this model can detect

most packers at an incredibly high accuracy rate, with

some packers getting a perfect detection rate. While

static and dynamic approaches are a good start for de-

tecting malware, they can often be exploited by obfus-

cated malware, leading to malware deactivating the

detection methods. Using application-speciﬁc detec-

tion with machine learning, (Xu et al., 2017) was able

to get nearly a perfect malware detection rate. This

method works on the top layer and works down to

the kernel level, where many corruption attacks can

occur. With this approach, corruption attacks were

stopped 99 percent of the time with less than a ﬁve

percent false positive rate.

To combat the malware obfuscation techniques,

the detection method needs to be designed with ob-

fuscation in mind. This can be done using a specif-

ically designed dataset to test how well a detection

system deals with obfuscated malware. (Sadek et al.,

2019) challenged detection methods by using a large

dataset that consists of positive and negative memory

snapshots, advanced payload systems, and malware

obfuscation. (Bozkir et al., 2021) have come up with

a novel approach that uses an RGB image to show

memory dump ﬁles in their malware detection sys-

tem.

While using the manifold learning technique

called UMAP, (Javaheri and Hosseninzadeh, 2017)

identiﬁed the original memory dump ﬁle showing ma-

licious or benign activity. After testing with ten mal-

ware families and benign samples, the results were

roughly 96 percent accuracy at the extremely fast

speed of only 3.56 seconds. Moreover, a framework

was also developed to combat the obfuscation of mal-

ware. Using the detection presence time of the mal-

ware at each level of the operating system down to the

kernel, they were able to dump the malware memory

at the precise time and view the malware installation.

The framework was focused speciﬁcally on obfusca-

tion and packaging in mind to challenge one of the

biggest problems in malware detection. After testing

the framework, it obtained roughly 85 percent accu-

racy in detecting kernel-level malware. Though there

are many different methods to detect obfuscated mal-

ware, each method has to be looked into for different

situations.

Malware and botnets can be difﬁcult to blacklist

when they use obfuscation and concealment. Botnet

command and control servers can also make a real-

time prediction for domain names extremely chal-

lenging. (S et al., 2019), discusses the use of a frame-

work to counter obfuscation by using the LSTM net-

work. This framework operates for both binary and

multi-class data with a high recall rate and precision,

producing a good F1 score. This F1 score consists of

over 80 percent for binary class data and over 60 per-

cent for multi-class data. Moreover, this framework

can be used to help identify concealed and obfuscated

malware in botnet systems.

VMShield, a proposed method by (Mishra et al.,

2021), protects virtual domains in the cloud from ob-

fuscated and stealthy malware attacks. This work

used a state-of-the-art method that collects runtime

behavior from the different processes and analyzes

the results to make obfuscated and stealthy malware

unable to sneak past detection. Passing down to the

system, VMShield is able to monitor the results of

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

180

each layer and trace all of the system calls and extract

the features that are the biggest impact on the system.

VMShield can detect more than 97 percent of the at-

tacks using these introspection techniques, including

hidden and obfuscated attacks. VMShield cloud pro-

tection process step by step, where it discusses the

tracing of the hypervisor from the virtual machine,

feature extraction, selection process, and proﬁle gen-

eration. Finally, VMshield obtains the result of the

model and delivers a status report that can be looked

by the admin.

Virtual machine introspection has become a com-

mon tactic with detecting malware and other mali-

cious sources as it can miss hidden, dead, or obfus-

cated malware. With the use of a virtual machine

monitor, otherwise known as a hypervisor, (Kumara

and Jaidhar, 2016), discusses an automated internal

and external system that can detect hidden, dead, and

obfuscated malware inside the virtual machine with

the aid of machine learning. After testing the sys-

tem with an advanced data set using cross-validation,

the authors found that their system has a 99.55 per-

cent accuracy rate while still holding the extremely

low false-positive rate of 0.004 percent.

There exist works like (Sklavos, 2017) that dis-

cusses the security issues in IoT devices by study-

ing the malware for both system hardware and soft-

ware. In this work, the most widespread malware cat-

egories, such as logic bombs, rootkits, bots, etc., were

discussed from a software viewpoint. In addition to

that, the hardware security in IoT devices was also

studied by mentioning the power monitoring attacks,

timing attacks, etc. The work also presented the ex-

isting malware detection approaches and summarized

expected future directions.

Overall, it can be identiﬁed that several ap-

proaches exist for obfuscated malware detection

based on memory analysis. To the best of our knowl-

edge, no literature focused on the detection in the

memory through feature extraction, as the methods

used are very complex and time-intensive. It is also

interesting to notice that the works have focused on

detecting malware found in different system layers for

general and obfuscated malware cases. The VolMem-

Lyzer was developed as the ﬁrst memory-based mal-

ware analysis feature extractor for learning-based so-

lutions, but it did not focus on obfuscated malware

analysis (Lashkari et al., 2020). As a result, this

work proposes an obfuscated malware memory anal-

ysis framework that focuses on a fast and low-cost

solution that will be discussed in the next section.

3 PROPOSED APPROACH

In most existing works, the complexity and time con-

sumption are high, making them unsuitable for real-

world application. As a solution for this, a fast, ef-

ﬁcient, and easy to develop solution for obfuscated

malware detection is proposed in this paper by using

the most effective features captured through memory

analysis.

3.1 General Overview

The overview of this obfuscated malware detection

framework is depicted in Figure 1. The components

of the proposed framework include:

• Memory Dump File: Memory dumps can be

obtained by using programs such as MAGNET

RAM, ManTech Memory DD, Forensic Tool Kit

(FTK), or virtual machine managers with the

memory capturing feature. This is a snapshot

showing the activity that took place in memory on

the system (MAG, 2021)(Man, 2021)(For, 2021).

• Volatility: is a completely open collection of

tools, implemented in Python under the GNU

General Public License, to extract digital arti-

facts from volatile memory (RAM) samples. (Vol,

2016).

• VolMemLyzer-V2: The memory feature extrac-

tor for learning-based solutions with the 26 new

features implemented as part of the proposed

model to target obfuscated and hidden malware.

VolMemLyzer extracts the features using volatil-

ity plugins and generates a CSV ﬁle(Lashkari

et al., 2020).

• CSV Feature File: This is the output from the

VolMemLyzer feature extractor, which contains

all the features that have been extracted in a com-

pact comma-separated values ﬁle (CSV).

• Ensemble Learning: A machine learning tech-

nique that focuses on combining classiﬁers to

cover its weaknesses. As some classiﬁers are eas-

ily swayed by outliers or have a high bias, ensem-

ble learning allows these weaknesses to have less

impact on the overall results (Ens, 2021). The

stacking ensemble technique was used for this

framework which has two layers of classiﬁers.

• Malicious and Benign Classiﬁcation output: The

binary output for each memory dump ﬁle that

shows whether there is a malicious activity or be-

nign activity.

Detecting Obfuscated Malware using Memory Feature Engineering

181

Figure 1: Malware Memory Analysis Process.

3.2 Proposed Features

The ﬁrst step in this model is to obtain the memory

dump, which is compatible with the current Volatil-

ity version 2.6 (Vol, 2016) used for the framework

with the VolMemLyzer (Lashkari et al., 2020). The

memory dumps are then passed to the VolMemLyzer

feature extractor, which uses Volatility to extract 58

features. Among these 58 features, the newly added

26 features speciﬁcally focus on targeting obfuscated

and hidden malware, as explained in this section.

There are ﬁve different categories that these fea-

tures belong to from Volatility. The ﬁrst category is

called Malﬁnd, which detects potential malicious ex-

ecutables that are usually DLLs associated with Tro-

jan malware. The next category is called Ldrmodule,

which gives information on potential injected code

into the system, which is often the way which spyware

enters the system. The Handle category is the one

that looks at the type of information in memory and

its classiﬁcation. The Process View features show the

process list with information that can be used to ﬁnd

malicious processes. The last feature type is the API-

hook features which show the total number of API-

hooks of key types. Table 1 depicts the features ex-

tracted for the memory analysis framework.

3.3 Detection Model

Once these features are extracted, they are ready to be

fed into the proposed ensemble learning. The ensem-

ble learner has two stages, being the training stage and

the validation stage. In the training stage, the ensem-

ble learner runs the base learners, and the prediction

results from these classiﬁers are used as input for the

second layer classiﬁer. After the ensemble learner is

trained, it is then validated, going through the same

process as the training to validate the data set results

and ensure that the training was successful.

There exist several ensemble learning techniques

such as stacking, voting, boosting, bagging etc. In

voting, the weights given by the user are used to com-

bine the classiﬁers, whereas stacking achieves this

aggregation with a meta classiﬁer. In this proposed

work, stacking is selected as the method for ensemble

learning due to the speed and variance performance.

As mentioned above, the ﬁrst layer runs individually,

allowing them to run in tandem and reduce the time

needed for classiﬁcation. The second layer deals with

a slight variance of inputs which allows it to be run

quickly after the ﬁrst layer is ﬁnished. The differ-

ent classiﬁers can compensate for each other’s weak-

nesses, keeping the accuracy high while classifying

fast.

As there are a plethora of machine learning clas-

siﬁers, it is vital to identify the suitable classiﬁer

that can be applied to the proposed model. Usually,

the classiﬁer is selected based on the type of dataset

used for classiﬁcation. This work’s chosen classiﬁers

are SVM, Decision Tree, Linear Perceptron, Naive

Bayes, Random Forest, and KNN as base learners, ex-

perimenting with different combinations. However,

only three were selected at a time, as the proposed

model developed using Python is built to use three

base learners and one meta learner. Similar to base

learners, different meta-learners such as SVM, KNN,

Naive Bayes, and Logistic Regression were also used

for ﬁnding the best classiﬁer. All these classiﬁers

were chosen with the goal in mind for speed and ac-

curacy. The best combination among these will be se-

lected in the experimentation phase. Finally, the meta

learner outputs the binary results showing whether the

memory snapshot was malicious or benign. Figure 2

shows the different base learners and meta learners

used in the proposed model.

4 CREATING A NEW DATASET

As the proposed malware detection framework fo-

cuses explicitly on targeting obfuscated malware, a

dataset is developed to simulate real-world conditions

close to the malware found in the real world.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

182

Table 1: Extended Feature List.

Feature Type Feature List Feature Discription

commitCharge Total number of Commit Charges

protection Total number of protection

Malﬁnd uniqueInjections Total number of unique injections

avgMissingFromLoad

The average amount of modules missing from the load list

avgMissingFromInit

The average amount of modules missing from the initilization list

Ldrmodule avgMissingFromMem

The average amount of modules missing from memory

port Total number of port handles

ﬁle Total number of ﬁle handles

event Total number of event handles

desktop Total number of desktop handles

key Total number of key handles

thread Total number of thread handles

directory Total number of directory handles

semaphore Total number of semaphore handles

timer Total number of timer handles

section Total number of section handles

Handles mutant Total number of mutant handles

pslist Average false ratio of the process list

psscan Average false ratio of the process scan

thrdproc Average false ratio of the third process

pspcid Average false ratio of the process id

session Average false ratio of the session

Process View deskthrd Average false ratio of the deskthrd

nhooks Total number of apihooks

nhookInLine Total number of in line apihooks

Apihooks nhooksInUsermode Total number of apihooks in user mode

Figure 2: Stacked Ensemble Learning Classiﬁers.

4.1 Overview

In this research, a dataset (MalMemAnalysis-2022)

of 58,596 records with 29,298 benign and 29,298

malicious records is created by capturing malicious

as well as benign dumps. For capturing malicious

memory dumps, 2,916 malware samples collected

Detecting Obfuscated Malware using Memory Feature Engineering

183

from VirusTotal that have different malware cate-

gories including Ransomware, Spyware, and Trojan

Horse as listed in the Table 2, are executed in a

VM with 2 GigaBytes of memory. Similarly, for the

creation of benign memory dumps, normal user be-

haviour is captured by using various applications in

the machine. The detailed process will be discussed

in the below section. (New dataset will be avail-

able in “https://www.unb.ca/cic/datasets/MalMem-

2022.html”).

Table 2: Malware sample count.

Malware Category Malware

Families

Count

Trojan Horse

Zeus 195

Emotet 196

Refroso 200

scar 200

Reconyc 157

Spyware

180Solutions 200

Coolwebsearch 200

Gator 200

Transponder 241

TIBS 141

Ransomware

Conti 200

MAZE 195

Pysa 171

Ako 200

Shade 220

4.2 Creating Dataset

Four main steps were considered in this dataset cre-

ation: research, memory dump extraction, memory

dump transfer, and feature extraction.

• First step is the research of the malware category,

family, and sample type. It is important to have

malware that simulates as close to a real-world ex-

ample as possible. As such, malware designed to

speciﬁcally target old systems that are no longer

in use and do not work on newer systems would

not accurately detect the malware of current sys-

tems. This is the reason why in-depth research

was done on each family and type of malware.

Based on the research, we have collected a mini-

mum of 100 and a maximum of 200 malware sam-

ples from ﬁve different families in three malware

categories: Trojan Horse, Ransomware, and Spy-

ware.

• The second step is memory dumping. The mem-

ory dump can be activated outside the virtual ma-

chine, where the memory snapshot is captured

from using the VirtualBox virtual machine man-

agement system. This ensures that the memory

dump is not contaminated with a process usually

not on the typical system. The memory dump is

captured from a Windows10 system rather than a

windows XP or older system that is not used as

much. This is to ensure that the malware being

tested is as close to a real-world simulation as pos-

sible. To expand the dataset, this process was au-

tomated where 2,916 malware samples from three

malware categories including Trojan Horse, Ran-

somware, and Spyware were executed in the VM.

As it is important to have some benign processes

executed during the malicious memory dump cre-

ation, different applications in Windows VM were

opened along with executing the malware sam-

ples. This is done to make sure that the classiﬁer

is not able to determine the difference just based

on the benign processes alone. For each sample

execution, 10 memory dumps, each with a 15 sec-

onds gap, were captured to ensure no malware

behaviour is left out, and extracted 29,298 mali-

cious memory dumps. For benign dumps, normal

user behaviour is captured by using different ap-

plications in the machine and performed oversam-

pling using SMOTE algorithm to make the dataset

balanced. Unlike other oversampling methods,

SMOTE does not generate duplicates instead pro-

duces synthetic values that are negligibly distinct

from the actual values.

• The third step consists of transferring the result-

ing memory dump ﬁles to a Kali Linux machine to

perform the feature extraction using the VolMem-

Lyzer with the 26 new features added to target

malware obfuscation.

• The fourth main step on the initial process was the

feature extraction of the memory dump ﬁles and

the creation of the ﬁnal combined CSV ﬁle for all

tested memory dump ﬁles, which is to be used in

the ensemble learning system. After the memory

dumps were acquired, the VolMemLyzer feature

extractor ran on all the memory dumped ﬁles in

the folder and generated the resulting CSV ﬁle to

be used in the ensemble learning system.

sectionEXPERIMENTS To ﬁnalize our proposed

model, we have used the newly created dataset. The

detailed experimental setup, along with the ﬁnalized

model, is discussed in the below sections.

4.3 Experimental Setup

A python code and a bash script are used to execute

the malware samples on a 64-bit Windows 10 isolated

virtual machine inside Oracle Virtual Box and cap-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

184

tured the local machine’s memory dumps. For the fea-

ture extraction, we created the CSV ﬁle with features

from the captured memory dump using VolMemLyzer

feature extractor for learning systems, publicly avail-

able on GitHub (Lashkari et al., 2020). In addi-

tion to that, for developing stacked ensemble learn-

ers, python was used with the Sklearn library and de-

ployed in the Jupyter Notebook IDE for simplifying

the development of model (skl, 2021).

4.4 Finalizing The Proposed Model

This section ﬁnds the best combination of base learn-

ers and meta learners by performing several experi-

ments. First, each base-learner is evaluated using the

created dataset, and results are analyzed using differ-

ent evaluation metrics, including Accuracy, weighted

average Precision, weighted average Recall, and F1-

score, as shown in Table 3. From the results, it can

be identiﬁed that RF, Decision Tree, and KNN exhib-

ited better performance, whereas Linear Perceptron

has the least performance.

Table 3: Individual Classiﬁers Result.

Classiﬁers

Pre. Rec.

F1 Acc.

RF 0.98 0.97 0.97 0.97

NB 0.92 0.92 0.92 0.92

DT 0.97 0.97 0.97 0.97

KNN 0.95 0.95 0.95 0.95

SVM 0.91 0.90 0.90 0.90

LP 0.61 0.59 0.53 0.60

To select the best stacking model and ﬁnalize

it, different combinations of base-learners and meta-

learners were considered and the top four highest ac-

curacy results among them are shown in Table 4. Re-

sults proved that the performance of the model is

increased when ensemble methods like stacking are

used. One of the main goals of the research was to fo-

cus on overall speed of which classiﬁcation speed has

been optimized. The classiﬁers that were considered

had a fast classiﬁcation speed while also able to work

on a large variance of data for the ﬁrst layer. The sec-

ond layer classiﬁers didn’t need a large variance so

strictly speed and accuracy was looked into. Stacking

was chosen to satisfy the goal of a fast speed in clas-

siﬁcation since stacking allows ﬁrst layer classiﬁers

to run in parallel. At a fast speed, it is able to check

the results from multiple classiﬁers and determine the

right binary classiﬁcation. Moreover, it is also iden-

tiﬁed that although some classiﬁers perform poorly,

their performance can be enhanced when combined

with some other classiﬁers.

Hence, based on the results, the selected classiﬁers

Table 4: Ensemble Model Comparison.

Base

Learner

Meta

Learner

Pre. Rec.

F1 Acc.

NB, LP, DT

SVM 0.96 0.95 0.95 0.95

SVM, LP, DT

KNN 0.97 0.96 0.96 0.96

NB, LP, RF LR

0.98 0.97 0.97 0.97

NB, RF, DT LR

0.99 0.99 0.99 0.99

were Naive Bayes, Random Forest, and Decision Tree

for the base-learners and Logistic regression as the

meta-learner in the ﬁnalized model. Figure 3 shows a

confusion matrix representing the true positive, false

positive, false negative and true negative.

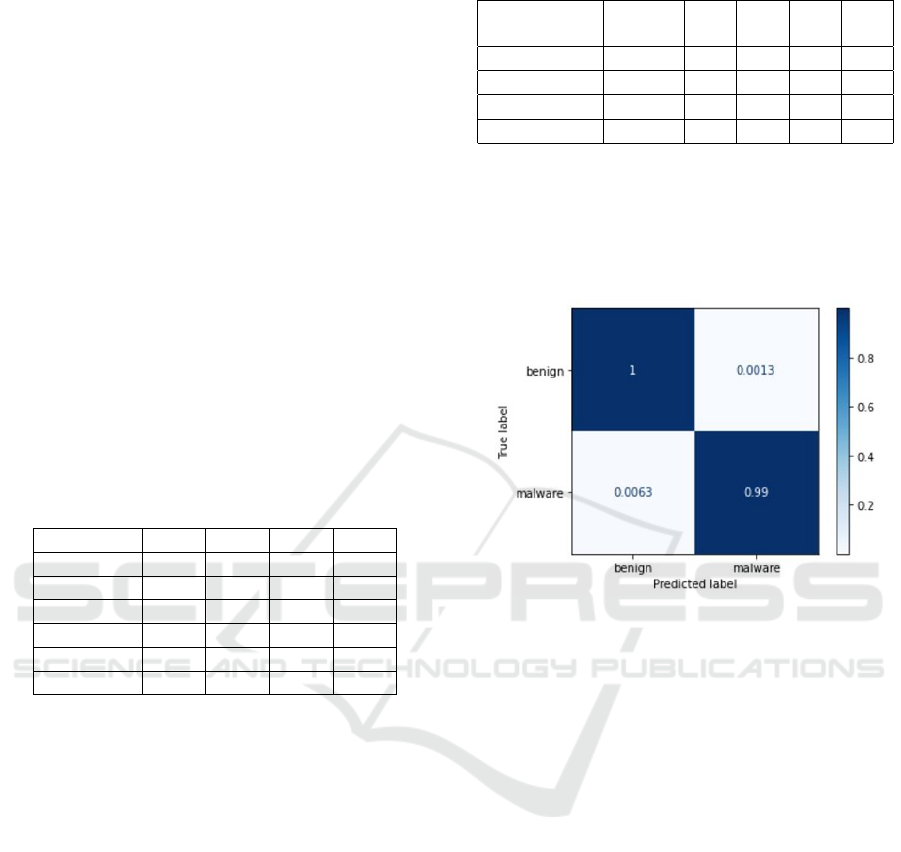

Figure 3: Confusion matrix results.

Furthermore, since the memory dump used for

feature extraction is taken from a Windows10 system,

the size of each memory dump is 2GB which is quite

large. However, the resulting CSV ﬁles’ size is around

2KB, allowing for scalability in the proposed model.

Moreover, this model could solve the complexity and

time-consuming issues found in the existing works.

Table 5 shows the approximate time for samples

to be classiﬁed as malicious or benign. From this, it

can be identiﬁed that the classiﬁcation time displayed

is linear, which proves the model’s scalability. Over-

all, the proposed stacked ensemble model has a clas-

siﬁcation time of around 0.008 milliseconds per sam-

ple, which is signiﬁcantly lower than most of the other

models listed in the related works (the second column

of the Table 6).

4.5 Comparing Proposed Model With

Relevant Studies

The comparison mainly focused on existing works

that targeted obfuscated malware or hidden malware

that belonged to one of the three categories of Ran-

somware, Spyware, and Trojan Horse malware. Table

6 shows the results of the four various related works

Detecting Obfuscated Malware using Memory Feature Engineering

185

Table 5: Approximate Classiﬁcation Time Based On The

Number Of Samples.

No. of samples Time (Sec)

50 0.4

100 0.8

150 1.2

200 1.6

250 2

300 2.4

in the targeted area. Due to the differences in datasets

and approaches, the exact results are difﬁcult to com-

pare and often biased towards a speciﬁc method.

The four criteria for comparison were overall ac-

curacy of the technique, overall speed per sample,

memory usage needed to classify a sample, and over-

all model complexity. Based on these criteria, each

work was given a result on a scale from very low to

very high. These four related works are then com-

pared to the proposed model, Detecting Obfuscated

Malware using Memory Feature Engineering.

The ﬁrst work selected for comparison is the work

by (Xu et al., 2017) which has very impressive ac-

curacy and medium complexity. However, the mem-

ory usage is high, and the work did not mention the

speed. In the second work, (Bozkir et al., 2021) de-

tected obfuscated malware with high accuracy and a

rate of 3.56 seconds to detect per sample. Although

the complexity of this model is high, the primary con-

cern is the memory usage as the system needs to store

the RGB image representation for each sample and

three different images for the creation of the ﬁnal im-

age. The third work is from (Javaheri and Hossenin-

zadeh, 2017) which has a model that requires a lower

amount of memory with high speed. However, it is

worth noting that this framework does have increased

complexity and has less accuracy than the previous

methods. The fourth work is from (Nissima et al.,

2019), and the model exhibits a high accuracy with

lower complexity compared to the previous two meth-

ods. However, it is slower, and the amount of memory

used is not mentioned.

Comparing these related works shows the impor-

tance of a fast detection method for obfuscated or hid-

den malware. The high amount of obfuscated mal-

ware has made speed and scalability a requirement

rather than a luxury. From the results, it can be identi-

ﬁed that the new features and stacked machine learn-

ing model improve the overall accuracy for obfus-

cated and hidden malware detection.

5 CONCLUSIONS

As networking and the internet evolved, malware au-

thors swiftly adapted their malicious code, and most

of them are used to exploit vulnerabilities in Mi-

crosoft Windows. Although several techniques ex-

ist to detect obfuscated or hidden malware based on

memory analysis, the time consumption and com-

plexity of the works are high. As a solution for this

problem, obfuscated malware detection model is pro-

posed, which extracts features from memory dumps

using VolMemLyzer, a feature extractor for learning

systems. For this, a dataset (MalMemAnalysis-2022)

was constructed by executing malware samples from

three main categories, Spyware, Ransomware, and

Trojan Horse malware, in an isolated virtual machine.

The model was designed to use memory fea-

ture engineering with a stacked ensemble learner to

achieve the goals of this research. Different combi-

nations of base-learners and meta-learners were used

using the created dataset, and the ﬁnal model was se-

lected based on different evaluation metrics. The best

results were exhibited when Naive Bayes, Decision

Tree, and Random Forest were used as base learners

and Logistic Regression as the meta-learner with an

accuracy of 99%. Moreover, this model is compared

with related works that focus on obfuscated malware

detection in memory. The comparison results showed

that the proposed model has less classiﬁcation time

and better performance.

5.1 Future Work

Detecting obfuscated malware in memory using fea-

ture engineering with the VolMemLyzer shows a

quick and precise way of dealing with malware that

is attempting to hide in memory. The next step of

this research is to work with more advanced designer

malware that is speciﬁcally designed for different sys-

tems, including Mac and Linux-based systems. More-

over, this can ensure that older systems are protected

with this detection model and can be incorporated

with upcoming systems. This would protect most sys-

tems from obfuscated malware attacks by focusing on

automated detection. With ransomware running ram-

pant in today’s society, ensuring that this malware is

detected and dealt with before it causes harm is ex-

tremely important. The speed of this model can help

detect the malware before such harm is caused and

thus reduce overall harm.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

186

Table 6: Comparison Table With Other Obfuscated Malware Detection Methods.

Method Accuracy Speed

Memory

Usage

Complexity

(Xu et al., 2017)

Very High

Not Mentioned

High Medium

(Bozkir et al., 2021)

High Medium Very High High

(Javaheri and Hosseninzadeh, 2017)

Medium High Low High

(Nissima et al., 2019)

High Medium

Not Mentioned

Medium

Proposed Model

High Very High Low Medium

ACKNOWLEDGEMENTS

We thank the Mitacs Program for providing the

Global Research Internship (GRI) opportunity to sup-

port this project.

REFERENCES

(2016). Volatility framework - volatile mem-

ory extraction utility framework. https:

//github.com/volatilityfoundation/volatility. (Ac-

cessed on 08/10/2021).

(2021). Ensemble methods in machine learn-

ing: What are they and why use them?

https://towardsdatascience.com/ensemble-methods-

in-machine-learning-what-are-they-and-why-use-

them-68ec3f9fef5f5. (Accessed on 08/10/2021).

(2021). Ftk

 forensic toolkit: The gold standard in digital

forensics for over 15 years. https://www.exterro.com/

forensic-toolkit. (Accessed on 08/9/2021).

(2021). Magnet ram capture: What does it do?

https://www.magnetforensics.com/resources/

magnet-ram-capture/. (Accessed on 08/11/2021).

(2021). Mantech memory dd version 1.3 for

forensic analysis of computer memory.

https://investor.mantech.com/press-releases/press-

release-details/mantech-memory-dd-version-13-

forensic-analysis-computer-memory. (Accessed on

08/12/2021).

(2021). Understanding logistic regression in python. https:

//realpython.com/logistic-regression-python/. (Ac-

cessed on 08/10/2021).

Block, F. and Dewald, A. (2017). Linux memory forensics:

Dissecting the user space process heap. Digital Inves-

tigation, 22:pp. 66–75.

Bozkir, A. S., Tahilioglu, E., Aydos, M., and Kara, I.

(2021). A malware detection approach through mem-

ory forensics, manifold learning and computer vision.

Science Direct, 103.

Case, A. and Richard, G. G. (2016). Detecting objective-c

malware through memory forensics. Digital Investi-

gation, 18.

Dai, Y., Li, H., Qian, Y., and Lu, X. (2018). A malware clas-

siﬁcation method based on memory dump grayscale

image. Digital Investigation, 27:pp. 30–37.

Dolan-Gavitt, B. (2008). Forensic analysis of the windows

registry in memory. Digital Investigation, 5:pp. 26–

32.

Javaheri, D. and Hosseninzadeh, M. (2017). A framework

for recognition and confronting of obfuscated mal-

wares based on memory dumping and ﬁlter drivers.

Kang, J., Jang, S., Li, S., Jeong, Y.-S., and Sung, Y. (2019).

Long short-term memory-based malware classiﬁca-

tion method for information security. Computers and

Electrical Engineering, 77.

Kawakoya, Y., Iwamura, M., and Itoh, M. (2010). Mem-

ory behavior-based automatic malware unpacking in

stealth debugging environment. 5th International

Conference on Malicious and Unwanted Software,

Nancy, Lorraine, pages pp. 39–46.

Kumara, A. and Jaidhar (2016). Leveraging virtual machine

introspection with memory forensics to detect and

characterize unknown malware using machine learn-

ing techniques at hypervisor. Digital Investigation,

23:pp. 99–123.

Lashkari, A. H., Li, B., Carrier, T. L., and Kaur, G.

(2020). Volatility memory analyzer. https://github.

com/ahlashkari/VolMemLyzer.

Lewis, N., Case, A., Ali-Gombe, A., and III, G. G. R.

(2018). Memory forensics and the windows subsys-

tem for linux. Digital Investigation, 26:pp. 3–11.

Li, H., Zhan, D., Liu, T., and Ye, L. (2019). Using deep-

learning-based memory analysis for malware detec-

tion in cloud. 2019 IEEE 16th International Con-

ference on Mobile Ad Hoc and Sensor Systems Work-

shops (MASSW), Monterey, CA, USA, pages pp. 1–6.

Martin-Perez, M., Rodriguez, R. J., and Balzarotti, D.

(2021). Pre-processing memory dumps to improve

similarity score of windows modules. Computer &

Security, 101.

Mishra, P., Aggarwal, P., Vidyarthi, A., Singh, P., Khan,

B., Alhelou, H. H., and Siano, P. (2021). Vmshield:

Memory introspection-based malware detection to se-

cure cloud-based services against stealthy attacks.

IEEE Transactions on Industrial Informatics.

Nissima, N., Lahava, O., Cohena, A., and Rokacha, Y. E. L.

(2019). Volatile memory analysis using the minhash

method for efﬁcient and secured detection of malware

in private cloud. Computers & Security, 87.

Okolica, J. and Peterson, G. L. (2010). Windows operating

systems agnostic memory analysis. Digital Investiga-

tion, 7:pp. 48–56.

Detecting Obfuscated Malware using Memory Feature Engineering

187

Okolica, J. S. and Peterson, G. L. (2011). Windows driver

memory analysis: A reverse engineering methodol-

ogy. Computers & Security, 30:pp. 770–779.

S, A., S, S., Poornachandran, P., krishna Menon, V., and P,

S. K. (2019). Deep learning framework for domain

generation algorithms prediction using long short-

term memory. ICACCS.

Sadek, I., Chong, P., Rehman, S. U., Elovici, Y., and Binder,

A. (2019). Memory snapshot dataset of a compro-

mised host with malware using obfuscation evasion

techniques. Data in brief, 26.

Sai, K. V. N., Thanudas, B., Chakraborty, A., and Manoj,

B. S. (2019). A malware detection technique using

memory management api call mining. IEEE.

Sharafaldin, I., Gharib, A., and Lashkari, A. H. (2017).

Botviz: A memory forensic-based botnet detection

and visualization approach. International Carnahan

Conference on Security Technology (ICCST).

Shree, R., Shukla, A. K., Pandey, R. P., Shukla, V., and

Bajpai, D. (2021). Memory forensic: Acquisition and

analysis mechanism for operating systems. Materials

Today: Proceedings.

Sihwail, R., Omar, K., Arifﬁn, K. A. Z., and Afghani, S. A.

(2019). Malware detection approach based on artifacts

in memory image and dynamic analysis. Applied Sci-

ences.

Sklavos, N. (2017). Malware in iot software and hardware.

In Workshop on Trustworthy Manufacturing and Uti-

lization of Secure Devices (TRUDEVICE’16), pages

8–11.

Socala, A. and Cohen, M. (2016). Automatic proﬁle gener-

ation for live linux memory analysis. Digital Investi-

gation, 16:pp. 11–24.

Statista (2021). Statista: annual number of mal-

ware attacks worldwide from 2015 to 2019.

https://www.statista.com/statistics/873097/

malware-attacks-per-year-worldwide/. (Accessed on

08/10/2021).

uttgen, J. and Cohen, M. (2014). Robust linux memory

acquisition with minimal target impact. Digital Inves-

tigation, 11:pp. 112–119.

Thantilage, R. and Jeyamohan, N. (2017). A volatile mem-

ory analysis tool for retrieval of social media evidence

in windows 10 os based workstations. National Infor-

mation Technology Conference (NITC).

Xu, Z., Ray, S., Subramanyan, P., and Malik, S. (2017).

Malware detection using machine learning based anal-

ysis of virtual memory access patterns. Design, Au-

tomation & Test in Europe Conference & Exhibition

(DATE), Lausanne, pages pp. 169–174.

Yucel, C. and Koltuksuz, A. (2019). Imaging and evaluat-

ing the memory access for malware. Forensic Science

International: Digital Investigation, 32.

Zhang, R., Wang, L., and Zhang, S. (2009). Windows mem-

ory analysis based on kpcr. International Conference

on Information Assurance and Security.

Zhang, S., Wang, L., and Zhang, L. (2011). Extracting win-

dows registry information from physical memory. 3rd

International Conference on Computer Research and

Development.

Zhang, S., Wang, L., Zhang, R., and Guo, Q. (2010). Ex-

ploratory study on memory analysis of windows 7

operating system. International Conference on Ad-

vanced Computer Theory and Engineering(ICACTE),

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

188
