Automatic Code Generation for a Seamless Low-cost Development

Platform

Sven Jacobitz and Xiaobo Liu-Henke

Ostfalia University of Applied Sciences, Department of Mechanical Engineering, Institute for Mechatronics,

Salzdahlumer Str. 46/48, 38302 Wolfenb

uttel, Germany

Keywords:

Automatic Code Generation, Model Transformation, Rapid Control Prototyping, Model Based Design, Open

Source.

Abstract:

The automatic generation of Electronic Control Units (ECU) software from functional models is becoming

an increasingly important part of the development process. At ﬁrst, this paper presents the demand towards

a tool chain for functional development of embedded systems and then introduces the low-cost development

platform LoRra on the basis of the seamless model-based rapid control prototyping development process. The

core of the paper is the conception and realization of the automatic code generator of the LoRra platform. It

generates modular, ﬂexibly usable C code, suitable for real-time implementation on a microcontroller. The

code is generated from models of the open source CAE software Scilab / Xcos, which can be used across

domains. A simple case study is used to verify the function of the generated code under real-time conditions.

1 INTRODUCTION

A key challenge for innovative enterprises today is

to develop ever more complex products to production

maturity ever more quickly. To meet the growing re-

quirements resulting from this, more and more hard-

ware, software and technical systems are being inte-

grated. The core of the resulting embedded mecha-

tronic systems are Electronic Control Units (ECU)

with the intelligent signal processing functions imple-

mented on them. Due to the rapidly increasing scope

of functionality and degree of networking, this results

in increasingly complex software components (Akdur

et al., 2021).

To enable small and medium-sized enterprises

(SMEs) to offer mechatronic products competitively,

a seamless, highly automated low-cost rapid control

prototyping development platform (LoRra) was de-

veloped at Ostfalia as part of an EU-funded research

project. This is being used in the Lower Saxony

Future Laboratory for Mobility to design intelligent

functions.

This paper introduces the automatic code genera-

tion approach of the LoRra platform, which contains

a model-to-text transformation for functions modeled

the open source CAE tool Scilab / Xcos. The rest

of the paper will be structured as follows. In sec-

tion 2 the LoRra platform for rapid control proto-

typing (RCP) is introduced, followed by the state of

knowledge for automatic code generation in section 3.

The concept of the code generator is introduced in

section 4 and the realization is described in section 5.

Finally, the results of the case study are presented in

section 6. The paper closes with an conclusion and

outlook to future work in section 7.

2 RCP USING THE LoRra

PLATFORM

RCP is a seamless, veriﬁcation-oriented methodol-

ogy for the development of complex ECU functions

(e.g. closed-loop control systems) (Liu-Henke et al.,

2021). It is effectively used in the automotive and

aerospace industries. Through the consistent use of

models, RCP enables the testing of functions at an

early stage of development (Hanselmann, 1996). The

whole process is accompanied by Model-in-the-Loop

(MiL), Software-in-the-Loop (SiL) and Hardware-in-

the-Loop (HiL) simulations. It can be subdivided into

the process steps model building, analysis and synthe-

sis, automated code generation, automated implemen-

tation and online experiment (L

uckel et al., 2001).

The basis are simulations of the functional behav-

ior, usually described by a block diagram model, in a

294

Jacobitz, S. and Liu-Henke, X.

Automatic Code Generation for a Seamless Low-cost Development Platform.

DOI: 10.5220/0010894300003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 294-301

ISBN: 978-989-758-550-0; ISSN: 2184-4348

combination with a simulation of the controlled sys-

tem.

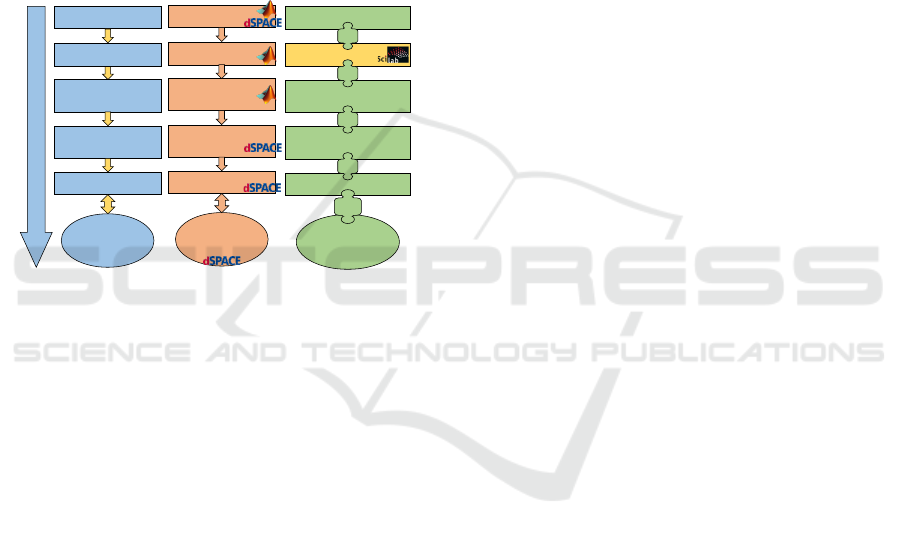

As illustrated in Figure 1, a Computer Aided Engi-

neering (CAE) tool chain is used throughout the entire

RCP process. The combination of Matlab / Simulink

and dSPACE is often used in the industry. It sup-

ports the process by several tools. Since high costs

are associated with the acquisition and maintenance,

the low-cost alternative LoRra was developed as part

of several research projects at Ostfalia (Jacobitz and

Liu-Henke, 2020). LoRra is based on low-cost soft-

ware and hardware and is suitable for the develop-

ment of functions in a wide variety of domains due to

its modular, ﬂexible structure.

Version Datum Verwendung Quelle Titel

1.4en 10.07.2019 diverses {Liu-Henke

2015 #77}

Konzept LoRra

Low-Cost

Scilab/Xcos

Xcos-Coder

Xcos specific code

Microcontroller

Gap in the process:

Need for action!

Gap in the process:

Need for action!

Gap in the process:

Need for action!

Modelling

Automatic C-Code

generation

Automatic

implementation

Target Hardware

RCP step

Online experiment

with HMI

RCP development platform

Analysis and Synthesis

High-Cost

Matlab / Simulink

expensive

Simulink Coder

expensive Toolbox

e.g. Scalexio system

expensive

Real-Time Interface

expensive

ControlDesk

expensive

Model libraries

expensive

Modelling

Automatic C-Code

generation

Automatic

implementation

Target Hardware

RCP step

Online experiment

with HMI

RCP development platform

Analysis and Synthesis

LoRra-iGES

For online measurement

and calibration

LoRra-RTI

executable program file

LoRra approach

Scilab/Xcos

LoRra-Code-generator

efficient and adaptable code

Microcontroller

LoRra model libraries

Figure 1: RCP development process with high-cost solution

and LoRra approach (Jacobitz and Liu-Henke, 2020).

The open source tool Scilab / Xcos is used as

the central CAE environment, which is suitable for

simulating hybrid systems from a wide variety of

domains (Nikoukhah, 2006). With the help of the

model library, various continuous-time and discrete-

time model components can be reused and parame-

terized. Through the LoRra code generator, efﬁcient

C code, executable on low-cost target hardware such

as a microcontroller, is generated. Using the LoRra

Real-Time Interface (RTI) (Jacobitz and Liu-Henke,

2019), this code is then automatically implemented

into a run time environment and linked to the inter-

faces of the target hardware. A microcontroller is then

used to run the real-time simulation and to carry out

the online experiments. The measurement and cali-

bration tasks during these experiments are supported

by the human-machine interface iGES.

3 STATE OF KNOWLEDGE

Automatic code generation is an essential part of the

RCP process. It leads to reproducible results as well

as a fast implementation of the function designed

and tested in the simulation model. Moreover, it

avoids random errors and can generate highly efﬁ-

cient code due to special hardware-related optimiza-

tions (Toeppe et al., 1999). The basis for automatic

code generation is the model-to-text transformation of

the function model, which is usually given by a block

diagram model.

In the automotive industry, automatic code gen-

erators have become standard development tools for

ECU functions (Franco et al., 2016). Even in the

aerospace industry, functions are frequently devel-

oped with the help of automatic code generators. The

market offers a correspondingly large selection of dif-

ferent solutions and systems.

The CAE tool Matlab/Simulink is widely used

in industry. With the extensions Simulink Coder

and Embedded Coder, Simulink models can be trans-

formed into universally usable or target hardware-

speciﬁc optimized code (Lambersk

y et al., 2014).

Many additional extensions are also available, e.g.

for linking hardware peripherals. With TargetLink,

dSPACE also offers a powerful production code gen-

erator that generates highly efﬁcient code while tak-

ing target hardware-speciﬁc optimization criteria into

account (Hanselmann et al., 1999).

The open-source CAE tool Scilab / Xcos, succes-

sor of Scicos developed within the Metalau project,

has an integrated code generator. This generates C

code for independent system simulation (so-called

standalone simulation), which is intended for use with

a functional mock-up interface, for example (Bucher

and Balemi, 2005). For execution on a microcon-

troller under real-time conditions without manual ad-

justments, this is not suitable due to the program and

memory structure.

Extensions such as X2C (Grabmair et al., 2014),

developed at the Linz Center of Mechatronics, can

also be used to generate efﬁcient code from Xcos

models that can be executed on microcontrollers.

However, these extensions do not have the necessary

interfaces for integration in the LoRra RCP process.

To realize a seamless low-cost RCP development plat-

form, the LoRra code generator, which is the core of

this paper, was therefore designed and realized.

4 CONCEPTION OF THE LoRra

CODE GENERATOR

The basis for consistent use in the cost-effective RCP

development platform LoRra is the efﬁcient and at

the same time ﬂexible transformation of Xcos mod-

els into microcontroller-suitable C code. Basics of

modelling and simulation using Xcos, as well as the

Automatic Code Generation for a Seamless Low-cost Development Platform

295

mathematical background can be found in (Campbell

et al., 2010). The generated code must correctly re-

produce the model behavior, be reusable at the same

time, and have interfaces for integration into a real-

time environment (e.g. for the step from SiL to HiL

simulation).

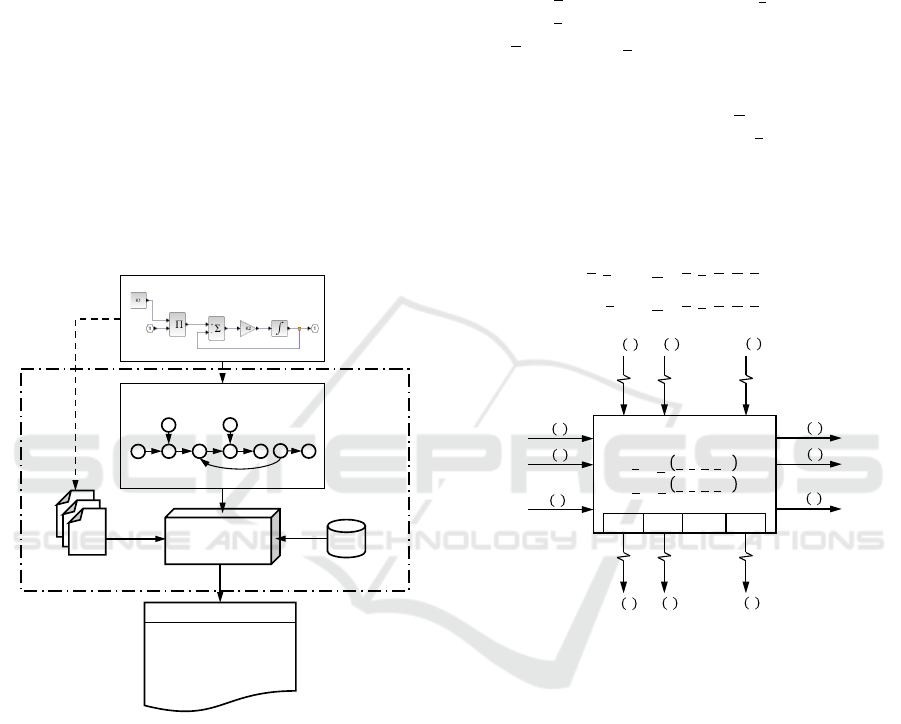

To achieve these goals, the LoRra code genera-

tor is designed modularly with open interfaces. Fig-

ure 2 illustrates the concept of code generation from

Xcos models, using the LoRra code generator. First,

a distinction is made between functional behavior of

the individual blocks (section 4.1) and a topological

description (section 4.2) - the interconnection of the

blocks with each other. Transformation algorithms

(section 4.3), which rely on external libraries, per-

form the model-to-text transformation and generate

the code for the LoRra Code Interface (LCI - sec-

tion 4.4).

Version Datum Verwendung Quelle Titel

2.0en 25.10.2021 Konzept Codegenerator

Transformation

algorithms

LCI interface

- Initialization

- Output calculation

- State calculation

- Derivation calculations

- Event calculation

- …

Topological description

∗ − ∗



̇



Input

Const. Const.

Product

Add

Product

Integrator

Output



Functional behavior

Xcos model

External

libraries

LoRra code generator

Figure 2: Concept of the LoRra code generator.

4.1 Functional Behavior

The functional behavior of a Xcos model is described

by blocks, which establish a relationship between the

inputs and outputs. A block in the model can be a

basic block or a hierarchy block. Hierarchy blocks

consisting of a subordinate model. For code gener-

ation, they are dissolved through their basic blocks

and topology. Their structure is only kept in the LCI

description (cf. section 4.4). Basic blocks establish

an atomic functional relationship between their inputs

and outputs and can thus be interpreted as operators of

the model.

Xcos performs hybrid simulations of continuous-

time and discrete-time systems. For this purpose, it

distinguishes between regular (time continuous) and

event (time discrete) signals. Figure 3 illustrates the

functional relationship between inputs and outputs of

a basic block. Using the general nonlinear state space

representation of a dynamic system with the continu-

ous states x, the discrete-time states z and the parame-

ter vector r, the relationship between the l regular in-

puts u and outputs y, where l is the number of regular

inputs and k the number of regular outputs, is estab-

lished (Nikoukhah and Steer, 1996). When the block

is activated by an event input d, the discrete-time

states and the event delay vector e

are calculated

according to Eq. (1). In addition, a non-continuous

change of the continuous states can also occur here.

An event d

is described by an impulse function at

time t

(Campbell et al., 2010).

[x,z]

= f

(x,z,u,d, r,t

)

= f

(x,z,u,d, r,t

)

(1)

Version Datum Verwendung Quelle Titel

1.0 11.10.2021 Ein- und Ausgänge eines Xcos Blocks















⋮



















⋮

…











…

















,1



,2



,

…

̇ = 

, , , , 

 = 

, , , , 

Ausgeführt bei Event Activation:

⋁





, 



= 

, , , , , 



�





= 

, , , , , 

Notation nach Engell.1997 / Krogh.Aug.1993 / Thoma.2002

Figure 3: Functional relationship between inputs and out-

puts of a basic block.

4.2 Topological Description

The model topology is represented by a directed multi

edge graph G according to Eq. (2). The basic blocks,

represented by a set of nodes V , are thereby linked

by regular edges R and event edges E. The deﬁnition

of regular edges is represented by Eq. (3), where v is

called the source node and w is called the target node.

Event edges behave equivalently, where event inputs

and outputs are linked.

G =

{

V,R,E

}

(2)

R =







{

v,w

}

: v,w ∈ V

y ∈ w

u ∈ v







(3)

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

296

4.3 Transformation Algorithms

The transformation algorithms perform the model-to-

text transformation. They consist mainly of two parts:

the function code generation and the linking of code

components.To generate the functional related code

of the basic blocks, detailed information about the

block operations are required. This is given by the

nonlinear state space representation, presented in sec-

tion 4.1. The algorithms, describing the block behav-

ior are stored in transformation rules. A distinction is

made here between three basic elements (Deppe and

Homburg, 1999):

• Indirect Link Calculation (ND): The calculated

outputs do not depend on the inputs without delay

(e.g. due to integration):



y|y ∈ v ∧

∂y

∂u

= 0



• Direct Link Calculation (D): The calculated

outputs depend on the inputs without delay:



y|y ∈ v ∧

∂y

∂u

6= 0



• State Calculation (S): Calculation of discrete

states and derivatives of continuous states.

This is necessary for a correct calculation sequence

especially for distributed simulation using multiple

computing units. Additionally, there must be algo-

rithms for the event calculations (E), performed dur-

ing event activation, which contain the evaluation of

Eq. (1).

The generated components of the functional code

are linked to the LCI-based C code under consider-

ation of the calculation sequence in such a way that

the ND calculations are carried out ﬁrst, since no in-

formation on the block inputs are necessary for this.

Then, the signals to calculate the D outputs are avail-

able. Finally the S calculations could be done. The

generated fragments of the ND, D, S and E calcula-

tion are merged and stored persistently.

4.4 LoRra Code Interface

The LCI aims at the reusability and universal applica-

bility of the generated code. In addition to the code,

information about the hierarchical model structure as

well as the interfaces are stored in suitable data for-

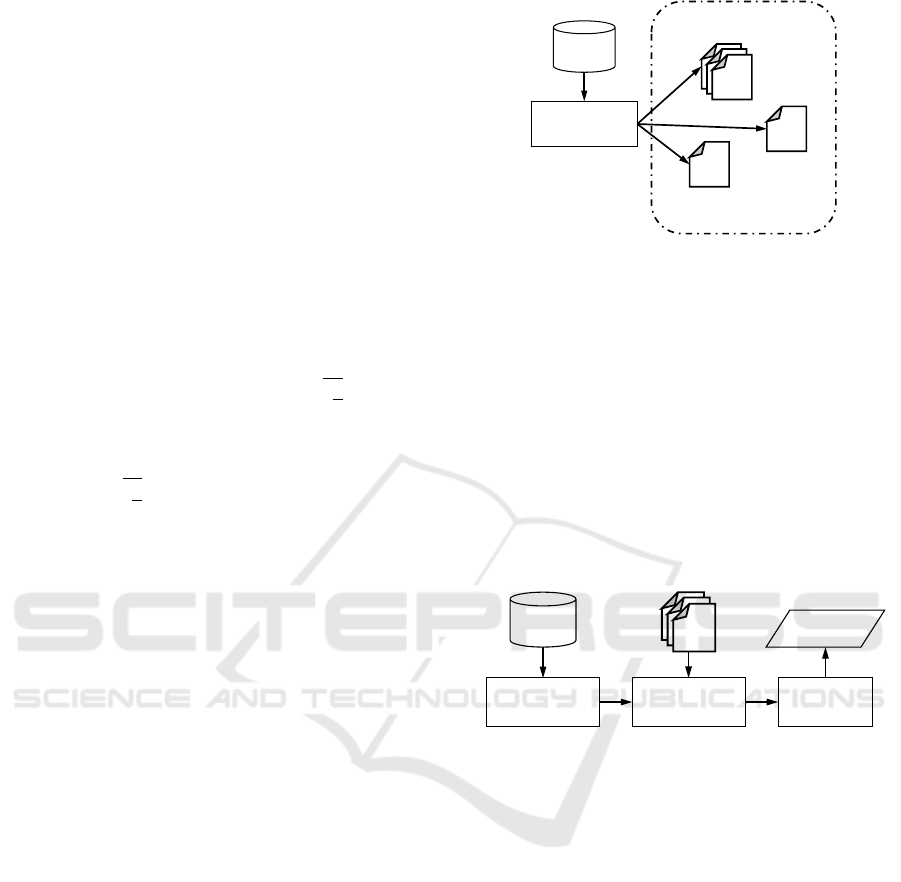

mats and integrated into an LCI package. Figure 4

illustrates the principle.

Standardized data structures and interfaces are

provided so that a function can be used without

knowledge of the inner structure of the code. Open in-

terfaces for model initialization, calculation of block

outputs (ND, D) and states (S) form the basis for the

reusability of a generated function.

Version Datum Verwendung Quelle Titel

1.0en 18.10.2021 diverses Konzept des LCI

Code generation

Xcos

model

C-Code

Model structure

Interface

information

LCI package

Figure 4: Concept of the LCI.

5 REALIZATION OF THE LoRra

CODE GENERATOR

The code generation according to the concept from

Figure 2 is realized by the process model shown in

Figure 5. First, the distinction between functional be-

havior and topology as well as a preparation of the

model structure is done by a pre-processing. Then,

the transformation is done by the transformation al-

gorithms. Last, a post-processing takes place, which

outputs the LCI package.

Version Datum Verwendung Quelle Titel

2.0en 28.06.2019 Ablaufdiagramm Codegenerator kurz

Preprocessing of

the model

Xcos

model

LCI

package

Transformation

algorithms

Post-

processing

Figure 5: Process of automatic code generation.

5.1 Pre-processing of the Model

The pre-processing is used to prepare the model

topology and to store it in a data structure, suitable

for code generation. The results are a ﬂat data ﬂow

graph G, deﬁned by Eq. (2), and the LCI informa-

tion for model structure and interfaces. The following

steps are performed during pre-processing:

• Composition of the data ﬂow graph

• Check for unsupported topology structures

• Optimization of topology

• Determination of the calculation sequence

A model-to-model transformation ﬁrst transforms the

Xcos model into a data ﬂow graph. Here, all infor-

mation relevant for code generation are transferred

and superﬂuous properties (e.g. for graphical repre-

sentation) are discarded. Hierarchy blocks are dis-

solved, resulting in a ﬂat graph only consisting of ba-

sic blocks. For each basic block, the relevant data

Automatic Code Generation for a Seamless Low-cost Development Platform

297

for code generation (e.g. variable names, dimensions

of inputs and outputs) are stored in a corresponding

structure. In addition, not explicitly given sizes of

regular signals are determined by backpropagation.

The structure of G is veriﬁed. Mainly this con-

tains the search for algebraic loops, which can be de-

tected as a cycle in the graph. Therefore, a depth-ﬁrst

search is performed, starting from the source nodes

deﬁned by Eq. (4). Sinks, deﬁned by Eq. (5) are han-

dled as leaf nodes. Going further, an optimization of

the graph structure can be done at this point. Here,

graph theory algorithms such as semantic matching

or intelligent AI-based methods can be used to opti-

mize various key performance indicators such as the

number of nodes or the over all complexity.

⊆ V ⇐⇒ ∀v ∈ V

: l = 0 (4)

⊆ V ⇐⇒ ∀v ∈ V

: l > 0 ∧ k = 0 (5)

In a ﬁnal step, the calculation sequence O is de-

termined. It speciﬁes the order in which outputs of

the blocks must be calculated in order to avoid in-

consistencies. Starting with the set of root nodes V

according to Eq. (4), a breadth-ﬁrst search based on

algorithm 9 is performed therefore. The algorithm is

performed, as long as the queue Q is not empty. The

ﬁrst element q is taken from the queue. If all prede-

cessor nodes N

−

(q) were visited and q is not already

within the calculation sequence, it is added. If q is not

a signal sink according to Eq. (5), all successor nodes

(q) of q are added to the queue.

Data: Set of root nodes V

Result: Calculation sequence O

1 Q ← V

;

2 while Q 6= ∅ do

3 q ← ﬁrst element of Q;

4 Q ← Q ∩ {q};

5 if N

−

(q) ∈ O ∧ ¬q ∈ O then

6 O ← O ∪

{

}

;

7 Q ← Q ∪ N

(q);

8 end

9 end

Algorithm 1: Breadth-ﬁrst search for determining the cal-

culation sequence.

5.2 Transformation Algorithms

A rule-based transformer is implemented to generate

the function code. For each supported basic block,

transformation rules that reﬂect the state space equa-

tion introduced in section 4.1 must be deﬁned. The

Scilab language is used as a descriptor for the trans-

formation rules. The conceptual structures of an Xcos

model deﬁned by the provided basic blocks. Mainly,

there is made a distinction between the calculation of

state derivations (deﬁned by the function f

in Fig-

ure 3), calculation of the outputs (deﬁned by the func-

tion f

in Figure 3) as well as the event based calcula-

tions deﬁned by (1). The LoRra code generator uses

the individual given transformation rules to map these

functions to the ND, D, S and E calculations.

The generated pieces of code are integrated into

a LCI conform C-Code by using a template based

approach. Thereby, the calculation sequence, deter-

mined by algorithm 1 is kept. Listing 1 contains the

template for calculating the outputs as an example.

The generated code components and other relevant in-

formation can be accessed via a predeﬁned structure.

1 l c i _status_t < lcg : f u nctionNa m e >

_ca l c O u t p u t s ( uint8_t iCall e r ) {

3 // Indirect link calculations

4 < lcg : c ode . calcND >

6 // Direct link calculations

7 < lcg : c ode . calcD >

9 return LCI_OK ;

10 }

Listing 1: Code template for the output calculation.

5.3 Post-processing

Within the post-processing, different tasks are exe-

cuted depending on the conﬁguration of the code gen-

erator. Here e.g. still another optimization on code

level or the production of a separate documentation

and the compilation of the program are possible. As

a result, an LCI package is created and saved persis-

tently. It can be embedded again in an Xcos model for

SiL simulations, for example, or in a real-time envi-

ronment for HiL simulations.

6 CASE STUDY

Various tests were successfully carried out to verify

the LoRra code generator. In the context of this paper,

the functionality is demonstrated by the case study

of a speed controlled DC motor. Here, a PI con-

troller according to Eq. (6) with anti-windup structure

is used to control the speed of the traction motor for

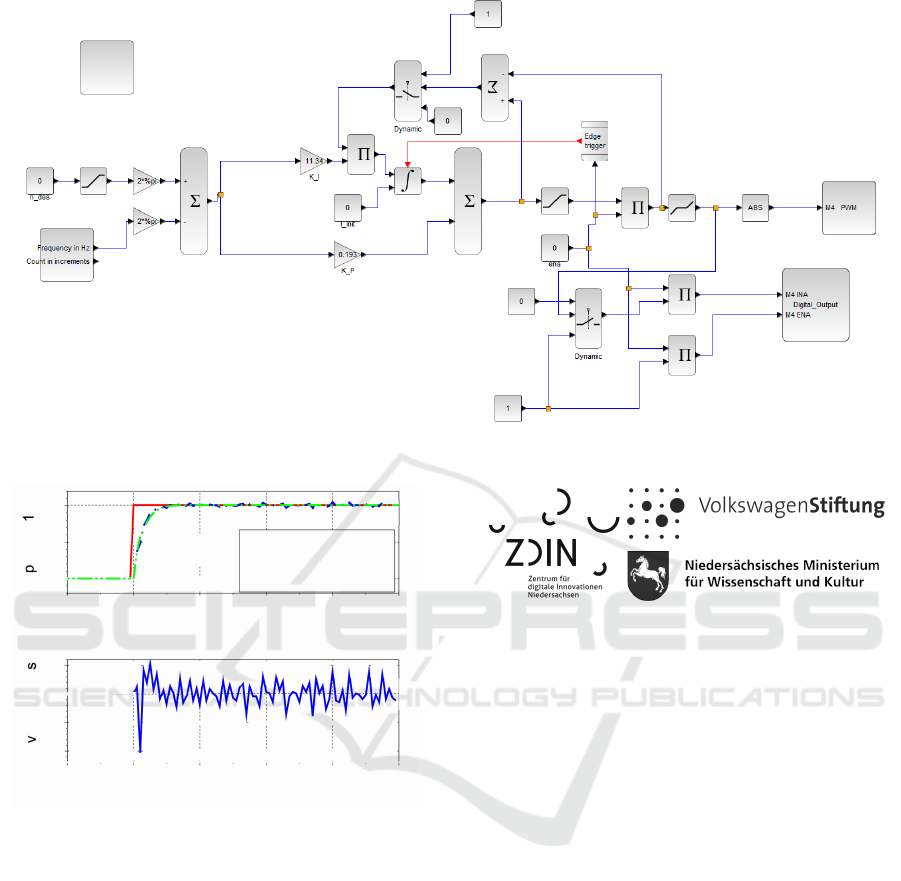

an autonomous guided vehicle. Figure 6 illustrates

the model of this function in the Xcos environment.

G(s) = K

s + 1

(6)

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

298

For real-time testing, the interfaces of the model

are linked to the interfaces of the target hardware

via the LoRra-RTI. Hereby, the encoder, PWM out-

put and digital output interfaces are operated. An

STM32H7 microcontroller with a Cortex Microcon-

troller Software Interface Standard (CMSIS) compat-

ible real-time operating system is used for the real-

time simulation.

The result of automatic code generation and

implementation into the real-time environment

is demonstrated by listing 2. Scheduling is

performed by the FreeRTOS operating system.

First, the model is initialized, using the LCI-

interface Function PI_Controller_init. Within

an inﬁnite loop, the reading / writing of hard-

ware interfaces (PI_Controller_readInputs

/ PI_Controller_writeOutputs), the cal-

culation of block outputs / state derivations

(PI_Controller_calcOutputs) as well as the

integration (PI_Controller_callIntegrator)

are performed in predeﬁned order. As integration

method, the explicit Euler method is used here.

Also, the measuring of the task turnaround time is

performed by the RTI (rti_ttTimer_start and

rti_ttTimer_stop).

1 // initialize the PI_Controller

function

2 P I_Con t r o l l er_in i t () ;

3 r t i_tickCo u n t = o s K e rnel G e t T i ckCo u n t

() ;

5 /

Infinite loop

6 for( ;;)

7 {

8 // query memory status and protect

memory

9 if( r t i _ l o c k_mem (0 U ) == os O K ) {

10 rt i _ t t T imer_ s t a r t () ;

12 // read hardware inputs

13 P I _ C o ntro l l e r _rea d I n p uts () ;

14 // calculate the outputs

15 P I _ C o ntro l l e r _ca l c O u tput s (1 U ) ;

16 // calculate the state

derivations

17 P I _ C o ntr o l l e r_c a l c D eri v a t i ons (1 U

) ;

18 // call the integration method

19 P I _ C o ntr o l l e r_c a l l I nte g r a t or (

rt i _ t i c k C o unt );

20 // write hardware outputs

21 P I _ C o ntro l l e r_wr i t e O utp u t s () ;

23 rt i _ t t T i mer_s t o p () ;

24 // release the memory protection

25 rt i _ u n l o c k_mem () ;

26 // if xcp is enabled

27 #if ( L O R R A _ RTI_E n a _ X C P )

28 // run the XCP Event for RCP

29 xcp_evt ( x c p _rcp_ev t ,

xc p _ g e t _daq_t i m e () ) ;

30 #endif

31 }

32 else

33 rti_error ( S3 , " RTI Task : M e m o r y

locked ! ") ;

35 /

turn Task to the blocking state

until the next sample

36 r t i_tickCo u n t += TS_Ms ;

37 o s D elayUntil ( r t i _ t i ckCount ) ;

38 }

Listing 2: Result of automatic code generation and

implementation.

Figure 7 compares the results of the online

simulation (measurement) with the results of the

MiL simulation (simulation) for a step response to

des

= 100 1/s. The curves shown in the upper part

agree with high accuracy. This is illustrated by the de-

viation between both curves plotted in the lower part.

The occurring deviations result from the measurement

noise and the operating principle of the speed mea-

surement by means of an encoder. The automatically

generated code therefore implements the model be-

havior very well.

7 CONCLUSIONS AND

OUTLOOK

This paper presented the LoRra code generator, based

on open source software for model based design. Us-

ing the seamless model-based RCP development pro-

cess for the functional development of embedded sys-

tems, the general structure of the low-cost develop-

ment platform LoRra was presented, ﬁrst. It uses the

open-source CAE tool Scilab / Xcos as a central sim-

ulation tool. Through the state of knowledge and the

analysis of available code generators, it was outlined

that currently no model-to-text transformation exists,

that is suitable for use in a low-cost RCP tool chain

and that is not limited to predeﬁned applications. As

a solution, the concept of the LoRra code generator,

which transforms Xcos models into ﬂexibly usable C

code with standardized interfaces, was presented and

realized. A basic veriﬁcation of the results was car-

ried out using the speed control of a DC motor in a

real-time simulation as a case study.

Future work will focus on further veriﬁcation and

analysis of the generated code. The evaluation of var-

ious metrics and the comparison with other code gen-

erators are the focus here. In addition, an extension

Automatic Code Generation for a Seamless Low-cost Development Platform

299

Figure 6: Functional model of the case study PI controller in Xcos.





•

■-







1 1

  



  



























■-



   

















            



       

   









































- - - - - - - - - - - - - - - - -

1 1 1

1 1

■-ii,.

 





■-





 



 



 

■-









 

1 1

1 1 1







 











Figure 7: Measured and simulated step response of the PI

controlled DC Motor.

of the functional scope is being pushed so that a high

number of Xcos blocks is supported.

ACKNOWLEDGEMENTS

Funded by the Lower Saxony Ministry of Science

and Culture under grant number ZN3495 within the

Lower Saxony ”Vorab” of the Volkswagen Founda-

tion and supported by the Center for Digital Innova-

tions (ZDIN).

REFERENCES

Akdur, D., Say, B., and Demir

ors, O. (2021). Modeling

cultures of the embedded software industry: feed-

back from the ﬁeld. Software & Systems Modeling,

20(2):447–467.

Bucher, R. and Balemi, S. (2005). Scilab/Scicos and

Linux RTAI - a uniﬁed approach. In Proceedings of

the 2005 IEEE Conference on Control Applications,

pages 1121–1126, Toronto, Canada.

Campbell, S. L., Chancelier, J.-P., and Nikoukhah, R.

(2010). Modeling and Simulation in Scilab/Scicos

with ScicosLab 4.4. Springer Science+Business Me-

dia LLC, New York, NY, 2. ed. edition.

Deppe, M. and Homburg, C. (1999). Rapid Prototyping of

Distributed Mechatronic Applications. In Distributed

and Parallel Embedded Systems, IFIP - The Interna-

tional Federation for Information Processing, pages

203–212, Boston, MA, USA. Springer.

Franco, F. R., Neme, J. H., Santos, M. M., da Rosa, J. N. H.,

and Dal Fabbro, I. M. (2016). Workﬂow and toolchain

for developing the automotive software according AU-

TOSAR standard at a Virtual-ECU. In 2016 IEEE

25th International Symposium on Industrial Electron-

ics (ISIE), pages 869–875, Santa Clara, CA, USA.

Grabmair, G., Mayr, S., Hochwallner, M., and Aigner, M.

(2014). Model based control design - A free tool-

chain. In 2014 European Control Conference (ECC),

pages 826–831, Strasbourg, France.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

300

Hanselmann, H. (1996). DSP in control: the Total Devel-

opment Environment. In Proceedings of 22nd IEEE

International Conference on Industrial Electronics,

Control, and Instrumentation, pages 1647–1654, Pis-

cataway, NJ.

Hanselmann, H., Kiffmeier, U., K

oster, L., and Meyer, M.

(1999). Automatic Generation of Production Qual-

ity Code for ECUs. In Electronic Engine Controls

1999: Sensors, Actuators, and Development Tools,

SAE Technical Paper Series, Warrendale, USA. SAE

International.

Jacobitz, S. and Liu-Henke, X. (2019). A Real-Time

Interface for Xcos – Demonstrated on a Battery-

management System. In 2nd Scilab Conference,

Berlin, Germany.

Jacobitz, S. and Liu-Henke, X. (2020). The Seamless Low-

cost Development Platform LoRra for Model based

Systems Engineering. In Proceedings of the 8th In-

ternational Conference on Model-Driven Engineer-

ing and Software Development, pages 57–64, Valletta,

Malta. SCITEPRESS.

Lambersk

y, V., Kri

zan, J., and Andreev, A. (2014). Gen-

erating Code Consistent with Simulink Simulation for

Aperiodic Execution on a Target Hardware Powered

by a Free RTOS. In Mechatronics 2013, pages 95–

101, Cham. Springer International Publishing.

Liu-Henke, X., Jacobitz, S., Scherler, S., G

ollner, M.,

Yarom, O., and Zhang, J. (2021). A Holistic Method-

ology for Model-based Design of Mechatronic Sys-

tems in Digitized and Connected System Environ-

ments. In Proceedings of the 16th International Con-

ference on Software Technologies, pages 215–223.

SCITEPRESS - Science and Technology Publications.

uckel, J., Hestermeyer, T., and Liu-Henke, X. (2001).

Generalization of the cascade principle in view of

a structured form of mechatronic systems. In 2001

IEEE/ASME International Conference on Advanced

Intelligent Mechatronics, pages 123–128, Como,

Italy.

Nikoukhah, R. (2006). A hybrid system formalism for mod-

eling and simulation. In 2006 IEEE Conference on

Computer Aided Control System Design, pages 1568–

1573, Dearborn, MI, USA.

Nikoukhah, R. and Steer, S. (1996). SCICOS - a dynamic

system builder and simulator. In 1996 IEEE Interna-

tional Symposium on Computer-Aided Control System

Design, pages 430–435, Dearborn, MI, USA.

Toeppe, S., Bostic, D., Ranville, S., and Rzemien, K.

(1999). Automatic code generation requirements for

production automotive powertrain applications. In

Proceedings of the 1999 IEEE International Sym-

posium on Computer Aided Control System Design,

pages 200–206, Kohala Coast, HI, USA.

Automatic Code Generation for a Seamless Low-cost Development Platform

301
