Industrial and Automation Control System Cyber Range Prototype for

Offensive Capability Development

Austris Ulj

ans

and Bernhards Blumbergs

2 a

Vidzeme University of Applied Sciences, Cesu Str. 4, Valmiera LV - 4200, Latvia

IMCS UL, CERT.LV, Raina Blvd. 29, Riga, LV-1459, Latvia

Keywords:

Industrial Automation, Cyber Range, Offensive Cyberoperations.

Abstract:

Industrial and automation control systems (IACS) are broadly utilized in sectors, such as manufacturing pro-

cesses control and energy transmission. Attacks on these systems may have devastating effects. Moreover,

current IACS systems are interconnected with conventional IT infrastructures thus increasing potential ad-

versary access to industrial systems. This research describes and offers a prototype for a realistic and easily

reproducible IACS cyber range for offensive exercise development. An extensive study of various techni-

cal aspects and scenarios of existing IACS cyber ranges is conducted to create the knowledgebase for such

range development. Created IACS cyber range use is validated by conducting practical offensive capability

development training for a target audience. This work concludes, that IACS cyber ranges are a viable tool for

understanding and developing offensive tactics and techniques used to gain access to the IACS network and

damage physical processes.

1 INTRODUCTION

The digital world nowadays is rapidly expanding with

having signiﬁcant impact on human society. This

also applies to IACS systems, which provide efﬁcient

automation and operation of critical infrastructures

(CI), such as, electrical grids, gas distribution grids,

water treatment, transportation, and heating plants.

IACS systems are typically characterized by pro-

prietary protocols, isolated networks, and purpose-

speciﬁc hardware, which have started to close the gap

between traditional IT systems with related elements,

networks, and ideologies. This has made IACS a

target to various adversaries, especially due to rapid

expansion towards industrial IoT devices, which fur-

ther increase the attack surface. IACS receive an in-

creasing number of sophisticated and debilitating at-

tacks (CISA, 2021; Geng et al., 2019; Kaspersky Lab,

2021a) from organized crime and nation-state afﬁli-

ated actors (FireEye, 2021; MITRE, 2021).

There is little reported information about actual

attacks on industrial infrastructure or scenarios exe-

cuted by adversaries, despite the growing awareness

of IACS cybersecurity (Zhu et al., 2011). To in-

crease understanding and discover vulnerabilities in

https://orcid.org/0000-0001-9679-6282

IT infrastructure, researchers create testbeds and cy-

ber ranges (CR) to test the attack and defense mech-

anisms in a controlled environment. Publication (Kr-

ishnan and Wei, 2019) indicates that there is a lack

of existing research on IACS cyber ranges, there-

fore making them less accessible to the broader com-

munity to gain more experience in the defense and

offense of related components. Offensive capabili-

ties are deliberate invasions into opponent systems to

cause destruction, disruption, or damage. Research

(Lewis, 2015) draws attention to how the lack of an

utter offensive cyber capability affects NATO’s abil-

ity to deter and defend. Therefore, offensive capabil-

ities need to be developed as adversaries cannot be

refuted by pure defense. In the author’s opinion, the

point is valid for any national state entity. However,

national state’s cybersecurity exercises are focused on

defense, where immediate attention is to train blue

team’s defense response on red team’s attacks. Thus,

exercises improving the readiness of red team’s offen-

sive capabilities are limited in scope and mostly not

public. This signiﬁes the need for an open and well-

documented CR to allow a better understanding and

wider development of offensive capabilities.

This paper addresses the problem in the ﬁeld of

cyber red team’s offensive capability development.

Only some of the NATO nations have publicly ex-

478

Ulj

ans, A. and Blumbergs, B.

Industrial and Automation Control System Cyber Range Prototype for Offensive Capability Development.

DOI: 10.5220/0010879500003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 478-490

ISBN: 978-989-758-553-1; ISSN: 2184-4356

pressed limited information on possessing offensive

capabilities (Gold, 2020; Muller, 2019; UK Gov-

ernment, 2016). Such capability development might

be as a response to a steadily growing cyber at-

tacks attributed to nation-state actors (Kaspersky Lab,

2021b). Thereby the problem addressed in this pa-

per is that red team offensive capabilities in the IACS

ﬁeld are yet to be closely studied to gain a deeper

insight into how IACS elements can be attacked and

defended. Current studies mainly focus on defensive

capability development in the IACS ﬁeld, due to de-

velopment of blue team defenses to counter adversary

attacks as presented in section 2. Additionally, offen-

sive capabilities may be used to respond to aggressors

with proportional measures. Offensive capability de-

velopment is necessary both for private and public en-

tities operating or depending on IACS, as they need to

know how to test and protect their infrastructure.

The main objective and novelty of this research is

aimed towards development of the IACS CR, where

the red team can practice developing offensive ca-

pabilities, encompassing the following key aspects:

1) realistic, 2) easily reproducible, 3) with publicly

available documentation, and 4) supporting multi-

stage attack scenarios. The created CR prototype

may be used to develop exercises for evolving red

team offensive capabilities within IACS ﬁeld, thereby

improving understanding of related tactics and tech-

niques, and utilizing CR for exercises to develop both

defensive and offensive capabilities by any suitable

means.

This research addresses identiﬁed gaps within cur-

rent IACS CR approaches and use-cases (section 2.1).

Moreover, the created CR encompasses the minimal

investments of resources, ease of replication, open-

source paradigm, publicly available documentation,

and complexity to perform realistic offensive multi-

stage attack scenarios. The main contributions of this

research are:

1. Comprehensive literature analysis of current rele-

vant IACS testbeds;

2. Core concepts and approaches for IACS CR pro-

totype design and implementation.

This paper prototypes an IACS cyber range for

practical offensive cyber capability development,

Section 2 provides literature analysis of related work

and summarizes the outcomes; Section 3 identiﬁes

and presents cyber range development and training

scenario requirements; Section 5 offers the results of

cyber range training use case; and Section 6 provides

conclusions and future work directions.

2 RELATED WORK AND CYBER

RANGE REVIEW

To identify related work, the following keywords and

their combinations were used: IACS, ICS, SCADA,

testbed, cyber range, training, offensive cyber oper-

ations. As the IACS ﬁeld develops quickly, a pri-

mary period of the last ﬁve years was chosen as an

optimal time frame for relevant literature identiﬁca-

tion. Searches were conducted in Google Scholar,

Scopus, IEEE scientiﬁc databases and indexes, and

public search engines. Research eligibility criteria

was based on the direction towards CR creation or re-

view of industrial CRs.

IACS elements are distributed in operational tech-

nology (OT) network with a difference between con-

ventional information technology (IT) systems being

minimal delays for time-critical processes. Research

(Zhou et al., 2018) mentions that the key difference

between IT and OT is that OT includes multiple em-

bedded operating systems, which use ﬁeld-speciﬁc

proprietary protocols. OT networks rely on real-time

data round-trips and interruption in these communi-

cations can cause operational, ﬁnancial, and physical

losses. Research (Holm et al., 2015) points out that

due to the high availability requirements of IACS, se-

curity tests are strongly not advised to be performed

on a live system. For this reason, researchers, corpo-

rations, and military institutions turn to cyber ranges

that mimic real IACS.

The core control elements in a cyber-physical sys-

tem include at least a programmable logic controller

(PLC), human-machine interface (HMI), and super-

visory control and data acquisition (SCADA). A PLC

being a programmable device performs logical oper-

ations for a physical process based on received exter-

nal inputs. To visualize the control process a multi-

purpose HMI or SCADA is used to allow an operator

to supervise and interact with a physical process. All

of these systems are either managed or installed from

a general-purpose computer or server, which increase

the attack surface (Larrucea and Molinuevo, 2020).

2.1 Overview of Current IACS Cyber

Ranges

Publication reviewing the development in IACS at-

tacks (Larrucea and Molinuevo, 2020) states that de-

veloping cyber-security competencies through the use

of CR and their use for research topics is of increasing

interest. Also, CRs are a vital tool for exploring and

modeling vulnerabilities, and producing viable data

sets that enable testing security solutions as novel ar-

chitectures, intrusion detection systems, and attacks

Industrial and Automation Control System Cyber Range Prototype for Offensive Capability Development

479

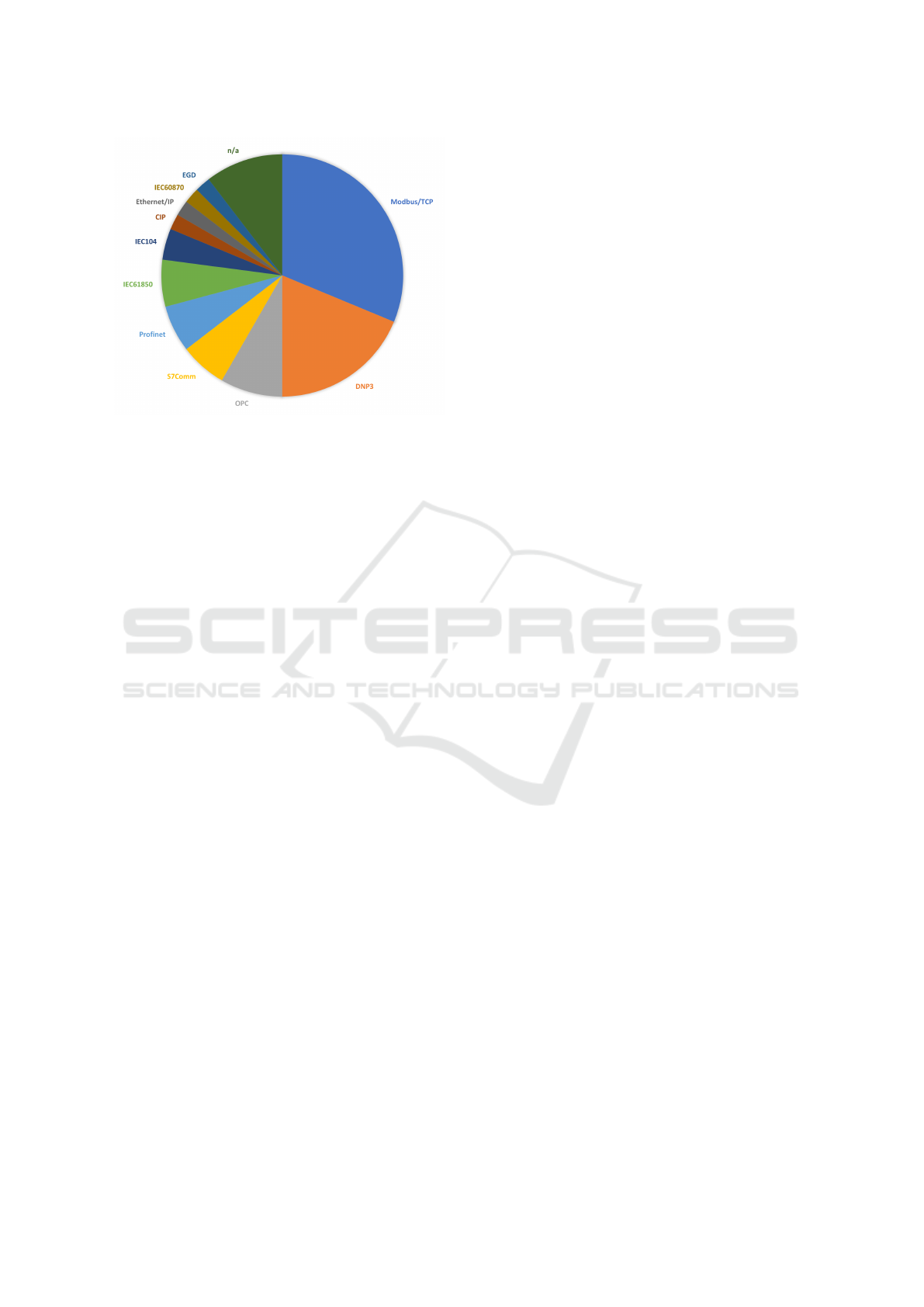

Figure 1: Overview of industrial protocols used in CR

testbeds listed in table 1.

against infrastructure. While performing the litera-

ture review, 28 created testbeds were identiﬁed in the

relatively new research. These testbeds are indicated

in table 1.

Table 1 shows that half of the CR testbeds are cre-

ated in the USA, with the rest being scattered across

Europe and Asia. However, in recent years, the num-

ber of CRs and testbeds is increasing in Europe and

Asia. Such increase may be explained by the rise

of overall governmental and industry interest due to

the emergence of global cyber-powers and acceler-

ating integration and merger of OT and IT systems

with the raise of industry 4.0. Based on the assess-

ment, IACS CR typical applications include electrical

generation plants, the chemical and oil industry, water

and wastewater management, nuclear power stations,

and the manufacturing industry. The primary industry

created in CRs is energy transmission and generation.

This may be reasoned, that the energy sector is one of

the most obvious targets for adversaries due to the na-

tion’s critical dependency on the electrical power sup-

ply. Additionally, research using an electrical grid can

more easily emphasize the gravity of cyberattacks. It

may be observed, that one of the most common ven-

dors used in physical IACS cyber ranges across mul-

tiple studies are Siemens and Allen-Bradley, which

may be explained due to these vendors being present

in worldwide markets and across a huge share of in-

dustries.

Furthermore, very few of the physical cyber

ranges in table 1 publicly share a detailed docu-

mentation of the system, making it hard to validate

or replicate the research. Publication (Green et al.,

2017) note that making the testbed more open for re-

searchers extends its usability, and it should be taken

into account when designing such testbeds.

Important part of the IACS system lies within

ensuring effective and interoperable communications

between the control elements. To achieve this,

TCP/IP-based communication protocol usage is be-

coming more prevalent, which also broadens the over-

all attack surface of IACS. Figure 1 provides the

overview of the used protocols within the assessed

CR testbeds. It is shown that one of the most used

protocols in cyber ranges across multiple ﬁelds of

IACS is Modbus/TCP, followed by DNP3, OPC, and

s7comm. Modbus/TCP has been adapted worldwide

due to its open speciﬁcation, available documentation,

and community support. DNP3 is an open and public

protocol standard primarily used in electric and water

utilities in the USA. S7comm is a Siemens proprietary

protocol used in communication between PLCs of the

Siemens S7-300/400/1200/1500 family. OPC is a se-

ries of standards and speciﬁcations maintained by and

made available to OPC Foundation members, mainly

used for industrial telecommunication in higher-level

management systems, such as, manufacturing, build-

ing automation, oil and gas, and renewable energy.

Testbeds and CRs may be divided by type, pur-

pose, and applicable sector. Sector-wise test-beds

may be divided into academic, military, or commer-

cial. From the perspective of their purpose, CRs may

cover a very wide range of applicability, such as, cy-

ber training, capture the ﬂag events, research and de-

velopment, testing, assessment, and recruitment. Re-

search works, such as (Reaves and Morris, 2012;

Geng et al., 2019), categorize CRs into physical, vir-

tual, and hybrid architectures. Many testbeds hy-

bridize the physical and virtual components to make

a trade-off between ﬁdelity and economy. The major-

ity of assessed research is being done on virtualized

testbeds as they do not require huge investments, are

relatively easy to implement, and re-purpose.

2.1.1 Physical Testbed

Physical testbeds rely on physical hardware and ac-

tual software running on that hardware. Some of the

physical CRs, such as (Adepu et al., 2019; Mathur

and Tippenhauer, 2016) are used to control the ac-

tual physical process containing actuators and sen-

sors. Despite the advantages, most physical CRs use

the hardware-in-the-loop physical system simulation

method, which uses mathematical models to represent

physical processes. There is a lack of exact mathe-

matical models for representing the behavior of sen-

sors and actuators used in monitoring and controlling

the physical devices, however when designing CRs

fulﬁlling such requirements is not mandatory (Green

et al., 2017).

For example, a physical SWAT CR testbed

(Mathur and Tippenhauer, 2016) consists of a six-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

480

Table 1: Cyber range overview (Chemical plant - C, Smart Grid - SG, Nuclear plant - N, General - G, Electrical Grid - G,

Transportation - T, Manufacturing - M, Water Treatment - W, V - Virtual CR, P - physical CR, H - hybrid CR, Unspeciﬁed -

information not provided by the research, N/A - hardware does not apply to virtual testbeds).

Nr. Name Country Year Field Type Hardware vendor Ref.

1 Unspeciﬁed USA 2012 G V N/A (Reaves and Mor-

ris, 2012)

2 Unspeciﬁed USA 2017 EG V N/A (Koganti et al.,

2017)

3 Unspeciﬁed USA 2016 EG P Unspeciﬁed (Korkmaz et al.,

2016)

4 VTET China 2018 C H Siemens (Xie et al., 2018)

5 Unspeciﬁed Quatar 2021 C H Siemens (Noorizadeh et al.,

2021)

6 Unspeciﬁed USA 2019 N, T P Koyo, RaspberryPi (Stranahan et al.,

2019)

7 Unspeciﬁed USA 2017 G P Siemens (Su et al., 2017)

8 MSICST China 2019 G P Siemens, Rockwell,

GE, Schneider

(Tao et al., 2019)

9 Unspeciﬁed Portugal 2017 EG V N/A (Rosa et al., 2017)

10 Unspeciﬁed USA 2019 C P Koyo, Eaton (Krishnan and Wei,

2019)

11 IOSB Germany 2017 M H Siemens (Pfrang et al., 2017)

12 EPIC Singapore 2019 SG P Pcvue, Wago,

Siemens, SMA,

Hirschmann

(Adepu et al., 2019)

13 Unspeciﬁed France 2017 EG P RaspberryPi (Rubio-Hernan

et al., 2017)

14 Unspeciﬁed Netherlands 2018 EG V N/A (Chromik et al., 1

06)

15 Unspeciﬁed Switzerland 2018 T V N/A (Urdaneta et al.,

2018)

16 Unspeciﬁed USA 2021 HVAC V N/A (Werth and Morris,

2021)

17 RICS-el Sweeden 2019 EG V N/A (Almgren et al.,

2019)

18 Unspeciﬁed USA 2018 G V N/A (Alves et al., 2018)

19 SWAT Singapore 2016 W P Allan-Bradley’s (Mathur and Tip-

penhauer, 2016)

20 PowerCyber USA 2010 EG V N/A (Hahn et al., 2010)

21 GRFICS USA 2018 C V N/A (Formby et al.,

2018)

22 Unspeciﬁed Italy 2010 EG H ABB, OpenPLC (Fovino et al.,

2010)

23 VCSE USA 2011 EG V N/A (Stamp et al., 2011)

24 Unspeciﬁed USA 2011 G P GE, PXI, Rockwell’s (Morris et al.,

2011)

25 VPST USA 2009 EG V N/A (Bergman et al.,

2009)

26 TASSCS USA 2011 EG V N/A (Mallouhi et al.,

2011)

27 ICSrange Italy 2019 G V N/A (Giuliano and

Formicola, 2019)

28 SoftGrid Singapore 2016 EG V N/A (Gunathilaka et al.,

2016)

Industrial and Automation Control System Cyber Range Prototype for Offensive Capability Development

481

stage water treatment process, where each stage is au-

tonomously controlled by a local physical PLC. Phys-

ical CRs have two main drawbacks: 1) difﬁculty to re-

conﬁgure and maintain real hardware and software in

a testbed, especially given the presence of ﬁrmware

exploits that have the potential to damage elements,

2) is a ﬁnancial aspect as physical components used

in CRs may be expensive, hence researchers tend to

use a small amount of core physical components and

augment it with virtualized components. Key advan-

tages of physical CRs include several aspects: 1) pro-

vision of realistic system and environment reaction on

attacks, which would be present in an actual process

control system, 2) realistic communication patterns

and latency, and 3) physical devices with susceptible

to software, ﬁrmware, and hardware vulnerabilities,

which are hard, if not possible, to replicate within a

virtual testbed.

2.1.2 Virtualized Testbed

Research (Xie et al., 2018) mentions, that virtualiza-

tion is a straightforward approach to overcome the

disadvantages of physical testbeds. Although the vir-

tual testbed would lose some ﬁdelity, it is more suit-

able for preliminary IACS security research in the

laboratory environment. For example, one of such

virtualized testbeds is GRFIACS framework (Formby

et al., 2018) based on OpenPLC (Alves et al., 2014)

research, which permits the GRFIACS to virtualize

the entire IACS network and related physical pro-

cesses. Main advantages mentioned in (Reaves and

Morris, 2012) are: 1) virtual testbeds are easy to du-

plicate and reproduce, and 2) virtualization provides

a common framework for conducting research, and

sharing the results and the code to the research com-

munity for reproduction and validation.

2.1.3 Hybrid Testbed

Researches, aiming for low cost and maintaining

some ﬁdelity of IACS cyber range, include both phys-

ical and virtual components, thus designing hybrid

testbeds. Such testbeds try to combine the best of

both worlds – virtual and physical, and may employ

physical components, such as, PLCs, HMIs, and other

physical systems, which are hard or practically im-

possible to virtualize or simulate. On the other hand,

system elements like SCADA workstations, data his-

torians, and network infrastructure may be virtual-

ized. An element, such as, SCADA commonly resides

on a MS Windows-based operating system, which

may run in a virtual environment like VMware or Vir-

tualBox. For example, related work (Pfrang et al.,

2017) presents a CR by dividing it into physical and

virtual parts as follows: 1) virtual environment - vir-

tual network components, virtual machines (VMs) for

programming PLCs, VM SCADA servers, attack de-

tection tools, and 2) physical environment - physical

PLCs, industrial actuators, HMIs, and RTUs.

3 CYBER RANGE

DEVELOPMENT

CONSIDERATIONS

CR criteria may change based on objectives, for ex-

ample, research (Formby et al., 2018) has created GR-

FIACS testbed framework, which is intended to help

beginners in IACS security to overcome barriers cre-

ated by the exclusive use of expensive and propri-

etary hardware and software used in IACS. Therefore,

this research offers a novelty through the following

main considerations: 1) modular design permitting to

swap virtual elements with physical ones, 2) low ini-

tial cost, and 3) simple communication protocols for

students to reduce the learning curve. Other related

works (Fovino et al., 2010; Koganti et al., 2017) have

created electrical grid hybrid IACS cyber rages, with

the main objective being to explore the cascading ef-

fects in case of IACS failure with realistic attack sce-

narios and to test novel cyber-attacks. Testbeds like

these require sophisticated simulation of the electri-

cal grid to understand the impact of the attacks, whilst

having a minor emphasis on control system complex-

ity.

This research prototypes a CR with the following

key considerations:

1. Repeatability: an inherent possibility for other re-

searchers to replicate the testbed and build upon

it;

2. Fidelity: the CR requires to reproduce the real

system as accurately as possible, CR has to

present interaction with real IACS components

using real IACS tools, as well as, providing con-

ditions for performing realistic attacks;

3. Physical process interaction: the different IACS

processes may interact with each other not only

through data link but by a physical process, such

as, temperature, vibration, or mechanical motion;

4. Common communication protocols: research

(Green et al., 2017) suggests to choose indus-

trial protocols in accordance with the IACS ﬁeld,

and country or region represented within the

CR. Common protocols in the industry are Mod-

bus/TCP, Proﬁnet, DNP3, IEC61850, OPC/OPC-

UA, S7comm, and IEC60870-5-104 (IEC104)

(Fig. 1);

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

482

5. Network segmentation: from the perspective of

the CR topology, the research (Green et al., 2017)

indicates that IACS need to be separated in zones

to mimic realistic IACS system, such as, a manu-

facturing zone, demilitarized zone, and enterprise

zone. The same ideology is applied in research

by (Almgren et al., 2019), where a more realistic

environment is created by attaching other IT net-

works to IACS network segments, such as, ofﬁce

or enterprise networks;

6. Adaptability and ﬂexibility: a capability for re-

conﬁguring the whole testbed by exchanging

components through standardized interfaces me-

chanically, electrically, and from networking in-

frastructure perspective. For this purpose, CR

encompasses common industrial communication

protocols and widely used hardware vendors;

7. CR element selection by market share: compo-

nents are chosen based on common automation

component vendors in the Baltic state region.

In this research, the emulated primary physical

process in the CR prototype is the district heating

plant, which supplies heating to the city. The sec-

ondary control process is the heating plant’s ware-

house management system controlling alarms and

lights. The warehouse is an integral part of the heat-

ing plant support infrastructure. The heating plant and

warehouse are collocated (Fig. 2) and are intercon-

nected in a single communication network. The au-

thors have chosen the heating plant since it may be

considered as a part of the city’s critical infrastructure

and may be valid targets for adversaries. Moreover,

the heating process is relatively easy to implement,

comprehend by the training audience, and understand

the possible negative impact to civilians caused by the

disruption of different physical processes.

4 PRACTICAL

IMPLEMENTATION

The CR prototype network topology is shown in ﬁg-

ure 2. The system consists of two PLCs (3) and

(4), SCADA (2) and WEB-SCADA (1). This is

divided into supervisory and control systems con-

taining SCADAs, and execution systems containing

PLCs. The following subsections introduce the de-

tailed working principles of each implemented ele-

ments and their communication speciﬁcs. The CR

prototype component choices have been based on the

following criteria: 1) supported common industrial

protocols (Fig. 1), 2) vendor popularity (Tab. 1), and

3) estimated average price in Euros (Tab. 2).4

4.1 Heating Process

The heating plant’s SCADA HMI visualization is

shown in ﬁgure 3. The virtualized heating plant

consists of circulation pump (A1), transmission line

valve (A3), gas ﬂow valve (A2), tank temperature and

burning temperature sensors (S3, S2), pressure sensor

(S4), and ﬂow speed sensor (S1).

The heating process in the CR prototype is divided

into two phases – 1) the heating of the heat transfer

liquid (HTF), and 2) HTF transmission to the city dis-

tricts:

1. HTF is heated by burning gas in the furnace,

which is then distributed to the rural area. Gas

ﬂow is related to the burning temperature, which

is controlled by gas ﬂow valve A2 (see Fig. 3).

To automate the burning process, an operator sets

a setpoint with the desired ﬂuid temperature level.

The S7-1200 PLC (4) compares setpoint tempera-

ture with the actual heat transfer ﬂuid temperature

at sensor S4. Based on that, S7-1200 PLC con-

trols the gas-burning temperature (S2) by adjust-

ing gas ﬂow controller (A2). This system has been

designed with limits for maximum temperature

and pressure, exceeding these values inﬂict dam-

age to the heating plant. If temperature or pressure

values reach a set threshold, S7-1200 automation

logic protects the physical system by stopping the

gas ﬂow to safeguard against the damage;

2. The HTF transmission depends on the heating

process. When the temperature of the HTF

reaches 60

◦

C in the transmission line, the circu-

lation pump A1 switches on and heating valve A3

opens. In this phase, heating system is fully op-

erational and heat is delivered to the city districts.

However, this part of the system may be damaged

irreversibly if the circulation pump operates with

the heating liquid valve (A3) closed. It has to be

noted, that the concept of damage in these phases

relates to logical damage from the attack scenario

perspective and no actual damage is inﬂicted on

the CR elements.

Heating process control logic is handled by

Siemens Simatic PLC S7-1200 (see Fig. 2). CR pro-

totype is built to be easily reproducible with no ad-

ditional hardware, sensors, or actuators attached to

S7-1200. Instead, the physical process is simulated

using the hardware-in-the-loop (HIL) method, which

is based on a simpliﬁed model of the heating process.

HIL includes and controls nominal values of the phys-

ical process so that it may be damaged if these values

are exceeded, therefore both the control and HIL pro-

grams run on the same physical device. These pro-

grams are separated so that control logic may only

Industrial and Automation Control System Cyber Range Prototype for Offensive Capability Development

483

WEB-SCADA

PLC S7-1200

PLC LOGO!8.2

IACS network

SCADA

Enterprise

network switch

Warehouse

management system

Heating plant

Firewall

Enterprise network

Switch

Figure 2: The created CR prototype network topology.

Heating system

HTF

Tank

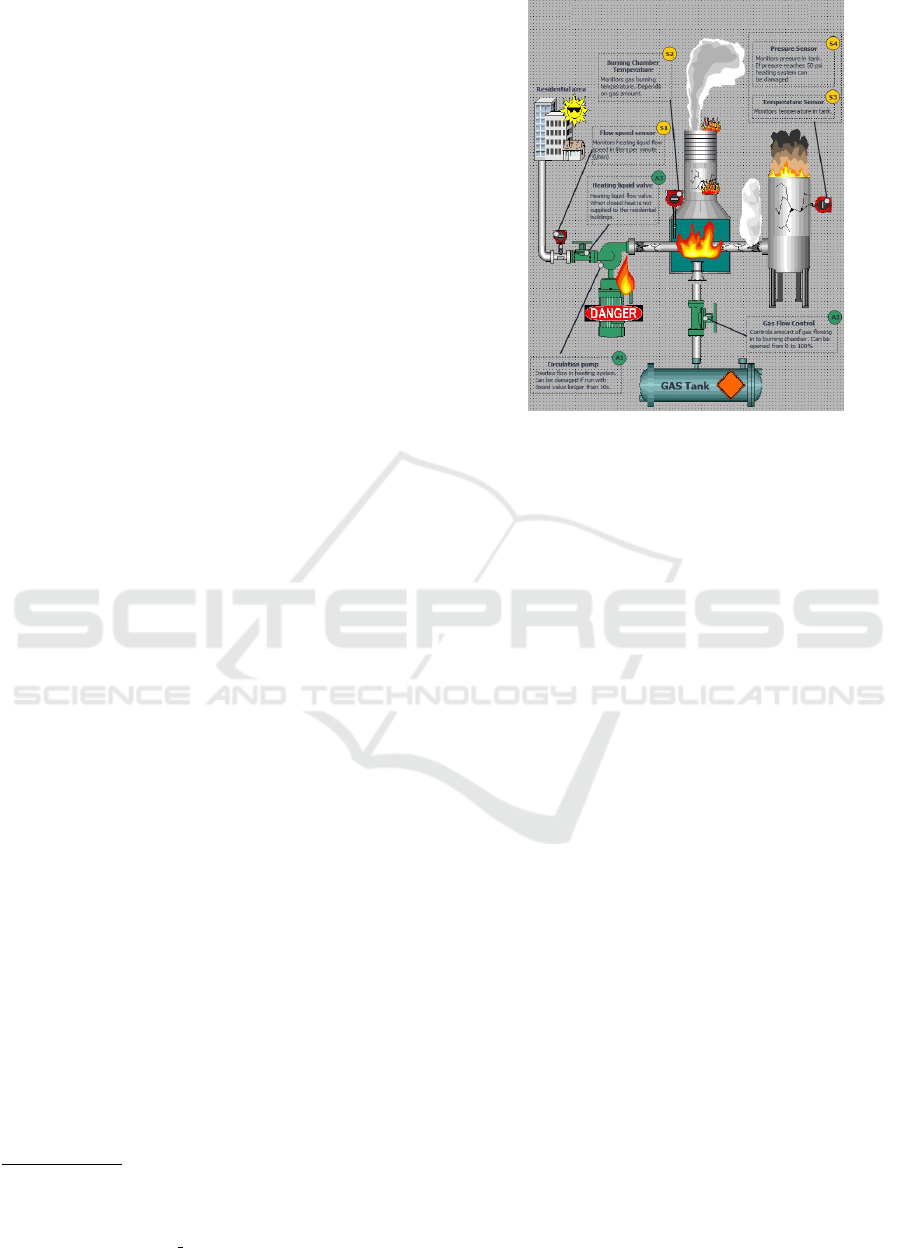

Figure 3: Designed SCADA visualization screen.

Table 2: List of elements and their system description used in CR.

Nr. Element System description MLFB order code Approx. price,

EUR

1 WEB-SCADA

NodeRed V1.0.0 n/a 0,00

Yocta Linux V2.6 n/a 0,00

IOT2040 6ES7647-0AA00-1YA2 210,00

2 SCADA

Siemens, SIMATIC WinCC Ad-

vanced V15.1

6AV2102-0AA05-0AA5 Available as trial

Windows 7 enterprise, SP1, Build

7601

n/a 0,00

VirtualBox V6.0 n/a 0,00

3 PLC LOGO! Siemens, LOGO! 8.2, Full versions:

1.82.02

6ED1052-1FB08-0BA0 100,00

4 PLC s7-1200 Siemens, SIMATIC S7-1200, CPU

1215C

6ES7215-1AG40-0XB0 700,00

interact with heating process simulation as if through

sensors and actuators (Fig. 3). For this reason, part of

the controller responsible for physical system simula-

tion is off-limits for the CR participants. PLC pro-

gram is structured in two parts. The ﬁrst contains

control functions that monitor temperature pressure

and ﬂow speed from sensors and ensure that setpoint

temperature is reached and maintained. The second

has physical simulation functions which simulate how

the temperature pressure and ﬂow speed are chang-

ing and interacting with each other to mimic physi-

cal processes in a heating system. Siemens TIApor-

tal project ﬁles, including PLC conﬁguration, used in

this CR prototype have been made publicly available

on GitHub repository frostyICS

4.2 Warehouse Management

Warehouse management in this CR prototype is used

to control alarms and lights, which is a much simpler

frostyICS - https://github.com/austrisu/frostyICS

process than the heating plant. The control is pro-

vided by Siemens LOGO! 8.2 PLC since it is meant

for simple applications. LOGO! can have different

conﬁgurations depending on added functional mod-

ules. In this CR, LOGO! 8.2 basic module (Tab.

3) is used with built-in I/O and communication in-

terface. Created program logic implements Mod-

bus/TCP and S7comm protocol communications to

control the physical digital outputs, however, these

outputs are not connected to any physical actuators

and the actions are being simulated.

4.3 Supervision and Control of Systems

SADA permits an operator to visualize and interact

with the process, and this supervisory control system

in the CR prototype is handled two SCADA devices

(see Fig. 2): 1) SCADA used to control and monitor

the heating plant, and 2) WEB-SCADA for monitor-

ing and controlling the warehouse management sys-

tem and displaying a simple indication of the heat

plant state.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

484

Warehouse management State of heating system

Web SCADA

Warehouse controls

Light control

Alarm control

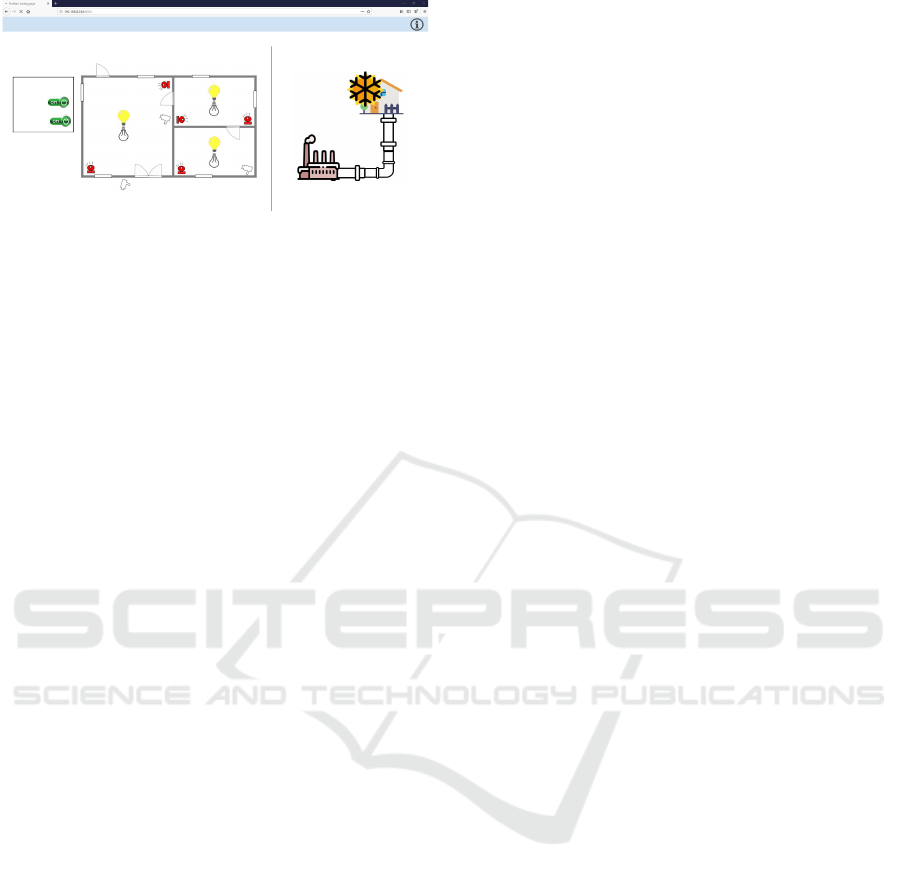

Figure 4: Created warehouse management system visual-

ization.

Heating plant SCADA is visualized using WinCC

advanced V15.1 run-time (Fig. 3), which is the run-

time of the HMI and SCADA system for use on MS

Windows systems. WinCC software communicates

with an automation system, reads a data block, dis-

plays process visualization, and allows an operator to

interact with the automation system. WinCC runtime

resides on virtualized Windows 7 workstation (Fig. 2

(2)).

Warehouse management WEB-SCADA is differ-

ent from conventional SCADA as it utilizes web tech-

nologies for visualization and usually can be accessi-

ble as a web page. In this CR prototype, the authors

utilize NodeRed to create WEB-SCADA interface,

which is a common solution for low-budget projects.

NodeRed is a low-code platform, where program-

ming is similar to functional block diagram (FBD).

NodeRed is suitable for simple custom system solu-

tions sometimes encountered in IACS. Additionally,

NodeRed is used in RevolutionPI, which is a Raspber-

ryPi based PLC for prototyping industrial automation

projects. The created NodeRed application commu-

nicates with LOGO! 8.2 to display and control ware-

house lights and alarms. Additionally, WEB-SCADA

collects and visualizes data from LOGO! regarding

the heating plant state (Fig. 4).

The WEB-SCADA application resides on the

Siemens IOT2040 hardware (Fig. 2 (1)), a budget

industrial computer designed to withstand industrial

environments. IOT2040 has two network interfaces

which are used to introduce an intentional misconﬁg-

uration by connecting one interface directly to the en-

terprise network, bypassing the IACS ﬁrewall (Fig.

2). This misconﬁguration of the CR prototype net-

work represents an intentional or incorrect network

conﬁguration bypassing the intended security mech-

anisms. The authors believe that such security vul-

nerabilities may arise in an IACS segment, where au-

tomation engineers sometimes neglect IT safety pro-

cedures.

4.4 Communication Layout

Communication scheme is presented in ﬁgure 2 and

table 3 summarizes the communication services used

on IACS elements. To represent a realistic indus-

trial communication network, the CR prototype uti-

lizes two main industrial protocols – Modbus/TCP

and S7comm, which are commonly seen in different

IACS networks. S7comm usage is bound to Siemens

equipment as most of the Siemens components can

communicate using this protocol.

Modbus/TCP is an open-source protocol initially

used to work with serial communication, but with

TCP/IP protocol stack introduction in the IACS ﬁeld,

Modbus was adopted to work with this protocol

stack. Modbus/TCP has become as one of the widely

adopted industry standards for transferring digital and

analog input/output (I/O) information. Detailed infor-

mation about this protocol is described in technical

speciﬁcations (Modbus, 2021; Dube and Camerini,

2002).

S7comm protocol is a Siemens proprietary proto-

col and does not have a publicly available detailed

ofﬁcial documentation. However, due to its popu-

larity, it has been reverse-engineered and thoroughly

described in different documents and publications

(Wireshark, 2021; Miru, 2016a; Miru, 2016b; Biham

et al., 2019; Snap7, 2021).

5 VERIFICATION

Created CR prototype was used to conduct an offen-

sive cybersecurity exercise for a treining audience, to

validate its functionality and applicability to knowl-

edge and practical skill development. This section

describes the validation exercise attack scenario, pos-

sible attack vectors, and execution steps.

5.1 Threat Scenario

Based on performed literature review identiﬁed out-

comes, training audience, within a deﬁned attack sce-

nario (Section 5.3), conducts attacks through a broad

variety of routes, such as, the Internet, business or en-

terprise networks, and at the level of ﬁeld devices tar-

get the IACS systems. After gaining initial foothold

into the target network, attackers may traverse the net-

work until access to the IACS systems is obtained.

Authors in the research (Zhu et al., 2011) state that

common attack vectors are backdoors, rootkits, holes

in network perimeter, vulnerabilities in standard pro-

tocols, communications hijacking, and man-in-the-

middle attacks. These considerations are taken into

Industrial and Automation Control System Cyber Range Prototype for Offensive Capability Development

485

Table 3: Communication partners and services running on IACS elements.

Nr. Component Interaction partner Protocol support

1 SCADA WEB-SCADA S7comm, FTP

2 WEB-SCADA PLC S7-1200, Ofﬁce workstations Modbus/TCP, HTTP, SSH

3 PLC LOGO! 8.2 PLC S7-1200, WEB-SCADA S7comm, Modbus/TCP

4 PLC S7-1200 SCADA, WEB-SCADA S7comm, Modbus/TCP

PLC S7-1200

WEB-SCADA

PLC LOGO! 8.2

IACS network

SCADA

Office network

Internet

Enterprise network

Warehouse

management system

Heating plant

External network

Attacker

Firewall

Router

Switch

Enterprise

switch

Figure 5: Created IACS CR prototype threat scenario topol-

ogy.

account when deciding the initial position of the at-

tacker within the exercise threat scenario. Within this

exercise scenario, it is assumed that the attacker has

already gained persistent access to the enterprise net-

work and has established an internal pivot point inside

the ofﬁce network. Gaining this initial position is as-

sumed within the threat scenario to be already reached

by the attacker and is out of scope for this research

as it does not contribute towards IACS speciﬁc attack

execution. The initial state of the scenario is shown

in ﬁgure 5. In this scenario enterprise network is di-

vided into two segments – one is the ofﬁce network,

where the attacker has gained initial access and has

established a command and control channel, and sec-

ond is the IACS network including the heating plant

and warehouse management systems.

In this scenario, the exercise participant plays as

a member of the cyber red team, which has two main

objectives: 1) switch off warehouse lights and alarm

preventing system recovery, and 2) damage heating

plant preventing system recovery.

5.2 Attack Structure

The MITRE ATT&CK (MITRE ATT&CK®, 2021)

TTPs knowledge-base is used to provide structure

to preformed attacks within threat scenario. This

knowledge-base is used to describe adversary’s ac-

tions to gain further access, compromise, and operate

within the target network. MITRE ATT&CK frame-

work provides consistent considerations to classify

the attacker’s goals, tasks, and steps, therefore being

applicable for modelling attack steps needed to reach

the speciﬁed objectives within the scenario.

A summary for the applicable tactics derived from

MITRE ATT&CK framework and used in the proto-

type exercise scenario are divided among each net-

work segment:

Tactics in the ofﬁce network:

1. Discovery: searching for available devices in the

ofﬁce network;

2. Lateral movement: exploiting and spreading to

other devices;

3. Persistence: gaining stable access to the devices;

4. Command and control: use of techniques to es-

tablish the communication with the compromised

system.

Tactics in the IACS network:

1. Discovery: searching for available devices in the

IACS network, and discovering open ports and

IACS processes controlled by the IACS network;

2. Collection: extracting detailed information about

IACS elements and their purpose;

3. Impact: actions on objectives.

5.3 Attack Execution Scenario

For the attacker to disrupt the operation of the ware-

house and heating plant controls, the following staged

attack execution scenario was designed and imple-

mented in the CR prototype:

1. Discovery in ofﬁce network: This is the initial

phase with the attacker’s starting position in the

ofﬁce network (Fig. 5). Based on the MITRE

ATT&CK knowledge-base, the attacker may per-

form network scanning and enumeration to iden-

tify services running on remote hosts. During this

step the main target is WEB-SCADA (IOT2040)

device;

2. Lateral movement: During this phase, the at-

tacker exploits a common misconﬁguration of

NodeRed application to gain a foothold on the

WEB-SCADA (IOT2040) device and change the

position in the network (Fig. 5);

3. Persistence: The attacker establishes persistent

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

486

administrative access by exploiting misconﬁgured

user rights on WEB-SCADA (IOT2040), from

where the attacker has the possibility to propagate

further to the IACS network;

4. Command and control: In this step, the attacker

exploits misconﬁgured network topology where

WEB-SCADA has two network interfaces and

one of them is directly connected to the IACS net-

work bypassing the ﬁrewall. Attacker conﬁgures

WEB-SCADA (IOT2040) to redirect trafﬁc from

the attacker to the target IACS network bypassing

ﬁrewall;

5. Discovery in IACS network: In this stage, the at-

tacker tries to enumerate devices in the IACS en-

vironment and learn about the internal network;

6. Objective Nr.1 - the attack on the warehouse: The

attacker attempts to get information about the tar-

get warehouse management system controlled by

LOGO! 8.2. Afterwards, the attacker attempts to

manipulate, disrupt, or impair IACS systems and

controlled physical processes by sending crafted

raw Modbus/TCP commands to LOGO! 8.2. Fur-

thermore, attacker performs a denial of service at-

tack against LOGO! 8.2 by exploiting buffer over-

ﬂow vulnerability in PLC web server;

7. Objective Nr.2 - the attack on heat plant: Dur-

ing this stage, the attacker tries to get information

about the target heating plant system controlled

by S7-1200 PLC (Fig. 5). The attacker exploits

a lack of authentication for PLC, hence using

rough TIAportal downloads conﬁguration from

PLC. Gained conﬁguration facilitates attacker to

obtain contextual feedback and how the physical

system operates. During the impact stage, the at-

tacker attempts to manipulate, disrupt or impair

IACS systems and controlled physical processes.

The main vulnerabilities of S7-1200 are bound to

the S7comm protocol and to exploit these vul-

nerabilities, the attacker needs to understand the

control logic program structure, which was gath-

ered during the collection phase. From the down-

loaded S7-1200 program, the attacker may de-

termine which deﬁned tags are responsible for

speciﬁc physical function control. The attacker

may send crafted S7comm requests to the PLC by

using a Python script using Snap7 library bind-

ings

. This attack exploits the lack of authen-

tication of the s7comm protocol. Python script

example for this scenario is located in GitHub

This attack process may be divided into two steps

PyPi Python-Snap7 - https://pypi.org/project/python-

snap7/

S7comm attack proof-of-concept scripts. - https://

github.com/austrisu/ICS poc

Heating system

HTF

Tank

Figure 6: Heating system state seen in the SCADA after

attack to S7-1200 PLC created by the author.

- the ﬁrst one focusing on inﬂicting damage to

the circulation pump (Fig. 3 A1), and the sec-

ond aiming to damage the whole heating system.

After a successful execution of the attack, the

SCADA screen should visualize a damaged simu-

lated heating plant (Fig. 6). Successful execution

of these attacks results in impairment of the physi-

cal process and recovery, from a scenario perspec-

tive, may be made only by a physical repair. How-

ever, as the physical process is simulated then no

damage is done to actual CR physical devices and

they may be easily restored to the initial conﬁgu-

ration.

The goal of the created IACS CR was to provide

an environment, where participants may practice of-

fensive capabilities, in a game-based exercise, against

IACS elements and observe their impact. After the

two-day training and exercise, the participants in the

collected feedback indicated that the created CR pro-

totype environment is a perfect testbed for experimen-

tation and development of offensive capabilities in the

IACS ﬁeld. Furthermore, the participants clearly in-

dicated that their conﬁdence and knowledge had in-

creased after the two-day training session.

This work was recognized as a high importance

by representatives from national energy operators, na-

tional mobile telecommunication operator, national

cert, national armed forces, and universities.

Industrial and Automation Control System Cyber Range Prototype for Offensive Capability Development

487

6 CONCLUSION AND FUTURE

WORK

This paper reviews the newest publicly available

IACS testbeds and based on identiﬁed gaps and re-

quirements derived the criteria for the CR testbed pro-

totype. Based on this, an actual novel prototype of

a cyber range was designed and created for red team

offensive capability development in game-based exer-

cise in the IACS ﬁeld, thereby improving understand-

ing of IACS red team tactics and techniques. This

understanding of red team capabilities also provided

knowledge and practical capabilities on how to de-

fend IACS. The authors intend that individuals and

private or government entities may utilize this CR

for offensive exercises development by any suitable

means. The created CR prototype has been success-

fully validated by the authors by the developing and

conducting an offensive cyber red team validation ex-

ercise for a dedicated training audience. The future

work would include pursuing the directions of auto-

mated threat scenario creation and generated conﬁg-

uration deployment on IACS CR elements to allow

customizable training experience and variety of pos-

sible scenario variations based on the same testbed el-

ements.

ACKNOWLEDGEMENT

This research is a result of the Master’s thesis and the

authors express their gratitude to Vidzeme University

for supporting and making this research possible.

REFERENCES

Adepu, S., Kandasamy, N. K., and Mathur, A. (2019).

EPIC: An electric power testbed for research and

training in cyber physical systems security. In Kat-

sikas, S. K., Cuppens, F., Cuppens, N., Lambri-

noudakis, C., Ant

on, A., Gritzalis, S., Mylopoulos, J.,

and Kalloniatis, C., editors, Computer Security, pages

37–52. Springer International Publishing.

Almgren, M., Andersson, P., Bj

orkman, G., Ekstedt, M.,

Hallberg, J., Nadjm-Tehrani, S., and Westring, E.

(2019). RICS-el: Building a national testbed for re-

search and training on SCADA security (short pa-

per). In Luiijf, E.,

Zutautait{\textbackslash}.e, I., and

ammerli, B. M., editors, Critical Information Infras-

tructures Security, pages 219–225. Springer Interna-

tional Publishing.

Alves, T., Das, R., Werth, A., and Morris, T. (2018). Vir-

tualization of SCADA testbeds for cybersecurity re-

search: A modular approach. Computers & Security,

77:531 – 546.

Alves, T. R., Buratto, M., de Souza, F. M., and Rodrigues,

T. V. (2014). Openplc: An open source alternative to

automation. In IEEE Global Humanitarian Technol-

ogy Conference (GHTC 2014), pages 585–589.

Bergman, D. C., Jin, D., Nicol, D. M., and Yardley, T.

(2009). The virtual power system testbed and inter-

testbed integration. In Proceedings of the 2nd Con-

ference on Cyber Security Experimentation and Test,

CSET’09, page 5, USA. USENIX Association.

Biham, E., Bitan, S., Carmel, A., Dankner, A., and Malin,

U. (2019). Rogue7: Rogue engineering-station attacks

on s7 simatic plcs. BlackHat.

Chromik, J. J., Remke, A., and Haverkort, B. R. (2018-

11-06). An integrated testbed for locally monitoring

SCADA systems in smart grids. Energy Informatics,

1(1):56.

CISA (2021). Compromise of u.s. water treatment fa-

cility. https://us-cert.cisa.gov/ncas/alerts/aa21-042a.

Accessed: 13.03.2021.

Dube, D. and Camerini, J. (2002). Modbus application

protocol. https://datatracker.ietf.org/doc/html/draft-

dube-modbus-applproto-00. Accessed:15.05.2021.

FireEye (2021). Advanced persistent threat groups. https:

//www.ﬁreeye.com/current-threats/apt-groups.html.

Accessed: 13/03/2021.

Formby, D., Rad, M., and Beyah, R. (2018). Lower-

ing the barriers to industrial control system security

with GRFICS. In 2018 USENIX Workshop on Ad-

vances in Security Education (ASE 18), Baltimore,

MD. USENIX Association.

Fovino, I. N., Masera, M., Guidi, L., and Carpi, G. (2010).

An experimental platform for assessing scada vulner-

abilities and countermeasures in power plants. In 3rd

International Conference on Human System Interac-

tion, pages 679–686.

Geng, Y., Wang, Y., Liu, W., Wei, Q., Liu, K., and Wu, H.

(2019). A survey of industrial control system testbeds.

IOP Conference Series: Materials Science and Engi-

neering, 569:042030. Publisher: IOP Publishing.

Giuliano, V. and Formicola, V. (2019). Icsrange: A

simulation-based cyber range platform for industrial

control systems. CoRR, abs/1909.01910.

Gold, J. (2020). The ﬁve eyes and offensive cyber capabil-

ities: Building a ‘cyber deterrence initiative’. Techni-

cal report, NATO CCDCOE.

Green, B., Lee, A., Antrobus, R., Roedig, U., Hutchi-

son, D., and Rashid, A. (2017). Pains, gains and

plcs: Ten lessons from building an industrial con-

trol systems testbed for security research. In 10th

USENIX Workshop on Cyber Security Experimenta-

tion and Test (CSET 17), Vancouver, BC. USENIX

Association.

Gunathilaka, P., Mashima, D., and Chen, B. (2016). Soft-

grid: A software-based smart grid testbed for evaluat-

ing substation cybersecurity solutions. In Proceedings

of the 2nd ACM Workshop on Cyber-Physical Systems

Security and Privacy, CPS-SPC ’16, page 113–124,

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

488

New York, NY, USA. Association for Computing Ma-

chinery.

Hahn, A., Kregel, B., Govindarasu, M., Fitzpatrick, J., Ad-

nan, R., Sridhar, S., and Higdon, M. (2010). Develop-

ment of the powercyber scada security testbed. Pro-

ceedings of the Sixth Annual Workshop on Cyber Se-

curity and Information Intelligence Research.

Holm, H., Karresand, M., Vidstr

om, A., and Westring, E.

(2015). A survey of industrial control system testbeds.

In Buchegger, S. and Dam, M., editors, Secure IT Sys-

tems, pages 11–26. Springer International Publishing.

Kaspersky Lab (2021a). Apt attacks on industrial com-

panies in 2020. Technical report, AO KASPERSKY

LAB.

Kaspersky Lab (2021b). Threat landscape for industrial au-

tomation systems. Technical report, AO KASPER-

SKY LAB.

Koganti, V. S., Ashrafuzzaman, M., Jillepalli, A. A., and

Sheldon, F. T. (2017). A virtual testbed for security

management of industrial control systems. In 2017

12th International Conference on Malicious and Un-

wanted Software (MALWARE), pages 85–90.

Korkmaz, E., Dolgikh, A., Davis, M., and Skormin, V.

(2016). Industrial control systems security testbed. In

11th Annual Symposium on Information Assurance.

Krishnan, S. and Wei, M. (2019). SCADA testbed for vul-

nerability assessments, penetration testing and inci-

dent forensics. In 2019 7th International Symposium

on Digital Forensics and Security (ISDFS), pages 1–6.

Larrucea, X. and Molinuevo, A. (2020). An ICS based

scenario generator for cyber ranges. In Yilmaz, M.,

Niemann, J., Clarke, P., and Messnarz, R., editors,

Systems, Software and Services Process Improvement,

pages 543–554. Springer International Publishing.

Lewis, J. A. (2015). The role of offensive cyber operations

in nato’s collective defence. The tallin papers.

Mallouhi, M., Al-Nashif, Y., Cox, D., Chadaga, T., and

Hariri, S. (2011). A testbed for analyzing security of

scada control systems (tasscs). In ISGT 2011, pages

1–7.

Mathur, A. P. and Tippenhauer, N. O. (2016). Swat: a wa-

ter treatment testbed for research and training on ics

security. In 2016 International Workshop on Cyber-

physical Systems for Smart Water Networks (CySWa-

ter), pages 31–36.

Miru, G. (2016a). The siemens s7 communication - part 1

general structure. http://gmiru.com/article/s7comm/.

Accessed: 27.04.2021.

Miru, G. (2016b). The siemens s7 communication -

part 2. http://gmiru.com/article/s7comm-part2/. Ac-

cessed:15.05.2021.

MITRE (2021). Apt groups. https://attack.mitre.org/

groups/. Accessed: 13/03/2021.

MITRE ATT&CK® (2021). Mitre att&ck®. https://attack.

mitre.org/. Accessed: 01.04.2021.

Modbus (2021). Modbus ofﬁcial technical resources. https:

//www.modbus.org/tech.php. Accessed:15.05.2021.

Morris, T., Srivastava, A., Reaves, B., Gao, W., Pavurapu,

K., and Reddi, R. (2011). A control system testbed

to validate critical infrastructure protection concepts.

International Journal of Critical Infrastructure Pro-

tection, 4(2):88 – 103.

Muller, L. P. (2019). Military offensive cyber-

capabilities:small-state perspectives. Technical report,

Netherlands.

Noorizadeh, M., Shakerpour, M., Meskin, N., Unal, D., and

Khorasani, K. (2021). A cyber-security methodology

for a cyber-physical industrial control system testbed.

IEEE Access, 9:16239–16253.

Pfrang, S., Kippe, J., Meier, D., and Haas, C. (2017). De-

sign and architecture of an industrial IT security lab.

In Guo, S., Wei, G., Xiang, Y., Lin, X., and Lorenz, P.,

editors, Testbeds and Research Infrastructures for the

Development of Networks and Communities, pages

114–123. Springer International Publishing.

Reaves, B. and Morris, T. (2012). An open virtual testbed

for industrial control system security research. Inter-

national Journal of Information Security, 11.

Rosa, L., Cruz, T., Sim

oes, P., Monteiro, E., and Lev, L.

(2017). Attacking SCADA systems: A practical per-

spective. In 2017 IFIP/IEEE Symposium on Inte-

grated Network and Service Management (IM), pages

741–746.

Rubio-Hernan, J., Rodolfo-Mejias, J., and Garcia-Alfaro,

J. (2017). Security of cyber-physical systems. In

Cuppens-Boulahia, N., Lambrinoudakis, C., Cuppens,

F., and Katsikas, S., editors, Security of Industrial

Control Systems and Cyber-Physical Systems, pages

3–18. Springer International Publishing.

Snap7 (2021). Step7 open source ethernet communi-

cation suite. http://snap7.sourceforge.net/. Ac-

cessed:15.05.2021.

Stamp, J., Urias, V., and Richardson, B. (2011). Cyber secu-

rity analysis for the power grid using the virtual con-

trol systems environment. In 2011 IEEE Power and

Energy Society General Meeting, pages 1–4.

Stranahan, J., Soni, T., and Heydari, V. (2019). Supervisory

control and data acquisition testbed for research and

education. In 2019 IEEE 9th Annual Computing and

Communication Workshop and Conference (CCWC),

pages 0085–0089.

Su, W., Antoniou, A., and Eagle, C. (2017). Cyber security

of industrial communication protocols. In 2017 22nd

IEEE International Conference on Emerging Tech-

nologies and Factory Automation (ETFA), pages 1–4.

Tao, Y., Xu, W., Li, H., and Ji, S. (2019). Experience and

lessons in building an ICS security testbed. In 2019

1st International Conference on Industrial Artiﬁcial

Intelligence (IAI), pages 1–6.

UK Government (2016). National cyber security strategy

2016-2021. Technical report, UK.

Urdaneta, M., Lemay, A., Saunier, N., and Fernandez, J.

(2018). A cyber-physical testbed for measuring the

impacts of cyber attacks on urban road networks. In

Staggs, J. and Shenoi, S., editors, Critical Infrastruc-

ture Protection XII, pages 177–196. Springer Interna-

tional Publishing.

Werth, A. W. and Morris, T. H. (2021). Prototyping PLCs

and IoT devices in an HVAC virtual testbed to study

Industrial and Automation Control System Cyber Range Prototype for Offensive Capability Development

489

impacts of cyberattacks. In Yang, X.-S., Sherratt,

R. S., Dey, N., and Joshi, A., editors, Proceedings

of Fifth International Congress on Information and

Communication Technology, pages 612–623. Springer

Singapore.

Wireshark (2021). S7 communication (s7comm). https:

//wiki.wireshark.org/S7comm. Accessed: 27.04.2021.

Xie, Y., Wang, W., Wang, F., and Chang, R. (2018). VTET:

A virtual industrial control system testbed for cyber

security research. In 2018 Third International Con-

ference on Security of Smart Cities, Industrial Control

System and Communications (SSIC), pages 1–7.

Zhou, X., Xu, Z., Wang, L., Chen, K., Chen, C., and Zhang,

W. (2018). Kill chain for industrial control system.

MATEC Web Conf.

Zhu, B., Joseph, A., and Sastry, S. (2011). A taxonomy

of cyber attacks on scada systems. In 2011 Interna-

tional Conference on Internet of Things and 4th In-

ternational Conference on Cyber, Physical and Social

Computing, pages 380–388.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

490
