Facial Emotion Expression Corpora for Training

Game Character Neural Network Models

Sheldon Schiffer

, Samantha Zhang

and Max Levine

Department of Computer Science, Occidental College, Los Angeles, California, U.S.A.

Department of Computer Science Cornell, University Ithaca, NY, U.S.A.

Department of Computer Science, University of North Carolina Asheville, Asheville, NC, U.S.A.

Keywords: Facial Emotion Corpora, Video Game Workflow, Non-player Characters, Video Games, Affective

Computing, Emotion AI, NPCs, Neural Networks.

Abstract: The emergence of photorealistic and cinematic non-player character (NPC) animation presents new

challenges for video game developers. Game player expectations of cinematic acting styles bring a more

sophisticated aesthetic in the representation of social interaction. New methods can streamline workflow by

integrating actor-driven character design into the development of game character AI and animation. A

workflow that tracks actor performance to final neural network (NN) design depends on a rigorous method of

producing single-actor video corpora from which to train emotion AI NN models. While numerous video

corpora have been developed to study emotion elicitation of the face from which to test theoretical models

and train neural networks to recognize emotion, developing single-actor corpora to train NNs of NPCs in

video games is uncommon. A class of facial emotion recognition (FER) products have enabled production of

single-actor video corpora that use emotion analysis data. This paper introduces a single-actor game character

corpora workflow for game character developers. The proposed method uses a single actor video corpus and

dataset with the intent to train and implement a NN in an off-the-shelf video game engine for facial animation

of an NPC. The efficacy of using a NN-driven animation controller has already been demonstrated (Schiffer,

2021, Kozasa et. al 2006). This paper focuses on using a single-actor video corpus for the purpose of training

a NN-driven animation controller.

1 INTRODUCTION

The stated goals of various academic emotion corpora

have largely focused on creating multi-modal

recordings for data acquisition to test theories of

human emotion generation and inter-agent trans-

cultural emotion literacy. Also, many corpora

datasets are designed to train neural networks (NNs)

for emotion recognition. The fundamental premise is

that with enough diversely designed corpora and

datasets generated from video samples, a

generalizable framework of understanding about

emotion would emerge from rigorous

experimentation and data analyses. Underlying this

assumption is that the behaviour of the subjects in the

video samples can be validated for sufficient degrees

of “authenticity” and “naturalness”. The resulting

research contributes to NN systems for facial emotion

recognition (FER) and to facial emotion simulation in

virtual agents, including video game characters. The

entertainment industries (primarily video game, film,

and television) are positioned to utilize this research

in ways that other industries have thus far mostly

ignored. While agencies in government, military,

security, and product marketing have a great interest

in predicting the thoughts, emotions, and behaviours

of large sets of randomly selected “real” people, the

entertainment industries make their business by

creating and predicting the thoughts and behaviours

of synthetic persons – fictional lead characters in

what has become a variety of transmedia metaverses

and their characters. This research proposes

developing video corpora of one actor to train NNs

that animate the facial expressions of photorealistic

NPCs that closely resemble that specific actor.

Capturing volumetric and motion data of

individual actors in-character is already a common

task of computer-generated asset creation. A larger

challenge is animating computer-generated

characters such that movement is autonomous and

Schiffer, S., Zhang, S. and Levine, M.

Facial Emotion Expression Corpora for Training Game Character Neural Network Models.

DOI: 10.5220/0010874700003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 2: HUCAPP, pages

197-208

ISBN: 978-989-758-555-5; ISSN: 2184-4321

197

algorithmically controlled by an AI system and not by

linearly determined animation paths. Just as

important, resulting movement should retain the

signature gestural features of the individual actor

performing as the character, and not prototype

movement implemented from a motion capture

corpus of linearly recorded animations.

Conventionally, game engines provide

predetermined conditions that, when triggered, the

movement fragments execute systematically through

an automated animation controller, often a stack-

based finite state machine (SBFSM). But to create

natural movement with a SBFSM is to allow for many

more stored sub-fragments of movement data

activated within nested and parallel SBFSMs chained

in complex sequences. Theoretically, this would

require a logarithmic expansion of the possible

combinations of these movements. But even with

more short-term memory made available and skilful

use of SBFSMs, where each state would remove itself

from short term memory when obsolete, managing

the memory stacks of multiple simultaneously

engaged nested and chained SBFSMs creates

excessively complex memory management routines

such that game system processors become

overwhelmed with processing too many states of

character animation. Photorealistic cinematic

character performance aesthetics requires more

efficient solutions for game developers.

This research proposes two novel steps toward

advancing autonomous facial expression animation.

First, the implementation of an actor-centric

performance-theory-informed method to create a

corpus of video samples that captures actor-specific

expression. Second, a novel way to validate the

corpus using off-the-shelf FER system software and

statistical analysis of emotion data generated by the

FER system. The remainder of the paper is divided as

follows: Section 2 examines the production and

validation methods of a variety of recently produced

facial emotion corpora. Section 3 describes the

production methods used to create the facial emotion

corpus for this research. Section 4 describes the

techniques used to validate the corpus and the

statistical results they produced. Section 5 provides a

discussion of open questions about corpora

production and what future directions this research

may take. It also offers general suggestions for other

investigators to consider if similar techniques were to

be deployed. Section 6 concludes by evaluating what

this research offers for implementation in the broader

field of NPC animation in video games.

2 RELATED WORK

The experimental design of this paper was drawn

from two principal areas. First, this investigation

considers the production process of previous corpora

that used actors as subjects for elicitation recording.

Second, this investigation examines and adapts

character development and rehearsal techniques

drawn from acting and performance theory. This

paper will summarize findings related to acted

corpora and some “natural” corpora where “real”

people are used as behavioural subjects. Additionally,

deployable acting theories for corpus production will

be discussed.

Multimodal emotion corpora have been

categorized by a variety of properties that describe

their production and therefore their utility. A first

consideration is if a corpus was acted and produced

by the investigators in a controlled environment or

were its video samples gathered from the billions of

clips available on the many user-contributed video-

streaming websites. For the case of using actors, this

research considers if the video samples portrayed

actors as characters eliciting an emotion, or instead

showed actors performing as themselves but induced

into an emotional state, using what is widely known

in acting theory practiced in 20th century United

States academies as inducing an affective memory

(Moore, 1984). Additionally, in the case that actors

performed as characters, were the elicitations induced

using another technique known as substitution

(Strasberg, 2010), or was the emotion produced from

a dyadic conversation using improvisation principles

of active analysis technique (Thomas, 2016). As this

paper will reveal, the expository rationales published

with the release of the corpora reviewed here, hint at

the acting methodology used, and describe variations

of acting methods that give credit to the performance

theorist whose ideas the affective computing

community owes significant reference. Before

expanding further on the methods that this paper and

its experiment advances, it is important to address the

types of corpora production which the experiment of

this paper considered.

A prevailing trend for the development of emotion

corpora is the use of “in-the-wild” or “natural”

footage, most often found in the databases of user-

provided video streaming websites. These corpora

depict “real” people exuding a variety of emotional

states in a wide range of contexts. This paper and its

experiment considered if the on-screen subjects were

aware of the camera’s presence or were they caught

in an emotive state unaware of the camera. Another

consideration was if the corpora sample production or

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

198

sample collection demonstrated consideration of the

context of a recorded elicitation, or was the sample

collected as a decontextualized fragment. Included in

the contextual concern was the presence of other

persons, their relationship to the elicitor, if the person

behind the camera was acquainted with the subject,

and if the stimuli that triggered the emotion was

present in the frame, off-screen, or out of the scene

altogether. Unfortunately, most of these concerns

were not consistently answered in the published

rationales for the creation of corpora with “natural”

or “lay” elicitors. Yet neuroscientific research

confirms the hypothesis that social context can inhibit

emotional elicitation (Clark, 1996) largely through

what has been called a neurologically “constructed

emotion” (Feldman Barrett, 2017). Furthermore, the

affective computing community has remarked on the

ethical concerns (Scherer and Bänziger, 2018) and the

accuracy of using such footage for corpora

development to study or model emotion due to

inhibition of emotion display (Scherer, 2013). Some

critics have also questioned the accuracy of “in-the-

wild” corpora that rely on instantaneous emotion

evaluations and ignore context and self-regulating

temporal elicitation (Barros et. al 2018). This paper

concludes that the corpus sample set to use for

modelling a single character should consist of

elicitations whose context (imagined by the actor)

approximately matches those of a future context

(perceived by the video game player) from which the

data intends to inform (for classification) or predict

(for NN modelling). The input emotion should

categorically resemble that of the predicted output.

Research for this paper sought to find corpora

created for the same purpose as its hypothesis. No

similar multimodal or unimodal corpora was found

with the intent to train a NN for a single-NPC. But

what follows is a summary of rationale that highlights

the suitability of using actors to create multimodal

corpora for the general study of emotion and to

validate some specific concepts about emotion. These

rationales also remark on the pitfalls of using lay

elicitors. The principal corpora that advocated the use

of actors is the Geneva Multimodal Expression

Corpus and its emotion portrayals Core Set (GEMEP

and GEMEP Core Set). Bänziger et. al note the

advantage of “experimental control” and “validity of

the stimulus” that reveal the importance of

understanding the context and the system of cues that

create, encode, and decode an emotion elicitation

(Bänziger, Mortillaro, Scherer, 2011). Recording

samples can be acquired in a “holistic fashion”

without actors being aware of the recording process.

Rather than ask for disconnected elicitations, facial

movement and speech can come because of a

“specific episode often characterized by a scenario”

(Busso et. al 2008). Corpora production can deploy

what Bänziger et. al call “felt experience enacting,”

where an induction method based on remembered

events and imagery cause emotions to be recalled

sufficiently to elicit facial expression. The results

reported for the techniques applied showed

“significant expressive variations rather than a

common prototypical pattern” (Busso et. al 2008).

The Interactive Emotional Dyadic Motion

Capture Database (IEMOCAP, 2007) likewise

highlights similar methods including the use of

“experienced actors” speaking “natural dialogues in

which the emotions are suitable and naturally

elicited.” The recommendation from Busso et. al is to

record the samples emphasizing control over

emotional and linguistic content, suggesting that

emotions should be “targeted”, and dialog should be

performed from memory, with less improvisation

(Busso, et. al, 2017).

The MSP-IMPROV database also involved

producing its corpus with actors. While utilizing

many of the same principles established in the two

previous corpora mentioned, MSP-IMPROV

developed a unique emphasis on fixing the lexical

content while recording variations on how it can be

elicited (Busso et. al 2008). Lexically identical

sentences were recorded with the actor creating

distinct scenarios for each recorded version, causing

different emotions to surface for the same set of

words. The intention was to discover how and if

emotions surfaced in voice but not through the face,

and vice-versa, when such variations of expression

are designed to occur. While not mentioned in the

published rationale for the corpus, this technique was

earlier used in training American actors by Sanford

Meisner. The technique is widely known as the

Repetition Exercise in acting communities and the

exercise has many variations still practiced by

Meisner technique instructors (Meisner, 1987).

Complimentary in its purpose and approach, the

CreativeIT corpus also used improvisational

technique that yielded statistically significant

consistency among its annotators. Most useful to the

experiments deployed for this paper is the

deployment of Stanislavsky’s active analysis

technique, where actors in dyadic conversational

mode focus on a verb-action word to accomplish a

goal that the other actor controls. The CreativeIT

shared one goal of this paper and its experiments. It

was the only corpora that explicitly set out to create a

corpus that would assist in analysing “theatrical

performance” for entertainment in addition to the

Facial Emotion Expression Corpora for Training Game Character Neural Network Models

199

broader application of “human communication”

(Metallinou et. al, 2010).

The One-Minute Gradual-Emotion Recognition

(OMG-Emotion) dataset is among the corpora that

used lay elicitors from videos harvested on a

streaming website. The published exposition of the

corpus critiqued previous corpora that used acted

emotion elicitation (Barros, 2018). Barros et. al found

that too much focus on controlling lexical content

may have provided consistent and discrete

evaluations of recorded utterances for targeted

emotions, but that too often acted corpora lacked long

enough or diverse enough expression to evaluate

transitions from one emotional state to the next.

OMG-Emotion focused its harvesting of multimodal

samples on providing more complete context for

shifts that showed how a subject changed over time.

The investigators’ emphasis on analysing context can

be applied to acted corpus sample production

provided the sample and the rehearsal have sufficient

duration.

This paper found useful the MSP-Face Corpus

(Vidal, Salman, Lin and Busso, 2020), another of the

corpora consisting of video-sharing content. Its

production methods were completely different from

the experiment of this paper. It does not consist of

acted elicitations but instead is a collection of

recordings of “real” people. Its samples are cut into

small segments that can be described with one global

emotion descriptor. The collection was curated to

focus on subjects in a front-facing position. The result

of the curatorial focus on consistent temporal and

positional requirements of each subject and sample

appears to have resulted in a relatively even

distribution of annotation agreement among samples

where the dominant emotion label out of eight is not

more than 23% of the collection. Such an even

distribution is a useful goal as the sample set is

balanced enough among emotion categories to train a

NN to control a variety of NPC facial elicitations.

3 METHODOLOGY

The controversy over using actors to create samples

or to collect samples of “real” subjects from

streaming video websites has evoked important

questions on the ethics and authenticity of emotion

observation. But rarely in the discussion about the use

of actors was there an in-depth discussion on the

theoretical differences in beliefs about emotion

generation between actors and psychologists, and

among actors themselves. As performance requires

communication between actors and those that “stage”

their performance, beliefs about how emotions are

generated will be implicit in the instructions given

during preparation and rehearsal and in the method

used to record the video samples.

3.1 Acting Theory Differences

There are some disadvantages to using actors for

emotion elicitation video corpora that have been

scarcely addressed by the communities that develop

emotion corpora. 1) Actors are trained to

communicate within a stylistic tradition of specific

global regions, and those traditions, even those that

strive for “realism”, are not in fact inter-culturally

“real”; they instead provide for the viewer of each

region a broad set of compressed and coded

elicitations that suggest emotional ideas for efficient

storytelling. 2) The characteristics of an actor’s

performance is partially shaped by a director who is

trained to design rehearsal procedures to elicit desired

affects. It is broadly agreed among contemporary

acting teachers and theorists that actors cannot

simultaneously have acute awareness of their own

emotive behaviour while also concentrating on the

fictional stimulus that triggers it (Barr, Kline and

Asner, 1997). The director is therefore relied on to see

the performance in progress and to request

adjustments from actors. Thus, any emotion

elicitation experiment depends on a director to setup

and modulate the actors. Therefore, to some extent

control of the performers is not fully in the hands of

the psychological and computational investigators

who design the corpora. 3) Actors choose to be

trained in one or more of a variety of methods or

styles that require “belief” by the actor in the

technique they have chosen to learn (Barr, Kline and

Asner, 1997). These differences between techniques

can complement or clash with each other, and

conflicts can occur between actors or with a director

who does not share the same “belief” or is unfamiliar

with a particular approach that intends to achieve the

illusion of authentic emotion elicitation in a fictional

context. 4) Some of the underlying intentions of the

discipline of computational psychology contradict

some of the beliefs of major acting theorist that infuse

much of the training of actors in academies and

universities around the world. Specifically, the idea

that an elicitation from an actor to make a video

sample for a corpus need only be a demonstration of

an elicitation, but not a demonstration of actual felt

emotion. This conflict is widely known in the acting

theory circles as the debate between “outside-in” or

“inside-out” training methods. An investigator

positioned on the opposite side of their actor’s beliefs

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

200

might be unable to contribute to a corpus production

project.

Despite these potential challenges, and in the light

of the relative rise of enthusiasm in the affective

computing and computational psychology

communities for “in-the-wild” corpora, GEMEP,

IEMOCAP and CreativeIT were created using actors

with scripted and improvisational scenarios that

target specific emotions for the purpose of creating

comprehensive baseline definitions for emotion

identification, close analysis of the processes of

emotion generation, and inter-agent emotion

interpretation. The results of the work of these

corpora demonstrate that emotions targeted by

researchers through experimental design, and then

elicited by actors sufficiently prepared, can be

identified and cross-validated by human evaluators. It

is the intention of this research to implement the most

effective and relevant methods of the creation of the

GEMAP, IEMOCAP and CreativeIT corpora, and to

augment their methods with additional parameters

that better suit the needs of training of neural network

modules that animate the face of game characters.

Previous work with NN-driven animation have

already shown that a small and rough sample of

“invented” player emotion data for four basic

emotions can drive the facial emotion animation of an

NPC (Kozasa et. al 2006), or team of NNs can be

trained to animate each specific emotion (Schiffer,

2021). One of the goals of this research was for the

result to provide enough expressive nuance that the

facial movement could be comparable to the

performative aesthetics of live-action film and

television. To accomplish this, several corpora of

video samples were produced using professional

actors directed by an experienced director familiar

with the performance preparation methods that the

collaborating actors had previously trained.

3.2 Active Analysis and the Repetition

Exercise

Asking an actor to directly elicit an emotion, with or

without a discussion of causality and context is

widely understood among actors as results-oriented

directing and is usually disparaged as cause to an

“unnatural” performance (Weston, 2021). Corpus

validation for acted elicitation has shown success

when actors were allowed to prepare in the manner

they were trained (Douglas-Cowie, Campbell, Cowie

and Roach, 2003 and Bänziger, Mortillaro, Scherer,

2011).

For trained actors and directors of performers,

emotional elicitations are deemed “natural” and

“authentic” when they are the result of an actor fully

believing the conflictive facts of the past, sensations

of the moment, and projections of the future of a

character. “Natural” and “authentic” performances

occur when actors use beliefs to pursue character

goals and circumvent obstacles while using the

physical and emotional properties of the character.

Inventing the past, present, and future of a character

is a collaborative process between director and actor.

But only the director, through their interpretation of

the written script, can coordinate all the pasts,

presents and futures of all the characters in a scenario

to ensure that as characters pursue goals and

circumvent obstacles, appropriate character conflicts

arise for the actors with little effort. By guiding

characters toward pursuing conflict-generating goals,

an actor’s valence (pleasure and displeasure) and

arousal will elicit a full range of emotion elicitations

so long as they are listening intentionally to the

fictional sensations of the scene portrayed. Creating

an elicitation without the coordinated context that a

director is obliged to setup through imaginative

blocking and explanation, deprives the actor of

arousing sensations (real or imagined) from which to

respond authentically, and can cause an actor to

project “prototypical” emotion elicitations that

appear unnatural or inappropriate to the scene’s

context. Such elicitation on demand, or result-

direction, was avoided in the experiments of this

paper. Instead, as studies conducted by Scherer,

Bänziger, Busso, and Metallinou each propose, using

preparation notes, discussion, and rehearsals to

provide an actor information about the character,

proved more effective for creating imaginary fictional

stimuli. Such information and stimuli allow the actor

to imagine the impetus of elicitation. Resulting

elicitations and their annotated categories have been

validated as mostly the same as their pre-selected

target emotion (Bänziger, Montillaro, Scherer, 2011).

Of the acting theories explicitly referenced, as in

Bänziger et. al and Metallinou et. al, Stanislavsky’s

two techniques of imaginative access of affective

memory and his active analysis were both used in the

creation of the corpus created for this paper. Actors

were provided a scenario with a past backstory of

facts, a current situation and three future outcomes

that have vividly different imaginary conditions to

provoke distinct emotion categories and diverging

valence and arousal responses. Past events in the

actors’ histories that were similar in remembered

sensation and emotion were tapped as affective

memories.

Preparation of the actors included providing the

basic parameters of active analysis for the actor

Facial Emotion Expression Corpora for Training Game Character Neural Network Models

201

playing the role of the on-screen non-player character

and for the game player character. Those parameters

evolved through what Stanislavsky calls

improvisational etudes, or repeated sequences

(Thomas, 2016), to discover, 1) goal selection and

acquisition through action with the use of tactile noun

goals and physical verb actions, 2) possible tactical

actions for circumventing obstacles and exploiting

aids, and 3) development of imagined sensations that

construct the fictional appraisal of the environment

and a determination if actions previously taken are

leading toward goal acquisition.

The experiment consisted of a dyadic

conversation with restricted physical limitations and

pre-defined social relations between the on-camera

actor and an off-camera actor. As the scenario’s

scripted action and dialog progressed in time,

obstacles, and aids to the characters in the scenario

increased and resolved the conflict. Improvisation of

all the non-lexical features of the scenario guided the

actor toward a clear direction for every recorded

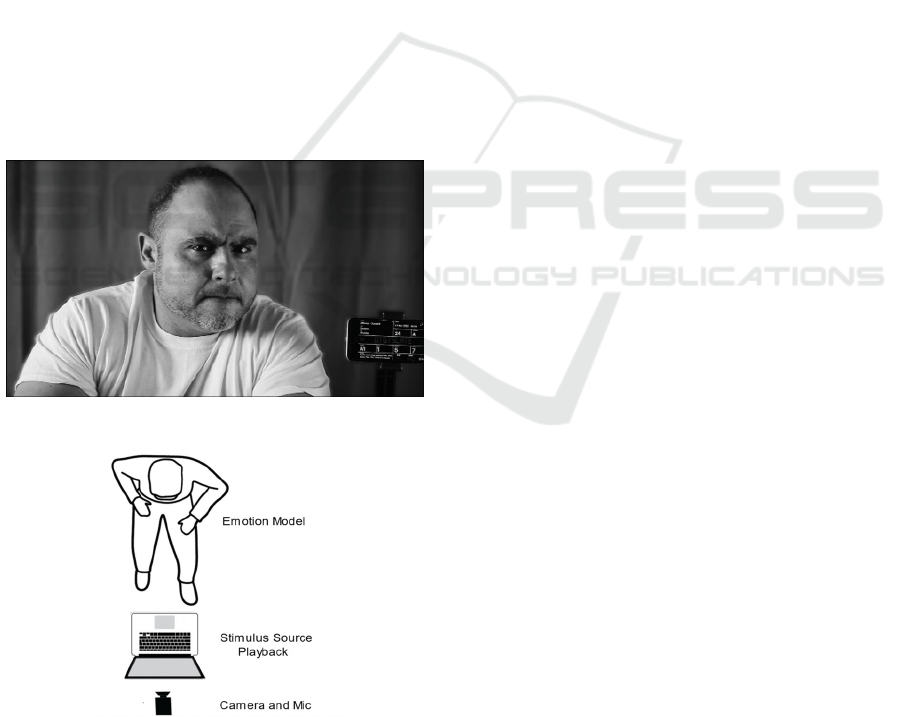

sample. Figure 1 presents one of the actors in-

character during production of a single-actor corpora

in a studio environment with timecode slate. Figure 2

illustrates the setup of the recording of each sample.

Figure 1: Corpus Actor Alfonso Mann.

Figure 2: Production setup for sample recording.

While neither of the publications that describe the

IEMOCAP nor MSP-IMPROV corpora explicitly

mention Meisner’s techniques, their descriptions of

their own corpus production method and its emphasis

on variation and repetition resemble Meisner’s

repetition exercise (Busso et. al 2008, Busso et. al

2017 and Meisner, 1987). The experiment of this

paper deployed the technique by designing a dialog-

behaviour tree where the lexical content is fixed but

is reperformed several times such that some of the

backstory facts of the character changed, the

character goal for the scenario changed, the actions to

acquire the goal changed, and the set of likely future

outcomes changed as well. The dialog-behaviour tree

shown in Figure 3 illustrates an 8-node directed

acyclic graph with one distinct start node and one

distinct end node. Each node represents a single or

pair of dialog turns between the two characters in the

dyadic conversation. Each edge represents the

internal emotional progression the actor takes that

leads up to the dialog turn.

The dialog-behaviour graph works as follows.

The grey box segments represent the dialog of an

Interrogator character henceforth called the Stimulus

Source and the white box segments represent the

dialog of a suspect character that we will refer to as

the Emotion Model. The Stimulus Source starts at

node 0 with the first turn. The Emotion Model either

responds with a “Yes” down the Cooperate Path as

shown in node 1 or a “No” down the Resist Path as

seen in node 2. If the Emotion Model chooses to

repeat the previous response of either “Yes” or “No,”

then the scenario advances directly down an edge

remaining on the same path. If the Emotion Model

decides to answer with the opposite response of either

the Cooperate Path (“Yes”) or Resist Path (“No”),

then the Emotion Model switches across to the

opposite parallel path down a diagonal line that

advances to the next level of dialog turns. Another

possibility is that the Emotion Model can respond

with an intermediate “So”. In this case, the Emotion

Model moves across to the parallel opposing path but

remains on the same dialog turn level. As this is a

directed acyclic graph with a finite number of paths

and path lengths, the Emotion Model cannot move to

the next node on a previously traversed edge. The

Stimulus Source terminates the graph with the final

dialog turn at node 7.

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

202

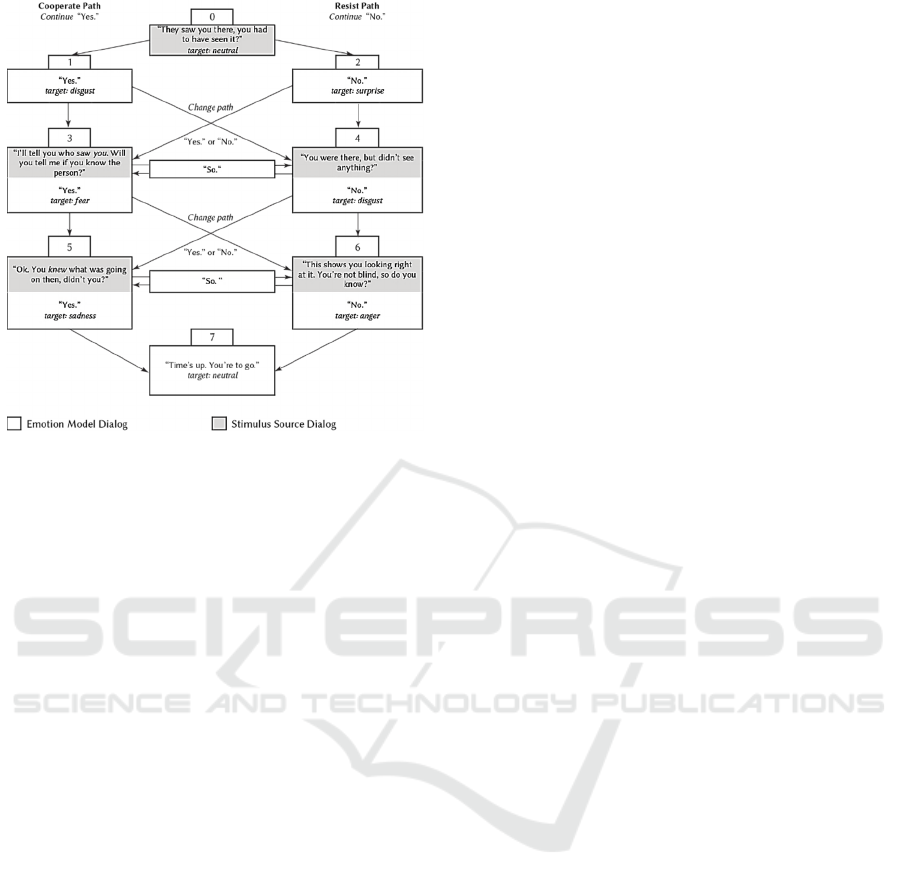

Figure 3: The 8-node directed acyclic graph produced 32

unique video clip variations. No nodes or edges repeat.

Grey dialog was performed by the Stimulus Source. White

dialog was performed by the Emotion Model.

Using a Depth-First-Search algorithm

(Sedgewick and Wayne, 2011), we discover there are

32 possible paths without repeating any edges. For

each path, the actors recorded 9 samples in 3 triplets.

Thus, the total sample count was 288. The first triplet

consisted of a version of the backstory and possible

outcomes that would not likely disrupt the life of the

character. The basic material and social needs that the

environment contained would remain accessible and

plentiful. This first triplet intends to provide a

baseline of emotional normalcy with arousal scores

seeking zero (mild boredom) and valence scores

intending toward positive scores (pleasurable). This

group of samples is the low intensity outcome triplet.

The second triplet consisted of an embarrassing but

legally unprovocative backstory with possible

outcomes that could lead to short-term social

exclusion, but the most negative outcome would have

little effect on the future material state of the

character, nor would it risk harm to their body. This

set of samples was called the medium intensity triplet.

The third triplet of video shots consisted of an illicit

and morally depraved backstory with probable

outcomes that could lead to extreme long-term social

exclusion, loss of material possessions and personal

freedom, as well as potential injury to the body. This

third group of samples was the high intensity triplet.

Despite each of these distinct scenarios, the lexical

content was either totally fixed or slightly adjusted for

each recorded sample. The differences in facts,

actions, goals, and visualized outcomes provide

impetus for variations in emotional elicitation.

To achieve consistency among each of the triplets,

the performance director of the experiment adapted

Clurman’s script scoring technique (Clurman, 1972)

such that for each dialog or behavioural “beat” (which

in this case is represented as a node), there is one

tactile goal represented by a noun (an objective), and

one behaviour to get the goal represented by a verb

(an action). Throughout the scene there is one

perceived or imagined tactile obstacle and aid,

represented by nouns. And lastly, there is a set of

imagined outcomes where at least one is desired,

leading to a positive outcome, and one feared, leading

to a negative outcome. While the basic scenario for

each actor playing the NPC was the same, the details

that differentiated the triplets were adapted to fit to

their physical characteristics, such as age, gender,

physique, sexual orientation, and ethnicity.

3.3 Targeting Specific Emotions

Through their input device and logical controls, video

games provide the player many opportunities to

interact with the medium and directly affect the

audio-visual stream of animation, sound, character

behaviour, and thus narrative generation. Despite an

abundance of aleatory features available to the

medium, the player still looks for some pseudo-

psychological cohesiveness to the behaviour of

NPCs. Thus, when players observe an NPC’s

behaviour pattern in the game play, they expect

variation to reflect the dynamic environment of the

characters within the constraints of the game rules,

including rules that govern social behaviours. Rapidly

players notice behaviour patterns in NPCs that lead

players to mentally generate narrative through cause-

and-effect suppositions. Game designers exploit the

tendency of players to mentally generate narrative by

using the player’s gaze in a close angle of NPCs’

faces. Facial animation represents the elicited

emotion of an NPC, and the emotion reveals by

implication their thoughts and feelings about events,

objects, and other characters, including the player.

By targeting specific emotions in the actor, a NN

will train the weights and biases of its prediction

algorithm to respond within the range of the values

presented during the training stage. If the emotions

generated in the scenario of the corpus production are

within the desired range as those designed for game

play, then the NN will predict and generate emotion

data for the NPC that is appropriate to the game’s

narrative. To achieve this correlation, a dataset must

be enriched by moderate variations of facial emotion

Facial Emotion Expression Corpora for Training Game Character Neural Network Models

203

data of the same emotion category. This correlation

was easily achieved in the design of the scenario by

using a scripted and rehearsed dialog-behaviour tree.

3.4 Design of Emotion Elicitation

Content

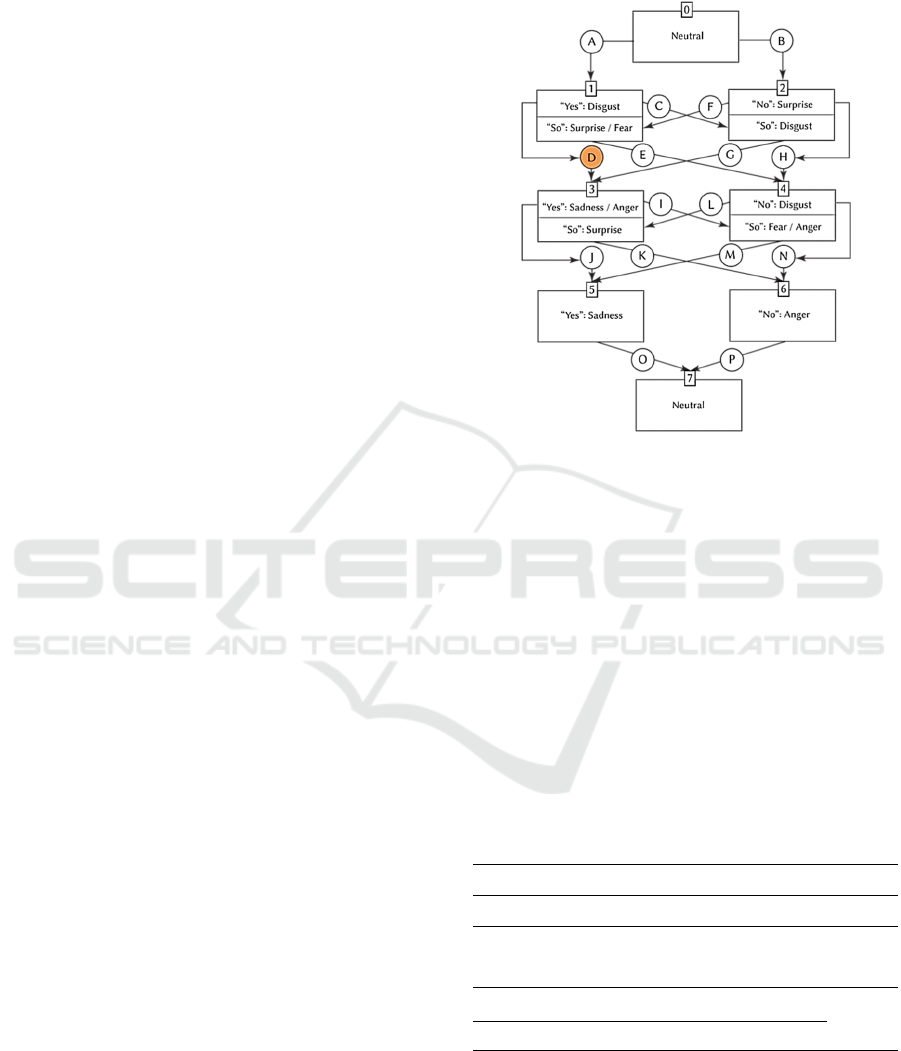

An examination of the structure of the dialog-

behaviour graph reveals that, like any tree graph, it

has a height and width dimension. In the use

presented for the experiment of this paper, the height

in stacked nodes represents levels of dialog

exchanges, and the width of a layer of nodes along

with edges that connects them, effects the number of

possible choices a character could make through any

path from the start to the terminus. As the graph

grows in height, the average length of each video

segment increases. As the tree expands in width, the

number of possible variations of node-edge

sequences increases, thus the number segments will

increase. The rules of a directed acyclic graph

forbidding repetition of edge traverses prevent

reversal of progress from start to end nodes. This rule

reinforces a principle of requiring a novel experience

at every step toward resolution. Additionally, as the

dialog progresses downward, the action by the

Stimulus Source to acquire their goal becomes more

aggressive. This aggression can cause the Emotion

Model to react with an impulsive “Yes” or “No”, or

if the Stimulus Source eases pressure, the Emotion

Model response can thoughtfully reflect before

speaking.

At the first level, the Stimulus Source begins with

a statement of facts and a suggestion of implication,

“You had to have seen it.” At the second level, the

Stimulus Source offers a cooperative deal with “I’ll

tell you… Will you tell me?” or with an escalation of

the surprise that the Emotion Model “…didn’t see

anything.” The third level is the climax where the

Stimulus Source accuses the Emotion Model of

knowing but withholding testimony of the facts of a

crime with either the more affirmative, “You

knew…” or with the aggressive demonstration of

evidence that ties the accused Emotion Model to a

past crime scene. The final level is a plausible

resolution where the allowed time of interrogation

expires. This shift allows the Emotion Model to

reflect on the events that just occurred and eventually

return to neutral. The return to neutral must be

accompanied by the cease of stimuli and then the

return of the FER system to reset back to zero to

match the starting point. Matching start and end node

emotions are important for NN training as all the

FER-produced data may be concatenated to a large

flat-file database. Starting and returning to zero

eliminates large value discrepancies between

adjacent rows of data. Large data value jumps

between adjacent rows can reduce a NNs trainability.

3.5 Sample Recording and Data

Generation

The OMG-Emotion dataset emphasized the

importance of corpus sample production methods that

provide contextual data around facial elicitation

(Barros et. al, 2018). Context comes in two forms: a

representation in the data of what occurs before or

after the target elicitation, or a representation that

presents itself in the synchronous proximity of the

target elicitation. For video samples, this concept of

context would seem to refer to events that occur in

previous or subsequent frames around the region of

frames where the elicitation occurs. Or it refers to

events, objects or agents that appear in the frame with

the elicitor.

There is another kind of context though. There are

events, objects and agents that occur or coexist

synchronously out of frame but in the near proximity

of the elicitor. For a dyadic conversation sample

recorded for a facial emotion recognition corpus, the

camera must be placed directly in front of the elicitor

to optimize facial surface lines of sight into the lens

and to minimize occlusion and data loss. But with one

camera squarely in front of the eliciting Emotion

Model, the opposing Stimulus Source is the most

relevant item in the context of the elicitation. This

presented an important question in the design of the

sample recording procedure of the experiment of this

paper. If the experiment will use the data of the

elicitation context, should the Stimulus Source also

be recorded with a second synchronized camera for

every sample recording? Or should the Stimulus

Source be pre-recorded such that all 32 paths through

the dialog behaviour graph are presented during the

performance of the Emotion Model on a video screen

with speakers? Since the Stimulus Source is playing

as the player character, the input data of the player

must narrow down to a small enough set of

predictable values so that the player can make either

a reasoned or impulsive decision. Thus, the set of 32

paths would provide constant values frame-by-frame

against all frames of the three triplets of recording

samples of the Emotion Model. By keeping constant

the Stimulus Source through the playback of a pre-

recorded performance, the context of the elicitation is

provided for synchronous annotation and analysis by

a FER system. Additionally, the Stimulus source data

is also available for training data for the NN model of

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

204

the NPC. Because the Stimulus Source speaks and

gestures to the Emotion Model through a video

screen, the Emotion Model modulates arousal and

valence in response and in synch with each turn of the

Stimulus Source. For each of the 9 variations in the 3

triplets of emotion recognition frame instances of the

Emotion Model, there is 1 constant causal frame

corresponding from the Stimulus Source.

4 RESULTS

Unlike the corpora reviewed for this paper, no human

evaluators were employed to annotate the video

samples. The reason for this difference is that a

single-actor for single-character corpus is not

designed to study emotions, nor is it developed to

create emotion recognition applications. The purpose

of annotating a corpus to be used for training a NN is

to provide classification definitions of emotion

categories of an actor playing the NPC so that the

patterns found in a video game player whose face is

not the Stimulus Source, but is outside the training,

validation, and testing set, is correctly classified, and

then appropriately responded to by the NPC facial

mesh during the game. Quite different from

classification corpora, a single-actor corpus is a

simulation corpus. A simulation corpus depends on

classification corpora to classify the context and

predict the elicitation of a specific face that will be

simulated. Thus, to cross-validate with human

annotators would simply be a check on the FER

system that classified the single-actor and would

reveal little about the validity of the single-actor

corpus.

There is however a way to validate the corpus.

Targeting emotions in the design of the scenario will

likely produce a corpus that will more easily train a

NN model that can control the facial animation of an

NPC. The FER-generated data must be post-

processed into a data query that captures all sample

segments that commonly cross the same edge. For

each edge, there is a set of corresponding video

segments bounded by the same timecode in and out

points indicating the exact first and last frame the

FER analysed for each of the segments. A

presentation of data from all the edge segments of this

experiment would be unnecessary and require more

space than needed to demonstrate the efficacy of the

method proposed. Instead, one typical edge segment

shown in Figure 4 is edge D. Figure 4 shows a node-

to-edge version of the dialog-behaviour graph. Edge

D is among a set of edges selected from the

experiment to demonstrate how to validate the set of

FER data in relation to the target emotion intended for

the edge.

Figure 4: Dialog-behaviour graph for dyadic interaction.

Edges (A to P), nodes (0 to 7). Model responses in quotes.

Orange node-D is the focus of this study.

Table 1 shows the result of a sample data query

where the enumerated paths appear in the row at the

top of the table as column labels. The column

numbers in Table 1 represent path IDs (1-32).

Beneath the path ID is a set of numbers that show the

order of numbered nodes in each path (0 to 7). Notice

that each path that crosses edge D includes the

consecutive presence of nodes 1 and 3. As shown in

Figure 4, edge D is formed from nodes 1 and 3.

Observe that paths 5, 6, 9, 10, 21, 22, 25 and 26 all

traverse edge D. The ellipses (…) indicate omitted

paths that do not traverse edge D.

Table 1: Instances of Edge D in Each Sequence.

… Seq. 5 Seq. 6 … Seq. 9 Seq. 10

Nodes Timecode 013457 01357 0213457 021357

1 0:14.6 … 1 1 … 1 1

3 0:26.6 … 1 1 … 1 1

… Seq. 21 Seq. 22 … Seq. 25 Seq. 26 … Sum

Instances

… 013467 0136 0213467 021367 …

1 1 … 1 1 … 8

From the data sort, the next step is to segment and

concatenate the query result row data from the master

data frame that only contains emotion values for the

Facial Emotion Expression Corpora for Training Game Character Neural Network Models

205

timecode that covers edge D. Since all Emotion

Model samples were recorded precisely in response

to the same frames of the same Stimulus Source

recording, the video frames of each Emotion Model

response are precisely aligned in time-series.

4.1 Analysis and Validation Method

With FER data of the Emotion Model’s response to

the same stimulus during the edge, statistical results

can validate the degree to which the Emotion Model’s

performance met edge D’s target emotion, as Figures

5 and 6 show. Statistical analysis over all the values

produced by frames analysed by the FER system in

the edge of each path in the dialog-behaviour graph

can indicate if the target emotion elicitation was

adequately collected by following two steps: 1) Find

the proportion of values above a primary threshold

among all samples that traverse a given edge, 2) Find

the mean of values at each frame among all the

samples that traverse a given edge, organized by

categories of low, medium and high intensity in

triplets of positive to negative consequence.

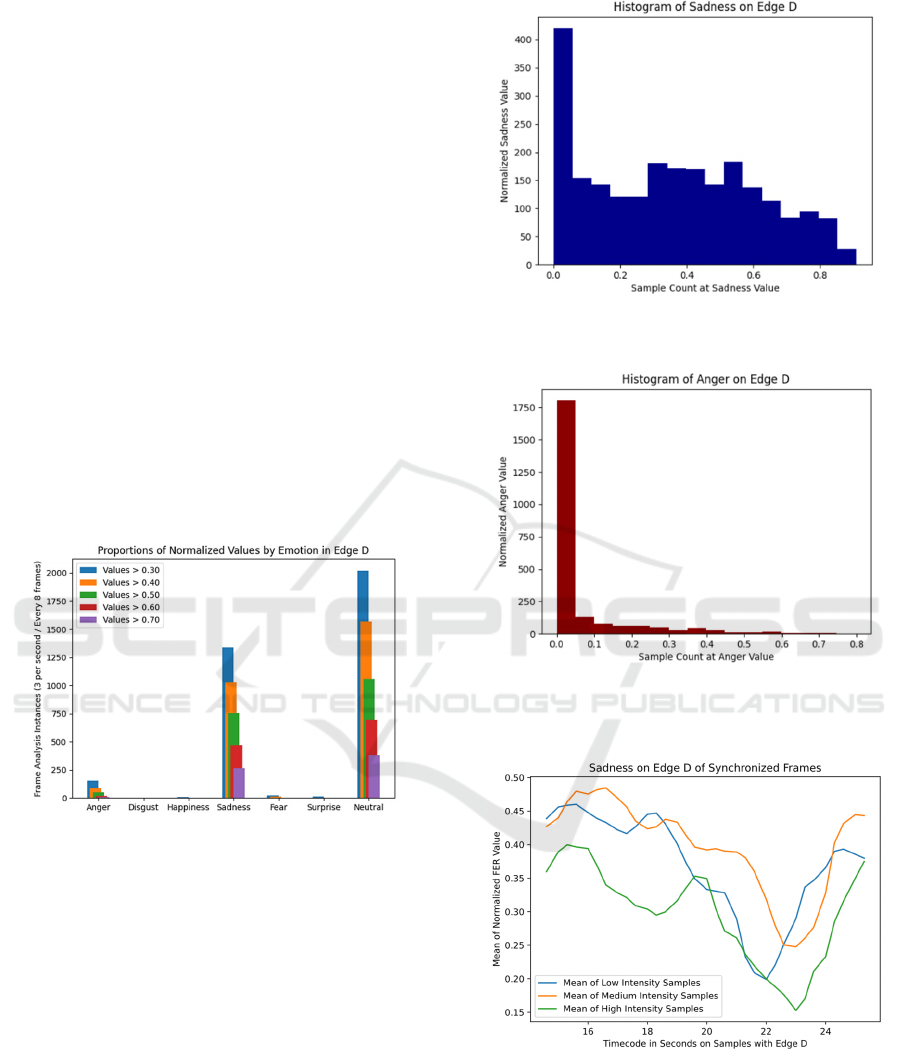

Figure 5: Performance of edge D reveals sadness is primary

emotion, followed by anger.

Figure 4 identifies the position of edge D in the

dialog-behaviour graph as an edge leading into node

3. The primary emotion is sadness, and the secondary

emotion is anger. Figure 5 reveals the proportions of

normalized values in edge D leading into node 3. The

disproportionate instances of neutral emotions are a

common feature of facial elicitation emotion value

histograms. Listening and thinking often show high

neutral measurements. Figures 6 and 7 show

proportions of emotions sadness and anger over the

same segment of timecode.

Figure 8 confirms the higher levels of sadness

lingering with a gradual decline that gives way to

anger for a climactic reaction as shown in Figure 9.

Figure 6: Histogram of primary emotion sadness for edge D

indicates maximum is 0.910 and the median is .384.

Figure 7: Histogram of secondary emotion anger for edge

D indicates maximum is 0.797 and the median is

0.0000006.

Figure 8: Primary emotion sadness on edge D wavers and

rises, giving space for secondary emotion.

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

206

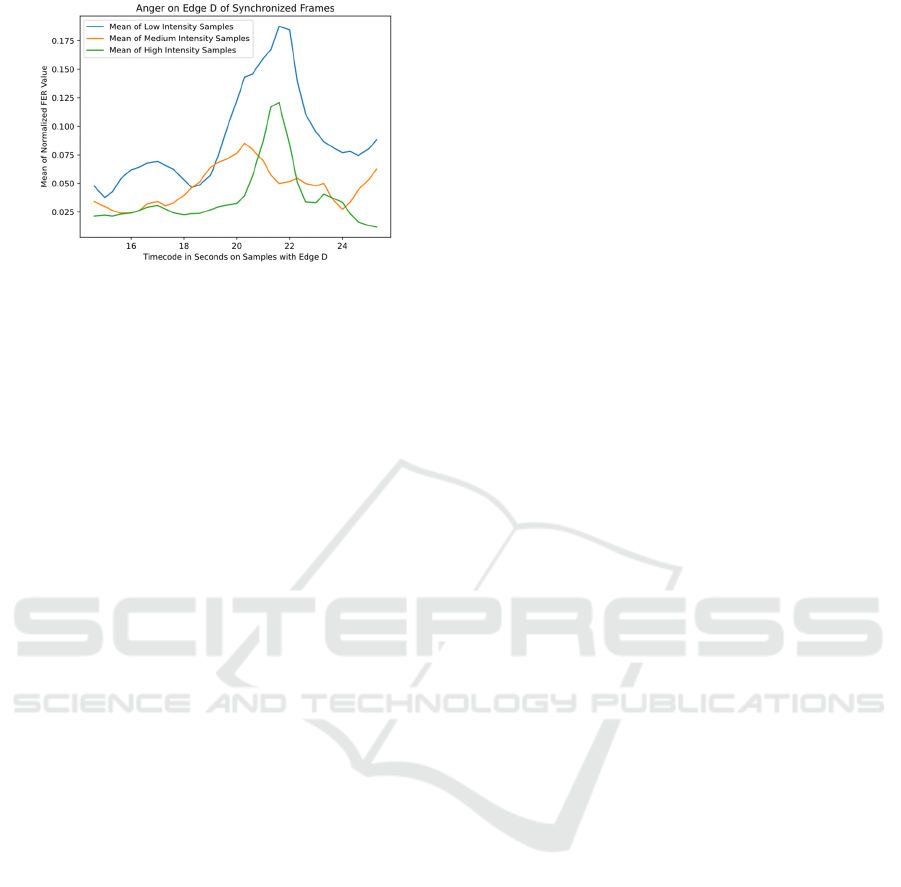

Figure 9: Secondary emotion anger on edge D asserts peak.

It should be noted that the intention of the intensity triplets

was not adhered. The Low Intensity Samples showed the

highest values, Medium plots the lowest and High falls in

between. Production conditions sometimes yield such

deviations. The dynamic range and higher maximum value

of sadness indicates that it is the dominant emotion of the

video segment, thus validating that the target emotion

indicated in Figure 4 for edge D was elicited in the segment

intended.

5 DISCUSSION

This paper disclosed at its Introduction that neural

network design details and training techniques are

outside its scope, but their design properties and their

training methods inform the characteristics of an

optimal single-actor corpus. An optimal corpus will

allow a NN to train without over- or underfitting.

Designing the dialog-behaviour tree with the

intention of producing emotional variability can

prevent overfitting. The dialog-behaviour tree will

determine the variability of emotion values generated

from the Emotion Model. Most important is the

variance of values for each emotion category (anger,

sadness, fear, disgust, etc.). By providing sufficient

branching variations in the dialog-behaviour tree,

unsupervised learning can train a NN without

overfitting. But will optimization best be served by

adjusting the only the width of the dialog-behaviour

graph? Or will longer samples with more time-series

or nodal steps, thus increasing a tree’s height, provide

data that is variable enough over time to avoid under-

fitting? Or can expansion of height and width of the

dialog-behaviour tree in some proportion improve

performance of the NN? Each of these parameters

will hint at the benefits or detriments of longer

samples or more varied samples.

When producing facial emotion corpora for this

research, some FER biases were observed. However,

all FERs on which initial emotion analysis is based,

are subject to biases of reading facial characteristics

of the actor. Techniques for countering FER bias is a

topic for another investigation, but it must be

considered in designing facial emotion corpora.

These biases can also be amplified by uncontrolled

visual conditions, such as poor lighting or optical

distortions from wide angle lenses, another obstacle

for future research to consider. Lastly, as subsequent

investigations analyse which FERs are most accurate,

one should recognize that FERs frequently use both

convolutional neural networks (CNNs) for

classification of static object data, such as individual

frames of faces and the features of the face that do not

change (e.g., bone structure). More recently FERs use

recurrent neural networks (RNNs) for time-series

prediction of facial features that are dynamic (e.g.

movement of muscles and flesh). Ideally, training a

NN with FER data that uses CNN and RNN

components, given their distinct architectures, may

allow time series data to balance the emotion readings

of face-structure with those of facial motion.

6 CONCLUSION

Video game character animation has long been the

domain of animators who in the past scarcely used

actors for character design but now use them

frequently for motion and volumetric data capture.

Motion capture has expedited and enriched

photorealistic video game design with cinematic

performance aesthetics for its complex facial emotion

expression. FER systems can also contribute to this

field of video game development through the

development single-actor corpora that capture

intangible and surprising patterns in detailed human

expressivity controlled by emotion AI. The

production principles of single-actor corpus design

for the development of NN models for NPC facial

expression animation are currently in a nascent state.

Much remains to be discovered on how to design the

sample production method to precisely acquire the

desired results. Open questions remain concerning the

variations of preparing the role with the actor for

emotionally or narratively complex video game

scenarios and the NPCs that populate them. Lastly, a

comprehensive comparison between current costs of

NPC animation and projected costs for a combined

corpus and neural network solution remains to be

completed before any declaration that this novel

method is in fact viable for commercial application.

Facial Emotion Expression Corpora for Training Game Character Neural Network Models

207

REFERENCES

Bänziger, T., Mortillaro, M., and Scherer, K.R., (2011)

Introducing the Geneva Multimodal Expression Corpus

for Experimental Research on Emotion Perception. In

Emotion. vol. 12, no. 5. American Psychological

Association, New York, NY, USA. 1161-1179.

Barr, T., Kline, E. S., and Asner, E. (1997) Acting for the

Camera. Harper Perennial, New York, NY, USA, 8-18.

Barros, P., Churamani, N., Lakomkin, E., Siquiera, H.,

Sutherland, A. and Wermter. S. (2018) The OMG-

Emotion Behavior Dataset. In Proceedings of the

International Joint Conference on Neural Networks

(IJCNN). doi: 10.1109/CGIV.2006.41.

Busso, C., Bulut, M., Lee, C., Kazemzadeh, A., Mower, E.,

Kim, S., Chang, J. N., Lee, S., and Narayanan, S.,

(2008) IEMOCAP: Interactive emotional dyadic

motion capture database. In Language Resources and

Evaluation, vol. 42, no. 335.

https://doi.org/10.1007/s10579-008-9076-6

Busso, C., Parthasarathy, S., Burmania, A., AbdelWahab,

M., Sadoughi. N., Provost, E. M. (2017) MSP-

IMPROV: An Acted Corpus of Dyadic Interactions to

Study Emotion Perception. In Transactions on Affective

Computing, vol. 8, no. 1. Jan-March 2017. IEEE, New

York, NY, USA. 67-80.

Clark, J. (1996) Contributions of Inhibitory Mechanisms to

Unified Theory in Neuroscience and Psychology. Brain

and Cognition, vol. 30, 127-152.

Douglas-Cowie, E., Campbell, N., Cowie, R., and Roach,

P., (2003) Emotional speech: Towards a new generation

of databases. In Speech Communication. Vol. 40.

Elsevier, New York, NY, USA. 36.

Feldman Barrett, L. (2017) The theory of constructed

emotion: an active inference account of interoception

and categorization. Social Cognitive and Affective

Neuroscience, vol. 12, iss. 1, January 2017.

Clurman, H. (1972) On Directing. Fireside, New York, NY,

USA. 80.

Kozasa, C., Hiromiche. F., Notsu, H., Okada, Y., Niijima,

K., (2006) Facial animation using emotional model. In

Proceedings of the International Conference on

Computer Graphics, Imaging and Visualization

(CGIV'06). 428-43.

Meisner, S., (1987) Sanford Meisner on Acting. Vintage

Random House, New York, NY, USA. 26-38.

Metallinou, A., Lee, C., Busso, C., Carnicke, S., and

Narayanan, S., (2010) The USC CreativeIT Database:

A Multimodal Database of Theatrical Improvisation. In

Proceedings of Multimodal Corpora (MMC 2010):

Advances in Capturing, Coding and Analyzing

Multimodality.

Moore, S. (1984) The Stanislavski System: The

Professional Training of an Actor, Digested from the

Teachings of Konstantin S. Stanislavsky, Penguin

Books, New York, NY, USA. 41-46.

Scherer, K. R. and Bänziger, T. (2018) On the use of actor

portrayals in research on emotional expression. In

Blueprint for Affective Computing: A Sourcebook, eds.

K. R. Scherer, T. Banziger, and E. B. Roesch Oxford

Univ. Press, Oxford, England. 166–176.

Scherer, K. R. (2013) Vocal markers of emotion:

Comparing induction and acting elicitation. In

Computer, Speech Language, vol. 27, no. 1, Jan. 2013.

40–58.

Schiffer, S. (2021) Game Character Facial Animation

Using Actor Video Corpus and Recurrent Neural

Networks. In International Conference on Machine

Learning Applications

(ICMLA 2021), December 13-

16, 2021.

Sedgewick, R., and Wayne, K., (2011) Algorithms, 4th

Edition. Addison-Wesley, New York, NY, USA. 570-

596

Strasberg, L. (2010) Ed. Cohen, L., The Lee Strasberg

Notes. Routledge, New York, NY, USA. 47, 149.

Thomas, J. (2016) A Director’s Guide to Stanislavsky’s

Active Analysis, Bloomsbury, New York, NY, USA.

Vidal, A., Salman, A., Lin, W., Busso, C., (2020) MSP-

Face Corpus: A Natural Audiovisual Emotional

Database. In Proceedings of the 2020 International

Conference on Multimodal Interaction (ICMI ‘20).

October 2020. 397-405.

Weston, J. (2021) Directing Actors: Creating Memorable

Performances for Film and Television. Michael Wiese

Productions, Studio City, CA, USA, 1-11.

HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications

208
