An Open-source Library for Processing of 3D Data from Indoor Scenes

José María Martínez-Otzeta

1 a

, Iñigo Mendialdua

2 b

, Itsaso Rodríguez-Moreno

1 c

Igor Rodriguez

1 d

and Basilio Sierra

1 e

Department of Computer Science and Artiﬁcial Intelligence, University of the Basque Country (UPV/EHU),

Donostia-San Sebastián, Spain

Department of Languages and Computer Systems, University of the Basque Country (UPV/EHU),

Donostia-San Sebastián, Spain

Keywords:

Computer Vision, Pointcloud, 3D Segmentation, Open Source.

Abstract:

In recent years affordable 3D data acquisition devices have appeared in the market. Researchers and developers

have been able to use them in a much larger scale than ever in a wide range of applications, from robotics to

autonomous driving. One of these applications is the processing of 3D indoor scenes, usually in the context of

autonomous navigation of mobile robots, but also in building mapping for map reconstruction or assessment

of the location of structural elements. In this paper we report on the development of an open source Python

package (indoor3d) for processing of 3D data obtained indoors. This package is built on top of the Open3D

package, with the aim of making easier to perform common tasks that arise in indoor data processing. It has

already been helpful in tasks in two different projects: in one of them was useful in the search of structural

elements in a pointcloud obtained by a HoloLens device, and in the other in the location of the handle of a

door for a mobile robot navigation application.

1 INTRODUCTION

During the last years we have been witnesses of a

big explosion in the number of 3D data acquisition

devices around us. Fields like autonomous driving

(Arnold et al., 2019) or industrial robotics (Lin, 2020)

make use of them extensively, but also small-scale

laboratories performing research on computer vision

(Guo et al., 2020) or robotic navigation (Zieli

nski

and Markowska-Kaczmar, 2021) can beneﬁt of these

sensors. Due to the widespread possibility of ac-

quiring 3D data, need of processing and interpreting

has also skyrocketed. In the hardware side, special-

ized devices like the Velodyne

series are intended

for high-end applications with tight time response

requirements. But other much more affordable de-

vices can also be used when no critical performance

is needed, as is the case of the Intel RealSense line

(Zabatani et al., 2019). Not only data acquisition

https://orcid.org/0000-0001-5015-1315

https://orcid.org/0000-0003-2519-4094

https://orcid.org/0000-0001-8471-9765

https://orcid.org/0000-0002-1432-102X

https://orcid.org/0000-0001-8062-9332

https://velodynelidar.com/

needs to meet high performance standards, data pro-

cessing is also very demanding. It is almost manda-

tory to employ GPU units to train machine learning

models, and sometimes also for inference.

Open source software for efﬁcient 3D data pro-

cessing has been available for a long time. One of the

reference libraries is the Point Cloud Library (PCL)

(Rusu and Cousins, 2011), written in C++. PCL is

a library for processing of n-dimensional pointclouds

and 3D geometry processing. It is free software, dis-

tributed under a BSD license. It is integrated into

ROS (Quigley et al., 2009), the Robot Operating Sys-

tem, widely used in the robotics community. Its data

structures make extensive use of SSE optimizations

available in moderns processors. The implementation

of most mathematical computations relies in Eigen

(Guennebaud et al., 2010), an open source library for

linear algebra. PCL also supports OpenMP

and In-

tel TBB library (Reinders, 2007) for parallelization.

Nvidia GPUs are also supported.

More recently, Open3D (Zhou et al., 2018) has

been presented as an alternative, written in Python

and C++ with front-end in both languages. Its aim

is to provide ease of use and and environment where

http://openmp.org

610

Martínez-Otzeta, J., Mendialdua, I., Rodríguez-Moreno, I., Rodriguez, I. and Sierra, B.

An Open-source Library for Processing of 3D Data from Indoor Scenes.

DOI: 10.5220/0010870100003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 610-615

ISBN: 978-989-758-549-4; ISSN: 2184-4313

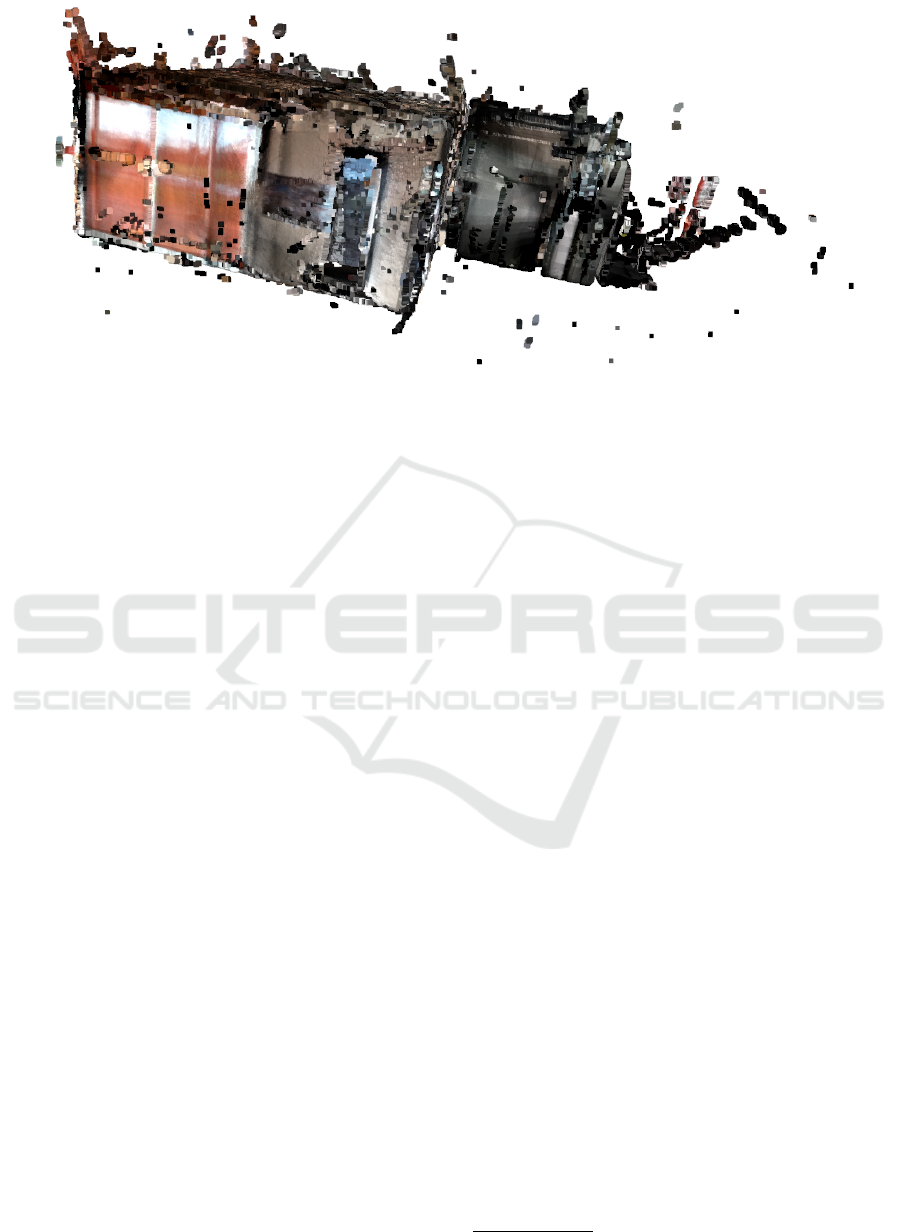

Figure 1: Pointcloud in the LANTEGI4.0 project.

rapid prototyping is possible, in addition to the de-

velopment of full-ﬂedged applications. The Open3D

backend is implemented in C++11 and set up for

OpenMP parallelization. It is open source and re-

leased under the MIT license. It is possible to work

with pointclouds, meshes or RGB-D images, and in-

put/output algorithms, sampling, data conversion and

visualization is available for each of them. Other al-

gorithms such as ICP registration, normal estimation,

ICP registration (Besl and McKay, 1992), and vol-

umetric integration (Curless and Levoy, 1996) have

also been implemented.

In this paper we present an open source package

written on top of Open3D and focused in the tasks

that are usually found when working with indoors 3D

data. We also present the application of the functions

of this package in two different projects. The ﬁrst one

is LANTEGI4.0, a project in which one of the tasks

was to ﬁnd structural elements in a pointcloud repre-

senting a big section of a building; the second one is

BotaRobota, a project in which one of the tasks was

to locate the position and orientation of a door handle.

The paper is organized as follows: after the intro-

duction, a section called Library Structure gives an

outline of the arrangement of the library functions in

different modules; then two Usage Cases are shown,

demonstrating the usefulness of the library in two dif-

ferent projects; the paper concludes with a Conclu-

sion section followed by the bibliography.

2 PACKAGE STRUCTURE

The package indoor3d is built on top of Open3D.

Open3D provides data structures for three kinds of

representations: pointclouds, meshes, and RGB-D

images. In our package we will only deal with point-

clouds. The contribution over Open3D is the integra-

tion of implicit knowledge about the room geometry.

For example, Open3D ﬁnds planes in the pointcloud

using RANSAC (Fischler and Bolles, 1981), and our

package ﬁnds sets of mutually parallel or perpendic-

ular planes from their results. Likewise, Open3D

provides clustering functions, and our package tells

whether the clusters are close to the limits of the room

(ceiling, ﬂoor and walls) or not.

The package is structured in ﬁve different mod-

ules:

• vector

• plane

• pointcloud

• ﬁndroom

• clusteringroom

The modules vector and plane deﬁne functions

that perform geometric operations on vectors and

planes, respectively. In the pointcloud module there

are functions that take pointclouds as parameters or

that return pointclouds. The module ﬁndroom is the

place for code that is useful when looking for rooms

in a pointcloud of a building. And clustering and seg-

mentation utilities belong to the clusteringroom mod-

ule.

The functions in the modules are commented with

Python docstrings in such a way that it is possible

to generate automatically documentation in HTML or

PDF format using Sphinx

The main idea is that indoor applications which

make use of pointclouds may share some common

https://www.sphinx-doc.org/

An Open-source Library for Processing of 3D Data from Indoor Scenes

611

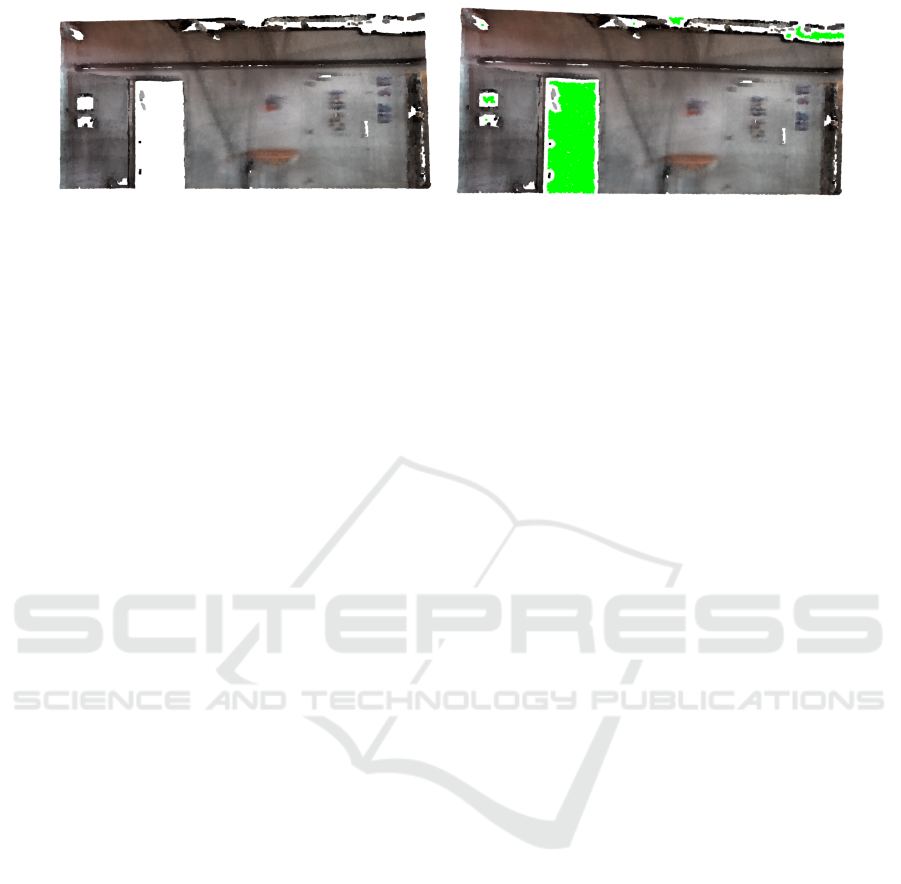

(a) Original pointcloud. (b) Pointcloud with its pseudo-negative in green.

Figure 2: Example of the pseudo-negative of a pointcloud.

tasks. For example, it is usual to try to locate a door, a

wall, the ﬂoor, or estimate the distance from some ob-

ject to the wall. These tasks usually imply to be able

to ﬁnd planes, compute angles and distances, check

if ﬂoor and ceiling are parallel to each other, ﬁnd the

point of intersection of two walls, etc. This package is

intended to help the researcher or developer with the

more menial tasks.

Vector Module. In this module, functions that work

with vectors are deﬁned. For example, it is possible to

convert any iterable into a Python numpy array, which

is the default representation of vectors in this module.

There are functions to get the unit vector of an arbi-

trary vector, to compute the angle between vectors or

to ﬁnd the point that is located at some distance of a

given point in a given direction.

Plane Module. The functions that deal with planes

are deﬁned here. A specialized plane class is con-

structed from the four parameters of the plane equa-

tion Ax + By + Cz + D = 0. The objects of this class

can return the normal of the plane.

In this module we ﬁnd utilities to compute the an-

gle between planes, between the plane and the axes,

between the plane and the plane perpendicular to one

of the canonical axes, to check if two planes are per-

pendicular or parallel up to some given tolerance, the

point that lies in the intersection of three planes, dis-

tances between planes and points, etc.

Pointcloud Module. This module contains the

functions that compute distances between points and

planes to pointclouds, as well as those which check if

a point is inside the convex hull of a pointcloud. It is

also possible to partition a pointcloud in three subsets

according to a plane: those closer to the plane than

a given tolerance, those at one side of the plane and

those the another side. This is useful when a plane

that we presume is a door has been detected, and we

want to know which points are in the door, which in

front of the door and which behind the door. The same

procedure, but with ﬁve subsets, can be applied tak-

ing a pointcloud and two parallel planes. This is use-

ful, for example, for segmenting the points in a room

according to the planes deﬁning the ceiling and the

ﬂoor. An example of the kind of pointcloud expected

is shown in Figure 1.

It is also possible to subtract a pointcloud from an-

other pointcloud. In this case, if pointcloud B is sub-

tracted from pointcloud A, all the points in pointcloud

A that are closer to pointcloud B than some threshold

are removed. It is also possible to subtract a convex

hull from a pointcloud. If a point is inside (could be

parameterized to be outside instead) the convex hull,

it is removed.

There are also functions for performing a uniform

3D sampling inside a convex hull by rejection sam-

pling. This allows the deﬁnition of another func-

tion that ﬁnds the pseudo-negative of a pointcloud.

Given a pointcloud A, ﬁrst its convex hull is com-

puted. Then, another pointcloud B is created from

a uniform random sampling in the convex hull. And

ﬁnally, pointcloud A is subtracted from pointcloud B.

With this procedure it is possible to ﬁnd door frames,

as shown in Figure 2.

Findroom Module. This module is in charge of

ﬁnding structural elements that could belong to a

room. For example, it is possible to ﬁnd a collection

of N planes in the pointcloud, where N is given by the

user, and search for sets of six planes that might de-

limit a room. The procedure looks for three pairs of

parallel planes that are perpendicular between them.

These planes would be the pairs (ceiling - ﬂoor, wall

left - wall right, wall front - wall -rear), all of them

composed by two parallel planes. The condition of

parallelism is also possible to be relaxed by some tol-

erance, to account for noise in the data. If it is known

that some axis of the frame of reference of the point-

cloud is congruent with the vertical orientation in the

real world, this information can be given to the func-

tion to improve the search for planes.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

612

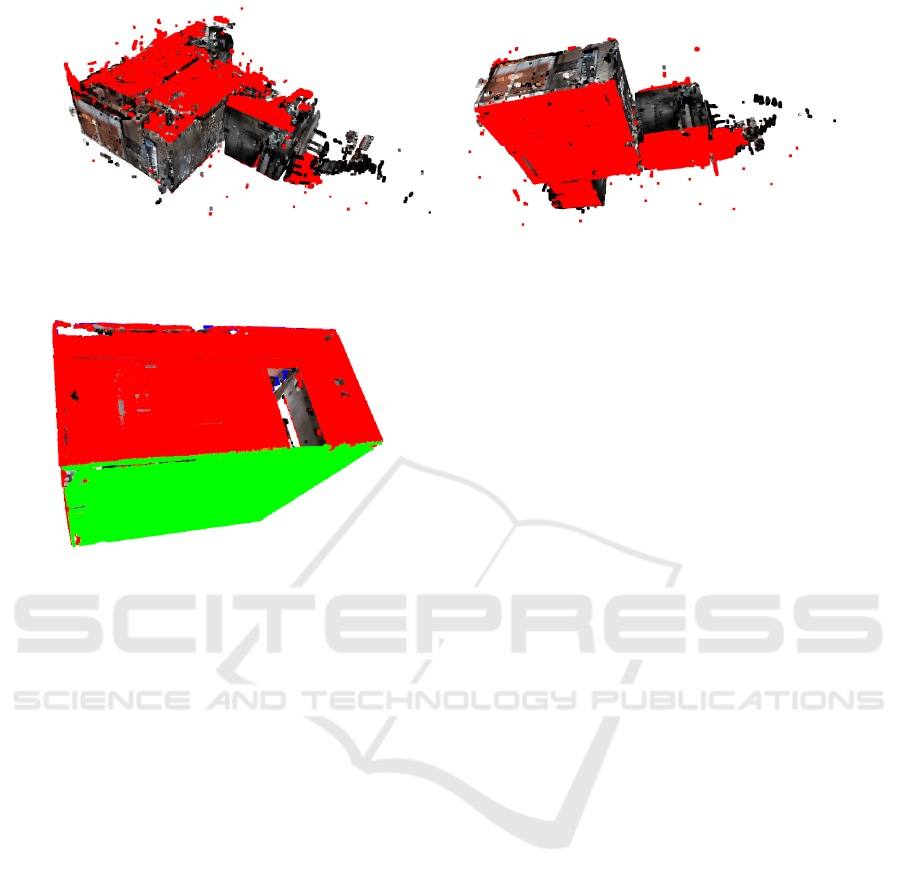

(a) Detection of ceiling and beyond. (b) Detection of ﬂoor and beyond.

Figure 3: Example of the pseudo-negative of a pointcloud.

Figure 4: Room found by the pointcloud processing proce-

dure.

There are also functions for computing the eight

points that delimit the vertices of the room, and for

extracting the points that are inside and outside the

room, or very close to the boundaries.

Clusteringroom Module. In this module there are

functions meant to be used after a room has been de-

tected and the planes of ﬂoor, ceiling and walls have

been computed. There are clustering functions that

take into account the distance to the ceiling, ﬂoor and

walls and mark some clusters as door or lamp candi-

dates. It is also possible to get a graphical depiction

of the clusters.

3 USAGE CASES

The development of this package started during the

LANTEGI4.0 project, funded by the Basque Govern-

ment, and where the goal is to make advances in the

development of a system that would be able to create a

3D model of the true state of the building of a factory

from the construction planes and the data collected by

an autonomous robotic system.

One of the tasks was to detect structural elements

from data collected by a sensor. These data repre-

sented a signiﬁcant part of the building, bigger than

a single room. In Figure 1 the input pointcloud is

shown. The results after applying the ceiling and ﬂoor

detection are shown in Figure 3.

After ﬁnding all the planes that delimit the room,

they can be extracted as shown in Figure 4. The walls

are painted in red, the ceiling in blue and the ﬂoor in

green.

The clustering functions take into account infor-

mation about the planes that delimit the room, and

this is used to detect clusters that are not likely to be

structural elements because are too far away from the

walls and the ceiling. In Figure 5 can be seen the de-

tected clusters, while in Figure 6 the clusters which

are unlikely to be structural elements are shown.

The package developed for the LANTEGI4.0

project has been also used in another project called

BotaRobota. BotaRobota is a project funded by the

Basque Government with the aim of developing a

cleaning robot able to detect and open doors without

human intervention. One of the tasks was to detect

the door handle in a pointcloud so the robot could

be able to open the door. To detect the door handle

the ﬁrst step was to detect the door using the standard

plane search procedure, and then the functions of seg-

menting the pointcloud with respect to a plane, and

the functions for computing distances between planes

and pointclouds were useful to locate the handle. For

the orientation of the handle, other functions that ﬁnd

planes parallel to another to some distance were use-

ful in order to make it easier to ﬁnd a minimal bound-

ing box parallel to the door. In Figure 7 can be seen

the results of this procedure. In short, the functions

developed in the LANTEGI4.0 project were useful in

making easier to tackle the BotaRobota project and

we want to make this code available for anyone who

could ﬁnd it useful.

An Open-source Library for Processing of 3D Data from Indoor Scenes

613

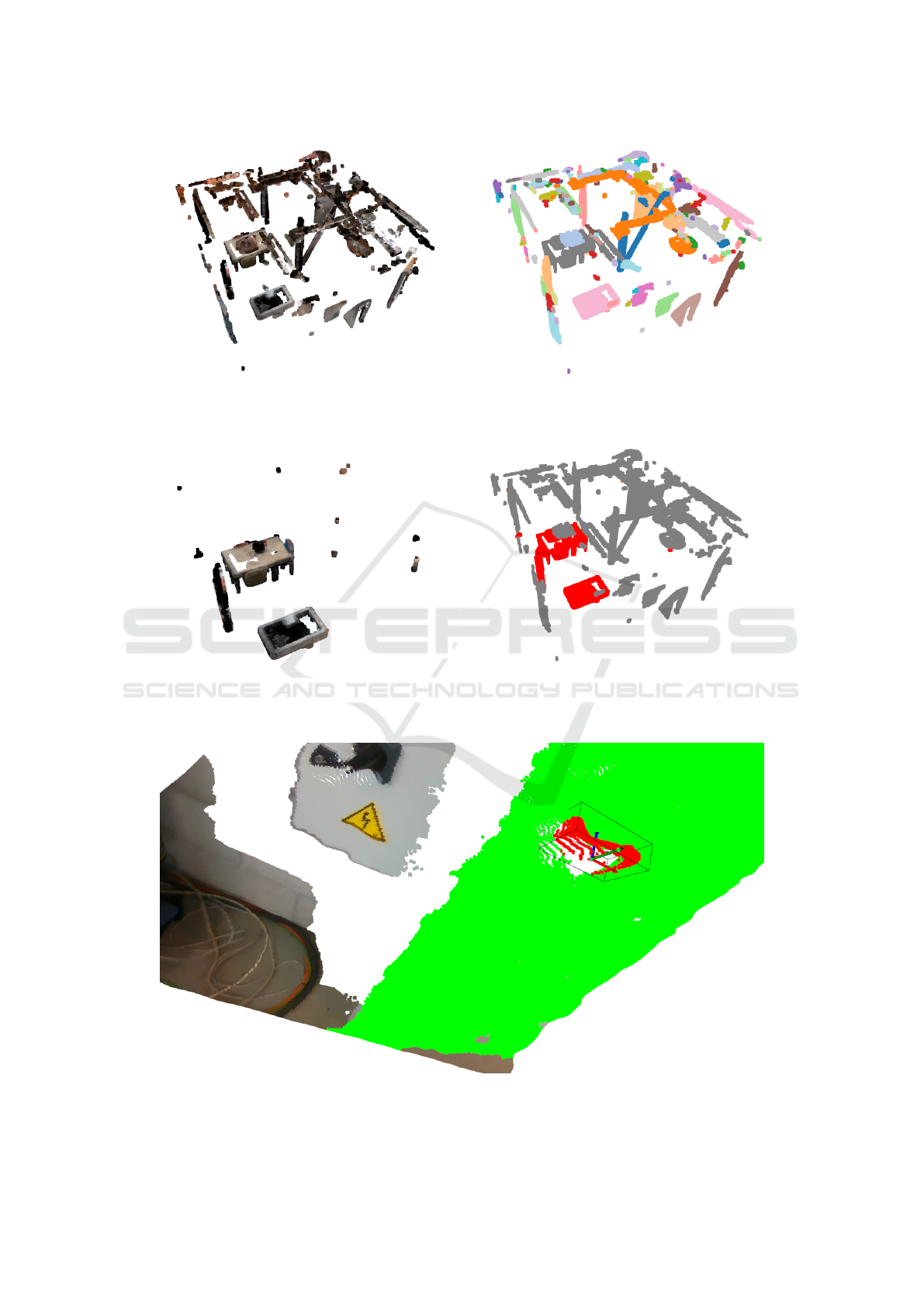

(a) Set of clusters detected inside a room. (b) Set of clusters painted in different colors.

Figure 5: Clustering of a room.

(a) Detected clusters. (b) Location of the clusters in the room.

Figure 6: Clusters labeled as unlikely to be structural elements.

Figure 7: Door handle position and orientation.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

614

4 CONCLUSION

In this paper we have presented a 3D data processing

library focused on indoor scenes. We have described

its main functionalities and showed its application on

two real projects. As further work, we plan to im-

prove the documentation and refactor and clean the

code, with the aim of uploading the library to the PyPI

repository, the reference place for Python packages.

In the meantime, the code is available in GitHub

ACKNOWLEDGEMENTS

This work has been partially funded by the Basque

Government, Spain, grant number IT900-16, ELKA-

RTEK project (LANTEGI4.0 KK-2020/00072)

and Euskampus Resilience Covid19 (BotaRob-

ota EUSK20/04), and the Spanish Ministry of

Science (MCIU), the State Research Agency

(AEI), the European Regional Development Fund

(FEDER), grant number RTI2018-093337-B-I00

(MCIU/AEI/FEDER, UE) and the Spanish Min-

istry of Science, Innovation and Universities

(FPU18/04737 predoctoral grant). We gratefully

acknowledge the support of NVIDIA Corporation

with the donation of the Titan Xp GPU used for this

research.

REFERENCES

Arnold, E., Al-Jarrah, O. Y., Dianati, M., Fallah, S., Ox-

toby, D., and Mouzakitis, A. (2019). A survey on

3d object detection methods for autonomous driving

applications. IEEE Transactions on Intelligent Trans-

portation Systems, 20(10):3782–3795.

Besl, P. J. and McKay, N. D. (1992). Method for registration

of 3-d shapes. In Sensor fusion IV: control paradigms

and data structures, volume 1611, pages 586–606. In-

ternational Society for Optics and Photonics.

Curless, B. and Levoy, M. (1996). A volumetric method for

building complex models from range images. In Pro-

ceedings of the 23rd annual conference on Computer

graphics and interactive techniques, pages 303–312.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: a paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Communications of the ACM, 24(6):381–395.

Guennebaud, G., Jacob, B., et al. (2010). Eigen. URl:

http://eigen. tuxfamily. org, 3.

Guo, Y., Wang, H., Hu, Q., Liu, H., Liu, L., and Ben-

namoun, M. (2020). Deep learning for 3D point

https://github.com/rsait/indoor3d

clouds: A survey. IEEE transactions on pattern anal-

ysis and machine intelligence.

Lin, H. (2020). Robotic manipulation based on 3D vi-

sion: A survey. In Proceedings of the 2020 Interna-

tional Conference on Pattern Recognition and Intelli-

gent Systems, pages 1–5.

Quigley, M., Conley, K., Gerkey, B., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., Ng, A. Y., et al. (2009). ROS:

an open-source Robot Operating System. In ICRA

workshop on open source software, volume 3, page 5.

Kobe, Japan.

Reinders, J. (2007). Intel threading building blocks: out-

ﬁtting C++ for multi-core processor parallelism. "

O’Reilly Media, Inc.".

Rusu, R. B. and Cousins, S. (2011). 3D is here: Point Cloud

Library (PCL). In IEEE International Conference on

Robotics and Automation (ICRA), Shanghai, China.

Zabatani, A., Surazhsky, V., Sperling, E., Moshe, S. B.,

Menashe, O., Silver, D. H., Karni, Z., Bronstein,

A. M., Bronstein, M. M., and Kimmel, R. (2019). In-

tel® RealSense™ SR300 Coded Light Depth Camera.

IEEE transactions on pattern analysis and machine

intelligence, 42(10):2333–2345.

Zhou, Q.-Y., Park, J., and Koltun, V. (2018). Open3D:

A modern library for 3D data processing.

arXiv:1801.09847.

Zieli

nski, P. and Markowska-Kaczmar, U. (2021). 3D

robotic navigation using a vision-based deep rein-

forcement learning model. Applied Soft Computing,

page 107602.

An Open-source Library for Processing of 3D Data from Indoor Scenes

615
