Optimizing Multi-objective Knapsack Problem using a Hybrid Ant

Colony Approach within Multi Directional Framework

Imen Ben Mansour

1,2

ESPRIT School of Engineering, Tunis, Tunisia

ENSI-LARIA, University of Manouba, Tunisia

Keywords:

Knapsack Problem, Multi-objective Optimization, Ant Colony Optimization, Local Search Method,

Multi-directional Framework.

Abstract:

Balancing the convergence and diversity simultaneously is very challenging for multi-objective evolutionary

algorithms on solving multi-objective optimization problems (MOPs). The proposed approach MD-HACO

coupled an Ant Colony Optimization (ACO) algorithm with a multi-objective local search procedure, and

evolves it into a multi-directional framework. The idea is to optimize the overall quality of Pareto set approx-

imation by using different conﬁgurations of the hybrid approach by means of different directional vectors.

During the optimization process, the artiﬁcial ants work in different search directions in the objective space

trying to approximate small parts of the Pareto front. Afterward, a local search procedure is applied to each

sub-region to enhance the search process toward the extreme Pareto-optimal solutions with respect to the

weight vector under consideration. A multi-directional set holding the non-dominated solutions according

to all directional archives is maintained. The proposed approach is tested on widely used multi-objective

multi-dimensional knapsack problem (MOMKP) instances and compared with well-known state-of-the-art al-

gorithms. Experiments highlight that the use of a multi-directional paradigm as well as a hybrid schema can

lead to interesting results on the MOMKP and ensure a good balance between convergence and diversity.

1 INTRODUCTION

Optimizing multi-objective problems is considered as

a hard task since multiple objectives should to be opti-

mized simultaneously while satisfying a several con-

straints. Indeed, the aim is to ﬁnd the optimal trade-

offs between the different objectives that are usually

conﬂicting. To this end, researchers have proposed

many metaheuristic algorithms in order to achieve the

set of compromise solutions which is called Pareto

front in a reasonable time.

In this paper, we address the multi-objective

multi-dimensional knapsack problem (MOMKP) that

consists to ﬁnd a subset of items subject to a set of

resource constraints while maximizing several objec-

tives. Due to its NP-hard nature (Martello, 1990),

and wide-range applicability (Chabane et al., 2017),

(Ehrgott and Ryan, 2002), (Kellerer et al., 2004)

MOMKP has been considered among the most in-

triguing multi-objective optimization problems, and

has attracted considerable attention from the oper-

ations research community. As a result, a signiﬁ-

cant number of works have investigated the MOMKP,

giving rise to various solution methods (Lust and

Teghem, 2012).

Considering multi-objective metaheuristics, the

main purpose behind designing a approximate ap-

proach, is balancing exploration and exploitation. The

population-based methods such as ant colony opti-

mization (ACO) are powerful techniques in the ex-

ploration of the solution space but less efﬁcient in

the exploitation of the search toward promising re-

gions. However, local search approaches have per-

fect plans for intensiﬁcation, but have a tendency of

getting stuck in local optima due to lack of diversi-

ﬁcation. Therefore, to intensify the search and es-

cape from being trapped into local optima, a local en-

hancement will be coupled with an ACO approach.

Within the scope of this paper, a hybrid approach is

proposed as a synergy of the ACO algorithm with

a Tchebycheff-based Local Search (TLS) procedure

coined as a Multi-Directional Hybrid Ant Colony Op-

timization approach (MD-HACO) to handle the knap-

sack problem within the multi-objective framework.

The design of a hybrid approach is motivated by the

need to enhance the convergence of the solutions to-

Ben Mansour, I.

Optimizing Multi-objective Knapsack Problem using a Hybrid Ant Colony Approach within Multi Directional Framework.

DOI: 10.5220/0010865600003116

In Proceedings of the 14th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2022) - Volume 2, pages 409-418

ISBN: 978-989-758-547-0; ISSN: 2184-433X

409

ward the optimal Pareto front and to promote diversity

of the search space.

The proposed approach uses an improved version

of the Gw-ACO approach (Mansour et al., 2019). In-

deed, this version differs from Gw-ACO mainly in the

used Ant System variant and the solutions construc-

tion phase:

(i) Here, the proposed algorithm follows

M AX − M I N Ant System (St

utzle and Hoos,

2000) scheme. Whereas Gw-ACO is based on an

elitist version of Ant System (Dorigo et al., 1996).

(ii) Gw-ACO uses many heuristic matrices, it as-

signs to each objective a weighted heuristic informa-

tion. In MD-HACO, all ants in the algorithm share

one heuristic matrix in the process of constructing the

solution and this matrix changes conﬁguration during

the optimization phase using weighted pseudo-utility

ratio. The objectives were considered fairly, i.e., no

objective has any precedence over the others and the

evaluation of a candidate solution is rather based on

its position in the objective space. Therefore, the

Pareto optimal set may be found (Iredi et al., 2001).

The rest of this paper is organized as follows.

In section two, we introduce brieﬂy the context of

multi-objective optimization. The studied problem

MOMKP is formulated in section 3. Next, the multi-

objective ACO (MOACO) approach is introduced.

The hybrid approach is presented in section ﬁve. The

experiments are detailed on a multi-objective multi-

dimensional knapsack problem in the next section.

The last section is devoted to conclusion and discus-

sion about possible future research directions.

2 MULTI-OBJECTIVE

OPTIMIZATION PROBLEMS

In multi-objective optimization problems, a set of ob-

jective functions must be maximized or minimized,

subjected to a set of constraints. In the following, we

assume that m objective functions F = ( f

, · ·· , f

)

are to be maximized. Each objective function f

deﬁned as f

: D

× · ·· ×D

→ R , where the D

are the domains of the decision variables. An op-

timization problem is deﬁned by an objective space

Z = {z = (z

, · ·· , z

)|∀1 ≤ k ≤ m, z

∈ R } and a deci-

sion space X = {x = (x

, · ·· , x

)|∀1 ≤ i ≤ n, x

∈ D

Each decision vector x ∈ X is associated to an ob-

jective vector z = ( f

(x), · · · , f

(x)) ∈ Z. In order

to compare solutions in a multi-objective context, the

concept of Pareto dominance is used. The deﬁnition

1 formally deﬁnes the Pareto dominance relation in a

maximization context without loss of generality.

Deﬁnition 2.1. A decision vector x ∈ X is said to

dominate another decision vector x

∈ X (written as

x  x

), if ∀1 ≤ k ≤ m, f

(x) ≥ f

) and ∃1 ≤ j ≤

m, f

(x) > f

Accordingly, a decision vector x ∈ X is said to be

Pareto optimal (resp. non-dominated) if and only if it

is not dominated by any other solution of the search

space (resp. within a set of solutions).

3 MULTI-OBJECTIVE

MULTI-DIMENSIONAL

KNAPSACK PROBLEM

The multi-objective multidimensional knapsack prob-

lem could be formulated as follows:

Maximize

∑

j=1

k = 1, ..., m (1)

Sub ject to

∑

j=1

≤ b

i = 1, ..., q (2)

∈ {0, 1} j = 1, ..., n

n denotes the number of items I

, x

corresponds to

the decision variable for the item I

i.e., the item is

taken or not taken since we consider a 0/1 knapsack

problem. Each item I

has a proﬁt p

relatively to the

objective k and a weight w

relatively to the resource

i and b

is the total quantity available for the resource

4 MULTI-OBJECTIVE ANT

COLONY OPTIMIZATION

ACO metaheuristic, initially developed by Dorigo

(Dorigo et al., 1991b), is a cooperative population-

based construction algorithm inspired from the behav-

ior of real ants while searching for a food source. The

colony of ants cooperates to perform some tasks for

the whole group using an indirect form of communi-

cation, called pheromone, deposited by the member

of the colony while building their solutions. From

an initial point, each ant moves on the search space

through a ﬁnite sequence of points. Its movements

depend on a stochastic construction policy directed

by two types of information: (i) the ancient ant

movements recorded in his memory (ii) pheromone

traces and heuristic information speciﬁc to the prob-

lem being treated. These informations are used by

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

410

ants to help them to converge on the most inter-

esting areas of the search space. The ﬁrst exam-

ple of such an algorithm was Ant System and intro-

duced by Dorigo, Maniezzo and Colorni in (Dorigo

et al., 1991b),(Dorigo et al., 1991a),(Dorigo et al.,

1996) and Colorni, Dorigo and Maniezzo in (Colorni

et al., 1991) and (Colorni et al., 1992) using Traveling

Salesman Problem (TSP) as a sample application.

Due to the success of ACO for mono-objective

problems (Dorigo and Blum, 2005) many authors

investigated the capabilities of this metaheuristic to

handle multi-objective problems. In (Gambardella

et al., 1999), a multiple ant colony system is proposed

to solve the vehicle routing problems with time win-

dows (MACS-VRPTW). The algorithm is organized

with a hierarchy of ant colonies designed to succes-

sively optimize a multi-objective function: the ﬁrst

colony minimizes the number of vehicles while the

second optimizes the feasible solutions found by the

ﬁrst. Each colony uses an independent pheromone

structure for its speciﬁc purpose and they collabo-

rate by sharing the best overall solution found. In

(Alaya et al., 2007), a generic multi-objectif ACO

approach named m-ACO, is proposed and instanti-

ated with four variants. This algorithm is parameter-

ized by the number of ant colonies and the number

of the pheromone structures. In (Mansour and Alaya,

2015), an ACO algorithm called IBACO was intro-

duced to slove MOMKP. The IBACO algorithm em-

ploys binary indicators. It uses hypervolume and ep-

silon indicators to guide the artiﬁcial ants to ﬁnd the

best solutions by laying pheromone trails relatively to

the indicator values. (Yagmahan and Yenisey, 2010)

solved the ﬂow shop scheduling problem with a multi-

objective ant colony system algorithm combined to

a local search strategy. proposed a MOACO for

the mixed-model assembly line balancing problem to

minimize the balance delay and the smoothness index

for a given cycle time.

On the above approaches, the objectives were con-

sidered fairly where they foster search in speciﬁc di-

rections in the objective space. Iredi, Merkle and

Middendorf proposed using different weight vectors

in order to force ants to search in different regions of

the optimal Pareto set. They introduced the Bicriteri-

onAnt algorithm in (Iredi et al., 2001). Since the suc-

cess of BicriterionAnt, several ant-based approaches

following the multi-directional idea were developed.

(Angus, 2007) solved the multi-objective TSP using

population-based ACO algorithm with an average-

rank-weight method to determine weightings for each

objective. A MOACO approach based on decompo-

sition method called MOEA/D-ACO is introduced in

(Ke et al., 2013). In MOEA/D-ACO, each ant tar-

gets a particular point in the Pareto front by means of

uniformly distributed weight vectors, each group of

ants tries to approximate a particular part of the Pareto

front. Recently, (Mansour et al., 2019) conceived an

ant colony approach based on multiple search direc-

tions to optimize the MOMKP. The algorithm uses

a generation-based weight assignment strategy to en-

hance population diversity.

5 MULTI-DIRECTIONAL

HYBRID ANT COLONY

OPTIMIZATION ALGORITHM

FOR MOMKP

Since ant colony should be able to generate a set of

diverse new solutions when solving large and hard

optimization problems, the use of directional vectors

seems to be an interesting paradigm. A possible op-

tion for multi-directional metaheuristics consists in

using different combinations of weight vector during

the optimization process. The directional model is

used to guide the optimization on exploiting new and

different parts of the objective space.

Our algorithm follows the M AX − M I N Ant

System (St

utzle and Hoos, 2000) scheme. As a ﬁrst

step, the pheromone traces are initialized to an upper

bound τ

max

. Then, the Multi-directional optimization

process is launched. The idea is to decompose the ob-

jective space into several sub-regions i.e search direc-

tions by means of different Λ vectors. Here, we use

the method that has been proposed in (Mansour et al.,

2018) and (Mansour et al., 2019). This method, called

Gradual weights generation method (Gw), is interest-

ing because it uses not only a different weight vec-

tor at each search step, but also gradually distributed

weights in the objective space (progressively gener-

ated from 0 to 1 or/and from 1 to 0) more details can

be found in (Mansour et al., 2019) (especially con-

cerning the weight assignment process). Each sub-

region has its own directional Pareto set A holding all

non-dominated solutions of the current direction i.e.

small part of the whole Pareto front. At each genera-

tion, the colony focuses in one single sub-region and

constructs solutions according to the search direction

under consideration. Therefore, it can compute a par-

ticular part of the Pareto front. Once the construc-

tion phase is done, all solutions are added to a local

set Sol and the directional Pareto set A is update with

the non-dominated solutions of Sol. Then, the Multi-

directional iterated local search procedure is applied

to each solution S

in Sol (see Section 5.3). Once the

directional optimization phase is carried out, a shar-

Optimizing Multi-objective Knapsack Problem using a Hybrid Ant Colony Approach within Multi Directional Framework

411

ing step is performed. First, the pheromone structure

is update as detailed in Section 5.2 and then the multi-

directional Pareto set called P manages the update of

the non-dominated solutions sent by the directional

Pareto sets A. This stage constitutes the general in-

formation sharing between the different sub-regions,

since the multi-directional Pareto set beneﬁts from the

respective potential contribution of each directional

Pareto set.

The proposed Multi-directional Hybrid Ant

Colony Optimization approach is described in algo-

rithm 1. To have a clear understanding of the pro-

cess of MD-HACO, Figure 1 provides an illustration

of ﬂowchart of the proposed approach.

Algorithm 1: Multi-directional Hybrid Ant Colony Opti-

mization Algorithm.

Input: Nbants (number of ants)

max

(maximum number of generations)

λ = (λ

, ·· · , λ

) (weight vector)

Output: P (multi-directional Pareto set P)

Initialize the traces of pheromone to τ

max

Initialize the multi-directional Pareto set P ←

ForEach direction λ(g), g ∈ {1, ·· · , g

max

} do

Step 0: Initialize A ←

0 , Sol ←

Step 1: Compute λ

for each objective f

Step 2: Construct solution S

, h ∈ {1, ·· · , Nbants}

and Sol ← Sol ∪ S

Step 3: A ← Non-dominated solutions of A ∪ Sol

Step 4: Execute the Multi-directional iterated local

search procedure for each S

in Sol

EndForEach

Update pheromone structure

P ← Non-dominated solutions of (P

A). If g

max

reached then stop and return P; else performs another

directional optimization step.

5.1 Solutions Construction

Each ant h constructs one feasible solution by ap-

plying repeatedly a stochastic function named a state

transition rule. This function is used to select the

most appropriate item I

to be added to the solution

among a set of feasible items Feas (candidate ver-

tices). This set is updated by including items not yet

added and that don’t violate any constraint. The tran-

sition rule p

is directed by the pheromone value τ

and the heuristic information η

) =

[τ

)]

.[η

)]

∑

∈Feas

[τ

)]

.[η

)]

(3)

The heuristic information is used to guide the

search process of artiﬁcial ants. In order to orientate

ants to look in different regions of the non-dominated

front, different conﬁgurations of the heuristic in-

formation matrix are executed, i.e. using different

weight vectors. For that, η

for a given ant h, is set

as:

) =

∑

k=1

(g)p

∑

i=1



(i)



(4)

where R

(i) = b

−

∑

t∈S

is the remaining

amount of the resource i when an ant h is currently

building its solution S

. p

and w

are respectively

the proﬁt and the weight of the candidate item.

5.2 Pheromone Update

The pheromone matrix is deﬁned as an aggregation of

objectives. Once all ants have constructed their solu-

tions and the set Sol is updated with all created solu-

tions, the pheromone update phase will be needed:

τ(I

) ← (1 − ρ) ∗ τ(I

) + ∆τ(I

) (5)

To exploit the most promising parts, ants that are al-

lowed to update the pheromone trails are only those

that have found non-dominated solutions S

during

the actual iteration. Furthermore, to give every gen-

eration of ants the same inﬂuence in a particular part

of the Pareto front, ants that are authorized to update,

lay the same amount of pheromone ∆τ(I

) equal to the

current archive set size |A|.

5.3 Enhancement by Multi-directional

Iterated Local Search

Local search aims to improve the quality of solu-

tions generated by the Ant Colony algorithm. To that

end, the enhancement procedure follows the direc-

tional model using by the proposed multi-directional

ACO approach. Since our proposed approach uses

a multi-directional framework, the multi-directional

Ant Colony Optimization algorithm explicitly decom-

poses the objective space in sub-regions. Indeed, the

weight vector is necessary here for the computation

of the pseudo-utility ratio (Mansour et al., 2017a) and

(Mansour et al., 2017b), it evaluates the performance

of the potentially efﬁcient solution relatively to the

different objectives. That is, the selection of the so-

lution for a given vector is based on the position of

the solution in the objective space. Where each ant

attempts to ﬁnd a new solution according to this posi-

tion.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

412

Start

Construct solution S

and

Update Sol with S

1≤h≤Nbants

Is all neighbors are

explored or w ≠ S

Update directional Pareto

set A with A ꓴ Sol

Yes

Compute λ

(g) for each f

1≤k≤m

Update directional Pareto

set A with A ꓴ Sol

Calculate fitness value for

unvisited solution S

in Sol

Generate an unexplored

neighbor S

from S

Compute fitness value for

Remove worst solution w in

Sol

Initialize the traces of

pheromone

Update pheromone

structure

Update muli-

directional Pareto set

Is g

max

is reached

Return P

Finish

Yes

Is all S

in Sol are

visited ?

Initialization phase

Muli-directionnel

optimization process

Sharing phase

Figure 1: Flowchart of the proposed Multi-directional Hybrid Ant Colony Optimization Algorithm: MD-HACO.

5.3.1 Algorithm Description

The local search steps are performed on each sub-

region and for each solution found by the colony. Al-

though the method proposed here is inspired from the

one introduced in (Mansour et al., 2018), here only

one local search procedure is executed using multi-

ple search directions. The proposed method operates

as outlined in Algorithm 2: Before performing a lo-

cal search step, the ﬁtness value of each solution in

Sol is calculated. This step involves the exploring of

the neighborhood of each solution S

in Sol until we

ﬁnd a solution S

h∗

that is better than the worst solu-

tion w of Sol regarding the search direction λ under

consideration. Then, S

h∗

is added to Sol and replaces

the solution w. The neighborhood exploration process

stops once the ﬁrst improving neighbor is found.

To evaluate a solution S

against the whole popu-

lation, we use the augmented weighted Tchebycheff

method. This scalarization approach measure the

Algorithm 2: Multi-directional iterated local search.

Input: Sol (Solutions set)

Λ (the weight vectors set)

Output: A (Directional Pareto set)

For Each S

∈ Sol

U pdate re f erence point z

∗

Calculate Fit(S

|λ, z

∗

)= g

|λ, z

∗

)

Repeat

Generate neighbor S

h∗

f rom S

Calculate Fit(S

h∗

|λ, z

∗

)

Find w with the worst f itness value Fit(w|λ, z

∗

)

If Fit(S

h∗

|λ, z

∗

) > Fit(w|λ, z

∗

)

Replace w with S

h∗

in Sol

EndIf

Until S

h∗

6= w or all neighbors are explored

End For Each

A ← Non-dominated solutions o f A ∪ Sol

Optimizing Multi-objective Knapsack Problem using a Hybrid Ant Colony Approach within Multi Directional Framework

413

population diversity without sacriﬁcing convergence

with respect to the number of objectives in terms of

computational time(L’opez et al., 2013) and (D

achert

et al., 2012):

|λ, z

∗

) = max

k=1...m

{λ

.|z

∗

− f

)|}

+ ε

∑

k=1

∗

− f

)| (6)

where ε ≥ 0 is usually chosen as a small posi-

tive number and where z

∗

is the ideal point and up-

date it during the execution of the algorithm as: z

∗

max

k=1...m

)

In this paper, we examine the augmented weighted

Tchebycheff to calculate the ﬁtness value of each so-

lution. Therefore, good solutions are emphasized in

each sub-region to maintain a balance between con-

vergence and diversity using the distance between the

solutions and the reference vectors.

5.3.2 Neighborhood Structure

Since the 0/1 multi-objective knapsack problem is a

constrained problem, all individuals should satisfy all

resource constraints. Indeed, we have to deﬁne an

efﬁcient neighborhood structure for this problem to

both handle constraints and increases the solutions

quality.

A solution S

to the MOMKP can be presented

as a double list I = (I

, I

−

). The ﬁrst list I

cor-

responds to the taken item (belonging to the solu-

tion) I

={I

,...,I

}, where T is the size of the list.

The second list I

−

is the list of the remaining items

−

={I

−

,...,I

−

}, where NT is the number of uns-

elected items. The transition from one solution S

is referred as a move. Two neighborhood opera-

tors are performed in sequential order in this paper for

the MOMKP:

(1) U(l

): The extraction ratio is calculated for

all items in list I

, which measures the utility value

of each item. The lower this ratio is, the worst the

item is.

(2) U (l): The insertion ratio is calculated for all

unselected items in list I

−

, the ratio measures the

quality of the candidate item according to the solu-

tion S

where the higher this ratio is, the better the

item is.

6 SIMULATION AND

EVALUATION

We examine the performance of the proposed algo-

rithm, Multi-Directional Hybrid Ant Colony Opti-

mization algorithm MD-HACO, by means of com-

putational experiments in an enlarged sampling size

scheme to solve the MOMKP. An empirical com-

parison to powerful decomposition-based multiobjec-

tive algorithms (Gw-ACO: (Mansour et al., 2019),

MOEA/D: (Zhang and Li, 2007) and MOEA/D-ACO:

(Ke et al., 2013)) and state-of-the-art reference ap-

proaches (2PPLS: (Lust and Teghem, 2012)) is inves-

tigated.

In order to evaluate the efﬁciency of a proposed

approach we use the following performance met-

rics: The hypervolume difference (Zitzler and Thiele,

1999) and the summary attainment surface (Da Fon-

seca et al., 2001). Moreover, we use the non-

parametric Mann-Whitney statistical test to verify if

the difference between the tested algorithms is statis-

tically signiﬁcant with a conﬁdence level greater than

95% (p-value ≤ 0.05). Note that we obtain similar

results using other statistical tests.

6.1 Parametrization of the MD-HACO

Metaheuristic algorithms require a crucial decision

about the values of numerous parameters. The so-

lution quality and speed may be affected by the pa-

rameter settings. Indeed, we have been striven to de-

termine an appropriate set of parameter values for the

MD-HACO. The FQ (frequency in the Gw method)

and g

max

are determinate according to the number of

objectives. For instances with 2 objectives, FQ and

max

are respectively 800 and 200. For instances with

3 objectives, they are equal to 40 and 100 and for in-

stances with 4 objectives, FQ and g

max

are set to 20

and 125.

The signiﬁcance weights for pheromone trail α is

set to 1, the signiﬁcance weights for heuristic infor-

mation β to 10, the pheromone evaporation rate ρ to

0.90, the number of ants set to 10. The lower and

upper bound of pheromone τ

min

and τ

max

are respec-

tively set to 1 and 5 and the epsilon parameter of g

function ε is set to 10

−3

6.2 Experimental Results

Table 1 reports the mean CPU (M-CPU) running

time (in second) spent for each instance by Gw-ACO,

2PPLS, MOEA/D, MOEA/D-ACO and MD-HACO.

From this table, it is clear that the proposed algorithm

is faster (bold values) than the other compared ap-

proaches on large instances with 3 and 4 objectives.

Figures 2 plot respectively the median attainment

surfaces obtained by comparing Gw-ACO, 2PPLS,

MOEA/D, MOEA/D-ACO and MD-HACO on bi-

objective instances. The ﬁgures illustrate that the

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

414

Table 2: Average and standard deviation values of the hypervolume difference metric.

Instance Gw-ACO 2PPLS MOEA/D

MOEA/

D-ACO MD-HACO

Avg Std Avg Std Avg Std Avg Std Avg Std

2 250 4.33E-01 2.72E-02 1.84E-01 1.27E-01 3.05E-01 8.82E-02 2.91E-01 1.49E-01 1.72E-01 3.74E-02

2 500 4.41E-01 2.85E-02 1.76E-01 1.19E-01 3.26E-01 9.08E-02 1.73E-01 1.59E-01 2.05E-01 1.71E-02

2 750 4.28E-01 3.18E-02 2.19E-01 1.40E-01 3.63E-01 7.03E-02 2.51E-01 1.30E-01 1.57E-01 8.56E-03

3 250 5.35E-01 1.85E-02 4.54E-01 2.91E-02 1.91E-01 1.74E-01 2.07E-01 1.95E-02

3 500 5.47E-01 1.73E-02 4.30E-01 6.72E-02 3.65E-01 1.39E-01 2.04E-01 1.34E-02

3 750 5.63E-01 1.00E-02 4.20E-01 6.79E-02 2.87E-01 1.69E-01 2.09E-01 9.75E-03

4 250 5.38E-01 2.53E-02 4.79E-01 2.39E-02 2.96E-01 8.64E-02 2.53E-01 1.17E-02

4 500 5.25E-01 2.67E-02 4.36E-01 6.69E-02 3.67E-01 9.16E-02 1.84E-01 1.54E-02

4 750 5.58E-01 2.42E-02 4.59E-01 4.66E-02 3.87E-01 5.76E-02 1.70E-01 1.21E-02

Table 3: p-values of the Mann-Whitney statistical test.

Instance 2 250 2 500

Algorithm Gw-ACO 2PPLS MOEA/D MOEA/D-ACO Gw-ACO 2PPLS MOEA/D MOEA/D-ACO

MD-HACO ≤0.05 0.440 ≤0.05 ≤0.05 ≤0.05 0.518 ≤0.05 0.674

Instance 2 750

Algorithm Gw-ACO 2PPLS MOEA/D MOEA/D-ACO

MD-HACO ≤0.05 0.092 ≤0.05 0.075

Instance 3 250 3 500

Algorithm Gw-ACO MOEA/D MOEA/D-ACO Gw-ACO MOEA/D MOEA/D-ACO

MD-HACO ≤0.05 ≤0.05 0.900 ≤0.05 ≤0.05 ≤0.05

Instance 3 750

Algorithm Gw-ACO MOEA/D MOEA/D-ACO

MD-HACO ≤0.05 ≤0.05 ≤0.05

Instance 4 250 4 500

Algorithm Gw-ACO MOEA/D MOEA/D-ACO Gw-ACO MOEA/D MOEA/D-ACO

MD-HACO ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05

Instance 4 750

Algorithm Gw-ACO MOEA/D MOEA/D-ACO

MD-HACO ≤0.05 ≤0.05 ≤0.05

Table 1: CPU running time (seconds).

Instance Gw-ACO 2PPLS MOEA/D

MOEA/

D-ACO MD-HACO

2 250 13.2 3.1 4.8 5.1 4.6

2 500 56.6 14.8 14.8 15.2 15.1

2 750 126.1 25.1 28.6 24.7 24.8

3 250 34.1 9.2 8.7 3.5

3 500 135.9 24.5 20.7 12.4

3 750 310.3 48.4 37.9 26.3

4 250 51.0 22.1 11.8 8.7

4 500 206.0 46.6 29.9 20.9

4 750 471.8 130.8 50.5 48.0

differences between the attainment surfaces returned

by MD-HACO, 2PPLS and MOEA/D-ACO are small

and therefore it is difﬁcult to distinguish visually.

Nevertheless, it is evident from ﬁgures 2 (b) and 2

ter than those obtained by Gw-ACO and MOEA/D.

Indeed, we can clearly observe that the solutions gen-

erated by these compared algorithms are below those

obtained by the proposed approach.

Table 2 presents the mean and standard deviation

of the hypervolume difference of MD-HACO and the

state-of-the-art reference approaches. Outputs clearly

highlight that the proposed hybrid approach is com-

petitive compared to Gw-ACO, 2PPLS, MOEA/D and

MOEA/D-ACO. By analyzing the results, one can say

that MD-HACO obtains the best performance for 7

out of the 9 instances and MOEA/D-ACO ﬁnd the

best results for 2 out of the 9 instances. However, Gw-

ACO, 2PPLS and MOEA/D fail to achieve best val-

ues on all tested instances. Moreover, the differences

between values obtained by MD-HACO and those re-

turned by Gw-ACO and MOEA/D are very important

on the 9 instances. These gaps are smaller between

MD-HACO, 2PPLS and MOEA/D-ACO only on the

bi-objective instances which conﬁrm the curves rel-

atively close obtained in ﬁgures 2. But these gaps

grow signiﬁcantly on the instances with 3 and 4 ob-

jectives. Table 3 summarizes the p-values returned

by the Mann-Whitney statistical test when comparing

MD-HACO against Gw-ACO, 2PPLS, MOEA/D and

MOEA/D-ACO. These values are conﬁrmed those of

the previous table. Indeed, we can clearly see that

on the 2 250 instance, MD-HACO statistically out-

performs Gw-ACO, MOEA/D and MOEA/D-ACO.

On the 2 500 and 2 750 instances, the proposed ap-

proach performs statistically better than Gw-ACO and

MOEA/D. When comparing MD-HACO and 2PPLS,

Optimizing Multi-objective Knapsack Problem using a Hybrid Ant Colony Approach within Multi Directional Framework

415

(a)

(b)

(c)

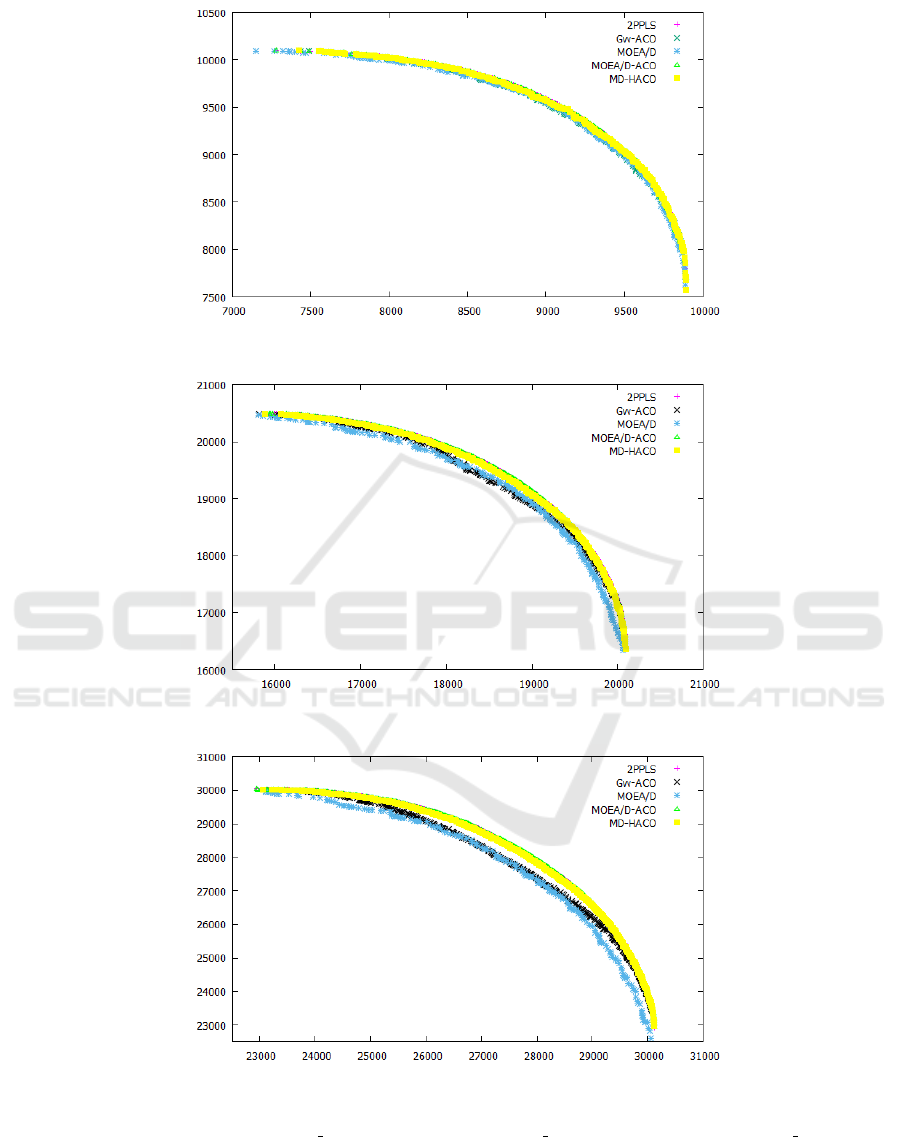

Figure 2: The median attainment surfaces obtained by Gw-ACO, 2PPLS, MOEA/D, MOEA/D-ACO and MD-HACO for

bi-objective instances with (a) representes 2 250 instance, (b) representes 2 500 instance and (c) representes 2 750 instance.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

416

on the bi-objectives instances, the difference is statis-

tically insigniﬁcant. On instances with 3 and 4 objec-

tives, the table clearly highlight the performance of

MD-HACO.

7 CONCLUSION

This paper presented a new hybrid method for solv-

ing the MOMKP based on ACO and local search.

The objective space was explored through the use of

a multi-directional ant colony optimization approach

to search for a promising path in the region consid-

ered as well as the contribution of the local search

procedure to drive the search toward the Pareto opti-

mal front. From the viewpoints of both the compu-

tational expenses and solution quality, the proposed

hybrid multi-directional ant colony optimization ap-

proach is efﬁcient for MOMKP and performs consis-

tently well especially for high-dimensional problems

such as those frequently encountered in real-world

applications. An interesting direction of future re-

search would be to investigate a self-adapting version

of MD-HACO. In particular, at the level of the opti-

mization part by ant colony, it will be interesting to

adopt a self-conﬁguration mechanism where the pa-

rameters related to diversiﬁcation and intensiﬁcation

are automatically conﬁgured during the construction

process and research.

REFERENCES

Alaya, I., Solnon, C., and Ghedira, K. (2007). Ant colony

optimization for multi-objective optimization prob-

lems. In Tools with Artiﬁcial Intelligence, 2007. ICTAI

2007. 19th IEEE International Conference on, vol-

ume 1, pages 450–457. IEEE.

Angus, D. (2007). Crowding population-based ant colony

optimisation for the multi-objective travelling sales-

man problem. In Computational Intelligence in Multi-

criteria Decision Making, IEEE Symposium on, pages

333–340. IEEE.

Chabane, B., Basseur, M., and Hao, J.-K. (2017). R2-

ibmols applied to a practical case of the multiobjective

knapsack problem. Expert Systems with Applications,

71:457–468.

Colorni, A., Dorigo, M., and Maniezzo, V. (1991). Dis-

tributed optimization by ant colonies.

Colorni, A., Dorigo, M., Maniezzo, V., et al. (1992). An

investigation of some properties of an” ant algorithm”.

In PPSN, volume 92.

Da Fonseca, V. G., Fonseca, C. M., and Hall, A. O. (2001).

Inferential performance assessment of stochastic op-

timisers and the attainment function. In Interna-

tional Conference on Evolutionary Multi-Criterion

Optimization, pages 213–225. Springer.

achert, K., Gorski, J., and Klamroth, K. (2012). An

augmented weighted tchebycheff method with adap-

tively chosen parameters for discrete bicriteria opti-

mization problems. Computers & Operations Re-

search, 39(12):2929–2943.

Dorigo, M. and Blum, C. (2005). Ant colony optimiza-

tion theory: A survey. Theoretical computer science,

344(2-3):243–278.

Dorigo, M., Maniezzo, V., and Colorni, A. (1991a). The ant

system: An autocatalytic optimizing process.

Dorigo, M., Maniezzo, V., and Colorni, A. (1991b). Positive

feedback as a search strategy.

Dorigo, M., Maniezzo, V., Colorni, A., et al. (1996).

Ant system: optimization by a colony of cooperating

agents. IEEE Transactions on Systems, man, and cy-

bernetics, Part B: Cybernetics, 26(1):29–41.

Ehrgott, M. and Ryan, D. M. (2002). Constructing robust

crew schedules with bicriteria optimization. Journal

of Multi-Criteria Decision Analysis, 11(3):139–150.

Gambardella, L. M.,

Eric Taillard, and Agazzi, G. (1999).

Macs-vrptw: A multiple colony system for vehicle

routing problems with time windows. In New Ideas

in Optimization, pages 63–76. McGraw-Hill.

Iredi, S., Merkle, D., and Middendorf, M. (2001). Bi-

criterion optimization with multi colony ant algo-

rithms. In Evolutionary Multi-Criterion Optimization,

pages 359–372. Springer.

Ke, L., Zhang, Q., and Battiti, R. (2013). Moea/d-aco: A

multiobjective evolutionary algorithm using decom-

position and antcolony. IEEE transactions on cyber-

netics, 43(6):1845–1859.

Kellerer, H., Pferschy, U., and Pisinger, D. (2004). Multidi-

mensional knapsack problems. pages 235–283.

L’opez, A., Coello, C. A. C., Oyama, A., and Fujii, K.

(2013). An alternative preference relation to deal

with many-objective optimization problems. In Inter-

national Conference on Evolutionary Multi-Criterion

Optimization, pages 291–306. Springer.

Lust, T. and Teghem, J. (2012). The multiobjective multi-

dimensional knapsack problem: a survey and a new

approach. International Transactions in Operational

Research, 19(4):495–520.

Mansour, I. B. and Alaya, I. (2015). Indicator based

ant colony optimization for multi-objective knapsack

problem. Knowledge-Based and Intelligent Informa-

tion & Engineering Systems 19th Annual Conference,

60:448–457.

Mansour, I. B., Alaya, I., and Tagina, M. (2017a). A

min-max tchebycheff based local search approach for

momkp. In ICSOFT, pages 140–150.

Mansour, I. B., Alaya, I., and Tagina, M. (2017b). Solv-

ing multiobjective knapsack problem using scalariz-

ing function based local search. In International Con-

ference on Software Technologies, pages 210–228.

Springer.

Mansour, I. B., Alaya, I., and Tagina, M. (2019). A gradual

weight-based ant colony approach for solving the mul-

Optimizing Multi-objective Knapsack Problem using a Hybrid Ant Colony Approach within Multi Directional Framework

417

tiobjective multidimensional knapsack problem. Evo-

lutionary Intelligence, pages 1–20.

Mansour, I. B., Basseur, M., and Saubion, F. (2018). A

multi-population algorithm for multi-objective knap-

sack problem. Applied Soft Computing, 70:814–825.

Martello, S. (1990). Knapsack problems: algorithms and

computer implementations. Wiley-Interscience series

in discrete mathematics and optimiza tion.

utzle, T. and Hoos, H. H. (2000). Max–min ant system.

Future generation computer systems, 16(8):889–914.

Yagmahan, B. and Yenisey, M. M. (2010). A multi-

objective ant colony system algorithm for ﬂow shop

scheduling problem. Expert Systems with Applica-

tions, 37(2):1361–1368.

Zhang, Q. and Li, H. (2007). Moea/d: A multiob-

jective evolutionary algorithm based on decomposi-

tion. IEEE Transactions on evolutionary computation,

11(6):712–731.

Zitzler, E. and Thiele, L. (1999). Multiobjective evolu-

tionary algorithms: A comparative case study and the

strength pareto approach. IEEE transactions on Evo-

lutionary Computation, 3(4):257–271.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

418
