CAM-SegNet: A Context-Aware Dense Material Segmentation Network

for Sparsely Labelled Datasets

Yuwen Heng

, Yihong Wu

, Srinandan Dasmahapatra and Hansung Kim

Vision, Learning and Control Research Group (VLC), School of Electronics and Computer Science (ECS),

University of Southampton, U.K.

Keywords:

Dense Material Segmentation, Material Recognition, Deep Learning, Scene Understanding, Image Segmen-

tation.

Abstract:

Contextual information reduces the uncertainty in the dense material segmentation task to improve segmenta-

tion quality. Typical contextual information includes object, place labels or extracted feature maps by a neural

network. Existing methods typically adopt a pre-trained network to generate contextual feature maps without

ﬁne-tuning since dedicated material datasets do not contain contextual labels. As a consequence, these contex-

tual features may not improve the material segmentation performance. In consideration of this problem, this

paper proposes a hybrid network architecture, the CAM-SegNet, to learn from contextual and material fea-

tures during training jointly without extra contextual labels. The utility of our CAM-SegNet is demonstrated

by guiding the network to learn boundary-related contextual features with the help of a self-training approach.

Experiments show that CAM-SegNet can recognise materials that have similar appearances, achieving an

improvement of 3-20% on accuracy and 6-28% on Mean IoU.

1 INTRODUCTION

The dense material segmentation task aims to recog-

nise the physical material categories (e.g. metal, plas-

tic, stone, etc.) for each pixel in the input image. The

material cues can provide critical information to many

applications. One example is to teach a robot to per-

form actions such as ”cut” with a tool. This action

indicates that the robot should grasp a knife at the

wooden grip and cut with the metal blade (Shrivatsav

et al., 2019). We can also estimate the acoustic prop-

erties (how sound interacts with surroundings (Delany

and Bazley, 1970)) from physical material categories

to synthesise immersive sound with spatial audio re-

ﬂections and reverberation (McDonagh et al., 2018;

Kim et al., 2019; Tang et al., 2020).

One of the main challenges in the dense material

segmentation task is that materials could have a vari-

ety of appearances in different contexts, such as ob-

jects and places (Schwartz and Nishino, 2020). For

example, a metal knife is glossy under bright lighting

condition, but a rusted metal mirror can be dull. In or-

https://orcid.org/0000-0003-3793-4811

https://orcid.org/0000-0003-3340-2535

https://orcid.org/0000-0003-4907-0491

der to achieve high accuracy, an ideal network should

know all possible combinations; thus a large dataset

is necessary. However, the similarity between the ap-

pearances of different materials can make annotation

work challenging. Consequently, material datasets

are often sparsely labelled in terms of the number of

images and the integrity of labelled material regions.

For example, some training set segments in the Lo-

cal Material Database (LMD) (Schwartz and Nishino,

2016; Schwartz and Nishino, 2020) cover only a small

region of the material, as shown in the ground truth

images (in the second column) in Figure 3 and Fig-

ure 4.

As suggested in (Schwartz and Nishino, 2020;

Schwartz and Nishino, 2016), a possible solution is

to train a network with small image patches cropped

from material regions, without contextual cues, to

force the network to learn from the visual properties

of materials. It was also found that extra contextual

information (e.g.object, place labels or feature maps)

can reduce the uncertainty in identifying materials

and increase the segmentation accuracy (Schwartz

and Nishino, 2016; Hu et al., 2011; Sharan et al.,

2013). To efﬁciently combine contextual and material

features, we propose our Context-Aware Dense Ma-

terial Segmentation Network (CAM-SegNet), which

190

Heng, Y., Wu, Y., Dasmahapatra, S. and Kim, H.

CAM-SegNet: A Context-Aware Dense Material Segmentation Network for Sparsely Labelled Datasets.

DOI: 10.5220/0010853200003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

190-201

ISBN: 978-989-758-555-5; ISSN: 2184-4321

consists of global, local and composite branches. The

global branch is responsible for extracting contextual

features from the full image, while the local branch

is designed to learn the material features from image

patches. Finally, the composite branch produces the

ﬁnal predictions from merged features. This paper

demonstrates the efﬁciency of CAM-SegNet by ad-

justing the global branch to extract boundary-related

contextual features with the loss function that mea-

sures the quality of boundaries of generated segments.

Since existing datasets are sparsely labelled, we adopt

a self-training approach to augment the training set

with predicted pseudo labels. The networks are eval-

uated on the sparse LMD test set as well as our dense

LMD (DLMD) test set, which contains eight densely

labelled indoor scene images. Our main contributions

are the following:

• A CAM-SegNet to combine extracted boundary

features from the full image with material features

learnt from the image patches.

• A self-training approach to augment sparsely la-

belled datasets to provide boundary features for

the CAM-SegNet.

The proposed CAM-SegNet achieves an improve-

ment of 3-20% on accuracy and 6-28% on Mean IoU

against the state-of-the-art network architectures and

single-branch approaches in the control group.

2 BACKGROUND

Dense Material Segmentation. There have been a

few attempts (Farhadi et al., 2009; Zheng et al., 2014)

to annotate the materials in existing datasets (Evering-

ham et al., 2015; Silberman et al., 2012), but the num-

ber of categories covered is not enough to segment

common scenes. Bell et al. (Bell et al., 2015) created

the ﬁrst dedicated material dataset which contains 3

million samples from 23 material categories. Since its

training set contains only labelled isolated pixels, this

dataset is hard to be used for robust dense segmen-

tation networks (Xie et al., 2017; Chen et al., 2017;

Long et al., 2015; Xie et al., 2020), which requires

the training set to provide labelled segments. Re-

cently, Schwartz and Nishino (Schwartz and Nishino,

2020) released the LMD, which contains 16 material

categories and 5,845 images with segments that each

covers a single material category. This dataset can be

used to train segmentation networks in an end-to-end

manner, but still has several problems. First, the num-

ber of samples is insufﬁcient since the LMD is very

diverse in terms of material categories and scenes.

Second, the ground truth segments do not cover all

pixels belonging to the same category, as shown in

Figure 3, 4.

Global and Local Training. Global and local train-

ing is an approach to combine features extracted

from original images by the global branch and im-

age patches by the local branch. Chen et al. (Chen

et al., 2019) adopted this approach to preserve lo-

cal details when processing down-sampled images.

Due to the memory bottleneck when processing high-

resolution patches, they split these patches into mul-

tiple batches and gather the full feature maps with

several forward steps. This method makes the fea-

ture combining process complicated and costs more

training time. To reduce the training time, Zhang

et al. (Zhang et al., 2020) reduced the number of

trainable parameters by sharing the weights between

local and global branches. Wu et al. (Wu et al.,

2020) alleviated the training burden by proposing

only critical patches to reﬁne the global segmenta-

tion. Likewise, Iodice and Mikolajczyk (Iodice and

Mikolajczyk, 2020) proposed to crop the extracted

global feature maps into equal blocks as the local

features. For the dense material segmentation task,

our CAM-SegNet compensates for the lost features

when training with a single branch alone. Accord-

ing to Schwartz (Schwartz, 2018), the network trained

with original images tends to ignore material prop-

erties, while the network trained with patches drops

contextual cues. Moreover, the LMD contains no

high-resolution images so that our CAM-SegNet can

jointly train the global and local branches in an end-

to-end manner without a severe training burden.

Boundary Reﬁnement. For dense material segmen-

tation task, the neural network based methods may

not predict the pixels near the boundary accurately,

due to the lack of labelled pixels near the boundary

to train the network (Schwartz, 2018, p. 75). There-

fore, the dense Conditional Random Field (dense-

CRF) (Kr

ahenb

uhl and Koltun, 2013) is often used

to reﬁne the boundary quality (Bell et al., 2015;

Schwartz and Nishino, 2016), which assumes that

similar pixels should be classiﬁed as the same cat-

egory. However, the downside is that the output of

the dense-CRF is sensitive to the parameters tuned by

grid search. To optimise the CRF parameters together

with the network, Zhao et al. (Zhao et al., 2017a;

Zhao et al., 2020) chose to reﬁne the material seg-

mentation with the CRFasRNN proposed by Zheng et

al. (Zheng et al., 2015). In this paper, we compare two

GPU trainable CRF variants, Conv-CRF (Teichmann

and Cipolla, 2019) and PAC-CRF (Su et al., 2019), to

speed up the training process.

CAM-SegNet: A Context-Aware Dense Material Segmentation Network for Sparsely Labelled Datasets

191

Another method to reﬁne the boundary quality

is to use a loss function that measures the quality

of the segmentation boundary. A possible choice

is the boundary metric in (Csurka et al., 2013),

which measures the overlap between the ground truth

boundaries and the predicted segmentation bound-

aries. Bokhovkin and Burnaev (Bokhovkin and Bur-

naev, 2019) utilised the max pooling operation to de-

tect the boundaries and make the boundary metric a

differentiable loss function. Although experiments

in (Kang et al., 2021; Bokhovkin and Burnaev, 2019)

have shown that this loss function can help the net-

work to optimise the predictions near the boundaries,

the loss value may not decrease when used in isola-

tion since it does not contribute to the segmentation

accuracy directly. Therefore, the local branch fea-

tures, which are designed to achieve high accuracy,

are passed to the global branch to make sure that our

CAM-SegNet can extract boundary features steadily.

Self-training. Semi-supervised learning is one pos-

sible way to improve the segmentation results with

sparsely labelled datasets. It utilises both labelled and

unlabeled pixels during training. Among all semi-

supervised learning approaches (Zhu, 2005), self-

training is the most simple yet efﬁcient one to ﬁll in

unlabelled pixels with generated pseudo labels. Re-

cent experiments show that this approach can achieve

state-of-the-art segmentation performance with lim-

ited labelled samples (Le et al., 2015; Cheng et al.,

2020; Zoph et al., 2020). Although the self-training

method may introduce more misclassiﬁed labels as

noise to the dataset compared with more robust meth-

ods based on a discriminator to control pseudo label

quality (Souly et al., 2017), the noise can also pre-

vent the network from overﬁtting (Goodfellow et al.,

2016, p. 241) since the LMD is a small dataset. There-

fore, we choose this self-training method to generate

pseudo labels and provide the boundary information

for our CAM-SegNet. In our experiments, we show

that for the material segmentation task, self-training

approach is not the factor that improves the perfor-

mance. Instead, the combined boundary and material

features are the reason why our CAM-SegNet can per-

form well.

3 METHODOLOGY

In this section, we present our CAM-SegNet for the

dense material segmentation task. Figure 1 illustrates

the overall network structure. The global branch takes

the original image as input while the cropped patches

are fed into the local branch. The encoders extract

features from both branches independently and down-

sample the feature maps. The decoders recover the

feature map size jointly (with the feature sharing con-

nection) and generate the outputs for each branch.

The composite branch crops and concatenates the

global branch output O

to the local branch output

. Then the network merges the upsampled fea-

ture maps, and generates the composite output O

The last convolutional layer is applied to patch fea-

ture maps O

, to ensure that the overall network still

focuses on material information. Finally, the optional

CRF layer can be used to reﬁne the composite out-

put O

. While training, the contextual features ex-

tracted from the global branch is controlled by the

loss function applied to the global branch output O

During evaluation time, only the composite output O

is kept to generate the ﬁnal segmentation. The algo-

rithm used to crop the input images is described in

Appendix section.

3.1 Feature Sharing Connection

The decoders in Figure 1 gradually upsample the fea-

ture maps with three convolutional blocks. To train

the two branches collaboratively, at the input of each

block, the feature maps are shared between the global

and local branches through the feature sharing con-

nection showed in detail in Figure 2. We deﬁne the

feature maps as X

∈ R

c×h

×w

for the global branch,

and X

∈ R

b×c×h

×w

for the local branch. Here c

represents the channel number, h,w are the height

and width, and b is the number of patches. First,

the global branch feature maps X

are cropped into

patches, X

∈ R

b×c×h

×w

, and these patches are con-

catenated with the local branch feature maps. Then

the network merges the patch feature maps X

from

the local branch to produce X

∈ R

c×h

×w

. Finally,

the merged feature maps are concatenated with the

global branch feature maps. The number of channels

in the concatenated feature maps, X

and X

, are

doubled to 2c. To ensure that the global and local fea-

ture maps can match each other spatially, the same

patch cropping method is used as the one used to crop

the input images.

3.2 Context-Aware Dense Material

Segmentation

The three outputs (O

) generated from our

CAM-SegNet make it convenient to control the fea-

tures extracted from each branch, by optimising the

branches to achieve different tasks with different loss

functions. To optimise the CAM-SegNet, the total

loss function L

total

can be represented as

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

192

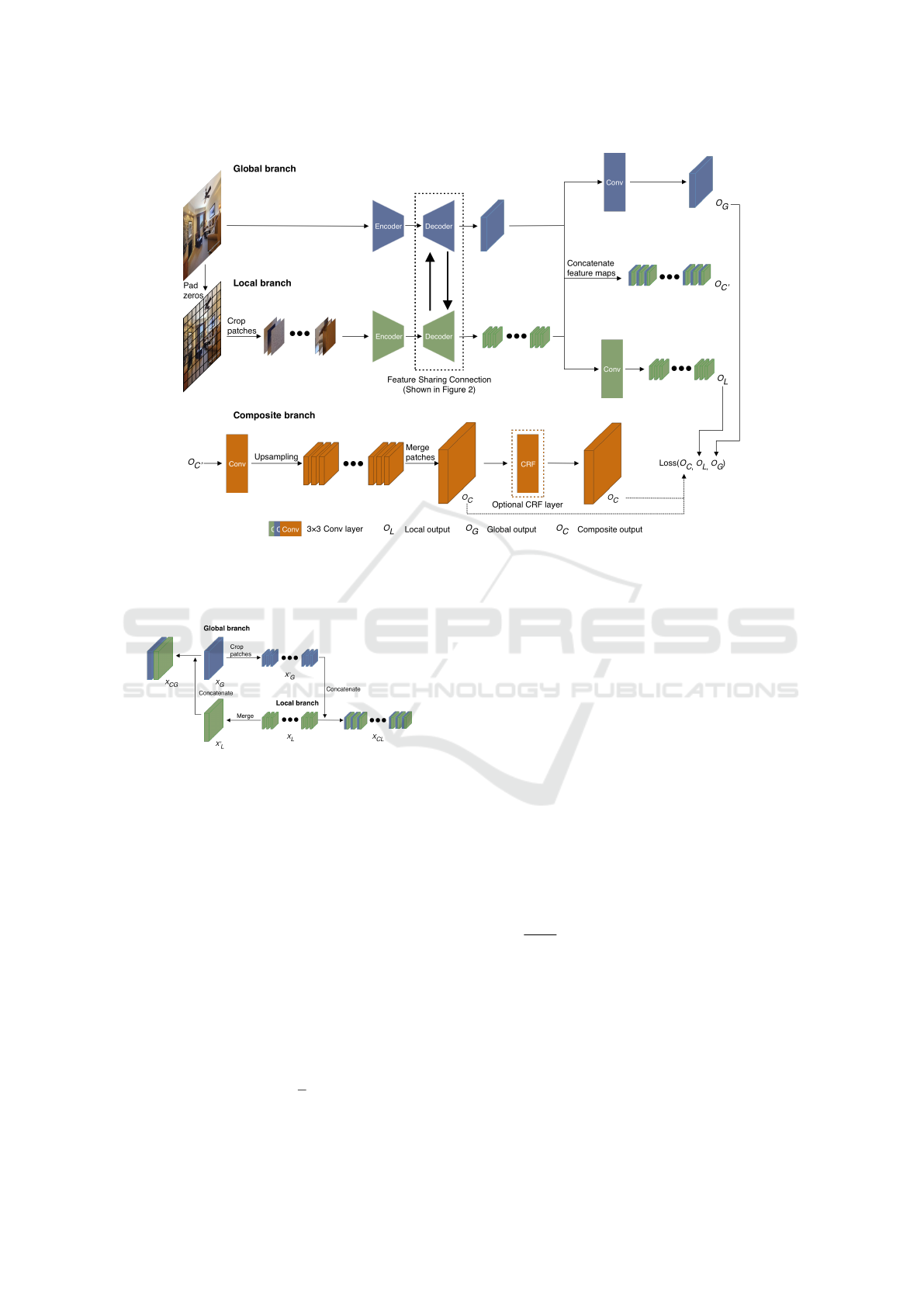

Figure 1: CAM-SegNet architecture. The feature maps in the decoders are shared between the global and local branches.

After the encoder-decoder component, the feature maps at the same spatial location are concatenated together and passed into

the composite branch, which upsamples the feature maps to the same size as the original input image. The composite output

can be reﬁned by an optional CRF layer.

Figure 2: The feature sharing connection between the de-

coders. X

is the concatenated global branch feature maps,

while X

is the concatenated local branch feature maps.

total

= L

global

1/4

) + L

local

1/4

) + L

composite

,Y )

(1)

where Y is the ground truth segment, and Y

1/4

is the

downsampled ground truth segment. The downsam-

pled ground truth is used to reduce the memory ca-

pacity needed during training. This paper aims to

combine contextual and material features to generate

dense material segmentation. According to Schwartz

and Nishino (Schwartz and Nishino, 2016; Schwartz

and Nishino, 2020; Schwartz, 2018), material patches

without contextual cues can force the network to ex-

tract material features. Since the local branch is re-

sponsible to learn from image patches, it is optimised

to provide material features with the focal loss (Lin

et al., 2017b), i.e., L

f ocal

∑

−(1 − p

)

log(p

Here N is the number of pixels in O

, and p

the estimated probability of pixel i for the true cat-

egory. Similarly, the global branch is optimised to

provide contextual features since the original images

contain contextual information. However, context la-

bels (e.g.objects or places) are needed to extract cor-

responding contextual features. Although these fea-

tures can reduce the material segmentation uncer-

tainty (Schwartz and Nishino, 2016), the cost of extra

labels is not desired.

Instead of exploring contextual features that need

extra labels, our CAM-SegNet investigates the con-

textual information that is missing in the image

patches — the boundary between different mate-

rials. For pixels along the boundaries of mate-

rial c, let R

be the recall and precision score.

To provide boundary related features, the boundary

loss (Bokhovkin and Burnaev, 2019), L

boundary

∑

1 −

, is applied to the global branch output

, which aligns the predicted material boundaries

with the ground-truth segments. Ideally, the com-

posite branch should be able to generate predictions

accurately with good boundary quality, if the com-

posite branch can learn from the outputs from both

branches properly. Therefore, we set the composite

branch loss function L

composite

to L

boundary

,Y ) +

f ocal

,Y ), to ensure that it is optimised to achieve

these two goals at the same time.

CAM-SegNet: A Context-Aware Dense Material Segmentation Network for Sparsely Labelled Datasets

193

3.3 Self-training Approach

Since not all training segments in LMD cover the

whole material region, the detected ground truth

boundaries may provide misleading information to

the boundary loss (Bokhovkin and Burnaev, 2019).

Therefore, we choose to complete the labels ﬁrst.

A network is trained with the focal loss (Lin et al.,

2017b) and sparsely labelled LMD as the initial

teacher model to generate pseudo labels. We assume

that the LMD augmented with pseudo labels can pro-

vide necessary boundary information for our CAM-

SegNet. The teacher-student-teacher self-training ap-

proach (Zoph et al., 2020) contains four stages:

1. The initial teacher model is trained by setting all

the loss terms in Equation 1 to L

f ocal

2. The teacher model generates the feature maps for

the training set, and replaces the known pixels

with ground truth labels.

3. The feature maps are reﬁned by the CRF layer, to

produce the ﬁnal pseudo labels with better mate-

rial boundary.

4. A CAM-SegNet is trained as a student model with

the augmented LMD.

To improve the pseudo label quality and achieve

the best performance, typical self-training cases such

as (Zoph et al., 2020; Le et al., 2015; Cheng et al.,

2020) repeat this training approach many times, to

produce a series of student models. In detail, the stu-

dent model at round t is considered as the new teacher

model, to produce a new augmented dataset with the

second and third stages. Then this dataset is used to

produce a new student model, S

t+1

with the fourth

stage. It is worth noting that, self-training may not

work well if the initial teacher model cannot predict

most of the labels correctly. According to Bank et

al. (Bank et al., 2018), an initial accuracy of 70%

is not enough. Since the reported material segmen-

tation accuracy is about 70% in (Bell et al., 2015;

Schwartz and Nishino, 2016; Schwartz and Nishino,

2020), we don’t expect to achieve a much higher ac-

curacy with the self-training approach. Instead, our

objective is to show that the additional boundary in-

formation can help the network to generate segments

with good boundary quality, and the self-training ap-

proach is one way to provide such information. The

results in Table 3 illustrate how our network performs

with and without the boundary information under the

same self-training approach.

4 EXPERIMENTS

Dataset. We evaluate our proposed method on the lo-

cal material database (LMD) (Schwartz and Nishino,

2016; Schwartz and Nishino, 2020), and follow their

suggestion to crop the images into 48 × 48 patches.

We randomly split all the samples into training (70%),

validation (15%) and test (15%) sets. Since our con-

tribution mainly focuses on indoor material segmen-

tation, we qualitatively evaluate the segmentation re-

sults only with images taken in indoor scenes such as

kitchens and living rooms.

Evaluation Metrics. We report the per-pixel aver-

age accuracy (Pixel Acc) and the mean intersection

over union value (Mean IoU). It is worth pointing out

that the sparsely labelled segments in LMD cannot re-

ﬂect segmentation quality, especially for pixels near

the material boundaries. Therefore, in addition to the

LMD test set, we exhaustively labelled eight indoor

images in the LMD test set to evaluate the perfor-

mance of our model. We refer to these eight images

as DLMD in our experiments.

Baseline Models. Our main contribution is to com-

bine both global contextual features and local mate-

rial features to achieve dense material segmentation.

To show the advantage of our model among state-

of-the-art networks for image segmentation task, we

use DeepLabV3+ (Chen et al., 2018), BiSeNetV2 (Yu

et al., 2020), and PSPNet (Zhao et al., 2017b) as our

baselines. In our experiments, we ﬁne-tune the pre-

trained models implemented by (Yakubovskiy, 2020).

Since these networks have not been evaluated on the

LMD previously, we adopt the training procedures

from their original papers and use the same backbone

described below as our CAM-SegNet. The results are

reﬁned by the same CRF layer for a fair comparison.

Implementation Details. The ResNet50 (He et al.,

2016) pre-trained on ImageNet (Deng et al., 2009) is

used as the encoder and the Feature Pyramid Network

(FPN) (Lin et al., 2017a) is used as the decoder. The

skip connections are added between the encoder and

decoder as in (Chen et al., 2019). The patch size 48

is not divisible by the default encoder downsampling

factor 32, which may cause a spatial mismatch be-

tween the local and global feature maps. Therefore,

the downsampling factor is changed to 16, by setting

the stride of the ﬁnal block convolutional layer to 1.

Since Schwartz and Nishino (Schwartz and Nishino,

2016; Schwartz and Nishino, 2020) did not release

the segmentation task training conﬁguration, we fol-

low the work in (Bell et al., 2015) to normalise the im-

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

194

ages by subtracting the mean (124, 117, 104) for the

RGB channels respectively. To reﬁne the segmenta-

tion outputs, the trainable Conv-CRF (Teichmann and

Cipolla, 2019) is adopted. First, the Adam optimiser

with learning rate 0.00002 is used to train the network

without a CRF layer. Then the network parameters

are frozen to train the CRF layer with learning rate

0.001. Finally the network is reﬁned together with the

CRF layer with learning rate 0.0000001. Each stage

is trained for 40 epochs. Since the images have dif-

ferent sizes, the gradients are accumulated to achieve

an equivalent batch size of 32. According to Chen et

al. (Chen et al., 2019), a mean squared error regular-

isation term between the global and local outputs can

help the network to learn from both branches. This

regularisation term is removed when the CRF layer is

appended to the network, to encourage the branches

to learn more diverse features. The self-training ap-

proach is repeated three times.

Quantitative Evaluation. In Table 1, we compare the

performance of our CAM-SegNet against the base-

line models. In order to illustrate the model perfor-

mance for individual material, seven common ma-

terials that exist in indoor scenes from DLMD are

chosen to report the Pixel Acc values. Our CAM-

SegNet achieves 3.25% improvement in terms of

Pixel Acc and 27.90% improvement on Mean IoU,

compared with the second highest score achieved by

DeepLabV3+. DeepLabV3+, BiSeNetV2 and PSP-

Net got low scores on materials of small objects, such

as foliage (plants for decoration) and paper. An-

other observation from Table 1 is that these three

networks can still achieve comparable performance

when recognising materials that usually cover a large

area of the image, such as plaster (material of the wall

and ceiling) and wood (usually wooden furniture).

One reason for the low scores may be that the

networks failed to learn from local material features

such as texture. PSPNet relies on the pooling layers

to learn from multi-scale features, DeepLabV3+ uses

dilated convolutional layers. Although BiSeNetV2

adopts two branches to learn from local and global

features, they all take the full-size images as input,

and the intermediate layers do not communicate dur-

ing training. The local features can fade out especially

when the image resolution is low. As a consequence,

these networks tend to depend on global features and

may not recognise small material regions well.

In contrast, our CAM-SegNet adopts both full-

size images and cropped patches, to learn from the

global and local features, which are combined and co-

trained. This enables our CAM-SegNet to recognise

materials that are hard to identify (foliage and paper)

for the baseline models.

Qualitative Evaluation. In Figure 3, we compared

the segmentation quality of our CAM-SegNet with

DeepLabV3+. As indicated by the Mean IoU score,

CAM-SegNet is better at recognising pixels around

material boundaries. In the kitchen image, we can

see the clear boundary between the ceramic ﬂoor and

the wooden cupboard. In the toilet image, the ce-

ramic close-stool is successfully separated from the

wall covered with plaster.

Ablation Study. In Table 2 and Table 3, we evaluate

the effectiveness of each component of our method.

The components include the network architecture, the

loss function, and the CRF layer. For fairness, all

models are trained with the same training procedure

as our CAM-SegNet. In detail, to show the advan-

tages of our two-branch architecture, we train two sin-

gle branch models with full-size images and image

patches separately, and refer to them as the Global

and Local models respectively.

Since the LMD is sparsely labelled, it is not

straightforward to train our CAM-SegNet without

the self-training approach. In order to control for

the inﬂuence of the self-training approach, we re-

train our CAM-SegNet with the focal loss (Lin et al.,

2017b) applied to all three outputs in Equation 1, and

name this model as the Self-Adaptive CAM-SegNet

(SACAM-SegNet). To avoid confusion, we refer to

our CAM-SegNet trained with the boundary loss as

the Boundary CAM-SegNet or BCAM-SegNet. We

see from Table 2 that our SACAM-SegNet achieves

an improvement of 12-20% on Pixel Acc and 6-19%

on Mean IoU, compared with single branch models

without the self-training approach. Although PAC-

CRF reﬁned models tend to get higher Pixel Acc,

Conv-CRF reﬁned models can achieve higher Mean

IoU.

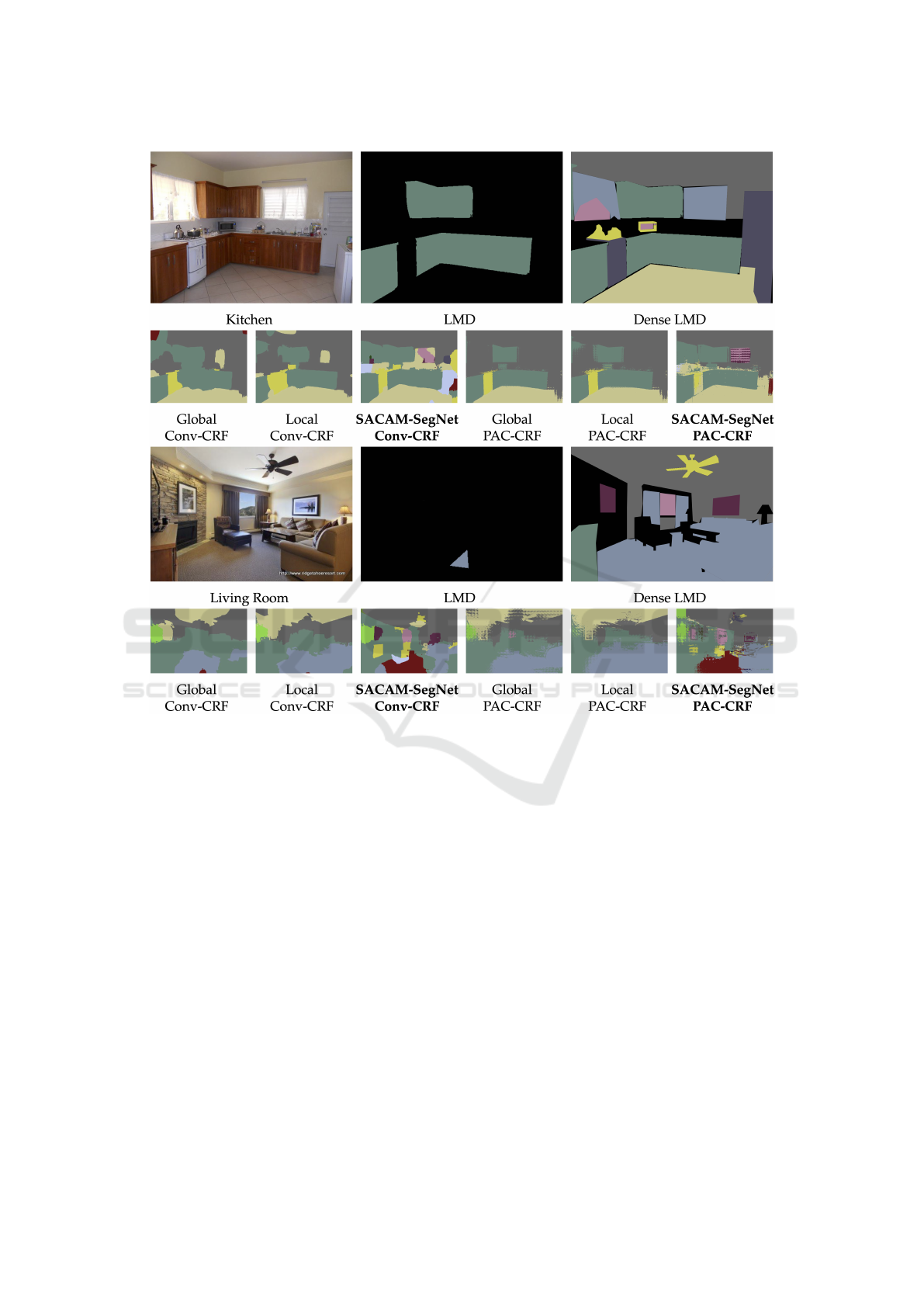

Figure 4 shows that our SACAM-SegNet can pro-

duce correct labels for pixels that are hard to recog-

nise for the Global or Local models. For example, our

SACAM-SegNet can label the window in the kitchen

as glass correctly. Moreover, our model can ignore

object boundaries and cover all adjacent pixels be-

longing to the same material category. A good ex-

ample is the ceiling and the wall in the living room

picture. Surprisingly, our SACAM-SegNet can even

tell the difference between the scene outside the win-

dow and the scene drawing in the painting in the liv-

ing room, and successfully classify them as glass and

paper respectively. However, we also notice that the

PAC-CRF reﬁned SACAM-SegNet tends to predict

wrong labels if the material region has rich textural

CAM-SegNet: A Context-Aware Dense Material Segmentation Network for Sparsely Labelled Datasets

195

Table 1: Quantitative evaluation results for our CAM-SegNet and baseline models. The values are reported as percentage.

The highest value for each evaluation metrics is in bold font. Seven common indoor materials are selected to report the

performance Pixel Acc. The Pixel Acc is evaluated on both LMD (the ﬁrst column) and DLMD (the second column). Since

LMD test set provides sparsely labelled images, it is not meaningful to report Mean IoU on LMD. Therefore, Mean IoU is

reported on DLMD only.

Models ceramic fabric foliage glass paper plaster wood Pixel Acc Mean IoU

DeepLabV3+ 97.68 27.56 0.00 48.91 0.00 88.94 73.69 71.37 67.09 32.04

BiSeNetV2 18.86 3.07 0.00 23.00 0.34 58.68 70.77 45.66 37.66 15.08

PSPNet 55.59 0.12 0.00 66.73 1.47 79.25 73.76 50.12 52.11 23.39

CAM-SegNet (ours) 92.65 32.72 88.81 21.99 30.67 87.77 93.82 71.65 69.27 40.98

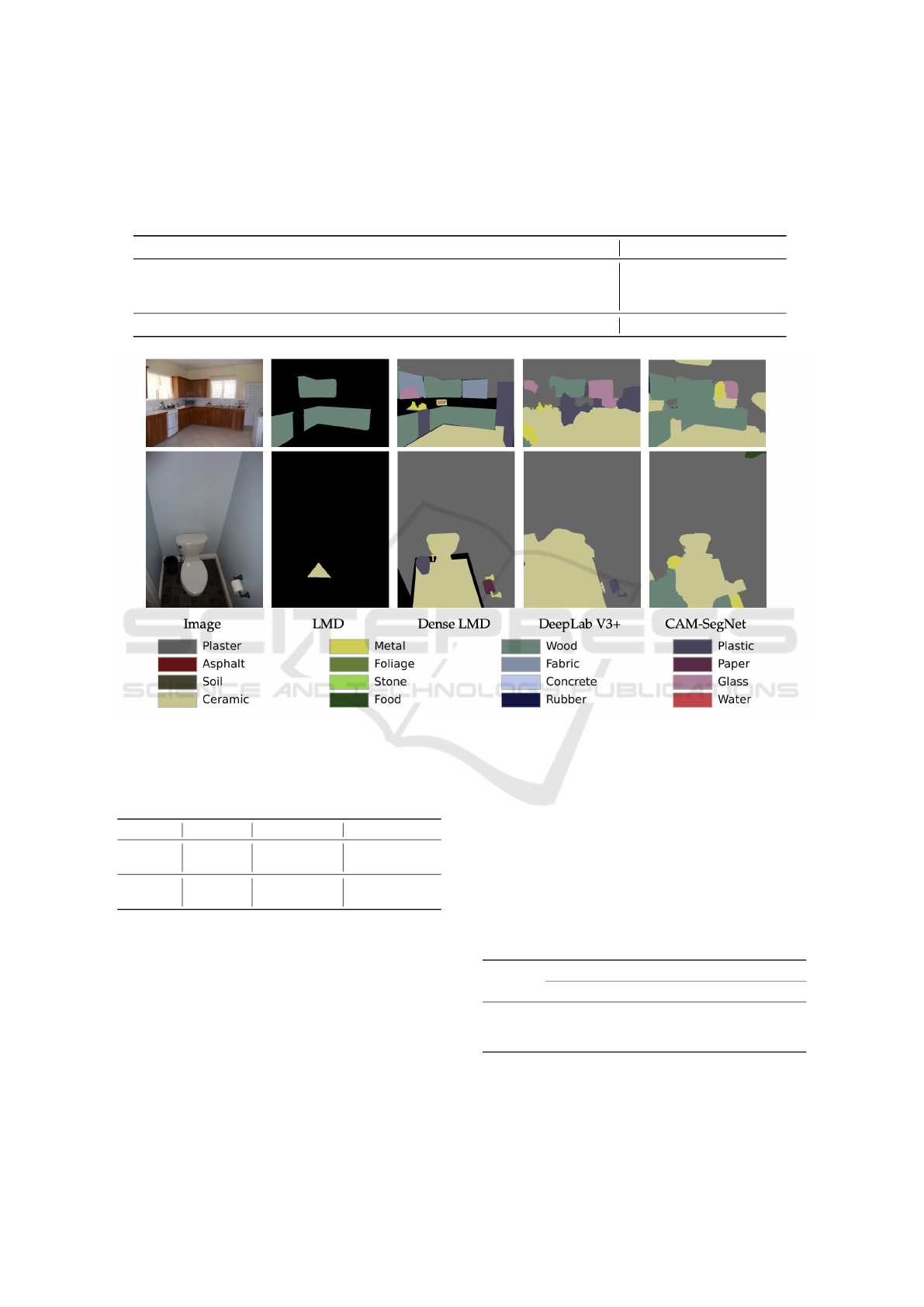

Figure 3: Qualitative comparison. The sparsely labelled images are taken from LMD test set, and densely labelled with all

known material categories manually.

Table 2: Quantitative results for our SACAM-SegNet and

single branch models. Our network outperforms single

branch models.

Metric CRF Layer Local Global SACAM-SegNet

Pixel Acc

PAC-CRF 61.95 60.58 69.25

Conv-CRF 58.07 55.67 66.83

Mean IoU

PAC-CRF 27.07 30.52 32.25

Conv-CRF 31.77 32.25 34.16

clues. For example, the striped curtain covers the win-

dow in the kitchen. The PAC-CRF forces the network

to label pixels between the stripes to different cate-

gories. This behaviour is not desired since it can give

wrong boundary information. That is the reason why

we choose to use a Conv-CRF reﬁned model to gen-

erate the pseudo labels. More results can be found in

the Appendix section.

Table 3 compares the performance between

SACAM-SegNet and BCAM-SegNet with the self-

training approach. Without boundary loss, the

SACAM-SegNet performs worse compared with the

BCAM-SegNet. This shows that self-training alone

does not result in the good performance of our

BCAM-SegNet. The boundary information can sta-

bilise our CAM-SegNet to learn from noisy pseudo la-

bels and gradually correct the pseudo labels to achieve

higher accuracy. The qualitative comparison is shown

in the Appendix section.

Table 3: Quantitative performance of our CAM-SegNet

trained on augmented LMD with the self-training approach.

Models

SACAM-SegNet BCAM-SegNet

Pixel Acc Mean IoU Pixel Acc Mean IoU

Student 1 66.42% 37.93 67.38% 39.26

Student 2 67.26% 38.97 68.18% 39.81

Student 3 64.85% 32.19 69.27% 40.98

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

196

Figure 4: Dense material segmentation results for Kitchen and Living Room images.

5 CONCLUSIONS

This paper proposed a hybrid network architecture

and training procedure to combine contextual features

and material features. The effectiveness of the CAM-

SegNet is validated with boundary contextual fea-

tures. We show that the combined features can help

the network to recognise materials at different scales

and assign the pixels around the boundaries to the cor-

rect categories. In addition to boundary features, it is

possible to enhance the network performance one step

further with generated object and scene pseudo la-

bels. We will investigate the possibility of combining

multiple kinds of pseudo labels with semi-supervised

training approach in future studies.

ACKNOWLEDGMENT

This work was supported by the EPSRC Programme

Grant Immersive Audio-Visual 3D Scene Reproduc-

tion Using a Single 360 Camera (EP/V03538X/1).

REFERENCES

Bank, D., Greenfeld, D., and Hyams, G. (2018). Improved

training for self training by conﬁdence assessments. In

Science and Information Conference, pages 163–173.

Springer.

Bell, S., Upchurch, P., Snavely, N., and Bala, K. (2015).

Material recognition in the wild with the materials in

context database. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 3479–3487.

Bokhovkin, A. and Burnaev, E. (2019). Boundary loss for

remote sensing imagery semantic segmentation. In

CAM-SegNet: A Context-Aware Dense Material Segmentation Network for Sparsely Labelled Datasets

197

International Symposium on Neural Networks, pages

388–401. Springer.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2017). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous convo-

lution, and fully connected crfs. IEEE transactions on

pattern analysis and machine intelligence, 40(4):834–

848.

Chen, L.-C., Zhu, Y., Papandreou, G., Schroff, F., and

Adam, H. (2018). Encoder-decoder with atrous sepa-

rable convolution for semantic image segmentation. In

Proceedings of the European conference on computer

vision (ECCV), pages 801–818.

Chen, W., Jiang, Z., Wang, Z., Cui, K., and Qian,

X. (2019). Collaborative global-local networks for

memory-efﬁcient segmentation of ultra-high resolu-

tion images. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 8924–8933.

Cheng, H., Gu, C., and Wu, K. (2020). Weakly-supervised

semantic segmentation via self-training. In Journal

of Physics: Conference Series, volume 1487, page

012001. IOP Publishing.

Csurka, G., Larlus, D., Perronnin, F., and Meylan, F. (2013).

What is a good evaluation measure for semantic seg-

mentation?. In BMVC, volume 27, pages 10–5244.

Delany, M. and Bazley, E. (1970). Acoustical properties

of ﬁbrous absorbent materials. Applied Acoustics,

3(2):105–116.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE conference on com-

puter vision and pattern recognition, pages 248–255.

Ieee.

Everingham, M., Eslami, S. A., Van Gool, L., Williams,

C. K., Winn, J., and Zisserman, A. (2015). The pascal

visual object classes challenge: A retrospective. Inter-

national journal of computer vision, 111(1):98–136.

Farhadi, A., Endres, I., Hoiem, D., and Forsyth, D. (2009).

Describing objects by their attributes. In 2009 IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1778–1785. IEEE.

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

learning. MIT press.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hu, D., Bo, L., and Ren, X. (2011). Toward robust material

recognition for everyday objects. In BMVC, volume 2,

page 6. Citeseer.

Iodice, S. and Mikolajczyk, K. (2020). Text attribute ag-

gregation and visual feature decomposition for person

search. In BMVC.

Kang, J., Fernandez-Beltran, R., Sun, X., Ni, J., and Plaza,

A. (2021). Deep learning-based building footprint ex-

traction with missing annotations. IEEE Geoscience

and Remote Sensing Letters.

Kim, H., Remaggi, L., Jackson, P. J., and Hilton, A. (2019).

Immersive spatial audio reproduction for vr/ar using

room acoustic modelling from 360 images. In 2019

IEEE Conference on Virtual Reality and 3D User In-

terfaces (VR), pages 120–126. IEEE.

ahenb

uhl, P. and Koltun, V. (2013). Parameter learn-

ing and convergent inference for dense random ﬁelds.

In International Conference on Machine Learning,

pages 513–521. PMLR.

Le, T. H. N., Luu, K., and Savvides, M. (2015). Fast and ro-

bust self-training beard/moustache detection and seg-

mentation. In 2015 international conference on bio-

metrics (ICB), pages 507–512. IEEE.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017a). Feature pyramid networks

for object detection. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2117–2125.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2017b). Focal loss for dense object detection. In

Proceedings of the IEEE international conference on

computer vision, pages 2980–2988.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

McDonagh, A., Lemley, J., Cassidy, R., and Corcoran, P.

(2018). Synthesizing game audio using deep neural

networks. In 2018 IEEE Games, Entertainment, Me-

dia Conference (GEM), pages 1–9. IEEE.

Schwartz, G. (2018). Visual Material Recognition. Drexel

University.

Schwartz, G. and Nishino, K. (2016). Material recognition

from local appearance in global context. In Biol. and

Artiﬁcial Vision (Workshop held in conjunction with

ECCV 2016).

Schwartz, G. and Nishino, K. (2020). Recognizing material

properties from images. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 42(8):1981–1995.

Sharan, L., Liu, C., Rosenholtz, R., and Adelson, E. H.

(2013). Recognizing materials using perceptually in-

spired features. International journal of computer vi-

sion, 103(3):348–371.

Shrivatsav, N., Nair, L., and Chernova, S. (2019). Tool sub-

stitution with shape and material reasoning using dual

neural networks. arXiv preprint arXiv:1911.04521.

Silberman, N., Hoiem, D., Kohli, P., and Fergus, R. (2012).

Indoor segmentation and support inference from rgbd

images. In European conference on computer vision,

pages 746–760. Springer.

Souly, N., Spampinato, C., and Shah, M. (2017). Semi su-

pervised semantic segmentation using generative ad-

versarial network. In Proceedings of the IEEE inter-

national conference on computer vision, pages 5688–

5696.

Su, H., Jampani, V., Sun, D., Gallo, O., Learned-Miller,

E., and Kautz, J. (2019). Pixel-adaptive convolutional

neural networks. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recog-

nition, pages 11166–11175.

Tang, Z., Bryan, N. J., Li, D., Langlois, T. R., and Manocha,

D. (2020). Scene-aware audio rendering via deep

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

198

acoustic analysis. IEEE transactions on visualization

and computer graphics, 26(5):1991–2001.

Teichmann, M. and Cipolla, R. (2019). Convolutional crfs

for semantic segmentation. In BMVC.

Wu, T., Lei, Z., Lin, B., Li, C., Qu, Y., and Xie, Y. (2020).

Patch proposal network for fast semantic segmenta-

tion of high-resolution images. In Proceedings of

the AAAI Conference on Artiﬁcial Intelligence, vol-

ume 34, pages 12402–12409.

Xie, Q., Luong, M.-T., Hovy, E., and Le, Q. V. (2020). Self-

training with noisy student improves imagenet classi-

ﬁcation. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

10687–10698.

Xie, S., Girshick, R., Doll

ar, P., Tu, Z., and He, K. (2017).

Aggregated residual transformations for deep neural

networks. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 1492–

1500.

Yakubovskiy, P. (2020). Segmentation models pytorch.

https://github.com/qubvel/segmentation models.

pytorch.

Yu, C., Gao, C., Wang, J., Yu, G., Shen, C., and Sang, N.

(2020). Bisenet v2: Bilateral network with guided ag-

gregation for real-time semantic segmentation. arXiv

preprint arXiv:2004.02147.

Zhang, H., Liao, Y., Yang, H., Yang, G., and Zhang, L.

(2020). A local-global dual-stream network for build-

ing extraction from very-high-resolution remote sens-

ing images. IEEE Transactions on Neural Networks

and Learning Systems.

Zhao, C., Sun, L., and Stolkin, R. (2017a). A fully end-to-

end deep learning approach for real-time simultaneous

3d reconstruction and material recognition. In 2017

18th International Conference on Advanced Robotics

(ICAR), pages 75–82. IEEE.

Zhao, C., Sun, L., and Stolkin, R. (2020). Simultaneous ma-

terial segmentation and 3d reconstruction in industrial

scenarios. Frontiers in Robotics and AI, 7.

Zhao, H., Shi, J., Qi, X., Wang, X., and Jia, J. (2017b).

Pyramid scene parsing network. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 2881–2890.

Zheng, S., Cheng, M.-M., Warrell, J., Sturgess, P., Vineet,

V., Rother, C., and Torr, P. H. (2014). Dense seman-

tic image segmentation with objects and attributes. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3214–3221.

Zheng, S., Jayasumana, S., Romera-Paredes, B., Vineet, V.,

Su, Z., Du, D., Huang, C., and Torr, P. H. (2015). Con-

ditional random ﬁelds as recurrent neural networks. In

Proceedings of the IEEE international conference on

computer vision, pages 1529–1537.

Zhu, X. J. (2005). Semi-supervised learning literature sur-

vey.

Zoph, B., Ghiasi, G., Lin, T.-Y., Cui, Y., Liu, H., Cubuk,

E. D., and Le, Q. V. (2020). Rethinking pre-training

and self-training. arXiv preprint arXiv:2006.06882.

APPENDIX

Crop the Images or Feature Maps. Algorithm 1 is

designed to calculate the parameters when cropping

the input images or feature maps. The same parame-

ters are used to merge the patches to ensure the fea-

ture value at the corresponding position describes the

same image region in the global and the local branch.

Algorithm 1: Calculate Patch Cropping Parameters.

1: procedure GETPATCHINFO(PatchSize, S) . S is

the height or width of the original


2: Initialize

3: num patch ← 0 . Number of patches

cropped along one dimension

4: stride ← 0 . Number of pixels to next

patch

5: pad ← 0 . Number of zeros to pad at a

particular dimension

6: if S mod patch size equal 0 then . When

the patches accurately cover the


7: num patch ← S divide patch size

8: stride ← patch size

9: else. Allow padding and overlapping for one

more patch

10: num patch ← (S divide patch size)

plus 1

11: stride ← (S divide num patch) plus 1

12: pad ← (stride multiply

(num patch minus 1)) plus

patch size minus S

13: return num patch, stride, pad

SACAM-SegNet Segmentation Images. More seg-

mentation images generated by the SACAM-SegNet

reﬁgned by the Conv-CRF (Teichmann and Cipolla,

2019) layer are shown in Figure 5. The second col-

umn images are the ground truth segments in the

LMD (Schwartz and Nishino, 2016; Schwartz and

Nishino, 2020), and the third column images are man-

ually labelled dense segments.

BCAM-SegNet Segmentation Images. More seg-

mentation images generated by the three BCAM-

SegNet student models trained with the self-training

approach are shown in Figure 6. Our BCAM-SegNet

managed to reﬁne the material boundaries for some

images, such as the window in the ﬁrst image, and the

ceramic close-stool in the sixth image.

CAM-SegNet: A Context-Aware Dense Material Segmentation Network for Sparsely Labelled Datasets

199

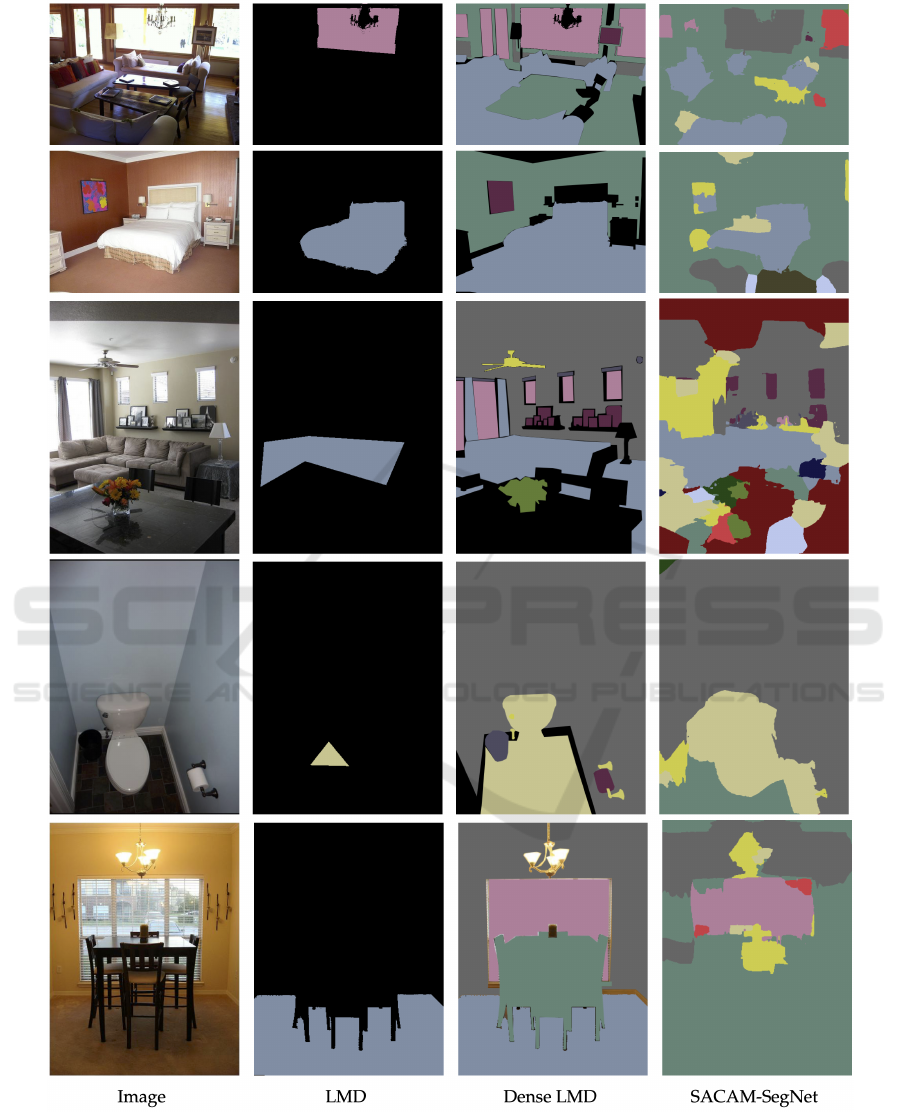

Figure 5: Dense material segmentation results for the SACAM-SegNet, reﬁned by the Conv-CRF layer.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

200

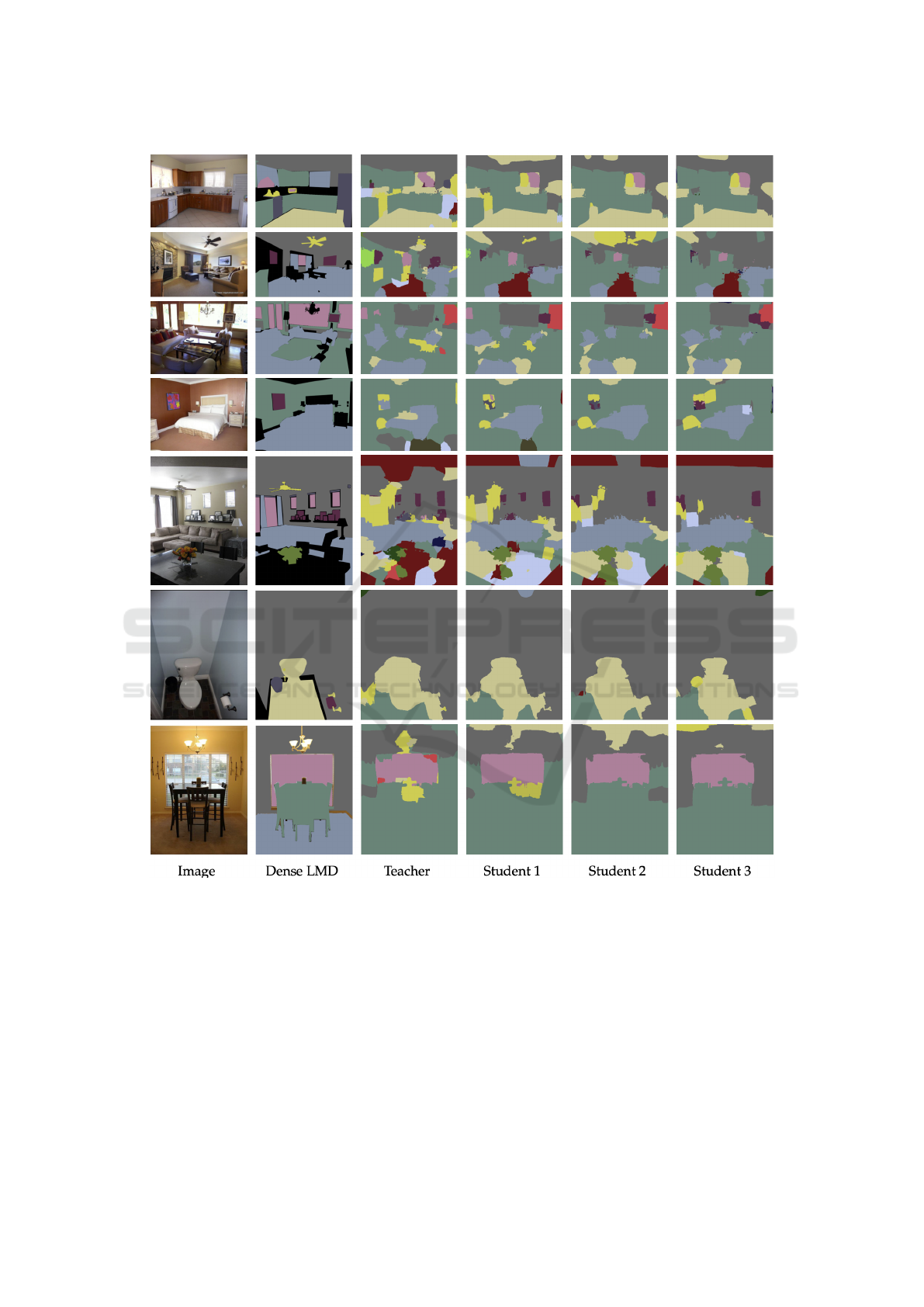

Figure 6: Dense material segmentation results generated by BCAM-SegNet, reﬁned with the Conv-CRF layer. The self-

training approach is repeated three times to train Student 1, 2, and 3.

CAM-SegNet: A Context-Aware Dense Material Segmentation Network for Sparsely Labelled Datasets

201
