Unsupervised Activity Recognition using Trajectory Heatmaps from

Inertial Measurement Unit Data

Orhan Konak

a

, Pit Wegner, Justin Albert

b

and Bert Arnrich

c

Digital Health – Connected Healthcare,

Hasso Plattner Institute, University of Potsdam, Potsdam, Germany

Keywords:

Activity Recognition, Unsupervised Learning, Inertial Measurement Units.

Abstract:

The growth of sensors with varying degrees of integration and functionality has inevitably led to their entry

into various ﬁelds such as digital health. Here, sensors that can record acceleration and rotation rates, so-

called Inertial Measurement Units (IMU), are primarily used to distinguish between different activities, also

known as Human Activity Recognition (HAR). If the associations of the motion data to the activities are not

known, clustering methods are used. There are many algorithmic approaches to identify similarity structures

in the incoming sensor data. These differ mainly in their notion of similarity and grouping, as well as in

their complexity. This work aimed to investigate the impact of transforming the incoming time-series data

into corresponding motion trajectories and trajectory heatmap images before forwarding it to well-known

clustering models. All three input variables were given to the same clustering algorithms, and the results were

compared using different evaluation metrics. This work shows that transforming sensor data into trajectories

and images leads to a signiﬁcant increase in cluster assignment for all considered models and different metrics.

1 INTRODUCTION

Human Activity Recognition (HAR), i.e., categoriz-

ing physical movements into different activity classes,

is becoming increasingly popular in healthcare. In

the ﬁeld of digital health, it holds tremendous poten-

tial, such as in the prevention of diseases, the analysis

of movements over time according to speciﬁc disease

progression, the correct execution of activities, and

tasks requiring documentation. The emergence of this

research ﬁeld is favored using increasingly accurate

and small, and thus portable, Inertial Measurement

Units (IMUs) to measure acceleration and angular

rate over time. Carrying the sensors on speciﬁc body

locations leads to certain patterns in the time series,

which can then be differentiated into activity classes.

Furthermore, in contrast to, e.g., video-based activity

recognition, sensor-based classiﬁcation offers the ad-

vantage of privacy protection. This fact makes sensor-

based activity classiﬁcation the preferred method, es-

pecially in areas of sensitive data such as healthcare.

Methodologically, sensor-based activity recognition

a

https://orcid.org/0000-0003-1884-8029

b

https://orcid.org/0000-0002-6121-792X

c

https://orcid.org/0000-0001-8380-7667

is closely intertwined with the ﬁeld of machine learn-

ing.

Machine learning for activity recognition can be

roughly divided into two branches, supervised and un-

supervised learning. While the respective input data

is labeled in supervised learning, it is unavailable in

unsupervised learning. Besides the missing label, the

search for unknown similarity patterns in the data is

also relevant in unsupervised learning. This allows

the data to be divided into clusters of similar patterns.

Research in clustering often plays out at improving

model-based solution approaches given the same in-

put data. The transformation of the input data with

subsequent clustering, on the other hand, is less re-

searched (Ariza Colpas et al., 2020).

Previous work has already shown that transform-

ing the incoming time-series data from IMUs into

a motion trajectory and further 2D heatmap image

can help to improve the classiﬁcation accuracy for

small datasets in a supervised manner (Konak et al.,

2020). The methodological and data basis for the

data transformation and the comparison of the results

is provided by (Huang et al., 2018). Building upon

these works, the contribution of this work is to com-

pare the effect of transforming the incoming IMU

data into different modalities on the clustering result.

304

Konak, O., Wegner, P., Albert, J. and Arnrich, B.

Unsupervised Activity Recognition Using Trajectory Heatmaps from Inertial Measurement Unit Data.

DOI: 10.5220/0010838800003116

In Proceedings of the 14th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2022) - Volume 2, pages 304-312

ISBN: 978-989-758-547-0; ISSN: 2184-433X

Copyright

c

2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

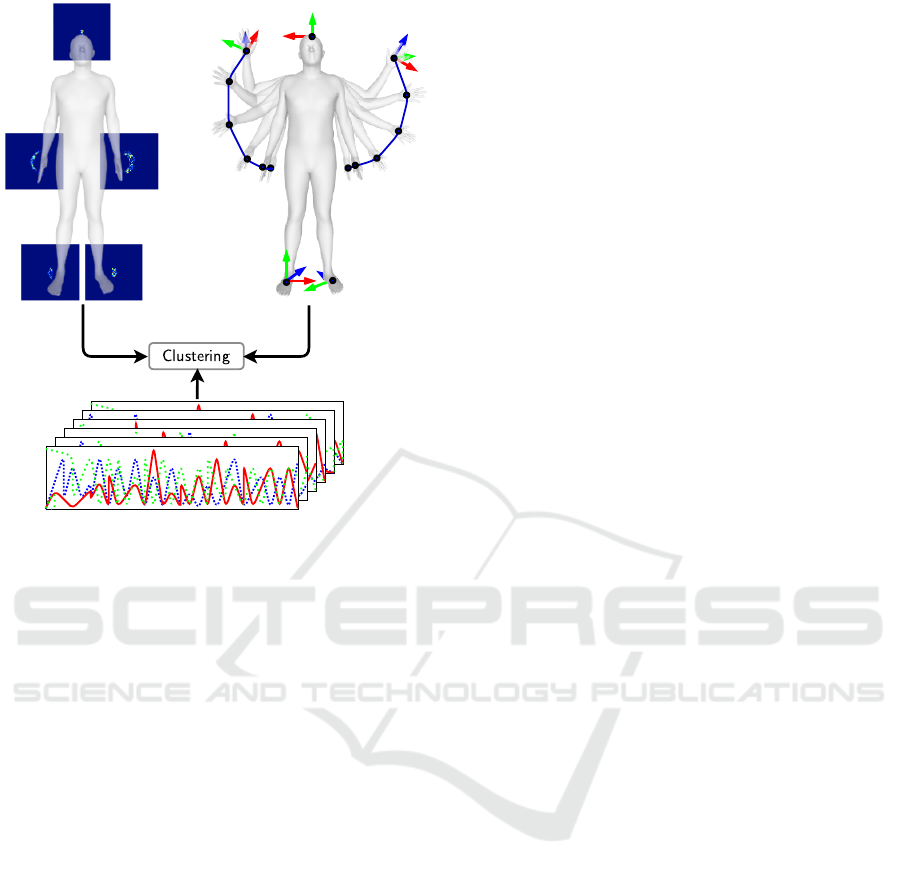

Figure 1: Clustering and evaluation of the three different

input modalities: raw sensor data (bottom), trajectory time

series (upper right), and heatmap images (upper left).

For this purpose, we make use of the Deep Inertial

Poser (DIP-IMU) dataset, the currently largest pub-

licly available IMU dataset (Huang et al., 2018), and

classical clustering algorithms for the three modalities

(1) raw input data from six sensors placed on different

body regions, (2) motion mapping 3D trajectories of

the sensors over time, and (3) 2D heatmaps of the mo-

tion trajectories for the respective sensors, by using

various performance metrics, as shown in Figure 1.

The remainder of this work proceeds as follows:

In section 2, the work is placed in the ﬁeld of previ-

ous research on the effect of sensor modality transfor-

mation for unsupervised HAR. Section 3 is concerned

with the algorithmic approach to data transformation

and the methodology used for this study. The results

are subject of section 4. The ﬁndings are further dis-

cussed in section 5. Finally, the conclusions are part

of section 6.

2 RELATED WORK

Research on HAR based on IMU data with no ground

truth is mainly focused on the comparison of different

clustering techniques (Chen et al., 2021). There are

only a few works that researched the impact of data

transformation on the clustering outcome.

The idea to project human activities into an em-

bedding space in which similar activities are located

more closely was proposed in (Sheng and Huber,

2020). Using subsequent clustering algorithms can

beneﬁt from the embeddings that represent the dis-

tinct activities performed by a person. The eval-

uation was carried out on three labeled benchmark

datasets. With improved performance in grouping

the underlying human activities compared to unsuper-

vised methods applied directly to the original dataset,

they showed the framework’s capability.

(Bai et al., 2019) proposed a deep learning varia-

tional autoencoder activity recognition model for the

representation of the activities in distinct time periods.

By applying the proposed method on a publicly avail-

able dataset, they showed that transforming the IMU

data (raw accelerometer and gyroscope data) to an en-

coded 128-dimensional vector has led to an improve-

ment in grouping the activities. Three traditional clus-

tering methods were used for evaluation.

Similarly, (Abedin et al., 2020) proposed a deep

learning paradigm for unsupervised activity represen-

tations for sensory data with strong semantic corre-

spondence to different human activities. Comparisons

were made with closely related approaches, includ-

ing traditional clustering methods for three diverse

HAR datasets, and the effectiveness of the proposed

approach could be shown. The proposed method is

inspired by techniques, which are more common in

image clustering (Xie et al., 2016; Min et al., 2018;

Li et al., 2018).

Although these methods achieve good results,

they share the common idea of a lower-dimensional

representation of the data. The architecture aims to

reproduce the input through a bottleneck of the tar-

get dimensionality, letting the network decide how

best to compress the given information into a latent

space (Wang et al., 2015). The method is often used

for image feature extraction because convolutional

layers are particularly powerful in detecting signiﬁ-

cant structures (Bishop, 2007). In contrast, and to the

best of our knowledge, this is the ﬁrst work examin-

ing the impact of data transformation from IMUs into

interpretable motion trajectories and 2D heatmap im-

ages before feeding it to the clustering algorithm.

3 METHODS

For this work, the clustering evaluation has been per-

formed for three kinds of input data: raw sensor data,

trajectory time series, and trajectory images. Also,

for each type of data, Principal Component Analy-

sis (PCA) was applied to observe the effect of dimen-

Unsupervised Activity Recognition Using Trajectory Heatmaps from Inertial Measurement Unit Data

305

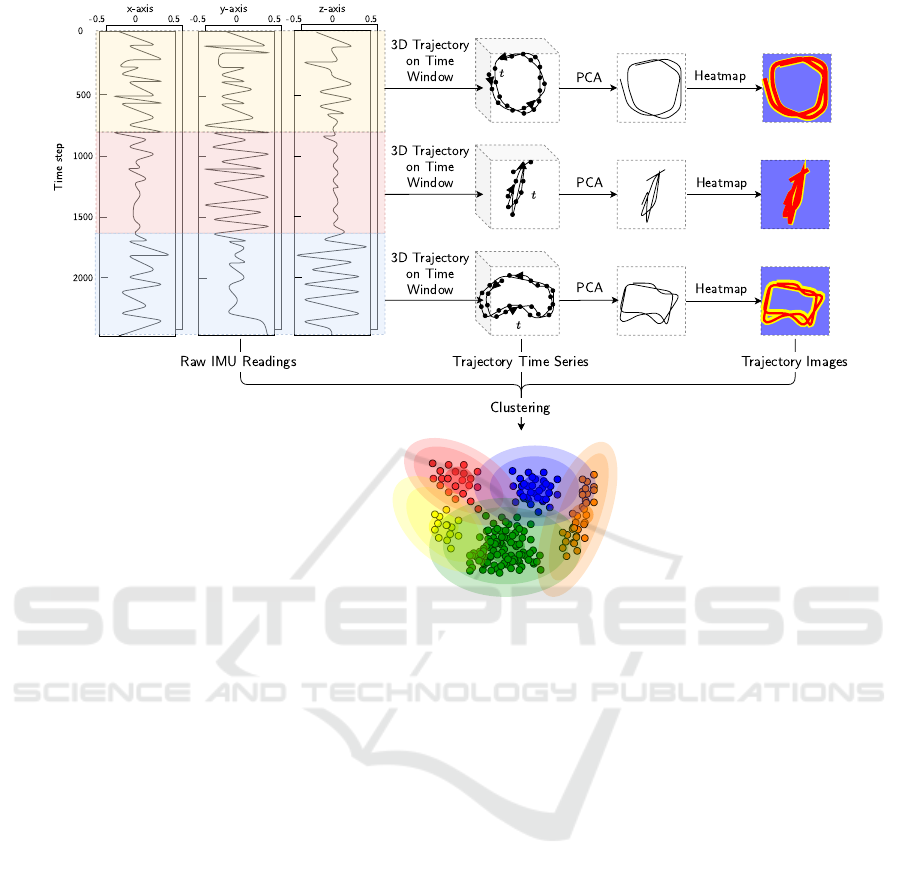

Figure 2: Overview: Top: Implementation pipeline of modality transformation from IMU data for given time windows into 3D

trajectories and further 2D heatmap images via deep inertial poser. Bottom: Clustering for the three different input modalities

raw sensor data, trajectory time series, and trajectory images.

sionality reduction on the clustering results (Pearson,

1901). As depicted in Figure 2 the whole pipeline

starts with raw IMU readings. For short time win-

dows, the data is transformed into motion trajectories,

which are an exact reproduction of the sequence of the

movements with the help of a Skinned Multi-Person

Linear Model (SMPL), a realistic 3D model of the hu-

man body based on skinning and blend shapes (Loper

et al., 2015). The last step consists of reducing the di-

mensionality of the trajectory and highlighting more

frequently passed pixels in a heatmap (trajectory im-

age). All three modalities are passed to the cluster-

ing algorithms k-means and Density-Based Spatial

Clustering of Applications with Noise (DBSCAN)

for comparison with different distance and evaluation

metrics (Lloyd, 2019; Ester et al., 1996). In the fol-

lowing, the methodological approach is described in

more depth.

3.1 Dataset

In order to evaluate the impact of the proposed ap-

proach, the largest publicly available dataset DIP-

IMU was used (Huang et al., 2018). The dataset con-

sists of 17 IMU readings, containing approximately

90 minutes of real IMU data in conjunction with

ground-truth poses for ten subjects in 64 sequences

with 330,000 time instants and 13 different activities.

The performed activities are listed in Table 1.

3.2 Data Transformation

Transforming IMU readings into corresponding mo-

tion trajectories is challenging as it requires an algo-

rithmic detour because of the given error drift coming

along with sensors (Konak et al., 2020). Therefore,

we use SMPL, a skinned vertex-based model that rep-

resents a wide variety of body shapes. (Huang et al.,

2018) have shown that a Bidirectional Recurrent Neu-

ral Networks (BiRNN) with Long Short-Term Mem-

ory (LSTM) cells can map the IMU readings con-

sisting of acceleration and orientation onto the SMPL

pose parameters.

The SMPL model is composed of r = 6890 ver-

tices in three dimensions, which leads to a vector rep-

resentation of dimension R

3r

. For activity recogni-

tion, the recorded time range denoted as S, is divided

into smaller time windows S

i

. In each time window i,

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

306

Input : S = {S

1

, . . . , S

m

} - List of m equally sized time windows where each time window consists

of k time series of measurement values S

i

= {S

i,1

, . . . , S

i,k

};

A ∈ N

m×l

- List of activity labels {a

1

, . . . , a

l

} for each time window;

vertices = 1, . . . , r - List of vertices to track, e.g., wrist, ankle;

d ∈ N - Dimension for heatmap;

n ∈ N - Time frames in each time window

Output : Cluster for different input signals

Procedure:

Initialize SMPL ∈ R

r×n×3

, T ∈ R

vertices×n×3

, T

0

∈ R

vertices×n×2

, H ∈ R

m×vertices×d×d

for i ← 1 to m do

SMPL ← PoseEstimation(S

i

);

T ← SMPL

r=vertices

;

T

0

← PCA(T, n components = 2);

H

i

← Heatmap(T

0

);

end

return Cluster({S

i

, T

0

, H, PCA(S

i

, n components = 2), PCA(T

0

, n components =

2), PCA(H, n components = 2)})

Algorithm 1: Clustering on the DIP-IMU dataset for different input modalities.

Table 1: Description of activities performed.

Category

# Frames Minutes

Motion

Upper Body 116,817 32.45

Arm Chest Crossings

Arm Circles

Arm Head Crossings

Arm Raises

Arm Stretches Up

Lower Body 70,743 19.65

Leg Raises

Squats

Lunges

Locomotion 73,935 20.54

Walking

Sidesteps

Crosssteps

Freestyle 18,587 5.16

Jumping Jacks

Sumos

a pose estimation is predicted for n time frames by the

BiRNN for the incoming acceleration and orientation

data a

a

a, ω

ω

ω:

f : IMU(a

a

a, ω

ω

ω) → SMPL

After reconstructing 3D human body poses from

IMU readings in each time frame, the position of an

arbitrary point over time can be tracked, hence allow-

ing to reconstruct the motion trajectory T .

Further, PCA is applied on the resulting trajec-

tory for dimensionality reduction from R

3

→ R

2

. To

preserve temporal relation, a heatmap H ∈ R

d×d

of

height and width d is generated. The sum h

i j

=

∑

i, j

PCA determines each pixel’s color of the trajec-

tories projection into the lower 2-dimensional space

boundaries of the pixel. With each modality’s ﬁrst

two principal components - trajectory heatmap im-

ages, trajectory time series, and IMU readings - the

data was passed to different clustering algorithms for

further processing.

3.3 Clustering

As described in algorithm 1, the whole pipeline from

data acquisition to clustering consists of different al-

gorithmic layers in a prescribed order. To examine the

effect of data transformation, we used three different

clustering techniques for all three modalities and dif-

ferent evaluation metrics. As a well-known clustering

algorithm, k-means clustering was applied to deter-

mine the activities classiﬁcation for the given number

of clusters, and the distance measures euclidean dis-

tance and Dynamic Time Warping (DTW) (M

¨

uller,

2007). DTW aims to ﬁnd a non-linear mapping be-

tween two time-series of different lengths.

Contrary to k-means clustering, DBSCAN was

used as a second algorithm, which does not require

a predetermined number of clusters as parameter in-

put. Instead, it relies on connectivity between points

in a particular range. Hence, more densely con-

nected areas are grouped in one cluster, while out-

liers are detected as noise. The algorithm thus re-

quires two parameters, a threshold range for the ex-

amined neighborhood of a selected sample (ε) and

a measure for density, i.e., the number of points in

that range (ρ) (Ester et al., 1996). Like other clus-

tering algorithms, the distance measure can be cho-

sen arbitrarily, applying it to various input types, such

Unsupervised Activity Recognition Using Trajectory Heatmaps from Inertial Measurement Unit Data

307

as n-dimensional data points, time series, or images.

We used accuracy, Adjusted Rand Index (ARI), and

Adjusted Mutual Information (AMI) for the evalua-

tion. Since DIP-IMU also incorporates the ground

truth data, the accuracy can be determined by calcu-

lating the proportion of correct predictions among the

total number of the examined cases. Furthermore, we

used AMI and ARI as a metric (Vinh et al., 2009).

AMI is deﬁned as:

AMI(U, V ) =

MI(U, V ) − E{MI(U, V )}

max{H(U), H(V )} − E{MI(U, V )}

where MI denotes the mutual information be-

tween two partitions, E{MI(U, V )} the expected mu-

tual information between two random clusterings, and

H(U), H(V ) the entropies associated with the parti-

tionings U, V . Using the permutation model, the ARI

Index is calculated as follows:

ARI =

∑

i j

n

i j

2

−

h

∑

i

a

i

2

∑

j

b

j

2

i.

n

2

1

2

h

∑

i

a

i

2

+

∑

j

b

j

2

i

−

h

∑

i

a

i

2

∑

j

b

j

2

i.

n

2

where n

i j

, a

i

, b

j

are values from the contingency

table, a table where the overlap between two group-

ings can be summarized.

Finally, we made use of a clustering technique

that relies on neural networks. Most neural network

architectures require manually labeled data, limiting

their use in unsupervised scenarios. However, con-

volutional layers pose a robust tool for pattern recog-

nition and feature extraction in image segmentation

and classiﬁcation. Invariant Information Clustering

(IIC) makes these applicable to the unsupervised do-

main by generating artiﬁcially transformed images of

the training data as paired samples for similar infor-

mation in the image (Ji et al., 2019). Via convolu-

tional representation learning, the mutual information

is extracted to a latent space representing the cluster

probability distribution. With each epoch, the repre-

sentation is reﬁned, and the optimal cluster mapping

is extracted.

4 EVALUATION

Unsupervised activity clustering enormously bene-

ﬁts from the image representation to measure intra-

cluster similarity. Using trajectory images for unsu-

pervised classiﬁcation signiﬁcantly improves classiﬁ-

cation accuracy over raw sensor data for the k-means

and DBSCAN algorithms.

Table 2: Clustering results for k-means performed on the

DIP-IMU dataset for different input modalities and distance

metrics.

Input modality Quality metric

Distance metric AMI ARI Acc

Raw sensor data

Euclidean 0.135 0.045 0.220

DTW 0.239 0.033 0.280

Raw sensor data (2D)

Euclidean 0.099 0.011 0.194

Trajectory time series

Euclidean 0.375 0.167 0.314

DTW 0.462 0.298 0.408

Trajectory time series (2D)

Euclidean 0.322 0.177 0.328

Trajectory image

Euclidean 0.462 0.264 0.366

Trajectory image (2D)

Euclidean 0.396 0.230 0.377

To evaluate this unsupervised approach to the

HAR problem, three different models, k-means, ARI-

optimized DBSCAN, and AMI-optimized DBSCAN

were trained on DIP-IMU in six different formats us-

ing all applicable distance metrics. The formats in-

clude the raw sensor data, the generated trajectory

time series, trajectory heatmap images, and the ﬁrst

two principal components for each. The input di-

mensions for the clustering algorithms are as follow:

raw sensor inputs from six IMUs for acceleration and

rotation in three dimensions and for a time window

of 5s with 60 Hz leads to input size of 6 × 6 × 300;

trajectory time series with the positional coordinate

for all six sensors in each time frame produces the

dimension 6 × 3 × 300; the trajectory image of size

6 × 64 × 64 for all six sensors. Additionally, for com-

parison purposes, the metrics of a random classiﬁer

and the accuracy of an IIC network trained on the tra-

jectory images were recorded.

As can be seen in Table 2, the DTW distance met-

ric produces the best clustering results for time se-

ries data, compared to euclidean distance. This holds

for both k-means and DBSCAN clustering. Also,

both clustering algorithms proﬁt from the representa-

tion as trajectories, improving all three observed met-

rics. The transformation to trajectory images leads

to slightly worse k-means results than the trajectory

time series but still outperforms the clustering on raw

sensor data. PCA, for dimensionality reduction, does

not provide additional value, as almost all measured

evaluation metrics are lower than their original coun-

terpart.

The DBSCAN algorithms optimized by either

ARI or AMI show similar results regarding the dif-

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

308

Table 3: Clustering results for AMI-optimized DBSCAN on the DIP-IMU dataset for different input modalities and distance

metrics.

Input modality Quality metric # of Parameters

Distance metric AMI ARI Acc clusters ε ρ

Raw sensor data

Euclidean 0.143 0.066 0.256 13 9.0 2

DTW 0.247 0.077 0.188 13 4.0 2

Raw sensor data (2D)

Euclidean 0.122 0.033 0.206 9 1.4 4

Trajectory time series

Euclidean 0.278 0.104 0.221 13 1.0 2

DTW 0.352 0.129 0.320 13 0.6 8

Trajectory time series (2D)

Euclidean 0.323 0.180 0.292 14 0.4 5

Trajectory image

Euclidean 0.171 0.053 0.243 13 1.6 4

Trajectory image (2D)

Euclidean 0.363 0.243 0.360 12 0.2 7

Table 4: Clustering results for ARI-optimized DBSCAN on the DIP-IMU dataset for different input modalities and distance

metrics.

Input modality Quality metric # of Parameters

Distance metric AMI ARI Acc clusters ε ρ

Raw sensor data

Euclidean 0.077 0.087 0.138 13 8.0 1

DTW 0.186 0.160 0.057 13 4.0 1

Raw sensor data (2D)

Euclidean 0.095 0.058 0.148 28 0.6 3

Trajectory time series

Euclidean 0.246 0.175 0.168 13 1.0 1

DTW 0.322 0.223 0.176 13 0.4 1

Trajectory time series (2D)

Euclidean 0.283 0.215 0.152 248 0.2 1

Trajectory image

Euclidean 0.086 0.105 0.188 13 1.2 1

Trajectory image (2D)

Euclidean 0.362 0.253 0.366 13 0.2 6

ferences in input modality and distance metric. Each

step in the transformation (sensor data → trajec-

tory time series → trajectory images) leads to im-

proved clustering results across all distance and qual-

ity metrics, as can be seen from the data in Ta-

ble 3 and Table 4. In particular, the clustering of the

dimensionality-reduced trajectory images performed

best, in contrast to the poor results achieved on the

full images. In general, it can be noted that the num-

ber of DBSCAN-found clusters often closely matched

the number of ground truth classes. Comparing the

results of the two different optimizations, the AMI-

maximization leads to higher accuracy and more sta-

ble cluster numbers.

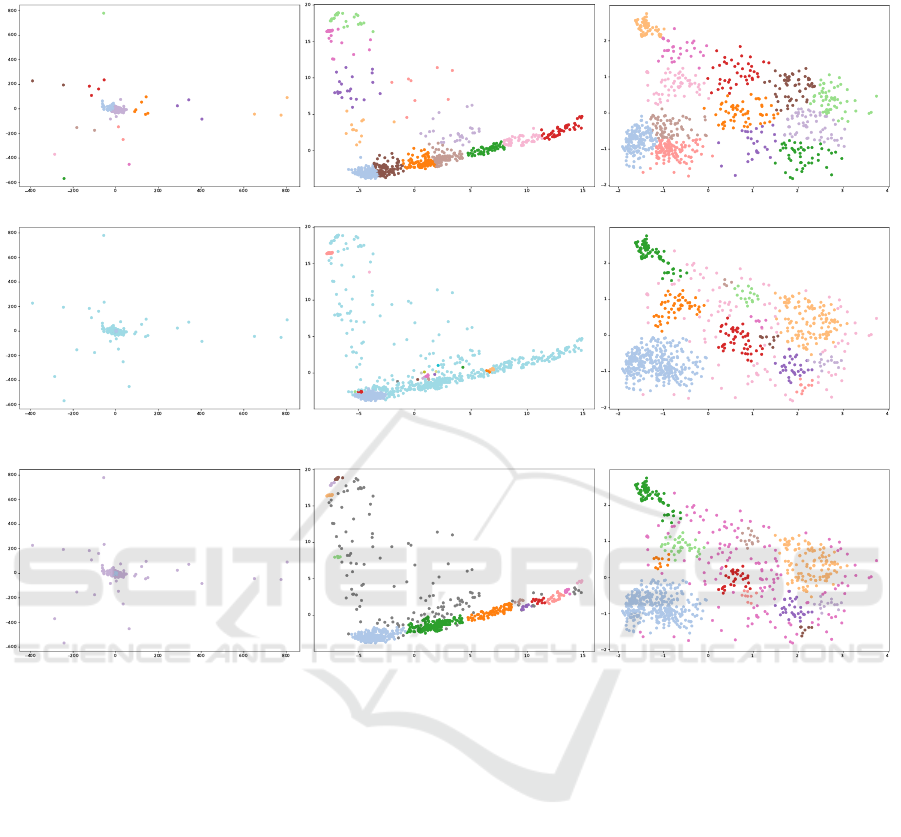

The differences between all three clustering re-

sults on the two principal components of the image

dataset and a complete overview of 2D clustering re-

sults are shown in Figure 3. It is noticeable that the

distribution of the ﬁrst two principal components of

the different activities are widely spread and grouped

in clusters for the trajectory images. The data from

different activities are cluttered for the ﬁrst two prin-

cipal components of the raw sensor data.

A classiﬁer choosing randomly from the given

number of classes achieved an accuracy of 12.8% and

AMI and ARI scores very close to zero. An IIC net-

work trained on the trajectory images achieved an ac-

curacy of 35.8%.

Unsupervised Activity Recognition Using Trajectory Heatmaps from Inertial Measurement Unit Data

309

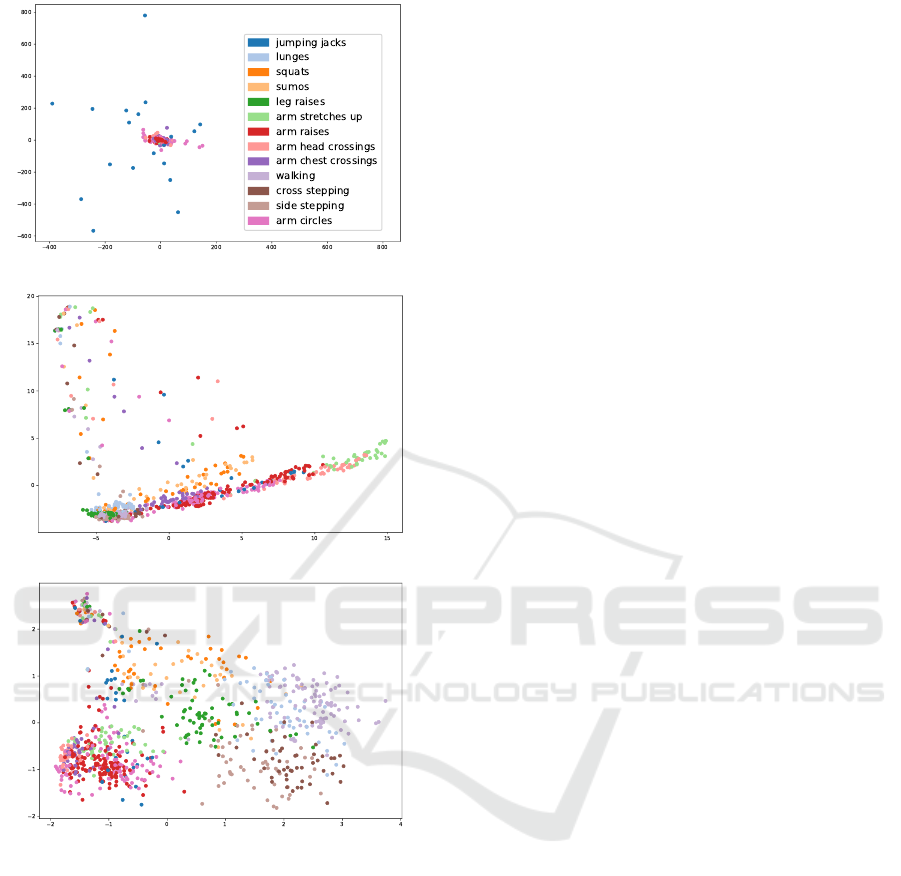

(a) Raw sensor data

(b) 3D trajectories

(c) Trajectory images

Figure 3: Plot of the top two principle components of the

different data inputs. The ground truth classes are repre-

sented by distinct colors. Each type of data leads to a dif-

ferent spread.

5 DISCUSSION

In this work, an unsupervised learning approach for

HAR based on sensor data was presented. The higher

performance of the DTW distance metric over eu-

clidean distance is expected for time series data, as

similar activities are performed at different speeds by

different subjects, which DTW can compensate for by

mapping similar sections.

The signiﬁcant difference between the results of

clustering the full trajectory images and their two

principal components is most likely due to the im-

proved sample distribution, as shown in Figure 3.

Looking at the labels, the principle components can

separate the arm from leg activities and overlapping

patches of activities within these areas. The fail-

ure cases of the clustering algorithms are mainly due

to this cluster overlap, which conventional clustering

methods cannot detect. As visible in Figure 4, this

problem increases in severity for trajectories and even

more for raw sensor data.

The increased performance of trajectories over

raw sensor data can most likely be attributed to the

fact that the ﬁxed-size 3D body model in some way

standardizes the paths. Thus, similar motions create

trajectories in similar regions, regardless of the sub-

ject’s size or physique. It also appears that the missing

temporal information in the trajectory images is not

critical for unsupervised classiﬁcation performance,

leading to the conclusion that the computationally ex-

pensive DTW distance metric on time series could be

replaced with euclidean distance of trajectory images

for some use cases.

Comparing the k-means and DBSCAN models, it

is interesting to note that they perform very differ-

ently on the trajectory image representation but not on

their two principal components. Although DBSCAN

ﬁnds a similar number of clusters as the ground truth

classes, they do not necessarily represent each other.

Also, they do not correspond to the clusters found by

k-means, which is why the number of clusters can be

outruled as a reason for this ﬁnding. The reason might

be that k-means clustering creates more evenly shaped

clusters on an almost evenly spaced dataset, whereas

DBSCAN would group areas of similar density. In the

case of trajectory images, euclidean distance is calcu-

lated in 64 × 64 = 4096 dimensions, whereas trajec-

tories pose 12 and raw sensor data 60 dimensions. In

high dimensions, the ratio between the nearest and

farthest points approaches 1, i.e., the points essen-

tially become uniformly distant from each other (Ag-

garwal et al., 2001), making clustering much more

difﬁcult for DBSCAN.

The accuracy of the IIC model is similar to the

best results of both DBSCAN and k-means on the

trajectory images. This implies that the features

extracted by the convolutional layers do not pro-

vide much additional information for better cluster-

ing. Comparing the accuracy rates across all mod-

els and input modalities, ARI-maximizing DBSCAN

performs by far the worst, often only slightly outper-

forming a random classiﬁer.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

310

6 CONCLUSION AND FUTURE

WORK

The effect of using trajectories over raw sensor data

in unsupervised classiﬁcation for HAR is striking.

Clustering algorithms using either trajectory time se-

ries or trajectory images outperform the sensor-based

variants. The potential power of unsupervised clas-

siﬁcation in activity recognition for videos was al-

ready indicated by (Niebles et al., 2008). The ap-

proaches used in such methods could be powerful

tools for trajectory image clustering and should be

explored further. Slightly different sensor setups or

using sensors from a different manufacturer can be

achieved through transfer learning from the origi-

nal synthetic Archive of Motion Capture as Surface

Shapes (AMASS) dataset(Mahmood et al., 2019).

Furthermore, euclidean distance in high-dimensional

space should be mitigated, for example, by using L

norms (Aggarwal et al., 2001).

REFERENCES

Abedin, A., Motlagh, F., Shi, Q., Rezatoﬁghi, H., and

Ranasinghe, D. (2020). Towards Deep Clustering of

Human Activities from Wearables. In Proceedings of

the 2020 International Symposium on Wearable Com-

puters, ISWC ’20, page 1–6, New York, NY, USA.

Association for Computing Machinery.

Aggarwal, C. C., Hinneburg, A., and Keim, D. A. (2001).

On the Surprising Behavior of Distance Metrics in

High Dimensional Space. In Van den Bussche, J. and

Vianu, V., editors, Database Theory — ICDT 2001,

pages 420–434, Berlin, Heidelberg. Springer Berlin

Heidelberg.

Ariza Colpas, P., Vicario, E., De-La-Hoz-Franco, E.,

Pineres-Melo, M., Oviedo-Carrascal, A., and Patara,

F. (2020). Unsupervised Human Activity Recognition

Using the Clustering Approach: A Review. Sensors,

20(9).

Bai, L., Yeung, C., Efstratiou, C., and Chikomo, M. (2019).

Motion2Vector: Unsupervised Learning in Human

Activity Recognition Using Wrist-Sensing Data. In

Adjunct Proceedings of the 2019 ACM International

Joint Conference on Pervasive and Ubiquitous Com-

puting and Proceedings of the 2019 ACM Inter-

national Symposium on Wearable Computers, Ubi-

Comp/ISWC ’19 Adjunct, page 537–542, New York,

NY, USA. Association for Computing Machinery.

Bishop, C. M. (2007). Pattern Recognition and Ma-

chine Learning (Information Science and Statistics).

Springer, 1 edition.

Chen, K., Zhang, D., Yao, L., Guo, B., Yu, Z., and Liu,

Y. (2021). Deep Learning for Sensor-Based Human

Activity Recognition: Overview, Challenges, and Op-

portunities. ACM Comput. Surv., 54(4).

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996). A

Density-Based Algorithm for Discovering Clusters in

Large Spatial Databases with Noise. In Proceedings

of the Second International Conference on Knowledge

Discovery and Data Mining, KDD’96, pages 226–

231. AAAI Press.

Huang, Y., Kaufmann, M., et al. (2018). Deep Iner-

tial Poser: Learning to Reconstruct Human Pose

from Sparse Inertial Measurements in Real Time.

ACM Transactions on Graphics, (Proc. SIGGRAPH

Asia), 37:185:1–185:15. Two ﬁrst authors contributed

equally.

Ji, X., Henriques, J. F., and Vedaldi, A. (2019). Invariant

Information Clustering for Unsupervised Image Clas-

siﬁcation and Segmentation. In Proceedings of the

IEEE International Conference on Computer Vision

(ICCV), pages 9865–9874.

Konak, O., Wegner, P., and Arnrich, B. (2020). IMU-Based

Movement Trajectory Heatmaps for Human Activity

Recognition. Sensors, 20(24).

Li, F., Qiao, H., and Zhang, B. (2018). Discriminatively

Boosted Image Clustering with Fully Convolutional

Auto-Encoders. Pattern Recognition, 83:161–173.

Lloyd, S. (2019). Least Square Quantization in PCM. In

Proceedings of the IEEE Transactions on Information

Theory, volume 28, pages 129–137.

Loper, M., Mahmood, N., Romero, J., Pons-Moll, G., and

Black, M. J. (2015). SMPL: A Skinned Multi-Person

Linear Model. ACM Trans. Graphics (Proc. SIG-

GRAPH Asia), 34(6):248:1–248:16.

Mahmood, N., Ghorbani, N., Troje, N. F., Pons-Moll, G.,

and Black, M. J. (2019). AMASS: Archive of Motion

Capture as Surface Shapes. In International Confer-

ence on Computer Vision, pages 5442–5451.

Min, E., Guo, X., Liu, Q., Zhang, G., Cui, J., and Long, J.

(2018). A Survey of Clustering With Deep Learning:

From the Perspective of Network Architecture. IEEE

Access, 6:39501–39514.

M

¨

uller, M. (2007). Dynamic Time Warping. Information

Retrieval for Music and Motion, 2:69–84.

Niebles, J., Wang, H., and Fei-Fei, L. (2008). Unsupervised

Learning of Human Action Categories Using Spatial-

Temporal Words. International Journal for Computer

Vision, 3(79):299–318.

Pearson, K. (1901). On Lines and Planes of Closest Fit to

Systems of Points in Space. Philosophical Magazine,

2:559–572.

Sheng, T. and Huber, M. (2020). Unsupervised Embed-

ding Learning for Human Activity Recognition Using

Wearable Sensor Data.

Vinh, N. X., Epps, J., and Bailey, J. (2009). Information

Theoretic Measures for Clusterings Comparison: Is

a Correction for Chance Necessary? In Proceed-

ings of the 26th Annual International Conference on

Machine Learning, ICML ’09, page 1073–1080, New

York, NY, USA. Association for Computing Machin-

ery.

Wang, Y., Yao, H., and Zhao, S. (2015). Auto-Encoder

Based Dimensionality Reduction. Neurocomputing,

184.

Unsupervised Activity Recognition Using Trajectory Heatmaps from Inertial Measurement Unit Data

311

APPENDIX

(a) k-means on raw sensor data (b) k-means on trajectory time series (c) k-means on trajectory images

(d) ARI-optimized DBSCAN on raw sen-

sor data

(e) ARI-optimized DBSCAN on trajec-

tory time series

(f) ARI-optimized DBSCAN on trajec-

tory images

(g) AMI-optimized DBSCAN on raw sen-

sor data

(h) AMI-optimized DBSCAN on trajec-

tory time series

(i) AMI-optimized DBSCAN on trajec-

tory images

Figure 4: Clustering results on the top two principle components across all tested datasets and clustering algorithms.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

312
