MdVRNet: Deep Video Restoration under Multiple Distortions

Claudio Rota

and Marco Buzzelli

Department of Informatics Systems and Communication, University of Milano – Bicocca, Italy

Keywords:

Video Restoration, Video Enhancement, Multiple Distortions, Denoising, Compression Artifacts.

Abstract:

Video restoration techniques aim to remove artifacts, such as noise, blur, and compression, introduced at vari-

ous levels within and outside the camera imaging pipeline during video acquisition. Although excellent results

can be achieved by considering one artifact at a time, in real applications a given video sequence can be affected

by multiple artifacts, whose appearance is mutually inﬂuenced. In this paper, we present Multi-distorted Video

Restoration Network (MdVRNet), a deep neural network speciﬁcally designed to handle multiple distortions

simultaneously. Our model includes an original Distortion Parameter Estimation sub-Network (DPEN) to au-

tomatically infer the intensity of various types of distortions affecting the input sequence, novel Multi-scale

Restoration Blocks (MRB) to extract complementary features at different scales using two parallel streams,

and implements a two-stage restoration process to focus on different levels of detail. We document the ac-

curacy of the DPEN module in estimating the intensity of multiple distortions, and present an ablation study

that quantiﬁes the impact of the DPEN and MRB modules. Finally, we show the advantages of the proposed

MdVRNet in a direct comparison with another existing state-of-the-art approach for video restoration. The

code is available at https:// github.com/ claudiom4sir/ MdVRNet.

1 INTRODUCTION

During the last decade, the number of multimedia

contents produced every day has considerably in-

creased due to the growing diffusion of digital de-

vices, such as digital cameras and smartphones. Al-

though modern cameras are able to capture high-

quality videos, there are some situations in which the

quality of these contents is signiﬁcantly reduced. For

example, when videos are captured in poor light con-

ditions or they are compressed to reduce memory oc-

cupation, their quality is reduced because of artifacts

damaging their contents, causing problems to both

user experience and machine vision applications.

Due to the remarkable results that Convolutional

Neural Networks (CNNs) have shown in many vision

tasks, several deep learning approaches to restore the

quality of degraded videos have been introduced in

the literature under the name of deep video restora-

tion methods. Based on the degradation operators af-

fecting the sequence, different video restoration tasks

are usually addressed, such as video denoising, video

deblurring and video compression artifact reduction.

Despite many methods to restore videos affected

https://orcid.org/0000-0002-6086-9838

https://orcid.org/0000-0003-1138-3345

by different artifacts have been proposed in the liter-

ature, the vast majority of them are designed to deal

with a speciﬁc distortion type. Such methods produce

excellent results on videos affected by the considered

artifacts, but they might fail in the restoration process

when multiple artifacts are present. Therefore, having

a single framework able to restore videos even when

they are simultaneously corrupted by multiple arti-

facts can be very useful, ﬁnding applications in many

domains ranging from videoconferencing software to

surveillance cameras.

In this paper, we present a framework to re-

store multi-distorted videos, that is, videos simul-

taneously corrupted by multiple degradation opera-

tors. The proposed approach, named Multi-distorted

Video Restoration Network (MdVRNet) and visual-

ized in Figure 1, is a two-stage restoration architec-

ture that progressively aligns adjacent frames, allow-

ing to extract both spatial and temporal information

from the target frame and its adjacent ones. MdVR-

Net includes an original Distortion Parameter Esti-

mation sub-Network (DPEN) speciﬁcally devised to

obtain information about degradation operators af-

fecting the video sequence, and make the restoration

process more robust. The proposed framework uses

novel Multi-scale Restoration Blocks (MRB) to ex-

Rota, C. and Buzzelli, M.

MdVRNet: Deep Video Restoration under Multiple Distortions.

DOI: 10.5220/0010828900003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 4: VISAPP, pages

419-426

ISBN: 978-989-758-555-5; ISSN: 2184-4321

419

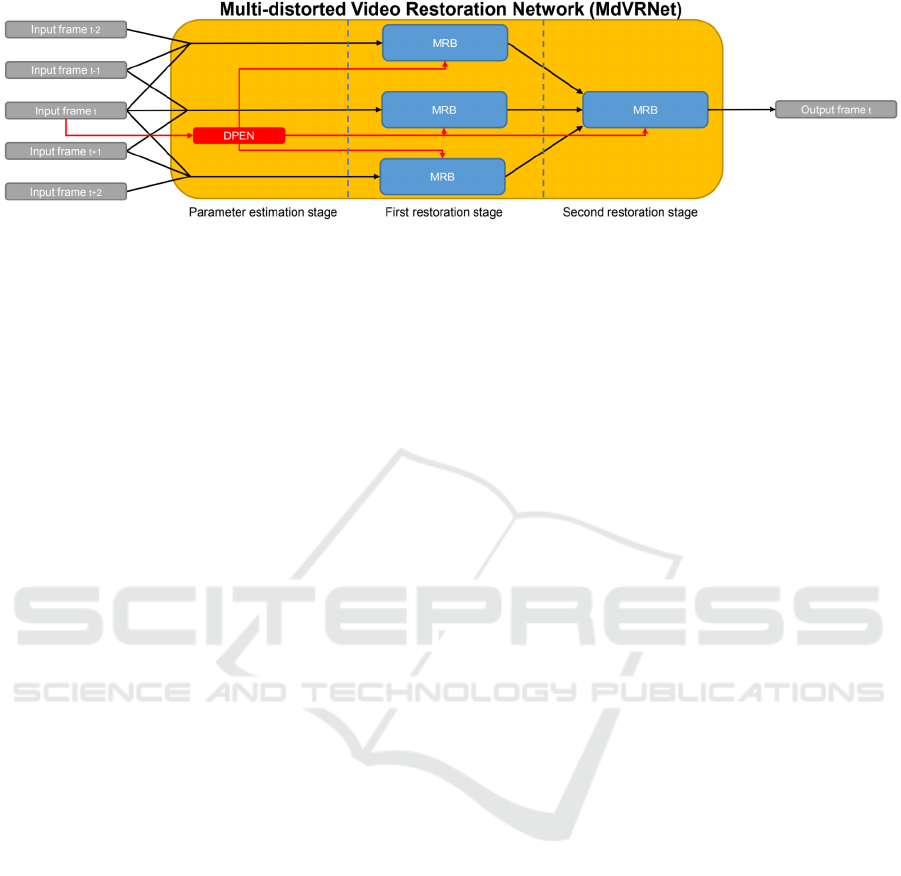

Figure 1: Architecture of Multi-distorted Video Restoration Network (MdVRNet) proposed to restore videos simultaneously

affected by multiple distortions, using a custom Distortion Parameter Estimation sub-Network (DPEN), several Multi-scale

Restoration Blocks (MRB), and implementing a two-stage restoration process.

tract features at different scales using two parallel

streams, one for detail reconstruction and the other

to take the semantics into account.

We carried out an extensive experimentation with

different purposes, including but not limited to as-

sessing the effectiveness of the proposed MdVRNet

in restoring videos simultaneously affected by multi-

ple distortions, noise and compression artifacts.

Our contributions can be summarized as follows:

• We present a novel deep learning approach to re-

store videos simultaneously corrupted by multiple

distortions, named Multi-distorted Video Restora-

tion Network (MdVRNet).

• We demonstrate that the main components of Md-

VRNet are all essential to obtain the best restora-

tion performance.

• We show the effectiveness of MdVRNet in

restoring multi-distorted videos by comparing it

with another existing state-of-the-art approach for

video restoration, using a benchmark datasets.

2 RELATED WORK

Video restoration is an active area of research, and

many methods have been proposed in the literature to

address different restoration tasks.

TOFlow (Xue et al., 2019) is a framework de-

signed to deal with four independent restoration tasks:

temporal frame interpolation, super resolution, de-

noising and compression artifact removal. DeBlur-

Net (Su et al., 2017) was proposed to address blur

produced by camera shaking. Unlike TOFlow, De-

BlurNet is able to exploit spatial and temporal infor-

mation coming from multiple frames to restore the

target one without using speciﬁc modules for explicit

motion estimation and compensation.

VESPCN (Caballero et al., 2017) combines the ef-

ﬁciency of sub-pixel convolutions (Shi et al., 2016)

with the performance of spatial transformer net-

works (Jaderberg et al., 2015) to obtain a fast and

accurate framework for video super resolution. An-

other contribution to video super resolution was given

by DUF (Jo et al., 2018), which implicitly uses mo-

tion information between consecutive frames to gen-

erate dynamic upscaling ﬁlters to upsample the target

frame.

EDVR (Wang et al., 2019) won all the four in-

dependent tracks of the NTIRE19 video restoration

and enhancement challenge (Nah et al., 2019), i.e.

video super resolution, deblurring and compression

artifact removal. The cores of the network are the

alignment module, known as PCD (Pyramid, Cas-

cading and Deformable convolutions), and the fusion

module, known as TSA (Temporal and Spatial Atten-

tion). EDVR achieves excellent performance in dif-

ferent restoration tasks, but its main limitation is rep-

resented by its high computational complexity. In-

stead, EVRNet (Mehta et al., 2021) is a method pro-

posed for real-time video restoration, using a very

lightweight network able to deal with various tasks,

such as denoising and super resolution.

STDF (Deng et al., 2020) was proposed to remove

compression artifacts from videos using a new spatio-

temporal deformable fusion schema based on the idea

of deforming the spatio-temporal sampling positions

of standard convolutions, making them able to cap-

ture more relevant information. MFQE2.0 (Guan

et al., 2019) is another solution to restore compressed

videos, based on the idea of exploiting quality ﬂuc-

tuation among adjacent frames and using only high

quality frames to restore the target one.

DVDNet (Tassano et al., 2019) is a framework

for video denoising composed of three explicit steps:

single image denoising, pixel motion estimation and

warping, and multiple image denoising. More re-

cently, the authors proposed an improved version,

called FastDVDNet (Tassano et al., 2020), which per-

forms implicit motion estimation and compensation

between frames to avoid artifacts caused by wrong

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

420

motion estimation, also increasing its efﬁciency. Sim-

ilarly to DVDNet, FastDVDNet uses the noise map of

the target frame to obtain information related to the

level of noise, and removes noise from videos in two

steps. Despite the method is effective in removing

noise from videos, it has two main limitations: the

noise map used to help the denoising process must

be provided with the true noise information, which

is hardly available at inference time, and the use of

a simple encoder-decoder architecture for denoising

makes it difﬁcult to reconstruct ﬁner details when

noise is strong.

3 PROPOSED METHOD

Multi-distorted Video Restoration Network (MdVR-

Net) is a two-step cascaded architecture taking ﬁve

consecutive frames as input, plus a degradation map

that encodes the intensity of the artifacts and thus

provides the necessary information to treat a speciﬁc

level of distortion. Inspired by FastDVDNet (Tassano

et al., 2020), our method overcomes its main limita-

tions by internally estimating the distortion intensity

and by better handling the information extracted from

frames.

An overview of the proposed MdVRNet is shown

in Figure 1. It includes an original Distortion Parame-

ter Estimation sub-Network (DPEN) properly devised

to automatically infer the characteristics of multiple

degradation operators affecting video sequences, and

a novel Multi-scale Restoration Block (MRB) charac-

terized by the following properties: a full-resolution

branch, used to extract features without decreasing

the spatial resolution to learn ﬁne pixel dependencies

and accurately reconstruct details, a low-resolution

branch, used to extract semantic features and learn

coarse pixel dependencies, and a channel attention

mechanism, used to weight the features extracted by

the two feature branches according to the importance

they have in reconstructing the target frame. Overall,

the MdVRNet framework contains about 3M param-

eters.

It is worth noting that, in contrast to other meth-

ods that can only deal with a speciﬁc distortion level

at a time, such as STDF (Deng et al., 2020) and

MFQE2.0 (Guan et al., 2019), our MdVRNet can han-

dle different levels of distortion using a single model.

3.1 Distortion Parameter Estimation

Degradation operators commonly considered by

restoration methods include additive white Gaussian

noise (AWGN) and JPEG compression (Yu et al.,

2018). Each of these operators is characterized by

some parameters: AWGN is deﬁned by the standard

deviation σ

(since the mean is usually considered as

zero), whereas JPEG compression requires to spec-

ify the quality factor q. Estimating such parameters

is equivalent to estimating the intensity of the arti-

facts because there is a correlation between them: the

higher the value of σ

, the higher the intensity of

noise; the lower the value of q, the higher the intensity

of the blocking artifacts.

Although different methods to estimate the param-

eters of different degradation operators exist, they can

accurately estimate the parameters of the considered

distortion and they may produce inaccurate estima-

tions when multiple distortions are present. There-

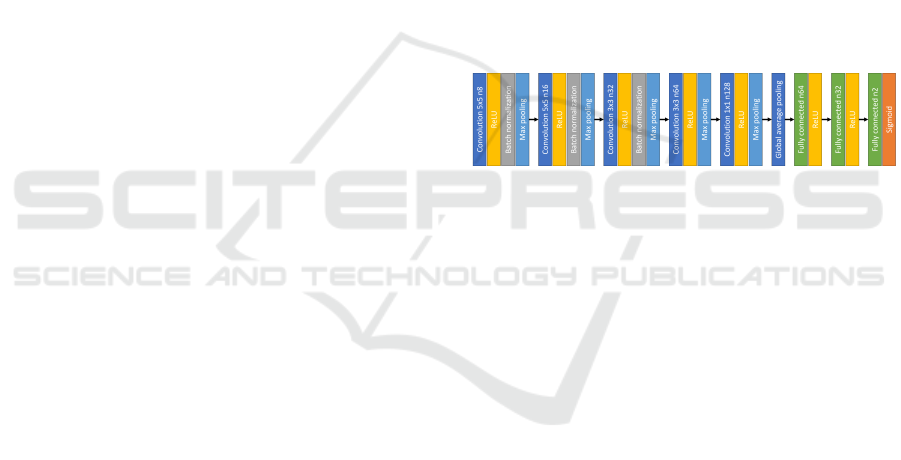

fore, we devised a new CNN called Distortion Pa-

rameter Estimation sub-Network (DPEN) and we in-

tegrated it into the MdVRNet framework.

DPEN is a feedforward neural network consisting

of ﬁve convolutional blocks and three fully connected

blocks, as shown in Figure 2. It is a very shallow net-

Figure 2: Distortion Parameter Estimation sub-Network

(DPEN) devised to estimate the intensity of artifacts affect-

ing the input sequence and integrated into the MdVRNet

framework. N represents the number of kernels for convolu-

tional layers and the number of neurons for fully connected

layers.

work, as it has just about 53K parameters, hence it

can be integrated into MdVRNet introducing very lit-

tle overhead. The parameter values inferred by DPEN

are expanded as feature maps so that they can be eas-

ily used by each MRB.

3.2 Multi-scale Restoration Block

The effectiveness of MdVRNet in restoring multi-

distorted videos lies on the Multi-scale Restoration

Block, which is a two-stream network that allows

to extract spatial and temporal features at different

scales, weight them according to their importance us-

ing an attention mechanism and fuse them to obtain

a map, containing the artifacts detected, that is ﬁnally

removed from the degraded target frame to restore it.

The detailed representation of the Multi-scale

Restoration Block is shown in Figure 3. A stack of

three consecutive frames, along with the degradation

map estimated by DPEN, are used as input. After a

set of two convolutions, each followed by batch nor-

malization (Ioffe and Szegedy, 2015) and ReLU (Nair

MdVRNet: Deep Video Restoration under Multiple Distortions

421

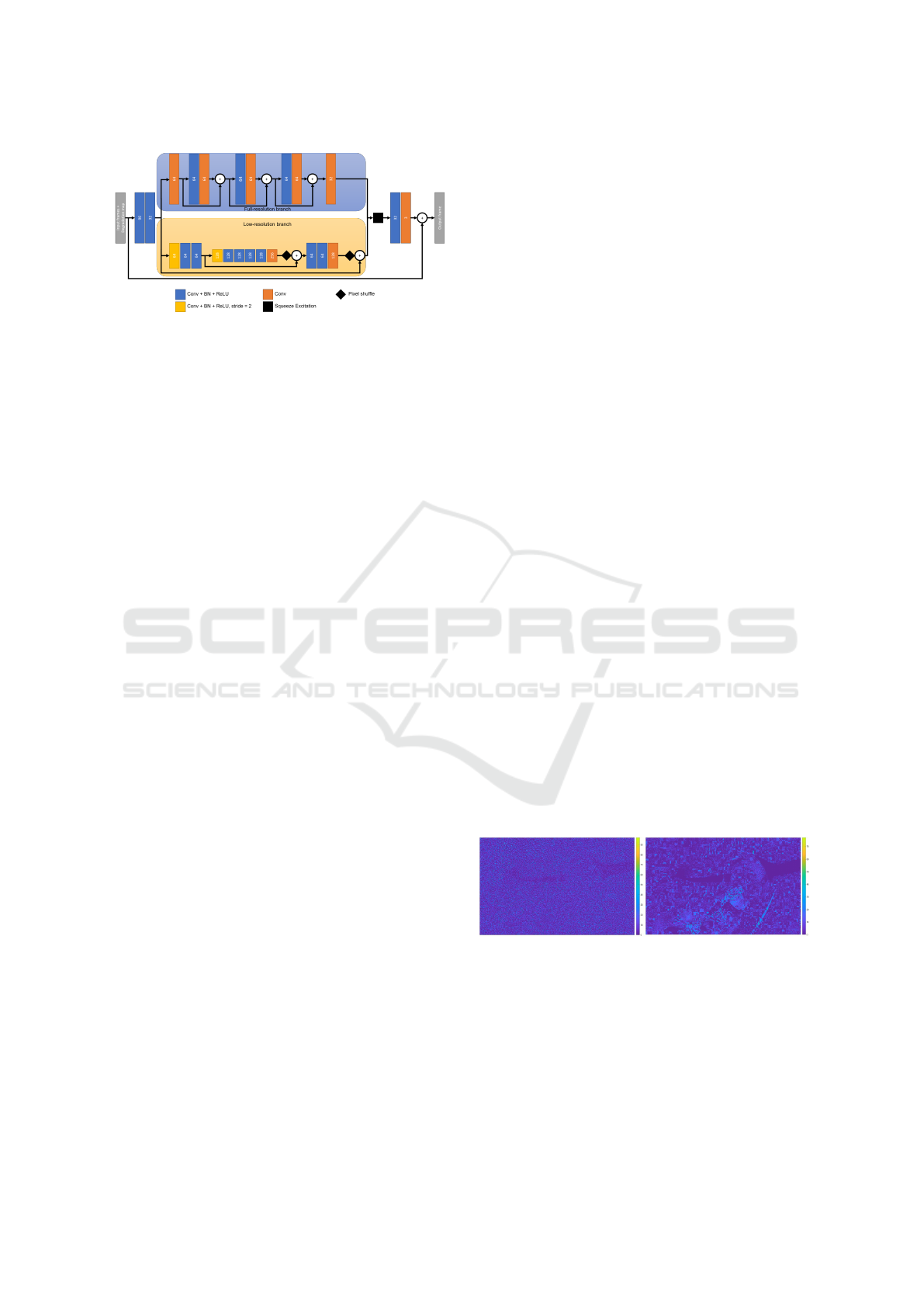

Figure 3: Multi-scale restoration block (MRB) used by Md-

VRNet to restore multi-distorted videos. The values in con-

volutional layers represent the number of kernels.

and Hinton, 2010), the computation is broken into two

parallel branches working at different resolutions.

The ﬁrst branch works at full resolution to extract

ﬁne pixel dependencies, capturing spatially accurate

details. This branch is important to obtain detail-rich

features, which allow to restore the target frame ac-

curately reconstructing high-frequency components,

such as edges. The ﬁrst convolutional layer is used

to increase the number of feature maps from 32 to

64. Then, a set of three residual blocks are applied to

detect the artifacts at full resolution, paying more at-

tention to ﬁner details. Finally, the number of feature

maps is reduced from 64 back to 32 using a convo-

lutional layer. The full-resolution branch contains a

total of 8 convolutional layers, which allow to extract

useful information without excessively increasing the

computational cost.

The second branch allows to extract coarse pixel

dependencies in local areas to obtain semantically-

rich features using an encoder-decoder architecture

working at low resolution. As the input passes

through this branch, a set of convolutional layers,

batch normalization and ReLU decreases the spa-

tial resolution while increasing the number of feature

maps. Skip connections forward the output of each

encoder layer directly to the input of the correspond-

ing decoder layer using pixel-wise addition to ease

and speed up the training process. Downsampling is

performed using strided convolutions, each one halv-

ing the spatial dimension. There are a total of two

downscaling operations so that, at the bottleneck, the

spatial dimension corresponds to a quarter of the in-

put spatial dimension, and the receptive ﬁeld is large

enough to capture semantic contents. Upsampling is

performed using Pixel Shufﬂe layers (Shi et al., 2016)

to reduce gridding artifacts.

The features extracted by the two branches are

then concatenated and passed through a Squeeze-

Excitation block (Hu et al., 2018), which performs

channel attention to weight each feature map ac-

cording to its importance in reconstructing the target

frame. The weighted feature maps are then fused to-

gether using a ﬁnal set of convolutional layers, batch

normalization and ReLU, to obtain the map contain-

ing the artifacts detected, considering both spatial de-

tails and semantics of the objects in the scene, that is

ﬁnally subtracted from the degraded target frame to

restore it.

Motion handling is a crucial aspect that character-

izes all video restoration approaches. When multiple

artifacts are present in a video sequence, the correla-

tion among the values of the same pixel in adjacent

frames may be broken, making the motion estimation

process very challenging. For this reason, a MRB also

has the burden of implicitly estimating pixel motion

and aligning adjacent frames to properly extract tem-

poral information, fundamental to avoid ﬂickering ar-

tifacts.

3.3 Two-stage Restoration

Splitting the restoration process into two steps is a

known strategy to make the most of the temporal in-

formation coming from adjacent frames and produce

temporally stable results (Tassano et al., 2020). We

adopted a two-stage restoration process both to im-

prove temporal consistency and to allow MdVRNet

to focus on different levels of detail, since our method

deals with multiple distortions simultaneously.

Ideally, the ﬁrst restoration stage should pay more

attention to single pixel restoration, removing the ar-

tifacts introduced by punctual degradation operators,

and the second restoration stage should pay more at-

tention to restoring local areas, removing the artifacts

introduced by local degradation operators to produce

the ﬁnal result. To provide evidence of this, we re-

ported in Figure 4 an example of maps generated by

each stage when the network restores frames affected

by noise and compression artifacts.

Figure 4: Maps containing the artifacts detected by the ﬁrst

and the second restoration stage of MdVRNet on a frame

affected by additive white Gaussian noise and JPEG com-

pression artifacts. Left: output of the ﬁrst stage. Right:

output of the second stage.

It is clear that the distortions contained in the map

generated by the ﬁrst restoration stage (on the left)

are related to artifacts introduced at pixel level, which

correspond to noise. Instead, the distortions contained

in the map produced by the second restoration stage

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

422

(on the right) are different, and they are related to

coarser artifacts introduced by the compression algo-

rithm, as the presence of visible blocks suggests.

The ﬁrst restoration stage is composed of three

Multi-scale Restoration Blocks placed in parallel, as

shown in Figure 1, each of which processes a stack of

three adjacent frames with the purpose of improving

the quality of the central one. Note that the weights

of the three MRBs in the ﬁrst stage are shared, hence

they perform the same identical operations, also al-

lowing to reduce the overall number of parameters.

The second restoration stage is composed of just a sin-

gle MRB, which further processes the three improved

frames coming from the ﬁrst stage to produce a clear

and temporally consistent version of the target frame.

4 EXPERIMENTS

4.1 Experimental Setup

We used the Densely-Annotated VIdeo Segmentation

2017 dataset (Pont-Tuset et al., 2017), containing 120

480p video sequences (90 for training and 30 for test-

ing), for all the experiments.

We generated synthetic samples using two differ-

ent degradation operators commonly used to assess

the performance of restoration methods (Yu et al.,

2018): additive white Gaussian noise (AWGN) and

JPEG compression. We obtained multi-distorted

frames by adding AWGN to the clean frames and then

applying the JPEG compression. More in detail, we

used the following parameters to degrade the input

frames: σ

∈ [5, 55] for AWGN and q ∈ [15, 35] for

JPEG compression. To speed up the training process

and increase the number of training samples, we used

patches of size 64 × 64 randomly cropped, for a total

of 256000 samples.

We trained all the DPEN models for 500 epochs,

using a learning rate initially set to 1e-4, L

as loss

function and Adam (Kingma and Ba, 2014) as opti-

mizer. We reduced the learning rate by a factor of

10 whenever the loss function did not decrease for 20

consecutive epochs. We carried out all the MdVRNet

experiments using models trained until convergence

for a maximum of 64000 steps, using a batch size set

to 32. We set the learning rate to 1e-3 for the ﬁrst ﬁve

epochs, and to 1e-4 for the remaining ones. We ﬁxed

the temporal neighborhood to ﬁve frames (two previ-

ous and two successive). We optimized our models

using Adam as optimizer and MSE as loss function.

The results have been quantitatively assessed in

terms of peak signal-to-noise ratio (PSNR) and struc-

tural similarity index (SSIM) (Wang et al., 2004).

4.2 Distortion Parameter Estimation

We conducted a set of experiments to evaluate the ac-

curacy of DPEN in predicting the intensity of the ar-

tifacts affecting the video sequences, both in the case

of single and multiple distortions.

Table 1: Mean absolute error (MAE) of two different DPEN

models in estimating the distortion parameters of additive

white Gaussian noise (AWGN) and JPEG compression. The

lower the better.

AWGN

10 20 30 40 50

MAE 0.70 0.82 0.94 1.10 1.24

JPEG

q 15 20 25 30 35

MAE 1.89 1.87 2.18 2.26 3.75

Table 1 shows the performance, in terms of mean

absolute error (MAE), achieved by two different

DPEN models trained and evaluated in predicting the

distortion parameters of the considered degradation

operators in the case of single distortions. As shown,

DPEN is able to infer quite accurate values of the σ

parameter for AWGN, and the error increases as the

noise intensity increases. Concerning the quality fac-

tor q used by the JPEG compression algorithm, DPEN

infers values with an error of about 2. Moreover, the

error increases as the value of q increases. This is due

to the fact that, when the quality factor is quite high,

the blocking artifacts are not as pronounced as they

are when the value is low.

To evaluate the effectiveness of DPEN in pre-

dicting distortion parameters in the case of multiple

distortions, we trained and evaluated a single DPEN

model considering the artifacts introduced by AWGN

and JPEG compression simultaneously. The perfor-

mance measured in MAE obtained by DPEN in pre-

dicting the distortion parameters of the considered

distortion combination is reported in Table 2. It is

Table 2: Mean absolute error (MAE) of DPEN in estimating

the distortion parameters on videos simultaneously affected

by additive white Gaussian noise (AWGN) and JPEG com-

pression artifacts. The lower the better.

MAE for σ

(AWGN) / MAE for q (JPEG)

q = 15 q = 20 q = 25 q = 30 q = 35

10 4.57/3.02 4.12/1.84 3.75/2.18 3.50/2.67 3.47/4.28

20 4.13/1.80 3.61/1.57 3.29/1.94 3.10/2.07 3.12/3.01

30 3.74/1.41 3.37/1.25 3.06/1.64 2.90/1.77 2.90/2.31

40 3.57/1.27 3.28/1.25 3.10/1.62 2.78/1.60 2.88/2.14

50 3.99/1.32 2.89/1.16 2.70/1.63 2.45/1.55 2.46/1.71

possible to notice that the error made in estimating

the σ

value is higher than the error made when the

frame is corrupted just by noise, as reported in Ta-

ble 1. Indeed, the maximum error increased from 1.24

to 4.57. Interestingly, while in the previous case the

error made increases as the degradation intensity in-

MdVRNet: Deep Video Restoration under Multiple Distortions

423

creases, here the opposite happens, i.e. the stronger

the noise level, the lower the error made by DPEN.

In addition, the error decreases as the quality factor q

increases. The estimated q related to JPEG artifacts

is quite precise, especially in the presence of strong

noise, and the MAE is very similar to the MAE re-

ported in Table 1. This means that DPEN is not sen-

sitive to noise when inferring the distortion parame-

ter related to compression artifacts. In addition, as

it happens for single distortions, the higher the com-

pression, the lower the error made in predicting the q

parameter.

Additional experiments pointed out that using

frames of different size from the one used during

training increases the error. To solve this problem,

we decompose the target frame into non-overlapping

patches, estimating the distortion parameters on each

patch and ﬁnally averaging the obtained estimations.

4.3 Comparison with State-of-the-Art

FastDVDNet

In order to evaluate the effectiveness of MdVRNet

in restoring videos simultaneously affected by mul-

tiple distortions, we performed a direct comparison

with FastDVDNet (Tassano et al., 2020), considered

a state-of-the-art solution for video restoration with

applications to denoising. We compared the capa-

bility of the models to remove artifacts introduced

by additive white Gaussian noise and JPEG compres-

sion, considering three degradation intensities, on the

DAVIS 2017 testset and on the Set8 dataset, as de-

scribed within the FastDVDNet experimental setup.

Experimental results measured in PSNR and

SSIM are reported in Table 3. As shown, MdVRNet

Table 3: Quantitative comparison between MdVRNet and

baseline FastDVDNet in restoring multi-distorted videos,

considering three distortion levels: Low (σ

= 10, q = 35),

Medium (σ

= 30, q = 25) and High (σ

= 50, q = 15).

The higher the better.

Metric Method

DAVIS 2017 testset Set8 dataset

Low Med. High Low Med. High

PSNR

FastDVDNet 33.90 31.50 29.37 29.71 28.52 26.82

MdVRNet 34.48 32.05 29.78 31.69 29.40 27.51

SSIM

FastDVDNet 0.908 0.857 0.802 0.824 0.791 0.735

MdVRNet 0.924 0.874 0.816 0.895 0.830 0.784

outperforms FastDVDNet both in PSNR and SSIM,

regardless of the intensity of the artifacts. More in

detail, MdVRNet is able to restore multi-distorted

videos with a lower reconstruction error than Fast-

DVDNet, as the difference in PSNR is about 0.51

dB on DAVIS 2017 and 1.18 dB on Set8. The same

consideration is also valid considering the perceptual

similarity, as the difference in SSIM is about 0.02 on

DAVIS 2017 and 0.05 on Set8.

Examples of qualitative comparison between the

proposed MdVRNet and FastDVDNet are presented

in Figure 5, which shows different video frames si-

multaneously corrupted by noise and compression ar-

tifacts (ﬁrst column), restored by FastDVDNet (sec-

ond column), restored by MdVRNet (third column)

and the ground truth frames (fourth column). MdVR-

Net produces better results than FastDVDNet, whose

outputs still contain visible artifacts. By looking at the

cropped patches, it is possible to see that MdVRNet

is able to remove the vast majority of artifacts from

the distorted frames and to better reconstruct details.

In addition, MdVRNet turns out to be more effective

than FastDVDNet also in removing artifacts from ﬂat

regions (the sky in the ﬁrst and second example and

the wall in the third one).

These outcomes suggest that the novel Multi-

scale Restoration Block used by MdVRNet, provided

with information about distortion intensity inferred by

DPEN, is effectively able to increase the quality of re-

stored frames.

5 ABLATION STUDY

In this ablation study, we quantify the contributions

of the main components of MdVRNet by alternatively

removing one of them, demonstrating that they are all

essential to achieve the best restoration performance.

The results of the different experiments are reported

in Table 4.

Table 4: Ablation study on the components of MdVR-

Net. Results on videos simultaneously affected by addi-

tive white Gaussian noise (with standard deviation σ

) and

JPEG compression artifacts (with quality factor q), reported

as PSNR (left) and SSIM (right). The higher the better.

First row: Simpliﬁed MdVRNet (experiment A). Second

row: Blind MdVRNet (experiment B). Third row: One-

stage MdVRNet (experiment C). Fourth row: MdVRNet.

PSNR

q = 15 q = 25 q = 35

31.67 33.10 34.22

31.77 33.52 34.37

31.50 33.21 34.12

31.86 33.59 34.48

30.71 31.64 32.00

30.88 31.78 32.10

30.82 31.76 32.09

31.08 32.05 32.43

29.46 30.04 30.20

29.56 30.00 30.16

29.56 30.05 30.19

29.78 30.29 30.50

SSIM

q = 15 q = 25 q = 35

0.876 0.899 0.915

0.874 0.904 0.916

0.870 0.895 0.911

0.881 0.912 0.924

0.848 0.863 0.869

0.852 0.866 0.873

0.849 0.866 0.872

0.857 0.874 0.881

0.808 0.820 0.823

0.810 0.820 0.824

0.808 0.817 0.819

0.816 0.826 0.831

We measured the contribution of the Multi-scale

Restoration Block (experiment A) by comparing Md-

VRNet with the model that uses a simpliﬁed version

of the MRBs, consisting of a simple encoder-decoder

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

424

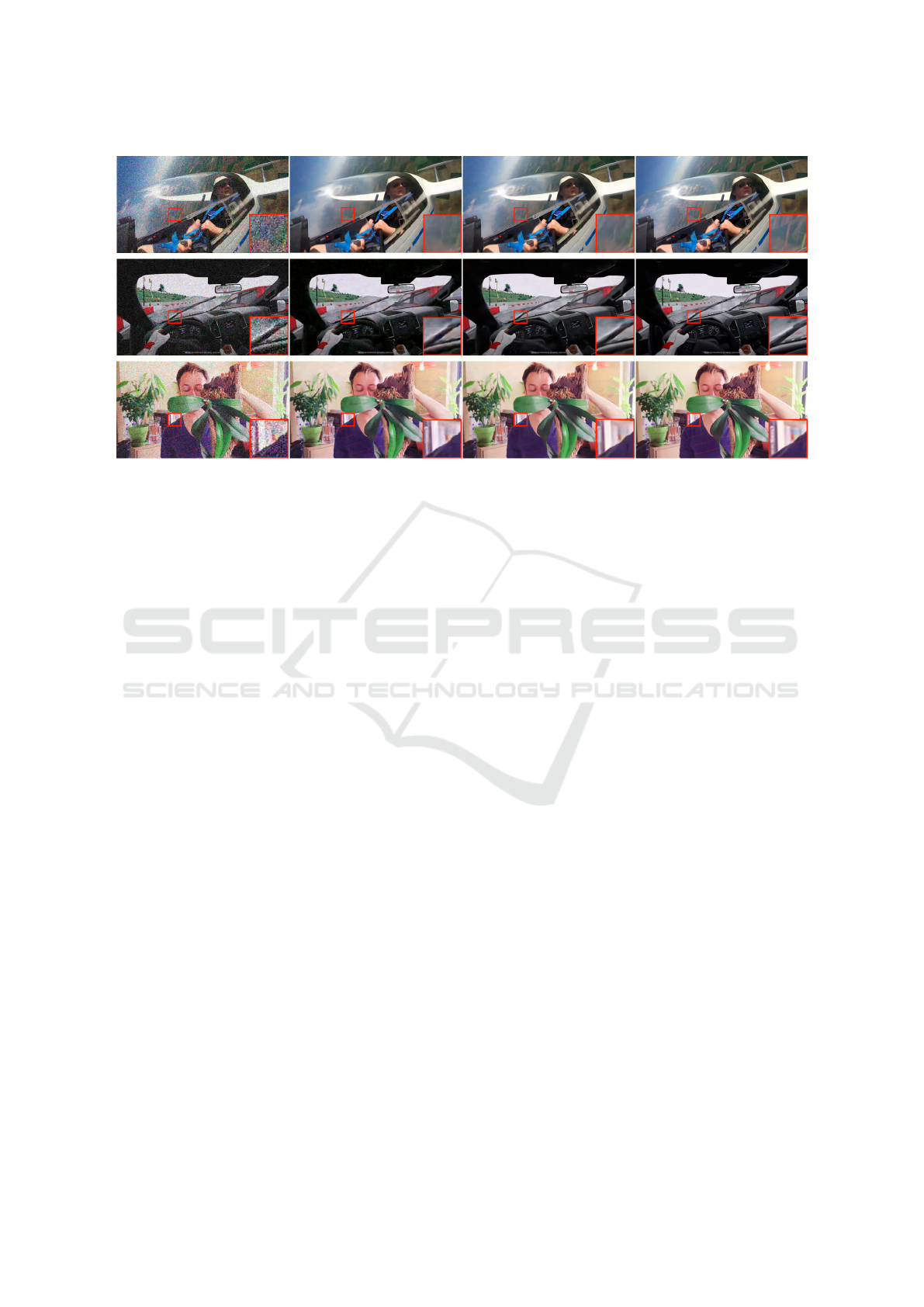

Figure 5: Qualitative comparison between MdVRNet and baseline FastDVDNet in restoring videos simultaneously affected

by additive white Gaussian noise (σ

= 50) and JPEG compression artifacts (q = 15). First column: distorted frames. Second

column: FastDVDNet results. Third column: MdVRNet results. Fourth column: ground truth.

architecture obtained by removing the full-resolution

branch and the Squeeze-Excitation block (Hu et al.,

2018) from each MRB. We called this model Simpli-

ﬁed MdVRNet. Both the models use the degradation

map generated by the same DPEN model, thus pre-

venting the difference in performance to be attributed

to errors in predicting the intensity of artifacts. As

shown in Table 4, the novel design of the MRB allows

MdVRNet to improve the restoration performance by

about 0.35 dB and 0.01 in terms of PSNR and SSIM,

respectively, with respect to using a simple encoder-

decoder architecture. This improvement is quite con-

stant for all the values of σ

and q tested.

To assess the contribution of the information pro-

vided by DPEN (experiment B), we compared Md-

VRNet with the blind model using the degradation

map ﬁlled with zeros (both at training and test time),

so that no information about degradation operators

is available. We called this model Blind MdVRNet.

As shown in Table 4, using DPEN to provide Md-

VRNet with information about the distortion inten-

sity improves the performance. Indeed, PSNR im-

proves by about 0.2 dB and SSIM by about 0.01 on

average. More in detail, the improvement in PSNR

is higher when the artifacts are stronger, since in this

case the average improvement is about 0.3 dB. This

means that the use of DPEN is particularly useful to

reduce reconstruction errors when the distortions are

severe. Concerning SSIM, the performance improve-

ment is constant for all the tested values of σ

and q,

representing the distortion intensity.

Finally, to evaluate the impact of the two-stage

restoration process (experiment C) of MdVRNet

when dealing with multi-distorted videos, we com-

pared MdVRNet with a single-step architecture, that

we called One-stage MdVRNet, obtained by remov-

ing one stage and modifying the Multi-scale Restora-

tion Block to receive ﬁve frames as input instead of

three, so that the temporal dimension of the input

does not change. As reported in Table 4, MdVRNet

outperforms One-stage MdVRNet in restoring multi-

distorted videos at any level of distortion, demonstrat-

ing that the two-stage restoration process of MdVR-

Net is more effective than the single-stage restoration

process of One-stage MdVRNet. On average, the dif-

ference in PSNR and SSIM is about 0.3 dB and 0.01,

respectively.

In all our experiments, MdVRNet obtained better

restoration performance with respect to its variants,

conﬁrming that each of the main components of our

method has an important contribution in improving

the effectiveness of the restoration process.

6 CONCLUSIONS

In this paper, we presented Multi-distorted Video

Restoration Network (MdVRNet), a novel approach

to restore multi-distorted videos, that is, videos simul-

taneously corrupted by multiple artifacts.

MdVRNet is a two-step cascaded architecture that

includes an original Distortion Parameter Estima-

tion sub-Network to increase the robustness of the

restoration process and several Multi-scale Restora-

tion Blocks to properly reconstruct ﬁner details even

when the artifacts are very strong.

MdVRNet: Deep Video Restoration under Multiple Distortions

425

We demonstrated that DPEN is able to accurately

infer the intensity of the distortions affecting the in-

put sequences, and compared MdVRNet with another

existing state-of-the-art method for video restoration,

showing both quantitatively and qualitatively the su-

periority of the proposed approach in restoring multi-

distorted videos. Additionally, we provided an abla-

tion study in which we demonstrated that the DPEN

and MRB modules, as well as the two-stage restora-

tion process of MdVRNet, are all essential to obtain

the best restoration performance.

As future developments, we plan to investigate

other types of degradation operators, such as blur

caused by motion, and to improve the model via neu-

ral architecture search (Bianco et al., 2020).

REFERENCES

Bianco, S., Buzzelli, M., Ciocca, G., and Schettini, R.

(2020). Neural architecture search for image saliency

fusion. Information Fusion, 57:89–101.

Caballero, J., Ledig, C., Aitken, A., Acosta, A., Totz, J.,

Wang, Z., and Shi, W. (2017). Real-time video super-

resolution with spatio-temporal networks and motion

compensation. In 2017 IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

2848–2857.

Deng, J., Wang, L., Pu, S., and Zhuo, C. (2020).

Spatio-temporal deformable convolution for com-

pressed video quality enhancement. Proceedings

of the AAAI Conference on Artiﬁcial Intelligence,

34:10696–10703.

Guan, Z., Xing, Q., Xu, M., Yang, R., Liu, T., and Wang, Z.

(2019). Mfqe 2.0: A new approach for multi-frame

quality enhancement on compressed video. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, PP:1–1.

Hu, J., Shen, L., and Sun, G. (2018). Squeeze-and-

excitation networks. In 2018 IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

7132–7141.

Ioffe, S. and Szegedy, C. (2015). Batch normalization:

Accelerating deep network training by reducing inter-

nal covariate shift. In Proceedings of the 32nd Inter-

national Conference on International Conference on

Machine Learning - Volume 37, page 448–456.

Jaderberg, M., Simonyan, K., Zisserman, A., and

Kavukcuoglu, K. (2015). Spatial transformer net-

works. Advances in Neural Information Processing

Systems 28 (NIPS 2015).

Jo, Y., Oh, S. W., Kang, J., and Kim, S. J. (2018). Deep

video super-resolution network using dynamic upsam-

pling ﬁlters without explicit motion compensation. In

2018 IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 3224–3232.

Kingma, D. and Ba, J. (2014). Adam: A method for

stochastic optimization. International Conference on

Learning Representations.

Mehta, S., Kumar, A., Reda, F., Nasery, V., Mulukutla, V.,

Ranjan, R., and Chandra, V. (2021). Evrnet: Efﬁcient

video restoration on edge devices. In Proceedings of

the 29th ACM International Conference on Multime-

dia, pages 983–992.

Nah, S., Timofte, R., Gu, S., Baik, S., Hong, S., Moon,

G., Son, S., and Mu Lee, K. (2019). Ntire 2019

challenge on video super-resolution: Methods and re-

sults. In Proceedings of the IEEE/CVF Conference on

Computer Vision and Pattern Recognition Workshops,

pages 0–0.

Nair, V. and Hinton, G. E. (2010). Rectiﬁed linear units im-

prove restricted boltzmann machines. ICML’10, page

807–814, Madison, WI, USA. Omnipress.

Pont-Tuset, J., Perazzi, F., Caelles, S., Arbel

aez, P.,

Sorkine-Hornung, A., and Van Gool, L. (2017). The

2017 davis challenge on video object segmentation.

arXiv:1704.00675.

Shi, W., Caballero, J., Husz

ar, F., Totz, J., Aitken, A. P.,

Bishop, R., Rueckert, D., and Wang, Z. (2016). Real-

time single image and video super-resolution using an

efﬁcient sub-pixel convolutional neural network. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 1874–1883.

Su, S., Delbracio, M., Wang, J., Sapiro, G., Heidrich, W.,

and Wang, O. (2017). Deep video deblurring for hand-

held cameras. In 2017 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 237–

246.

Tassano, M., Delon, J., and Veit, T. (2019). Dvdnet: A fast

network for deep video denoising. In 2019 IEEE In-

ternational Conference on Image Processing (ICIP),

pages 1805–1809.

Tassano, M., Delon, J., and Veit, T. (2020). Fastdvdnet: To-

wards real-time deep video denoising without ﬂow es-

timation. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

1354–1363.

Wang, X., Chan, K. C., Yu, K., Dong, C., and Change Loy,

C. (2019). Edvr: Video restoration with enhanced de-

formable convolutional networks. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition Workshops, pages 1954–1963.

Wang, Z., Bovik, A., Sheikh, H., and Simoncelli, E. (2004).

Image quality assessment: From error visibility to

structural similarity. Image Processing, IEEE Trans-

actions on, 13:600 – 612.

Xue, T., Chen, B., Wu, J., Wei, D., and Freeman, W. (2019).

Video enhancement with task-oriented ﬂow. Interna-

tional Journal of Computer Vision, 127.

Yu, K., Dong, C., Lin, L., and Loy, C. C. (2018). Crafting a

toolchain for image restoration by deep reinforcement

learning. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 2443–

2452.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

426
