Tennis Strokes Recognition from Generated Stick Figure Video

Overlays

Boris Bačić

and Ishara Bandara

Auckland University of Technology, Auckland, New Zealand

Robert Gordon University, Aberdeen, U.K.

Keywords: Computer Vision, Deep Learning, Spatiotemporal Data Classification, Human Motion Modelling and

Analysis (HMMA), Sport Science, Augmented Broadcasting.

Abstract: In this paper, we contribute to the existing body of knowledge of video indexing technology by presenting a

novel approach for recognition of tennis strokes from consumer-grade video cameras. To classify four

categories with three strokes of interest (forehand, backhand, serve, no-stroke), we extract features as a time

series from stick figure overlays generated using OpenPose library. To process spatiotemporal feature space,

we experimented with three variations of LSTM-based classifier models. From a selection of publicly

available videos, trained models achieved an average accuracy of between 97%–100%. To demonstrate

transferability of our approach, future work will include other individual and team sports, while maintaining

focus on feature extraction techniques with minimal reliance on domain expertise.

1 INTRODUCTION

Automated video indexing of recognised motion

patterns and human motion activity have broad

application. For example, in the last decade, we have

seen enhancements in augmented video broadcasting

with real-time game statistics. Overlaid statistics can

help commentators to share strategic information

which often only competitive-level athletes, coaches

and domain experts would intuitively consider.

Quantifying motion events has also become pervasive

in other contexts such as augmented video coaching,

surveillance, elderly care, activity monitoring and

various mobile and smartwatch apps development.

1.1 Vision and Motivation

In the authors’ view, identifying task-specific motion

events will enable further advancements in areas such

as rehabilitation, smart cities, and to improve privacy,

safety and usability of spaces where human activity

occurs. To illustrate the demand for quantifying

events as part of strategic video analysis, an online

search will return numerous examples of commercial

https://orcid.org/0000-0003-0305-4322

https://orcid.org/0000-0002-7346-248X

software (e.g. LongoMatch, Coach Logic, Nacsport,

Metrica Sports, and Sports Code).

LongoMatch, as one of the earliest open source

coaching software, was originally designed for video

replay analysis of team sports with customisable and

manual event indexing (during live video capture or

in post-match analysis) with rudimentary overlay

capabilities (Bačić & Hume, 2012). Today, it is a

high-end annual-subscription licensed commercial

product, reflecting the opportunities in this area.

Thanks to recent advancements in computer

vision, deep learning, recurrent neural networks and

human pose estimation, the underlying development

of automated indexing of human motion events and

sport-specific movement patterns has become less

labour intensive and less dependent on expertise-

driven feature extraction techniques than in the past.

To quantify aspects of the game relying on

Computer Vision and Artificial Intelligence (AI), the

research questions associated with our work are:

1. Can we develop recognition of sport-specific

movement patterns such as tennis strokes?

2. Can we reduce dependence on expert-driven

feature engineering and produce simplified

c, B. and Bandara, I.

Tennis Strokes Recognition from Generated Stick Figure Video Overlays.

DOI: 10.5220/0010827300003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

397-404

ISBN: 978-989-758-555-5; ISSN: 2184-4321

397

feature extraction techniques relying on

common-sense visual observation?

3. If so, can we develop a multi-stage video

processing and modelling framework that is

transferable to other sports?

1.2 Background and Prior Work

Advancements in motion pattern indexing can not

only be evaluated by improving classification

performance for a specific task, low-cost real-time

computing and extending the number of labelled

events of interest, but also on their universal

applicability to various sources such as 3D motion

data (Bačić & Hume, 2018), video (Bloom &

Bradley, 2003; D. Connaghan, Conaire, Kelly, &

Connor, 2010; Martin, Benois-Pineau, Peteri, &

Morlier, 2018; Ramasinghe, Chathuramali, &

Rodrigo, 2014; Shah, Chockalingam, Paluri, Pradeep,

& Raman, 2007), and sensor signal processing

(Anand, Sharma, Srivastava, Kaligounder, &

Prakash, 2017; Damien Connaghan et al., 2011; Kos,

Ženko, Vlaj, & Kramberger, 2016; Taghavi, Davari,

Tabatabaee Malazi, & Abin, 2019; Xia et al., 2020).

To our knowledge, tennis shots or strokes action

recognition relying on computer vision started in

2001, by combining computer vision and hidden

Markov model (HMM) approaches, before HD TV-

broadcast resolution became available (Petkovic,

Jonker, & Zivkovic, 2001). After Sepp Hochreiter

and Jürgen Schmidhuber invented Long Short Term

Memory (LSTM) in 1997, LSTMs have been used in

action recognition (Cai & Tang, 2018; Liu,

Shahroudy, Xu, Kot, & Wang, 2018; Zhao, Yang,

Chevalier, Xu, & Zhang, 2018). In 2017, inertial

sensors with Convolutional Neural Networks (CNN)

and bi-directional LSTM networks were used to

recognise actions in multiple sports (Anand et al.,

2017). In 2018, an LSTM with Inception v3 was used

to recognise actions in tennis videos achieving 74%

classification accuracy (Cai & Tang, 2018).

For prototyping explainable AI in next-generation

augmented coaching software, which is expected to

capture expert’s assessment and continue to provide

comprehensive coaching diagnostic feedback (Bačić

& Hume, 2018), we can rely on multiple data sources

including those operating beyond human vision.

Prior work on 3D motion data is categorised as:

(1) traditional feature-based swing indexing based on

sliding window and thresholding (Bacic, 2004) and

expert-driven algorithmic approach in tennis shots

and stance classification (Bačić, 2016c); (2)

featureless approach for accurate swing indexing

using Echo State Network (ESN) (Bačić, 2016b) and

(3) further sub-event processing i.e., phasing analysis

via produced ensemble of ESN (Bačić, 2016a).

Prior work on video analysis applied Histograms

of Oriented Gradients (HOG), Local Binary Pattern

(LBP) and Scale Invariant Local Ternary Pattern

(SILTP) for human activity recognition (HAR) in

surveillance (Lu, Shen, Yan, & Bačić, 2018). A pilot

case study on cricket batting balance (Bandara &

Bačić, 2020) used recurrent neural networks (RNN)

and pose estimation to generate classification of

batting balance (from rear or front foot). This prior

work on privacy-preservation filtering is aligned with

privacy-preserving elderly care monitoring systems

and with extracting diagnostic information for

silhouette-based augmented coaching (Bačić, Meng,

& Chan, 2017; Chan & Bačić, 2018). It is also

generally applicable to usability and safety of spaces

where human activity occurs such as smart cities,

future environments and traffic safety (Bačić, Rathee,

& Pears, 2021).

2 METHODOLOGY

Considering past research, our objective is to produce

a relatively simple and generalised initial solution and

a human motion modelling (HMMA) framework for

video indexing applicable to tennis. The tennis

dataset was created from both amateur and

professional players’ videos. It is also expected that

the produced framework may be easily transferable to

other sport disciplines and related contexts such as

rehabilitation and improving safety and usability of

spaces where human movement occurs. As part of

movement pattern analysis, we focused on expressing

features as spatiotemporal human movement patterns

from faster moving segments (e.g., dominant hand

holding a racquet) relative to the more static trunk

segment.

2.1 Stick Figure Overlays as Initial

Data Preprocessing

To retrieve player’s motion-based data from video,

we generated stick figure overlays using OpenPose

(https://github.com/CMU-Perceptual-Computing-

Lab/openpose) and 25 key point estimator

COCO+Foot (Figure 1 and Figure 2).

Figure 2 shows an example of data format

representing the key points coordinate of a player in

each video frame recorded as multi time series data.

As video overlays, animated stick figure topology of

generated key points (Figure 3) represents a way of

extracting information from video to facilitate human

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

398

motion modelling and analysis (HMMA) and assist in

the feature extraction process.

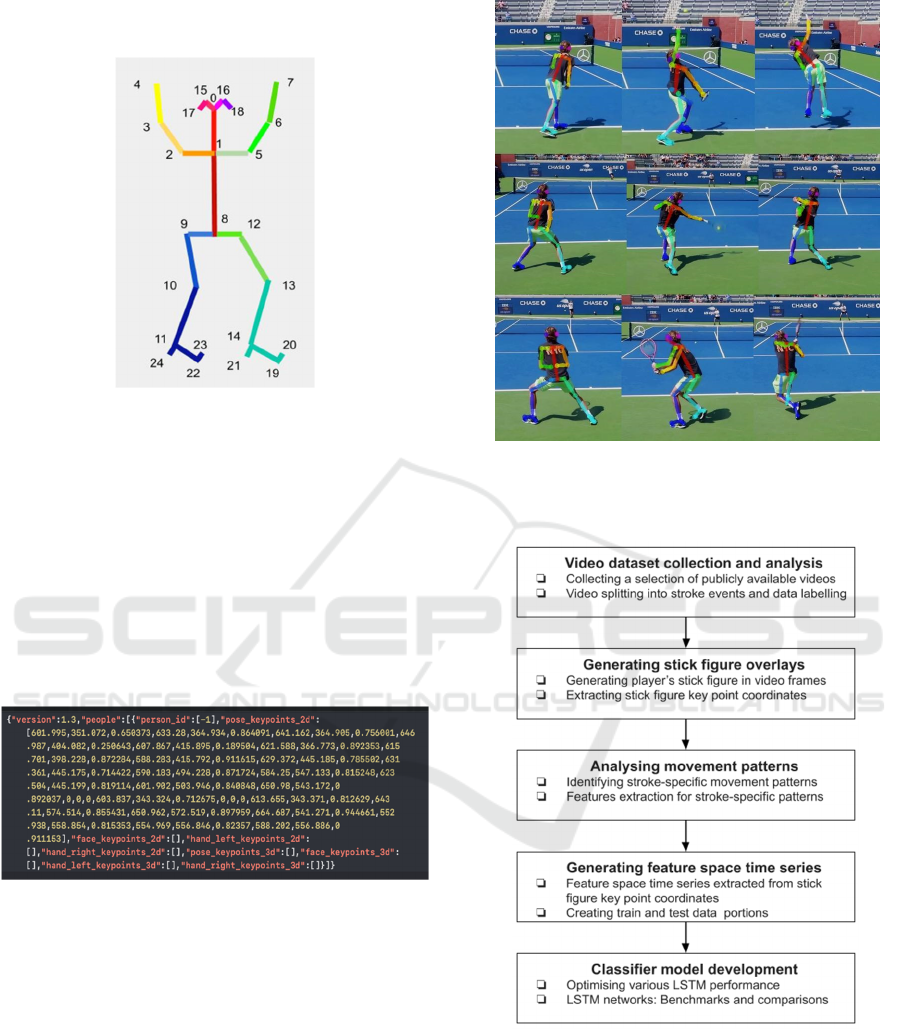

Figure 1: Stick figure overlay topology: 25 key points

COCO+Foot model. Reproduced from (Bandara & Bačić,

2020), copyright permission (IEEE No. 5170730636786).

2.2 Data Collection and Analysis

Data collection for experimental work was carried on

Google cloud platform using publicly available

videos of tennis practice matches, also available via

YouTube (12kgp-Tennis, 2019; Back of the line

tennis, 2018; Page, 2020; Tenfitmen Tennis Impulse,

2020; Tennis Legend TV, 2019; Top Tennis Training

- Pro Tennis Lessons, 2014; TV Tennis Pro, 2020).

Figure 2: Example of 25 key points extracted from stick

figure overlay in a single frame in JSON format. Each key

point consists of three variables (x,y,confidence).

The dataset included a balanced distribution of 150

extracted tennis strokes (30 forehands, 30 backhands

and 30 serves, 60 no stroke play), which were labelled

manually into their corresponding output classes. All

videos were of the same framerate (30fps) and of

duration between 0.8 – 1.0 seconds (28-31 frames).

2.3 Feature Extraction Technique

Our approach to Feature Extraction Technique (FET)

is based on visual analysis between faster and slower

moving body segments (Figure 4 and Table 1).

Figure 3: A mosaic of stick figure overlays generated

during the serve, forehand and backhand strokes as

intermediate computer vision processing steps.

Figure 4: Human motion data processing, analysis and

modelling framework for video indexing. Adapted from the

initial concept (Bandara & Bačić, 2020).

In Table 1, a function 𝑑P





 represents Euclidean

distance measure (1) between the key points P



and



of overlaid stick figure calculated for each video

frame.

Tennis Strokes Recognition from Generated Stick Figure Video Overlays

399

𝑑P









𝑥



𝑥







𝑦



𝑦







(1)

Pixel coordinates of a stick figure’s key point P

are denoted as:



𝑥



,𝑦





∈P



; 1  𝑛  25.

2.4 Feature Space: Visualisation

Remarks

Based on visual movement pattern analysis, we

identified nine distance-based features that

collectively produce the best results (Table 1). As

such, the 25 key-points time series data representing

the human body were further reduced to 36%

representing the feature space.

Figure 5: Data snippet showing produced feature space and

output class (in last column) based on calculated distances.

Figure 5 shows feature space as the distance dataset

and Figure 6 indicates characteristic spatiotemporal

patterns as the distance values variations during a

serve, forehand, a backhand stroke and a no stroke

play.

From Figure 6, it can be clearly observed that the

feature values sub plot of the backhand is similar to

the forehand. However, the directions of the forehand

values and backhand values are different so the

approach is also robust to e.g., inside-out forehands

(executed from the player’s backhand side of the

court). Plots of features like hand-to-hand distance

are almost identical in both forehand and backhand

stroke plots. The serve is always a one-handed stroke

and the dominant hand reaches above the head during

a serve. Therefore, in the feature value variation plot

of the serve (Figure 6), the dominant hand to

dominant leg pixel distance value increases before

contact with the ball and decreases after contact with

the ball.

Regarding multi-class classification problem

investigated here, there are four output classes

representing three common stroke categories, and no

stroke players’ activity (e.g., walking or running).

Hence, there is no visible distinctive pattern that we

could immediately associate with no stroke output

class. Another example of no stroke activity is during

the game breaks, where players can be taking

courtside rest.

Table 1: Feature space description and design rationale.

Distance Definition Distance

Measure

Design Rationale

1. Dominant hand to chest

d(P

)

To improve separation of serves from forehand and

backhand

2. Non-dominant hand to chest

d(P

)

To improve separation of forehand and backhand strokes

3. Dominant hand to dominant

side foot

d(P

)

To improve separation of serves and strokes starting from

dominant hand side

4. Non-dominant hand to

non-dominant hand side foot

d(P

)

To identify strokes starting from the non-dominant side

5. Hand to hand

d(P

)

To identify one-handed strokes and serves

6. Dominant hand to non-

dominant side hip

d(P

)

To identify the circular motion around the hip in ground

strokes and to identify strokes starting from the dominant

side

7. Non-Dominant hand to

dominant side hip

d(P

)

To identify strokes starting from the non-dominant side or

circular motion around the hip in ground strokes (forehand

and backhand)

8. Body to dominant hand

x-axis distance

(x) - P

(x)

To identify strokes starting from the dominant side over

body’s vertical (symmetrical) axis

9. Body to non-dominant hand

x-axis distance

(x) - P

(x)

To identify strokes starting from the non-dominant side over

body’s vertical axis.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

400

Figure 6: Spatiotemporal multi plot depicting output class

patterns from feature value variations. Top-to-bottom

subfigures: A serve, forehand and backhand patterns (x-

axis: Frames, y-axis: Distance values. Nine colour-coded

timeseries in legend are arranged by Table 1 row order.

3 CLASSIFIER MODELLING

AND RESULTS

As part of data filtering process, visual inspection of

collected videos, revealed that one video footage had

to be removed from the dataset due to being recorded

from a substantially different camera position and

where the majority of the frames did not show visible

player’s figure.

The dataset was randomly divided into a training

dataset and testing portion. 119 strokes (approx. 80%)

were considered as the training dataset (24 serves, 24

forehands, 24 backhands and 47 no stroke play), and

30 strokes (approx. 20%) were considered as a testing

dataset (6 serves, 6 forehands, 6 backhands, 12 no

stroke play). Next, the created time series training

dataset was classified by experimenting with three

different LSTM networks (LSTM, Bidirectional

LSTM and CNN+LSTM network). Table 2. provides

the summary of produced LSTM model variations

used in our experiments.

Table 2: Model and parameter summaries.

Classifier Layer Output Shape Parameters

LSTM

LSTM (None,100) 44.000

Dropou

(None,100) 0

Dense (None,100) 10.100

Dense (None,4) 404

Total

params.

54.504

Bidirectional

LSTM

Bidirectional

LSTM (None,27,200) 88.000

Bidirectional

LSTM (None,200) 240.800

Dropou

(None,200) 0

Dense (None,100) 20.100

Dropou

(None,100) 0

Dense (None,4) 404

Total

params.

349.304

CNN +

LSTM

Time Distributed

Conv 1D (None,3,23,64) 1.024

Time Distributed

Conv 1D (None,3,19,64) 20.544

Time Distributed

Dropou

(None,3,19,64) 0

Time Distributed

Max Pooling 1D (None,3,9,64) 0

Time Distributed

Flatten (None,3,576) 0

LSTM (None,200) 621.600

Dropou

(None,200 0

Dense (None,4) 804

Total

params.

643.972

Table 3 shows the classification results with the

LSTM, Bidirectional LSTM and CNN+LSTM

networks. CNN+LSTM network consists of both

CNN layers and LSTM layers.

Table 3: Classification performance.

Classifier Output class Precision Recall F1-score

LSTM

Backhan

0,83 1,00 0,93

Forehan

1,00 1,00 1,00

Serve 1,00 1,00 1,00

No Stroke 1,00 0,92 0,96

F1 MCS 0,97

Bidirectional

LSTM

Backhan

1,00 1,00 1,00

Forehan

1,00 1,00 1,00

Serve 1,00 1,00 1,00

No Stroke 1,00 1,00 1,00

F1 MCS 1,00

CNN+

LSTM

Backhan

1,00 1,00 1,00

Forehan

1,00 0,83 0,91

Serve 1,00 1,00 1,00

No Stroke 0,92 1,00 0,96

F1 MCS 0,97

Note: F1 multi-class score (F1 MCS). For reader’s convenience, all

values are rounded to two decimal points. Achieved classification

performance for both LSTM and CNN+LSTM networks reached

96,67%, which were rounded to 97% (shown as 0,97), while

Bidirectional LSTM network performance reached 100% for the

validation dataset.

Tennis Strokes Recognition from Generated Stick Figure Video Overlays

401

The above-expected experimental results suggest that

the improved solution would include modelling and

analysis of additional output classes (e.g., volleys,

drop shots, serve variations) requiring (sub)phasing

movement analysis. Similar to prior work on 3D

kinematic data (Bačić, 2016a), the ensemble

orchestration control would not only rely on a

weighted probabilistic equation but also on expert’s

knowledge captured in a state automata machine.

Such approach allows ensemble modelling on small

and large dataset, where parameter optimisation and

human-labelling efforts can be further reduced by

transfer learning and adaptive system design.

4 IMPLEMENTATION FOR

VIDEO STREAMING

Trained model can be used to classify strokes in and

display overlaid text for video streaming. Model input

is a spatiotemporal dataset of nine features (Table 1).

Spatiotemporal dataset subsample should be

imputed to a classifier as a block of experimentally

determined size of 27 frames (Figure 7). Buffering of

27 frames (of approx. 1 second) represents rolling

window concept in time-series analysis, in which key

points from 2D pose estimation skeleton overlay were

converted into the 9 distance-based features

generating a 9x27 size buffered data block.

Therefore, after 27 frames of data were buffered,

a trained model (i.e. classifier) was used to detect a

stroke and to classify the stroke. If a stroke is not

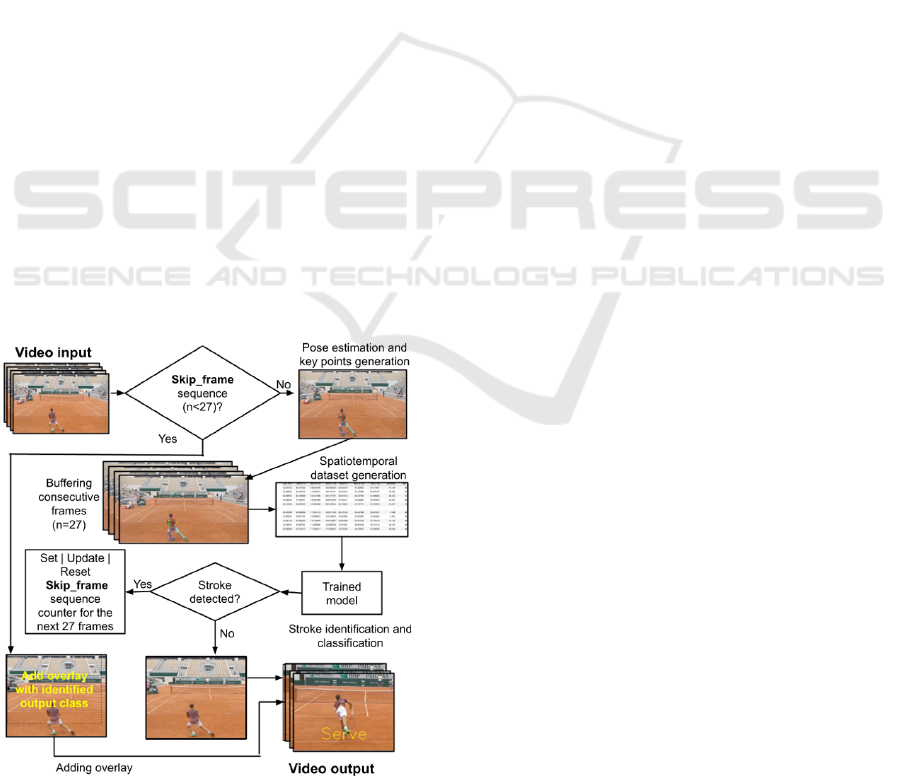

Figure 7: Strokes classification and overlay annotation as

video processing workflow concept.

detected, the next rolling-window of 27 frames are

buffered and supplied to the classifier. If a stroke is

detected, the overlay with the identified stroke will be

displayed over the next 27 frames (which are skipped

from feature processing, considering minimum times

between shots e.g., for the opposing player’s stroke).

5 DISCUSSION

For a prototype, the classification performance results

exceeded expectations for the collected dataset (with

approx. 80:20% split used for model training and

testing). We expect that expanding the dataset may

reduce classification performance, justifying a

follow-up investigation into achieving an improved

solution that will generalise well on future data.

Another limitation is that occasionally, OpenPose

fails to generate the correct stick figure, warranting

further investigations to improve overall robustness

and accuracy. Further improvement is intended by

using additional videos taken from other vantage

points e.g. in front of the player. Considering the

computational performance of pose estimation, we

will look at implementation on lower cost platforms,

including tablets and mobiles. In coaching scenarios,

the intended platform would also process video feeds

from fixed camera positions akin to the dataset used

in this paper. Unlike carrying and managing inertial

sensors, video is considered: (1) an unobtrusive data

source not interfering with the player’s feel; and (2)

to minimise the possibility of motion data

interpretation being contested.

During match situations, players may move closer

to the net. When players are close to the net, they will

perform stroke exchange in higher frequency than

compared to producing strokes behind the baseline.

Therefore, time between strokes may be sometimes

less than a second. For the scope of this research and

the proof-of-concept, one second (or longer time)

splits between the strokes in video have been

considered as sufficient for stroke identification and

classification. Future work will involve modelling of

increased number of output classes including faster

strokes exchange (e.g., containing further information

such as: direction, depth, drop shot and lob volleys).

6 CONCLUSION

This paper contributes to video indexing and human

activity recognition by applying a multidisciplinary

combination of computer vision, pose estimation and

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

402

recurrent neural networks. Related contributions to

sport analytics, broadcasting and general information

retrieval from low-cost video were also motivated by

prior work in golf and tennis relying on sensors and

3D kinematic data. Aligned with prior work, the

presented tennis stroke recognition from monocular

video is also aimed at contributing to how machines

can quantify, assess and diagnose aspects of human

movement and provide comprehensive feedback – all

contributing to the area of interpretable AI.

The presented video processing and modelling

framework, using selected publicly available tennis

videos, was implemented in Python on Google cloud

platform. The framework uses generated trajectories

of key points (represented as human stick figure video

overlays) which were further transformed into the

spatiotemporal feature space. Multi time data series

from the feature space were processed using three

variations of LSTM classifiers. As a multi-class

classifier, the developed tennis shots recognition

system exceeded expected performance (96,67% –

100%), and did not rely on specialist expertise or

insights for developed feature extraction techniques.

Using video-based feature extraction techniques

to provide diagnostic information without redundant

data: (1) minimises reliance on domain expertise; (2)

enables interaction with and visualisation of

intermediate preprocessing operations (via animated

stick figure overlays), which is also important for

initially small dataset modelling, and transparent and

comprehensive feature engineering process; and (3)

maximises the role of AI, computer vision and pose

estimation for human motion modelling and analysis

(HMMA), and for advancements of sport science.

Our multi-class approach is transferable to signal

processing and has been evaluated in prior work on

indexing and analysis of two-class classification in

cricket. Future work will include application to other

sports, alongside broader contexts involving privacy-

preserving filtering and data fusion from wearable

and equipment-attached sensors.

ACKNOWLEDGEMENTS

The authors wish to acknowledge the contributions of

the OpenPose team, in sharing and maintaining their

code and documentations.

REFERENCES

12kgp-Tennis. (2019, 28 Aug. 2020). Nick Kyrgios -

Jeremy Chardy (4k 60fps). Retrieved from

https://www.youtube.com/watch?v=KQI6ZvE14nw

Anand, A., Sharma, M., Srivastava, R., Kaligounder, L., &

Prakash, D. (2017). Wearable motion sensor based

analysis of swing sports. In ICMLA, 16th IEEE

International Conference on Machine Learning and

Applications. Cancún, Mexico.

Bačić, B. (2004). Towards a neuro fuzzy tennis coach:

Automated extraction of the region of interest (ROI). In

FUZZ-IEEE, International Conference on Fuzzy

Systems. Budapest, Hungary.

Bačić, B. (2016a). Echo state network ensemble for human

motion data temporal phasing: A case study on tennis

forehands. In Neural Information Processing (Vol.

9950). Springer.

Bačić, B. (2016b). Echo state network for 3D motion

pattern indexing: A case study on tennis forehands. In

Image and Video Technology. Lecture Notes in

Computer Science (Vol. 9431). Springer.

Bačić, B. (2016c). Extracting player’s stance information

from 3D motion data: A case study in tennis

groundstrokes. In PSIVT 2015 Image and Video

Technology. Springer.

Bačić, B., & Hume, P. (2012). Augmented video coaching,

qualitative analysis and postproduction using open

source software. In ISBS, 30th International

Conference on Biomechanics in Sports. Melbourne,

VIC.

Bačić, B., & Hume, P. A. (2018). Computational

intelligence for qualitative coaching diagnostics:

Automated assessment of tennis swings to improve

performance and safety. Big Data, 6(4).

doi:https://doi.org/10.1089/big.2018.0062

Bačić, B., Meng, Q., & Chan, K. Y. (2017). Privacy

preservation for eSports: A case study towards

augmented video golf coaching system. In DeSE, 10th

International Conference on Developments in e-

Systems Engineering. Paris, France.

Bačić, B., Rathee, M., & Pears, R. (2021). Automating

inspection of moveable lane barrier for Auckland

harbour bridge traffic safety. Neural Information

Processing (Vol 12532). Springer.

Back of the line tennis. (2018). Tennis practice match.

Retrieved from https://www.youtube.com/watch?v=nq

C0K4yGdxM

Bandara, I., & Bačić, B. (2020). Strokes classification in

cricket batting videos. In CITISIA, 5th International

Conference on Innovative Technologies in Intelligent

Systems and Industrial Applications. Sydney, NSW.

Bloom, T., & Bradley, A. (2003). Player tracking and stroke

recognition in tennis video. In APRS Workshop on

Digital Image Computing. Brisbane, QLD.

Cai, J.-X., & Tang, X. (2018). RGB video based tennis

action recognition using a deep weighted long short-

term memory. Retrieved from https://arxiv.org/abs/

1808.00845v2

Tennis Strokes Recognition from Generated Stick Figure Video Overlays

403

Chan, K. Y., & Bačić, B. (2018). Pseudo-3D binary

silhouette for augmented golf coaching. In ISBS, XXXVI

International Symposium on Biomechanics in Sports.

Auckland, New Zealand

Connaghan, D., Conaire, C. Ó., Kelly, P., & Connor, N. E.

O. (2010). Recognition of tennis strokes using key

postures. In ISSC, 21st Irish Signals and Systems

Conference. Dublin, Ireland.

Connaghan, D., Kelly, P., O’Connor, N., Gaffney, M.,

Walsh, M., & O’Mathuna, C. (2011). Multisensor

classification of tennis strokes. In IEEE Sensors,

Limerick, Ireland.

Hochreiter, S., & Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8). doi:

https://doi.org/10.1162/neco.1997.9.8.1735

Kos, M., Ženko, J., Vlaj, D., & Kramberger, I. (2016).

Tennis stroke detection and classification using

miniature wearable IMU device. In IWSSIP,

International Conference on Systems, Signals and

Image Processing. Bratislava, Slovakia.

Liu, J., Shahroudy, A., Xu, D., Kot, A., & Wang, G. (2018).

Skeleton-based action recognition using spatio-

temporal LSTM network with trust gates. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 40(12). doi:https://doi.org/10.1109/TPA

MI.2017.2771306

Lu, J., Shen, J., Yan, W. Q., & Bačić, B. (2018). An

empirical study for human behavior analysis.

International Journal of Digital Crime and Forensics.

IGI Global. http://doi.org/10.4018/IJDCF.2017070102

Martin, P.-E., Benois-Pineau, J., Peteri, R., & Morlier, J.

(2018). Sport action recognition with Siamese spatio-

temporal CNNs: Application to table tennis. In CBMI,

International Conference on Content-Based

Multimedia Indexing. La Rochelle, France.

Page, S. (2020). Tennis practice match points - NTRP 4.5

vs 5.0. Retrieved from https://www.youtube.com/

watch?v=dfrec4pjnI0

Petkovic, M., Jonker, W., & Zivkovic, Z. (2001).

Recognizing strokes in tennis videos using hidden

Markov models. In IASTED, International Conference

on Visualization, Imaging and Image Processing.

Marbella, Spain.

Ramasinghe, S., Chathuramali, K. G. M., & Rodrigo, R.

(2014). Recognition of badminton strokes using dense

trajectories. In 7th International Conference on

Information and Automation for Sustainability.

Colombo, Sri Lanka.

Shah, H., Chockalingam, P., Paluri, B., Pradeep, S., &

Raman, B. (2007). Automated stroke classification in

tennis. In ICIAR, 4th international conference on Image

Analysis and Recognition (Vol. 4633). Springer.

Taghavi, S., Davari, F., Tabatabaee Malazi, H., & Abin, A.

A. (2019). Tennis stroke detection using inertial data of

a smartwatch. In ICCKE, 9th International Conference

on Computer and Knowledge Engineering. Mashhad,

Iran.

Tenfitmen Tennis Impulse. (2020). Tennis match - player

vs coach (Tenfitmen - episode 123). Retrieved from

https://www.youtube.com/watch?v=uSoD2yyzRgY

Tennis Legend TV. (2019, 28 Aug. 2020). Roland-Garros

2019: Federer - Schwartzman practice points (court

level view) Retrieved from https://www.youtube.com/

watch?v=vkGwyke5jDU

Top Tennis Training - Pro Tennis Lessons. (2014, 28 Aug.

2020). Tsonga vs Anderson training match 2014-court

level view. Retrieved from https://www.youtube.com/

watch?v=RHokxoEsFsc

TV Tennis Pro. (2020, 28 Aug. 2020). Alexander Zverev

practice match vs Andrey Rublev court level view

tennis. Retrieved from https://www.youtube.com/

watch?v=mcR3d9jnWaI

Xia, K., Wang, H., Xu, M., Li, Z., He, S., & Tang, Y.

(2020). Racquet sports recognition using a hybrid

clustering model learned from integrated wearable

sensor. Sensors, 20(6). doi:https://doi.org/10.3390/

s20061638

Zhao, Y., Yang, R., Chevalier, G., Xu, X., & Zhang, Z.

(2018). Deep residual Bidir-LSTM for human activity

recognition using wearable sensors. Mathematical

Problems in Engineering, 2018. doi:https://doi.org/

10.1155/2018/7316954

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

404
