An Exploratory Study of Why UMLsec Is Not Adopted

Shouki A. Ebad

Department of Computer Science,

Faculty of Science, Northern Border University,

Saudi Arabia

Keywords: UMLsec, Software Security, Model-based Software Engineering, Adoption.

Abstract: UMLsec is an extended UML-based secure modelling profile. It has been applied at the phase of the software

design and architecture. Although it appeared over two decades ago and been integrated into some tools, how

extensively it has been adopted or used by the software security community is questionable. This paper

employs social science methodologies to fill this gap. The contribution of this study is to find the reasons

affecting the UMLsec adoption by software practitioners and researchers and their proposals to increase this

adoption. As a result, only 13% of the sample uses UMLsec. In addition, four problems preventing the use of

UMLsec, (1) using a pattern-driven security methodology rather than UMLsec (2) agile supportability; agile

process reduces the design and architecture documentation including UML diagram (3) UMLsec

standardization and tooling is still questionable (4) the awareness and training on use UMLsec are weak. The

study also presented proposals for UMLsec improvement, in particular (1) simplifying the notations to apply

UMLsec in many fields (2) raising awareness (e.g., demonstrating practical examples to the interested people).

The paper discussed the threats to the validity of the study and suggested open issues for future research.

1 INTRODUCTION

A number of methodologies have been proposed for

secure software engineering such as SQUARE,

Secure Tropos, and CLASP (Khan et al., 2021;

Mohammed et al., 2017; Gopal et al, 2014). The ones

that are based on the Unified Modelling Language

(UML) have been the most frequently used at design

and architecture development phase (Mohammed et

al., 2017; Sebastian et al., 2020). This UML-based

category includes different methodologies such as

UMLsec, CORAS, SecureUML, and Gomaa-UML.

The kind of category allows system developers to

express and reason about security policies using

UML. The point is to build a security-annotated

architecture model first; the implementation is then

derived from the model. Accordingly, UML-based

security methodologies have been applied at the

phase of design and architecture. A well-known

UML-based security approach in the literature is a

UMLsec, which is a UML profile that extends the

existing UML diagrams with security requirements

features Jürjens and Shabalin (2007). In particular, it

introduces three extensions for security aspect:

stereotypes, tagged values, and constraints. Such

extensions add, in case of attaching to UML elements,

three types of security-relevant information (1)

Requirements on the system physical structure (e.g.,

«Internet» and «encrypted») (2) Requirements on the

system logical structure (e.g., «secrecy», «integrity»,

and «critical») (3) Policies that system components

are expected to follow, for instance:

• «secure links» to ensure that the physical layer

follows security requirements on the

communication

• «secure dependency» to ensure that a dependent

component in the system architecture model

keeps the security requirements to the

component(s) it depends on.

• «abac» to define RABAC’s elements (Role

Attribute-Based Access Control) including roles

and permissions and verify them against the

system structure. Accordingly, UMLsec defines

21 stereotypes; Figure 1 (borrowed from Jürjens

and Shabalin (2007) shows some of them together

with associated tags and informal descriptions.

UMLsec was first proposed over two decades ago by

Jan Jürjens, an active researcher in software security

area (Mohammed et al., 2017). It has already been

validated in several industrial applications such as

Ebad, S.

An Exploratory Study of Why UMLsec Is Not Adopted.

DOI: 10.5220/0010821400003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 357-364

ISBN: 978-989-758-553-1; ISSN: 2184-4356

357

payment systems (Jürjens 2001) and

telecommunication systems (Jurjens et al., 2008,

Schneider et al., 2012, Sklavos et al. 2014). However,

UMLsec adoption by the software practitioners and

researchers is limited compared to those

methodologies used in the coding phase (e.g., static

analysis and dynamic analysis) (Mohammed et al.,

2017). This study investigates the factors about why

software security community may or may not adopt

UMLsec. Particularly, the major contribution of this

study is to identify the reasons affecting the UMLsec

adoption by secure software practitioners and

researchers and their proposals to increase this

adoption.

2 LITERATURE REVIEW

Jürjens and Shabalin (2007) described a UML

verification scheme supporting the development of

automated requirements analysis tools for UML

diagrams. They connected their scheme to CASE

tools using XMI and allowed convenient access to

this data and to the ordinary user. They presented

plugins for verifying models defined using UMLsec.

The framework allowed advanced users of the

UMLsec approach to themselves implement

verification procedures for the constraints of self-

defined stereotypes. Gopal et al (2014) made a

comparison among the popular security requirements

methodologies: SQUARE, UMLSec, Secure Tropos

and CORAS based on five criteria: coverage of CIA

triad (confidentiality, integrity and availability),

applicability to systems, stakeholders’ views, the

concept of asset identification, and software

development phase. They then introduced a

methodology (MAR(S)2) that incorporates all the

important functions including requirements

validation to produce profound and well-defined

security requirements for critical infrastructure

industrial systems like SCADA. Burger et al. (2015)

used UMLsec and graph transformation to present a

technique to support semi-automatic system co-

evolution which responds to environmental

knowledge evolution. The goal was to enable

practitioners to interact more reliably to

environmental changes and to ensure lifelong

compliance of systems. To assess their approach, they

used an open-source project, iTrust, as a case study.

Sedaghatbaf and Azgomi (2016) used the Dempster-

Shafer theory of evidence to formulate the

uncertainties in input parameters of software security

evaluation process and determine their effects on

output measures. They specified parameters using the

SecAM profile while attacks using UML diagrams

(i.e., misuse case and mal-activity diagrams).

UML/SecAM models were then converted into attack

trees to estimate the probability of security breaches.

The method was validated by a case study on an

online marketing system.

Mohammed et al. (2017) conducted a systematic

mapping study to determine the primary studies on

the use of software security approaches in software

development life cycle (SDLC). They identified 52

security approaches categorized into five categories,

namely- ordered by the most frequency,

‘vulnerability identification, adaption and

mitigation’, ‘extended UML-based secure modelling

profiles’, ‘software security focused process’, ‘non

UML-based secure modelling notations’, and ‘secure

requirements modelling’. Ramadan et al. (2017)

presented

a framework to manage security

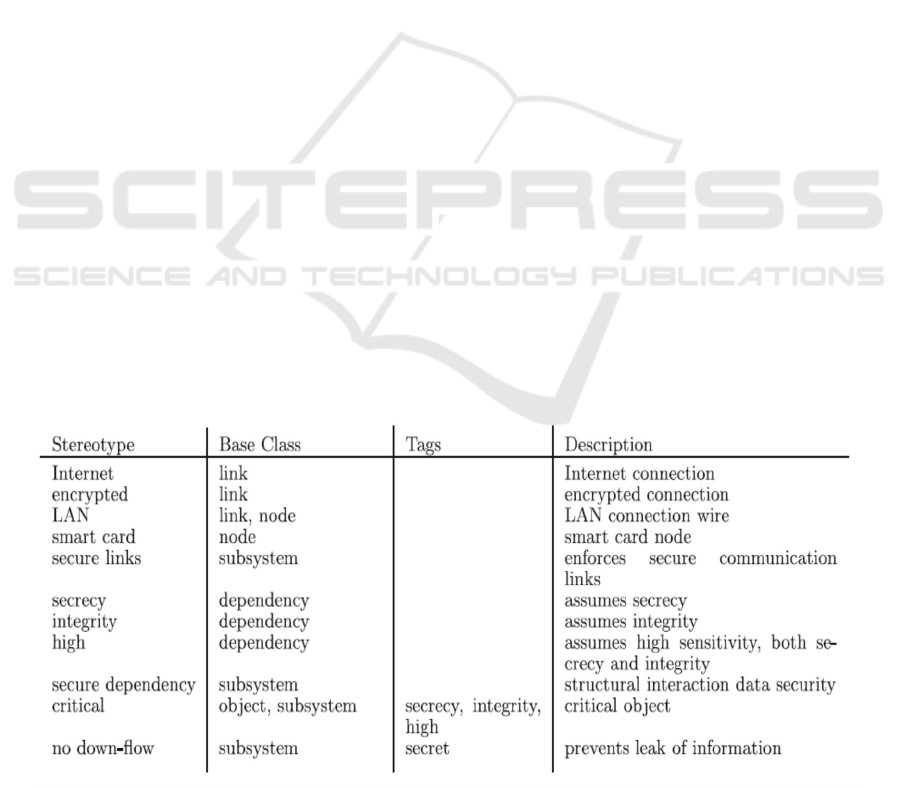

Figure 1: UMLsec stereotypes.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

358

requirements from the stakeholder’s perspective.

They integrated two methodologies, SecBPMN2 and

UMLsec via model transformation. The proposed

framework was appropriate to render the early

development phases of a case study, an air traffic

management system, less error-prone and more

systematic. Rehman et al (2018) combined the best

aspects of four methods (UMLsec, CLASP,

SQUARE, SREP) to develop a security requirements

engineering framework for cyber-physical systems

(CPS). The framework was evaluated using a case

study of medical video chat. The framework is

expected to help in determining the security

requirements for CPS. Muneer et al. (2020) reviewed

the exiting proposed notations to represent security

aspects within a system including The Nine Principles

and UMLsec. Based on theory of “how visual

notations communicate?”, they evaluated five

notations (encryption, session maintained

communication, content verification using hash,

anonymous access, and authentication using sensory

challenge).

Hu et al (2020) used semi-formal methods (i.e.,

UML/MARTE) and formal methods (i.e., Z/FSA) to

propose a security modelling and verification

framework of embedded software. They presented an

extensible security model ZMsec (Z-MARTE

security model), which extends Z with elements of

MARTE and FSA to describe three aspects of

software: security use-cases, static structures and

dynamic behaviours. Sebastian et al. (2020)

conducted a systematic literature review to

investigate model-driven architecture on model-

based methodologies in software engineering. As a

result, UML was the most widely used modelling

language. Arogundade et al. (2021) built an integrated

UMLsec-based modelled system that converts UML

diagrams to source code. The system incorporates

four tools, Eclipse Mars with Papyrus modelling

plug-ins, Eclipse Kepler, Java EE, and CARiSMA

plug-ins. The integration was done by an application

built with NetBeans. The proposed system was

validated by modelling an e-government application

from the class diagram to analysis and code

generation. Khan et al. (2021) performed a systematic

review about software security, different techniques,

and models that have been proposed and designed in

the context of the development of secure software. A

relevant result is that “SecureUML and UMLsec” is

still among the most cited secure software

engineering methodologies.

Most works did not give the adoption of UMLsec

much attention. Most researchers focused on

construction a security model or framework for

systems and automatically or semi-automatically

implement/code it from that model (Burger et al.

2015; Ramadan et al., 2017; Jürjens and Shabalin,

2007; Arogundade et al., 2021). Some reviewed the

existing approaches in software security (Khan et al.

2021; Mohammed et al., 2017; Muneer et al., 2020;

Sebastian et al., 2020), and introduced a new

approach (Gopal et al, 2014). Others performed the

software security evaluation process from uncertainty

analysis point of view (Sedaghatbaf and Azgomi,

2016). The others used UML to propose a new

security framework for embedded software (Hu et al,

2020).

3 RESEARCH APPROACH

In this study, a questionnaire-based survey is

developed to get information required for the

research. The questionnaires are answered by the

participants from software security community. The

information collected are then organized in a form

that can be processed in a qualitative way. Such

approach is suitable in studying, for example, how a

development technique or process has improved or

degraded a specific entity (human, infrastructure,

etc.), or why some designers prefer this pattern while

others prefer another (Wohlin et al., 2012). Herein,

we aim at studying why/why not UMLsec is adopted

by secure software people.

3.1 Data Collection

The target people herein are practitioners and

researchers working in several organizations. The

emails of the participants were allocated through the

articles published on different aspects of software

security. Because many researchers use their personal

email (e.g., Yahoo, Gmail, Outlook, etc.) or the email

of their organization (e.g., Microsoft, HPE, etc.), it

was difficult to find the countries of all participants.

The URL of the questionnaire, together with a cover

letter explaining the objective of the study, were

emailed to the targeted sample. Invitations were sent

to 31 arbitrarily selected practitioners and researchers

in the area of software and computer security.

Following the data collection, the responses were

coded to enable them to be processed using computer.

Microsoft Excel was used for the analysis purpose.

3.2 Survey Instrument

In spite of its suitability for our aim, surveys with

several questions are boring for participants to fill out,

An Exploratory Study of Why UMLsec Is Not Adopted

359

and the data quality may decline (Wohlin et al.,

2012). Therefore, the questionnaire consists of only

two sections. The first section includes the

participant’s population profiles such as age,

educational level, and occupation. The second section

includes an open-ended question about using of

UMLsec, problems preventing the adoption of

UMLsec, and proposals to raise the degree of

adoption as shown in Table 1.

4 RESULTS AND DISCUSSION

4.1 Descriptive Analysis

A total of 31 responses were received. The majority

of participants’ age is 36 and above years old, with

83.8%, this is followed by those who range between

26 and 35 years old with 16.1%, and no participants

were below 26 years old (Figure 2(a)). Furthermore,

most of the participants are Ph.D. holders with 87.1%,

followed by M.S. holders with 12.9%, and no

participants were undergraduate or diploma degrees’

holder (Figure 2(b)). It is worth emphasizing that

most of the participants (77.4%) have good

experience; more than 10 years, 16.1% of them have

7-10 experience years, and 6.5% have 4-6 experience

years (Figure 2(c)). In terms of occupation, 90.3% of

the participants are working in academia, whereas

9.7% of them are working in industry (Figure 2(d)).

Accordingly, 71.0% of the respondents were working

on academic software projects, e.g. undergraduate

projects, M.S. projects, and Ph.D. projects, 12.9% of

them were working on industrial software projects,

and the rest (16.1%) were working on other types of

software projects (Figure 2(e)).

4.2 Challenges and Opportunities for

UMLsec Adoption

In this section, we qualitatively analysed the

participants’ answers to the following open-ended

question (Part 2 in the survey):

“Did you use UMLsec? If ‘yes’, (a) what are the

problems preventing the adoption of UMLsec? (b)

what are the proposals to increase the level of

UMLsec adoption?”

Despite all participants have 4-11 experience

years in working on different types of software

projects as shown in Figure 2 (c and e), most of them

(87%) indicated that they did not use UMLsec in their

academic/research work because they never knew it

before (Figure 2(f)). Only 13% of software

practitioners and researchers adopt UMLsec in their

work. This finding is shocking or particularly

enlightening because UMLsec appeared over two

decades ago (Jürjens, 2001) and several studies

confirmed that it is a well-known method.

4.2.1 Problems Preventing the Use of

UMLsec

(1) Agile Supportability:

Some respondents indicated that the new software

processes do not require UMLsec; for example, agile

methodology that is suitable for fast-moving business

environment which needs rapid software processes

differ from the traditional ones. The following is a

sample of answers provided by different participants:

“Most of the agile methodologies don't focus on

documentation anymore”

“Support agile approaches, be able to cope with

systems which have not been designed based on

models, but, most important…”

The common feature of agile methods is that

design documentation is reduced or generated

automatically by the programming environment used

to implement the software (

Sommerville, 2015).

Figure 4 describes the agile process. It is clearly that

specification, design and implementation activities

are interleaved.

This design documentation minimization might

come from the nature of communication among the

software people; informal communications rather

than formal meetings with written documents.

Table 1: Survey sections.

Part I Personal information Part II: Open-ended question

Age 18-25, 26-35, 36-45, > 45 Did you use UMLsec? (Yes/No).

If “Yes”, then

a) what are the problems

preventing the adoption of

UMLsec?

b) what are the proposals to raise

the level of UMLsec adoption?

Educational Level Diploma, Bachelor, Master, Doctorate

No. of Experience Years 1-3, 4-6, 7-10, >10

Occupation Academia/ Industry

Type of Software Projects

Working on

Industrial projects, academic Projects

(undergraduate projects, master projects, and PhD

projects.), and other research Projects

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

360

(a)

Age.

(b)

Education Level.

(

)

erience Years.

(d)

Occupation.

(e) Types of Software Projects.

(f)

Percentage of people who use UMLsec

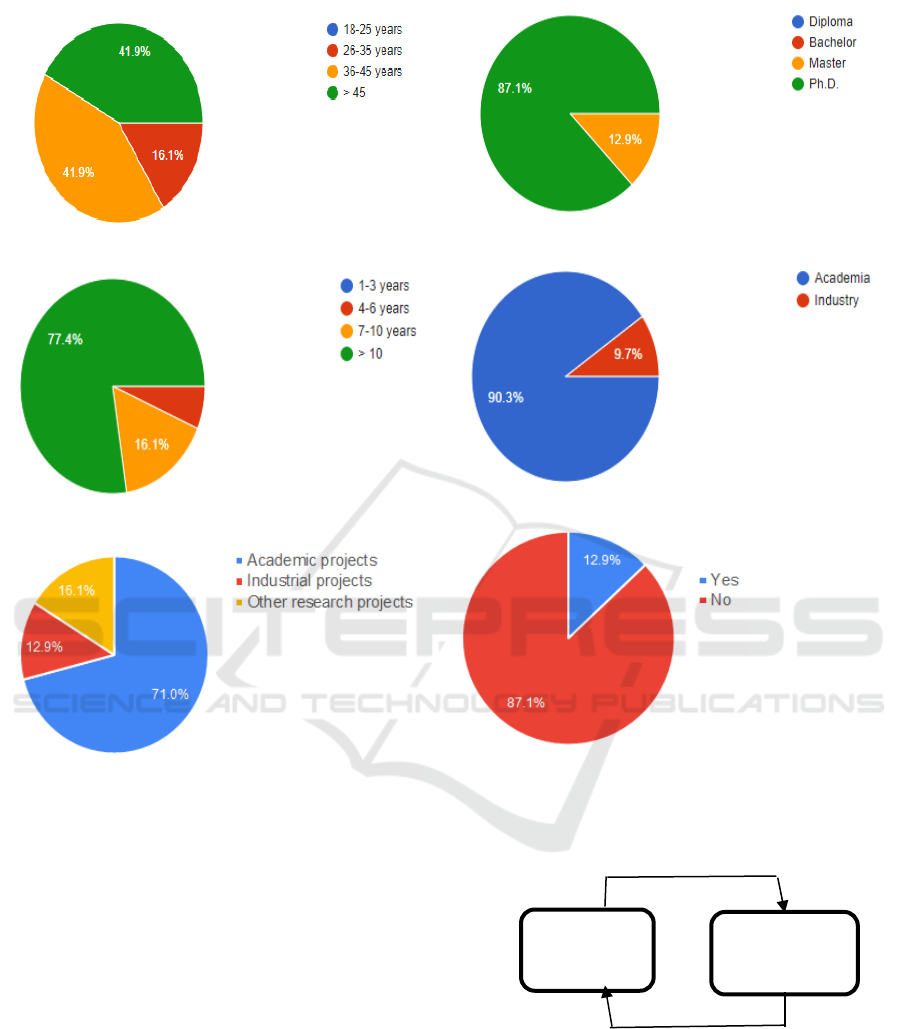

Figure 2: (a-e) Respondents of Part I (personal information), (f) Respondents of Part II (open-ended question).

(2) ASE Adoption:

Some prefer to use other methodologies than UMLsec

such as ASE, a pattern-driven security methodology

(Uzunov et al., 2015):

“We have a better security methodology: ASE … “

The underlying idea behind the ASE method is

taking encapsulation concept more steps further, by

using patterns for the incorporation of security

features and the threats modelling, and even as part of

its process. ASE is particularly developed for

distributed software (e.g., file sharing and

collaborative editing) whereas UMLsec is generic in

a way. However, UMLsec does not focus on

requirements engineering activities such as

elicitation, completeness, and validation (Gopal et al.,

2014).

Figure 4: Agile development (Sommerville, 2015).

(3) Standardization and Tooling:

The adequacy of UMLsec notations seems to be

questionable. According to the participants’ answers,

this might come from different sources:

• The lack of tool-support for the analysis of

UMLsec against difficult system security

Requirements

Engineering

Design and

Implementation

An Exploratory Study of Why UMLsec Is Not Adopted

361

requirements especially those relevant to

behavioural features (Muneer et al, 2020).

• The abstraction level of UML is very high; this

causes issues in depiction of security

requirements while designing software artefacts

(Doan et al., 2004).

• The lack of theoretical bases for the use; this

limits the UMLsec contribution (Muneer et al.,

2020).

With no standardized rules and tooling applying to

different areas, any methodology would not be

dependable specifically for especially for certain

systems such as health-related CPS (Rehman et al.,

2018) because there is a need for tooling in creating a

system architecture, and implementing it in terms of

executable code. The following answers show how

the people have a lack of trust to existing tools:

“UMLsec is not fully standard and not fully

incorporated in existing tools. Hardly usable in

practice. No concrete link with security control

frameworks, risk models and existing security

assessment practices”

“Also, there are threat modelling tools which are now

being use more commonly”

“Stable tooling, general acceptance of UML and esp.

model-based software engineering in industry”

“We need …tool to apply this new model across IT

and Security from the beginning of software

development”

Others stated that Google Cloud platform was enough

for them to secure their applications:

“I'm using the tools and practices of the Google

Cloud Platform [to secure a source code; part of my

PhD work]”

Like similar platforms, Google Cloud Platform helps

in protecting IT assets including software from

evolving cyber threats by residing them in a safe place

such as data centres around the world. This is

insufficient to develop secure software as UMLsec

aims; because residing assets in a safe place (from

data centre to the device as the clouds do) may

prevent from unauthorized access, but not stop other

breaches such as illegitimate exportation or cost of

the considerable inaccuracy in input parameters

which may lead to misleading predictions.

Although UMLsec was applied with Eclipse

Papyrus, a participant stated that this tool was not

good enough:

“Papyrus is really slow and prone to errors”

The UML profile and Eclipse-based CARiSMA

must be installed and integrated into the model in the

case of applying the security concepts, and an

automated security analysis, respectively.

(4) Lack of Experience:

Some participants suffered from human-related

problems including absence of awareness and lack of

training on using UMLsec. The following is a sample

of their answers that show this factor:

“lack of experience and time [is a problem to prevent

UMLsec acceptance]”

“We need the right people … to apply this new model

across IT and Security from the beginning of software

development”

“The awareness [is needed]”

This little widespread use of UMLsec comes from

the development phase whose UMLsec works at.

Other methodologies, which are used throughout

SDLC (e.g., CLASP and SREP) or mainly based on

requirements engineering process (e.g., SQUARE),

but UMLsec works around the design/architecture

phase. For this, UMLsec may not be a good choice to

develop secure today’s software like CPS (Rehman et

al (2018). Because UMLsec works at the

design/architecture level, conflicts between software

quality attributes could occur, i.e., any software

architecture improvement with respect to a quality

attribute (e.g., security) may degrade another attribute

(e.g., performance) (Sedaghatbaf et al 2016).

4.2.2 Proposals for Improving UMLsec

Adoption

Correspondingly with the software security obstacles,

the respondents suggested various proposals to

improve the adoption of UMLsec which can be

generalized into two groups. First, modifications on

the current UMLsec notational features to be easier

and more flexible. Second, awareness. The following

is a sample of such proposals from their answers:

“Improve standardization and tool support. Relate

the model to existing security assessment practices”

“make [notations] easily available recipes for use”

“[Let UMLsec] be part of sustaining any business for

long run”

“I suggest an awareness campaign to folks in the

College of Engineering”

“Application in different fields”

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

362

Representation of the constraints for security

requirements plays a vital role in standardization

because they are measured in terms of number and

complexity of interactions among the requirements

(i.e., the constraints become tighter). Additionally,

achieving trust in UMLsec tools is not minor; the

advice here is not only to make the notations simpler

and more flexible but also easily applied in different

areas including Internet of Things devices, which in

turn may require adding new notations in an explicit

manner. The awareness proposal can be achieved

through different ways, for example (1) the

development of UMLsec empirical examples and

presenting them to the software community (2)

investigating the possible of UMLsec solutions reuse

in other projects.

4.2.3 Summary

Figure 5 summarizes the above discussion i.e., the

problems and proposals relevant to UMLsec.

5 LIMITATIONS AND FUTURE

WORK

The main threat to the study’s validity is the ability to

generalize and results. Although the sample size is

relatively acceptable, the sample of individuals,

heavily slanted towards academia, might not bring all

important insights to the table. In general, findings are

probably not easily generalizable because the

participants were not really representative of software

companies. In general, the literature lacks research in

using a case study research strategy in software

security due to confidentiality issues (Ebad et al.,

2021). Accordingly, it would be useful to know just

where UMLsec has succeeded and failed (e.g., types

of applications that have benefited from such

modelling). This would help to inform suggestions

for increasing UMLsec adoption.

6 CONCLUSIONS

The study employs social science methods to

investigate why software practitioners and

researchers may or may not adopt UMLsec. The data

were collected from 31 experts having a good

experience in working on different software projects

at academia or industry. The study analysed the

obstacles of UMLsec adoption and provided different

proposals for its improvement. The results indicated

that there are four problems preventing the adoption

of UMLsec, (1) use other security approaches such as

ASE, a pattern-driven security methodology (2)

supporting agile process minimizes design

documentation including UMLsec (3) the lack of

UMLsec standardization and tooling (4) the

awareness/training related to UMLsec is weak.

Together with obstacles of UMLsec acceptance,

several proposals for its improvement are provided.

The simplifying of security notations and raising

awareness (e.g., demonstrating practical examples to

the interested people) are the most critical proposals

that need to be considered. Although the present

paper yielded important findings, it also posits a

limitation that should be taken in future attempts;

most of the entire collected data were academic

people. Thus, it is very imperative if future trials

would take this limitation into account.

REFERENCES

Khan, R.A., Khan, S.U., Khan, H.U., Ilyas, M. (2021).

Systematic mapping study on security approaches in

secure software engineering, IEEE Access, Vol. 9

Mohammed, N.M., Niazi, M., Alshayeb, M., Mahmood, S.

(2017). Exploring software security approaches in

software development lifecycle: a systematic mapping

study, Computer Standards & Interfaces, 50, 107–115

Gopal, T., Subbaraju, M., Joshi, R.V., Dey, S. (2014).

MAR(S)2: methodology to articulate the requirements

for security in SCADA. In International Conference on

the Innovative Computing Technology (INTECH 2014),

13-15 Aug. 2014, Luton, UK

Sebastián, G., Gallud, J. A., Tesoriero, R. (2020). Code

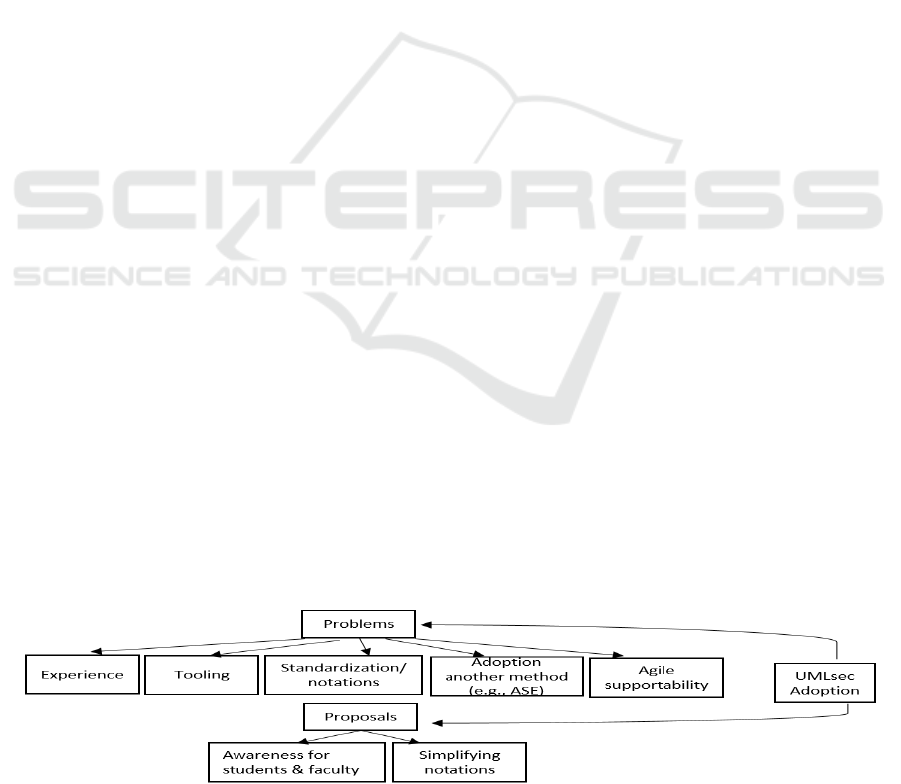

Figure 5: Summary of problems and proposals.

An Exploratory Study of Why UMLsec Is Not Adopted

363

generation using model driven architecture: a

systematic mapping study. Journal of Computer

Languages, 56, 100935.

Jürjens J., Shabalin, P. (2007). Tools for secure systems

development with UML, International Journal on

Software Tools for Technology Transfer, 9:527–544.

Jürjens J. (2001). Modelling audit security for smart-card

payment schemes with UMLsec, In 16

International

Conference on Information Security (IFIP/SEC”01),

IFIP. Kluwer Academic Publishers, 2001, pp. 93–108.

Jurjens J., Schreck J., Bartmann P. (2008). Model-based

security analysis for mobile communications. In 30

International Conference on Software Engineering

(ICSE 2008). 10-18 May, 2008, Leipzig, Germany

Sklavos N., Hubner M., Goehringer D., Kitsos P. (2014).

System-level design methodologies for

telecommunication, Springer

Schneider, K., Knauss, E., Houmb, S., Islam, S., Jürjens, J.

(2012). Enhancing security requirements engineering

by organisational learning, Requirements Engineering

Journal (REJ), vol. 17, no. 1, 35–56.

Ramadan, Q., Salnitri, M., Strüber, D., Jürjens, J., Giorgini,

P. (2017). From secure business process modeling to

design-level security verification. In ACM/IEEE 20

International Conference on Model Driven

Engineering Languages and Systems, 17-22 Sept. 2017,

Austin, TX, USA.

Jürjens, J. (2001). Towards development of secure systems

using UMLsec. In International Conference on

Fundamental Approaches to Software Engineering,

LNCS 2029, pp. 187-200, Springer, Berlin, Heidelberg

Burger, J., Gartner, S., Ruhroth, T., Zweihoff, J., Jurjens, J.,

Schneider, K. (2015). Restoring security of long-living

systems by co-evolution. In IEEE 39

Annual

International Computers, Software & Applications

Conference, 1-5 July 2015, Taichung, Taiwan

Sedaghatbaf, A., Azgomi, M.A. (2016). Quantitative

evaluation of software security: an approach based on

UML/SecAM and evidence theory, The ISC Int’l

Journal of Information Security, Vol. 8, No. 2, 143-155.

Rehman, S., Allgaier, C., Gruhn, V. (2018). Security

requirements engineering: a framework for cyber-

physical systems. In International Conference on

Frontiers of Information Technology, 17-19 Dec. 2018,

Islamabad, Pakistan.

Muneer, S., Nadeem, M., Kasi, B., Yousaf, M.H. (2020).

Evaluating the effectiveness of notations for designing

security aspects. In International Conference on

Advanced Communications Technology (ICACT), 16-

19 Feb. 2020, Phoenix Park, South Korea.

Hu, X., Zhuang, Y., Zhang, F. (2020). A security modeling

and verification method of embedded software based on

Z and MARTE, Computers & Security, 88 (2020)

101615.

Arogundade O.T., Onilede O., Misra S., Abayomi-Alli O.,

Odusami M., Oluranti J. (2021) From modeling to code

generation: an enhanced and integrated approach. In

Singh P.K., Polkowski Z., Tanwar S., Pandey S.K.,

Matei G., Pirvu D. (eds) Innovations in Information and

Communication Technologies (IICT-2020). Advances

in Science, Technology & Innovation (IEREK

Interdisciplinary Series for Sustainable Development).

Springer, Cham. https://doi.org/10.1007/978-3-030-

66218-9_50.

Wohlin C, Runeson P,HostM, OhlssonMC, Regnell

B,Wesslen A. (2012). Experimentation in software

engineering, Springer, Berlin/Heidelberg, Germany.

Anton V. Uzunov, Eduardo B. Fernandez, Katrina Falkner

(2015). ASE: a comprehensive pattern-driven security

methodology for distributed systems, Computer

Standards & Interfaces, 41, 112–137.

Sommerville, I. (2015). Software engineering, Pearson,

England, 10

edition.

Doan, T. Demurjian, S. Ting, T., Ketterl, A. (2004). Mac

and uml for secure software design. In Proceedings of

the 2004 ACM workshop on Formal methods in security

engineering. ACM, 75–85.

Ebad, S.A., Darem A.A., Abawajy J.H. (2021). Measuring

software obfuscation quality– a systematic literature

review, IEEE Access, vol. 9, pp. 99024-99038.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

364
