Iterative 3D Deformable Registration from Single-view RGB Images

using Differentiable Rendering

Arul Selvam Periyasamy

, Max Schwarz

and Sven Behnke

Autonomous Intelligent Systems, University of Bonn, Germany

Keywords:

Differentiable Rendering, Deformable Registration, Latent Shape-space Model.

Abstract:

For autonomous robotic systems, comprehensive 3D scene parsing is a prerequisite. Machine learning tech-

niques used for 3D scene parsing that incorporate knowledge about the process of 2D image generation from

3D scenes have a big potential. This has sparked an interest in differentiable renderers that provide approxi-

mate gradients of the rendered image with respect to scene and object parameters. An efﬁcient differentiable

renderer facilitates approaching many 3D scene parsing problems using a render-and-compare framework,

where the object and scene parameters are optimized by minimizing the difference between rendered and ob-

served images. In this work, we introduce StilllebenDR, a light-weight scalable differentiable renderer built

as an extension to the Stillleben library and use it for 3D deformable registration from single-view RGB im-

ages. Our end-to-end differentiable pipeline achieves results comparable to state-of-the-art methods without

any training and outperforms the competing methods signiﬁcantly in the presence of pose initialization errors.

1 INTRODUCTION

Image synthesis is the process of creating a 2D im-

age given a virtual camera, objects, and light sources.

Vision-as-inverse-graphics techniques aim to solve

computer vision problems by searching for camera,

object, and lighting parameters that generate the im-

age that best matches the observed image. Render-

and-compare serves as a powerful framework to real-

ize vision-as-inverse-graphics. The fundamental idea

of render-and-compare is to render the scene based on

the current parameter estimate and search for param-

eters that minimize the difference between rendered

and observed images. Employing a differentiable ren-

derer that not only generates an image based on the

given scene description but also provides gradients of

the rendered image with respect to object and scene

parameters enables the usage of efﬁcient gradient-

based optimization methods for searching the best pa-

rameters. Although modern hardware allows generat-

ing high-quality physically realistic images, render-

ing is a trade-off between image quality and compute.

In particular, modeling secondary rendering effects is

compute intensive. However, in many robotics ap-

plications modeling secondary effects is not crucial.

https://orcid.org/0000-0002-9320-3928

https://orcid.org/0000-0002-9942-6604

https://orcid.org/0000-0002-5040-7525

Using image abstraction modules that are invariant

to secondary rendering effects allows for pixel-wise

comparison of rendered and observed images. This

facilitates the usage of render-and-compare in solv-

ing many real-world robotic perception tasks. In this

paper, we introduce StilllebenDR, an efﬁcient, light-

weight differentiable renderer with PyTorch (Paszke

et al., 2019) integration. StilllebenDR is built on

top of Stillleben (Schwarz and Behnke (2020)). We

demonstrate its usage for solving the deformable reg-

istration task by combining it in a pipeline with a la-

tent shape-space model. Given a set of object meshes

belonging to instances of an object category and the

mesh of the canonical instance, deformable registra-

tion is the task of estimating the deformation from

the canonical mesh to other instances. Deformable

registration is crucial for robotic manipulation tasks

where robots have to transfer the grasping knowl-

edge from the canonical instance to other instances

of the same object category. Our proposed approach

for deformable registration does not need any depth

information and contrary to many state-of-the-model

methods for deformable registration, our approach

does not use any learning components to estimate the

deformation. Instead, our approach only needs seg-

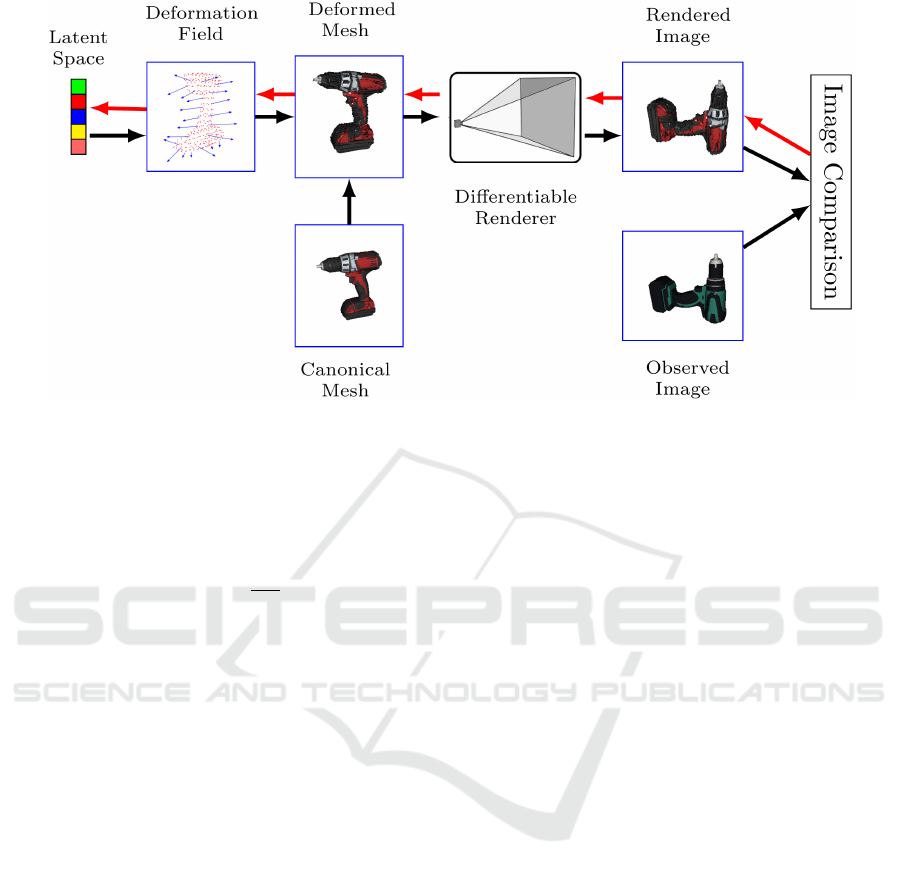

mentation information. The proposed pipeline is end-

to-end differentiable and computes the deformation of

the canonical mesh to match the observed image us-

Periyasamy, A., Schwarz, M. and Behnke, S.

Iterative 3D Deformable Registration from Single-view RGB Images using Differentiable Rendering.

DOI: 10.5220/0010817100003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 5: VISAPP, pages

107-116

ISBN: 978-989-758-555-5; ISSN: 2184-4321

107

ing the differentiable renderer. The ﬂexibility of our

pipeline allows for joint pose optimization and de-

formable registration. This makes our pipeline less

susceptible to pose initialization errors. In short, our

contributions include:

1. StilllebenDR, a differentiable renderer with Py-

Torch integration,

2. an end-to-end differentiable pipeline for de-

formable object registration using a latent shape-

space model and differentiable rendering, and

3. a framework for joint object pose optimization

and deformable registration to make our pipeline

less susceptible to pose initialization errors.

StilllebenDR is made available as open-source

2 RELATED WORK

2.1 Differentiable Rendering

Deep learning methods have achieved impressive re-

sults in 3D scene parsing from 2D RGB images. Of

particular interest are methods for object pose esti-

mation (Bui et al., 2018; Hodan et al., 2020; Labbe

et al., 2020; Peng et al., 2019; Xiang et al., 2018)

and shape estimation (Gkioxari et al., 2019; Groueix

et al., 2018; Mescheder et al., 2019; Pan et al., 2019;

Wang et al., 2018). One remaining challenge in train-

ing 3D scene parsing models is the requirement of

high-quality labeled data. In contrast to 2D com-

puter vision tasks such as object detection or semantic

segmentation, collecting high-quality labeled datasets

for 3D scene parsing tasks like object pose estima-

tion or object shape estimation is a much more time-

consuming and error-prone process. One way to mit-

igate this issue is to use synthetic data (Hoda

n et al.,

2020; Schwarz and Behnke, 2020). Another orthogo-

nal approach is to incorporate knowledge about 2D

image generation from a 3D scene as part of the

neural network architecture. This has sparked an

interest in approximate differentiable renderers with

methods such as OpenDR (Loper and Black, 2014),

PyTorch3D (Ravi et al., 2020), SoftRas (Liu et al.,

2019), and DIB-R (Chen et al., 2019). Kato et al.

(2020) compiled a detailed survey on differentiable

rendering formulations. All these differentiable ren-

derers implement rasterization in CUDA and provide

integration to PyTorch or other similar deep learning

frameworks. In contrast, StilllebenDR uses a classical

rasterization pipeline using OpenGL and implements

only backward functions for gradient computation in

https://ais-bonn.github.io/stillleben/stillleben.diff.html

PyTorch. StilllebenDR is built on the Stillleben li-

brary (Schwarz and Behnke, 2020), which is highly

optimized to create realistic scenes on the ﬂy for train-

ing neural networks. StilllebenDR is designed as an

add-on to the forward renderer with only a minimal

overhead to the forward rendering process.

2.2 Render-and-Compare

Render-and-compare, i.e. iteratively improving a

scene model by synthesis and comparison with the

real world, has a long history in computer vision.

Zienkiewicz et al. (2016) used render-and-compare

to perform real-time height map fusion. Krull et al.

(2015) trained a CNN to output an energy score

that describes how well a rendered image and an

observed image match. The authors then used the

trained CNN to evaluate 6D pose hypotheses gener-

ated using Metropolis algorithm and search for the

hypothesis with the best energy score. Kundu et al.

(2018) used a render-and-compare loss function to

train a 3D R-CNN model (He et al., 2017) to per-

form 3D object detection and reconstruction. Moreno

et al. (2016) demonstrated the capabilities of differ-

entiable rendering and render-and-compare by esti-

mating pose, shape, light, and appearance parameters

jointly on a synthetic dataset. Pavlakos et al. (2018);

Xu et al. (2019) used render-and-compare to estimate

multi-human pose and shape from RGB images. Li

et al. (2018) formulated 6D object pose estimation as

iterative pose reﬁnement process. Given an image of

an object rendered according to the current pose es-

timate and the observed image, the authors trained a

CNN to estimate a pose update that aligns the ren-

dered image with the observed image. This pose

reﬁnement is done iteratively until the pose update

becomes negligible. Periyasamy et al. (2019) used

render-and-compare to reﬁne 6D object poses for all

objects in a scene simultaneously. To enable compar-

ing rendered and observed images of complex scenes

with multiple objects, they used a learned dense de-

scriptor model as an abstraction module and com-

pared the images pixel-wise in the abstract descriptor

space instead of RGB space.

2.3 Deformable Registration

The deformable registration task differs from the

shape reconstruction task discussed in Section 2.1 in

the aspect that the objective is not shape reconstruc-

tion, but rather registering a given canonical model

with an observed instance which allows for transfer-

ring knowledge between the canonical and observed

instances. The canonical model needs to be de-

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

108

formed to match the observed instance while main-

taining its geometric structure. Based on the formu-

lation for maintaining the geometric structure, many

RGB-D methods exist (Allen et al., 2003; Brown and

Rusinkiewicz, 2007; Kim et al., 2011; Myronenko

and Song, 2010; Rodriguez et al., 2018; Zeng et al.,

2010). For the sake of brevity, we focus on Deep-

CPD (Rodriguez et al., 2020), which our proposed

method is based upon. The authors model defor-

mation between instances of the same object cate-

gory with coherent point drift (CPD) and form a low-

dimensional shape-space of the deformation ﬁeld us-

ing PCA. CPD and the latent shape-space are dis-

cussed in detail in Section Section 3.2. Given a single-

view RGB image, the authors trained a CNN to gener-

ate a deformation ﬁeld for the vertices that are visible

in the image. The latent shape-space is updated based

on the deformation ﬁeld. Finally, by regenerating the

deformation ﬁeld from the latent space, deformation

vectors for all vertices—including the vertices not vis-

ible in the image—are generated. Our proposed ap-

proach, instead of learning to predict the deformation,

employs an end-to-end differentiable pipeline to opti-

mize the latent shape-space parameters during infer-

ence. This way, a separate training phase is not re-

quired anymore.

2.4 Image Comparison

Comparing two images in order to establish a measure

of similarity is a long-standing standing computer vi-

sion problem. Traditional methods like PSNR and

perceptual similarity methods like SSIM (Wang et al.,

2004), MSSIM (Wang et al., 2003), FSIM (Zhang

et al., 2011), HDR-VDP (Mantiuk et al., 2011) were

proposed to compare images. In an orthogonal di-

rection, intrinsic image decomposition methods were

proposed to decompose an image into intrinsic com-

ponents, such as shading, reﬂectance, and shape

to allow for comparison of images in a way that

is robust against secondary lighting effects (Barrow

et al., 1978; Finlayson et al., 2004; Tappen et al.,

2005). Lately, with the success of CNNs for com-

puter vision tasks, CNN features are used for com-

paring two images, even allowing comparing images

across two different modalities—rendered and real-

world (Appalaraju and Chaoji, 2017; Zagoruyko and

Komodakis, 2015; Zhang et al., 2018).

Faces

Renderer

RGB channels

Vertex indices &

Barycentric coordinates

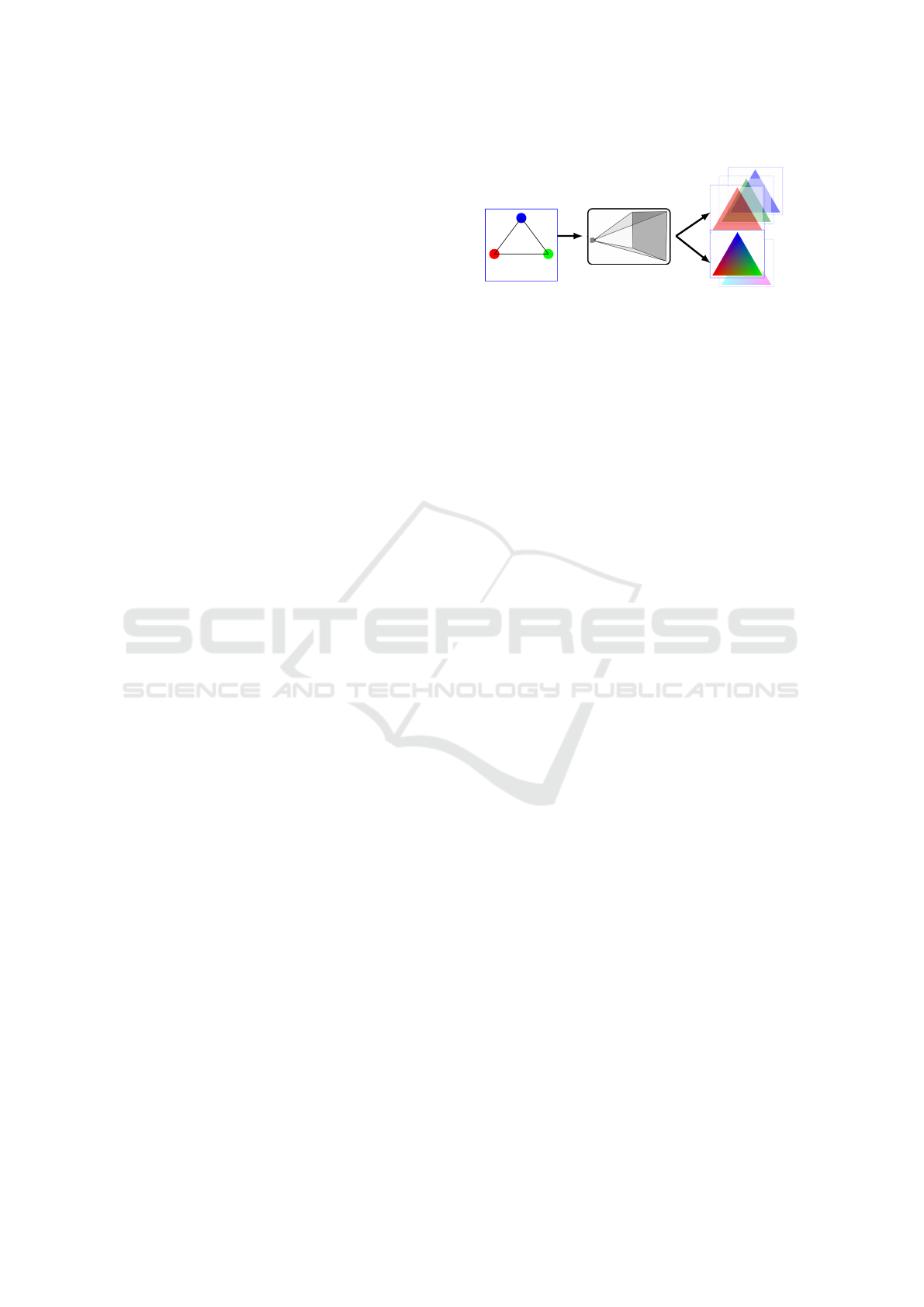

Figure 1: Forward rendering. In addition to the RGB chan-

nels, we also render vertex indices and barycentric coor-

dinates per pixel as separate channels and store them for

backward computations.

3 METHOD

3.1 Stillleben Differentiable Renderer

State-of-the-art graphics engines use graphics APIs

such as OpenGL, DirectX, or Vulkan. These APIs

allow user-deﬁned programs called shaders to run at

speciﬁed stages of the rendering pipeline. Break-

ing down the rendering process into shaders en-

ables highly parallel and ﬂexible rendering processes.

We exploit the ﬂexibility of the shaders to ren-

der additional information like vertex indices and

barycentric coordinates as separate channels in ad-

dition to the default RGB channels. Our differ-

entiable renderer StilllebenDR is built as an exten-

sion to Stillleben (Schwarz and Behnke, 2020). Stil-

lleben was developed to generate synthetic scenes

and ground truth annotations that serve as training

data for deep learning models online. To gener-

ate physically realistic scenes, Stillleben implements

sophisticated rendering techniques like Physically-

based Rendering (PBR) (Pharr et al., 2016), Image-

based Lighting (IBL) (Debevec, 2006), Ambient Oc-

clusion (SSAO) (Bavoil and Sainz, 2008), etc. Unlike

PyTorch3D (Ravi et al., 2020), SoftRas (Liu et al.,

2019), and DIB-R (Chen et al., 2019) that implement

rasterization on CUDA, we rely on OpenGL for for-

ward rendering. Implementing a rasterizer in CUDA

efﬁciently is not an easy task. In the OpenGL ras-

terization pipeline, parallelization is done over ver-

tices in the initial stages of the rendering pipeline

and over pixels in the later stages of the pipeline. A

myriad of optimizations employed by the common

OpenGL implementations greatly reduces the over-

all runtime complexity (Kuehne et al., 2005; Merry,

2012; Spitzer, 2003). StilllebenDR takes advantage

of the optimization done behind the scenes by the

OpenGL implementation and thus scales well for

complex scenes and high-deﬁnition meshes.

Iterative 3D Deformable Registration from Single-view RGB Images using Differentiable Rendering

109

Observed

Rendered

Image comparison

loss

Vertex indices

Barycentric coordinates

Gradient of loss

w.r.t. rendered image

Faces

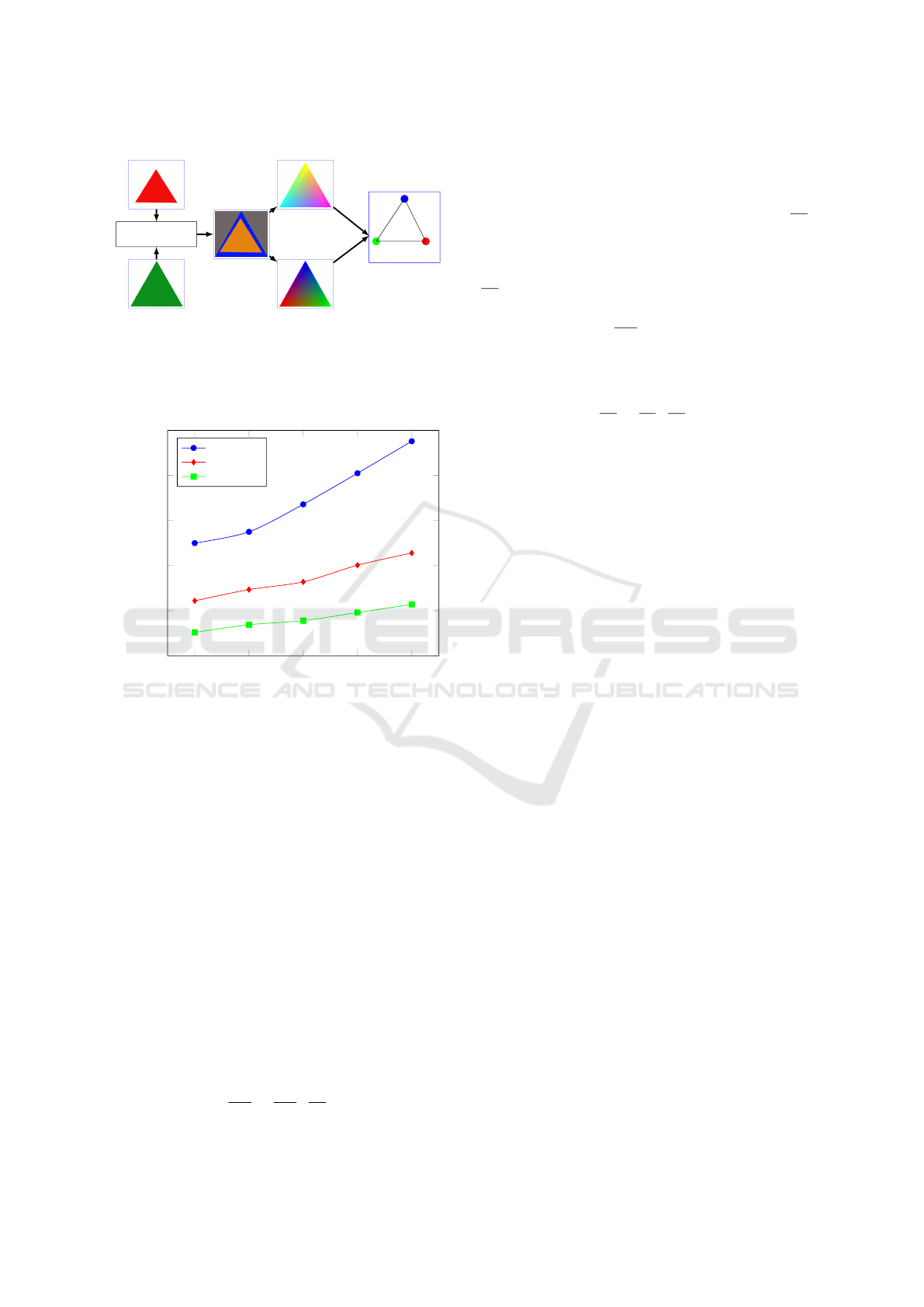

Figure 2: Backward rendering. The gradient of the image

comparison loss function is propagated to the vertices by

differentiating through the renderer using the vertex indices

and barycentric coordinates information stored during the

forward rendering step.

100 200 300 400 500

100

200

300

400

500

# Vertices [×10

]

Time[ms]

SoftRas

PyTorch3D

StilllebenDR

Figure 3: Runtime comparison between SoftRas (Liu et al.,

2019), PyTorch3D Ravi et al. (2020), and StilllebenDR

(ours). We report the average time taken by different differ-

entiable rendering approaches to perform forward rendering

(1024×1024 pixels) and backward gradient computations.

Given a face F constituting of vertices V with col-

ors C that is projected on a pixel I, the color of the

pixel I is computed as

rgb

∑

, (1)

where b

is the barycentric coordinates and

∑

= 1.

For brevity, we simply use the notation I instead of

rgb

While rendering an image as shown in Fig. 1, in

addition to the RGB channels, we render vertex in-

dices and barycentric coordinates as separate chan-

nels. We save these additional channels for backward

gradient computation.

The gradient of the loss function L with respect to

vertex V

is computed using chain rule as

∂L

∂V

∂I

∂V

∂L

∂I

, (2)

i.e., we break down the gradient of the loss function

with respect to a vertex as gradient of the loss func-

tion with respect to the rendered image and gradient

of the rendered image with respect to the vertex.

∂I

∂V

is computed automatically by PyTorch autograd. The

barycentric weights and the vertex indices stored dur-

ing the forward rendering step are used in computing

∂I

∂V

∂I

∂V

= C

. (3)

Similarly, we break down the gradient of the loss

function with respect to object pose P as follows:

∂L

∂P

∂I

∂P

∂L

∂I

. (4)

StilllebenDR takes advantage of the optimized

OpenGL library for forward rendering and the back-

ward gradient computations are implemented in Py-

Torch (Paszke et al., 2019). This enables Stil-

llebenDR to be more scalable than other differentiable

rendering libraries, such as SoftRas (Liu et al., 2019),

and PyTorch3D (Ravi et al., 2020). In Fig. 3, we the

show the scalability of our approach to differentiable

rendering by comparing the average time taken to ren-

der an image of size 1024×1024 with varying num-

ber of vertices and performing backward pass. We

performed the runtime comparison experiment on a

computer powered by Nvidia GTX Titan X GPU with

12 GBs of memory and Intel 4.0 GHz i7 CPU. Stil-

llebenDR is faster and more scalable than both Soft-

Ras, and PyTorch3D.

3.2 Deformable Registration

3.2.1 Coherent Point Drift

Given a template point set Y = (y

,...,y

)

, and a

reference point set X = (x

,...,x

)

(both being D-

dimensional), CPD considers Y as centroids of a

Gaussian Mixture Model (GMM) and ﬁts Y towards

data points X by maximizing the likelihood of X

drawn from Y under the assumption of equal member-

ship probabilities for all GMM components and equal

isotropic covariances. In the context of deformable

registration, given a template point set and a reference

set, CPD is used to generate the deformed point set τ.

τ is formulated as displacement modeled by function

v on the initial set of template points Y

τ(Y,v) = Y + v(Y), (5)

where the displacement function v for any set of D-

dimensional points Z ∈ R

N×D

is deﬁned as

v(Z) = G(Y,Z)W. (6)

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

110

Figure 4: Proposed deformable registration pipeline. Latent shape-space parameters are optimized to minimize the difference

between rendered image of the deformed mesh and the observed mesh. Image comparison loss is minimized using gradients

obtained by differentiating through the rendering process. Black arrows indicate the forward rendering process and red arrows

indicate the backward gradient ﬂow.

G(Y,Z) is the Gaussian kernel matrix. It is deﬁned

element-wise as

G(y

) = g

i j

= exp(−

2β

||y

− z

) (7)

and W is the matrix of kernel weights and can be in-

terpreted as a set of D-dimensional deformation vec-

tors for each point in the G. For a given reference

point set, W is estimated in the M-step of the EM al-

gorithm.

3.2.2 Latent Shape-space

Given an object category with multiple instances, we

create a low-dimensional latent shape-space that cap-

tures the deformations between the instances of that

category. We assume the instances of an object cate-

gory are aligned in a common coordinate frame. The

deformation of the canonical model C to an instance i

is modeled as

) = C + G(C, C)W

. (8)

is the deformation ﬁeld that deforms the canonical

instance C to any instance i. It has a constant shape

irrespective of i, i.e., shape of W

does not depend on

i, but rather it depends on the canonical instance C.

This allows us to construct a latent shape-space using

the principle components of W

. In our experiments,

we use latent shape-space of dimension ﬁve for all the

object categories. We refer the reader to Rodriguez

et al. (2020), and Rodriguez et al. (2018) for a detailed

explanation of the latent shape-space.

3.3 Deformable Registration Pipeline

Given the canonical instance, its corresponding latent

shape-space parameters S , and an observed image I

obs

of a novel object instance, our task is to ﬁnd the la-

tent shape-space parameters S that register the canon-

ical mesh with the novel object instance. We formu-

late the task as gradient-based iterative optimization

using render-and-compare framework. Our proposed

pipeline is depicted in the Fig. 4. In the forward step,

we start with rendering the mesh generated using the

canonical latent shape-space parameters S . The ren-

dered image is denoted as I

rnd

. As discussed in Sec-

tion 3.1, in addition to RGB channels, we render the

vertex indices constituting the faces that are projected

onto each pixel and also the corresponding barycen-

tric weights. Finally, we compute the pixel-wise im-

age comparison loss. In the backward step, we prop-

agate the gradient of image comparison loss with re-

spect to the rendered image to the vertices through the

differentiable renderer and then further to the latent

space. We repeat this process until the image compar-

ison loss reaches a plateau.

3.3.1 Image Comparison

Comparing RGB images pixel-wise is not straightfor-

ward. In our case, instead of comparing the images in

the RGB space, we perform the comparison in a CNN

feature space as shown in Fig. 5. We use the features

of a U-Net model (Ronneberger et al., 2015) trained

for semantic segmentation on DeepCPD dataset. In-

Iterative 3D Deformable Registration from Single-view RGB Images using Differentiable Rendering

111

MSE

U-Net features

64×240×320

Canonical

64×240×320

Observed

Normalized

features

Aggregated

features

240×320

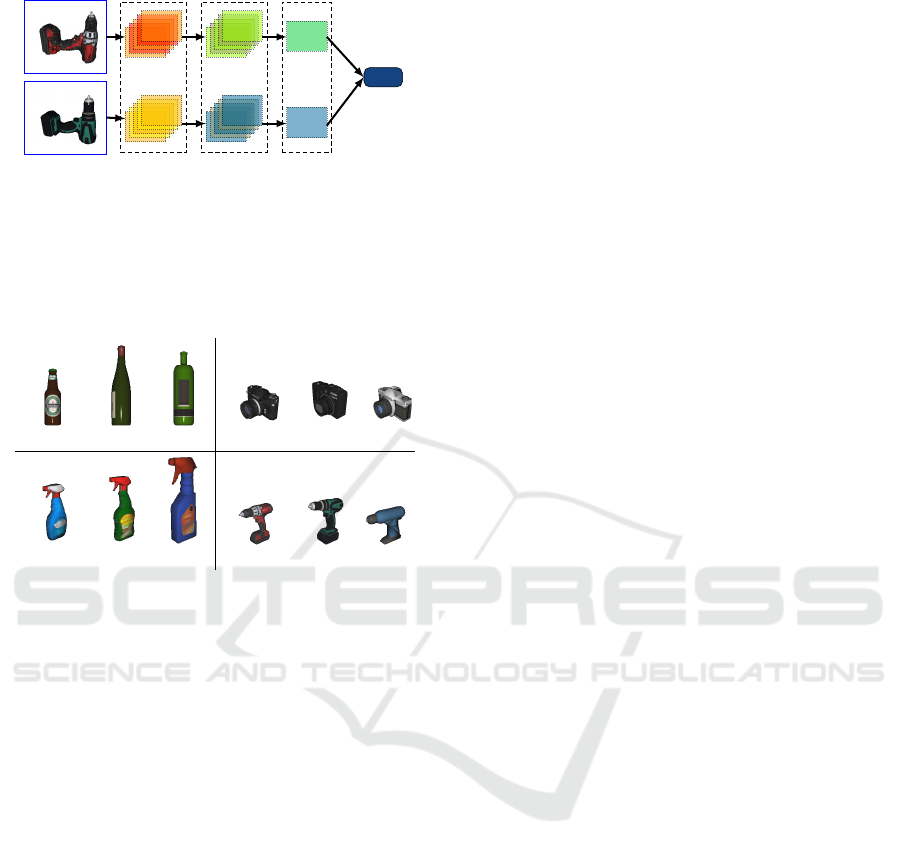

Figure 5: Image comparison operation. We compare the

rendered canonical and the observed image using U-Net

features. We normalize the extracted U-Net features and

normalize them between -1 and 1 and aggregate the fea-

tures along the channel dimension. Finally, we compute the

mean-squared error pixel-wise between the aggregated fea-

tures.

canonical test test canonical test test

Figure 6: DeepCPD dataset with canonical instances and

exemplary test instances.

spired by the learned perceptual image patch similar-

ity metric (LPIPS) (Zhang et al., 2018), we formulate

the image comparison operation as follows. Given the

images I

rnd

and I

obs

, we extract the feature maps F

rnd

and F

obs

from the last layer before the ﬁnal output

layer of the U-Net model respectively. F

rnd

and F

obs

∈ R

C×H×W

. We normalize F

rnd

and F

obs

between -1

and 1 and aggregate the features along the channel di-

mension and compute mean-squared error (MSE) on

the aggregated features.

4 EXPERIMENTS

4.1 Dataset

We use the DeepCPD dataset (Rodriguez et al., 2020)

to evaluate our approach for deformable registration.

The dataset consists of four object categories: bottles,

cameras, drills, and sprays (shown in Fig. 6). Each

category consists of a varying number of instances.

All the instances are aligned to have one common co-

ordinate frame, and one of the instances is selected

as the canonical model for each object category. All

except two instances are used for training and the ex-

empted two instances are used for testing. We com-

pare our approach with CLS (Myronenko and Song,

2010) and DeepCPD (Rodriguez et al., 2020). CLS

needs depth information though, while DeepCPD is

an RGB only method. Similar to the competing meth-

ods, we use the training instances to generate the

Gaussian Kernel matrix G described in Section 3.2.1.

But, in contrast to the DeepCPD, we do not use any

specialized learning-based modules to predict defor-

mation ﬁeld. We only need semantic segmentation

information, which is a prerequisite for scene parsing.

we use the training dataset only for training the U-Net

semantic segmentation model. The segmentation in-

formation used to isolate target object pixels from the

background and the features of the U-Net segmenta-

tion model is used in image comparison module de-

scribed in Section 3.3.1.

4.2 Deformable Registration with

Known Poses

We perform deformable registration using our

proposed end-to-end differentiable pipeline using

stochastic gradient descent (SGD) with momentum

of 0.9. We also use exponential learning rate decay

with γ of 0.95. We run the optimization process until

the image comparison loss reaches a plateau, but limit

the maximum number of iterations to 30. Similarly to

our baseline methods, we assume that the canonical

mesh is initialized in the correct 6D pose and opti-

mize only the vertex positions. Meshes provided by

the DeepCPD dataset are not watertight. Tiny invis-

ible holes on the surface of the meshes develop into

larger visible holes during iterative deformable reg-

istration process. Large holes on the surface of the

meshes make comparing rendered and observed im-

ages harder. To alleviate this issue, we convert the

meshes provided by DeepCPD dataset into watertight

meshes using the ManifoldPlus algorithm (Huang

et al., 2020). Converting a non-watertight mesh into

watertight mesh retraining vertex color information is

non-trivial. Thus, most of the algorithms, including

ManifoldPlus, ignore the vertex color. Moreover, our

pipeline does not beneﬁt from having vertex colors.

Thus, we use uniform red color for all the vertices in

the canonical mesh.

The quantitative comparison with other methods

is shown in Table 1. For each vertex in the test in-

stance, we compute `

error distance to the nearest

vertex in the deformed canonical mesh and report the

mean error of the vertices. The error is computed on

the subsampled set of points for test instances as pro-

vided by the DeepCPD dataset. Our method performs

only slightly worse than DeepCPD (Rodriguez et al.,

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

112

Known Pose With Pose Noise

Canonical Deformed Canonical Deformed Observed

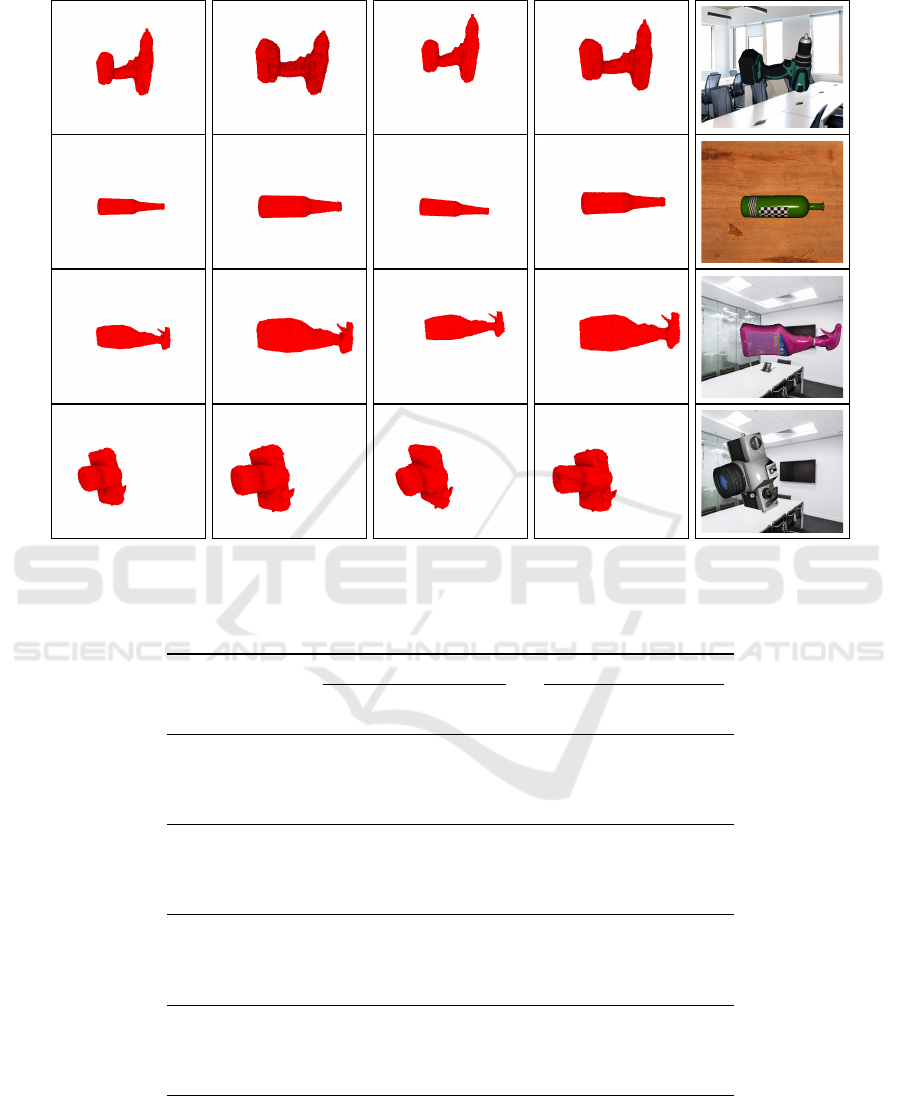

Figure 7: Visualization of 3D deformation. The canonical mesh is deformed to ﬁt the observed mesh iteratively using differ-

entiable rendering.

Table 1: Comparison of our approach with CLS (Myronenko and Song, 2010) and DeepCPD (Rodriguez et al., 2020). Mean

and (standard deviation) error values in µm.

Instance

Ground

Truth

Known Pose With Pose Noise

CLS DeepCPD Ours CLS DeepCPD Ours

(3D) (RGB) (RGB) (3D) (RGB) (RGB)

Camera T1 34.61 51.93 102.17 122.43 168.54 105.26 126.65

(1.97) (10.45) (47.89) (22.86) (357.8) (64.21) (28.31)

Camera T2 16.45 19.87 18.80 66.54 406.45 306.96 89.65

(1.61) (4.59) (5.11) (29.73) (492.03) (127.89) (33.54)

Bottle T1 23.25 25.92 45.21 52.63 297.79 227.90 75.41

(2.34) (5.18) (9.75) (19.45) (579.49) (146.0) (34.23)

Bottle T2 90.42 72.33 88.35 112.84 852.40 289.36 112.76

(28.54) (11.35) (18.39) (25.78) (1818) (147.68) (31.76)

Spray T1 29.84 30.78 47.87 77.74 1035 146.89 89.59

(1.42) (1.89) (12.99) (26.95) (406.69) (117.57) (33.75)

Spray T2 111.94 121.19 154.97 151.21 1488 255.69 178.42

(14.29) (19.16) (82.34) (79.76) (554.33) (167.32) (88.14)

Drill T1 21.18 28.86 52.71 71.54 232.35 92.96 84.34

(0.949) (1.42) (23.54) (34.56) (1325) (58.23) (43.56)

Drill T2 63.95 58.50 119.88 134.21 215.54 262.31 157.27

(5.23) (21.51) (107.43) (89.16) (565.48) (228.40) (96.36)

2020) but does not require any specialized learning

components for estimating deformation. The perfor-

mance across the different object categories is also

similar to DeepCPD, indicating that gradients of the

loss function with respect to the vertices computed us-

ing the differentiable renderer serves as a good surro-

gate for the learned CPD deformations. Additionally,

some qualitative visualizations are shown in Fig. 7.

Iterative 3D Deformable Registration from Single-view RGB Images using Differentiable Rendering

113

One can observe that the rendered deformed mesh

ﬁts the observed mesh nicely. Our method not only

works for objects with simple geometry like bottles

but also for objects with complex geometry like drills

and sprays.

4.3 Joint Deformable Registration and

Pose Optimization

One of the major advantages of our approach com-

pared other methods is the ability to jointly optimize

for 6D object pose along with deformable registra-

tion. To demonstrate this feature, we randomly sam-

ple offsets in the range of [-0.05, 0.05] m for the x

and y translation components and [-15°and 15°] for

the rotation components. Although our method can

optimize z translation along with other pose param-

eters, optimizing both z translation and vertex posi-

tion jointly is an ill-posed problem. Thus, we include

offsets only for x and y translation components. Dur-

ing the joint pose optimization and deformable reg-

istration process, we update the shape parameters at

a higher frequency than the pose parameters, i.e. we

update the pose parameters once per three shape pa-

rameter updates. This is based on the observation that

the pose parameters require fewer updates to converge

than shape parameters. Quantitative results of joint

pose and shape optimization is presented in Table 1.

Our mean error only increases marginally when pose

noise is injected, indicating that our method is less

susceptible to pose initialization errors than compet-

ing methods.

5 CONCLUSION

We presented StilllebenDR, a lightweight differen-

tiable rendering library speciﬁcally designed for real-

time robotics applications and used it in an end-to-end

differentiable pipeline to solve deformable registra-

tion. Given a canonical object mesh and an observed

image of a novel instance of the same object cate-

gory, we optimize the latent shape-space of the canon-

ical mesh to minimize the error between rendered

canonical meshes and observed images. Our method

achieves results comparable to the state-of-the-art

methods for deformable registration from single-view

RGB images without any learning components. Fur-

thermore, our pipeline is easily extendable to include

object pose parameter optimization. We showed opti-

mizing object pose parameters along with deformable

registration makes our pipeline less susceptible to

pose initialization errors.

REFERENCES

Allen, B., Curless, B., and Popovi

c, Z. (2003). The space

of human body shapes: Reconstruction and parame-

terization from range scans. ACM Transactions On

Graphics (TOG), 22(3):587–594.

Appalaraju, S. and Chaoji, V. (2017). Image sim-

ilarity using deep CNN and curriculum learning.

arXiv:1709.08761.

Barrow, H., Tenenbaum, J., Hanson, A., and Riseman, E.

(1978). Recovering intrinsic scene characteristics.

The Journal of Computer and System Sciences, 2(3-

26):2.

Bavoil, L. and Sainz, M. (2008). Screen space am-

bient occlusion. NVIDIA developer information:

http://developers. nvidia. com, 6.

Brown, B. J. and Rusinkiewicz, S. (2007). Global non-rigid

alignment of 3D scans. In ACM SIGGRAPH.

Bui, M., Zakharov, S., Albarqouni, S., Ilic, S., and Navab,

N. (2018). When regression meets manifold learning

for object recognition and pose estimation. In IEEE

International Conference on Robotics and Automation

(ICRA).

Chen, W., Ling, H., Gao, J., Smith, E., Lehtinen, J., Jacob-

son, A., and Fidler, S. (2019). Learning to predict 3D

objects with an interpolation-based differentiable ren-

derer. In Advances in Neural Information Processing

Systems (NeurIPS), pages 9609–9619.

Debevec, P. (2006). Image-based lighting. ACM SIG-

GRAPH 2006 Courses.

Finlayson, G. D., Drew, M. S., and Lu, C. (2004). Intrinsic

images by entropy minimization. In European confer-

ence on computer vision (ECCV), pages 582–595.

Gkioxari, G., Malik, J., and Johnson, J. (2019). Mesh R-

CNN. In IEEE International Conference on Computer

Vision (ICCV), pages 9785–9795.

Groueix, T., Fisher, M., Kim, V. G., Russell, B. C., and

Aubry, M. (2018). A papier-m

ach

e approach to learn-

ing 3D surface generation. In IEEE Conference on

Computer Vision and Pattern Recognition (CVPR).

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask R-CNN. In IEEE International conference on

Computer Vision (ICCV), pages 2961–2969.

Hodan, T., Barath, D., and Matas, J. (2020). EPOS: Esti-

mating 6D pose of objects with symmetries. In IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR).

Hoda

n, T., Sundermeyer, M., Drost, B., Labb

e, Y., Brach-

mann, E., Michel, F., Rother, C., and Matas, J. (2020).

BOP challenge 2020 on 6D object localization. In

European Conference on Computer Vision (ECCV),

pages 577–594.

Huang, J., Zhou, Y., and Guibas, L. (2020). Mani-

foldPlus: A robust and scalable watertight mani-

fold surface generation method for triangle soups.

arXiv:2005.11621.

Kato, H., Beker, D., Morariu, M., Ando, T., Matsuoka, T.,

Kehl, W., and Gaidon, A. (2020). Differentiable ren-

dering: A survey. arXiv:2006.12057.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

114

Kim, V. G., Lipman, Y., and Funkhouser, T. (2011).

Blended intrinsic maps. ACM Transactions On

Graphics (TOG), 30(4):1–12.

Krull, A., Brachmann, E., Michel, F., Ying Yang, M.,

Gumhold, S., and Rother, C. (2015). Learning

analysis-by-synthesis for 6D pose estimation in RGB-

D images. In IEEE International Conference on Com-

puter Vision (ICCV), pages 954–962.

Kuehne, B., True, T., Commike, A., and Shreiner, D.

(2005). Performance OpenGL: Platform independent

techniques. In ACM SIGGRAPH 2005 Courses.

Kundu, A., Li, Y., and Rehg, J. M. (2018). 3D-RCNN:

Instance-level 3D object reconstruction via render-

and-compare. In IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR), pages 3559–

3568.

Labbe, Y., Carpentier, J., Aubry, M., and Sivic, J. (2020).

CosyPose: Consistent multi-view multi-object 6D

pose estimation. In European Conference on Com-

puter Vision (ECCV).

Li, Y., Wang, G., Ji, X., Xiang, Y., and Fox, D. (2018).

DeepIM: Deep iterative matching for 6D pose esti-

mation. In European Conference on Computer Vision

(ECCV), pages 683–698.

Liu, S., Li, T., Chen, W., and Li, H. (2019). Soft Rasterizer:

A differentiable renderer for image-based 3D reason-

ing. In IEEE International Conference on Computer

Vision (ICCV), pages 7708–7717.

Loper, M. M. and Black, M. J. (2014). OpenDR: An ap-

proximate differentiable renderer. In European Con-

ference on Computer Vision (ECCV), pages 154–169.

Mantiuk, R., Kim, K. J., Rempel, A. G., and Heidrich, W.

(2011). HDR-VDP-2 : A calibrated visual metric

for visibility and quality predictions in all luminance

conditions. ACM Transactions on graphics (TOG),

30(4):1–14.

Merry, B. (2012). Performance tuning for tile-based archi-

tectures. OpenGL Insights, page 323.

Mescheder, L., Oechsle, M., Niemeyer, M., Nowozin, S.,

and Geiger, A. (2019). Occupancy networks: Learn-

ing 3D reconstruction in function space. In IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 4460–4470.

Moreno, P., Williams, C. K., Nash, C., and Kohli, P. (2016).

Overcoming occlusion with inverse graphics. In Euro-

pean Conference on Computer Vision (ECCV), pages

170–185.

Myronenko, A. and Song, X. (2010). Point set registra-

tion: Coherent point drift. IEEE Transactions on

Pattern Analysis and Machine Intelligence (TPAMI),

32(12):2262–2275.

Pan, J., Han, X., Chen, W., Tang, J., and Jia, K. (2019).

Deep mesh reconstruction from single RGB images

via topology modiﬁcation networks. In IEEE Interna-

tional Conference on Computer Vision (ICCV), pages

9964–9973.

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Killeen, T., Lin, Z., Gimelshein, N.,

Antiga, L., Desmaison, A., Kopf, A., Yang, E., De-

Vito, Z., Raison, M., Tejani, A., Chilamkurthy, S.,

Steiner, B., Fang, L., Bai, J., and Chintala, S. (2019).

PyTorch: An imperative style, high-performance deep

learning library. In Advances in Neural Information

Processing Systems (NeurIPS), pages 8024–8035.

Pavlakos, G., Zhu, L., Zhou, X., and Daniilidis, K. (2018).

Learning to estimate 3D human pose and shape from a

single color image. In IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 459–

468.

Peng, S., Liu, Y., Huang, Q., Zhou, X., and Bao, H. (2019).

PVNet: Pixel-wise voting network for 6DOF pose es-

timation. In IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 4561–4570.

Periyasamy, A. S., Schwarz, M., and Behnke, S. (2019).

Reﬁning 6D object pose predictions using abstract

render-and-compare. In IEEE-RAS 19th International

Conference on Humanoid Robots (Humanoids), pages

739–746.

Pharr, M., Jakob, W., and Humphreys, G. (2016). Phys-

ically based rendering: From theory to implementa-

tion. Morgan Kaufmann.

Ravi, N., Reizenstein, J., Novotny, D., Gordon, T., Lo, W.-

Y., Johnson, J., and Gkioxari, G. (2020). Accelerating

3D deep learning with PyTorch3D. In European Con-

ference on Computer Vision (ECCV).

Rodriguez, D., Cogswell, C., Koo, S., and Behnke, S.

(2018). Transferring grasping skills to novel instances

by latent space non-rigid registration. In IEEE In-

ternational Conference on Robotics and Automation

(ICRA), pages 1–8.

Rodriguez, D., Huber, F., and Behnke, S. (2020). Category-

level 3D non-rigid registration from single-view RGB

images. IEEE/RSJ International Conference on Intel-

ligent Robots and Systems (IROS).

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

Net: Convolutional networks for biomedical image

segmentation. In International Conference on Medi-

cal image computing and computer-assisted interven-

tion (MICCAI), pages 234–241.

Schwarz, M. and Behnke, S. (2020). Stillleben: Realistic

scene synthesis for deep learning in robotics. IEEE

International Conference on Robotics and Automation

(ICRA).

Spitzer, J. (2003). OpenGL performance tuning. In NVIDIA

Corporation, GameDevelopers Conference.

Tappen, M. F., Freeman, W. T., and Adelson, E. H. (2005).

Recovering intrinsic images from a single image.

IEEE Transactions on Pattern Analysis and Machine

Intelligence (TPAMI), 27(9):1459–1472.

Wang, N., Zhang, Y., Li, Z., Fu, Y., Liu, W., and Jiang, Y.-

G. (2018). Pixel2Mesh: Generating 3D mesh models

from single RGB images. In European Conference on

Computer Vision (ECCV), pages 52–67.

Wang, Z., Bovik, A., Sheikh, H., and Simoncelli, E. (2004).

Image quality assessment: From error visibility to

structural similarity. IEEE Transactions on Image

Processing, 13(4):600–612.

Wang, Z., Simoncelli, E. P., and Bovik, A. C. (2003). Mul-

tiscale structural similarity for image quality assess-

Iterative 3D Deformable Registration from Single-view RGB Images using Differentiable Rendering

115

ment. In Asilomar Conference on Signals, Systems &

Computers (ACSSC), volume 2, pages 1398–1402.

Xiang, Y., Schmidt, T., Narayanan, V., and Fox, D. (2018).

PoseCNN: A convolutional neural network for 6D ob-

ject pose estimation in cluttered scenes. Robotics: Sci-

ence and Systems (RSS).

Xu, Y., Zhu, S.-C., and Tung, T. (2019). DenseRAC: Joint

3D pose and shape estimation by dense render-and-

compare. In IEEE International Conference on Com-

puter Vision (ICCV), pages 7760–7770.

Zagoruyko, S. and Komodakis, N. (2015). Learning to com-

pare image patches via convolutional neural networks.

In IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), pages 4353–4361.

Zeng, Y., Wang, C., Wang, Y., Gu, X., Samaras, D., and

Paragios, N. (2010). Dense non-rigid surface registra-

tion using high-order graph matching. In IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 382–389.

Zhang, L., Zhang, L., Mou, X., and Zhang, D. (2011).

FSIM: A feature similarity index for image quality as-

sessment. IEEE Transactions on Image Processing,

20(8):2378–2386.

Zhang, R., Isola, P., Efros, A. A., Shechtman, E., and Wang,

O. (2018). The unreasonable effectiveness of deep

features as a perceptual metric. In IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 586–595.

Zienkiewicz, J., Davison, A., and Leutenegger, S. (2016).

Real-time height map fusion using differentiable ren-

dering. In IEEE/RSJ International Conference on

Intelligent Robots and Systems (IROS), pages 4280–

4287.

VISAPP 2022 - 17th International Conference on Computer Vision Theory and Applications

116
