A Scoring Map Algorithm for Automatically Detecting Structural

Similarity of DOM Elements

Julián Grigera

1,2,3

, Juan Cruz Gardey

1,2

, Alejandra Garrido

1,2

and Gustavo Rossi

1,2

LIFIA, Facultad de Informática, Universidad Nacional de La Plata, La Plata, CP 1900, Argentina

CONICET, Argentina

CICPBA, Argentina

Keywords: Information Extraction, Web Adaptation, Refactoring for Usability.

Abstract: Most documents in the WWW are generated from templates that represent user interface (UI) elements, and

later filled with contents. In the field of information extraction, many approaches emerged to analyze the

documents’ structure, obtain similar features amongst them, and generate wrappers that are used to extract

the raw contents from such documents. Therefore, most techniques documented in the literature are optimized

to compare full documents, but there are other fields of applicability that require analyzing structural similarity

on smaller UI components, like web augmentation or transcoding. In this paper we present two flexible

algorithms to measure similarity between DOM Elements by using a mixed approach that considers both

elements’ location and inner structure. The proposed algorithms were used in the context of two projects: an

approach for automatic usability refactoring, and a web accessibility helper. We also present a wrapper

induction technique based on such algorithms. Additionally, we present a precision & recall evaluation of our

algorithms as compared with other known approaches, applied to DOM elements of different sizes, but

smaller than full scaled documents. The proposed algorithms run in linear time, so they are faster than most

approaches that analyze structural similarity.

1 INTRODUCTION

The world changed profoundly when 25 years ago,

Tim Berners-Lee publicized the World Wide Web

project and invited wide collaboration (W3C, 2016).

Thanks to that turning point in our history, today we

possess the largest data repository for all people and

all fields of science. However, being able to profit

from this huge amount of data requires building

increasingly complex automation techniques in two

main areas of research that are of our interest: informa-

tion extraction, and human-computer interaction (HCI)

aspects like adaptability and usability.

In the area of information extraction, it is essential

to recognize document structure and identify

structural similarity, since this allows clustering

functionally equivalent components and design

cluster-specific mining algorithms for each cluster

(Omer, Ruth, & Shahar, 2012; Joshi et al, 2003). For

example, in a news portal that shows all articles in

structurally similar components (in terms of inner

elements and look-and-feel), this similarity could be

identified by news extraction applications to separate

presentation from content (Reis et al, 2004). Other

approaches in the Area of Web Engineering even use

variants of Web Scraping to make the application

development process easier (Norrie et al, 2014).

Meanwhile, in the field of HCI, there is an increasing

demand to automatically improve the user experience

in the web, including techniques for adaptability,

personalization, accessibility, and usability. Among

the research works in this area we may find

techniques like adaptation mechanisms for touch-

operated mobile devices (Nebeling, Speicher &

Norrie, 2013), transcoding to improve accessibility

(Asakawa & Takagi, 2008), augmentation to create

personalized applications versions (Diaz, 2012) and

our own work on refactoring to improve usability

(Grigera et al 2016; Grigera, Garrido & Rivero, 2014)

and accessibility (Garrido et al, 2013). For the sake of

conciseness, in this article we will call all these

techniques web adaptations. We claim that for these

techniques to work correctly and fully unattended at

a large scale, the ability to detect structural similarity

in pages or smaller UI elements is essential. For

example, if an e-commerce website has an

accessibility problem in the UI element that displays

a product, it will inevitably have the same problem in

174

Grigera, J., Gardey, J., Garrido, A. and Rossi, G.

A Scoring Map Algorithm for Automatically Detecting Structural Similarity of DOM Elements.

DOI: 10.5220/0010716300003058

In Proceedings of the 17th International Conference on Web Information Systems and Technologies (WEBIST 2021), pages 174-185

ISBN: 978-989-758-536-4; ISSN: 2184-3252

all products, and it will be important to apply a solution

to all instances, no matter the product. Therefore, in our

research objective to automatically improve usability

in web pages, we found that we could benefit from the

work on data extraction, as we have a challenge in

common: automatically and precisely discover the

structure and similarity of web content to be able to

cluster it before further processing.

It is interesting to note that web adaptations, even

if they can be compared to “code adaptations” (i.e.,

refactorings and program transformations), have a

fundamental difference from the approach used in

code refactoring tools, in which code smells are

detected and solved on a per-instance basis. Since UI

elements from web documents are automatically

generated from templates, as opposed to manually

crafted code snippets, web adaptations at large should

generally work like program restructuring

transformations (Akers et al, 2005): all instances of a

problem should be matched and fixed at once.

The challenge of detecting structural similarity is

generally addressed by the fact that most data

intensive websites generate their content

dynamically, by retrieving it from a database and

displaying it using template-generated pages. Thus, in

the field of information extraction, several

approaches were devised to discover the structure in

the underlying templates. These approaches typically

produce a wrapper, which is then used to match all

structurally similar pages and extract their raw

contents. Once the similar pages are grouped in

clusters, the wrapper is generated by identifying the

common structure within each cluster (Joshi et al,

2003). Several algorithms used to cluster similar

pages compute tree edit distance between the DOM

structure of entire pages (Omer, Ruth, & Shahar,

2012; Reis et al, 2004). Since these algorithms are

computationally expensive, other approaches have

been proposed to measure structural similarity with

improved execution time, but mostly at the expense

of accuracy (Joshi et al, 2003; Buttler, 2004).

Besides the problems with execution time,

complexity of data structure and accuracy, most

techniques for data extraction using structural

clustering are effective when applied to full

documents. Since the algorithms generally consider the

inner structure of deep trees, they usually get poorer

results in the comparison of smaller DOM elements

that consist of only few nodes. However, web

adaptation techniques like transcoding or refactoring

are generally applied on such DOM elements. For

XML Path Language http://www.w3.org/TR/xpath-31/

(accessed Aug 25, 2016)

example, the adaptations for mobile interfaces allowed

by the tool W3Touch, may be used to resize all menu

items with touch-related problems inside a page

(Nebeling, Speicher & Norrie, 2013). Another example

is the usability refactoring “Turn Attribute into Link”

(Garrido, Rossi & Distante, 2011), which may be used

to insert a link in all similar elements of a list.

The problem of comparing similarity between

DOM elements has been addressed before, usually by

comparing the elements’ relative position in a

document using XPath locators

(Grigalis & Čenys,

2014; Amagasa, Wen & Kitagawa, 2007; Zheng et al,

2009). However, while they may successfully detect

similar elements arranged in iterative structures (like

lists or menus), they are weaker in the cases where

similar elements are placed in different locations.

When this happens, the elements’ inner structure can

help to determine similarity where the location failed

to do so, if the structure is complex enough.

In this paper we present an algorithm designed to

detect similarity in DOM elements of different sizes.

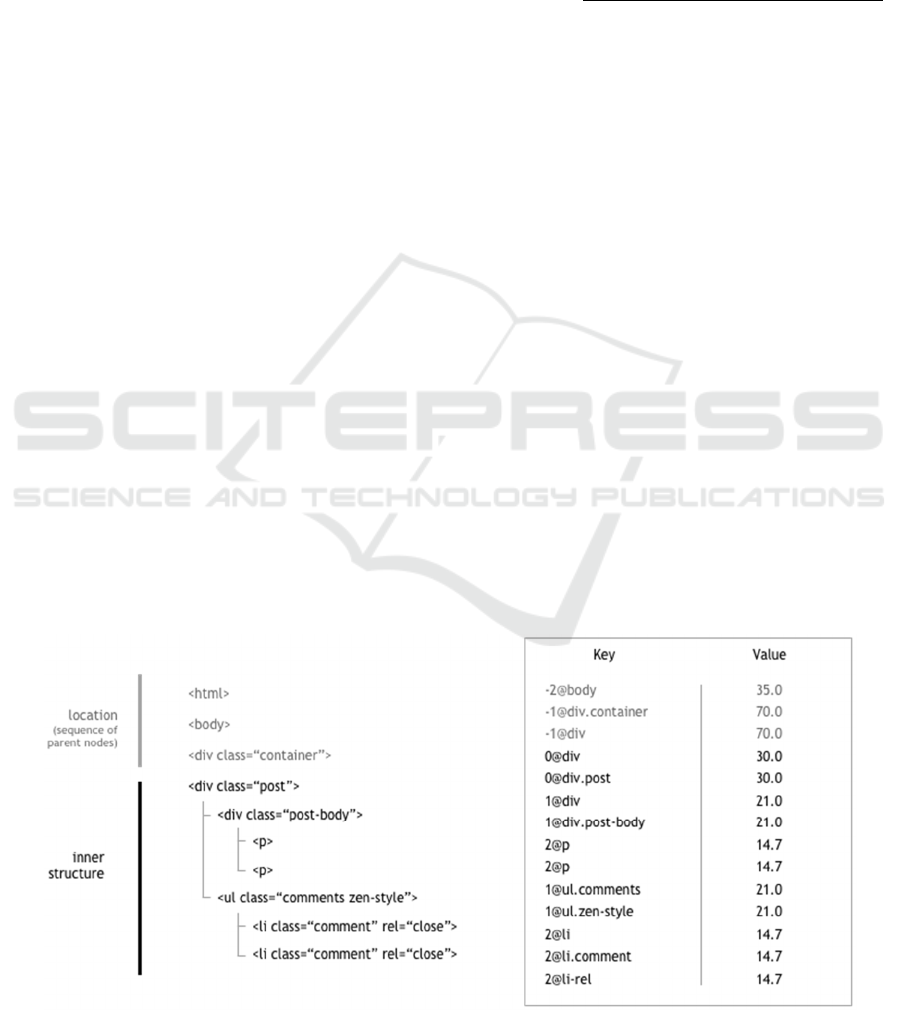

This algorithm is based on the comparison of both

XPath locators and inner structure, including relevant

tag attributes. Additionally, a variant of this algorithm

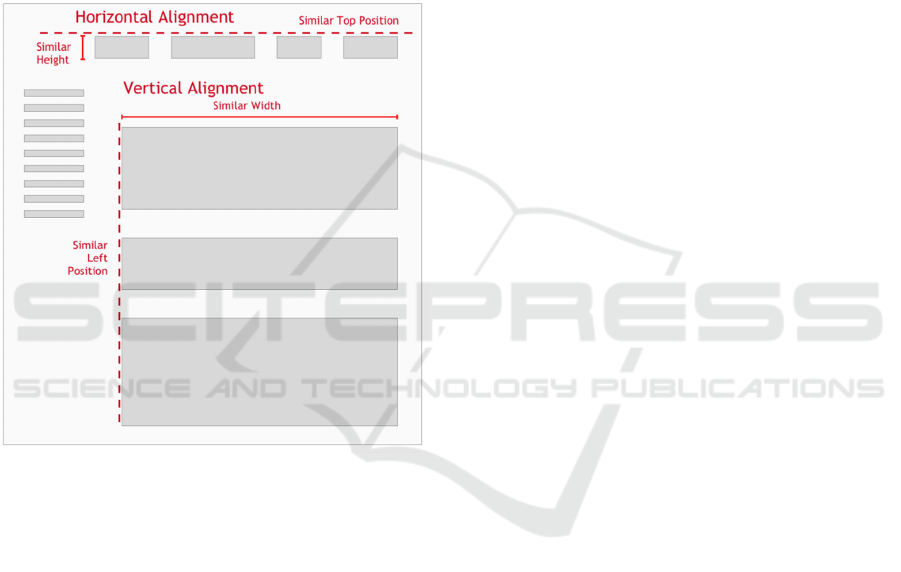

is presented, which considers also on-screen

dimensions and position of the elements. In order to

show their applicability, we describe how we apply

these algorithms in two approaches for web

adaptation in usability and accessibility.

Our algorithms can successfully compare and

cluster elements as small as single nodes but has also

the flexibility to compare larger elements with the

same accuracy, or even better than state-of-the-art

methods. We support this claim with an evaluation

and explain the results and performance differences

with respect to other algorithms. Additionally, a

wrapper induction technique is presented, that is

based on the Scoring Map algorithm.

In summary, this paper we make the following

contributions:

 We present two algorithms that compute a

similarity measure between DOM elements

and perform well with different element sizes.

 We show the applicability of the algorithms in

two different projects for web usability and

accessibility. The DOM element comparison is

used for clustering elements with the same

usability smell in one case, and accessibility

smell in the other; the inducted wrapper is then

used to fix the bad smells by refactoring or

transcoding.

A Scoring Map Algorithm for Automatically Detecting Structural Similarity of DOM Elements

175

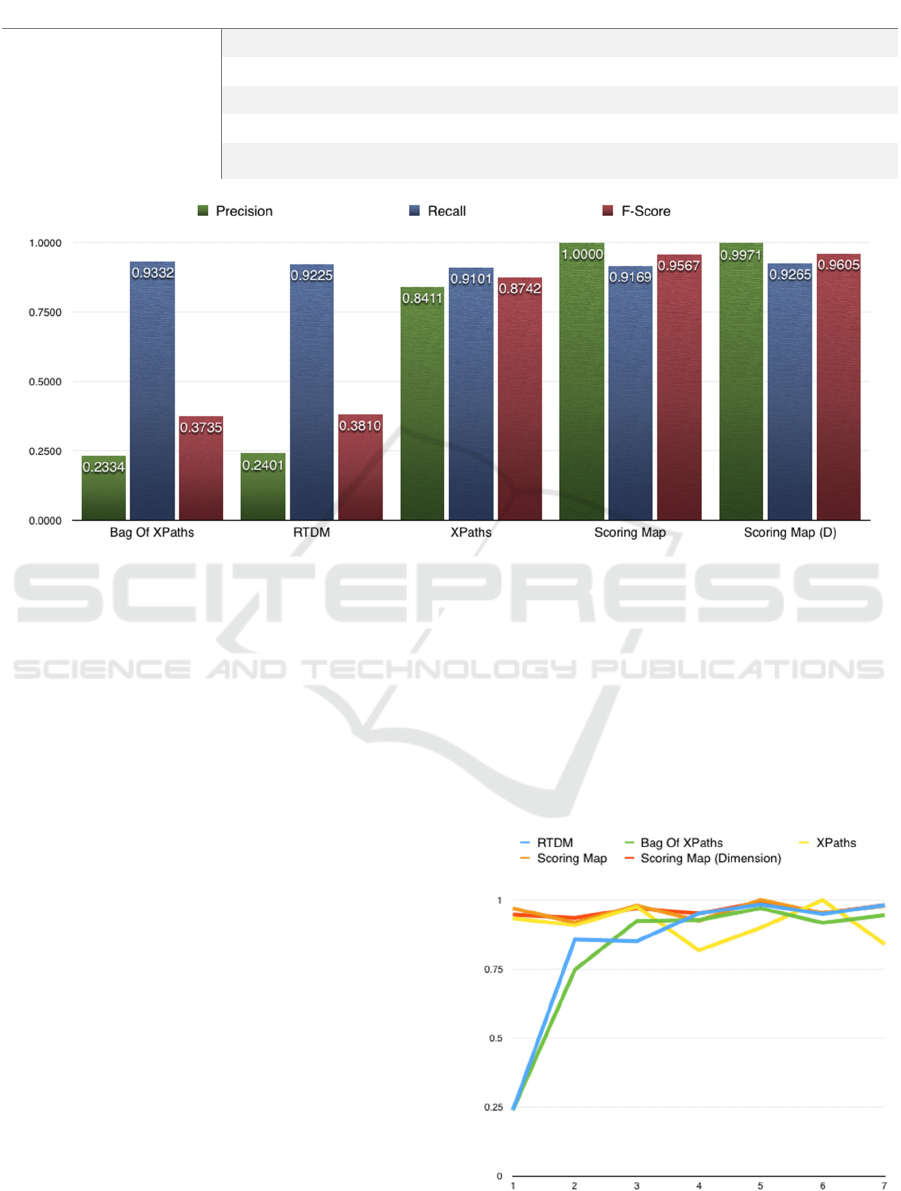

 We assess the performance of the algorithms in

comparison to others found in the literature

through an empirical evaluation, with a set of

more than 800 DOM elements of different sizes

from well-known sites.

2 RELATED WORK

Existing literature in the area shows several different

ways of detecting similarity between DOM elements.

Some of these techniques are applicable to any tree

structure, and some are specific to XML or HTML

structures. Many of these methods can be found in an

early review by Buttler (2004). We present the related

work in three groups: tree edit distance algorithms,

bag of paths methods, and other approaches.

2.1 Tree Edit Distance Algorithms

Since DOM elements can be represented as tree

structures, they can be compared with some similarity

measure between trees, such as edit distance. This

technique is a generalization of string edit distance

algorithms like Levenshtein’s (1966), in which two

strings are similar depending on the amount of edit

operations required to go from one to the other.

Operations typically consist in adding or removing a

character and replacing one character for another.

Since the Tree Edit Distance algorithms are

generally very time-consuming (up to quadratic time

complexity), different approaches emerged to

improve their performance. One of the first or such

algorithms proposed by Tai (1979) uses mappings,

i.e. sets of edit operations without a specific order, to

calculate tree-to-tree edition cost. Following Tai’s,

other algorithms based on mappings were proposed,

mainly focused on improving the running times. A

popular one is RTDM (Restricted Top-Down

Distance Metric) (Reis, 2004), which uses mappings

such as Tai’s but with restrictions on the mappings

that make it faster. Building on RTDM, Barkol,

Bergman & Shahar (2012) developed SiSTeR, which

is an adaptation that weights the repetition of

elements in a special manner, in order to consider as

similar two HTML structures that differ only in the

amount of similar children at any given level (e.g. two

blog posts with different amounts of comments).

Other restricted mapping methods were

developed, like the bottom-up distance (Valiente,

2001), but RTDM and its variants are more suited for

DOM elements where nodes closer to the root are

generally more relevant than the leaves.

Griasev and Ramanauskaite modified the TED

algorithm to compare HTML blocks [Griasev18].

They weight the cost of the edit operations depending

on the tree level in which they are performed, giving

a greater cost to those that occur at a higher level.

Moreover, since different HTML tags can be used to

achieve the same result, their version of the algorithm

also accounts for tag interchangeability.

TED algorithms have also been proposed to

compare entire web pages [Xu17]. This work defines

the similarity of two web pages as the edit distance

between their block trees; structures that contain both

structural and visual information.

2.2 Bag of Paths

Another approach to calculate similarity between

trees is by gathering all paths / sequences of nodes

that result from traversing the tree from the root to

each leaf node, and then comparing similarity

between the bags of paths of different trees. An

implementation of this algorithm for general trees

was published by Joshi et al (2003), with a variant for

the specific case of XPaths in HTML documents. The

latter was used in different approaches for documents

clustering (Grigalis & Čenys, 2014).

The bag of paths method has one peculiarity: the

paths of nodes for a given tree ignore the siblings’

relationships, and only preserve the parent-child

links. This results in a simpler algorithm that can still

get very good results in the comparisons. We have

similar structural restrictions in our algorithms, as we

explain later on in Section 3. The time complexity of

this method is (n

N), where n denotes the number of

documents and N the number of paths.

Another proposal similar to the Bag of Paths

approach in the broader context of hierarchical data

structures, is by using pq-grams (Augsten, Böhlen &

Gamper, 2005). Pq-grams are structurally rich

subtrees that can be represented as sequences. Each

tree to be compared is represented as a set of pq-

grams, then used in the comparison. This performs in

(n log n), where n is the number of tree nodes.

Our approach is similar to the aforementioned in

how it generates linear sequences to represent and

eventually compare tree structures, although relying

less on topological information and more on nodes’

specific information (such as HTML attributes).

2.3 Other Approaches

Different approaches have been developed that have

little or nothing to do with tree edition distance or

paths comparison. Many approaches like the one

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

176

proposed by Zen et. al [Zen2013], rely on visual cues

from browser renderings to identify similar visual

patterns on webpages without depending on the DOM

structure. Another interesting work is that of using

fingerprinting to represent documents (Hachenberg &

Gottron, 2013), enabling a fast way of comparing

documents without the need of going through them

completely, but by comparing their hashes instead.

Locality preserving hashes are particularly appealing

in this context, since the hash codes change according

to their contents, instead of avoiding collisions like

regular hash functions do.

Most of the previous methods focus on the inner

structure of documents, but few consider external

factors (amongst the ones commented here, only the

work of Grigalis and Çenys (2014) use inbound links

to determine similarity). This is due to the fact that

these approaches are generally designed to compare

full documents. There are however some works

focused on comparing smaller elements where

external factors like location play a more important

role. Amagasa, Wen and Kitagawa (2007) use XPath

expressions to identify elements in XML documents,

which is an effective approach given that XML

definitions usually have more diverse and meaningful

labels than, for instance, HTML. Other works focused

on HTML elements also use tag paths: Zheng, Song,

Wen, and Giles generate wrappers for small elements,

to extract information from single entities (Zheng et

al, 2009). In this work the authors propose a mixed

approach based on a “broom” structure, where tag

paths are used identify potentially similar elements,

and then inner structure analysis is performed to

generate wrappers.

Our approach is also a combined method that

considers some of the inner structure of the elements,

but also their location inside the document where they

are contained.

3 A SCORING MAP ALGORITHM

TO DETECT DOM ELEMENTS

The proposed algorithm for detecting similarity

between DOM elements is a weighted comparison of

two aspects: location inside the DOM tree, and inner

structure. As the inner structure grows larger, the

more relevant it becomes in the final score.

Conversely, when the structure is smaller, the

location path that gains more relevance. This

adjustable scoring method makes the algorithm

flexible, enabling it to detect both small and large

DOM elements in terms of tree structure. In this

section we also introduce a variant that considers also

the elements’ dimensions and position as rendered in

the screen. Finally, we show a wrapper induction

technique based on the proposed algorithm and

analyze the time complexity.

3.1 Scoring Map Algorithm

The proposed algorithm processes the comparison in

two steps: first, it generates a map of the DOM

elements to be compared, where some fundamental

aspects are captured, such as tag names organized by

level (i.e., depth within the tree), along with relevant

attributes (e.g. class), but ignoring text nodes. Then,

these maps are compared to each other, generating a

similarity score, which is a number between 0 and 1.

The main benefit of constructing such map structure,

which is created in linear time, is that it enables

computing the similarity measure also in linear time

(with respect to the number of nodes).

The map summarizes key aspects of the elements’

structure and location. Considering a single DOM

element’s tree structure, the map captures the

following information for each node:

 Level number, which indicates depth in the

DOM tree, where the target node’s level is 0,

its children 1, and so on. Parent nodes are also

included using negative levels, i.e. the closest

ancestor has level -1.

 Tag name, often used as label in general tree

algorithms.

 Relevant attributes, in particular CSS class.

 Score, which is a number assigned by the

algorithm representing the relevance of the

previous attributes when comparison is made.

In the map, the level number, tag name and

attributes together compose the key, and the score is

the value, but since HTML nodes can contain many

attributes, there will be one key for each, with the

same level number and tag name. This way. a node

will in fact generate many entries in the map, one for

each attribute. For example, if a DOM element

contains the following node:

the map is populated with 3 entries: one for the

div

label alone, one for the

div label with the id

attribute, and 2 more for the

class attribute, one for

each value:

main and zen. Only values of the class

attribute are considered, other attributes are kept

without their values. In this case, all three entries

would get a same score (later in this section we

explain how this is determined). Also, if this element

A Scoring Map Algorithm for Automatically Detecting Structural Similarity of DOM Elements

177

were repeated, only one set of entries would be

entered since a map cannot have repeated keys, which

is actually a desirable property for an algorithm that

applies to HTML elements. Documents generated by

HTML templates typically contain iteratively

generated data, e.g., comments in a post. In this case,

two posts from a same template should always be

considered similar, no matter the different amounts of

comments on each one. Therefore, comparing only

one entry for a set of equivalent DOM elements is

likely to obtain better results than considering them

as distinct (Omer, Ruth & Shahar, 2012).

This map organization is important in the second

step of the algorithm, where the actual comparison is

made based on these scores. A full example of a DOM

element and its scoring map is depicted in Fig. 1.

Two initial score values are set in the map: one at

the root, and one at the first parent node (levels 0 and

-1, respectively). These scores decrease sideways, i.e.

from the root down to the leaves, and from the first

parent node up to the higher ancestors. An important

aspect at this stage is how the initial score for the

parent node is generated, which is inversely

proportional to the height of the tree. This is key to

give our algorithm the flexibility to detect similar

elements relying less on their location when the trees

are large enough. In these cases, the inner structure

scores get more weight on the overall comparison.

Another aspect worth mentioning of the map

structure for the elements is how the tree structure is

captured. Notice that the only information for each

node regarding this structure is the level number (or

depth), which ignores the parent-child relationships

and also the order. The preliminary tests we ran, and

finally the experiment described in the following

section, showed that this makes the algorithm simpler

and faster, and does not implicate a significant

decrease in the obtained scores.

The final similarity score between the two

elements is made by comparing the values of their

maps. The following formula describes how we

obtain the similarity S between two elements once

their maps m and n are generated:

𝑆𝑚, 𝑛 

∑

max



𝑚



𝑘



,𝑛



𝑘





∗2

 ∈ 







∩

∑

𝑚



𝑘



 ∈ 



∑

𝑛



𝑘



 ∈ 

The function K(m) answers the set of keys of map

m, and m[k] returns the score for the key k in the map

m. In the dividend summation, we obtain the

intersection of the keys for both maps. For each of

these keys, we obtain the scores in both maps and get

the highest value (with max(m[k],n[k])) times 2. The

divisor term adds the total scores of both maps. This

function intends to compare similitude in maps using

their common keys over the number of combined

keys, much like the Jaccard index calculates the ratio

between intersection and union in sample sets. It is

also to the way the Bag of Paths algorithm calculates

similarity (Joshi et al, 2003).

3.2 Dimensional Variant

We devised an alternative algorithm that also

considers size and position of the elements to improve

the detection of similar elements when their inner

structure is scarce. This criterion considers on-screen

position and dimension to determine if two elements

are part of a series of repetitive, similar widgets.

It is usual for repeating DOM elements to be

aligned, either vertically or horizontally. In such

cases, it is also usual for one of their dimensions to be

Figure 1: Sample DOM Element and its corresponding comparison map.

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

178

also equal; in the case of horizontal alignment, the

height (e.g. a top navigation menu), and in the case of

vertical alignment, the width (e.g. products listing).

By using these properties in repetitive elements,

we obtain a dimensional similarity measure between

0 and 1 for either of the two cases (i.e. vertical or

horizontal alignment), in the compared elements.

For each of the two potential alignments, this

measure is calculated by obtaining the absolute values

of the proportional differences in position and dimen-

sion. The higher of both alignment measures is then

considered as an extra weighted term to the similarity

formula. A visual example is shown in Fig. 2.

Figure 2: Dimensional alignment example in DOM

Elements.

In current web applications, it is usual to find

responsive layouts that adapt their contents to

different devices. This could harm the dimensional

scores when different sized elements are the same but

rendered in different devices. Depending on the case,

this may lead to wrong results, but also can be

beneficial to detect them as different elements, e.g. in

the field of applicability of web adaptation where

different adaptations can be applied to the UI

depending on the device.

This variant has shown improvements over the

base algorithm in elements with little structure, but

imposes an extra step in the capture to gather the

elements’ bound boxes. The base algorithm, on the

other hand, can be applied to any DOM element

represented with the HTML code only.

3.3 Time Complexity

The algorithm runs in O(n), i.e. linear time, with

respect to the size of the compared trees (being n the

total number of nodes). Even if there are two steps

involved, one for building the maps and a second to

perform the comparison, both are linear. It should be

noticed that calculating the intersection of keys for

the second step (function K(m) in the formula) is

linear given that only one of the structures is

traversed, while the other is accessed by key, which

is generally considered constant (O(1)) for maps or

dictionaries (although it can be, depending on the

language, linear with respect to the size of the key).

When applying the algorithm to larger DOM

structures, e.g. full documents, some improvements

could be made to make this time worst case O(n) in

practice, by applying a cutoff value when the

relevance score drops below a certain level. This

could reduce the trees traversing significantly, and

consequently decrease the size of the maps, while

keeping the most relevant score components.

3.4 Wrapper Induction

Using the algorithms described in this section, we

developed a way of generating wrappers that may be

later used to match new elements or retrieve raw

information from them.

Initially, a first element is taken as reference to

generate an initial map (the same way we explain in

section 3.1) that will be used as base map. Then, as

new elements are taken into consideration, we refine

the base map to iteratively generate the wrapper. The

way to achieve this is by generating a new map for

each new element (we will refer to as candidate map)

and apply the comparison algorithm, also described

in section 3.1. Depending on the result of this

comparison, we apply either positive or negative

reinforcements over the base map.

When comparing a candidate map with the base

map, if the result of the comparison is over a given

similarity threshold, we will first find all the

intersecting keys of both maps. The scores for these

keys on the base maps are positively reinforced, by

adding a reinforcement value. This value is calculated

as a proportion of the score for the same key in the

candidate map. During our experiments, we have

obtained best results with a proportion of 0.35, but

further analysis should be made to assess and

optimize this value. When the result of the

comparison between candidate and base maps do not

reach the similarity threshold, a negative

reinforcement is applied in a similar way, also to the

A Scoring Map Algorithm for Automatically Detecting Structural Similarity of DOM Elements

179

intersecting keys, by subtracting the same

reinforcement value. It is important that, no matter

how much negative reinforcement a score gets, it

never reaches a value below zero.

Intuitively, those keys that are shared among

similar elements, will get a higher score once the

wrapper induction is done. Conversely, those keys

that are too common, i.e. present in many different

elements in the document, will get a lower score, until

eventually reaching zero. This way, only the

distinctive keys (which represent tags and attributes)

end up being the most relevant in the wrapper.

4 APPLICABILITY

We developed and refined our algorithms to measure

structural similarity in the context of two different

Web Engineering approaches that make use of web

adaptation in the specific areas of usability and

accessibility. These approaches are described in the

next subsections.

4.1 Automatic Detection and

Correction of Usability Smells

The first use case for the Scoring Map algorithm is

automatic detection of usability problems on web

applications. This was developed to ease usability

assessment of web applications, since it is usually

expensive and tedious (Fernandez, Insfran &

Abrahão, 2011). Even when there are tools that

analyze user interaction (UI) events and provide

sophisticated visualizations, the repair process mostly

requires a usability expert to interpret testing data,

discover the underlying problems behind the

visualizations, and manually craft the solutions.

The approach is based on refactoring and its

capacity to incrementally improve not only internal

quality factors of a deployed application, but also

external ones, like usability (Distante et al, 2014) or

accessibility (Garrido et al, 2013). We build on the

concept of “bad smell” from the refactoring jargon

and characterize usability problems as “usability

smells”, i.e., signs of poor design in usability with

known solutions in terms of usability refactorings

(Garrido, Rossi & Distante, 2011).

The scoring map algorithm is then used in the tool

that supports this approach, the Usability Smell

Finder (USF). This tool analyses interaction events

from real users on-the-fly, discovers usability smells

and reports them together with a concrete solution in

terms of a usability refactoring (Grigera, Garrido &

Rivero, 2014). For example, USF reports the smell

"Unresponsive Element" when an interface element is

usually clicked by many users but does not trigger any

actions. This happens when such elements give a hint

because of their appearance. Typical elements where

we have found this smell include products list photos,

website headings, and checkbox/radio button labels.

Each time USF finds an instance of this smell in a

DOM element, it calculates the similarity of this

element with clusters of elements previously found

with the same smell. When the number of users that

run into this smell reaches certain threshold, USF

reports it suggesting the refactoring "Turn Attribute

into Link".

The wrapper induction technique presented in this

paper becomes useful at a later stage. The toolkit is able

in some cases to automatically correct a reported

usability smell by means of a client-side web

refactoring (CSWR) (Garrido et al, 2013), i.e., generic

scripts that are parameterized to be applied on DOM

elements in the client-side. Our proposal includes

applying CSWR automatically by parameterizing them

with the specific details of a detected usability smell

and making use of the wrapper to find all matching

elements that suffer from a same specific smell.

We obtained better results with the Scoring Map

algorithm than simple XPath comparison, given that

it works better on large elements, resisting HTML

changes (small elements get similar results, since

Scoring Map works in a similar way in these cases).

4.2 Use of Semantic Tags to Improve

Web Application Accessibility

According to W3C accessibility standards, most Web

applications are neither accessible nor usable for

people with disabilities. One of the problems is that

the content of a web page is usually fragmented and

organized in visually recognizable groups, which

added to our previous knowledge, allows sighted

users to identify their role: a menu, an advertisement,

a shopping cart, etc. On the contrary, unsighted users

don't have access to this visual information. We

developed a toolkit that includes a crowdsourcing

platform for volunteer users to add extra semantic

information to the DOM elements (Zanotti, 2016)

using predefined tags, in order to transcode the visual

information into a more accessible data presentation

(plain text). This extra information is then

automatically added on the client-side on demand,

which is aimed to improve some accessibility aspects

such as screen-reader functionalities.

By using an editor tool, when a user recognizes a

DOM element, the tool applies the structural simila-

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

180

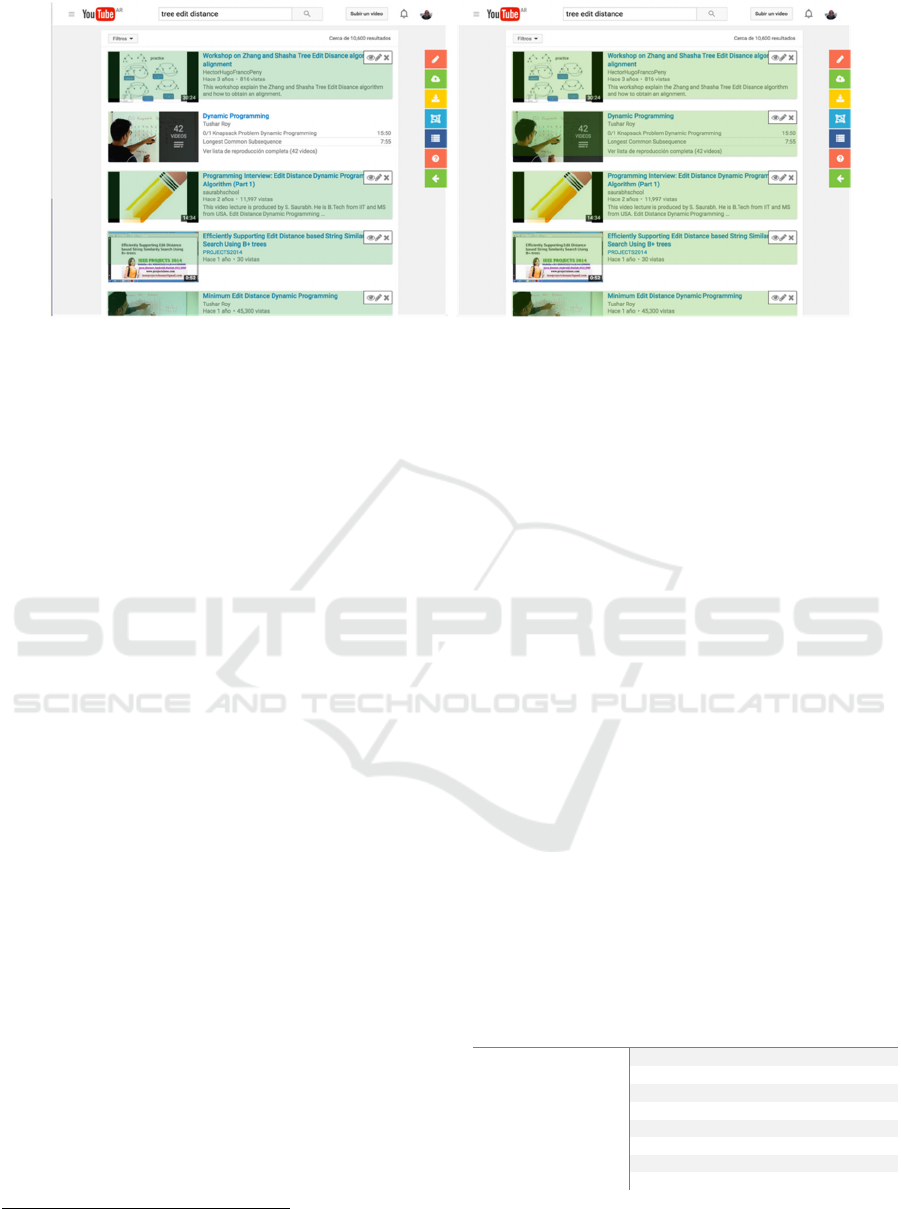

Figure 3: Web Accessibility Transcoder capturing similar DOM elements, using two different threshold values.

rity algorithm to find similar elements that should be

identically tagged within the page. For example, as

soon as the user tags a Facebook post, all other posts

are recognized as such and highlighted with the same

color. At this stage we applied our wrapper induction

method on the selected element to automatically tag

the similar ones. Small structural differences are

ignored, like the number comments. By adjusting the

threshold, users can cluster elements with higher

precision, e.g., successfully filtering out ads disguised

as content. The Scoring Map algorithm was actually

first developed during this work, since other

comparison methods didn’t have an adjustable

similarity threshold, or the required speed.

A screenshot of the tool capturing YouTube

videos thumbnails can be seen in Fig. 3, where the

threshold is adapted to include or exclude video lists

in the clustering.

This way, we can easily reduce the entire web

page into a limited set of semantically identifiable UI

elements that can be used to create accessible and

personalized views of the same web application, by

applying on-the-fly transformations to each semantic

element of the requested page. This happens in real

time, as soon as the page loads, even on DOM

changes, such as continuous content loading

applications like Facebook or Twitter. On each

refresh, the application applies different strategies to

look for DOM elements that match the previously

defined semantic elements, by applying the induction

wrapper, the application is able to recognize those

similar DOM elements where the new semantic

information has to be injected. This process must be

fast enough to avoid interfering on the user

experience, which is achieved with our method.

Alexa’s top 500 sites on the web http://www.alexa.com/topsites

(accessed Apr, 2021)

5 EVALUATION

We ran an evaluation to compare our Scoring Map

approach with a set of baseline algorithms. Since we

did not find any data set with small UI elements in

web templates, we created a new one. The evaluation

compared how each algorithm clustered the elements

with respect to a reference clustering.

5.1 Preparation

The data set was generated by capturing several DOM

elements from different popular websites taken from

the Alexa’s top sites ranking

. To carry out this task,

we created an assistance tool that allowed

highlighting, capturing, and grouping DOM elements

from any website. Using this method, we generated

124 groups with a total 818 DOM elements. We

deliberately created groups with elements of different

heights, considering the longest path amongst all the

elements’ DOM trees in the group. Grouped elements

were kept alongside the set of all the elements

ungrouped and shuffled to test the automatic grouping

of the different algorithms during the experiment.

Table 1 shows details of the dataset.

Table 1: DOM Elements’ data set.

Elements

’

Hei



Groups Count



Elements Count



44 334



28 201



15 76



13 65



12 60



7 39



4 40

Totals



124 818

A Scoring Map Algorithm for Automatically Detecting Structural Similarity of DOM Elements

181

Besides creating the dataset, we implemented the

baseline algorithms to which we compared ours. The

selected algorithms were RTDM (Reis, 2004), Bag of

XPaths (Joshi et al, 2003) and simple XPath

comparison. The latter was included for the sake of

comparing our proposal to at least one other

algorithm that was aware of the elements’ location

inside the DOM tree. Using this algorithm, two DOM

elements are considered similar if their XPaths match,

considering only the labels, i.e., ignoring the indices.

For example, the following XPaths:

/body/div[1]/ul[2]/li[3]

/body/div[2]/ul[2]/li[2]

would match when using this criterion, since only the

concrete indices differ.

Except for the XPaths comparison algorithm, all

other algorithms required setting a similarity threshold

that was a number between 0 and 1. We ran several

trials with different configurations to adjust these

thresholds. For the RTDM strategy, we obtained the

best results using a 0.8 threshold, while for the Bag of

XPaths strategy was 0.6. In our algorithms the

optimum threshold was higher: 0.90 for the Scoring

Map algorithm and 0.85 for the Dimensional variant.

Regarding the Dimensional variant, the weight

assigned to the dimensional similarity measure was

0.2, leaving 0.8 for the similarity measure of the base

algorithm.

For the sake of reproducibility, we have made both

the data set and the source code of all implementations

used in this experiment available online

, including the

capturing tool to expand the data set.

5.2 Procedure

We ran all 5 algorithms (the 3 baseline ones, plus the 2

proposed in this paper) on the dataset, and then

analyzed the clustering that each one produced. The

clustering procedure consisted in adding the elements

one by one; if a group was found in which at least one

element was considered similar, then the new element

was added to that group, otherwise, a new group with

the new element was created. Since for some

algorithms the clustering is prone to change depending

on the order in which the elements are added, we ran

these algorithms with 30 different random orders and

obtained the average numbers, and also calculated

Standard Deviation to find the degree of this alteration

in the results. The results for the XPaths algorithm

showed no alteration whatsoever with different orders

of elements, given that in this case there is no similarity

Experiment’s resources available at: https://bit.ly/scoring_map

metric involved but equality comparisons.

The way of comparing the automatically

generated clusterings with the reference one was by

an analysis of precision and recall, averaged by a f-

score. Since this experiment did not qualify as a

simple classification problem with predefined

classes, there is a special interpretation for the terms

that require clarification. The precision and recall

analysis was calculated considering pairs of elements:

given two elements, if both the automated and

reference clustering put them in the same group, then

we consider this case a true positive. A true negative

is found when the opposite happens. If both elements

are in the same group in the reference clustering but

not in the automated clustering, we consider it a false

negative. Finally, when the opposite happens, i.e., the

automated clustering incorrectly groups the two

elements together when the reference clustering does

not, we consider this case a false positive. Thanks to

this method, we were able to calculate precision,

recall and f-score for the automated clustering

methods.

Given the interpretation for false/true positives

and negatives, the formula for calculating the

precision and recall metrics is standard. In the case of

the f-score, we specifically use a F1-Score formula,

since we want to value precision and recall the same:

𝐹



2∗

𝑝𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛 ∗ 𝑟𝑒𝑐𝑎𝑙𝑙

𝑝𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛  𝑟𝑒𝑐𝑎𝑙𝑙

This value represents a weighted average of

precision and recall measures.

In addition to the evaluations over the complete

set of elements, we ran additional tests with the sub-

groups of elements by height, to gather specific

metrics to analyze the potential influence of the

elements’ size on the different algorithms.

5.3 Results

For all the algorithms we measured precision, recall

and f-score. Additionally, we captured the amounts of

false positives and false negatives. The results for

each algorithm can be seen in both Table 2 and Fig.

4, sorted by ascending f-score. It is important to

remark that, as we explained earlier, these values are

averaged from a set of 30 executions with different

elements’ order (except for the XPath algorithm), so

obtaining an f-score by applying the formula to the

Precision and Recall values on the corresponding

columns will not exactly match the values on the f-

score columns.

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

182

Table 2: Experiment’s results.

Strategy Precision



Recall



F-Score



False Positives



False Negatives



Bag Of XPaths



0.2334 0.9332 0.3735 11279 245

RTDM



0.2401 0.9225 0.3810 10750 285

XPaths



0.8411 0.9101 0.8742 633 331

Scoring Map



1.0000 0.9169 0.9567 0 305

Scoring Map

(Dimensional)



0.9971 0.9265 0.9605 9 270

Figure 4: Precision, Recall and F1 Score of the algorithms.

There is a very pronounced difference between

the algorithms that consider the elements’ inner

structure, more prepared for comparing full

documents, and the algorithms that consider the

position of the elements, namely XPath, Scoring Map

and Scoring Map variant with dimensional

comparison.

Both algorithms presented in this paper outperformed

the baseline ones in terms of precision and f-score,

but not in recall. Notice though that high precision

means lower false positives ratio, which in the context

of this experiment indicates that fewer elements

considered to be different (in the reference grouping)

were grouped together by the algorithm. High recall,

on the other hand, means that most matching couples

of elements were correctly grouped together by the

algorithm, even if it means that many other elements

were incorrectly grouped together. A very sensitive

algorithm, i.e. one likely to consider any couple of

elements similar, will get this kind of results.

The dimensional variant of the Scoring Map

algorithm reached the highest f-score (0.9605), but

only slightly higher than the original algorithm. It also

obtained a higher recall (0.9265), only second to Bag

of XPaths considering all algorithms. The scoring

map algorithm was however very close in f-score

(0.9567), and obtained perfect precision. The worst

performing algorithms in this analysis also showed

high recall values, but when precision drops to low

levels (below 0.3) this indicates a very high false

positives ratio, as shown in Table 2.

Regarding the evaluation by level, we observed

that, as expected, the baseline algorithms perform

poorly when height is 1 (single nodes), but quickly

ascends as height increases. Our algorithms keep a

high score at all levels, showing their flexibility. The

results by level are shown in Fig. 5.

Figure 5. F-Scores by DOM elements’ height.

A Scoring Map Algorithm for Automatically Detecting Structural Similarity of DOM Elements

183

With respect to the averaged results, we analyzed the

Standard Deviation to assess the variations in the

results with different orders of elements, but we found

that it to be very low in all cases. The standard

deviation in the f-score for the resulting clusters

depending on the order was 0.0009 for both RTDM

and bag of XPaths, 0.0016 for our scoring map

algorithm and 0.0028 for the dimensional variant.

Further experiments with full documents should

be performed to assess the adequacy of the structural

algorithm (although the dimensional variant would

make no difference in this case) where the baseline

algorithms get the best results, according to the

literature.

5.4 Threats to Validity

When designing the experiment, we faced many

potential threats that required special attention.

Regarding the construction of the elements’ set, we

had to make sure the reference groups were not biased

by interpretation. To reduce this threat, at least two

authors acted as referees to determine elements’

equivalence in the reference groups.

Another potential threat is the size of the dataset

itself. Since there is manual intervention to create the

groups of elements, and there were also restrictions

with respect of their heights, building a large

repository is very time-consuming. The set is large

enough so adding new elements does not alter the

results noticeably, but a larger set would prove more

reliable.

There is also a potential bias due to the clustering

algorithm, which is affected by the order in which

elements are supplied to the algorithms. We tacked

this by running the algorithms repeatedly, as

explained in section 5.2.

6 CONCLUSIONS

In this paper we presented an algorithm to compare

DOM elements by similarity, especially optimized for

different sized elements, flexible enough to work in

small and larger ones. We have also presented a

variant that improves for some cases the results and

shown a wrapper induction technique based on these

algorithms. Their implementations are simpler than

most Tree Edit Distance algorithms and run in order

O(n), being n the total number of nodes of both trees

added together.

We have shown how we benefit from this

algorithm in two projects that represent different

scenarios in the web realm: automatic usability

evaluation, and accessibility improvement by

transcoding techniques.

By running an experiment with a set of 818 DOM

elements we evaluated the performance of the

proposed algorithm in comparison with 3 other

known approaches. We used a data set to test the

algorithms’ flexibility including single DOM

elements from well-known websites. The results

show that our approach noticeably outperforms the

baseline algorithms for small DOM elements and

keeps high scores even as the elements grow up to 7

degrees high.

Thanks to the simple map comparison technique,

the algorithm is relatively easy to implement,

especially in contrast to the known tree edit distance

approaches. It is also very flexible since it allows to

weight the two comparison aspects.

In the future, we plan to assess the adequacy of

the proposed algorithms to larger elements, in

particular full documents. Since the algorithm is

flexible and easy to extend, for instance to recognize

topologies in a stricter way (i.e. incorporating parent-

child relationships), control the weighted scores, etc.

we think this could be a valid alternative for this and

other unexplored scenarios.

ACKNOWLEDGEMENTS

The authors acknowledge the support from the

Argentinian National Agency for Scientific and

Technical Promotion (ANPCyT), grant number

PICT-2019-02485.

REFERENCES

Akers, R. L., Baxter, I. D., Mehlich, M., Ellis, B. J., &

Luecke, K. R. (2005, November). Re-engineering C++

component models via automatic program

transformation. In 12th Working Conference on

Reverse Engineering (WCRE'05) (pp. 10-pp). IEEE.

Amagasa, T., Wen, L., & Kitagawa, H. (2007, September).

Proximity search of XML data using ontology and

XPath edit similarity. In International Conference on

Database and Expert Systems Applications (pp. 298-

307). Springer, Berlin, Heidelberg.

Asakawa, C., & Takagi, H. (2008). Web Accessibility: A

Foundation for Research, chapter Transcoding.

Augsten, N., Böhlen, M., & Gamper, J. (2005, August).

Approximate matching of hierarchical data using pq-

grams. In Proceedings of the 31st international

conference on Very large data bases (pp. 301-312).

Burzacca, P., & Paternò, F. (2013, July). Remote usability

evaluation of mobile web applications. In International

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

184

Conference on Human-Computer Interaction (pp. 241-

248). Springer, Berlin, Heidelberg.

Buttler, D. (2004, June). A short survey of document

structure similarity algorithms. In International

conference on internet computing (Vol. 7).

Díaz, O. (2012, July). Understanding web augmentation. In

International conference on web engineering (pp. 79-

80). Springer, Berlin, Heidelberg.

Distante, D., Garrido, A., Camelier-Carvajal, J., Giandini,

R., & Rossi, G. (2014). Business processes refactoring

to improve usability in E-commerce applications.

Electronic Commerce Research, 14(4), 497-529.

Fernandez, A., Insfran, E., & Abrahão, S. (2011). Usability

evaluation methods for the web: A systematic mapping

study. Information and software Technology, 53(8),

789-817.

Garrido, A., Rossi, G., & Distante, D. (2010). Refactoring

for usability in web applications. IEEE software, 28(3),

60-67.

Garrido, A., Firmenich, S., Rossi, G., Grigera, J., Medina-

Medina, N., & Harari, I. (2012). Personalized web

accessibility using client-side refactoring. IEEE

Internet Computing, 17(4), 58-66.

Griazev, K., & Ramanauskaitė, S. (2018, November).

HTML Block Similarity Estimation. In 2018 IEEE 6th

Workshop on Advances in Information, Electronic and

Electrical Engineering (AIEEE) (pp. 1-4). IEEE.

Grigalis, T., & Čenys, A. (2014). Using XPaths of inbound

links to cluster template-generated web pages.

Computer Science and Information Systems, 11(1),

111-131.

Grigera, J., Garrido, A., Panach, J. I., Distante, D., & Rossi,

G. (2016). Assessing refactorings for usability in e-

commerce applications. Empirical Software

Engineering, 21(3), 1224-1271.

Grigera, J., Garrido, A., & Rivero, J. M. (2014, July). A tool

for detecting bad usability smells in an automatic way.

In International Conference on Web Engineering (pp.

490-493). Springer, Cham.

Hachenberg, C., & Gottron, T. (2013, October). Locality

sensitive hashing for scalable structural classification

and clustering of web documents. In Proceedings of the

22nd ACM international conference on Information &

Knowledge Management (pp. 359-368).

Joshi, S., Agrawal, N., Krishnapuram, R., & Negi, S. (2003,

August). A bag of paths model for measuring structural

similarity in web documents. In Proceedings of the

ninth ACM SIGKDD international conference on

Knowledge discovery and data mining (pp. 577-582).

Levenshtein, V. I. (1966, February). Binary codes capable

of correcting deletions, insertions, and reversals. In

Soviet physics doklady (Vol. 10, No. 8, pp. 707-710).

Nebeling, M., Speicher, M., & Norrie, M. (2013, April).

W3touch: metrics-based web page adaptation for touch.

In Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems (pp. 2311-2320).

Norrie, M. C., Nebeling, M., Di Geronimo, L., & Murolo,

A. (2014, July). X-Themes: supporting design-by-

example. In International Conference on Web

Engineering (pp. 480-489). Springer, Cham.

Omer, B., Ruth, B., & Shahar, G. (2012). A New Frequent

Similar Tree Algorithm Motivated by DOM Mining

Using RTDM and its new variant–SiSTeR.

Reis, D. D. C., Golgher, P. B., Silva, A. S., & Laender, A.

(2004, May). Automatic web news extraction using tree

edit distance. In Proceedings of the 13th international

conference on World Wide Web (pp. 502-511).

Tai, K. C. (1979). The tree-to-tree correction problem.

Journal of the ACM (JACM), 26(3), 422-433.

Valiente, G. (2001, November). An Efficient Bottom-Up

Distance between Trees. In spire (pp. 212-219).

W3C, “25 years ago the world changed forever,” 2016.

[Online]. Available: www.w3.org/blog/2016/08/25-

years-ago-the-world-changed-forever/.

Xu, Z., & Miller, J. (2017). Estimating similarity of rich

internet pages using visual information. International

Journal of Web Engineering and Technology, 12(2),

97-119.

Zanotti, M. (2016) Accessibility and Crowdsourcing: Use

of semantic tags to improve web application

accessibility (in Spanish), Univ. of La Plata, Argentina.

Zheng, S., Song, R., Wen, J. R., & Giles, C. L. (2009,

November). Efficient record-level wrapper induction.

In Proceedings of the 18th ACM conference on

Information and knowledge management (pp. 47-56).

Zeng, J., Flanagan, B., & Hirokawa, S. (2013, June).

Layout-tree-based approach for identifying visually

similar blocks in a web page. In 2013 IEEE/ACIS 12th

International Conference on Computer and

Information Science (ICIS) (pp. 65-70). IEEE.

A Scoring Map Algorithm for Automatically Detecting Structural Similarity of DOM Elements

185
