A RESTful Northbound Interface for Applications in Software

Defined Networks

Abdullah Alghamdi

, David Paul

and Edmund Sadgrove

School of Science & Technology, University of New England, Armidale, NSW 2351, Australia

Keywords: Software Defined Networking, Northbound Interface, RESTful.

Abstract: Software Defined Networking (SDN) aims to help overcome the complexities inherent in traditional networks.

The main concept in SDN is the decoupling of the data layer from the control layer, the latter of which is

centralised in a controller. OpenFlow has been adopted as the standard protocol for the southbound interface,

where the controller communicates with forwarding devices. However, the northbound interface (NBI),

connecting the controller with end-user business applications, does not have an open standard. NBIs have

accelerated application development because developers can implement required functionality without the

need to consider matters related to the data layer, but there is an issue of compatibility because each SDN has

its own NBI. In this position paper we present a plan to design a RESTful NBI for SDN applications to

improve compatibility across SDN technologies.

1 INTRODUCTION

A rise in the number of devices connected to the

Internet has made network management difficult.

Some problems are widespread, including

configuration errors, increasing sizes of routing

tables, and issues related to security (Akcay & Yiltas-

Kaplan, 2017). The inflexible behaviour of traditional

network elements makes it hard for network

administrators to manage them.

Software Defined Networking (SDN) is a

relatively new technology to design and control

networks (Singh & Jha, 2017). It is a network

programming framework that allows administrators

to intelligently and centrally control networks using

software applications. SDN networks are

inexpensive, relatively easy to implement, and

provide opportunities to innovate with new

applications (Zhang, Cui, Wang, & Zhang, 2018).

SDN has support from many vendors, including

Google, Cisco, and HP (Shahid, Fiaidhi, &

Mohammed, 2016).

Network applications can be written to achieve

different functionalities in a network, such as

improving security or traffic management. To ensure

https://orcid.org/0000-0003-0616-4121

https://orcid.org/0000-0002-2428-5667

https://orcid.org/0000-0002-8710-9900

network applications perform correctly, it is

necessary for them to understand the current state of

the network. An SDN architecture changes the way

network state is maintained and made available to

applications (Scott-Hayward, Kane, & Sezer, 2014).

SDN separates the control function from

forwarding devices, logically centralising the control

function that maintains network state in a controller,

and having it send instructions to forwarding devices

in the data layer. The forwarding devices then use

these instructions to forward incoming packets

appropriately. The interface between the controller

and forwarding devices is called the Southbound

Interface (SBI). The Open Network Foundation

(ONF), which works to popularise SDN techology

through the development of open standards (Open

Networking Foundation, 2021), considers OpenFlow

(McKeown et al., 2008) to be the standard SBI.

However, for SDN to reach its full potential, it is

also necessary for applications to communicate with

an SDN controller, both to determine the current state

of the network, and to give commands which can be

applied over the forwarding devices. SDN

applications can either be internal, reacting to events

that occur on the network, or exernal, proactively

Alghamdi, A., Paul, D. and Sadgrove, E.

A RESTful Northbound Interface for Applications in Software Deﬁned Networks.

DOI: 10.5220/0010713300003058

In Proceedings of the 17th International Conference on Web Information Systems and Technologies (WEBIST 2021), pages 453-459

ISBN: 978-989-758-536-4; ISSN: 2184-3252

453

modifying the network without considering network

events.

The interface between applications and an SDN

controller is called the Northbound Interface (NBI)

and there is currently no open standard NBI that can

be used by all controllers (Du, Lee, & Kim, 2018).

Instead, different incompatible interfaces have been

implemented for various SDN controllers (Latif et al.,

2020). This leads to a loss of compatibility, requiring

significant time and resources to port applications to

different controllers (Coutinho, 2017).

The motivation for this paper is to contribute to

efforts to standardise the NBI to enhance portability

of SDN applications and interoperability between

SDN controllers. To better define the problem,

Section 2 reviews SDN, and especially the NBI, in

more detail. Section 3 then describes some

requirements for an open RESTful Application

Programming Interface (API) to allow both external

and internal SDN applications to communicate with a

controller. Finally, Section 4 concludes the paper to

summarise our position and describe the next steps

required in this research.

2 LITERATURE REVIEW

2.1 Software Defined Networking

In a traditional network, both the control and data

planes are contained within a single entity. The

control plane acts as the brain of the network, adding

instructions to tables that are then consulted by the

data plane to determine how to handle incoming and

outgoing packets. Network nodes utilise the control

plane to communicate with other nodes in the

network through the use of distributed protocols such

as BGP (Rekhter, Li, & Hares, 1994), OSPF (Moy,

1998) or MPLS (Rosen, Viswanathan, & Callon,

2001). Data from other nodes can then be used to

modify the information stored in each node’s tables.

SDN separates the control functions from

forwarding devices in the hope of overcoming

limitations in traditional networks (Haji et al., 2021).

Figure 1 presents a high-level overview of a typical

SDN architecture. The figure shows that the control

layer communicates with the data layer through a

southbound interface (SBI) using the OpenFlow

protocol (Priya & Radhika, 2019). There is also a

northbound interface (NBI) from the control layer

that allows communication with applications, though

there are no open standard protocols for this purpose

(Latif et al., 2020).

In the lowest layer, forwarding devices could be

either traditional hardware switches that provide a

programmable interface, or software switches such as

Open vSwitch (Wang et al., 2020). When a packet

arrives at an SDN forwarding device, the forwarding

device parses the packet’s header to determine

whether it already knows how to handle the packet,

or whether it needs to communicate with the control

layer.

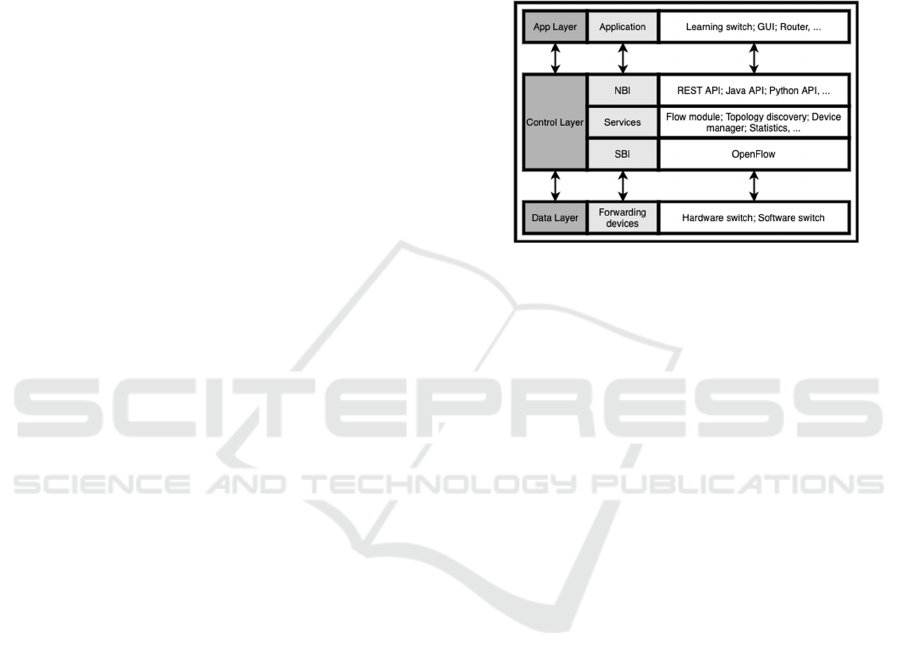

Figure 1: SDN architecture.

The control layer is implemented as a logically

centralised network operating system called a

controller. The controller has a global view over all

forwarding devices in the data layer and uses the SBI

to communicate packet forwarding instructions (e.g.,

whether to modify, drop, or forward the packet) to

them. These instructions are called flows, and

forwarding devices deny by default unless a flow

specifies otherwise. The SBI is also used to alert of

packet arrivals, notify of any status change, and to

provide statistical information. OpenFlow is the

standard protocol for all interactions between a

controller and any forwarding devices (Dang et al.,

2019).

To allow proper management of the network,

controllers maintain some core services. These

typically include:

• Topology service: builds a network topology

graph by instructing switches to send certain

packets and discovering where they arrive.

• Inventory service: tracks SDN devices

attached to the network and records basic

information about them.

• Host tracking service: discovers IP and

MAC addresses of hosts connected to the

network.

• Statistics service: provides network statistics

based on counter information in switches.

The controller can use these services to provide a

view of the network to any network application using

its NBI. Unlike with the SBI, there is no standard

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

454

protocol for the NBI, with different SDN controller

implementations providing their own interface. For

example, some controllers only offer a Java API

(Goransson, Black, & Culver, 2016), or, when a more

open RESTful API is provided, it is not standardised

and is designed only to work with one particular

controller (Comer & Rastegarnia, 2019).

Regardless of the implementation, the NBI

provides an abstracted view of the network to any

network applications. This abstracted view does not

necessarily match the physical network

implementation. For example, it is often sufficient for

a network application to view the entire network as a

single large switch, even if the network is actually

implemented using many different forwarding devices.

The controller uses the NBI to notify applications

of events that occur in the network. Such an event

could be a packet being received by the controller or

a change in the network topology. Applications can

also invoke methods on the controller through the

NBI to effect change on the network. For example, a

firewall application may modify which packets

should be dropped by forwarding devices after

detecting a potential denial of service attack.

2.2 SDN Applications

SDN network applications can be classified into two

different types: internal or external. Internal

applications are reactive – a packet arrives at a

forwarding device and the device does not know what

to do with it, so it contacts the controller. The controller

then notifies the application, which determines how the

packet should be handled and informs the controller to

implement the new policy. External applications, on

the other hand, are proactive and modify network

policy without requiring a packet to arrive first.

Further, internal applications typically create

resources that are added to the network and can be

accessed by other applications. For example, a load

balancer may expose its resources so other

applications can query it or modify its behaviour.

Thus, an internal application becomes part of the

programmable network, whereas an external

application can only be controlled from the outside.

The controller’s NBI consists of two parts: the

Listener API and the Response API. The Listener API

allows applications to register listeners for any

relevant events. Registered listeners are then sent any

relevant packets that arrive at the controller. The

Response API allows applications to modify the

network managed by the controller. The generic

design of an internal application is presented in

Figure 2. An internal application processes packets

obtained through the Listener API and then makes

calls to the Response API based on the packets it

receives. External applications are similar, except no

listeners are required, so the Listener API is not used,

and the Response API is called without first requiring

a packet to arrive.

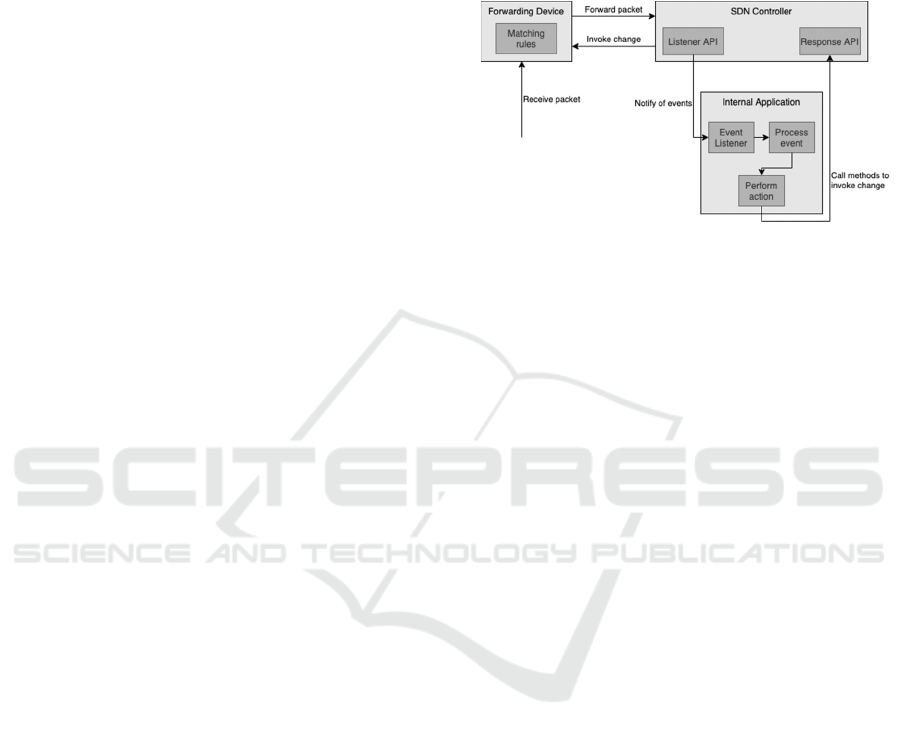

Figure 2: Generic design of an internal SDN application.

A RESTful interface is often used for the

Response API because it offers the following

advantages:

• Simplicity: REST utilises simple HTTP

methods to access data and resources.

• Flexibility: All data and resources are

represented as URIs, meaning there are no

complicated schemas.

• Extensibility: New resources can be

accessed by simply using the appropriate

URI.

• Security: Communications can be secured

by using HTTPS.

While the Response API is typically provided as

a RESTful API, the Listener API is required to

provide asynchronous notifications of incoming

packets (Goransson et al., 2016). Since RESTful APIs

operate on a request-response basis, which does not

allow for such asynchronous notification, the Listener

API is typically implemented as a native API on the

controller (Banse & Rangarajan, 2015).

Unfortunately, in current SDN implementations,

even the Response API is not standardised. The

situation is even worse for the Listener API, where

the interface provided typically depends on the

language in which the controller is implemented

(Goransson et al., 2016).

2.3 Northbound Interfaces

There is currently no standard NBI API defined for

SDN. Instead, each SDN controller defines its own

specific definition. Unfortunately, this means that

applications that are written for one controller

A RESTful Northbound Interface for Applications in Software Deﬁned Networks

455

typically cannot be used in a network using a different

controller without substantial redevelopment. This is

despite the fact that the NBI is often considered the

most important interface in an SDN architecture

(Tijare & Vasudevan, 2016) because it is what allows

the network to truly be programmable.

The typical approaches to overcome the issue of

incompatibility between different SDN controllers

are to either create applications on an ad-hoc basis,

just for the controllers they need to interact with, or

to use an SDN programming language that

implements translators to convert application

requirements into service requests for supported SDN

controllers (Tijare & Vasudevan, 2016). While

translators for different SDN programming languages

are useful, this approach does require new translators

to be developed any time a new controller or SDN

programming language is developed. Thus, both

approaches are quite inefficient.

The task of standardising an NBI is difficult

because different SDN applications can have very

different requirements. For example, a load balancer

is likely to have significantly different needs than a

security application. Because of this, many different

NBIs have been proposed (Tijare & Vasudevan,

2016), though they typically only cover a limited set

of operations or technologies.

Because each controller implements its own NBI

API, there are numerous existing interfaces that can

be studied. For example, NOSIX (Yu, Wundsam, &

Raju, 2014) and SFNET (Yap, Huang, Dodson, Lam,

& McKeown, 2010) provide ad-hoc APIs customised

to each controller’s needs. Others use SDN

programming languages, such as Nettle (Voellmy &

Hudak, 2011), Pyretic (Reich, Monsanto, Foster,

Rexford, & Walker, 2013), Procera (Voellmy, Kim,

& Feamster, 2012), or Frenetic (Foster et al., 2011),

which can provide a variety of powerful abstractions

but depend on control functions and data layer

behaviour of particular controllers (Tijare &

Vasudevan, 2016). Still others do provide a RESTful

API, but these often change between different

versions of a controller, leading to incompatibility

(Li, Chou, Zhou, & Luo, 2016).

3 DISCUSSION

Our aim is to design an open, flexible, and

independent NBI API for SDN. Most existing

proposals suffer from having been designed in the

early stages of SDN when there were few SDN

controller implementations and limited practical

experience writing applications for such systems, and

have since been modified as systems have developed.

We believe the time is now right to consider the

lessons that can be learnt from the existing

implementations, including their limitations, to

design a complete new NBI API. We will design this

API based on RESTful ideals, keeping it open to

strengthen interoperability and portability of

applications. Our design will follow the ONF

guidelines (Open Networking Foundation, 2016) and

contribute by recommending an NBI that covers a

wide range of use cases.

As mentioned in Section 2, the NBI of an SDN

controller can really be split into two different

interfaces: the Listener API and the Response API.

The purpose of the Listener API is to allow

notification of events, while the Response API should

allow applications to get information from the

controller and to program the network.

For the Listener API, notifications should be

available for at least the following events:

• Flow added

• Flow removed

• New device added to network

• Device removed from the network

The Response API can be divided into reading

actions, which give details of the current state of the

controller/network, and writing actions, which

modify the network.

Reading actions should include:

• Read topology

• Read statistics

• Read flows

• Read controller information

• Read incoming packet

Writing actions should include:

• Insert flow

• Modify flow

• Delete flow

• Forward packet

• Set priority

3.1 Listening API

As mentioned in Section 2.2, internal applications

notified of relevant events. Since this event

notification requires communication outside of a

typical REST request-response, a RESTful service

offered by the controller is not appropriate. Instead,

internal applications are typically implemented using

a native API (Goransson et al., 2016). For example,

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

456

Floodlight (Project Floodlight )uses Java as its native

language, so its modules are created as Java packages.

These modules can then access underlying methods

which may not be directly accessible via a REST call.

To abstract over internal functions of a controller,

programming languages such as Procera (Voellmy et

al., 2012) or Frenetic (Foster et al., 2011) are often

used, though this requires them to have support for

the desired controller.

What we propose is having a REST-like service

to allow registration of listeners with a controller.

This service is only REST-like because the controller

is required to maintain details of which applications

are registered to particular events. Then, when a

relevant event occurs, the controller calls a RESTful

service implemented on the application side to notify

it of the event, to which the application then responds

appropriately.

3.2 Response API

In many regards, the Response API is the easiest to

standardise into a RESTful service because it better

fits the request-response pattern of REST (Goransson

et al., 2016). Further, RESTful APIs are already

offered by controllers such as ODL (OpenDaylight)

and Floodlight (Project Floodlight ). These APIs offer

data about the network and methods to modify its

behaviour, but are incompatible, even between

different versions of the controller (Latif et al., 2020).

Thus, our aim is to provide a stable, extensible

API that can be supported by multiple controllers.

The API must support the entire lifecycle of SDN

applications (Natanzi & Majma, 2017). This includes

adding the application to the network, registering it

with the controller, and conducting the required read

and write actions.

The difficult part is defining minimal

requirements for compliance, while allowing

extensibility for controllers that offer more than the

minimum. For example, after considering existing

implementations, we believe that resources that must

be supported by the API include: hosts; switches;

applications; messages; network topology; statistics;

and events, though other resources might be needed,

and the exact details available for each resource might

be different between implementations.

3.3 Backwards Compatibility

One of the advantages of this suggested approach is

that it should be possible to allow backwards

compatibility for compliant controllers and

applications. Provided a controller offers the minimal

functionality required by the API we are proposing, a

small program could be written that converts requests

to the new API into the native requests of the

controller. This small program could then be used as

the controller, with all other parts of the system

unaware that it is communicating behind the scenes

with another controller.

Similarly, from the application side, a small

program could convert requests made by the

application to the existing controller’s native

interface into the REST calls of the new proposed

API. This small piece of code could also implement

the RESTful interface of the Listening API to allow

compatibility with internal applications that respond

to network events.

This backwards compatibility can also allow

evaluation of the new NBI API: if these small

converter applications allow an application to

function correctly with a controller that it does not

natively support, then the new interface could be

considered a success.

4 CONCLUSION

Traditional networks are difficult to control because

the control and data layers are both integrated inside

individual network devices. Further, each device

typically has its own configuration and management

interface. SDN separates the control and data layers

and offers a programmable interface to dynamically

control the network.

In SDN, controllers communicate with

forwarding devices through a southbound interface,

typically using the OpenFlow standard. However, the

utility of SDN is really because applications can

communicate with the controller via a northbound

interface to query and modify the state of the network

programmatically.

Despite its importance, the northbound interface

has not been standardised. This means that different

controllers and applications are incompatible. While

some partial solutions exist, such as SDN

programming languages that are compatible with

multiple controllers, the better solution would be to

define a standard open and extensible API for

communication between an SDN controller and any

networking applications.

The position argued in this paper is that the time

is right to study existing SDN implementations to

design a new RESTful API for the northbound

interface of SDN controllers. This API will provide

all necessary functions to support both external

(proactive) and internal (reactive) applications.

A RESTful Northbound Interface for Applications in Software Deﬁned Networks

457

The success of such an API can be determined by

using small shim applications to allow a network

application to correctly work with a controller it does

not natively support.

A standardised northbound interface really is one

of the big missing pieces in SDN. By examining the

lessons from existing systems, an open, future-proof

northbound API can improve compatibility of

existing SDN implementations, saving time and

effort and making adoption of SDN even easier.

REFERENCES

Akcay, H., & Yiltas-Kaplan, D. (2017). Web-Based User

Interface for the Floodlight SDN Controller.

International Journal of Advanced Networking and

Applications, 8(05), 3175-3180.

Banse, C., & Rangarajan, S. (2015). A secure northbound

interface for sdn applications. Paper presented at the

2015 IEEE Trustcom/BigDataSE/ISPA.

Comer, D., & Rastegarnia, A. (2019). Toward

Disaggregating the SDN Control Plane. IEEE

Communications Magazine, 57(10), 70-75.

Coutinho, D. R. (2017). Contributions for the

Standardisation of a SDN Northbound Interface for

Load Balancing Applications.

Dang, V. T., Huong, T. T., Thanh, N. H., Nam, P. N.,

Thanh, N. N., & Marshall, A. (2019). Sdn-based syn

proxy—a solution to enhance performance of attack

mitigation under tcp syn flood. The Computer Journal,

62(4), 518-534.

Du, S. G., Lee, J. W., & Kim, K. (2018). Proposal of grpc

as a new northbound api for application layer

communication efficiency in sdn. Paper presented at the

Proceedings of the 12th International Conference on

Ubiquitous Information Management and

Communication.

Foster, N., Harrison, R., Freedman, M. J., Monsanto, C.,

Rexford, J., Story, A., & Walker, D. (2011). Frenetic:

A network programming language. ACM Sigplan

Notices, 46(9), 279-291.

Goransson, P., Black, C., & Culver, T. (2016). Software

defined networks: a comprehensive approach: Morgan

Kaufmann.

Haji, S. H., Zeebaree, S. R., Saeed, R. H., Ameen, S. Y.,

Shukur, H. M., Omar, N., . . . Yasin, H. M. (2021).

Comparison of software defined networking with

traditional networking. Asian Journal of Research in

Computer Science, 1-18.

Latif, Z., Sharif, K., Li, F., Karim, M. M., Biswas, S., &

Wang, Y. (2020). A comprehensive survey of interface

protocols for software defined networks. Journal of

Network and Computer Applications, 156, 102563.

Li, L., Chou, W., Zhou, W., & Luo, M. (2016). Design

patterns and extensibility of REST API for networking

applications. IEEE Transactions on Network and

Service Management, 13(1), 154-167.

McKeown, N., Anderson, T., Balakrishnan, H., Parulkar,

G., Peterson, L., Rexford, J., . . . Turner, J. (2008).

OpenFlow: enabling innovation in campus networks.

ACM SIGCOMM Computer Communication Review,

38(2), 69-74.

Moy, J. (1998). OSPF version 2.

Natanzi, S. B. H., & Majma, M. R. (2017). Secure

northbound interface for SDN applications with NTRU

public key infrastructure. Paper presented at the 2017

IEEE 4th International Conference on Knowledge-

Based Engineering and Innovation (KBEI).

Open Networking Foundation. (2016). Intent NBI –

Definition and Principles. Retrieved from

http://opennetworking.wpengine.com/wp-

content/uploads/2014/10/TR-

523_Intent_Definition_Principles.pdf

Open Networking Foundation. (2021). Retrieved from

https://opennetworking.org/

OpenDaylight. Retrieved from https://www.openday

light.org/

Priya, A. V., & Radhika, N. (2019). Performance

comparison of SDN OpenFlow controllers.

International Journal of Computer Aided Engineering

and Technology, 11

(4-5), 467-479.

Project Floodlight Retrieved from https://www.project

floodlight.org/floodlight/

Reich, J., Monsanto, C., Foster, N., Rexford, J., & Walker,

D. (2013). Modular sdn programming with pyretic.

Technical Reprot of USENIX, 30.

Rekhter, Y., Li, T., & Hares, S. (1994). A border gateway

protocol 4 (BGP-4). In: ISI, USC Information Sciences

Institute.

Rosen, E., Viswanathan, A., & Callon, R. (2001).

RFC3031: Multiprotocol label switching architecture.

In: RFC3031.

Scott-Hayward, S., Kane, C., & Sezer, S. (2014).

Operationcheckpoint: Sdn application control. Paper

presented at the 2014 IEEE 22nd International

Conference on Network Protocols.

Shahid, A., Fiaidhi, J., & Mohammed, S. (2016).

Implementing innovative routing using software

defined networking (SDN). Int J Multimedia

Ubiquitous Eng, 11(2), 159-172.

Singh, S., & Jha, R. K. (2017). A survey on software

defined networking: Architecture for next generation

network. Journal of Network and Systems

Management, 25(2), 321-374.

Tijare, P., & Vasudevan, D. (2016). The northbound APIs

of software defined networks. International journal of

engineering sciences and research technology, 5(10),

501-513.

Voellmy, A., & Hudak, P. (2011). Nettle: Taking the sting

out of programming network routers. Paper presented

at the International Symposium on Practical Aspects of

Declarative Languages.

Voellmy, A., Kim, H., & Feamster, N. (2012). Procera: a

language for high-level reactive network control. Paper

presented at the Proceedings of the first workshop on

Hot topics in software defined networks.

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

458

Wang, H., Xu, H., Qian, C., Ge, J., Liu, J., & Huang, H.

(2020). PrePass: Load balancing with data plane

resource constraints using commodity SDN switches.

Computer Networks, 178, 107339.

Yap, K.-K., Huang, T.-Y., Dodson, B., Lam, M. S., &

McKeown, N. (2010). Towards software-friendly

networks. Paper presented at the proceedings of the first

ACM asia-pacific workshop on Workshop on systems.

Yu, M., Wundsam, A., & Raju, M. (2014). NOSIX: A

lightweight portability layer for the SDN OS. ACM

SIGCOMM Computer Communication Review, 44(2),

28-35.

Zhang, Y., Cui, L., Wang, W., & Zhang, Y. (2018). A

survey on software defined networking with multiple

controllers. Journal of Network and Computer

Applications, 103, 101-118.

A RESTful Northbound Interface for Applications in Software Deﬁned Networks

459
