ProFog: A Proactive Elasticity Model for Fog Computing-based IoT

Applications

Guilherme Gabriel Barth, Rodrigo da Rosa Righi

, Cristiano Andr

e da Costa

and Vinicius Facco Rodrigues

Applied Computing Graduate Program, Universidade do Vale do Rio dos Sinos, S

ao Leopoldo, Brazil

Keywords:

Fog Computing, IoT, Resource Management, Elasticity, Prediction.

Abstract:

Today, streaming, Artiﬁcial Intelligence, and the Internet of Things (IoT) are being some of the main drivers

to accelerate process automation in various companies. These technologies are often connected to critical

tasks, requiring reliable and scalable environments. Although Fog Computing has been on the rise as an al-

ternative to address those challenges, we perceive a gap in the literature related to adaptability on the number

of resources on both cloud and fog layers. Multiple studies suggest different Cloud-Fog architectures for

IoT implementations, but not thoroughly addressing elasticity control mechanisms. In this context, this arti-

cle presents ProFog as a proactive elasticity model for IoT-based Cloud-Fog architectures. ProFog uses the

ARIMA prediction model to anticipate load behaviors, so triggering scaling actions as close to when they

are required as possible. This strategy allows the delivery of new resources before reaching an overloaded or

underloaded state, beneﬁting performance, and energy saving. We developed a ProFog prototype that showed

an improvement of 11.21% in energy consumption in favor of ProFog.

1 INTRODUCTION

The advance of the Internet-of-Things (IoT) industry

follows many segments of the economy needs, such

as the automation in sectors as part of Industry 4.0

(I4.0) (Masood and Sonntag, 2020). Today, it is com-

mon to see IoT spreading on smart cities, transporta-

tion systems, and healthcare scenarios, enabling not

only process monitoring and newer notiﬁcation sys-

tems but also challenges related to scalability and per-

formance(Mohamed, 2017). Over the past few years,

more industries started to adhere to process automa-

tion using IoT solutions, and the tendency is the us-

age growth as the results of such deployments begin

to be seen and generate value, minimizing risks and

costs(Fischer et al., 2020). Relying only on a local

central processing server to address all IoT imple-

mentations would result in high costs on infrastruc-

ture and maintenance. This type of deployment re-

quires a robust server and network to avoid overload-

ing the server or ﬂooding the network with in-transit

data. IoT systems provide data to critical applications

https://orcid.org/0000-0001-5080-7660

https://orcid.org/0000-0003-3859-6199

https://orcid.org/0000-0001-6129-0548

that require high availability from the server in most

industrial scenarios. Failure of the system may result

in signiﬁcant ﬁnancial losses for the company or even

damage to machinery.

Sending requests to a Cloud server adds a constant

latency overhead to the communication that can be

unacceptable in some areas. For instance, in health-

care scenarios, response time is sometimes critical to

decide between life or death of patients (Shah and

Aziz, 2020). Vaquero explained that the existence of

billions of devices always producing data on the edge

of the network may cause the network to become a

clear bottleneck (Vaquero and Rodero-Merino, 2014).

Using Cloud Computing as the primary paradigm for

IoT scenarios will only further contribute to this net-

work congestion (Yin et al., 2018) as the Internet is

not scalable and efﬁcient enough to handle IoT big

data as explained by Xiang (Sun and Ansari, 2016).

Also, submitting massive loads of data to a Cloud

Computing server may result in high costs for the ser-

vice as providers may charge based on the amount

of data going into the Cloud. That reveals the ne-

cessity of designing new architectures and solutions

that enable higher scalability while reducing requests

on the network and maintaining the required Qual-

ity of Service (QoS). Fog Computing has been gain-

380

Barth, G., Righi, R., André da Costa, C. and Rodrigues, V.

ProFog: A Proactive Elasticity Model for Fog Computing-based IoT Applications.

DOI: 10.5220/0010707000003058

In Proceedings of the 17th International Conference on Web Information Systems and Technologies (WEBIST 2021), pages 380-387

ISBN: 978-989-758-536-4; ISSN: 2184-3252

ing a position as an architecture for IoT scenarios due

to its concept of keeping the processing near its data

sources, thus allowing reduced latency, stable QoS

(Suganuma, 2018) and addressing another of the crit-

ical concerns of IoT, which is the data security.

In this context, in this article, we introduce Pro-

Fog, a proactive elasticity model for resource man-

agement on Cloud-Fog environments for IoT deploy-

ments. The model proves an architecture and a mid-

dleware to run elastic-driven IoT applications on both

Cloud and Fog. ProFog targets applications where

response time to react against received IoT data is

critical. Scalability and ﬁnancial costs are vital con-

cerns for ProFog, which addresses elasticity using

ARIMA (Auto-Regressive Integrated Moving Aver-

age) (da Rosa Righi et al., 2020) to predict the sys-

tem’s behavior to never achieving an under or over-

loaded situation. When perceiving it, ProFog scales

up or down resources in the fog layer, adding or re-

moving resources as close to the situation require-

ments as possible. The next sections describes ProFog

and its evaluation.

2 ProFog MODEL

This section describes ProFog, a model that uses

proactive elasticity to improve resource allocation for

IoT applications that execute in the Fog.

2.1 Design Decisions

Considering the varying requirements of different IoT

scenarios, a Cloud-Fog architecture is currently the

most promising solution for IoT implementation in

the long-term. It allows for a wider variety of sce-

narios to be implemented while also providing ad-

ditional security and control over the data, reducing

network overload and facilitating QoS adherence. To

meet QoS requirements and create a stable and reli-

able environment for the execution of IoT services,

the system needs to use elasticity control techniques

and scale itself on demand. Proactive elasticity mod-

els apply the collected load data on predictive algo-

rithms to estimate future load. This implies trigger-

ing scaling operations before an undesired load sit-

uation occurs since the resources become available

before the server reaches, in fact, either an under-

loaded/overloaded state. Given the importance of sta-

bility and QoS for IoT applications, we have decided

to use proactive elasticity on ProFog. Unlike Cloud

servers, Fog nodes are limited on processing capac-

ity, limiting the use of vertical elasticity (i.e., resizing

of resources like CPU, memory, or disk). For that rea-

son, we also have chosen to apply horizontal elasticity

by adding and removing processing instances (nodes

and containers, for example).

Figure 1 illustrates a high-level overview of a

Cloud-Fog architecture for IoT implementation. We

modeled ProFog in three different physical layers:

Internet-of-Things, Fog Computing, and Cloud Com-

puting. The IoT layer comprises network edge de-

vices that collect data to be analyzed, interact with

its surroundings, or require services made available

on the Fog Computing layer. IoT devices may vary

from simple sensors to smart devices, like those in

Smart Cars. The Fog layer comprises multiple Fog

nodes that perform initial data treatment and provide

time-sensitive services for the IoT layer and other ser-

vice consumers. Here, single-board computers like

Raspberry Pi and Arduino can appear as possible so-

lutions. The Cloud layer is in charge of monitoring

and scaling the system. In the Cloud, we have non-

time-sensitive services such as data analytic and stor-

age, for example.

Cloud

Layer

Fog

Layer

IoT

Layer

Cloud Resources

Fog

Node

IoT Device

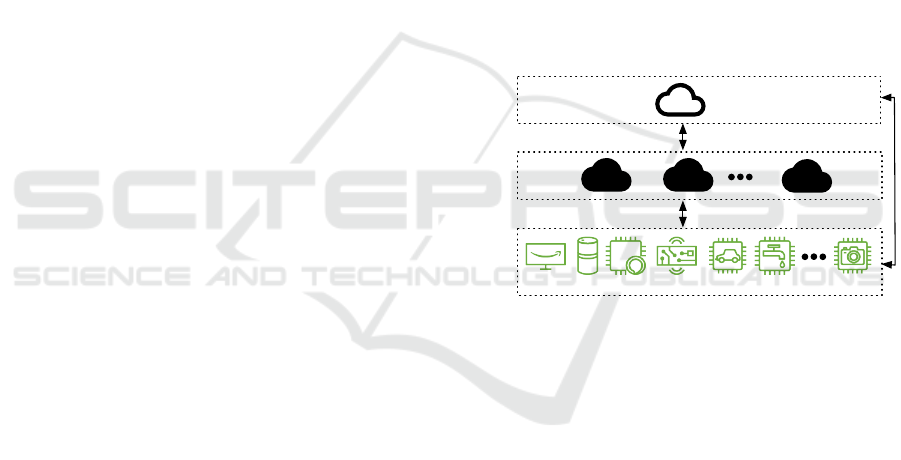

Figure 1: High-level view of a Cloud-Fog architecture.

2.2 Architecture

ProFog focuses on elasticity for the execution of time-

critical applications on Fog Computing. For that pur-

pose, we apply load prediction algorithms on previ-

ously collected time-series data to determine resource

resizing needs and trigger proactive scaling. ProFog

acts as middleware by managing the deployment and

execution of different services and applications seam-

lessly from a user viewpoint. Figure 2 provides an

overview of the core components of the model, high-

lighting in red the ones that are part of ProFog. The

model is composed of three physical layers - Cloud

Computing, Fog Computing, and IoT. However, Pro-

Fog is distributed only on the Cloud Computing and

Fog Computing layers.

ProFog is composed of three different modules:

(i) Cloud Manager; (ii) Fog Manager; and (iii) Elas-

ticity Manager. The Cloud Manager is responsible for

triggering services to the Fog layer based on the IoT

ProFog: A Proactive Elasticity Model for Fog Computing-based IoT Applications

381

Data Collection/

Treatment

Fog

Manager

Time-Critical

Operations

Fog Node

Data Collection/

Treatment

Fog

Manager

Time-Critical

Operations

Fog Node

Fog

Layer

IoT

Layer

IoT Device (Sensor and Actuator)

Cloud

Manager


Repository

Business

Applications

Load

Prediction

Elasticity Manager

External

Service

Consumer

Cloud

Layer

Application Data

Application Deployment and Resource Scaling

Resource Monitoring

Legend:

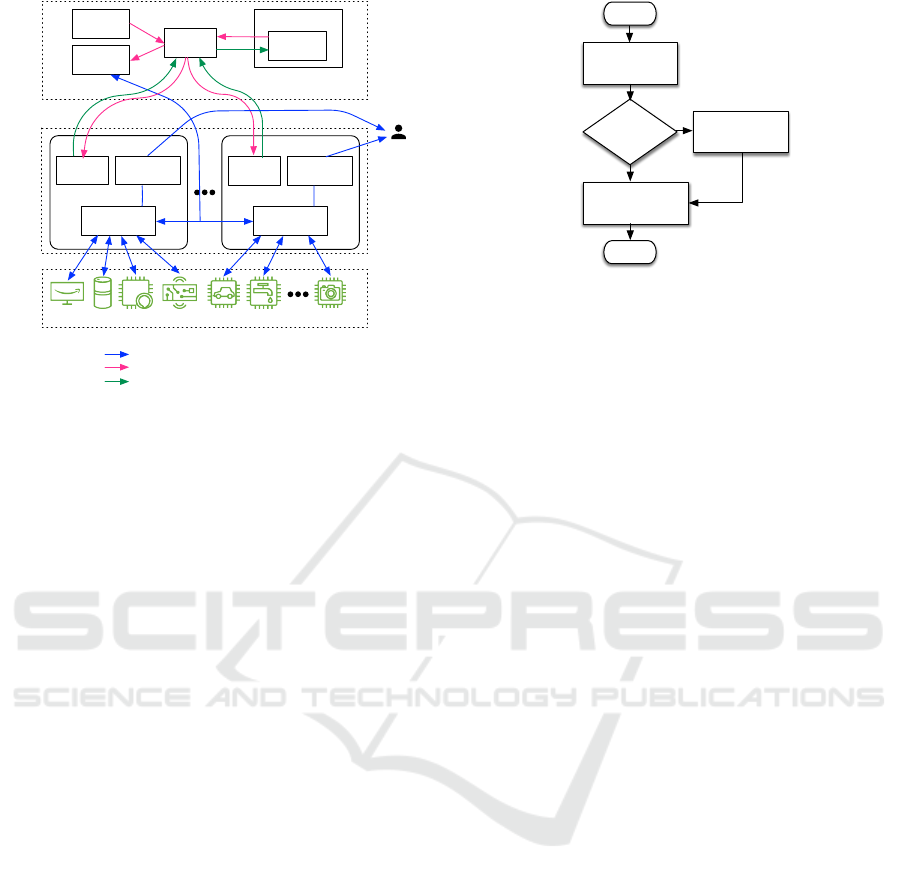

Figure 2: ProFog model applied to Cloud-Fog environ-

ment. Elements highlighted with a red dot represent the

main modules of ProFog.

devices’ requests, load balancing, and communication

with Fog nodes about load and triggering scaling ac-

tions on the Fog and Cloud layers. The Fog Man-

ager downloads application images from the Cloud

and instantiates them as containers on the Cloud Man-

ager’s request while also constantly monitoring their

load and updating the Cloud Manager about the same.

The Elasticity Manager receives data about the load of

the Fog nodes and Cloud applications from the Cloud

Manager, applies the collected data to load prediction

algorithms, and informs the Cloud Manager about its

scaling decisions.

ProFog requires a Fog Manager’s deployment to

all Fog nodes of the architecture and a Cloud Man-

ager and an Elasticity Manager to the selected Cloud

server. The number of Fog nodes on the system de-

pends on the complexity of the implemented scenario.

Applications and services deployed on the Fog layer

must also follow speciﬁc formats for compatibility

with ProFog. In runtime, IoT devices initially re-

quest services from the Cloud Manager that redirects

them to the Fog node, which provides the service, as

depicted in Figure 3. From this point, the IoT de-

vice communicates directly with the service provider

on the Fog. These services may perform data treat-

ment and forward the data to the Cloud for analytics

(or other processing intensive task) or provide time-

critical functionalities to the IoT layer or external

service consumers. This strategy allows a reduction

in network congestion, favoring QoS adherence for

time-critical services beneﬁtting from Fog’s reduced

latency.

ProFog concentrates all management activities on

Receive request

for Service from an

IoT device

Is the service

started?

Start

Notify Fog to start

the service

Redirect IoT device to

service provider on

Fog with least load

End

Yes

Figure 3: Service request routing process performed by the

Cloud Manager.

a single point: the Cloud. This strategy facilitates sys-

tem management and reduces complexity. The Cloud

Manager also monitors the load of local applications

and collects information about Fog applications’ load

from each Fog Manager. It then forwards the data to

the Elasticity Manager, who applies load prediction

algorithms based on the collected data. This manager

also provides proactive elasticity to both Cloud and

Fog layers with no human intervention.

2.3 Application Model for Fog

Deployment

Applications are exposed for deployment as images,

like Docker container images of Virtual Machine

(VM) templates, including all the necessary services

for its operations. This strategy is similar to what

was proposed by Nguyen, Phan, Park, Kim S., and

Kim T. (Nguyen et al., 2020). ProFog creates an in-

stance of the container image to start the application,

requiring the image to be built and conﬁgured to run

the application upon initialization. Any necessary pa-

rameters for the application start-up can be provided

during the container’s instantiation as long as the im-

age was previously built with an ENTRYPOINT or

CMD statement to support command-line argument

consumption through Docker. Deploying applications

as isolated containers simpliﬁes the deployment pro-

cess while also providing more ﬂexibility to the appli-

cation development. It becomes possible to install any

necessary resources for the application directly on its

container.

As applications consist of containers or VM tem-

plates, they are isolated from the Fog Manager, re-

quiring them to internally implement any functional-

ities necessary for consuming data or providing ser-

vices. For instance, an application that receives data

from edge devices performs operations on such data

and then forwards it to the Cloud must implement

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

382

an HTTP (Hypertext Transfer Protocol) server to re-

ceive data from edge devices through HTTP requests.

The Fog Manager provides the application with the

port number to run its HTTP server upon initializa-

tion. The application must implement a shutdown

service and reroute any connected clients back to the

Cloud prior to the shutdown. The Fog Manager calls

the shutdown service to notify the application of any

eventual shutdown due to down-scaling, providing it

the time left for the shutdown and the Cloud Man-

ager’s address, which may be used to reroute clients

to another active application instance. The applica-

tion is given the duration of the time left for the shut-

down to handle active clients, whatever way it suits

it. Once the time is over, the Fog Manager performs

the shutdown, ﬁnishing all of its running processes.

All monitoring and elasticity control-related tasks are

managed by the Fog Manager and Cloud Manager,

relieving application developers of any concerns of

elasticity control at the application level.

2.4 Elasticity Algorithm

ProFog uses proactive elasticity to provide stable QoS

and prevent the system from overloading, which may

compromise its operations. More speciﬁcally, the

Elasticity Manager evaluates the load of a given met-

ric (CPU, for instance) against thresholds to decide

whether to reorganize the number of Fog nodes and

application instances in the Cloud. Proactive elas-

ticity is not only capable of achieving more consis-

tent and reliable scaling decisions with better rates

of false-positive results in case of sudden peaks of

the load when compared to reactive elasticity, but it

also allows to include relevant metrics such as deploy-

ment and start-up time into consideration for scaling

decisions. Proactive elasticity makes it possible to

have the needed resources ready before required, pre-

venting the application from going into an overloaded

state.

First, proactive elasticity depends on constant

monitoring of the system’s state. Second, we have

the prediction of future load based on the collected

data through time-series forecasting algorithms. We

selected the mathematical model named ARIMA for

this purpose. It is widely used for time series-based

prediction, and it can provide predictions in fewer

boot cycles than the machine learning models (da

Rosa Righi et al., 2020). Auto Regression (AR)

means that it is a regression of the variable against

itself. Thus the variable of interest is forecasted using

a linear combination of its past values. Moving Av-

erage models use past forecast errors rather than past

values of the variable. ARIMA takes both the previ-

ous values of the variable and the previous forecast

errors into consideration for its predictions.

ARIMA has several conﬁgurations that are de-

pendent on three parameters: d which is the mini-

mum number of differences that are required to make

the time series stationary, p which is the order of

auto-regressive terms (AR), and q which is the or-

der of the moving average (MA) term. We have

used Auto Arima, a function from the time series

analysis library, to determine these parameters’ most

appropriate values. As ARIMA’s predictions de-

pend on the analysis of time-series data, it is nec-

essary to collect a given number of load observa-

tions to start the load predictions. Righi, Correa,

Gomes, and Costa (da Rosa Righi et al., 2020) sug-

gest the use of at least six cycles - or six monitor-

ing observations - for the calculation of the predic-

tions. We have chosen to use the data of ten cy-

cles for our predictions, meaning ARIMA will take

10 × monitoring observation period to initialize and

provide its ﬁrst prediction. For example, if there are

10 seconds between each observation of the system’s

load, it will take 100 seconds to collect enough values

to make the ﬁrst prediction.

We have also deﬁned an ahead parameter based

on Equation 1. Righi, Correa, Gomes, and Costa (da

Rosa Righi et al., 2020) proposed this Equation to de-

termine how many cycles ahead into time ARIMA

should make its prediction to allow the deployment

of new resources in time. A proper deﬁnition of the

ahead parameter is crucial to avoid two possible pit-

falls:

1. too high of a value may cause the prediction to

missing short-term changes on the application be-

havior incurring in false-negative or false-positive

elasticity;

2. if the value is too low, the elasticity action may de-

liver the resources after they start to be necessary,

causing the application to run on an overloaded

state for some time, affecting its operations (da

Rosa Righi et al., 2020).

ahead =

Abs(Max(scaling out time))

monitoring observation period

(1)

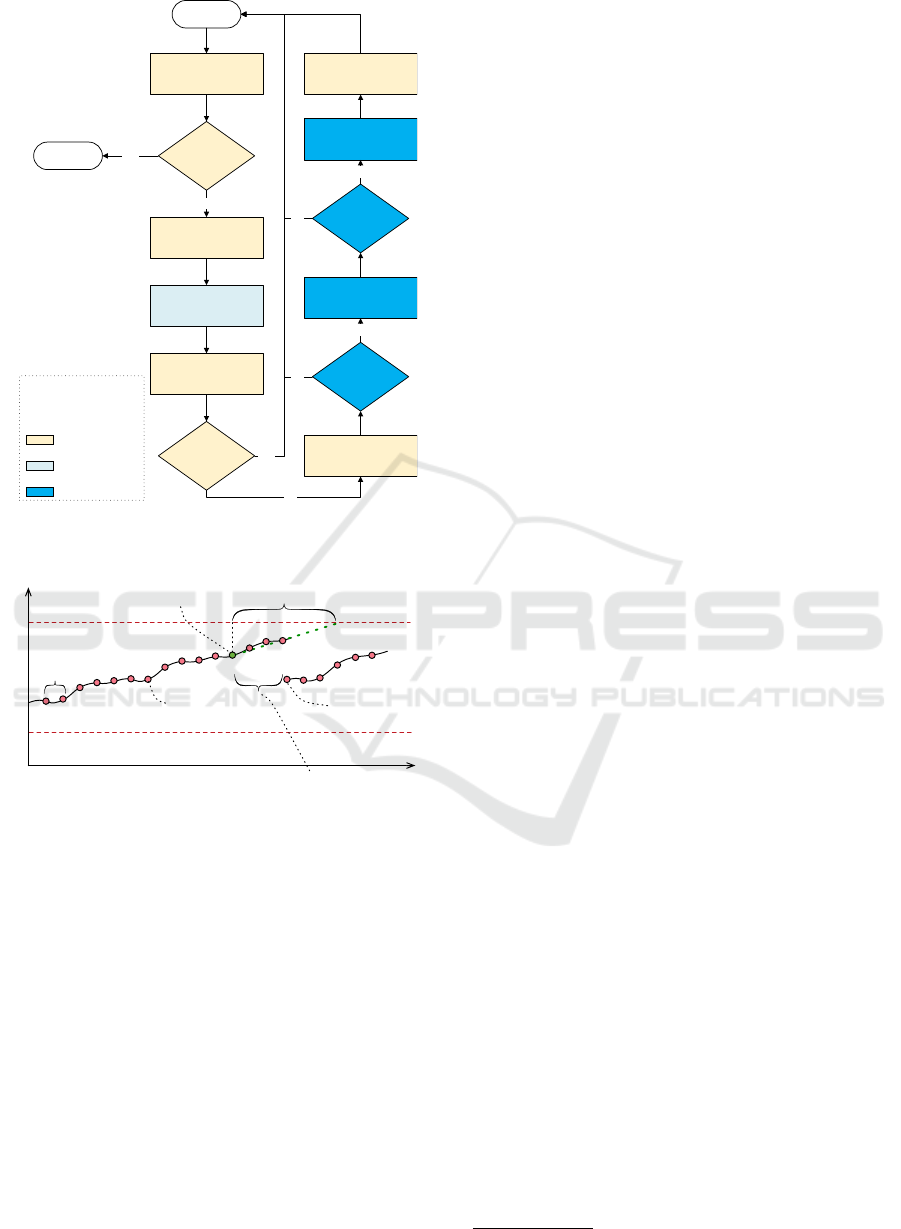

Figure 4 depicts the ﬂow of actions performed

by ProFog for elasticity management. Like reactive

models, proactive elasticity models also require the

deﬁnition of upper (UT) and lower (LT) threshold set-

tings. After performing load prediction, the predicted

values are compared to the threshold values to deter-

mine if scaling actions are required. Figure 5 illus-

trates the behavior of proactive elasticity models dur-

ing execution.

ProFog: A Proactive Elasticity Model for Fog Computing-based IoT Applications

383

Request CPU load from

all running Fog Nodes.

Capture the current CPU

load and notify the Cloud

Manager.

Compute CPU_load as

the average of the all

collected CPU values.

Trigger Elasticity actions.

Share CPU_load with

the Elastic Manager.

Compute load prediction

with ARIMA.

Clear historical data and

notify Elastic Manager to

perform scaling actions.

Periodical Monitoring,

waiting for a particular

time interval.

load > UT

load < LT

Is there an

ongoing elastic

action?

Is the system

shutting down?

Start

End

Enough values

for prediction?

Yes

LT – Lower Threshold

UT – Upper Threshold

Fog ManagerFog Manager

Cloud ManagerCloud Manager

Elasticity ManagerElasticity Manager

Figure 4: ProFog elasticity management ﬂowchart.

CPU load

Time

UT - Overloaded Situation

LT -Underloaded Situation

ahead observations in

the future, the upper

threshold will be violated

Elasticity Action

is Triggered

Time spent to Start

up Container/VM

Monitoring

Observation

Monitoring

Observation

Period

VM/Container

is delivered

Figure 5: Server elasticity managed by a proactive elasticity

model.

3 EVALUATION

METHODOLOGY

This section describes the methodology we employed

to evaluate the model.

3.1 Application

After analyzing a series of possible IoT scenarios doc-

umented by the OpenFog Consortium, an association

for the advance of Fog Computing as a connected and

interoperable architecture, we decided to use a video

streaming use case for the prototype’s test. Cases such

as healthcare and Industry 4.0 require precise knowl-

edge of the industry to recreate scenarios properly.

The variables, data, and the analysis of such data are

particular to their environment. However, streaming

scenarios are far more versatile as they are more con-

nected to the information technology area and do not

involve as many unfamiliar end devices and sensors.

Currently, we could not identify any applications

or benchmarks designed to evaluate such scenarios’

performance, so we have modeled an application to

evaluate the prototype. The ofﬁcial version of the

streaming scenario proposed by the Industrial Inter-

net Consortium comprises multiple different Fog lev-

els, each responsible for a speciﬁc task to achieve the

highest level of performance for live-event streaming.

As this project’s solution is not speciﬁc for streaming,

but for a general Cloud-Fog architecture, we simpli-

ﬁed the streaming scenario to a single Fog level that

provides Video-On-Demand (VOD) to clients mon-

itoring its state and performing scaling operations

proactively.

3.2 Infrastructure

In order to evaluate the results of ProFog, we have de-

ployed our solution to a Cloud-Fog environment. We

have used an Azure Container instance for the Cloud

layer, conﬁgured with 2 CPUs and 4GB of RAM,

to host the Cloud Manager and Elasticity Manager.

The Fog layer was composed of three Raspberry PI 4

Model B microcomputers as Fog nodes, hosting ap-

plication services.

On the Industrial Internet Consortium’s proposi-

tion of the video broadcasting scenario, which we

have based our case on, the IoT layer comprises HD

video cameras that collect data for transmission. Our

goal is to validate the elastic capacity of ProFog and

not the streaming scenario. We have removed the

HD video cameras in exchange for pre-recorded video

ﬁles (VOD), allowing us to simplify the application

and test infrastructure while maintaining the elastic

behavior. By doing that, we have removed the IoT

layer from the test infrastructure. In our test scenario,

Video-On-Demand clients consume the Fog layer’s

services. JMeter generates these clients on a sepa-

rate machine, creating service load for the Fog and

scaling needs. The machine we used to emulate the

clients has an Intel I7 7th Generation processor and

16GB of RAM.

3.3 Prototype

We built both Cloud Manager and the Fog layers’ ser-

vices on top of Node.js

. The Fog nodes provide the

https://nodejs.org/

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

384

streaming service through an HTTP server running

on Node.js, which streams video content to the con-

nected clients using the HTTP Live Streaming (HLS)

protocol. In turn, we developed the Elasticity Man-

ager in Python, employing the pmdarima

library for

time series analysis. Finally, we have used Docker

to create and manage the container instances for the

prototype while Dockerhub was used as the container

image repository.

For our prototype, we have used FFMpeg to en-

code a nine-minute long video ﬁle and stored the gen-

erated index ﬁle and video stream chunks locally for

consumption for the preparation of the video ﬁles.

Streaming clients initially connect to the Cloud Man-

ager, which then redirects them to an active Fog node

that provides the requested service seamlessly to the

client. Upon receiving a service request, the Cloud

Manager performs load balancing between different

active Fog nodes, always directing clients to the node

with the least load. The prototype does not contain

any application on the Cloud side for the evaluation

of Cloud elasticity.

3.4 Workload and Execution Scenarios

We have used JMeter

, a load testing tool main-

tained by the Apache Foundation, to simulate stream-

ing clients as it is a stable load testing tool with an

active community that can handle massive amounts

of threads. We have used different JMeter elements

to emulate the required streaming logic, allowing the

redirect of streaming clients to different servers dur-

ing the streaming process and a few custom Groovy

scripts that perform validations of the request re-

sponses emulate video buffer control.

During the test execution, each client generated by

JMeter makes HTTP requests to a service provider on

the Fog layer for transport stream ﬁles - video chunks.

We have conﬁgured JMeter to emulate clients at two

different points in time. The ﬁrst client emulation

created 400 clients over three minutes (180 seconds).

The second client emulation created 200 more clients

over one minute and 40 seconds (100 seconds). The

ﬁrst load was triggered at the test start and the second

load at four minutes and 10 seconds (250 seconds).

It is important to note that we also developed Pro-

Fog to support reactive elasticity for comparison pur-

poses. In order to evaluate the prototype, we have

conﬁgured ProFog to accept two different execution

https://pypi.org/project/pmdarima/

https://www.docker.com/

https://jmeter.apache.org/

https://groovy-lang.org/

modes, which allow us to observe two different sce-

narios in the same environment:

• Scenario 1: Streaming service with ProFog run-

ning on reactive elasticity mode;

• Scenario 2: Streaming service with ProFog run-

ning on proactive elasticity mode.

3.5 Evaluation Metrics

We observed the system’s average load to determine

the efﬁciency of ProFog on handling resizing upon

demand. Average load is a metric that considers CPU

load, network connections, and I/O operations, be-

ing a more reliable metric for speciﬁc applications

that do not rely exclusively on CPU-intensive oper-

ations. Additionally, we observe energy consumption

as a metric to evaluate this behavior. We can estimate

the energy consumption by analyzing the deployment

times of containers and for how long they were active

(da Rosa Righi et al., 2020), as shown in Equation

2. In the equation, n is the maximum number of con-

tainers, and T (i) is the time spent running with i con-

tainers. For example, suppose the following scenario:

1 container for 40 seconds, 2 containers for 25 sec-

onds, 3 containers for 50 seconds; this would result in

Energy = 1 × 40 + 2 × 25 + 3 × 50 = 240.

Energy =

∑

i=1

(i × T (i)) (2)

3.6 Evaluation Parameters

We have conﬁgured ProFog to collect data from each

of the Fog nodes every 5 seconds. Calculating the pre-

diction on the Elasticity Manager takes up to 4 sec-

onds. With these metrics, the total interval data for

each collection is around 9 seconds. The download

of the container image from Dockerhub takes up to

20 seconds, depending on network congestion. The

initialization of the application using the container

image is less than 2 seconds, adding up to 22 sec-

onds. Based on Equation 1, predictions should be

performed for 2.44 measures ahead, resulting from 22

divided by 9. We have decided to round this value up

to 3 to compensate for unaccounted communication

delays.

The upper and lower CPU threshold values for

elasticity control were set to 90% and 50%, respec-

tively, based on observing the system’s behavior over

multiple test runs.

ProFog: A Proactive Elasticity Model for Fog Computing-based IoT Applications

385

4 RESULTS

This section presents the results from running the pro-

totype in the scenarios previously described.

4.1 Load and Resource Allocation

Figure 6 illustrates the system behavior using the re-

active elasticity approach throughout a twelve-minute

load test. Analyzing the graph, we can see that a load

peak at 1:45min has triggered the second Fog node’s

start-up. After that, the same situation repeats itself at

2:35min. At 2:40min, three Fog nodes were already

active and remained active until the load dropped be-

low the lower threshold at 10:25min.

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00

Fog node

Average CPU Load

Time (mm:ss)

Average load Upper threshold Lower threshold Fog nodes

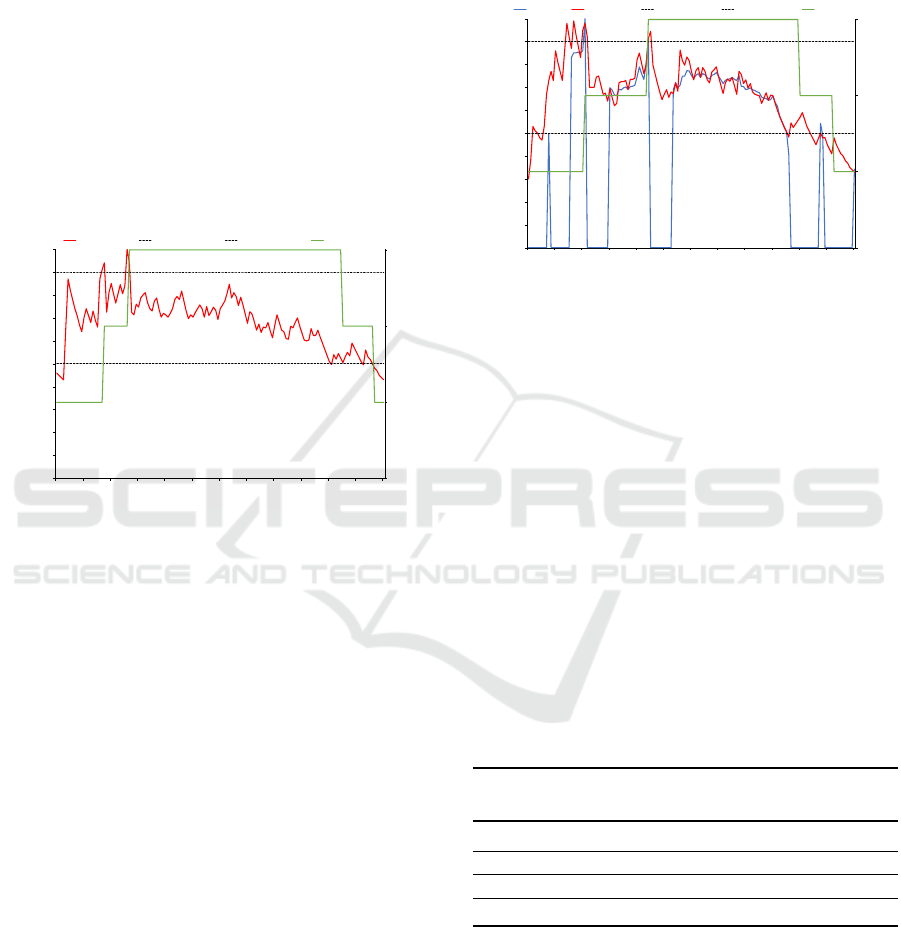

Figure 6: Scenario 1: Streaming service with ProFog run-

ning on reactive elasticity mode.

Figure 7 illustrates the system behavior with Pro-

Fog running in proactive mode. We can see that the

second Fog node’s start-up suffered a delay as the

predicted values were lower than the observed load

value, which was a peak. In this scenario, the sec-

ond Fog node’s start-up took place at 2:05min and

the third node at 4:25min. We can also see that the

predicted values are very close to the observed load

values. This behavior may be related to ARIMA’s pa-

rameterization or that the predictions only occur three

measures ahead, which is relatively low. Increasing

the ahead parameter could improve the predictions,

but it could also incur a more prolonged resource us-

age than necessary. The drops to zero in the predicted

values mean that the Elastic Manager has requested

an elastic action to be taken and cleared its load val-

ues buffer. This action could be followed or ignored

by the Cloud Manager depending on resource avail-

ability at the moment.

We have opted not to calculate a standard devia-

tion or mean at this point as the application used for

the test is dynamic and subject to multiple variables

of the emulation environment, which would affect the

results. Furthermore, the most crucial point for us to

monitor is the system’s elastic behavior and its impact

on resource allocation. As the current prototype does

not contain any applications that run on the Cloud,

we could not verify the Cloud side’s elastic behavior

either.

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00

Fog nodes

Average CPU Load

Time (mm:ss)

Prediction Average load Upper threshold Lower threshold Fog nodes

Figure 7: Scenario 2: Streaming service with ProFog run-

ning on proactive elasticity mode.

4.2 Energy Consumption

We have mapped the Fog node initialization times for

each scenario to calculate an estimate of energy con-

sumption. Table 1 presents the results for Scenario 1

and table 2 the results for Scenario 2. By comparing

the tables’ total values, we see that scenario two has

presented lower energy consumption. Even though

the predictions were not far enough ahead to trigger

scaling actions in advance on the tested scenario, we

can see that time series analysis has helped smooth

the data and minimize unnecessary scaling on sudden

peaks. This behavior has improved energy consump-

tion by 11.21%, resulting from (1785/1605 - 1).

Table 1: Energy consumption estimate based on equation 2

for the scenario 1.

Number of

Fog Nodes

Period of

time (s)

Energy

consumption

1 125 125

2 125 250

3 470 1410

Total 1785

4.3 Discussion

The proximity between the actual load values and the

predicted load values shows us that the use of proac-

tive elasticity for fast deployment environments, such

as those based on containers, may be challenging.

The lower the time required for deployment is, the

WEBIST 2021 - 17th International Conference on Web Information Systems and Technologies

386

Table 2: Energy consumption estimate based on equation 2

for the scenario 2.

Number of

Fog Nodes

Period of

time (s)

Energy

consumption

1 170 170

2 215 430

3 335 1005

Total 1605

more difﬁcult it is to make a prediction capable of

scaling the system in time. By modifying the ahead

parameter used for the predictions, we could further

anticipate scaling needs. However, at the same time,

we may deliver resources before they are required,

which may incur unnecessary energy consumption

and additional costs.

Even though the predictions performed by ProFog

were too close to the actual load values for us to see

preemptive scaling actions take place, we can see that

the use of time series analysis has brought other ben-

eﬁts to the system. By analyzing the system load over

time for Scenario 2, we see that the load predictions

have smoothed load peaks, helping avoid unnecessary

deployment of new Fog nodes. By preventing un-

necessary deployment of Fog nodes caused by load

peaks, ProFog has reduced the number of active ma-

chines for some time, consequently reducing energy

consumption and operating costs for the system.

5 CONCLUSION

As IoT grows across multiple industries, it becomes

necessary to review how solutions design IoT sys-

tems. Cloud data centers are often used to implement

IoT scenarios as they offer scalability and reliability.

However, such conﬁguration poses many challenges

- from security to QoS and network congestion - that

may prevent certain use cases or the adoption in spe-

ciﬁc industries. These challenges have fostered the

advance of another system architecture named Fog

computing. This architecture brings the processing of

data closer to the resource, allowing better response

times, lower latency, and increased security.

In this context, this article addressed proactive

elasticity for resource allocation on Fog comput-

ing for IoT implementations by presenting a model

named ProFog. This model manages resource allo-

cation and provides proactive elasticity to applica-

tions without any user intervention or elasticity con-

trol logic from the application end. To validate the

model, we have built a prototype using Microsoft

Azure - like the Cloud - and three Raspberry Pi 4

microcomputers - which operated as Fog nodes. We

evaluated our prototype using a Video-On-Demand

streaming scenario. However, ProFog covers vari-

ous scenarios, such as manufacturing, healthcare, and

Smart Cities.

ACKNOWLEDGMENT

The authors would like to thank the Coordenac¸

de Aperfeic¸oamento de Pessoal de N

ıvel Superior -

CAPES (Finance Code 001) and Conselho Nacional

de Desenvolvimento Cient

ıﬁco e Tecnol

ogico - CNPq

(Grant Number 303640 / 2017-0).

REFERENCES

da Rosa Righi, R., Correa, E., Gomes, M. M., and da Costa,

C. A. (2020). Enhancing performance of iot applica-

tions with load prediction and cloud elasticity. Future

Generation Computer Systems, 109:689 – 701.

Fischer, G. S., da Rosa Righi, R., de Oliveira Ramos, G.,

da Costa, C. A., and Rodrigues, J. J. (2020). El-

health: Using internet of things and data prediction

for elastic management of human resources in smart

hospitals. Engineering Applications of Artiﬁcial Intel-

ligence, 87:103285.

Masood, T. and Sonntag, P. (2020). Industry 4.0: Adop-

tion challenges and beneﬁts for smes. Computers in

Industry, 121:103261.

Mohamed, N. (2017). SmartCityWare: A Service-Oriented

Middleware for Cloud and Fog Enabled Smart City

Services. NEW ERA OF SMART CITIES: SENSORS

COMMUNICATION TECHNOLOGIES AND APPLI-

CATIONS.

Nguyen, N. D., Phan, L. A., Park, D. H., Kim, S., and

Kim, T. (2020). Elasticfog: Elastic resource provi-

sioning in container-based fog computing. IEEE Ac-

cess, 8:183879–183890.

Shah, S. A. B. and Aziz, S. M. (2020). Response time de-

terminism in healthcare data analytics using machine

learning. In Yang, H., Pasupa, K., Leung, A. C.-S.,

Kwok, J. T., Chan, J. H., and King, I., editors, Neu-

ral Information Processing, pages 203–210, Cham.

Springer International Publishing.

Suganuma, T. (2018). Multiagent-Based Flexible Edge

Computing Architecture for IoT. IEEE Network.

Sun, X. and Ansari, N. (2016). Edgeiot: Mobile edge com-

puting for the internet of things. IEEE Communica-

tions Magazine, 54(12):22–29.

Vaquero, L. M. and Rodero-Merino, L. (2014). Finding

your way in the fog: Towards a comprehensive deﬁni-

tion of fog computing. SIGCOMM Comput. Commun.

Rev., 44(5):27–32.

Yin, L., Luo, J., and Luo, H. (2018). Tasks scheduling and

resource allocation in fog computing based on con-

tainers for smart manufacturing. IEEE Transactions

on Industrial Informatics, 14(10):4712–4721.

ProFog: A Proactive Elasticity Model for Fog Computing-based IoT Applications

387
