Sub-dataset Generation and Matching for Crack Detection on Brick
Walls using Convolutional Neural Networks
Mehedi Hasan Talukder
1
, Shuhei Ota
2
, Masato Takanokura
2
and Nobuaki Ishii
2
1
Course of Industrial Engineering and Management, Graduate School of Engineering, Kanagawa University,
Yokohama, Japan
2
Department of Industrial Engineering and Management, Faculty of Engineering, Kanagawa University, Yokohama, Japan
Keywords: Deep Learning, Maintenance of Brick Walls, Color Information.
Abstract: Crack detection is an issue of significant interest in ensuring the safety of buildings. Conventionally, a
maintenance engineer performs crack detection manually, which is laborious and time-consuming.
Therefore, a systematic crack detection method is required. Among the existing methods, convolutional
neural networks (CNNs) are more effective; however, they often fail in the case of brick walls. There are
several types of bricks and some may appear to have cracks owing to their structure. Additionally, the
joining points of bricks may appear as cracks. It is theorized that if sub-datasets are generated based on the
image attributes, and a proper sub-dataset is selected by matching the test image with the sub-datasets, then
the performance of the CNN can be improved. In this study, a method consisting of sub-dataset generation
and matching is proposed to improve the crack detection in brick walls. CNN learning is conducted with
each sub-dataset, and crack detection is performed using a proper learned CNN that is selected by matching
the test images with the images in the sub-datasets. Four performance metrics, namely, precision, recall, F-
measure, and accuracy, are used for performance evaluation. The numerical experiments show that the
proposed method improves the crack detection in brick walls.
1 INTRODUCTION
Crack detection during maintenance is an essential
task to ensure the safety of concrete structures (Liu
et al., 2019). The number of old buildings, roads,
and bridges is increasing worldwide. Numerous
buildings, highways, and bridges in Japan, the USA,
and other countries have been in service for over 50
years (Road Bureau Japan, 2015; American Society
of Civil Engineers, 2017). In Japan, there are
approximately 700,000 bridges of which 43% are 50
years or older (Road Bureau Japan, 2015). Cracks
may occur in old structures and are considered to be
the initial signs of deterioration. The detection of
cracks in early stages can help prevent the collapse of
buildings, especially after natural disasters.
Conventionally, crack detection is performed by a
maintenance engineer by manual process which is a
time- and labor-intensive task (Dais et al., 2021).
However, 50% of towns and 70% of villages in Japan
have no technicians available for maintenance (Road
Bureau Japan, 2015). In the USA, approximately 40%
of bridges have been in service for approximately 50
years; 24% of buildings and one out of every five
miles of highways are in poor condition (ASCE,
2017). In these old structures, cracks and sometimes
extensive damage can be observed. Therefore, to
ensure safety, crack detection is of vital importance in
the maintenance of concrete structures (Cha et al.,
2017; Ozgenel et al., 2018).
Through advanced digital image technology,
several image processing and vision based
techniques have been implemented to inspect and
detect defects in civil infrastructure (Choi et al.,
2014; Neogi et al., 2014; Ozgenel et al., 2018;
Qader et al., 2003; Wu et al., 2008; Yeum et al.,
2015). The performance of the image processing
depends on the environment. Current image
processing techniques can detect wall cracks under
certain environmental conditions (Talukder et al.,
2020; Talukder et al., 2021). Presently, various
convolutional neural network (CNN) methods are
being used for crack detection in concrete
structures (Dung et al., 2019; Huyan et al., 2019;
Jacob et al. 2019; Li et al. 2019; Li et al. 2020;
Mahtab et al. 2019). CNN methods have proven to
Talukder, M., Ota, S., Takanokura, M. and Ishii, N.
Sub-dataset Generation and Matching for Crack Detection on Brick Walls using Convolutional Neural Networks.
DOI: 10.5220/0010615501910197
In Proceedings of the 2nd International Conference on Deep Learning Theory and Applications (DeLTA 2021), pages 191-197
ISBN: 978-989-758-526-5
Copyright
c
 2021 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
191

be more effective for crack detection than other
methods (Cha et al., 2017; Ozgenel et al., 2018).
However, their performance is poor due to various
environmental conditions, such as shadows,
inadequate brightness, and stains (Cha et al., 2017;
Talukder et al., 2021; Hoang et al., 2018;
Andrushia et al., 2018). With changes in the
environmental conditions, the image quality also
changes; hence, current CNN methods are less
effective. Crack detection in brick walls is
especially a major challenge (Ozgenel et al., 2018).
The structure of some bricks and the joining points
of bricks may appear as cracks, which poses a
challenge to current methods.
Current CNN methods use a large dataset
consisting of images with different properties for
the learning process. There are several types of
bricks and some may appear to have cracks owing
to their structure. Additionally, the joining points
of the bricks may appear as cracks. Hence, it is
difficult to detect cracks in brick walls effectively
using current CNN methods. It is theorized that if
sub-datasets are generated based on the image
properties and a proper sub-dataset is selected for
crack detection by matching the test image with the
images of sub-datasets, then the performance of the
CNN can be improved.
The objective of this study is to develop
methods of sub-dataset generation and matching
which are used for CNN-based crack detection in
brick walls. Sub-dataset generation algorithm is
used to generate small sub-datasets from a large
dataset based on the image features; CNN learning
is done by these sub-datasets. After CNN learning,
matching algorithm is used to select proper learned
CNN by matching the features of input image with
those of the sub-datasets. The key novelty of the
proposed approach lies in the sub-dataset
generation from a large dataset and matching of the
test image with the sub-datasets to select a proper
sub-dataset for crack detection. Using the proposed
method, sub-datasets are generated based on the
images having similar attributes. Color models,
texture analysis, histogram analysis, etc. are used
for image classification (Bianconi et al., 2011;
Varma et al., 2005). RGB color provides strong
indications and increases the image classification
accuracy (Bianconi et al., 2011). The images of
brick walls contain sufficient information of R, G,
and B values. Hence, the R, G, and B values of
images are considered as attributes for the sub-
dataset generation and for the matching algorithm.
Owing to the sub-dataset generation and matching,
a proper sub-dataset can be selected for crack
detection. Therefore, the proposed method
improves the performance of crack detection in
brick walls.
2 RELATED WORKS
Numerous image processing, edge detection, vision-
based, CNN-based, and other methods have been
developed by researchers for the purpose of crack
detection. Ozgenel et al. (2018) performed crack
detection using vision-based, image processing-
based, and CNN-based crack detection methods.
Their study showed that shadow and noise remain
as challenges in using CNN methods. Cha et al
.(2017) used the vibration method, image
processing, and the CNN method for crack
detection; the study states that the crack detection
results are substantially affected by noise created
from lighting and distortion. Huyan et al. (2019)
used a fast-region CNN based crack deep network
for the purpose of crack detection of sealed
unsealed cracks with complex road background.
They show that, image surface have a strong
influence on the performance of crack detection.
According to this study, the performance of CNN is
poor for the crack detection for some background
conditions such as images with shadow, images
with noise, and so on.
Talukder et al. (2021) proposed a method
consisting of a sub-dataset generation and
matching-based CNN for crack detection in
concrete walls. Their study used the brightness
value of images for the sub-dataset generation and
matching as image properties. However, images of
brick walls contain sufficient information of RGB
colour; hence, in our study, the R, G, and B values
of images are used for the sub-dataset generation
and matching.
Dais et al. (2021) used CNN and transfer
learning for the crack detection of brick masonry.
CNNs are comparatively effective for crack
detection; however, performance is low for brick
masonry surface. This is because, there are several
types of bricks and the joining points of brick walls
are also different in different walls. Therefore, crack
detection of brick walls is challenging. A few
sample images of different brick walls are presented
in Figure 1. The first and second rows of the figure
show sample crack and no-crack images of the brick
walls, respectively, which were collected from the
different buildings of the Kanagawa University,
Japan.
DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications
192

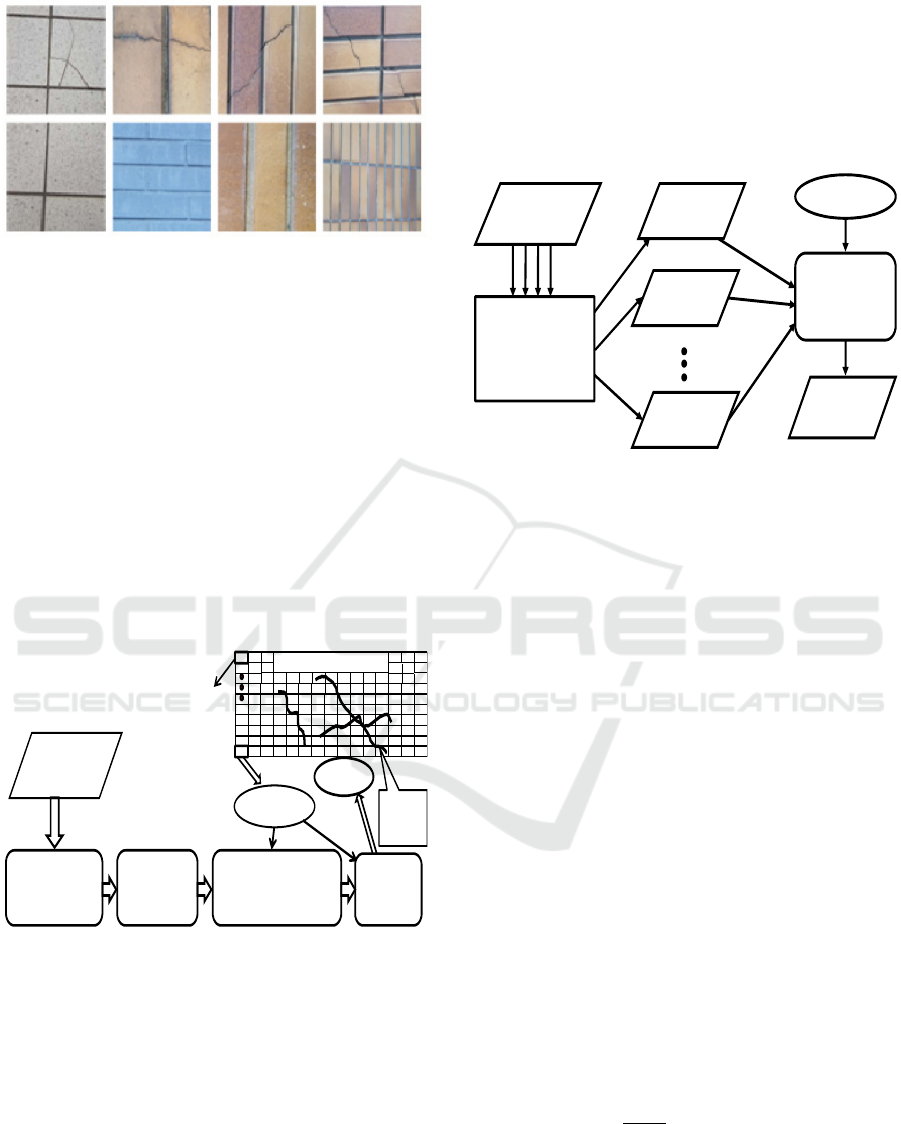

Figure 1: A few sample images of different brick walls.
3 PROPOSED METHOD FOR
CRACK DETECTION
3.1 Structure of the Proposed Method
In this study, a CNN-based method consisting of
sub-dataset generation and matching is proposed for
the crack detection in brick walls. The overall
structure of the proposed method is illustrated in
Figure 2. The mechanism of sub-dataset generation
from a large dataset and the matching algorithm that
selects a CNN learned using the proper sub-dataset
according to a test image is shown in Figure 3.
Figure 2: Structure of the proposed crack detection method.
In the proposed crack detection method, a large
dataset of images is divided into small sub-datasets
based on the attributes of the images, as shown in
Figure 2. Following the sub-dataset generation,
CNN learning is performed using the sub-datasets.
Thereafter, the CNN learned based on the proper
sub-dataset is selected using the proposed matching
algorithm. The proper learned CNN is selected by
matching the attributes of the test image with the
attributes of the sub-datasets, and then the crack
detection is performed using the selected learned
CNN. Generally, the performance of a CNN for
crack detection in brick walls is poor when utilizing
a large dataset consisting of images of different
types of brick walls. To improve the performance of
CNN for crack detection of brick walls, the process
of sub-dataset generation and matching is performed
in the proposed method.
Figure 3: Mechanism of the sub-dataset generation and
matching.
In general, the images of brick walls contain
sufficient information of R, G, and B values; hence,
these values are considered as the image attributes
for the sub-dataset generation and the matching
algorithm. Figure 3 shows the generation of the
small sub-datasets from a large dataset based on the
images with similar RGB values. Using the
proposed method, a proper learned CNN is selected
by matching the RGB values of a test image with the
RGB values of the images of sub-datasets used for
learning.
3.2 Sub-dataset Generation and
Matching
To generate small sub-datasets from a large dataset
and to match the test input image with the sub-
datasets, the color distances of the R, G, and B
values between the images are calculated. In this
process, the averages of the R, G, and B values of
the images are first calculated. The average R, G,
and B values of the i-th image are calculated using
Equation (1) as follows:

𝑅


𝐺


𝐵


=
1
𝑛

𝑛


𝑟

𝑔

𝑏








, (1)
where x and y represent the spatial coordinates, n
x
and n
y
represent the size of the images, and r
xy
, g
xy
,
and b
xy
represent the R, G, and B values of the
Output
Generate Sub-
datasets based on
Image Attributes
CNN Learning
using
Sub-datasets
Learned CNN Selection
by
Matching Algorithm
Test Image
Each grid is
one test image
Large Brick Wall
Combine
all grids
Crack
Detection
Large Dataset
with
Image Attributes
Classification by
R, G, B values of
images
Test Image
Matching by
R, G, B values
of images
Sub-
dataset-1
Sub-
dataset-2
Sub-
dataset-n
Selected
sub-dataset
Images of
large dataset
Sub-dataset Generation and Matching for Crack Detection on Brick Walls using Convolutional Neural Networks
193

corresponding pixel position in the image,
respectively. The average R, G, and B values of two
images are calculated using Equations (2) and (3)
given below.
𝐼

=

𝑅




,𝐺




,𝐵





(2)
𝐼

=

𝑅




,𝐺




,𝐵





.
(3)
Further, the Color Distance between these two
images can be calculated using Equation (4) as
shown below:
𝐶𝑜𝑙𝑜𝑟 𝐷𝑖𝑠𝑡𝑎𝑛𝑐𝑒=

(
R


−R


)

+
(
G


−G


)

+(B


−B


)

(4)
To generate small sub-datasets from a large
dataset, the Color Distance between 0 and C
D
was
taken for each sub-dataset, where C
D
was used as the
threshold value for the Color Distance parameter.
The algorithmic steps of the sub-dataset generation
and matching algorithms are explained below.
Algorithmic Steps of Sub-dataset Generation:
1) Calculate the 𝑅


,𝐺


,𝐵


values for all images of
the large dataset using Equation (1).
2) For i = 1 to N // N is the size of the large
dataset.
Select image I
i
of the dataset.
3) For j = i + 1 to N
Calculate the Color Distance between I
i
and I
j
using Equation (4).
If the Color Distance is <= C
D
, include in the
same sub-dataset and remove I
j
from the large
dataset.
Repeat steps 2 to 3 until no images remain in
the large dataset.
4) Exit when there are no more images in the
large dataset.
Algorithmic Steps of Matching:
1) Calculate the 𝑅



,𝐺



,𝐵



values, which are the
average values of the 𝑅

,𝐺
̅
,𝐵

values of the
images of sub-dataset i.
2) Calculate the 𝑅

,𝐺
̅
,𝐵

values of the test image
using Equation (1).
3) Calculate the Color Distance between the test
image and each sub-dataset using Equation
(4).
4) The sub-dataset with the minimum Color
Distance is selected for the crack detection.
4 NUMERICAL EXPERIMENTS
4.1 Dataset Preparation for CNN
Learning
To train the CNN, a total of 400 images (200 crack
and 200 no-crack images) of brick walls with a size
of 227 × 227 pixels were generated by manually
cropping from 100 raw images. The raw images of
the brick walls were collected from the Internet. A
total of 30 images (15 crack and 15 no-crack
images) were used for the testing process to evaluate
the performance of the proposed method for the
crack detection of brick walls.
4.2 Experimental Design
The crack detection was performed using the
proposed method in MATLAB. For the experiments,
the CNN architecture was designed with eight layers
(Cha et al., 2017; Talukder et al. 2021). Table 1 lists
the detailed dimensions of each layer and their
operations.
In Table 1, L represents the layers, and C and P
represent the convolution and pooling, respectively.
For the experiments, the number of epochs was set
to10, and the batch size was 32.
Table 1: Dimensions of the layers and operations of the
CNN.
Layers Height
&
Width
Depth Operator Height
&
Width
Depth No. Stride
Input 227 3 C1 15 3 24 2
L1 107 24 P1 7 - - 2
L2 51 24 C2 11 24 48 2
L3 21 48 P2 5 - - 2
L4 9 48 C3 9 48 96 2
L5 1 96 ReLU - - - -
L6 1 96 C4 1 96 2 1
L7 1 2 Softmax - - - -
L8 1 2 - - - - -
Two experiments, namely, experiments 1 and 2,
were performed to evaluate the performance of the
proposed crack detection method. Experiment 1 was
conducted to evaluate the performance of the CNN
for the crack detection in brick walls using a large
dataset consisting of the different types of images
for the purpose of training the CNN. Experiment 2
was conducted to evaluate the effectiveness of the
sub-dataset generation using the RGB values of
DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications
194

images as image attributes and the matching
algorithm for crack detection.
Images with similar RGB values were obtained
for each sub-dataset. Subsequently, the generated
sub-datasets were used to perform the CNN
learning. The properly learned CNN was selected
using the matching algorithm and then used to
perform the crack detection.
For the sub-dataset generation and matching in
experiment 2, the results were checked for different
values of C
D
(C
D
= 0, 20, and 40) to select the
appropriate threshold value. At C
D =
20, the best
results were observed. Thus, the threshold value was
set at C
D
≥ 20 for experiment 2. The threshold value
may change with a change in the images of the
training dataset.
4.3 Results
Four performance metrics, namely, precision, recall,
F-measure, and accuracy (Talukder et al., 2021;
Baratloo et al. 2015), were calculated to compare the
performances of experiments 1 and 2. Four types of
data, i.e., true positives (TP), true negatives (TN),
false negatives (FN), and false positives (FP), were
used to calculate the values of the performance
metrics, which are defined as follows:
Precision = T
P
/ (T
P
+ FP) (5)
Recall = T
P
/ (T
P
+ FN) (6)
F-measure = (2 × precision × recall) /
(precision + recall)
(7)
Accuracy = (TP + TN) /
(T
P
+ FN + TN + FP).
(8)
where TP indicates a crack detected for a real crack
image, FN indicates no crack detected for a real
crack image, TN indicates no crack detected for a
no-crack image, and FP indicates a crack detected
for a no-crack image (Baratloo et al. 2015; Talukder
et al., 2021).
When the crack detection method is accurate, the
values of precision, recall, F-measure, and accuracy
are all close to 1.0, whereas they are almost 0.0
when the model is improper (Talukder et al., 2021;
Baratloo et al. 2015).
The quantitative results of the experiments are
presented in Tables 2, 3, and 4, which compare the
performances of experiments 1 and 2.
Table 2: Results of experiment 1.
Positive
(True)
Negative
(True)
Positive
(Estimate)
TP
15
FP
3
Negative
(Estimate)
FN
0
TN
12
Table 3: Results of experiment 2.
Positive
(True)
Negative
(True)
Positive
(
Estimate
)
TP
15
FP
1
Negative
(
Estimate
)
FN
0
TN
14
Table 4: Comparison of the performance metrics of the
experiments.
Precision Recall F-measure Accurac
y
Experiment 1 0.833 1.0 0.908 0.900
Experiment 2
0.938 1.0 0.968 0.967
From Table 2, it can be observed that a total of
three false results (FP) were obtained in experiment
1. In contrast, only one false result (FP) was
obtained in experiment 2 as shown in Table 3.
Upon comparing the performance metrics of
both experiments, it was observed that the values of
the performance metrics improved in experiment 2
as compared to experiment 1, as shown in Table 4.
The values of the performance metrics improved;
namely, precision, F-measure, and accuracy
improved by 93.8%, 96.8%, and 96.7% from 83.3%,
90.8%, and 90.0%, respectively. From these results,
it is evident that the proposed method can improve
the performance of crack detection in brick walls.
5 DISCUSSION
From the results of experiment 1 in Table 2, three
false results were obtained because some brick
structures appeared to have cracks. In some cases,
the joining points of bricks also appeared as cracks.
To clarify this, an example is shown in Figure 4 of
an image taken from Kanagawa University, Japan.
For this image type, experiment 1 provided false
results; however, experiment 2 provided correct
results for crack detection by selecting a proper sub-
dataset.
Sub-dataset Generation and Matching for Crack Detection on Brick Walls using Convolutional Neural Networks
195

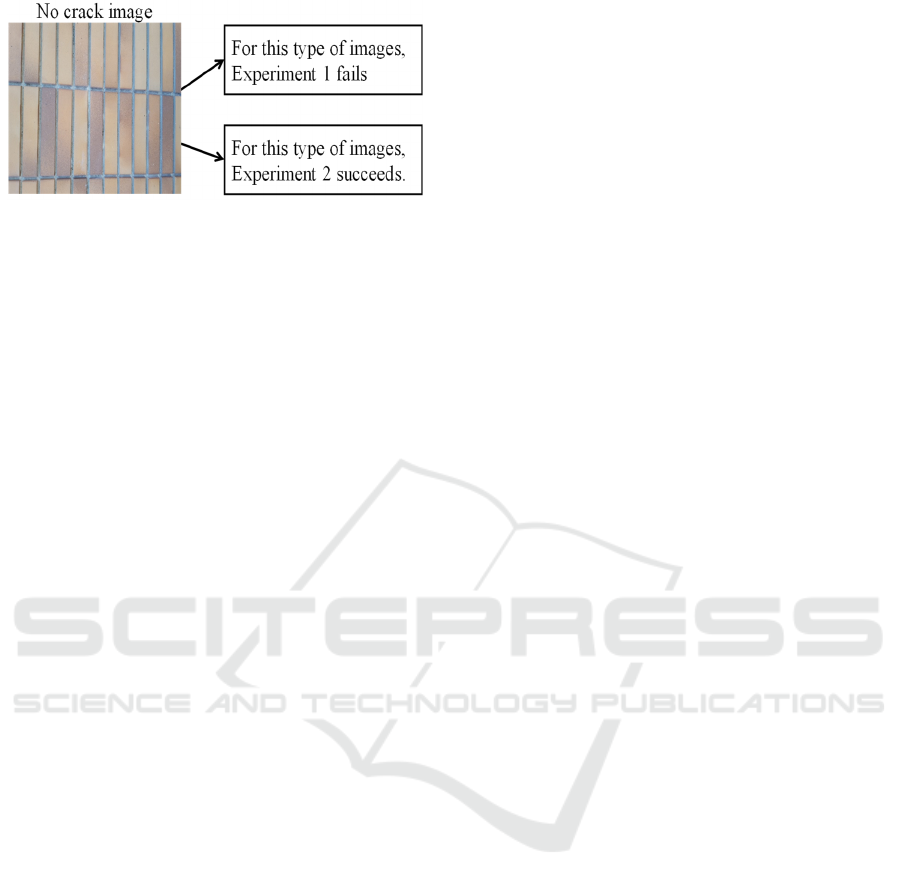

Figure 4: Example of image type for which experiment 1
fails.
For these types of images of brick walls of
Figure 4, experiment 1 failed because the joining
points of the bricks appeared as cracks; however, in
reality, those were not cracks. The joining points of
the bricks are dark and may appear similar to cracks.
When using a large dataset for CNN training and for
crack detection, then most similarity between the
crack images of large training dataset and these
types of images of Figure 4 was observed, rendering
experiment 1 a failure.
Experiment 2 was successful for these types of
brick walls, as shown in Figure 4, because sub-
datasets were generated, using which the CNN
learning was performed. For crack detection, the
learned CNN was selected by matching the test
image with the generated sub-datasets. The selected
CNN was trained using the sub-dataset that
contained only the images that were similar to the
test image. Thus, experiment 2 was a success.
The advantage of the proposed method is that the
values of the performance metrics are improved for
the test images of brick walls. However, a limitation
of the method is that the threshold value (C
D
) used
for the Color Distance parameter changes with a
change in the images of the training dataset.
6 CONCLUSIONS
In this study, a new method consisting of sub-dataset
generation and matching was proposed to improve
the performance of CNN for the crack detection in
brick walls. The proper learned CNN was selected
for crack detection by matching the attributes of the
sub-datasets used for learning with those of the test
image. The results show that the proposed method
improves the performance of crack detection in
different types of brick walls.
In this study, the images of the training dataset
were prepared manually, with 400 images being
prepared for CNN learning. The dataset generation
by manual process is laborious and time consuming.
For this reason, manual dataset generation is
difficult in industrial practices.
In future research, we plan to develop a
systematic method for dataset preparation with a
capacity to produce a large number of images (as
high as 10,000 images) for CNN learning. In detail,
we plan to develop datasets generation method not
only for brick walls but also for concrete walls
which will be used for the purpose of maintenance.
Systematic method of datasets generation will
reduce the required time for datasets generation as
well as reduce the cost of maintenance.
REFERENCES
American Society of Civil Engineers (ASCE), (2017).
Infrastructure Report Card.
Andrushia, A. D., Anand N., Godwin, I. A. (2018).
Analysis of edge detection algorithms for concrete
crack detection. International journal of mechanical
engineering and technology. 9(11), 689–695.
Baratloo, A., Hosseini, M., Negida, A., Ashal, G. (2015).
Simple definition and calculation of accuracy,
sensitivity and specificity. Emergency. 3 (2), 48–49.
Bianconi, F., Harvey, R., Southam, P., Fernandez, A.
(2011). Theoretical and experimental comparison of
different approaches for colour texture classification.
Journal of electronic imaging, 20 (4), 1–20.
Cha, Y. J., Choi, W. (2017). Deep learning-based crack
damage detection using convolutional neural networks.
Computer-aided civil and infrastructure engineering.
32, 361–378.
Choi, D., Jeon, Y., Lee, S. J., Yun J. P., Kim, S. W. (2014).
Algorithm for detecting seam cracks in steel plates
using a Gabor filter combination method. Applied
Optics. 53 (22), 4865–4872.
Dais, D., Bal, I., E., Smyrou, E., Sarhosis, V. (2021).
Automatic crack classification and segmentation on
masonry surfaces using convolutional neural networks
and transfer learning. Automation in construction. 125,
1–18.
Dung, C. V., Anh, L. D. (2019). Autonomous concrete
crack detection using deep fully convolutional neural
network. Automation in construction. 99, 52–58.
Hoang, N. D., Nguyen, Q. L., Tran, V. D. (2018).
Automatic recognition of asphalt pavement cracks
using metaheuristic optimized edge detection
algorithms and convolution neural network.
Automation in construction, 94, 203–213.
Huyan, J., Li, W., Tighe, S., Zhai, J., Xu, Z., Chen, Y.
(2019). Detection of sealed and unsealed cracks with
complex backgrounds using deep convolutional neural
network. Automation in construction. 107, 1–14.
Jacob, K., Mark, D. J., Peter, B., Mike, M., Gordon, M.
(2019). A convolutional neural network for pavement
surface crack segmentation using residual connections
DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications
196

and attention gating. 2019 IEEE International
Conference on Image Processing, ICIP.
Li, G., Ma, B., He, S., Ren, X., Liu, Q. (2020). Automatic
tunnel crack detection based on u-net and a
convolutional neural network with alternately updated
clique. Sensors. 20, 1–23.
Li, S., Zhao, X. (2019). Image-based concrete crack
detection using convolutional neural network and
exhaustive search technique. Advances in civil
engineering. 2019, 1–12.
Liu, Z., Cao, Y., Wang, Y., Wang, W. (2019). Computer
vision-based concrete crack detection using u-net fully
convolutional networks. Automation in construction.
104,129–139.
Mahtab, M. K., Sahand, V., Leila, G., Ozturk, Y. E.,
Mustafa, Y., Selim, A., Nazim, K. U. (2019). Deep-
learning-based crack detection with applications for
the structural health monitoring of gas turbines.
Structural health monitoring. 19 (5), 1440–1452.
Neogi, N., Mohanta, D. K., Dutta, P. K. (2014). Review of
vision-based steel surface inspection systems. Journal
on image and video processing. 50, 1–19.
Ozgenel, C. F., Sorguc, A. G. (2018). Performance
comparison of pretrained convolutional neural
networks on crack detection in buildings. International
Symposium on Automation and Robotics in
Construction, ISARC.
Qader, I. A., Abudayyeh, O., Kelly, M. (2003). Analysis of
edge detection techniques for crack identification in
bridges. Journal of computing in civil engineering. 17
(4), 255–263.
Road Bureau Japan (2015). Road maintenance in Japan:
Problems and solutions. Ministry of land,
infrastructure, transport and tourism, Roads in Japan.
Talukder, M. H.,Ota, S., Takanokura, M., Ishii, N. (2021).
Crack detection in concrete structures under varied
environmental conditions using CNN. Journal of the
society of plant engineers Japan. 33 (1), 14–21.
Talukder, M. H., Ota, S., Takanokura, M., Ishii, N. (2020).
Crack detection of concrete walls by CNN using sub-
datasets. The 2020 Spring National Conference of
Operations Research Society of Japan, 82–83.
Varma, M., Zisserman, A. (2005). A statistical approach to
texture classification from single images. International
journal of computer vision. 62 (1), 61–81.
Wu, X., Xu, K., Xu, J. (2008). Application of undecimated
wavelet transform to surface defect detection of hot
rolled steel plates. 2008 Congress on Image and Signal
Processing.
Yeum, C., Dyke, S. (2015). Vision-based automated crack
detection for bridge inspection. Computer aided civil
infrastructure engineering. 30, 759–770.
Sub-dataset Generation and Matching for Crack Detection on Brick Walls using Convolutional Neural Networks
197
