A Methodology for Integrated Process and Data Mining and Analysis

towards Evidence-based Process Improvement

Andrea Delgado, Daniel Calegari, Adriana Marotta, Laura Gonz

alez and Libertad Tansini

Instituto de Computaci

on, Facultad de Ingenier

ıa, Universidad de la Rep

ublica,

Montevideo, 11300, Uruguay

Keywords:

Process Mining, Data Mining, Data Science, Methodology, Organizational Improvement, Business

Intelligence.

Abstract:

The socio-technical system supporting an organization’s daily operations is becoming more complex, with

distributed infrastructures integrating heterogeneous technologies enacting business processes and connecting

devices, people, and data. This situation promotes large amounts of data in heterogeneous sources, both from

their business processes and organizational data. Obtaining valuable information and knowledge from this is

a challenge to make evidence-based improvements. Process mining and data mining techniques are very well

known and have been widely used for many decades now. However, although there are a few methodologies to

guide mining efforts, there are still elements that have to be deﬁned and carried out project by project, without

much guidance. In previous works, we have presented the PRICED framework, which deﬁnes a general

strategy supporting mining efforts to provide organizations with evidence-based business intelligence. In this

paper, we reﬁne such ideas by presenting a concrete methodology. It deﬁnes phases, disciplines, activities,

roles, and artifacts needed to provide guidance and support to navigate from getting the execution data, through

its integration and quality assessment, to mining and analyzing it to ﬁnd improvement opportunities.

1 INTRODUCTION

Organizations face many challenges within their com-

plex socio-technical systems composed of distributed

infrastructures with heterogeneous technologies en-

acting business processes, connecting devices, peo-

ple, and data. A combination of traditional infor-

mation systems (IS) and Process-Aware Information

System (PAIS) (Dumas et al., 2005) usually manage

structured and unstructured data. Data science (IEEE,

2020; van der Aalst, 2016) emerged as an interdisci-

plinary discipline responding to the problem of man-

agement, analysis, and discovery of information in

large volumes of data. It is fundamental within the

aforementioned organizational context to provide or-

ganizations with the evidence-based business intelli-

gence necessary to improve their daily operation.

An organizational data science project usually in-

volves applying data mining (Sumathi and Sivanan-

dam, 2006), and/or process mining (van der Aalst,

2016) techniques, among others. There are method-

ologies guiding both kind of projects, e.g., PM

(Eck,

van et al., 2015) for process mining, and CRISP-DM

(Shearer, 2000), and SEMMA (Mariscal et al., 2010)

for data mining. These methodologies provide differ-

ent guidance levels and consider these two kinds of a

project as separate efforts. It happens because there

is usually a compartmentalized vision on the process

and organizational data, e.g., process data is man-

aged within a Business Process Management Systems

(BPMS) (Chang, 2016) with a focus on the control

ﬂow execution of the process. In contrast, organiza-

tional data is stored in distributed heterogeneous ex-

ternal databases ,not completely linked to the BPMS.

In (Delgado et al., 2020) we proposed an in-

tegrated framework for organizational data science

called PRICED (for Process and Data sCience for oR-

ganIzational improvEment). It supports business pro-

cess improvement by integrating process and orga-

nizational data into a uniﬁed view, allowing the ap-

plication of process and data mining techniques over

the same integrated data set. It also considers data

quality and process compliance assessments. This

framework’s main objective is to help reduce the ef-

fort to identify and apply techniques, methodologies,

and tools in isolation, integrating them in one place.

In this paper, we present the methodological di-

mension of the PRICED framework, by means of

426

Delgado, A., Calegari, D., Marotta, A., González, L. and Tansini, L.

A Methodology for Integrated Process and Data Mining and Analysis towards Evidence-based Process Improvement.

DOI: 10.5220/0010607004260437

In Proceedings of the 16th International Conference on Software Technologies (ICSOFT 2021), pages 426-437

ISBN: 978-989-758-523-4

a concrete methodology deﬁning phases, disciplines,

activities, roles, and artifacts needed to provide guid-

ance and support for organizational data science

projects. It considers the extraction of execution data,

its integration, quality assessment, mining and analy-

sis, and evaluation of the results to ﬁnd improvement

opportunities within an organization. We also provide

an example of the application of the methodology as

proof of concept.

The rest of the paper is structured as follows. In

Section 2 we introduce the methodology with its static

and dynamic views, and in Section 3 we describe an

example of application. Then, in Section 4 we present

related work. Finally, in Section 5 we provide conclu-

sions and an outline of future work.

2 METHODOLOGY DEFINITION

In (Delgado et al., 2020) we devised a methodology

composed of a static and a dynamic view without

delving into details as we present in this section. The

static view deﬁnes the different elements involved

within the methodology, i.e., phases, disciplines, ac-

tivities, roles, and artifacts. It helps to understand

what needs to be done (artifacts), how it should be

done (activities), and by whom (roles and responsibil-

ities). The dynamic view describes a lifecycle guid-

ing the efforts from getting the execution data to min-

ing and evaluating the results to ﬁnd improvement op-

portunities. In other words, it deﬁnes when the activi-

ties that must be performed.

2.1 Static View

We present the static view in what follows, deﬁning

disciplines with their activities, roles, and artifacts,

without the dynamic view’s temporal perspective.

2.1.1 Disciplines & Activities

Disciplines are usually used to group related activities

regarding the topic they deal with, e.g., data quality

assessment. We deﬁne ﬁve disciplines to tackle the

different issues, with associated activities to guide the

work to be carried out.

Process & Data Extraction and Integration (PDE).

This discipline groups activities that deal with the

identiﬁcation, deﬁnition of goals, and extraction

of process and organizational data from associated

sources and its integration within a uniﬁed meta-

model (Delgado and Calegari, 2020).

PDE1 – Select Business Processes. To identify and

select business processes from the organization

that will be the object of mining efforts to identify

improvement opportunities. To deﬁne the min-

ing/analysis effort goals, including the selection

of execution measures when applicable.

PDE2 – Deﬁne Mining/Analysis Goals. To deﬁne

the purposes of the mining/analysis efforts for the

selected business processes and integrated pro-

cess and organizational data, such as the need to

know process variants that behave differently re-

garding the data they manage, the process model

that better explains the process data, participants

and roles involved in types of traces or managing

speciﬁc types of data, among others. Also, exe-

cution measures such as duration of traces and/or

activities and/or compliance requirements such

as message interaction order in choreographies

or tasks execution patterns between different

process participants in collaborative processes

can be deﬁned/selected.

PDE3 – Identify Process and Data Sources. To

identify the sources of process and organizational

data that must be integrated to serve as the

complete mining effort’s ﬁrst input. It includes

evaluating and analyzing the availability of

elements needed to access and obtain data from

the corresponding sources (i.e., BPMS process

engine, organizational databases, and associated

history logs).

PDE4 – ETL Process and Organizational Data.

To carry out the ETL process to extract pro-

cess data from the BPMS process engine and

heterogeneous organizational databases and

corresponding history logs to the metamodel, we

have deﬁned (Delgado and Calegari, 2020). The

metamodel includes four quadrants for process

deﬁnition, process instances (i.e., cases), data

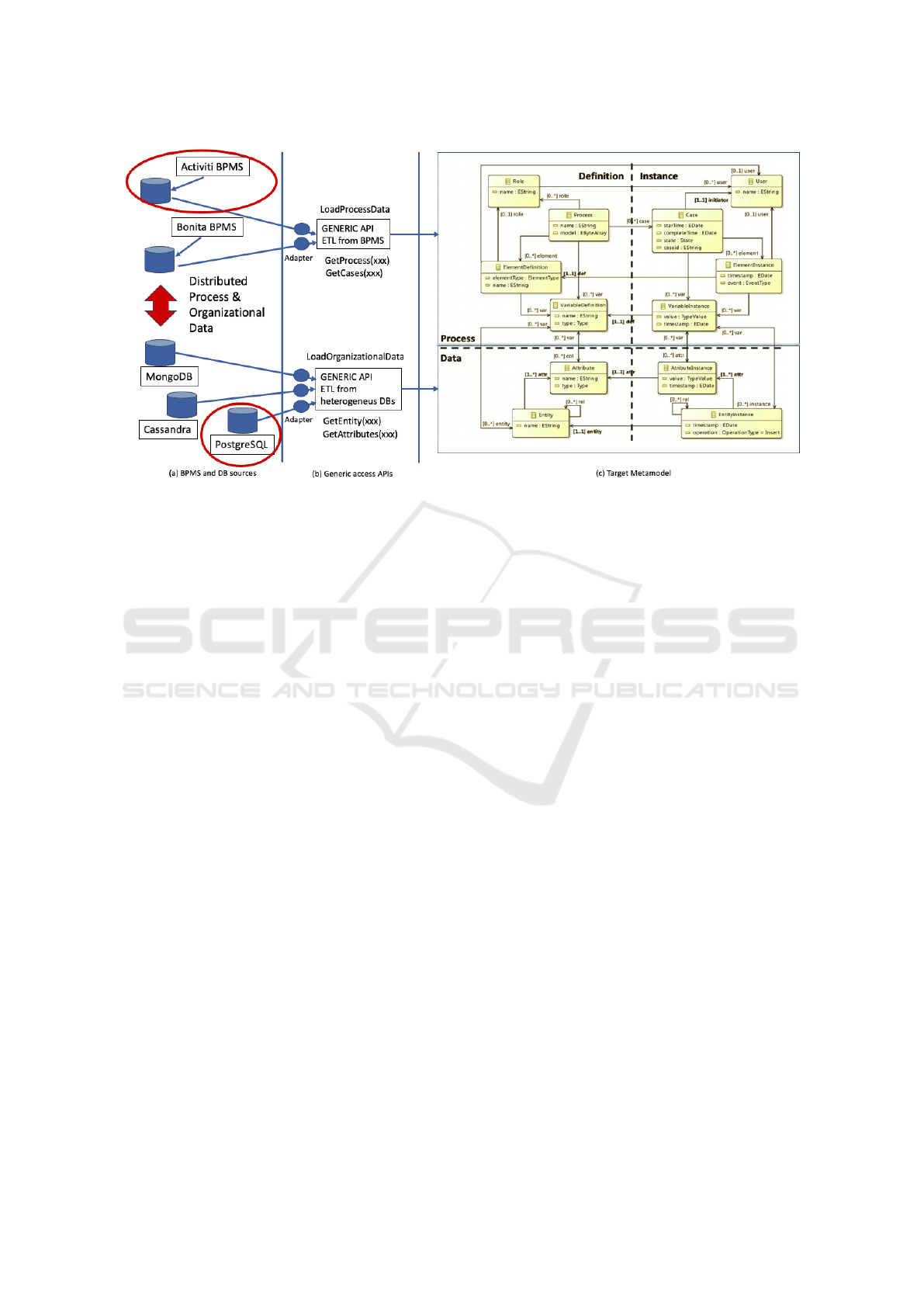

deﬁnition, and data instances. As shown in

Figure 1, we envision a general mechanism to

extract data from heterogeneous databases at two

levels: i) the process level, from different BPMS

and corresponding process engines databases

(i.e., Activiti BPMS with PostgreSQL, Bonita

BPMS with MySQL, etc.); ii) organizational data

level, from different and heterogeneous databases

(relational or NoSQL, i.e., PostgreSQL, MySQL,

MongoDB, Cassandra, Neo4j, etc.). It is based

on extending a previous deﬁnition of a Generic

API for BPMS (Delgado et al., 2016) and a new

Generic API for databases (SQL/NoSQL)(Hecht

and Jablonski, 2011; Khasawneh et al., 2020),

allowing us to decouple the ETL process from a

speciﬁc implementation of the sources. We are

A Methodology for Integrated Process and Data Mining and Analysis towards Evidence-based Process Improvement

427

currently deﬁning this ETL process.

PDE5 – Integrate Process and OrganizationalData.

To execute matching algorithms over the data

loaded in the metamodel, ﬁnd and deﬁne relation-

ships between process instance variables (in the

process instances quadrant) and organizational

data attributes (in the process instances quadrant).

Several options can be used to discover these

relationships. We have implemented a basic

algorithm (Delgado and Calegari, 2020) based

on values and timestamps to detect which data

in the process, as part of the framework.

Process & Data Quality (PDQ). This discipline

groups activities that deal with the selection, evalu-

ation, and improvement (cleaning) of quality charac-

teristics of process and organizational data from the

integrated data (i.e., integrated metamodel and gener-

ated extended log). (Bose et al., 2013) identiﬁes four

main categories for quality issues in event logs: miss-

ing data, incorrect data, inaccurate data, and irrelevant

data. We have deﬁned a Business Process and Orga-

nizational Data Quality Model (BPODQM) in which

speciﬁc dimensions, factors, and metrics for the inte-

grated data from process and organizational databases

are provided. It is based on previous quality mod-

els we have deﬁned for other contexts (Cristalli et al.,

2018)(Valverde et al., 2014), and on (Verhulst, 2016).

PDQ1 – Specify Data Quality Model. To instanti-

ate the Business Process and Organizational Data

Quality Model (BPODQM), select which quality

characteristics will be evaluated over which data

and how the evaluation is done. A quality model

deﬁnes which quality dimensions and factors are

considered, to which data they apply and how they

are measured. The BPODQM deﬁnes dimensions,

factors, and metrics speciﬁc to the context of pro-

cess logs and associated organizational data, but

not necessarily all these elements must be present

in every particular case. Also, the selected met-

rics may be adapted to the particular needs and

available tools for processing data. Dimensions

included in the BPODQM are Accuracy, Con-

sistency, Completeness, Uniqueness, Freshness,

Credibility, and Security.

PDQ2 – Evaluate Quality Characteristics. To

evaluate the selected quality characteristics

over the integrated process and organizational

data, detecting quality problems that should be

resolved before the mining/analysis effort. To

do this, the speciﬁed data quality model metrics

are measured over the extended event log (or the

integrated metamodel), and results are obtained

for each one that gives insight regarding the

quality of the dataset.

PDQ3 – Improve Quality Characteristics. To take

the necessary corrective actions to eliminate the

detected quality problems, cleaning the event log

and associated organizational data. It can include

removing data, i.e., unwanted outliers, duplicates,

null values, correcting data according to a speciﬁc

domain of possible values, etc.

Process & Data Preparation (PDP). This disci-

pline group activities dealing with the preparation of

the integrated data to be used as input for the min-

ing/analysis effort. It includes taking data to the for-

mat that will allow mining it (i.e., extended event log)

or performing the analysis (i.e., data warehouse). We

have deﬁned three extensions to the event log format

for i) including corresponding organizational data in

events; ii) including participants in events for collab-

orative processes; and iii) including data regarding

message interaction participants for choreographies.

PDP1 – Build Extended Event Logs. To automati-

cally generate the extended log from the inte-

grated metamodel to be used as input for the min-

ing/analysis effort. It includes gathering all in-

tegrated process and organizational data for each

corresponding event when it applies, the involved

participants in collaborations, and messages in-

teractions in choreographies. We have deﬁned

two extensions for the eXtensible Event Stream

(XES)

following the deﬁnitions of the standard:

i) one to include the event type (task, message,

service task, etc.) and a list of variables and enti-

ties associated with the event, and for each entity,

a list of corresponding attributes with their types;

ii) another that also includes the event type and

two views on collaboratives BPs, wherein case

of collaborations the participant that executed the

event is included (as another level over role and

user), and in case of choreographies the from and

to a participant that sends or received the message

interaction is included.

PDP2 – Build Integrated Data Warehouse. To

generate the integrated data warehouse from the

integrated metamodel, to be used as input for the

analysis effort. We deﬁned dimensions directly

related to the metamodel quadrants, i.e., process-

deﬁnition, process-instance, data-deﬁnition, and

data-instance, adding a user dimension, a time

dimension, and an entity relations dimension to

capture entities references. It is based solely on

https://xes-standard.org/start

ICSOFT 2021 - 16th International Conference on Software Technologies

428

Figure 1: Mechanism for the ETL process and organizational data activity.

the relationships between process and organiza-

tional data that we previously discovered in the

metamodel using matching algorithms. The fact

table relates the dimensions mentioned before.

We include process duration and element duration

to analyze execution times for both process and

elements, and we also included the value of

attributes. The data warehouse allows crossing

processes and organizational data to provide an

integrated view of the actual execution of BPs.

PDP3 - Filter Event Log and Data. To ﬁlter differ-

ent levels in the extended event log based on pro-

cess or organizational data to be able to perform

additional perspective mining over the data, e.g.,

to partition the log in process variants with simi-

lar behavior based on control ﬂow or on the type

of organizational data they manage, or by apply-

ing compliance rules, or selecting cases based on

duration, among others.

Process & Data Mining and Analysis (PDMA).

This discipline groups activities that deal with

selecting, executing, and evaluating approaches

and tools for the mining/analysis effort. We also

provide an extensive catalog of existing techniques

and algorithms of both process and data mining

approaches and existing tools implementing them

and our deﬁnitions and tools to support process and

data mining of integrated data. It helps organizations

using the methodology to ﬁnd all the information

and guidance they need in one place, to carry out the

mining/analysis effort, easing its adoption.

PDMA1 - Select Mining/Analysis Approach. To

select the mining and/or analysis approach to

apply to the data, i.e., discovering process models

(based on algorithms such as inductive miner,

heuristic miner, or BPMN miner, among others),

conformance and/or enhancement of process

models for process mining approaches, and/or

descriptive (clustering, decision trees, association

rules) or predictive (classiﬁcation, regression)

for data mining approaches, crossing data from

the business process perspective with the orga-

nizational data perspective. An example is the

clustering of traces based on organizational data

or clustering of data based on the control ﬂow

of traces, depending on the goals and data under

analysis. Also, compliance requirements and

execution measures can be selected as the desired

approach to applying to the data. We provide

a catalog of existing techniques and algorithms

with a summary and corresponding links for each

one.

PDMA2 - Select Mining/Analysis Tools. To select

the mining tool to be used corresponding to the

chosen approach, since different tools and/or

plug-ins implement different algorithms. Also,

for analysis, the tool depends on the approach

selected, i.e., the data warehouse can be used

to cross-process and organizational data, or the

execution measures can be evaluated in a speciﬁc

tool. We provide a catalog with links to existing

tools and the support they provide for different

approaches.

A Methodology for Integrated Process and Data Mining and Analysis towards Evidence-based Process Improvement

429

PDMA3 - Execute Mining/Analysis Approach. To

carry out the selected mining/analysis approaches

in the selected tools over the integrated process

and organizational data, including execution mea-

sures analysis and/or compliance requirements

evaluation, when deﬁned. It includes dealing with

data input issues or tool execution problems (i.e.,

signiﬁcant execution times) that would need to

return to previous activities to correct the data’s

problems or change the approach and/or tool

selected.

PDMA4 - Evaluate Mining/Analysis Results. To

evaluate the results of the mining/analysis effort

from different perspectives, including the answers

to goals and information needs to be deﬁned by

the business area, and more technical elements

such as the correctness of results (i.e., measures

such as ﬁtness or recall, precision, overﬁtting,

and underﬁtting), assessing of statistical signiﬁ-

cance, and other elements to evaluate the technical

soundness of the results obtained. The business

evaluation of mining/analysis results will lead to

valuable information and knowledge on the orga-

nization’s actual execution of business processes,

identifying improvements opportunities to be car-

ried out to generate a new version of the process.

Process & Data Compliance (PDC). This disci-

pline groups activities that deal with selecting, spec-

ifying, and evaluating compliance requirements fo-

cusing on collaborative and choreography processes.

Although it corresponds to another type of min-

ing/analysis of processes and organizational data,

we work on this topic as an independent discipline

due to its speciﬁc characteristics. We have de-

ﬁned a Business Process Compliance Requirements

Model (BPCRM) based on speciﬁed compliance re-

quirements metamodel from previous works in an-

other context, and on (Turetken et al., 2012) and

(Knuplesch and Reichert, 2017). We have also de-

ﬁned a compliance requirements modeling language

(Gonz

alez and Delgado, 2021) to specify this type of

requirement.

PDC1 - Identify Compliance Requirements. To

instantiate the Business Process Compliance

Requirements Model (BPCRM) to select speciﬁc

dimensions and corresponding factors to evaluate

compliance requirements for the process selected

for the mining/analysis effort. It includes col-

laborative and choreography processes, which

are the focus of the compliance model. The

BPCRM, as the BPODQM quality model, deﬁnes

speciﬁc dimensions, factors, controls, and metrics

to evaluate compliance requirements over BPS.

Dimensions included in the BPCRM are Control

ﬂow, Interaction, Time, Resources, and Data. An

example of an Interaction factor is Send/Receive

Messages, and control is M occurs, e.g., message

M is exchanged from sender S to receiver R, spec-

iﬁed within the choreography or over the message

itself, and measured accordingly. The compliance

requirements modeling language (Gonz

alez and

Delgado, 2021) is used for specifying process

compliance requirements over the process to be

evaluated.

PDC 2 - Evaluate Compliance Requirements. To

evaluate the results of the compliance require-

ments speciﬁed over the process within the ex-

tended event log, including process and organi-

zational data, to analyze violations in traces that

do not comply with the requirements speciﬁed.

We deﬁne a post mortem compliance evaluation,

and we are working on a ProM plug-in to auto-

mate the analysis. Compliance requirements eval-

uation will lead to getting valuable information

and knowledge on the actual execution of BPs, fo-

cusing on collaborations and choreographies, de-

tecting violations to norms and business rules that

should be corrected in a new version of the pro-

cess.

2.1.2 Roles & Artifacts

Figure 2 shows the disciplines and activities pre-

sented, and for each activity, the roles involved and

the input and output artifacts used and generated by

the activity, respectively.

2.2 Dynamic View

We have reﬁned the phases within the framework

in (Delgado et al., 2020), including more speciﬁc

sub-phases and adding elements. The dynamic view

phases are Enactment, Data Phase, and Mining Phase,

which we have updated to Mining/Analysis Phase. To

carry out the improvement effort over the process, we

integrate an existing Improvement phase of a previous

methodology we have deﬁned (Delgado et al., 2014).

Figure 3 presents a summary of the dynamic view

of the methodology, showing for each Phase and

corresponding sub-phase, the activities that are per-

formed, and their order, i.e., previous activities.

We will present the ﬂow of execution within the

Phases, i.e., the dynamic view of the methodology in

the example, on a step-by-step basis.

ICSOFT 2021 - 16th International Conference on Software Technologies

430

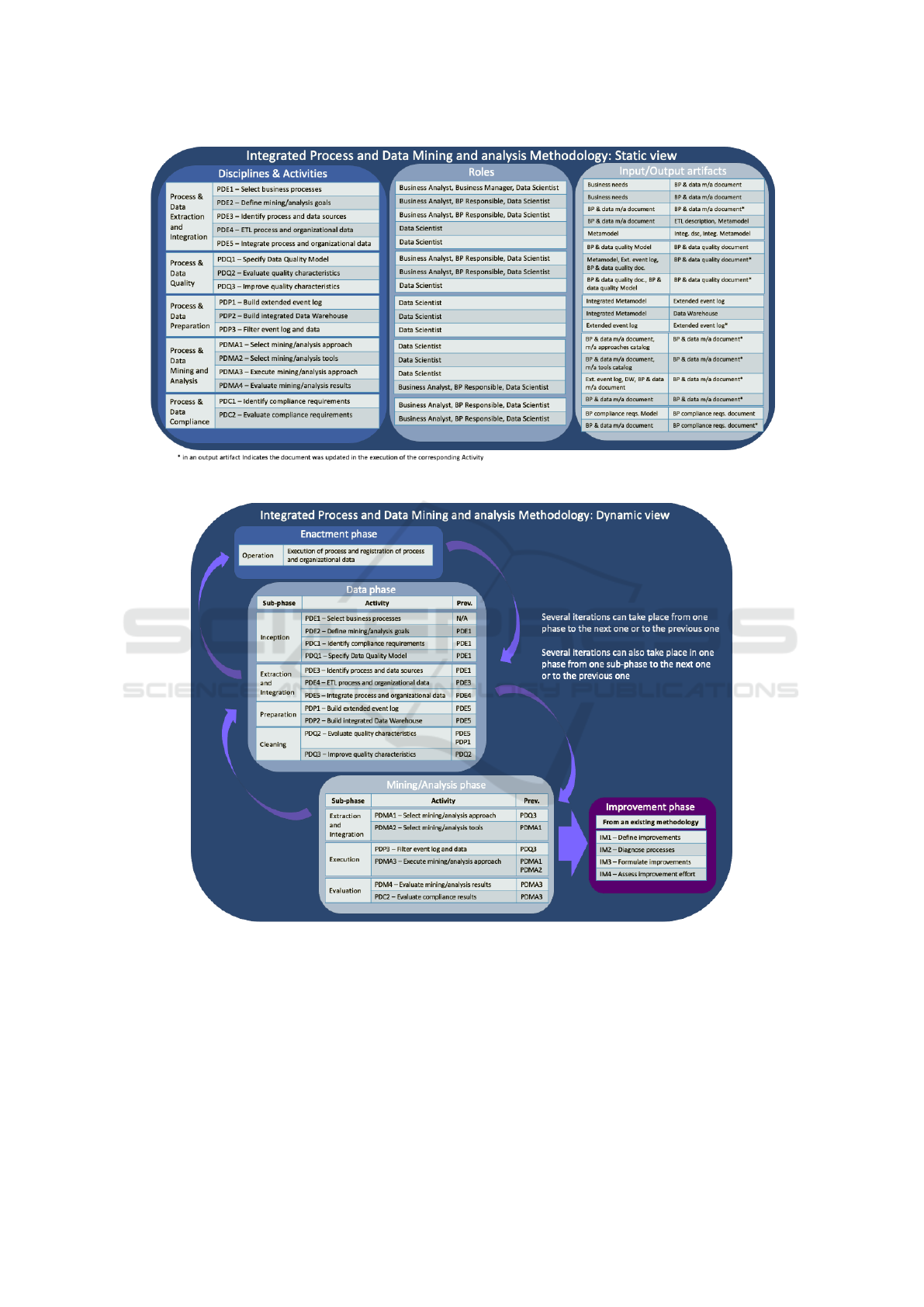

Figure 2: Summary of the Static view of the methodology.

Figure 3: Summary of the Dynamic view of the methodology.

3 EXAMPLE OF APPLICATION

This section presents an example of applying the

methodology that we have carried out on a real busi-

ness process regarding our university. The “Students

Mobility” business process has been introduced in

(Delgado and Calegari, 2020) and corresponds to the

application for students’ scholarships to take courses

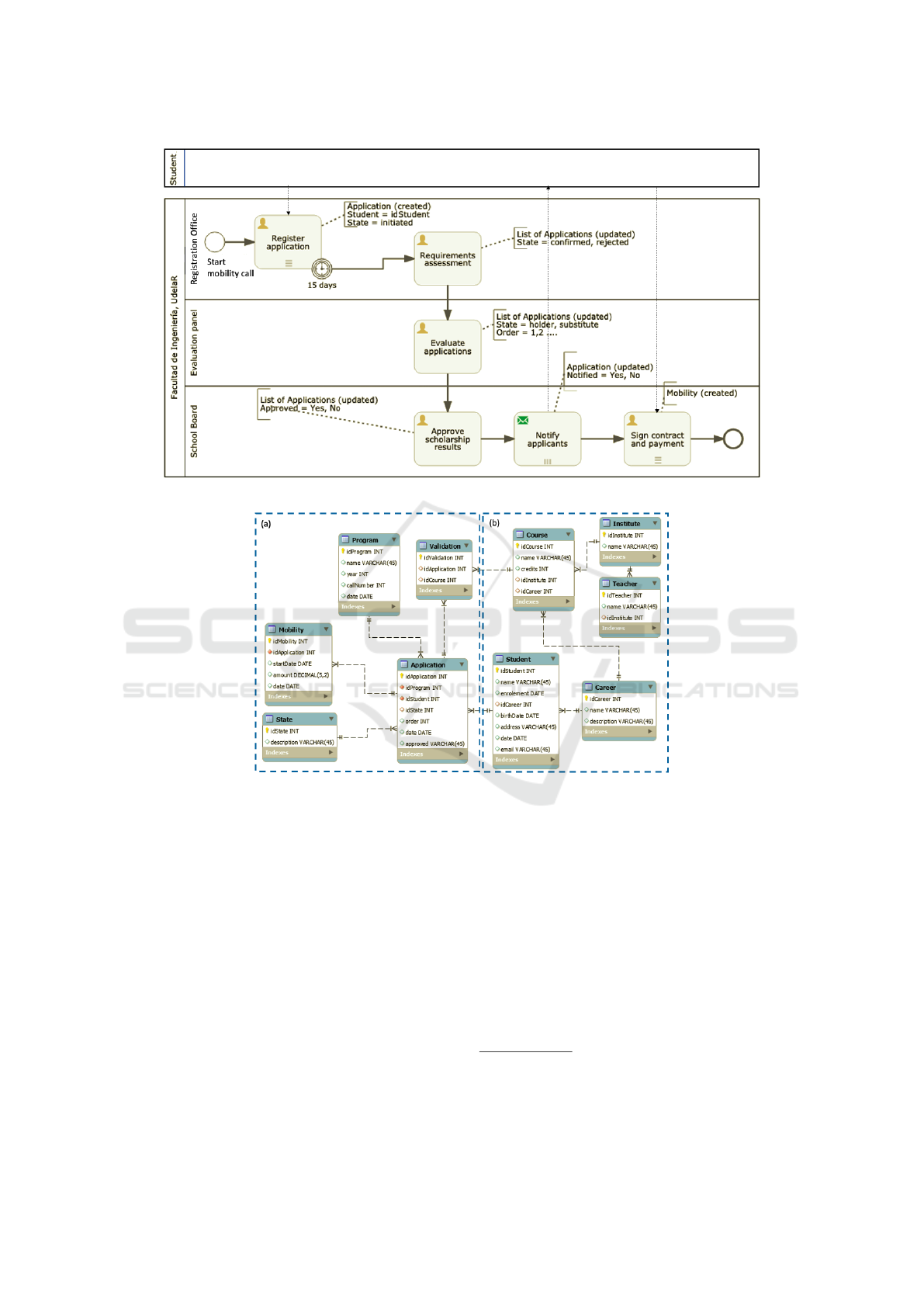

at other universities. Figure 4a shows a simpliﬁed

business process model using BPMN 2.0, and Fig-

ure 4b an excerpt of the organizational data model

extended from (Delgado and Calegari, 2020).

The process depicted in Figure 4a begins when

a new mobility call is deﬁned and the period for re-

ceiving student’s applications is opened. Students

present their applications with the required documen-

A Methodology for Integrated Process and Data Mining and Analysis towards Evidence-based Process Improvement

431

(a) Students Mobility business process from (Delgado and Calegari, 2020).

(b) Extended data model for the Students Mobility business process.

Figure 4: Students Mobility proof of concept.

tation within the Registration Ofﬁce. After 15 days,

the period is closed, and all submitted applications

go through an assessment to see if they comply with

the call, and those complying go through an evalua-

tion by an Evaluation panel, where applications are

ranked, and scholarships are assigned. Finally, the

School board approves the assignments, notify appli-

cants about the results, and ask the selected ones to

sign a contract for the scholarship and get paid.

The data model shown in Figure 4b presents, in

the left side (a), speciﬁc tables to support the “Stu-

dents mobility” process, i.e., the mobility Program,

Application (with reference to the Student) and

Validation (with reference to Course) tables, as

well as the Mobility table to register the scholar-

ships that were assigned. The State table registers

the states that the application goes through the pro-

cess control ﬂow. In the right side (b), there are tables

containing organization’s master data, i.e., Student

that apply to the call, their Career and Course to val-

idate the courses selected which are associated to an

Institute and with a Teacher responsible of it.

This process was implemented and executed in

Activiti 6.0 BPMS

community edition using a Post-

greSQL

database for the organizational data. For the

analysis, we applied process and data mining tech-

niques using Disco

and ProM

, and built a data ware-

https://www.activiti.org/

https://www.postgresql.org/

https://ﬂuxicon.com/disco/

https://www.promtools.org/

ICSOFT 2021 - 16th International Conference on Software Technologies

432

house using Pentaho Platform

3.1 Execution of the Methodology

Since the methodology covers any mining/analysis ef-

fort, some activities may not apply to speciﬁc scenar-

ios. In this case, we describe the activities we per-

formed for each phase deﬁned in Section 2 and justify

those activities that were not considered.

3.1.1 Enactment Phase

The Enactment Phase does not have any concrete ac-

tivity within the methodology. It consists of the orga-

nization’s actual operation, where processes are exe-

cuted, and process and organizational data are regis-

tered in their corresponding databases. In Figure 4,

comments in the “Student Mobility” show when an

activity access the data model to insert, query or mod-

ify data, e.g., within the “Register Application” task,

the Application table is accessed to create a new

application for a speciﬁc student (registered in table

Student), with State “Initiated”.

3.1.2 Data Phase

The Data Phase is essential for the mining/analysis

efforts since the ﬁnal outputs of this phase are the in-

tegrated process and organizational data, improved,

cleaned, and with a minimum quality level to be used

as a valuable input for the Mining/Analysis Phase.

Inception. In this sub-phase, we deﬁne the basis for

the mining/analysis efforts.

PDE1 – Select Business Processes. We select the

“Student mobility” process already introduced.

PDE2 – Deﬁne Mining/Analysis Goals. Business

people (e.g., the process owner) deﬁne several

business questions about the domain with a mixed

perspective of data and processes, such as:

• Which organizational data were managed by

cases that took the longest to execute?

• Which organizational data are involved in cases

where no successful results were obtained?

• Which cases in the successful path are related

to speciﬁc organizational data ?

• Which users are involved in the cases that took

the longest to execute or to the ones that corre-

spond to the successful path?

• Are there paths deﬁned in the process model

that are never executed in the actual operation?

https://www.hitachivantara.com/en-us/products/data-

management-analytics/pentaho-platform.html

PDC1 – Identify Compliance Requirements. We

did not perform this activity since there were no

compliance requirements deﬁned for the process.

PDQ1 – Specify Data Quality Model. We selected

basic quality characteristics from the BPODQM

model, to be checked over the integrated data:

• Dimension: Accuracy, Factor: Syntactic accu-

racy, Metric: Format

• Dimension: Completeness, Factor: Density,

Metric: Not null

• Dimension: Uniqueness, Factor: Duplication-

free, Metrics: Duplicate attribute/event

Extraction and Integration. In the Extraction and

Integration sub-phase, we perform activities for ex-

tracting and loading process and organizational data

into the metamodel and integrating data by ﬁnding

the corresponding relationships between events (i.e.,

activities) and organizational data that they handled.

PDE3 – Identify Process and Data Sources. With

the information of the “Students mobility”

process technical infrastructure, we identify

the BPMS process engine database and the

organizational database and corresponding access

data (i.e., machine and SID) and permits. As

it is common practice in the conﬁguration of

databases, it should have been conﬁgured to

allow historical logging, which we use to get

all organizational data related to the process

execution under evaluation in the deﬁned period.

PDE4 – ETL Process and Organizational Data.

In Figure 1, we describe the process for per-

forming this activity. We used two databases

in this proof of concept (within the ellipsis on

the ﬁgure’s left side): the Activiti BPMS engine

database and a relational PostgreSQL database

for the organizational data. We also implemented

the metamodel in a PostgreSQL database for

simplicity.

PDE5 – Integrate Process and Organizational

Data. After the process and organizational data

are loaded into the metamodel, we executed

the matching algorithm to ﬁnd the relations

between the metamodel’s process-instance and

data-instance quadrants. Our basic data match-

ing algorithm is based on discovering matches

between variables (from the process-instance

quadrant) and attributes instances (from the

data-instance quadrant) by searching similar

values within a conﬁgurable period near the start

and complete events timestamps. The initial deﬁ-

nitions for integrating process and organizational

data can be seen in (Delgado and Calegari, 2020).

A Methodology for Integrated Process and Data Mining and Analysis towards Evidence-based Process Improvement

433

Preparation. In this sub-phase, we focus on putting

the data in a suitable format to use as input for the

mining/analysis effort.

PDP1 – Build Extended Event Logs. We auto-

mated this activity with a model-to-text transfor-

mation from the integrated metamodel to the ex-

tended event log, which includes the organiza-

tional data related to each process event. (i.e., ac-

tivity).

PDP2 – Build Integrated Data Warehouse. We

deﬁned a generic data warehouse that has no

domain-speciﬁc elements regarding the process

or organization involved. We also automated the

loading process from the integrated metamodel.

The data warehouse has a star schema represent-

ing the four metamodel quadrants as dimensions

and other dimensions such as users and time. We

also deﬁne several measures regarding duration

and values in the fact table.

Cleaning. In this sub-phase, we performed the fol-

lowing activities.

PDQ2 – Evaluate Quality Characteristics. We

checked some of the primary factors selected,

such as date format and not null for timestamps,

not null, and no duplicates for event names.

PDQ3 – Improve Quality Characteristics. We

found some inconsistencies in the date format for

timestamps that were corrected, no nulls were

found, and some duplicates on event names were

corrected based on domain information.

3.1.3 Mining/Analysis Phase

The Mining/Analysis Phase is the actual core of the

mining/analysis effort, where an integrated view on

process and data mining is applied. Approaches and

tools are selected, and the integrated data is analyzed

to discover valuable information on process execution

and improvement opportunities.

Inception. In this sub-phase, we select approaches

and tools for the mining/analysis effort.

PDMA1 – Select Mining/Analysis Approach. As

an analysis approach, we used the data warehouse

to answer some of the questions included in

the mining/analysis effort goals. We also use

process and data mining approaches over the

extended event log to provide another view of the

integrated data.

PDMA2 – Select Mining/Analysis Tools. We se-

lected the Pentaho platform to implement the data

warehouse and Disco and ProM to analyze the ex-

tended log. The same data was loaded in every

tool, i.e., integrated process and organizational

data from the metamodel. However, as the analy-

sis focus is different, it allows us to analyze data

from different perspectives, providing a complete

view on process execution.

Execution. In this sub-phase, we inspected and ﬁl-

tered the extended event log and data and executed the

mining/analysis activities.

PDP3 – Filter Event Log and Data. We inspected

the extended event log to analyze the process

cases, the organizational data that was integrated

with their data, and different variants of the pro-

cess. Figure 5 shows Disco the frequency of se-

lected elements in the extended event log: a) en-

tities and b) corresponding attributes from the or-

ganizational data; and c) associated process vari-

ables. In Figure 5 a), it can be seen that orga-

nizational tables: Application, Program, and

Validation are present in the extended event log,

which were deﬁned in the data model presented in

Figure 4b.

PDMA3 – Execute Mining/Analysis Approach.

Regarding process mining, we used the extended

event log we generated as input to discover the

process model in Disco and with the BPMN

miner plug-in in ProM, to analyze the execution

against the deﬁned model. Figure 5 d) shows the

model discovered in ProM, and Figure 5 e) shows

the model discovered in Disco. It can be seen that

the activities are not completely corresponding to

the model presented in 4a. We also worked with

the data warehouse, crossing data from different

dimensions to answer the questions deﬁned. For

example: which courses and from which careers

have been involved in cases that took more than

15 days to complete? (in the example, 15 days

equals 200.000 milliseconds). We ﬁltered data

by the relation validation-course, which deﬁnes

the courses included in the applications with the

case id and the corresponding attributes. As rows,

we included attributes from dimensions “Enti-

tyrelation”, “ProcessInstance”, “DataDeﬁnition”

and “DataInstance”. We selected the “Process

duration” measure and ﬁltered it by duration over

200.000 milliseconds. Figure 6 shows the results

in our Pentaho implementation.

Evaluation. In this sub-phase, we perform the ac-

tivities to evaluate mining/analysis results obtained

from the execution of approaches using the selected

tools.

ICSOFT 2021 - 16th International Conference on Software Technologies

434

Figure 5: Extended event log analysis: a) entities; b) attributes; c) process variables; d) ProM model; and e) Disco model.

Figure 6: Data warehouse result for courses and careers involved in cases that took more than 15 days to complete.

PDMA4 – Evaluate Mining/Analysis Results.

Regarding the process models discovered by

ProM and Disco, although this process is el-

ementary, several issues were detected. For

instance, the activity ”Notify applicants” was not

present in neither of the models, pointing to an

implementation problem. Concerning the data

warehouse and the example question we showed,

A Methodology for Integrated Process and Data Mining and Analysis towards Evidence-based Process Improvement

435

career with id 80 presented the most cases with

process duration over the limit deﬁned, leading

to an analysis of the type of courses that students

select, which can be the cause of the delays.

PDC2 - Evaluate Compliance Results. We omitted

this activity since there were no compliance re-

quirements deﬁned for this particular process.

Improvements regarding issues discovered were

not performed since new iterations over the data need

to be done to obtain a deeper analysis of the results.

4 RELATED WORK

The classical data-centric analysis is most com-

monly guided by methodologies such as CRISP-DM

(Shearer, 2000), KDD (Brachman and Anand, 1996),

and SEMMA (Mariscal et al., 2010). Still, neither

of them includes detailed guidelines on identifying

and incorporating data that is useful to analyze orga-

nizations’ processes and improve them. CRISP-DM

stands for Cross-Industry Standard Process for Data

Mining. This methodology was initially developed

in IBM for Data Mining tasks, it is a cyclic model

deﬁning stages: Business understanding, Data un-

derstanding, Data Preparation, Modeling, Evaluation,

and Deployment. KDD or Knowledge Discovery in

Databases, which consists of ﬁve stages: Selection,

Preprocessing, Transformation, Data Mining, and In-

terpretation/Evaluation. SEMMA is an acronym that

stands for Sample, Explore, Modify, Model, and Ac-

cess, which are its stages. A wide range of algorithms

or methods are used (Gupta and Chandra, 2020).

In (Eck, van et al., 2015) the authors propose PM

a methodology to guide the execution of process min-

ing projects. It consists of six stages with their cor-

responding activities. This methodology is consistent

and complementary with ours. Planning, extraction,

and data processing stages are considered within the

data phase of our methodology. They also consider

enriched event logs with external data, but they nei-

ther pay special attention to organizational data nor

to related problems as quality assessment. Mining

& analysis and evaluation stages are also considered

within the Mining/Analysis phase, but in this case,

they provide deeper information that ours can use.

Finally, process improvement stage is considered by

integrating an Improvement phase from the BPCIP

methodology (Delgado et al., 2014).

Although there are many data quality proposals on

data quality methodologies and frameworks, such as

(Batini and Scannapieco, 2016) and (Tepandi et al.,

2017), to the best of our knowledge, none of them are

focused on integrated process and organizational data

quality management for process mining activities. In

our work, we select and adapt to our needs the main

tasks of existing approaches, obtaining the three pro-

posed tasks (deﬁnition of data quality model, evalua-

tion, and improvement of the quality characteristics).

Various approaches propose activities for business

process compliance (Hashmi et al., 2018). The COM-

PAS project deﬁnes a life cycle with four phases (e.g.

evaluation) (Birukou et al., 2010). The C

Pro Project

deﬁnes a design-time methodology for compliance

of collaborative workﬂows (Knuplesch et al., 2013).

The MaRCo Project deﬁnes activities for compliance

management (Kharbili et al., 2011) (e.g. modeling,

checking, analysis, enactment). However, these pro-

posals neither consider these activities in the context

of an integrated methodology nor leverage process

and data mining for compliance control and analysis.

5 CONCLUSIONS

We have presented the PRICED methodology to carry

out process and data mining and analysis efforts over

integrated process data and organizational data. Key

elements of our proposal include: integrated process

and organizational data, i.e., from process engines

and distributed organizational DBs, loaded in an in-

tegrated metamodel; quality assessment over the in-

tegrated process and organizational data; extended

event logs and a data warehouse to be used for min-

ing/analysis over the integrated data; integrated pro-

cess and data mining/analysis approaches to provide

a complete view of the organization’s actual opera-

tion.

We are applying the methodology over more com-

plex processes to strengthens the capabilities of the

approach. We believe the methodology is a valuable

tool to guide the mining/analysis efforts in organiza-

tions towards evidence-based process improvement,

with a complete and integrated view on data.

ACKNOWLEDGEMENTS

Supported by project ”Miner

ıa de procesos y datos

para la mejora de procesos en las organizaciones”

funded by Comisi

on Sectorial de Investigaci

Cient

ıﬁca, Universidad de la Rep

ublica, Uruguay.

ICSOFT 2021 - 16th International Conference on Software Technologies

436

REFERENCES

Batini, C. and Scannapieco, M. (2016). Data and Informa-

tion Quality - Dimensions, Principles and Techniques.

Data-Centric Systems and Applications. Springer.

Birukou, A., D’Andrea, V., Leymann, F., Seraﬁnski, J., Sil-

veira, P., Strauch, S., and Tluczek, M. (2010). An in-

tegrated solution for runtime compliance governance

in SOA. In Service-Oriented Computing, pages 122–

136. Springer.

Bose, R. P. J. C., Mans, R. S., and van der Aalst, W. M. P.

(2013). Wanna improve process mining results? In

2013 IEEE Symposium on Computational Intelligence

and Data Mining (CIDM), pages 127–134.

Brachman, R. J. and Anand, T. (1996). The process of

knowledge discovery in databases. In Advances in

Knowledge Discovery and Data Mining, pages 37–57.

AAAI/MIT Press.

Chang, J. (2016). Business Process Management Systems:

Strategy and Implementation. CRC Press.

Cristalli, E., Serra, F., and Marotta, A. (2018). Data quality

evaluation in document oriented data stores. In Ad-

vances in Conceptual Modeling - ER 2018 Workshops,

volume 11158 of LNCS, pages 309–318. Springer.

Delgado, A. and Calegari, D. (2020). Towards a uniﬁed

vision of business process and organizational data. In

XLVI Latin American Computing Conference, CLEI

2020, page To appear. IEEE.

Delgado, A., Calegari, D., and Arrigoni, A. (2016). To-

wards a generic BPMS user portal deﬁnition for the

execution of business processes. In XLII Latin Amer-

ican Computer Conference - Selected Papers, CLEI

2016, volume 329 of ENTCS, pages 39–59. Elsevier.

Delgado, A., Marotta, A., Gonz

alez, L., Tansini, L., and

Calegari, D. (2020). Towards a data science frame-

work integrating process and data mining for orga-

nizational improvement. In 15th Intl. Conf. on Soft-

ware Technologies, ICSOFT 2020, pages 492–500.

ScitePress.

Delgado, A., Weber, B., Ruiz, F., de Guzm

an, I. G. R., and

Piattini, M. (2014). An integrated approach based on

execution measures for the continuous improvement

of business processes realized by services. Informa-

tion and Software Technology, 56(2):134–162.

Dumas, M., van der Aalst, W. M., and ter Hofstede, A. H.

(2005). Process-Aware Information Systems: Bridg-

ing People and Software through Process Technology.

John Wiley & Sons, Inc.

Eck, van, M., Lu, X., Leemans, S., and Aalst, van der, W.

(2015). Pm2 : a process mining project methodol-

ogy. In Advanced Inf. Systems Engineering: 27th Intl.

Conf., CAiSE 2015, LNCS, pages 297–313. Springer.

Gonz

alez, L. and Delgado, A. (2021). Towards com-

pliance requirements modeling and evaluation of e-

government inter-organizational collaborative busi-

ness processes. In 54th Hawaii Intl. Conf. on System

Sciences, HICSS 2021, pages 1–10. ScholarSpace.

Gupta, M. and Chandra, P. (2020). A comprehensive survey

of data mining. Int. Journal of Inf. Technology.

Hashmi, M., Governatori, G., Lam, H.-P., and Wynn, M. T.

(2018). Are we done with business process compli-

ance: state of the art and challenges ahead. Knowledge

and Information Systems, 57(1):79–133.

Hecht, R. and Jablonski, S. (2011). Nosql evaluation: A use

case oriented survey. In 2011 Intl. Conf. on Cloud and

Service Computing, pages 336–341.

IEEE (2020). Task Force on Data Science and Advanced

Analytics. http://www.dsaa.co/.

Kharbili, M. E., Ma, Q., Kelsen, P., and Pulvermueller, E.

(2011). CoReL: Policy-based and model-driven reg-

ulatory compliance management. In IEEE 15th Int.

Enterprise Dist. Object Computing Conf. IEEE.

Khasawneh, T. N., AL-Sahlee, M. H., and Saﬁa, A. A.

(2020). Sql, newsql, and nosql databases: A compar-

ative survey. In 2020 11th Intl. Conf. on Information

and Communication Systems (ICICS), pages 013–021.

Knuplesch, D. and Reichert, M. (2017). A visual language

for modeling multiple perspectives of business pro-

cess compliance rules. Software & Systems Modeling,

16(3):715–736.

Knuplesch, D., Reichert, M., Ly, L. T., Kumar, A., and

Rinderle-Ma, S. (2013). Visual modeling of business

process compliance rules with the support of multi-

ple perspectives. In Conceptual Modeling, pages 106–

120. Springer.

Mariscal, G., Marb

an, O., and Fern

andez, C. (2010). A sur-

vey of data mining and knowledge discovery process

models and methodologies. Knowledge Engineering

Review, 25(2):137–166.

Shearer, C. (2000). The crisp-dm model: The new blueprint

for data mining. Journal of Data Warehousing, 5(4).

Sumathi, S. and Sivanandam, S. N. (2006). Introduction to

Data Mining and its Applications, volume 29 of Stud-

ies in Computational Intelligence. Springer.

Tepandi, J., Lauk, M., Linros, J., Raspel, P., Piho, G., Pap-

pel, I., and Draheim, D. (2017). The Data Qual-

ity Framework for the Estonian Public Sector and

Its Evaluation. In Trans on Large-Scale Data- and

Knowl-Cent Sys XXXV, LNCS, pages 1–26. Springer.

Turetken, O., Elgammal, A., van den Heuvel, W., and Papa-

zoglou, M. P. (2012). Capturing compliance require-

ments: A pattern-based approach. IEEE Software,

29(3):28–36.

Valverde, M. C., Vallespir, D., Marotta, A., and Panach,

J. I. (2014). Applying a data quality model to exper-

iments in software engineering. In Advances in Con-

ceptual Modeling - ER 2014 Workshops, volume 8823

of LNCS, pages 168–177. Springer.

van der Aalst, W. M. P. (2016). Process Mining - Data

Science in Action, Second Edition. Springer.

Verhulst, R. (2016). Evaluating quality of event data within

event logs:an extensible framework. Master’s thesis,

Eindhoven University of Technology.

A Methodology for Integrated Process and Data Mining and Analysis towards Evidence-based Process Improvement

437
