RICAV: RIsk based Context-Aware Security Solution for the

Intra-Electric Vehicle Network

Yosra Fraiji

1,2

, Lamia ben Azzouz

, Wassim Trojet

, Ghaleb Hoblos

and Leila Azouz Saidane

RAMSIS Team, CRISTAL Laboratory, National School of Computer Science, 2010 Campus University, Manouba, Tunisia

Normandie Univ., UNIROUEN, ESIGELEC, IRSEEM, 76000 Rouen, France

Keywords: Context-Aware Security Solution, Risk, Intra-Vehicle Network, Electric Vehicle, Game Theory.

Abstract: Smart electric vehicles are equipped with many ECU (Electronic Control Unit) that provide high levels of

safety and comfort to the drivers. However, the intra-vehicle networks are targeted by hackers as they are of

great interest both in terms of processing power (botnets) and in terms of economic value (ransomware).

Therefore, static security solutions were proposed, both by researchers and car manufacturers, to secure the

Intra-Electric Vehicle Sensors network (IVSN). However, these solutions are energy-intensive and could

deplete the battery along the travel, affecting the driver safety.For this purpose, we aim to propose an adaptive

security solution, called RIsk-based Context-Aware security solution for the intra-Vehicle network (RICAV),

that considers the electric vehicle context (energy, distance to the charging stations, traffic state, etc) and the

risk assessment value to provide a trade-off between security and energy consumption. Simulation experi-

ments were conducted to evaluate the proposed approach in terms of robustness and energy consumption.

1 INTRODUCTION

Electric vehicles have taken a great attention from

government and car manufacturers in order to

improve environment wellbeing. However, the

adoption of wireless technologies for the intra-vehicle

communication has raised more security concerns.

Many attacks can be performed on the intra-vehicle

network such as eavesdropping, spoofing, DoS, etc

(Reinhard et al., 2020). Authors in (Nie, Liu, and Du

2017; Pan et al., 2017) showed, the way to hack the

car functions such as the engine management

software, door locking and starting system). To avoid

cyber-attacks on the intra electric vehicle network,

existing security solutions implement the most robust

security mechanisms (Corbett et al., 2018). In (Fraiji

et al., 2019), authors showed that according to the

cryptographic algorithm (AES, 3DES, etc)

implemented, the energy consumption could increase

by about 15% of the battery capacity. Existing

connected vehicles security solutions were designed

for carbon cars and use permanently the most robust

security mechanisms. For EV, that could deplete the

battery along the travel and could affect

the driver

safety.

Hence, static solutions are not suitable for the

electric vehicle ecosystem. Therefore, (Fraiji et al.,

2019), authors proposed a Context-Aware SecurIty

solution for the Electric Vehicle (CASIEV) that

provides a trade-off between security and energy

consumption. In this solution, the context of the

vehicle (energy, distance to the charging station,

traffic, etc) is considered, when the battery level is

critical, to secure the system as long as possible along

the route.

In another hand, the risk is defined as Threat

likelihood × Impact (NIST, 2012). The likelihood

estimates the attack feasibility (probability of

success). The Impact (also called severity) indicates

the assessment of the risk level and intensity. Many

works (ETSI, 2017), (Kaveh Bakhsh Kelarestaghi,

Mahsa Foruhandeh, Kevin Heaslip, 2019), (Shaikh

and Thayananthan, 2019), in the literature,

investigated the risk assessment. Furth-ermore, some

works designed security solutions based on the risk

(Arfaoui et al., 2018; Gebrie and Abie 2017; Pham,

Makhoul, and Saadi, 2011), (Atlam et al., 2020).

Indeed, the authors propose approaches adapting the

level of security to network intrusion risk value.

The main concern in this work is to combine the

context used in CASIEV (focusing mainly on

enhancing the energy delivery process) with the risk

assessment of an intrusion into the intra-EV network

in order to improve real-time decision on the relevant

772

Fraiji, Y., ben Azzouz, L., Trojet, W., Hoblos, G. and Saidane, L.

RICAV: RIsk based Context-Aware Security Solution for the Intra-Electric Vehicle Network.

DOI: 10.5220/0010581407720778

In Proceedings of the 18th Inter national Conference on Security and Cryptography (SECRYPT 2021), pages 772-778

ISBN: 978-989-758-524-1

security level activation. The new approach we called

RICAV RIsk-based Context-Aware security solution

for the intra-Vehicle network improves CASIEV by

extending more the lifetime of the security system.

Indeed, according to RICAV, there is no need for a

high level of security when the risk is low, even if

there are no energy constraints. However, according

to CASIEV if there are no energy constraints, the

security level must be high. RICAV is modelled using

game theory considering two players (energy

management system and security system) as game

theory is suitable for modelling systems with

conflicting objectives in order to find the trade-off

between them. The rest of this paper is organized as

follows: Section 2 presents a risk assessment

background. Section 3 describes the RICAV system.

Simulation results are discussed in Section 4. A brief

conclusion addresses the contributions and

perspectives of this work.

2 RISK ASSESSMENT

BACKGROUND

In the literature, the risk assessment has attracted the

attention of researchers and standardization bodies

that issued several standards. The NIST (USA

National Institute of Standards and Technology) risk

assessment (NIST, 2012) includes system

characterization, threat sources and events, system

vulnerabilities identification, security countermea-

sures evaluation and risk determination (impact-

likelihood matrix). Therefore, it detects, evaluates

and prioritizes risks. The ETSI TVRA (Threat,

Vulnerability and Risk Analysis) study the risk in the

context of the vehicular network. It identifies risks,

their likelihood and impact. Furthermore, it involves

seven steps: identify security objectives and security

requirements, produce an inventory of system assets,

classify system vulnerabilities and threats, quantify

the likelihood and impact of attacks, determine the

risks involved and specify detailed security

requirements. The SecRAM (Marotta et al., 2013)

method is the ISO 27005 based risk assessment

management methodology that was developed for air

traffic management. It associates a value between 1

and 5 to the threat impact on the security services

(Availability (Av), Authentication (Au),

Confidentiality (C), Integrity (I) and Non-repudiation

(Nr)). Furthermore, it considers the highest impact

service (Av, Au, C, I and Nr) as an overall threat

impact. Many works in the literature investigated risk

assessment in the context of the in-vehicle network.

In (Kaveh Bakhsh Kelarestaghi, Mahsa Foruhandeh,

Kevin Heaslip, 2019), authors adapted (NIST, 2012)

in the context of a compromised in-vehicle network.

The goal of this methodology is to explore threats

targeting the in-vehicle networks and to map impacts

of such threats into risk clusters. For example, they

consider safety and behavioural impacts as a very

high risk. In (Shaikh and Thayananthan, 2019)

authors proposed a fuzzy risk-based decision for

vehicular networks while adopting the NIST risk

definition at a high level. However, they use new

mechanisms to identify the likelihood and impact

value. The likelihood is based on the vehicle context

(lane, road, traffic, weather, speed and time) and the

driver’s attitude. On the other hand, the impact is

calculated based on the type of application. The

EVITA project(Ruddle and Ward, 2009) (Esafety

Vehicle Intrusion Protected Applications) proposed

an intra-vehicle risk assessment. It is considered as a

prominent risk assessment model that adopted the

asset-oriented approach. EVITA proposed a risk

matrix that includes attacks likelihood, the attack

severity, and the driver controllability. The severity is

calculated in terms of four factors: Safety, privacy of

drivers, operational performance, and financial

losses. The likelihood of a threat is considered in

terms of the expertise, knowledge of target, window

of opportunity (including time requirement).

3 RISK-BASED

CONTEXT-AWARE SECURITY

SOLUTION FOR THE

INTRA-VEHICLE NETWORK

The Intra-Vehicle Network is a complex network of

sensors, ECUs and firmware that can be vulnerable to

many types of attacks. Our goal is to minimize the

energy consumption of the system while maintaining

the security of the Intra-Vehicle Network

communications as long as possible along the route.

3.1 RICAV Architecture

Figure 1 presents the architecture of RICAV. It is

composed of two systems: CASIEV (Context-Aware

Security for the Intra-Electric Vehicle) (Fraiji et al.,

2019) and ASR (Adaptive Security based on the

Risk). CASIEV adapts the security of the in-vehicle

sensors network according to the EV dynamic

context. We defined the context as the State of Charge

(SoC), the nearest available charging station, the

sensor resources (memory and processing) and the

RICAV: RIsk based Context-Aware Security Solution for the Intra-Electric Vehicle Network

773

traffic conditions. CASIEV applies the high security

level allowed by the context without considering the

risk probability. The ASR module chooses the

required security level according to the risk in order

to improve the energy saving process. If the risk is

low, there is no need to ask for a high security level

which is an energy incentive.

Figure 1: RICAV architecture.

3.2 Which Modelling Approach for

RICAV?

In this work, we face a multi-objective optimization

problem as it requires more than one objective

function to be optimized simultaneously (preserving

security and optimizing energy).In the literature,

many techniques are used to solve this problem such

as Weighted-sum method, e-constraints Method,

Multi-level Programming, Goal Programming,

Evolutionary Algorithm (Genetic Algorithm,

Differential Evolution) and game theory. In (Sfar et

al., 2019), authors showed that game theory

outperforms many well-known multi-objective and

meta-heuristic algorithms in quality, stability,

convergence speed, and running time.Game theory

balances the trade-off between conflicting objectives

(Liang and Xiao, 2013).Furthermore, it is adapted to

this case study as it can model scenarios in which

there is no centralized entity with a full picture of

network conditions.Indeed, the security system does

not have any information about the battery SoC (State

of Charge) and vice versa.

Game theory is used in network security as a

quantitative framework which studies the interaction

between hackers and defenders(Liang and Xiao,

2013). In fact, many authors adopted the Game

theoretic approach to model adaptive security

solutions. In (Hamdi and Abie, 2014), authors

proposed a game theoretical model for an e-Health

adaptive security preserving the authentication of

smart things. Authors provided a mathematical

model, relying on Markov game theory, to present

healthcare under dynamic context. This model, based

on a set of strategies to design the game model, uses

four basic parameters to represent the context

(memory, communication channel, energy depletion

model and the threat model). In (Xiaolin et al. 2008),

authors developed an adaptive security model relying

on Markov chain for the network information system.

This work is based on two Markov chains. The first

chain was used to model the propagation of both the

threats in the network and the quantified risk. The

second one adapted the security of the system

according to the quantified risk.

3.3 Game based Risk and

Context-Aware Security

Formulation

RICAV (RIsk based Context Aware Security for the

intra-Vehicle network) is a game-based risk and

context aware solution. In the considered scenario,

players compete for the limited network resources (in

our case: energy). In this section, we will present the

parameters, assumptions, game specification, game

tree, Nash equilibrium and the behavioural System

Model.

3.3.1 Assumptions

We assume that:

 The proposed game is a Non-Cooperative Dynamic

Game Incomplete Information in which two players

compete with each other. A non-cooperative game

is one in which any cooperation must be self-

enforcing, as players are strictly rational and play to

optimize their individual expected value. The game

is dynamic as we consider a dynamic vehicular

context (dynamic energetic context and risk). In the

complete game all players have the same privileges

and knowledge about the game conditions and the

other players’ strategies and actions.In the

incomplete information players don’t have the

information of the other players, however it needs

to identify other players choices and hence predict

its behaviour.

 The game is a sequential game in which players

alternate turns. The security system will play its

strategy and the energy system will in turn react.

3.3.2 Game Specification

The game 𝐺 is defined as a triplet (𝑃, 𝑆, 𝑈), where 𝑃

is the set of players, 𝑆 is the set of strategies, and 𝑈 is

the set of payoff functions (Manshaei et al., 2013). In

the proposed strategy, we consider two players: the

energy management system and the security system.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

774

The energy management system represents the key

player of the game. For each player we will describe

their strategies, utility function and pay-offs. The

security system adapts the security level of sensors

according to the identified risk. The energy

management system aims to optimize the energy

consumption of the intra-electric vehicle network

according to the context. In this section, we begin by

describing the game of player 1. Then, we will

describe the game of player 2.

Players: P= {security system (ss), energy

management system (es)}.

Stage 1: Security System Player.

Let L= {𝑙



, 𝑙



,..,𝑙



} be the set of security levels𝐿



, 0

≤ i ≤ n

𝑆



is the set of strategy of the security system

𝑆



= L

Utility of the player 1:maximizing the robustness of

the security system while minimizing the overhead

(processing, memory, delay). The robustness of a

network will be assessed as the degree of the security

strategy capability to withstand attacks. The security

system adapts the security level (l) according to the

risk value 𝑟

𝑈



represent the Pay-offs of the security system.



= G (𝑝



)

The Payoff Function is modelled by a sigmoid

function, as demonstrated in (Sfar et al., 2019).The

sigmoid value is between [0, 1]. This function is

classified as a nonlinear, quickly increasing and

simple function which can meet the requirement of

calculating the required security level probability in a

reasonable running time.

the gain function G (𝒑

𝒍

)is defined as in (1)

G (𝒑

𝒍

𝟏

𝟏𝒆

 𝒈

𝒍

∗ 𝒑

𝒍

𝒉

𝒍



,𝒈

𝒍

=𝒓,∀ 𝒓 > 𝟎. 𝟎𝟓

(1)

with 𝑔



the steepness of sigmoid function, ℎ



: the

center of the sigmoid function. In

practice,𝑔



represents the risk level. We consider the

r=0 as a special case. The equation

𝟏

𝟏𝒆

 𝒈

𝒍

∗ 𝒑

𝒍

𝒉

𝒍



cannot reflect the reality as for all

probabilities value the function will return always 0.5.

For this purpose, if risk (r) is equal to zero𝑔



=10 (2).

𝑝



is the probability of using the required security

level 𝑙



G (𝒑

𝒍

𝟏

𝟏𝒆

 𝒈

𝒍

∗ 𝒑

𝒍



, 𝒓 = 𝟎. 𝟎𝟓, 𝒈

𝒍

=𝟏𝟎

(2)

Stage 2: Energy Management System Player.

Let E= {on ,𝑜𝑓𝑓},

𝑆



be the set of strategy of Energy management

system player.𝑆



= E

The energy management system is in the on mode if

it accepts to deliver the required energy and in the off

mode otherwise.

Utility Function of the Player 2: The energy

management system provides the good operation of

the intra-vehicle network with a minimal cost

(minimizing the energy consumption).



represent the Pay-offs of the energy management

system (3). U



= L (𝑝



)

L (𝒑

𝒆

𝟏

𝟏𝒆

𝒈

𝒆

∗( 𝒑

𝒆

𝒉

𝒆

)

(3)

with 𝑔



: the steepness of sigmoid function,ℎ



: the

center of the sigmoid function. In practice, the 𝑔



reflect the system state. It is equal to 0.05 if the

system is green, 0.5 if the system is orange, 1 if the

system is red (see table 1). 𝑝



is the probability of

delivering the required energy.

Table 1: Energy management system state.

stem

state

Description

Green state

(

𝑔



=0.05

)

The energy management system

accepts to deliver energy.

Orange state

(𝑔



=0.5)

The energy management system can

accept or refuse to deliver energy. This

decision is based on the context

parameters (charging station and

traffic

)

Red state

(

𝑔



)

The energy management system

refuses to deliver energy.

Stage 3: General Objective Function.

The two parameters 𝑝



and 𝑝



probabilities are

defined independently. However, in the present

model the only context in which the security system

adapts the required security strategy is when it has the

required energy. We can conclude that the two events

are the same and their probabilities coincide. For this

purpose, we can define p



:= p



= p



. The objective

of the game is to maximize the function (4). It is

continuous and defined on a compact, which is easy

to prove in our case.

𝐔(𝐩

𝐥𝐫

)=(𝐆(𝐩

𝐥𝐫

)∗ (𝟏−𝐋

(𝐩

𝐥𝐫

)))

(4)

3.3.3 Equilibrium Solution

The utility functions defined above express a trade-

off between (energy and security):

 Enforcing the policy (at the risk of depleting the

battery)

RICAV: RIsk based Context-Aware Security Solution for the Intra-Electric Vehicle Network

775

 Using a less robust security level (at the risk of

violating the security policy).

The equilibrium of the game is denoted by (𝑒𝑞

∗

) and

is found by solving the following optimization

problem (5).

eq: = argmax {U (𝒑

𝒍𝒓

),𝒑

𝒍𝒓

∈𝟎..𝟏 }

(5)

is the value of 𝑝



maximizing the utility function

and thereby, reflecting the optimal probability of

disclosing the required security level. In the particular

case, we can retrieve the optimum value of eq

explicitly g



= g



and h



> h



. In the general case, the

value of eq is calculated numerically (see the

simulation section).

4 SIMULATION AND ANALYSIS

We solve the game equilibrium for different

situations in the game numerically. We represent the

gain function G (𝒑

𝒍

) and the loss function L (𝒑

𝒆

calculate their product, find their maximum point and

get the corresponding steady state. To simulate

different scenarios, we modify the𝑔



and 𝑔



values

(risk and energy level) and analyse the player’s

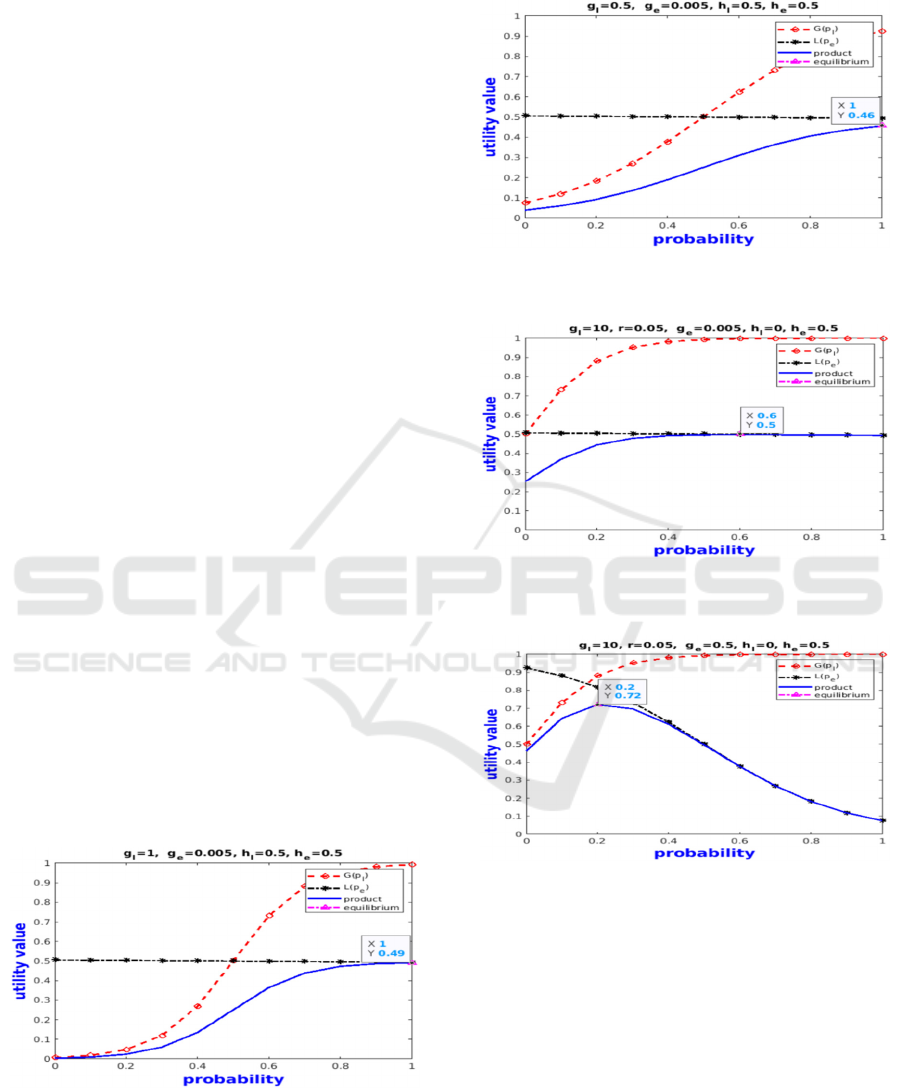

behaviour. Figures 2, 3 and 4 present results for a

scenario where the energy is available (𝑔



=0.005

green energetic state and the risk value varies. We

notice in the figures 2,3,4 a Nash equilibrium. Indeed,

both players are winners as the energy is available,

hence giving the energy may not result in an

important loss (the loss will always be moderate).

Figure 2 shows that the gain of the security system

(robustness) is very low if the probability of obtaining

the required security level is low and it can reach 1 in

the opposite case. In such scenario, the RICAV

prioritize the security then the energy consumption.

Figure 2: Nash equilibrium for risk=1 and green energetic

state.

In figure 3, since the risk is equal to 0.5, the gain

of the security system is more important than in the

previous case even for a low probability.

Figure 3: Nash equilibrium for risk=0.5 and green energetic

state.

Figure 4: Nash equilibrium for risk= 0.05 and green

energetic state.

Figure 5: Nash equilibrium for risk=0.05 and orange

energetic state.

In figure 4, we have considered a risk equal to

0.05. We notice that the robustness of the system is

high even if the security level is not provided since

the risk of attack is almost inexistent. Indeed, the

decrease in risk leads to an increase in the robustness

of the system. In this case, RICAV can ask for a low

security level (or no security at all) even though the

energy is available. Figure 5 present results for a

scenario where the energy has become critical

(𝑔



=0.5 orange energetic state) and the risk value

varies. In this case, we obtain a Nash equilibrium only

in the case where the risk is very low (r=0.05). Indeed,

SECRYPT 2021 - 18th International Conference on Security and Cryptography

776

since the battery can deliver or does not deliver

energy, there is always a winner and a loser. In this

scenario, RICAV provides a trade-off between energy

and security. It prioritizes security if the risk is high

and prioritizes energy saving if the risk is low. In the

red energetic state, we consider a battery in the red

zone where the energy becomes very critical. In this

case, we obtain a Nash equilibrium only in the case

where the risk is very low (r=0.05) since the energy

system is not allowed to supply energy in this zone.

That means, the equilibrium probability when the risk

is low (r=0.05) is not related to the decision of the

energy management system. In this scenario RICAV

prioritizes energy saving.

5 CONCLUSION

In this work, we proposed a risk-based context-aware

security solution for the intra-electric vehicle sensor

network. This solution allows the system to preserve

energy as it adapts the security according to the risk

and the vehicular context (energy, distance to

charging station, traffic, etc). RICAV is modelled

using game theory. The game is composed of two

players: the security system and the energy

management system. The security system adapts the

security level according to the identified intrusion

risk. The energy management system provides the

energy amount required by the security system

according to the vehicle context. Simulations show

that the robustness of the system grows when the risk

decreases. Therefore, RICAV prioritizes the energy

saving process if the risk is low. It prioritizes security

if the energy is available and the risk is high or

medium. For future works, we intend to improve

RICAV by developing a trust model for the intra-EV

network intrusion risk assessment based on the

vehicle current context and its previous experience.

Indeed, considering the risk trust value could enhance

the energy saving process. For example: if the risk is

high and the trust is low, the system can ask for a low

security level improving this way the energy saving

process.

REFERENCES

Arfaoui, Amel, Ali Kribeche, Sidi Mohammed Senouci,

and Mohamed Hamdi. 2018. “Game-Based Adaptive

Risk Management in Wireless Body Area Networks.”

In 2018 14th International Wireless Communications &

Mobile Computing Conference (IWCMC), IEEE, 1087–

93.

Atlam, Hany F. et al. 2020. “Risk-Based Access Control

Model: A Systematic Literature Review.” Future

Internet 12(6): 1–23.

Corbett, Christopher et al. 2018. “Leveraging Hardware

Security to Secure Connected Vehicles.” SAE

Technical Paper Series 1: 1–12.

ETSI. 2017. “Intelligent Transport Systems (ITS); Security;

Threat, Vulnerability and Risk Analysis (TVRA).” 1:

1–88.

Fraiji, Yosra et al. 2019. “Adaptive Security for the Intra-

Electric Vehicular Wireless Networks.” 2019 15th

International Wireless Communications & Mobile

Computing Conference (IWCMC): 1215–20.

Gebrie, Mattias T, and Habtamu Abie. 2017. “Risk-Based

Adaptive Authentication for Internet of Things in Smart

Home EHealth.” In Proceedings of the 11th European

Conference on Software Architecture: Companion

Proceedings, , 102–8.

Hamdi, Mohamed, and Habtamu Abie. 2014. “Game-Based

Adaptive Security in the Internet of Things for

EHealth.” 2014 IEEE International Conference on

Communications, ICC 2014: 920–25.

Kaveh Bakhsh Kelarestaghi, Mahsa Foruhandeh, Kevin

Heaslip, Ryan Gerdes. 2019. “Intelligent

Transportation System Security : Networks.”

Liang, Xiannuan, and Yang Xiao. 2013. “Game Theory for

Network Security.” IEEE Communications Surveys &

Tutorials 15(1): 472–86.

Manshaei, Mohammad Hossein et al. 2013. 45 ACM

Computing Surveys Game Theory Meets Network

Security and Privacy.

Marotta, Antonio et al. 2013. “Applying the SecRAM

Methodology in a CLOUD-Based ATM Environment.”

Proceedings - 2013 International Conference on

Availability, Reliability and Security, ARES 2013

(December): 807–13.

Nie, Sen, Ling Liu, and Yuefeng Du. 2017. “Free-Fall:

Hacking Tesla from Wireless to Can Bus.” Defcon: 1–

16.

NIST. 2012. “NIST Special Publication 800-30 Revision 1

- Guide for Conducting Risk Assessments.” NIST

Special Publication (September): 95.

Pan, L et al. 2017. “Journal of Information Security and

Applications Cyber Security Attacks to Modern

Vehicular Systems.” Journal of Information Security

and Applications 36: 90–100.

Pham, Congduc, Abdallah Makhoul, and Rachid Saadi.

2011. “Risk-Based Adaptive Scheduling in Randomly

Deployed Video Sensor Networks for Critical

Surveillance Applications.” Journal of Network and

Computer Applications 34(2): 783–95.

Reinhard, Jan Peter, Marcel Kneib, Martin Ring, and Oleg

Schell. 2020. “Assessment of Current Intrusion

Detection System Concepts for Intra-Vehicle

Communication.” : 1–2.

Ruddle, Alastair, and David Ward. 2009. “Security

Requirements for Automotive On-Board Networks

Based on Dark-Side Scenarios.” (1): 138.

Sfar, Arbia Riahi, Yacine Challal, Pascal Moyal, and Enrico

Natalizio. 2019. “A Game Theoretic Approach for

RICAV: RIsk based Context-Aware Security Solution for the Intra-Electric Vehicle Network

777

Privacy Preserving Model in IoT-Based

Transportation.” IEEE Transactions on Intelligent

Transportation Systems PP: 1–10.

Shaikh, Riaz Ahmed, and Vijey Thayananthan. 2019.

“Risk-Based Decision Methods for Vehicular

Networks.” Electronics (Switzerland) 8(6).

Xiaolin, Cui, Tan Xiaobin, Zhang Yong, and Xi

Hongsheng. 2008. “A Markov Game Theory-Based

Risk Assessment Model for Network Information

System.” 2008 International Conference on Computer

Science and Software Engineering: 1057–61.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

778
