Towards CRYSTALS-Kyber VHDL Implementation

Sara Ricci

, Petr Jedlicka

, Peter Cibik

, Petr Dzurenda

, Lukas Malina

and Jan Hajny

Department of Telecommunications, Brno University of Technology, Brno, Czech Republic

Keywords:

Post-quantum Cryptography, Lattice-based Cryptography, Key Encapsulation Scheme, Number-theoretic

Transform, FPGA, VHDL Implementation, Parallelization, Optimization.

Abstract:

Kyber is one of the three ﬁnalists of the National Institute of Standards and Technology (NIST) post-quantum

cryptography competition. This article presents an optimized Very High Speed Integrated Circuit Hardware

Description Language (VHDL)-based implementation of the main components of the Kyber scheme, namely

Number-Theoretic Transform (NTT) and Keccak. We focus speciﬁcally on NTT, Keccak and their derivatives

since they largely determine Kyber’s performance due to their wide involvement in each step of the scheme.

Our high-speed implementation also takes into account the trade-off between the degree of parallelization and

the resources utilization. The NTT component is more than 27% faster than the state-of-the-art implementa-

tions. Furthermore, the optimization helps the algorithm to achieve 1 572 839 NTT operations per second.

1 INTRODUCTION

In 2016, the NIST initiated a call for proposal of new

Post-Quantum Cryptography (PQC) digital signatures

and Key Encapsulation Mechanisms (KEMs) for fu-

ture standardization (NIST, 2016). In January 2019,

NIST announced the third round ﬁnalists, where 3 sig-

natures and 4 KEMs were selected as potential future

standards from the competing 69 candidates (NIST,

2019). These schemes were chosen based on their

security strength, and software and hardware perfor-

mance.

While most of the ﬁnalists already include an

implementation optimized for large x86 processors,

they often lack optimized implementations for other

platforms. Table 1 shows the current state of NIST

PQC ﬁnalists VHDL-based and High-Level Synthe-

sis (HLS)-based implementations on the Field Pro-

grammable Gate Arrays (FPGA) platform (references

are given in the table). All schemes have HLS-based

implementations which have been published in differ-

ent articles. However, the outputs from HLS are of-

ten less efﬁcient than native VHDL-based implemen-

tations, and could present security bugs. As shown in

https://orcid.org/0000-0003-0842-4951

https://orcid.org/0000-0003-0833-8068

https://orcid.org/0000-0003-0780-6288

https://orcid.org/0000-0002-4366-3950

https://orcid.org/0000-0002-7208-2514

https://orcid.org/0000-0003-2831-1073

Table 1, no pure VHDL implementation exists so far.

Remarkable is that 3 out of 4 third round ﬁnal-

ists for KEM are based on structured lattices, i.e.,

they rely on arithmetic in polynomial rings. Indeed,

Lattice-based cryptography has gained signiﬁcant at-

tention for its performance among the PQC families.

Especially CRYSTALS-Kyber (Avanzi et al., 2017),

shortly Kyber, which is designed to support very efﬁ-

cient multiplication over polynomial ring without ad-

ditional memory. It is important to notice that Ky-

ber is identiﬁed as the fastest KEM after pipelining in

the PQC NIST KEM semiﬁnalists comparison done

in (Basu et al., 2019).

1.1 Related Work

Several partial or whole FPGA implementations of

Kyber are currently available. The used technolo-

gies can be split in three groups: HLS-based design

(e.g., ANSI C/C++, and Matlab), software-hardware

co-design and RTL-based design (e.g., VHDL, and

Verilog).

(Chen et al., 2021) propose a polynomial ring pro-

cessor for Kyber on a Xilinx Artix-7 series FPGA

platform using HLS technology. They develop an op-

timized NTT which uses convolution-based polyno-

mial multiplier. (Basu et al., 2019) employ the HLS

method to implement and compare 11 NIST PQC

semiﬁnalists on the Xilinx Virtex-7 FPGA platform.

CRYSTALS-Kyber is recognized as the fastest KEM

760

Ricci, S., Jedlicka, P., Cibik, P., Dzurenda, P., Malina, L. and Hajny, J.

Towards CRYSTALS-Kyber VHDL Implementation.

DOI: 10.5220/0010580407600765

In Proceedings of the 18th International Conference on Security and Cr yptography (SECRYPT 2021), pages 760-765

ISBN: 978-989-758-524-1

Table 1: VHDL and HLS implementations of NIST PQC ﬁnalists.

Digital Signature

Scheme Type HLS method pure VHDL implementation

Dilithium lattice

(Soni et al., 2019; Soni et al., 2020)

(Ricci et al., 2021)

(Basu et al., 2019)

Falcon lattice (Soni et al., 2020) 7

Rainbow multivariate (Soni et al., 2020) (Ferozpuri and Gaj, 2018)

Encryption/KEM

Scheme Type HLS method pure VHDL implementation

Kyber lattice (Basu et al., 2019; Chen et al., 2021) 7

McEliece code (Soni et al., 2019; Basu et al., 2019) (Wang et al., 2018)

NTRU lattice (Soni et al., 2019; Basu et al., 2019) (Marotzke, 2020)

SABER lattice (Soni et al., 2019; Basu et al., 2019) (Roy and Basso, 2020)

Note: 7– pure hardware implementations without language speciﬁcation, 7– algorithm is not implemented.

under pipelining directives.

(Dang et al., 2020) present a software-hardware

co-design approach for the implementation of three

NIST semiﬁnalists: Kyber, NewHope and Round5

schemes. They combine C code with Register-

Transfer Level (RTL) design methodology on the Xil-

inx Artix-7 FPGA family.

Even if some Kyber RTL-based designs are now

available, there is still a lack of its optimized im-

plementation on FPGA. A Verilog Kyber imple-

mentation on Xilinx Artix-7 and Virtex-7 FPGAs

is presented in (Huang et al., 2020). The article

stays on a high level description of Kyber and no

NTT and Keccak results are shown. Furthermore,

(Chen et al., 2020) design an NTT optimization with

Gentlemen-Sande butterﬂy on Xilinx XC7A200T and

XC6SLX45T FPGA platforms. However, no speciﬁ-

cation on the used language are given. At last, (Xing

and Li, 2021) develop a Kyber hardware implemen-

tation on the Xilinx XC7A12TCPG238-1 FPGA plat-

form. But even here, no speciﬁcation on the used lan-

guage are given. Moreover, this lightweight platform

has small memory capacity and all the implementa-

tion has been design to run on this characteristic. On

the contrary, our implementation works on the high-

end Xilinx Virtex UltraScale+ XCVU7P FPGA plat-

form. Due to the bigger available resources, we could

focus on a high-speed implementation, i.e. on scheme

performance and optimization.

1.2 Contributions

The main contribution of this paper is to present op-

timized NTT and Keccak VHDL implementations for

Kyber on high-speed FPGA platform. Our high-speed

platform implementation targets the minimization of

the execution times of the major operations by com-

ponents optimization and operations/sub-components

parallelization. Moreover, our implementation fo-

cuses on the trade-off between the degree of paral-

lelization and the resources utilization. Our NTT

is more than a factor of 25 and 3 times faster than

the performance presented in (Chen et al., 2020) and

(Dang et al., 2020), respectively. Our Keccak im-

plementation is easy to use in speciﬁc instances of

SHA and SHAKE functions. In fact, each derivative

has its speciﬁc implementation of Keccak core blocks

hash core and pad10*1.

2 PRELIMINARIES

In this section, we discuss the mathematical back-

ground that is crucial for the understanding our im-

plementation. Moreover, we recall NTT, Keccak and

Kyber scheme. Finally, we describe the main charac-

teristic of FPGA implementations and how they can

be compared. We denote by R

the polynomial ring

Z[x]

/(x

+ 1) where n = 256 and q = 3329. Bold

lower-case letters (v) are used for column vectors in

, while regular font letters (v) for elements in R

Matrices are represented by bold upper-case letters

(A). The coefﬁcient-wise multiplication of two poly-

nomials in the NTT domain with the natural extension

to vectors and matrices is denoted by ◦.

NTT. NTT is a very efﬁcient way to perform mul-

tiplications in polynomial rings (Nejatollahi et al.,

2019). In NTT, a polynomial becomes a multi-point

evaluation at powers of a root of unity. Therefore, the

polynomial multiplication consists in applying NTT

in O(n logn), then performing point-wise multiplica-

tion in O(n) and ﬁnally converting the result to a co-

efﬁcient representation in O(n log n). There are many

ways to compute the number-theoretic transform. Ky-

Towards CRYSTALS-Kyber VHDL Implementation

761

ber uses Cooley-Tukey butterﬂy for NTT, Gentleman-

Sande butterﬂy for NTT

−1

, Montgomery algorithm

for modular multiplication and Barrett algorithm for

modular reduction.

Keccak. The performance of Kyber is largely deter-

mined by hashing and pseudorandom number gener-

ation. All these symmetric primitives require Kec-

cak permutation (Bertoni et al., 2009). Keccak is a

family of sponge functions using Keccak- f permu-

tation as the underlying function. The function f

maps a single ﬁxed-length string b = r + c, where r

is the bitrate and c the capacity, to another string of

the same length. It is important to mention that the

Kyber scheme includes several hash functions such

as SHA3-256 and SHA3-512, and extendable output

functions SHAKE-128 and SHAKE-256 which are all

based on Keccak.

Algorithm 1: CPA KeyGen().

1: ρ,σ ← {0, 1}

256

× {0,1}

256

B SHA3-512

2: A ∈ R

k×k

B SHAKE-128 & NTT

3: s,e ∈ R

B SHAKE-256

t := A ◦ NT T (s) + NTT (e) B NTT

5: return pk = (ρ,

t), sk = s

Kyber. CRYSTALS-Kyber scheme (Avanzi et al.,

2017) is part of the Cryptographic Suite for Algebraic

Lattices (CRYSTALS), which counts KEM, namely

Kyber, and a signature, namely Dilithium. Both pro-

tocols’ security relies on the hardness of the Module

variant of the Learning With Error (MLWE) problem

(Brakerski et al., 2014; Langlois and Stehl

e, 2015).

Algorithm 2: CPA Encryption(ρ,

t,m).

A ∈ R

k×k

B SHAKE-128 & NTT

2: r,e

∈ R

B SHAKE-256

3: e

∈ R

B SHAKE-256

r := NT T (r) B NTT

5: u := NT T

−1

(

◦

r) + NT T (e

) B NTT

6: v := NT T

−1

(

◦

r) + e

+ m B NTT

7: return c = (Compress(u),Compress(v))

Kyber uses the MLWE problem with n and q ﬁxed

while the dimension of the module is being varied.

This gives the advantage that changing the security

level of Kyber involves doing more (or fewer) of the

same ring operations. On the contrary, changing the

ring would require the re-implementation of all the

operations. Kyber is constructed in two-stage ap-

proach: 1) Basic version Kyber.CPAPKE and 2) ex-

tended version Kyber.CCAKEM (shortly Kyber), see

(Avanzi et al., 2017) for more information.

Algorithm 3: CPA Decryption(sk = s,c).

1: u := Decompress(c

)

2: v := Decompress(c

)

3: A ∈ R

k×k

4: m :=Compress(v − NT T

−1

◦ NTT (u))) B

NTT

5: return m

Algorithms 1, 2 and 3 show a brief description of the

main core of CPAPKE.Kyber scheme. In the afore-

mentioned algorithms, NTT and Keccak derivatives

usage are speciﬁed. CCAKEM.Kyber scheme variant

differs from CPAPKE.Kyber on the usage of a hashed

message m and a hashed public key pk in the encryp-

tion and decryption phases. In particular, SHA3-256 is

used for hashing. It is remarkable that the high pres-

ence of NTT and Keccak derivatives in all algorithms,

in particular in Algorithms 1 and 2. In fact, these

functions largely determine Kyber performance.

FPGA Implementations. Hardware implementa-

tions outperform software ones considering at least

one of the following metrics: speed, power con-

sumption, or energy usage (Dang et al., 2020). The

FPGA implementations can be split into high-speed

and lightweight. They try to minimize the execu-

tion times of the major operations by protocol opti-

mization and operations/sub-components paralleliza-

tion. On the contrary, lightweight implementations

try to achieve minimum resource utilization, assum-

ing of not exceeding a predeﬁned maximum execu-

tion time. In particular, resource utilization is a vec-

tor counting the number of Logic Cells, Look-Up Ta-

bles (LUTs), Flip-Flops (FFs), Digital Signal Proces-

sor (DSP) slices and Block Random Access Memo-

ries (BRAMs).

3 VHDL IMPLEMENTATION

NTT Design and Implementation. The NTT and

NTT

−1

components consist of several functional sub-

blocks including two butterﬂies, Montgomery algo-

rithm, and Barrett algorithm. These sub-blocks are

implemented and then integrated into the two compo-

nents.

Whereas our design is speed-optimized, pipelined

processing is applied and Digital Signal Processing

(DSP) blocks are used for the implementation of

all arithmetical operations necessary for NTT and

NTT

−1

functions. Moreover, the arithmetical oper-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

762

Table 2: Hardware speciﬁcations of the FPGA platforms for Kyber components.

Design Platform Logic Cells / LUTs FFs DSP BRAMs / Block Size

High-speed platforms

Our work UltraScale+ XCVU7P 1 724 100 / 788 160 1 576 320 4 560 1 440 / 36 Kb

(Dang et al., 2020) UltraScale+ Zynq XCZU9EG 599 550 / 274 080 548 160 2 520 912 / 36 Kb

(Huang et al., 2020) Virtex-7 VC707 XC7VX485T 485 760 / 303 600 607 200 2 800 1 030 / 36 Kb

Lightweight platforms

(Chen et al., 2021) Artix-7 XC7A200T 215 360 / 134 600 269 200 740 365 / 36 Kb

(Xing and Li, 2021) Artix-7 XA7A12T 12 800 / 8 000 16 000 40 20 / 36 Kb

(Chen et al., 2020) Spartan-6 XC6SLX45T 43 661 / 27 288 54 576 58 116 / 18 Kb

ations are run in parallel with a throughput equal to

one output per one clock cycle.

The computation of NTT or NTT

−1

functions is

performed over 256 coefﬁcients in 7 iterations. As

trade-off between the degree of parallelization and

hardware resources, 4 butterﬂies in a 2x2 arrange-

ment are deployed. This leads to the computation

of 2 NTTs iterations in parallel with 2 butterﬂies in

each of them. It is remarkable that the 7th iteration is

performed using only two butterﬂies in the ﬁrst layer

while the remaining butterﬂies are bypassed. The but-

terﬂies are distributed in two iterations to reduce the

number of coefﬁcients or intermediate results needed

to be stored in the Block Random Access Memory

(BRAM) at one clock cycle. The block diagram of

the NTT component is shown in Figure 1. The co-

efﬁcients, intermediate results and output values are

stored in BRAMs. The roots of unity needed for the

NTT computation are stored in the Read-Only Mem-

ory (ROM) whose address is controlled by the control

unit and data bus is accessed by the butterﬂies.

BRAM

interface

switch

control unit

coefficients

4x18k

BRAM

roots of unity

3x18k ROM

data in

[127:0]

data out

[127:0]

addr

[5:0]

select

start

ready

4x addr

[6:0]

data out [127:0]

data in

[127:0]

3x addr [7:0]

split

merge

butterflies 2x2

bypass

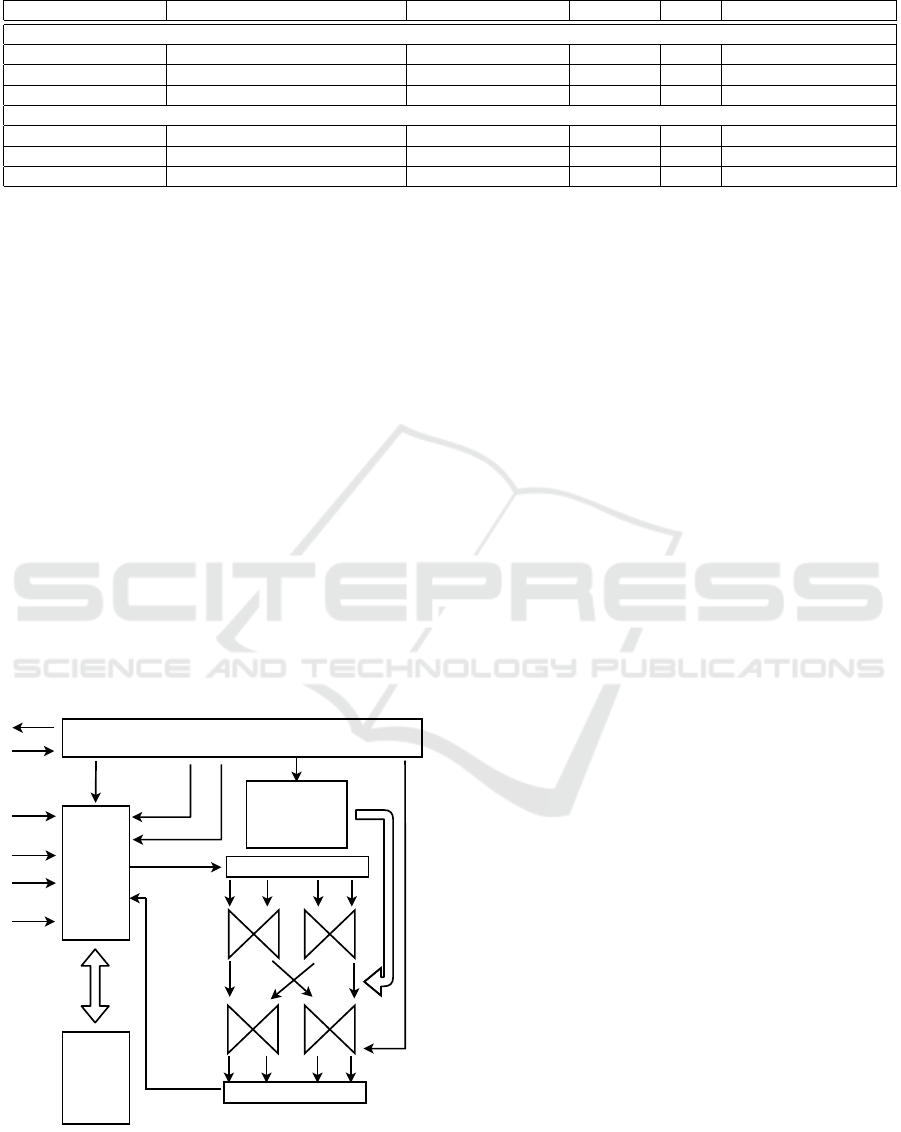

Figure 1: The block scheme of the NTT implementation.

The only difference between NTT

−1

and NTT im-

plementation is order in which the iterations are per-

formed. In fact, in NTT

−1

the distribution of the but-

terﬂies is reversed with respect to NTT component.

The Montgomery reduction of the output coefﬁcients

is additionally performed for NTT

−1

transformation.

Keccak and Derivatives Design and Implemen-

tation. Our Keccak implementation consists of

two main components: hash-core and pad10*1.

The Keccak sponge function is implemented in the

hash-core component with parameter b = 1600 and

counts 24 rounds. Our implementation computes two

rounds per clock cycle, which means that the out-

put value is pre-computed for 512-bit input approx-

imately each 12 clock cycles. The pad10*1 compo-

nent is responsible of adding the multi-rate padding

(10*1) and the speciﬁc derivative functions padding,

e.g. ”1111” and ”01”, to the last block of input mes-

sage (NIST, 2015).

The derivative functions SHA3-512, SHA3-256,

SHAKE128 and SHAKE256 are implemented as a top

component with speciﬁc setting of internal sub-

components. Each top component has 512-bit input

interface and for both input and output interfaces has

handshake signals (src and dst ready) for transaction

transmission.

4 EXPERIMENTAL RESULTS

AND COMPARISON

This section describes the experimental results of our

hardware implementation design for NTT, NTT

−1

Keccak function and Keccak derivatives used in the

Kyber scheme. Moreover, we compare our work

with existing implementations. Our implementation

works with high-speed FPGA Xilinx Virtex Ultra-

Scale+ XCVU7P with manufacturer product number

xcvu7p-flvb2104-2-i. Table 2 lists the basic hard-

ware speciﬁcations of our FPGA and other FPGA

platforms used in related works that are mentioned in

this paper. The table categorizes FPGA platforms to

high-speed and lightweight.

Towards CRYSTALS-Kyber VHDL Implementation

763

Table 3: Comparison of hardware resources and performance of NTT component of Kyber scheme on FPGA. ”Max. Freq.”

states for maximum frequency, and ”Ops” for operations per second. Not available parameters are marked as ”-”.

Design LUTs FFs DSP BRAMs

Latency

Cycles

Max. Freq.

[MHz]

Ops

Our Work 1 107 1 407 28 3.5 405 637 1 572 839

(Chen et al., 2020)

442 237 1 1.5 2 055 136 66 180

(Chen et al., 2020)

446 237 1 2 2 055 85 41 443

(Chen et al., 2021) 479 472 1 2 - 240 -

(Dang et al., 2020)

2 325 2 346 24 7 1 271 455 357 986

(Dang et al., 2020)

2 040 3 223 24 5 1 271 500 393 391

(Xing and Li, 2021) 1 737 1 167 2 3 - - -

Note:

with Artix7 FPGA platform,

with Spartan6 FPGA platform,

results of HLS implementation,

results of RTL implementation.

4.1 Performance Results

Tables 3 and 4 show our results after the synthe-

sis of NTT components and Keccak component, re-

spectively. The tables show the resources utilization

(e.g., LUTs, FFs, DSP slices and BRAMs) and also

the theoretical operating frequency and latency that

can serve for the assessment of computational perfor-

mance. Similarly to NTT, NTT

−1

requires in average

1 572 LUTs, 2 002 FFs, 60 DSP, 3.5 BRAMs, 418

cycles Latency, and 637 MHz Frequency. In Keccak

evaluation, DSP, and BRAMs are zero since they are

not needed in the implementations. Note that NTT

and NTT

−1

require DSP and BRAMs due to their

higher complexity. In particular, DSP slices are used

for optimization reasons while BRAMs blocks are

needed to store NTT (and NTT

−1

) input, intermedi-

ate and output values.

Table 4: The hardware resources utilization of Keccak and

derivatives components after an RTL synthesis. ”Max.

Freq.” states for maximum frequency and ”r” for bitrate.

Component

[bit]

LUTs FFs

Max. Freq.

[MHz]

SHA3–512 576 18 543 4 829 237

SHA3–256 1 088 13 879 5 608 242

SHAKE128 1 344 18 448 8 873 230

SHAKE256 1 088 15 704 7 592 241

4.2 Comparison

Table 3 shows the comparison of several NTT imple-

mentations results. (Chen et al., 2020) present hard-

ware NTT optimization with Gentlemen-Sande but-

terﬂy on Xilinx XC7A200T and XC6SLX45T FPGA

platforms. However, no speciﬁcations on the used

language are given. Checking the number of Oper-

ations Per Second (ops), their implementations are

able to perform around 25 times less NTT transfor-

mations per second while using 4 times less hard-

ware resources (LUTs and FFs). Moreover, if we de-

ﬁne the comparison effectiveness of two implemen-

tations on two different FPGA platforms as (ops ra-

tio)/(utilization ratio)/(theoretical max. frequency ra-

tio), then our implementation is around 3.7 times

more effective than (Chen et al., 2020). In particu-

lar, we assume that the typical theoretical maximum

frequency of a low cost FPGA such as Artix7 is 464

MHz while our UltraScale+ is able to run at 775 MHz.

The differences between our and their implemen-

tation is due to the available resources of the used

FPGA platforms. Our high-speed implementation

also takes into account the trade-off between the de-

gree of parallelization and the resources utilization. In

fact, if we consider the most lightweight FPGA plat-

form Spartan-6 XC6SLX45T used by (Chen et al.,

2020), we need only ca. 4% LUTs, 3% FFs, 48%

DSP, and 6% BRAMs of its available hardware re-

sources. Furthermore, (Dang et al., 2020) hardware-

software co-design reaches more than 3 times less

NTT transformations per second while using twice

more hardware resources. Regardless the platform

they used, our implementation is more effective. In

(Xing and Li, 2021) and (Chen et al., 2021), no NTT

component performance results are provided.

Our Keccak implementation focuses mainly on

performance. However, the impact on resource con-

sumption remains negligible and comparable with

other state-of-the-art solutions. In (Xing and Li,

2021), no performance results of Keccak and its

derivatives (i.e., latency, maximum frequency, ops

values) are provided, and therefore it is also hard to

objectively compare our solutions.

5 CONCLUSIONS

In this paper, we present a pure and optimized im-

plementation for the main algorithms of the Kyber

scheme, namely The NTT and Keccak algorithms.

The implementations are written in the VHDL lan-

guage and performed on the UltraScale+ XCVU7P

SECRYPT 2021 - 18th International Conference on Security and Cryptography

764

FPGA chip. Our high-speed implementation also

takes into account the trade-off between the degree

of parallelization and the resources utilization. Our

implementation is more efﬁcient than currently exist-

ing implementations. In particular, our NTT imple-

mentation is ca 27% faster than (Dang et al., 2020)

while using signiﬁcantly less resources, and ca 155%

faster than (Chen et al., 2021) proposal. Indeed,

(Chen et al., 2021) is most resources friendly im-

plementation. Note that if we consider the most

lightweight FPGA platform Spartan-6 XC6SLX45T

used by (Chen et al., 2020), we need only ca. 4%

LUTs, 3% FFs, 48% DSP, and 6% BRAMs of its

available hardware resources. Our future work will

focus on the implementation of the complete Kyber

scheme, its optimisation and resistance against side

channel attacks.

ACKNOWLEDGEMENTS

This work is supported by Ministry of the Interior of

the Czech Republic under grant VJ01010008.

REFERENCES

Avanzi, R., Bos, J., Ducas, L., Kiltz, E., Lepoint, T., Lyuba-

shevsky, V., Schanck, J. M., Schwabe, P., Seiler, G.,

and Stehl

e, D. (2017). Crystals-kyber algorithm spec-

iﬁcations and supporting documentation. NIST PQC

Round, 2:4.

Basu, K., Soni, D., Nabeel, M., and Karri, R. (2019).

Nist post-quantum cryptography-a hardware evalua-

tion study. IACR Cryptol. ePrint Arch., 2019:47.

Bertoni, G., Daemen, J., Peeters, M., and Van Assche, G.

(2009). Keccak speciﬁcations. Submission to nist

(round 2), pages 320–337.

Brakerski, Z., Gentry, C., and Vaikuntanathan, V. (2014).

(leveled) fully homomorphic encryption without boot-

strapping. ACM Transactions on Computation Theory

(TOCT), 6(3):1–36.

Chen, Z., Ma, Y., Chen, T., Lin, J., and Jing, J. (2020). To-

wards efﬁcient kyber on fpgas: A processor for vec-

tor of polynomials. In 2020 25th Asia and South

Paciﬁc Design Automation Conference (ASP-DAC),

pages 247–252. IEEE.

Chen, Z., Ma, Y., Chen, T., Lin, J., and Jing, J. (2021).

High-performance area-efﬁcient polynomial ring pro-

cessor for crystals-kyber on fpgas. Integration, 78:25–

35.

Dang, V. B., Farahmand, F., Andrzejczak, M., Mohajerani,

K., Nguyen, D. T., and Gaj, K. (2020). Implemen-

tation and benchmarking of round 2 candidates in

the nist post-quantum cryptography standardization

process using hardware and software/hardware co-

design approaches. Cryptology ePrint Archive: Re-

port 2020/795.

Ferozpuri, A. and Gaj, K. (2018). High-speed fpga im-

plementation of the nist round 1 rainbow signature

scheme. In 2018 International Conference on ReCon-

Figurable Computing and FPGAs (ReConFig), pages

1–8. IEEE.

Huang, Y., Huang, M., Lei, Z., and Wu, J. (2020). A pure

hardware implementation of crystals-kyber pqc algo-

rithm through resource reuse. IEICE Electronics Ex-

press, pages 17–20200234.

Langlois, A. and Stehl

e, D. (2015). Worst-case to average-

case reductions for module lattices. Designs, Codes

and Cryptography, 75(3):565–599.

Marotzke, A. (2020). A constant time full hardware imple-

mentation of streamlined ntru prime. In International

Conference on Smart Card Research and Advanced

Applications, pages 3–17. Springer.

Nejatollahi, H., Dutt, N., Ray, S., Regazzoni, F., Banerjee,

I., and Cammarota, R. (2019). Post-quantum lattice-

based cryptography implementations: A survey. ACM

Comput. Surv., 51(6):129:1–129:41.

NIST (2015). Fips pub 202 sha-3 standard: Permutation-

based hash and extendable-output functions.

NIST (2016). Submission requirements and evaluation

criteria for the post-quantum cryptography stan-

dardization process. https://csrc.nist.gov/csrc/media/

projects/post-quantum-cryptography/documents/

call-for-proposals-ﬁnal-dec-2016.pdf.

NIST (2019). Computer security resource cen-

ter (csrc): Post-quantum cryptography - round

3 submissions. https://csrc.nist.gov/projects/

post-quantum-cryptography/round-3-submissions.

Last accessed 04-March-2021.

Ricci, S., Malina, L., Jedlicka, P., Smekal, D., Hajny,

J., Cibik, P., and Dobias, P. (2021). Implementing

crystals-dilithium signature scheme on fpgas.

Roy, S. S. and Basso, A. (2020). High-speed instruction-set

coprocessor for lattice-based key encapsulation mech-

anism: Saber in hardware. IACR Cryptol. ePrint

Arch., 2020:434.

Soni, D., Basu, K., Nabeel, M., Aaraj, N., Manzano, M.,

and Karri, R. (2020). Hardware architectures for post-

quantum digital signature schemes.

Soni, D., Basu, K., Nabeel, M., and Karri, R. (2019). A

hardware evaluation study of nist post-quantum cryp-

tographic signature schemes. In Second PQC Stan-

dardization Conference. NIST.

Wang, W., Szefer, J., and Niederhagen, R. (2018). Fpga-

based niederreiter cryptosystem using binary goppa

codes. In International Conference on Post-Quantum

Cryptography, pages 77–98. Springer.

Xing, Y. and Li, S. (2021). A compact hardware im-

plementation of cca-secure key exchange mechanism

crystals-kyber on fpga. IACR Transactions on Cryp-

tographic Hardware and Embedded Systems, pages

328–356.

Towards CRYSTALS-Kyber VHDL Implementation

765
