Enhanced Protection of Ecommerce Users’ Personal Data and

Privacy using the Trusted Third Party Model

Mukuka Kangwa

, Charles S Lubobya

and Jackson Phiri

Department of Electrical Engineering, University of Zambia, Lusaka, Zambia

Department of Computer Science, University of Zambia, Lusaka, Zambia

Keywords: Personally Identifiable Information, Data Privacy, Electronic Services, Data Protection, Random Electronic

Identity, Hardware and Software.

Abstract: The rapid adoption of electronic delivery of services by various electronic service providers such as

ecommerce and e-governance services leaves the users of these services with no option but to adapt if they

are to continue accessing their desired services. To access these services, very often one has to reveal some

of their personal data in order to get registered on the platforms made available courtesy of the service

providers. One person is likely to surrender their personal identifying data to several service providers hence

making their aggregated data susceptible to leakage online. Despite several solutions already in use data

leakage is still prevalent. Our research proposes and tests a method that aggregates personal identifying data

and seeks to enhance its protection from leakage using a novel approach formulated from software and

hardware. This paper outlines the design and explains in detail how the approach is expected to protect data.

It further gives details of the results that were obtained from experiments conducted on the constructed key

component of the proposed solution.

1 INTRODUCTION

The information Age has seen an unprecedented rise

in the delivery of various services using electronic

means. Most of the providers of electronic services

such as ecommerce and e-governance require a

person to submit some elements of their Personally

Identifiable Information (PII) before they could grant

that potential service consumer access to their

electronic services (Kangwa, Lubobya, & Phiri,

2021). This has resulted into huge amounts of

aggregated PII being collected across number of

service providers and thereby making it vulnerable to

intentional or inadvertent leakage (Patent No. US

2019 / 0333054 A1, 2019). Leaked PII puts the owner

of the information at high risk; users can have their

Bank account broken into, their privacy compromised

and even pose physical threat to the victim. Despite a

number of solutions having been formulated and

implemented in order to address this challenge, the

problem persists. With the advent of the Covid-19

https://orcid.org/0000-0002-4568-7497

https://orcid.org/0000-0002-4430-1580

Pandemic across the globe, more service providers

have opted to use electronic means to deliver their

services to their clients to minimize physical contact

hence putting more PII at risk of being leaked. In fact

a number of incidents have already occurred where

data privacy has been breached (Hauer, 2015).

There are several methods and approaches such as

cryptography that are being used to provide

confidentiality and privacy to data (Pawar & Harkut,

2018). This paper proposes a simplified, yet effective

method that can be employed to protect personal data.

It builds on what other scholars have formulated to

come up with a more effective approach.

2 RELATED WORK

A number of scholars have proposed varying

approaches to help protect personal data while

allowing the owners access to online services. Frank

and Michael proposed and patented a solution to help

116

Kangwa, M., Lubobya, C. and Phiri, J.

Enhanced Protection of Ecommerce Users’ Personal Data and Privacy using the Trusted Third Party Model.

DOI: 10.5220/0010576201160126

In Proceedings of the 18th International Conference on e-Business (ICE-B 2021), pages 116-126

ISBN: 978-989-758-527-2

protect personal identifying data. In their proposal

they have a Trusted Party that provides static

Identities (ID) to users. In addition, they proposed the

use of Block chain technology to protect personal

data for the users. In the scenario shown in Figure 1

below, the user obtains an ID from the digital ID

provider and submits it to the service provider as

proof of identification. The service provider verifies

with the ID provider if the user is indeed genuine and

the response the ID provider returns determines

whether or not a service will be rendered to the user.

Frank and Michael are proposing the use of an offline

escrow to keep the identifying data to be accessed via

legally approved means. They further submitted that

pseudonymization rather than anonymization be used

to make it possible to identify a user when need arise

(Patent No. US 2019 / 0333054 A1, 2019).

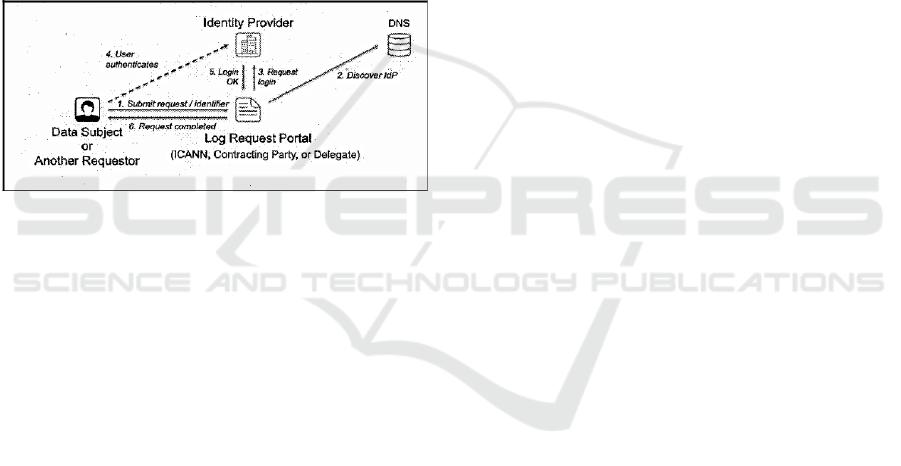

Figure 1: Proposed Approach by Frank and Michael (Patent

No. US 2019 / 0333054 A1, 2019).

The implied use of static electronic IDs in the

proposed approach above might not be sufficient to

help maintain the privacy of the users as a static ID

can be profiled easily and hence compromise the

privacy of the owner while surfing online (Kangwa,

Lubobya, & Phiri, 2021). Furthermore, the use of

Blockchain technology might not be very feasible as

the technology is currently resource intensive (Bao et

al., 2020). To provide a global solution would

consume a huge amount of resources for the proof of

works to be used to protect data from being leaked or

modified or even deleted. The Blockchain technology

will require some modifications to make it friendlier

to the proposed approach. Lighter Blockchain-like

implementation on a local scale might be more

feasible than a peer-to-peer global approach that is

currently wide spread.

Another key challenge with Blockchain

technology is its lack of scalability due to its design.

The solution seeks to solve a global problem by

providing access that is global hence scalability is

very key to accommodate everyone who desires to

use the proposed solution. Moreover, Blockchain

faces some privacy and security challenges hence

might provide a solution to one problem and

introduce more challenges (Bao et al., 2020) . In

addition, the time lag that the technology inherently

experiences due to its design poses a huge challenge.

When one node generates a transaction, a number of

other nodes need to confirm and reach consensus

before a transaction can be considered as complete.

This results in delayed completion of transactions (II-

Agure, Belsam, & Yun-ke, 2019). Further, its

complexity makes the cost of building and

maintaining it prohibitive. Cheaper ways of

developing the technology need to be sought if it is to

be widely adopted. Perhaps build as a service where

costs can be shared (Zhang, Alkubati, Bao, & Yu,

2021). This paper proposes the use of a Trusted Third

Party, herein called KYC Agency, which would be a

government appointed entity tasked with the

registration of its citizens for the purpose of issuing

National IDs. It further proposes a solution to be

employed to effectively prevent PII leakage by the

appointed TTP and is a buildup of our earlier work in

the paper “Prevention of Personally Identifiable

Information Leakage in E-commerce via Offline Data

Minimisation and Pseudonymization” (Kangwa et al.,

2021).

3 TRUSTED AND UNTRUSTED

THIRD PART MODELS

The leakage of PII has been going on for some time

now. Ecommerce platforms normally hold client

information online so that they can identify them

before offering any service. A lot of user data is being

held in the cloud by various service providers hence

making that data susceptible to leakage (Ye, Dong,

Shen, Cao, & Zhao, 2019). For example, e-bay, an

Ecommerce platform, suffered a Distributed Denial

of Service (DDoS) attack where their databases were

scanned and client data was exposed (Innab &

Alamri, 2018). This attack was possible because the

databases were accessible online.

Fanghan et’al proposed a model that would

control access to data using a system whose security

was to be enhanced using encryption. The system was

aimed at replacing a Trusted Party model as they

believed that the Trusted Third Party (TTP) might not

be so reliable to control access to user data on behalf

of the user. They proposed a model that would give

the data owner the power to control who accesses

Enhanced Protection of Ecommerce Users’ Personal Data and Privacy using the Trusted Third Party Model

117

their data. Figure 2 below gives a summary of the

model:

Figure 2: Model without Trusted Third Parties (Ye et al.,

2019).

According the model, a cloud server would be

required to keep some of the data. The user encrypts

their documents before sharing and decides who can

be given access by sharing their decryption keys with

the people who need access (Ye et al., 2019). The fact

that some data is kept in the cloud makes that data

vulnerable to leakage. Even if it is encrypted, if the

key shared finds itself in wrong hands, then the

encrypted date, if accessed can be deciphered. In

addition, it means several can be granted access to the

data thereby increasing points of potential data

breach. Moreover, despite being encrypted, data is

most likely to be in plain text when being processed,

for example in response to a request for data, hence

making it vulnerable to leakage (Zhan, Fan, Cai, Gao,

& Zhuang, 2018).

Aarthy et’al proposed a Trusted Third Party

Model that was aimed at resolving the issues of trust

by users of cloud services. Users had huge concerns

over security and trust of cloud service providers

hence were hesitant with surrendering their data to the

service providers. Their proposed model Sought to

address this challenge by providing a Trusted Third

Party that would monitor and assess the cloud service

providers and provide assurance to users (Aarthy,

Aarthi, Farhath, Lakshana, & Lavanya, 2017). Figure

3 below gives a summary of how their proposed

model was expected to work.

Figure 3: Trusted Third Party Model (Aarthy et al., 2017).

The idea was to have a party that both the service

providers and potential users of the services can

trust. The data about the quality of service the cloud

service providers are offering is aggregated together

and held by a central and neutral party. The Trusted

Third Party provides that service. The approach was

expected to improve trust and eventually the

adoption of cloud services. This model can be

applied in other areas such as the provision of Know

Your Customer (KYC) services though in this case

the objective is to protect the PII of potential

electronic service users kept in a central place.

Protecting data in one place is much easier than

protecting data distributed across various online

platforms.

Locher et’al, proposed the use of a distributed

ledger to replace the use of a Trusted Third Party

(TTP) (Locher, Obermeier, & Pignolet, 2018). As

proposed by other authors earlier considered, the

distributed ledger owes its security around the

approval of any transaction to its requirements for

consensus before any transaction can be confirmed.

However, this approach results in delayed

transaction completion as well as huge resources

being required to make the technology operational

(Bao et al., 2020). Locher et’al acknowledged

that despite the distributed approach of using

block chain technology, users still needed to

trust each over (Locher et al., 2018). The aspect

of trust is what the Trusted Third Party model

aims to address hence the use of blockchain

technology might have a limited application to

certain use cases where trust might not be an

immense requirement.

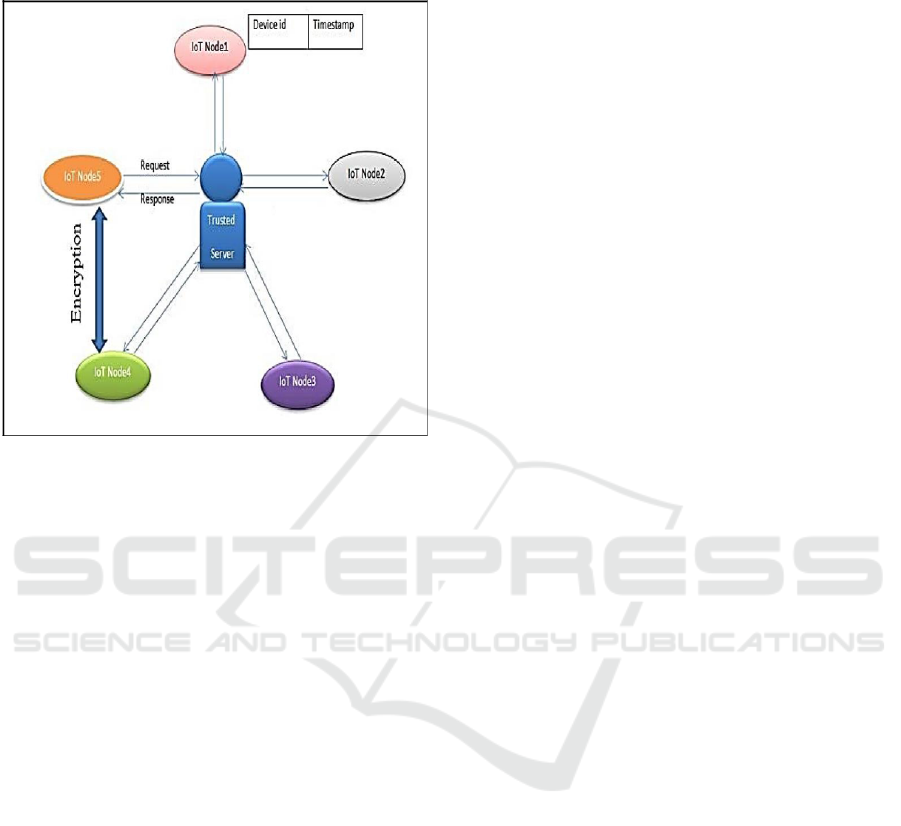

The Trusted Third Party Model was also tabled

by Jamshiya et’al, to provide trust amongst Internet

of Things (IoT) devices where security and trust

establishment is a challenge. For these devices to

connect to each other and start sharing data, trust

needs to first be established. To achieve trust, a third

party that can be trusted by both parties needs to be

in place. The TTP then generates a key that is

distributed to all parties that need connecting to each

other. Each IoT device is first connected to the TTP

and assigned an id to be identified by. Then the TTP

can now be used as a Trustee to tell other devices

that desire to connect whom they can trust and

connect with. This, off course, is done via the

encryption of exchanged keys. Elliptic Curve

Cryptography (ECC) is employed because it

provides strong cryptography with a smaller key

ICE-B 2021 - 18th International Conference on e-Business

118

length (Jamshiya & Menon, 2018). Figure 4 below

shows their proposed model:

Figure 4: Trusted Third Party for IoT Devices (Jamshiya &

Menon, 2018).

The major element in the model was the

inclusion of a party that establishes trust in advance

with different parties (in this case IoT devices) that

might potentially connect to each other in future.

More scholars were considered regarding the

protection of PII and privacy of users while online.

Peter et’al recognizes the General Data Protection

Regulation (GDPR) as one way of addressing the

prevalent consumer privacy challenges. The

European Union proposed the GDPR as a way of

protecting the privacy of individuals by promoting

pseudonymization of PII in addition to already

existing data security techniques (Štarchoň &

Pikulík, 2019). The additional measure indicates

that the existing techniques applied by various

service providers are not sufficient hence the data

leakages and privacy violations that are experienced

from time to time. Peter et’al defined

pseudonymization as transforming data in such a

way that the resulting data cannot be associated with

the original owner without additional data. That is,

if one was to stumble upon pseudonymized data,

they should not be able to identify the owner without

requiring additional information to fill in the blanks.

The authors propose that Pseudonymization

techniques be applied by various data processors

such as mobile operators to protect user privacy.

Techniques such as scrambling or obfuscation,

blurring, masking, tokenization and encryption were

proposed (Štarchoň & Pikulík, 2019).

Pseudonymization requires that, if legally

demanded, the transformed data must be traceable

to the real owner via the data processors. The

challenge with having data scattered across various

service providers is that, the probability of that

information being leaked remains high as any of the

service providers holding the data might be

compromised.

Sergio et’al are of the view that the advancement

in technology has resulted in the need for more

effective techniques and solutions to provide

security and privacy to personal and other sensitive

information. They contend that current solutions

might not be sufficient to meet the required levels of

privacy and security demanded by regulations such

as the European GDPR (Ribeiro & Nakamura,

2019). The team proposed the use of methods

such as pseudonymization and anonymization.

Pseudonymization was preferred to anonymization

as they intended to use their solution for the

protection of Health data for children.

Pseudonymization provides a possibility of

identifying the actual individual using

additional information when need arise.

Anonymization, on the other hand, alters data in

such a way that it can no longer be traced back to the

actual owner.

The team further proposed combining

pseudonymization with other security techniques

such as hashing of pseudo IDs, encryption of

pseudonymized data and so on (Ribeiro &

Nakamura, 2019). It must be noted that as long as

data is kept online, the possibility of being leaked

remains. There is need to ensure that only

pseudonymized data is made online while raw

identifying data is kept unreachable from the

internet. Furthermore, necessary internal controls

must also be put in place to ensure data is not leaked

by internal parties.

4 SOLUTION DESIGN

As long as information is available online, the

possibility of someone accessing that information

without authorization remains despite the various

mechanisms used to protect that information. Our

considered view is that the best way to protect

information is to make it unavailable to the online

Enhanced Protection of Ecommerce Users’ Personal Data and Privacy using the Trusted Third Party Model

119

hackers hence the proposed design in Figure 5

below:

Figure 5: Know Your Customer Agency Operation.

The approach proposes the use of a Trusted Third

Party, herein called KYC Agency, which would be a

government appointed entity tasked with the

registration of its citizens for the purpose of issuing

National IDs.

The model demands that other service providers

requiring KYC confirm with the KYC Agency if the

requesting party is genuine and the KYC agency

provides assurance without sharing the PII of the

requesting party. This enables the requesting party to

have access to services without risking their PII and

privacy.

The approach will operate as follows:

4.1 User Registration

The user will first register with the KYC Agency in

their country of residence. They will submit Personal

Identifiable Information (PII) such as their National

Identification documents, Residential address,

contact details such phone numbers and email

addresses.

It is recommended that the KYC Agency be the

same institution that issues citizens with their

National Identification Documents such as passports.

This will ensure that whenever a citizen is issued with

an ID even for the first time, they are issued with one

that can also identify them electronically.

Once the user has satisfied requirements for

registration with the KYC Agency, the KYC Agency

creates a record with full Identifying Information of

the user and appends a universally unique ID on the

record. The data is kept on the “Offline” system that

is not accessible from the internet.

Figure 6 below gives a detailed flow of the

registration process.

After the eID has been appended to the new user

record, the eID is pseudonymized (eIDs) using a

predetermined algorithm and sent to the online

system for the creation of an online record for the

user. The pseudo version of the unique ID, eIDs, is

not appended to the record sitting on the offline

system. This is to minimize the possibility of

associating offline data to online pseudo IDs if they

are leaked for some reason by insiders.

It must be noted that the only communication

between the Offline system and only system will be

the automatic transmission of the Pseudo ID, eIDs, to

the online system. The transmission will be

determined by the firmware sitting on the

microcontrollers as will be explained under the

operations of the Data protector system.

When the online system receives the pseudo ID,

eIDs, it will automatically create a record with the

eIDs as the primary key. It will then create an

anonymous email box for the user. The mail box is to

be used for delivering Random eIDr to the user. In

addition, the emails will be automatically destroyed

after a predetermined period to prevent formulation

of the Key/algorithm being used for the generation of

random IDs in case the online system with mail boxes

is compromised. A chain of emails with various

random IDs might be used to crack the key and

algorithm used to generate the random IDs.

4.2 Proposed Universally Unique

Electronic ID (eID)

The following format of the universally unique ID is

being proposed:

The eID will comprise 10 digits representing the

unique ID for the person being created on the system

and 3 digits representing the country the person is a

citizen of as shown below:

XXX.XXXXXXXXXX

The 10 digits for the universally unique portion of

the ID is to accommodate for the growth of

population for counties like China and India. The 3

digits for country is to accommodate the number of

existing countries in the world and the new countries

that might image. The first Citizen to be registered for

example would have the eID shown below:

KYCAgency

EcommerceWebsite

3.Requestaccesstowebsite

WebsiteUser

4.RequestforRandomIDeID

5.SubmiteID

8.RespondAppropriately

1.Authenticate&RequestforeID

2.GenerateandshareeID

OnlineSystemwithPseudonymizedData OfflineSystemwithFullKYCdata

Pseudonymi zeddata

KYCAg encyUsercreatingNewrecords

UserVisits KYCAge ncyforIDc reation

Collect

Personally

Identifiable

Datafromthe

person

ICE-B 2021 - 18th International Conference on e-Business

120

Figure 6: KYC Registration Process.

4.3 Data Protector Operations (RMS)

The Data protector that will safeguard the Personally

Identifiable Information will connect the offline

system to the online system and operate as follows:

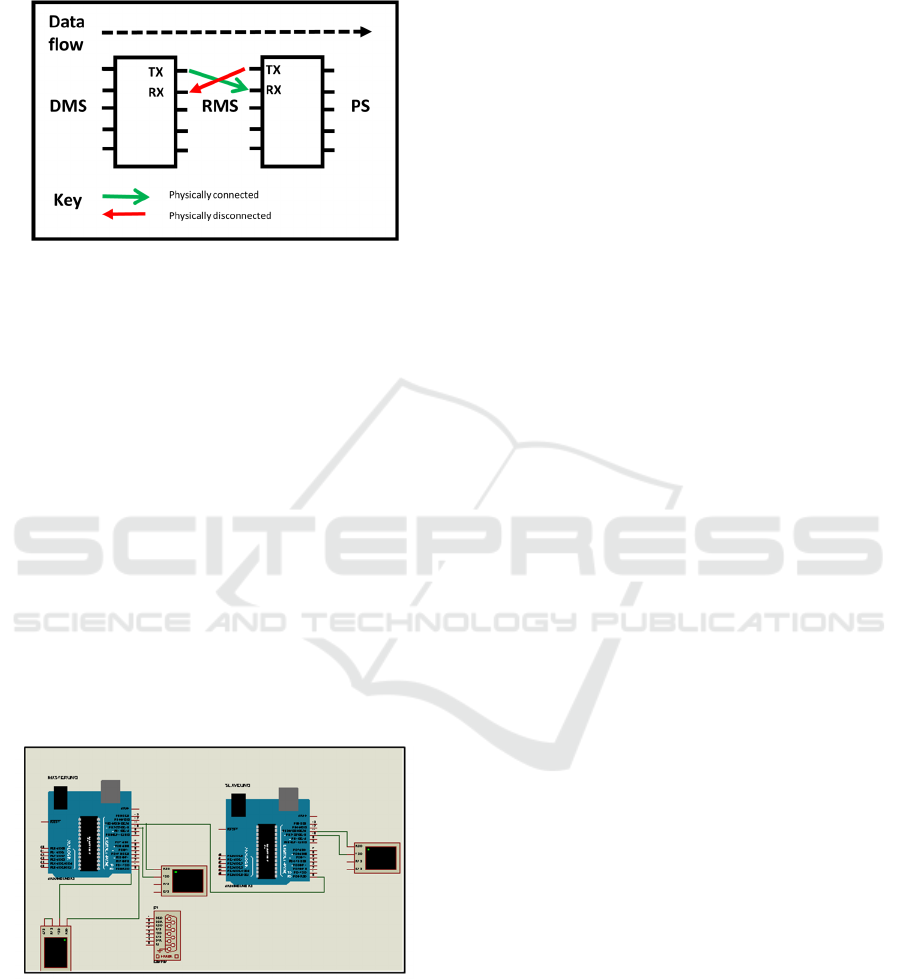

Data exchange between the two systems will only

flow in one direction; that is, it will only flow from

the offline system towards the online system as

depicted in Fig1. The aim of this restriction is to

ensure that no one is able to access the PII from the

Internet. This is to reduce the possibility of a hacker

accessing the PII without needing physical access to

the server hosting the sensitive data (Kangwa et al.,

2021).

Figure 7 shows the summary of how the Data

protector (Restricted Memory System) will be

operating:

Data Minimization

System (Offline)

Online System

Restricted

Memory

system

Ecommerce

KYCPrivacyAgency‐KPA

Internet

User

One‐waydataflow

Two‐waydataflow

Key

Figure 7: Data Protector Operations.

Furthermore, despite data being able to flow

towards the online system from the offline system, to

prevent huge amounts of data from being sent by

disgruntled elements inside the KYC Agency using

the offline system, there is a bandwidth restriction

imposed between the two systems. We propose using

the lowest possible serial data speed available. For

Enhanced Protection of Ecommerce Users’ Personal Data and Privacy using the Trusted Third Party Model

121

example, if we wanted to send 10gigabyte of data

from the offline system to the system via a serial

connection of 9600bps, it would take more than 100

days to complete the transfer of data. Slower speeds

would take even longer. However, transferring

pseudo IDs would take few milliseconds as the strings

would only constitute few kilobytes of data per

unique record created at a given time. The slow rate

of data transfer would discourage a hacker or

disgruntled element from attempting to do so if they

somehow managed to attempt, they would be

discouraged by the estimated time of data transfer and

hence abandon the theft.

Moreover, the system would periodically reset the

connection between the two systems hence disrupt

any exploitive data transfer in session as legal

sessions will be expected to only last few

milliseconds.

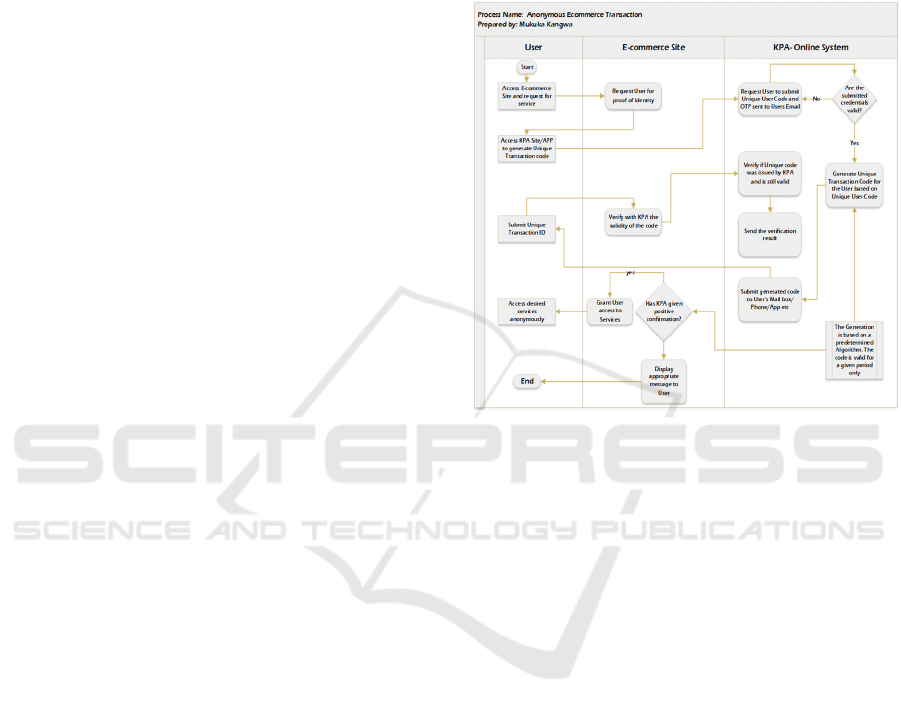

(i) User Transaction with Ecommerce Sites.

The user will either access the KYC Agency to

generate a universally unique random ID, eIDr, or

first access an ecommerce site or request to transact.

The site will request the user to submit their random

ID issued by the KYC Agency. The sites will not be

allowed to collect PII from users to prevent data

leakage prevalent with online services.

The user will need to Logon to the KYC Agency

system via a website or app and request a unique

random ID. The KYC will authenticate the users via

existing identification methods such as Google

authenticator or any other multifactor authentication

method. The user remains anonymous using the

records kept by the online system.

User Logons on to the Website or App for the

KYC Agency

Once authenticated, the user generates Random

ID eIDr. The KYC system sends the ID, r, to

Anonymous email or is displayed on an App. Then

the user enters the eIDr on the website. The website

verifies with KYC Agency if they issued the eIDr

supplied by the user. Depending on the feedback of

the Agency, the website either grants or denies the

user access to their services.

Figure 8 below gives a pictorial view of how the

transaction will flow from the beginning to the end.

The KYC Agency system will host the mail boxes

for the users and will destroy emails containing

random IDs after the predetermined validity period

elapses.

There is need to ensure that only pseudonymized data

is made online while raw identifying data is kept

unreachable from the internet. Furthermore,

necessary internal controls must also be put in place

to ensure data is not leaked by internal parties.

Controls such as ensuring that the hardware system

hosting PII is not fitted with external media devices

such as writeable DVD drives, USB drives, Bluetooth,

wireless and so on. External tape can be connected for

mass backup. The contents on tape must be encrypted.

Figure 8: Anonymous Ecommerce Transaction.

5 EXPERIMENTAL

METHODOLOGY

To ascertain the effectiveness of the proposed

solution, tests were conducted using various methods

and tools. Only the Data protector was built as other

components proposed could be easily built using

existing approaches. That’s, components such as

websites do exist already while the offline system for

storing data is similar to other systems except it will

be kept offline focus on the proposed algorithms for

pseudonymization and creation of traceable random

IDs.

The Data protector otherwise, known us

Restricted Memory System (RMS), was built using

the following components; two Arduino UNO

microcontrollers, copper cables, serial ports, serial

monitors, python programming language, Arduino

UNO IDE and Proteus Simulation software.

The design used serial communication to build the

RMS in preference to parallel communication. The

aim was to ensure that data could only flow in one

direction at limited amount of bandwidth. Two way

communication would require two cables physically

connected between the two devices communicating to

ICE-B 2021 - 18th International Conference on e-Business

122

each other. To ensure one way communication, one

cable was physically removed as shown in Figure 9

below.

Figure 9: Simplified Circuit Diagram (Kangwa et al., 2021).

This would ensure that even if the online

component wanted to communicate to the offline

component, the communication would not be

successful as there would be no means of reaching the

other side.

The design uses two microcontrollers instead of

one to control the security of the system. Hardware is

susceptible to hardware Trojans. These viruses can be

put into the hardware at manufacturing stage as the

manufacturer can modify the design to put in place

Trojans that can be used to deliberately leak

information. For the Trojans to be activated, a hacker

or disgruntled manufacturer would need access to the

hardware either physically or remotely (Ali,

Chakraborty, Mukhopadhyay, & Bhunia, 2011). One

Arduino UNO connecting the offline side was

configured as a Master while the one facing the online

system was configured as a slave as shown in the

circuit in Figure 10 below:

Figure 10: Physical Configuration of RMS.

Even if the Arduino facing the online system was

compromised, the hacker would not be able to breach the

entire connection as they would need access to the

Master Arduino to change configurations and enable

two-way communication thus making it impossible to

achieve without having physical access. This is what

makes the solution simple, yet very effective, if built and

deployed as designed.

Tests were conducted by sending data in both

directions. That is, data was sent from the offline

system to the online system via the RMS as per

configuration outlined. Data was also sent from the

online system to the offline system. Six scenarios

were tested. In scenario 1 and 2, both the Transmitting

and receiving PINs were physically connected while

in Scenario 3 and 4, the cable connecting

Transmitting PIN for the Master Arduino to the

receiving PIN of the Slave Arduino was

disconnected. In scenario 5 and 6, the receiving PIN

of the Master Arduino connected to the Transmitting

PIN of the slave Arduino was disconnected.

The Bandwidth between the two Arduinos was set

at 9600bps. This speed can be adjusted as desired.

The lower the speed, the more time will be required

to send huge amounts of data hence the more

frustrating to the hacker.

6 RESULTS AND DISCUSSION

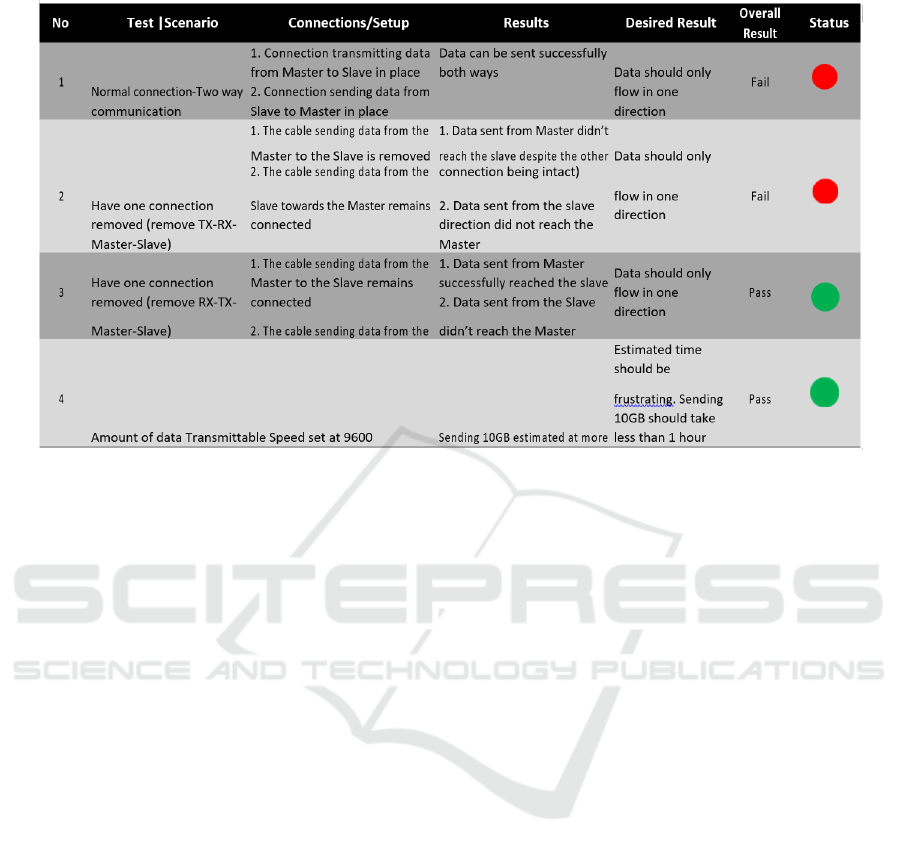

Table1 below gives a summary of results that were

obtained from various scenarios.

In scenario 1 and 2 covered by Test number 1 in

the results of Table 1, Data was successfully sent both

ways with the Transmitting and receiving PINs

connected correctly on the Master and Slave

Arduinos.

In Scenario 1 and 2 confirmed by test 1, with both

Transmitting and receiving PINs connected correctly

on the Master and Slave Arduinos, data was

successfully sent both ways. That is, data was able to

flow from the offline system holding PII towards the

online system susceptible to hacking and vice versa.

This was a fail as the objective was to ensure that

data could only flow in one direction. That is, from

the offline system towards the online system. In this

scenario data successfully flowed in both directions

hence the Data protector cannot protect PII by

preventing access by users connecting from the

Internet. It is vital that data cannot flow from the

online system to the offline system even if bandwidth

is restricted as malware such as ransomware can be

created as a very small payload and yet cause serious

damage to data once deployed into the offline system

holding PII. The chances of one infecting the offline

system, if they cannot access it from the internet, is

very slim as they would need physical access to the

offline system. Hence the test results for the first

scenario renders the configuration undesirable and a

fail.

Enhanced Protection of Ecommerce Users’ Personal Data and Privacy using the Trusted Third Party Model

123

Table 1.

In the Scenario covered by test 2 with transmitting

PIN on the Master Arduino not connected to the

receiving PIN on the Slave Arduino while the

receiving PIN on the Master Arduino remained

connected to the transmitting PIN of the Slave

Arduino, data could not flow in any direction.

In the scenario depicted in test 3, with the

transmitting PIN of the Master Arduino connected to

the transmitting PIN of the receiving Arduino, while

the receiving PIN.

While the receiving PIN is disconnected from the

transmitting PIN of the Slave Arduino, data was sent

successfully from the Master Slave Arduino

connecting the offline system towards the Slave

Arduino connecting the Online system but data could

not be sent from Slave Arduino connecting the online

system towards the Master Arduino connecting the

offline system.

With the speed/bandwidth of 9600bps configured

between the two Arduinos, 10 GB of data would take

about 103days to transfer across the Data protector

from the offline system holding PII to the online

system susceptible to hacking.

Test 2 resulted in data failing to flow in any

direction. This too was a fail as the main objective of

the proposed solution was to allow automatic creation

of online pseudonymized records for users while

preventing access to the PII data by users with access

to the internet.

With data not flowing to the online system from

the offline system, it would require another approach

of transferring pseudo data matching records on the

offline database to the online system. That approach

might be manual hence introducing another risk

where if data has to be moved using external media

then malware can be introduced onto the offline

system using that media. Therefore, this

configuration is not desirable and was a fail.

Test 3 was successful as data could only flow in

one direction. That is, data could only flow from the

offline system towards the online system. This was

the desired configuration as it would prevent hackers

successfully accessing PII data sitting on the offline

database. It would also prevent malware from being

introduced from the online system to the offline

system as it would corrupt the PII data sitting on the

offline system. This result shows that it is possible to

keep sensitive data “offline” while allowing real-time

connection between the offline system and online

system for the creation of corresponding records for

the user to access online services anonymously once

created on the KYC system.

The restriction of the bandwidth between the

offline and online system to 9600bps ensured that

only minimal data could pass across at any given

time. For example to transmit 10GB of PII would take

more than 100days. It is very possible to reduce the

bandwidth further and increase how long it would

take to transmit reasonable amount of data across the

data protector component. The restricted bandwidth

would discourage both external and internal

disgruntled elements from attempting to steal PII

ICE-B 2021 - 18th International Conference on e-Business

124

sitting on the offline system. In addition, the valid

data transmissions across the two systems are short

bursts of few characters. The restriction helps prevent

theft of sensitive PII by both internal and external

parties.

It must be noted that for this solution to be

effective, it must be used in-conjunction with other

techniques such as the pseudonymizing of offline data

before corresponding records are created online as

outlined in Fig5. In addition, online data must be

anonymous so that if the records are leaked, no

identifying information would be part of the leaked

records. Furthermore, random IDs must be used for

the online system to ensure privacy of users is

maintained.

In Our next paper will detail the algorithms to be

used for the pseudonymization of PII as well as the

generation of Random electronic IDs for anonymous

use of electronic services such as ecommerce.

7 CONCLUSION

The experiment results show that it is possible to

protect PII from hackers by not presenting any

possibility of accessing the data regardless of the

security configurations of the systems holding that

data. The fact that no online user can reach the offline

system holding sensitive data makes the system more

secure. Enhanced protection comes in because no one

would be able to access the offline system from the

online system as the separation is physical. In

addition, even if someone breached the security of the

online system, they would need physical access to the

offline side of the data protector to configure it to

accept and allow transfer of data towards the offline

system. The Restricted amount of data that can be

sent via the data protector is a huge deterrent to

would-be data criminals as the time it would take

would render the exercise futile.

To make the proposed solution effective, it must

be implemented as recommended in Fig5 as well as

the detailed process flows in Fig6 and Fig8. The

implementation of the proposed solution in the

manner outlined would create a layered defence

mechanism to protect PII as well provide privacy to

the user. It would further, make it possible for

authorities to trace users who would commit fraud

online if need arises. The approach is good to the

good elements and bad to the bad elements.

REFERENCES

Aarthy, D. K., Aarthi, M., Farhath, K. A., Lakshana, S., &

Lavanya, V. (2017). Reputation-based trust

management in cloud using a trusted third party.

ICONSTEM 2017 - Proceedings: 3rd IEEE

International Conference on Science Technology,

Engineering and Management, 2018-Janua, 220–225.

https://doi.org/10.1109/ICONSTEM.2017.8261418

Ali, S. S., Chakraborty, R. S., Mukhopadhyay, D., &

Bhunia, S. (2011). Multi-level attacks: An emerging

security concern for cryptographic hardware.

Proceedings -Design, Automation and Test in Europe,

DATE, 1176–1179. https://doi.org/10.1109/date.2011.

5763307

Bao, Z., Wang, Q., Shi, W., Wang, L., Lei, H., & Chen, B.

(2020). When Blockchain Meets SGX: An Overview,

Challenges, and Open Issues. IEEE Access, 8, 170404–

170420. https://doi.org/10.1109/access.2020.3024254

Coppolino, L., D’Antonio, S., Mazzeo, G., & Romano, L.

(2019). A comprehensive survey of hardware-assisted

security: From the edge to the cloud. Internet of Things,

6, 100055. https://doi.org/10.1016/j.iot.2019.100055

Frank A Cona, M. D. P. (2019). Patent No. US 2019 /

0333054 A1. United States of America.

Hauer, B. (2015). Data and information leakage prevention

within the scope of information security. IEEE Access,

3, 2554–2565. https://doi.org/10.1109/ACCESS.2015.

2506185

II-Agure, Z., Belsam, A., & Yun-ke, C. (2019). The

Semantics of Anomalies in IoT Integrated BlockChain

Network. IEEE, 144–146.

Innab, N., & Alamri, A. (2018). The Impact of DDoS on E-

commerce. 21st Saudi Computer Society National

Computer Conference, NCC 2018, 1–4. https://doi.org/

10.1109/NCG.2018.8593125

Jamshiya, P. K., & Menon, D. M. (2018). Design of a

Trusted Third Party Key Exchange Protocol for Secure

Internet of Things (IoT). Proceedings of the

International Conference on Inventive Communication

and Computational Technologies, ICICCT 2018,

(Icicct), 1834–1838. https://doi.org/10.1109/ICICCT.

2018.8473281

Kangwa, M., Lubobya, C. S., & Phiri, J. (2021). Prevention

of Personally Identifiable Information Leakage in E-

commerce via Offline Data Minimisation and

Pseudonymisation. International Journal of Innovative

Science and Research Technology, 6(1), 209–212.

Retrieved from https://scholar.google.com/scholar?

hl=en&as_sdt=0%2C5&q=mukuka+kangwa&oq=

Locher, T., Obermeier, S., & Pignolet, Y. A. (2018). When

Can a Distributed Ledger Replace a Trusted Third

Party? 2018 IEEE International Conference on Internet

of Things (IThings) and IEEE Green Computing and

Communications (GreenCom) and IEEE Cyber,

Physical and Social Computing (CPSCom) and IEEE

Smart Data (SmartData), 1069–1077. https://doi.org/

10.1109/Cybermatics_2018.2018.00197

Pawar, H. R., & Harkut, D. G. (2018). Classical and

Quantum Cryptography for Image Encryption

Enhanced Protection of Ecommerce Users’ Personal Data and Privacy using the Trusted Third Party Model

125

Decryption. Proceedings of the 2018 3rd IEEE

International Conference on Research in Intelligent

and Computing in Engineering, RICE 2018, 1–4.

https://doi.org/10.1109/RICE.2018.8509035

Ribeiro, S. L., & Nakamura, E. T. (2019). Privacy

Protection with Pseudonymization and Anonymization

in a Health IoT System: Results from OCARIoT.

Proceedings - 2019 IEEE 19th International

Conference on Bioinformatics and Bioengineering,

BIBE 2019, 904–908. https://doi.org/10.1109/

BIBE.2019.00169

Štarchoň, P., & Pikulík, T. (2019). GDPR principles in data

protection encourage pseudonymization through most

popular and full-personalized devices - mobile phones.

Procedia Computer Science, 151(2018), 303–312.

https://doi.org/10.1016/j.procs.2019.04.043

Ye, F., Dong, X., Shen, J., Cao, Z., & Zhao, W. (2019). A

Verifiable dynamic multi-user searchable encryption

scheme without trusted third parties. Proceedings of the

International Conference on Parallel and Distributed

Systems - ICPADS, 2019-Decem, 896–900.

https://doi.org/10.1109/ICPADS47876.2019.00131

Zhan, J., Fan, X., Cai, L., Gao, Y., & Zhuang, J. (2018).

TPTVer: A trusted third party based trusted verifier for

multi-layered outsourced big data system in cloud

environment. China Communications, 15(2), 122–137.

https://doi.org/10.1109/CC.2018.8300277

Zhang, P., Alkubati, M., Bao, Y., & Yu, G. (2021).

Research advances on blockchain-as-a-service:

architectures, applications and challenges. Digital

Communications and Networks. https://doi.org/

10.1016/j.dcan.2021.02.001

ICE-B 2021 - 18th International Conference on e-Business

126
