Cloud Key Management using Trusted Execution Environment

Jaouhara Bouamama

, Mustapha Hedabou

and Mohammed Erradi

University Mohammed VI Polytechnic , Benguerir, Morocco

ENSIAS, University Mohammed V, Rabat, Morocco

Keywords:

Cloud Computing, Key Management, Intel SGX.

Abstract:

Cloud storage represents a primordial component in most information technology infrastructures. Using cloud

instead of on-premise storage raises several security issues, especially when secret keys are stored on the

cloud. In such a setting, a robust cloud key management system is a must. Using traditional key manage-

ment systems (KMS) in the cloud suffers from performance and scalability limitations. This paper, proposes

an efﬁcient and secure cloud KMS based on Trusted Execution Environment, precisely Intel SGX. The sug-

gested system (KMSGX), while being deployed on the cloud, is fully controlled by the end-user. Therefore,

KMSGX allows running on-premise software key management securely on the cloud provider side, protecting

the exchanged and stored data. The security properties of the suggested design have been formalized using the

Applied Pi Calculus and proved with ProVerif. The experimental results have demonstrated the system’s high

performance in terms of the upload and download durations and the limited overhead compared to the plain

design.

1 INTRODUCTION

Cloud computing consists of using networks of re-

mote servers to store, manage and process data. The

adoption of the cloud computing paradigm is expand-

ing at an astonishing pace for both personal and pro-

fessional usages. Users consider cloud computing

mainly to proﬁt from their high storage capacity and

the available computational power. This is in addition

to the cost reduction, efﬁciency, and ﬂexibility. How-

ever, security represents a main cloud user require-

ment that must be considered while designing solu-

tions based on the cloud.

Usually, to proﬁt from the cloud services while

ensuring data privacy, users store the data in their en-

crypted form. Using such data requires special han-

dling when managing the secret keys allowing access

to that data. Depending on the type of cloud service

in use, most key management functions are partially

or fully controlled by the cloud providers (Schneier,

2007). Accordingly, due to their sensitivity, crypto-

graphic keys must be handled with care (Chokhani,

2013). For instance, they should be generated ran-

domly, stored safely and exchanged via secure proto-

cols.

Recently, several approaches were proposed to

protect personal keys, ranging from software to hard-

ware solutions (Rosen, 2012; Amazon, 2015; Phe-

gade et al., 2017; Chakrabarti et al., 2017). These

approaches raise many limitations in terms of per-

formance, scalability, and on-demand self-service.

On the other hand, Trusted Execution Environments

(TEEs) were introduced to guarantee a high level of

trust on remote platforms (Sabt et al., 2015). In a nut-

shell, TEEs were designed to build an isolated envi-

ronment for secret code execution. They ensure the

authenticity, integrity, and conﬁdentiality of the exe-

cuted code. In this context, existing popular TEE such

as Intel SGX (Intel, 2017) relies on hardware to iso-

late sensitive code from untrusted access. Intel SGX

operates over one CPU, which can have multiple se-

cure environments called enclaves executed over un-

trusted software (Mukhtar et al., 2019).

In this paper, we design KMSGX, an efﬁcient and

secure cloud key management system based on Intel

SGX. The system is conﬁgured and deployed by the

end-user on the cloud platform. The system leverages

trusted execution tools to store keys and perform sen-

sitive computation on the cloud platform in a secure

manner. KMSGX allows executing on-premise soft-

ware key management securely in the cloud provider

through accessible hardware facilities to keep control

over sensitive keys at a low cost.

The proposed system ensures the authentication

560

Bouamama, J., Hedabou, M. and Erradi, M.

Cloud Key Management using Trusted Execution Environment.

DOI: 10.5220/0010558905600567

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 560-567

ISBN: 978-989-758-524-1

and the conﬁdentiality properties following the Dolev

Yao attacker model (Cervesato, 2001). The exper-

imental results have demonstrated the system’s efﬁ-

ciency in terms of the upload and the download dura-

tion, and the limited overhead compared to the plain

design. To summarize, our contribution in this paper

consists of:

• The design of KMSGX, a new cloud key manage-

ment system based on a Trusted Execution En-

vironment, aims to give complete control of the

secret keys to the end-user while allowing basic

cloud operations.

• The formal proof of the security properties of the

designed system during different states of the se-

cret keys; in transit, in use and at rest.

• The implementation and the evaluation of the sug-

gested system.

The paper is organized as follows. Section 2 presents

the TEE technology used in the proposed model. We

discuss the existing related works in section 3. The

overview of the system model and the threat model

are given in section 4. In section 5, we describe the

suggested key management system. Section 6 aims

to formalize and prove the security properties. Sec-

tion 7 is dedicated to the experimental results and a

discussion. Finally, we conclude the paper in section

2 INTEL SOFTWARE GUARD

EXTENSION

Cryptographic operations have evolved from protect-

ing the conﬁdentiality of communication over public

channels to more complicated tasks ranging from en-

abling access control to data, ensuring user authenti-

cation, to checking virtual machine integrity in cloud

providers platforms. Accordingly, a key management

system must be designed and implemented in se-

curely since encryption is believed to be the only way

to guarantee the conﬁdentiality and authentication of

outsourced data (Bentajer and Hedabou, 2020). In

this direction, the key management process consists

of multiple states, ranging from key generation, key

storing, key processing, key activation/deactivation,

key archival, and ﬁnally, key destruction (Chokhani,

2013). In this paper, we leverage the trusted execution

environment functionalities to design KMSGX, a key

management system based on Intel SGX.

Intel SGX is a technology that aims to enable

high-level protection of secrets against all nonautho-

rised access, including operating systems and hy-

pervisors. It has known a huge success by its

involvement in designing multiple secure solutions

(Kaaniche et al., 2020). It works by allocating

hardware-protected memory where data and code re-

side. This protected memory is called an enclave. The

enclave code can be invoked only via special instruc-

tions such as ECALL and OCALL. The ECALL in-

struction is a call to a predeﬁned function inside the

enclave from the application, whereas an enclave can

invoke a predeﬁned function in the application via an

OCALL.

Additionally, Intel SGX provides dedicated at-

testation and sealing mechanisms to build a secure

model. To this end, two hardware keys are generated.

Typically, a Report Key to verify the signature of an

enclave and a Seal Key to encrypt sensitive data out-

side the enclave (Intel, 2017).

Generally, a software attestation aims to convince

a challenger that a software is trustworthy and running

on the same platform. Accordingly, an enclave can

prove its identity to either another enclave in the same

platform or to a remote party (ﬁgure 1) .

Figure 1: Intel SGX Attestation.

Attestation. The enclave starts by receiving the ser-

vice provider’s attestation request, and it generates a

signed REPORT. This REPORT is sent to the quot-

ing enclave, which is responsible for converting lo-

cal REPORT to a QUOTE veriﬁable by the service

provider. The quoting enclave generates a QUOTE

by signing the REPORT with the private key of the

enclave. Then, it forwards the QUOTE to the ser-

vice provider. Finally, the service provider veriﬁes

the QUOTE via Intel Attestation Service, which is a

public web service operated by Intel that proves the

trustworthiness of QUOTES.

3 RELATED WORKS

Several research efforts have been dedicated to de-

signing efﬁcient cloud key management systems. Ex-

isting approaches might be categorized into homo-

Cloud Key Management using Trusted Execution Environment

561

morphic encryption and trusted environment-based

approaches. In the following, we are presenting an

overview of the most well-known approaches. In

(Rosen, 2012), the author has presented Porticor, a

Homomorphic Key Management Protocol. This pro-

tocol is based on the multiplicative homomorphic

properties of El-Gamal scheme (ElGamal, 1985). The

design depends mainly on the key split approach,

which consists of splitting the key into two parts. The

ﬁrst one, a master key, which is under the control of

the user. The second part is generated by the Porticor

Virtual Appliance and stored within the Porticor Vir-

tual Key management (PKVM) Service. The appli-

ance uses both parts of the key to encrypt and decrypt

data. The master key is homomorphically encrypted

and never exposed in plain. Although, the master key

is exposed to neither the Porticor Virtual Appliance

nor the PVKM. The protocol relies on the assump-

tion that an appliance and the PVKM do not collude.

Moreover, as presented by their schema, the keys gen-

erated by the Porticor Virtual Appliance are stored as

cleartext in the appliance memory, which runs in the

cloud. If the memory is compromised, the keys and

the encrypted data would be exposed as well.

The author of (Hamid, 2013) suggested the usage

of Hardware Security Module (HSM) for key man-

agement in the cloud. HSM is used as the root of

trust for various key management services where it

safeguards and manages digital keys for strong se-

curity guarantees. Although HSM’s isolated hard-

ware, which is intrusion-resistant and tamper evident

against physical attacks, was developed before the

birth of the cloud computing paradigm. Thus, using

HSM in cloud settings turns out to be costly and has

inherent limitations related to a lack of elasticity and

interoperability.

Fortinax (Phegade et al., 2017) is a trusted exe-

cution environment that uses Intel SGX enclaves for

cryptographic protection from threats. The solution

establishes a Self-Defending Key Management Ser-

vice (SDKMS). It is considered the ﬁrst commercial

implementation of Intel SGX to create runtime en-

cryption capsules. However, the paper lacks detailed

description on how the protection and storage of the

key is being handled.

OpenStack Barbican (Benjamin et al., 2017) is a

platform developed by the Openstack community to

design REST APIs that provide secure storage, pro-

visioning and secrets management (i.e. passwords,

encryption keys and X.509 Certiﬁcates). The Open-

stack Barbican key management service stores secrets

in a dedicated HSM. Recently, an improvement of

this work has been proposed by (Chakrabarti et al.,

2017), which uses an intel SGX plugin that supports

SGX attestation instead of using HSM. However, the

suggested solution has only been evaluated within the

OpenStack Barbican platform. It does not operate as

a standalone solution where it can be used with other

systems that require key management. In both ap-

proaches (Phegade et al., 2017; Chakrabarti et al.,

2017), the key management system is not directly

managed by the end-user.

4 SYSTEM MODEL

This section presents, the system model of the Cloud

Key Management based on Intel SGX (KMSGX)

and, the threat model. The system is conﬁgured

and run on the cloud platform by the end-user.

The proposed solution involves two entities: The

conventional key management system (KMS) and

a virtual appliance (VA). The KMS is run on the

user’s infrastructure perimeter. Whereas, the VA is

uploaded in the cloud platform to serve as a bridge to

link the KMS to the encryption application running

on the cloud platform.

System Model. The proposed cloud key management

delegates the control of the key management steps to

the key management system on-premise. This goes

from the key generation to the key deletion. The vir-

tual appliance is leveraged to perform computation on

stored data in cloud platform after decrypting it.

The main components of the proposed design are

the key management service on-premise and a virtual

appliance running inside the cloud and data storage.

The appliance is composed of untrusted/trusted ap-

plications, where a secret code is executed inside an

SGX enclave. The protocol is divided into three main

phases: Setup, Upload, and Operation request, as pre-

sented in ﬁgure 2.

Figure 2: System Model.

During the Setup phase, the KMS starts an appliance

that initializes an SGX enclave. Then, the enclave es-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

562

tablishes a secure channel with the KMS on-premise.

For the Upload phase, the KMS upload a data using

the exchanged session key. Where, the KMSGX’s en-

clave decrypts the data using the same session key.

Finally, the enclave seals the data using the unique

Seal Key. Regarding the Operation request phase, the

KMS sends an encrypted request to perform an oper-

ation on an uploaded data (i.e. download). The En-

clave decrypts the request, extracts the requested data

and unseal it using the Seal Key. Later, the enclave

performs the requested operation and encrypts the re-

sults to be sent back to the KMS.

Threat Model. The communication between the dif-

ferent entities is not assumed to be secure. An attacker

may have complete control over the communication

channels. So, the adversary’s goal is to intercept the

user’s secret key to learn its sensitive data.

Moreover, the threat model is based on the Dolev

Yao attacker model (Cervesato, 2001), where an arbi-

trary adversary is powerful enough to intercept/mod-

ify the communication. We consider that an attacker

cannot perform any hardware attacks over the SGX

appliance in this scope. These attacks were covered in

previous works (Van et al., 2018; Kocher et al., 2019;

Lipp et al., 2018).

On the other hand, the attacker has high privileges

within the cloud side, where all system software con-

sidered malicious (i.e. operating system, hypervisor,

etc.). In the presence of an attacker given this threat

model, different security proprieties must be ensured.

Secrecy. The KMS secret data requires to remain

conﬁdential, by securing the encryption key. Thus,

they must be processed inside a secure environment

and stored in encrypted memory. With the presence

of high privileged attacker in the VA, the secret key

cannot be learned. The appliance should guarantee

the conﬁdentiality of the sensitive data.

Authentication. The KMS sends sensitive data only

to trusted appliances, where the identity of the soft-

ware is veriﬁed before any exchange. An attacker

cannot impersonate the appliance and claims to be a

genuine software.

5 KMSGX: CLOUD KEY

MANAGEMENT SYSTEM

In this section the proposed solution is described in

more detail. The Key Management System challenges

the remote cloud through the KMSGX appliance to

prove its trustworthiness using the remote attestation

provided by Intel SGX. . Furthermore, a secure chan-

nel is established via an authenticated Difﬁe-Hellman

key exchange (Difﬁe and Hellman, 1976; Krawczyk,

2003). Accordingly, the interactions between the Key

Management System, the Virtual Appliance, and the

SGX enclave are described in ﬁgure 3.

5.1 Setup

Practically, the session establishment is done through

sigma protocol (Ludlum, 2002). It is a three-phase

protocol based on a Difﬁe-Hellman key exchange au-

thenticated with digital signatures.

Firstly, the KMS sends an attestation request to

the VA. The request is in the form of a nonce (a ran-

dom number generated for this exchange) and a pub-

lic key. The KMS on-premise chooses a generating g

in a ﬁnite cyclic group G, and it picks a private ran-

dom number a to generate the public key g

. Then,

the VA performs a call to the enclave to initialize the

remote attestation taking the KMS request as an in-

put. The KMSGX enclave, in its turn, generates a

Difﬁe-Hellman public key (g

). A QUOTE is created

and sent back to the VA. The QUOTE includes infor-

mation about the public key and signed with the en-

clave’s identity. The VA forwards the QUOTE back to

the KMS on-premise. Finally, the KMS extracts the

Difﬁe-Hellman public key embedded in the QUOTE

after a successful veriﬁcation with the IAS.

5.2 Upload

After establishing a secure channel through the setup

phase, a shared key is exchanged. In the meantime, a

given user sends a ﬁle to the KMS on-premise to be

stored in the cloud.

After receiving the ﬁle, the KMS generates an En-

cryption Key used to encrypt the ﬁle. This Encryption

Key is encrypted using the Session Key. Next, the

KMS sends the encrypted ﬁle and the encrypted Key

to the appliance. The VA invokes a call to the trusted

code, taking as an input the received data from the re-

mote KMS. Inside the enclave, the encryption key is

decrypted using the session, key and it is re-encrypted

using the enclave’s Seal Key. The Seal Key is consid-

ered to be a hardware key known only to the actual

enclave. Later on, the enclave sends back the results

to the VA using an OCALL. Finally, the application

stores the encrypted data in data storage.

5.3 Operation Request

After receiving an operation request from the given

user, the KMS encrypts it using the session key. Then,

Cloud Key Management using Trusted Execution Environment

563

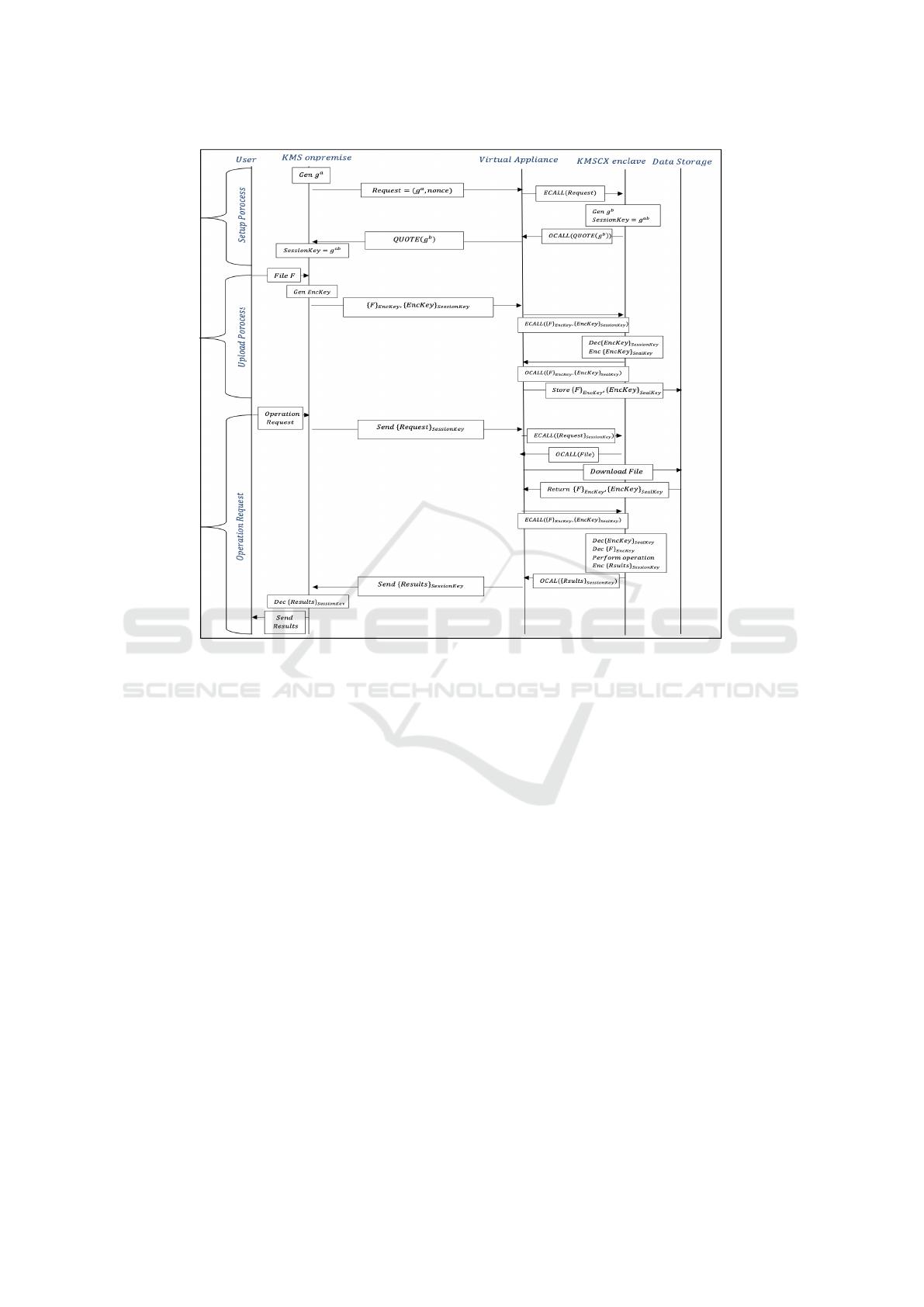

Figure 3: KMSGX Design.

it sends the encrypted request to the VA, which in-

vokes a call to the trusted code, taking the request as

an input. Inside the enclave, the operation request is

decrypted using the session key. Next, the enclave

invokes an OCALL to download the speciﬁc ﬁle in-

cluded in the request. The requested ﬁle is extracted

from the data storage. Then, it is sent to the KMSGX

enclave. Afterward, the enclave decrypts the encryp-

tion key using the Seal Key. And, using this encryp-

tion key, the ﬁle can be decrypted. At the end, the

enclave performs the requested operation and sends

back the encrypted results through an OCALL. Fi-

nally, the VA forwards the encrypted results to the re-

mote KMS, which decrypts the results and sends them

to the speciﬁc user.

6 FORMALIZATION & PROOF

In this section, we present a formal veriﬁcation of

the KMSGX model, using the applied pi-calculus, an

extension of the pi-calculus used with cryptographic

functions deﬁned by an equational theory, (Abadi

et al., 2017; Cortier and Kremer, 2014). Explicitly,

the applied pi-calculus can study and analyze security

protocols.

The protocol is presented with the applied pi-calculus

syntax semantic. Then, the analysis phase is auto-

mated using the Proverif software. This tool which is

a tool that veriﬁes symbolic protocols.

6.1 Semantic of the Model

The syntax of the calculus includes an inﬁnite set of

names, an inﬁnite set of variables, and a signature Σ

consisting of a ﬁnite set of function symbols associ-

ated with an arity. In this work, the function sym-

bols consist of the cryptographic primitives used by

the protocols. The suggested model is presented in

the following grammar:

The symbol functions are described as follows:

6.2 Formal Model

As described in the system model the protocol is com-

posed of three phases: Setup, Upload and operation

request. We simply refer to download as a particular

case of operation request, and this, does not impact

SECRYPT 2021 - 18th International Conference on Security and Cryptography

564

M, N, Q, S,U ::= Terms

sk, ek Variables (seal/encryption key)

SEnc(M, ek) Symmetric Encryption

SDec(M, ek) Symmetric Decryption

Quote(M) Quote Generation

CheckQuote(Q) Quote Veriﬁcation

Seal(S, sk) Sealing

Unseal(U, sk) Unsealing

f st(< M, N >) First Projection

snd(< M, N >) Second Projection

SDec(SEnc(M, ek), ek) = M Encryption

Quote(M) = Q Quote Generation

CheckQuote(Q) = M Quote Veriﬁcation

Unseal(Seal(S, sk), sk) = S Sealing

f st(< M, N >) = M First Projection

snd(< M, N > = N Second Projection

the proof. The main processes in this design are the

Key Management System, the SGX appliance, and

the storage server processes. Therefore, we have two

communication channels :

enc

: Channel between the KMS and the SGX appli-

ance. This channel is used to transfer secret data.

seal

: Channel between the SGX appliance and the

storage server. This channel is used to seal secret data.

:/C

: Input/output in a channel i.

Note that, we formally present each process within

each phase. These processes capture the communica-

tion exchanges and do not abstract the hardware ini-

tialization and speciﬁcation.

The aim is to prove that the KMS will send his sen-

sitive data only to a trustworthy SGX appliance after

a successful session key exchange. Then, we need to

ensure that data transited is secret and protected in a

Dolev Yao attack model (Cervesato, 2001) .

6.3 Veriﬁcation

The security properties of the system were veriﬁed us-

ing Proverif. It is a tool for automatically analyzing

the security properties of different cryptographic pro-

tocols (Blanchet, 2005).

Authentication. The authentication property is cap-

tured using correspondence assertion. This latest is

used to capture relationships between events which

can be expressed in the form: “if an event e has been

executed, then event e’ has been previously executed”

(Blanchet, 2005).

The proposed scheme makes sure that if the KMS

is sending his sensitive data to the SGX appliance,

the identity of the appliance is veriﬁed. Hence, we

present the following events:

event KMSattestSGX(pkey): The KMS attests the ap-

SETUP PROCESSES

Key Management System

νa new private value

enc

< g

> output Pubkey

enc

< x

> wait Quote

let y = CheckQuote(x

) in get enclave Pubkey

let K

= y

in session key

Virtual Appliance

νb new private value

enc

< x

> wait Pubkey

enc

< Quote(g

) > output Quote

let K

= x

in session key

UPLOAD PROCESSES

Key Management System

νM, K

enc

new data, ENCkey

let M

enc

= SEnc(M, K

enc

) in data encryption

enc

< M

enc

, SEnc(K

enc

, K

)) > output ENCdata

Virtual Appliance

enc

< x

> wait secret data

let K

dec

= DEnc(snd(x

), K

) decrypt ENCkey

seal

< f st(x

), Seal(K

dec

, K

seal

)) > seal in storage

Storage Server

seal

< x

> wait data

DOWNLOAD PROCESSES

Key Management System

enc

< x

> wait data

let M

dec

= DEnc(x

, K

) decrypt data

Virtual Appliance

seal

< x

seal

> wait stored data

let K

unseal

= Unseal(snd(x

seal

), K

seal

) unseal secret key

let M

dec

= DEnc( f st(x

seal

), K

unseal

) decrypt data

enc

< SEnc(M

dec

, K

) > output ENCdata

Storage Server

seal

< M, K > output stored data

pliance SGX after verifying a report using the sup-

plied public key.

event SGXstartattestKMS(pkey): The SGX appli-

ance starts an attestation process to generate a report

veriﬁable by its public key.

As the KMS is willing to send secret data only to

reliable appliance, we deﬁne the following correspon-

dence:

query: pkey; event(KMSattestSGX(x)) ==>

event(SGXsttartattestKMS(x)).

The correspondence proves the authentication of

the SGX appliance. If the KMS receives a report from

the SGX appliance, then the SGX appliance should

have sent it before.

Conﬁdentiality. The aim of this part is to prove that

the exchanged secret data remains secure while it is

in transit via the secure channel and while it is in use

inside the enclave and while it is at rest within the

cloud storage. In fact, the speciﬁcation of the secrecy

inside a trusted environment was already presented

in several works (Sinha et al., 2015; Subramanyan

Cloud Key Management using Trusted Execution Environment

565

et al., 2017). Therefore, we assume that the under-

lying hardware is secure. Also, we assume that the

cryptographic primitives are perfect, and an attacker

can decrypt or verify signature only when he has the

required keys. To test the secrecy of the secret S in the

model, the following query is included in the Proverif

input ﬁle:

query attacker(S)

The query asks for the secrecy of the exchanged

secret in the presence of an attacker.

After modeling the proposed protocol in the ap-

plied pi-calculus and performing veriﬁcation using

Proverif, the security properties hold for both secrecy

and authentication. A summary of the veriﬁcation is

presented in ﬁgures 4 and 5.

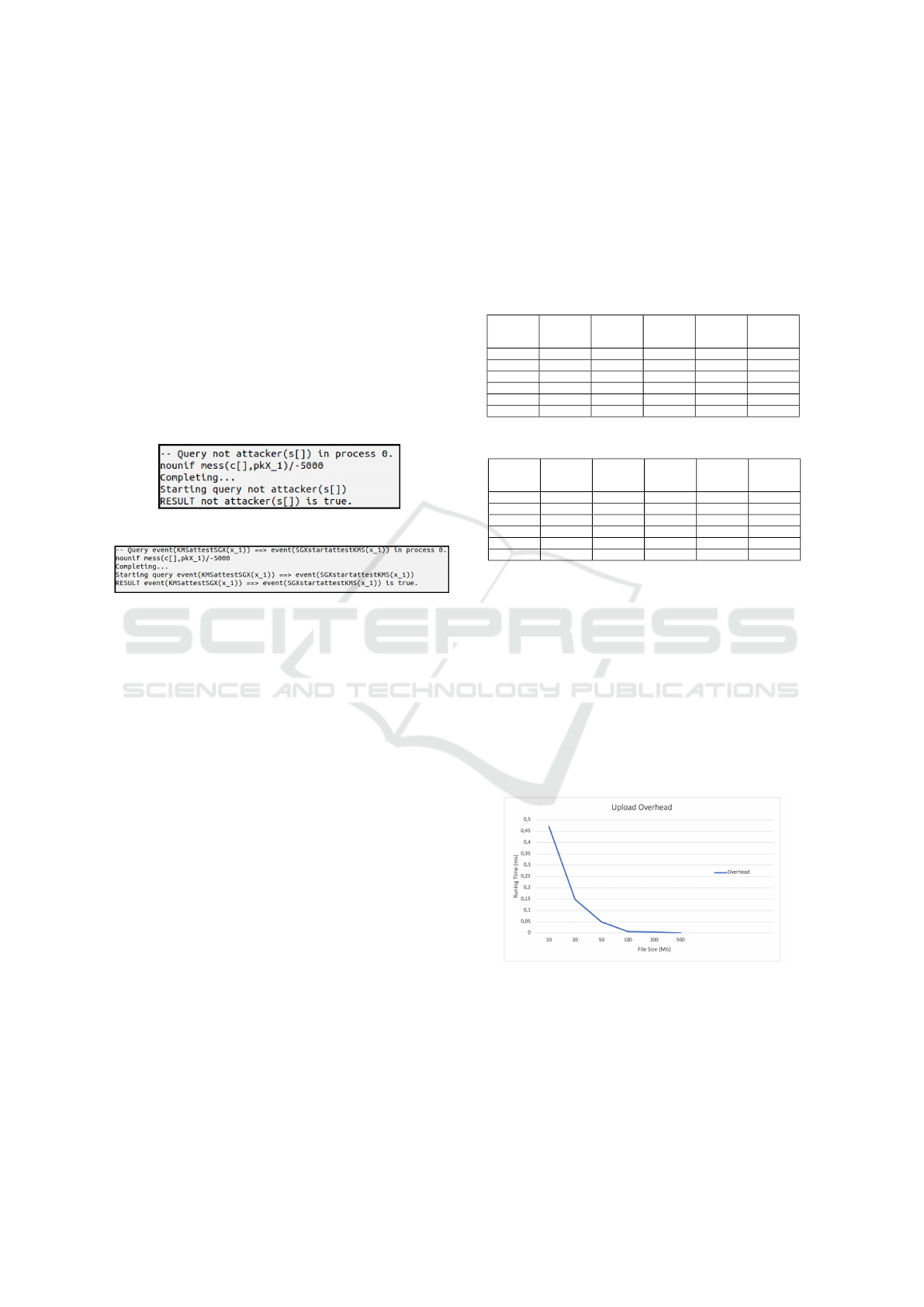

Figure 4: Conﬁdentiality test.

Figure 5: Authentication test.

7 EXPERIMENTAL RESULTS

We evaluate KMSGX on Intel i5-8259U processors.

Due to the lack of SGX support in current cloud plat-

forms, we simulate the protocol using a virtual ap-

pliance hosted in a Ubuntu 18.04 LTS 64bit virtual

machine. We run the SGX driver, SDK, and platform

software version 2.9.1.

To illustrate the key management on-premise, we

used the PyKMIP version 0.10.0. It is a python im-

plementation of the Key Management Interoperabil-

ity Protocol. Thus, the KMIP server is responsible for

generating, deleting, and encrypting data on behalf of

the user in the implemented model. The tests are per-

formed over ﬁles of different sizes: 10 MB, 20 MB,

50 MB, 100 MB, 200 MB, and 500 MB.

We measured the performance of the proposed

protocol within the three phases and compared it with

the plain design where no additional cryptography

and SGX primitives are added (encryption/decryp-

tion, sealing/ unsealing). The distribution of the time

performance is as follows:

a) Setup : The secure channel creation duration us-

ing the sigma protocol within the remote attesta-

tion included in the Intel SGX.

b) Upload : The duration of the secret data transfer

through the secure channel, in addition to the ex-

ecution time inside the enclave.

c) Download: The time of the encrypted data trans-

fer after unsealing from external storage.

The experimental results are grouped in tables 1 and

Table 1: Upload Performance.

File Size

(Mb)

Setup

(ms)

Upload

(ms)

KMSGX

Design

(ms)

Plain

Design

(ms)

Overhead

(%)

10 10,0980 20,12 30,218 20,57 0,4690

20 10,2200 36,13 46,35 40,33 0,1492

50 10,3500 88,13 98,48 93,899 0,04878

100 10,0200 174,05 184,07 182,902 0,0063

200 9,0600 224,95 234,01 233,002 0,0043

500 10,6700 499,95 510,62 510,547 0,00014

Table 2: Download Performance.

File Size

(Mb)

Setup

(ms)

Download

(ms)

KMSGX

Design

(ms)

Plain

Design

(ms)

Overhead

(%)

10 10,0980 14,99 25,088 19,12 0,31213

20 10,2200 31,31 41,53 36,23 0,14628

50 10,3500 64,03 74,38 71,97 0,03348

100 10,0200 131,49 141,51 140,6619 0,00496

200 9,0600 211,25 220,31 219,598 0,00324

500 10,6700 533,22 543,89 543,829 0,00011

We note that for both phases (Upload/Download), the

running time of the setup phase is added. The anal-

ysis shows that the added security properties such

as Difﬁe-Hellman key exchange in the Setup phase,

Symmetric encryption, Sealing, and Unsealing in

both the upload and download phases did not heav-

ily penalize the performance of the plain design. We

can notice from ﬁgures 6, 7 that the overhead cost

does not exceed 0,5 % of the total cost of the plain de-

sign. Therefore, the overhead cost of both upload and

download is negligible when the ﬁle size is increased.

Figure 6: Upload Overhead.

8 CONCLUSION

We presented in this work a Cloud Key Management

based on a Trusted Execution Environment, namely

Intel SGX. Throughout the model, we show the pos-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

566

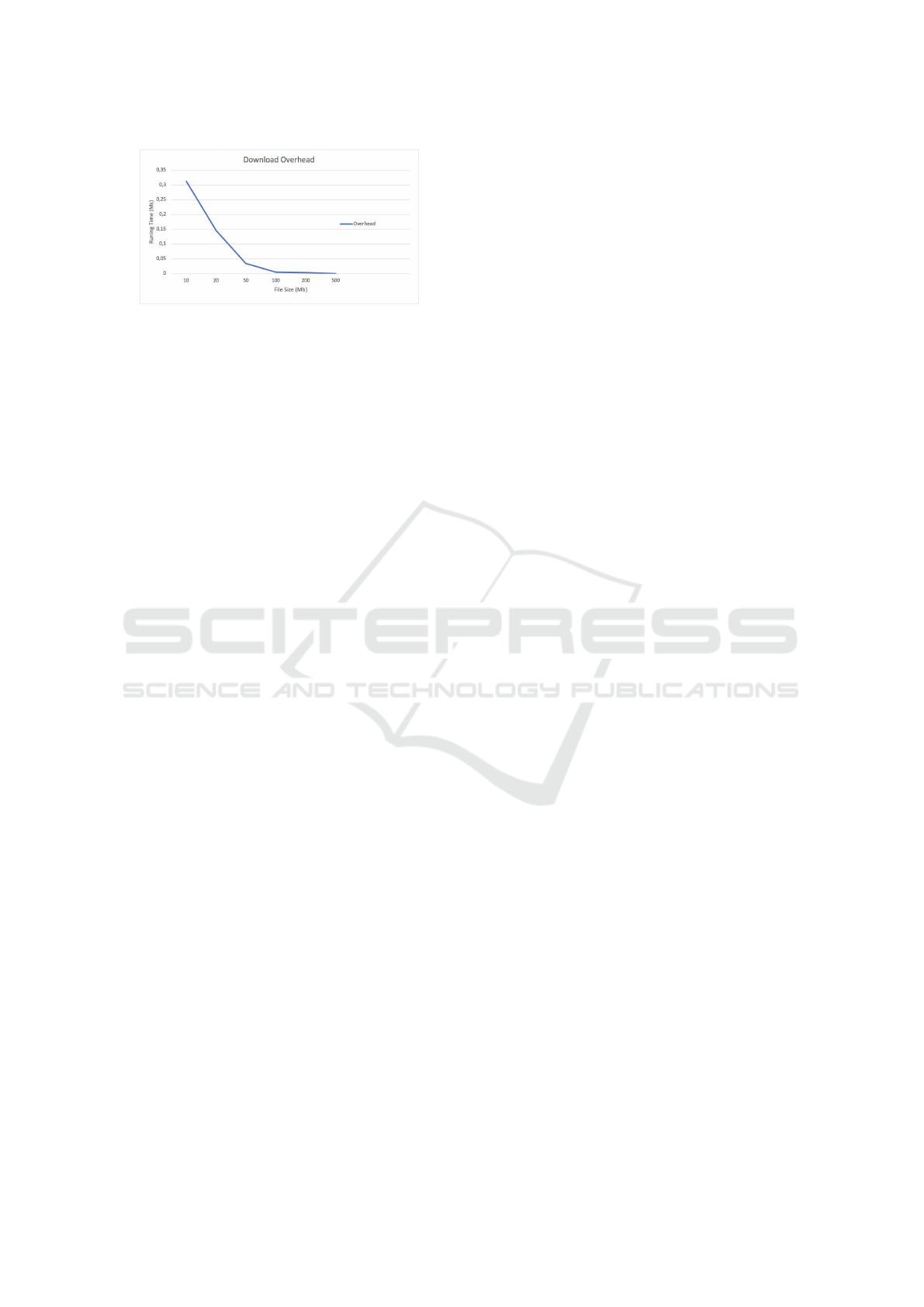

Figure 7: Download Overhead.

sibility of achieving a secure key management fully

controlled by the end cloud customer. Accordingly,

transitive trust is established between the key Man-

agement System on-premise and the SGX appliance

hosted in the cloud. Hence, the suggested KMSGX

allows executing on-premise software key manage-

ment system securely in cloud providers side through

accessible hardware facilities to control sensitive keys

at low cost directly by the end-user.

We strengthen this work by formally proving the

security properties of the protocol using the Applied

Pi Calculus. Thus, we formally proved that the sug-

gested scheme provides authentication of the SGX ap-

pliance, and the secret keys conﬁdentiality of the se-

cret keys. As a future direction, we plan to extend

this work by considering a distributed setting where

multiple nodes or clouds are involved. The aim is to

design a system that operates in an untrusted multi-

cloud environment.

REFERENCES

Abadi, M., Blanchet, B., and Fournet, C. (2017). The ap-

plied pi calculus: Mobile values, new names, and se-

cure communication. Journal of the ACM (JACM),

65(1):1–41.

Amazon (2015). Amazon, cloudhsm.

Benjamin, B., Coffman, et al. (2017). Data protection in

openstack. In 2017 IEEE 10th International Confer-

ence on Cloud Computing, pages 560–567. IEEE.

Bentajer, A. and Hedabou, M. (2020). Cryptographic key

management issues in cloud computing. Advances in

Engineering Research, 34:78–112.

Blanchet, B. (2005). Proverif automatic cryptographic pro-

tocol veriﬁer user manual. CNRS, Departement dIn-

formatique, Ecole Normale Superieure, Paris.

Cervesato, I. (2001). The dolev-yao intruder is the most

powerful attacker. In 16th Annual Symposium on

Logic in Computer Science—LICS, volume 1.

Chakrabarti, S., Baker, B., and Vij, M. (2017). Intel sgx

enabled key manager service with openstack barbican.

arXiv preprint arXiv:1712.07694.

Chokhani, R. C. M. I. S. (2013). Cryptographic key man-

agement issues & challenges in cloud services. Na-

tional Institute of standards and Technology.

Cortier, V. and Kremer, S. (2014). Formal models and tech-

niques for analyzing security protocols: A tutorial.

Foundations and Trends in Programming Languages,

1(3):117.

Difﬁe, W. and Hellman, M. (1976). New directions in cryp-

tography. IEEE transactions on Information Theory,

22(6):644–654.

ElGamal, T. (1985). A public key cryptosystem and a signa-

ture scheme based on discrete logarithms. IEEE trans-

actions on information theory, 31(4):469–472.

Hamid, L. (2013). Cloud-based hardware security modules.

US Patent App. 13/826,353.

Intel (2017). Intel software guard extensions.

Kaaniche, N., Belguith, et al. (2020). Prov-trust: To-

wards a trustworthy sgx-based data provenance sys-

tem. In Proceedings of the 17th International Joint

Conference on e-Business and Telecommunications,

SECRYPT, pages 225–237. INSTICC.

Kocher, P., Horn, et al. (2019). Spectre attacks: Exploiting

speculative execution. In IEEE Symposium on Secu-

rity and Privacy (SP), pages 1–19. IEEE.

Krawczyk, H. (2003). Sigma: The ‘sign-and-mac’approach

to authenticated difﬁe-hellman and its use in the ike

protocols. In Annual International Cryptology Con-

ference, pages 400–425. Springer.

Lipp, M., Schwarz, et al. (2018). Meltdown: Reading kernel

memory from user space. In 27th USENIX Security

Symposium, pages 973–990.

Ludlum, R. (2002). The Sigma Protocol. Macmillan.

Mukhtar, M. A., Bhatti, et al. (2019). Architectures for se-

curity: A comparative analysis of hardware security

features in intel sgx and arm trustzone. In 2nd Interna-

tional Conference on Communication, Computing and

Digital systems (C-CODE), pages 299–304. IEEE.

Phegade, V., Schrater, et al. (2017). Self-defending key

management service with intel® software guard ex-

tensions.

Rosen, A. (2012). Analysis of the porticor homomorphic

key management protocol. Porticor Cloud Security.

Sabt, M., Achemlal, et al. (2015). Trusted execution envi-

ronment: what it is, and what it is not. In IEEE Trust-

com/BigDataSE/ISPA, volume 1, pages 57–64. IEEE.

Schneier, B. (2007). Applied cryptography: protocols, al-

gorithms, and source code in C. john wiley & sons.

Sinha, R., Rajamani, et al. (2015). Moat: Verifying con-

ﬁdentiality of enclave programs. In Proceedings of

the 22nd ACM SIGSAC Conference on Computer and

Communications Security, pages 1169–1184.

Subramanyan, P., Sinha, et al. (2017). A formal founda-

tion for secure remote execution of enclaves. In ACM

SIGSAC Conference on Computer and Communica-

tions Security, pages 2435–2450.

Van, Bulck, J., Minkin, et al. (2018). Foreshadow: Ex-

tracting the keys to the intel sgx kingdom with tran-

sient out-of-order execution. In 27th USENIX Security

Symposium, pages 991–1008.

Cloud Key Management using Trusted Execution Environment

567
