Refactoring Monolithic Object-Oriented Source Code to Materialize

Microservice-oriented Architecture

Pascal Zaragoza

1,2

, Abdelhak-Djamel Seriai

, Abderrahmane Seriai

, Hinde-Lilia Bouziane

Anas Shatnawi

and Mustapha Derras

LIRMM, CNRS and University of Montpellier, Montpellier, France

Berger-Levrault, France

Keywords:

Microservices, Monolith, Modernization, Reverse Engineering, Refactoring, Software Architecture.

Abstract:

The emergence of the microservice-oriented architecture (MSA) has led to increased maintainability, better

readability, and better scalability. All these advantages make migrating a monolithic software towards an MSA

an attractive prospect for organizations. The migration process is recognized to be complex and consequently

risky and costly. This process is composed of two phases: (1) the microservice-based architecture recovery

phase and (2) the transformation (i.e. materialization) phase. In this paper, we propose a systematic approach

to transform an object-oriented monolithic application towards an MS-oriented one by applying a set of trans-

formation pattern. To validate our approach we automated it with our tool MonoToMicro, and applied it on a

set of monolithic Java applications to be migrated towards microservices-based ones.

1 INTRODUCTION

The microservice-oriented architecture (MSA), with

its capabilities for quick deployment, better scala-

bility, and maintainability, is a recent architectural

style that has appeared to take advantage of the

Cloud (Richardson, 2018). MSA allows the devel-

opment of applications as a suite of small services,

each running in its own process and communicat-

ing through lightweight interfaces (Lewis and Fowler,

2014), (Newman, 2019). Individually, each microser-

vice can be technologically independent, function-

ally autonomous while guaranteeing its autonomy

with regard to their manipulated data. As a conse-

quence, this results in a more manageable codebase as

each microservice can be managed by a smaller team

(Baskarada et al., 2020).

In contrast, the monolithic architecture style in-

volves building the server-side application as a sin-

gle logical executable unit (i.e. monolith) (Lewis and

Fowler, 2014). These monoliths can become quite

large and complex and thus harder to maintain. Fur-

thermore, a change to a small part of the application

requires rebuilding and redeploying the entire mono-

lith (Soldani et al., 2018). When deployed and run-

ning, increasing workloads requires duplicating the

entire application. This is a very resource-intensive,

as every part of the application must be replicated

even though all of the application is not needed (Sel-

madji et al., 2020).

This paradigm shift from the monolithic style to

the MSA-based one resulted in a demand for migrat-

ing these monolithic legacy systems towards an MSA.

This migration process includes: (1) the recovery of

a MSA-based architecture of the existing application,

(2) the transformation of the monolithic source code

to be conforms to MSA principles.

Many approaches have been proposed to address

the ﬁrst phase of the migration process by partitioning

the OO implementation of a given monolithic appli-

cation into clusters of classes that can be transformed

and packaged as microservices in the second phase.

Although the resulting clusters help understand the

target MSA, the source code must be transformed to

conform to the MSA style (service-based, message-

oriented communication, etc.).

The goal of the second phase of the migration

is to transform the monolithic source code to cre-

ate runnable microservices that conform to its target

MSA, while preserving the business logic of the ap-

plication. In the case of OO applications, the primary

difﬁculty is to transform the OO dependencies be-

tween the clusters of classes into MSA ones. These

transformations must adhere to refactoring principles

(i.e. preserve the business-logic) without degrading

the performance. However, despite the importance

Zaragoza, P., Seriai, A., Seriai, A., Bouziane, H., Shatnawi, A. and Derras, M.

Refactoring Monolithic Object-Oriented Source Code to Materialize Microservice-oriented Architecture.

DOI: 10.5220/0010557800780089

In Proceedings of the 16th International Conference on Software Technologies (ICSOFT 2021), pages 78-89

ISBN: 978-989-758-523-4

 2021 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

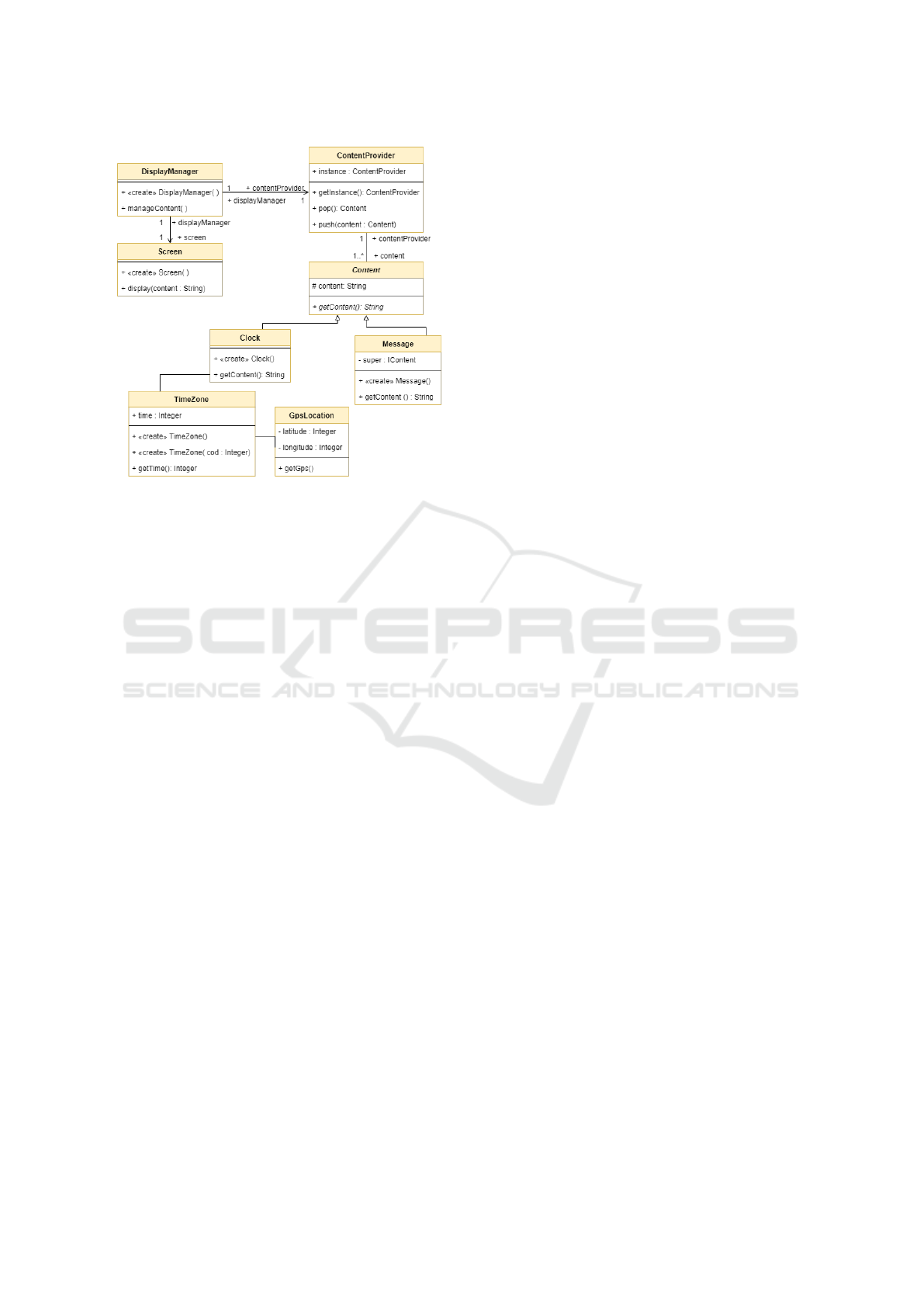

Figure 1: Information Screen class diagram inspired (Al-

shara et al., 2016).

of the second phase of the migration (i.e. costly and

error-prone), and to the best of our knowledge, no ap-

proach to automate this phase has been proposed.

In this paper, we propose a systematic approach

to transform an OO application from the monolithic

style to an MSA one based on a set of transformation

patterns. This set of transformation patterns create

microservice-based communication mechanisms that

preserve the semantic of the monolith while conform-

ing to the principles of the MSA (e.g. message-based

and data-oriented). Furthermore, we propose an au-

tomated process, and a tool, that applies our system-

atic transformation approach. Finally, we apply our

approach on a set of monolithic applications to de-

termine whether this approach is able to refactor the

code while preserving the business logic and not neg-

atively affect the performance of the application.

2 MATERIALIZING

MICROSERVICES FROM AN

OBJECT-ORIENTED

APPLICATION

The overall objective of migrating a monolithic ap-

plication is to produce structurally, behaviorally, and

operationally valid microservices. Particularly, we

deﬁne a microservice as one that follows the com-

monly accepted deﬁnitions which include structural

and behavioral characteristics such as ”small and fo-

cused on one functionality”, ”structural & behav-

ioral autonomy”, and ”data autonomy” (Lewis and

Fowler, 2014). Additionally, operational characteris-

tics include ”running on its own process”, ”commu-

nicate with lightweight mechanisms”, and ”automati-

cally deployed” (Lewis and Fowler, 2014). The struc-

tural and behavioral characteristics are often used to

guide the recovery of the architecture. While the oper-

ational characteristics cannot be used to guide the re-

covery of the microservice-oriented architecture, they

can be used to guide the transformation phase.

The migration of a monolithic application towards

a MSA is a process that can be divided into two

phases: (1) microservice architecture recovery from

an OO monolithic source code and (2) the transforma-

tion of the monolithic source code towards the MSA.

2.1 Motivating Example: Information

Screen

To better illustrate the problems we face during the

migration process, we use throughout this paper an

illustrative example of a display screen management

system (e.g. an information panel in an airport). It is

composed of the DisplayManager class that is respon-

sible for handling the information to be displayed on

the Screen class (see Fig 1). It does so through a Con-

tentProvider class that implements methods for stack-

ing content such as incoming messages (i.e. Message

instances) or the current time (i.e. Clock instances).

Finally, The Clock class uses an instance of the Time-

zone class to get the time based on its GPS location.

2.2 Microservice-based Architecture

Recovery

This migration phase aims to decompose the classes

of a monolithic application into clusters which will

form the basis of a structurally and behaviorally valid

microservice. Existing approaches propose different

clustering techniques to maximize the quality of the

microservices by maximizing the cohesiveness of the

classes within a microservice while minimizing the

coupling between microservices.

Figure 2 shows the results of applying a microser-

vice recovery approach on the ”Information Screen”

system presented as motivating example. The recov-

ery identiﬁes 5 clusters, where each cluster contains

one or more classes. In our example, the microservice

candidate MS1 is responsible for managing the dis-

play of various content on a screen, through its classes

DisplayManager and Screen. A cluster is composed

of two types of classes: internal and edge classes. An

internal class is a class which does not contain any

dependencies with classes belonging to another clus-

ter (e.g. Screen and GpsLocation). On the other hand,

Refactoring Monolithic Object-Oriented Source Code to Materialize Microservice-oriented Architecture

an edge class is a class which contains at least one

dependency with a class from another cluster. These

dependencies can be of any type (e.g. method invoca-

tion, constructor calls, or inheritance).

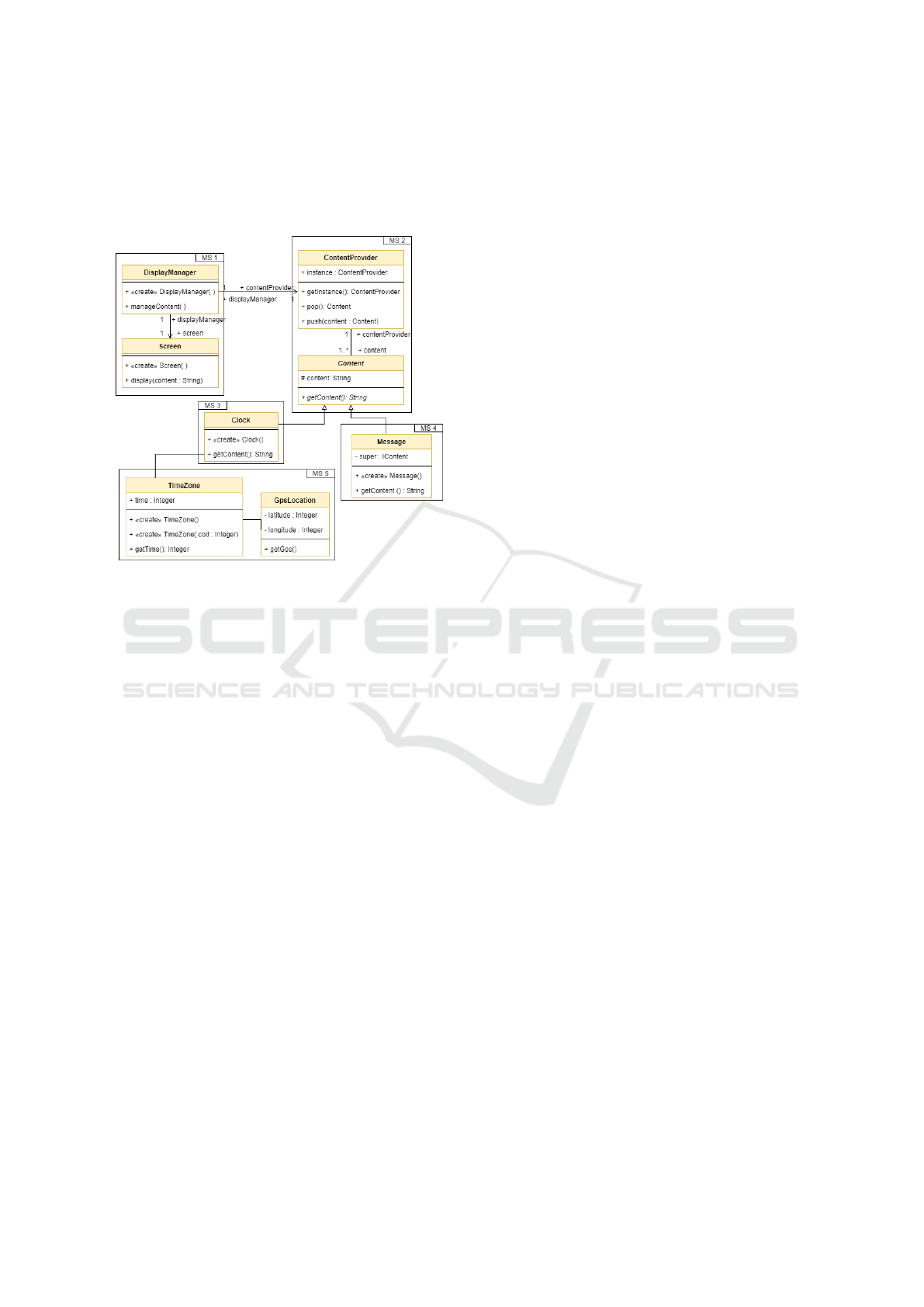

Figure 2: Recovered Microservice Architecture for the In-

formation Screen application.

2.3 Transforming OO Source Code

towards an MSA One

The transformation phase involves materializing the

identiﬁed MSA from the architecture recovery phase.

It involves transforming object-oriented source code

towards a MSA one. During this phase, each recov-

ered cluster of classes is placed into its own microser-

vice (i.e microservice encapsulation).

However, edge classes (e.g. DisplayManager,

Clock), by deﬁnition, contain dependencies towards a

class belonging to another cluster. These direct struc-

tural dependencies between the classes of different

microservices are called microservice encapsulation

violations. Before a microservice can be fully encap-

sulated, all violations must be resolved through refac-

toring methods which transform all OO-type depen-

dencies into MS-type ones.

In this phase, we focus on the operational charac-

teristic of an MSA to use message-oriented communi-

cation between different microservices. I.e., all pro-

cedural calls between classes belonging to different

clusters (e.g. the method calls between DisplayMan-

ager and ContentProvider) must be restricted to a set

of provided and required interfaces that deﬁne both

the web services it provides and those it consumes.

Furthermore, in an MSA, inter-process communica-

tions (IPC) calls are limited to value-based communi-

cation. I.e., only primitives and serialized data may

be exchanged between microservice. However, a pro-

cedural call may pass object references between the

invoking object and the invoked one. To fully encap-

sulate microservices, the mechanism of instance shar-

ing between microservices must be resolved.

Beyond procedural calls there are other implicit

dependencies between clusters that must be addressed

to fully encapsulate the microservice candidates. The

main OO mechanism that must be addressed is the

inheritance mechanism. An inheritance violation ap-

pears when a class and its super-class are placed in

different clusters (e.g, between Message and Con-

tent).

Lastly, operational characteristics of a microser-

vice in which it must run on its own process and be

deployable automatically, require an additional task

of transformation. To conform to these two character-

istics each microservice must be deﬁned in their own

independent project and they must be conﬁgured to

generate their own deployable image. Both of these

tasks must be addressed after each microservice have

been properly encapsulated. In this paper, we focus

on the code transformation phase that takes place af-

ter recovering the MSA.

3 MONOTOMICRO: A

SEMI-AUTOMATED

REFACTORING APPROACH

The goal of this approach is to transform an existing

monolithic object-oriented source code to a MSA one

by encapsulating the clusters identiﬁed in the ﬁrst mi-

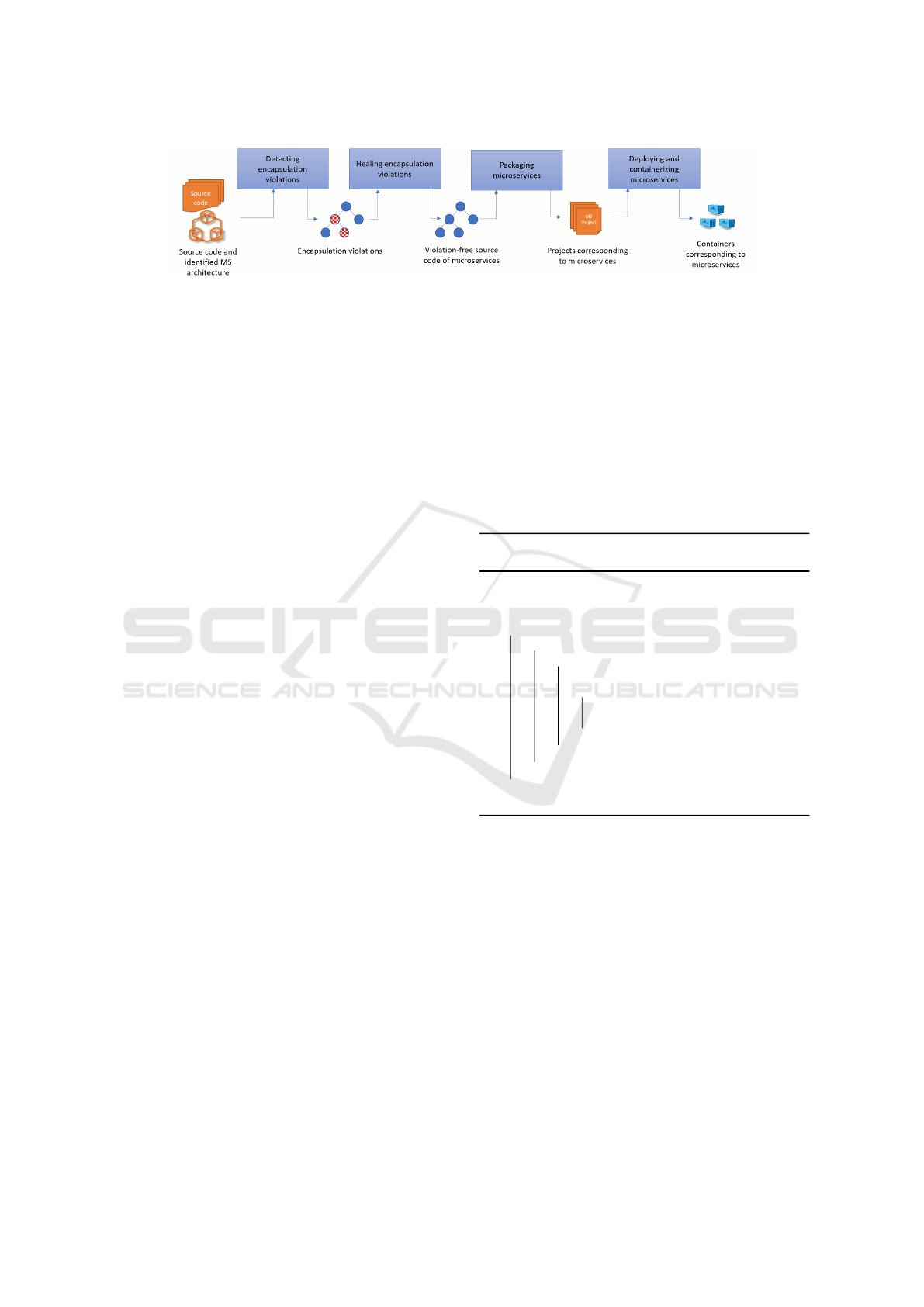

gration phase. To do so, we deﬁne a process com-

posed mainly of four steps as presented in Figure 3.

These steps include: (1) detecting encapsulation vio-

lations, (2) healing encapsulation violations, (3) pack-

aging microservices and (4) deploying and container-

izing microservices.

Step (1) involves detecting encapsulation viola-

tions that occur between clusters of classes which

contain OO-type dependencies (e.g. instance cre-

ation, method invocation, and inheritance) to classes

belonging to another cluster. These violations must

be detected before they can be resolved. For each en-

capsulation violations, detection rules are deﬁned and

applied on the clusters.

In step (2), ”Healing encapsulation violations”, a

set of transformation patterns is applied to the iden-

tiﬁed violations. As certain transformation patterns

would create different additional violations, a trans-

formation order is required to resolve all violations.

ICSOFT 2021 - 16th International Conference on Software Technologies

Figure 3: The Transformation Process using the MonoToMicro tool.

Next, in step (3), the violation-free microservices

are packaged. To this end, a project is created for

each microservice where the source code is generated.

Then, the ﬁle structures and project dependencies are

generated automatically.

Finally, in step (4), the microservice projects are

containerized by generating instantiable images. For

each microservice, an image description ﬁle is gen-

erated. In addition, a composition ﬁle is generated,

which organizes and deploys all the microservices to-

gether.

In this paper, we focus on the ﬁrst two steps of the

transformation phase which contain the main scien-

tiﬁc obstacles mentioned previously. More precisely,

we focus on proposing a systematic approach to trans-

form an OO application from the monolithic style to

an MSA one, a set of transformation patterns, and an

automated process that applies our systematic trans-

formation approach. In Section 4, we present our

ﬁrst contribution, our approach to systematically de-

tect microservice encapsulation violations. In Section

5, we present our second contribution for systemat-

ically healing microservice encapsulation violations

through the use of transformation patterns. We leave

the last two steps of the transformation phase for the

implementation and we describe them in the section 6

along with the experimentation.

4 DETECTING MICROSERVICE

ENCAPSULATION VIOLATION

To materialize the recovered microservice candidates

from the source of object-oriented software, each re-

covered cluster of classes is encapsulated in its own

microservice. However, upon encapsulation, OO de-

pendencies between clusters are no longer permitted

(i.e. encapsulation violations). To facilitate the detec-

tion of these encapsulation violations, a set of encap-

sulation violation rules are proposed to analyze the

monolith:

Rule 1): if a cluster’s method invokes a method be-

longing to a class from another cluster then it is a

method invocation violation.

(Rule 2): if a cluster’s method accesses an attribute

belonging to a class from another cluster then it is an

access violation.

(Rule 3): if a cluster’s class contains a reference tar-

geting a class from another cluster then it is an in-

stance violation.

(Rule 4): if a cluster’s class inherits a class belonging

to another cluster then it is an inheritance violation.

(Rule 5): if a cluster’s method throws, catches or de-

clares an exception deﬁned in another cluster then it

is a thrown exception violation.

Algorithm 1: Microservice Encapsulation Violation

Detection Algorithm.

Input : clusters (sets of classes)

Result: violations (a set of class couples)

1 violations ← { };

2 foreach ( cluster ∈ clusters ) {

3 foreach ( class ∈ cluster ) {

4 foreach ( dependency ∈ class ) {

5 if ((dependency → target) /∈ cluster)

then

6 violation ←

(class, dependency → target);

7 end

8 }

9 }

10 }

11 return violations;

These rules are applied on the AST representation

of the OO source code. Using the target architecture

description, the AST nodes that represent the classes

in the OO source code are partitioned into clusters.

Finally, the detection algorithm is applied on the clus-

ters that are being encapsulated.

Algorithm 1 presents the procedure for detecting

the encapsulation violations in each cluster. For each

cluster, it traverses each individual class and checks

ﬁeld accesses, method invocations, and type refer-

ences. Each broken rule is represented as a typed vi-

olation based on the rule that was broken and is at-

tributed to the cluster that is the source of the viola-

tion. Once each recovered cluster has been analyzed,

the encapsulations violations can be healed.

Refactoring Monolithic Object-Oriented Source Code to Materialize Microservice-oriented Architecture

5 HEALING ENCAPSULATION

VIOLATIONS

To achieve the encapsulation of these microservices,

the violations identiﬁed in the previous steps must

be healed through the application of transformation

rules. These transformation must either completely

heal a violation or reduce it to another solvable type.

We propose a set of transformation rules to heal the

encapsulation violations identiﬁed in the ﬁrst step.

As mentioned previously, the encapsulation viola-

tions are as follows (1) attribute access, (2) method

invocation, (3) instance creation, (4) and inheritance.

We conclude by providing an order for resolving each

type of violation to avoid creating more violations

during the refactoring process.

5.1 Attribute Access

The direct attribute access violation involves direct

access of attributes between classes of different mi-

croservices. It can be eliminated by applying the get-

ter/setter pattern, which involves (1) limiting the ac-

cess to the attributes to within its own class, (2) adding

a method for returning the value of the attribute and

a method for modifying the value of the attribute,

and (3) refactoring the business logic to replace direct

read/write of the attributes with method invocations

to the get/set methods. This refactoring eliminates the

direct access of attributes between classes of different

microservices but creates a method invocation viola-

tion in its stead.

5.2 Method Invocation

The ﬁrst encapsulation violation covered is the one

caused by method invocation. To remove method

calls between classes belonging to different microser-

vices, they are refactored into interface-based calls.

Consider our motivating example, where the Display-

Manager invokes a method from ContentProvider de-

picted in Listing 1. For DisplayManager that uses the

ContentProvider, both a required and a provided in-

terface (IContentProvider) are created. The required

interface is deﬁned in the microservice of the class

DisplayManager and the provided interface is deﬁned

in the microservice of the class ContentProvider. The

references of the ContentProvider in DisplayManager

are replaced with a reference towards the required in-

terface IContentProvider (see Listing 2).

1 public ContentProvider cp;

2 ...

3 public void manageContent(){

4 String content = cp.pop().getContent(); ...

5 }

6 }

7 public class ContentProvider {

8 ...

9 public Content pop(){...}

10 }

Listing 1: Method Invocation Dependency in Java code.

11 public IContentProvider cp;

12 ...

13 public void manageContent(){

14 String content = cp.pop().getContent();

15 }

16 }

17 public class ContentProvider implements

IContentProvider{...}

Listing 2: Decoupling method invocation by creating an in-

terface.

Nevertheless, ContentProvider remains inaccessi-

ble to DisplayManager via the required interface. As

microservice can only interact through inter-process

communication protocols, an additional technologi-

cal layer must be added. In the microservice with

the provided interface, a WebService class is created

to implement the interface and to expose the meth-

ods of ContentProvider to other microservices. For

each publicly-available method of ContentProvider, a

method is created in the WebService that acts as the

intermediary to receive a request, forward it to the

real method, and return the result of the operation.

In the microservice with the required interface, a We-

bConsumer class is generated which implements the

interface by preparing the network calls to its corre-

sponding WebService class.

5.3 Instance Creation and Handling

After fragmenting the monolithic code into differ-

ent microservices (i.e. clusters of classes), some in-

stances can be created in one microservice and used

(i.e. referenced) in others. To remove this type of vi-

olation, it is necessary to provide adequate answers to

the following two questions: (1) How do we create

an instance of a class belonging to another microser-

vice? (2) When a given instance is referenced in sev-

eral microservices, how do we ensure the sharing of

this instance while preserving the business logic of

the application? These two questions are answered in

two parts.

5.3.1 Instance Creation

To answer the ﬁrst question, we propose a transfor-

mation combining two design patterns: the Factory

Pattern and the Proxy Pattern. To address the instan-

tiation of objects, we replace the instantiation of Con-

ICSOFT 2021 - 16th International Conference on Software Technologies

tentProvider by the class DisplayManager with an in-

terface acting as an object factory. This interface de-

ﬁnes a method for each constructor of the Content-

Provider class. For simplicity, the same provided/re-

quired interfaces deﬁned in both microservices are

used to deﬁne the object factory methods and the pub-

lic methods of the ContentProvider class. The meth-

ods of this factory are implemented in the WebService

class and call the corresponding constructor.

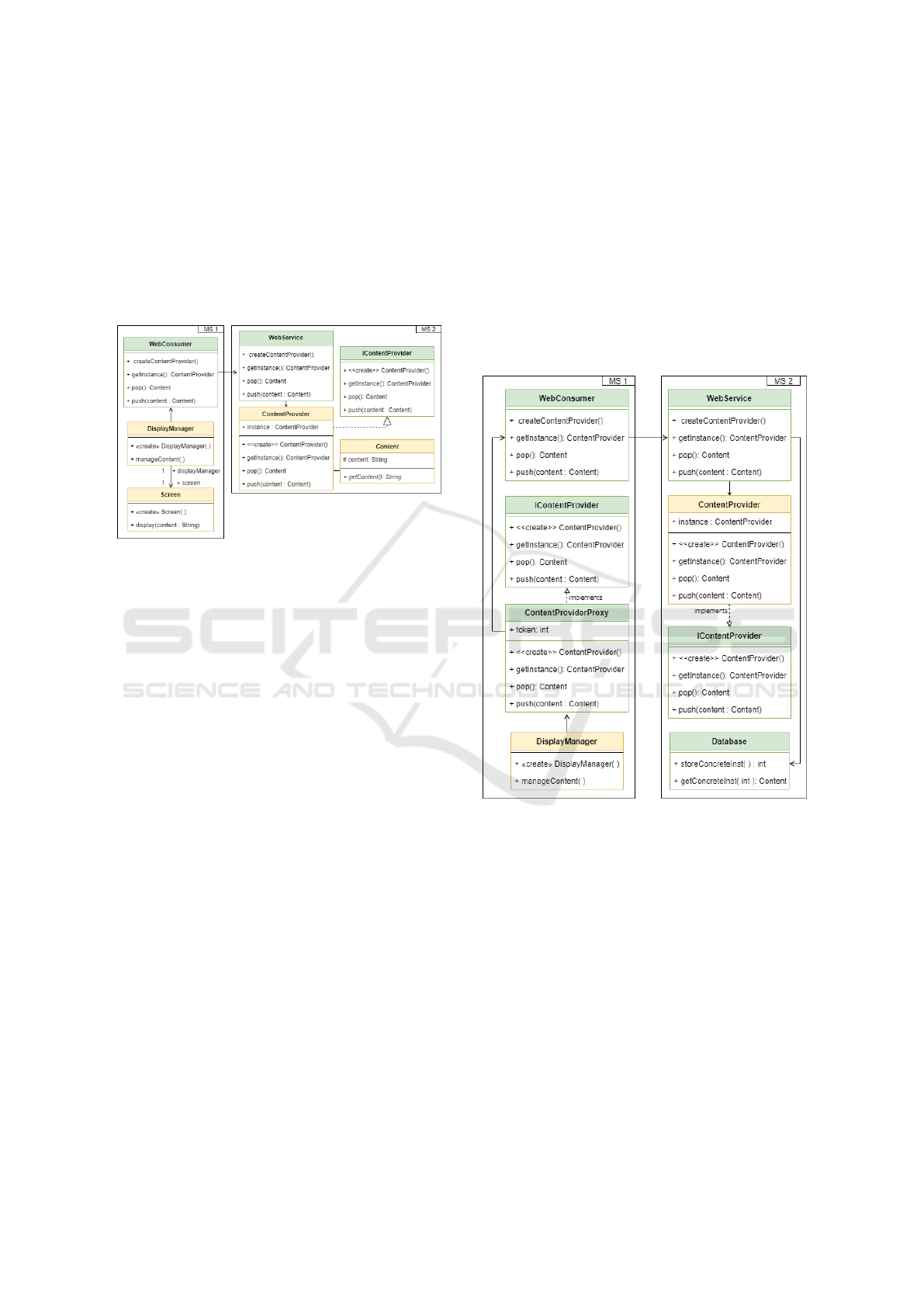

Figure 4: Replacing the class instantiation with the Fac-

tory Pattern (in yellow the monolith’s class, and in green

the classes created during the transformation).

The next step towards transforming the instance

creation violation is based on the Proxy Pattern. The

intent of the proxy pattern is to provide a surrogate or

placeholder for another object to control access to it.

In Figure 5, the proxy class (ContentProviderProxy)

is a surrogate for the real class (ContentProvider) and

acts as the surrogate for all method invocations. The

role of the proxy class is to hide the absence of the

class with which it is associated and which is ref-

erenced in one microservice and deﬁned in another.

Thus, it constitutes the place where calls to the class

or its instances deﬁned outside the microservice are

transferred. Thus, for any class referenced in one mi-

croservice and deﬁned in another, a proxy class is cre-

ated in the microservice that references it. This class

will have the same name as the real class, the same

list of public methods and the same list of construc-

tors. However, the implementations of its methods

and constructors are different from the original class.

Instead, the proxy class uses the WebConsumer class

to interact with the real class deﬁnition.

5.3.2 Instance Sharing

To preserve the business logic of the application, we

propose a strategy to share an instance of a class de-

ﬁned in one microservice between several microser-

vices. Furthermore, the proxy class handles the in-

stances of this class. To differentiate, between the

proxy class and the real class, the instances of the

proxy class are called proxy instances, and instances

of the real class are called concrete instances. A proxy

instance has no state and they only reference their

concrete instance. Each concrete instance is refer-

enced by its proxy instances via the same unique ref-

erence, and any operation on a proxy instance is trans-

ferred to its concrete instance. Finally, all exchanges

of the concrete instance (e.g. as a parameter, in or

out) between the microservices are transformed into

an exchange of the unique reference of the concrete

instance.

Figure 5: Replacing access to an object with the Proxy Pat-

tern.

We implement the strategy as follows: A class is

implemented to store all instances created in a mi-

croservice. When an concrete instance is created in

a microservice through one of its factories, it sends

the object to the corresponding storage class (in Fig

5, the Database class) to preserve it and this storage

class returns a token for accessing the object. The mi-

croservice returns the token via its web service to the

proxy instance, which stores it. Afterward, whenever

the proxy instance receives a request, it transfers the

request along with the token to the appropriate web

service. The token provides the context whenever the

web service is consumed, and the web service loads

the concrete instance and invokes the corresponding

method for that instance.

Refactoring Monolithic Object-Oriented Source Code to Materialize Microservice-oriented Architecture

Furthermore, complex objects may be passed as a

parameter between microservices. As microservice-

type communication limited to passing simple data

types such as strings and integers, we need to trans-

form this type of exchange between microservices to

be able to preserve the consistency of the application’s

business logic. A microservice may send or receive an

object of class not belonging to it, and a microservice

may send or receive an object of class that belongs to

it.

For each situation, a token is passed between the

microservices, but depending on the scenario the to-

ken is handled differently.

1. When a microservice receives an object of a class

that does not belong to it, the microservice creates

the relevant proxy and stores the token within it.

2. When a microservice receives an object of a class

that belongs to it, the microservice uses the token

to fetch it from its storage class.

3. When a microservice sends an object of a class

that belongs to it, it must store the object and send

the token.

4. When a microservice sends an object of a class

that does not belong to it, the microservice must

extract the token from its proxy and send it.

This approach enables the passing of complex ob-

jects between microservices, while the owner of the

class handles the instances for other microservices.

When a microservice receives a token, it is able to

access the relevant object via the proxy class.

5.4 Inheritance Relationship

The inheritance violation is caused when a class that

inherits from another class belonging to a different

microservice are encapsulated. To heal this encap-

sulation violation, we propose a two-step transforma-

tion process inspired from (Alshara et al., 2015): (i)

Uncoupling the child/parent inheritance with a double

proxy pattern. (ii) Recreating subtyping via interface

inheritance.

The inheritance link between two classes belong-

ing to two different microservices contains several

mechanisms that must be reproduced during the trans-

formation process. The ﬁrst mechanism is the exten-

sion of the deﬁnition of the parent by the child. A

child class has access to the parent’s attributes and

methods. Furthermore, it may override the parent’s

methods. Finally, both child and parent method deﬁ-

nitions may access each other’s methods through the

use of reference variables to the parent object or itself.

The second mechanism that must be reproduced is

the concept of polymorphic assignment. To preserve

the ﬁrst mechanism, we propose a double proxy pat-

tern inspired by the work presented in (Alshara et al.,

2015). In (Alshara et al., 2015), the authors propose

a double delegate pattern to preserve the inheritance

between the child and its parent class, residing each

in a different components.

With this approach, when a child object is created,

a parent object is also created as an attribute within

the child object. The child class is refactored to for-

ward invocations of any of its parent methods (e.g.

using ’super’ in JAVA) to its parent object attribute,

which acts as a delegate. Furthermore, the child ob-

ject is also stored in the parent object and acts as a

delegate to preserve the dynamic calling of overrid-

den methods (i.e. ’this’ in JAVA). This effectively re-

duces the inheritance encapsulation violation into an

instantiation violation and a method invocation viola-

tion which can be healed at a later point. When the

parent class is abstract, the authors apply a proxy pat-

tern in which the proxy class inherits from the parent

class. The child class can then instantiate the proxy

class as its delegate.

When this approach is applied in the context of

microservices it necessitates two proxy classes as the

delegate pattern creates an instance violation when

the child accesses the parent object and vice versa.

This is valid whether the parent is an abstract class

or not. However, this approach requires refactoring

the internal code of the child (and parent) class and

requires informing the developer to use the delegate

pattern instead of the native implementation. Instead,

we propose a revised version that treats inheritance as

a service more than an object, and reduces the refac-

toring of business classes.

5.4.1 Decoupling the Child/Parent Inheritance

To transform the inheritance violation, the inheritance

link between the child and parent classes must ﬁrst

be decoupled. First, a proxy class (e.g. ContentCon-

sumer) is created and implements the methods de-

ﬁned by the common interface (IContent) extracted

from the parent class. This class will act as the par-

ent delegate for the the child class. The child class

is refactored to extend it (e.g ContentConsumer) in-

stead of the parent class. Then, another proxy class

(e.g. MessageConsumer) is deﬁned to extend the par-

ent class, and acts as the child delegate for the parent

class. Figure 6 illustrates the severance of the inheri-

tance link between the child (Message) and the parent

classe (e.g. Content). However, the business logic

between Message and Content is not preserved.

ICSOFT 2021 - 16th International Conference on Software Technologies

5.4.2 Recreating Subtyping through Proxy

Inheritance

To preserve the internal logic between the child and

the parent classes, the proxy classes are exposed as

web services (as seen in section 5.3). This results in

the creation of two web services (Figure 6). The par-

ent proxy (e.g ContentConsumer) consumes the Par-

ent web service upon creation. This has the effect of

creating an IContent instance that acts as the super-

class delegate. Whenever a method deﬁned by the

parent class is invoked by the child object, the par-

ent object will be invoked via the parent web service.

Furthermore, when the parent class references the in-

stance, it will invoke the child object through the child

proxy (e.g MessageConsumer) object.

5.4.3 Recreating Polymorphic Assignment

through Interface Inheritance

Finally, the polymorphic mechanism is recreated by

deﬁning a child interface (e.g IMessage) which ex-

tends the parent interface (e.g. IContent), and which

will be implemented by the child class (see Figure 6).

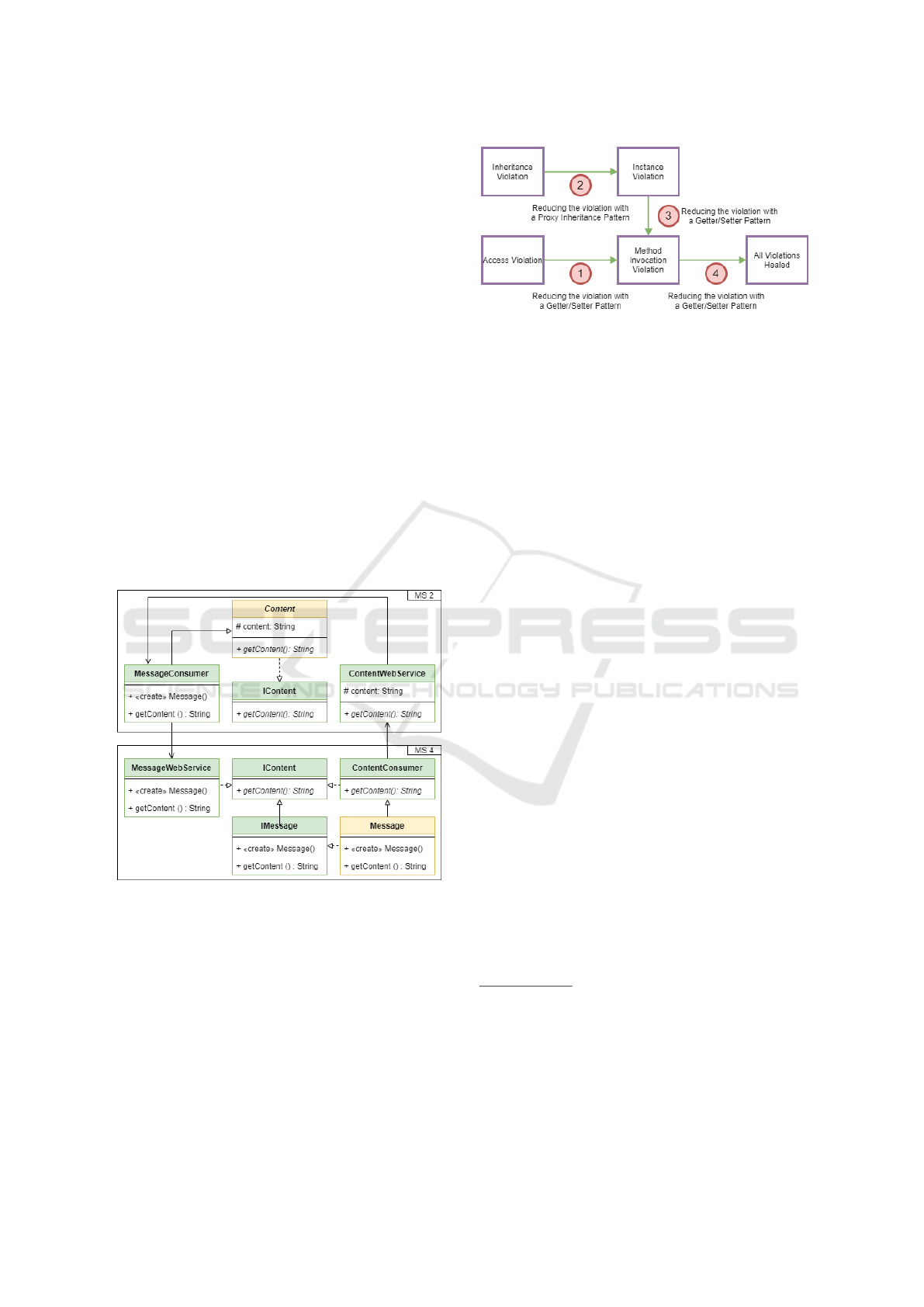

Figure 6: Polymorphic assignment can be recreated by ap-

plying an interface inheritance between the Parent Interface

and the Child Interface.

5.5 Healing Violation Order

Once all the different microservice encapsulation vi-

olations have been identiﬁed, the transformation rules

can be applied to completely encapsulate the clusters

into their microservices. However, the application of

these transformations in the wrong order may pro-

duce more encapsulation violations as a result (e.g.

the application of the transformation for an attribute

Figure 7: The transformation order of each microservice

encapsulation violation.

access violation produces a method invocation vio-

lation). The goal of this subsection is to present an

order for applying these transformations to solve all

encapsulation violation in one iteration.

Therefore, we propose an order of transformation

to heal all these encapsulation violations which is pre-

sented in Figure 7. First, the attribute access viola-

tion is reduced as it adds public methods to its class

that may be further refactored by inheritance viola-

tion. Then, the inheritance violations are reduced to

an instance violation so all instance violations can

be healed together. These instance violations are re-

duced to method invocation violations. Finally, the

remaining method invocations violations are trans-

formed into a set of web services. In the next sec-

tion, we apply this transformation order when healing

the encapsulation violations identiﬁed in the selected

applications.

6 EVALUATION

6.1 Data Collection

To establish our experiment, we select a set of mono-

lithic applications of various sizes (small, medium

and large). We identiﬁed 6 applications whose source

code is object-oriented and publicly available. The

seventh application, Omaje, is a closed-source legacy

application by Berger-Levrault, an international soft-

ware editor. Table 1 provides some metrics on these

applications.

https://github.com/chihweil5/FindSportMates

https://github.com/mybatis/jpetstore-6

https://github.com/spring-petclinic/spring-framework-

petclinic

https://github.com/Raysmond/SpringBlog

https://github.com/gtiwari333/java-inventory-

management-system-swing-hibernate-nepal

https://github.com/rafaelsteil/jforum2/

Refactoring Monolithic Object-Oriented Source Code to Materialize Microservice-oriented Architecture

Table 1: Applications on which the experiment was con-

ducted.

Application name No of classes

Lines of Code

(LOC)

FindSportMates

21 4.061

JPetStore

24 4.319

PetClinic

44 2.691

SpringBlog

87 4.369

IMS

94 13.423

JForum

373 60.919

Omaje 1.821 137.420

6.2 Data Pre-processing: Microservice

Identiﬁcation

We used our approach, proposed in (Selmadji et al.,

2020) to recovery an MSA represented as clusters

of classes. This MS architecture recovery approach

is semi-automatic as it combines the information

extracted from the source code of the application

(e.g. coupling and cohesion between classes, cou-

pling compared to persistent data, etc.) as well as the

architect’s recommendations (e.g. granularity of mi-

croservices, their number, etc.). These clusters along

with the source code of the applications are used as in-

put for our approach. Table 2, refers to the extracted

architectures for each application.

Table 2: Data on the applications being transformed.

Application

No.

MSs

No. data

classes

No.

violations

Findsportmates 3 2 9

JPetStore 4 9 21

PetClinic 3 7 26

SpringBlog 4 8 104

IMS 5 18 113

JForum 8 37 1031

6.3 Research Questions and Their

Methodologies

To validate our approach, we conduct an experiment

with the goal of answering the four following research

questions.

6.3.1 RQ1: What is the Precision & Recall of

MonoToMicro Approach When

Materializing a MSA?

Goal: The goal of this research question is to evaluate

the correctness of the resulting microservice-based

applications. By evaluating the syntactic and se-

mantic correctness, we aim to demonstrate that our

approach is able to transform the source code of a

monolithic application towards an MSA one, while

preserving the business logic.

Method: We measure the precision and the recall of

our approach based on the syntactic and semantic cor-

rectness of the transformed microservices. It stands to

reason that if the resulting MSA applications behaves

in the same way as the monolithic applications then

the business logic was preserved.

We consider that microservices are syntactically

correct if there are no compilation errors. To mea-

sure the semantic correctness, we rely on whether the

transformed microservices produce the same results

compared to the functionalities of the monolithic ap-

plications at runtime. We identify a set of execution

scenarios that are applied to both versions. We com-

pare the outputs of the monolithic application with its

MSA counterpart for each execution scenario. We

consider that the transformation is semantically cor-

rect when the outputs generated by the monolith and

the MSA are identical based on the same inputs.

When possible, the identiﬁcation of execution sce-

narios is based on test cases deﬁned by the developers

of the monolithic applications (e.g. JPetStore). When

test cases are not available, we identify a set of fea-

tures and sub-features for each monolithic application

(e.g. FindSportmates, IMS). From these features, we

establish a set of user scenarios that cover all features

of each application. These user scenarios are per-

formed on the monolithic application and the results

are saved. Then, these user scenarios are performed

on the MSA, and the results are compared with those

of the monolithic application. When they are identi-

cal we consider this as a passed test. Otherwise, they

are marked as a failed test.

The precision is calculated by taking the number

of tests passed by both architectures and dividing by

the number of the tests passed by the MSA. While

we calculate the recall by taking the number of tests

passed by both architectures and dividing it by the

number of tests passed by the monolith.

Due to time constraints related to the application

packaging that is highly dependent on the technology

of the monolith working with Spring, we study this re-

search question with the FindSportMates, JPetStore,

and InventoryManagementSystem applications. For

JPetStore, we ran the Selenium tests provided with the

monolithic application. For FindSportmates and In-

ventory Management System, we manually ran these

user scenarios.

ICSOFT 2021 - 16th International Conference on Software Technologies

Table 3: Type of violations caused by OO-type dependen-

cies between microservices.

Application

No.

Instances

No. Inheri-

tances

No.

Exceptions

Findsportmates 9 0 0

JPetStore 20 0 0

PetClinic 24 2 0

SpringBlog 95 7 2

IMS 110 3 0

JForum 1013 16 2

6.3.2 RQ2: What are the Impacts of

MonoToMicro on the Performance?

Goal: The overall goal of our approach is to mi-

grate while preserving the semantic behavior of an

application. Moreover, an important aspect of the mi-

gration is that it must preserve the semantic without

degrading drastically the runtime performance of the

application. Therefore the primary goal of this RQ is

to evaluate whether the performance impacts result-

ing from the migration of the monolithic application

to microservices are negligible when compared to the

original application.

Method: To answer RQ2, we rely on the execution

time of user requests. The execution time measures

the delay between the time when the request is sent

and the time when the response is received by the user.

We compare the execution time of both the mono-

lith and the MSA. We establish a user scenario us-

ing Omaje to compare the performance of the mono-

lithic application with its microservice counterpart.

We chose Omaje for this evaluation because its busi-

ness logic is the most complex of all 7 applications.

To evaluate the performance, we simulate an increas-

ing number of users connecting to both the MSA and

the monolith, using JMeter

to simulate user load. As

the number of user increases, we increase the number

of instances of the microservice for both the mono-

lith and the MSA. For the monolith, this involves du-

plicating the application. For the MSA, this involves

duplicating the microservices involved in the current

scenario. We consider that the refactoring results im-

prove or maintain the quality and performance of the

original code if the execution time difference between

both architectures is negligible for the average user

while the resource utilization is optimized. For our

test we use a computer with an i7-6500U @ 2.5GHz

and 16GB of ram.

https://jmeter.apache.org/

6.4 Results

6.4.1 RQ1: What is the Precision & Recall of

MonoToMicro Approach When

Materializing a MSA?

Table 4 shows the results of RQ1. The results show

that our approach has a 100% precision for FindSport-

Mates, JPetStore and InventoryManagementSystem in

terms of syntactic and semantic correctness. There-

fore, our approach is able to preserve the business

logic with a high precision. Furthermore, the results

show that our approach has a 100% recall for Find-

SportMates, JPetStore and InventoryManagementSys-

tem. The proposed transformation did not create a

side-effect that was detected by failed functional tests

that otherwise passed for the monolith. Therefore, our

approach is able to preserve the business logic with

a high recall. However, it should be noted that for

JPetStore the Selenide test ”testOrder” failed for both

the monolithic version and the MSA version, as both

checked the pricing notation using a period as a dec-

imal separator while the testing was performed on a

computer which defaults to using a comma instead.

Table 4: Number of tests performed based on the applica-

tion and the resulting precision and recall based on those

tests.

Application No. Test Precision Recall

Findsportmates 7 100% 100%

JPetStore 34 100% 100%

IMS 36 100% 100%

6.4.2 RQ2: What are the Impacts of

MonoToMicro on the Performance?

Figure 8 illustrates the number of users per scenario

with the different architecture conﬁgurations. We can

see, there is a small but negligible gain in performance

upon the introduction of scaling for the MSA. The

proposed transformations from MonoToMicro does

not negatively affect the performance of the applica-

tion. Our expectations were that by introducing addi-

tional network calls the performance of the migrated

application would be affected negatively. However, in

this scenario it was not the case. This was likely due

to the parallelization aspect of scaling the requested

service. By adapting the number of instances of mi-

croservices, the MSA was able to handle the increased

requests and compensate for the additional network

layer. In fact, as the number of parallel requests in-

creased, the MSA performed better (on average) com-

pared to its monolith counterpart.

Refactoring Monolithic Object-Oriented Source Code to Materialize Microservice-oriented Architecture

100

150

200

250

300

150

300

450

600

Number of Parallel Users

Avg. Execution time (ms)

Average execution time of Requests

Monolith

MSA

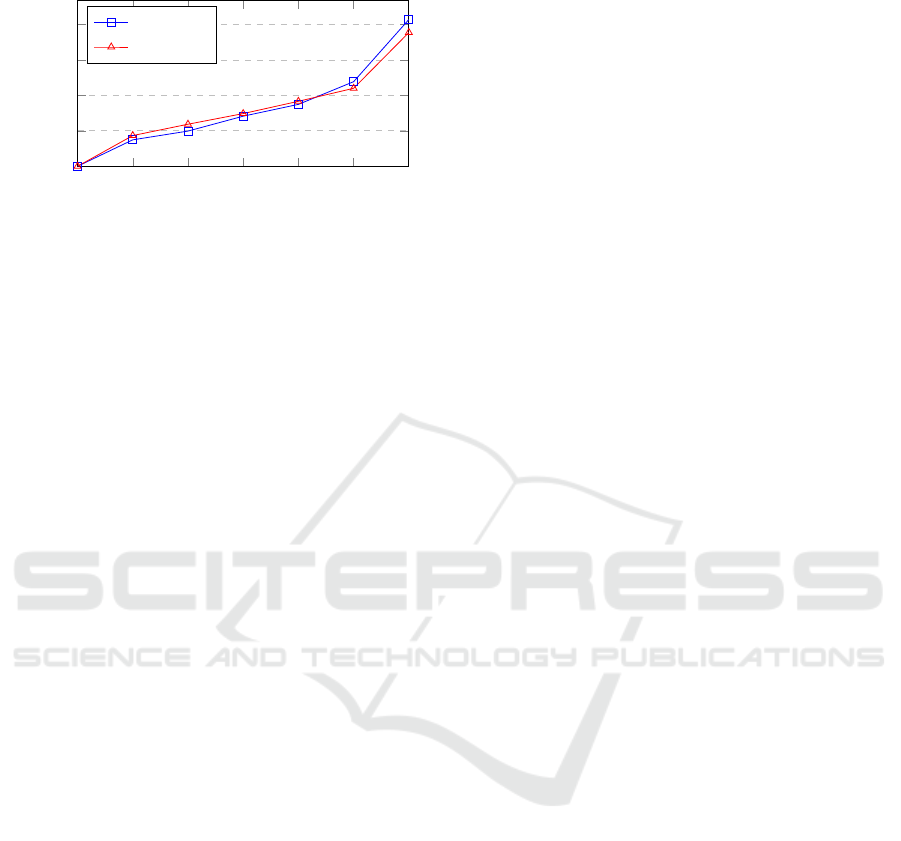

Figure 8: Average execution time of Omaje based on the

number of users and the corresponding architecture.

6.5 Threats to Validity

Internal Validity: First, we use static analysis

techniques to analyze and detect microservice encap-

sulation violations in the source code of monolithic

applications. This type of analysis may have two

types of impact. The ﬁrst one is that static analysis

does not take into account polymorphism and dy-

namic binding when handling the instance violation.

However, we deal this by preparing the worst case

scenario where an instance dependency is created for

every sub-type. The second impact is that the static

analysis does not differentiate between the used and

unused source code which may result in creating

more services than required. The use of dynamic

analysis could reduce both impacts. But it requires

instrumenting and a considerable amount of tests.

We consider our approach to be adequate for source

code that is not based on frameworks (e.g. Spring for

java). In this sense, we do not consider, for example,

the injection of dependencies on-the-ﬂy which is one

of the properties of this type of framework. This

type of dependency is not identiﬁed in our approach.

Also, our approach does not consider dependencies

and transformations linked to the reﬂexivity of

programming languages. Thus, in our experiment,

we identiﬁed and manually resolved this type of

encapsulation violation.

External Validity: First, we consider that the use of

a speciﬁc architecture recovery approach (Selmadji

et al., 2020) to have an impact on the results of the

transformation phase we highlight in the paper. We

consider that the types of dependencies identiﬁed and

their number strongly depend on the results of the ar-

chitecture extraction phase used, and the use of an-

other extraction method would impact the results of

the proposed transformation process. However, the

primary goal of this experiment is not to analyze the

impact of the produced architecture, but the feasibility

of migrating while preserving the intended behavior

of the application. Second, the proposed approach is

evaluated on monolithic applications that are imple-

mented in Java. However, the obtained results can be

generalized for any OO language. We argue for this

generalization because all OO languages (e.g. C++,

C#) are structured in terms of classes and their rela-

tionships are realized through the same mechanisms

(e.g. method calls, ﬁeld access, inheritance, etc.).

7 RELATED WORK

Microservice-based Architecture Recovery: Re-

cently, many works have been done on the process of

extracting a MSA from an OO software, and several

systematic reviews have been published on the

subject (Abdellatif et al., 2021) (Fritzsch et al., 2019)

(Francesco et al., 2017). These works can be catego-

rized by the input and the process used to extract the

architecture. Works such as (Baresi et al., 2017) use

OpenAPI documentation of an application to extract

its services. Similarly, an approach is proposed

that leverages the documentation for component

recovery (Chardigny and Seriai, 2010) (Chardigny

et al., 2008). While (Selmadji et al., 2020) use both

source code and expert recommendations as input for

a clustering algorithm. (Jin et al., 2018) uses both

source code analysis and dynamic behavior analysis

to aid during clustering process. More broadly,

component recovery proposes solutions to a similar

problem. In (Kebir et al., 2012), genetic algorithms

are used to recover components from an OO soft-

ware. While in (El Hamdouni et al., 2010), relational

concept analysis is used to extract a component-based

architecture. Finally, (Shatnawi et al., 2018) uses

dynamic analysis to identify components.

Transformation Towards a MSA: The goal of refac-

toring is to extend the lifetime of an existing soft-

ware product while preserving its functional behav-

ior via code transformation to improve the structure

of the source code. To the best of our knowledge,

there does not exist any work in the transformation

towards microservice that attempts to automate this

process. Both an industrial survey (Francesco et al.,

2017) and a systematic review (Fritzsch et al., 2019)

on the subject of microservice migration, indicate a

lack of tool to support the migration towards mi-

croservices. (Bigonha et al., 2012) proposes a tech-

nique for extracting modules from monolithic soft-

ware architectures based on a series of refactoring

to modularize concerns through the isolation of code

fragments. However, it focuses on the separation of

ICSOFT 2021 - 16th International Conference on Software Technologies

concerns and does not address the deployment of in-

dependent modules as microservices. Besides, sev-

eral works offer insights on the manual transforma-

tion such as (Fan and Ma, 2017), (Richardson, 2018),

and (Amiri, 2018). (Fan and Ma, 2017) presents an

experiment report where the authors share their mi-

gration process on an example. (Amiri, 2018) pro-

pose an extraction method accompanied by a manual

transformation to validate their approach.

8 CONCLUSION

We have proposed an approach to automate the source

code transformation phase of the process of migrating

an application from the monolithic style to the MSA

one. We focused on proposing a systematic approach

to transform an OO application from the monolithic

style to an MSA one, a set of transformation patterns,

and an automated process that applies our system-

atic transformation approach. The evaluation of our

approach revealed that the systematic transformation

were possible and created syntactically and semanti-

cally correct microservices. Furthermore, an initial

performance evaluation on an industrial case revealed

that successfully-migrated microservices were able to

scale with increased demands without degrading the

overall service. In future works, we plan to take the

lessons learned from the refactoring of these mono-

lithic applications towards MSA ones and apply them

to the identiﬁcation of microservices to optimize the

performance and the structure of the MSA.

REFERENCES

Abdellatif, M., Shatnawi, A., Mili, H., Moha, N., Bous-

saidi, G. E., Hecht, G., Privat, J., and Gu

eneuc, Y.-

G. (2021). A taxonomy of service identiﬁcation ap-

proaches for legacy software systems modernization.

Journal of Systems and Software, 173:110868.

Alshara, Z., Seriai, A.-D., Tibermacine, C., Bouziane,

H. L., Dony, C., and Shatnawi, A. (2015). Migrat-

ing large object-oriented applications into component-

based ones: instantiation and inheritance transforma-

tion. GPCE, page 55–64.

Alshara, Z., Seriai, A.-D., Tibermacine, C., Bouziane, H.-

L., Dony, C., and Shatnawi, A. (2016). Materializ-

ing architecture recovered from object-oriented source

code in component-based languages. ECSA, page

309–325.

Amiri, M. J. (2018). Object-Aware Identiﬁcation of Mi-

croservices. In 2018 IEEE SCC, pages 253–256.

Baresi, L., Garriga, M., and De Renzis, A. (2017). Mi-

croservices identiﬁcation through interface analysis.

In De Paoli, F., Schulte, S., and Broch Johnsen, E., ed-

itors, Service-Oriented and Cloud Computing, pages

19–33, Cham. Springer International Publishing.

Baskarada, S., Nguyen, V., and Koronios, A. (2020). Ar-

chitecting microservices: Practical opportunities and

challenges. Journal of Computer Information Sys-

tems, 60:428 – 436.

Bigonha, R. S., Terra, R., and Marco, T. (2012). An Ap-

proach for Extracting Modules from Monolithic Soft-

ware Architectures. WMSWM 2012, (July 2016).

Chardigny, S., Seriai, A., Oussalah, M., and Tamzalit, D.

(2008). Search-based extraction of component-based

architecture from object-oriented systems. ECSA,

pages 322–325.

Chardigny, S. and Seriai, A.-D. (2010). Software architec-

ture recovery process based on object-oriented source

code and documentation. ECSA, pages 409–416.

El Hamdouni, A.-E., Seriai, A., and Huchard, M. (2010).

Component-based architecture recovery from object

oriented systems via relational concept analysis. CLA,

pages 259–270.

Fan, C. and Ma, S. (2017). Migrating Monolithic Mobile

Application to Microservice Architecture: An Exper-

iment Report. In 2017 IEEE AIMS, pages 109–112.

Francesco, P. D., Malavolta, I., and Lago, P. (2017). Re-

search on architecting microservices: Trends, focus,

and potential for industrial adoption. In ICSA, pages

21–30.

Fritzsch, J., Bogner, J., Zimmermann, A., and Wagner, S.

(2019). From monolith to microservices: A classi-

ﬁcation of refactoring approaches. Lecture Notes in

Computer Science, page 128–141.

Jin, W., Liu, T., Zheng, Q., Cui, D., and Cai, Y. (2018).

Functionality-oriented microservice extraction based

on execution trace clustering. In 2018 IEEE ICWS,

pages 211–218.

Kebir, S., Seriai, A.-D., Chaoui, A., and Chardigny, S.

(2012). Comparing and combining genetic and clus-

tering algorithms for software component identiﬁca-

tion from object-oriented code. C3S2E ’12, page 1–8.

Lewis, J. and Fowler, M. (2014). Microservices: a deﬁnition

of this new architectural term.

Newman, S. (2019). Building microservices: designing

ﬁne-grained systems. O’Reilly Media.

Richardson, C. (2018). Microservices Patterns. O’Reilly

Media.

Selmadji, A., Seriai, A.-D., Bouziane, H.-L., Mahamane,

R., Zaragoza, P., and Dony, C. (2020). From mono-

lithic architecture style to microservice one based on

a semi-automatic approach. ICSA, pages 157–168.

Shatnawi, A., Shatnawi, H., Saied, M. A., Shara, Z. A.,

Sahraoui, H., and Seriai, A. (2018). Identifying soft-

ware components from object-oriented apis based on

dynamic analysis. In ICPC, page 189–199.

Soldani, J., Tamburri, D. A., and Van Den Heuvel, W.-J.

(2018). The pains and gains of microservices: A sys-

tematic grey literature review. JSS, 146:215–232.

Refactoring Monolithic Object-Oriented Source Code to Materialize Microservice-oriented Architecture
