Program Protection through Software-based Hardware Abstraction

J. Todd McDonald

1 a

, Ramya K. Manikyam

1 b

ebastien Bardin

, Richard Bonichon

and Todd R. Andel

Department of Computer Science, University of South Alabama, Mobile, AL, U.S.A.

Universit

e Paris-Saclay, CEA, LIST, France

Nomadic Labs, France

Keywords:

Software Protection, MATE Attacks, Virtualization, Symbolic Analysis.

Abstract:

Software companies typically embed one or more secrets in their programs to protect their intellectual property

(IP) investment. These secrets are most often processed in code through evaluation of point functions, where

only the correct password, PIN, or registration/activation code will authorize an end-user to legally install or

use a product. Man-at-the-End (MATE) attacks can break assumptions of program security to ﬁnd embedded

secrets because they involve legitimate software owners who have complete access to the software and its

execution environment. In this research, we present a novel approach to software MATE protection that

leverages gate-level hardware representation, namely software-based hardware abstraction (SBHA). As a

new proposed form of virtualization for software protection, SBHA demonstrates a light overhead – especially

compared to much costlier traditional virtualization transformations, while completely defeating almost all

symbolic execution-based attackers that were studied. Overall, SBHA bridges the gap between hardware and

software protection, paving the way for future developments.

1 INTRODUCTION

The software industry is one of the most important

sectors of the global economy and has progressed

tremendously in the past few decades. Intellectual

property (IP) rights are an integral part of the software

industry and have to be properly guarded; losses due

to intellectual property theft can indeed negatively

impact the global economy and even national secu-

rity. Legitimate software companies are faced with a

myriad of attacks such as software piracy

, malicious

reverse engineering and tampering attacks (Falcarin

et al., 2011). These attacks are generalized as Man-

at-the-End (MATE) attacks where the attacker can be

a legitimate end-user and has complete access to the

execution environment (Collberg and Nagra, 2009).

A recent BSA study

placed the global piracy rate at

39% and ﬁnancial losses due to software piracy and

unlicensed software around $52.2 billion, with a sig-

https://orcid.org/0000-0001-5266-7470

https://orcid.org/0000-0002-2328-6705

https://www.manufacturing.net/article/2016/02/

hidden-cost-software-piracy-manufacturing-industry/

https://globalstudy.bsa.org/2016/

niﬁcant impact on the global economy. Hence the

need for software IP protection.

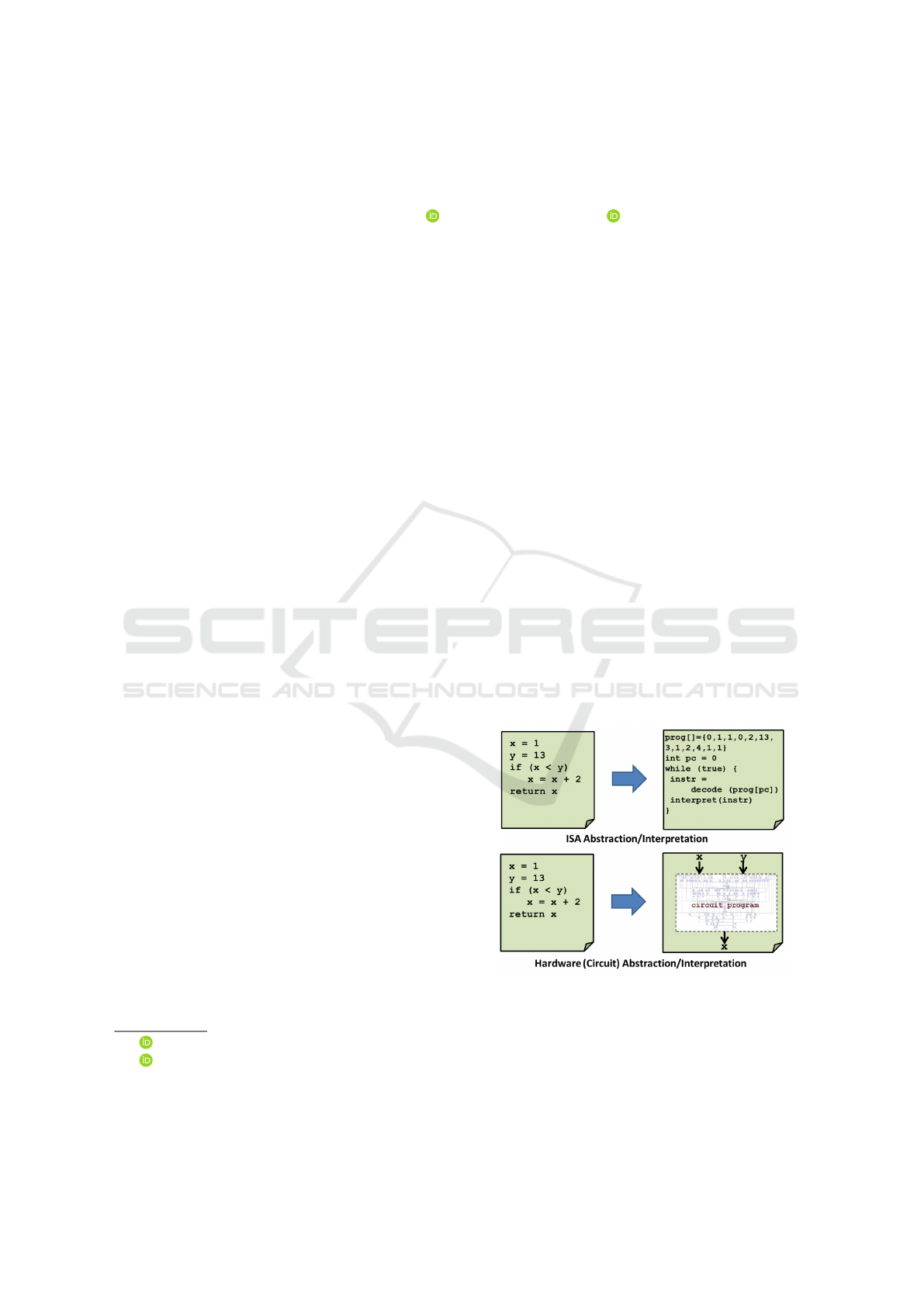

Figure 1: Notional Interpreters for Software Protection.

Software Obfuscation. For companies that cannot

rely fully on IP laws or that prefer a more proac-

tive approach in combating MATE attacks, software

obfuscation offers a technical solution. Apart from

theoretic impossibility limits proving that no general

approach can achieve information theoretic security

McDonald, J., Manikyam, R., Bardin, S., Bonichon, R. and Andel, T.

Program Protection through Software-based Hardware Abstraction.

DOI: 10.5220/0010557502470258

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 247-258

ISBN: 978-989-758-524-1

247

(Barak et al., 2012), practical transformation algo-

rithms that drive up the time and cost required to il-

legally reverse engineer or crack legitimate software

provide the most readily available defense (Schrit-

twieser et al., 2016). Still, recent works (Banescu

et al., 2016; Bardin et al., 2017) demonstrate that so-

called semantic attacks, based on advanced program

analysis such as dynamic symbolic execution (DSE)

(Cadar and Sen, 2013), are highly effective against

conventional obfuscation methods.

SBHA Protections. This paper introduces and evalu-

ates the effectiveness of a novel approach to software

protection, called software-based hardware abstrac-

tion (SBHA), that leverages virtualization of soft-

ware constructs under the form of hardware-like con-

structs to impede reverse engineering or hinder adver-

sarial analysis. Virtualization essentially serves the

role of an interpreter, converting one target program

language into another. Virtual interpreters are often

used in program protection schemes (Cheng et al.,

2019), converting an original program into a new in-

struction set architecture (ISA), and then having the

transformed program act as an interpreter – in our

case a program that behaves like a CPU, but which

has its own instruction set, code and execution stack.

Fig. 1 illustrates a typical ISA abstraction transforma-

tion from code. We leverage the fundamental con-

cept ﬁrst pointed out by (Vahid, 2007) that “every

program can be converted to a circuit and every cir-

cuit can be represented as a program” to implement a

software protection technique called Software-based

Hardware Abstraction (SBHA). We represent embed-

ded program constructs as combinational circuit ab-

stractions, but use software to represent that circuit

logic and execute it (Fig. 1).

Contributions. Our contributions include:

• We propose SBHA as a novel, low-overhead ob-

fuscation technique for transforming point func-

tions in C programs to hardware abstractions

(Sec. 4). SBHA provides a natural framework

where standard software obfuscation can be com-

bined with protections inspired from hardware cir-

cuit obfuscation (e.g., anti-SAT and anti-BDD),

making deobfuscation even more challenging as

it requires a dual software-hardware expertise;

• We demonstrate the dramatic effectiveness of

SBHA against state-of-the-art attacks by DSE en-

gines such as KLEE and Angr (Sec. 5), which had

only 1 success out of 320 test samples, despite a

120 hour time-out per sample;

• We evaluate the resilience (i.e. robustness to ad-

versarial reverse engineering) of SBHA in a com-

prehensive manner against worst-case scenarios in

regards to circuit recovery attacks, compiler opti-

mizations (representing deobfuscating attackers)

and path merging attacks. Adding anti-BDD or

anti-SAT methods from the hardware side dramat-

ically boost resilience here;

• Finally we establish SBHA as a low cost

technique with minimal overhead (Sec. 5) and

medium stealth (given supporting obfuscations)

transformation; our results establish SBHA as a

new form of software virtualization that demon-

strates only 10% runtime overhead, 3.5x source

code and 50% executable code overhead (for point

functions) – compared to much costlier traditional

virtualization.

SBHA uniﬁes two historically disparate research ar-

eas: software obfuscation and hardware (circuit) ob-

fuscation. It provides a bridge to leverage more than a

decade of prior work and integrate the best of both re-

search communities in the context of improving soft-

ware protection, paving the way to completely new

software and circuit protection mechanisms. We pro-

vide additional benchmark data and descriptions at

https://soc.southalabama.edu/

∼

mcdonald/SBHA.

2 MOTIVATION

We detail here our attacker model (Sec. 2.1) and

present a motivating example (Sec. 2.2).

2.1 Attacker Model

We consider the general context of Man-at-the-end

(MATE) attacks (also termed white-box attacks): the

attacker has full access to the code under attack, but

only under its binary form and not as source code,

and seeks to discover program secrets embedded in

binary executable programs. These secrets can take

for example the form of embedded passwords, keys,

PIN codes, etc.

Capabilities. We consider a skilled and economically

motivated adversary (Ceccato et al., 2017), able to

take advantage of state-of-the-art static and dynamic

analysis tools such as decompilers, disassemblers, de-

buggers, tracers, slicers and emulators, among oth-

ers. Yet, this attacker has a limited budget for the at-

tack, and does not have the resource or will to develop

”beyond state-of-the-art” tools. Hence, an effective

strategy for the defender is to design protections mak-

ing manual reverse complicated and at the same time

breaking the best automated known attacks.

Regarding automated attacks, we focus on attack-

ers with the capacity to use dynamic symbolic execu-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

248

tion (DSE) engines (Cadar and Sen, 2013) to leak pro-

gram secrets – the technique has been shown highly

effective for deobfuscation (Schrittwieser et al., 2016;

Banescu et al., 2016; Salwan et al., 2018). Note

that, in practice, DSE tools are correct (every discov-

ered path is actually feasible) but incomplete, for they

can be tricked into missing feasible paths (Yadegari

et al., 2015). Interestingly, our experimental evalu-

ations (Sec. 5) consider some source-level tools as

well, while program analysers on source code are

more precise than on binary code (Balakrishnan and

Reps, 2010). Hence, our experiments favor the at-

tacker even more, and, consequently, strengthen our

protection results.

Program 1: Function with PWD/PIN Checks.

void SECRET(unsigned long input[1],

unsigned long output[1]) {;

char pwd[100] = "";

int failed = 0;

int strCompareResult, pincode ;

pincode = input[0UL];

printf("Please enter password:");

scanf("%s", pwd);

strCompareResult =

strncmp(pwd, "key$", 100UL); //pwd

failed |= strCompareResult != 0UL;

failed |= pincode != 1123UL; //pin

if (failed) { output[0] = 0UL; }

else { output[0] = 1UL; }

}

2.2 Motivating Example

A typical attack scenario consists in recovering pass-

words and speciﬁc triggering input, either for them-

selves or for enabling further progress in the deobfus-

cation process. Let us give an example. Program 1

elaborates the call to a SECRET function contain-

ing a point-function

if-statement check for a pass-

word and activation code entered by the user. Re-

sults by (Banescu et al., 2016) and (Holder et al.,

2017) showed that state-of-the-art (SOTA) tools such

as KLEE

and Angr

can easily recover the expected

secrets of such programs under analysis, even with

a wide assortment of obfuscations from Tigress

and

Obfuscator-LLVM (Junod et al., 2015) applied to the

original program. These studies also showed that the

addition of virtualization would drive up the run-time

cost of KLEE and Angr, but no standard transforma-

tion combined with virtualization would absolutely

defeat the analyses – while yielding a signiﬁcant over-

Function returning 0 or false for all input but one.

https://klee.github.io/

https://angr.io/

http://tigress.cs.arizona.edu/

head to the protected program. For example, (Ollivier

et al., 2019a) report virtualization runtime overhead

as 1.5x increase for 1 level, between 15x and 50x for

2 levels, and between 100x and 1000x for 3 levels

of virtualization. We show in this paper that SBHA

completely defeats symbolic execution from KLEE

and Angr (no recovery of the password within 120h)

in such test programs, for only a negligible runtime

overhead and reasonable 10% code size overhead.

3 BACKGROUND

We provide a brief overview of obfuscation, semantic

attacks and circuit abstractions.

3.1 Program Obfuscation

Obfuscation is a process of altering programs (soft-

ware or hardware) in such a way that MATE attackers

are hindered or prevented from analyzing, altering,

or pirating the program (Collberg and Nagra, 2009;

Collberg and Thomborson, 2002). We can deﬁne an

obfuscator O : P → P as a transformation taking as in-

put a program P and producing a semantically equiv-

alent version P

, such that P(x) = P

(x) for all input x,

and P

is (expected to) be harder to analyze than P.

Given enough time, an obfuscated program can

be reverse-engineered (Manikyam et al., 2016; Barak

et al., 2012; Collberg and Nagra, 2009). In general,

programs are protected because of some inherent se-

cret information contained in them: we deﬁne such

information as a property of a given program (also

known as a program asset(Basile et al., 2019)).

Evaluated Qualities. In their seminal early work on

deﬁning software obfuscation, (Collberg et al., 1997)

identify four key metrics:

M1. Effectiveness: Analysis and modiﬁcation of P

should require more time than for the original

program;

M2. Resilience: The ability to resist adversarial re-

verse engineering. Especially, the protection it-

self should be hard to defeat through automated

means;

M3. Stealth: P

should have the same statistical

properties as the original program;

M4. Cost: The execution time and overhead due to

obfuscation should be minimized.

Especially, effectiveness captures the notion that

good obfuscating transformations should increase re-

sources (e.g., time) required for an analysis technique

or tool to reveal the secret property. In our case, we

focus on the ability of a protection to protect a pro-

Program Protection through Software-based Hardware Abstraction

249

gram against automated semantic deobfuscation tech-

niques, namely symbolic execution.

3.2 Semantic Deobfuscation Techniques

So-called semantic or symbolic deobfuscation tech-

niques rely on advanced (semantic) program analysis

methods such as abstract interpretation (Rival and Yi,

2020) or symbolic execution (Cadar and Sen, 2013)

to overcome or simplify obfuscated constructs within

a protected program. Several existing work have es-

tablished the effectiveness of such methods against

standard protection schemes (Banescu et al., 2016;

Salwan et al., 2018; Bardin et al., 2017), especially

in an interactive attack scenario where the attacker

launches local automated attacks on well-chosen parts

of code. See (Schrittwieser et al., 2016) for a sur-

vey . We focus especially on Dynamic Symbolic Ex-

ecution (Cadar and Sen, 2013), whose ability to com-

bine both the robustness of dynamic analysis (useful

for, e.g., bypass packing or self-modifying code) and

the reasoning-ability of symbolic methods (useful for,

e.g., ﬁnd triggering inputs and cover the path space)

makes it a weapon of choice.

3.3 Hardware and Circuits

Combinational circuits implement Boolean logic

functions directly through a set of potential logic

gates (referred to as the basis set Ω) such as AND, OR,

XOR, NOT , NAND, NOR, and XNOR. Structurally,

circuits can be expressed in a number of ways includ-

ing textually in netlist languages such as BENCH for-

mat (Hansen et al., 1999) and visually in schematic

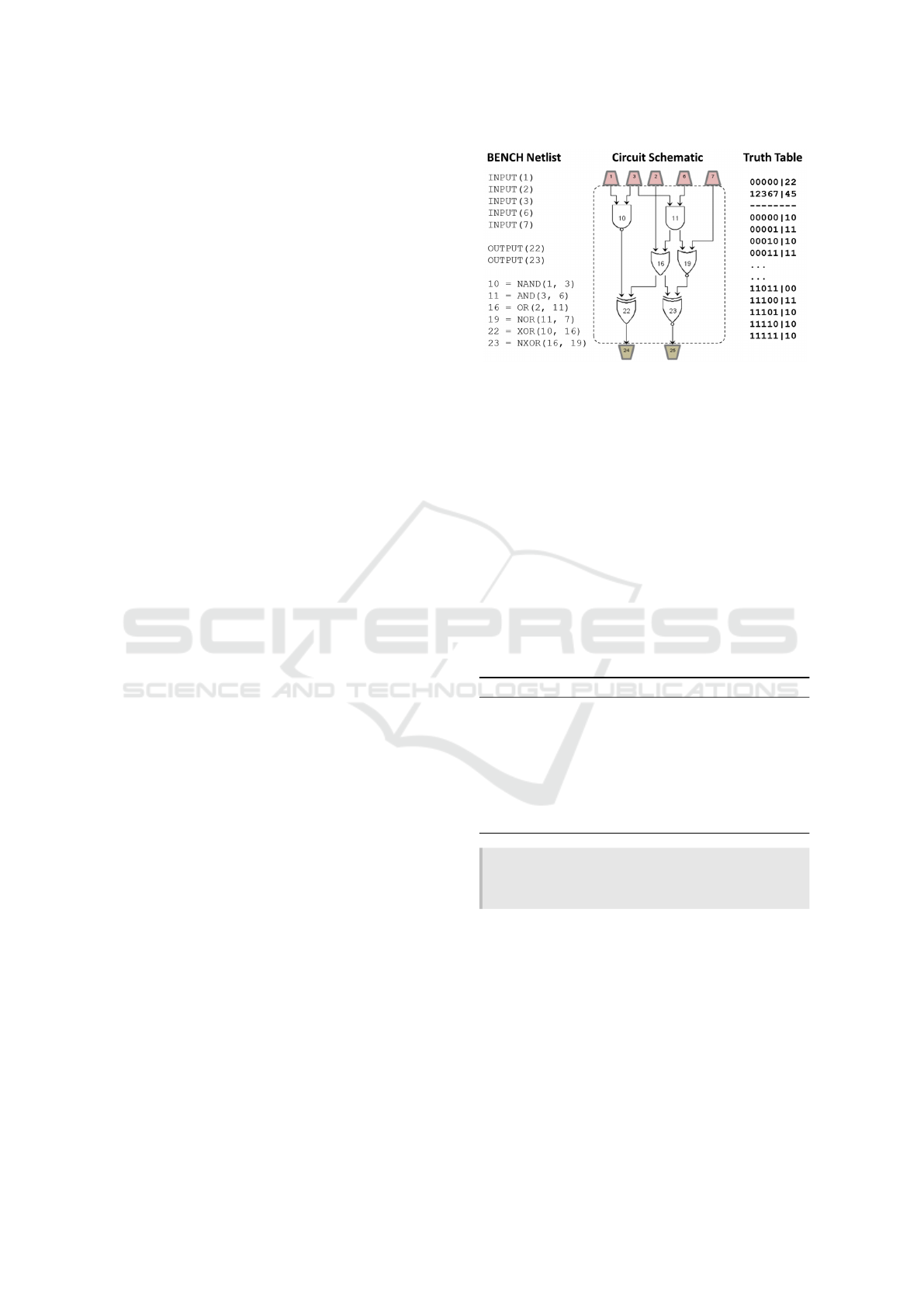

form. Fig. 2 illustrates a small 5 input, 2 output,

6 gate combinational circuit in schematic form with

corresponding BENCH netlist. A semantic truth table

represents the behavior of a n-input, m-output circuit

where a vector of input bits derives a vector of out-

put bits, corresponding to a set of Boolean functions

: B

→ {0, 1}, where i = 1..m (De Micheli, 1994).

Each row of a truth represents one of the 2

input vec-

tors and its corresponding output vector, with a subset

of I/O vectors illustrated in Fig. 2.

4 SOFTWARE-BASED

HARDWARE ABSTRACTION

To introduce software-based hardware abstraction

(SBHA) and evaluate its potential as a software pro-

tection technique, we ﬁrst examine its usefulness in

protecting point functions which are commonly used

Figure 2: Equivalent Circuit Representations.

to protect program access to only authorized, legiti-

mate end-users. Point functions typically are condi-

tional constructs in software. In this section, we pro-

vide a simple walk-through to illustrate the transfor-

mation process using C (source) to C (source). Basic

SBHA transformation requires three steps:

1. Given a program P in source code form, ﬁrst iden-

tify the relevant point function software construct.

2. Virtualize the software construct into a semanti-

cally equivalent Boolean logic form, then synthe-

size it into a combinational logic circuit (C).

3. Implement the hardware construct (C) into source

code form and replace it in the original program,

creating an SBHA variant P

Program 2: 1-Char Password C Program.

int main( int argc, char *argv[] ) {

int compareResult = strncmp(argv[1], "%", 1);

if (compareResult != 0) {

printf ("0"); exit(-1);

}

else {

printf ("1"); runprogram();

}

Companion material with program code listings

and the full set of benchmarks is located at https:

//soc.southalabama.edu/

∼

mcdonald/SBHA.

4.1 Basic Algorithm

As an example, we illustrate a C program that takes

as input a 1-character password, seen in Program 2.

The program checks to see if the password matches

and outputs 0 then exits if it does not, and otherwise

outputs 1 and performs the remainder of the program

functionality otherwise. This example is abstract in

the sense that normally passwords are veriﬁed against

cryptographic hashes, but nonetheless, only the cor-

rect password will allow the program to run correctly.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

250

Given a software construct, such as an if-then-

else point function, a corresponding truth table or

Boolean function can be used to represent the seman-

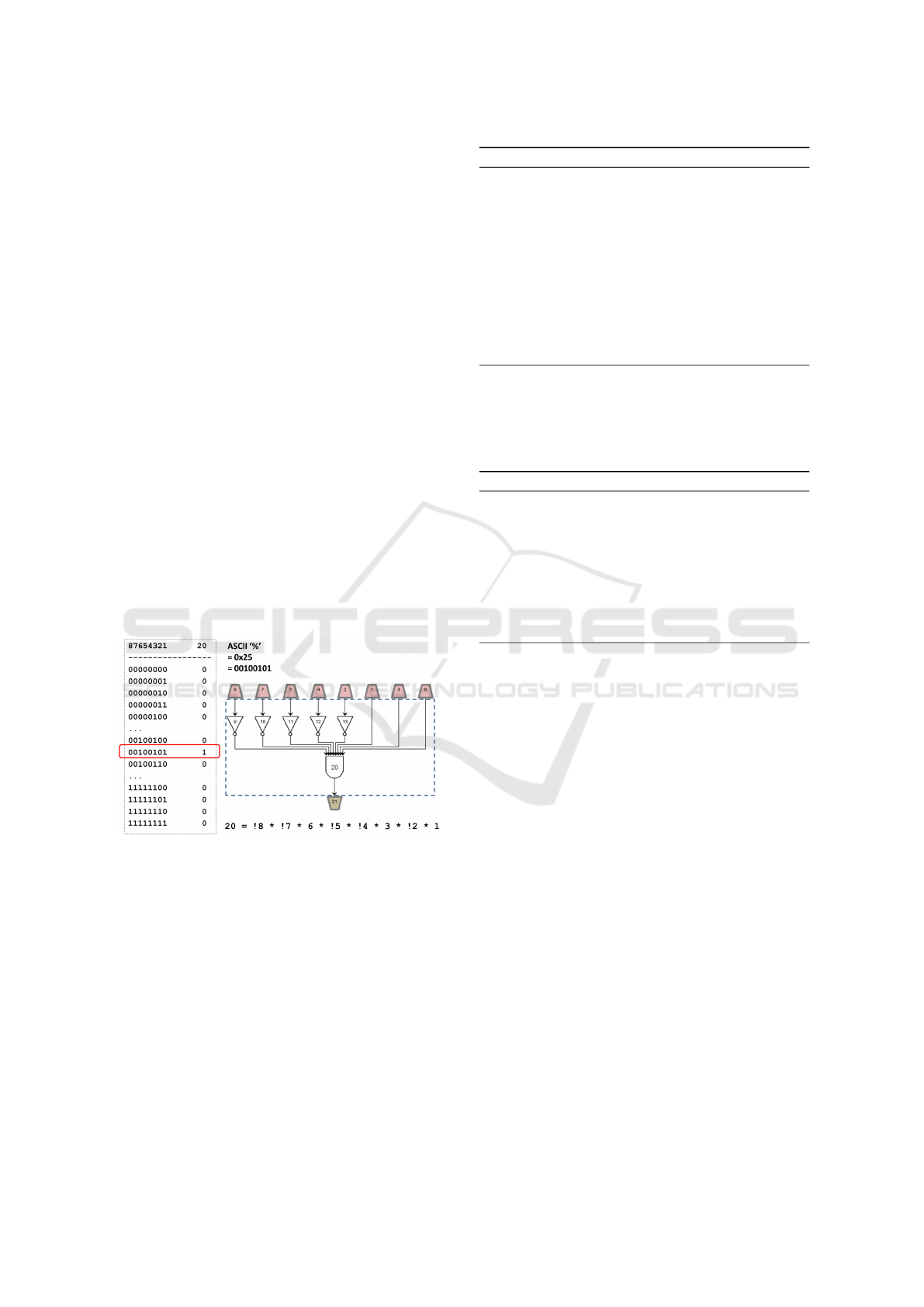

tics of the construct. Fig. 3 illustrates 1. the corre-

sponding truth table; and 2. the corresponding circuit

structure/netlist that implements the function embod-

ied by the conditional statement of Program 2. From

a Boolean function or truth table, a circuit structure

can be derived using Sum-of-Products (SOP or dis-

junctive normal form) or Product-of-Sums (POS or

conjunctive normal form) synthesis. In the exam-

ple program, only one input (the ASCII character %)

produces true ASCII characters are 8-bit values:% is

0x25. or 0b00100101. In essence, the software con-

struct for the conditional statement can be represented

as a 8-input/1-output combinational circuit. Fig. 3

shows that the SOP form of the truth table is directly

translated into a circuit. For each minterm or product

term (an input that produces a 1 output), the circuit

has an AND gate (a Boolean product) with inverted

inputs (NOT gates) for each 0 bit and normal inputs

for each 1 bit in the input vector. Since point functions

have only one minterm, there is a single AND gate

in the circuit. In SOP form, 0b00100101 translates

to !8 * !7 * 6 * !5 * !4 * 3 * !2 * 1, where

numbers correspond to numbers of input signals, and

! to inverted input values.

Figure 3: Circuit for Checking Character %.

Given the circuit (C) that represents the function

of the software construct embodied in program P,

SBHA then translates this back into software form

to produce the variant P

. To accomplish this,

we created and used a custom Boolean logic library

(logiclib) that has corresponding C code for each

logic gate type. For gates with fan-in greater than 2,

there are functions allowing the evaluation of multiple

(more than 2) inputs. In the C program, Boolean val-

ues correspond directly to the logic values computed

by functions of Boolean logic gates found in a circuit

structure.

The translation of the circuit results in C code

that is now semantically equivalent to the conditional

Program 3: SBHA Point Function Program.

void runcircuit(bool input[], bool out[]) {

bool v8 = input[0], v7 = input[1],

... v2 = input[6], v1 = input[7];

bool v9 = not(v8), v10 = not(v7),

v11 = not(v5), v12 = not(v4), v13 = not(v2);

bool v20in[8];

v20in[0] = v9; v20in[1] = v10;

v20in[2] = v6; v20in[3] = v11;

v20in[4] = v12; v20in[5] = v3;

v20in[6] = v13; v20in[7] = v1;

v20 = andmulti(v20in,8);

out[0] = v20;

}

statement in the original program. Program 3

shows the equivalent C code, embodied in a function

runcircuit. Input and output takes the form of bool

arrays, with the encoding of the circuit directly repre-

sented by logiclib functions.

Program 4: Final SBHA Variant Code.

int main( int argc, char *argv[] ) {

bool circuitinput[8];

bool circuitoutput[1];

convertString(argv[1],circuitinput,1);

runcircuit (circuitinput, circuitoutput);

if (circuitoutput[0]) {

printf ("0"); exit(-1); }

else {

printf ("1"); runprogram(); }

}

In order to utilize the runcircuit function, the

original character input of the C program must be

converted into a Boolean value array representation.

We accomplish this translation using a conversion

function that takes as input the original character

string variable (here argv[1]) and the input size in

characters (in our example, 1 character), and initial-

izes a provided Boolean array with the correspond-

ing ASCII bit values of the corresponding character

string. Program 4 shows the corresponding C code for

input conversion in our example program. The SBHA

transformation is thus a source-to-source translation

that virtualizes software constructs in program P and

produces a variant P

that is semantically equiva-

lent. As Program 4 illustrates, the output of the SBHA

virtualization can be directly used to provide support-

ing functionality consistent with the original code.

4.2 Extended Algorithm

The basic SBHA algorithm involves the straight trans-

lation of software constructs into hardware equivalent

forms, while still retaining software source code rep-

resentation. In this paper, we answer partially the

ramiﬁcations of hardware-based virtualization on tra-

ditional program analysis tools and techniques where

Program Protection through Software-based Hardware Abstraction

251

SBHA performs a straight translation of point func-

tions in the standard three step process P → C → P

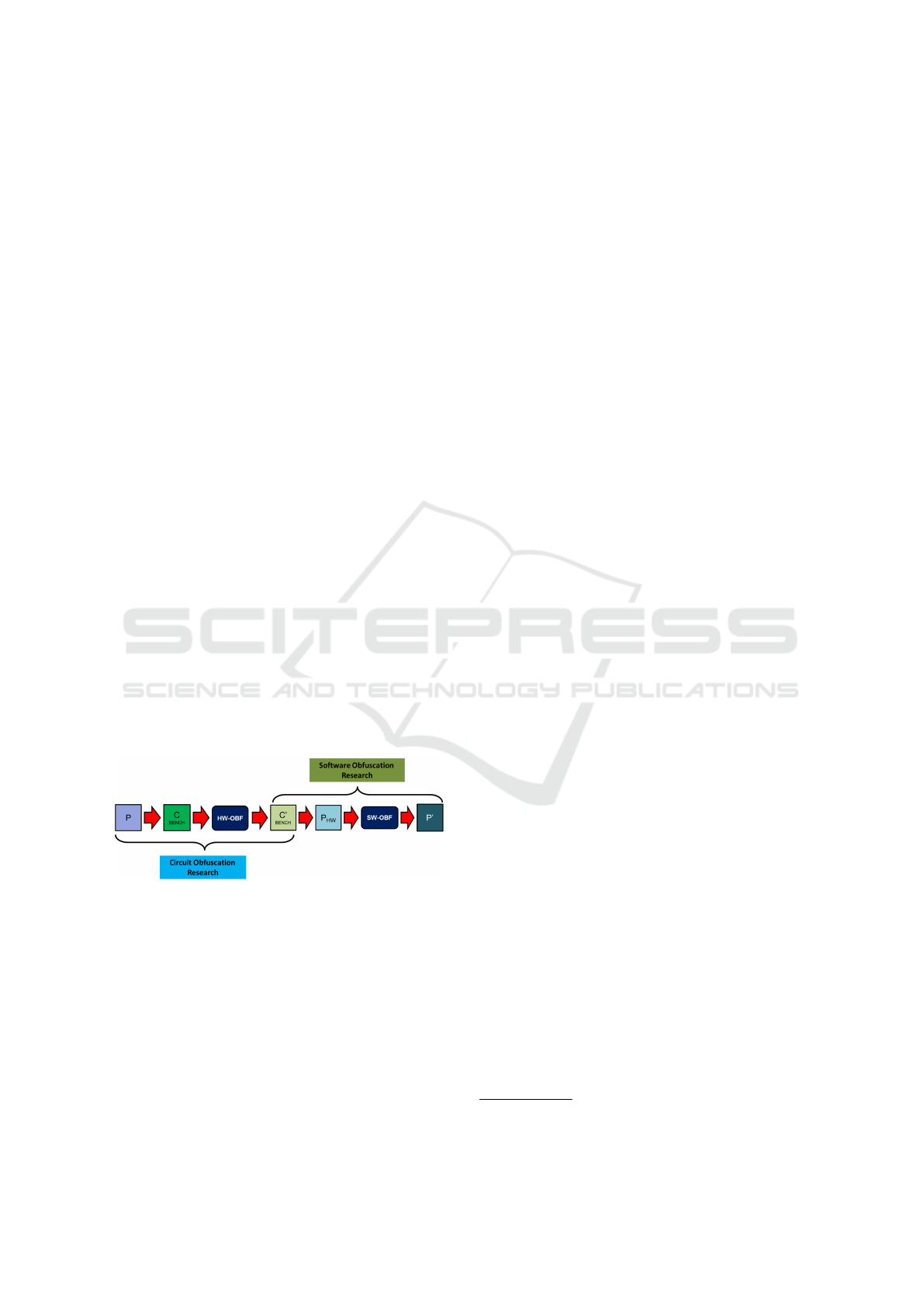

Fig. 4 illustrates how SBHA will bring uniﬁcation

of two disparate ﬁelds of research: circuit/hardware

(HW) obfuscation and software (SW) obfuscation.

We analyze ﬁrst the effects of standard SBHA, but

also consider the possibility that 1) the hardware

netlist representation (C) can be further transformed

via gate-level circuit obfuscation algorithms (to pro-

duce variant C

) and 2) the SBHA source variant

) can be further transformed via software obfus-

cation algorithms to produce a ﬁnal variant P

. Hard-

ware speciﬁc protections include:

1. Anti-BDD: one of the basic adversarial tech-

niques is to use Binary Decision Diagram (BDD)

reduction to express logic components into com-

pact functional representations. However, BDD

complexity and construction overhead (Woelfel,

2005; Beyer and Stahlbauer, 2014) depends on

the structure of the underlying circuit, and thus

avails itself to countermeasures. Our anti-BDD

technique uses multiplier circuit constructs known

to have an exponential lower bound for BDD en-

coding (Bryant, 1991; Woelfel, 2005);

2. Anti-SAT: a well-known technique in hardware

deobfuscation is the use of (Boolean) Satisﬁabil-

ity Solvers (SAT-solvers) for representing logic

networks to ﬁnd reduced functional expressions or

solve unknown values. Our anti-SAT algorithm is

based upon (Subramanyan et al., 2015)’s, which

was suggested as a possible means to improve re-

sistance to logic encryption attacks ((see technical

report mentioned Page 4 for more details).

Figure 4: Extended SBHA Implementation.

SBHA stands alone as a new form of obfuscat-

ing transformation, but has a higher potential for re-

silience and stealth when combined with both SW and

HW obfuscations. We discuss our evaluation method-

ology and key metrics for SBHA next.

5 EXPERIMENTAL EVALUATION

We seek to experimentally assess the four following

Research Questions:

RQ1. What is the effectiveness of SBHA transforma-

tions against DSE attacks?

RQ2. What is the resiliency of SBHA transforma-

tions against adversarial reverse engineering?

RQ3. What is the stealth of SBHA transformations

when used in typical code?

RQ4. What is the cost (runtime and code size) over-

head induced by SBHA transformations?

5.1 Computing Environment

We developed a custom virtualized container-

based tool named Argonhttps://github.com/elm3nt/

argon-cli which contains KLEE version 2.0 and Angr

version 8.19.4.5. Experiments for RQ1 were exe-

cuted using a dense memory cluster (DMC) provided

by the Alabama Super Computing Center

. Most ex-

periments were performed with a 2.1 GHz Skylake-

SP processor, 6TB RAM, and 18 cores. Other experi-

ments were done on a Dell Precision T5600 worksta-

tion with 2 Intel Xeon E5-2630 processors (6 Core

2.2GHz) and 128GB RAM, running Linux Ubuntu

14.04 in a Docker container under Windows 7.

5.2 Benchmarks

Our experiments use two sets of benchmarks, one

from the literature and another that we created.

Phase Ordering. This set comprises the 6 original

programs from (Holder et al., 2017), and then we ap-

plied Tigress transformations by single type (abstract,

control, data) on the 6 target programs one at a time,

followed by application of all permutations of the ob-

fuscation types (abstract, control, data), and ﬁnally,

virtualization applied in combination with each per-

mutation resulting in 21 different sequences of trans-

formations. This resulted in 126 obfuscated programs

plus the 6 original, for a total of 132 sample programs.

Tigress Pass/Code. This set includes 288 programs

we created: 16 generated with the random program

option from Tigress with a single password check

ranging from 1 to 16 characters, 16 programs with

single PIN code with size ranging from 1 to 16 digits,

and 256 programs with both password and PIN rang-

ing from 1 to 16 characters and digits each.

5.3 Effectiveness (RQ1)

Methodology. We repeat the experimental analy-

sis of (Holder et al., 2017) and extend their results

by analyzing the Phase Ordering Benchmarks us-

http:/www.asc.edu

SECRYPT 2021 - 18th International Conference on Security and Cryptography

252

ing both KLEE and Angr. Our results produce dif-

ferent (longer) times than reported by Holder et al.

(mainly due to a difference in Tigress version as we

used version 2.2), but still conﬁrm that no sequence

of obfuscation types from Tigress could effectively

prevent the recovery of the embedded program se-

cret/property (password or PIN code). Most trans-

formation sequences increase analysis time but some

are ineffective, requiring roughly the same amount of

analysis time on the unprotected original programs,

and some even defective, actually reducing the analy-

sis time. Full data can be found in the technical report

and benchmarks (URL given Page 4). In summary,

regarding our 132 test programs, KLEE and Angr ﬁn-

ished analysis in all experiments with a max runtime

of 9935 seconds (2.75 hours) for Angr and 42 seconds

for KLEE. In all cases, KLEE and Angr revealed the

embedded secrets (password and PIN) of the sample

program (132/132 attack successes for each tool).

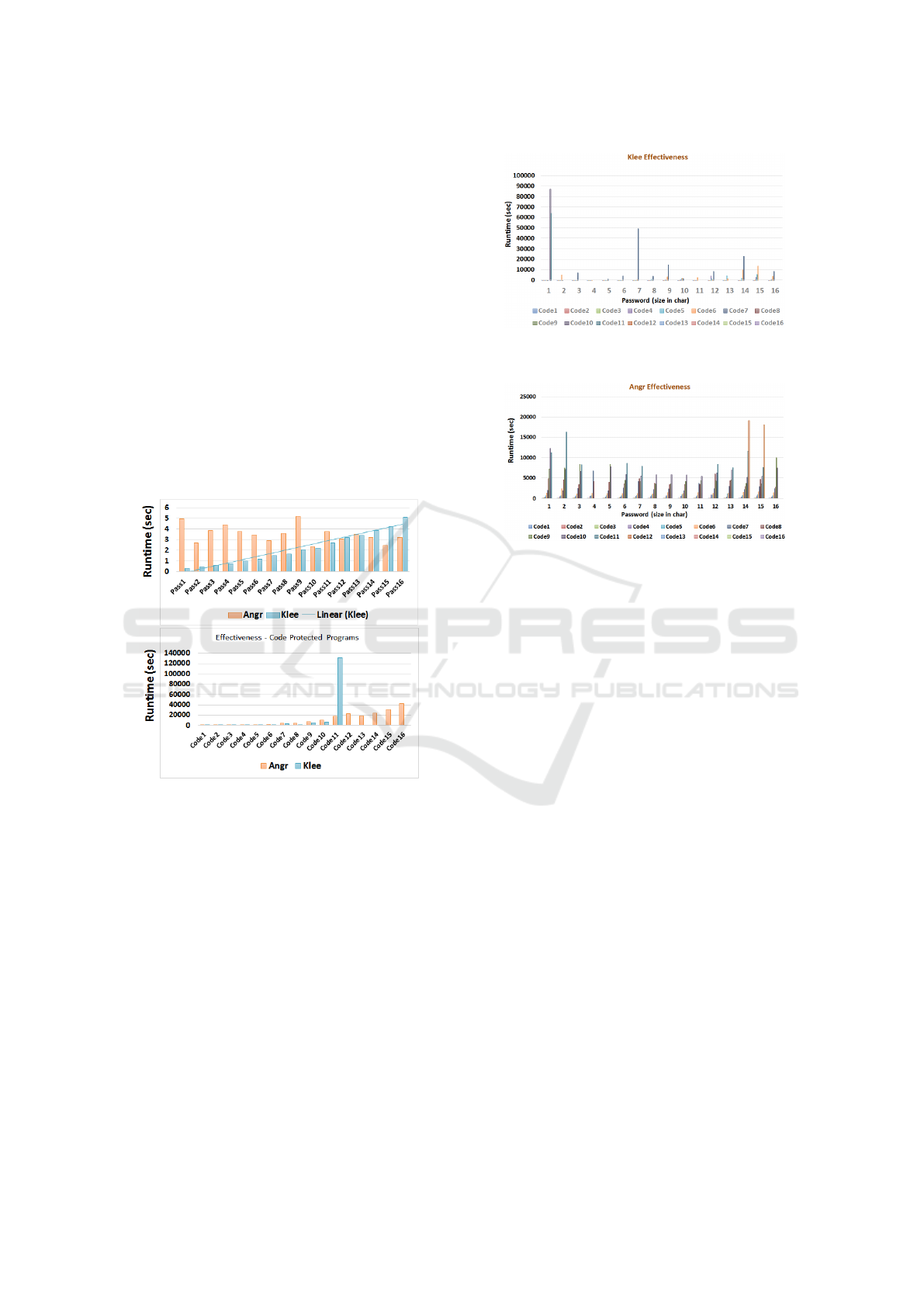

Figure 5: Tigress Pass/Code Only Benchmarks analysis.

We also evaluate the unobfuscated programs in the

Tigress Pass/Code Benchmark set using KLEE and

Angr. Fig. 5 to 7 illustrate the overall results of the

study. Tabular results of the data are provided in the

separate technical report and benchmarks (mentioned

in Page 4). We were able to retrieve the password

from all single password programs (Pass1-Pass16) us-

ing both Angr and KLEE within 5 seconds. For single

PIN code programs, Angr is able to retrieve the code

from all the programs (code1-code16) whereas KLEE

only retrieves code from a portion (code1-code11).

Angr takes up to 42950 seconds (11.9 hours) and

KLEE. 131190 seconds (36.4 hours). On average, the

mean time to crack for Angr was 3.55 sec for pass-

words and 11,908 sec for passcodes; for KLEE it was

2.17 sec for passwords and 13,485 sec for passcodes.

The minimum time for Angr was 2.39 and 26.5 secs

Figure 6: Tigress Pass/Code Combined Benchmarks analy-

sis.

Figure 7: Tigress Pass/Code Combined Benchmarks analy-

sis.

for passwords and codes; the min time for KLEE was

0.36 and 1.85 for passwords and codes. We allowed

a timeout of 120 hours for both KLEE and Angr in

failure cases.

For programs that had both password and PIN

code, Fig. 6 and 7 shows results for KLEE and Angr

analysis. Tabular results are provided in a sepa-

rate technical report. We evaluated 288 unprotected

samples in 576 experiments; for password and code

only programs Angr leaked the password in 32 of 32

cases, KLEE leaked the password in 27 of 32 cases;

for combined pwd/pin programs, KLEE leaked both

pwd/pin in 120 of 256 cases and Angr leaked both

pwd/pin in 169 of 256 cases. We allowed a timeout of

120 hours for both KLEE and Angr in failure cases.

Angr had a maximum analysis time of 5.3 hours and

KLEE had a maximum analysis time of 79.3 hours.

KLEE and Angr achieves high attack success rates

(resp. 142/288 and 201/288).

Results with SBHA. We apply SBHA to all programs

in the Phase Ordering Benchmark set, on top of 12

out of each 22 obfuscated variants and each original

program: we could not create the remaining variants

as the obfuscation transformations generated by Ti-

gress did not allow precise location of the point func-

tion. The 39 variants (13*3) were analyzed with both

Angr and KLEE, with a timeout of 120 hours for every

sample ﬁle analyzed. In summary, adding SBHA on

top of existing transformation sequences in the Phase

Program Protection through Software-based Hardware Abstraction

253

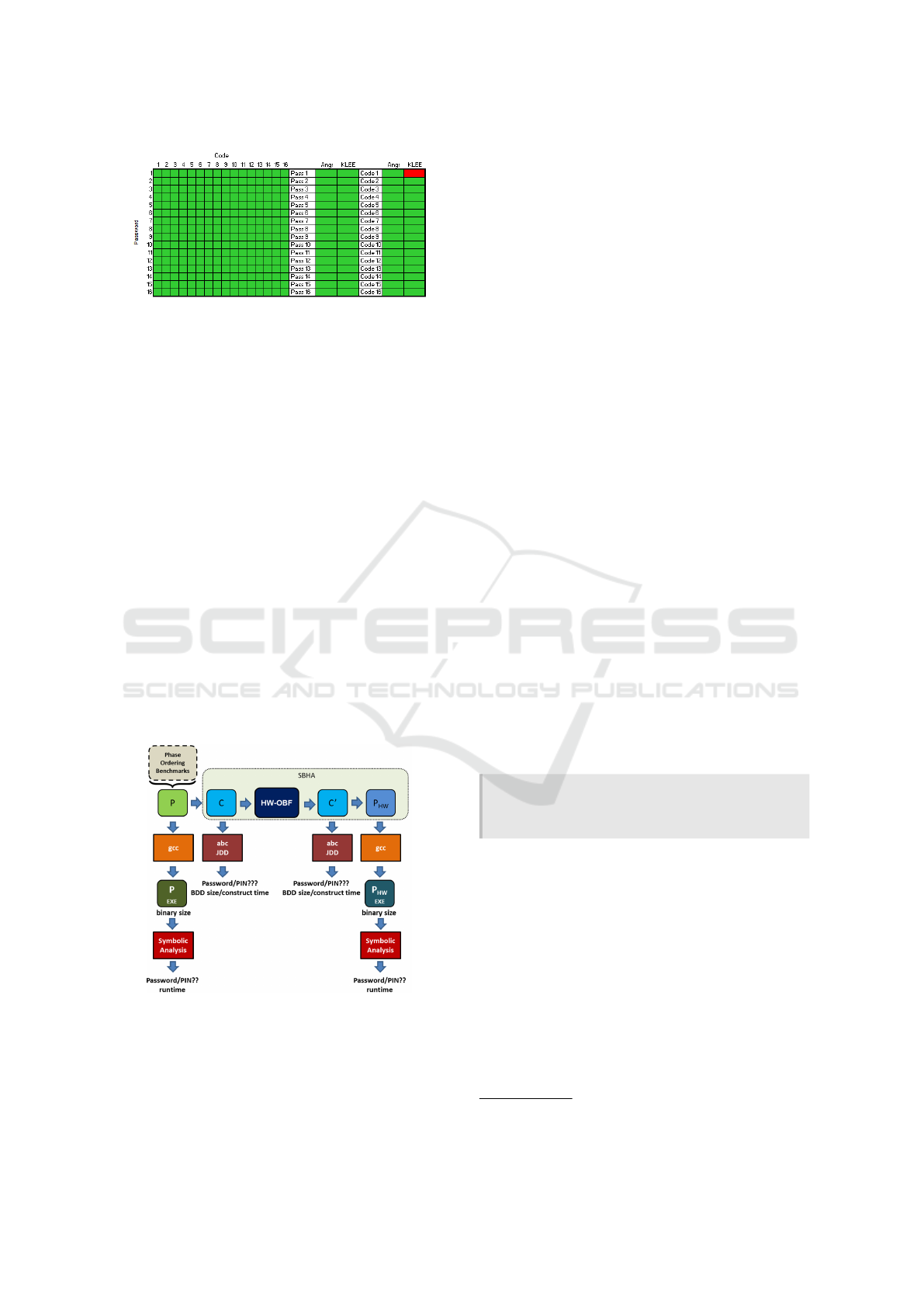

Figure 8: SBHA Effectiveness against Angr/KLEE.

Ordering Benchmark resulted in a complete defeat

of the attacker tools Angr and KLEE (no attack suc-

cess, 0/39 for both tool). Similarly, for the Tigress

Pass/Code benchmark set no analysis retrieved either

the single password, single PIN code, or combined

password/PIN from any of the SBHA variants, ex-

cept for KLEE recovering the single digit PIN code

from the PIN code-only set of SBHA transformed

programs, as Fig. 8 illustrates. In summary, we ana-

lyzed 288 SBHA-only protected programs with KLEE

and Angr; KLEE and Angr were given a 120-hour

timeout period; for both tool the attack succeeded

only in 1/288 case, which was a single-password pro-

tected program with a 1 character password.

RQ1 Conclusion. SBHA is extremely effective

against DSE attacks. Indeed, both Angr and KLEE

were unable to retrieve passwords from any but one

(1/327) of the protected variants including the SBHA

version of the original programs (despite a huge 120h

time-out per sample), where these tools recover a sig-

niﬁcant part of the passwords without SBHA (KLEE:

181/327, Angr: 240/327).

Figure 9: Evaluation Case Study for Resilience.

5.4 Resilience (RQ2)

Methodology. We measure the strength of SBHA ob-

fuscation transformations against simpliﬁcation or de-

obfuscation in the following 3 manners.

Since Tigress programs are C source code, we

used GCC optimization levels to gauge how much

code is reduced by the compiler, as an indication of

how much obfuscated code is reduced.

Assuming that an attacker could successfully re-

cover the circuit netlist from the application bi-

nary code, we utilize two tools (ABC (Brayton and

Mishchenko, 2010) and JDD

) to evaluate whether

circuit-based analyzers can recover the embedded

password from the circuit itself. Fig. 9 illustrates our

evaluation framework for resilience.

SBHA can be used to target the path explosion

weakness inherent in typical DSE engines. However

advanced DSE somewhat counters that explosion by

using path merging (Kuznetsov et al., 2012). We ap-

proximate path merging attacks by evaluating SBHA

C programs where Boolean operators (!, k, &&) are

used instead of conditional statements, as seen in the

example code in Program 3.

Compiler Optimizations. We use GCC optimization

levels (0, 1, 2, 3, s, fast) to estimate both resilience

and overhead. An optimizing compiler like GCC can

be seen as a basic adversarial attacker that would de-

obfuscate an obfuscated program by optimizing away

the included protections. We transformed the origi-

nal 6 Phase Order Benchmark programs with SBHA,

compiled them under the 6 different GCC optimiza-

tion levels, and then analyzed the 36 program using

Angr. After 120 hours of computation for each vari-

ant, the tool still found no solution. We thus claim

that SBHA abstractions are resilient to compiler op-

timizations since they do not improve analysis by an

automated adversarial tool like Angr. Additional de-

tails can be found the companion technical report.

Optimizations refactor logic circuit abstraction

code into different instructions, but do not opti-

mize netlists enough to thwart the protection.

Circuit Recovery Attacks. We now turn to evaluat-

ing the resilience of our circuit netlists against adver-

sarial analysis (see Fig. 9 for a summary). We assume

that our adversary has recovered the circuit netlist:

can they retrieve the original point function from that

representation? Since the hardware abstraction uses a

circuit netlist to represent the conditional point func-

tion check, we assumed that an adversary would re-

cover some form of the circuit netlist from the binary

code. For analyzing resilience, we used ABC and

JDD as two representative tools that can be used to re-

cover the point (password) from the netlist once it is

recovered. We applied both anti-SAT and anti-BDD

https://bitbucket.org/vahidi/jdd/src/master/

SECRYPT 2021 - 18th International Conference on Security and Cryptography

254

transformations (as explained in Sec. 4.2) to repre-

sentative SBHA point function netlists to characterize

the success of attacks using these tools.

We ﬁrst generated point-function circuits with in-

put size as low as 8 bits (1 character) up to 14000

bits (1750 characters): ABC was able to return a PLA

deﬁnition of every circuit between 1 and 35 seconds,

where the PLA reveals the single input required to

produce a 1 (or true) for the circuit. JDD was able to

produce a ROBDD for every circuit as well for every

point function circuit, and the ROBDD directly shows

the point (sequence of inputs) that would produce the

true result of the circuit.

We applied anti-SAT transformations to the Ti-

gress Pass/Code benchmark circuits produced during

SBHA transformation and evaluated those in the same

manner. Our anti-SAT transformations caused ABC

to fail to produce a PLA, even on the lowest sized

point-function circuits (1 character or 8 bits). Like-

wise, the anti-BDD transformation caused JDD to fail

to create a BDD (heap and stack overﬂows based on

memory) for the same, including the lowest point-size

function (1 character or 8 bits). Our analysis indicates

that both of our anti-SAT and anti-BDD approaches

provide high resilience against the two circuit based

analysis tools that we studied.

SBHA equipped with anti-SAT and anti-BDD

transformations is resilient to circuit recovery

attacks.

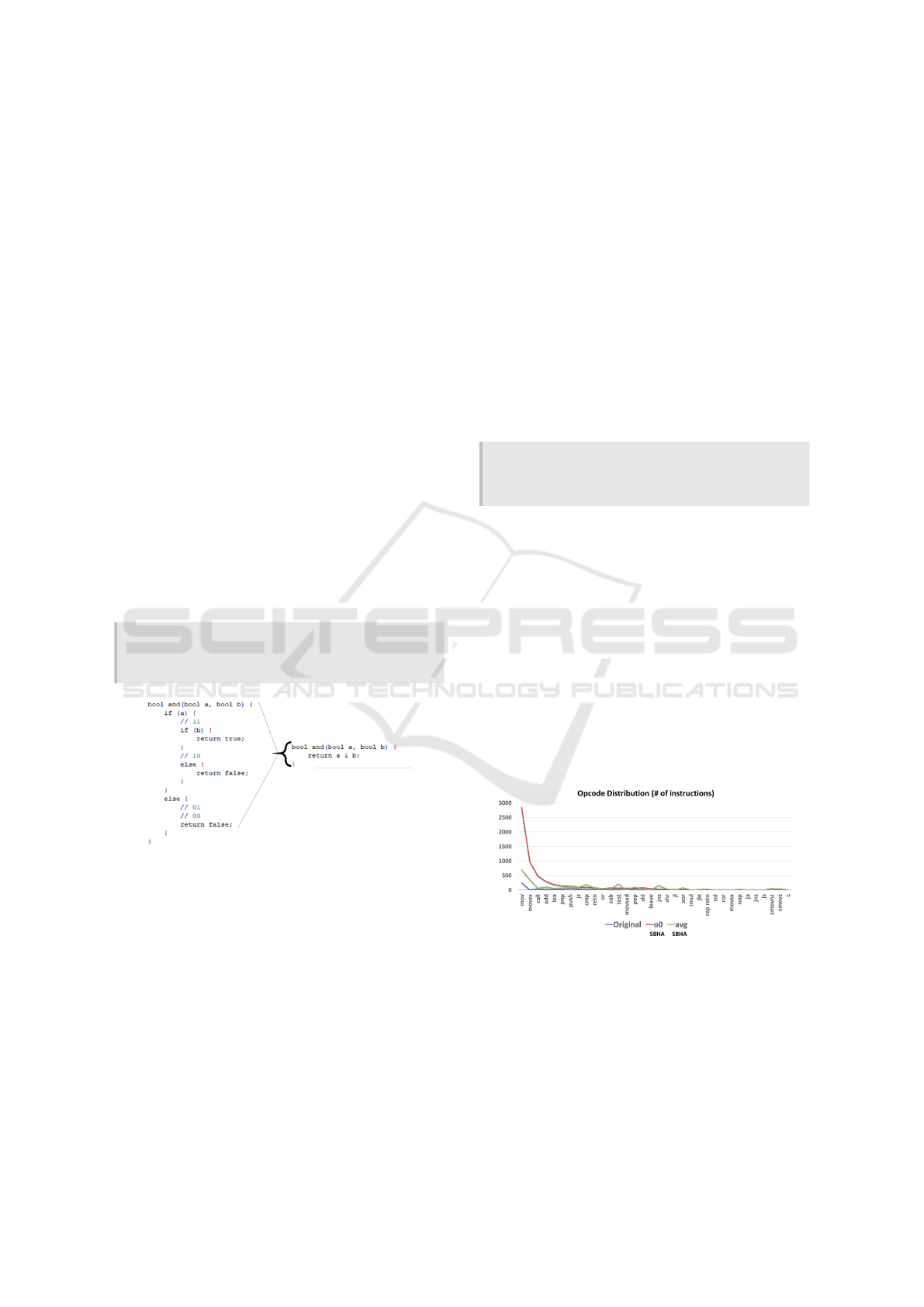

Figure 10: Path Merging Boolean Library.

Path Merging Attacks. Fig. 10 shows snippets from

the Boolean code library used to simulate a path

merging attack, showing the reduced form of the

AND or OR functions in C code. By splitting op-

erators and getting rid of IF statements, we are essen-

tially getting rid of paths taken in the code, which is

equivalent to what an optimizing DSE engine would

do to counter path explosion. In this regard, we

are experimenting with a worst case attack, where

other forms of obfuscation of the Boolean library it-

self (many different alternate forms for each Boolean

logic function in C code, obfuscating the Boolean data

type itself, etc.) have failed and the reverse engi-

neering has achieved path merging (Kuznetsov et al.,

2012).

We ﬁrst tested the 8 character password-only pro-

gram that simulates a path-merging attack (Fig. 10)

using KLEE and Angr. KLEE failed to return a pass-

word in 24 hours while Angr cracked the 8 character

password in ≈ 1 hour computation time for the same

sample. Nonetheless, 1 and 2 character password sim-

pliﬁed SBHA C programs with circuit-based counter-

measures for the point function resisted against KLEE

and Angr runs during 24 hours (a descriptive ﬁgure

for anti-SAT blocks is provided in the technical re-

port). This result illustrates that a worst-case path-

merging attack requires additional protective mea-

sures, which, when added, can effectively counter the

initial attacker.

Path-merging can somewhat threaten SBHA,

but this can be recovered by adding (HW-

inspired) anti-SAT and anti-BDD techniques.

RQ2 Conclusion. SBHA offers high resilience to

compiler optimizations, and high resilience to circuit

recovery attacks and path-merging techniques when

equipped with HW-inspired protections.

5.5 Stealth (RQ3)

Methodology. Our approach is two-fold: 1) we

use the MOSS program similarity checker (Schleimer

et al., 2003) to see the similarity between the original

programs and obfuscated variants, and 2) we com-

pute op-code distributions of the original versus ob-

fuscated programs. We use programs in the Phase Or-

dering Benchmark set to analyze stealth.

Figure 11: Comparative Opcode Analysis.

Results. Fig. 11 provides an appropriate view on how

well SBHA code blends into existing code. SBHA

is not stealthy because circuit abstractions are un-

usual w.r.t. other surrounding code. Our comparison

of original point function programs to SBHA trans-

formed executables show that certain opcodes provide

a signature for the presence of SBHA (mov, movzx for

Program Protection through Software-based Hardware Abstraction

255

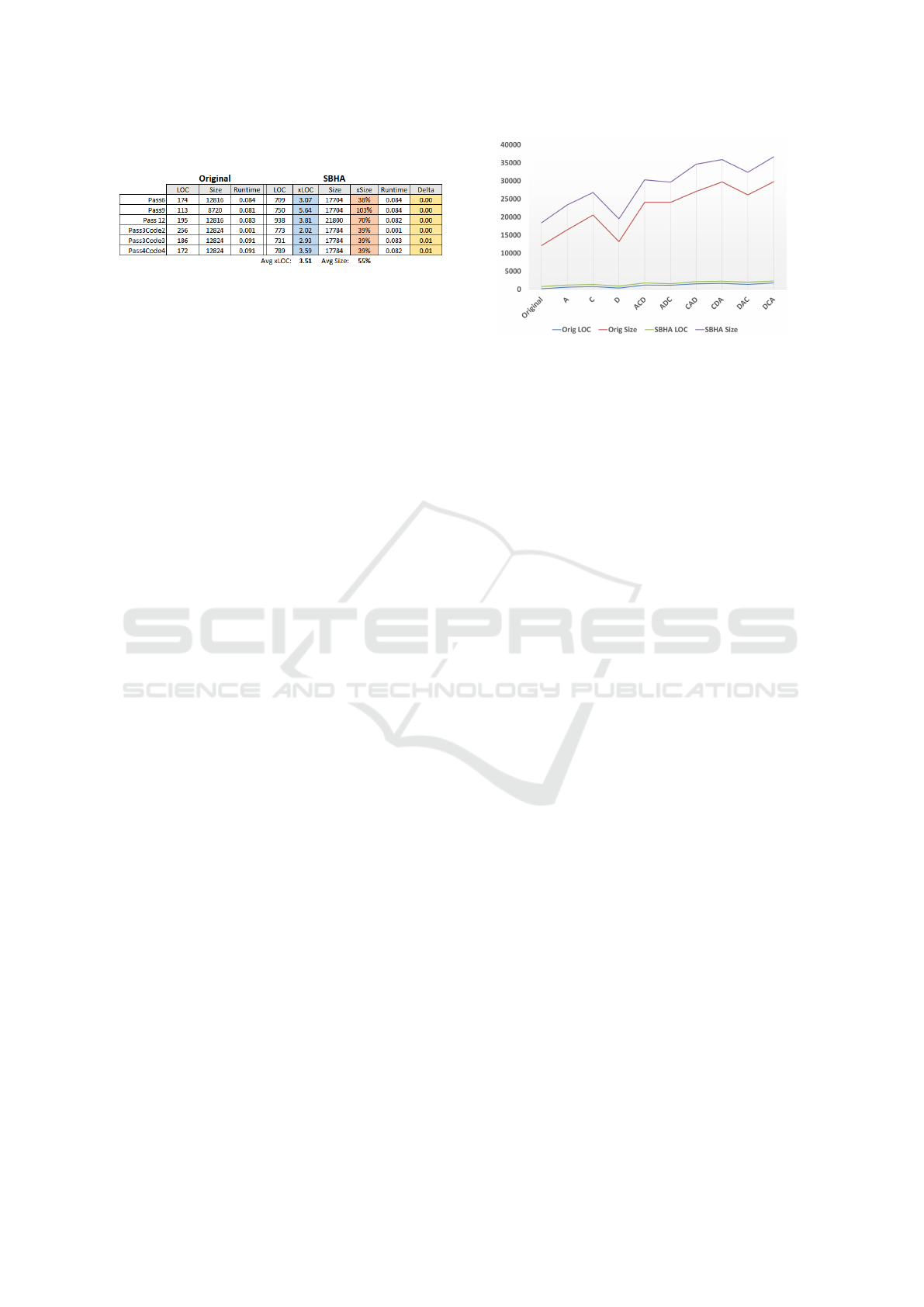

Table 1: Overhead Analysis: Original vs SBHA.

example). Applying SBHA consistently across other

code constructs than point functions in a target pro-

gram would certainly help in hiding its presence to

protect the identiﬁed program assets.

RQ3 Conclusion. SBHA alone does not have good

stealth, because the presence of a custom Boolean li-

brary and an embedded circuit deﬁnition are tell-tale

indicators of SBHA use. Using SBHA in conjunc-

tion with other traditional software-based obfuscating

transformations can normalize the presence of SBHA

code. Likewise, using SBHA in multiple locations

throughout the code would at least normalize the pres-

ence of SBHA-based statements, but requires trans-

formation of general program code sequences.

5.6 Cost (RQ4)

Methodology. We calculate cost in terms of source

lines of code (LOC), memory overhead, and exe-

cution time overhead of the SBHA obfuscated pro-

grams. We used the Phase Ordering Benchmark set to

estimate cost.

Results. Table 1 provides a summary of the key met-

rics (LOC, size, runtime) between original programs

and SBHA variants. Fig. 12 shows further analysis

of with executable size and LOC with Tigress obfus-

cations added. Virtualization techniques are usually

very expensive, both in terms of code size increase

and runtime penalty (Ollivier et al., 2019b). SBHA

does not suffer as much from these known drawbacks.

Runtime difference of executables is low: we record

a maximum of 0.01 seconds (10%) between original

and SBHA variants. Since the programs evaluated

were only authentication based, the overhead repre-

sents a pure assessment of SBHA. Source lines of

code (SLOC) provide a measure of overall code in-

crease, with 3.5× average overhead for SBHA trans-

formation (min 2.02×, max 5.64x× ). SLOC and ex-

ecutable size have a mostly linear relationship. Exe-

cutable size at the unoptimized compilation level in-

creases ≈ 55% onaverage, with a minimum of 38%

and maximum of 103%.

Fig. 12 shows extended analysis of SBHA vari-

ants that were further obfuscated using Tigress trans-

formations (A, C, D, ACD, ADC, CAD, CDA, DAC,

Figure 12: Code Size Analysis With Tigress Obfuscation.

DCA). In these cases, we chose to do SBHA transfor-

mation after Tigress was applied, and therefore virtu-

alized versions were not considered. Overall, SBHA

provides a predictable constant increase in LOC and

binary executable size (in bytes). The results illus-

trate the varying overhead of various combinations

of Tigress obfuscations, but a constant overhead from

SBHA included.

RQ4 Conclusion. SBHA is a low-cost transforma-

tion for point-function constructs, even more so for a

virtualization techniques. Based on observed data, we

surmise that SBHA is a cheap (linear) transformation,

based on Collberg et al. scale (Collberg and Nagra,

2009).

6 RELATED WORK

Protections against dynamic symbolic execution

(DSE) have been well studied in the last decade, as

well as proposed techniques to protect point func-

tion constructs in particular. (Schrittwieser et al.,

2016) provide a recent exhaustive survey that high-

lights the unreasonable efﬁciency of DSE-based de-

obfuscation (Bardin et al., 2017; Yadegari et al., 2015;

Coogan et al., 2011; Salwan et al., 2018). (Banescu

et al., 2016; Banescu et al., 2015) provided one of the

ﬁrst comprehensive evaluations of DSE tools (KLEE,

Angr) against variants of password programs using

obfuscators such as Tigress and ObfuscatorLLVM.

Their evaluation was seminal in terms of highlight-

ing the great weakness of standard protections against

DSE. (Manikyam et al., 2016) performed a similar

study on commercial obfuscators such as Themida,

Code Virtualizer, and VMProtect. The impact on

symbolic deobfuscation through the complexiﬁcation

of constraints has also been studied by (Banescu et al.,

2017), where they showed machine learning could be

used to predict effectiveness of obfuscating transfor-

mation in terms of increasing runtime of DSE-based

attacks. More recently, (Ollivier et al., 2019b) pro-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

256

vided successful results for the so-called class of path-

oriented protections that target the weakest spot of

DSE, namely path exploration. Their target of in-

terest also included password-based programs simi-

lar to our study in this paper. The same authors also

propose a survey of anti-DSE protections (Ollivier

et al., 2019a). Before this, several obfuscating trans-

forms were proposed by (Biondi et al., 2017) and (Ey-

rolles et al., 2016) based on Mixed Boolean Arith-

metic expressions (Zhou et al., 2007) to protect point-

functions. (Bruni et al., 2018) also proposed a mathe-

matically proven obfuscation against Abstract Model

Checking attacks.

(Lan et al., 2018) is the closest related work in

software protection: they evaluate an obfuscator that

replaces sensitive conditional instructions with se-

mantically equivalent function calls with a more com-

plicated execution model. This work showed similar

success with defeating symbolic analysis attacks us-

ing KLEE. SBHA can be seen as path-oriented pro-

tection (Ollivier et al., 2019b), enjoying the (strong)

so-called property of ”Single-Value Path” deﬁned by

Ollivier et al. Intuitively, SVP protections turn DSE

search into mere fuzzing. Only a very few tractable

SVP path-oriented protection schemes are known,

making SBHA a new defense. Also, contrary to the

work by (Ollivier et al., 2019b), SBHA opens the way

to a whole class of such schemes (the principle is not

limited to point functions). SBHA presents program

abstractions that are fundamentally abnormal for a

software-minded human attacker, more so than stan-

dard path-oriented protections present. In addition, it

now provides potential reuse of circuit-based protec-

tions in the context of software.

7 CONCLUSION AND FUTURE

WORK

We introduce SBHA-based software transformation

as a completely new approach to software protection.

Our initial study on protecting point-function pro-

grams, particularly against DSE-based attacks, shows

great promise. Experimental results point to the effec-

tiveness of SBHA in defeating DSE, with relatively

high resilience and low overhead. SBHA has expect-

edly low stealth in terms of blending into surround-

ing code, yet we anticipate that application to general

code would help to normalize its presence throughout

a code base. Still, our work demonstrate the potential

of the technique. Interestingly, SBHA provides a way

to unify two normally disparate worlds or research:

software and hardware protection. Whereas obfusca-

tion is generally frowned upon in the hardware world

because of constrained power, space, or timing de-

mands, the equivalent representation in software may

not be at all. Future work include expanded study

of SBHA in larger program contexts and subjective

study of human-based reverse engineering limitations

when encountering SBHA variation.

ACKNOWLEDGMENTS

This work was partly funded by a grant of high-

performance computing resources and technical sup-

port from the Alabama Supercomputer Authority and

by the National Science Foundation awards 1811560

and 1811578 in the NSF 17-576 Secure and Trustwor-

thy Cyberspace (SaTC) program.

REFERENCES

Balakrishnan, G. and Reps, T. W. (2010). WYSINWYX:

what you see is not what you execute. ACM Trans.

Program. Lang. Syst., 32(6).

Banescu, S., Collberg, C., Ganesh, V., Newsham, Z., and

Pretschner, A. (2016). Code obfuscation against sym-

bolic execution attacks. In ACSAC’16.

Banescu, S., Collberg, C., and Pretschner, A. (2017). Pre-

dicting the resilience of obfuscated code against sym-

bolic execution attacks via machine learning. In

USENIX SEC’17.

Banescu, S., Ochoa, M., and Pretschner, A. (2015). A

framework for measuring software obfuscation re-

silience against automated attacks. In SPRO’15.

Barak, B., Goldreich, O., Impagliazzo, R., Rudich, S., et al.

(2012). On the (im)possibility of obfuscating pro-

grams. J. ACM, 59(2).

Bardin, S., David, R., and Marion, J. (2017). Backward-

bounded DSE: Targeting infeasibility questions on ob-

fuscated codes. In S&P ’17.

Basile, C., Canavese, D., Regano, L., Falcarin, P., and Sut-

ter, B. D. (2019). A meta-model for software pro-

tections and reverse engineering attacks. Journal of

Systems and Software, 150.

Beyer, D. and Stahlbauer, A. (2014). Bdd-based soft-

ware veriﬁcation. Int. J. Softw. Tools Technol. Transf.,

16(5).

Biondi, F., Josse, S., Legay, A., and Sirvent, T. (2017).

Effectiveness of synthesis in concolic deobfuscation.

Computers & Security, 70.

Brayton, R. K. and Mishchenko, A. (2010). ABC: an aca-

demic industrial-strength veriﬁcation tool. In CAV’10.

Bruni, R., Giacobazzi, R., and Gori, R. (2018). Code ob-

fuscation against abstract model checking attacks. In

Veriﬁcation, Model Checking, and Abstract Interpre-

tation. Springer.

Program Protection through Software-based Hardware Abstraction

257

Bryant, R. E. (1991). On the complexity of vlsi imple-

mentations and graph representations of boolean func-

tions with application to integer multiplication. IEEE

Transactions on Computers, 40(2).

Cadar, C. and Sen, K. (2013). Symbolic Execution for Soft-

ware Testing: Three Decades Later. Commun. ACM,

56(2).

Ceccato, M., Tonella, P., Basile, C., Coppens, B., De Sut-

ter, B., Falcarin, P., and Torchiano, M. (2017). How

professional hackers understand protected code while

performing attack tasks. In ICPC’17.

Cheng, X., Lin, Y., Gao, D., and Jia, C. (2019). DynOpVm:

VM-Based Software Obfuscation with Dynamic Op-

code Mapping. In Applied Cryptography and Network

Security.

Collberg, C. and Nagra, J. (2009). Surreptitious Software:

Obfuscation, Watermarking, and Tamperprooﬁng for

Software Protection. Addison-Wesley Professional.

Collberg, C., Thomborson, C., and Low, D. (1997). A tax-

onomy of obfuscating transformations. Technical re-

port, Univ. of Auckland.

Collberg, C. S. and Thomborson, C. (2002). Watermarking,

tamper-prooﬁng, and obfuscation - tools for software

protection. IEEE Trans. on Soft. Eng., 28(8).

Coogan, K., Lu, G., and Debray, S. (2011). Deobfuscation

of virtualization-obfuscated software: A semantics-

based approach. In CCS’11.

De Micheli, G. (1994). Synthesis and Optimization of Dig-

ital Circuits. McGraw-Hill Higher Education.

Eyrolles, N., Goubin, L., and Videau, M. (2016). Defeating

MBA-Based Obfuscation. In SPRO’16.

Falcarin, P., Collberg, C., Atallah, M., and Jakubowski, M.

(2011). Guest editors’ introduction: Software protec-

tion. IEEE Software, 28(2).

Hansen, M. C., Yalcin, H., and Hayes, J. P. (1999). Un-

veiling the ISCAS-85 Benchmarks: A Case Study in

Reverse Engineering. IEEE Des. Test, 16(3).

Holder, W., McDonald, J. T., and Andel, T. R. (2017). Eval-

uating optimal phase ordering in obfuscation execu-

tives. In 7th SSPREW.

Junod, P., Rinaldini, J., Wehrli, J., and Michielin, J.

(2015). Obfuscator-LLVM – Software Protection for

the Masses. In SPRO’15.

Kuznetsov, V., Kinder, J., Bucur, S., and Candea, G. (2012).

Efﬁcient state merging in symbolic execution. In

PLDI’12.

Lan, P., Wang, P., Wang, S., and Wu, D. (2018). Lambda

obfuscation. In SecureComm’17.

Manikyam, R., McDonald, J. T., Mahoney, W. R., Andel,

T. R., and Russ, S. H. (2016). Comparing the effec-

tiveness of commercial obfuscators against mate at-

tacks. In SSPREW’16.

Ollivier, M., Bardin, S., Bonichon, R., and Marion, J.

(2019a). Obfuscation: where are we in anti-dse pro-

tections (a ﬁrst attempt). In SSPREW ’19.

Ollivier, M., Bardin, S., Bonichon, R., and Marion, J.-Y.

(2019b). How to Kill Symbolic Deobfuscation for

Free (or: Unleashing the Potential of Path-Oriented

Protections). In ACSAC’19.

Rival, X. and Yi, K. (2020). Introduction to Static Analy-

sis: An Abstract Interpretation Perspective. The MIT

Press.

Salwan, J., Bardin, S., and Potet, M.-L. (2018). Symbolic

deobfuscation: From virtualized code back to the orig-

inal. In DIMVA’18.

Schleimer, S., Wilkerson, D. S., and Aiken, A. (2003). Win-

nowing: Local algorithms for document ﬁngerprint-

ing. In ICMD’03.

Schrittwieser, S., Katzenbeisser, S., Kinder, J., Merzdovnik,

G., and Weippl, E. (2016). Protecting software

through obfuscation: Can it keep pace with progress

in code analysis? ACM Comput. Surv., 49(1).

Subramanyan, P., Ray, S., and Malik, S. (2015). Evalu-

ating the security of logic encryption algorithms. In

HOST’15.

Vahid, F. (2007). It’s time to stop calling circuits ”hard-

ware”. Computer, 40(9).

Woelfel, P. (2005). Bounds on the obdd-size of integer mul-

tiplication via universal hashing. Journal of Computer

and System Sciences, 71(4).

Yadegari, B., Johannesmeyer, B., Whitely, B., and Debray,

S. (2015). A generic approach to automatic deobfus-

cation of executable code. In S&P’15.

Zhou, Y., Main, A., Gu, Y. X., and Johnson, H. (2007).

Information hiding in software with mixed boolean-

arithmetic transforms. In WISA’07.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

258
