On Chameleon Pseudonymisation and Attribute

Compartmentation-as-a-Service

Anne V. D. M. Kayem

, Nikolai J. Podlesny and Christoph Meinel

Hasso-Plattner-Institute, University of Potsdam, Prof.-Dr.-Helmert Str. 2-3, 14482 Potsdam, Germany

Keywords:

Privacy, Privacy Enhancing Technologies, Pseudonymisation, Data Transformation, Anonymisation,

Compartmentation.

Abstract:

Data privacy legislation and the growing number of security violation incidents in the media, have played

a key role in consumer awareness of data protection. Furthermore, the digital trail left by activities such

as online purchases, websites browsed, and/or clicked advertisements yield behavioural information that is

useful for various data analytics operations. Analysing such information in a privacy-preserving way is useful

both in satisfying service level agreements and complying with privacy regulations. Pseudonymisation and

anonymisation have been widely advocated as a means of generating privacy-preserving datasets. However,

each approach poses drawbacks in terms of composing privacy-preserving datasets from multiple distributed

data sources. The issue is made worse when the owners of the datasets co-exist in an untrusted environment.

This paper presents a novel method of generating privacy-preserving datasets composed of distributed data

in an untrusted scenario. We achieve this by combining cryptographically secure pseudonymisation with

data obfuscation and sanitisation. The pseudonymisation and compartmentation are outsourced to a central

but fully oblivious entity that can blindly compose datasets based on distributed sources. Controlled non-

transitive join operations are used to ensure that the published datasets do not violate the contributing parties’

privacy properties. As a further step, the service provider will employ obfuscation and sanitisation to identify

and break functional dependencies between attribute values that hold the risk of inferential disclosures. Our

empirical model shows that the overhead due to cryptographic pseudonymisation is negligible and can be

deployed in large datasets in a scalable manner. Furthermore, we are able to minimise information loss, even

in large datasets, without impacting privacy negatively.

1 INTRODUCTION

In various domains, such as personalised healthcare,

the notion of secure data sharing has become ever

more tightly intertwined with privacy. Legislation

such as Europe’s General Data Protection Regulation

and the US Consumer Privacy Act bring the issue of

data privacy to the fore, with violation penalties being

set to as high as EUR 20 million or 4% of the annual

turnover of the preceding ﬁnancial year depending on

which is higher. Yet, as mainstream media stories in-

dicate, providing ﬁrm guarantees of data privacy re-

mains a challenging problem.

1.1 Context and Motivation

Access to personal data, has and continues to play

an important role in the software services industry in

https://orcid.org/0000-0002-6587-5313

general. For instance, access personal data is useful

in supporting data analytics tasks that support service

delivery in the marketing and healthcare domains.

Data is as such, increasingly crucial to providing de-

pendable services.

Pseudonymisation and anonymisation are typi-

cally advocated as methods of transforming data to

protect user privacy. Pseudonymisation holds the ad-

vantage of generating datasets that can be easily re-

verted to the original form to crosscheck the valid-

ity of results from data analytics processes. How-

ever, pseudonymisation has been criticised for result-

ing in datasets that are vulnerable to re-identiﬁcation

attacks (Sweeney, 2000; Sweeney, 2002a). Further-

more, simply removing attributes that are likely to

identify an individual directly does not protect against

re-identiﬁcation (Sweeney, 2002a; Sweeney, 2002b).

A plethora of solutions have been proposed in re-

cent years to address this problem (Sweeney, 2002a;

704

Kayem, A., Podlesny, N. and Meinel, C.

On Chameleon Pseudonymisation and Attribute Compartmentation-as-a-Service.

DOI: 10.5220/0010552207040714

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 704-714

ISBN: 978-989-758-524-1; ISSN: 2184-7711

Machanavajjhala et al., 2007; Li et al., 2007a; Dwork

et al., 2009; Podlesny et al., 2019a). These so-

lutions address various limitations centered around

the Sweeney et al. (Sweeney, 2002a) approach to

anonymising data. However, as Lehmann (Lehmann,

2019) pointed to these solutions are not well adapted

to generating privacy-preserving datasets based on

combinations of subsets of data drawn from multiple

distributed sources.

Successfully anonymising subsets of data drawn

from data sets such as these that contain a high

proportion of sensitive data are impractical because

any guarantees of privacy would come at the cost

of high levels of information loss (Podlesny et al.,

2018; Podlesny et al., 2019a). High information loss

negatively impacts query result accuracy and verac-

ity, and this can impede research that is dependent

on data analytics (e.g. drug trials, personalised pre-

scriptions, ...). A further issue is supporting privacy

with cryptographic operations, guaranteeing security,

is computationally intensive for large high dimen-

sional datasets (Lehmann, 2019).

1.2 Problem Statement

The problem with which we are faced is generating

privacy-preserving subsets of data from datasets con-

taining a high degree of sensitive information in an

untrusted distributed environment (i.e. the data own-

ers do not trust each other). The central premise here

is to do this both a-priori, to create generic data sub-

sets, or on-demand (a-posteriori) - to tailor the gener-

ated subset of data to a speciﬁc request.

1.3 Contributions

We propose a solution for generating low information

loss privacy-preserving datasets that involves main-

taining as much information from the original dataset

as possible without creating vulnerabilities to re-

identiﬁcation. To do this, we combine elements from

unlinkable pseudonymisation (Lehmann, 2019) and

attribute compartmentation (Podlesny et al., 2019a).

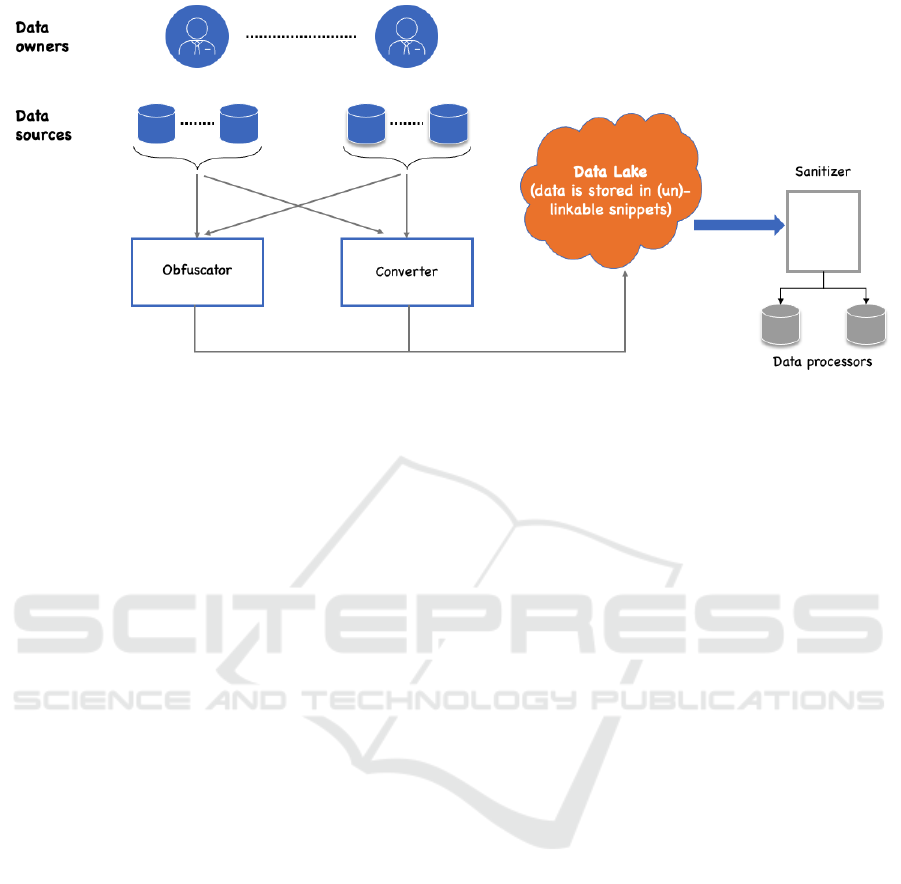

We employ three (3) components namely, an Obfus-

cator, a Converter and a Santizer, to ensure that the

data remains private.

The Obfuscator plays the role of transforming

the dataset to prevent re-identiﬁcations due to infer-

ences drawn from functional dependencies between

attribute values. As a further step, the Obfuscator

analyses the dataset to discover all quasi-identiﬁers

(functional dependencies) that are likely to result in

inferences.

The Converter is a central service that handles the

output from the Obfuscator. Its job is to derive and

convert pseudonyms, and create a joined version of

attributes based on the request or usage scenario of

the data. The Converter performs these transforms

blindly in that it stores no knowledge of the data sets.

To create a subset of data, the Converter transform

the Chameleon Pseudonyms, associated with the at-

tributes that are to place in the requested data subset,

to ensure that pseudonyms associated with the same

record are mapped to the same value.

The Sanitiser serves as an internal validator or ver-

iﬁer to test the data that is to be shared with the data

processor to ensure that it is free of elements that can

be exploited for inferences.

1.4 Outline of the Paper

The rest of the paper is structured as follows. We dis-

cuss related work in Section 2, focusing on anonymi-

sation, and pseudonymsation concerning generating

privacy-preserving datasets from distributed sensitive

data. In Section 3, we brieﬂy present background

notions on how unlinkable pseudonymisation and at-

tribute compartmentation work, and then proceed to

present our proposed mechanism for generating low

information loss privacy-preserving datasets from dis-

tributed sensitive data. We discuss results from our

empirical model in Section 4 and offer conclusions as

well as avenues for future work in Section 5.

2 RELATED WORK

A plethora of work exists on the subject of trans-

forming data for privacy. One of the ﬁrst approaches,

namely pseudonymisation, consisted of replacing per-

sonally identifying information in shared published

datasets with a pseudonym. In Europe for instance,

the Data Protection Working Party as an independent

advisory body to the European Commission has out-

lined various data sanitisation methods for protect-

ing individuals’ data (Party, 2014). Pseudonymisation

and anonymisation have as such been promoted as a

means of generating privacy-preserving datasets (Mc-

Callister et al., 2010).

In the naive form, pseudonymisation consists of

replacing an attribute’s real value with a false or

pseudonymous value. The idea is to use values

that are difﬁcult to link back to the original val-

ues. As Sweeney (Sweeney, 2000) pointed out,

simply pseudonymising the data or eliminating di-

rect identifying attributes (e.g. name and ID num-

ber) is not to prevent re-identiﬁcation. Furthermore,

applying pseudonymisation in the context of dis-

On Chameleon Pseudonymisation and Attribute Compartmentation-as-a-Service

705

tributed databases is impractical in providing ﬁrm as-

surances of meeting the cooperation parties’ privacy

service level agreements of the cooperating parties

(Camenisch and Lehmann, 2015). Camenisch and

Lehmann (Camenisch and Lehmann, 2015) proposed

alleviating this issue with an (un)linkabe pseudonym

system that overcomes these limitations. Addition-

ally, it enables controlled privacy-friendly exchange

of distributed data in untrusted environments yet.

However, as mentioned before, the issue that remains

is how to generate and provision the pseudonyms se-

curely.

In recent work, Lehmann (Lehmann, 2019) ad-

dresses the issue of generating and provisioning

pseudonyms securely. To do so, Lehmann (Lehmann,

2019) proposed the notion of unlinkable pseudonymi-

sation (ScrambleDB) as a method of providing

pseudonymisation-as-a-service in distributed settings,

where multiple players contribute data to a shared

pool. Generated pseudonyms protect the data from

the attribute values and only combined through con-

trolled as well as non-transitive JOIN operations to

form data subsets on a per-request basis. This ap-

proach provides a secure method for pseudonymising

data, but does not provide a mechanism for obfus-

cating the data. In settings involving highly sensitive

data, this can become an issue since there is no way of

preventing re-identiﬁcations due to inferences drawn

from attribute values.

Obfuscating data can be achieved by techniques

such as anonymisation. One of the ﬁrst works in this

direction was proposed by Sweeney (Sweeney, 2000;

Sweeney, 2002a; Sweeney, 2002b). In order to enable

anonymisation, a variety of data transformation meth-

ods such as generalisation (Sweeney, 2002a; Sama-

rati and Sweeney, 1998; Ciglic et al., 2014), suppres-

sion (Samarati, 2001), and perturbation(Rubinstein

and Hartzog, 2015), have been studied as a mean

of transforming data for privacy, with low informa-

tion loss. Sweeney’s k-anonymisation approach, for

instance, is basically a method of transforming data

for privacy. In k-anonymity, a dataset is transformed

to ensure that records are grouped into equivalence

classes of size k such that every record in the given

equivalence class is similar (indistiguishable) from

the other k − 1 records. Privacy in this case, rests on

the principle of record similarity. Subsequent works

such as l-diversity (Machanavajjhala et al., 2007;

Meyerson and Williams, 2004; Bayardo and Agrawal,

2005), t-closeness (Li et al., 2007b; Fredj et al.,

2015), dealing with minimality attacks (Wong et al.,

2006; Wong et al., 2007a; Wong et al., 2007b; Wong

et al., 2009; Wong et al., 2011), and differential pri-

vacy (Dwork et al., 2009; Dwork et al., 2006; Dwork,

2008; Dwork, 2011; Islam and Brankovic, 2011; Mc-

Sherry and Talwar, 2007; Koufogiannis et al., 2015;

Kifer and Machanavajjhala, 2011) have been stud-

ied quite extensively in a bid to answer the question

of preventing disclosures of sensitive personal data

in anonymised datasets (Sakpere and Kayem, 2014;

Ghosh et al., 2012).

Data transformation algorithms offer the advan-

tage of modifying attributes values in ways that make

it hard to discover the original value. This is useful

when the attribute-values are unique or present some

property (e.g. distribution similarity, etc.) that might

make it easier to draw inferences that result in dis-

covering the original value and eventually the record

(tuple).

However, as Aggrawal et al.(Aggarwal, 2005)

have shown, applying generalisation and suppression

to high dimensional data results in high information

loss, thereby rendering the data useless for data an-

alytics. This is made worse when the data must be

formed from multiple distributed high-dimensional

datasets.

High information loss can be addressed, to some

degree, by perturbation. Perturbation modiﬁes the

original value to the closest similar ﬁndable value.

This includes using an aggregated value or a close-

by (approximate) value that is employed in a way

that requires modifying only one value (or a very

few values) instead of multiple ones to build clusters

(equivalence classes). One drawback of perturbation

is efﬁciently ﬁnding such values since ﬁnding such a

value can take longer due to the effect of having to

recheck the newly created value(s) iteratively. This

affects performance negatively and so further work

has sought to ﬁnd alternatives that optimise the search

time (Fienberg and Jin, 2012; Vaidya and Clifton,

2003; Vaidya et al., 2008).

Podlesny et al. (Podlesny et al., 2018; Podlesny

et al., 2019c; Podlesny et al., 2019a; Podlesny et al.,

2019b) proposed attribute compartmentation as a

method of transforming high-dimensional datasets to

offer privacy but at the same time minimise infor-

mation loss. Attribute compartmentation ensures that

the data is obfuscated, but assumes a trusted environ-

ment and so, is not designed to handle compositions

of data from multiple distributed belonging to par-

ties that co-exist in an untrusted environment. Fur-

thermore, as is the case with all anonymisation ap-

proaches, a large proportion of information loss is in-

curred due to the necessity of having to eliminate per-

sonally identifying information. In datasets such as

genome data which contain several unique identiﬁers

having to eliminate these values reduces (negatively

impacts on) the usefulness of the data for analytics

SECRYPT 2021 - 18th International Conference on Security and Cryptography

706

operations.

Therefore, having a method of retaining such at-

tribute values and at the same time being able to

prevent linkages that can be exploited for inference

and re-identiﬁcation, can make an important contri-

bution to enabling privacy-preserving data sharing in

untrusted environments. In the following section, we

describe our approach to address this problem.

3 ENABLING OBFUSCATION

AND SANITISATION

Addressing the issue of re-identiﬁcation can be han-

dled by obfuscation (Lehmann, 2019), in which case

some form of transformation (e.g. generalisation,

and/or suppression) is applied to the subset of data

that is to be shared. In this regard, attribute com-

partmentation (Podlesny et al., 2019a) can be used

to complement ScrambleDB. Attribute compartmen-

tation provides data anonymity by identifying all

personal identiﬁers and eliminating these from the

dataset. The remainder of the dataset is then anal-

ysed to identify and eliminate or transform quasi-

identiﬁers to prevent re-identiﬁcation. Attribute com-

partmentation however, results in high information

loss for datasets with high-level sensitive information

(such datasets contain a high level of personal infor-

mation like genomic mutations). Since high informa-

tion loss impacts query result accuracy, having a so-

lution that minimises information loss is beneﬁcial.

Combining the ScrambleDB and Compartmenta-

tion, can serve as a mechanism for addressing the is-

sue of preserving data utility without negatively im-

pacting on data privacy. In this case, we need a

method of ensuring that the different components of

the data can be combined securely and in a way that

ensures unlinkability. This is because while com-

partmentation eliminates the risk of re-identiﬁcation

attacks by breaking inter-attribute value functional

dependencies, combining compartmented data with

pseudonymous data JOIN operations could become

transitive. So, in certain cases, the joined data could

enable or result in re-identiﬁcation. Furthermore, the

data needs to be joined to preserve the utility of the

data by minimising information loss.

3.1 Preliminaries

We now describe the privacy setting and database

structure to serve as building blocks for ScrambleDB

and Compartmentation.

Privacy Setting. The privacy scenario in which

ScrambleDB and Compartmentation operate is one in

which a central service exists to either anonymise or

pseudonymise data. Multiple distributed data owners

provide data and it is the job of the central service to

render a pseudonymised or anonymised version of the

data. At this stage, we assume that all the data owners

trust the central service. The data owners are assumed

not to trust each other.

Database Speciﬁcation. In addition, we assume that

the data is structured in the using a relational model,

where T

m×n

denotes a table in the database that con-

sists of n rows (records /tuples), and m columns (at-

tributes). Each record in the table is uniquely identiﬁ-

able via a primary key (uid) and a table is uniquely

identiﬁable by a table identiﬁer (tid). An attribute

value falls in the cell at the intersection between an

attribute (column) and the associated record. For in-

stance, T

m×n

[i, j] contains a value val

i, j

which de-

notes the value attribute attr

holds for record rec

We note that 1 ≤ i ≤ n and 1 ≤ j ≤ m.

3.2 Shared Data Eco-System

The architecture of our privacy-preserving shared

data ecosystem is captured in Figure 1. As shown

in Figure 1, our architecture is comprised of a set of

N distributed data owners D = D

, ..., D

. Each data

owner owns and/or controls S = S

, ..., S

a set of data

sources. Hypothetically, both N and M are inﬁnitely

large; however, we will assume that both variables are

bounded for practical reasons. So, N ≥ 1 and M ≥ 1.

In addition, a data owner can be both an owner and

a processor P. Data processor, is an entity that re-

quests a dataset, typically a concatenation of subsets

of data emanating from various disjoint data sources.

As is the case with D and S, P ≥ 1 and we assume

that |P| is ﬁnite and bounded. We make the following

assumptions with respect to the interactions between

D, S, and P:

• Assumption #1. The data sources S are indepen-

dent. That is a data owner, N(x) who owns of

controls dataset, S(x) has no access to S(x

) that

owned by N(x

• Assumption #2. A data processor, P, can be ei-

ther a data owner N (i.e. P ≡ N) or can be an

external (i.e. outside of the data management / ar-

chitectural ecosystem) requester (P

ext

). So P(D)

accesses a joined dataset D composed from sub-

sets of data such that:

D ← S(1), ..., S(i), ..., S(n)

where i denotes the ith data owner that contributes

to the formation of D and n is the total number of

data owners involved.

On Chameleon Pseudonymisation and Attribute Compartmentation-as-a-Service

707

Figure 1: Data Sharing Architecture: Overview.

• Assumption #3. Data processors are not allowed

to share datasets. That is, a collusion prevention

strategy must be implemented to prevent this.

3.3 Privacy and Trust Setting

Trust Set-up. In the trust setup for our data sharing

ecosystem, we consider that the data owners do not

trust each other, but trust the central authority (CA).

Furthermore, the central authority and data proces-

sors are honest-but-curious in that they have a vested

interest in ensuring that the ecosystem works well,

but would like to gain some advantage by learning

or inferring hidden information. In the next section

therefore, we formalise the security and privacy prop-

erties required to ensure data consistency and non-

transitivity of joined datasets against both the CA and

P. We now consider the structure of the data, in S as

this is important is describing the method in which L

is formed.

3.4 Data Source Structure

We employ a relational database model in which a

database S is comprised of a set of tables represented

by T

m×n

where n denotes the number of rows (records

/tuples), and m columns (attributes). The set of at-

tributes A ∈ S is such that A = a

, ..., a

where

is the ith attribute. Likewise the set of tuples R ∈ S

is such that R = r

, .., r

, ..., r

where r

is the jth tu-

ple. Typically, n ≥ m, however we note that in high-

dimensional datasets m can be quite high (m ≥ 100).

• Assumption #4. All data owners have the same

data structure for the datasets they own. Like-

wise, all the datasets in the data-sharing ecosys-

tem, have the same relational structure or a means

of obtaining a relational version from the data

available.

The data lake can be composed and stored in antici-

pation of data processor requests. The management

of join requests is handled by a central authority (CA)

that is comprised of three components namely the Ob-

fuscator, Converter, and Sanitizer.

3.5 Pseudonymisation and

Compartmentation-as-a-Service

Essentially we have a data lake L that is created by

contributions of data from distributed sources. In

a manner similar to that in ScrambleDB (Lehmann,

2019), the Obfuscator transforms a dataset for

pseudonymity, by binding each attribute value to a

pseudonym. That is for every table T

m×n

in the

dataset, where m is the number of attributes and n the

number of records (rows), m pseudonymous tables are

created, each containing n pseudonymous values. The

pseudonym is generated securely to prevent linkabil-

ity.

The Obfuscator plays the role of transforming

the dataset to prevent re-identiﬁcations due to infer-

ences drawn from functional dependencies between

attribute values. As a further step, the Obfuscator

analyses the dataset to discover all quasi-identiﬁers

(functional dependencies) that are likely to result in

inferences.

For ﬂexibility, the Obfuscator employs

Chameleon pseudonyms to handle the data when it

is collected. The Chameleon pseudonyms are useful

in that they allow for the data collected and the

associated attribute values to be stored in a manner

SECRYPT 2021 - 18th International Conference on Security and Cryptography

708

that is fully unlinkable. In the data lake, the data is

stored as a set of unlinkable attribute tables. This

guarantees that the data is secure at rest and offers

the ﬂexibility of allowing the Converter to bind

unlinkable secure-pseudonyms to data at runtime

when a secure and private subset of data is required.

As a further step, the Obfuscator analyses

the dataset to discover all quasi-identiﬁers (func-

tional dependencies) that are likely to result in re-

identiﬁcation. To do this, the Obfuscator classiﬁes

attributes as either 1st-class or 2nd-class identiﬁers.

Attributes classiﬁed as 1st-class identiﬁers explic-

itly identify an individual, while 2nd-class identiﬁers

identify an individual if a “correct” attribution com-

bination is found. The Obfuscator evaluates differ-

ent combinations of attributes based on the risk of re-

identiﬁcation when placed together in the same subset

of data. We use a uniqueness constraint to determine

the entropy level required to classify an attribute or

attribute value as prone to provoking re-identiﬁcation.

Additionally, at this stage, data transformation opera-

tions (such as generalisation and suppression) can be

applied to guarantee privacy further.

Anonymising data via attribute compartmentation

requires that we proceed in two steps. The ﬁrst

step involves identifying attributes that qualify as 1st

class-identiﬁers (explicit identiﬁers). Since these at-

tributes are eliminated from the dataset to prevent per-

sonal information disclosure when the data is shared,

this can result in high information loss in datasets that

contain a high proportion of sensitive data. We ad-

dress this issue by using unlinkable pseudonymisa-

tion to replace the attribute values with an equivalent

pseudonym. In this way, the levels of information loss

due to eliminations of 1st class-identiﬁers is reduced

signiﬁcantly.

The Converter is a central service that handles the

output from the Obfuscator. Its job is to derive and

convert pseudonyms, and create a joined version of

attributes based on the request or usage scenario of

the data.

The Converter performs these transforms blindly

in that it stores no knowledge of the data sets. To

create a subset of data, the Converter transform

the Chameleon Pseudonyms, associated with the at-

tributes that are to placed in the requested data subset,

to ensure that pseudonyms associated with the same

record are mapped to the same value.

We suppose that we have several distributed data

sources S, that contribute data to a shared pool (data

lake) L. A set of users (data processors) P periodically

request access to the data L. All such accesses must

be handled in a privacy-preserving manner, so that the

snapshot of L that is shared with P is secure and un-

linkable. The snapshot of L is created by joining a

subset of the table’s output from the pseudonymsa-

tion and anonymisation operations. Snapshots of data

are created when the data lake receives a request for

a given dataset. For simplicity, we assume that the

snapshot is created in anticipation of a set of queries

or a series of data analytics operations rather than on-

demand.

In order to create a data snapshot (JOIN the ta-

bles), the data lake interacts with two entities namely:

the Obfuscator and the converter. The Obfuscator

uses attribute compartmentation to support or validate

permissible join operations (non-transitive joins) and

handles the data transformations (e.g. generalisation

and suppression) needed to create privacy-preserving

data. The converter transforms the data output from

the Obfuscator by mapping attribute values to unlink-

able pseudonyms but in a consistent manner. That is,

pseudonyms belonging to the same record are mapped

to the same unlinkable pseudonym.

If a data processor P requires a snapshot of the

data containing certain attributes, or if a generic data

set containing certain attributes need to be created,

a joined copy of the data (snapshot) is created and

shared following coordination between the Obfusca-

tor and the Converter. The Converter takes care of

blindly transforming the unlinkable pseudonyms into

a consistent form and preserves privacy by prevent-

ing linkability. The JOIN operation is strictly non-

transitive in that every transformation cannot be cor-

related with data received in previous or other snap-

shots requested.

The Sanitiser serves as an internal validator or ver-

iﬁer to test the data that is to be shared with the data

processor to ensure that it is free of elements that can

be exploited for inferences.

To support the Sanitiser, we employ the com-

partmentation procedure that essentially checks each

dataset to be shared to ensure that no quasi-identiﬁers

remain therein. If quasi-identiﬁers are discovered in

the dataset, the Sanitiser transforms the data using

standard procedures such as generalisation and sup-

pression (Sweeney, 2002a). Since data transforma-

tion loss procedures, by necessity, imply information

loss, the Sanitiser employs an optimisation model to

evaluate the cost-beneﬁt ratio of information loss to

privacy disclosure risk and usability.

In so doing, we have an internal veriﬁcation model

to ensure that joined attributes in the dataset to be

shared do not raise re-identiﬁcation vulnerabilities

due to quasi-identiﬁers in the dataset; and we control

information loss on the discovered quasi-identiﬁers to

ensure a high-degree of usability of the shared dataset.

On Chameleon Pseudonymisation and Attribute Compartmentation-as-a-Service

709

3.6 Formation of the Data Lake

For simplicity, we will consider for now that the

joined data is formed according to Assumption #2.

The data processors wishing to access a subset of the

data shared by N interact with the data lake L. For in-

stance, when P contacts L to request a subset of data

containing attributes a

, ..., a

, L produces a joined

version of data from a set of tables T

1×m

, ..., T

1×m

To ensure that the joined dataset is free of infer-

ence, vulnerable attribute values the Sanitiser sup-

ports L, by analysing the attribute combinations. For

each combination of attributes, the Sanitiser maps

the attributes unto an attribute-combination graph G :

(V, E) where V denotes the attributes (nodes) and E

denotes the attribute-combination (edge). Each edge

is weighted by the cardinality (or entropy) associated

with the attribute-value combination. For example,

A ←→ B represents the attribute combination AB, and

A ←→ (10)B indicates the degree of uniqueness (en-

tropy) in attribute-combination values is 10.

To obtain ensure that the combined (joined)

dataset is privacy-preserving, standard transformation

measures such as local suppression, generalisation

and perturbation are ﬁrst applied to reduce the car-

dinality (uniqueness) of the attribute-value combina-

tions (Sweeney, 2002a). This ensures that we reduce

the degree of inference due to the attribute-values as-

sociated with the attribute-combination. This is sim-

ilar to how standard anonymisation approaches work

to generate privacy, preserving datasets.

As a further measure, and to break the func-

tional dependencies that enable inferences, we com-

pute maximal cliques of G to determine which at-

tributes can be placed together within a compartment

without posing a risk of inference. These cliques

guide the formation of feature sets (compartments)

that can be published together safely (joined) with-

out the risk of inference. Finally, as a post-processing

measure, all feature sets are tested to ensure no infer-

ence causing attribute-combination values to existing

therein.

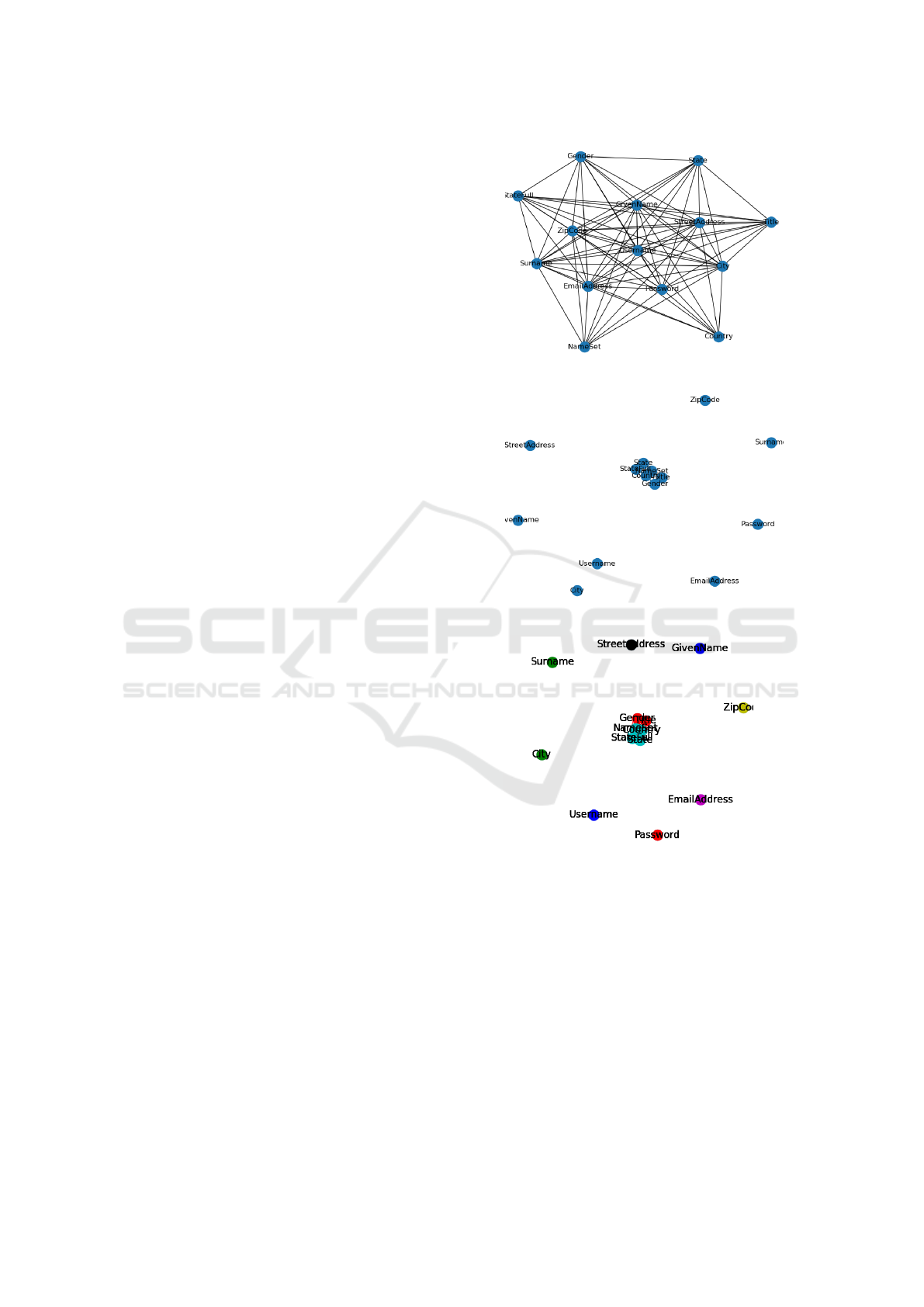

Figure 2 provides a real-world example of how

compartmentation is applied to datasets. Figure 2(a.)

has a tightly connected graph representing the at-

tribute combinations that can be exploited for disclo-

sure. Based on this graph, we can compute several

cliques, as shown in Figure 2(b.). These cliques can

then be combined in different ways to form feature

sets of attribute combinations that can be published

together safely without the risk of disclosure (see Fig-

ure 2(c.)). In the following section, we present results

from our empirical model.

(a) Attribute tuples forming QIDs to be compart-

mentalized

(b) Inversed tuple edges as allowed attribute com-

binations

Figure 2: Attribute Compartmentation as max cliques in

real-world.

4 EVALUATION

To validate our hypothesis, we have conducted a se-

ries of experiments along with key metrics. To assess

the practicability, we delineate the runtime as an indi-

cator of the time complexity, degree of information-

loss and risk of privacy exposure through remaining

quasi-identiﬁers.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

710

4.1 Experimental Setup

For transparency and repeatability, we brieﬂy out-

line the used experimental hardware and the compo-

sition of the dataset used. Dataset. A larger dataset

based on semi-synthetic PII data

was compiled for

the experiments. The information from these pro-

ﬁles has been combined with information from the

genome (Clarke et al., 2012; Project, ). As a result,

the dataset resembles a traditional multi-party setup

in the Digital Health market, with its existing difﬁcul-

ties in data privacy-preserving publishing and sharing

(Schadt and Chilukuri, 2015; Aue et al., 2015). Hard-

ware. Our analysis uses a GPU-accelerated high-

performance computing cluster with 160 CPU cores

(E5-2698 v4), 760GB RAM, and 10 dedicated Tesla

V100 units. Each GPU instance has 5120 CUDA

cores and 1120 TFlops of combined Tensor perfor-

mance. For GPU-related experiments, the execution

area will be limited to ten CPU core and a single ded-

icated Tesla V100 GPU

. The compute cluster’s run-

time area is limited to ten dedicated cores for CPU-

related experiments.

We brieﬂy implemented a proof-of-concept model

of a scrambleDB setup with the support of attribute

compartmentation. Further, experiments have been

conducted to evaluate the degree of information loss

on per row and column and per-table basis as well

as the risk of privacy exposure through the remaining

quasi-identiﬁer tuples. Finally, we also look at prac-

tical hashrates that can be achieved with state-of-the-

art hardware and runtime constraints for large-scale

datasets.

4.2 Practical Hashrates for Real-time

Obfuscation

Our initial concern originated around the possibilities

of the generated large amount of collision-free hashes

in a reasonable time window. Especially in the con-

text of stream data a proper throughput must be en-

sured. To assess this, we have run several benchmarks

on state-of-the-art hardware, where Figure 3 delin-

eates the results as hash-rates per second. Depend-

ing on the hashing method, these GPU-accelerated

frameworks enable up to 39.9 GH/s, so 39 billion

NTLM hashes per second. Figure 4a depicts a break-

down of the runtime composition, comparing a tu-

ple length of 2 attributes against 80 attributes. With

a growing number of attributes, QID discovery’s ef-

fort signiﬁcantly increases while the spin-up time re-

https://www.fakenamegenerator.com/

https://images.nvidia.com/content/technologies/volta/

pdf/volta-v100-datasheet-update-us-1165301-r5.pdf

mains and the time required for hashing only frac-

tional increases. This conﬁrms the feasibility of cre-

ating collision-free hashes for large-scale datasets.

4.3 Degree of Information-loss

To measure the degree of the information-loss suf-

fered from the data anonymisation processing, we

start from the untreated dataset’s diversity where each

unique attribute value receives points and penalises

alternations in the sanitized dataset. For the com-

plete suppression, none points remain. For falsi-

ﬁed numeric values, negative points are given and

for alternated attribute values, we subtract points ac-

cordingly to the generalisation steps. Figure 6 de-

lineates the evolution over growing dataset dimen-

sions by columns and rows to indicate the trend of

each anonymisation technique. Ultimately, the more

describing attributes are available, the more infor-

mation is present, yet more attribute values are be-

ing sanitized. Figure 5 depicts the information-loss

over the same evolution of increasing describing at-

tributes broken down by anonymisation approach.

Here, it becomes transparent that the novel technique

of combined scrambleDb and compartmentation be-

haves similarly to compartmentation while generali-

sation achieves the highest scores with the remark on

signiﬁcant – almost impractical – runtime costs.

4.4 Risk of Privacy Exposure

To evaluate the remaining risk of private data ex-

posure, we re-run the quasi-identiﬁer discovery to

validate that given each anonymisation technique no

unique attribute value tuples remain that serve aux-

iliary data attackers to draw conclusions and derive

private information by linking external datasets. Fol-

lowing k-anonymity constraints, for all approach no

quasi-identiﬁers have been found. So, in effect, the

Sanitizer module is able to offer strong guarantees of

data privacy in the combined data that is released or

shared publicly.

4.5 Runtime

The execution time is an important metric to evalu-

ate the practicality of each data anonymisation tech-

nique. As we know, generalisation is a really strong

method that promises outstanding anonymisation re-

sults on numeric data for a known hierarchy, yet

for high-dimensional data non-heuristic generalisa-

tion quickly becomes impractical due to its NP-hard

runtime. For this purpose, Figure 7 compares the

established syntactic data anonymisation techniques

On Chameleon Pseudonymisation and Attribute Compartmentation-as-a-Service

711

Hash mode

0 20 000 40 000 60 000 80 000 100 000 120 000

HMAC-SHA512 (key = $salt)

sha512($pass.$salt)

SHA2-512

HMAC-SHA256 (key = $pass)

sha256($pass.$salt)

SHA2-256

NTLM

SHA1

HMAC-MD5 (key = $pass)

md5($pass.$salt)

MD5

MH/s

Figure 3: GPU-accelerated hashrates for obfuscation.

execution time (s)

0.0

0.2

0.4

0.6

0.8

1.0

spin-up

hashing

QID discovery

relative processing step

(a) Breakdown of execution time in seconds for

L=2.

execution time (s)

100

spin-up

hashing

QID discovery

relative processing step

(b) Breakdown of execution time in seconds for

L=20

Figure 4: Runtime breakdown for scrambleDB combined

with compartmentation.

information loss

0 10 20 30 40 50 60 70

0.85

0.90

0.95

1.00

Optimal

Suppression

Generalisation

Perturbation

Compartmentation

scrambleDB+QID Discovery

number of columns

Figure 5: Information-loss comparison.

against the novel scrambleDB combined with com-

partmentation approach. All methods suffer signiﬁ-

cant runtime growth, yet given the introduced nature

of scrambleDB a lot of workloads can be shifted from

a-priori to adhoc at runtime combined with the sound-

ness of k-anonymity requirements. They become ap-

data score

0 20 40 60 80

Optimal

Suppression

Generalisation

Perturbation

Compartmentation

scrambleDB+QID Discovery

number of columns

Figure 6: Data score comparison.

execution time (s)

0 10 20 30 40 50 60 70

0.1

100

1000

scrambleDB + QID Discovery

Compartmentation

Perturbation

Generalisation

Suppression

number of columns

Figure 7: Run time comparison of selected synthetic data

anonymisation techniques.

parent particularly for large attribute amounts where

the curve ﬂattens quicker than alternative syntactic

data anonymisation methods.

4.6 Discussion

ScrambleDB combined with attribute compart-

mentation offers interesting insights for the se-

curity perspective, as it upgrades the original

Pseudonymisation-as-a-Service to ensure the absence

of any quasi-identiﬁer in its results set. Establish eval-

uation metrics evince no signiﬁcant improvements

over existing syntactic data anonymisation techniques

regarding runtime or information-loss for traditional

settings. Yet, the novel approach does enable a new

angle, especially for distributed data environments.

These distributed environments are often present in

medical settings acting as data ecosystems where

SECRYPT 2021 - 18th International Conference on Security and Cryptography

712

multiple players have subsets of data repositories and

want to share information privacy-conform with pri-

vate data exposure risk.

5 CONCLUSIONS

This paper has shown that by combining crypto-

graphically secure pseudonymisation and compart-

mentation, we can generate privacy-preserving high-

dimensional datasets. Furthermore, this can be done

safely (in that the participating parties’ privacy ser-

vice level agreements can be adhered to) in an un-

trusted distributed environment. In such environ-

ments, each data owner holds a dataset and the com-

posed data must be formed by joining subsets of data

belonging to parties who co-exist in an untrusted en-

vironment. The pseudonymisation and compartmen-

tation are outsourced to a central but fully oblivious

entity that can blindly compose datasets based on dis-

tributed sources. Controlled non-transitive join oper-

ations are used to ensure that the published datasets

do not violate the contributing parties’ privacy prop-

erties. As a further step, the service provider will em-

ploy obfuscation and sanitisation to identify and break

functional dependencies between attribute values that

hold the risk of inferential disclosures. Results from

our empirical model indicated that the overhead due

to cryptographic pseudonymisation is negligible and

can be deployed in large datasets in a scalable man-

ner. Furthermore, we succeed in minimising infor-

mation loss, even in large datasets, without impacting

privacy negatively.

As future work, it would be interesting to consider

how joined datasets can be formed even in the pres-

ence of active adversaries amongst the data owners.

It would also make sense to consider cases in which

data owners wish to contribute data to the data lake

and control how the data is merged or shared. For

instance, we could consider cases in which the data

owners are able to upload or inﬂuence the join poli-

cies and, by extension, what impact this will have on

the privacy of the joined data, particularly in the pres-

ence of active adversaries.

REFERENCES

Aggarwal, C. C. (2005). On k-anonymity and the curse of

dimensionality. In Proceedings of the 31st Interna-

tional Conference on Very Large Data Bases, VLDB

’05, pages 901–909. VLDB Endowment.

Aue, G., Biesdorf, S., and Henke, N. (2015). ehealth 2.0:

How health systems can gain a leadership role in dig-

ital health.

Bayardo, R. J. and Agrawal, R. (2005). Data privacy

through optimal k-anonymization. In Data Engineer-

ing, 2005. ICDE 2005. Proceedings. 21st Interna-

tional Conference on, pages 217–228. IEEE.

Camenisch, J. and Lehmann, A. (2015). (un)linkable

pseudonyms for governmental databases. In Proceed-

ings of the 22nd ACM SIGSAC Conference on Com-

puter and Communications Security, CCS ’15, page

1467–1479, New York, NY, USA. Association for

Computing Machinery.

Ciglic, M., Eder, J., and Koncilia, C. (2014). k-anonymity

of microdata with null values. In Decker, H., Lhotsk

L., Link, S., Spies, M., and Wagner, R. R., editors,

Database and Expert Systems Applications, pages

328–342, Cham. Springer International Publishing.

Clarke, L., Zheng-Bradley, X., Smith, R., Kulesha, E., Xiao,

C., Toneva, I., Vaughan, B., Preuss, D., Leinonen,

R., Shumway, M., et al. (2012). The 1000 genomes

project: data management and community access. Na-

ture methods, 9(5):459–462.

Dwork, C. (2008). Differential privacy: A survey of results.

In International Conference on Theory and Applica-

tions of Models of Computation, pages 1–19. Springer.

Dwork, C. (2011). Differential privacy. In Encyclopedia of

Cryptography and Security, pages 338–340. Springer.

Dwork, C., McSherry, F., Nissim, K., and Smith, A. (2006).

Calibrating noise to sensitivity in private data analysis.

In Theory of Cryptography Conference. Springer.

Dwork, C., Naor, M., Reingold, O., Rothblum, G. N., and

Vadhan, S. (2009). On the complexity of differentially

private data release: Efﬁcient algorithms and hard-

ness results. In Proceedings of the Forty-ﬁrst Annual

ACM Symposium on Theory of Computing, STOC ’09,

pages 381–390, New York, NY, USA. ACM.

Fienberg, S. E. and Jin, J. (2012). Privacy-preserving data

sharing in high dimensional regression and classiﬁca-

tion settings. Journal of Privacy and Conﬁdentiality.

Fredj, F. B., Lammari, N., and Comyn-Wattiau, I. (2015).

Abstracting anonymization techniques: A prerequi-

site for selecting a generalization algorithm. Procedia

Computer Science, 60:206–215.

Ghosh, A., Roughgarden, T., and Sundararajan, M. (2012).

Universally utility-maximizing privacy mechanisms.

SIAM Journal on Computing, 41(6):1673–1693.

Islam, M. Z. and Brankovic, L. (2011). Privacy preserv-

ing data mining: A noise addition framework using

a novel clustering technique. Knowledge-Based Sys-

tems, 24(8).

Kifer, D. and Machanavajjhala, A. (2011). No free lunch

in data privacy. In Proceedings of the 2011 ACM

SIGMOD International Conference on Management

of Data, SIGMOD ’11, pages 193–204, New York,

NY, USA. ACM.

Koufogiannis, F., Han, S., and Pappas, G. J. (2015). Op-

timality of the laplace mechanism in differential pri-

vacy. arXiv preprint arXiv:1504.00065.

Lehmann, A. (2019). Scrambledb: Oblivious (chameleon)

pseudonymization-as-a-service. PoPETs,

2019(3):289–309.

On Chameleon Pseudonymisation and Attribute Compartmentation-as-a-Service

713

Li, N., Li, T., and Venkatasubramanian, S. (2007a).

t-closeness: Privacy beyond k-anonymity and l-

diversity. In 2007 IEEE 23rd International Confer-

ence on Data Engineering, pages 106–115.

Li, N., Li, T., and Venkatasubramanian, S. (2007b).

t-closeness: Privacy beyond k-anonymity and l-

diversity. In 2007 IEEE 23rd ICDE, pages 106–115.

Machanavajjhala, A., Kifer, D., Gehrke, J., and Venkita-

subramaniam, M. (2007). l-diversity: Privacy beyond

k-anonymity. ACM Transactions on Knowledge Dis-

covery from Data (TKDD), 1(1):3.

McCallister, E., Grance, T., and Scarfone, K. (2010). Guide

to protecting the conﬁdentiality of personally identiﬁ-

able information (pii). NIST Special Publication 800-

122, National Institute of Standards and Technology,

2010.

McSherry, F. and Talwar, K. (2007). Mechanism design via

differential privacy. In Foundations of Computer Sci-

ence, 2007. FOCS’07. 48th Annual IEEE Symposium

on, pages 94–103. IEEE.

Meyerson, A. and Williams, R. (2004). On the complexity

of optimal k-anonymity. In Proceedings of the twenty-

third ACM SIGMOD-SIGACT-SIGART symposium on

Principles of database systems, pages 223–228. ACM.

Party, T. A. . D. P. W. (2014). Opinion 05/2014 on anonymi-

sation techniques.

Podlesny, N. J., Kayem, A. V., and Meinel, C. (2019a).

Attribute compartmentation and greedy ucc discovery

for high-dimensional data anonymization. In Proceed-

ings of the Ninth ACM Conference on Data and Appli-

cation Security and Privacy, pages 109–119. ACM.

Podlesny, N. J., Kayem, A. V., and Meinel, C. (2019b).

Towards identifying de-anonymisation risks in dis-

tributed health data silos. In International Confer-

ence on Database and Expert Systems Applications.

Springer.

Podlesny, N. J., Kayem, A. V., von Schorlemer, S., and

Uﬂacker, M. (2018). Minimising information loss

on anonymised high dimensional data with greedy in-

memory processing. In International Conference on

Database and Expert Systems Applications, pages 85–

100. Springer.

Podlesny, N. J., Kayem, A. V. D. M., and Meinel, C.

(2019c). Identifying data exposure across distributed

high-dimensional health data silos through bayesian

networks optimised by multigrid and manifold. In

2019 IEEE Intl Conf on Dependable, Autonomic and

Secure Computing, Intl Conf on Pervasive Intelligence

and Computing, Intl Conf on Cloud and Big Data

Computing, Intl Conf on Cyber Science and Technol-

ogy Congress, DASC/PiCom/CBDCom/CyberSciTech

2019, Fukuoka, Japan, August 5-8, 2019, pages 556–

563.

Project, . G. 1000 genomes project.

Rubinstein, I. and Hartzog, W. (2015). Anonymization and

risk.

Sakpere, A. and Kayem, A. (2014). A state-of-the-art re-

view of data stream anonymization schemes. In Infor-

mation Security in Diverse Computing Environments,

pages 24–50. IGI Global.

Samarati, P. (2001). Protecting respondents identities in mi-

crodata release. IEEE transactions on Knowledge and

Data Engineering, 13(6):1010–1027.

Samarati, P. and Sweeney, L. (1998). Protecting privacy

when disclosing information: k-anonymity and its

enforcement through generalization and suppression.

Technical report, Technical report, SRI International.

Schadt, E. and Chilukuri, S. (2015). The role of big data in

medicine.

Sweeney, L. (2000). Simple demographics often identify

people uniquely. Health (San Francisco), 671:1–34.

Sweeney, L. (2002a). Achieving k-anonymity privacy pro-

tection using generalization and suppression. In-

ternational Journal of Uncertainty, Fuzziness and

Knowledge-Based Systems, 10(05):571–588.

Sweeney, L. (2002b). k-anonymity: A model for protecting

privacy. International Journal of Uncertainty, Fuzzi-

ness and Knowledge-Based Systems, 10(05):557–570.

Vaidya, J. and Clifton, C. (2003). Privacy-preserving k-

means clustering over vertically partitioned data. In

Proceedings of the ninth ACM SIGKDD international

conference on Knowledge discovery and data mining,

pages 206–215. ACM.

Vaidya, J., Kantarc”ı”o”

”g””lu, M., and Clifton, C. (2008).

Privacy-preserving naive bayes classiﬁcation. The

VLDB Journal?The International Journal on Very

Large Data Bases, 17(4):879–898.

Wong, R. C.-W., Fu, A. W.-C., Wang, K., and Pei, J.

(2007a). Minimality attack in privacy preserving data

publishing. In Proceedings of the 33rd International

Conference on Very Large Data Bases, VLDB ?07,

page 543?554. VLDB Endowment.

Wong, R. C.-W., Fu, A. W.-C., Wang, K., and Pei, J.

(2007b). Minimality attack in privacy preserving data

publishing. In Proceedings of the 33rd International

Conference on Very Large Data Bases, VLDB ?07,

page 543?554. VLDB Endowment.

Wong, R. C.-W., Fu, A. W.-C., Wang, K., and Pei, J. (2009).

Anonymization-based attacks in privacy-preserving

data publishing. ACM Trans. Database Syst., 34(2).

Wong, R. C.-W., Fu, A. W.-C., Wang, K., Yu, P. S., and Pei,

J. (2011). Can the utility of anonymized data be used

for privacy breaches? ACM Trans. Knowl. Discov.

Data, 5(3).

Wong, R. C.-W., Li, J., Fu, A. W.-C., and Wang, K. (2006).

(?, k)-anonymity: An enhanced k-anonymity model

for privacy preserving data publishing. In Proceedings

of the 12th ACM SIGKDD International Conference

on Knowledge Discovery and Data Mining, KDD ?06,

page 754?759, New York, NY, USA. Association for

Computing Machinery.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

714
