Continuous Emotions: Exploring Label Interpolation in Conditional

Generative Adversarial Networks for Face Generation

Silvan Mertes, Florian Lingenfelser, Thomas Kiderle, Michael Dietz, Lama Diab and Elisabeth Andr

Lab for Human-Centered Artiﬁcial Intelligence, Augsburg University, Germany

Keywords:

Generative Adversarial Networks, Face Generation, Conditional GAN, Emotion Generation, Label

Interpolation.

Abstract:

The ongoing rise of Generative Adversarial Networks is opening the possibility to create highly-realistic, nat-

ural looking images in various ﬁelds of application. One particular example is the generation of emotional hu-

man face images that can be applied to diverse use-cases such as automated avatar generation. However, most

conditional approaches to create such emotional faces are addressing categorical emotional states, making

smooth transitions between emotions difﬁcult. In this work, we explore the possibilities of label interpolation

in order to enhance a network that was trained on categorical emotions with the ability to generate face images

that show emotions located in a continuous valence-arousal space.

1 INTRODUCTION

With the recent progress in the ﬁeld of Generative

Adversarial Learning, a broad variety of new algo-

rithms have evolved that tackle the generation of arti-

ﬁcial image data, leading to new possibilities for au-

tomated face generation and other generative tasks

(Hong et al., 2019). State-of-the-art Generative Ad-

versarial Nets (GANs) excel in terms of image qual-

ity of the generated outputs when compared to other

generative model paradigms like Variational Autoen-

coders. However, common GAN architectures lack

the capability to generate new data in a targeted way.

Multiple modiﬁcations have been done to the origi-

nal GAN framework to allow a controlled generation

of new images. These modiﬁed architectures have

proven their ability to create avatar images, i.e., im-

ages of human faces, that can be controlled regarding

various human-interpretable features. In the context

of emotional face generation, this allows to produce

avatar images that are conditioned on a certain emo-

tion.

The majority of datasets applicable to train those

GANs are referring to a categorical emotion model,

which means they are labeled on emotions like Happy

or Sad in a discrete way. However, for many real-

life use cases like emotional virtual agents, there is

a demand for the generation of emotional faces in a

more ﬁne-grained way in order to strengthen the cred-

ibility and anthropomorphism of human-like avatars.

Furthermore, avatars that are only capable of show-

ing discrete emotions without gradation are imprac-

tical to use in scenarios where a smooth transition

between different emotional states is required. Fur-

ther use-cases include automated creation of textures

for virtual crowd generation or data augmentation for

emotion recognition tasks. Especially in the latter

context, there is a huge demand for artiﬁcially cre-

ated data, as continuous emotion recognition relies

on non-categorical training data, whereas available

datasets that are labeled with respect to dimensional

features are rare. In all these scenarios, the use of a

dimensional emotion model would be more sufﬁcient

to meet the posed requirements.

This work explores the possibility to train a Con-

ditional GAN (cGAN) on a dataset of categorically

labeled emotional faces and subsequently interpolate

in the label space of that pretrained model in order

to generate faces whose emotional expression can be

controlled in a continuous, dimensional way. Thus,

this paper aims to answer the question if label interpo-

lation can be a tool for overcoming the disadvantage

of categorical datasets for emotional face generation.

2 RELATED WORK

The possibility to create artiﬁcially generated images

has experienced a great upswing with GANs, that

ﬁrstly have been presented by (Goodfellow et al.,

132

Mertes, S., Lingenfelser, F., Kiderle, T., Dietz, M., Diab, L. and André, E.

Continuous Emotions: Exploring Label Interpolation in Conditional Generative Adversarial Networks for Face Generation.

DOI: 10.5220/0010549401320139

In Proceedings of the 2nd International Conference on Deep Learning Theory and Applications (DeLTA 2021), pages 132-139

ISBN: 978-989-758-526-5

2014). The basic idea of those GANs is, that two

neural networks, the Generator and the Discrimina-

tor (or Critic), compete against each other in a min-

max game. Therefore, the generator learns to cre-

ate new samples that resemble a given training do-

main, whereas the discriminator learns to distinguish

between real samples and fake samples generated by

the generator. After training, the generator is able to

transform random noise vectors into artiﬁcial image

data.

In recent years, original GANs were extended in

multiple ways. (Arjovsky and Bottou, 2017), (Gulra-

jani et al., 2017) and (Arjovsky et al., 2017) reﬁned

loss functions and training procedures in order to sta-

bilize the training of GANs. (Radford et al., 2015)

introduced Deep Convolutional GAN (DCGAN), that

replaced the fully connected layers of both generator

and discriminator networks with convolutional net-

works, resulting in the capability to create high qual-

ity image data. Further, their work presented the ﬁrst

attempts to generate highly realistic images of human

faces. In their respective publication, it was also ex-

amined how the latent space of DCGAN implicitly

models certain face features like the face pose. How-

ever, it can not be controlled which features are learnt

by DCGAN as it is trained in an unsupervised set-

ting. An even more sophisticated approach that was

evaluated in the context of face-generation was pre-

sented by (Karras et al., 2017), who introduced their

Progressive Growing GANs that are able to generate

high-resolution face images.

A common problem with all those architectures is

the fact, that the output results solely from random

noise input, thus, it cannot be controlled in a human-

interpretable way. Therefore, (Mirza and Osindero,

2014) introduced the concept of Conditional GANs.

Here, the random noise vector is extended with ad-

ditional label information. That information is used

to condition the network to certain features during

training. Therefore, a successfully trained cGAN can

be used to generate new outputs in a targeted way.

Multiple approaches have been published to use those

cGANs to generate human faces that are conditioned

on speciﬁc features. For example, (Wang et al., 2018)

and (Gauthier, 2014) developed cGANs that are ca-

pable of generating images that can be controlled re-

garding different features like glasses, gender, age,

mouth openness, among others. (Yi et al., 2018) used

a cGAN to generate emotional face images to enhance

datasets for emotion recognition systems.

However, these systems are either trained on cate-

gorical feature data to generate new face images con-

ditioned on discrete classes, or they already use con-

tinuous label information during the training.

Another class of GANs focusses on style conver-

sion problems. In the context of face generation, the

tasks to be solved by those systems can be referred to

as Face Editing. In contrast to the use-cases tackled

by our approach, face editing does not aim to gener-

ate completely new data, but to modify existing image

data (He et al., 2019; Royer et al., 2020; Choi et al.,

2018; Liu et al., 2017; Lin et al., 2018). For example,

(Ding et al., 2018) presented a system that is capa-

ble of transforming face images of certain emotions

to other emotions in a continuous way. Although their

approach does not explicitly rely on continuously la-

beled data, the variety regarding emotion intensity has

to be represented in the training set. I.e., face im-

ages of varying emotion intensity have to be available,

even if the intensity degree itself does not have to be

known for every sample. They showed that their sys-

tem is even capable of generating random new faces

that show a certain emotion. However, they did not

investigate if those newly generated face images can

be controlled continuously. Also, they did not evalu-

ate their system with respect to common dimensional

models as the valence-arousal model, but rather ex-

plored if the intensity of the categorical emotions can

be altered by their face editing system.

To the best of our knowledge, there exists no prior

work that focuses on the generation of new emotional

faces in a continuous way while using only discrete

label data for training.

3 APPROACH

The following sections introduce our approach to use

a cGAN that was trained on discrete emotions to gen-

erate faces showing continuous degrees of valence

and arousal. We discuss differences in discrete and

continuous emotion models and why we favour the

latter approach.

3.1 Emotion Models

A categorical model subsumes emotions under

discrete categories like happiness, sadness, surprise

or anger. There is a common understanding of these

emotional labels, as terms describing the emotion

classes are taken from common language. However,

this approach may be restricting, as many blended

feelings and emotions cannot adequately be described

by the chosen categories. Selection of some particular

expressions can not be expected to cover a broad

range of emotional states and could suffer from

randomness.

Continuous Emotions: Exploring Label Interpolation in Conditional Generative Adversarial Networks for Face Generation

133

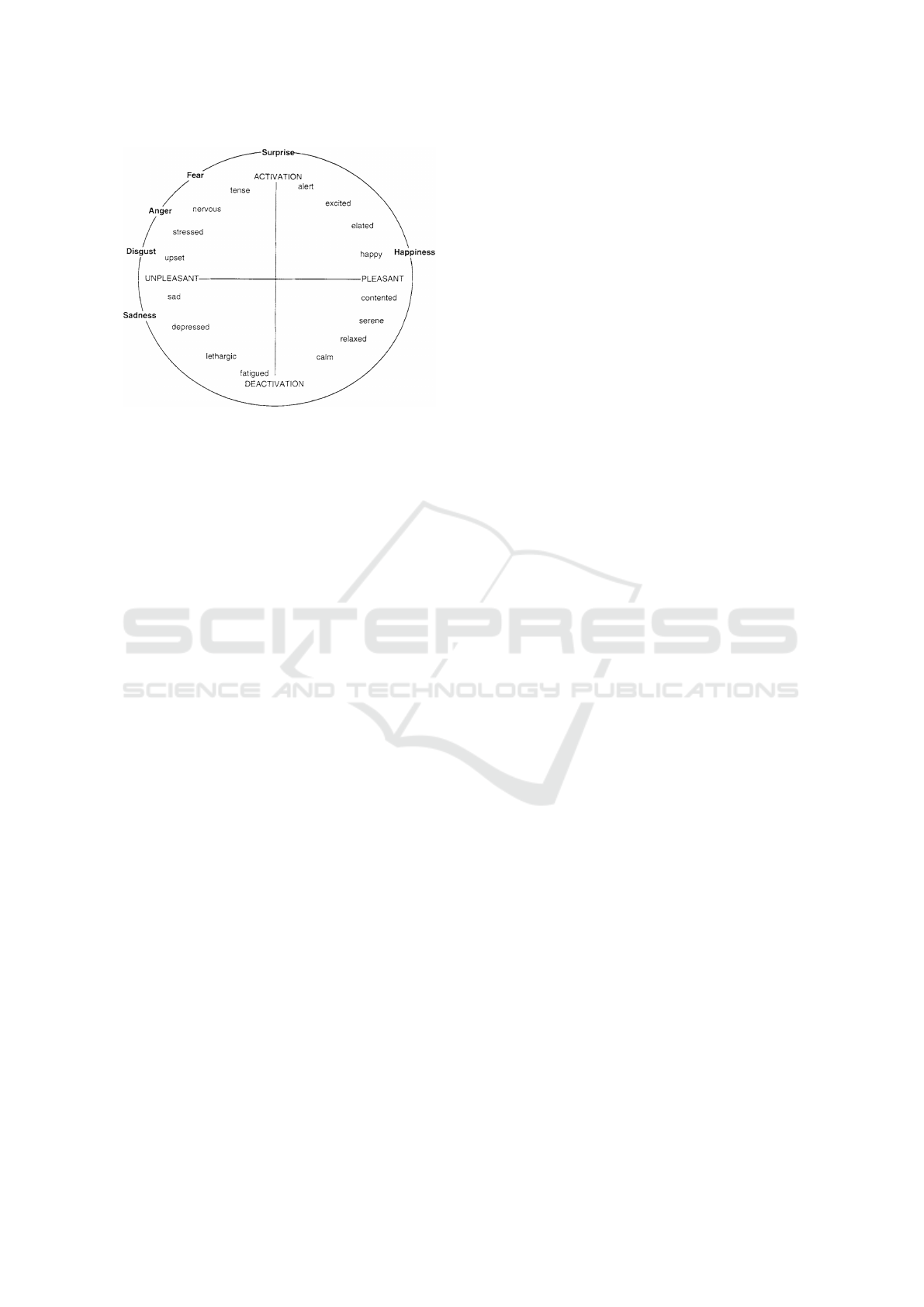

Figure 1: Russel’s 2-dimensional valence arousal circum-

plex (Russell and Barrett, 1999).

An arguably more precise way of describing emo-

tions is to attach the experienced stimuli to continu-

ous scales within dimensional models. (Mehrabian,

1995) suggests to characterize emotions along three

axes, which he deﬁnes as pleasure, arousal and dom-

inance. (Lang et al., 1997) propose arousal and va-

lence as measurements. These representations are less

intuitive but allow continuous blending between af-

fective states. They describe multiple aspects of an

emotion, the combination of stimuli’s alignments on

these scales deﬁnes single emotions. In the case of the

valence-arousal model, which is the more commonly

used dimensional model, the valence scale describes

the pleasantness of a given emotion. A positive va-

lence value indicates an enjoyable emotion such as

joy or pleasure. Negative values are associated with

unpleasant emotions like sadness and fear. This des-

ignation is complemented by the arousal scale which

measures the agitation level of an emotion (Figure 1).

Categorical as well as dimensional models are

simpliﬁed, synthetic descriptions of human emotions

and are not able to cover all of the included aspects.

They are however useful and needed to model emo-

tions as concepts to be presented to a machine. In

our generation system for expressive faces, we pre-

fer a dimensional approach over the categorical, in

order to enable a seamless transition between dis-

played emotions. However, data collections featur-

ing dimensional annotation for facial expressions are

more sparse than the ones containing categorical la-

bels (Section 4.1).

To alleviate this problem, we propose to use a

cGAN that was conditioned on categorical emotions

during training, and interpolate between those emo-

tions in order to be able to create new images. Those

newly generated face images show emotional states

that are located in the continuous dimensional space

of the valence/arousal model without having to corre-

late directly with discrete emotion categories.

3.2 Network Architecture

The network used in our experiments is largely based

on a Deep Convolutional GAN (DCGAN) by (Rad-

ford et al., 2015). A detailed description of DCGAN

can be found in their respective publication. Summa-

rized, DCGAN follows the basic principles of tradi-

tional GANs while making use of convolutional and

convolutional-transpose layers in order to improve the

quality of generated outputs.

In order to allow for the targeted generation of

images, the DCGAN was extended with the princi-

ples of a cGAN. In contrast to conventional GANs,

cGANs add a conditioning component to the input

vector. That vector is used to condition the genera-

tor network to certain features that shall be shown in

the output images. Thus, during training, those fea-

ture information has to be fed as labels. All in all,

the input to a cGAN consists of a random noise part z

and a conditioning vector v. After a successful train-

ing procedure, the generator has learned to transform

the random noise input to images that resemble the

training domain, whereas the conditioning informa-

tion is taken into account to direct those outputs to

show the desired features. In the context of emotional

face generation, the random noise part is responsible

for the face itself, whereas the conditioning informa-

tion leads to certain emotions of the face. Thus, two

identical noises conditioned with different feature in-

formation should result in the same face showing dif-

ferent emotions.

In our implementation, the conditioning informa-

tion is given to the network as one-hot encoded label

vector, where each element represents a certain emo-

tion. As described in Section 4.1, the emotions Neu-

tral, Sad, Disgust, Fear, Angry and Happy were used

during training. Thus, the one-hot label vector v has

the following form:

v = (v

, v

, ..., v

) = {0, 1}

(1)

with

∑

i=1

= 1 (2)

3.3 Interpolation

During inference, we change the deﬁnition of the con-

ditioning vector in order to allow a continuous inter-

polation between discrete emotional states. As intro-

duced in Section 3.1, we derive the mapping between

discrete emotions and continuous emotional states

DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications

134

(i.e., valence-arousal space) from the idea of Russel’s

emotion system. Thus, the valence-arousal of a face

image I can be represented by a tuple VA(I) = (v, a),

where v refers to the valence value and a to the arousal

value. According to Russel’s emotion system, an

image x with VA(x) = (0, 0), thus, representing the

center of the emotion space, would show a neutral

emotion. Certain emotions, like Happy, are repre-

sented by valence/arousal states that show quite ex-

treme values. Therefore, to generate images with cer-

tain degrees of arousal or valence, we interpolate be-

tween those extreme emotions and the neutral emo-

tion. With the term extreme emotions, we refer to all

of the used categorical emotions except Neutral. By

applying the interpolation technique, we do not use

strictly one-hot encoded label vectors as conditioning

information during inference, but interpolated label

vectors that do not have to be of a binary structure. In

order to do so, we have to redeﬁne the conditioning

vector v so that the single conditioning elements are

not forced to a binary structure, but can take values in

the interval [0, 1]:

v = (v

, v

, ..., v

) = [0, 1]

(3)

In order to keep the output of the conditioning layer

consistent to the training, we found that retaining the

restriction formulated in Equation 2 leads to better

quality of the interpolated results than choosing the

conditioning elements arbitrarily in the given inter-

vals. In our experiments, we have adhered to perform

interpolations between Neutral and a certain other

emotion to maintain comparability between the emo-

tions. It should be noted that the approach could eas-

ily be extended to interpolate between two extreme

emotions. However, as we only use one extreme emo-

tion and Neutral at once, the following constraint has

to be added:

∃i

∈[2,6]

: v

+ v

= 1 (4)

where v

represents the condition for Neutral. To

generate an image that shall show a certain degree

of valence v or arousal a, where 0 ≤ a, v ≤ 1, we

use the one-hot element of the an emotion that max-

imizes the speciﬁc value, for example Happy when

dealing with valence, and decrease it to the desired

degree, while simultaneously increasing the one-hot

element that refers to Neutral to the same extent. Our

hypothesis is, that due to the differentiable function

that is approximated by the cGAN model during the

training, those non-binary conditioning vectors lead

to image outputs which are perceived as showing non-

extreme emotions, thus, emotions that have can have

valence/arousal values located anywhere in Russel’s

emotion system instead of just showing those values

that are given during the training.

4 EXPERIMENTS & RESULTS

To evaluate, if label interpolation in the conditioning

space is a valid approach to generate images with con-

trollable valence-arousal values, we trained a cGAN

model described in the previous chapter.

4.1 Dataset & Training

Figure 2: Exemplary data from FACES showing neutral,

sad, disgust, fear, anger and happiness from left to right

varying the age group.

As described in Section 1, datasets that are labeled

with respect to dimensional emotional models are

rare. Further, those few datasets that contain those

continuous label information (like AffectNet by (Mol-

lahosseini et al., 2019) or AFEW-VA by (Kossaiﬁ

et al., 2017)) are recorded in the wild. Usually, vari-

ability in data is an advantage for deep learning tasks,

however, for many generative tasks that focus on

modeling speciﬁc feature dimensions like emotions,

variety in data leads to inconsistent and unnatural re-

sults. Thus, for our usecase, a uniformly recorded

dataset with low variability outside the facial emo-

tion is required. To address the lack of continuously

labeled and consistently recorded datasets meeting

these requirements for emotional face generation, we

explore the use of label interpolation to overcome the

disadvantages of categorical labeled datasets. Such

datasets containing discrete emotion labels are widely

available. A dataset ﬁtting our purpose particularly

well is the FACES dataset (Ebner et al., 2010). The

FACES dataset contains 2052 images showing emo-

tional facial expressions from 171 men and women of

different ages (58 young, 56 middle-aged and 57 old).

Each participant shows two versions of the emotions

Neutral, Sadness, Disgust, Fear, Anger and Happi-

ness. Despite the relatively small size of the dataset,

the consistency of the images in terms of lighting,

background, and viewing angle makes it stand out as

a training dataset and an adequate choice for training

GANs. For instance, all images in the dataset have

the same blank background and the subjects wear the

same plain grey top as depicted in Figure 2. All im-

ages were resized to the target size of 256x256 pixels

prior to training. No further preprocessing was neces-

sary.

The model was trained for 10,000 epochs on all

2052 images of the FACES dataset using Adam opti-

Continuous Emotions: Exploring Label Interpolation in Conditional Generative Adversarial Networks for Face Generation

135

Figure 3: Example outputs of the trained cGAN model.

mizer with a learning rate of 0.0001. Example outputs

of the trained model, conditioned on one-hot vectors

of all 6 used emotions, are shown in Fig. 3.

Our evaluation process is two-folded. First, we

wanted to evaluate whether extreme emotions can

be generated by the cGAN without interpolation and

whether this output is recognized as the correct emo-

tion by real humans. Secondly, we decided to perform

a more ﬁne-grained analysis on the continuously gen-

erated outputs by the use of our approach. In order

to do so, we decided to perform an evaluation using a

pretrained valence-arousal regression model. As the

focus of this paper is the exploration of the possibility

to interpolate between discrete label information, the

absolute numerical values of such a regression model

are not a good metric for our purposes. Instead, we

want to explore if the interpolation mechanism is able

to model the full bandwidth of valence and arousal

values that can occur between a neutral emotion and

certain extreme emotions. Thus, in the ﬁrst step, we

conducted a tiny user study to evaluate if the trained

model itself is capable of generating those extreme

emotions that it was trained on. The second evalu-

ation step was designed as a computational evalua-

tion of the interpolation mechanism to explore if the

trained cGAN is capable of modeling a smooth transi-

tion between the emotional states in terms of valence

and arousal.

4.2 User Evaluation of cGAN Model

In our user study, we evaluated the capabilities of the

cGAN to create images of discrete emotions that were

generated using the corresponding one-hot vector en-

coding. In total, 20 participants of ages ranging from

22 to 31 years (M = 25.8, SD = 2,46, 40% male, 60%

female) took part in the survey.

The survey consisted of 36 images, half of which

were selected out of the FACES dataset, while the

other half was generated by our trained cGAN. In to-

tal, 6 images were shown for each emotion, 3 from

the FACES dataset and 3 generated faces. The images

that were taken from the FACES dataset were resized

to 256x256 pixels in order to keep consistency with

the artiﬁcially created images. For every image and

emotion, the participants were asked how much they

agreed with the image showing a certain emotion by

the use of a 5-point Likert scale (1 = strongly agree, 5

= strongly disagree).

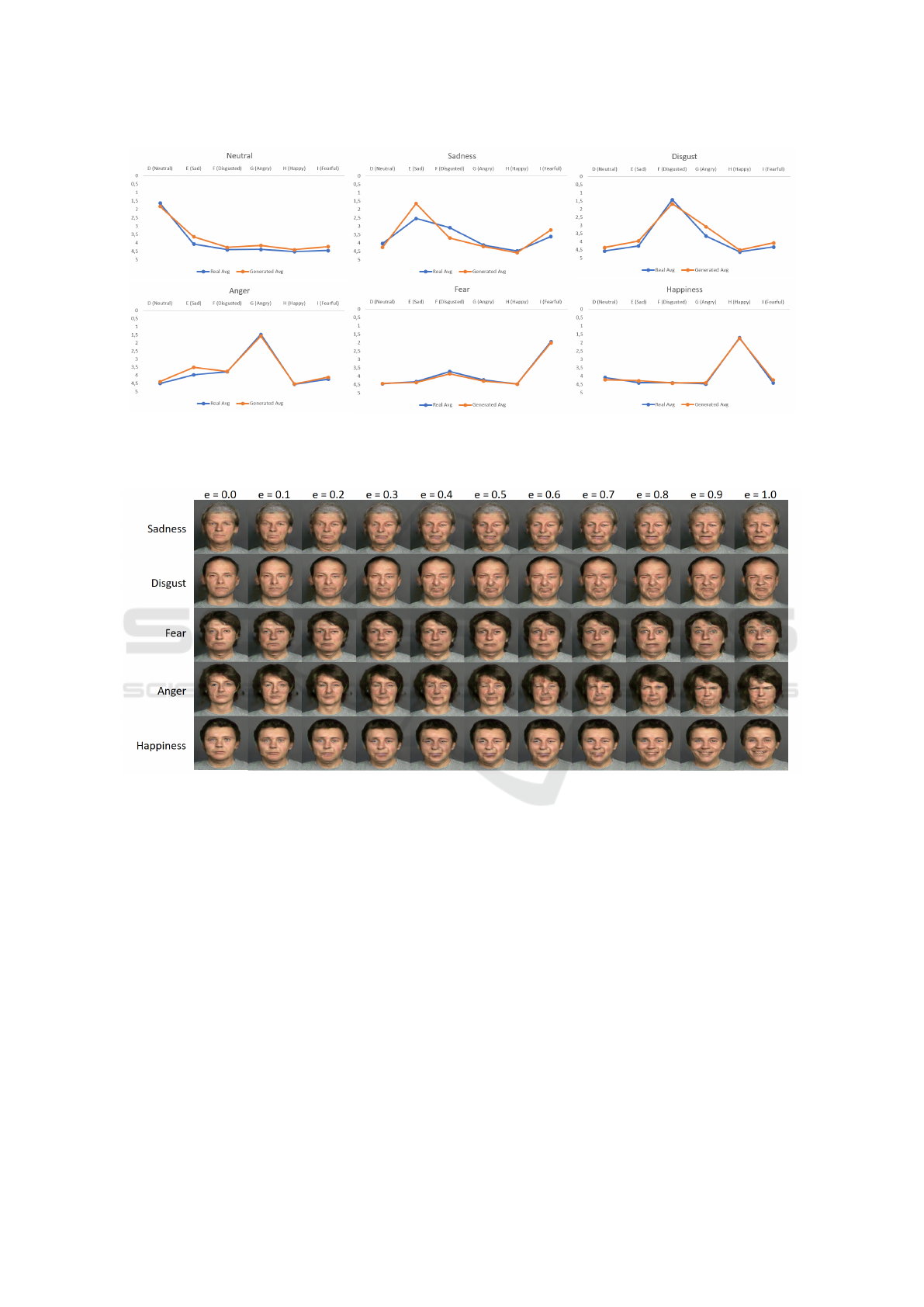

The results are shown in Fig. 4. As can be seen,

the artiﬁcially generated images were perceived in a

convincingly similar way as the original images from

the FACES dataset. For every emotion, it becomes

clearly visible that the emotion is predominantly rec-

ognized correctly by the participants. The emotion

Sadness stands out, as here, generated images were

recognized even better than the original ones, as sad

images from the FACES dataset more often were con-

fused with Disgust. Thus, the trained cGAN model

turns out to be a suitable base for further interpola-

tion.

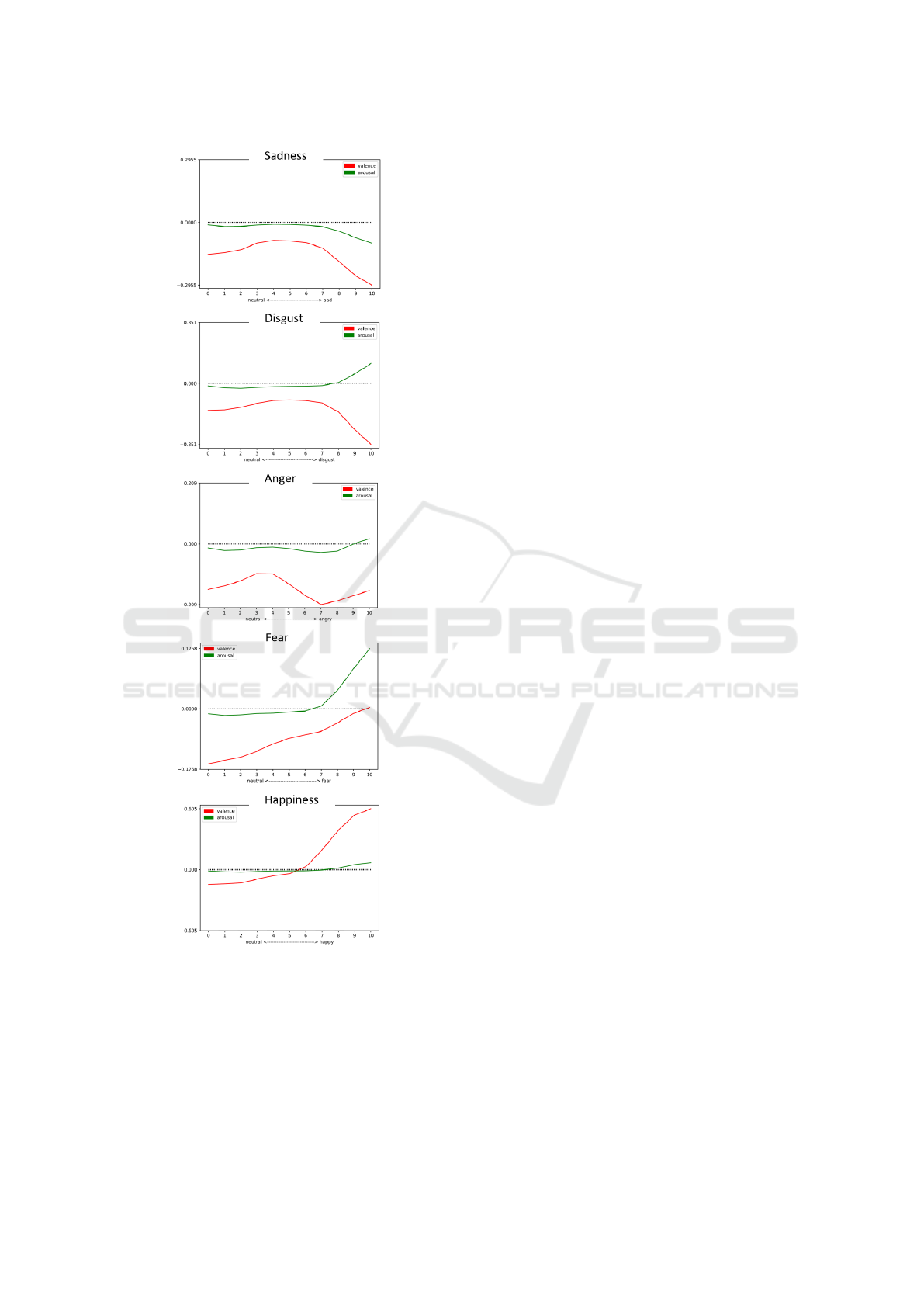

4.3 Computational Evaluation of the

Interpolation Mechanism

As was shown in the user study, the cGAN is able

to model discrete emotions when conditioned on one-

hot vectors. To verify if our approach based on inter-

polating in that label space is enhancing the network

with the ability to generate images with varying, con-

tinuous degrees of valence and arousal, we performed

a computational evaluation. In order to do so, we fed

5,000 random noise vectors into the cGAN, 1,000 for

each emotion. The conditioning vector was initially

conditioned on a neutral emotion. Additionally, for

each noise vector, interpolation steps towards the re-

spective extreme emotion were conducted. Therefore,

10 interpolation steps in intervals of 0.1 were done per

noise vector, so that the last interpolation step equals a

one-hot vector that is conditioned on the correspond-

ing extreme emotion. Each of the resulting images

was then evaluated with a pre-trained valence/arousal-

assessment model. Example outputs of various in-

terpolation steps between Neutral and the other ﬁve

emotions are depicted in Fig. 5.

The structure of that model was based on the Mo-

bileNetV2 architecture (Sandler et al., 2018), which

was adapted for multi-task learning of the following

two tasks: recognition of continuous valence/arousal

values and detection of eight discrete emotion classes

(Neutral, Happy, Sad, Surprise, Fear, Disgust, Anger

and Contempt). We selected this architecture because

it achieves similar results to Inception- or ResNet-

based models but can be trained more quickly. The

network was trained for both tasks simultaneously on

the AffectNet dataset (Mollahosseini et al., 2019) us-

DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications

136

Figure 4: Results of the user study. Blue graphs show the perceived emotion of real images from the FACES dataset, while

orange graphs show the perceived emotion of outputs of the cGAN conditioned on one-hot vectors. The y-axis represents the

degree of the participant’s agreement with the corresponding emotions that are represented by the x-axis.

Figure 5: Example outputs of the interpolation mechanism. Each row shows a set of interpolation steps, where in each step,

the emotion portion e was increased by 0.1, whereas the neutral portion was decreased by the same amount.

ing an Adam optimizer with a learning rate of 0.001

for 100 epochs. After training, the secondary model

head for discrete emotion detection was removed and

only the valence/arousal head was used to evaluate the

cGAN model.

We assessed the valence/arousal values for every

output image of the interpolated cGAN and averaged

them over the 1,000 samples per emotion. The results

are shown in Fig. 6.

5 DISCUSSION

As can be derived from the plots depicted in Fig. 6,

the interpolation mechanism is able to condition

the cGAN to produce face images of various va-

lence/arousal values. Further, those values that are

taken during the interpolation procedure are mainly

located in the intervals deﬁned by the respective start

and end points of the corresponding interpolation, i.e.,

the samples that are conditioned with a binary one-hot

vector.

However, it can be seen that in the cases of Sad-

ness and Disgust, during interpolation, the valence

ﬁrst takes slightly higher values than the respective

valence values at the starting sample, before ﬁnally

descending to the level of the interpolation end point.

For Anger, both valence and arousal values are going

up and down until ﬁnally arriving at a similar level

as where they started. It should be noted, that the

plots are showing only the valence and arousal val-

ues that were tracked by the valence/arousal assess-

Continuous Emotions: Exploring Label Interpolation in Conditional Generative Adversarial Networks for Face Generation

137

Figure 6: Computational Evaluation of our interpolation ap-

proach. Red graphs show valence, while green graphs show

arousal. The x-axis represents the interpolation steps. Each

interpolation step was performed by increasing the corre-

sponding emotion vector element by 0.1, while decreasing

the neutral vector element by 0.1.

ment model described in the previous section. That

model seems to attribute similar valence/arousal val-

ues to generated angry faces as to generated neutral

faces when conditioned with a binary one-hot vector,

although the user study has shown that both of those

emotions were perceived in a correct way. As can

be seen in Fig. 1, Anger should show substantially

different valence and notably different arousal than a

neutral emotion according to Russel’s emotion model.

Thus, we assume that the valence/arousal assessment

model has its ﬂaws when it comes to dealing with cer-

tain emotional states. The fact, that the valence val-

ues of neutral faces already are located notably be-

low zero, as well as the observation that images that

are showing Fear are averaging in a higher valence

than neutral images, although also being perceived

correctly in our user study, strengthens this assump-

tion. However, the values are predominantly evolving

into the right direction during the whole interpolation

procedure and modeling the whole range in the de-

sired valence and arousal intervals between the dis-

crete emotions. Thus, the interpolation mechanism

can indeed be used to generate face images of contin-

uous emotional states, generating a variety of samples

in the dimensional valence-arousal model. The fact,

that the values are not evolving in a linear way, i.e.,

the plots appear rather as curves than as straight lines,

does not take away much from the results, as for a

more even interpolation, the single interpolation step

intervals can easily be modiﬁed, e.g., instead of using

the same step interval for every single interpolation

step, higher intervals can be used in ranges where the

target features are changing slower.

6 CONCLUSION & OUTLOOK

In this work, we have explored the capabilities of

a continuous interpolation through a discrete condi-

tioning space of a cGAN. We strived for a possibil-

ity to generate images of emotional faces, where the

emotions are not restricted to categorical structures,

but can transition freely in the valence-arousal space.

Our experiments showed that our interpolation mech-

anism is able to achieve that goal, although the per-

formance of the approach is heavily dependent on the

emotion that is used for the interpolation. All in all,

the approach shows great potential to be applied as a

tool for continuous emotional face generation. In fu-

ture work, we plan to extend our work by applying it

to more complex cGAN architectures in order to op-

timize the quality of generated images. Further, we

plan to examine the applicability of label interpola-

tion by the use of other datasets that show a higher

diversity.

DeLTA 2021 - 2nd International Conference on Deep Learning Theory and Applications

138

ACKNOWLEDGEMENTS

This work has been funded by the European Union

Horizon 2020 research and innovation programme,

grant agreement 856879.

REFERENCES

Arjovsky, M. and Bottou, L. (2017). Towards principled

methods for training generative adversarial networks.

arXiv preprint arXiv:1701.04862.

Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasser-

stein generative adversarial networks. In Interna-

tional conference on machine learning, pages 214–

223. PMLR.

Choi, Y., Choi, M., Kim, M., Ha, J.-W., Kim, S., and Choo,

J. (2018). Stargan: Uniﬁed generative adversarial net-

works for multi-domain image-to-image translation.

In Proceedings of the IEEE conference on computer

vision and pattern recognition, pages 8789–8797.

Ding, H., Sricharan, K., and Chellappa, R. (2018). Exprgan:

Facial expression editing with controllable expression

intensity. In Proceedings of the AAAI Conference on

Artiﬁcial Intelligence, volume 32.

Ebner, N. C., Riediger, M., and Lindenberger, U. (2010).

Faces—a database of facial expressions in young,

middle-aged, and older women and men: Develop-

ment and validation. Behavior research methods,

42(1):351–362.

Gauthier, J. (2014). Conditional generative adversarial nets

for convolutional face generation. Class Project for

Stanford CS231N: Convolutional Neural Networks for

Visual Recognition, Winter semester, 2014(5):2.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial networks. arXiv

preprint arXiv:1406.2661.

Gulrajani, I., Ahmed, F., Arjovsky, M., Dumoulin, V., and

Courville, A. (2017). Improved training of wasser-

stein gans. arXiv preprint arXiv:1704.00028.

He, Z., Zuo, W., Kan, M., Shan, S., and Chen, X. (2019).

Attgan: Facial attribute editing by only changing what

you want. IEEE Transactions on Image Processing,

28(11):5464–5478.

Hong, Y., Hwang, U., Yoo, J., and Yoon, S. (2019).

How generative adversarial networks and their vari-

ants work: An overview. ACM Computing Surveys

(CSUR), 52(1):1–43.

Karras, T., Aila, T., Laine, S., and Lehtinen, J. (2017). Pro-

gressive growing of gans for improved quality, stabil-

ity, and variation. arXiv preprint arXiv:1710.10196.

Kossaiﬁ, J., Tzimiropoulos, G., Todorovic, S., and Pantic,

M. (2017). Afew-va database for valence and arousal

estimation in-the-wild. Image and Vision Computing,

65:23–36.

Lang, P. J., Bradley, M. M., and Cuthbert, B. N. (1997).

Motivated attention: Affect, activation, and action. In

Lang, P. J., Simons, R. F., and Balaban, M. T., ed-

itors, Attention and orienting: Sensory and motiva-

tional processes, pages 97–135. Psychology Press.

Lin, J., Xia, Y., Qin, T., Chen, Z., and Liu, T.-Y. (2018).

Conditional image-to-image translation. In Proceed-

ings of the IEEE conference on computer vision and

pattern recognition, pages 5524–5532.

Liu, M.-Y., Breuel, T., and Kautz, J. (2017). Unsupervised

image-to-image translation networks. arXiv preprint

arXiv:1703.00848.

Mehrabian, A. (1995). Framework for a comprehensive de-

scription and measurement of emotional states. Ge-

netic, social, and general psychology monographs,

121(3):339–361.

Mirza, M. and Osindero, S. (2014). Conditional generative

adversarial nets. arXiv preprint arXiv:1411.1784.

Mollahosseini, A., Hasani, B., and Mahoor, M. H. (2019).

Affectnet: A database for facial expression, valence,

and arousal computing in the wild. IEEE Transactions

on Affective Computing, 10(1):18–31.

Radford, A., Metz, L., and Chintala, S. (2015). Unsu-

pervised representation learning with deep convolu-

tional generative adversarial networks. arXiv preprint

arXiv:1511.06434.

Royer, A., Bousmalis, K., Gouws, S., Bertsch, F., Mosseri,

I., Cole, F., and Murphy, K. (2020). Xgan: Unsuper-

vised image-to-image translation for many-to-many

mappings. In Domain Adaptation for Visual Under-

standing, pages 33–49. Springer.

Russell, J. A. and Barrett, L. F. (1999). Core affect, pro-

totypical emotional episodes, and other things called

emotion: dissecting the elephant. Journal of person-

ality and social psychology, 76(5):805.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L. (2018). Mobilenetv2: Inverted residuals and

linear bottlenecks. In 2018 IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

4510–4520.

Wang, Y., Dantcheva, A., and Bremond, F. (2018). From

attributes to faces: a conditional generative network

for face generation. In 2018 International Conference

of the Biometrics Special Interest Group (BIOSIG),

pages 1–5. IEEE.

Yi, W., Sun, Y., and He, S. (2018). Data augmentation us-

ing conditional gans for facial emotion recognition. In

2018 Progress in Electromagnetics Research Sympo-

sium (PIERS-Toyama), pages 710–714. IEEE.

Continuous Emotions: Exploring Label Interpolation in Conditional Generative Adversarial Networks for Face Generation

139
