A Uniﬁed Model to Detect Information Flow and Access Control

Violations in Software Architectures

Stephan Seifermann, Robert Heinrich, Dominik Werle and Ralf Reussner

KASTEL – Institute of Information Security and Dependability, Karlsruhe Institute of Technology, Germany

Keywords:

Access Control, Information Flow, Software Architecture, Conﬁdentiality, Analysis Automation.

Abstract:

Software architectures allow identifying conﬁdentiality issues early and in a cost-efﬁcient way. Information

Flow (IF) and Access Control (AC) are established conﬁdentiality mechanisms, so modeling and analysis

approaches should support them. Because conﬁdentiality issues often trace back to data usage, data-oriented

approaches are promising. However, we could not identify a data-oriented approach handling both, IF and AC.

Therefore, we present a uniﬁed data-oriented modeling and analysis approach supporting both, IF and AC,

within the same model in this paper. We demonstrate the integration into an existing architectural description

language and evaluate the resulting expressiveness and accuracy by a case study considering 22 cases.

1 INTRODUCTION

Conﬁdentiality according to ISO 27000 (International

Organization for Standardization, 2018) is the “prop-

erty that information is not made available or dis-

closed to unauthorized individuals, entities, or pro-

cesses”. Considering security, which includes conﬁ-

dentiality, is vital for software systems (Venson et al.,

2019) but is also a challenging because of increasing

complexity and connectedness of systems (McGraw,

2006, chap. 1). Addressing issues in early develop-

ment phases such as the architectural design is more

cost-efﬁcient than in later phases such as the imple-

mentation in general (Boehm and Basili, 2001; Shull

et al., 2002). The same holds for security issues (Mi-

crosoft Corporation et al., 2009) in the design (Hoo

et al., 2001), (McGraw, 2006, chap. 5).

Automated modeling and analysis approaches can

support people reviewing security aspects and identi-

fying such issues with less effort (Tuma et al., 2020).

However, this is only true if an approach supports

the used security mechanisms and policies. Two

established conﬁdentiality mechanisms are Access

Control (AC) (Sandhu et al., 1994), (Furnell, 2008,

chap. 5) and Information Flow (IF) control (Smith,

2007; Hedin et al., 2012). Both can be used separately

or in combination (Xu et al., 2006; Wang et al., 2009).

If common and speciﬁc parts are distinguished, the

advantages of a modeling language supporting both,

IF and AC, in one single language are: i) The com-

mon part, which could be the structure of the system,

only has to be modeled once. Therefore, architects do

not have to remodel large parts of the system when de-

ciding for another conﬁdentiality mechanisms. ii) Ar-

chitects only have to learn the core language and the

language elements speciﬁc for the chosen conﬁden-

tiality mechanism. Consistency management between

dedicated models might enable some of these bene-

ﬁts as well but it is challenging if languages diverge

too much (Torres et al., 2020). Using a data-oriented

language in contrast to a control ﬂow oriented lan-

guage can be beneﬁcial as well because Data Flow

Diagrams (DFDs) are commonly used in threat mod-

eling and security “problems tend to follow the data

ﬂow, not the control ﬂow” (Shostack, 2014, p. 44).

Surveys (Nguyen et al., 2015; van den Berghe

et al., 2017) show a wide range of design-time con-

ﬁdentiality analyses. However, we could not iden-

tify a data-oriented approach capable of representing

and analyzing IF and AC within the same modeling

language and providing the aforementioned advan-

tages. Generic frameworks such as Uniﬁed Archi-

tecture Framework (UAF) (OMG, 2020) are ﬂexible

enough to express such aspects but are too generic to

be useful. We see two research questions: RQ1) What

modeling primitives can be shared between IF and AC

and which primitives have to be speciﬁc? RQ2) How

can analyses exploit the shared language parts for

identifying violations of IF and AC policies?

In this paper, we address both research questions

by two contributions: C1) We deﬁne the model el-

ements for representing system aspects relevant for

Seifermann, S., Heinrich, R., Werle, D. and Reussner, R.

A Uniﬁed Model to Detect Information Flow and Access Control Violations in Software Architectures.

DOI: 10.5220/0010515300260037

In Proceedings of the 18th International Conference on Security and Cryptography (SECRYPT 2021), pages 26-37

ISBN: 978-989-758-524-1

IF and AC. We also discuss how existing Architec-

tural Description Languages (ADLs) based on con-

trol ﬂows or data ﬂows can be extended by example.

C2) We provide analysis deﬁnitions for identifying IF

and AC policy violations in such extended ADLs. We

realize our concepts within the ADL Palladio (Reuss-

ner et al., 2016) in order to identify the required steps

to extend existing ADLs. We chose Palladio for two

reasons: First, Palladio is capable of describing be-

havior in terms of control ﬂow and data ﬂow (Werle

et al., 2020), so we can evaluate our concepts for

both paradigms within one prototype. Second, Palla-

dio provides a condensed set of modeling primitives

tailored for analyzing architectural quality properties,

which allows us to focus on core concepts.

We evaluate the expressiveness of the modeling

primitives and the accuracy of the analysis deﬁnitions

in a case study. The case study involves modeling 8

systems in 22 cases that include 4 types of IF policies,

4 types of AC models and 1 combined policy. For ev-

ery case, there is an analysis deﬁnition that we execute

on a variant of the case featuring a policy violation

and one variant free of policy violations to determine

the accuracy of our analyses. We could express 20

of 22 cases and correctly identiﬁed all injected issues.

This means our proposed modeling primitives and the

deﬁned analyses are capable of expressing IF and AC

in systems and successfully detected all violations.

The remainder of this paper is structured as fol-

lows: Section 2 covers foundational knowledge and

Section 3 presents the running example. State of the

art is covered in Section 4. In Section 5, we determine

modeling primitives required for representing IF and

AC by comparing two existing approaches supporting

either IF or AC. In addition, we discuss how exist-

ing ADLs can be extended. Section 6 covers analy-

sis deﬁnitions for common IF and AC policies based

on the modeling primitives. The expressiveness of the

modeling primitives as well as the accuracy of deﬁned

analyses are evaluated in Section 7. We also discuss

limitations, the implementation and data availability

there. Section 8 concludes the paper.

2 FOUNDATIONS

This paper is about an approach for analyzing IF and

AC on Data Flow Diagrams (DFDs) and Palladio.

Access Control (AC) (Sandhu et al., 1994) lim-

its actions of users or processes to avoid security

breaches. AC mechanisms enforce AC policies de-

scribing permissions. Four established AC models

(Furnell, 2008, chap. 5) describing policies are Dis-

cretionary Access Control (DAC), Mandatory Access

Control (MAC), Role-based Access Control (RBAC)

and Attribute-based Access Control (ABAC), which

we describe later as part of our analysis deﬁnitions.

Information Flow (IF) (Smith, 2007) controls the

release and the propagation of information. The most

prominent IF property is non-interference, which only

allows information ﬂows upwards a lattice of security

labels, i.e. information on a high level must not inﬂu-

ence information on a lower level. This deﬁnition is

too restrictive for real software systems (Zdancewic,

2004), so mechanisms like declassiﬁcation explicitly

grant ﬂows downwards. Non-interference helps to es-

tablish conﬁdentiality and integrity. However, only

conﬁdentiality is in the scope of this paper.

DFDs (DeMarco, 1979) describe functional sys-

tem aspects. DFDs consist of data ﬂows between the

following nodes: External entities (sources/sinks) ex-

change data with the system. The system consists of

processes and stores. Processes transform incoming

data to outgoing data. Stores save incoming data and

emit saved data. Throughout this paper, we assume

that processes need all inputs to produce all outputs.

Palladio (Reussner et al., 2016) is a component-

based ADL. The language covers the usage, structure,

behavior and allocation of a software system. Usage

and behavior descriptions are ordered lists of actions

that have effects, e.g. on resource usage. The structure

consists of components that provide and require ser-

vices and connected instances of these components.

Allocations assign component instances to resource

nodes. The Palladio extension for data-oriented mod-

eling (Werle et al., 2020) introduces data channels

as special components that communicate by emitting

and consuming data items instead of doing calls.

3 RUNNING EXAMPLE

We use the TravelPlanner system (Katkalov et al.,

2013; Seifermann et al., 2019) to explain our ap-

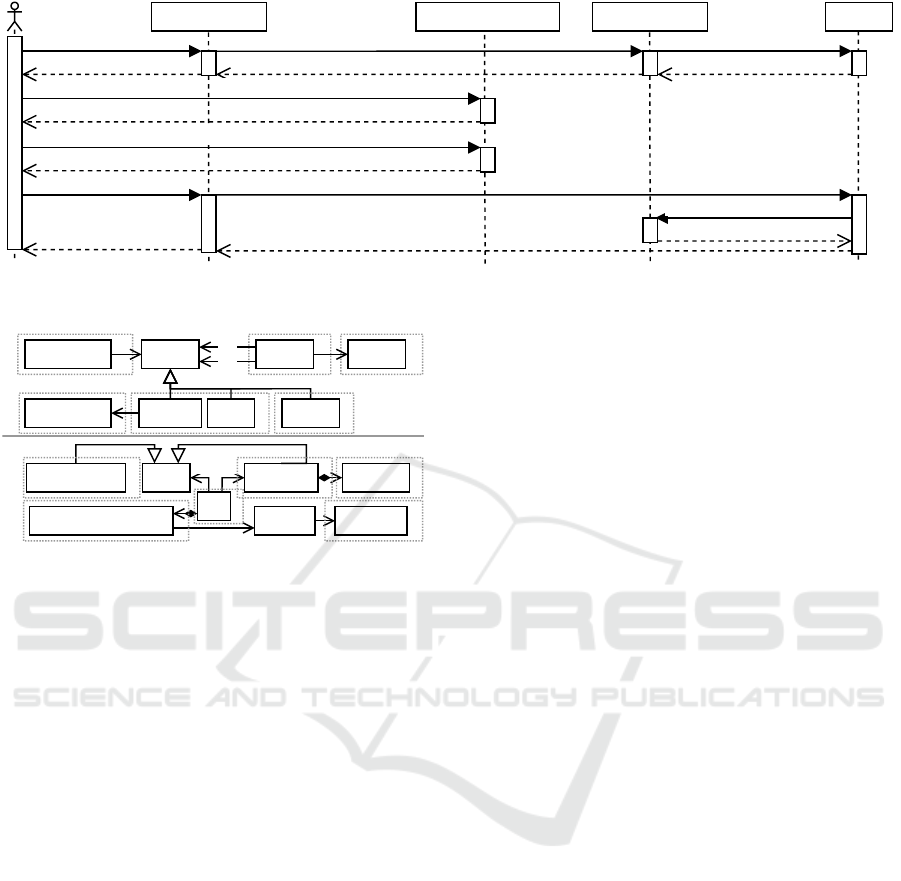

proach. The system lets users book ﬂights as shown

in Figure 1. First, users request ﬂights from their

TravelPlanner app by giving search criteria. The

app passes the request to a TravelAgency service that

sends a query to the Airline. The airline returns

matching ﬂights. Users select a ﬂight and retrieve

their credit card details ccd. The airline is not allowed

to access this data, so users declassify it ﬁrst. After-

wards, users book the ﬂight by submitting the ﬂight

and the credit card details. The airline pays a com-

mission to the travel agency and conﬁrms the book-

ing. Simply said, the conﬁdentiality policy is that only

users access credit card details except they explicitly

grant access. Therefore, the ﬂight booking call from

A Uniﬁed Model to Detect Information Flow and Access Control Violations in Software Architectures

the travel planner app to the airline is critical.

Katkalov et al. (Katkalov et al., 2013) deﬁned an

IF policy by three levels. Level 1 is accessible to the

user, airline and travel agency. All data except credit

card details are classiﬁed by level 1. Level 2 is acces-

sible to the user and the airline. Level 3 is accessible

to the user only. Credit card data is level 3. Releasing

credit card details means changing its level from 3 to

2. A violation occurs if a system part with clearance

level n receives data classiﬁed with level m > n.

In previous work (Seifermann et al., 2019), we de-

ﬁned a RBAC policy. Roles match the involved par-

ties user, travel agency and airline. Transmitted data

holds a set of roles allowed to access. Credit card

details only hold the user role. Remaining data is ac-

cessible by all. Releasing credit card details means

adding the airline role to the data. Violations occur if

the system part and data do not share any role.

4 STATE OF THE ART

We focus on providing a uniﬁed modeling and anal-

ysis approach for detecting IF and AC violations in

software architectures. Therefore, we discuss ap-

proaches considering IF or AC in architecture or de-

sign. We see three groups of related approaches.

Threat Modeling: is an established method for

identifying security issues in early software designs.

Various models and procedures help designers in

identifying potential security issues (Shostack, 2014).

Many approaches extend DFDs to increase their ex-

pressiveness (Sion et al., 2020) and support auto-

mated analyses. A considerable share of these ap-

proaches (Abi-Antoun et al., 2007; Berger et al.,

2016; Sion et al., 2018) restricts itself to pattern

matching that requires manual classiﬁcation of ex-

changed data with attributes such as contains per-

sonal data. In contrast, we focus on deriving this

classiﬁcation automatically to detect conﬁdentiality

issues. We put threat modeling approaches with auto-

mated classiﬁcations into the following last category.

Control Flow Analyses: provide powerful means

for identifying conﬁdentiality issues. Almorsy et al.

(Almorsy et al., 2013) calculate security metrics to

identify structural conﬁdentiality issues. However,

they only mention system behavior vaguely, so we

assume they do not consider the effect of data pro-

cessing. There are also approaches (Abdellatif et al.,

2011; Katkalov et al., 2013) complementing design

information with source code to consider detailed data

processing. Besides the increased speciﬁcation effort,

this information might not be available during design

time. Additionally, source code is not necessary to

consider data processing: Hoisl et al. (Hoisl et al.,

2014) deﬁne IF analyses comparable with taint anal-

yses. Such analyses usually overestimate information

ﬂows, which might yield more false positives than de-

tailed analyses. Approaches like UMLSec (J

urjens,

2005) or the approach of Heyman et al. (Heyman

et al., 2012) use more detailed behavior descriptions

to detect violations, which allows more ﬁne-grained

analyses. However, control ﬂow approaches cannot

serve as uniﬁed models that also include data ﬂow ar-

chitectures because mapping data ﬂows onto control

ﬂows is not trivial (Alabiso, 1988; Jilani et al., 2011).

Data Flow Analyses: support various types of

conﬁdentiality analyses. Data ﬂow models can serve

as uniﬁed models because mapping control ﬂows on

data ﬂows is well known from compiler optimization

(Lowry and Medlock, 1969) and there are established

mappings (Khedker et al., 2009). Recently, several

data ﬂow analyses have been proposed. SecDFD

(Tuma et al., 2019; Tuma et al., 2020) uses ex-

tended DFDs to detect violations of IF policies as well

as other security properties. Van den Berghe et al.

(van den Berghe et al., 2017) also detect IF violations

but use a Domain-speciﬁc Language (DSL) to spec-

ify systems and their behavior formally by DFD-like

concepts. Both approaches could support the IF anal-

ysis of the running example. In previous work (Seifer-

mann et al., 2019), we also used extended DFDs but

detected violations of RBAC policies, which supports

the AC analysis of the running example. The previous

approaches are data-driven but none claims and eval-

uates detecting both, IF and AC, violations within the

same model. We could not ﬁnd such an approach.

5 MODELING PRIMITIVES FOR

CONFIDENTIALITY

This section covers the uniﬁed meta model. We mine

modeling primitives from identiﬁed domain concepts

of two related approaches. A modeling language in-

tegrates these modeling primitives to represent conﬁ-

dentiality concepts. After that, we describe how to in-

tegrate these modeling primitives into existing ADLs.

Mining Modeling Primitives. To ﬁnd shared and

speciﬁc modeling primitives for representing IF and

AC at design level, we compare the primitives of the

recent IF approach SecDFD (Tuma et al., 2019) and

our recent AC approach DDSA (Seifermann et al.,

2019). Both formalize modeling primitives by meta

models. The upper part of Figure 2 describes the sim-

pliﬁed SecDFD meta model, the lower part describes

SECRYPT 2021 - 18th International Conference on Security and Cryptography

payComission(commission)

findFlights(criteria)

flights

findFlights(criteria)

flights

findFlights(query)

flights

getCCD()

ccd

releaseCCDForAirline()

ccd

bookFlight(flight, ccd)

confirmation

bookFlight(flight, ccd)

confirmation

:TravelPlanner :CreditCardCenter :TravelAgency :Airline

Figure 1: Interactions of components during the booking of a ﬂight in the TravelPlanner running example.

DDSA

SecDFD

Node

EntityProcess Store

Edge

src

dst

TrustZone

Asset

NodeType

SystemUsage Operation

Call

VariableAssignment

Property

Variable DataType

Caller

src dst

S P

Figure 2: Meta models of SecDFD (top) / DDSA (bottom).

the simpliﬁed DDSA meta model. Here and for the

remainder of this paper, simpliﬁcation means that we

omit associations, attributes, classes or interfaces not

essential for our explanations. We identiﬁed the fol-

lowing six concepts shared between both meta models

that we marked by upper-case letters in Figure 2.

System Structure (S): is about describing interact-

ing parts of systems. SecDFD describes the structure

by processes and stores, which are basic elements of

DFDs. DDSA builds the structure on services realized

by operations. The corresponding analyses treat these

differently named elements roughly the same way.

External Entities (E): are users or external sys-

tems that can receive information from the system or

send information to it. SecDFD and DDSA repre-

sent these entities in the same way but using different

names.

Flows (F): transmit information between the pre-

viously described elements. SecDFD also calls this

ﬂows. Even if DDSA describes ﬂows by the con-

trol ﬂow term “call”, both elements describe the same

concept and are treated the same way in analyses.

Properties (P): describe characteristics of entities.

SecDFD allows properties on all nodes within and

outside of the system but limits the property to a trust

or attack zone. DDSA only supports characterizing

operations but allows characteristics to be ﬁnite value

sets. Analyses use both concepts to compare charac-

teristics of nodes with other or ﬁxed expected values.

Data (D): describes the exchanged information.

SecDFD describes the type of exchanged information

by assets. DDSA uses variables and data types for the

same. Both concepts only specify types but no partic-

ular characteristics such as a level 3 classiﬁcation.

Behavior (B): describes the inﬂuence of system el-

ements on characteristics of exchanged information.

Both approaches use analyses based on label propaga-

tion, so the behaviors are given in terms of label prop-

agation functions. SecDFD couples the label propa-

gation function with the node type. DDSA does the

same but the underlying model supports deﬁning be-

haviors in the model by means of assignments.

To summarize, both approaches represent the

same fundamental modeling concepts by different

modeling primitives. SecDFD introduces modeling

primitives tailored for particular analyses. DDSA in-

corporates a ﬂexible approach requiring designers to

model properties and behavior speciﬁc to intended

analyses. Both analyses use label propagation with

different sets of labels and propagation functions.

Uniﬁed Modeling Primitives. Based on the previ-

ous comparison, we assume that we can analyze IF

and AC within a uniﬁed modeling approach that sub-

sumes the previously mined primitives. We do not

discuss or evaluate usability as part of this section or

paper. Tuma et al. (Tuma et al., 2020) already demon-

strated that a modeling language based on data ﬂows

and appropriate tooling is, depending on the partic-

ular use case, usable. Our modeling primitives are

also based on data ﬂows and we can also provide a

catalogue of predeﬁned behaviors, labels and analysis

deﬁnitions. Therefore, we do not see this as a research

question anymore. Instead, we aim for determining

how we can represent IF and AC analyses within one

modeling language that complies with DFD terminol-

ogy. Therefore, we deﬁne a new meta model that in-

corporates all modeling primitives and supports ﬂex-

A Uniﬁed Model to Detect Information Flow and Access Control Violations in Software Architectures

Node

Process Store External

Flow

Behavior

Assignment

Label

in out

src

dst

src

dst

lhsLabel

B F

property

Figure 3: Meta model of uniﬁed modeling primitives.

ible analysis deﬁnitions. We stick to the data ﬂow

terminology used by SecDFD and pick up the idea

of ﬂexible property and characteristic deﬁnitions of

DDSA. Additionally, we provide means for specify-

ing reusable behaviors and properties. Figure 3 illus-

trates the simpliﬁed resulting meta model.

The meta model distinguishes nodes and edges.

Nodes are the commonly used modeling primitives

for deﬁning the system structure S (processes and

stores) and external entities E. Every node has a de-

ﬁned behavior B speciﬁed by a label propagation

function and required inputs and outputs via pins. As-

signments specify the label propagation function by

assigning a truth value to a label on an output pin

based on constants, logical expressions and references

to labels on input pins. A label with a false truth value

means that it is not applied. Pins decouple behaviors

from particular nodes and incoming ﬂows. Therefore,

pins enable reusing behaviors in multiple nodes. A

ﬂow F transports all labels of an output pin of a source

node to the input pin of a destination node. To repre-

sent properties P of nodes, we assign labels to nodes.

Integration of Modeling Primitives in ADLs. To

show how existing ADLs can make use of our mod-

eling primitives and analyses to be deﬁned later, we

describe the integration with the ADL Palladio. Pal-

ladio supports data ﬂows and control ﬂows, so we

show the integration with both paradigms. The in-

tegration always consists of two steps. First, we iden-

tify modeling primitives that have no counterparts and

that have to be added to the ADL, therefore. Second,

we deﬁne a transformation for this extended ADL

to our ADL-independent meta model shown in Fig-

ure 3. The transformation allows us to reuse the same

analysis deﬁnitions for all possible ADLs. We ex-

emplify these steps for Palladio by going through the

modeling primitives, identifying their existing coun-

terparts and describing the transformation to the mod-

eling primitives. These transformations are tailored to

the ADL. To increase comprehensibility, we explain

the general ideas of the transformations but avoid low

level descriptions. The full transformations are avail-

able in our data set (Seifermann et al., 2021).

Control Flow (CF) Palladio: already provides

modeling concepts that ﬁt our modeling primitives:

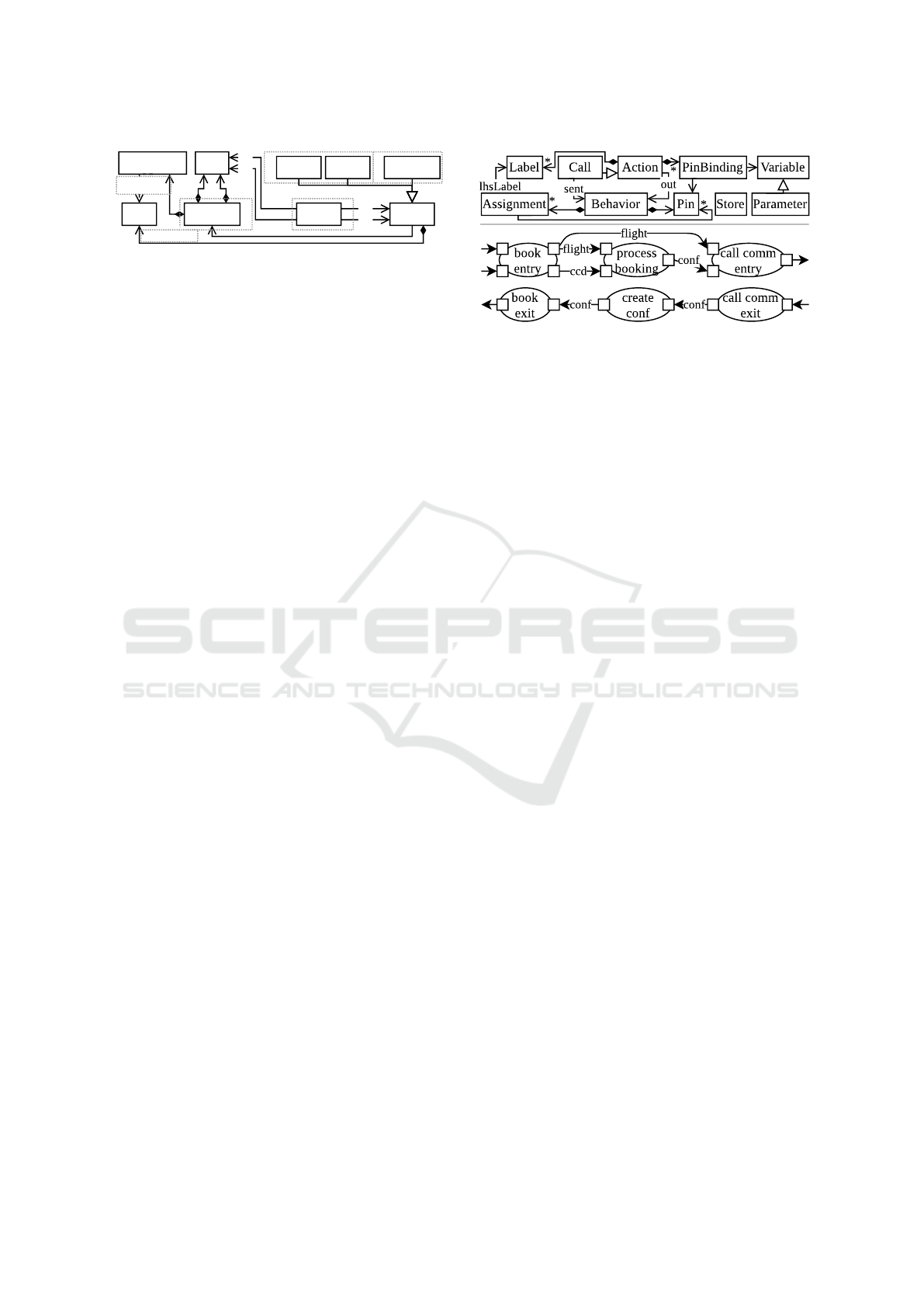

Figure 4: Integration into control-oriented Palladio (upper)

and transformation result for ﬂight booking service (lower).

Processes are represented by services. Flows are rep-

resented by calls between services. Pins are repre-

sented by parameters and return values. Each of these

elements can be transformed one by one. Palladio

already considers users, which match external enti-

ties. The modeling primitives often missing in ADLs

are stores, labels and behaviors. We extend Palladio

by stores as special types of components. The label

and behavior primitives can be integrated as they are.

An overview on the extended meta model is given in

the upper part of Figure 4. Most of the elements can

be easily transformed. The only exception are ser-

vices, which require one process (entry) for receiv-

ing and distributing all input parameters and one pro-

cess (exit) for returning output parameters. The trans-

formation result for the ﬂight booking service in the

lower part of Figure 4 illustrates this.

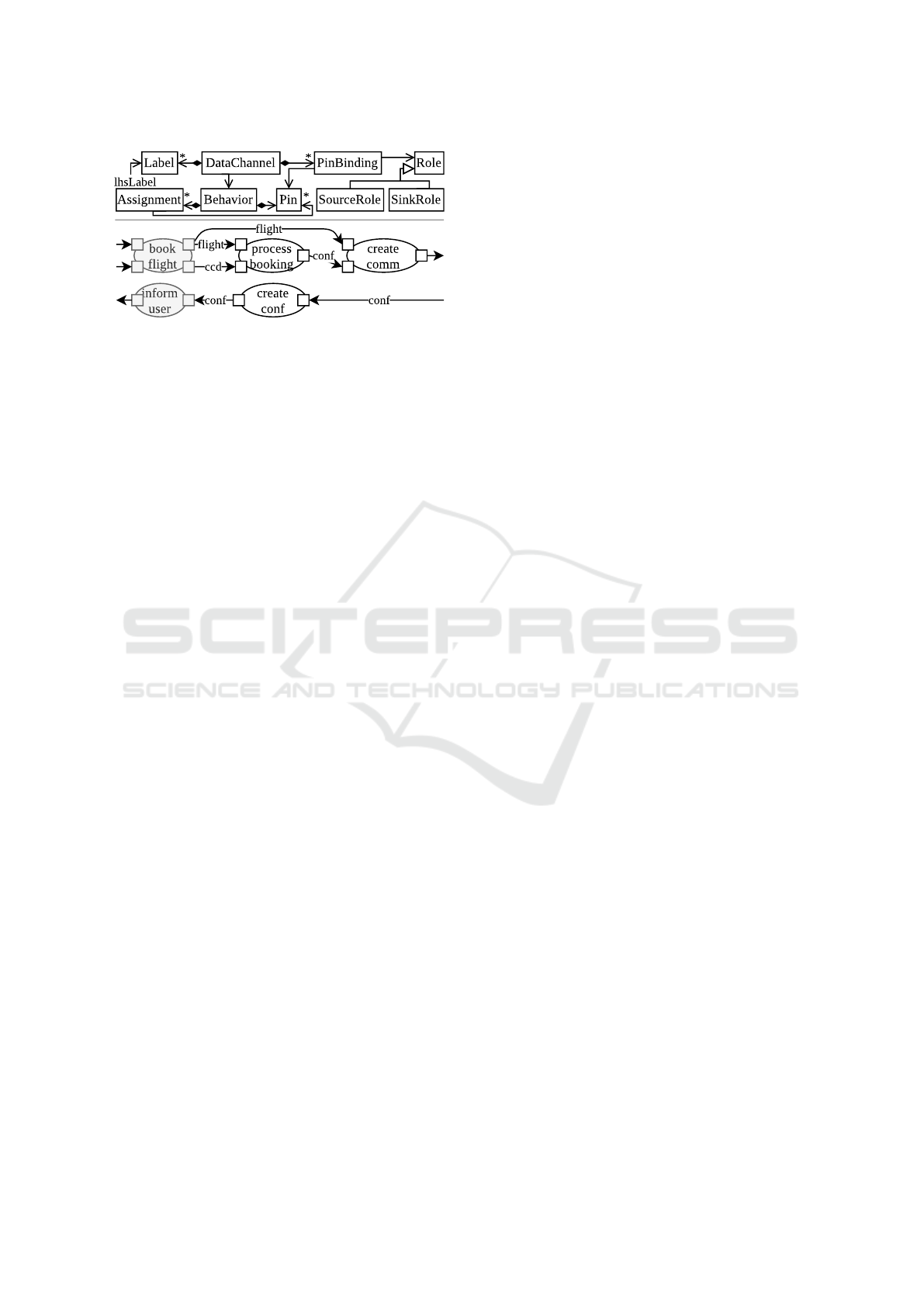

Data Flow (DF) Palladio: already provides mod-

eling concepts that ﬁt our modeling primitives: Pro-

cesses are represented by data channels. Flows are

represented by data ﬂows between data channels. Pins

are represented by the outgoing and incoming data

ﬂows. Each of these elements can be transformed

one by one. Palladio already considers users, which

matches external entities. The modeling primitives

often missing in ADLs are stores, labels and behav-

iors. We extend Palladio by stores as special type of

data channel. The label and behavior primitives can

be integrated as they are. Figure 5 gives an overview

on the extended meta model. Most of the elements

can be easily transformed. Figure 5 shows the trans-

formation result for the ﬂight booking service. There

are less processes compared to the CF version because

entry and exit processes are not needed.

6 ANALYSIS DEFINITION

Conﬁdentiality analyses are deﬁned on the previously

presented uniﬁed modeling primitives. Therefore, the

SECRYPT 2021 - 18th International Conference on Security and Cryptography

Figure 5: Integration into data-oriented Palladio (upper) and

transformation result for ﬂight booking service (lower).

deﬁnition can be reused over all ADL integrations.

Both, SecDFD and DDSA use label propagation to

derive labels of transmitted data based on initial labels

and label propagation functions. In the running exam-

ple, an initial label is required for the criteria passed

to the travel planner. By applying label propagation

functions of traversed processes, the analysis derives

the label of criteria or query data passed through the

system. After deriving all data labels, the analysis

compares data labels with node labels. In the RBAC

running example, the analysis compares access rights

labels on data with role labels on nodes. A violation

occurs if a node accesses data with an access rights set

not containing the role of the node. To summarize, we

need a) data labels, b) node labels, c) behaviors (i.e.

label propagation functions) and d) the label compar-

ison function for an analysis deﬁnition.

We provide analysis deﬁnitions of common IF and

AC analyses as presented by IFlow (Katkalov, 2017),

DDSA (Seifermann et al., 2019) and SecDFD (Tuma

et al., 2019). We also deﬁne analyses for the AC mod-

els DAC, MAC, ABAC and for Taint-based Memory

Protection via Access Control (TMAC) (Wang et al.,

2009) that combines IF and AC.

Two behaviors are used in all analyses. We brieﬂy

introduce them here and do not mention them any-

more later: The forward behavior copies all labels of

the input to the output pin. The create behavior has

no inputs and sets labels on the output pin explicitly.

Non-interference Considering High/Low (2L). IF

analyses of SecDFD (Tuma et al., 2019) compare the

trust zone of nodes with data classiﬁcations. An IF

policy is violated if nodes within attack zones access

data classiﬁed as high. This can also be seen as taint

analysis. We need two classiﬁcation labels (high/low)

applied to data and two zone labels (attack/trusted)

applied to nodes. In addition, we need two labels

(high/low) to represent the content of encrypted data.

Encryption and decryption can be used to transport

data classiﬁed high through attack zones. The used

behaviors are as follows: The encrypt behavior uses

incoming classiﬁcation labels as encrypted content la-

bels on outputs and sets the classiﬁcation to low. The

decrypt behavior uses incoming encrypted content la-

bels as classiﬁcation label on outputs. The join behav-

ior takes multiple inputs and sets the encrypted con-

tent and the classiﬁcation label to high if at least one

input has a high label for the respective label type.

Non-interference with Hierarchical Lattice (HL).

IF analyses of IFlow (Katkalov, 2017) for the cases

TravelPlanner, ContactSMSManager and Distance-

Tracker compare the node clearance with data clas-

siﬁcations. An IF policy is violated if nodes with a

certain clearance level access data with higher clas-

siﬁcation level. This analysis type is called non-

interference using a hierarchical lattice. The clear-

ance and classiﬁcation levels are hierarchical security

levels building a lattice. There is one label per level

that can be attached to data or nodes. The used be-

haviors are as follows: The sync behavior acts like

the forward behavior but has an additional input pin,

whose labels are ignored. The declassify behavior

acts like the forward behavior but replaces labels of

a certain type with new ﬁxed labels. For instance,

the declassiﬁcation behavior replaces the classiﬁca-

tion level User of the credit card data with the new

classiﬁcation level User,Airline in the IF running ex-

ample. The join behavior applies the most restrictive

classiﬁcation label of all inputs to the output.

Non-interference with Lattice Groups (LG). The

PrivateTaxi case of IFlow (Katkalov, 2017) requires

that nodes owned by a certain role must not access

certain critical data types. More precisely, a distance

calculation service must not access contact data of

users and a taxi broker service must not access route

data. A violation means one of these rules is violated.

This can be seen as two separated lattice groups con-

taining two levels each. The lattice of the ﬁrst group

is non critical data followed by route data. The lat-

tice of the second group is non critical data followed

by contact data. The analysis deﬁnition is tailored to

the particular use case. For the sake of simplicity, we

omit detailed descriptions for this case. Informally

said, we have labels representing critical data types

and labels representing services. A violation occurs

if a forbidden combination of service label and crit-

ical data type label exists at one node. The data set

(Seifermann et al., 2021) provides further details.

Core Role-based Access Control (RBAC). The

DDSA AC analysis (Seifermann et al., 2019) covers

Core RBAC (Furnell, 2008, pp. 71) that deﬁnes per-

missions of roles and role assignments. The analysis

A Uniﬁed Model to Detect Information Flow and Access Control Violations in Software Architectures

reports a node holding no role that is contained in the

set of allowed roles of incoming data. The particular

data and node labels depend on the used roles. In the

running example, the labels are user, travel agency

and airline. A violation is reported if the intersec-

tion of data and node labels is empty. There are two

behavior types. The intersect behavior applies the in-

tersection of all input labels to the output pins. The

declassify behavior acts like the forwarding behavior

but additionally adds a speciﬁed role to the outputs.

Discretionary Access Control (DAC). DAC (Fur-

nell, 2008, pp. 61) directly assigns access permissions

(subject and allowed action) to objects. In DFDs, read

and write are feasible actions to consider. We deﬁne

permission labels that apply to stores because they are

the best to detect read and write actions. A permis-

sion label is an element of the cross product of avail-

able subjects and actions (read/write). External enti-

ties have an identiﬁcation label. Traversal labels on

data represent the nodes that already have been tra-

versed. The read action analysis determines the orig-

inating store of received data by the traversal labels.

The analysis reports a violation if there is no read per-

mission label matching the identity label of the exter-

nal entity. The analysis for write violations looks at

the traversal labels of data received by stores to iden-

tify external entities writing to the store. The analysis

reports a violation if there is no write permission la-

bel matching the identity label of the external entity.

The only used behavior takes inputs and applies the

union of the traversal labels including the label of the

current node to all outputs.

Mandatory Access Control (MAC). MAC (Fur-

nell, 2008, pp. 64) provides general policies with-

out referring to particular nodes or data. One promi-

nent MAC security model is the military security

model, which reduces to the already explained non-

interference with hierarchical lattice.

Attribute-based Access Control (ABAC). ABAC

(Furnell, 2008, pp. 74) deﬁnes attribute-based sub-

ject and object selectors and assigns permissions be-

tween them. All attributes become labels that are as-

signed to nodes or data. An analysis selects nodes and

data based on their labels and reports a violation for

any undeﬁned combination. Because ABAC is highly

ﬂexible, we do not give a speciﬁc analysis deﬁnition.

Taint-based Memory Protection via Access Con-

trol (TMAC). TMAC (Wang et al., 2009) extends

AC for computer memory with restrictions based on

taint labels. The analysis description depends on the

used AC model, so we can use previously presented

analysis descriptions and extend them by taint analy-

sis. In the simplest form, the taint label is just a single

label (data is tainted). Additionally, there is a label for

critical nodes. Existing AC behaviors are extended to

consider taint labels: the taint label is applied to all

outputs if there is at least one tainted input. An addi-

tional declassiﬁcation behavior removes the taint la-

bel. The AC label comparison is extended to ensure

that tainted data never arrives at critical nodes.

7 EVALUATION

We evaluate the expressiveness of presented modeling

primitives (C1) and the accuracy of the analysis def-

initions (C2). We describe evaluation goals and met-

rics in Section 7.1. The evaluation design to achieve

the goals is given in Section 7.2. Section 7.3 cov-

ers the cases of our case study-based evaluation. We

present and discuss evaluation results in Section 7.4.

Section 7.5 and Section 7.6 discuss threats to validity

and limitations. We brieﬂy report on the implementa-

tion and data availability in Section 7.7.

7.1 Evaluation Goals and Metrics

We structure our evaluation by the Goal-Question-

Metric (GQM) approach (Basili et al., 1994): we for-

mulate evaluation goals that we can achieve by deﬁn-

ing evaluation questions. Metrics are used to answer

the questions. Our evaluation goals are:

G1) Evaluate the expressiveness of the uniﬁed

model including its ADL integration (C1). This

is useful because other approaches cannot represent

both, IF and AC, together.

G2) Evaluate the accuracy of the proposed anal-

yses (C2). Analysis results have to be accurate to be

useful, which would not be the case for high rates of

false positives or false negatives.

Both evaluation goals support each other because

an expressive model is only useful if it can serve its

purpose, which is detecting conﬁdentiality violations

automatically here. Natural language is a counterex-

ample, because it is expressive but does not support

automated analyses. Contrarily, accurate analysis re-

sults are only useful if a considerable amount of sys-

tems and conﬁdentiality mechanisms are supported.

We evaluate the expressiveness of the uniﬁed

model (G1) by evaluating its integration into the Pal-

ladio ADL because this is the intended way to use it.

The ADL does not impose more restrictions than the

modeling primitives because the transformation from

SECRYPT 2021 - 18th International Conference on Security and Cryptography

the ADL can produce all modeling primitives. There-

fore, it is not necessary to evaluate the expressiveness

twice. The corresponding evaluation questions are as

follows: Q1.1) Can the extended ADL express be-

havior relevant for common IF analyses? Q1.2) Can

the extended ADL express behavior relevant for com-

mon AC analyses? Q1.3) Can the extended ADL ex-

press behavior relevant for combined IF and AC anal-

yses? The case study described in Section 7.2 answers

the questions by determining the share of successfully

modeled systems and analyses.

We evaluate the accuracy of the analyses (G2)

by the following evaluation questions: Q2.1) Can

the IF analyses provide sufﬁciently accurate results?

Q2.2) Can the AC analyses provide sufﬁciently ac-

curate results? Q2.3) Can the combined IF and AC

analyses provide sufﬁciently accurate results? To an-

swer the questions, we execute the analyses modeled

for G1. We compare the results with expected previ-

ously deﬁned results or results from related work if

available. Based on the comparison, we calculate the

recall (also called sensitivity) r =

+ f

with true pos-

itives t

and false negatives f

as well as speciﬁcity

s =

+ f

with true negatives t

and false positives f

Both metrics are commonly used in medicine for rat-

ing binary classiﬁcations (Metz, 1978). Additionally,

we calculate precision p =

+ f

, which is commonly

used in rating the accuracy in information retrieval.

7.2 Evaluation Design

Our evaluation is based on a case study, which is a

common way of evaluating modeling notations and

analyses in the ﬁeld of security (Nguyen et al., 2015;

van den Berghe et al., 2017). The procedure is the

same for every case. A case is about one particular

system, modeled by one particular paradigm (CF/DF)

and about one particular conﬁdentiality analysis. For

every case, we create two system variants: One vari-

ant contains no issue, so the automated analysis shall

not report a violation. The other variant contains an

issue, so the automated analysis shall report a vio-

lation. We inject the same issue as reported in re-

lated work. If none has been reported, we build an

issue based on common mistakes such as wrong calls,

wrong wiring of components and so on. We model

both variants using the extended Palladio ADL, de-

ﬁne the analysis in terms of our modeling primitives

as described in Section 6 and execute the analysis. Af-

ter the last step, we can classify the produced artifacts,

i.e. models and analysis results, and collect the met-

rics to answer the evaluation questions.

To calculate the metric for questions Q1.1, Q1.2

and Q1.3, we test if we can model variants and cor-

responding analyses and compare that to the total

amount of variants and analyses. We classify a variant

as successfully modeled if i) we could represent all

labels and behaviors described for the particular anal-

ysis in Section 6 and ii) we could formulate the label

comparison function for the particular case. For each

question, we calculate the share of supported variants.

To calculate the metrics for answering questions

Q2.1, Q2.2 and Q2.3, we classify the analysis results.

The ground truth for expected analysis results is the

classiﬁcation of the variant during its creation by us,

which in turn is justiﬁed by related work whenever

available. We classify each reported violation indi-

vidually but aggregate these individual classiﬁcations

for calculating the metric. This means the analysis re-

sult of each variant contributes exactly one true/false

positive/negative to the metric calculation. Thereby,

we avoid that a large amount of good results for one

particular analysis deﬁnition hides a small number of

bad results for another analysis deﬁnition. If the anal-

ysis reports a violation for a variant not containing

an issue, we classify the result as false positive f

If the analysis does not report a violation for a vari-

ant containing an issue, we classify the result as false

negative f

. If the analysis does not report a violation

for a variant not containing an issue, we classify the

result as true negative t

. For every violation reported

for a variant containing an issue, we check that every

reported violation traces back to the actual issue. If

there is at least one violation that does not trace back

to the actual issue, we classify the result as f

. Other-

wise, the result becomes a true positive t

We consider cases about IF, AC and their combi-

nation. Additionally, we aim for validating the sup-

port of the CF and the DF paradigm as we claim in

this paper. Therefore, we must have at least one case

per element of the cross product of the conﬁdential-

ity mechanism (IF, AC and combination) and the sys-

tem behavior paradigm (CF and DF). To achieve this,

we select cases from the related approaches IFlow

(Katkalov, 2017) (IF), SecDFD (Tuma et al., 2019)

(IF), DDSA (Seifermann et al., 2019) (AC) or cre-

ate own cases to ﬁll the remaining gaps (further AC

analyses and combination with IF). We group cases

of related approaches sharing the same analysis def-

inition into equivalence classes. We select one case

of each class because modeling further cases of this

class would not give us any more insight into expres-

siveness or accuracy. If the case is only available in

one paradigm (CF or DF), we derive a case in the

other paradigm based on the available descriptions.

An overview on the selected cases is given in Table 1.

Every value in a cell represents a case and refers to the

analysis deﬁnition applied in the case. The selected

A Uniﬁed Model to Detect Information Flow and Access Control Violations in Software Architectures

Table 1: Cases considered for case study evaluation. CF

means Control Flow, DF means Data Flow.

Inform. Flow Access Control

System CF DF CF DF

TravelPlanner HL HL RBAC RBAC

DistanceTracker HL HL RBAC RBAC

PrivateTaxi LG LG

BankingApp – –

JPmail 2L 2L

ImageSharing DAC DAC

FlightControl MAC MAC

BankBranches ABAC ABAC

cases cover all analyses that we claimed to support:

non-interference with hierarchical lattice (HL), lattice

groups (LG) and high/low (2L), as well as the access

control models. In addition, we realized TMAC in the

TravelPlanner for CF and DF. We describe the case

selection and the cases in Section 7.3.

7.3 Case Selection and Description

First, we describe the equivalence classes of cases of

the related approaches (Katkalov, 2017; Tuma et al.,

2019; Seifermann et al., 2019). We describe the se-

lected cases afterwards. IFlow (Katkalov, 2017) pro-

vides ﬁve cases. TravelPlanner, DistanceTracker and

ContactSMS target non-interference with hierarchi-

cal lattices (HL). PrivateTaxi targets non-interference

with lattice groups (LG). BankingApp targets non-

interference between users. We select PrivateTaxi,

BankingApp, and TravelPlanner as representative

cases for each class. We add DistanceTracker because

we already used TravelPlanner as running example.

SecDFD (Tuma et al., 2019) provides ﬁve cases tar-

geting non-interference with high/low lattice (2L). All

cases are equivalent, so we select JPmail. DDSA

(Seifermann et al., 2019) provides the cases Trav-

elPlanner, DistanceTracker and ContactSMS known

from IFlow but tailored to RBAC. All cases are

equivalent, so we select TravelPlanner and Distance-

Tracker. We could not identify cases including ref-

erence results for DAC, MAC, ABAC. So, we de-

ﬁned cases based on descriptions of the access control

models (Furnell, 2008, pp. 61). ImageSharing covers

DAC, FlightControl covers MAC and BankBranches

covers ABAC. Further, we extend the travel planner

example by TMAC (Wang et al., 2009).

TravelPlanner has already been explained in Sec-

tion 3. With respect to TMAC, we extend the analysis

to report data coming from an external into the sys-

tem that is not immediately validated by the system.

DistanceTracker consists of a tracking service on a

user device that collects GPS locations, calculates a

distance and submits the distance to a distance track-

ing service. The distance tracking service must never

have access to plain locations. PrivateTaxi is a broker

platform to bring together drivers and riders going in

the same direction. The broker must never know the

route or location of users but delegates proximity cal-

culations to a trusted third party service. BankingApp

is a system to withdraw money after authentication.

Different users must never interfere with each other.

JPmail is an email system. Sender and receiver en-

crypt their communication to not allow intermediate

nodes to read the email body. Intermediate nodes

must never access the plain mail body. ImageSharing

is a ﬁle sharing system to share family photos with

multiple users. The store has access permissions at-

tached: Parents can write images and read them. Rel-

atives can read images. Indexing bots such as used

by search engines must not access images. The anal-

ysis tests if illegal access occurs. FlightControl is a

ﬂight monitoring system covering weather monitor-

ing, civil ﬂight monitoring and military ﬂight moni-

toring. Weather staff must only access weather infor-

mation. Civil ﬂight staff can access civil plane loca-

tions in addition. Military ﬂight staff can access mil-

itary plane locations in addition. The analysis tests

if subjects access information with a classiﬁcation

higher than their clearance. BankBranches is a bank-

ing system to manage accounts and calculate credit

lines spanning two regions. Employees can manage

regular customers within their region. Managers can

manage customers from all regions and celebrities.

The analysis tests these restrictions based on subject

and data attributes.

The smallest case has 4 structural elements (com-

ponents, data channels, interfaces) and one behavior.

The two largest case have 34 structural elements and 8

types of behaviors. We consider the cases, especially

those taken from related work, realistic.

7.4 Evaluation Results and Discussion

We structure the section by the evaluation goals and

questions. We start with the expressiveness goal G1.

To answer Q1.1, we tried to model the cases, i.e.

the system and the analysis deﬁnition, TravelPlan-

ner, DistanceTracker, PrivateTaxi, BankingApp and

JPmail with the CF and DF architectural description

language integration, which sums up to ten cases and

twenty variants. We successfully modeled all sys-

tems and analysis deﬁnitions except the BankingApp,

which means a coverage of 80%. We could not model

the banking case because the case is about isolating

tenants, i.e. the corresponding analysis requires dis-

SECRYPT 2021 - 18th International Conference on Security and Cryptography

tinguishing different actors and data that are the same

on a type level. We did not focus on expressing en-

tities and data on instance level because this leads to

ﬁne-grained models not appropriate for early design

phases. If required, our ADL integration can express

tenants by scenario-based modeling, which represents

tenants as dedicated new actor types and system parts

used by tenants as dedicated new system parts. How-

ever, this comes with additional modeling effort and

obfuscates the intended architecture.

To answer Q1.2, we tried to model TravelPlan-

ner, DistanceTracker, ImageSharing, FlightControl

and BankBranches with the CF and DF architectural

description language integration, which are ten cases

and twenty variants. We could successfully model all

cases and variants, which leads to full coverage.

To answer Q1.3, we tried to model the TMAC-

extended TravelPlanner with the CF and DF architec-

tural description language integration, which are two

cases and four variants. We could successfully model

all cases and variants, which leads to full coverage.

To summarize, we could cover all tested AC and

combined cases, as well as most of the IF cases. We

conﬁrmed a previously known and intended limita-

tion with respect to representing tenants in systems.

Therefore, we achieved good expressiveness with re-

spect to most of the common AC and IF analyses.

The accuracy evaluation (G2) is divided in IF, AC

and combined cases. To answer Q2.1, we run analy-

ses about non-interference with hierarchical lattice on

TravelPlanner and DistanceTracker, non-interference

with lattice groups on PrivateTaxi, as well as non-

interference considering high/low on JPmail. All

cases are realized with the CF and DF architectural

description language integration, which sums up to

eight cases and sixteen variants. The analysis cor-

rectly reported no error on variants without issue and

only reported valid violations on variants with issue.

This means precision, recall and speciﬁcity are 1.

To answer Q2.2, we run analyses for DAC on Im-

ageSharing, for MAC on FlightControl, for ABAC

on BankBranches and for RBAC on TravelPlanner

and DistanceTracker. We realized all cases in the

CF and DF architectural description language integra-

tion, which sums up to ten cases and twenty variants.

The analyses correctly reported no error on variants

without issue and only reported valid violations on

variants with issue. This means precision, recall and

speciﬁcity are 1.

To answer Q2.3, we run the TMAC analysis on

TravelPlanner with the CF and DF architectural de-

scription language integration. The analysis correctly

reported no error on the variant without issue and only

reported valid violations on the variant with issue.

This means precision, recall and speciﬁcity are 1.

To summarize, we achieved perfect accuracy on

all cases that we could express in G1. This shows that

we can achieve the same results as related approaches

but support a wider range of analyses. Additionally,

it validates that our analysis concepts and their imple-

mentation are sufﬁcient to achieve valuable results.

7.5 Threats to Validity

We structure the discussion of threats to validity by

the four categories of validity for case study research

by Runeson et al. (Runeson et al., 2012, pp. 71).

Construct validity requires that measures taken ac-

tually measure what the researcher had in mind. The

measures are the share of expressible variants and the

accuracy of our analysis deﬁnitions. The share of ex-

pressible variants is feasible because we do not have

unbalanced data sets, i.e. more analyses of a certain

type than another. However, the share does not al-

low in-depth analysis of reasons for limited expres-

siveness. Therefore, we additionally discussed the re-

sults and possible causes. The accuracy metrics are

established for rating classiﬁers.

Internal Validity: requires that investigated fac-

tors are actual factors inﬂuencing the results. For ex-

pressiveness, we investigate the factors modeling lan-

guage and analysis deﬁnition. However, there are ad-

ditional factors: Limited experience in the modeling

language or security mechanisms can inﬂuence re-

sults negatively. We can exclude this factor because

the person that modeled the systems and deﬁned the

analyses is an author of this paper and therefore has

sufﬁcient experience with both. Too simple scenar-

ios can positively inﬂuence results. We consider this

threat low because the cases stem from related work

or cover the core concepts of the corresponding con-

ﬁdentiality mechanisms. For accuracy, we investigate

the factors of analysis deﬁnitions and the analysis ex-

ecution concepts. An additional factor are wrong re-

sult classiﬁcations. To cope with that, we ensured that

reported violations trace back to the actual issue.

External Validity: requires that generalizations of

results are valid. In research based on case studies,

there is no statistical representative sample. There-

fore, generalizations are only valid for cases with

comparable characteristics. Our results can be gen-

eralized for ADLs that provide means for describing

system structure and behavior by calls or data ex-

change. Also, we think that we can support further

conﬁdentiality analyses that use type-level informa-

tion rather than instance-level information.

Reliability: requires that the results are indepen-

dent of a particular researcher. The modeling cer-

A Uniﬁed Model to Detect Information Flow and Access Control Violations in Software Architectures

tainly depends on the experience of the executing re-

searcher. Other researchers might not achieve the

same expressiveness results. However, this does not

invalidate the results because expressiveness is about

the upper bound of expressible scenarios and not

about what average users can achieve. The latter

would be subject to a usability evaluation, which we

did neither do nor focus on. It is sufﬁcient to un-

derstand that the scenarios can be modelled by our

ADL extension by reviewing the models in our data

set (Seifermann et al., 2021). With this data set, re-

searchers can also replicate the accuracy study. Anal-

ysis execution and metrics can be done objectively.

7.6 Limitations

Our proposed approach has two major limitations.

First, analyses are restricted to type level. Because

we focus on software architectures and early software

designs, we chose to omit instance level information

such as speciﬁc data values or complex interplay be-

tween two actors of the same type. We doubt that

such detailed information is actually available in early

design phases and certainly modeling this in detail

would increase the modeling effort.

Second, we cannot cover implicit ﬂows (King

et al., 2008), i.e. information ﬂows via control ﬂow

dependencies. Our approach, like most other model-

based approaches, requires explicit ﬂows. Implicit

ﬂows are often subtle and require detailed models or

source code. Again, this would certainly increase the

modeling effort considerably.

7.7 Tool Support and Data Availability

We realized a prototype within the Palladio tooling.

We realized all meta models described previously in

the Eclipse Modeling Framework (EMF). We inte-

grated editing support in existing Palladio editors to

ease modeling. To reduce the modeling effort, we

integrated means for reusing analysis deﬁnitions in-

cluding behaviors, labels and label comparisons. We

plan to provide a catalogue containing labels, be-

haviors and analysis deﬁnitions of the analyses pre-

sented in this paper except for the case-speciﬁc ones

such as ABAC. An automated model transformation

maps the Palladio model to an instance of our generic

meta model. Another automated model transforma-

tion maps the generic model instance to a logic pro-

gram doing the label propagation. All parts related to

the logic program are an engineering task, so we did

not present them in this paper. A DSL (Hahner et al.,

2021) simpliﬁes speciﬁcations of new analyses.

All artifacts of our prototype are publicly available

and also part of the data set (Seifermann et al., 2021).

We include all information to replicate the evaluation

such as implementation artifacts, modeled cases and

analysis results including their classiﬁcation.

8 CONCLUSIONS

In this paper, we presented i) a uniﬁed model for rep-

resenting systems including their behavior relevant

for IF and AC conﬁdentiality analyses and ii) deﬁ-

nitions for common IF and AC analyses. To the best

of our knowledge, no data-oriented design time ap-

proach can represent both within one modeling lan-

guage. To derive the model, we compared one IF and

one AC approach to identify a set of shared informa-

tion between both analysis types as well as analysis-

speciﬁc model elements. Based on the derived uniﬁed

model, we deﬁned eight common IF and AC analy-

ses. We evaluated expressiveness and accuracy in a

case study. We evaluated 22 cases and experienced

satisfying expressiveness and accuracy.

The beneﬁt of the approach is twofold. First, it is

now possible to consider IF and AC within the same

architecture. Architects can start modeling shared as-

pects including system structure and rough behavior

and decide later on the conﬁdentiality mechanism.

Without our approach, architects had to decide in the

beginning and had to remodel large parts of the archi-

tecture when switching between mechanisms or de-

ﬁne mappings between the IF and the AC modeling

approach. Second, we explicitly considered how ex-

isting ADLs can be extended to support the conﬁden-

tiality analyses we proposed. We demonstrated this

by our ADL integration into Palladio. The integration

into an existing ADL can lower the learning effort be-

cause architects only have to learn the new constructs.

In future, we plan to evaluate the ADL integration

approach for more ADLs and to ﬁnd ways to analyze

tenants without instance level information.

ACKNOWLEDGEMENTS

The DFG (German Research Foundation) – project

number 432576552, HE8596/1-1 (FluidTrust) and the

KASTEL institutional funding supported this work.

REFERENCES

Abdellatif, T. et al. (2011). Automating information ﬂow

control in component-based distributed systems. In

CBSE’11, pages 73–82.

SECRYPT 2021 - 18th International Conference on Security and Cryptography

Abi-Antoun, M. et al. (2007). Checking threat modeling

data ﬂow diagrams for implementation conformance

and security. In ASE’07, pages 393–396.

Alabiso, B. (1988). Transformation of Data Flow Analysis

Models to Object Oriented Design. In OOPSLA’88,

pages 335–354.

Almorsy, M. et al. (2013). Automated software architecture

security risk analysis using formalized signatures. In

ICSE’13, pages 662–671.

Basili, V. R. et al. (1994). The Goal Question Metric Ap-

proach. In Encyclopedia of Software Engineering - 2

Volume Set, pages 528–532.

Berger, B. J. et al. (2016). Automatically Extracting Threats

from Extended Data Flow Diagrams. In ESSoS’16,

volume 9639, pages 56–71.

Boehm, B. and Basili, V. R. (2001). Software Defect Re-

duction Top 10 List. Computer, 34(1):135–137.

DeMarco, T. (1979). Structured analysis and system speci-

ﬁcation. Prentice-Hall, Englewood Cliffs, N.J.

Furnell, S., editor (2008). Securing information and com-

munications systems: principles, technologies, and

applications. Artech House, Boston.

Hahner, S. et al. (2021). Modeling data ﬂow constraints for

design-time conﬁdentiality analyses. In ICSA 2021.

accepted, to appear.

Hedin, D. et al. (2012). A Perspective on Information-Flow

Control. In Software Safety and Security - Tools for

Analysis and Veriﬁcation, volume 33 of NATO Science

for Peace and Security Series - D, pages 319–347.

Heyman, T. et al. (2012). Reusable Formal Models for Se-

cure Software Architectures. In WICSA’12, pages 41–

50.

Hoisl, B. et al. (2014). Modeling and enforcing secure

object ﬂows in process-driven SOAs: an integrated

model-driven approach. SoSym, 13(2):513–548.

Hoo, K. S. et al. (2001). Tangible ROI through Secure Soft-

ware Engineering. Secure Business Quart., 1(2):1–3.

International Organization for Standardization (2018).

ISO/IEC 27000:2018(E). Standard, ISO.

Jilani, A. et al. (2011). Comparative Study on DFD to UML

Diagrams Transformations. WCSIT, 1(1):10–16.

urjens, J. (2005). Secure Systems Development with UML.

Springer-Verlag, Berlin Heidelberg.

Katkalov, K. (2017). Ein modellgetriebener Ansatz zur

Entwicklung informationsﬂusssicherer Systeme. PhD

Thesis, University of Augsburg, Augsburg. German.

Katkalov, K. et al. (2013). Model-Driven Development of

Information Flow-Secure Systems with IFlow. In So-

cialCom’2013, pages 51–56.

Khedker, U. et al. (2009). Data Flow Analysis: Theory and

Practice. CRC Press, Inc., USA, 1st edition.

King, D. et al. (2008). Implicit Flows: Can’t Live with ‘Em,

Can’t Live without ‘Em. In ICISS, pages 56–70.

Lowry, E. S. and Medlock, C. W. (1969). Object code opti-

mization. Communications of the ACM, 12(1):13–22.

McGraw, G. (2006). Software Security - Building Security

In. Addison-Wesley Professional.

Metz, C. E. (1978). Basic principles of ROC analysis. Sem-

inars in Nuclear Medicine, 8(4):283–298.

Microsoft Corporation et al. (2009). Mi-

crosoft SDL: Return-on-Investment.

https://www.nccgroup.trust/globalassets/our-

research/us/whitepapers/isec-partners—microsoft-

sdl-return-on-investment.pdf. accessed 20/11/25.

Nguyen, P. H. et al. (2015). An extensive systematic review

on the Model-Driven Development of secure systems.

IST, 68:62–81.

OMG (2020). Uniﬁed Architecture Framework. Standard

formal/19-11-07, Object Management Group.

Reussner, R. H. et al. (2016). Modeling and Simulating

Software Architectures - The Palladio Approach. MIT

Press, Cambridge, MA.

Runeson, P. et al. (2012). Case Study Research in Software

Engineering: Guidelines and Examples. Wiley.

Sandhu, R. S. et al. (1994). Access control: principle and

practice. IEEE ComMag, 32(9):40–48.

Seifermann, S. et al. (2019). Data-Driven Software Ar-

chitecture for Analyzing Conﬁdentiality. In ICSA’19,

pages 1–10.

Seifermann, S. et al. (2021). SECRYPT 2021 Evaluation

Data Set. https://doi.org/10.5281/zenodo.4699417.

Shostack, A. (2014). Threat modeling: designing for secu-

rity. Wiley, Indianapolis, IN.

Shull, F. et al. (2002). What we have learned about ﬁghting

defects. In METRICS’02, pages 249–258.

Sion, L. et al. (2018). Solution-aware data ﬂow diagrams

for security threat modeling. In SAC’18, pages 1425–

1432.

Sion, L. et al. (2020). Security Threat Modeling: Are Data

Flow Diagrams Enough? In ICSEW’20.

Smith, G. (2007). Principles of Secure Information Flow

Analysis. In Malware Detection, ADIS, pages 291–

307.

Torres, W. et al. (2020). A systematic literature review of

cross-domain model consistency checking by model

management tools. SoSym.

Tuma, K. et al. (2019). Flaws in Flows: Unveiling Design

Flaws via Information Flow Analysis. In ICSA’19,

pages 191–200.

Tuma, K. et al. (2020). Automating the early detection of

security design ﬂaws. In MoDELS’20, pages 332–342.

van den Berghe, A. et al. (2017). A Model for Provably

Secure Software Design. In FormaliSE’17, pages 3–

van den Berghe, A. et al. (2017). Design notations for se-

cure software: a systematic literature review. SoSym,

16(3):809–831.

Venson, E. et al. (2019). Costing Secure Software Devel-

opment: A Systematic Mapping Study. In ARES’19,

pages 1–11.

Wang, L. et al. (2009). TMAC: Taint-Based Memory Pro-

tection via Access Control. In DEPEND’09, pages

19–27.

Werle, D. et al. (2020). Data Stream Operations as

First-Class Entities in Component-Based Performance

Models. In ECSA’20, pages 148–164.

Xu, W. et al. (2006). Taint-Enhanced Policy Enforcement:

A Practical Approach to Defeat a Wide Range of At-

tacks. In USENIX Security Symposium.

Zdancewic, S. (2004). Challenges for Information-ﬂow Se-

curity. In PLID’04, page 5.

A Uniﬁed Model to Detect Information Flow and Access Control Violations in Software Architectures
