Challenges in Aligning Enterprise Application Architectures to Business

Process Access Control Requirements in Evolutional Changes

Roman Pilipchuk

, Stephan Seifermann

, Robert Heinrich

and Ralf Reussner

FZI Research Center for Information Technology, Friedrichstraße 60, 10117 Berlin, Germany

Karlsruhe Institute of Technology, Am Fasanengarten 5, 76131 Karlsruhe, Germany

Keywords:

Access Control, Business Process, Enterprise Architecture.

Abstract:

Business processes deﬁne requirements for software systems that support business goals. Enterprise Appli-

cation Architectures (EAAs) organize the structure and behavior of the required software systems. Satisfying

requirements regarding the conﬁdentiality of information that originate from the business process design is

crucial to fulﬁll legal obligations and corporate policies. Violating these obligations and policies can lead to

high ﬁnes and lost assets. There is a gap in modeling conﬁdentiality requirements holistically across business

processes and EAAs (Alpers et al., 2019). Hence, aligning EAAs with business processes by identifying vi-

olated business access control requirements (ACRs) during the architectural design phase is vital. Thereto,

three challenges need to be overcome: i) deﬁne the meaning of read and write from ACRs for EAAs, ii) iden-

tify relevant parts of the EAA affected by ACRs and iii) deﬁne rules to cope with data type reﬁnement. In

this paper, we present the challenges, solutions to them and our scientiﬁc ﬁndings that we made during the

development of AcsALign, which is an approach to align the EAAs to ACRs of business processes in the early

design phase and evolution scenarios using the established modeling languages Business Process Model and

Notation (BPMN) and Palladio Component Model (PCM). We apply our solutions in a real-world case study.

Evaluation results show satisfying accuracy of the requirements extraction and architectural alignment.

1 INTRODUCTION

Business processes describe activities that organiza-

tions carry out to generate values for customers or

themselves. Software systems support employees in

fulﬁlling their process activities. Therefore, business

processes deﬁne requirements for software systems.

These include access control requirements (ACRs)

forbidding or granting users and systems access to

services or data they need for their activities. The sys-

tem structure and behavior organized in an Enterprise

Application Architecture (EAA) must satisfy business

process requirements. Otherwise, systems violate

corporate policies and legal obligations, such as given

by the General Data Protection Regulation (GDPR)

(European Parliament, 2016), that business processes

address. Meeting all ACRs from business processes

during EAA design is challenging due to organiza-

tion complexity and high stakeholder involvement. If

architects fail to detect violated requirements, the im-

plementation usually also violates the requirements,

which leads to higher costs for ﬁxing compared to an

earlier development phase (Boehm and Basili, 2001).

Access control issues can be even more costly be-

cause of high ﬁnes of privacy regulations. There are

approaches (L

ohe et al., 2014; Open Group, 2018;

Urbaczewski et al., 2006; D. Brucker et al., 2012;

Ramadan et al., 2017) trying to align business pro-

cesses and EAAs but they are hard to apply because

of their complexity and usage of uncommon models

(Kotusev, 2017). A literature review (Alpers et al.,

2019) identiﬁed a gap in modeling conﬁdentiality re-

quirements holistically across business processes and

EAAs. Hence, aligning EAAs with business pro-

cesses by identifying violated business ACRs during

the architectural design phase and evolution scenar-

ios is vital. To achieve this, three challenges need to

be overcome. First, relevant parts of the EAA need

to be identiﬁed that are affected by business ACRs.

Second, an appropriate deﬁnition for data types read

and written by service calls need to be speciﬁed with

respect to an analysis of violated ACRs. Third, rules

have to be deﬁned on how to compare access permis-

sions stemming from business ACRs with the relevant

parts of the EAA taking the complexity of data type

reﬁnement into account.

Pilipchuk, R., Seifermann, S., Heinrich, R. and Reussner, R.

Challenges in Aligning Enterprise Application Architectures to Business Process Access Control Requirements in Evolutional Changes.

DOI: 10.5220/0010511800130024

In Proceedings of the 18th International Conference on e-Business (ICE-B 2021), pages 13-24

ISBN: 978-989-758-527-2

This paper presents our scientiﬁc ﬁndings regard-

ing the challenges that we have found during the

development of an approach called Access Permis-

sion Architecture Aligner (AcsALign) that exploits

Business Process Model and Notation (BPMN) mod-

els commonly used to describe business processes to

identify violations of ACRs in Palladio Component

Model (PCM) models commonly used to describe IT

architectures. As EAAs organize structure and behav-

ior of software systems with the same types of ele-

ments (e.g. system, interface), PCM is suited to deﬁne

EAAs. AcsALign helps enterprise architects to iden-

tify ACR violations automatically during design time,

i.e. they can align EAAs to business process ACRs.

This is especially crucial during evolution scenarios.

We assume business processes to be correct, i.e. we

do not challenge their compliance with laws, as our

goal is to align information about ACRs from busi-

ness processes with architectural design. Guidelines

like (AXELOS, 2011) help to design appropriate busi-

ness processes. Hence, the assumption is reasonable.

In this paper, we present the following contribu-

tions: (i) a deﬁnition of relevant EAA parts regarding

business process ACRs, (ii) a deﬁnition of read and

write actions with respect to the analysis of violated

ACRs and (iii) an algorithm to detect violated ACRs

in EAAs by taking the complexity of data type reﬁne-

ment into account. We apply our contributions on a

real-world case study of a national art gallery.

The remainder of the paper is structured as fol-

lows. After providing required foundations in Sec-

tion 2 and describing the challenges in Section 4, we

give a short overview of AcsALign in Section 5. Sec-

tions 5.1 to 5.3 elaborate on our contributions regard-

ing the three challenges to align EAAs and business

processes with respect to ACRs. In Section 6, we

evaluate our contributions on a real-world case study

consisting of ten business processes, 83 ACRs and 16

systems. We achieve a satisfying accuracy. The paper

ﬁnishes with a discussion of related work in Section 3

and a summary including future work in Section 7.

2 FOUNDATIONS

Our approach makes use of BPMN for modeling busi-

ness processes and PCM for modeling EAAs. There-

fore, we introduce both modeling notations brieﬂy.

The Business Process Model and Notation

(BPMN) (Object Management Group, 2011) is the de

facto standard language for modeling business pro-

cesses in organizations. It uses graphical notations

to visualize the ﬂow of activities for interacting par-

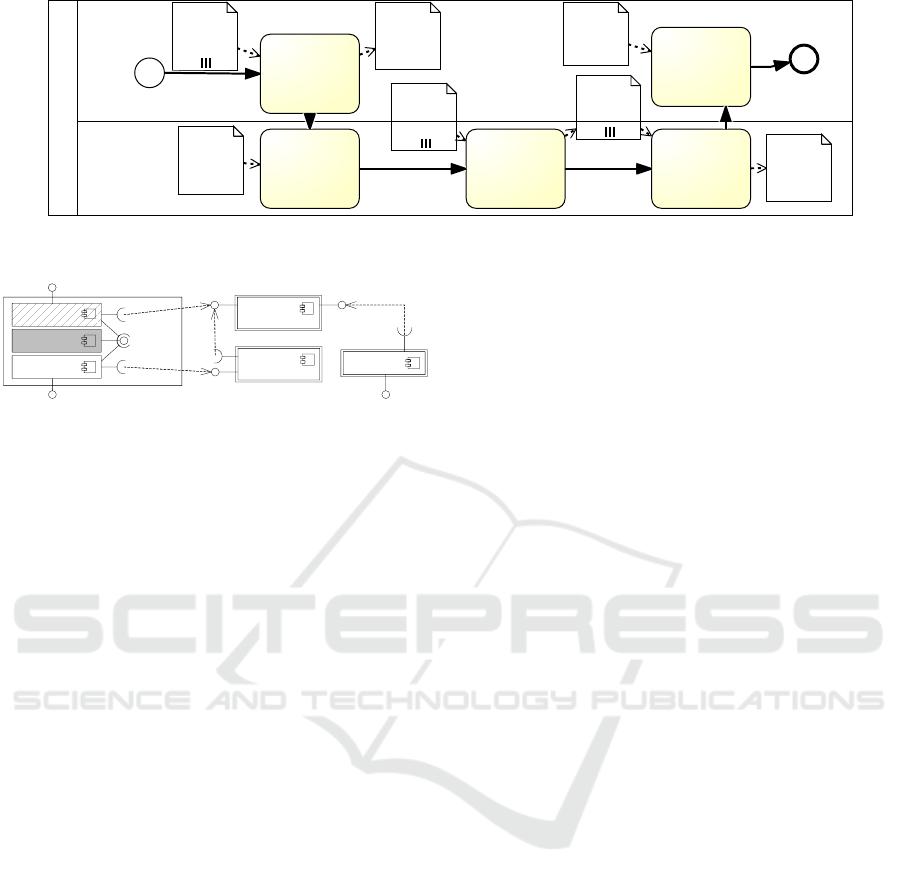

ticipants. Figure 1 shows two processes modeled in

BPMN that are part of our running example intro-

duced later. Participants such as the store manager

are represented by lanes. The surrounding pool such

as Store deﬁnes the organizational division of the par-

ticipant. Each lane contains activities represented by

rounded rectangles that are interconnected with ar-

rows representing the ﬂow of interactions. Data ob-

jects like Advertisement Schedule may be annotated to

activities representing input and output ﬂows of data

in the activity. Circles indicate starting/ending condi-

tions of a process. In order to fulﬁll the business pro-

cess, all activities must be carried out by the partici-

pants. This requires appropriate access permissions.

The Palladio Component Model (PCM) is the

modeling language of the Palladio approach (Reuss-

ner et al., 2016) for predicting various quality prop-

erties of architectures including performance or re-

liability. In our approach, we use PCM to describe

EAAs, which are the landscape of systems support-

ing business processes, and its behavior. We make

use of two viewpoints: The structural view point cov-

ers components, their interfaces and how instances of

these components are assembled to a system. The be-

havior view point covers the behavior of users, given

by a sequence of calls to system services and compo-

nents, given by a sequence of actions affecting quality

properties of the system.

3 STATE OF THE ART

The ﬁeld of aligning business processes and EAAs

with respect to security as well as the ﬁeld of access

control analyses in EAAs to be the most related. We

brieﬂy report on the respective related approaches in

the following. The transition to the implementation

(incl. the integration of access control systems during

the implementation phase to enforce policies at run-

time) is not in our focus.

Alignment between business processes and EAA

provides considerable beneﬁts (Giaglis, 2001). En-

terprise Architecture Management (EAM) is the gen-

eral term for the common approach to achieve such

an alignment. In Architecture-driven IT management

(ADRIMA) (L

ohe et al., 2014), EAM involves initiat-

ing and establishing processes as well as governance

and deﬁnition of application scenarios by determin-

ing involved models and their lifecycles. Frameworks

like TOGAF (Open Group, 2018) and FEAF (Ur-

baczewski et al., 2006) deﬁne various types of models

and their interrelations for developing an enterprise

architecture. However, they are considered hard to ap-

ply (Kotusev, 2017) because of the complexity of the

corresponding process and the required detailed plan-

ICE-B 2021 - 18th International Conference on e-Business

ning. EAM is considered a challenging task (L

ohe

et al., 2014), in general. Even if the models provide all

required means for expressing security, creating them

is complicated and requires many stakeholders with

deep knowledge of speciﬁc models. Approaches to

extend BPMN like (D. Brucker et al., 2012; Salnitri

et al., 2015; Rodr

ıguez et al., 2007) introduce vari-

ous security related information into BPMN, which

leads to the same issues. They are not as widespread

as BPMN itself and require extra effort of experts to

model the additional information in BPMN. In con-

trast, AcsALign works with de facto standard model-

ing languages to require low additional effort for or-

ganizations. The approach around IntBIIS (Heinrich

et al., 2017) also addresses mutual dependencies be-

tween business processes and architecture but focuses

on performance predictions rather than access control.

(Ramadan et al., 2017) proposes an approach to align

architecture models and business processes with re-

gard to security policies. Therefore, they transform

security policies from secBPMN2 models to architec-

ture models in UMLsec. While the idea is similar,

the realization achieves different goals. They focus

on non-standard models that introduce security spe-

ciﬁc elements. However, such extended models are

not widespread and require additional effort of secu-

rity experts during the design phase. We follow the

same idea but focus on de facto standard modeling

languages and tailored our approach in a way to im-

pose least possible effort during its utilization.

There are various approaches to analyze architec-

tures regarding access control that the comprehensive

survey (Nguyen et al., 2015) of Nguyen et al. lists.

None of the approaches that aim for the same goal as

our approach work on non-extended standard models.

We cannot discuss all but focus on the approaches that

make use of standardized models that are extended by

security concepts. Often, the intention of the analyses

is different to ours, which impedes reusing these ap-

proaches. Approaches like (Ahn and Hu, 2007; Busch

et al., 2014) aim for integrating security mechanisms

in models or code by providing means for modeling

them. We cannot make use of such approaches be-

cause they do not provide analyses of data usage. An-

other common goal of approaches like (J

urjens, 2005;

Georg et al., 2009) is the analysis of attacker behav-

ior. These approaches analyze information ﬂows but

require modeling attackers and their capabilities. In

contrast, our architectural analysis only requires ad-

ditional information tailored to the use case.

Another group of approaches like (Alghathbar and

Wijesekera, 2003; Lodderstedt et al., 2002; Goudalo

and Seret, 2008) aim for extending UML with secu-

rity information. Some allow modelling ACRs on the

architectural level. Their purpose is different as they

do not focus on closing the gap between the organiza-

tional level and the IT level by aligning the models of

both. Furthermore, they focus on deﬁning security

related information explicitly rather than extracting

ACRs from the organizational level. Also, such ap-

proaches require additional effort of security experts.

The approach in (Abramov et al., 2012) proposes a

systematic way to enforce ACRs from organizational

level on architectures and databases. The difference

to our approach is that they focus on architecture di-

agrams rather than business process models at the or-

ganizational level. ACRs and also security patterns

need to be modeled explicitly by security experts in

extended UML class diagrams and extended UML

use case diagrams. In our approach, we focus on sup-

porting commonly used methodologies and de facto

standard modeling languages by extracting implicitly

modeled ACRs to analyze the correctness of the EAA

without an additional effort for security experts.

4 CHALLENGES

We identiﬁed three main challenges in aligning EAAs

with business processes. To illustrate these chal-

lenges and the concepts in the remainder of this pa-

per, we introduce a running example of a supermarket

chain based on the community case study Common

Component Modeling Example (CoCoME) (Heinrich

et al., 2016). Initially, the supermarket supports buy-

ing goods locally. Orders of a mandatory loyalty pro-

gram are used for marketing purposes. After a system

evolution, there also is an online shop not eligible for

the loyalty program. We focus on the business pro-

cesses from Figure 1. In the following, we explain

the three main challenges.

Relevant EAA parts affected by ACRs have to be

identiﬁed as these parts are prone to human errors

made by enterprise architects (see Section 1). The

major issue in identifying corresponding parts is that

EAAs reﬁne the business processes extensively, so

there is no simple one-to-one mapping. Consequently,

identifying relevant EAA parts by just looking up the

result of a simple mapping process is not possible

because this mapping process is highly creative. In

our running example, such a reﬁnement happens for

the Prepare customer proﬁles activity in Figure 1. In

BPMN, this is just an activity but to provide this func-

tionality in the EAA, there is the need for a dedicated

Marketing component that retrieves data from a Cus-

tomerDataStore to calculate the proﬁles as shown in

Figure 2. Certainly, it is not enough to just consider

the marketing component here but how far should we

Challenges in Aligning Enterprise Application Architectures to Business Process Access Control Requirements in Evolutional Changes

Prepare Advertisements and Discounts

(simplified2) (Ohne Farben) (ICE-B)

Store

Marke-

ting Ma-

nager

Marketing Manager

Prepare

customer

profiles

Select adverti-

sements and

discounts

Advertise-

ment

schedule

Advertise-

ment

request

Prepare

strategy and

goals

Loyalty

order

Customer

profile

Store

Manager

Store Manager

Renew

Advertisements

Prepare

request

Approve

schedule

finished

Advertise-

ment

schedule

Advertise-

ment

request

Advertise-

ment

schedule

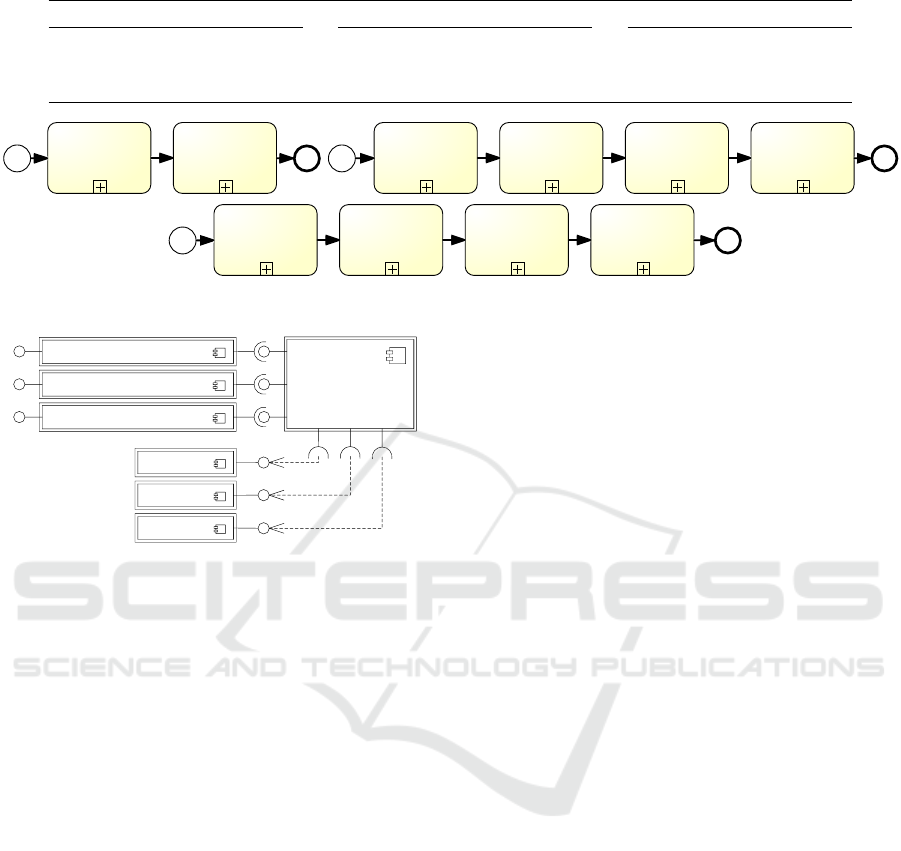

Figure 1: CoCoME business process Prepare Advertisements and Discounts (in BPMN).

IOnlineCheckout

ICustomer-

DataRecorder

IQuery

Store

IManagement

IStore-

Inventory

OnlineShop

CashDesk

Inventory

Marketing

Customer -

DataStore

Loyalty-

Management

ILoyaltyCheckout

IMarketing

Figure 2: Simpliﬁed EAA of CoCoME (in UML-like nota-

tion).

trace relevant components back? Dozens of reﬁne-

ments are done to design an appropriate architecture.

If unnecessary parts of the EAA are considered during

the analysis, the alignment becomes slower and might

require modeling of additional information. If not all

relevant parts are considered, the alignment becomes

incomplete and misses vital errors.

The meaning of read and write actions known

from ACRs has to be deﬁned in the context of EAAs.

In business processes, data objects might be required

as input (read) to fulﬁll an activity and activities might

produce data objects as output (write) during the ful-

ﬁllment of an activity. If the deﬁnition of read and

write in the context of EAAs is wrong, errors are

missed and false positives will occur. In the EAA

there are many potential candidates to detect read or

written data such as parameters and return types of

services, variables in services, objects, databases and

calls to IDs. Thus, it is important to understand what

read and write in business processes mean in the con-

text of EAAs. Moreover, the processing of data in

service calls might become very complex due to com-

position and decomposition of data. For example,

the data object customer proﬁle is generated in a ser-

vice call by combining various data like clustered cus-

tomer groups, products, discounts based on the previ-

ous analysis of data in the collection loyalty order.

Data type reﬁnements are done by the enterprise

architect during the design of the EAA. Data objects

in business processes are high-level and designed

from the business point of view. The enterprise ar-

chitect has to design data types that reﬂect data ob-

jects from the business processes, but designs them

from the IT point of view. Data types usually are not

standalone but are combined or collected. There are

several ways of reﬁnement: 1. deﬁne new collection

data types, 2. deﬁne new composite data types and

3. deﬁne new primitive data types. Thus, data type re-

ﬁnements make simple equality checks insufﬁcient. It

is an important factor that imposes complexity to the

identiﬁcation of ACR violations, as the speciﬁcation

of integral parts of data objects are not known on the

business level but are part of the work of the enterprise

architect. A call in the EAA can transport data types

that are known from the business processes but also

new data types created by the enterprise architect and

thus, unknown by the ACRs of the business processes.

Furthermore, combined data types of these known and

unknown data types may ﬂow via a service call. The

degree of composition is not limited, i.e. data types

consisting of data types which themselves consist of

data types and so on are normal in the EAA. The col-

lection loyalty order from Figure 1 exempliﬁes this

complexity. In the EAA, the collection loyalty order

consists of the composite data type loyalty order. This

composite loyalty order consists of a customerID, loy-

altyID, a list of purchased products, their prices, the

order number, the cashierID and a date. Some of these

data types like the customerID are created newly and

are not known by the ACRs of the business processes.

Other data types like list of products are a collection.

Furthermore, some inner data types are again a com-

position of known and unknown data types like the

product. This opens room for various combinations of

collections, compositions, known and unknown data

types. Consequently, data types that ﬂow during ser-

vice calls might be completely different from the data

objects in business processes. This spans many pos-

sibilities on how data objects from business processes

(that are part of ACRs that need to be validated in the

EAA) can be related to data types that ﬂow in service

calls of the EAA. The challenge is to decide if a data

type is allowed or forbidden to ﬂow during a service

call even if there are no ACRs for exactly this data

type.

ICE-B 2021 - 18th International Conference on e-Business

5 OVERVIEW OF THE AcsALign

APPROACH

The goal of AcsALign is to align EAAs with busi-

ness process ACRs by detecting violations automat-

ically. Mistake resolution is done manually by the

architect but AcsALign supports it with tracing infor-

mation and violation details.

Access Control Requirement Extraction: First,

AcsALign extracts ACRs based on data used in

business processes and stores ACRs linked to busi-

ness processes in a trace model. Afterwards, ACRs

are transformed into role-permission-pairs describing

which data types a role can read and write. We do

not focus on creating meaningful business processes

or architectures but expect them to be already mod-

eled. This assumption is feasible as organizations cre-

ate such models for compliance purposes anyway.

Architectural Alignment: Second, an architectural

analysis determines data used in services and ana-

lyzes them for ACRs violations. For the tool real-

ization, we used a data ﬂow analysis and extended it

with data properties and propagation rules tailored to

data type analyses. Afterwards, a matching algorithm

(explained in Section 5.3) compares architectural data

type usage with data type usage deﬁned by business

processes. A detected issue means that the architec-

ture does not adhere to ACRs from the business pro-

cess and violations have to be revised.

Mistake Resolution: Third, architects meet ACRs

of business processes by addressing identiﬁed viola-

tions. AcsALign supports by providing information

about violations. First, information about violated

ACRs is given via a trace model, i.e. the a) affected

ACR and b) affected activities in business processes

incl. lanes and data objects. Such traces make analy-

sis results comprehensible by providing a bigger pic-

ture about the business process context of service calls

(with information of the affected service calls, af-

fected roles and their work tasks and interrelations to

further activities and service calls of the affected pro-

cess) and by enabling to identify correct business pro-

cess owners to clarify their intentions. Second, infor-

mation about the architecture violation is given by the

a) initial service call, b) data ﬂow through the system

and c) violating action incl. operations (read/write)

and involved data types. This helps to understand

which system’s service is affected and the intended

ACR design decisions of the business. AcsALign

does not automate this step but the architect can run

AcsALign again after the ﬁx to validate changes.

AcsALign is compatible with business process

languages like BPMN with characteristics to group

activities and express data objects entering and leav-

ing activities. It is compatible with architecture lan-

guages like Uniﬁed Modeling Language (UML) that

have call-and-return semantics, user behavior and

data propagation. These selection criteria apply to

most commonly used languages. In the remainder of

the paper, we use IntBIIS (Heinrich et al., 2017) that

models a subset of BPMN, and PCM (Reussner et al.,

2016). Still, our approach is compatible with other

languages as mentioned before.

5.1 Affected EAA Parts

In order to align the EAA to business ACRs, rele-

vant parts of the EAA have to be identiﬁed that are

affected by ACRs, as these parts are prone to human

errors made by the enterprise architect (see Section 4).

We analyzed the effect of ACRs on all meta-elements

of the architectural language that we use to repre-

sent EAAs. As the architectural language is a typi-

cal modeling language for IT architectures and we lift

the identiﬁed elements to a more general level, we as-

sume the results to be representative for other EAA

modeling languages as well. To identify affected ele-

ments, we ﬁrst identify the essential parts of an ACR.

The data object and its operation are certainly the sig-

niﬁcant parts of the ACR. To violate an ACR, a user

has to get access to data he should not have to or

trigger write actions for data that he might have ac-

cess to but are not allowed to write. Hence, all meta-

elements that have an inﬂuence on the data ﬂow path

or the transported data objects are relevant for consid-

erations. In the EAA data objects are represented as

data types and the data ﬂow path of services calls in

systems and components.

Our research shows that four parts of the EAA are

affected by business ACRs. We call them mistake

types (MT) because an architect might introduce an

error via these meta-elements during the design time:

MT1) parameters and return types of services (ex-

plicit data type assignment)

MT2) external Calls (wrong data type received/sent)

MT3) wiring of systems/components (wrong data

type received/sent)

MT4) data type reﬁnement (illegal composition of

data)

In MT1, to much data might ﬂow due to falsely speci-

ﬁed service parameters or return types. This may lead

to either forbidden write operations to data through

storage and modiﬁcation or forbidden read access if

to much or wrong data is returned by the return types.

During MT2, falsely speciﬁed external calls in the

component behavior might lead to falsely received

and sent data types. In MT3, a wrong wiring might

Challenges in Aligning Enterprise Application Architectures to Business Process Access Control Requirements in Evolutional Changes

lead to the same problem because components and

systems might specify or be connected to a wrong in-

terface. During MT4, data types might be reﬁned er-

roneously leading to a ﬂow of too many data types.

Coping with the various data type reﬁnements is a

challenge on its own. Thus, we address it in Sec-

tion 5.3. To sum up, the four aforementioned MTs

are the parts of the EAA that are affected by ACRs

and have to be considered during an alignment.

5.2 Read and Write in EAA Context

To analyze the EAA for violations of ACRs, it has to

be deﬁned what the operations read and write of busi-

ness ACRs mean in the context of EAAs (see Sec-

tion 4). In the context of business processes read and

write during an activity mean that data is required as

input in order to fulﬁll the activity or is produced as

output that is later on required during another activ-

ity. In both cases, the required or produced data is

persisted. During our research, we found that the fol-

lowing deﬁnition of read and write in the context of

EAAs is appropriate and allows to abstract from the

various possibilities to transfer data in architectures

(like parameters, objects, etc. explained in Section 4).

Write in the context of activities means that new data

is persisted or persisted data is modiﬁed (this includes

any modiﬁcation as deletion). In the EAA, data is per-

manently stored or modiﬁed if it is part of a database.

Therefore, services are called to store or modify data

in a database. Consequently, it is important whether

the data to write is stored in a database and not how

it is transferred between systems and components. In

the context of EAAs, write means that data is stored

or modiﬁed in a database by a service that is called

during an activity. Transitive calls need to be consid-

ered.

Read in the context of activities means that data

is required as input to fulﬁll the activity. In the con-

text of EAAs, service calls fetch the required data.

Thereby, it is important which data arrives at the end

of the called services of an activity. It is not rele-

vant where this data is actually coming from or which

other data is read in order to fetch the previously men-

tioned data as the person or system who calls the ser-

vices during the activity is only able to read the data

that is received upon the end of these service calls

(and not the data that is processed during these calls

and during transitive service calls). Hence, the sys-

tem facade needs to be considered as well as the data

that is returned during service calls of the system fa-

cade. In the context of EAAs, read means that data is

returned during the end of service calls (found in the

system facade) of an activity.

To sum up, the system facade and databases that

are part of the EAA need to be identiﬁed. With re-

gard to databases service calls that store or modify

data need to be considered for write access and data

returned to services of the system facade need to be

considered as read access.

Determining read and written data according to

the aforementioned deﬁnition is possible by means of

a data ﬂow analysis. This is necessary because simply

comparing data types used in service signatures is not

sufﬁcient to consider reﬁned data types such as poly-

morphic data types. We extend a data ﬂow extension

for Palladio (Seifermann et al., 2019) with a taint-like

mechanism to detect the origins of data ﬂows as de-

scribed above. The data ﬂow analysis tags data with

the actual data type, i.e. the actual polymorphic data

type, and considers the effect of data processing. For

example merging two data types into a composed data

type. In addition, there are tags for the traversed oper-

ations of service calls. Every traversed operation adds

a new tag. This allows to reason about the source of

a call, which is important to identify if data arriving

at a store has been sent by an allowed subject. By

using both types of tags, we can identify actual data

types at each location in the EAA and always trace

a data item back to a subject that issues the call. In

our running example, the actual data type of the order

leaving the online shop component is the same as the

type of the received order. The CustomerDataStore

receives orders from the online shop and transitively

from the cash desk, so it can return data of both types

to the Marketing component. This component takes

the data and produces customer proﬁles. The market-

ing manager preparing the customer proﬁles receives

these customer proﬁles.

We determine read data types for a user by col-

lecting all actual data types that are returned during

service calls. We determine written data types by col-

lecting all actual data types for parameters sent to a

database that trace back to a system call of the user.

5.3 Data Type Reﬁnement

In order to analyze the EAA for ACR violations, it has

to be deﬁned how to cope with the challenge of data

type reﬁnements made by architects. Due to them

simple equality checks are insufﬁcient (see Section 4).

In our research we divided the problem into data

ﬂows of collections and compositions. Primitive data

types are part of compositions, as they represent a data

type without inner data. Furthermore, data types in

both classes of data ﬂows might be known by a busi-

ness process or not. They are known when the data

types have corresponding data objects deﬁned in the

ICE-B 2021 - 18th International Conference on e-Business

business processes. Throughout the data type reﬁne-

ment, new data types of arbitrary complexity are cre-

ated by the architect. These are the data types that

are unknown by the business processes. We explored

what an ACR means for both classes of data ﬂows tak-

ing unknown data types into account and created rules

when a data ﬂow is allowed/forbidden in the presence

of an ACR. These rules were combined and simpliﬁed

forming the algorithm shown in Algorithm 1. This al-

gorithm provides the mistake detection.

Algorithm 1: Pseudo-code to derive if a given data type d is

allowed.

1: function ALLOWED(d,D

known

allowed

)

2: allowed ← (d ∈ D

known

=⇒ d ∈ D

allowed

) ∧

(d /∈ D

known

=⇒ f allback)

3: if allowed ∧ isComposite(d) then

4: for d

← d.innerDataTypes do

5: allowed ← allowed ∧

allowed(d

known

allowed

)

6: end for

7: end if

8: if allowed ∧ isCollection(d) ∧ d /∈ D

known

then

9: allowed ← allowed ∧ d.innerType /∈

known

10: end if

11: return allowed

12: end function

A special case is formed when an unknown data

type ﬂows in a service call. As they are unknown to

business processes, these cannot deﬁne how to han-

dle them with regard to access control. Therefore, our

algorithm proposes the variable f allback. It has to

be deﬁned by the architect prior to execution. Using

f allback = f alse is appropriate for high risk environ-

ments because it denies access to all unknown data

types. Using f allback = true is more permissive and

grants access to all data types not known, which can

be useful in case of many data type reﬁnements. We

use the latter one in this paper. The algorithm takes

all ACRs for a business process activity and compares

them with the identiﬁed data access of all service calls

belonging to that activity. D

known

is the set of data

types known from business processes. D

allowed

is the

set of data types allowed by the ACR. A data type

known to business processes has to be allowed explic-

itly (line 2). Otherwise, the fallback applies. For a

composed data type all of its inner data types have to

be allowed as well (lines 3–7). If this is not the case,

more data types are read or written than allowed by

the ACRs. A collection data is only allowed if it is

known or its inner data type is allowed as well (lines

8–10). In the ﬁrst case, it is in D

known

. In the second

case it is not in D

known

. For the second case it has to be

checked if the inner data type is in D

known

. If true, the

collection is forbidden as the inner data type is known

by the business processes. The reason is that the busi-

ness processes would have deﬁned the collection for

the activity if it were intended as an input or output, as

the inner data type and thus, its collection is known by

the business processes. If false, the collection and its

inner data type are unknown and f allback applies. In

our running example, the marketing manager can read

collections of loyalty orders during the preparation of

customer proﬁles as illustrated in Figure 1. The data

ﬂow analysis detects that the manager accesses Loy-

altyOrder[ ] and OnlineOrder[ ]. The matching algo-

rithm shows that online orders are not allowed to be

read, which indicates a mistake in the architecture. To

sum up, an algorithm is required that copes with the

various data type reﬁnements as well as known and

unknown data types to decide for a data ﬂow in pres-

ence of an ACR whether the data is allowed to ﬂow

or forbidden. We evaluated the algorithm on a real-

world case study in Section 6.

6 EVALUATION

This section describes the case study based evalua-

tion of the solutions for the challenges realized in the

approach AcsALign. Section 6.1 describes evaluation

goals and design of the case study. The studied case is

described in Section 6.2. Section 6.3 and Section 6.4

cover arguments as the ﬁrst part of the evaluation.

Section 6.5 presents and discusses results and Sec-

tion 6.6 covers threats to validity. Finally, Section 6.7

discusses limitations and assumptions of AcsALign.

6.1 Evaluation Goals and Design

We structure the evaluation based on the Goal-

Question-Metric method (R. Basili et al., 1994).

Goals are the evaluation objectives to be achieved.

Metrics allow answering evaluation questions that

contribute to achieving the objectives.

We evaluate all of our three contributions. Con-

tributions C1 and C2 are both deﬁnitions building

the foundation of AcsALign. Deﬁnitions cannot be

wrong but they can be unrealistic or inappropriate,

which degrades the applicability. Therefore, we de-

ﬁne our ﬁrst evaluation goal G1: Evaluate the ap-

propriateness of the underlying deﬁnitions. Con-

tribution C1 deﬁnes the set of architectural elements

that are relevant for checking compliance with access

control requirements. Contribution C2 deﬁnes what

Challenges in Aligning Enterprise Application Architectures to Business Process Access Control Requirements in Evolutional Changes

a read and write operation actually is in terms of the

EAA. The important evaluation question to ask in or-

der to rate the appropriateness of the deﬁnitions are:

Q1.1: Does the set of elements contain all archi-

tectural meta-elements that inﬂuence the detection

of read and written data types? Q1.2: Does the

deﬁnition cover all activities of an EAA that can

be considered a read/write operation? We answer

these questions by arguments in Sections 6.3 and 6.4.

An analysis (C3) is only useful if its accuracy is

satisfying. In the following, we use the term mistake

to describe a concrete error introduced in the architec-

ture. A violation is the result of the mistake, i.e. a vi-

olated ACR. Low accuracy means a user cannot trust

the results and has to compensate missed or falsely

reported requirement violations by manual tasks. In

the worst case, the analysis provides no beneﬁt com-

pared to pure manual inspection. Therefore, the sec-

ond evaluation goal is G2: Evaluate the accuracy of

AcsALign for discovering violations of ACRs that

originate from business processes in EAAs. Eval-

uating the accuracy of the overall approach refers to

evaluating the accuracy of its single steps. We eval-

uate the steps separately to better locate potential ac-

curacy issues. We do not consider the accuracy of

the mistake resolution step because it is a manual step

and highly depends on the abilities of an architect and

cannot be evaluated in an objective way. We ask two

evaluation questions: Q2.1: What is the accuracy

of the ACR extraction? Q2.2: What is the accu-

racy of the architectural analysis? By answering

these questions, we want to examine two common and

relevant situations caused by low accuracy that lead to

increased manual effort as motivated before: (i) is a

reported violation an actual mistake (soundness) and

(ii) have all mistakes been reported (completeness)

We answer the evaluation questions Q2.1 and Q2.2 as

part of a case study because we aim for a real-world

scenario that allows for deeper understanding and bet-

ter realism of the phenomena under study.

To answer Q2.1, we execute the extraction process

on the case described in Section 6.2 and classify the

results based on a reference list of ACRs. Two post-

graduates independently analyzed all business pro-

cesses by hand to develop a common reference list of

ACRs. The studied case contains all model elements

that can have an inﬂuence on ACRs as described in

Section 5.1. We classify each individual ACR of a

business process activity. We classify an ACR as true

positive t

if the ACR exactly matches the ACR in the

reference list. We classify an ACR as false positive

if the ACR has no exact match in the reference list.

We add ACRs from the reference list to f

if the ex-

traction did not yield these ACRs.

Based on this classiﬁcation, we calculate two es-

tablished metrics for accuracy. These metrics address

the situations caused by low accuracy as discussed be-

fore: M1 Precision m

+ f

, to address (i) and M2

Recall m

+ f

, to address (ii).

To answer Q2.2, mistakes are injected in the cor-

rect EAA, a reference list of violations is created, Ac-

sALign is executed and results are classiﬁed. The ini-

tial EAA modeled in PCM is a version for the case

described in Section 6.2 that initially has no mistakes.

We categorize all possible mistakes into mistake types

that have the same root cause. They were discussed

in Section 5.1. These are mistake types that are not

speciﬁc for a used modeling language but for EAAs

in broad. To evaluate the accuracy of the analysis,

it is sufﬁcient to inject one mistake of each mistake

type into the architecture because more mistakes of

the same type would be handled in the same way and

yield the same result. Two postgraduates build the ref-

erence list of violations by recording the injected mis-

take, its expected effect and the violated requirement.

We classify a reported violation as t

if the violation

is part of the reference list. We classify a reported vio-

lation as f

if the violation is not part of the reference

list. We add violations from the reference list to f

the analysis did not report this violation. We calculate

the previously mentioned metrics M1 and M2 based

on the classiﬁcation results.

6.2 Studied Case

The case we study is the result of a consulting project

for a national art gallery that wanted to streamline its

EAA to improve business process support. A set of

business processes for the preparation of an exhibi-

tion and an EAA has already been created, i.e. the au-

thors did not create them. The case is appropriate for

the evaluation of our approach as there is a compre-

hensible set of business processes that contain inter-

action between actors, data type deﬁnitions and data

usage descriptions. The EAA contains usual data pro-

cessing patterns for information systems, including

delegation, merging, or reading from and writing to

databases. The size of the studied case is reasonable

as shown in the characteristic overview in Table 1.

All business processes shown in Figure 3 are sub-

processes required for the preparation of an exhibi-

tion. For further details, we provide all models as

part of a data set (Pilipchuk et al., 2021) incl. anal-

ysis results. At ﬁrst, a concept including the planned

artworks for the exhibition is created by the curator.

After reaching a budget agreement with the directors,

external artwork is borrowed. Usually, the gallery

lends artworks to other galleries. This set of busi-

ICE-B 2021 - 18th International Conference on e-Business

Table 1: Characteristics of the business processes and the EAA of the studied case.

Business Characteristic # Business Characteristic # EAA Characteristic #

Business processes 10 Activities 75 Systems 16

Lanes 34 Data objects 56 Service Calls 17

Roles 12 Access Control Req. 83

OverviewProcesses4

Artwork

Lending

Prepare

Exhibition

Create

Exhibition

Concept

Negotiate

Lending

Conditions

Send

Lended

Artwork

Receive

Lended

Artwork

Borrowing

Negotiate

Borrowing

Conditions

Receive

Borrowed

Artwork

Send Back

Borrowed

Artwork

Figure 3: Overview of sub-processes for the exhibition preparation (in BPMN).

Exhibition

...

Lending/Borrowing

Data

Orchestration

Corpus

CRM

...

Figure 4: Excerpt of EAA of the national art gallery (in

UML-like notation).

ness processes provides a suitable base for analyzing

ACRs because they encompass data ﬂows of conﬁ-

dential information like ﬁnancial budgets, insurance

values and customer data.

The supporting system illustrated in Figure 4 is a

middleware that interconnects different systems and

provides views on subsets of data that the different

employee roles of the art gallery require. Individual

systems such as Corpus or CRM provide data that the

Data Orchestration combines and provides to systems

accessible to the users such as the Lending/Borrowing

system or the Exhibition system.

6.3 Appropriateness of Read and Write

Deﬁnition

We start with the argument for the appropriateness of

C2 because the argument of C1 builds on it. C2 de-

ﬁnes what a read and a write operation actually is in

terms of an EAA. First of all, users can basically

do anything with information they already have ac-

cess to, which means they can also write and read

it. Therefore, restricting access to information users

already have is barely possible. We exclude digital

rights management here because this is not the focus

of AcsALign. Therefore, the access control system

has to take care of information that is exchanged be-

tween the users. These exchanges can be i) a user

transitively reads information from another user and

ii) a user changes information another user can read

All of these exchanges require some sort of memory

that stores the information because users in informa-

tion systems operate in sessions that usually do not

support direct information exchange. Description lan-

guages such as Palladio apply this pattern as well.

This means that if the system returns informa-

tion to a user, the information is either from him-

self/herself or it has been loaded or derived from other

stored information. In both cases, the user requires

proper read access permissions for the received data.

Because Role-based Access Control (RBAC) is not

about information ﬂow control, it only matters what

the user actually receives. Therefore, it is sufﬁcient to

check the read permissions at the system boundary.

If the user wants to change information that is po-

tentially exchanged with another user, he/she has to

modify memory. Therefore, all information passed

to memory can be considered as written and no infor-

mation else. In Palladio, the only memory writable by

users are stores, so we consider all information passed

to a store as written. In other modeling languages, it

might be necessary to include further memory imple-

mentations but the pattern still applies.

6.4 Appropriateness of Selected

Modeling Elements

Contribution C1 deﬁnes the set of architectural ele-

ments that are relevant for checking compliance with

access control requirements. In the previous section,

we already showed that detecting read actions at the

system boundary and write actions at stores is appro-

priate. In this section, we show why the selected ar-

chitectural elements are appropriate to detect read and

Challenges in Aligning Enterprise Application Architectures to Business Process Access Control Requirements in Evolutional Changes

Table 2: Excerpt of extracted ACRs.

Role Read Perm. Write Perm.

Management:

CEO

–

Lending-

Conﬁrmation

Research:

Curator

ForeignArtwork

Lending-

Request

written data as well as to decide about permissions.

To ﬁnd read data, we have to know the data types re-

turned to the user at the system boundary. Just looking

at the signature is not sufﬁcient because this does not

consider polymorphic types. To determine the actual

data type, we have to follow the control ﬂow in re-

verse order to the point where we can decide about the

data type. Such a point is reached if data of a certain

type is created. Therefore, we have to consider all el-

ements that inﬂuence the control ﬂow, which are calls

of the user to the system, interfaces including signa-

tures, components, calls between components and the

actual wiring of components. To ﬁnd written data, we

have to know the data types passed to a store. The

procedure is the same as for read data but we follow

the control ﬂow starting from the store. To decide if

a data type is allowed to be read or written, we have

to match it with the access permissions. To support

reﬁned data types not directly covered by the permis-

sion set, we require information about the actual re-

ﬁnement. Therefore, it is necessary to also consider

the structure of data types.

6.5 Evaluation Results and Discussion

We conducted the case study as described before. For

question Q2.1 regarding the accuracy of ACRs extrac-

tion, we achieved 83 true positives, zero false posi-

tives and zero false negatives. This brings us to a pre-

cision m

83+0

= 1.0 and a recall m

83+0

= 1.0.

Hence, the extraction algorithm successfully identi-

ﬁed all ACRs that could be identiﬁed from business

processes according to the previously deﬁned rules

and did not report any false positives. Table 2 shows

an excerpt of the extracted ACRs. The reference list

of ACRs has the same format and matching ACRs is

unambiguous when ignoring the order of data types

in read/write permissions. This is feasible as the or-

der has no meaning for the permissions. All extracted

ACRs have an equal counterpart in the reference list.

For question Q2.2 regarding the accuracy of the

architectural analysis, we achieved four true positives,

zero false positives and zero false negatives. This

brings us to a precision m

4+0

= 1.0 and a re-

call m

4+0

= 1.0. This means that the analysis

successfully identiﬁed all injected mistakes in the ar-

chitecture and did not falsely report mistakes. The

four correctly found mistakes are shown in Table 3. In

MT1, the system returns a lending request but it must

not return anything. In MT2, the system must return

a foreign exhibit object but it returns an own exhibit

object because a wrong service has been called inter-

nally. In MT3, the system returns two data items be-

cause a service has been wired wrongly. The system

must not return a foreign exhibit object in this case. In

MT4, the system returns the correct data types but the

lending contract has been reﬁned in a way that it now

contains an exhibit object instead of a public exhibit

object. This violates an ACR because the permission

for writing arbitrary exhibit objects is missing. All re-

ported mistakes match mistakes of the reference list.

6.6 Threats to Validity

We discuss the four aspects of validity according to

Runeson et al. (Runeson et al., 2012, pp. 71) that

have to be distinguished in case study research.

Construct validity ensures that taken measures

represent what shall be researched. We used common

accuracy metrics and provided a reasonable classiﬁ-

cation scheme aligned with the analysis deﬁnitions to

collect the input data for the metrics. As part of the

evaluation design, we already explained the relation

between the evaluation question and the used metrics.

Internal validity ensures that an expected inﬂuenc-

ing factor is not affected by other factors. We ex-

pect the extraction algorithm and the analysis algo-

rithm, the analyzed models, the result classiﬁcation

and the injected mistakes to inﬂuence the results. The

extraction and analysis algorithms are the factors we

want to check. We ensured that the models contain

all relevant scenarios to cover the whole algorithms.

This eliminates a positive inﬂuence of the models be-

cause a certain type of requirement or mistake that

could potentially be missed is not part of the models.

The mistakes were injected by the authors. However,

we categorized all possible mistake types that inﬂu-

ence ACRs and injected one mistake for each cate-

gory. This is sufﬁcient to evaluate accuracy because

more mistakes of the same type would be handled in

the same way and yield the same result. We derived

the scenarios from general deﬁnitions that could ap-

ply to other algorithms as well to avoid creating sce-

narios that are tailored to the approach. We also en-

sured that the models correctly reﬂect the intention of

the modeler to eliminate unintended modeling ﬂaws

as an inﬂuencing factor. We derived the scenarios and

the classiﬁcation scheme in a reasonable way as ex-

plained in the evaluation design to avoid a positive or

negative effect on the metrics by a ﬂawed case study.

External validity ensures that results can be gen-

ICE-B 2021 - 18th International Conference on e-Business

Table 3: Architectural compliance analysis results (mistakes set in italic).

Mistake Entry Level System Call Read Data Types Written Data Types

MT1 SaveLendingConﬁrmation LendingRequest LendingConﬁrmation

MT2 GetForeignArtwork OwnArtwork –

MT3 GetArtwork Artwork, ForeignArtwork –

MT4 CreateLendingContract – LendingContract

eralized. As Runeson et al. (Runeson et al., 2012, p.

71) state, case study results cannot be generalized in a

universal way because no statistically relevant sample

has been drawn. However, results can be applied to

cases with comparable characteristics. With respect

to the evaluation, relevant characteristics are the used

modeling languages BPMN and PCM because we did

no case studies using other languages. However, both

languages are established, so the results apply to var-

ious other cases using these languages. We expect

that results are applicable to other languages with the

characteristics mentioned in Section 5.

Reliability ensures that results do not depend on

the conducting researcher. The steps necessary to

conduct the evaluation are creating the models, run-

ning the analysis and classifying the results. Creating

the models is not part of the evaluation design, so we

ship them and the analysis code as part of a data set

(Pilipchuk et al., 2021). In addition, we provide the

metric calculation instructions and the classiﬁcation

criteria in the evaluation design. Therefore, we con-

sider the evaluation to be replicable by others. While

analyzing the evaluation results, the effects of inter-

pretation by a speciﬁc researcher must be eliminated.

In order to analyze the accuracy of our approach, we

apply established metrics which give a reasonable ev-

idence and reduce the need for interpretation. Due to

the study design, there is hardly an interpretation that

may lead a researcher to another conclusion.

6.7 Assumptions and Limitations

AcsALign aligns the EAA with ACRs extracted from

business processes by identifying violations automat-

ically. In order to do that, we assume that both busi-

ness processes and EAA are available. As stated be-

fore, this assumption is appropriate as bigger organi-

zations are required to create those models e.g. to ful-

ﬁll regulations or to cope with business complexity.

Under this assumption the usage of AcsALign does

not impose additional overhead as all input data is

available and the analysis is automatic. Moreover, our

case study showed that AcsALign is able to identify

relevant mistakes in the EAA. We assume business

processes to be correct, i.e. they are compliant with

regulations and laws, and that modeled data process-

ing matches intended system behavior. We also do

not address compliance of implementation and EAA.

Certainly, AcsALign is limited to identify what is

modeled. If there are only few business processes,

we can only discover few ACRs automatically. In that

case, manual effort is required to complete ACRs or to

model more business processes. The same restriction

applies to the architectural analysis as we can only

detect violations if the modeled data processing com-

pletely reﬂects the intended behavior.

In general, AcsALign is limited to data types

rather than classes of data. Compared to data types,

a class of data can have the same type but differ-

ent ACRs. For instance, a data type report might be

conﬁdential in case of ﬁnancial information or might

be public in case of information about a certiﬁca-

tion. The architectural analysis framework provides

means for expressing such analyses but BPMN does

not. This would require an extension that we explic-

itly did not want to use in AcsALign to maintain broad

applicability and low overhead. However, if consider-

ing this limitation at the beginning of business process

design, the limitation can be overcome by explicitly

modeling classes of data as distinct data objects.

7 CONCLUSION

In this paper, we elaborated on three challenges to

align EAAs with business process ACRs and pre-

sented solutions for the challenges that we found dur-

ing the development of an approach called AcsALign

that ensures that EAAs adhere to ACRs of business

processes. AcsALign consists of the ACRs extrac-

tion from business processes, of a data ﬂow analysis

to identify read/written data and of a matching algo-

rithm to detect ACR violations. We realized the ap-

proach for business processes modeled in BPMN and

EAAs modeled in PCM. In the evaluation we evalu-

ated our solutions to the proposed challenges as well

as the AcsALign. The evaluation with a real-world

case study shows that AcsALign provides satisfying

accuracy. AcsALign provides beneﬁts for practition-

ers and scientists. Practitioners can use the approach

to align EAAs at design time and during evolution

scenarios where mistakes are done often. Because we

use standard modeling languages, the overhead for in-

tegrating the approach is low. The analysis provides

Challenges in Aligning Enterprise Application Architectures to Business Process Access Control Requirements in Evolutional Changes

valuable insights in the minimum set of required ac-

cess rights or the data a role has access to. Otherwise,

gathering this information can be cumbersome and

error-prone. Researchers can use the automated anal-

yses as benchmarks for their approaches or even semi-

automated processes. Evaluating more elaborated ex-

traction or matching concepts is possible as the modu-

lar tool chain allows replacing individual parts easily.

In our future work, we plan to evaluate more elab-

orated matching algorithms between data and require-

ments that consider heavily reﬁned data models in

EAAs and to research how versions of EAAs affect

business processes in terms of ACRs.

ACKNOWLEDGEMENTS

The DFG (German Research Foundation) – project

number 432576552, HE8596/1-1 (FluidTrust) and the

KASTEL institutional funding supported this work.

REFERENCES

Abramov, J., Anson, O., Dahan, M., Shoval, P., and Sturm,

A. (2012). A methodology for integrating access con-

trol policies within database development. Comput.

Secur., 31(3):299–314.

Ahn, G. and Hu, H. (2007). Towards realizing a formal

RBAC model in real systems. In SACMAT’07, pages

215–224. ACM.

Alghathbar, K. and Wijesekera, D. (2003). Authuml:

A three-phased framework to analyze access control

speciﬁcations in use cases. In Proceedings of the 2003

ACM Workshop on Formal Methods in Security Engi-

neering, FMSE ’03, page 77–86. ACM.

Alpers, S., Pilipchuk, R., Oberweis, A., and Reussner, R.

(2019). The current state of the holistic privacy and

security modelling approach in business process and

software architecture modelling. Information Systems

Security and Privacy, pages 109–124.

AXELOS (2011). ITIL Edition 2011.

Boehm, B. and Basili, V. R. (2001). Software Defect Re-

duction Top 10 List. Computer, 34(1):135–137.

Busch, M. et al. (2014). Modeling security features of web

applications. In Eng. Secure Future Internet Services

and Sys., LNCS, pages 119–139. Springer.

D. Brucker, A. et al. (2012). SecureBPMN: Modeling and

enforcing access control requirements in business pro-

cesses. In SACMAT’12.

European Parliament (2016). Regulation (EU) 2016/679.

Ofﬁcial Journal of the European Union, 59:1–88.

Georg, G. et al. (2009). An aspect-oriented methodology for

designing secure applications. Information and Soft-

ware Technology, 51(5):846–864.

Giaglis, G. M. (2001). A taxonomy of business process

modeling and information systems modeling tech-

niques. Int J Flex Manuf Syst, 13(2):209–228.

Goudalo, W. and Seret, D. (2008). Toward the engineering

of security of information systems (esis): Uml and the

is conﬁdentiality. In SECUREWARE, pages 248–256.

Heinrich, R. et al. (2017). Integrating business process sim-

ulation and information system simulation for perfor-

mance prediction. SoSyM, pages 1–21.

Heinrich, R., Rostami, K., and Reussner, R. (2016). The

CoCoME platform for collaborative empirical re-

search on information system evolution. Techni-

cal Report 2016,2; Karlsruhe Reports in Informatics,

Karlsruhe Institute of Technology.

urjens, J. (2005). Secure systems development with UML.

Springer.

Kotusev, S. (2017). Critical questions in enterprise archi-

tecture research. IJEIS, 13(2):50–62.

Lodderstedt, T. et al. (2002). SecureUML: A uml-based

modeling language for model-driven security. In

UML’02, pages 426–441.

ohe, J. et al. (2014). Overcoming implementation chal-

lenges in enterprise architecture management: a de-

sign theory for architecture-driven it management

(adrima). ISeB, 12(1):101–137.

Nguyen, P. H. et al. (2015). An extensive systematic review

on the Model-Driven Development of secure systems.

IST, 68:62–81.

Object Management Group (2011). Business process model

and notation (BPMN) v2.0.2.

Open Group (2018). Togaf standard, version 9.2.

Pilipchuk, R., Seifermann, S., Heinrich, R., and

Reussner, R. (2021). Evaluation data set.

https://doi.org/10.5281/zenodo.4700594.

R. Basili, V., Caldiera, G., and Rombach, D. (1994). The

goal question metric approach. Encyclopedia of Soft-

ware Engineering, 1.

Ramadan, Q. et al. (2017). From secure business pro-

cess modeling to design-level security veriﬁcation. In

IEEE MODELS, pages 123–133.

Reussner, R. H. et al. (2016). Modeling and Simulating

Software Architectures – The Palladio Approach. MIT

Press.

Rodr

ıguez, A., Fern

andez-Medina, E., and Piattini, M.

(2007). A bpmn extension for the modeling of se-

curity requirements in business processes. IEICE -

Trans. Inf. Syst., E90-D(4):745–752.

Runeson, P. et al. (2012). Case Study Research in Software

Engineering: Guidelines and Examples. John Wiley

& Sons, Inc.

Salnitri, M. et al. (2015). From secure business process

models to secure artifact-centric speciﬁcations. In En-

terprise, Business-Process and Information Systems

Modeling, pages 246–262. Springer.

Seifermann, S., Heinrich, R., and Reussner, R. H. (2019).

Data-driven software architecture for analyzing conﬁ-

dentiality. In ICSA’19, pages 1–10. IEEE.

Urbaczewski, L. et al. (2006). A comparison of enterprise

architecture frameworks. IIS, 7(2):18–23.

ICE-B 2021 - 18th International Conference on e-Business
