Predicting Type Annotations for Python using Embeddings from Graph

Neural Networks

Vladimir Ivanov, Vitaly Romanov and Giancarlo Succi

Innopolis University, Russia

Keywords:

Neural Networks, Source Code, GNN, CNN, Embeddings, Type Prediction, Python.

Abstract:

An intelligent tool for type annotations in Python would increase the productivity of developers. Python is

a dynamic programming language, and predicting types using static analysis is difﬁcult. Existing techniques

for type prediction use deep learning models originated in the area of Natural Language Processing. These

models depend on the quality of embeddings for source code tokens. We compared approaches for pre-

training embeddings for source code. Speciﬁcally, we compared FastText embeddings to embeddings trained

with Graph Neural Networks (GNN). Our experiments showed that GNN embeddings outperformed FastText

embeddings on the task of type prediction. Moreover, they seem to encode complementary information since

the prediction quality increases when both types of embeddings are used.

1 INTRODUCTION

Statically typed programming languages allow detect-

ing some errors during the development process and

before the execution. This is one reason why dynam-

ically typed programming languages like Python and

JavaScript adopt optional type hinting. However, pro-

viding type hints is labor-intensive, and it can often be

neglected. A helper tool that would assist program-

mers with type annotations is needed.

Researchers have tried to address type prediction

using the tools of machine learning and deep learn-

ing. Some results were achieved by analyzing doc-

umentation for functions (Boone et al., 2019; Ma-

lik et al., 2019). However, documentation some-

times is not available, especially for small projects

and projects in the early stages of development. Other

approaches viewed the source code as a sequence of

tokens and the type prediction task — as sequence

tagging (Pradel et al., 2019; Hellendoorn et al., 2018).

A handful of studies interpreted the source code as a

graph (Raychev et al., 2015; Allamanis et al., 2020;

Wei et al., 2020).

This paper takes a hybrid approach to type pre-

diction for Python. We view source code as both: a

sequence of tokens and as a graph. We adopt a com-

mon Natural Language Processing (NLP) approach

for sequence tagging to predict Python types. The in-

formation from a source code graph is incorporated

into the prediction process by concatenating embed-

dings from the graph built from source code with the

FastText embeddings trained on a corpus of Python

repositories. The work that is closest to ours is (Al-

lamanis et al., 2020). They predict type annotations

for Python using Graph Neural Networks. However,

we use a hybrid technique that combines the strength

of NLP-based approaches and the strength of Graph

Neural Networks for modeling long-range dependen-

cies.

Our experiments show that introducing graph-

based embeddings into the prediction process allows

increasing the type prediction quality from 68% (us-

ing NLP model) to 75% when measured with the top-

1 F-score. The contribution of this paper is the fol-

lowing:

• We prepare a dataset for predicting types for

Python variables

;

• We demonstrate a method that allows incorporat-

ing graph-based source code embeddings into a

standard NLP processing pipeline;

• We demonstrate that graph-based embeddings

are complementary to FastText embeddings for

source code and that using them allows increasing

the quality of type prediction for Python variables.

The rest of this paper is organized as follows. Sec-

tion 2 overviews existing approaches for predict-

ing type annotations for dynamic programming lan-

https://github.com/VitalyRomanov/python-type-prediction

548

Ivanov, V., Romanov, V. and Succi, G.

Predicting Type Annotations for Python using Embeddings from Graph Neural Networks.

DOI: 10.5220/0010500305480556

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 548-556

ISBN: 978-989-758-509-8

guages. Section 3 explains data collection and pro-

cessing methods. Section 4 overviews the design of

our type prediction model. Section 5 explains the ex-

perimental setup. Section 6 discusses limitations of

the current approach. Section 7 concludes the paper.

2 RELATED WORK

Researchers have explored the possibility of predict-

ing type annotations for dynamic languages already

for some time. The earliest most relevant work on

this subject is related to predicting type annotations

for JavaScript programs using Conditional Random

Fields (CRF) (Raychev et al., 2015).

Another approach for predicting types in

JavaScript relies on extracting relevant information

from JSDoc (Malik et al., 2019). The authors used

a natural language description for each argument

to predict the required type. Their approach has

demonstrated a decent performance, but it relies on

documentation that is not always available. A similar

approach was used for Python in DLTPy (Boone

et al., 2019). Researchers used variable names,

docstring, comments, and return expressions as input

features. This approach also relies on meaningful

names and does not take into account the program’s

structure.

Three works are the closest to what we are trying

to build. The ﬁrst approach was presented in (Hel-

lendoorn et al., 2018). In this work, authors treat a

program as a sequence of tokens and process Python

functions using a Recursive Neural Network (RNN).

They point out that relevant information about a vari-

able can be spread over a long distance in source

code. For example, one can guess the type of a vari-

able by looking at the usage patterns. However, rel-

evant usages can be spread over long distances in a

function. Their solution to this problem is to take

the representations for all mentions of a target vari-

able and average them together. This averaged rep-

resentation is used for type prediction. Another ap-

proach based on RNNs is called TypeWriter (Pradel

et al., 2019). This approach combines probabilistic

and search-based predictions. First, the types of vari-

ables are predicted using an RNN. Then, the predicted

type undergoes a reﬁnement process to verify the va-

lidity of the predicted annotation. Because of the

second step, this approach can ensure type correct-

ness. The third approach is called Typilus (Allamanis

et al., 2020) where authors represented source code as

a graph and addressed an open world type prediction

problem, where the set of target type classes is not

predeﬁned.

Our method is based on a text Convolutional Neu-

ral Network (CNN). Similarly to (Pradel et al., 2019;

Hellendoorn et al., 2018), we process the source code

as a sequence of tokens. However, we also intro-

duce additional information in the form of graph em-

beddings. Graph embeddings naturally address long-

range dependencies in source code because such de-

pendencies are represented as adjacent nodes in a

graph. Moreover, they were demonstrated to be useful

for predicting return types for Python functions (Ro-

manov, 2020).

3 DATASET

Our goal is to explore the effectiveness of graph em-

beddings for predicting types for Python variables.

However, we were not able to ﬁnd suitable datasets

for this task. We are aware of two datasets with

Python functions that also come with a parsed ab-

stract syntax tree (AST): 150k Python Dataset (Ray-

chev et al., 2016) and CodeSearchNet (Husain et al.,

2019). Unfortunately, ASTs in these datasets are lim-

ited to the scope of a single function, and it is im-

possible to resolve function calls reliably. We believe

that the information about function calls is important

for predicting types. For this reason, we decided to

collect our own dataset.

3.1 Source Code Graph

Our dataset consists of a collection of interdependent

packages. We selected a set of popular Python li-

braries and their dependencies from GitHub. We ﬁl-

tered those packages that contain type annotations in

their sources. The remaining were analyzed with an

open-source indexing tool Sourcetrail

, which stores

the source code index in graph format where source

code elements, such as modules, methods, classes,

and variables are represented as nodes. Edges rep-

resent relationships between nodes, for example, def-

initions or function calls. The process of package in-

dexing is time-consuming, and we plan to index more

packages in the future. The example of Sourcetrail

output is shown in Figure 1. The list of indexed pack-

ages can be found in Appendix.

Sourcetrail resolves the mentions of variables,

functions, and classes in the source code. However, it

does not store information from AST. For this reason,

we implemented a tool for creating a graph represen-

tation of Python AST and merging this representation

with the Sourcetrail graph index. We used a standard

https://www.sourcetrail.com/

Predicting Type Annotations for Python using Embeddings from Graph Neural Networks

549

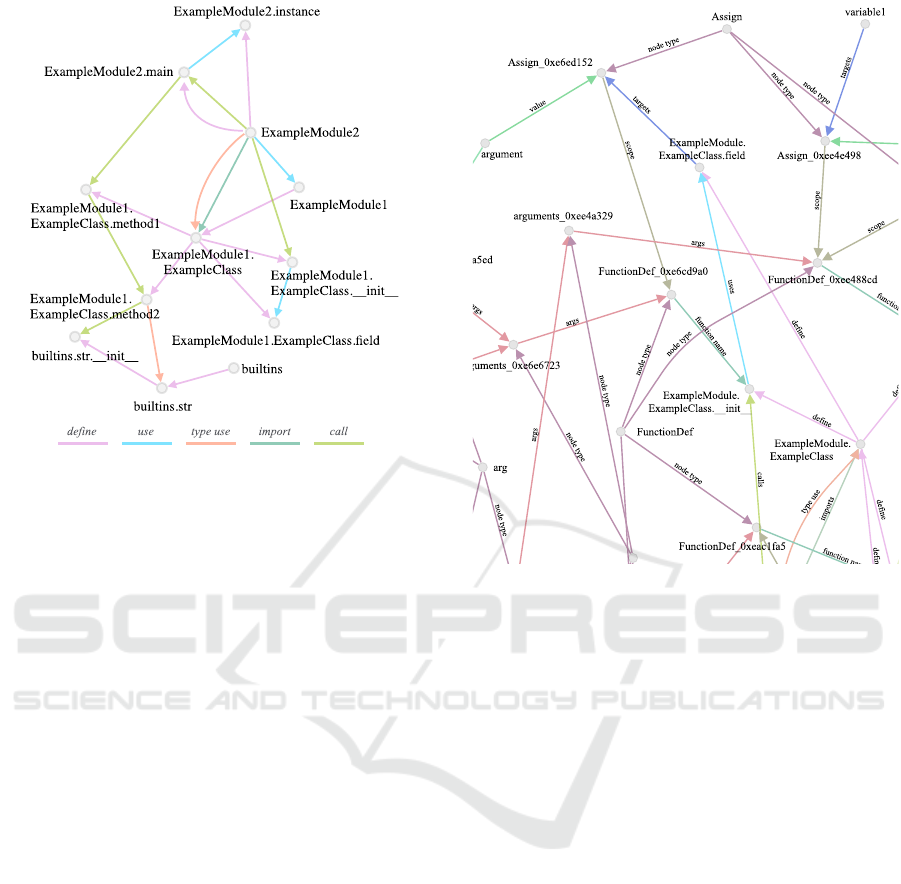

Figure 1: Example of source code graph that captures deﬁ-

nition and usage of a simple Python class.

Python library for AST parsing.

Some nodes in the AST have identical names.

This is usually the case for AST nodes that do not

represent named elements in the code such as vari-

ables and functions. The examples of these other AST

nodes are control ﬂow statements such as for, if, or

while, operators, assignments, slices, attributes, and

others. To avoid these nodes being merged, which

would result in different functions exchanging infor-

mation during the message-passing stage in GNN, we

create a new node for each instance of AST node that

does not represent a user-assigned name. Overall,

the graph construction process is similar to (Romanov

et al., 2020).

The ﬁnal graph contains 690676 nodes and

2971025 edges (Table 1). The inclusion of AST nodes

dramatically increases the graph size. An example

that extends the graph in Figure 1 is shown in Fig-

ure 2. Due to the size of the graph, only a fragment

of it is shown here. The source code that was used for

producing this graph is given in Appendix.

AST nodes and edges are provided by Python’s

ast package. The number of different node and rela-

tionship types reaches several dozens. However, the

GNN model that we use for computing graph embed-

dings does not distinguish node types. The reason is

discussed in Section 4. We believe that it is important

to include information about node types into the ﬁnal

graph because it possesses high predictive power. For

this reason we add AST type nodes into the graph.

When predicting types inside Python function’s

Figure 2: Example of source code graph including AST

edges. Due to the size of the graph, only a fragment of

the graph is shown here. AST nodes that do not represent

user-deﬁned names are assigned a unique identiﬁer.

body, we match source code elements with graph

nodes and use graph embeddings for predictions.

3.2 Python Type Annotations

For the task of type annotation, we extract labels from

the source code itself. Type annotations in Python can

be provided for: (i) variables deﬁned in the function’s

signature, (ii) variables deﬁned inside the function’s

body, and (iii) the function itself (return type). In

this work, we focus on predicting type annotations for

variables and leave the prediction of the function’s re-

turn type out of consideration. We strip type annota-

tions from source codes and use them as labels within

Named Entity Recognition (NER) framework. Over-

all, our dataset contains 2166 functions with 4548

type labels.

Some types are composite, for example

List[Str] or Union[Str, Int]. We decided

to simplify these annotations and predict only the

most outer-level type description, e.g., (List and

Union). A similar approach was used in (Allamanis

et al., 2020). We resort to this measure to simplify

the neural network architecture in the ﬁrst stages

of research since we can use a simple classiﬁer to

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

550

Table 1: Node and edge types present in Python source graph.

Node Type Node Count Edge Type Edge Count

AST related 643369 AST related 2179648

Function 28863 Usage 588120

Class ﬁeld 6961 Function Call 91882

Global Variable 4156 Deﬁnes 49584

Class 3857 Type Usage 42977

Module 1780 Import 16389

Class Method 1286 Inheritance 2424

Figure 3: Distribution of type labels for the task of predict-

ing type annotations in Python. Only the top 12 labels are

demonstrated. Top 20 labels were used in this paper for

experiments.

predict labels. In the future, we plan to explore

more complex prediction strategies, similar to one

presented in (Hellendoorn et al., 2018). Overall

we have 127 unique type labels. However, the

distribution of the labels in our dataset seems to

follow the power law. To ensure that the learning

model has enough training data for each label, we

use the top 20 type annotations and replace the rest

with a label Other. Again, similar ﬁltration was also

applied in (Allamanis et al., 2020). The distribution

of the labels is given in Figure 3.

Sometimes docstring contains information useful

for type inference (Boone et al., 2019). We wanted

to ﬁnd out how well a model can predict types when

no such documentation is available. In other words,

we wanted our models to perform inference by only

reading the code. For this reason, we remove all doc-

umentation from the functions that we process.

4 MODEL

We explore the usefulness of two representations

of source code for predicting type annotations for

Python: representation as a sequence and representa-

tion as a graph. We decided to treat type annotations

the same way Named Entities are treated in NLP. We

chose a model that classiﬁes each token as a part of an

entity or an outside token. Speciﬁcally, we adopted

the BILUO tagging scheme.

We wanted to compare the performance of our

model with and without the graph embeddings. For

this reason, we wanted to adopt an architecture where

we can easily add new information to the model. We

chose an architecture from (Collobert et al., 2011)

that received the Test of Time Award at ICML 2018.

We use this architecture because of the simplicity of

implementation and fast training times. In our fu-

ture work, we plan to experiment with more up-to-

date language modeling techniques for code (Kanade

et al., 2020; Feng et al., 2020). Our current architec-

ture is shown in Figure 4.

4.1 Source Code Embeddings

First, we tried predicting type annotations without the

use of graph embeddings. Instead, we used embed-

ding models popular in NLP. Our original goal was

to use CuBERT embeddings for source code that was

presented in (Kanade et al., 2020). Unfortunately, the

model was not published for public access at the time

we completed our work. Our second choice was to

use pre-trained FastText embeddings for Python pre-

sented in (Efstathiou and Spinellis, 2019). However,

we found that this model does not have embeddings

for many language keywords and punctuation char-

acters that seem to be useful for predicting type an-

notations. We decided to pre-train our own FastText

embeddings that preserve frequent tokens. For this,

we downloaded repositories listed in CodeSearchNet

(Husain et al., 2019) and extracted Python sources.

As a result, we had a Python corpus of 2.8 GB, 2

GBs more than the corpus used in (Efstathiou and

Spinellis, 2019). We trained FastText embeddings us-

ing Gensim (

Reh

rek and Sojka, 2010) for 20 epochs

with standard parameters (context size 5, vector size

100).

Predicting Type Annotations for Python using Embeddings from Graph Neural Networks

551

4.2 Graph Embeddings

FastText embeddings were designed to address repre-

sentation learning for natural languages. Speciﬁcally,

natural language models usually try to predict a word

inside a given context. However, objectives like this

are arguably less useful for source code, primarily due

to a greater amount of neologisms and the presence of

long-range dependencies (Allamanis et al., 2018). At

the same time, we can provide information about de-

pendencies explicitly by extracting relationships be-

tween variables, functions, and classes from sources.

Moreover, we can use additional source-code-speciﬁc

objectives. We decided to use the following objec-

tives:

• Node Name Prediction: where we predict names

for classes, variables, or functions. This objec-

tive is semantically challenging. The names can

be predicted by looking at usage patterns or the

implementation;

• Variable Use Prediction: where we predict the

names of variables that are used in the body of a

given function. This objective captures the top-

ical semantics of the code. For example, if we

know that this function is related to networking, it

is likely to have variable names such as client and

server. Variable names are predicted for nodes

that represent functions. These nodes aggregate

information from all AST nodes in the function’s

body;

• Next Call Prediction: where we predict which

function will be called next given the current func-

tion. This objective encourages the model to learn

usage patterns of different functions. Once again,

the objective is applied to nodes for functions to

encourage the usage of AST nodes.

We train graph embeddings using a version of Graph

Neural Network called Relational Graph Convolu-

tional Network (Schlichtkrull et al., 2018). A dis-

tinctive feature of this model is that it incorporates

relationship types into the modeling process. RGCN

is a message-passing model. During training and in-

ference, nodes share their embeddings with adjacent

neighbors. A learned relationship-type-speciﬁc func-

tion is applied to node representation during the mes-

sage passing. It transforms a node embedding before

sending it to the adjacent node. Each node incorpo-

rates messages from other nodes into its own embed-

ding. In our case, we use three message passing turns.

On each turn, a different message-passing transfor-

mation is applied, which corresponds to three layers

of Graph Neural Network. The ﬁnal embeddings are

used as an input for our three objective functions. The

use of a relation-speciﬁc GNN model is motivated by

the high diversity of relationship types in our source

code graph.

All nodes in our graph have the same node type,

and the only way to understand that we are working

with a variable and not with an if expression is by

looking at the relationships with the adjacent neigh-

bors. The incorporation of node types into the graph

leads to a much higher requirement for memory and

processing time. For this reason, instead of assign-

ing types to nodes, we introduced nodes that repre-

sent types. We use such nodes only in relationships

with AST nodes. Such an approach introduces lit-

tle memory overhead but still allows the inclusion of

node types.

The use of shared nodes (e.g. type nodes or nodes

that represent user-deﬁned names) is a concern for en-

suring that the graph that represents an implementa-

tion of a function is isolated from all other functions.

Since the message passing is used for training, shared

nodes can be gateways for information leakage be-

tween parts of the graph that represent completely un-

related code. To prevent this we restrict the message

passing from shared nodes only in one direction.

4.3 Type Prediction Model

We use a text CNN model for predicting Python types.

The model is inspired by (Collobert et al., 2011). The

main reason for choosing this model was the simplic-

ity of the implementation and training speed. The

overview of the model is given in Figure 4. In the

ﬁrst stage of the prediction process, the tokens of a

Python’s function are embedded using FastText and

graph embeddings. Additionally, we add embeddings

for preﬁxes and sufﬁxes for tokens to improve the

ability to process rare short tokens. Preﬁxes and suf-

ﬁxes have a ﬁxed length of three characters. All em-

beddings for each token are concatenated and then

passed to a convolutional layer. The context size de-

pends on the window size. We explore different win-

dow sizes during hyper-parameter optimization.

After passing data through two convolutional lay-

ers, embeddings for each token are passed through

two fully connected layers that produce the ﬁnal label

on the output. We use the BILUO scheme for encod-

ing the output classes for each token. We evaluate the

performance of the model using the top-1 F1-score.

5 EXPERIMENT

For training, we used a desktop computer with Intel

i5-7400 CPU and GeForce 1050Ti GPU. We trained

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

552

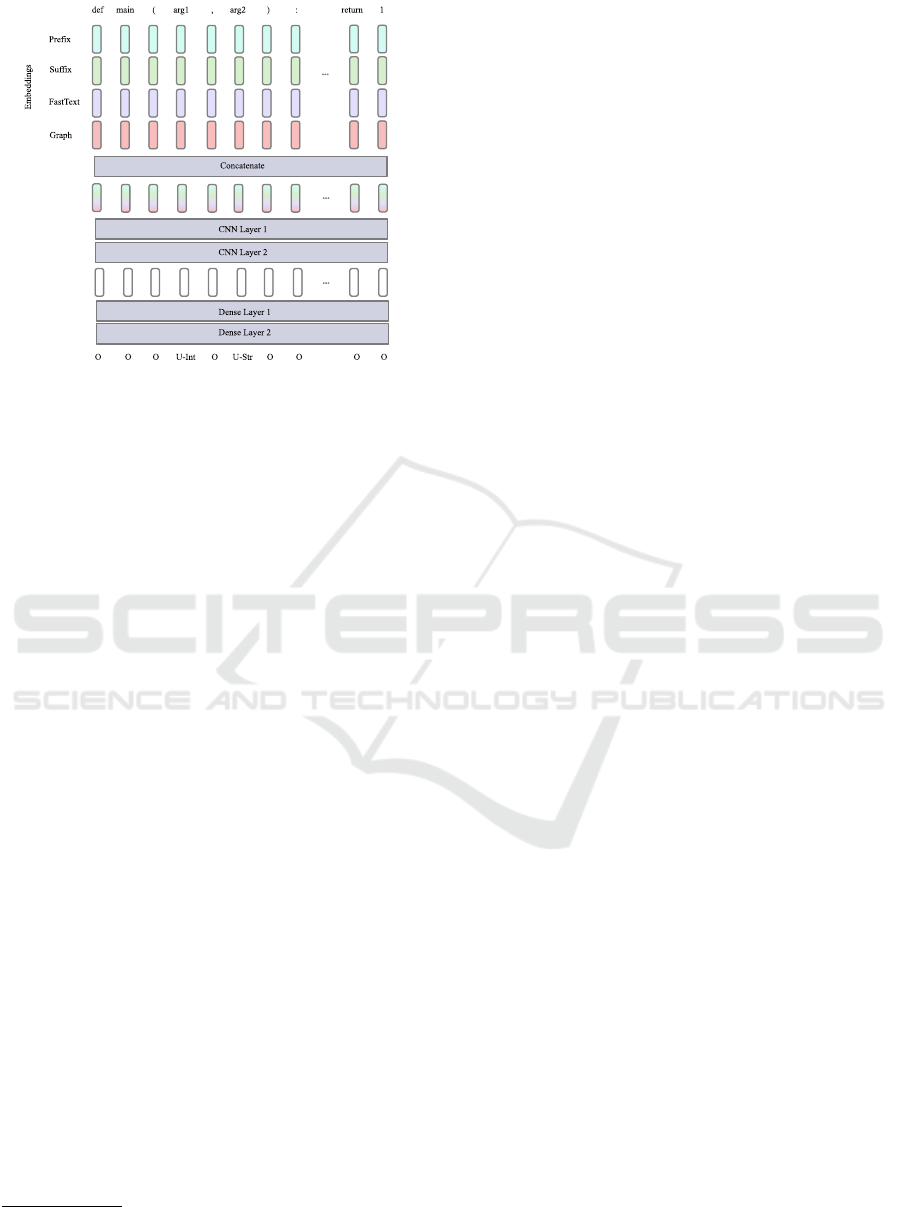

Figure 4: Architecture of our simple CNN model for type

prediction.

FastText embeddings for source code (dimensional-

ity 100) using Gensim

library for 20 epochs. We

trained graph embeddings (dimensionality 100) using

an RGCN model developed with DGL

library for

100 epochs. The training time was about 8 hours

for both FastText and GNN embeddings. We per-

formed a hyper-parameter search by tuning the perfor-

mance of GNN embeddings on the test set. The best

performance was achieved when we used three mes-

sage passing turns (3 layers) of RGCN. Using more

message passing turns resulted in a decreased perfor-

mance. This phenomenon is well-known (Wu et al.,

2020) but is not yet completely resolved.

In addition, we performed a hyper-parameter

search for a text CNN model. The training time for

each trial took about 2.5 hours. Overall, we explored

33 hyper-parameter conﬁgurations for CNN-type pre-

dictor. The search was performed with and without

the inclusion of graph embeddings in order to eval-

uate their impact. Optimized parameters include the

number of channels in CNN layers, the dimensional-

ity of dense layers, the dimensionality of preﬁx and

sufﬁx embeddings, the size of the context window,

the learning rate. The best performance was achieved

when we used 40 CNN channels for both layers, 30

units for both dense layers, context size 5, preﬁx and

sufﬁx embedding size 50, and learning rate 0.0001.

For each hyper-parameter set, we trained a model

several times to account for randomness in the initial-

ization. We selected hyper-parameters only based on

the best trial. Sometimes models would fail to con-

verge during one of the trials but successfully con-

verge during others.

https://github.com/RaRe-Technologies/gensim

https://github.com/dmlc/dgl

We tested four embedding approaches for text

CNN. The ﬁrst one explores type prediction for

Python when embeddings only for sufﬁxes and pre-

ﬁxes are used. These embeddings are trained speciﬁ-

cally for the task of type prediction. The performance

of this model likely demonstrates the dependence of

type prediction performance on variable names as

well as the present default values.

In the second model, we add FastText embed-

dings. This case serves as a valid baseline for our

model. FastText embeddings are pre-trained on a

large corpus of source code and can capture semantic

dependencies between variable names. Again, these

embeddings primarily demonstrate the importance of

variable names for type prediction. The FastText em-

beddings are frozen during the training.

In the third model, we used embeddings for pre-

ﬁxes and sufﬁxes as well as graph embeddings. This

model allows assessing how useful graph embeddings

are when compared with FastText embeddings. Graph

embeddings should encode more structural informa-

tion about source code. The graph embeddings are

frozen during the training.

The fourth model involves training a model that

utilizes preﬁx, sufﬁx, FastText, and graph embed-

dings. This experiment would help us identify

whether FastText and graph-based embeddings are

complementary to each other. The FastText and graph

embeddings are frozen during the training. The re-

sults of these experiments are shown in Table 2.

From the results, we see that the FastText base-

line allows predicting a signiﬁcant portion of the type

annotations correctly — F-score 68.2. When using

graph embeddings, the performance achieves 71.7.

This indicates that the information learned by graph

embeddings appears to be beneﬁcial for type predic-

tion. Finally, when using both kinds of embeddings,

the F-score jumps 75.19. This suggests that FastText

and graph-based embeddings appear to contain com-

plementary information that is useful for predicting

variable types. The demonstrated results are similar

to ones reported in (Allamanis et al., 2020). For the

comparison of our results with their work, we refer

the reader to the next section.

Examples of predicted types can be found in Ap-

pendix.

6 DISCUSSION OF RESULTS

Our work is the most similar to (Allamanis et al.,

2020): structured representation of code and GNNs

are used for type prediction. However, we started

our experiments before this paper was published and

Predicting Type Annotations for Python using Embeddings from Graph Neural Networks

553

Table 2: Best Python type prediction performance for mod-

els with different embeddings.

Embeddings Top-1 F-score

Preﬁx, Sufﬁx 61.7

Preﬁx, Sufﬁx, FastText 68.2

Preﬁx, Sufﬁx, Graph 71.7

Preﬁx, Sufﬁx, FastText, Graph 75.19

therefore we have a different dataset and different ar-

chitectures. Further, we will perform a comparison

with respect to the dataset, architecture, and perfor-

mance.

The dataset used by (Allamanis et al., 2020) is

an order of magnitude larger. Their dataset consists

of 592 packages (118 440 ﬁles), and ours only from

132 (67 486 ﬁles). Moreover, their dataset contains

252 470 annotated symbols (possibly with annotated

return types) whereas ours has only 4548 annotated

variables (no return type annotations). The huge dif-

ference comes from the fact that they perform addi-

tional type inference using pytype to make the dataset

larger. The ways the datasets were collected are dras-

tically different. They build their graph from AST

and the binary code produced by Python. Our ap-

proach involves indexing with an open-source tool

called Sourcetrail. Packages in our graph are inter-

dependent and connected to each other whereas (Al-

lamanis et al., 2020) analyze disassociated reposito-

ries. Their graph has less than dozen relationship

types while we preserve all AST types.

(Allamanis et al., 2020) perform a comparison

of their GNN approach with seq2seq and path-based

models. Out of those models that they have imple-

mented, we can compare ours with Seq2Class and

Graph2Class. Their Seq2Class model is based on

BiLSTM and processes the functions as sequences.

It achieves the performance of 64% which is simi-

lar to our model that used FastText embeddings. The

Graph2Class model uses Gated Graph Neural Net-

work for processing graph representations. The per-

formance of this model is 75% for common Python

types, which, again, is similar to our results. How-

ever, their GNN uses 8 layers, whereas ours uses only

three. The validity of this comparison is under ques-

tion because the sizes of the datasets and the number

of unique types in datasets are dramatically different.

It is very challenging to perform a fair perfor-

mance comparison. First, the dataset sizes are differ-

ent. The performance of their approach is provided

per epoch, which will be different when the datasets

of different sizes are used. Second, they train their

models from scratch for the sole task of type predic-

tion. We use pre-training of FastText embeddings and

GNN embeddings, both of which can be later reused

for other tasks. Third, the hardware is also very differ-

ent. They use a K80 GPU whereas we had to pre-train

FastText and GNN embeddings using CPU and only

used GTX 1050i for training text CNN. They report

that their model takes 86 seconds of GPU time for one

epoch. Our GNN model takes on the order of 200-300

seconds of CPU time per epoch. We have to account

for the fact that our GNN model performs pre-training

on three objectives and computationally more expen-

sive. However, this results in graph embeddings that

later can be reused. Our text CNN model takes 18s

per epoch to train on GPU. The proper comparison

of performance is challenging because the graph size,

function lengths, efﬁciency of the implementation -

all have to be taken into account. If we assume that

the GNN embeddings are pre-trained and shared be-

tween different tasks, then the CNN model alone is far

less complex and less computationally intensive than

a Gated Graph Neural Network used by (Allamanis

et al., 2020). Moreover, our model uses 3 message

passing turns for pre-training instead of 8 message

passing turns as in the other work. When dealing with

graphs, increasing the number of message-passings

results in an exponential increase of complexity.

Nevertheless, both works demonstrate that GNNs

are useful for the task of type annotation. Moreover,

we perform pre-training of graph embeddings that can

be also applied for other tasks such as variable misuse

detection or name suggestion (since these tasks rely

on names, and our pre-training objectives optimize for

correct names).

It is worth noting that in the ﬁeld of Natural Lan-

guage Processing, text CNN and BiLSTM models

were demonstrated to have an inferior performance

compared to transformers. A comparison of more

modern GNN models (Busbridge et al., 2019) versus

transformers (Kanade et al., 2020; Feng et al., 2020)

should be performed.

7 CONCLUSION

We explored different types of embeddings for pre-

dicting types for Python variables. Our experiments

showed that type prediction depends a lot on the cur-

rent variable names because the preﬁx and sufﬁx em-

beddings alone are great predictors for the target type

label. Models that rely on lexical embeddings (such

as FastText) show decent performance even with a

simple CNN model. Moreover, embeddings that were

designed to model source code structure allow achiev-

ing a greater performance than lexical embeddings.

Using both types of embeddings resulted in the best

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

554

performance in our experiments. We demonstrated

that the achieved performance is similar to recent

work by other researchers while being less compu-

tationally intensive.

REFERENCES

Allamanis, M., Barr, E. T., Devanbu, P., and Sutton, C.

(2018). A survey of machine learning for big code

and naturalness. ACM Computing Surveys (CSUR),

51(4):1–37.

Allamanis, M., Barr, E. T., Ducousso, S., and Gao, Z.

(2020). Typilus: neural type hints. In Proceedings

of the 41st acm sigplan conference on programming

language design and implementation, pages 91–105.

Boone, C., de Bruin, N., Langerak, A., and Stelmach, F.

(2019). Dltpy: Deep learning type inference of python

function signatures using natural language context.

arXiv preprint arXiv:1912.00680.

Busbridge, D., Sherburn, D., Cavallo, P., and Hammerla,

N. Y. (2019). Relational graph attention networks.

arXiv preprint arXiv:1904.05811.

Collobert, R., Weston, J., Bottou, L., Karlen, M.,

Kavukcuoglu, K., and Kuksa, P. (2011). Natural

language processing (almost) from scratch. Journal

of machine learning research, 12(ARTICLE):2493–

2537.

Efstathiou, V. and Spinellis, D. (2019). Semantic source

code models using identiﬁer embeddings. In 2019

IEEE/ACM 16th International Conference on Mining

Software Repositories (MSR), pages 29–33. IEEE.

Feng, Z., Guo, D., Tang, D., Duan, N., Feng, X., Gong,

M., Shou, L., Qin, B., Liu, T., Jiang, D., et al. (2020).

Codebert: A pre-trained model for programming and

natural languages. arXiv preprint arXiv:2002.08155.

Hellendoorn, V. J., Bird, C., Barr, E. T., and Allamanis, M.

(2018). Deep learning type inference. In Proceedings

of the 2018 26th acm joint meeting on european soft-

ware engineering conference and symposium on the

foundations of software engineering, pages 152–162.

Husain, H., Wu, H.-H., Gazit, T., Allamanis, M., and

Brockschmidt, M. (2019). Codesearchnet challenge:

Evaluating the state of semantic code search. arXiv

preprint arXiv:1909.09436.

Kanade, A., Maniatis, P., Balakrishnan, G., and Shi, K.

(2020). Learning and evaluating contextual embed-

ding of source code. In International Conference on

Machine Learning, pages 5110–5121. PMLR.

Malik, R. S., Patra, J., and Pradel, M. (2019). Nl2type:

inferring javascript function types from natural lan-

guage information. In 2019 IEEE/ACM 41st Inter-

national Conference on Software Engineering (ICSE),

pages 304–315. IEEE.

Pradel, M., Gousios, G., Liu, J., and Chandra, S. (2019).

Typewriter: Neural type prediction with search-based

validation. arXiv preprint arXiv:1912.03768.

Raychev, V., Bielik, P., and Vechev, M. (2016). Probabilistic

model for code with decision trees. ACM SIGPLAN

Notices, 51(10):731–747.

Raychev, V., Vechev, M., and Krause, A. (2015). Predicting

program properties from” big code”. ACM SIGPLAN

Notices, 50(1):111–124.

Reh

rek, R. and Sojka, P. (2010). Software Framework

for Topic Modelling with Large Corpora. In Proceed-

ings of the LREC 2010 Workshop on New Challenges

for NLP Frameworks, pages 45–50, Valletta, Malta.

ELRA.

Romanov, V. (2020). Evaluating importance of edge types

when using graph neural network for predicting return

types of python functions. In Companion Proceedings

of the 2020 ACM SIGPLAN International Conference

on Systems, Programming, Languages, and Applica-

tions: Software for Humanity, pages 25–27.

Romanov, V., Ivanov, V., and Succi, G. (2020). Repre-

senting programs with dependency and function call

graphs for learning hierarchical embeddings. In ICEIS

(2), pages 360–366.

Schlichtkrull, M., Kipf, T. N., Bloem, P., Van Den Berg, R.,

Titov, I., and Welling, M. (2018). Modeling relational

data with graph convolutional networks. In European

Semantic Web Conference, pages 593–607. Springer.

Wei, J., Goyal, M., Durrett, G., and Dillig, I. (2020). Lamb-

danet: Probabilistic type inference using graph neural

networks. arXiv preprint arXiv:2005.02161.

Wu, Z., Pan, S., Chen, F., Long, G., Zhang, C., and Philip,

S. Y. (2020). A comprehensive survey on graph neural

networks. IEEE transactions on neural networks and

learning systems.

APPENDIX

Source Code for Illustrations

The examples on the Figures 1 and 2 were generated

using a small example presented in the Listing 1.

Prediction Examples

Figure 5 demonstrates a prediction example where a

model misjudged the type of arguments self and re-

sults. In Figures 6 and 7 the results of successful type

prediction are demonstrated.

List of Indexed Packages

absl-py, boto, cymem, h5py, jsonpatch, mkl-fft,

openstacksdk, pbr, pycrypto, pytest, Scrapy, term-

color, Werkzeug, ansible, catalogue, debtcollector,

httplib2, jsonpointer, mkl-random, opt-einsum,

Pillow, PyDispatcher, pytest-runner, service-identity,

testtools, wrapt, appdirs, certiﬁ, decorator, hyperlink,

jsonschema, mkl-service, osc-lib, plac, PyHamcrest,

python-dateutil, shade, thinc, zipp, asn1crypto,

Predicting Type Annotations for Python using Embeddings from Graph Neural Networks

555

# E xamp le Mo du le 2 . py

from ExampleModule1 i mport ExampleCla s s

i n s t a n c e = E x ampleClass ( None )

d e f main ( ) :

p r i n t ( i n s t a n c e . method1 ( ) )

main ( )

# E xa mp le Mo du le 1 . py

c l a s s E x a m pleClass :

d e f i n i t ( s e l f , argumen t ) :

s e l f . f i e l d = a r gument

d e f method1 ( s e l f ) :

r e t u r n s e l f . method2 ( )

d e f method2 ( s e l f ) :

v a r i a b l e 1 = 2

v a r i a b l e 2 = s t r ( 2 )

r e t u r n v a r i a b l e 2

Listing 1: A simple class deﬁnition and use in Python.

Source code graph for this code is given in Figure 1.

Predicted

def _update_inplace(

self

FRAMEORSERIES

result

STR

verify_is_copy

BOOL

= True) :

# NOTE: This does *not* call __finalize__ and that's an explicit

# decision that we may revisit in the future.

self._reset_cache()

self._clear_item_cache()

self._data = getattr(result, "_data", result)

self._maybe_update_cacher(verify_is_copy=verify_is_copy)

Ground Truth

def _update_inplace(self, result,

verify_is_copy

BOOL_T

= True) :

# NOTE: This does *not* call __finalize__ and that's an explicit

# decision that we may revisit in the future.

self._reset_cache()

self._clear_item_cache()

self._data = getattr(result, "_data", result)

self._maybe_update_cacher(verify_is_copy=verify_is_copy)

Figure 5: Example of incorrect type prediction. Model pre-

dicts incorrect types for variables self and result.

Predicted

def __init__(self,

string

STR

) :

if not isinstance(string, str):

raise TypeError("IsEqualIgnoringCase requires string")

self.original_string = string

self.lowered_string = string.lower()

Ground Truth

def __init__(self,

string

STR

) :

if not isinstance(string, str):

raise TypeError("IsEqualIgnoringCase requires string")

self.original_string = string

self.lowered_string = string.lower()

Figure 6: Model correctly predicts type for function argu-

ment.

Predicted

def parse_config_file(

path

STR

final

BOOL

= True) :

return options.parse_config_file(path, final=final)

Ground Truth

def parse_config_file(

path

STR

final

BOOL

= True) :

return options.parse_config_file(path, final=final)

Figure 7: Model correctly predicts type for function argu-

ment.

cfﬁ, Django, idna, Keras-Applications, mono-

tonic, os-client-conﬁg, pluggy, PyNaCl, python-

ironicclient, simplejson, tornado, zope.interface,

astor, chardet, dogpile.cache, importlib-metadata,

Keras-Preprocessing, more-itertools, oslo.i18n,

preshed, pyOpenSSL, python-mimeparse, six,

tqdm, atomicwrites, Click, extras, incremental,

keystoneauth1, msgpack, oslo.serialization, pret-

tytable, pyparsing, pytz, spacy, traceback2, attrs,

cliff, fabric, invoke, kiwisolver, munch, oslo.utils,

Protego, pyperclip, PyYAML, sqlparse, Twisted,

Automat, cmd2, ﬁxtures, iso8601, linecache2,

murmurhash, os-service-types, protobuf, PyQt5,

queuelib, srsly, unittest2, Babel, constantly, Flask,

itsdangerous, lxml, netaddr, packaging, py, PyQt5-

sip, requests, stevedore, urllib3, bcrypt, cryptography,

gast, Jinja2, Markdown, netifaces, pandas, pyasn1,

PyQtWebEngine, requestsexceptions, tensorboard,

w3lib, blis, cssselect, google-pasta, jmespath,

MarkupSafe, numpy, paramiko, pyasn1-modules,

pyrsistent, scikit-learn, tensorﬂow, wasabi, bokeh,

cycler, grpcio, joblib, matplotlib, oleﬁle, parsel,

pycparser, PySocks, scipy, tensorﬂow-estimator,

wcwidth

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

556
