Derivation of Logical Aspects in Praxeme from ReLEL Models

Rapatsalahy Miary Andrianjaka

, Razafimahatratra Hajarisena

, Ilie Mihaela

Mahatody Thomas

Ilie Sorin

and Razafindrakoto Nicolas Raft

Laboratory for Mathematical and Computer Applied to the Development Systems, University of Fianarantsoa,

Fianarantsoa, Madagascar

Dept. of Computers and Information Technology, University of Craiova, Craiova, Romania

Laboratory of Multidisciplinary Applied Research, University of Antananarivo, Antananarivo, Madagascar

Keywords: Service-Oriented-Architecture, Model-Driven-Architecture, Requirements Model, Praxeme Methodology,

Universe of Discours, ATL, ReLEL, UML Modeling.

Abstract: The Praxeme methodology for enterprise architecture combines MDA (Model Driven Architecture) and SOA

(Service Oriented Architecture) approaches by structuring the information system with a basic unit called the

logical service. To capture the complexity of the system, it separates the facets of the company into a

homogeneous set called aspects. The eLEL (elaborate Lexicon Extended Language) requirement model

groups together the terms used by the company with their precise definition which makes it well suite to be

integrated into the initial phase of Praxeme called the intentional aspect. From this aspect, eLEL can derive

business logic services for the logical aspect of Praxeme. The logical aspect of Praxeme plays an important

intermediary role between the enterprise and IT. It offers the possibility of describing the computer system in

terms independent of technology. However, business logic services obtained from eLEL are not exploitable

as skeletons of code of an object-oriented application, which is the next phase of Praxeme called the software

aspect. For this reason we chose to use the ReLEL (Restructuring extended Lexical elaborate Language)

requirement model for the initial phase of Praxeme, the intentional aspect. ReLEL is a terminology database

and has very precise information about the conceptual representation of an information system. For this

reason, we were able to create an automated derivation process using ATL (ATLAS Transformation

Language) that uses the intentional aspect represented with ReLEL, to obtain the semantic and logical aspects

of Praxeme. To validate our approach, we evaluated the performance of the two different methods on the

same case study. The performance show our proposed approach is superior to eLEL, the most recent

comparable requirements model. ReLEL offers 92% accuracy on the generated logic model in the logical

aspect of the Praxeme methodology compared to eLEL which offers just 61.3%.

1 INTRODUCTION

The development of a company’s information system

is a complex task (Boussis & Nader, 2012). Among

the greatest difficulty it encounters is describing the

synergy of expertise and interactions that the

company requires for normal operation (Vauquier,

2006). Therefore, the Praxeme methodology is

essential to overcome this obstacle. Praxeme shares a

common framework for accommodating skills and

their articulation (Vauquier, 2006). The Praxeme

methodology provides a framework of representation

for the topology of the enterprise system. This system

is categorized in seven aspects, each of which is

represented by a particular UML model (Rumbaugh

et al., 1999) and (Razafindramintsa et al., 2017). This

paper deals in particulary with the three representative

aspects of enterprise architecture : i) the intentional

aspect, ii) semantic aspect (Rapatsalahy et al., 2020) as

well as ii) the logical aspect of the Praxeme

methodology (Razafindramintsa et al., 2017). The

intentional aspect containes the detailed user

requirements of the enterprise. (Biard et al., 2013)

states that the intentional aspect of Praxeme must be

expressed in a language close to natural language so

that it is understood by all. Thus, there is the need for

a lexicon called natural language oriented requirements

model to represent it. Since the ReLEL requirement

model is a terminology database and has very precise

information about the conceptual representation of a

system (Rapatsalahy et al., 2019,2020), the main

contributions in this paper are based on four very

distinct points. First, we instantiate the ReLEL

requirement model in Praxeme to represent the

intentional aspect of the methodology. Then we

defined transformation rules to derive the semantic

Andrianjaka, R., Hajarisena, R., Mihaela, I., Thomas, M., Sorin, I. and Raft, R.

Derivation of Logical Aspects in Praxeme from ReLEL Models.

DOI: 10.5220/0010493004130420

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 413-420

ISBN: 978-989-758-508-1

413

aspect of Praxeme from the ReLEL requirement

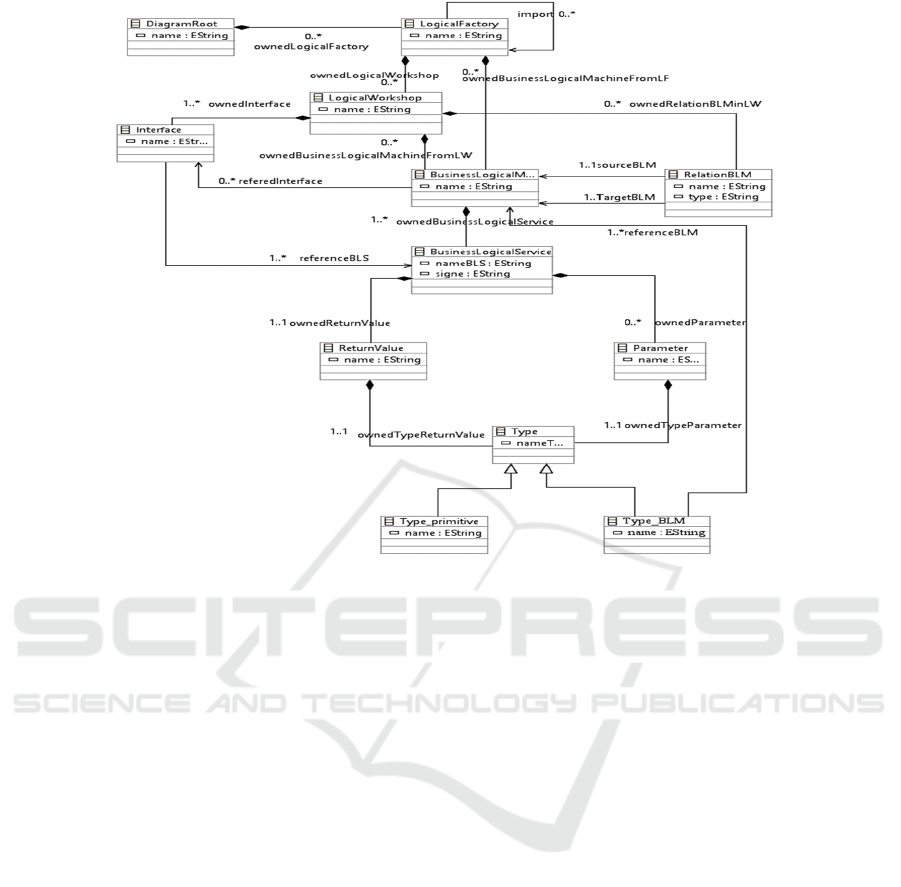

model. Then we proposed a logical factory metamodel

for the logical aspect of Praxeme. Finally, we have

defined transformation rules to derive the logical

aspect from the semantic aspect of Praxeme.

2 RELATED WORK

This section summarizes the research literature has

focused on the use of the requirement model such as

SBVR, eLEL and ReLEL in the Praxeme

methodology (Biard et al., 2013), (Razafindramintsa

et al., 2016), (Razafindramintsa et al., 2017) and

(Rapatsalahy et al., 2020).

(Biard et al., 2013) present an approach to use the

Praxeme methodology to transform the company. The

authors begin with the pragmatic aspect in order to

extract from the messages exchanged between the

various actors the business objects and their data

which constitute the semantic aspect of Praxeme.

Then to etablish the business and organizational rules

in the semantic and pragmatic aspects, they advocate

the use of the SBVR to represent the intentional

aspect of Praxeme.

(Razafindramintsa et al., 2016) have proposed the

automatic derivation of the semantic aspect of

Praxeme from the eLEL requirement model. The

authors used the eLEL requirement model to

represent the intentional aspect of Praxeme. eLEL is

a lexicon rich in conceptual information proposed in

(Razafindramintsa et al., 2015). They established

rules for the derivation of the eLEL requirement

model into a UML class diagram and transition state

machine of the semantic aspect of the Praxeme

methodology. Then to make automatic the

articulation of the intentional aspect in semantics,

they formalized the derivation rules with the ATL

language (Jouault & Kurtev, 2005).

(Razafindramintsa et al., 2017) present an

approach to automatically locate logical services

from the eLEL model to reduce the time spent on

SOA modeling and implementation as well as

enterprise architecture. To do this, the authors derived

the semantic and pragmatic aspect obtained in logic

factory, data structure and logical workshop from the

logical aspect of Praxeme.

(Rapatsalahy et al., 2020) aim at automatically

generating software components from the intentional

aspect of the Praxeme methodology represented by

ReLEL. To do so, they have proposed rules to

automatically translate the logical components

obtained from ReLEL and the semantic model into

software components while taking into account the

choice of technology used in the technical aspect of

Praxeme. ReLEL is an extension of the eLEL

metamodel in terms of its conceptual representation

(Rapatsalahy et al., 2019).

3 BACKGROUND

This section presents the three main concepts

developed in this work. First, it describes the service

architecture, the approach used by the Praxeme

methodology to build a system. Second, it presents

the ReLEL lexicon, a model that allows to represent

the intentions of the enterprise within the intentional

aspect of Praxeme. Finally, this section explains the

concept of model transformation with MDA, which is

used during articulating aspects of the Praxeme

methodology.

3.1 Service Architecture

(Medvidovic & Taylor, 2010) argues that software

architecture is at the heart of every system and thus

plays a key role as a bridge between requirements and

implementation. Therefore, using their reasoning, our

approach would be a means to control the complexity

of systems construction and evolution. However, the

enterprise requires the software architect to manage a

large amount of information and questions that are

useful to describe different jobs and business

(Vauquier, 2006). This suggests that using an

enterprise architecture method would help. The main

goal of enterprise architecture is to perfectly align an

enterprise’s information system with its strategy

(Biard et al., 2013). For this purpose we use Praxeme,

which is an enterprise architecture method that makes

it possible to achieve this objective by grouping the

facets of the enterprise in categories called "aspects".

An aspect is a component of the system that is linked

to a point of view, a type of concern, a specialization

(Vauquier, 2006). The Praxeme methodology is

meant to design software that is to be implemented

using a Service Oriented Architecture (SOA)

(Valipour et al., 2009). Consequently, it structures the

system with the elementary unit called logical

service. The logical services’ role is to respond to the

need for information, action or transformation

(Vauquier, 2006). They are arranged in logical

aggregates on three levels of aggregation, namely,

logical machines, logical workshops (packages

grouping strongly linked machines), and logical

factories (packages corresponding to domains) (Fig.

1) (Vauquier, 2006). There are two categories of

services depending on its location in either a business

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

414

logic machine or an organizational logic machine. In

order to solve the problem raised in this paper, we

focus on the services located in the business logic

machine because they are the preferable means to

identify the software components (class, method) of

Praxeme (Rapatsalahy et al., 2020).

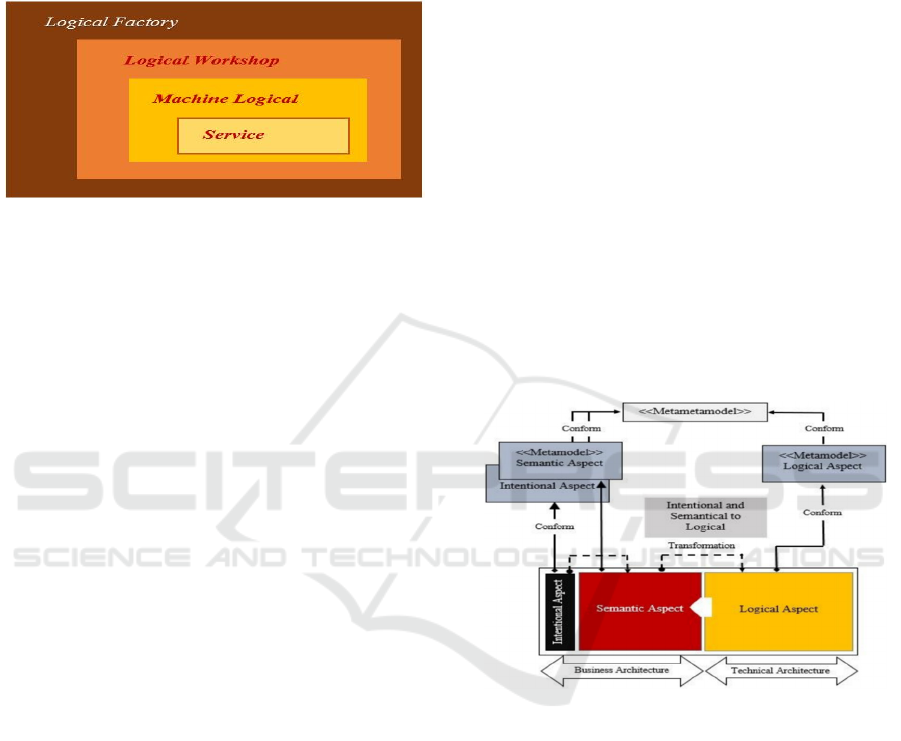

Figure 1: Nesting of the logical aggregates (Vauquier,

2006).

3.2 Restructuring Extended Lexical

Elaborate Language

ReLEL is a model expressed in natural language

allowing to specify both the requirements and the

conceptual level of a system (Rapatsalahy et al.,

2019). It captures significant words or phrases in the

UofD and then saves them as “symbols”. Each

symbol in the ReLEL lexicon belongs to one of the

following categories: subject, object, verb or state.

Symbols that are classified as subject, verb and object

are the elements integrating requirements (Niu &

Easterbrook, 2008). The conceptual linking of

ReLEL symbols is done through the concept of

circularity (Rapatsalahy et al., 2019). The three

objectives of ReLEL are: (i) the unification of the

language allowing the communication with

stakeholders, (ii) the specification of requirements

and (iii) the accurate representation of conceptual

information corresponding to each term. The ReLEL

metamodel is composed of nineteen classes

(Rapatsalahy et al., 2019).

3.3 Notion of Model Transformation

with MDA

MDA is a software development framework that is

based on semi or automatic model transformation.

The key principle of MDA consists in the use of

models, namely the requirement model (CIM), the

analysis and design model (PIM) and the code model

(PSM) at the different phases of the software

development cycle (Blanc & Salvatori, 2011). In this

paper we transform the intentional aspect (at CIM

level) of Praxeme into the semantic aspect (at PIM

level) and then further transform the semantic aspect

into the logical aspect (also at PIM level). We used

the technique of exogenous transformation which

means that the source and target model are derived

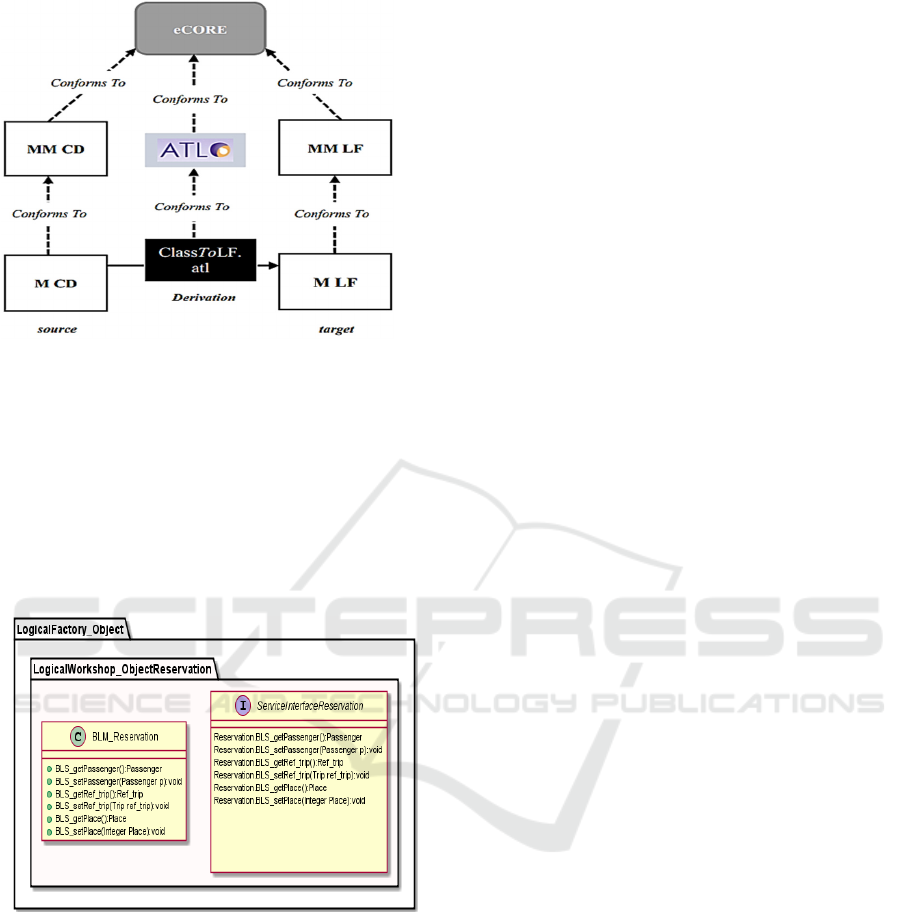

from a different metamodel (Diaw et al., 2010), (see

Fig. 4). The transformation process by the modeling

approach is done through derivation rules that

describe the correspondence between the symbols of

the source model and those of the target model (Diaw

et al., 2010).

4 THE DERIVATION PROCESS

The Praxeme methodology is based on the MDA

standard in order to articulate the models

corresponding to each aspect of the company. Fig. 2

represents the synoptic of the approach proposed in

this article. The model transformation presented in

Fig.2 belongs to the Model to Model group or M2M

which generates target models such as the semantic

‘red’ and logical model ‘yellow’ from source models

such as the intentional model ‘black’ as well as the

semantic model ‘red’ (Jézéquel et al., 2012).

Figure 2: Derivation process of aspects of Praxeme in the

context of MDA.

4.1 ReLEL Derivation into Semantic

Aspect of Praxeme

It is important to group together in the intentional

aspect all the terms used specifically in the company

and/or in its field of activity, with their precise

definitions (Boussis & Nader, 2012). (Rapatsalahy et

al., 2020) shows that the ReLEL requirement model

groups together the specific terms used by the

company as well as their exact definitions, so we use

ReLEL requirement model proposed by (Rapatsalahy

et al., 2019) instead of the eLEL (Razafindramintsa et

al., 2015) for the representation of the firm’s

intentions at the level of the intentional aspect of

Praxeme. This approach facilitates and allows all

Derivation of Logical Aspects in Praxeme from ReLEL Models

415

level of abstraction changes (business, logical and

technical) for each existing aspect of the Praxeme

methodology. The semantics aspect houses the

knowledge of the business of the enterprise while

excluding the references related to the organization

and means to control them. The UML class diagram

and the state diagram are representative models of the

semantic aspect of Praxeme (Vauquier, 2006). Our

approach begins with the definition of the

transformation rules (theoretical approach) of the

ReLEL into a UML class diagram. The UML class

diagram of the semantic aspect that we proposed as a

target model is composed of a package, class,

attribute, method and association. Rule 1: A domain

is a concept for storing ReLEL symbols classified

subject and object. The domain corresponds to a

UML package. Rule 2: The subject classified ReLEL

symbol corresponds to the actors in UofD. Actors can

be individuals or part of an organization. The object

classified ReLEL symbol represents passive and

significant entities in the UofD. Each subject and/or

object classified ReLEL symbols corresponds each to

a UML class. Rule 3: The attribute provides the

characteristics of a ReLEL symbol. The attributes of

each ReLEL symbol (subject or object) correspond to

the attributes of each UML class obtained in rule 2.

Then, we deduce the characteristic elements

(definition, code, size) of each attribute. Rule 7 allows

you to obtain the type of each attribute. Rule 4: The

method is the action that allows access to a ReLEL

object. Each method of a ReLEL symbol (subject or

object) corresponds to the operation of each UML

class obtained in rule 2. Rule 5: A parameter is none

other than an already existing attribute which is

manipulated by a method of a ReLEL object. The

parameter of each method of the ReLEL symbol

(subject or object) corresponds to the parameter of each

operation of UML class obtained in rule 2. Rule 6: The

return value is the response returned by the method

after handling a ReLEL object. The return value of

each method belonging to a ReLEL symbol (subject or

object) corresponds to the return value of each

operation of a UML class obtained in rule 2. Rule 7:

The type of an attribute or the type of the return value

of a method of a ReLEL object (subject or object) is

either a classified ReLEL symbol (subject or object) or

a simple type. The type (simple or symbol) of an

attribute of a ReLEL object corresponds to the type

(primitive or class) of an attribute of a UML class. The

type (simple or symbol) of a return value of a method

of a ReLEL object corresponds to the type (primitive

or class) of the return value of an operation of a UML

class. Rule 8: The concept of circularity links two

target and source ReLEL objects. The concept of the

circularity of the ReLEL object corresponds to the

association between two different UML class. Rule 9 :

The concept of number of elements created defines the

minimum and maximum occurrence of an association

between two symbols ReLEL. The concepts of the

number of elements created corresponds to each UML

class cardinality.

The rules for deriving the intentional aspect

represented by ReLEL in a diagram of the UML state

machine of the semantic aspect of Praxeme are as

follows: Rule 1: The state classified ReLEL symbol

is characterized by attributes that contain values at

different times during system execution. Each state

type ReLEL symbol becomes state in the UML

diagram of the state transition machine of the

semantic aspect of Praxeme. Rule 2: Circularity

allows to link two target and source ReLEL objects

classified as state. The target and source ReLEL

objects classified state in the circularity corresponds

to the transition of the event of the UML diagram of

the state machine of transition of the semantic aspect

of Praxeme. Rule 3

: A state is triggered by the event

of another state. Each method belonging to a state

type ReLEL symbol corresponds to the event of the

UML diagram of the state transition machine of the

semantic aspect of Praxeme.

4.2 Derivation from the Semantic

Aspect to the Logical Aspect of

Praxeme

The logical aspect of the Praxeme methodology is an

asset for the opening of the system because it leads to

the production of software component published as a

service in the logical continuation of web service

technologies. In this paper, our focus is particularly on

the logical service named BLS. It is described in the

logical aspect of Praxeme from the semantic modeling

of the methodology. The BLS comes from the

derivation of an operation belonging to a semantic

class. It is located in the Business Logical Machine or

BLM of the Praxeme logic model that derives from a

semantic class as well. The BLM is encapsulated in the

Logical Workshop or LW which does not correspond

to any element in the upstream model but it results

from the decision of structuring taken by the logical

architect during the logical design. Thus, the access to

the BLS is either directly between the BLM located in

the same LW or through the interface services provided

by the LW. The relationship between the BLM is only

reflected in the usage relationship that is a functional

dependency achieved at the time of BLS service call

execution. Finally, the aggregates of the LW are stored

in Logical Factory or LF.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

416

Figure 3: Logical Factory Metamodel proposed.

The derivation of the semantic aspect in logical

aspect is constituted by seven rules including: Rule 1:

Each UML package of the semantic aspect

corresponds to the LF of the logical aspect of

Praxeme. Rule 2: Each class of the UML class

diagram of the semantic aspect corresponds to each

BLM of the logical aspect of Praxeme. Rule 3: Each

UML class diagram operation of the semantic aspect

corresponds to each BLS of the logical aspect of

Praxeme. Rule 4: Each parameter of a UML class

diagram operation of the semantic aspect corresponds

to each parameter of a BLS of the logical aspect of

Praxeme. Rule 5: Each return value of a UML class

diagram operation of the semantic aspect corresponds

to each BLS return value of the logical aspect of

Praxeme. Rule 6: Each primitive type of a parameter

or return value of an operation of a UML class

diagram of the semantic aspect corresponds to a

primitive type of a parameter or return value of a BLS

of the logical aspect of Praxeme. Rule 7: Each class

type of a parameter or return value of an operation of

a UML class diagram of the semantic aspect

corresponds to a BLM type of a parameter or a value

of return of a BLS of the logical aspect to the Praxeme

methodology.

4.3 Formalization of the Derivation

Process with ATL

To define and execute the ATL transformation, we

must define a source model and a target model as the

ecore metamodel (Budinsky et al., 2004). In the ATL

transformation from the intentional aspect into the

semantic aspect, the metamodel ecore ReLEL

(Rapatsalahy et al., 2019) represents the metamodel

of the intentional aspect of Praxeme and is defined as

a source model. Then we defined two ecore

metamodels as the target model for the same ATL

transformation, one for the UML class diagram and

the other for the transition state machine diagram. The

resulting derivation results in two target UML models

representing in XMI (XML Metadata Interchange)

format such as the class diagram model and the model

of the transition state machine. In order to execute the

ATL transformation of the semantic aspect rule into a

logical one, we defined an ecore metamodel of LF

(Fig. 3) for the logical aspect of Praxeme as target

model (Fig. 4).

M CD: Model of the UML class diagram of the

semantic aspect of Praxeme; MM CD: Metamodel of

the UML class diagram of the semantic aspect of

Praxeme; M LF: Model of logical factory of praxeme

logical aspect; MM LF: Metamodel of the logical

factory of the Praxeme logical aspect.

Derivation of Logical Aspects in Praxeme from ReLEL Models

417

Figure 4: Derivation of the logical factory from a class

diagram with ATL.

5 VALIDATION STRATEGY

For the experiment, we used the land travel booking

process of a transport agency (Rapatsalahy et al.,

2019). Only an excerpt from the need of the

‘Transpost Malagasy’ agency from the UofD is

illustrated in this paper.

Figure 5: Represents the concrete logic model of the

Praxeme methodology.

The agency proposes a trip in ‘bush taxi’ which

connects two cities. The customer can make a

reservation for a trip by registering the concerned

passenger. The significant terms of UofD concerning

the extract of the need of the agency previously are

instantiated in the model ReLEL in the form of

symbol classified by topology. We applied the

derivation rules and the ATL transformation

described in this paper on this case study. Finally, we

automatically obtained the logic model of the logical

aspect of Praxeme as result of the derivation

represented by Fig. 5.

5.1 Comparison of the Logical Models

Obtained by the eLEL Compared

to the Approach Proposed in This

Paper

We assessed the performance of our approach using

two different methods to process the case study of the

online booking from a land travel agency

(Rapatsalahy et al., 2019). Method 1 consists in using

the ReLEL requirement model in the intentional

aspect of Praxeme and then deriving it in a semantic

and logical aspect. Method 2 is identical except that

we used the eLEL requirement model to represent the

intentional aspect of Praxeme. Our approach consists

firstly of counting the elements generated

automatically and by refinement in the logical models

of the two different methods. Tables 1 and 2 illustrate

the elements generated automatically and by

refinement in the logical models as well as their

numbers from the two different methods. BLM is

coherent set of BLS built around a strong notion of a

semantic model. The total number of BLM generated

automatically (each 8 in the Table I) for the two

methods are equivalent since the eight semantic

classes of the source model are all kept as they are

during the derivation in BLM of the logical model but

simply coated in the LW. The total number of BLS

automatically generated in the logic model (target

model) of the two methods 1 and 2 (each 57) comes

from the 57 operations located on the eight semantic

classes of the source model. The parameter is a data

manipulated by the BLS having two types such as

primitive and/or complex (BLM) (Rapatsalahy et al.,

2019). The total number 20 (type primitive/BLM)

belonging to the BLS parameters comes from the

number 20 (type primitive /BLM) belonging to the

parameters of the operations located on the eight

semantic classes of the upstream model. The return

value is a data returned by the BLS after its execution

and has two types such as primitive and/or complex

(BLM). The total number (16) of the primitive type

belonging to the return values of the BLS comes from

the 16 primitive types belonging to the return values

of the operations located on the eight semantic classes

of the upstream model. The 10 BLM types belonging

to the BLS return values derive from the 10 class

types belonging to the return values of the operations

located on the eight semantic classes of the upstream

model. Method 2 does not allow to generate a

parameter or a return value because of the

requirement model representative of the intention

aspect of Praxeme (Rapatsalahy et al., 2019). The LW

(each 3), the interface of the workshop (each 3) as

well as the relationships in the logical architecture

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

418

Table 1: Elements generated automatically.

Approach BLM BLS Parameter Return value Total

Prim BLM Prim BLM

Method 1 8 57 20 20 16 10 31

Method 2 8 57 0 0 0 0 65

(each 10) are purely logical notions which result from

a decision by the logical architect from where Table

2. Method 2 did not take into account in its logical

factory metamodel the elements which have a purely

logical notion namely LW, interface of the workshop,

relationships in the logical architecture. This is what

explains the absence of method 2 in the Table 2.

5.2 Evaluation of the Performance of

the Proposed Approach

The metrics used are based on the complete state of

the automatically generated model (Recall), with the

accuracy of the generated information (Precision), the

measurement of the number of information

considered to be correct but not automatically

generated by the Overspecification and the accurarcy

of the proposed strategy (F-Measure). We use the

parameters used in the table 1 and 2 to calculate the

metrics adopted by CM-Builder’s (Harmain &

Gaizauskas, 2003). Thus in Table 3, we summarize

the results obtained in order to measure the different

metrics necessary for this evaluation. From Table 3,

we obtained the metrics allowing to evaluate the

completeness, the precision, the addition of the

information considered important and the accuracy of

the automatic generation of logical model of

Praxeme. The analysis in Table 4 allows us to deduce

that the method 1 proposed in this paper is the most

suitable for obtaining BLS exploitable by developers

(Rapatsalahy et al., 2020). Indeed the deduction is

explained by the result of the metric ‘F-Measure’

which indicates that method 1 provides 94.2% of the

exact logic model compared to method 2 only 61.3%.

Therefore method 1 generates 89.1% of the full state

of the automatically generated logic model and

method 2 only 44.2% (Recall). Nevertheless, all

information extracted from the two methods is

correct, hence their precisions which each reach a

value of 100% (Precision). Yet the overspecification

of method 2 is of 55.7% because of the absence of

conceptual elements in the logic model such as the

parameter, type of parameter, the return value, the

type of return value of BLM. In addition there are also

the LW of the business stratum and their interfaces

services to be manually added by the logical

architects in the logic model for the two different

methods. It should also be noted that the relationship

between BLM for both methods (1 and 2) is still

manually added by the logical architects. In spite of

this, method 1 only requires the manual addition of

10.8% of the information considered correct but

which is not generated automatically

(Overspecification). Thus, the results of the

performance evaluation are significant and support

the approach proposed in this paper.

Table 2: Elements generated by refinement.

Approach LW Interface Relation

with BLM

total

Method 1 3 3 10 16

Table 3: Nature of information for measuring the metrics of

the automatically generated logic model.

Nature of

information

key

correct

incorrect

extra

Method 1 147 131 0 16

Method 2 147 65 0 82

Table 4: Performance evaluation.

Metrics Equation Method 1 Method 2

Recall (%) R=N

correct

Key

89.1% 44.2%

Precision (%) P=N

correct

incorrect

)

100% 100%

Overspecification

(%)

O=N

Extra

Key

10.8% 55.7%

F-Measure (%) F-Measure=

(2×R×P)/(R+P)

94.2% 61.3%

6 CONCLUSION AND FUTURE

WORK

In this paper, we have proposed the automatic

derivation of the logical aspect of Praxeme from the

requirement model noted ReLEL. Our goal is to make

the Business Logical Service or BLS of the logical

Derivation of Logical Aspects in Praxeme from ReLEL Models

419

model of Praxeme exploitable by the developers. The

importance of our study lies in being able to attribute

to the logical aspect of Praxeme its intermediary role

between purely business and technical aspects. To

achieve the goal of the research, our approach

consists of four steps, the first of which is to replace

the eLEL requirement model which represents the

intentional aspect of the Praxeme methodology by

ReLEL (Rapatsalahy et al., 2020). And since the

operation of the semantic class is the source of the

BLS in the logic model, we then proposed to

automatically derive the intentional aspect

represented by ReLEL in the semantic aspect of

Praxeme. Next we proposed a logical ecore

metamodel to form the target model in the automatic

derivation of the semantic aspect in the logical aspect

of Praxeme. Finally, we have defined a

transformation rule that allows to automatically

derive the semantic aspect in logical aspect of

Praxeme methodology. In order to validate our

approach, we conducted a comparative study between

the two different methods using the CM-Builder’s

metric and instantiating them in the same case study.

The results of comparison concerning the accuracy of

the proposed approach (F-Measure) allowed us to

deduce that the logic model provided from our

approach with a very high percentage 94.2% is

composed of exploitable BLS by the developers

(Rapatsalahy et al., 2020). Therefore, our approach

easily allows the developer to translate BLM into

software components (Rapatsalahy et al., 2020). The

urbanization of the information system from the

lexicon ReLEL is the research perspective of this

present work.

REFERENCES

Rapatsalahy, A. M., Razafindramintsa, J. L., Mahatody, T.,

Ilie, S., & Raft, R. N. (2019). Restructuring extended

Lexical elaborate Language. 2019 23rd International

Conference on System Theory, Control and Computing

(ICSTCC), 266‑272.

Rapatsalahy, A. M., Razafimahatratra, H., Mahatody, T., Ilie,

M., Ilie, S., & Raft, R. N. (2020). Automatic generation

of software components of the Praxeme methodology

from ReLEL. 2020 24th International Conference on

System Theory, Control and Computing (ICSTCC),

843‑849.

Biard, T., Bigand, M., & Bourey, J.-P. (2013). Explicitation

et structuration des connaissances pour la transformation

de l’entreprise : Les apports de la méthode Praxeme.

Congrès International de Génie Industriel.

Blanc, X., & Salvatori, O. (2011). MDA en action : Ingénierie

logicielle guidée par les modèles. Editions Eyrolles.

Boussis, A., & Nader, F. (2012). Urbanization of Information

Systems with a Service Oriented Architecture according

to the PRAXEME Approach. Web and Information

Technologies, 102.

Budinsky, F., Ellersick, R., Steinberg, D., Grose, T. J., &

Merks, E. (2004). Eclipse modeling framework : A

developer’s guide. Addison-Wesley Professional.

Diaw, S., Lbath, R., & Coulette, B. (2010). État de l’art sur le

développement logiciel basé sur les transformations de

modèles. Technique et Science Informatiques, 29(4‑5),

505‑536.

Harmain, H. M., & Gaizauskas, R. (2003). Cm-builder : A

natural language-based case tool for object-oriented

analysis. Automated Software Engineering, 10(2),

157‑181.

Jouault, F., & Kurtev, I. (2005). Transforming models with

ATL. International Conference on Model Driven

Engineering Languages and Systems, 128‑138.

Leite, J. do P., & Franco, A. P. M. (1993). A strategy for

conceptual model acquisition. [1993] Proceedings of the

IEEE International Symposium on Requirements

Engineering, 243‑246.

Razafindramintsa, J. L., Razafimandimby, J. P., Mahatody,

T., & Becheru, A. (2016). Semantic aspect derivation of

the Praxème methodology from the elaborate lexicon

extended language. 2016 20th International Conference

on System Theory, Control and Computing (ICSTCC),

842‑847.

Medvidovic, N., & Taylor, R. N. (2010). Software

architecture : Foundations, theory, and practice. 2010

ACM/IEEE 32nd International Conference on Software

Engineering, 2, 471‑472.

Niu, N., & Easterbrook, S. (2008). Extracting and modeling

product line functional requirements. 2008 16th IEEE

International Requirements Engineering Conference,

155‑164.

Razafindramintsa, J. L. (2015). Elaborate Lexicon Extended

Language with a lot of conceptual informa-tion.

International Journal of Computer Science, Engineering

and Applications (IJCSEA) Vol, 5.

Razafindramintsa, J. L., Mahatody, T., Razafimandimby, J.

P., & Simionescu, S. M. (2017). Logical services

automatic location from eLEL. 2017 21st International

Conference on System Theory, Control and Computing

(ICSTCC), 849‑854.

Rumbaugh, J., Jacobson, I., & Booch, G. (1999). The unified

modeling language. Reference manual.

Valipour, M. H., AmirZafari, B., Maleki, K. N., &

Daneshpour, N. (2009). A brief survey of software

architecture concepts and service oriented architecture.

2009 2nd IEEE International Conference on Computer

Science and Information Technology, 34‑38.

Vauquier, D. (2006). Modus la méthodologie PRAXEME

Guide general. Praxeme Institute.

Jézéquel, J.-M., Combemale, B., & Vojtisek, D. (2012).

Ingénierie Dirigée par les Modèles : Des concepts à la

pratique... Ellipses.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

420
