A Reinforcement Learning Approach to Feature Model

Maintainability Improvement

Olfa Ferchichi

, Raoudha Beltaifa

and Lamia Labed Jilani

1,2 c

Laboratoire de Recherche en Génie Logiciel, Applications Distribuées,

Systèmes Décisionnels et Imagerie Intelligentes (RIADI), Université de Manouba, Tunisia

Université de Tunis, Tunisia

Keywords: Software Product Lines Evolution, Reinforcement Learning, Feature Model, Maintainability Improvement.

Abstract: Software Product Lines (SPLs) evolve when there are changes in their core assets (e.g., feature models and

reference architecture). Various approaches have addressed assets evolution by applying evolution

operations (e.g., adding a feature to a feature model and removing a constraint). Improving quality attributes

(e.g., maintainability and flexibility) of core assets is a promising field in SPLs evolution. Providing a

proposal based on a decision maker to support this field is a challenge that grows over time. A decision

maker helps the human (e.g., domain expert) to choose the convenient evolution scenarios (change

operations) to improve quality attributes of a core asset. To tackle this challenge, we propose a

reinforcement learning approach to improve the maintainability of a PL feature model. By learning various

evolution operations and based on its decision maker, this approach is able to provide the best evolution

scenarios to improve the maintainability of a FM. In this paper, we present the reinforcement learning

approach we propose illustrated by a running example associated to the feature model of a Graph Product

Line (GPL).

https://orcid.org/0000-0003-2520-7588

https://orcid.org/0000-0003-4096-5010

https://orcid.org/0000-0001-7842-0185

1 INTRODUCTION

According to Clements and Northrop (Clements

and Northrop, 2001), a Software Product Line

(SPL) is “a set of software-intensive systems

sharing a common, managed set of features that

satisfy the specific needs of a particular market

segment or mission and that are developed from a

common set of core assets in a prescribed way ”.

The SPL engineering framework is defined by two

processes: domain engineering and application

engineering. Domain engineering process starts

with domain analysis activity to identify its

common and variable features. These features are

then used for the domain design and

implementation activities. The domain activities

create software assets, which are called core assets.

Core assets are reusable assets, which are used in

the derivation of PL products at the application

engineering process. A core asset may be a feature

model, an architecture, a component or any

reusable result of domain activities. Organizations

applying the SPL engineering approach should

maintain and optimize their product line

continuously by evolving their core assets.

Extending core assets, removing their defects,

improving their quality attributes are, among

others, kinds of core assets evolution. SPL

evolution remains difficult compared to a single

software evolution. Particularly, improving quality

attributes (e.g., maintainability and flexibility) of

core assets remains a major issue in SPLs evolution

field. Providing a proposal based on a decision

maker to support this field of evolution is a

challenge that grows over time. The issue consists

in the capability to make good decisions on picking

the convenient change operations to operate on the

core asset while improving its quality. More

specifically, selecting the convenient change

Ferchichi, O., Beltaifa, R. and Jilani, L.

A Reinforcement Learning Approach to Feature Model Maintainability Improvement.

DOI: 10.5220/0010480203890396

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 389-396

ISBN: 978-989-758-508-1

389

operations on feature models at the right time to

improve their maintainability is not an easy task.

Feature models include various elements, such as

variabilities, commonalities, constraints and

dependencies. Then, which element(s) to change

for improving FM maintainability is an issue that

may be related to experience. In order to tackle this

challenge, we propose a reinforcement learning

(RL) approach to provide a decision maker for

maintainability improvement of feature models.

This approach is based on learning by experience

to make the right decision for an optimization

problem, which is FM maintainability improvement

in our case.

The remainder of this paper is divided into seven

sections. In Section 2, we present the background

related to feature models, then we present a previous

work about FM maintainability assessment to which

our approach is related. In Section 3, we present our

motivation behind using reinforcement learning to

study SPL evolution. Section 4 describes the

proposed RL approach. The experiment and the

interpretation of the result are presented in section 5.

Section 6 presents the related works. We give a

conclusion in Section 7.

2 BACKGROUND

2.1 Feature Models

A Feature Model (FM) is a PL core asset. It

describes the configuration space of a product line.

A feature is a property related to a system, which is

used to retain systems commonalities and

variabilities. Features are structured as feature

diagrams. A feature diagram is a tree with the root

representing the PL and descendant nodes are

features. Figure 1 depicts the feature model of our

running example, the Graph Product Line (GPL),

which is designed by Lopez-Herrejon and Batory

(Lopez-Herrejon and Batory, 2001) with the

ambition to be a standard benchmark for evaluating

feature-modeling techniques. Nowadays, GPL is

available in the SPLOT repository (splot-

research.org). GPL can be configured to perform

several graph search algorithms over a directed or

undirected graph structure. As shown in the tree,

the root feature is GPL. The main features of the

GPL are Graph Type, Search and Algorithms. The

Graph Type feature defines the structural

representation of a graph. The Search feature

represents the traversal algorithms in the form of

features that allow for the navigation of a graph.

The feature Algorithms represents other useful

algorithms that manipulate or analyze a given

graph. As seen in figure 1, the integrity constraints

are defined to ensure valid configurations of GPL.

For instance, the last constraint indicates that a

strongly connected algorithm have to be

implemented on a directed graph. A node as a

parent has a Mandatory or an Optional dependency

with its children. Mandatory dependency indicates

that the child feature must be included in any

configuration where the parent feature is included.

However, optional dependency means that the child

feature may or may not be selected for the

configuration to derive, so it is not compulsory. For

instance, in the running example, Directed feature

is mandatory and Search feature is optional.

Children of a parent feature can be related by

Alternative, OR, or AND group dependencies.

Alternative means that exactly one child from the

group can be included in any derived configuration

where the parent feature is included. OR indicates

that at least one child from the group must be

included in any configuration. AND indicates that

all the children of the group have to be included in

the configuration where the parent is included.

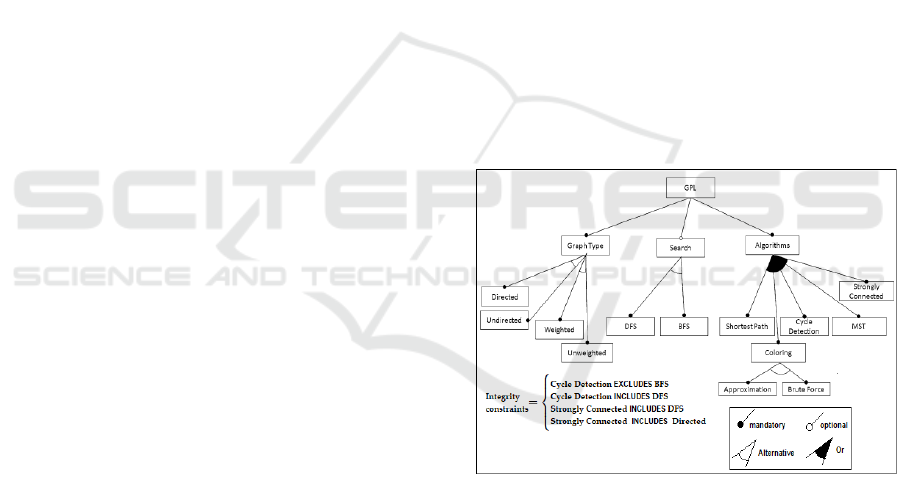

Figure 1: GPL feature model.

2.2 Feature Models Maintainability

In our approach, we are interested in the

maintainability quality attribute of FMs. Assessing

FM maintainability is a necessary task to prove its

improvement. In this paper, we reuse the structural

metrics used to assess the maintainability of FMs

and the correlation matrix presented in (Bagheri and

Gasevic, 2011) in order to adapt them to our proper

approach. In table 1, we present a brief description

of the metrics; more details are presented in the

mentioned Bagheri source paper.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

390

Table 1: Structural metrics for FM maintainability

assessing (Bagheri and Gasevic, 2011).

Metric Description

Number of features

(NF)

The total number of features that

are present in a feature model.

Number of leaf

features (NLeaf)

Number of the feature model tree

leaves.

Cyclomatic

complexity (CC)

The number of a feature model

integrity constraints.

Cross-tree

Constraints (CTC)

The ratio of the number of unique

features involved in the feature

model integrity constraint over all

of the number of features in the

feature model.

Ratio of variability

(RoV)

The average number of children

of the nodes in the feature model

tree.

Coefficient of

connectivity-

density (CoC)

The ratio of the number of edges

over the number of features in the

feature model.

Flexibility of

configuration (FoC)

The ratio of the number of

optional features over all of the

available features in the feature

model.

According to Bagheri and Gasevic, FM

maintainability is defined by three

subcharacteristics, which are analyzability,

changeability and understandability. “Analyzability

(An) is the capability of the conceptual model of a

software system to be diagnosed for deficiency;

changeability (Ch) is the possibility and ease of

change in a model when modifications are

necessary, and Understandability (Un) is the

prospect and likelihood of the software system

model to be understood and comprehended by its

users or other model designers” (Bagheri and

Gasevic, 2011). In table 2, we present a correlation

matrix realized by the mentioned authors. Table 2, is

a merge of three tables presented in (Bagheri and

Gasevic, 2011). It can be seen from table 2 that the

number of leaves (NLeaf) in a feature model has a

high negative correlation with both analyzability and

understandability (-0.86 and -0.82, respectively). In

turn, the number of features (NF) is also closely

correlated with these two characteristics (-0.75 and -

0.81). The correlation between NLeaf and NF and

these two sub characteristics of maintainability is

highly negative, then it can be deduced that more

features and leaf features a FM has more complex it

becomes in terms of analyzability and understand-

ability. Consequently, maintainability is worse.

3 PL EVOLUTION BY RL

In this section, we present the Reinforcement

Learning approach, and then we present our

motivations to introduce this approach in improving

FM maintainability.

3.1 Learning by Reinforcement

Reinforcement Learning is a subfield of Machine

Learning. One of its purposes is automatic decision-

making. In RL, an agent interacts with its

environment by perceiving its state and selecting an

appropriate action, either from a learned policy (by

experience) or by random exploration of possible

actions. As a result, the agent receives feedback in

terms of rewards, which rate the performance of its

previous action. In fact, an action is chosen by RL

using two complementary strategies: exploitation

and exploration. Exploitation focuses on the collected

reward values, and recommends the action with the

highest reward to be executed. Exploration

recommends a random action regardless of its reward

value to prevent the learning from sub-optimal

solutions. A proper learning strategy is a reasonable

combination of exploitation and exploration.

Table 2: Correlation matrix of FM maintainability parameters (Bagheri and Gasevic, 2011).

NF NLeaf CC CTC RoV CoC FoC An Un Ch

NF 1 0.95 0.41 0 -0.01 0.24 -0.53 -0.75 -0.81 -0.46

NLeaf 1 0.54 0.17 0.22 0.39 -0.59 -0.86 -0.82 -0.60

CC 1 0.8 0.65 0.91 -0.67 -0.48 -0.53 -0.92

CTC 1 0.78 0.93 -0.65 -0.21 -0.25 -0.80

RoV 1 0.69 -0.47 -0.39 -0.12 -0.63

CoC 1 -0.74 -0.36 -0.46 -0.89

FoC 1 0.49 0.74 0.73

An 1 0.74 0.60

Un 1 0.63

Ch 1

A Reinforcement Learning Approach to Feature Model Maintainability Improvement

391

3.2 Decision Making for Core Assets

Evolution

SPLs core assets include variabilities, constraints

and so many concepts to represent a family of

products. Evolving a core asset requires various

change operations. Many scenarios may occur, as

well. Making a decision for choosing the convenient

scenarios and operations to evolve a core asset is a

hard task. According to some experience reports

(O’Brien, 2001), (Bergey et al., 2010), some

decisions may lead to negative results. For example,

in (Bergey et al., 2010), the authors regret updating

some components in order to increase the flexibility

of their PL architecture. They spent seven months

for the updates but finally they rejected the new

components. Therefore, the decision to update an

asset instead of replacing it was not a good

recommendation. A decision maker as an automatic

process can be the solution to help human to choose

the best scenarios (sequence of operations) to evolve

their product lines. Particularly, a decision maker

proposed by a reinforcement learning approach can

optimize the improvements of FM maintainability. It

makes the decisions to pick the convenient evolution

(change) operations (e.g., add a feature and remove a

feature) on a FM to improve its maintainability.

4 FM MAINTAINABILITY

IMPROVEMENT BASED ON RL

Our proposal consists in the design of a RL-based

evolution agent. Its role is to help evolving PL

feature models by proposing the convenient change

operations to improve their maintainability. The

agent consists of three key components: quality

attribute monitor, decision maker, and evolution

controller. Hence, the role of the agent we propose is

to pick automatically the best evolution operations

for improving FM maintainability. Therefore, the

maintainability monitor measures the metrics related

to maintainability quality attribute (e.g., FoC, CC,

CTC, RoV, NLeaf and the CoC) (described in table

1). Then it sends the information to RL-based

decision maker. The decision maker runs the Q-

learning RL algorithm (Sutton and Barto, 2011) and

produces a state-action table, called Q-value table. A

state is defined by a version of a FM, which is

represented by a set of selected parameters (see table

3). Possible actions to change the state of a FM are

evolution (change) operations. They include adding

a leaf optional feature, removing a feature, changing

the optionality of a feature, adding a constraint,

removing a constraint, etc. Each action may act on

one or more parameters of the FM state. Based on

the dynamically updated Q table, the evolution

controller generates the evolution policy and evolves

the FM by creating a new version (state).

4.1 Parameters as FM Vector State

Dimensions

To represent a FM state we identified a set of

parameters, which are presented in table 3 and that

we can consider as a vector with 8 dimensions. In

table 4, we show which parameters are used by each

metric. For instance, in the running example (see

Figure 1), the values of these parameters are NLF=

12, TNF=17, TNE=16, TNOF=1, NIC=4, NCF=16,

NN=5 and NFIC=5.

Table 3: State vector dimensions.

Meaning Dimension

Number of leaf features NLF

Total number of features in a FM TNF

Total number of Edges in a FM TNE

Total number of optional features TNOF

Number of integrity constraints (ICs) NIC

Number of children features NCF

Number of nodes (not leaf nodes) NN

Number of features included in ICs NFIC

The formula of each metric considering the

selected parameters is defined as follows (Bagheri

and Gasevic, 2011): CC = NIC, CoC = TNE/TNF,

FoC = TNOF/TNF, RoV = NCF/NN, NLeaf = NLF

and CTC = NFIC/TNF. For instance, according to

the running example the values of these metrics are:

CC=4, CoC=0.94, FoC=0.059, RoV=3.2, NLeaf=12

and CTC=0.294.

Table 4: Metrics and state dimensions dependency.

Metrics

State dimensions

NLF TNF TNE TNOF NIC NCF NN NFIC



    

CoC

 

FoC

 

RoV

 

NLeaf



CTC

 

4.2 Decision Making

In our approach, we define a state by a version of a

FM to evolve. For the selective group of n

parameters (dimensions), we represent a state S

by a

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

392

Table 5: Change actions and related dimensions.

Actions

Dimensions

NLF TNF TNE TNOF NIC NCF NN NFIC

Add-leaf-optional-feature

   



Add-leaf-mandatory-feature

  



Remove-leaf-optional-feature

   



Update-optionality-of-a-feature

(from Mandatory to Optional)



Add-constraint-on-two-features



Add-node-mandatory-feature with

two children leaf-optional

 

Remove-leaf-mandatory-feature

  



Update-optionality-of-a-feature

(from Optional to Mandatory)



Remove-node-mandatory-feature

with its two children leaf-optional

      

Remove a constraint on two features



vector in the following form: S

= (Para

, Para

, …,

Para

). To evolve the maintainability of a FM, a state

of a FM is represented by the vector: S

= (NLF,

TNF, TNE, TNOF, NIC, NCF, NN, NFIC). For

instance, the first (initial) version of the FM of the

running example is defined by the State S

= (12, 17,

16, 1, 4, 16, 5, 5).

We use a vector A

to represent an action on the

parameters (state dimensions) it affects. Each action

is a 8-elements vector, indicating influenced/not-

influenced (1/0) of the eight parameters. The action

vector is in the following form : A

=(1,1,1,0,0,0,0,0).

This means that action A

influences the first

parameter (NLF), the second parameter (TNF) and

the third parameter (TNE) of a FM state. However,

the next parameters are not impacted by the action

. For instance, the following notation represents

the influence of the action Add-leaf-optional-feature

) on parameters NLF, TNF, TNOF and NCF :

(1,1,0,1,0,1,0,0).

The agent receives a reward value as the

feedback following the application of an action. For

our approach, the reward should reflect the FM

maintainability improvement. For a given action A

a set of parameters are affected. Consequently, the

values of the metrics based on these parameters are

impacted. Finally, the maintainability is influenced.

If the FM maintainability is improved then the agent

receives a positive reward else, it receives a negative

one. The overall aim of RL is to maximize some

form of cumulative reward. For instance, applying

the action A

Add-leaf-optional-feature, influences

the values of the parameters NLF, TNF, TNOF and

NCF. Therefore, the values of the metrics NF,

NLeaf, CoC, FoC, CTC and RoV (see table 4) are

affected and finally the FM maintainability is

impacted. For our approach, we are based on the

affected metrics and their correlation coefficients

with the subcharacteristics of maintainability as

indicators to deduce the reward value.

First, we pick the metrics related to the parameters

affected by the applied action (see table 5). Then, the

reward value r

is defined at instant t (when the

action is applied) based on the value of the

standardized Cronbach’s alpha (coefficient alpha)

(NCSS, 2021). Coefficient alpha is the most popular

of the internal consistency coefficients. We use the

standardized expression of Cronbach’s alpha

because its calculation is based on a correlation

matrix (see equation 1).

𝛼=

𝑘𝜌

1+ 𝜌

(𝑘 − 1)

(1)

The parameter k is the number of items (variables)

and ρ is the average of all the correlations among k

items.

The reward value at instant t may be 1, 0 or -1.

Alpha (α) is calculated for the sub-matrix extracted

from the correlation matrix of table 2. This sub-

matrix contains the correlation coefficients of the

picked metrics (impacted by action taken at instant t)

and the maintainability sub characteristics. Then the

average of the new values of the metrics is

calculated (AV

new

). We consider as AV

old

the

average of these metrics before applying the action

of instant t. The reward value R (or r

) is defined as

A Reinforcement Learning Approach to Feature Model Maintainability Improvement

393

follows: a) if α is high negative and AV

new

> AV

old

then R = -1 because maintainability is worse. b) If α

is high positive and AV

new

> AV

old

then R = 1

because maintainability is better. c) If α is high

positive and AV

new

< AV

old

then R= -1 because

maintainability is worse. d) If α is high negative and

new

< AV

old

then R = 1 because maintainability is

better. e) If AV

new

= AV

old

then R = 0 because

maintainability is not impacted.

To learn the Q value of each state, the agent

should continuously update its estimation based on

the state transition and reward it receives. Using

such incremental fashion, the average Q value of an

action A on state S, denoted by Q(S, A), can be

refined once after each reward R is collected (see the

equation 2).

𝑄

(

𝑆, 𝐴

)

=𝑄

(

𝑆, 𝐴

)

+𝛼



𝑅+𝛾 𝑚𝑎𝑥



𝑄

(

𝑆



,𝑎

)

−𝑄

(

𝑆, 𝐴

)



(2)

The parameter α is the learning rate; its value is

between 0 and 1. We note that alpha used in this

expression is not the standardized Cronbach’s alpha

(no relationship between them). The parameter γ is

the discount factor; it is set between 0 and 1. max

Q(S’, a) indicates the maximum reward that is

attainable in the state following the current one; i.e.,

the reward for taking the optimal action thereafter.

lgorithm 1: Q-value Learning Algorithm.

1 : Initialize Q-table

2 : Initialize state S

3 : Repeat (for each state)

4 : Choose action A for state S using ε-

greedy policy

5 : Take action A, observe R and S’

6 :

Q(S, A) = Q(S, A) + α[R

max

Q(S’, a) - Q(S, A)]

7 :

← S’

8 : Until terminal state

Algorithm 1 presents the pseudo code of our Q-

value learning algorithm. It is explained as follows:

1) Initialize the Q-values table, Q(S, A). 2) Initialize

the first state of the FM, 3) Observe the current state

S. 4) Choose an action, A, for that state based on the

policy ε-greedy (Sutton and Barto, 2011). The agent

then picks the action based on the max value of

those actions. This is exploiting since decision is

made from available information. The second way to

take action is to act randomly. This is exploring.

Instead of selecting actions based on the max future

reward, an action is selected at random. We can

balance exploration/exploitation using epsilon (ε)

and setting the value of how often you want to

explore vs exploit. 5) Take the action, and observe

the reward, R, as well as the new state, S’. 6) Update

the Q-value for the state using the observed reward

and the maximum reward possible for the next state.

The updating is done according to the formula and

parameters described above. 7) Set the state to the

new state, S’, and repeat the process until 8) a

terminal state is reached. In our work, we consider a

terminal state as a FM version fixed by the domain

(product line) expert.

5 APPROACH EXPERIMENT

In this section, we present an application of the

approach we propose to the GPL feature model

(shown in figure 1). We implemented the approach

with Python. Following, we present the algorithm 1

application.

The Q-table is defined by 10 actions (see table 5)

and 8 states of the FM. The state number 7

represents the terminal FM version to be reached. In

Q-table initialization, we set all the values of the

state-action pairs to zero since all the actions for

each state are assumed to be an equally valid choice.

This approach starts the system from an initial state

of a FM. Then actions are applied according to the

algorithm 1. In our case, the running example (see

figure 1) is the initial FM. Its state is represented by

the vector S

= (12, 17, 16, 1, 4, 16, 5, 5) as defined

above.

We wanted that exploration is higher than

exploitation because the agent has to learn more than

to exploit applied actions. Consequently, we chose a

value of epsilon = 0.9. We set the learning rate α =

0.1 in order to make the agent explores more states

and γ=0.9 to consider the future rewards as

important. Table 6 shows the Q-table after 800

iterations of Q-learning. Each Q-value (Si, Ai)

corresponds to the probability to improve the FM

state Si by applying the action Ai. For each state, we

underline the maximum Q-value in order to show

the maximum probability to indicate the best action

to improve that state. For instance, in the line of

state S0, the maximum value is 0.86 and its

corresponding action is A6. This means that

choosing the action A6 has the probability of 0.86 to

improve the state S0 of the FM maintainability. We

can observe in table 6 that actions 2 and 7 are never

taken (their Q-values are null). Then more

exploration is needed. Table 7 shows the Q-table

following the decrease of the learning rate α to 0.02

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

394

Table 6: Q-Table values after 800 iterations of learning (α = 0.1, γ=0.9 and ε=0.9).

States

Actions

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9

S0 0.5 0.4 0 0.05 0.8 0.1 0.86 0 0.85 0.08

0.17 0.75 0 0.07 0.39 0.04 0.07 0 0.98

0.04

0.15 0.35 0 0.01 0.09 0.03 0.53

0 0.2 0.06

0.15 0.16 0 0.1 0.71 0.01 0.04 0 0.73

0.23

0.12 0.72 0 0.05 0.41 0.01 0.83

0 0.80 0.33

0.31 0.84 0 0.02 0.74 0.04 0.06 0 0.92

0.48

0.41 0.09 0 0.52

0.45 0.08 0.41 0 0.33 0.50

0.51 0.52 0 0.72

0.07 0.07 0.06 0 0.69 0.07

Table 7: Q-Table values after 800 iterations of learning (α = 0.02, γ=0.9 and ε=0.9).

States

Actions

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9

S0 0.42 0.32 0.75 0.01 0.6 0.11 0.35 0.52 0.36 0.45

0.18 0.54 0.68

0.15 0.59 0.04 0.07 0.56 0.58 0.67

0.54 0.35 0.35 0.01 0.02 0.03 0.03 0.65 0.33 0.85

0.35 0.16 0.12 0.1 0.11 0.01 0.47 0.15 0.73

0.09

0.34 0.26 0.15 0.05 0.41 0.01 0.03 0.25 0.87

0.12

0.42 0.56 0.13 0.02 0.74 0.04 0.92

0.29 0.91 0.87

0.52 0.33 0.25 0.02 0.66 0.08 0.1 0.86 0.88

0.45

0.3 0.51 0.26 0.45 0.07 0.07 0.06 0.87

0.69 0.36

in order to increase the learning by exploring more

states.

We noted that Actions 2 and 7 are taken

(explored). In addition, we observed that the Action

2 has the probability of 0.75 to improve the

maintainability of the FM in state S

. This indicates

that more learning may lead to new decisions.

6 RELATED WORK

Many past works were devoted to feature models

evolution. In this section, we present approaches

related to our proposal. In (Bhushan et al., 2018), the

authors proposed an ontology-based approach for

identifying inconsistencies in FMs, explaining their

causes and suggesting corrective solutions. The

ontology is used to express the semantic of feature

models. Rules in FOL (first order logic) are defined

to express constraints on FMs consistency. This

approach is about improving the quality of FMs,

where the quality attribute is consistency. However,

learning is not considered in this work as in our

approach where we also treat several quality

attributes.

In order to improve usability of FMs, Geetika

and al. (Geetika et al., 2019) proposed a prediction

approach to estimate FMs usability. Five machine

learning algorithms were used to compare their

prediction accuracy in terms of usability to predict

FMs usability. The authors used a set of metrics to

express FMs information and sub-characteristics to

express the usability quality attribute related to FMs.

This work is not validated and there is no result.

To evolve FMs automatically, in (Ren et al.,

2019), the authors proposed a method of

automatically generating the evolved SPL’s feature

models. The evolution process takes an initial FM

and evolutionary requirements as input and produces

an evolved FM. Their approach uses a formal

method named communication membrane calculus

to describe the structure of feature models and

evolution process of feature models. This approach

is about FM evolution but it is not based on learning.

Other proposed works, which are related to our

approach are dedicated to dynamic SPLs such as in

A Reinforcement Learning Approach to Feature Model Maintainability Improvement

395

(Pessoa et al., 2017) where an approach was

proposed to build reliable and maintainable DSPLs.

Adaptation plans are used at runtime. The proposed

approach was applied and evaluated on the body

sensor network domain. The results showed that

reliability and maintainability are provided with

execution and reconfiguration times. Hence, their

work is interested in quality attributes of DSPLs but

no learning is done. In (Xiangping et al., 2009) a

reinforcement approach is proposed to auto-

configure online web systems. In DSPL, context

change leads to change in system configuration.

Then, the authors used Q-learning reinforcement

learning to detect change in the workload and the

virtual machine resource of the online web system

and to adapt the system configuration (performance

parameter settings). Where this work uses the Q-

learning algorithm as in our approach, its goal is to

automate configurations of DSPL online web

systems. According to existing works, our

contribution, which is RL-based, seems promising,

considering different FM quality attributes to

maintain where change operations occur on FM.

7 CONCLUSION

Product Line evolution is a continuous process

where the improvement of PLs core assets quality

attributes is mandatory. What are the elements that

we may change and when their change is reasonable

are hard decisions. Learning by experience to make

a decision is a good approach. Consequently, using

an automatic decision maker to help PL

organizations to do the right changes in their core

assets is a challenge. In order to tackle this latter, we

proposed a reinforcement learning approach to FM

evolution. Our approach makes decisions about

change operations on feature models to improve

their maintainability. However, further

experimentations are required to validate our results

and draw last conclusions. In fact, we can extract

more FMs from SPLOT repository to apply the

proposed approach and to give better interpretations.

In our approach we use structural metrics to

assess the FM maintainability and then to obtain the

reward value. These metrics are not sufficient

because some change operations on the FM do not

affect them. Therefore, the impact of these

operations on the FM maintainability is not

considered. Examples of these change operations are

change the dependency of a node with its children

from OR to AND, change the name of a feature, add

a feature cardinality and add group cardinality.

Consequently, the other directions of future work

that we are interested in are: 1) exploring and

studying metrics related to the FM semantic, 2)

defining our correlation matrix considering various

types of metrics to determine FM maintainability.

REFERENCES

Clements, P., Northrop, L., 2001. Software Product Lines:

Practices and Patterns, Addison-Wesley Professional.

Lopez-Herrejon, R. E., Batory, D., 2001. A standard

problem for evaluating product-line methodologies.

In: Bosch J. (eds) Generative and Component-Based

Software Engineering. GCSE 2001. Lecture Notes in

Computer Science, vol 2186. Springer, Berlin,

Heidelberg.

NCSS statistical software, 2021. Correlation Matrix.

Bagheri, E., Gasevic, D., 2011. Assessing the

maintainability of software product line feature models

using structural metrics. Software Quality J, pp. 579–

612.

O’Brien, L., 2001. Architecture Reconstruction to Support

a Product Line Effort: Case Study, Technical Note

CMU/SEI-TN-015.

Bergey, J. K., Chastek, G., Sholom, C., Donohoe, P.,

Jones L. G., Northrop, L., 2010. Software Product

Lines: Report of the U.S. Army Software Product Line

Workshop, Technical Report, Software Engineering

Institute, CMU/SEI Report Number: CMU/SEI-2010-

TR-014.

Xiangping, B., Jia, R., Cheng-Zhong, X., 2009. A

Reinforcement Learning Approach to Online Web

System Auto-configuration, ICDCS '09: Proceedings

of the 29th IEEE International Conference on

Distributed Computing SystemsJune pp. 2–11.

Bhushan, M., Goel, S., Kumar, A., 2018. Improving

quality of software product line by analysing

inconsistencies in feature models using an ontological

rule-based approach, Expert Syst. J. Knowl. Eng.

Pessoa, L., Fernandes, P., Castro, T., Alves, V.,

Rodrigues, G.N., Carvalho, H., 2017. Building reliable

and maintainable dynamic software product lines: an

investigation in the body sensor network domain, Inf.

Softw. Technol. 86 pp54–70.

Geetika, V., Sonali, V., Prasanta, K. P., Amita, S., Chitra,

B., 2019. Prediction Algorithms and Consecutive

Estimation of Software Product Line Feature Model

Usability, Computer Science, Amity International

Conference on Artificial Intelligence (AICAI).

Ren, J., Liu, L., Zhang, P., Wenbo, Z., 2019. A Method of

Automatically Evolving Feature Models of Software

Product Lines, Computer Science, IEEE.

Sutton, R. S., Barto, A., G., 2011. Reinforcement

Learning: An Introduction (Adaptive Computation and

Machine Learning Series), Kindle Editions, ISBN

978-o-262-30384-2 (e-book).

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

396
