Requirements for a Cybersecurity Case Approach for the Assurance

of Future Connected and Automated Vehicles

Luis-Pedro Cobos

1,2 a

, Alastair R. Ruddle

1 b

and Giedre Sabaliauskaite

2 c

HORIBA MIRA Limited, Watling Street, Nuneaton, U.K.

Institute for Future Transport and Systems, Coventry University, Coventry, U.K.

Keywords: Assurance, Automotive, Connected and Automated Vehicles, Cybersecurity Case, Vehicle Cybersecurity.

Abstract: Cybersecurity is an issue of increasing concern for emerging connected vehicles. Ensuring public trust in

future connected and automated vehicles will require very high levels of confidence in their dependability,

which will include cybersecurity assurance. In functional safety engineering, the safety case has become a

widely used approach to describing and documenting safety assurance arguments and their supporting

evidence. The use of a similar security case can also be considered in cybersecurity engineering, but there are

significant differences between safety and cybersecurity. Cybersecurity impacts include, but are not limited

to, possible safety issues. Furthermore, the cybersecurity threats arise from the ingenuity of human attackers,

and available technology, with the result that they are constantly evolving. This paper proposes the use of an

assurance case approach for cybersecurity and outlines the particular requirements that are considered to be

necessary for the development of such a cybersecurity case.

1 INTRODUCTION

The connected car is not a thing of the future.

Commercially, the industry is already rolling out

connected vehicles with highly capable electronics

and software to match. Furthermore, the driving

functions are becoming increasingly automated, with

the desired end-game being fully automated driving.

These connected and automated cars are not simply

computers on wheels as they must also be aware of

obstacles (including other vehicles) and vulnerable

road users (cyclists, pedestrians, etc.) in their

environment. Software is increasingly key to enabling

these technologies and offers the potential for

through-life upgrades that will lead to future vehicles

being in a state of evolution, rather than a static

product. However, being close to a computer and

being part of the Internet-of-Things introduces the

potential for cybersecurity threats. As vehicles are

also providing increasingly automated driving

functions, some cybersecurity threats could result in

adverse safety impacts.

https://orcid.org/0000-0002-1333-7767

https://orcid.org/0000-0003-4425-0979

https://orcid.org/0000-0003-1183-7001

Ensuring the public acceptability of connected

and automated vehicles will require considerable

confidence to be established in their cybersecurity

and safety characteristics, as well as their basic

functionality. Traditional methods of assuring key

performance characteristics such as safety involve

demonstrating compliance with a very specific and

set of criteria using standardised methods before

product launch. However, current trends such as the

increasingly rapid pace of technological change,

increasing system complexity, adoption of non-

deterministic machine learning technologies, and

through-life system modifications are making the

traditional assurance model untenable. Moreover,

cybersecurity is subject to the additional difficulty

that the “operating environment” involves the

ingenuity of human adversaries in seeking out

vulnerabilities to exploit in order to attack normal

vehicle operation. This, together with the interest in

through-life software updates, leads to the conclusion

that future vehicle assurance must become an ongoing

process throughout the vehicle lifecycle, rather than a

more limited procedure prior to product launch.

626

Cobos, L., Ruddle, A. and Sabaliauskaite, G.

Requirements for a Cybersecurity Case Approach for the Assurance of Future Connected and Automated Vehicles.

DOI: 10.5220/0010478606260633

In Proceedings of the 7th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2021), pages 626-633

ISBN: 978-989-758-513-5

Based on past experience from safety engineering,

it is argued here that the best way to be demonstrate

this would be through the development of an

assurance case for cybersecurity. Like a legal case, a

safety case presents a justified and reasoned argument

that the safety risks associated with using the vehicle

are considered to be acceptable at product launch. A

cyber security case would similarly argue that the

cybersecurity risks associated with using the vehicle

are deemed to be acceptable at product launch, and

that appropriate measures are in place to ensure that

any emerging threats can subsequently be identified,

assessed and, where necessary, mitigated in a timely

fashion.

This paper provides an overview of relevant

technological trends within the automotive industry,

primarily the expansion of wireless connectivity and

the emergence of ongoing software updates for

modifying vehicle functionality, as well as the merits

and limitations of existing safety case techniques, in

order to identify requirements for an analogous

cybersecurity case to demonstrate cybersecurity

assurance for future vehicles.

2 RELEVANT DEVELOPMENTS

This section outlines industry developments that are

relevant to the requirements for a cybersecurity case.

2.1 V2X Communications

A connected car is a vehicle capable of

communicating bidirectionally with other systems

outside of the car. Connected car protocols are known

collectively as Vehicle-to-everything (V2X) or

Car2X and C2X (Cui, 2019). There are two types of

application of V2X:

• Single vehicle applications: this type of

application concerns information obtained for

the vehicle to use by itself.

• Cooperative safety and efficiency applications:

these are use cases in which a vehicle learns

something that it could also potentially

communicate to another vehicle or entity for

their benefit.

The concept of V2X encompasses a wide range of

interactions, as illustrated in Figure 1. The original

purpose of V2X was to increase the safety of the

vehicle by expanding its field of vision to more than

just what it perceives with vehicle-based sensors in

the immediate surroundings, into a wider vision

through connecting with other information systems

(Wang, 2018). V2X will probably be a standard

safety feature in the coming years (Macher, 2017).

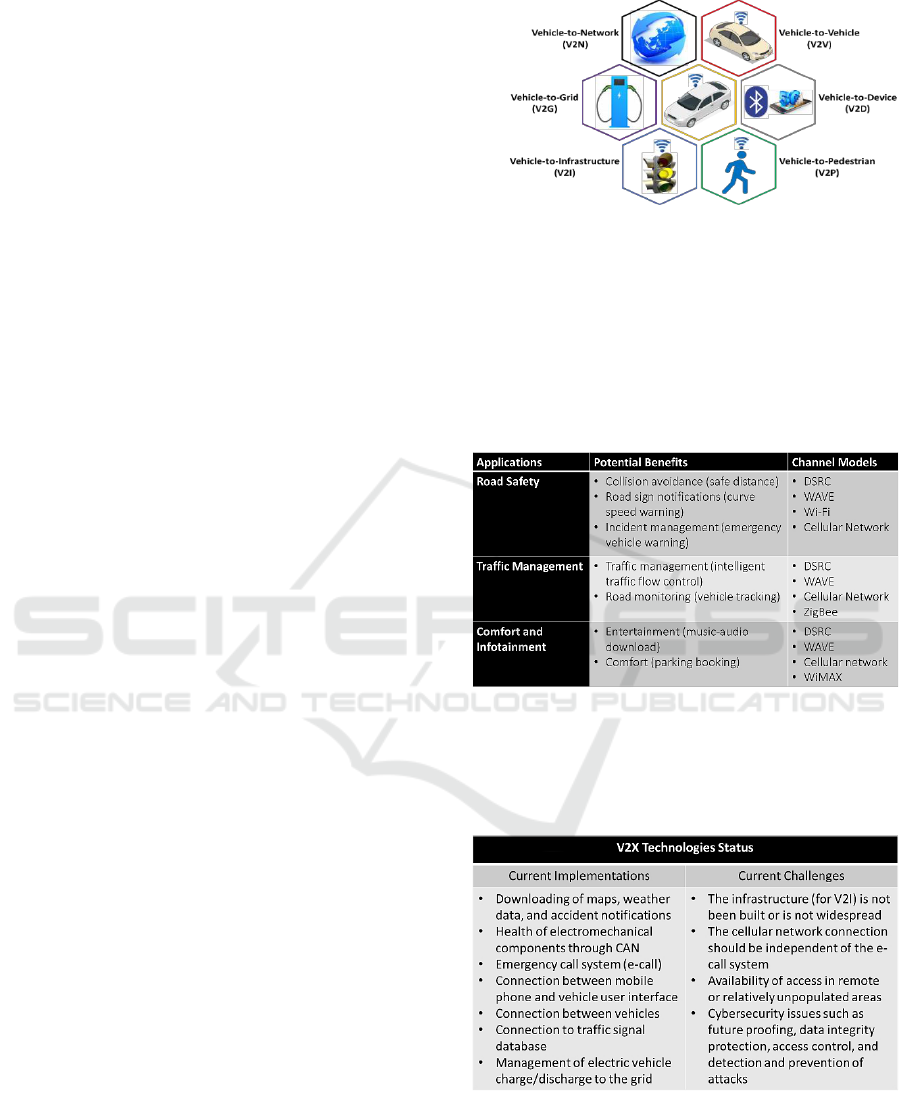

Figure 1: Examples of V2X technologies.

Some examples of V2X applications are listed in

Table 1, including description of their potential

benefits and the communication channels used for

these applications. This shows that, even if 5G seems

like the option that has the most followers, there are

also other ways to achieve communication.

Table 1: Example uses of V2X applications.

Current V2X implementations are summarized in

Table 2 below, which also indicates some of the

associated challenges.

Table 2: Current status of V2X technologies.

Wireless connectivity offers great benefits in

terms of improved services and functionality.

However, it also opens the vehicle up to a wide range

of potential cybersecurity threats.

Requirements for a Cybersecurity Case Approach for the Assurance of Future Connected and Automated Vehicles

627

2.2 Driving Automation

Vehicle systems comprise a number of Electronic

Control Units (ECUs) that are tasked with controlling

a specific vehicle function or a particular set of

functions. These ECUs communicate with each other

through a central gateway unit linked to a number of

different buses (like CAN or LIN) that allow

communication flows within different domains.

These electronic control capabilities are now

being combined with advanced sensor technologies

and information obtained from V2X communications

in order to automate driving tasks. At present this is

mostly in the form of advanced driver assistance

systems (such as parking assistance, adaptive cruise

control, lane keeping assistance etc.). However, the

expected end game is full automated driving under all

road conditions.

Driving automation offers significant benefits to

society in removing the potential for human error,

which is the main cause of road accidents. However,

it also opens the vehicle up to a wide range of

potential cybersecurity threats.

2.3 Software Updates

Nowadays, even everyday vehicles contain software

that is updated, such as infotainment systems or

digital cockpits. We can summarize the main reaches

of software updates as:

• Customer: Device interaction (smart phones,

tablets) or User Interface.

• Cloud: Connection to online servers for satellite

and weather info or connecting to a 5G network

for road data.

• Service and Repair: Fault diagnosis or the

addition of new features.

• Management: Provision of administration data,

manufacturing distribution notes, and IT

security.

These updates can be more frequent, efficient and

faster (due to smaller size) if they are done by

connecting online and installing in the background.

An Over-The-Air (OTA) update is the wireless

delivery of new software or data to a device. The

conditions to achieve and perform a wireless

Software (SW) update requires the Diagnostic Tester,

an element possessing the current and newer software

versions and all required keys to authorize the update,

to connect the vehicle to the OEM using automotive

diagnostic protocols such as Unified Diagnostic

Services. The remaining process comprises three

steps (Steger, 2018):

i. Initialize the update process and validate and

authorization for the update.

ii. Transfer the binary to the ECU.

iii. Override and flash the ECU.

These steps normally happen locally and remotely

in an authorized garage or a service centre, using Wi-

Fi (Shavit, 2007).

The greatest challenge of software updates is how

to make them secure. There are two main ways to do

so; namely, the blockchain and certificate-based

approaches. Both approaches seem to have similar

properties with respect to the added latency as well as

the total number of packets exchanged (Steger, 2018).

The certificate-based approach uses a certificate to

check the keys and updates depends on whether the

certificate is signed or unsigned. The blockchain

algorithms are well known in cryptocurrency and

video game matchmaking applications. They work by

appending new data blocks into each existing data

block, thus decentralizing the process while changing

and reallocating the need of private keys.

Through-life software updates offer great benefits

in terms of improved service and functionality. In

addition, they allow the implementation of patches

that may be needed to ensure ongoing vehicle safety

and cybersecurity. This points to the need for

cybersecurity assurance to become an on-going

process throughout the operational life of the vehicle,

rather than the conventional, largely pre-launch,

activity.

3 VEHICLE CYBERSECURITY

A connected car becomes a target for cyber security

threats, and although safety is an important

consideration in relation to cybersecurity threats,

cybersecurity has a much wider scope than safety

alone. Deliberate attacks on vehicle data may also

have other potential implications, such as:

• infringement of privacy (including Intellectual

Property Rights protection);

• possible economic aspects, such as fraudulent

financial transactions;

• the loss of availability for key functions that,

although not safety-related, are nonetheless

regarded as mission-critical for the vehicle.

Various types of security attack that could be

deployed against vehicles are summarized in Table 3.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

628

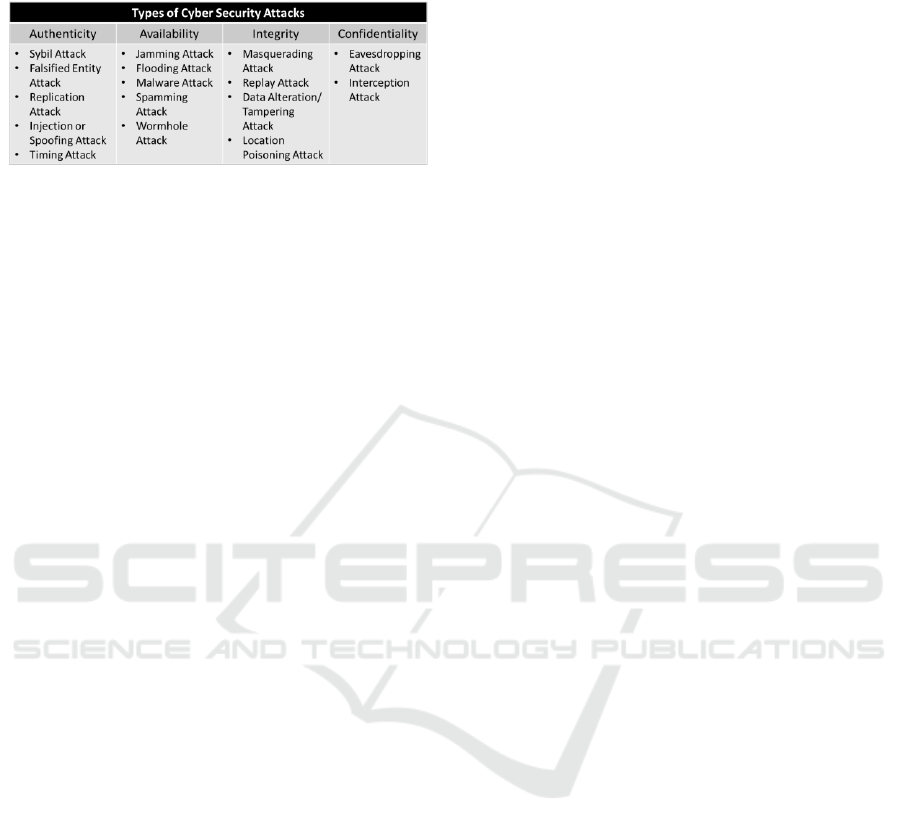

Table 3: Main types of cybersecurity attacks applied against

vehicles.

3.1 Potential Threats

The main threats of cybersecurity are authenticity,

availability, data integrity, and confidentiality.

Authenticity or identification means data was

generated by legitimate entities and the location

matches, eventually ensuring integrity. Availability

means information is provided as required in real

time. Data integrity or data trust means no

unauthorized alteration during generation or

transmission. Confidentiality means that data are

never disclosed to someone unauthorized (Cui, 2018).

A further consequence of cybersecurity concerns,

as well as of increasing reliance on software controls,

is that the need for software updates will become

increasingly common. Furthermore, the ability to

modify vehicle software could also be of interest as a

new business opportunity, by providing the

possibility of remote vehicle upgrades and/or

differentiation, resulting in a “software defined

vehicle”. However, software updates are also a

potential source of new safety issues, as well as

providing a further entry point into vehicle systems

for malicious attackers.

As the deployment of wireless connectivity and

environment sensors rises in automated vehicles, they

are expected to become increasingly susceptible to

faults and failures due to cyber-attacks. Such attacks

may be achieved by external manipulation (e.g.

jamming, spoofing, replay etc.) of sensor inputs,

GNSS data, and V2X communications. Access to in-

vehicle networks may also enable direct control of

vehicle functions.

The increasing use of artificial intelligence (AI)

technologies in support of automated driving systems

brings unique vulnerabilities, for both safety and

cybersecurity, that have yet to be adequately resolved.

For example, corruption of the training data for AI

systems is a conceivable attack.

3.2 Standards and Regulations

Preliminary recommendations relating to vehicle

cybersecurity are already available (e.g. SAE J3061,

which recommends a risk-based approach) and more

comprehensive regulations and standards are

currently emerging or under development.

Type approval regulations concerning

cybersecurity have recently been published (UNECE

Regulation 155), which include requirements for

vehicle cybersecurity risk analysis and an associated

cybersecurity management system, while

intentionally avoiding any mandate on specific

technical measures. This approach is therefore goal-

based (see section 4.2), requiring the demonstration

of achievement of a goal described in terms of risk

using any suitable methods, rather than the traditional

prescriptive assurance method (see section 4.1) of

requiring compliance with particular performance

criteria using specified methods.

In response to the emergence of Regulation 155,

the automotive cybersecurity standard ISO/SAE

21434 is currently under development, with formal

issue expected by mid-2021. Created to take in

account the trend towards greater networking of

vehicles and the focus on embedded platforms, the

standard addresses the protection of vehicles from

threats associated with the classic IT environment.

This standard covers the entire development process

and life cycle of a vehicle, in a similar way to the

functional safety standard ISO 26262 and ISO/PAS

21448 for Safety of The Intended Functionality. The

ISO/SAE 21434 standard similarly recommends a

structured threat analysis and risk assessment.

In addition, it is anticipated that by 2025

consumer tests like NCAP (New Car Assessment

Program) will also expect a certain level of

cybersecurity to be demonstrated by manufacturers.

4 DEPENDABILITY AND

ASSURANCE

In order for connected and automated vehicles to be

successfully adopted there is a need to establish

public trust in them. To be trusted they need to be

dependable, and their dependability needs to be

assured. In this context dependability is the ability to

perform (i.e. deliver the required functionality, safely

and securely), as and when required (Ruddle, 2020).

Assurance is the set of justifiable grounds for

confidence that the risks of using a product, process

or service are acceptable to the stakeholders.

4.1 Prescriptive Assurance

The traditional approach (Kelly, 2005) to product

assurance is highly prescriptive, based on standards

Requirements for a Cybersecurity Case Approach for the Assurance of Future Connected and Automated Vehicles

629

that detail not only the required performance criteria,

but also specifying exactly how performance is to be

demonstrated. Establishing assurance is then a simple

case of demonstrating compliance with standards.

Prescriptive assurance approaches may be applied

either to specific product features or to associated

development processes:

• Product Assurance Standards generally detail

specific performance criteria that are required,

as well as how they are to be demonstrated, and

therefore reflect specific technologies, designs

or features. Achieving assurance is then based

on demonstrating compliance of the products

with these requirements.

• Process Assurance Standards describe

features of the process that is to be used in

producing a product, rather than specific

performance criteria or design features.

Assurance is then based on establishing whether

the process was followed, and often on the

quality of the process and its outputs.

For the automotive industry, type approval within

Europe and many other territories is achieved by

demonstrating compliance with UNECE regulations.

This type of approach is well-known and

understood, with clear advantages in terms of

simplicity and transparency. It is very well suited to

relatively simple systems with few functions.

However, the prescriptive approach becomes

increasingly difficult as the complexity of the target

system rises, resulting in a richer set of functions and

such large numbers of states that comprehensive

testing is no longer a practicable option. In addition,

this approach can lead to an excessive focus on

simply passing the test, which can lead to the

exclusion of wider considerations that the spirit of the

test is intended to be representative of, or even

fraudulent activity, as discovered in the recent

scandal concerning gaseous diesel engine emissions.

A further limitation is that the prescriptive

approach is inevitably technology-centric, since it

aims to specify the details of how and what are

required to be done. This makes it difficult for

prescriptive standards and regulations to adapt to new

technology, since the acceptance criteria and

validation methods are so closely related to the

anticipated technology of the product. As different

technological solutions emerge, the number of

standards and regulations must multiply to

accommodate the newer options. This rising number

of standards may be further multiplied by territorial

differences. As the pace of technological change is

becoming increasingly rapid, the standards

management burden of the prescriptive approach will

become increasingly unmanageable unless a more

efficient alternative is used to limit the need for

changes more effectively.

4.2 Goal-based Assurance

The limitations of the prescriptive approach have

resulted in the emergence of an alternative assurance

approach more recently, which is based on specifying

more generic goals that are to be achieved (Kelly,

2005). These goals are technology-agnostic and are

often specified in terms of risk. The goal-based

approach is less straightforward to apply than

prescriptive methods, as it requires the construction

of a specific justification of compliance, the merits of

which must be judged.

The goal-based assurance approach is more

readily comprehended using the notion of claim-

argument-evidence. Based on approaches developed

in the analysis of structured argument styles

(Toulmin, 1958), justification for achievement of the

goal should be shaped using the following elements:

• Claims, assertions that are not immediately

self-evident, but must be judged on the quality

of the supporting argument and evidence.

• Argument, a coherent chain of thought that

presents the claim as a logical conclusion based

on the available evidence.

• Evidence, specific data and other established

facts, assumptions or contextual information

that provide the grounds for the claim.

• Rebuttals, possible counterarguments that

result in a different conclusion to the claim.

Thus, constructing the argument can be a way of

identifying the nature of specific evidence that is

required to be obtained, such as performance data.

Alternatively, an argument could be crafted to exploit

the available evidence.

4.3 Safety Case

A common approach to presenting the justification

for a claim of compliance with an assurance goal is to

construct an assurance case. The purpose of the

assurance case is to present a valid and convincing

chain of argument to justify a claim that is based on

the evidence presented in support of the claim. In

many cases, typically safety-related, the certification

process requires the assurance case to be subject to

independent audit by an appropriately qualified and

knowledgeable external party.

The safety case is a commonly employed

approach in automotive functional safety (Ward,

2013) and many other sectors (e.g. rail, aircraft) that

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

630

are required to achieve risk-based goals. With the aim

to justify claims that the risks associated with using a

product, process or service are acceptable to the

stakeholders, a safety case is a living document

assuring a system’s critical properties. It provides and

documents a convincing and valid argument that a

specified set of critical claims regarding the safety

properties of a product, process or service are

adequately justified for a given application in a given

environment. A safety case must be clear in

communicating the ideas to be convincing and

acceptable; and acceptable does not mean absolutely

safe, as that is theoretically impossible, but safe

enough, with tolerable residual risk (Kelly, 2004).

Safety cases have been implemented in many

ways, including natural language (Tanguy, 2016),

structured natural language (Giannakopoulou, 2020),

and graphical formats such as the Goal Structured

Notation (GSN) (Kelly, 2004). Graphical approaches

more naturally provide for a hierarchical presentation

of the assurance case than purely natural language

documents.

However, a number of concerns about the

effectiveness of the safety case approach have been

raised, including the tendency towards “box-ticking”,

potential for confirmation bias, and a lack of focus on

uncertain aspects and potentially unsafe behaviour

(Leveson, 2011). Nonetheless, the safety case

approach is widely used, including within the

automotive industry, is familiar to regulators and

assessors, and fits naturally with one of the four

potential impact factors for automotive cybersecurity

considerations (i.e. safety). The safety case therefore

provides a natural model that could be adapted and

extended for cybersecurity (Armstrong, 2011).

5 CYBERSECURITY CASE

A goal-based approach with risk-based targets, like

that used in functional safety assurance, seems

inherently well suited to cybersecurity, where the

threat (the equivalent of a hazard in safety) is even

less readily defined.

A risk analysis approach for automotive

cybersecurity was adapted from automotive

functional safety concepts in the context of the EC

project EVITA (Ruddle, 2016). In this scheme, the

hazard severity notion of automotive functional

safety was extended to encompass the wider

implications of cybersecurity threats, whilst the attack

potential concept of cybersecurity was exploited as a

proxy for threat likelihood to allow qualitative risk

rankings to be derived. This approach, as well as a

number of other cybersecurity risk assessment

methods, are outlined in SAE J3061.

Cybersecurity threats depend on technology and

on human ingenuity and motivation to interfere with

the correct functioning of that technology. Some

threats will be foreseeable, so can (and should) be

addressed before product launch, but unforeseeable

threats are highly likely. The unforeseeable threats

can only be responded to reactively, so cybersecurity

assurance inevitably needs to become an ongoing

process, throughout the operational life of the vehicle.

5.1 Cybersecurity Case Requirements

Based on emerging technological trends in the

automotive industry, as well as current functional

safety engineering practices (as outlined above), it is

considered that an assurance case for automotive

cybersecurity should ideally provide the following

basic characteristics:

1. Unified approach with existing safety case

techniques – since potential safety impacts are

also associated cybersecurity threats and

efficiency can be maximised by exploiting

existing familiarity with safety case techniques,

facilitating the reuse of common arguments and

supporting evidence where possible.

2. Ability to address aspects beyond traditional

safety – including availability of mission-

critical (rather than safety-related) functions,

privacy issues, fraudulent financial transactions,

and indirect safety implications (such as

kidnapping) that are beyond the remit of more

traditional safety analysis.

3. Ability to adapt to emerging threats – to cope

with the inevitability of threats emerging that

were unforeseeable at design time, including

those that may result from the implementation

of software updates during the operational life

of the vehicle.

4. Ability to integrate cybersecurity analysis – as

essential sources of argument and evidence, as

well as their limitations.

5. Support probabilistic risk analysis – to cope

with system complexity and the significant

uncertainties of cybersecurity analyses.

6. Provide explicit visibility of uncertainties – in

order to provide a more balanced view of the

limitations of the arguments that are presented

for independent audit.

7. Hierarchical structure – to help cope with wide

scope of the analysis, system complexity, and

readability.

8. Graphical approach – to help cope with the wide

scope of the analysis, system complexity, and

readability.

Requirements for a Cybersecurity Case Approach for the Assurance of Future Connected and Automated Vehicles

631

9. Dynamic, living document – will need to be

readily adapted throughout development and

operational lifecycles to reflect the impact of

software updates and security patches.

10. Modular construction – to allow the impact of

system changes to be assessed efficiently and

the cybersecurity case to be updated.

11. Support for emerging legislation – to provide a

convenient path for demonstrating compliance

with relevant standards and regulations, such as

the UNECE Regulations 155–156, and

ISO/SAE 21434.

5.2 Differences from Safety Cases

In adapting the safety case notion to cybersecurity,

the main difference is that a cybersecurity case has to

address a much wider scope, being concerned not just

with the safety implications of deliberate attacks, but

also with the availability of non-safety functions,

potential for privacy infringement, and possible

financial losses due to fraudulent transactions. These

separate aspects could be individually treated but

combined in a hierarchical assurance case. It is likely

that the individual cases they would draw on common

argument structures and evidence streams, resulting

in an interlinked web-like structure.

Another significant difference is that, unlike

safety, the operational environment is subject to

ongoing change and evolution, as new threats emerge

and technology progresses. This leads to a need for

through-life monitoring, to detect cybersecurity

breaches, assess their risks, and respond to them in a

timely fashion (where the risk analysis suggests that

mitigation is necessary). This will “provide lessons

learned” to contribute to future cybersecurity design

and risk analysis, but will also require the security

case to be updated to reflect current system

knowledge.

Nonetheless, in the same kind of manner any

software update that the vehicle receives, even if it is

upgrading a safety function already evaluated through

a safety case, would require the re-evaluation of both

the safety and cybersecurity cases.

A further difference to be considered is that,

during development the consideration of safety and

security issues should happen in parallel, yet may not

do so. This can happen because of the requirements at

the start of production will not necessarily align with

the final builds for all the software. However, in both

safety and cybersecurity it is more effective to initiate

the analysis as early as possible in the vehicle

development process.

5.3 Challenges for Assurance Cases

Significant challenges faced in developing assurance

cases, for both safety and cybersecurity applications,

include the following:

• Linking to evidence, while being able to identify

bias.

• Handling the non-deterministic behaviour of AI

systems – how can we argue the safety and

cybersecurity of these technologies, and what

kind of evidence would be required to support

these arguments?

• How to handle evolving systems – e.g. due to

SW updates or unsupervised learning by AI?

• How to provide a balanced view of the

limitations of such a case, such as by including

and explicitly showing the failure of possible

counter-arguments, such as for “non-safety”

(Leveson, 2011).

• Assurance cases need to provide a better and

more explicit handling of uncertainty and the

limitations of the arguments that are presented.

• There needs to be a deeper understanding of

where formal methods might add value.

6 CONCLUSIONS

Connected and automated vehicles are expected to

provide many benefits to society, but the enabling

technologies are also associated with new threats,

particularly in terms of cybersecurity. Ensuring

public trust in future connected and automated

vehicles will require very high levels of confidence in

their dependability, which will include cybersecurity

assurance. Traditional prescriptive assurance

strategies are not practicable for establishing

automotive cybersecurity performance. The

anticipated constant evolution of both on-board

technology and attack techniques also means that

conventional pre-product launch assurance activities,

while still of great importance, will not be sufficient

to provide the necessary assurance. Cybersecurity

performance metrics can only be expressed in terms

of risk, with cybersecurity assurance aiming to both

contain the known risks to tolerable levels and

provide a mechanism for identifying and responding

to emerging threats. This is reflected in the risk-

based, goal oriented, and ongoing assurance approach

now mandated in UNECE Regulation 156 for vehicle

type approval.

A dynamic and modular cybersecurity case

approach, adapted and extended from existing safety

case approaches such as those used in automotive

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

632

functional safety, could provide a useful mechanism

for both recording and maintaining cybersecurity

assurance claims. This paper has identified a number

of essential requirements for a cybersecurity case for

automotive applications, and differences from safety

cases, as well as a range of particular challenges that

will need to be overcome in future, for both safety and

cybersecurity applications.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the European Union’s Horizon 2020

research and innovation programme under the Marie

Skłodowska-Curie grant agreement No 812788

(MSCA-ETN SAS – Safer Autonomous Systems).

This publication reflects only the authors’ view,

exempting the European Union from any liability.

Project website: http://etn-sas.eu/.

REFERENCES

Armstrong, R., Hawkins, R. & Kelly, T. (2011). Security

Assurance Cases: Motivation and the State of the Art.

University of York Report CESG/TR/2011/1, April 2011

http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.

1.221.456&rep=rep1&type=pdf.

Cui, J., Liew, L. S., Sabaliauskaite, G., & Zhou, F. (2018).

A review on safety failures, security attacks, and

available countermeasures for autonomous vehicles. Ad

Hoc Networks, 90 (December 2018), 101823. https://

doi.org/10.1016/j.adhoc.2018.12.006.

Cui, J., Sabaliauskaite, G., Liew, L. S., Zhou, F., & Zhang,

B. (2019). Collaborative Analysis Framework of Safety

and Security for Autonomous Vehicles. IEEE Access,

7 (March 2018), 148672–148683. https://doi.org/

10.1109/ACCESS.2019.2946632.

Giannakopoulou, D., Pressburger, T., Mavridou, A., &

Schumann, J. (2020). Generation of Formal

Requirements from Structured Natural Language. In N.

Madhavji, L. Pasquale, A. Ferrari, & S. Gnesi (Eds.),

Requirements Engineering: Foundation for Software

Quality (pp. 19–35). Springer International Publishing.

https://doi.org/10.1007/978-3-030-44429-7_2.

Kelly, T., & Weaver, R. (2004). The Goal Structuring

Notation – A Safety Argument Notation. Elements.

http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.

1.1.66.5597&rep=rep1&type=pdf.

Kelly, T. P., McDermid, J., & Weaver, R. (2005). “Goal-

Based Safety Standards: Opportunities and Challenges”,

Proceedings of the 23rd International System Safety

Conf., San Diego, California (August 2005). https:/

/www-users.cs.york.ac.uk/~tpk/ISSC23.pdf.

Leveson, N. (2011). The Use of Safety Cases in

Certification and Regulation. MIT-ESD Working Paper

Series November 2011, 1–12. https://dspace

.mit.edu/bitstream/handle/1721.1/102833/esd-wp-2011

-13.pdf?sequence=1&isAllowed=y.

Macher, G., Messnarz, R., Armengaud, E., Riel, A.,

Brenner, E., & Kreiner, C. (2017). Integrated Safety and

Security Development in the Automotive Domain. SAE

Technical Papers, March 2017. https://doi.org/10.

4271/2017-01-1661.

Ruddle, A.R., et al., (2020). Requirements and timescales

for CYB-R: the UK Centre of excellence for road

transport cybersecurity resilience, ResiCAV Project

Deliverable 1, 30th March 2020. https://zenzic.io/

reports-and-resources/

Ruddle, A.R., & Ward, D.D. (2016). “Cyber Security Risk

Analysis for Intelligent Transport Systems and In-

vehicle Networks”, in A. Perallos, U. Hernandez-Jayo,

E. Onieva and I. Garcia (Eds.) Intelligent Transport

Systems: Technologies and Applications, Chapter 5,

Wiley-Blackwell, 2016, pp. 83–106. https://doi.org/

10.1002/9781118894774.ch5.

Shavit, M., Gryc, A., & Miucic, R. (2007). Firmware update

over the Air (FOTA) for automotive industry. SAE

Technical Papers, 724. https://doi.org/10.4271/2007-

01-3523.

Steger, M., Dorri, A., Kanhere, S. S., Römer, K., Jurdak, R.,

& Karner, M. (2018). Secure Wireless Automotive

Software Updates Using Blockchains: A Proof of

Concept. 137–149. https://doi.org/10.1007/978-3-319-

66972-4_12.

Tanguy, L., Tulechki, N., Urieli, A., Hermann, E., &

Raynal, C. (2016). Natural language processing for

aviation safety reports: From classification to

interactive analysis. Computers in Industry, 78, 80–95.

https://doi.org/10.1016/j.compind.2015.09.005.

Toulmin, S. (1958). The Uses of Argument Cambridge

University Press. doi:10.1017/CBO9780511840005.

Wang, P., Di, B., Zhang, H., Bian, K., & Song, L. (2018).

Cellular V2X Communications in Unlicensed

Spectrum: Harmonious Coexistence with VANET in

5G Systems. IEEE Transactions on Wireless

Communications, 17(8), 5212–5224. https://doi.org/

10.1109/TWC.2018.2839183.

Ward, D., Ibarra, I., & Ruddle, A. (2013). Threat Analysis

and Risk Assessment in Automotive Cyber Security.

SAE International Journal of Passenger Cars -

Electronic and Electrical Systems, 6(2), 507–513.

https://doi.org/10.4271/2013-01-1415.

Requirements for a Cybersecurity Case Approach for the Assurance of Future Connected and Automated Vehicles

633
