Investigating Information about Software Requirements in Projects

That Use Continuous Integration or Not: An Exploratory Study

Rafael Nascimento

, Luana Souza

, Pablo Targino

, Gustavo Sizílio

Uirá Kulesza

and

Márcia Lucena

Department of Informatics and Applied Mathematics, Federal University of Rio Grande do Norte, Natal, Brazil

Keywords: Continuous Integration, Github, Project Open Source, Requirements Engineering.

Abstract: Continuous Integration (CI) is a development practice that involves the automation of compilation and testing

procedures, increasing the frequency of code integration and the delivery of new features and providing

improvements in software quality. Open Source Software (OSS) projects are increasingly associated with the

use of CI practices. However, the literature has not yet explored how and if this practice can influence the

presence and the types of artifacts and information related to requirements. Thus, this study aimed to

investigate the presence, types of artifacts, and information related to requirements found in projects on

GitHub, in particular projects that use CI. An exploratory methodology was used to identify and classify the

requirements artifacts where the result shows that projects that adopt the CI have, in general, a more amount

of requirements artifacts, mainly in artifacts of the GitHub platform such as issues, pull requests, and labels.

1 INTRODUCTION

CI is a development practice for automation and

frequent code integration (Hilton et al., 2016), where

compiling and testing procedures are automated,

leading to a more frequent delivery of new features

and products (Shahin et al., 2017). The benefits of CI

in software development are code errors identified

and corrected earlier, thus improving software quality

(Zhao et al., 2017). Over the years, Open Source

Software (OSS) projects have had greater adherence

to this practice (Hilton et al., 2016). But, OSS

developers perform requirements engineering

activities informally (Kuriakose and Parson, 2015),

using artifacts such as issue tracker systems, forums,

and blogs to perform communication about

requirements (Salo, 2015; Xiao et al, 2018).

When it comes to the quality of the final product

with a lower incidence of errors, the impact of CI in

software development has already been investigated

by several authors (Bernardo and Kulesza, 2018;

https://orcid.org/0000-0001-8620-0983

https://orcid.org/0000-0002-9594-8616

https://orcid.org/0000-0002-4646-0526

https://orcid.org/0000-0003-0349-7588

https://orcid.org/0000-0002-5467-6458

https://orcid.org/0000-0002-9394-6641

Hilton et al, 2017; Labuschagne et al, 2017; Zhao et

al, 2017). However, the literature still needs to

investigate whether the use of CI in GitHub projects

contributes to developers storing artifacts and

information related to requirements. Considering that

projects that adopt the CI practice deliver new

features more often (Shahin et al., 2017), it is

expected that GitHub projects will have information

related to requirements and be accessible in the

repositories. Therefore, this work investigates the

presence of information and artifacts related to

software requirements. It is worth mentioning that it

is not this work's goal to analyze the requirements

artifacts' quality, but only to identify them and

understand your relationships with projects.

In this study, a dataset composed of 164 projects

found in (Bernardo and Kulesza, 2017; Nery and

Kulesza, 2018) was used. It was divided into two

groups: 82 projects that use CI and 82 projects that do

not use it (NoCI). The purpose of this selection into

two groups is to check if there are similarities and

Nascimento, R., Souza, L., Targino, P., Sizílio, G., Kulesza, U. and Lucena, M.

Investigating Information about Software Requirements in Projects That Use Continuous Integration or Not: An Exploratory Study.

DOI: 10.5220/0010447903030312

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 303-312

ISBN: 978-989-758-509-8

303

differences in the quantity and types of requirements

artifacts. In this sense, several indicators for analysis

present in the literature were used, such as issues,

labels, pull requests (PR), and UML artifacts. The

research questions (RQs) addressed were:

 RQ1: What types of artifacts with information

related to requirements prevail in CI and NoCI

projects?

 RQ2: What is the volume of information related

to requirements found in native artifacts in the

Github of CI and NoCI projects?

 RQ3: Is there a difference in the volume of

requirements information for CI and NoCI

projects?

The research is classified as exploratory since it

provides an overview of the subject addressed,

bringing together characteristics and new dimensions

to be explored (Raupp, 2006). Among the results

obtained, it was found that there is a similarity in the

types and a difference in the quantity of requirements

artifacts found in both groups of projects. This work's

main contribution is to attest that, just like it happens

in NoCI projects (but in a smaller quantity), CI

projects present information related to software

requirements in their repositories, in an way informal

language. Such artifacts are mostly directed to final

users in the form of websites and tutorials, while

issues and PRs artifacts used by collaborators to

communicate information related to requirements on

the GitHub platform.

This work is organized as follows: Section 2

presents the research methodology used. In Section 3,

the results obtained by this study are presented and

discussed. Section 4 presents the threats to the study's

validity and the means to mitigate its effects. The

works related to this study are presented in Section 5.

Finally, the final considerations and future works are

shown.

2 RESEARCH METHODOLOGY

2.1 Projects Investigated

For the CI projects, Bernardo and Kulesza (2017)

took into account the 3,000 most popular GitHub

projects that were written in programming languages

Java, Python, Ruby, PHP, and JavaScript. That have

been filtered to guarantee the quality of the proposed

dataset. The first filter consists of the definition of the

projects that used CI, which was obtained by

separating only the projects that contained a build-in

Travis-CI, to ensure that the projects in this group

have used the CI practice. After, the authors ensured

that the projects had a substantial amount of PRs,

were all active, and did not consist of sample or toy

projects. The collection process resulted in 87

projects; however, a final step was applied by Nery

and Kulesza (2018) where considered only 82

projects in which they found an automated test code.

Concerning NoCI projects, Nery and Kulesza

(2018) used a proposal similar to Bernardo and

Kulesza (2017). The authors also start from the 3,000

most popular projects on GitHub that were written in

programming languages Java, Python, Ruby, PHP,

and JavaScript. However, the authors made sure to

separate projects that never adopted CI in their life

cycle. It is a difficult task to perform with an

automatic analysis since the projects may not present

CI configuration files and still use some internal

server or apply the practice in a way that is not

reflected in the published code. Therefore, to projects

that were not found CI service configuration files, the

authors contacted project contributors via e-mail and

other communication channels to ensure that the

project never adopted CI. In this dataset, the same

filters were used to guarantee the quality, i.e., only

active and relevant projects. In the process, the

authors provided 82 CI projects and 82 NoCI projects.

So, our study addresses these 164 projects,

divided into two groups: 82 projects that use CI

through the Travis CI tool and 82 NoCI projects.

2.2 Data Collection and Analysis

Procedures

In possession of the 164 projects selected, a manual

and an automatic search was carried out looking for

artifacts that could be related to information about

requirements (Salo, 2015; Robles et al, 2017;

Portugal and Prado Leite, 2016; Portugal et al, 2016;

Ho-Quang et al, 2017), such as:

 Native GitHub artifacts (readme files; Wiki

page - used to describe the project's

information; issues - used by users to submit

project tasks; PRs - used to solve issues; and

labels - used to classify issues and PRs);

 Files that are not native to GitHub (UML - use-

case, activities, sequence, states, classes, and

domain diagrams; feature model, goals model,

entity-relationship diagram [ERD], software

requirements specification (SRS), personas,

mind maps, user stories, websites, tutorials, and

functional and/or acceptance test scripts).

The manual search process was used to identify

artifacts that were not native to the GitHub platform

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

304

and the native artifact "labels." After identifying the

labels artifacts related to requirements, they were

used in an automated search to identify issues and

PRs also related to requirements. Both research

modes were carried out with the English language, in

the period of October 2019.

2.2.1 Search in Native Artifacts

In this work, the terms employed in (Glinz, 2011;

IEEE Standards Coordinating Committee, 1990)

were used. The terms "feature(s)," "requirement(s),"

"functionality(ies)," and "functional" were searched

for in readme files, followed by information related to

features, such as a list of features. For the labels

artifacts, were used the same terms plus the standard

GitHub terms: enhancement and improvement. Also,

terms that refer directly/indirectly to non-functional

requirements were also used, based in the literature

(Glinz, 2017; IEEE Standards Coordinating

Committee, 1990): security, performance, UX, and

UI. It is important to note that several different types

of terms can describe non-functional requirements,

and that is why we do not limit the number of types

of terms to be found in the projects, so we can have a

broad view of the types of terms used. Finally, labels

with terms for functional and non-functional

requirements were used to filter and quantify issues

and PRs related to the requirements.

2.2.2 Search in Non-native Artifacts

The same terms used to search for functional and non-

functional requirements' native artifacts were also

used when searching for non-native artifacts, both in

the name of the files and in their content. Regarding

to UML artifacts, entity-relationship diagram, feature

model, goals model, mind maps, user stories and

personas, a search was made for files with “.uml”,

“.xml”, “.xmi”, ".jpg", ".jpeg", ".png", ".bmp", ".gif"

and ".svg" extensions. For SRS files, tutorials and

websites, a search was made for files with ".doc(x)",

".pdf", ".odt", ".ppt(x)" and ".html" extensions; and it

was checked if they had descriptions of features.

In the manual search for functional and non-

functional test artifacts, folders and scripts of codes

named with the terms "functional(ity)" and

"acceptance" were considered, based on the following

research papers (Glinz, 2011; IEEE Standards

Coordinating Committee, 1990). Since test artifacts

can also reveal relevant information related to

requirements, they have been analyzed for this

purpose. The manual search for websites verified

whether the projects had a valid link to their websites.

For the artifacts with readme files, Wiki page,

website, and tutorials, only the most recent versions

were considered. For the SRS, UML, ERD, feature

model, goals model, personas, mind maps, user

stories, issues, labels, and PRs artifacts, several were

counted and analyzed per project. Regarding the

functional and non-functional test artifacts, it was

considered whether the projects have test artifacts or

not to understand if they verify and validate the

requirements.

After its acquisition, the data were classified to

enable their interpretation and further analysis. The

following data were classified: the number of

versions and collaborators in each project; the number

of non-native artifacts identified and of your projects;

the number of native artifacts identified and of your

projects. Based on the number of native artifacts,

analyses were performed to understand how many are

relevant to information related to requirements

3 RESULTS AND DISCUSSIONS

3.1 RQ1: What Types of Artifacts with

Information Related to

Requirements Prevail in CI and

NoCI Projects?

To answer the first research question, we counted

which projects have artifacts describing requirements

considering the different types of existing artifacts

(readme file, UML, Wiki page, websites etc.). Figure

1 presents an overview of the results. Where, we can

see that for the artifacts tutorials, websites, test scripts

and UML, there was a more significant number of CI

projects presenting system requirements compared to

NoCI projects. It is possible to note that the most

common way to present requirements in both projects

that do and do not use CI were tutorials and websites.

The tutorial artifact is the most common form of

requirements documentation, being found in 49 CI’s

and 41 NoCI’s projects. The website artifact, in turn,

was used in 46 CI’s and 39 NoCI’s projects.

In 36 of the 82 NoCI projects analyzed, the

readme artifacts describe the system's requirements,

as opposed to only 21 CI projects. Regarding the Wiki

page artifact, it was found that only 14 NoCI projects

and 8 CI projects. Regarding the UML artifacts, they

were discovered in only four CI projects and were:

class, activity, and sequence diagrams. Concerning

the test script artifacts only 9 NoCI’s and 25 CI

projects. The test artifacts found are scripts to execute

functional, non-functional, and acceptance test

specifications for validation within these projects.

Investigating Information about Software Requirements in Projects That Use Continuous Integration or Not: An Exploratory Study

305

Finally, only one test plan artifact was found in a

NoCI project.

3.1.1 Most Used Artifacts

As shown in Figure 1, the number of projects that

describe requirements through UML artifacts, test

plans, and Wiki pages is minimal compared to the

total number of NoCI and CI projects. Most NoCI and

CI projects use tutorials and websites to describe the

system's functionalities. It may indicate that

developers prefer to conduct the documentation or

requirements information in a way that is more

oriented to the system's end-user and not to the other

stakeholders involved in the development process.

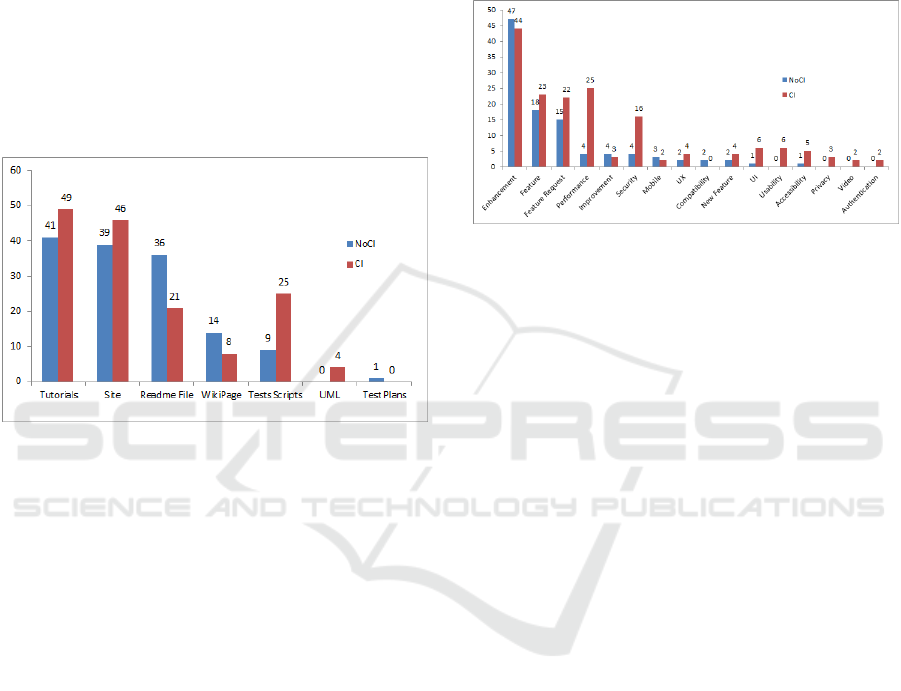

Figure 1: Number of projects by type of artifact.

Regarding the readme files, about half of the NoCI

projects use this artifact to describe requirements.

However, only 21 (25.60% of total) CI projects use it,

which is considered a small number compared to the

total number of CI projects.

In particular, the number of CI projects with test

scripts related to requirements is also small compared

to the total number of CI projects, corresponding to

about 25 (30.49% of total). No test plan artifacts were

found int CI projects, which are generally used to

declare test setup and procedures (containing

information related to requirements). Only one

example was found in a single NoCI project.

3.1.2 Labels Related to Requirements

Another type of artifact within GitHub repositories

that is widely used to describe requirements are the

issues or PRs labels. Figure 2 shows the number of

projects that have labels that are related to functional

and/or non-functional requirements. We found about

100 label names used for requirements, but this chart

only shows the label names found in at least two

projects per group. As can be seen, the most used

label in the projects was "enhancement," which was

used by 47 NoCI projects and 44 CI projects. The

"feature" label was the second most used, found in 18

NoCI projects and 23 CI projects. Then came the

"feature request" label, used by 15 NoCI projects and

22 CI projects. We also found labels related to non-

functional requirements, such as the "performance"

label used in 4 NoCI’s and 25 CI’s projects, and the

"security" label (4 NoCI’s and 16 CI’s projects).

Figure 2: Number of projects by type requirement labels.

In general, only about 16 labels are present in at least

more than one project. The other labels are

conditioned to only one project, whether it is a NoCI

or CI project. It is important to note that the labels

were used to filter issues and PRs that may contain

information related to requirements. The fact that an

issue or pull request uses a label whose name is

related to requirements does not guarantee that it has

information about requirements. In general, it

indicates that the developers' code commits are

associated with an issue or pull request that represents

that specific requirement. Besides, issues and PRs can

be tagged with more than one label, including more

than one label related to requirements.

3.2 RQ2: What Is the Volume of

Information Related to

Requirements Found in Native

Artifacts of Github in CI and NoCI

Projects?

To answer the second research question, we present

data on issues, PRs, and labels for CI and NoCI

projects, comparing which ones are related to

requirements and which are not. Table 3 shows the

statistics for NoCI projects. It can be seen that there

is a significant proportional difference between

issues, PRs, and labels containing explicit

requirements information (letter R highlighted in the

columns) and those that do not, which can be verified

in all three types of data, that is, issues, PRs, and

labels. Also, there are cases of projects without any

type of data related to requirements.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

306

Table 1: Issues, PRs, and labels for CI projects.

Issues Issues

Pull Pull

Labels Labels

Min 6 0 0 0 6 0

Max 31578 12881 35883 8065 416 100

Avg 4684,86 619,634 4874,122 342,768 50,659 4,061

Median 2750 204 2750 17 30,500 2

Sum 384179 50810 399678 28107 4154 333

Std.

Deviation

5888,749 1617,117 6956,890 1195,132 64,663 11,130

1º Quartile 1369,750 65 1127,750 2,250 16,250 1

2º Quartile 2750 204 2750 17 30,500 2

3º Quartile 5339,250 593,500 4950,500 188,500 55,500 3

Table 2 presents data on issues, PRs, and labels for CI

projects, both from a global perspective and related to

requirements. It can be seen, that, there is a significant

difference between the data, which can be verified in

all three types of data found, that is, issues, PRs, and

labels. Besides, there are examples of projects

without any kind of data related to requirements.

Table 2: Issues, PRs, and labels for NoCI projects.

Issues Issues

Pull Pull

Labels Labels

Min 7 0 7 0 0 0

Max 10596 1023 9650 1023 77 12

Avg 961,49 84,329 414,732 24,463 11,610 1,512

Median 326 16,500 121,500 0 7,500 1

Sum 78847 6915 34008 2006 952 124

Std.

Deviation

1924,684 195,396 1143,486 121,639 13,209 1,701

1º Quartile 134 1,250 64,250 0 6 1

2º Quartile 326 16,500 121,500 0 7,500 1

3º Quartile 797 56,750 322,500 1,750 12 2

3.2.1 Requirements Artifacts in NoCI

Projects

In Table 3, it is noted that there are projects that do

not have requirements issues and those that have a

maximum number of 1,023 issues. Note that up to the

third quartile of the NoCI projects, there are about 56

requirements issues. Only 8.77% of issues on the sum

of issues for all projetcs are dedicated to requirements

(Figure 3a and Table 3). This information may

indicate that the flow of communication of

information about requirements between the

collaborators is small or that the system is already at

a maturity level where there are not many changes in

requirements, but only priority in the communication

regarding the system's maintenance.

To PRs related to requirements, the minimum and

the maximum number are the same as the number of

issues related to requirements. Only from the third

quartile do projects with at least 1.75 requirements

PRs arise. Also, the percentage of total PRs is around

0.5% (Figure 3b and Table 3).

There is a proportion of 30% of requirements PRs

for the total number of issues. Which can indicate that

Figure 3: Issues, PRs, and requirements labels in NoCI

projects.

about 70% of the PRs submitted in the projects are

not about requirements and that only about 25% of

the projects have the PRs submitted to solve

requirements issues (Figure 3a and 3b).

Regarding the number of requirements labels

(Figure 3c and Table 3), the number remains the same

for the minimum, while the maximum number of

requirements labels in the projects is 12. However,

half of the projects only use one label, and up to the

third quartile uses only two labels. It allows us to

conclude that most projects do not use a wide variety

of requirements label. This information corresponds

with Figure 2, which illustrates that most NoCI

projects use labels such as "enhancement," "feature,"

and "feature request" and that, in general, they are not

specifying the types of requirements. Besides, only

13.02% of the labels in the projects refer to the

requirements. This statement is made based only on

the name of the labels. However, this method is

described as a threat to validation if the label is

misused or used generically.

3.2.2 Requirements Artifacts in CI Projects

In Table 2, there are projects do not have

requirements issues, while some have a maximum

number of 12,881 requirements issues. Also, the

median number (204) and the third quartile (593.5)

are low compared to the projects' maximum number

of issues. It means that about 25% of the projects have

a significant number of requirements issues. Besides,

only has a percentage of 13.22% of the requirements

issues in CI projects (Figure 4a and Table 2).

Regarding PRs, there are projects do not have

requirements PRs, and the maximum number reaches

8,065. There is a proportional rate of 55.32% of PRs

out of the total number of requirements issues (Figure

4a and 4b). That is, about half of the requirements

issues have PRs submitted. However, despite the

median number being 17 PRs per project, and the

third quartile having about 188,500 PRs. Only about

Investigating Information about Software Requirements in Projects That Use Continuous Integration or Not: An Exploratory Study

307

Figure 4: Issues, PRs, and labels related to requirements in

CI projects.

25% of the projects have a higher concentration of

PRs. In general, only 7.03% of all CI projects' PRs are

related to requirements (Figure 4b and Table 2).

Regarding the labels, the situation is similar in

NoCI projects. There are projects do not have

requirements labels, while there are projects with

around 100 requirements labels. However, up to the

third quartile of the total number of projects, only

three labels are applied to requirements (only 25% of

the projects use more than three labels to classify

requirements) (Figure 5c and Table 2).

In Figure 2, can be seen that there is a variety of

label names used by the projects, with emphasis on

names that relate to non-functional requirements such

as "performance" and "security." Still, compared to

the total of labels for all projects, only 8.01% of the

labels in projects are used to classify requirements.

3.3 RQ3: Is There a Difference in the

Volume of Requirements

Information for CI and NoCI

Projects?

3.3.1 Number of Collaborators and Releases

Table 3 presents information about releases and

contributors to the NoCI and CI projects. The

maximum number of contributors is 327 for NoCI

and 4,520 for CI projects. The minimum number of

contributors is 2 for NoCI projects and 1 for CI

projects. The median number of contributors is 51 for

NoCI projects and 295 for CI projects. As can be seen,

the maximum number of releases is 784 for NoCI

projetcs and 2,284 for CI projects. The median

number of releases ranges between 33.5 for NoCI

projects and 112.5 for CI projects.

As noted in Table 3, the number of collaborators

and releases in CI projects is much higher than in

NoCI projects. Ståhl and Bosch (2014) argue that

Table 3: Project releases and contributors.

Releases

NoCI

Releases

Contributors

NoCI

Contributors

Min 0 0 2 1

Max 784 2284 327 4520

Avg 91,390 175,439 68,500 460,378

Median 33,500 112,500 51 295

Sum 7494 14386 5617 37751

Std.

Deviation

145,820 273,701 64,315 682,542

1º Quartile 13 55,250 27 138,500

2º Quartile 33,500 112,500 51 295

3º Quartile 85,500 194,250 82,500 502

projects using CI have more frequent release

deliveries due to constant collaboration. It may be an

indication that CI projects have attracted more

attention from the collaborators due to the automated

support for testing and verifying the quality of the

code (Duvall et al, 2007; Valinescu et al, 2015). This

justifies CI projects to have a greater amount of

information about requirements to use in the testing

and verifying procedures.

Table 4 shows the number of issues, labels e PRs

related to requirements for NoCI and CI projects. The

minimum number of labels is zero for NoCI and CI

projects. The maximum number of labels is 12 for

NoCI projects and 100 for CI projects. The minimum

number of issues is zero for NoCI and CI projects.

The medians have a value of 1 for NoCI projects and

2 for CI projects. The maximum number of issues is

1,023 for NoCI and 12,881 for CI projects. The

medians are 16.5 for NoCI projects and 204 for CI

projects. The minimum number of PRs is zero for

NoCI and CI projects. The maximum number of PRs

is 1,023 for NoCI and 8,065 for CI projects. The

medians are zero for NoCI and 17 for CI projects.

Table 4: Comparison between NoCI and CI projects.

Issues

NoCI

Issues

Pull

NoCI

Pull

Labels

NoCI

Labels

Min 0 0 0 0 0 0

Max 1023 12881 1023 8065 12 100

Avg 84,329 619,634 24,463 342,768 1,512 4,061

Median 16,500 204 0 17 1 2

Sum 6915 50810 2006 28107 124 333

Std.

Deviation

195,396 1617,117 121,639 1195,132 1,701 11,130

1º Quartile 1,250 65 0 2,250 1 1

2º Quartile 16,500 204 0 17 1 2

3º Quartile 56,750 593,500 1,750 188,500 2 3

3.3.2 Relationship between NoCI and CI

Projects

In general, it can be observed that in both groups,

there are projects that do not have issues and/or PRs

related to requirements. However, the maximum

number of issues and PRs in CI projects are more

significant than in NoCI projects - a difference of

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

308

11,858 (92.06%) for issues and 7,042 (87.32%) for

PRs between CI and NoCI projects. The percentage

in relation to the total number of issues and PRs are

also significant - about 43,895 (86.39%) issues and

26,101 (92.86%) for PRs between CI and NoCI

projects (Figures 7a and 7b). This information shows

that the number of issues and PRs with requirements

information in CI projects is much higher than in

NoCI projects.

There are projects in both groups that do not have

requirements labels. There are projects in the NoCI

group with a maximum number of 12 and CI projects

with a maximum of 100 (a difference of 88 labels,

about 80%). In a comparison made with the total

number of labels in all projects, the difference is 209

labels (a percentage of 62.76%). However, the

median of NoCI projects is equal to one label, as

opposed to two labels for CI projects. From up to third

quartile of the projects, NoCI projects use up to two

labels to classify requirements, while CI projects use

up to three labels (Figure 7c).

Tables 2 and 3 present data that indicate the

existence of a difference in the number of issues, PRs,

and labels related to requirements between NoCI and

CI projects. To compare the two samples and better

understand how our metrics are associated with each

of the approaches (i.e., CI and NoCI), our study

applied statistical tests to attest to the difference

between the data presented. First, we calculated the

percentage corresponding to the requirements for

each of the adopted metrics. For example, if a project

has 200 PRs, of which 50 were related to

requirements, this project would have a proportion of

0.25 (or 25%).

Figure 7: Requirements data in NoCI and CI projects.

Following this example, we calculated the

proportions for issues, PRs, and labels. The higher the

proportion, the more related to requirements the

variable was. Then, we compared the projects' factors

from the CI sample with those from the NoCI sample

for each of the variables. For this purpose, two

statistical tests were applied: (i) Mann-Whitney-

Wilcoxon tests (MWW or Wilcoxon rank-sum test)

(Wilks, 2011), a non-parametric method used to

compare samples and certify that the values are

statistically different, that is, a p-value < 0.05

indicates that the samples came from different

populations; and (ii) Cliff's delta, a metric computed

to measure the magnitude of such difference between

distributions (Macbeth et al, 2011). To interpret

Cliff's delta, we used the thresholds indicated by

Romano et al. (2006), i.e., delta < 0.147 (negligible),

delta < 0.33 (small), delta < 0.474 (medium), and

delta > = 0.474 (large).

The results of our statistical tests show that the PRs

of the CI sample are statistically more associated with

requirements, with the Wilcoxon p-value = 1.633e-06

and Cliff's delta 0.4297999 (medium). For the issues

factor, the results also show that CI has more issues

related to requirements, with the Wilcoxon p-value =

0.005635 and Cliff's delta of 0.2522383 (small).

Finally, concerning the labels factor, we observe the

opposite. With the Wilcoxon p-value = 0.000342 and

Cliff's delta -0.335443 (medium), we observed that

CI projects are associated with fewer labels related to

requirements.

3.3.3 Discussion of Results

Through the interpretation of the data collected and

analyzed, we can assume that both groups of CI and

NoCI projects use informal artifacts to describe

requirements, which, in general, are tutorials, readme

files, websites, issues, PRs, and labels, as noted in

recent works (Salo, 2015; Portugal and Prado Leite,

2016; Portugal et al, 2016). Mainly, issues and PRs

Where the developers use in their frequent

communication as collaborators in a project.

Regarding the labels, about 55% of the CI and

NoCI projects prefer using labels with generic names

to present requirements information. Besides, about

35% of CI projects use words for non-functional

requirements such as "performance" and "security."

It was also observed and validated through

statistical tests that projects that adopt the practice of

CI tend to have a higher proportion of issues and PRs

related to requirements than projects that do not adopt

the practice of CI.

This may indicate that CI projects tend to have

more information about requirements, due to the need

for better code quality and the need for more frequent

deliveries, requiring more frequent communication.

In addition, these projects tend to attract more

contributors and end up using mainly informal

artifacts to communicate information about

Investigating Information about Software Requirements in Projects That Use Continuous Integration or Not: An Exploratory Study

309

requirements. And where a few types of non-

functional requirements are communicated with

specific and somewhat diverse keywords.

4 THREATS TO VALIDITY

4.1 Construction Validation

The construction validation can be threatened by the

selection mechanisms used in works (Bernardo and

Kulesza, 2017; Nery and Kulesza, 2018) to select the

projects and the types of artifacts used in this study.

However, the authors state that the projects collected

were carefully selected as CI and NoCI projects, and

have been used in previous work experiments.

Regarding the mechanisms for selecting the

artifacts, we can consider threats both the types of

extensions of artifacts and how they were acquired.

The types of extensions used are limited and,

therefore, artifacts extensions of tool like Astah,

ArgoUML, Modelio, among others, were suppressed.

UML artifacts and other types of artifacts with other

types of extensions for documents and/or images may

also have been suppressed. However, native and non-

native types of artifacts used in other research were

considered objects of studies with information related

to requirements (Salo, 2015; Ho-Quang, 2017).

Regarding the search for native artifacts, in the

manual search for readme files, Wiki pages, and

labels artifacts, many may have been discarded for

not meeting the terminology used or the name given

to the artifacts. The manual search may also generate

an incorrect count of labels, which may have caused,

in its turn, an inaccurate count in the number of issues

and PRs for each project. Besides, it is essential to

note that issues and PRs related to other types of

labels whose names do not refer to requirements but

that could contain information about requirements

even though they used other labels (issues and PRs

that were wrongly tagged, for example) were ignored.

On the other hand, among the data obtained on issues

and PRs related to requirements, there may be data

that do not include information on requirements

because they were tagged with the wrong labels.

Unfortunately, this threat cannot be reduced.

Regarding test scripts, it may also have discarded

test scripts that were not organized in folders named

"test(s)" and/or "spec(s)" and/or that used other

keywords for the name of the scripts. To mitigate this

threat, extensions of different tools were included in

the searches carried out, and different synonyms

related to software tests were used.

4.2 External Validation

The threats to external validation are related to the

generalization of the results of the study. Our study

analyzed about 164 popular GitHub projects. They

were collected to represent samples of projects that

use or do not use the CI practice. Despite the extent

and size of the collected dataset, it is not possible to

generalize the results beyond the defined context,

which requires future analyzes and studies for this

purpose. Finally, the types of artifacts used in our

selection may not generally represent all types of

requirements artifacts used by developers in GitHub

projects. This threat has been mitigated through a

detailed manual and automatic analysis of the

artifacts that make up the projects and using results

reported by other studies (Salo, 2014; Salo, 2015) that

investigate requirements in OSS projects.

4.3 Internal Validation

Threats to the construction validity may have had

consequences for the data's internal validation since

relevant NoCI and/or CI projects may have been

discarded. This threat may not have been avoided

since the projects used to come from other researches

and the application of selection mechanisms. Also,

the keywords used in selecting types of artifacts may

have caused the suppression of other kinds of artifacts

that could lead to a different path in the answers to the

research questions. However, this threat has been

minimized by use of keywords consolidated in the

literature. Both the language used in the search and

all selected projects are in the English language.

5 RELATED WORKS

Robles et al. (2017) investigated whether UML

artifacts are used in GitHub projects. They analyzed

about 12 million projects and found 93,000 UML

artifacts in about 24,000 projects. Our work focused

on the search for different types of requirements

artifacts, not just UML artifacts. Also, our study

focused on the context of comparing CI and NoCI

GitHub projects. Thus, the similarity between the

works is only their purpose of finding UML artifacts

in GitHub projects, with our study focusing on

requirements artifacts.

Ho-Quang et al. (2017) investigate the practices

and perceptions of using UML in OSS projects to

understand its motivations and benefits. A survey was

carried out with 485 respondents, only for projects

that use UML. As a result, it was noted that

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

310

collaboration is the most important factor since it

benefits new project collaborators to understand the

requirements, design, and implementation of the

system. Using UML to improve communication and

planning effort in implementation. In our case,

developers of CI and NoCI OSS projects use native

artifacts GibHub to communicate requirements.

Salo et al. (2014, 2015) investigate guidelines for

managing agile requirements on GitHub projects.

They propose good practices for using the GitHub

platform functionalities to contain information

related to requirements such as issues, PRs, labels,

and milestones. They conclude that with little effort,

integrating the proposed guidelines with GitHub is

feasible for managing requirements in agile

environments. The study conducted and presented in

this article found several pieces of evidence of the use

of the guidelines presented by Salo et al. (2014, 2015)

on GitHub projects, such as creating, updating, and

maintaining issues to represent different types of

requirements combined with Wiki documentation.

6 CONCLUSIONS

This work presented an exploratory study on how

information related to requirements is being stored in

OSS GitHub projects. It also explored the similarities

and differences between CI and NoCI projects in their

development, using previous research datasets.

Mechanisms for selecting and searching for artifacts

related to requirements have been developed based on

other research in the literature. Manual and automated

searches were performed to retrieve, analyze, and

interpret this data.

In general, the study concluded that GitHub

projects that have a more number of collaborators will

consequently have a greater amount of information

related to requirements, mainly in informal artifacts

such as issues and PRs. It happens because with more

collaborators and releases, consequently, they will

have a greater flow of information, a behaviour that

can be observed in CI projects.

The study noted that GitHub projects, regardless

of the group, use informal artifacts such as tutorials,

websites, readme files, and, mainly, issues and pull

request artifacts that serve as communication and

collaboration mechanisms between developers on the

platform to describe information related to

requirements. However, the results indicate that CI

projects have more information related to

requirements, mainly stored in issues and PRs, than

projects that do not use CI.

Regarding the classification of information related

to requirements, in both groups, the use of labels with

keywords such as "enhancement," "feature," and/or

"feature request" is predominant. However, only 25%

of CI projects use a large number of labels to classify

information about the requirements.

The following future works of this research are

being planned: (1) conducting new analyzes that

allows evaluating a greater proportion of information

related to requirements according to the

characteristics of the projects, such as languages used,

types of software, age of the projects, most

recognized projects; (2) conducting qualitative

analyzes with participants of the investigated projects

through surveys, seeking to confirm and expand the

results related to requirements specification in OSS

projects.

ACKNOWLEDGEMENTS

This study was financed in part by Coordenação de

Aperfeiçoamento de Pessoal de Nível Superior ―

Brasil (CAPES) ― Finance Code 001.

REFERENCES

Bernardo, J. H., da Costa, D. A., & Kulesza, U. (2018,

May). Studying the impact of adopting continuous

integration on the delivery time of PRs. In 2018

IEEE/ACM 15th International Conference on Mining

Software Repositories (MSR) (pp. 131-141). IEEE.

Nery, G. S., da Costa, D. A., & Kulesza, U. (2019). An

Empirical Study of the Relationship between

Continuous Integration and Test Code Evolution.

In 2019 IEEE International Conference on Software

Maintenance and Evolution (ICSME) (pp. 426-436).

IEEE.

Salo, R. (2014). A guideline for requirements management

in GitHub with lean approach (Master's thesis).

Salo, R., Poranen, T., & Zhang, Z. (2015, October).

Requirements management in GitHub with a lean

approach. In SPLST (pp. 164-178).

Robles, G., Ho-Quang, T., Hebig, R., Chaudron, M. R., &

Fernandez, M. A. (2017, May). An extensive dataset of

UML models in GitHub. In 2017 IEEE/ACM 14th

International Conference on Mining Software

Repositories (MSR) (pp. 519-522). IEEE.

Kuriakose, J., & Parsons, J. (2015, August). How do open

source software (OSS) developers practice and perceive

requirements engineering? An empirical study. In 2015

IEEE Fifth International Workshop on Empirical

Requirements Engineering (EmpiRE) (pp. 49-56).

IEEE.

Investigating Information about Software Requirements in Projects That Use Continuous Integration or Not: An Exploratory Study

311

Vlas, R., Robinson, W., & Vlas, C. (2017). Evolutionary

software requirements factors and their effect on open

source project attractiveness.

Portugal, R. L. Q., & do Prado Leite, J. C. S. (2016,

September). Extracting requirements patterns from

software repositories. In 2016 IEEE 24th International

Requirements Engineering Conference Workshops

(REW) (pp. 304-307). IEEE.

Portugal, R. L. Q., Roque, H., and do Prado Leite, J. C. S.,

2016. A Corpus Builder: Retrieving Raw Data from

GitHub for Knowledge Reuse In Requirements

Elicitation. In 3rd. Annual International Symposium on

Information Management and Big Data, 48.

Ho-Quang, T., Hebig, R., Robles, G., Chaudron, M. R., and

Fernandez, M. A., 2017. Practices and perceptions of

UML use in open source projects. In 2017 IEEE/ACM

39th International Conference on Software

Engineering: Software Engineering in Practice Track

(ICSE-SEIP), 203-212. IEEE.

Ferrari, A., Spagnolo, G. O., and Gnesi, S., 2017. PURE: A

dataset of public requirements documents. In 2017

IEEE 25th International Requirements Engineering

Conference (RE), 502-505, IEEE.

Kuriakose, J., 2017. Understanding and improving

requirements discovery in open source software

development: an initial exploration. Doctoral

dissertation, Memorial University of New Foundland.

Saeed, S., Fatima, U., and Iqbal, F., 2018. A review of

Requirement Elicitation techniques in OSSD.

International Journal of Computer Science and

Network Security, 86-92.

Iyer, D. G., 2018. Propagation of requirements engineering

knowledge in open source development: causes and

effects–A social network perspective, Doctoral

dissertation, Case Western Reserve University.

Glinz, M., 2011. A glossary of requirements engineering

terminology. Standard Glossary of the Certified

Professional for Requirements Engineering (CPRE)

Studies and Exam, Version, 1.

IEEE Standards Coordinating Committee, 1990. IEEE

Standard Glossary of Software Engineering

Terminology (IEEE Std 610.12-1990). Los Alamitos.

CA: IEEE Computer Society, 169.

Ståhl, D., and Bosch, J., 2014. Modeling continuous

integration practice differences in industry software

development. In Journal of Systems and Software, 87,

48-59.

Duvall, P. M., Matyas, S., and Glover, A., 2007.

Continuous integration: improving software quality

and reducing risk. Pearson Education.

Vasilescu, B., Yu, Y., Wang, H., Devanbu, P., and Filkov,

V., 2015. Quality and productivity outcomes relating to

continuous integration in GitHub. In Proceedings of the

2015 10th Joint Meeting on Foundations of Software

Engineering, 805-816. ACM.

Stolberg, S. (2009, August). Enabling agile testing through

continuous integration. In 2009 agile conference (pp.

369-374). IEEE.

Hilton, M., Nelson, N., Tunnell, T., Marinov, D., & Dig, D.

(2017, August). Trade-offs in continuous integration:

assurance, security, and flexibility. In Proceedings of

the 2017 11th Joint Meeting on Foundations of

Software Engineering (pp. 197-207).

Labuschagne, A., Inozemtseva, L., & Holmes, R. (2017,

August). Measuring the cost of regression testing in

practice: a study of Java projects using continuous

integration. In Proceedings of the 2017 11th Joint

Meeting on Foundations of Software Engineering (pp.

821-830).

Zhao, Y., Serebrenik, A., Zhou, Y., Filkov, V., & Vasilescu,

B. (2017, October). The impact of continuous

integration on other software development practices: a

large-scale empirical study. In 2017 32nd IEEE/ACM

International Conference on Automated Software

Engineering (ASE) (pp. 60-71). IEEE.

Raupp, F. M., & Beuren, I. M. (2006). Metodologia da

Pesquisa Aplicável às Ciências. Como elaborar

trabalhos monográficos em contabilidade: teoria e

prática. São Paulo: Atlas, 76-97.

Hilton, M., Tunnell, T., Huang, K., Marinov, D., & Dig, D.

(2016, September). Usage, costs, and benefits of

continuous integration in open-source projects. In 2016

31st IEEE/ACM International Conference on

Automated Software Engineering (ASE) (pp. 426-437).

IEEE.

Shahin, M., Babar, M. A., and Zhu, L., 2017. Continuous

integration, delivery and deployment: a systematic

review on approaches, tools, challenges and practices.

IEEE Access, 5, 3909-3943.

Wilks, D. S. (2011). Statistical methods in the atmospheric

sciences (Vol. 100). Academic press.

Macbeth, G., Razumiejczyk, E., & Ledesma, R. D. (2011).

Cliff's Delta Calculator: A non-parametric effect size

program for two groups of observations. Universitas

Psychologica, 10(2), 545-555.

Romano, J., Kromrey, J. D., Coraggio, J., & Skowronek, J.

(2006, February). Appropriate statistics for ordinal

level data: Should we really be using t-test and

Cohen’sd for evaluating group differences on the NSSE

and other surveys. In annual meeting of the Florida

Association of Institutional Research (pp. 1-33).

Xiao, X., Lindberg, A., Hansen, S., and Lyytinen, K.

(2018). “Computing” Requirements for Open Source

Software: A Distributed Cognitive Approach. Journal

of the Association for Information Systems, 19(12), 2.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

312
