Comprehensive Transcriptional Analysis Reveals Gene-specific

Transcriptional Variations in a Seed Plant, Arabidopsis thaliana

Kohei Negishi

and Kengo Morohashi

1,2

Department of Applied Biological Science, Faculty of Science and Technology, Tokyo University of Science,

2641 Yamazaki, Noda, Chiba 278-8510, Japan

Department of Biochemistry and Molecular Biology, Michigan State University, Lansing, MI 48823. U.S.A.

Keywords: Systems Biology, Genomics, Gene Expression, Stochastic Variation.

Abstract: The multicellular biological organism comprises a number of cells connected, while each cell independently

works. It seems to have a system to orchestrate a number of cells, like a parallel multi-agent intelligent system.

In such a biological system, gene expression of even identical genes within homogeneous cell populations is

varied due to a stochastic fluctuation of the transcriptional process. This gene expression variation (GEV) is

observed in development, cell differentiation, and environmental responses. Although the GEV has been

generally reported, a gene-specific GEV remains unclear. Using publicly available genome-wide gene

expression data from a model plant, Arabidopsis thaliana, we successfully identified two groups of genes

whose GEVs demonstrated consistently high and low. Analysis of 632 experimental conditions derived from

more than 1,300 microarrays revealed that 65 and 296 genes had high and low GEVs, respectively. We named

genes with the high GEV DOTABATA (DTBT), which means “romping about” in Japanese, and genes with

the low GEV PISHIPASHI (PSPS), which means “over-discipline” in Japanese. Gene function enrichment

analysis resulted that DTBT genes significantly enriched stress response genes. Our results suggest a gene-

specific GEV, and the regulation of GEV would be involved in biological processes.

1 INTRODUCTION

The multicellular organism comprises a number of

cells connected, while each cell independently works.

The connection is often dynamic and appropriately

responds to environmental stimuli. In particular, a

plant adapts to environments where it grows. Since a

plant does not have a central nervous system, plant

cells should be autonomously organized by one

another. This phenomenon inspires us to a parallel

multi-agent intelligent system.

Gene expression is a fundamental process for

various biological events such as development,

homeostasis, and response to environmental stresses

in biological organisms. The amount of gene

expression products shows a variation due to a

consequence of stochastic fluctuations occurred

during a process of gene expression (Elowitz et al.,

2002), which is called gene expression variation

(GEV).

The GEV produces a phenotypic variation that

benefits or hampers for fitness; therefore, living

organisms seem to utilize the GEV for an adaptation

(Fraser and Kaern, 2009; Raj and van Oudenaarden,

2008). The GEV is considered as a passive stochastic

fluctuation, and the degree of the GEV is uniformly

based on Gaussian distribution. However, regulation

of gene expression is orchestrated by a gene

regulatory network, which often plays a role as noise

reduction or amplification (Chalancon et al., 2012).

Since such modulation of the GEV by the gene

regulatory network requires high energy cost (Lestas

et al., 2010), a decisive role for the positive

contribution of the GEV is postulated.

The GEV is widely observed from prokaryotes

and eukaryotes and from unicellular to multicellular

organisms. Recent studies have shown the plant's

phenotypic variations, such as epidermal cell division

timing in the sepal and phyllotactic patterning (Araújo

et al., 2017; Besnard et al., 2014; Meyer et al., 2017).

If the GEV gives a stochastic fluctuation to the entire

system, the GEVs of entire genes would be equally

distributed. However, the degree of GEV of each gene

remains unclear.

We hypothesize that plants have a system to

manage the GEV in each gene with different degrees.

Negishi, K. and Morohashi, K.

Comprehensive Transcriptional Analysis Reveals Gene-speciﬁc Transcriptional Variations in a Seed Plant, Arabidopsis thaliana.

DOI: 10.5220/0010423905850590

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 585-590

ISBN: 978-989-758-484-8

585

To identify the genes with different degrees of the

GEV, we applied a statistical approach. Arabidopsis

thaliana is an excellent model plant that provides

tremendous amounts of data, particularly omics data.

More than 1,000 accessions that are adapted to their

environments all over the world are available. A.

thaliana is a valuable resource to integrate

information from the molecular level to a worldwide

scale. By using such publicly available expression

data, we successfully identified the genes with high

and low GEVs. Moreover, we found that variances of

the gene expression correlated with the gene functions

and some ranges of temperature shift within a day and

a year.

2 MATERIALS AND METHODS

2.1 Screening of PISHIPASHI and

DOTABATA Genes and Gene

Functional Enrichment Analysis

The Arabidopsis Information Resource 10

transcriptome (TAIR10) annotation was used in this

analysis. Genome-wide gene expression data of

Arabidopsis thaliana was retrieved from ATTED

(http://atted.jp/download.shtml). The data contain

22,591 genes and 631 experimental conditions and

include the following accessions: Bay-0, C24, Col-0,

Cvi-0, Est, Kin-0, Ler-2, Nd-1, Shahdara, and Van-0.

Out of 631 conditions, 582 conditions involved

greater equal than two replicates (maximum four

replicates). We used genes which expression levels

were higher than an average of entire genes, resulting

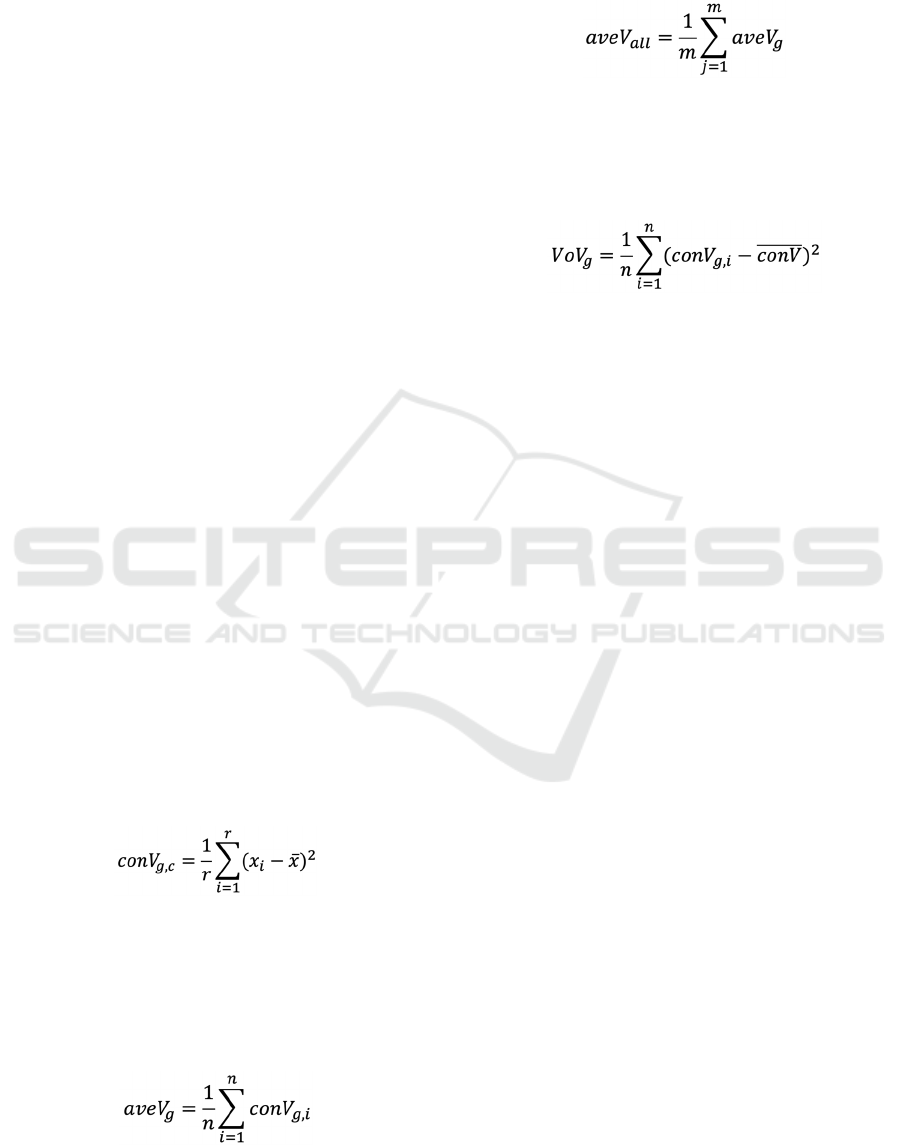

in 2,008 genes. Firstly, a variance of a gene 𝑔 in a

condition 𝑐 , referred to 𝑐𝑜𝑛𝑉

,

, was calculated as

followed.

where 𝑥 is the normalized expression value of the

gene 𝑖 , and 𝑟 is the number of replicates in each

condition 𝑐. In this study, the number of the genes and

the conditions were 2,008 and 582, respectively.

Average value of variances in each gene, referred to

𝑎𝑣𝑒𝑉, was calculated as followed,

Then, an average of entire variances was calculated as

followed.

where 𝑚 is the number of genes. By comparing 𝑎𝑣𝑒𝑉

with 𝑎𝑣𝑒𝑉



, we figured out how the gene expression

was fluctuated. 𝑉𝑜𝑉



, which is the variance of 𝑐𝑜𝑛𝑉



was calculated as

To identify DTBT and PSPS genes, the following

criteria were applied. In the case of DTBT, 𝑎𝑣𝑒𝑉



was lower than 𝑎𝑣𝑒𝑉



, and 𝑉𝑜𝑉



was higher than

one third of 𝑉𝑜𝑉.

Gene functional enrichment analysis was

performed by using Cytoscape with BiNGO plugin.

TAIR10 Arabidopsis thalaiana gene annotation was

used.

2.2 RNA Extraction and Quantitative

Reverse-transcription PCR

(qRT-PCR)

A. thaliana accessions (Col-0, Est, Kin, Cvi, and Van)

used in this study were obtained from Arabidopsis

Biological Resource Center (Ohio State University,

Columbus, OH, USA). Seeds were sterilized in a

solution of 50% commercial bleach (Kao, Singapore)

containing 6% sodium hypochlorite for 6 min,

followed by three washes with distilled water.

Sterilized 0.1% agarose solution was added to the

sterilized seeds, which were laid out on sterile filter

paper or 50% Murashige and Skoog (MS) plant salt

mixture (Wako Pure Chemical Industries, Osaka,

Japan) with 1% sucrose (Wako Pure Chemical

Industries) and 6% gellan gum (pH 5.9)(Wako Pure

Chemical Industries). The extracted RNA was

digested with DNase I (Sigma-Aldrich, St. Louis,

Missouri) and reverse transcribed using ReverTra

Ace® qPCR RT Kit (TOYOBO, Osaka, Japan). The

synthesized cDNA was amplified by qRT-PCR using

the THUNDERBIRD® SYBR® qPCR Mix

(TOYOBO, Osaka, Japan). Transcripts were

quantified using the

ΔΔ

Ct method.

SDMIS 2021 - Special Session on Super Distributed and Multi-agent Intelligent Systems

586

3 RESULTS

3.1 DOTABATA (DTBT) and

PISHIPASHI (PSPS) Genes

Constantly Show High and Low

GEVs, Respectively

The dataset we used in this analysis consists of more

than 1,388 publicly available microarray data derived

from 632 conditions. Out of them, 582 conditions,

each of which consists of replicates, were selected. A

gene expression variation (GEV) in experimental

replicates is supposed to come from biological and

technical variations. Since the data were collected

from diverse environmental conditions, the effect of

technical variations was expected to be much less

than those of biological variations (McCarthy et al.,

2012). Therefore, GEVs in this analysis are most

likely to be derived from the biological variations but

not technical ones. A low expression gene tends to



Figure 1: Scatter plot of gene expression and variance.

Average of express level was calculated the average of a

gene in all conditions. Average variance was calculated

variance of a gene in all conditions.

show high variation; therefore, before calculating the

variances, we assessed a relationship between

expression level and GEV to investigate whether low

expression genes show high variances. Indeed, the

plot of expression levels and variances of genes

suggests that genes with low expression levels show

high variances (Fig. 1). Therefore, to eliminate the

variances due to expression level per se, we selected

the genes with a higher level of expression than the

average of overall genes, resulting in 2,008 genes for

further analyses.

As a workflow shown in Fig 2A, we calculated the

variance of each gene from a single condition,

referred to conV. The conV is likely to show a

stochastic variation of gene expression from

biological replicates. Then, we calculated the average

variance of the gene, referred to aveV. The aveV

demonstrates how the gene expression was varied

compared to entire genes. Finally, we calculated the

variances of conVs, referred to VoV. The VoV shows

how the GEV was constant. When the VoV is low, the

GEV is likely to be constant, regardless the degree of

conV. Fig 2B shows a scatter plot of logarithm aveV

and VoV. Those two factors tend to show a positive

correlation. We attempted to find the genes with

constant conV, instead of just high conV, caused by a

particular condition such as environmental stimuli. To

search the genes with constant conV, we set criteria

combined of aveV and VoV as followed. As the first

criterion, we tried to eliminate variations derived

from specific conditions, we selected the genes with

lower VoV than average VoV of entire genes (Fig 2B).

We divided those genes into two gene groups with

high and low constant variances based on average of

conVs (Fig 2B). As a result, we identified 65 and 279

genes with constantly high and low GEVs,



Figure 2: A) A workflow for identifying genes with high or low GEVs. B) Scatter plot of aveV and VoV. Dashed lines marked

as 2, 3, and 4 indicate VoV= 0.017, aveV/3=0.010, and aveV=0.031. The dashed line 3 (aveV/3) was an average of variances’

cutoff value for screening PSPS genes (aveV/3 = 0.010), and the dashed line 4 (aveV) was for screening DTBT genes. Blue

and orange dots indicate PSPS and DTBT genes, respectively.

Normalized expression data of 582 conditions that contains replicates from

1,388 microarrays

Calculated average expression level of entire genes

2,008 genes with higher expression level than average of entire gene

expression

• Calculated variances, V

i,n; i=1 to 2,008; n=1 to 582

, of a gene in each condition

(conV

g,n

)

• Calculated averages of aveV

of a gene (aveV

)

• Calculated variances of variances, VoV

i; i=1 to 2,008

of a gene (VoV

)

log

(aveV)

log

(VoV)

Comprehensive Transcriptional Analysis Reveals Gene-speciﬁc Transcriptional Variations in a Seed Plant, Arabidopsis thaliana

587

respectively (Fig 2B). We named the high variation

genes as DOTABATA(DTBT) after romping about in

Japanese and the low variation genes as

PISHIPASHI(PSPS) after over-discipline.

3.2 No Significant Difference in the

Gene Structures of DTBT and

PSPS Genes

We looked into a difference between DTBT and PSPS

besides variances, and we concluded that gene

structures in the genome do not contribute GEVs.

Loci of both DTBT and PSPS genes are evenly

located throughout the A. thaliana genome, and we

did not find any significant difference as to location

in the genome. To see whether or not GEV might be

affected the length of the genic region, we compared

the gene length of DTBT, PSPS, and other genes

based on TAIR10 gene model. As a result, the gene

length did not show significant correlations with

variances (Fig 3).



Figure 3: Distribution of gene length of PSPS, DTBT and

other genes. PSPS, DTBT and other genes are shown in

blue, orange and grey, respectively. Regarding the gene

length, there are no significant differences among classified

gene sets.

Since gene expression is often affected by a position

in the genome, we measured a gene density of around

where DTBT, PSPS, and other genes are located. The

results show no significant difference (Fig 4). Also,

when we compared the length of untranslated regions

(5’UTR and 3’UTR) among DTBT, PSPS, and other

genes, we did not find any significant difference (Fig

5). Taken together, the genome structure around

DTBT and PSPS genes is unlikely to contribute to the

characteristics of DTBT and PSPS genes.



Figure 4: Distribution of gene density within certain

window sizes. Window sizes are ranged between 1,000 bp

and 10,000 bp shown above of histograms. PSPS, DTBT

and other genes are shown in blue, orange and grey,

respectively. Regarding the gene density, there are no

significant differences among classified gene sets.



Figure 5: Average length of untranslated regions of DTBT,

PSPS and other genes. A) 5’UTR and B) 3’UTR. Error bar

shows standard deviation (n = 65 in DTBT; n = 279 in

PSPS; n = 21,919 in others). There is no significant

difference in any combinations.

3.3 GO Enrichment Analysis

Demonstrates Stress Response and

Housekeeping Genes in DTBT and

PSPS Clusters, Respectively

To assess gene functions of DTBT and PSPS genes,

we performed GO analysis, for which we calculated

enrichments of gene functions in DTBT and PSPS

genes. As a result, stress response genes were

statistically enriched in DTBT genes, whereas

housekeeping genes were enriched in PSPS genes

(P<0.001). In DTBT, the most enriched gene function

was a stress response. Other highly enriched gene

functions were also involved in response to abiotic

stress, such as temperature. On the other hand, PSPS

gene group enriched functions as a cellular metabolic

process such as proton transport, which functions to

maintain metabolic state in a cell (Fig 6).

SDMIS 2021 - Special Session on Super Distributed and Multi-agent Intelligent Systems

588



Figure 6: Gene functional enrichment analysis for DTBT

and PSPS genes. Bar charts show –log_10(corrected P-

value) of enriched gene functions of A) DTBT and B) PSPS

genes.

The result that DTBT genes enriched stress genes

brought us to wonder if our analysis might not work

since we attempted to exclude specific responses,

mainly from stress. We experimentally validated

DTBT and PSPS gene expressions. Six seedlings

were grown on a plate under a mild condition,

followed by RNA extraction from an individual plant

and measurement of the representative of DTBT and

PSPS gene expression. Figure 7 clearly show that the

DTBT genes were varied even in a homogenous

condition, whereas the GEVs of the PSPS genes were

constant, suggesting that while DTBT genes enriched

stress-related genes, expression of DTBT genes are

constantly varied without certain stimuli.



Figure 7: Experimental validation by quantifying gene

expression level of DTBT and PSPS genes. Box plots show

distribution of relative gene expression levels. RNA was

extracted from a single individual seedling. Six seedlings

were grown in same conditions. Relative gene expression

was normalized based on average expression as 1.0. (N=6).

4 DISCUSSION

This report successfully found the gene-specific GEV

even under a homogenous condition. We considered

the GEV as variations of transcript level in a genome-

wide manner. Living organisms need to gain fitness

in their surrounding environments. In particular,

unicellular organisms often appear phenotypic

variations. Since phenotype originated from how

genes involved in the phenotype are expressed,

phenotypic variations are partly related to the extent

of the number of transcripts derived from those genes.

Therefore, even though thermodynamic fluctuations

cause GEV, living organisms might utilize such

stochastic fluctuations in their fitness and eventually

their adaptation to their surrounding environments.

This hypothesis is not applied to only unicellular

organisms. In particular, a plant must adapt to its

environment, which is required more than animals

that can move. We hypothesized that plants have a

system to manage fluctuations of gene expression.

One can argue that the variances we calculated

were derived mainly from technical noises. However,

it is unlikely to be the case for the following reasons.

We chose substantial experimental conditions (582

conditions). These data set were derived from

unbiased research groups, and experimental

conditions were also unbiased. Therefore, differences

of values among replicates are likely to be from

biological ones, not technical ones. Gene expression

and variances are indeed relatively correlated,

particularly in the case of low gene expression.

Therefore, we used genes which expression levels

were higher than the average of entire genes.

Nevertheless, we observed that aveV and VoV were

positively correlated, suggesting a need for further

work to eliminate the effects of expression-variance

relationships.

If a gene responds to some stimulus, its expression

should be changed. Thus, when we compared gene

expression levels between unstimulated and

stimulated conditions, we see the difference,

suggesting the variances higher than non-responding

genes. Since we considered a constant GEV, we

ignored those genes. To do it, we calculated the

variance of variances. The conV from a single

condition indicates to what extent the gene expression

fluctuated. The variance of the conV, VoV, shows how

the fluctuations of gene expression are constant. The

high VoV might indicate stimulus-responding genes

since the gene expression variation differed in

experimental conditions. We tried to find the genes

that expression variation is constant; we defined a cut-

off VoV as the average VoV from entire genes. Even

Oxidative phosphorylation

Energy coupled proton transport, down

electrochemical gradient

ATP synthesis coupled proton transport

-log

(adjusted P-value)

2468 120

-log

(corrected P-value)

Cellular metabolic process

Response to temperature stimulus

Response to stress

123450

-log

(corrected P-value)

Response to stimulus

Response to abiotic stimulus

AT1G76490

AT5G16110

AT1G68490

DTBT genes

0.8 0.9 1.0 1.1 1.2

AT5G11770

AT4G26410

AT2G26590

PSPS genes

0.80.91.01.11.2

Relative gene expression

Comprehensive Transcriptional Analysis Reveals Gene-speciﬁc Transcriptional Variations in a Seed Plant, Arabidopsis thaliana

589

the genes show stable GEVs; they can be classified

based on a degree of variations. One is constantly

high variation, and the other is constantly low. DTBT

gene is former; PSPS is the latter.

5 CONCLUSIONS

In conclusion, our computational analysis using

publicly available large data sets explored that the

GEVs were observed in a gene-specific manner. This

study suggests that plants would manage a stochastic

fluctuation for their adaptations. In future work, we

plan to elucidate a mechanism of DTBT and PSPS

gene regulations. These findings would contribute to

the biological field, such as a phenotypic variation,

and the artificial intelligence field, such as a super

distributed and multi-agent intelligent system.

ACKNOWLEDGEMENTS

We thank S. Yasui (Tokyo University of Science) for

providing useful suggestions. We also thank S.

Okamoto for providing invaluable assistance in

conducting the experiments.

REFERENCES

Araújo, I.S., Pietsch, J.M., Keizer, E.M., Greese, B.,

Balkunde, R., Fleck, C., and Hülskamp, M. (2017).

Stochastic gene expression in Arabidopsis thaliana. Nat

Comms 8, 2132.

Besnard, F., Refahi, Y., Morin, V., Marteaux, B., Brunoud,

G., Chambrier, P., Rozier, F., Mirabet, V., Legrand, J.,

Lainé, S., et al. (2014). Cytokinin signaling inhibitory

fields provide robustness to phyllotaxis. Nature 505,

417–421.

Chalancon, G., Ravarani, C.N.J., Balaji, S., Martinez-Arias,

A., Aravind, L., and Babu, M.M. (2012). Interplay

between gene expression noise and regulatory network

architecture. Trends Genet 28, 221–232.

Elowitz, M.B., Levine, A.J., Siggia, E.D., and Swain, P.S.

(2002). Stochastic gene expression in a single cell.

Science 297, 1183–1186.

Fraser, D., and Kaern, M. (2009). A chance at survival: gene

expression noise and phenotypic diversification

strategies. Molecular Microbiology 71, 1333–1340.

Hijmans, R.J., Cameron, S.E., Parra, J.L., Jones, P.G., and

Jarvis, A. (2005). Very high resolution interpolated

climate surfaces for global land areas. Int. J. Climatol.

25, 1965–1978.

Lestas, I., Vinnicombe, G., and Paulsson, J. (2010).

Fundamental limits on the suppression of molecular

fluctuations. Nature 467, 174–178.

McCarthy, D.J., Chen, Y., and Smyth, G.K. (2012).

Differential expression analysis of multifactor RNA-

Seq experiments with respect to biological variation.

Nucleic Acids Res 40, 4288–4297.

Meyer, H.M., Teles, J., Formosa-Jordan, P., Refahi, Y.,

San-Bento, R., Ingram, G., Jönsson, H., Locke, J.C.W.,

and Roeder, A.H.K. (2017). Fluctuations of the

transcription factor ATML1 generate the pattern of

giant cells in the Arabidopsis sepal. eLife 6, e19131.

Raj, A., and van Oudenaarden, A. (2008). Nature, Nurture,

or Chance: Stochastic Gene Expression and Its

Consequences. Cell 135, 216–226.

SDMIS 2021 - Special Session on Super Distributed and Multi-agent Intelligent Systems

590
