Fast Human Activity Recognition

Shane Reid

, Sonya Coleman

, Dermot Kerr

, Philip Vance

and Siobhan O’Neill

School of Computing, Engineering and Intelligent Systems, Ulster University Magee Campus,

Derry/Londonderry, Northern Ireland

School of Psychology, Ulster University Coleraine Campus, Coleraine, Northern Ireland

Keywords: Social Signal Processing, Activity Recognition, MLP, Key Points, Feature Extraction.

Abstract: Human activity recognition has been an open problem in computer vision for almost two decades. In that time

there have been many approaches proposed to solve this problem, but very few have managed to solve it in a

way that is sufficiently computationally efficient for real time applications. Recently this has changed, with

keypoint based methods demonstrating a high degree of accuracy with low computational cost. These

approaches take a given image and return a set of joint locations for each individual within an image. In order

to achieve real time performance, a sparse representation of these features over a given time frame is required

for classification. Previous methods have achieved this by using a reduced number of keypoints, but this

approach gives a less robust representation of the individual’s body pose and may limit the types of activity

that can be detected. We present a novel method for reducing the size of the feature set, by calculating the

Euclidian distance and the direction of keypoint changes across a number of frames. This allows for a

meaningful representation of the individuals movements over time. We show that this method achieves

accuracy on par with current state of the art methods, while demonstrating real time performance.

1 INTRODUCTION

Human activity recognition, defined as the challenge

of classifying an individual’s activity from a video, is

one of the oldest problems in the field of video

processing, having been studied for almost two

decades. In that time there has been a number of

proposed approaches to solving this problem, with the

majority based on either spatio-temporal features

(Dollar et al., 2005; Laptev, 2004; Zelnik-Manor &

Irani, 2001), optical flow (Efros et al., 2003; Guo et

al., 2010; Ke et al., 2005; Schüldt et al., 2004; Wang

et al., 2011) or deep learning (D’Sa & Prasad, 2019;

Lee & Lee, 2019; Sheeba & Murugan, 2019; Subedar

et al., 2019). These methods have been shown to

achieve high accuracy on common benchmark

datasets but come with a significant computational

cost. As such, their use for real time applications is

limited.

Feature extraction is an approach to reduce

computational cost in image and video processing, for

example, by compressing an image into a sparse set of

interest points (Camarena et al., 2019). Early attempts

to do this used general interest point detectors such as

SIFT and SURF. However, these methods had a

number of drawbacks, most notably that there was no

agreed standard for human representation (Sun et al.,

2010). To solve these problems, specialized “key

point” detectors were developed, which can be applied

to an image and a set of locations of key body joints

for each individual within the image is returned. Two

of the most popular approaches are OpenPose (Cao et

al., 2017) and AlphaPose (Xiu et al., 2018).

Recently, (Camarena et al., 2019) presented an

approach for fast human activity recognition, based on

the method used in (Wang et al., 2013). In order to

speed up this approach, they used a reduced feature set

of six keypoints (those for the neck, right wrist, left

elbow, left wrist, mid hip and left ankle), generated

using OpenPose (Cao et al., 2017). In doing so they

reduced the number of features used by approximately

a factor of 5 and achieved an approximate 8 times

improvement in speed over the original method

(Wang et al., 2013), with a reduction in accuracy of

only 1.4%. This enabled the approach to run

sufficiently fast for real time classification, a

breakthrough for human activity recognition. In order

to achieve this speed gain, their approach only

sampled a small number of body keypoints. However,

by doing this, they have a less generalizable

Reid, S., Coleman, S., Kerr, D., Vance, P. and O’Neill, S.

Fast Human Activity Recognition.

DOI: 10.5220/0010420300910098

In Proceedings of the International Conference on Image Processing and Vision Engineering (IMPROVE 2021), pages 91-98

ISBN: 978-989-758-511-1

representation of the individuals body pose; this may

limit the type of activity that can be detected. For

example, in a situation where it is necessary to detect

whether an individual is kicking with their right leg,

this approach would struggle as they have extracted no

keypoints relating to the right leg. In contexts where it

is necessary to detect a large range of different actions,

using a reduced set of keypoints may not be feasible.

Recently the work of (Reid et al., 2020) showed

that by reducing the framerate and sample size used

for keypoint based activity recognition, the

computational cost can be reduced enough to perform

real time activity recognition on upwards of 14

individuals simultaneously. However, this approach

also comes with downsides, the most obvious of

which is that by reducing the sample rate in this way,

it may be difficult to detect actions which are

characterized by rapid movements, such as clapping,

where the movement may be completed between

frames being sampled. Earlier methods for

overcoming this issue using traditional keypoints

involved measuring keypoint trajectories, but these

approaches are limited by the fact that they are unable

to track specific landmarks (e.g elbows, hands etc.)

(Matikainen et al., 2009). Later improvements to such

methods achieved impressive accuracies on a number

of benchmark datasets but were still hampered by poor

run-time performance (Jain et al., 2013). Due the

recent breakthroughs in the area of human landmark

detection, keypoint trajectories are once again coming

into focus as a viable method for human action

recognition (Choutas et al., n.d.; Yi & Wang, 2018).

In this paper we present a keypoint trajectories

based approach that builds on the approach of (Reid et

al., 2020), where the set of key points for an

individual, extracted over a given time period, are

converted into a feature set of “keypoint changes”.

These keypoint changes encode a history of the

Euclidian distance and the direction of keypoint

movement, measured over time. We measure the

keypoint changes using a reduced sample rate and

reduced sample size, but we also measure the short

term keypoint changes between concurrent frames. In

this way we still maintain a sparse approach of (Reid

et al., 2020) but are also able to detect actions which

are characterised by rapid movements.

The remainder of the paper is organized as

follows. In Section 2 we outline the proposed

approach, and the experimental design. In Section 3

we present the performance evaluation results and

discussion. In Section 4 we compare the results with

other state-of-the-art methods. Finally, in Section 5 we

conclude the paper and discuss possible future work.

2 METHODOLOGY

This section will describe the proposed keypoint

based approach for fast human activity recognition

based on the history of keypoint changes over time in

terms of the Euclidian distance and direction. We use

OpenPose for keypoint extraction (Cao et al., 2017)

as it provides a high level of accuracy with very low

computational cost that remains constant when more

individuals are detected, unlike with other methods

such as AlphaPose (Xiu et al., 2018).

For each individual within an image OpenPose

extracts a set of 25 body keypoints. This method

works by first using a feedforward neural network to

predict a set of 2D confidence maps of body part

locations and a set of 2D vector fields of part affinity

fields (PAFs) which encode the degree of association

between parts. Then these confidence maps and the

PAFs are parsed by a greedy inference method to

output the 2D keypoints for all people in the image.

For more details on the model architecture please see

(Cao et al., 2017).

It is worth noting, however, that the novel

contributions of this paper are not reliant on any

specific keypoint estimation approach and can be

implemented with any methods, such as AlphaPose

(Xiu et al., 2018), Megvii (Cai et al., 2019), or similar

techniques. Regardless of the method used for

keypoint extraction, each keypoint is defined as:

𝑘





𝑥



,𝑦





(1)

where 𝑥



and 𝑦



are the image coordinates of the

extracted keypoint. We define the Euclidian distance

between two keypoints 𝑘

𝑖

and 𝑘

𝑗

as:

∆

𝑘

𝑖

,𝑘

𝑗

=



𝑥

𝑖

−𝑥

𝑗





𝑦

𝑖

−𝑦

𝑗



(2)

and the angle between them as:

𝜃

𝑘

𝑖

,𝑘

𝑗

=𝑎𝑡𝑎𝑛2

𝑦

𝑖

−𝑦

𝑗

𝑥

𝑖

−𝑥

𝑗



(3)

where atan2 is the function which returns the

unambiguous angle θ between the two keypoints on

the Euclidian plane. We can then define the keypoint

change between these two keypoints as:

𝑐𝑘

,

𝑘



=∆𝑘



,𝑘



,𝜃𝑘



,𝑘



 (4)

For two sets of keypoints L and M extracted for an

individual at time t and t-λ defined as:

𝐿



=𝑙



,𝑙



,𝑙



…𝑙





(5)

𝑀



=𝑚



,𝑚



,𝑚



…,𝑚





(6)

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

where 𝜆 is the time difference in seconds and 𝛾 is the

number of keypoints that are extracted (as we are

using OpenPose the value for 𝛾 used is 25). The set

of keypoint changes between L and M are calculated

as:

𝐶



𝐿



,𝑀





=𝑐



𝑙



,𝑚





,𝑐



𝑙



,𝑚





,𝑐



𝑙



,𝑚





,…𝑐𝑙



,𝑚





(

To compute the coarse representation of the

individual’s movement (in our experiments this was

done using a 0.2s time period) we calculate 15 such

sets of keypoint changes in order to build up a

temporal history. The final feature vector at time t is

defined as:

𝐶𝑜𝑎𝑟𝑠𝑒





𝐶



𝐿



,𝑀





,𝐶



𝐿



,𝑀





,…𝐶



𝐿



,𝑀





(8)

To compute the fine-grained representation of an

individual’s movement, again a set of 15 such

keypoint changes is used in order to build up a

temporal history of the individuals movement over

time. This feature vector is defined as:

𝐹𝑖𝑛𝑒





𝐶



𝐿



,𝑀





,𝐶



𝐿



,𝑀





,…𝐶



𝐿



,𝑀





(

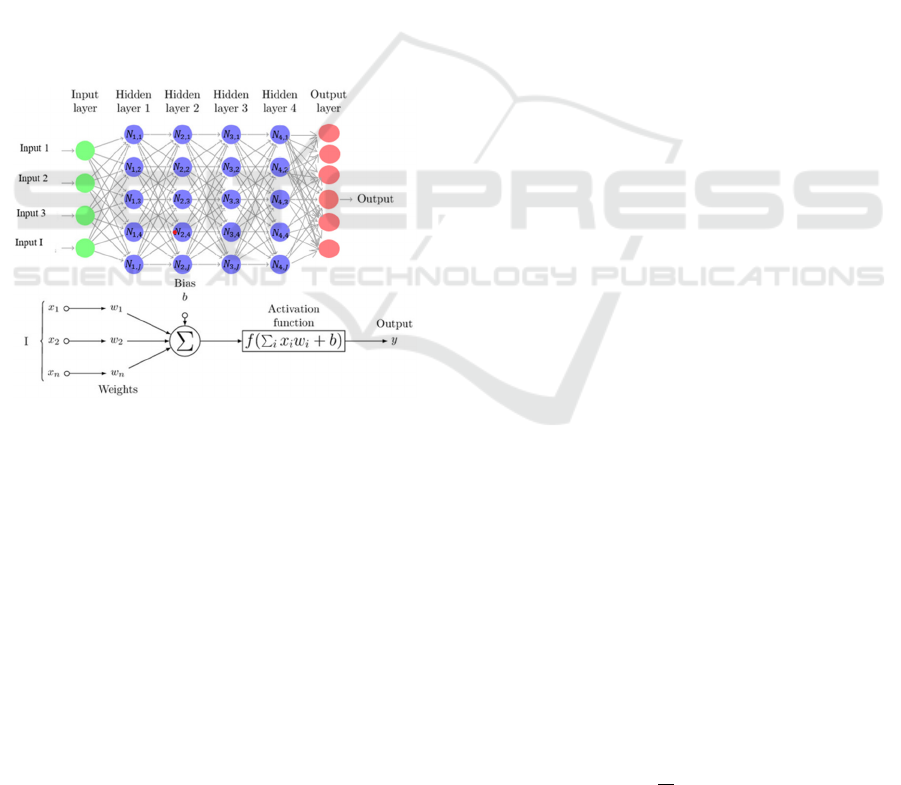

Figure 1: Graph representation of an MLP. The weights are

represented by the edges of the graph.

where 𝜀 is defined as a short time period such that 𝜀

𝜆 (in our experiments the value for 𝜆 was 0.2 seconds

and the value for 𝜀 was 0.04 seconds).

For the combined approach, the feature vector is

simply defined as:

𝐶𝑜𝑚𝑏𝑖𝑛𝑒𝑑





𝐶𝑜𝑎𝑟𝑠𝑒



,𝐹𝑖𝑛𝑒





(10)

These features were subsequently used to train a

multi-layer perceptron for classification.

Multilayer perceptron (MLP) refers to a

feedforward artificial neural network. Arguably one

of the simplest forms of an artificial neural network,

an MLP consists of at least three layers of neurons, an

input layer, a hidden layer and an output layer. Based

on the biological neural networks that make up the

brain (Minsky & Papert, 1988), MLPs are one of the

oldest methods for supervised machine learning.

Despite this they are still used for a large number of

problems, and serve as a foundation for deep learning

(Lin, Liang, 2020).

Figure 1 shows a simple graph representation of the

MLP algorithm, which can be briefly described at

follows. For an input vector of length I feeding into

a hidden layer of J neurons, we define a set of weights

𝑤

,

, where 𝑗 refers to the neuron in question and 𝑖

refers to the neuron in the previous layer to which j is

connected. Formally for input vector X defined as:

𝑋=



𝑥:𝑥 ∈

ℝ





(11)

The weights W with J rows and I columns can be

defined as:

𝑊=



𝑤:𝑤∈

ℝ





(12)

and the set of biases B defined as:

𝐵=



𝑏:𝑏∈

ℝ





(13)

The net inputs to a given neuron j are then calculated

as the sum of the inputs multiplied by their respective

weights plus the bias value:

𝑛𝑒𝑡



𝑗



=𝑥



.𝑤



+𝑏







(14)

The net output is then calculated using an activation

function F. In this paper we use a rectified linear

activation function defined as:

𝐹



𝑥



=max



0,𝑥



(15)

Therefore, the output for a given neuron j can be

expressed as:

𝑦



=𝐹𝑛𝑒𝑡



𝑗



 (16)

For a network with more than one hidden layer, the

output from the previous layer is used as the input for

the next layer. Thus, each hidden layer has its own set

of biases and weights. The final layer of the network

is the output layer and outputs the prediction of the

network. A SoftMax activation function was used on

the final layer to determine the prediction.

In order to train the network, the weights and

biases are updated via backpropagation, using a

stochastic gradient decent optimizer in order to

minimize the network loss function. In this paper we

use a sparse categorical cross entropy loss function

defined as:

𝐶𝐶𝐸



𝑦,𝑦





=−

𝑁

𝑦



∙𝐿𝑜𝑔𝑦









(17)

Fast Human Activity Recognition

where N is the number of elements in the training set,

𝑦 is the ground truth, 𝑦 is the estimate, log is the

natural log and ∙ is the inner product. The network is

trained over a maximum of 500 epochs, with early

stopping used to prevent overfitting.

3 EXPERIMENTAL SETUP

For the first experiment, a coarse representation of the

keypoint changes was used, as defined in equation 8.

The value used for λ was 0.2 seconds. This results in

an overall temporal history of 3 seconds, and the

resulting feature vector with 750 features.

For the second experiment, the fine-grained

representation defined in equation 9 was used. The

value used for λ was 0.2 seconds and the value used for

ε was 0.04. This enabled a finer grained representation

of the instantaneous change of the keypoint, while

maintaining a feature vector of 750 features.

For the final experiment, the combined approach

described in equation 10 was used. Again, the value for

λ was 0.2 seconds and the value for ε was 0.04 seconds.

The resulting feature vector contained a total of 1500

features. This enabled a more robust representation of

the keypoint changes over the given time period.

In each of the three experiments, these features

were subsequently used to train an MLP for activity

recognition. The network has four hidden layers,

each containing 450 neurons with a rectified linear

activation function. These parameters were optimized

using a grid search in order to maximize classification

accuracy. As discussed in Section 2, the network was

trained using a stochastic gradient descent optimizer

to minimize a sparse categorical cross entropy loss

function.

For our experiments, the data were split using

leave-one-out cross validation as recommended by

(Gao, Z., Chen, M. Y., Hauptmann, A. G., & Cai,

2010), where the set of videos for one individual is

used for testing and the rest are used for training. The

task therefore is to classify the activity exhibited by

an unknown individual. The model was trained over

a maximum of 500 epochs. In order to prevent

overfitting, early stopping was used if the training

accuracy failed to increase after 10 epochs.

4 ACCURACY EVALUATION

We evaluated the approaches on two simple but well-

known datasets, the KTH dataset (Schüldt et al.,

2004) and Weizmann dataset (Gorelick et al., 2007).

The KTH dataset contains short video clips of 6

distinct actions: Walking, Jogging, Running, Boxing,

Clapping and Waving. For each activity there are 25

sets of videos each containing a different individual.

Each video set contains 4 videos, each with a different

background: outdoors, outdoors with a different

scale, outdoors with different clothes and indoors.

This results in a total of 600 video clips, with an

average length of 4 seconds, recorded at a rate of

25fps. The videos have a resolution of 160x120

pixels. Figure 2 shows example frames from the

dataset. The results were validated using “leave one

out” cross validation, where 24 of the video sets were

used for training and one set was used for testing. The

OpenPose library (Cao et al., 2017) was used for

keypoint extraction as it provides a high degree of

accuracy with real time performance.

Boxing Clapping

Waving Walking

Jogging Running

Figure 2: Example frames of the six activities from the KTH

dataset.

The confusion matrix for the first experiment

(coarse approach), where the keypoint changes were

each calculated over a time period of 0.2 seconds, is

presented in Table 1. These results show that this

approach achieves a classification accuracy of > 93%

for four of the six activities. The average accuracy

across all activities for this approach was 92.7%. The

approach did struggle to differentiate between the

jogging and running activities as these activities

appear to be quite similar. However, this proposed

approach was still able to separate these two classes

with over 70% accuracy.

The results for the second experiment (fine

grained), where the keypoint changes were calculated

over a 0.04 second time period, are presented in Table

2. As can be seen from Table 2, the accuracy of the

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

approach decreased when the changes were

calculated over this shorter time period and the

approach again struggled to differentiate between the

running and jogging activities. However, the

accuracy of the three non-locomotion activities

(Boxing, Clapping and Waving), while lower than the

coarse 0.2 second approach, remained over 93%. The

average accuracy of this approach was 89.8%, a

reduction of ~3% compared to the coarse approach in

table 1. We postulate that this slight reduction in

accuracy may be due to the fine grain keypoint

changes not encoding as much temporal information

about the movement as the coarse representation.

Results for the third experiment (combined

approach) where the keypoint changes were

calculated over both a 0.2 second time period and

0.04 seconds are presented in Table 3. These results

show that using both sets of keypoint changes

resulted in an increase in classification accuracy for

all six classes. The classification accuracy for the

three non-locomotive classes is now over 96%.

Additionally, the accuracies for the three

locomotive activities are all over 80%. It is still

difficult to differentiate between the jogging and

running classes. However, this combined approach is

more accurate than both the coarse and fine grained

approaches individually. The average accuracy for

this approach was 94.2%. This is an increase of

~1.6% over the coarse approach, and ~4.6% over the

fine-grained approach.

It is worth noting that the approach of (Reid et al.,

2020) achieved a total accuracy of 90.2% on this

dataset. Our coarse approach detailed above

outperforms their method by >2% and the combined

approach improves upon that by ~4%, while still

using a reduced sample rate for action recognition.

To demonstrate that our proposed approach is not

dataset dependent, we also evaluated it using the

Weizmann dataset (Gorelick et al., 2007). This

dataset contains short video clips of 9 distinct actions:

walking, running, jumping, stepping sideways,

bending, waving with one hand, waving with two

hands, jumping in place, jumping jack and skipping.

For each activity there are 10 sets of videos, each

containing a different individual. This results in a

dataset of 90 videos, recorded at a rate of 50fps

interlaced. The videos had a resolution of 180 x 144

pixels. Again, “leave one out” cross validation was

used to verify the results, with one set used for testing

and nine sets used for training.

The results from the first experiment (coarse

approach), where the keypoint change was measured

over 0.2 seconds are presented in Table 4. As can be

seen, the accuracy of the approach for the Weizman

Table 1: Coarse Approach.

Coarse Approach

Walk Jog Run Box Clap Wave

Walk 94.0 4.7 0.57 0.45 0.18 0.11

Jog 10.5 78.7 10.1 0.41 0.12 0.14

Run 4.02 22.4 72.8 0.35 0.17 0.18

Box 1.23 0.23 0.12 96.8 1.14 0.52

Clap 0.83 0.13 0.1 0.83 94.9 3.2

Wave 0.63 0.12 0.08 0.41 2.68 96.1

Total Accuracy 92.7%

Table 2: Fine Grained approach.

Fine Grained approach

Walk Jog Run Box Clap Wave

Walk 87.9 13.0 2.33 0.88 0.36 0.12

Jog 8.05 67.5 22.8 0.34 0.26 0.07

Run 1.25 17.5 72.3 0.24 0.24 0.05

Box 1.62 1.07 0.93 94.8 1.32 1.31

Clap 0.62 0.38 0.74 1.88 93.9 3.02

Wave 0.60 0.58 0.87 1.87 3.89 95.4

Total Accuracy 89.8%

Table 3: The combined approach accuracy results for the

KTH dataset.

Combined approach

Walk Jog Run Box Clap Wave

Walk 94.3 4.49 0.65 0.37 0.12 0.08

Jog 7.61 82.6 9.41 0.29 0.08 0.06

Run 2.44 17.0 80.1 0.31 0.1 0.11

Box 1.1 0.12 0.06 97.4 0.76 0.58

Clap 0.2 0.03 0.02 0.55 96.4 2.81

Wave 0.15 0.02 0.01 0.35 2.34 97.1

Total Accuracy 94.2%

dataset was significantly lower than for the previous

dataset. This may be due to two factors: firstly the size

of the dataset was significantly smaller, only 90

videos as opposed to 600 in the KTH dataset, and

secondly the duration of the videos was much shorter,

averaging ~2 seconds per activity rather than the ~4

seconds for the KTH dataset. This makes it difficult

for our approach to build a complete history of the

keypoint changes for the action. However, the

Fast Human Activity Recognition

approach still achieved an accuracy of ~70%, with the

majority of classes being classified correctly.

Like the KTH dataset, it was difficult for the

coarse approach differentiate between activities

which were similar in appearance. The two waving

activities, waving with one hand and waving with two

hands, were very similar, with below 50% accuracy

for both activities. Additionally, the three locomotive

activities, skipping, running, and walking had a large

degree of similarity with each other, as with the KTH

dataset. The skipping activity also had a large degree

of similarity to the jumping activity.

The results for the second experiment (fine grained

approach) where the keypoint change was measured

over 0.04 seconds, are presented in Table 5. As can be

seen, the average accuracy of this approach was

approximately 2% higher than for the coarse 0.2

second approach. The confusion between the two hand

waving classes was significantly lower than with the

coarse approach. However, the confusion between the

skipping and running classes was significantly higher.

These results indicate that the effectiveness either

coarse or fine grained keypoint changes depends on the

activities which are being classified.

The results for the third experiments (combined

approach), where the keypoint changes were

calculated over 0.2 seconds (coarse) and 0.04 seconds

(fine) are presented in Table 6. As can be seen, this

approach outperformed both other approaches by a

significant margin. The average classification

accuracy was ~7% higher than the fine-grained

approach, and ~9% more accurate than the coarse

approach. The accuracy for every activity was

significantly higher than for either method

individually. There is still some confusion between

classes which are similar in appearance, with the skip

class having high confusion with both the running and

jumping classes. However, this was significantly

lower than for the other two approaches individually.

These results show that using the combined key

point changes can result in a significant improvement

in classification accuracy while still maintaining a

sparse representation of the video frame. This may be

because certain activities are easily identifiable when

observed over a long period, whereas other activities

are more easily identified over a shorter period. For

example, the two hand waving activities were more

easily identified when keypoint changes are

calculated over a shorter time period, whereas the

locomotion activities were more easily identified over

a larger time period. By calculating the changes over

both short and long time periods, the MLP can more

easily differentiate between both sets of activities,

thus improving the average accuracy.

Table 4: Coarse approach.

Table 5: Fine grained approach.

Table 6: The combined approach accuracy results for the

Weizman dataset.

5 RUNTIME EVALUATION

We computed the computation time of the combined

approach using the Weizmann dataset which consists

of 5701 frames. Experiments were conducted on an

Intel XeonE5-1620 PC running Ubuntu version

18.04.3. The GPU used was a Nvidia Titan Xp with

16GB RAM. This is consistent with other approaches

such as (Camarena et al., 2019) who also used GPU

accelerated hardware when testing the runtime of

their approach. The time taken for the OpenPose

library to compute the key points for the entire set was

227.3 seconds. This is a rate of 39.8ms per frame and

represents the most significant bottleneck of this

approach. The time taken to compute the set of

keypoint changes for the entire dataset is 1.7 seconds;

approximately 0.3ms per frame. Additionally, it takes

the MLP algorithm 1 second to classify the activities

for the test set, which consists of 701 frames.

Therefore, classification is performed at a rate of

1.39ms. The total computation time for the entire

pipeline is 41.5ms per frame; 24.0 frames per second.

The runtime for the KTH dataset was also calculated

and found to be the same. Hence, the approach is fast

enough to perform activity recognition in real time.

Bend Jack Jump P.Jump Run Slide Skip Walk Wave 1 Wave 2

Bend 85.3% 0.3% 6.3% 0.2% 0.2% 0.9% 1.9% 0.3% 1.7% 3.0%

Jack 0.3% 92.0% 0.5% 5.5% 0.0% 1.0% 0.0% 0.0% 0.4% 0.3%

Jump 1.7% 0.7% 77.9% 0.0% 0.7% 2.2% 13.3% 2.4% 0.4% 0.7%

P.Jump 0.0% 11.2% 0.7% 76.4% 0.0% 1.1% 0.0% 0.0% 0.4% 10.2%

Run 0.0% 0.2% 6.6% 0.0% 51.2% 4.4% 18.0% 19.0% 0.2% 0.2%

Slide 0.0% 0.5% 3.6% 0.0% 4.1% 84.0% 2.3% 2.9% 2.0% 0.7%

Skip 1.0% 0.2% 19.2% 0.0% 13.9% 3.1% 46.3% 10.6% 5.3% 0.4%

Walk 0.0% 0.0% 2.7% 0.0% 10.5% 1.8% 5.2% 79.7% 0.1% 0.0%

Wave 1 2.5% 1.2% 1.7% 1.5% 0.0% 2.0% 1.4% 0.5% 46.4% 42.9%

Wave 2 5.4% 3.8% 1.1% 5.1% 0.0% 2.1% 1.1% 0.0% 32.9% 48.4%

Total Accuracy 69.6%

Bend Jack Jump P.Jump Run Slide Skip Walk Wave 1 Wave 2

Bend 86.5% 0.9% 0.0% 6.4% 0.0% 0.2% 1.3% 3.0% 0.5% 1.3%

Jack 0.4% 90.5% 0.0% 7.8% 0.0% 0.1% 0.7% 0.0% 0.0% 0.4%

Jump 0.0% 0.0% 60.9% 8.7% 2.0% 0.0% 24.5% 3.9% 0.0% 0.0%

P.Jump 0.6% 6.1% 0.2% 91.4% 0.0% 0.0% 0.9% 0.0% 0.0% 0.7%

Run 0.0% 0.0% 7.1% 9.8% 40.5% 0.7% 35.1% 6.8% 0.0% 0.0%

Slide 0.0% 8.8% 0.9% 9.0% 0.5% 77.9% 1.8% 1.1% 0.0% 0.0%

Skip 0.0% 0.0% 20.0% 8.2% 24.7% 0.4% 37.6% 9.2% 0.0% 0.0%

Walk 0.1% 0.0% 3.1% 5.6% 1.4% 0.6% 4.7% 84.2% 0.1% 0.1%

Wave 1 0.6% 0.0% 0.0% 6.3% 0.0% 0.6% 0.8% 2.3% 73.4% 16.1%

Wave 2 3.7% 1.9% 0.2% 8.2% 0.0% 0.3% 1.0% 0.8% 29.8% 54.2%

Total Accuracy 71.9%

Bend Jack Jump P.Jump Run Slide Skip Walk Wave 1 Wave 2

Bend 90.1% 0.3% 2.2% 0.0% 0.3% 1.4% 2.3% 0.3% 1.6% 1.4%

Jack 0.3% 95.9% 0.1% 1.6% 0.0% 1.2% 0.0% 0.0% 0.4% 0.4%

Jump 1.3% 0.4% 78.6% 0.2% 2.4% 2.4% 14.0% 0.4% 0.0% 0.2%

P.Jump 0.0% 2.8% 0.2% 94.4% 0.0% 1.7% 0.0% 0.0% 0.0% 0.9%

Run 0.2% 0.0% 0.7% 0.0% 56.1% 3.2% 22.9% 16.6% 0.0% 0.2%

Slide 0.0% 0.2% 2.3% 0.0% 2.3% 92.1% 0.9% 1.1% 0.7% 0.5%

Skip 1.2% 0.0% 17.8% 0.0% 18.6% 2.4% 49.8% 9.6% 0.0% 0.6%

Walk 0.0% 0.0% 1.1% 0.0% 8.9% 2.0% 2.4% 85.6% 0.0% 0.0%

Wave 1 0.8% 0.0% 0.5% 0.2% 0.0% 3.2% 0.5% 0.2% 75.8% 19.0%

Wave 2 2.1% 2.4% 0.8% 0.3% 0.0% 3.2% 1.6% 0.0% 30.6% 59.0%

Total Accuracy 79.0%

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

Table 7 presents comparative results for the

proposed approach and other state of the art

approaches using the KTH dataset. Table 7 shows that

the approach of Wang et al., (Wang et al., 2013)

achieves an accuracy of 95.7%. While this is higher

than the proposed approach, the computational cost of

this method prevents it from running in real time. We

also compare our approach with that in (Reid et al.,

2020) who used a reduced sample rate and sample

size to achieve real time performance using body

keypoints. The proposed approach performs

significantly better, indicating that the use of keypoint

changes is a more robust alternative to simply

reducing the sample rate and sample size while

maintaining the real-time performance.

Table 7: Comparison of approaches on the KTH dataset.

Performance evaluation using the KTH

dataset

Approach Accuracy Speed/FPS

(Wang et al., 2013) 95.7% 3

(Reid et al., 2020) 90.2% 24

Keypoint Changes

94.2% 24

6 CONCLUSION

We have presented a method for human activity

recognition based on calculating the key points

changes (Euclidean distance and angle). We have

shown that this approach achieves accuracy on par

with current state of the art methods, while using a

sparse representation. Further, we have conducted

run-time experiments and shown that this method is

sufficiently fast enough for real time applications. In

future work we will investigate how this approach

performs for multi-person activity recognition and

adapt this approach for more complex activities and

scenes involving one or more people.

REFERENCES

Cai, Y., Wang, Z., Yin, B., Yin, R., Du, A., Luo, Z., Li, Z.,

Zhou, X., Yu, G., Zhou, E., Zhang, X., Wei, Y., & Sun,

J. (2019). Res-steps-net for multi-person pose

estimation. Joint COCO and Mapillary Workshop at

ICCV 2019: COCO Keypoint Challenge Track.

Camarena, F., Chang, L., & Gonzalez-Mendoza, M. (2019).

Improving the dense trajectories approach towards

efficient recognition of simple human activities. 2019

7th International Workshop on Biometrics and

Forensics (IWBF), 1–6.

Cao, Z., Simon, T., Wei, S. E., & Sheikh, Y. (2017).

Realtime multi-person 2D pose estimation using part

affinity fields. IEEE/CVF Conference on Computer

Vision and Pattern Recognition (CVPR), 7291–7299.

Choutas, V., Weinzaepfel, P., Revaud, J., & Schmid, C.

(n.d.). PoTion: Pose MoTion Representation for Action

Recognition.

D’Sa, A. G., & Prasad, B. G. (2019). An IoT Based

Framework For Activity Recognition Using Deep

Learning Technique. In ArXiv Preprint.

http://arxiv.org/abs/1906.07247

Dollar, P., Rabaud, V., Cottrell, G., & Belongie, S. (2005).

Behavior recognition via sparse spatio-temporal

features. 2005 IEEE International Workshop on Visual

Surveillance and Performance Evaluation of Tracking

and Surveillance, 65–72.

Efros, A. A., Berg, A. C., Mori, G., & Malik, J. (2003).

Recognising Action at a distance. Proceedings Ninth

IEEE International Conference on Computer Vision, 2,

726–733. https://doi.org/10.1017/s1358246107000136

Gao, Z., Chen, M. Y., Hauptmann, A. G., & Cai, A. (2010).

Comparing evaluation protocols on the KTH dataset.

International Workshop on Human Behavior

Understanding, 88–100.

Gorelick, L., Blank, M., Shechtman, E., Member, S., Irani,

M., & Basri, R. (2007). Actions as space time shapes.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 29(12), 2247–2253. https://doi.org/

10.1109/TPAMI.2007.70711

Guo, K., Ishwar, P., & Konrad, J. (2010). Action

recognition using sparse representation on covariance

manifolds of optical flow. Proceedings - IEEE

International Conference on Advanced Video and

Signal Based Surveillance, AVSS 2010, 188–195.

https://doi.org/10.1109/AVSS.2010.71

Jain, M., Jégou, H., & Bouthemy, P. (2013). Better

exploiting motion for better action recognition.

https://doi.org/10.1109/CVPR.2013.330

Ke, Y., Sukthankar, R., & Hebert, M. (2005). Efficient

Visual Event Detection Using Volumetric Features.

Tenth IEEE International Conference on Computer

Vision (ICCV’05), 166–173. https://doi.org/10.1109/

CVPR.2007.383137

Laptev, I. (2004). Local Spatio-Temporal Image Features

for Motion Interpretation.

Lee, D. G., & Lee, S. W. (2019). Prediction of partially

observed human activity based on pre-trained deep

representation. Pattern Recognition, 85, 198–206.

https://doi.org/10.1016/j.patcog.2018.08.006

Lin, Liang, et al. (2020). The Foundation and Advances of

Deep Learning. In Human Centric Visual Analysis with

Deep Learning (pp. 3-13.).

Matikainen, P., Hebert, M., & Sukthankar, R. (2009).

Trajectons: Action recognition through the motion

analysis of tracked features. 2009 IEEE 12th

International Conference on Computer Vision

Workshops, ICCV Workshops 2009, 514–521.

https://doi.org/10.1109/ICCVW.2009.5457659

Fast Human Activity Recognition

Minsky, M. L., & Papert, S. A. . (1988). Perceptrons:

expanded edition.

Reid, S., Vance, P., Coleman, S., Kerr, D., & O’Neill, S.

(2020). Towards real time activity recognition.

Procedings of the Fourth IEEE International

Conference on Image Processing, Applications and

Systems (IPAS 2020), In Press.

Schüldt, C., Laptev, I., & Caputo, B. (2004). Recognizing

human actions : A local SVM approach. Proceedings of

the 17th International Conference on Pattern

Recognition (ICPR), 3(September 2004), 32–36.

https://doi.org/10.1109/ICPR.2004.1334462

Sheeba, P. T., & Murugan, S. (2019). Fuzzy dragon deep

belief neural network for activity recognition using

hierarchical skeleton features. Evolutionary

Intelligence, 0123456789, 1–18. https://doi.org/

10.1007/s12065-019-00245-2

Subedar, M., Krishnan, R., Meyer, P. L., Tickoo, O., &

Huang, J. (2019). Uncertainty-aware Audiovisual

Activity Recognition using Deep Bayesian Variational

Inference. Proceedings of the IEEE International

Conference on Computer Vision, 6301–6310.

Sun, J., Mu, Y., Yan, S., & Cheong, L. F. (2010). Activity

recognition using dense long-duration trajectories.

2010 IEEE International Conference on Multimedia

and Expo, ICME 2010, 322–327. https://doi.org/

10.1109/ICME.2010.5583046

Wang, H., Kläser, A., Schmid, C., & Liu, C. (2013). Dense

Trajectories and Motion Boundary Descriptors for

Action Recognition. 60–79. https://doi.org/10.1007/

s11263-012-0594-8

Wang, H., Kläser, A., Schmid, C., & Liu, C. L. (2011).

Action recognition by dense trajectories. Proceedings

of the IEEE Computer Society Conference on Computer

Vision and Pattern Recognition, 3169–3176.

https://doi.org/10.1109/CVPR.2011.5995407

Xiu, Y., Wang, H., & Lu, C. (2018). Pose Flow : Efficient

Online Pose Tracking. British Machine Vision

Conference, 1–12.

Yi, Y., & Wang, H. (2018). Motion keypoint trajectory and

covariance descriptor for human action recognition.

Visual Computer, 34(3), 391–403. https://doi.org/

10.1007/s00371-016-1345-6

Zelnik-Manor, L., & Irani, M. (2001). Event-based analysis

of video. Proceedings of the IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition, 2(1229), 123–130. https://doi.org/

10.1109/cvpr.2001.990935

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering
