Insights with Big Data Analysis for Commercial Buildings Flexibility

in the Context of Smart Cities

Simona-Vasilica Oprea, Adela Bâra, Cătălin Ceaparu, Anca Alexandra Ducman, Vlad Diaconița

and Gabriela Dobrița Ene

Department of Economic Informatics and Cybernetics, Bucharest University of Economic Studies,

Romana Square 6, Bucharest 010374, Romania

diaconita.vlad@ie.ase.ro, gabrielaene02@gmail.com, simona.oprea@csie.ase.ro

Keywords: Big Data Processing, Analytics, Load Flexibility, Market Value, Commercial Buildings.

Abstract: The commercial buildings generate a significant volume of data that can be processed to assess the flexibility

of the electricity consumption and their potential contribution to flatten the load curve or provide ancillary

services. With the constant increase of the volatile output of the Renewable Energy Sources (RES) and

numerous Electric Vehicles (EV), the flexibility potential of the commercial buildings has to be investigated

to create smarter green cities. However, the volume of consumption data is significantly increasing when

various activities are profiled, such as cooling, heating, fans, lights, equipment, etc. In this paper, we propose

a big data processing framework or methodology to extract interesting insights from very large datasets and

identify the flexibility of the commercial buildings (of several types from the United State of America –

U.S.A.) and its market value in correlation with the Demand Response (DR) capabilities at the state and

Independent System Operator (ISO) level. This is a theoretical approach combining several aspects, such as:

large datasets processing techniques, DR programs, consumption data, flexibility potential estimation,

scenarios and DR enabling technologies costs. Applying one of the DR programs, significant results in terms

of savings are revealed from simulations.

1 INTRODUCTION

In regulated power systems, load was not a

controllable asset due to the high predictability of the

operation context. However, when most of the power

systems are deregulated, with an increasing volume

of RES and modern electric appliances that allow

considerable storage, the load becomes an important

factor to handle the challenges regarding power

system balancing, load curve peaks, electricity price

volatility, etc. (Hao, Corbin, Kalsi, & Pratt, 2017). In

the U.S.A., buildings represent a significant share in

the energy use and account for 72% of electricity and

36% of gas. On average, buildings account for 40%

of energy use. According to (Kahn, Kok, & Quigley,

2013), about 41% of the commercial building load in

the U.S.A. is represented by HVAC. In addition, at

the European Union level, gas has the highest share

of energy use in buildings, whereas the second

highest share of energy use is electricity (European

Commission, n.d.). Thus, the building consumption

data has to be investigated to understand buildings

potential in terms of flexibility and demand response.

The Department Of Energy (DOE) from the

U.S.A. within the Building Technologies program

prepares the datasets aiming to enhance the energy

efficiency in buildings. The data profiles represent the

reference models for 16 building types: 15

commercial buildings and 1 multifamily residential

building (Office of Energy Efficiency & Renewable

Energy (EERE), n.d.), (National Renewable Energy

Laboratory, 2011a). Also, several classifications of

the buildings are proposed in (Alves, Monteiro, Brito,

& Romano, 2016; Heinzerling, Schiavon, Webster, &

Arens, 2013; Pääkkönen & Pakkala, 2015). The

buildings are spread in 936 locations covering all

U.S.A. climate areas. The load profile consists in

totals for electricity and gas. Moreover, detailed

information regarding electricity and gas

consumption are stored, such as cooling, heating,

lights, equipment, water heater, etc. as in Table 1. The

existence of the two sources gas and electricity allow

the thermal energy storage using the water heater

tanks (Heier, Bales, & Martin, 2015) and also Power-

to-Gas (P2G) conversion, but these approaches are

outside the scope of this paper.

118

Oprea, S., Bâra, A., Ceaparu, C., Ducman, A., Diaconit

a, V. and Dobrit

a Ene, G.

Insights with Big Data Analysis for Commercial Buildings Flexibility in the Context of Smart Cities.

DOI: 10.5220/0010409801180124

In Proceedings of the 10th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2021), pages 118-124

ISBN: 978-989-758-512-8

The consumption data could be combined with

weather forecast that can be scraped from various

web services considering the main climatic areas

(National Renewable Energy Laboratory, 2011b) and

flexibility potential estimation in different studies

(Ryan Hledik Ahmad Faruqui, 2019), (Hledik,

Faruqui, Lee, & Higham, 2019) as in Figure 1

providing interesting insights into the demand

response level of the commercial buildings.

Also, the consumption datasets could be grouped

by the Independent System Operators (ISO) that

manage the area where consumers are located as in

Figure 2 and combined with DR enabling

technologies costs (Potter & Cappers, 2017) to

identify the net benefits that commercial buildings

can obtain from shimmy, shed and shift of the flexible

appliances. However, the very large and various

datasets that are continuously flowing from meters

and other sensors require big data processing

(Pääkkönen & Pakkala, 2015), (Mathew et al., 2015),

(Linder, Vionnet, Bacher, & Hennebert, 2017).

Therefore, this is a theoretical approach that

combines different aspects to identify the flexibility

potential and possible outcome of the commercial

buildings for a specific area. Considering the large

datasets, big data techniques are required.

Figure 1: Demand response capability estimation in 2017

(Hledik et al., 2019).

Figure 2: Independent System Operators.

2 BIG DATA METHODOLOGY

TO HANDLE VERY LARGE

DATASETS

Big Data consists of datasets whose size and structure

exceed the processing capacities of traditional

programs (databases, software, etc.) for the

collection, storage and processing of data in a

reasonable time. The data can be structured, semi-

structured and unstructured, and this division makes

it impossible to manage and process efficiently with

traditional technology.

When discussing about the analysis of large

datasets, we can say that there is no commonly

agreed, standard methodology of analysis that can be

followed. On a regular basis, when the business

requirement is defined, an analysis process takes

place to outline the methodology that can be used.

The following steps were followed for the current

study.

2.1 Analysis of the Datasets

It is important to identify from the beginning what

type of data we will work with (structured,

unstructured, semi-structured) and what its volume is.

We also need to know if we are handling data in

motion or data at rest and how they are

sent/organized/stored.

Once the data type is clarified, the next step is to

clean up the datasets. The data-cleaning process is a

mandatory prerequisite, and it represents the perfect

way to kick off the analysis. This ensures the

accuracy of the datasets that are going to be analysed.

Through this process, data is filtered appropriately,

and the outcome is free of invalid, old/obsolete and

doubtful data. However, one has to keep in mind that

the reliability of the input data is closely related to the

source of their acquisition. Therefore, as a general

rule of thumb, we need to ensure from the beginning

that the latest, most complete and auditable datasets

are used for the analysis.

For the current study, the data analysed has the

following coordinates: it is structured data, at rest,

stored in .csv format. The datasets contain a number

of 14,976 .csv files with a total of 131.18 million

records. Given the large volume of the datasets,

above-average computing resources were required.

The working station used for processing having the

following configuration: two processors @2.5GHz

having 20 cores and 40 logical processors, a RAM

memory of 64.0 GB, a video card with 8 GB

dedicated memory and a storage capacity of 2.5 TB.

Insights with Big Data Analysis for Commercial Buildings Flexibility in the Context of Smart Cities

119

Additionally, just to follow on the above-mentioned

process, it is worth mentioning that no clean-up

process was needed, as the datasets were created for

research. The data structure of the .csv files is provided

in Table 1. Therefore, fans, cooling and heating

consumption from Table 1 are assumed to be flexible

and targeted for DR programs. The volume of data

profiles for commercial buildings is over one hundred

three thousand million records as they classify into 16

categories of buildings (as in Table 2) and 936 main

locations of the U.SA. The profile is done at hourly

resolution for 8760 hours. The datasets for commercial

buildings represent a multi-year reference by location,

created for modelling (Touzani, Granderson, &

Fernandes, 2018) and research.

Table 1: Consumption breakdown for commercial

buildings.

No. Columns in the datasets

1 Date/Time

2 Electricit

:Facilit

3 Fans:Electricit

4 Coolin

:Electricit

5 Heating:Electricit

6 InteriorLights:Electricit

7 InteriorE

ment:Electricit

8 Gas:Facilit

9 Heatin

:Gas

10 InteriorEquipment:Gas

11 Water Heater:WaterSystems:Gas

Table 2: Categories of buildings.

No. Cate

1 Small Office

2 Medium Office

3 Large Office

4 Primary School

5 Secondar

School

6 Stan

-A lone Retail

7 Stri

Mall

8 Supermarket

9 Quick Service Restaurant

10 Full Service Restaurant

11 Small Hotel

12 Lar

e Hotel

13 Hos

ital

14 Outpatient Healthcare

15 Warehouse

16 Midrise A

artment

2.2 Data Pre-processing

This stage is an important one and it involves

structuring data into appropriate formats and types.

As previously mentioned, when performing an

analysis, we may encounter structured, semi-

structured and unstructured data. Data pre-processing

is done through normalization and aggregation

techniques. This transformation process ensures data

is easily readable by the applied processing

algorithms.

Pre-processing for this study consisted in

preparing the data for analysis, by extracting files

from archives and renaming them (prefixing with the

file name) as in Figure 3. This process was mandatory

as it prevented potential cases of data overwriting

after extracting it from the various archive (files with

the same name, but belonging to different locations).



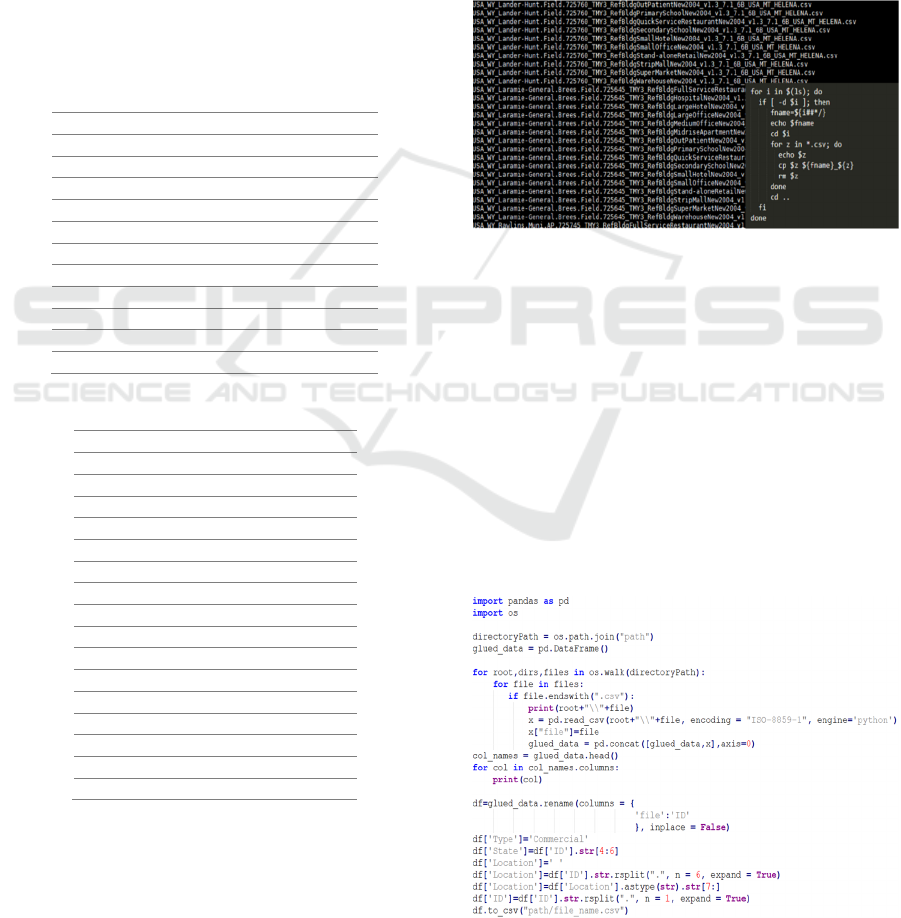

Figure 3: Extracting and renaming .csv files.

The files have been processed to add information

about the U.S.A state, as well as the city where the

consumption took place. Additional checks and

renaming were performed on the structure of data and

labels as in Figure 4, as well as for the identification

and replacement of null values, when needed. Once

the pre-processing was over, it could be observed that

the volume of the data files increased and went more

than double (from 15 GB to 35 GB). Subsequently, in

order to provide flexibility when choosing the most

appropriate analysis techniques and tools, a large .csv

file was created by merging all the .csv files as in

Figure 5.



Figure 4: Python code for data pre-processing.



SMARTGREENS 2021 - 10th International Conference on Smart Cities and Green ICT Systems

120



Figure 5: Code for .csv merge.

2.3 Data Processing (Tool,

Technologies, and Frameworks)

A great variety of tools can be used for the analysis of

a large set of data, all of them depending on the nature

of the topic/context that needs to be solved. However,

as a mandatory step, we must consider the computing

power resources before choosing the right framework

and processing tools. Opting for the most appropriate

technology has to rely on a detailed analysis which

should identify both the problem that has to be solved,

as well as the volume of data that needs to be process

and the available resources.

For our data analysis, Hadoop and Python are

successfully used. Files were stored in HDFS and

Figure 6: Statistics for .csv read performance Dask vs

Pandas.

analysis was performed in Python using Pandas and

Dask (that is an open-source library for parallel

computing) to save both time and resources. For data

representation Tableau or Power BI can be also used,

but we extracted graphics with Python libraries such

as Matplotlib or Seaborn. Time for reading multiple

files reduces significantly with Dask as in Figure 6.

An alternative for this kind of processing can be

provided by analysis done with Hive. The data can be

imported into a Hive table and then analysed either

through Hive SQL queries or using Spark.

3 SIMULATION AND RESULTS

First, we started the analysis on the reduced dataset

by generating descriptive statistics as in Table 3.

Consumption values for each category were

calculated on monthly and hourly intervals as in

Figures 7 and 8. A downward curve for gas

consumption can be observed during the warm and

hot times of the year (later spring, summer, early fall),

whereas, during that same period, the electricity goes

on an upward curve. This surplus of the electricity is

directly influenced by Cooling, that is specific for the

hot months of the year.

Figure 7: Monthly consumption.

It can be observed that main electricity

consumption hours are between 5 AM – 10 PM, with

peaking trends between 8 AM –9 PM. Gas peak hours

are noticed especially in the morning, around 7 AM

and in the evening.

Table 3: Descriptive statistics.

count(millions) mean std min 25% 50% 75% Max

Electricity:Facility 131.2 203.36 326.97 0.00 25.63 62.47 218.63 2005.33

Fans:Electricity 131.2 17.22 27.37 0.00 0.56 4.63 26.80 377.56

Cooling:Electricity 131.2 56.08 136.25 0.00 0.00 0.16 23.97 1028.13

Heating:Electricity 131.2 1.12 7.53 0.00 0.00 0.00 0.00 326.60

InteriorLights:Electricity 131.2 41.00 74.97 0.00 3.79 15.86 43.51 448.57

InteriorEquipment:Electricity 131.2 53.20 83.21 0.00 8.09 20.64 53.24 448.57

Gas:Facility 131.2 96.30 204.76 0.00 2.19 18.20 88.33 5292.60

Heating:Gas 131.2 67.74 183.82 0.00 0.00 0.02 52.18 5281.64

InteriorEquipment:Gas 131.2 10.16 18.42 0.00 0.00 2.34 9.91 91.80

Water Heater:WaterSystems:Gas 131.2 18.40 57.80 0.00 0.02 1.17 9.63 783.88

Insights with Big Data Analysis for Commercial Buildings Flexibility in the Context of Smart Cities

121

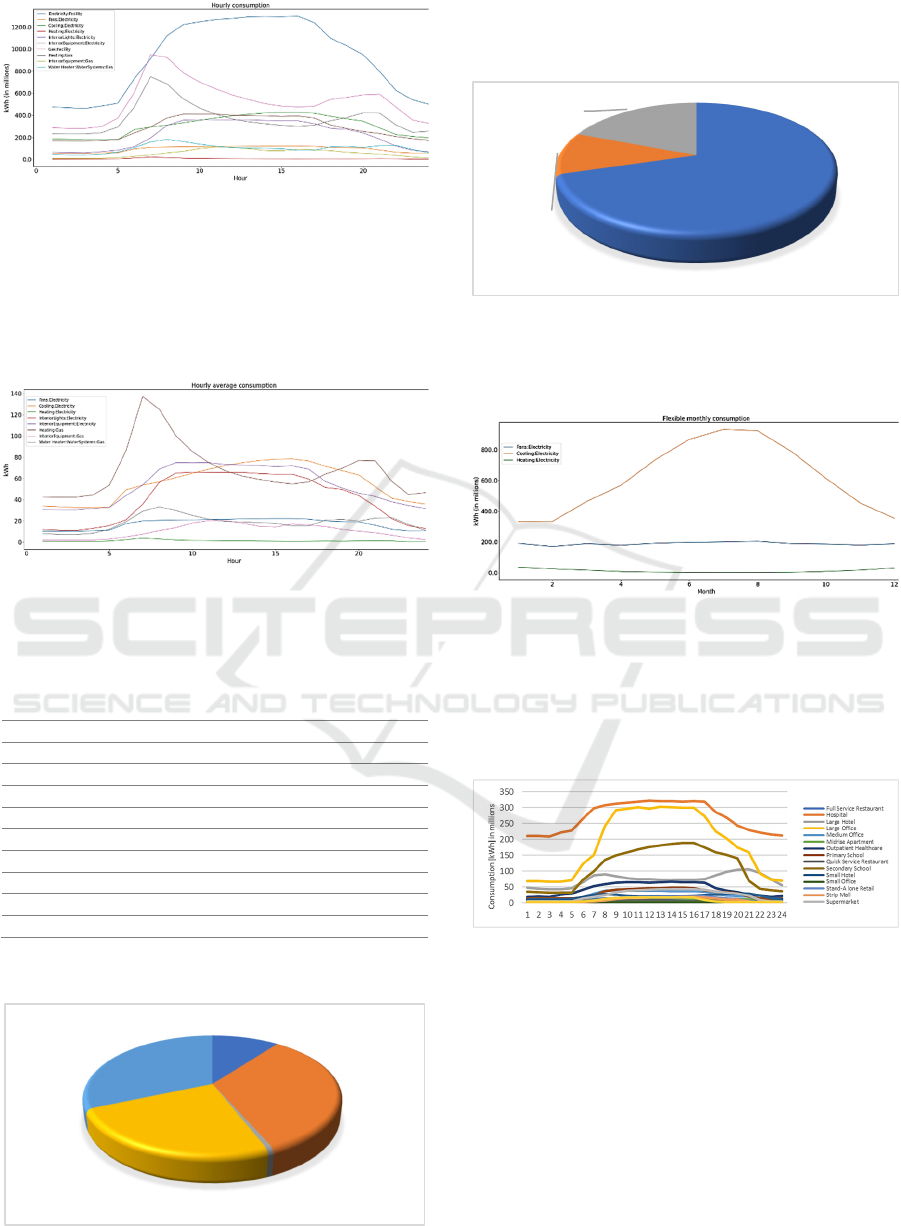

Figure 8: Hourly consumption.

The hourly average consumption at the appliances

level is provided in Figure 9. We can notice that the

electricity load peak is heavily influenced by

InteriorLights, InteriorEquipment (non-controllable)

and Cooling that is controllable. Also, Heating

significantly influences the gas load peak.

Figure 9: Hourly average consumption.



The total consumption and its breakdown for

electricity and gas are provided in Table 4.

Table 4: Total consumption.

Electricity:Facility 22,121,741,306.97

Fans:Electricit

2,259,308,217.61

Coolin

:Electricit

7,357,244,868.11

Heatin

:Electricit

146,757,948.57

InteriorLights:Electricit

5,378,513,423.55

InteriorEquipment:Electricit

6,979,916,849.15

Gas:Facilit

12,633,452,795.87

Heatin

:Gas 8,887,262,369.10

InteriorE

ment:Gas 1,332,694,124.33

Water Heater:WaterS

stems:Gas 2,413,496,302.44

The graphical breakdown on electricity and gas

consumption is provided in Figures 10 and 11.



Figure 10: Electricity Facility – Components.

It can be observed that flexible consumption

(Fans, Cooling and Heating consumption from Table

1) represents 44% of total electricity consumption.

Figure 11: Gas Facility – Components.

The largest share is held by Cooling, with a large

increase during the hot months as in Figure 12.

Figure 12: Flexible monthly consumption.

Grouping the electricity and gas consumption by

building type, we can notice that Hospital, Large

Office, Secondary School and Large Hotel have the

largest share in both cases as in Figure 13 and Figure

14.

Figure 13: Hourly electricity consumption per building

type.

The Heating, Cooling and Fans consumptions are

analysed from the flexibility point of view. The

hourly flexibility capability for commercial buildings

is shown also in Figure 15. It represents around 44%

of the total consumption. Grouping the flexibilities by

ISO (as in Figure 2), ERCOT and SOUTHEAST have

higher total flexibility (51%) on average as in Figure

16.

Fans:Electricity

[kW](Hourly)

10%

Cooling:Electricit

y[kW](Hourly)

33%

Heating:Electrici

ty[kW](Hourly)

InteriorLights:El

ectricity

[kW](Hourly)

24%

InteriorEquipme

nt:Electricity

[kW](Hourly)

32%

Heating:Gas

[kW](Hourly)

70%

InteriorEquipme

nt:Gas

[kW](Hourly)

11%

Water

Heater:WaterSys

tems:Gas

[kW](Hourly)

19%

SMARTGREENS 2021 - 10th International Conference on Smart Cities and Green ICT Systems

122

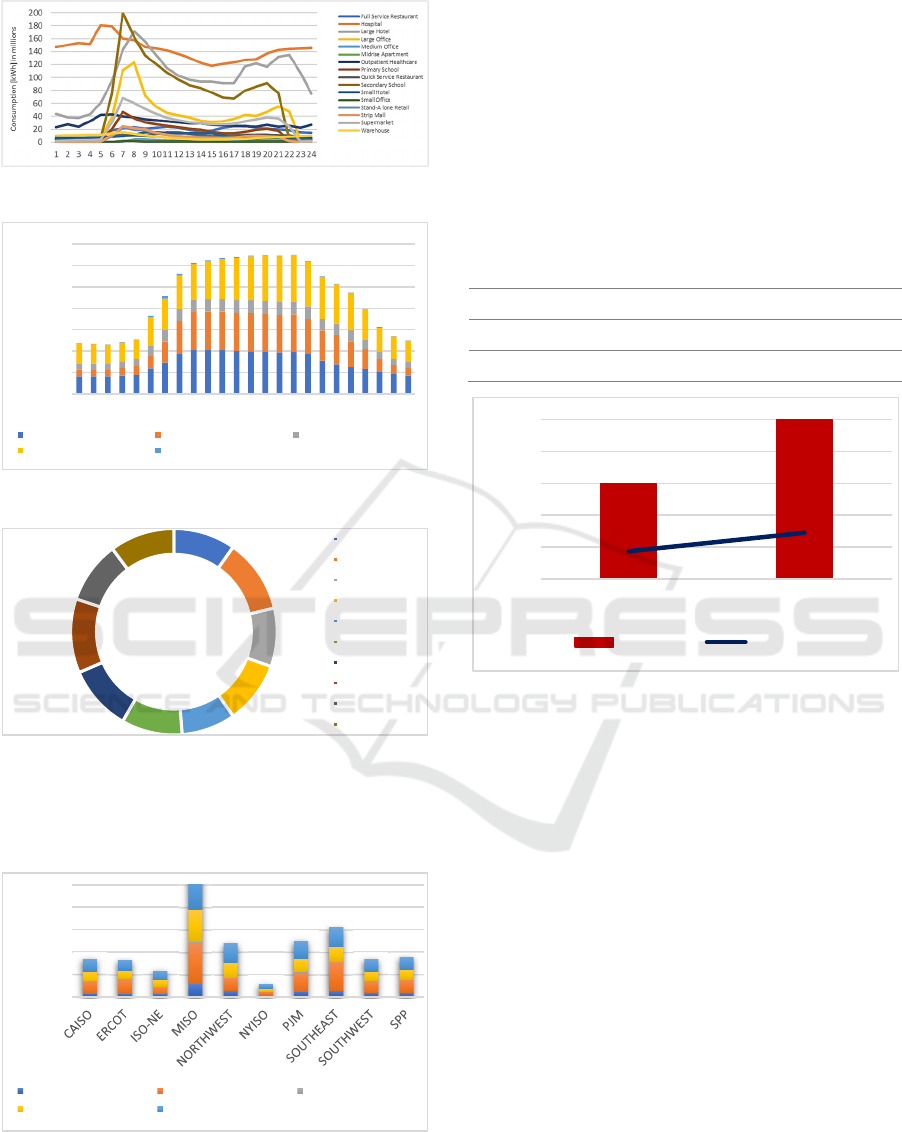

Figure 14: Hourly gas consumption per building type.

Figure 15: Electricity load curve by components.

Figure 16: ISO flexibility capability.

The consumption breakdown by ISO is provided

in Figure 17. The highest consumptions are recorded

by MISO, SOUTHEAST and PJM.

Figure 17: Electricity load by ISO.

Correlating the consumption datasets with DR

capabilities from Figure 1, the results are summarized

in Table 5 and Figure 18. There is a multitude of DR

programs that can be applied for commercial

buildings. They can offer shift, shimmy and shed

services. However, shimmy and combinations of shed

and shift require higher DR technology enablement

Costs that can go up to 2,000$ per controllable

appliance (Potter & Cappers, 2017). That we propose

ALL SHIFT that represents a DR program that

involves that the operation of Cooling, Fans and

Heating is partially shifted from peak to off-peak

hours.

Table 5: Annually results of ALL SHIFT DR program.

ALL SHIFT Shifted energy Savings in Euro

Scenario 20% 149916969.4 17990036.32

Scenario 33% 249861615.6 29983393.87

Figure 18: Results of shifting the controllable appliance for

commercial buildings.

The savings that could be obtained from ALL

SHIFT DR program are calculated considering the

tariff rate difference (0.21 Euro/kWh peak rate and

0.09 Euro/kWh off-peak rate). The annually shifted

energy and savings are calculated in two scenarios:

Scenario 20% and Scenario 33% represent the time

share when the controllable appliances are involved

in the DR program. The savings from shifting are

significant and could range between 17 and 29

million Euro.

4 CONCLUSION

The commercial buildings generate a very large

volume of data that requires big data technologies to

assess the flexibility of the electricity consumption

and estimate potential savings. Thus, we propose a

big data processing framework that combines Hadoop

and Multi-processing and Dask packages of Python to

extract interesting insights from very large datasets

200000000

400000000

600000000

800000000

1000000000

1200000000

1400000000

1357911131517192123

InteriorEquipment:Electricity InteriorLights:Electricity Fans:Electricity

Cooling:Electricity Heating:Electricity

42%

51%

40%

43%

37%

41%

45%

51%

42%

44%

CAISO

ERCOT

ISO‐NE

MISO

NORTHWEST

NYISO

PJM

SOUTHEAST

SOUTHWEST

SPP

1000000000

2000000000

3000000000

4000000000

5000000000

Fans:Electricity Cooling:Electricity Heating:Electricity

InteriorLights:Electricity InteriorEquipment:Electricity

50000000

100000000

150000000

200000000

250000000

Scenario20% Scenario33%

Flexibility Savings

Insights with Big Data Analysis for Commercial Buildings Flexibility in the Context of Smart Cities

123

and identify the consumption flexibility of the

commercial buildings of several types from the U.S.A

in correlation with the DR capabilities. Using

commercial building data sets from the U.S.A and

findings of other studies from previous research, we

proposed and implemented a DR program namely

ALL SHIFT and estimated the flexibility potential in

terms of shifted energy and savings. The results show

a significant potential for savings that commercial

buildings can achieve using their consumption

flexibility. For data graphical representation, in future

research, we will use Power BI that is a powerful

open-source tool. We also plan to extend the study

and create a comprehensive data model that integrate

more data sources and enhance the results.

ACKNOWLEDGEMENTS

This work was supported by a grant of the Romanian

National Authority for Scientific Research and

Innovation, CCCDI – UEFISCDI, project title “Multi-

layer aggregator solutions to facilitate optimum

demand response and grid flexibility”, contract number

71/2018, code: COFUND-ERANET-

SMARTGRIDPLUS-SMART-MLA-1, within

PNCDI III. This paper is an extension of the scientific

results of the project “Intelligent system for trading on

wholesale electricity market” (SMARTRADE), co-

financed by the European Regional Development Fund

(ERDF), through the Competitiveness Operational

Programme (COP) 2014–2020, priority axis 1 –

Research, technological development and innovation

(RD&I) to support economic competitiveness and

business development, Action 1.1.4-Attracting high-

level personnel from abroad in order to enhance the RD

capacity, contract ID P_37_418, no. 62/05.09.2016,

beneficiary: The Bucharest University of Economic

Studies.

REFERENCES

Alves, O., Monteiro, E., Brito, P., & Romano, P. (2016).

Measurement and classification of energy efficiency in

HVAC systems. Energy and Buildings.

https://doi.org/10.1016/j.enbuild.2016.08.070

European Commission. (n.d.). Building consumption by

energy. Retrieved October 30, 2020, from

https://ec.europa.eu/energy/content/building-

consumption-energy_en

Hao, H., Corbin, C. D., Kalsi, K., & Pratt, R. G. (2017).

Transactive Control of Commercial Buildings for

Demand Response. IEEE Transactions on Power

Systems. https://doi.org/10.1109/TPWRS.2016.2559485

Heier, J., Bales, C., & Martin, V. (2015). Combining thermal

energy storage with buildings - A review. Renewable and

Sustainable Energy Reviews. https://doi.org/10.1016/

j.rser.2014.11.031

Heinzerling, D., Schiavon, S., Webster, T., & Arens, E.

(2013). Indoor environmental quality assessment

models: A literature review and a proposed weighting

and classification scheme. Building and Environment.

https://doi.org/10.1016/j.buildenv.2013.08.027

Hledik, R., Faruqui, A., Lee, T., & Higham, J. (2019). The

National Potential for Load Flexibility: Value and

Market Potential through 2030. Retrieved November 2,

2020, from https://brattlefiles.blob.core.windows.net/

files/16639_national_potential_for_load_flexibility_-

_final.pdf

Kahn, M., Kok, N., & Quigley, J. (2013). Commercial

Building Electricity Consumption Dynamics: The Role

of Structure Quality, Human Capital, and Contract

Incentives. NBER Working Paper Series.

Linder, L., Vionnet, D., Bacher, J. P., & Hennebert, J. (2017).

Big Building Data-a Big Data Platform for Smart

Buildings. In Energy Procedia. https://doi.org/10.1016/

j.egypro.2017.07.354

Mathew, P. A., Dunn, L. N., Sohn, M. D., Mercado, A.,

Custudio, C., & Walter, T. (2015). Big-data for building

energy performance: Lessons from assembling a very

large national database of building energy use. Applied

Energy. https://doi.org/10.1016/j.apenergy.2014.11.042

National Renewable Energy Laboratory. (2011a). U.S.

Department of Energy Commercial Reference Building

Models of the National Building Stock. Retrieved

October 30, 2020, from https://www.nrel.gov/docs/

fy11osti/46861.pdf

National Renewable Energy Laboratory. (2011b). U.S.

Department of Energy Commercial Reference Building

Models of the National Building Stock.

Office of Energy Efficiency & Renewable Energy (EERE).

(n.d.). Commercial and Residential Hourly Load Profiles

for all TMY3 Locations in the United States. Retrieved

October 30, 2020, from https://openei.org/datasets/

dataset/commercial-and-residential-hourly-load-

profiles-for-all-tmy3-locations-in-the-united-states

Pääkkönen, P., & Pakkala, D. (2015). Reference Architecture

and Classification of Technologies, Products and

Services for Big Data Systems. Big Data Research.

https://doi.org/10.1016/j.bdr.2015.01.001

Potter, J., & Cappers, P. (2017). Demand Response

Advanced ControlsFramework and Assessment of

Enabling Technology Costs. Retrieved November 2,

2020, from https://emp.lbl.gov/sites/default/files/dem

and_response_advanced_controls_framework_and_cost

_assessment_final_published.pdf

Ryan Hledik Ahmad Faruqui. (2019). Brattle Study: Cost-

Effective Load Flexibility Can Reduce Costs by More

Than $15 Billion Annually. Retrieved October 30, 2020,

from https://www.brattle.com/news-and-knowledge/

publications/the-national-potential-for-load-flexibility-

value-and-market-potential-through-2030

Touzani, S., Granderson, J., & Fernandes, S. (2018). Gradient

boosting machine for modeling the energy consumption

of commercial buildings. Energy and Buildings.

https://doi.org/10.1016/j.enbuild.2017.11.039

SMARTGREENS 2021 - 10th International Conference on Smart Cities and Green ICT Systems

124
