A Hybrid IoT Analytics Platform: Architectural Model and

Evaluation

Theo Zschörnig

, Jonah Windolph

, Robert Wehlitz

and Bogdan Franczyk

2,3

Institute for Applied Informatics (InfAI), Goerdelerring 9, 04109 Leipzig, Germany

Information Systems Institute, Leipzig University, Grimmaische Str. 12, 04109 Leipzig, Germany

Business Informatics Institute, Wrocław University of Economics, ul. Komandorska 118-120, 53-345 Wrocław, Poland

Keywords: Fog Computing, Internet of Things, Smart Home, Analytics Architecture.

Abstract: Data analytics are an integral part of the utility and growth of the Internet of Things (IoT). The data, which is

generated from a wide variety of heterogenous smart devices, presents an opportunity to gain meaningful

insights into different aspects of everyday lives of end-consumers, but also into value-adding processes of

businesses and industry. The advancements in streaming and machine learning technologies in the past years

may further increase the potential benefits that arise from data analytics. However, these developments need

to be enabled by the underlying analytics architectures, which have to address a multitude of different

challenges. Especially in consumer-centric application domains, such as smart home, there are different

requirements, which are influenced by technical, but also legal or personal constraints. As a result, analytics

architectures in this domain should support the hybrid deployment of analytics pipelines at different network

layers. Currently available approaches lack the needed capabilities. Consequently, in this paper, we propose

an architectural solution, which enables hybrid analytics pipeline deployments, thus addressing several

challenges described in previous scientific literature.

1 INTRODUCTION

The impact of data analytics on the ongoing growth

of the Internet of Things (IoT) has been substantial in

the past years. Data analytics already play a pivotal

role in a multitude of application domains and are

expected to become more important in the future

(Siow et al., 2018). Based on a recent survey, 42% of

respondents are driven to spend more money on

associated IoT technologies for better data analytics

capabilities (451 Research, 2019). In order to gain

insights into the data of the ever-increasing number

of smart devices, different technologies have been

adopted for the IoT, such as Big Data processing or

machine learning (ML) algorithms.

Together with the possibilities, however, the

challenges arising from this development must also

be considered. A fundamental, yet ongoing concern,

is the need to provide consumers and businesses with

appropriate platforms to design and execute analytics

pipelines. These platforms provide the tools to gain

meaningful insights from the data of smart devices.

Although, there are already numerous architectural

approaches for IoT data analytics, these are most

commonly based on the concepts of processing Big

Data from other domains of information systems

research and practice. Looking at the peculiarities of

the IoT, these approaches are only of limited use,

especially in domains, which are user-centric, such as

smart home. Moreover, the smart home domain

exposes requirements for data processing

architectures, which are driven by personal

preferences and issues of end-consumers, e.g., data

privacy and security, but also technical constraints,

such as limited resource availability.

Against this background, we propose an IoT

analytics platform, which is designed to enable hybrid

analytics pipeline deployments. This platform utilizes

the concept of fog computing in order to provide real-

time stream data processing for different application

scenarios in smart home environments.

The remainder of this paper is structured as

follows: In section 2, we describe the background of

our research. Furthermore, we name the challenges to

be addressed by the architecture we propose.

Afterwards, we present an overview of related works

of this field. In addition, we describe how these are

not fully suitable regarding the problem space

Zschörnig, T., Windolph, J., Wehlitz, R. and Franczyk, B.

A Hybrid IoT Analytics Platform: Architectural Model and Evaluation.

DOI: 10.5220/0010405808230833

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 823-833

ISBN: 978-989-758-509-8

823

(section 3). The main contribution of this paper, a

proposal for an analytics architecture to be used in

user-centric environments, is described in section 4.

In section 5, we present a prototypical

implementation of the architecture and evaluate it in

section 6. Finally, we summarize our findings and

provide ideas for further research in this field as well

as our own (section 7).

2 BACKGROUND

The number of smart homes is expected to rise to

483 million in the year 2025 (Statista, 2020). This

development is accompanied by an increase in the

amount of data generated. The creation of meaningful

insights from these data is a cornerstone of generating

added value from smart devices. For this reason, it is

necessary to develop suitable analytics architectures

that, for example as part of an IoT platform, are able

to cope with the various challenges involved. These

architectures and the resulting implementations are

the foundation for the creation and operation of

analytics pipelines. Previous research on this topic

has already identified a number of challenges that

should be addressed by such architectures (Zschörnig,

Wehlitz, & Franczyk, 2020).

Based on the overview of Zschörnig, Wehlitz, and

Franczyk (2020), we mapped the found challenges to

the smart home domain and found that they are

primarily influenced by the residents. Specifically,

privacy and security regarding IoT data is a major

concern for them. In contrast, smart homes only

provide limited computing resources, thus requiring

the ability to offload analytics tasks to cloud data

centers. Furthermore, fault-tolerant data input is

important, since analytics pipelines need to keep

running, even if connectivity issues, etc. occur. Since

available smart devices in smart homes are usually

different in terms of vendors, but also numbers or

types, personalization of analytics, meaning the

individual composition and configuration of analytics

pipelines, is another important issue to be addressed.

Since most analytics services in smart home

environments are provided as part of an IoT platform

to many end-consumers, the architectural challenges

are also driven by platform vendors. From their

perspective, Big Data capabilities, scalable data

processing as well as data storage are needed to

handle the large number of data sources of their

customers. Moreover, the high network usage of these

smart devices needs to be addressed. From an

analytical standpoint, the flexible extension of data

processing as well as the integration of data from

different sources and of historic and real-time data

have to be possible. Additionally, data visualization

is important. The character of IoT data also demands

real-time processing and consequently stream

handling capabilities of smart home analytics

architectures.

The combination of these challenges creates a

number of limitations in the domain of smart home,

which must be mapped by analytics architectures.

Currently available approaches in this field are either

cloud-based Big Data or application-specific

solutions that lack the required flexibility with regard

to different consumer, legal or technical requirements

and constraints. Additionally, analytics scenario

requirements are not known beforehand by platform

providers or may change rapidly, thus creating the

need to allow flexible pipeline composition and

deployment. In this context, we also define our

motivational scenario, which revolves around the

forecasting of the total energy consumption of a

household and is the basis for the conducted

experiments in section 6. The total energy

consumption is based on the individual consumptions

of various electrical consumers and is measured

accordingly via smart plugs or similar. From an

analytical point of view, the composition of the

associated analytics pipeline is based on the number

of available devices and their device types.

Furthermore, it should be possible to use different

calculation types, which, however, also have different

requirements concerning available computing

resources. In this regard, especially ML algorithms

have presented promising results looking at energy

consumption forecasting accuracy (Amasyali & El-

Gohary, 2018). Finally, there are the requirements of

the residents who, for example, might want data

processing to take place on their local devices so that

their data cannot be used by third parties.

Based on the lack of suitable analytics

architectures to address the aforementioned

challenges and cover the motivational scenario (see

section 3), we have proposed a fog-based architecture

in Zschörnig et al. (2019). In this context, fog

computing describes a paradigm promoting the

computation, storage, etc. of data anywhere from the

cloud to the edge of the network (Mouradian et al.,

2018; OpenFog, 2017). It is therefore different from

the sometimes interchangeably used term “edge

computing” (Yousefpour et al., 2019), which

specifically excludes the cloud for computational as

well as related tasks and is limited to only a small

number of network layers (OpenFog, 2017).

Consequently, the fog computing paradigm aims at

combining cloud computing, edge computing and the

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

824

IoT in a new architectural paradigm (Donno et al.,

2019). In IoT use cases, the edge of the network is

synonymous with local networks, which include IoT

devices (Yousefpour et al., 2019). Therefore, fog

computing nodes may comprise edge devices, such as

gateways, access points, etc., but not IoT devices,

such as sensors and actuators (Mouradian et al., 2018;

Yousefpour et al., 2019).

Past scientific literature has interpreted fog

computing in the sense that data processing is

primarily performed on fog nodes and the cloud

performs information aggregation tasks for decision

support. In contrast, the main goal of our solution

proposal is to enable analytics pipeline deployments

along the diverging constraints of different

stakeholders. This includes hybrid analytics

pipelines, in which some processing tasks run on fog

nodes, while others are computed at the cloud layer.

The cloud-based parts of this architecture are

already discussed and evaluated in (Zschörnig,

Windolph et al., 2020a) and (Zschörnig, Windolph et

al., 2020b) and address multiple of the

aforementioned challenges. In this paper, the

components required to enable data processing at fog

nodes are further specified and the components for

message exchange between them and the cloud are

added.

3 RELATED WORK

In the last years, several architectural approaches for

data analytics in smart home environments have been

developed to facilitate different application scenarios.

In order to provide an overview of this literature, we

conducted a review following vom Brocke et al.

(2009). The results were analyzed regarding utilized

computing paradigm and application scenario.

Bhole et al. (2015) present an architecture to be

deployed on edge devices in smart homes. Their field

of application is home automation and they utilize

several different ML-based algorithms. Constant et

al. (2017) propose a fog-based architecture, which

centers around a fog gateway device. They evaluate

their approach by using smart wearable data without

limiting their approach to a specific field of

application. Popa et al. (2019) also present a fog-

based architecture for home automation, in which

deep neural networks are trained and stored in the

cloud and the resulting models are pulled and applied

by an IoT agent on an edge device. Furthermore, they

present applications for non-intrusive load

monitoring and energy load forecasting. Singh and

Yassine (2019) describe a fog analytics architecture

for energy management in households. Their fog

computing nodes main functionality involves the pre-

processing of data. Hasan et al. (2015), Al-Ali et al.

(2017) and Paredes

‐

Valverde et al. (2020) propose

cloud-based analytics architectures for energy

management. Data analytics are supported by Big

Data technologies in all approaches. Another cloud-

based analytics architecture is presented by Fortino et

al. (2015). Their main focus lies on activity

recognition in smart homes.

To sum it up, we found that none of the smart

home analytics architectures analyzed support hybrid

analytics pipeline deployments with regard to the

challenges described in section 2. Furthermore, most

of the solutions are based on rather static analytics

pipelines, which are defined a priori, thus missing

flexibility in terms of changing requirements.

4 SOLUTION PROPOSAL

In the following, we present our architectural

proposal which addresses the challenges described in

section 2. The proposal is based on previous research

of ours, which is described in Zschörnig et al. (2019).

The overall architectural model is shown in Figure 1

and was designed following the method of conceptual

modeling (Thalheim, 2012). The microservice-based

architecture contains the orchestration platform,

streaming and serving platform as well as the cloud

connector and a message broker at the cloud layer.

Furthermore, the fog platform contains several

components to be deployed at network layers, which

are located closer to the edge of the network. These

layers comprise different computational devices, such

as single-board computers, depending on the

application domain. The main goal of the approach is

to enable analytics pipelines deployments at all levels

of fog environments, from cloud to edge, but also to

allow hybrid deployments, in which data processing

tasks of a single analytics pipeline are executed at

different levels.

The central component to achieve these hybrid

deployments is the orchestration platform, which

comprises five microservices. In this regard, analytics

pipelines are instantiated from analytics flows, which

are managed via the flow repository. They are created

and updated (1) using the flow designer. Analytics

flows contain analytics operators, which are single-

purpose microservices and offer different data

transformation and processing capabilities. In the

proposed solution, analytics operators are

encapsulated

using container technology, such as

A Hybrid IoT Analytics Platform: Architectural Model and Evaluation

825

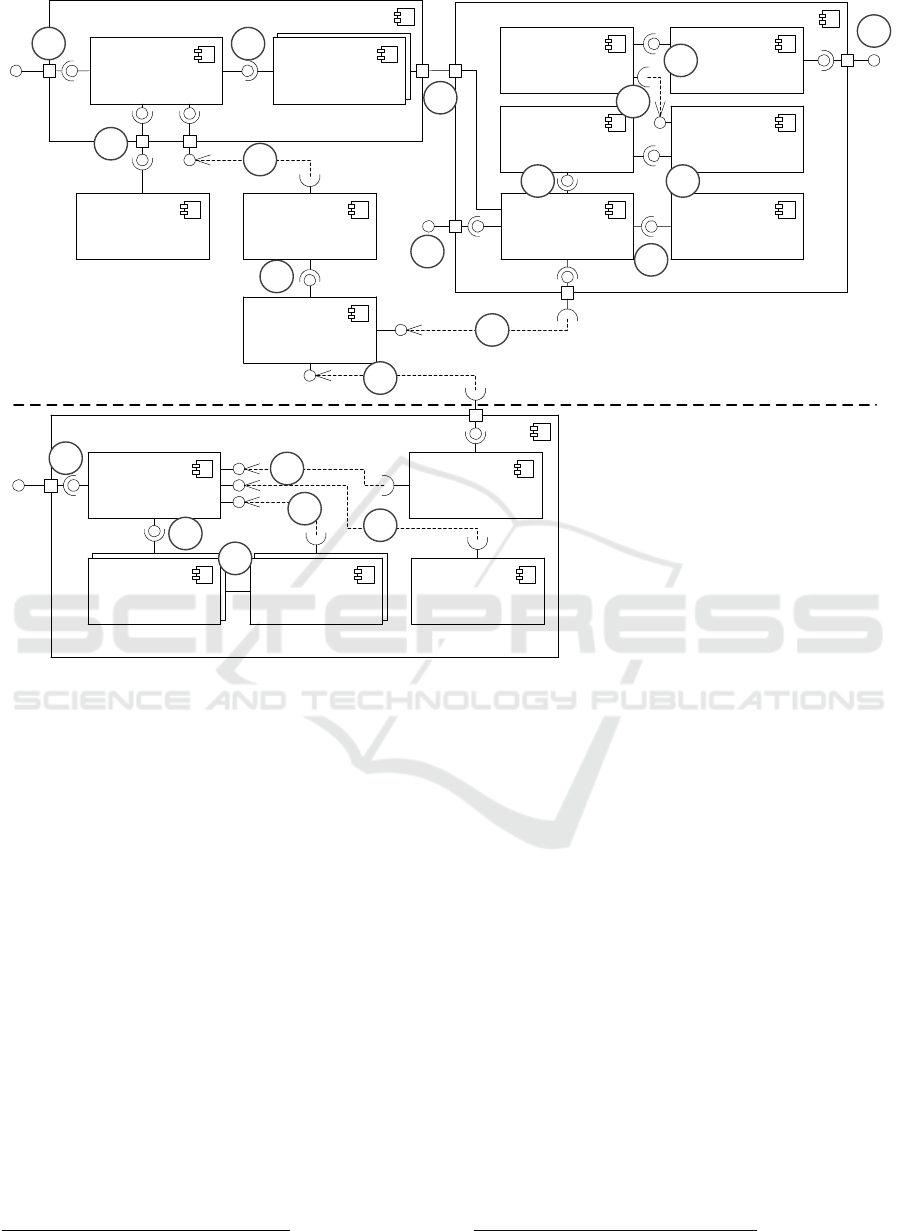

Figure 1: Proposed architectural concept, showing components and interfaces, adapted from Zschörnig et al. (2019).

Docker

, and their container images are saved in

either public or private repositories. Available

analytics operators are registered in the operator

repository (2) and composed into analytics flows

utilizing the flow designer (3). The data saved in the

operator repository has to include metadata about

inputs, outputs and configuration values of an

analytics operator as well as its container image

name. The deployment of an analytics pipeline is

triggered at the flow engine (4). As a first step, the list

of all analytics operators to be deployed as well as

their composition in the analytics flow is pulled from

the analytics parser (5). The analytics parser

transforms the flow data from the flow repository (6)

into a unified format usable by the flow engine.

Decoupling the flow data structure from the flow

engine extends the range of application of the overall

architecture, as it is not bound to a single modeling

notation. Successfully deployed analytics pipelines

are registered in the pipeline registry by the flow

engine and are deregistered once they are

decommissioned (7).

https://www.docker.com

The presented solution proposal assumes that the

orchestration platform runs in the cloud stratum

together with the streaming platform. Against this

background, all cloud-based analytics operators are

started by the flow engine by interfacing with the

underlying container orchestration management

platform (8), e.g., Kubernetes

The central component of the streaming platform

is the log data store, which is managed by a message

broker and ingests data from different sources such as

IoT device data, but also from environmental or

weather APIs (9). The cloud-based analytics

operators of an analytics pipeline consume these data

or the output of preceding analytics operators from

the log data store according to the analytics flow the

analytics pipeline is based on. Furthermore, they

produce their results back to it, both actions in

streaming fashion (10). As a result, the data streams

of all raw and processed data may be accessed at all

times and all stages of the processing scenario. Since

the approach includes only a speed layer for

processing streaming data, it promotes the advantages

https://kubernetes.io

Orchestration Platform

Streaming Platform

Analytics

Operator

Log Data Store

Flow

Repository

Operator

Repository

Pipeline

Registry

Flow Engine

Flow Parser

Fog Platform

Message

Broker

Analytics

Operator

Fog Agent

Cloud

Connector

Flow Designer

5 6

Serving

Platform

Message

Broker

Fog Connector

Fog Master

Cloud stratum

Fog stratum

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

826

of the Kappa architecture approach, which were first

described in Kreps (2014). In order to enable access

to all data for their utilization by third-party

applications or visualization, the serving platform

may consume data streams from the log data store

(11).

In case of a fog or hybrid deployment, a major

issue is the transfer of data between different network

levels. Additionally, the communication between all

management and orchestration components of the

overall architecture is a challenge. Consequently, we

introduce two message brokers as well as two

connector services with one of each deployed at the

cloud and the fog stratum. These components handle

the data transfer between the layers.

In case of a fog or hybrid analytics pipeline

deployment request, the flow engine sends the

resulting analytics operator requests to the message

broker in the cloud (12). These requests are then

pulled by the fog connector (13) and published on the

message broker in the fog platform (14) to be

consumed and processed by the fog master. The fog

master checks available fog agents and publishes

analytics operator deployment requests at a specific

topic of a single fog agent (15). The fog agent

receives (16) the request and starts deploying the

analytics operator (17). In order for this to work, the

fog agent must be deployed at a hardware platform,

which supports container execution. There may not

be more than one fog agent per fog device. Fog

Agents monitor the resource usage of the analytics

operators and report this to the fog master, which

manages analytics operator deployment requests

with respect to the available resource of a fog agent.

Similar to their cloud-based counterparts, the fog

deployed analytics operators consume IoT data

streams from the message broker as well as the results

of other deployed analytics operators according to

the analytics flow. Moreover, they publish the results

of their task at the fog message broker (18). In case of

a hybrid analytics pipeline, the results of fog analytics

operators are sent to the cloud by the fog connector,

which pushes their messages to the cloud message

broker. The cloud connector handles the bidirectional

data transfer between the cloud message broker and

the log data store. Therefore, data processed in the

cloud may be sent to the fog message broker via the

fog connector to be processed by fog analytics

operators.

https://github.com/SENERGY-Platform

https://angular.io

https://kafka.apache.org

https://kafka.apache.org/documentation/streams/

https://www.influxdata.com

5 PROTOTYPE

The architectural concept of section 4 is the

foundation for an integrated software prototype,

which we implemented as a proof of concept and as

the basis for experimental evaluation. All components

of the architectural implementation are open-source

software. In this regard, we have also published all

the self-written software artifacts

. Following the

microservice paradigm, all components of the

orchestration platform are fine-grained and loosely

coupled. Moreover, they are encapsulated using

container technology. This enhances their reusability

and mobility, which is especially important for

analytics operators, since they are usually deployed

in many different analytics pipelines.

The operator and flow repository are written in

Python and provide CRUD interfaces to interact with.

The flow engine, flow parser and pipeline registry are

written in Golang and expose CRUD interfaces as

well. The flow designer is part of a frontend

application which is implemented using the Angular

framework. The components of the streaming

platform are based upon the Apache Kafka

ecosystem

. In this context, we provide a Java library,

which is based on Kafka Streams

, to reduce the

complexity of implementing analytics operators. The

serving platform comprises an influxDB

as well as

Python-based Kafka consumer services, which relay

raw and analytics data to the serving database. The

cloud connector is written in Golang and interfaces

both, the Kafka cluster and the cloud message broker,

which is a VerneMQ

instance. Consequently, the

communication between all network layers relies

on MQTT

, which is lightweight communication

protocol and widely adopted in IoT use cases

(Yassein et al., 2017).

The orchestration components of the fog platform

(fog connector, fog agent, fog master) are

implemented in Golang. We support the development

of fog analytics operators with a Python library,

which handles their configuration and integration

with the overall analytics architecture. Concerning

the fog platform, the implementation of the

components was driven by lower resource availability

as compared to cloud environments. Therefore, we

use MQTT as the communication protocol between

all fog components and Eclipse Mosquitto

as the fog

message broker. Additionally, we minimized Docker

https://vernemq.com

https://mqtt.org

https://mosquitto.org/

A Hybrid IoT Analytics Platform: Architectural Model and Evaluation

827

image sizes by utilizing Alpine Linux

as their

foundation.

6 EXPERIMENTAL

EVALUATION

In this section, we describe the quantitative

evaluation of the proposed architectural solution

based on the prototype introduced in section 5. In this

regard, we have deployed the fog platform in a real

apartment, whose residents have agreed to participate

in an ongoing IoT research project of ours. The

apartment was equipped with 97 different IoT sensors

and actuators. As a result we utilized the

environment, which generated real-world energy

consumption data, to conduct four field experiments

with regard to Boudreau et al. (2001).

Beside the proof of concept, that the proposed

architecture can be used to process and analyze data

in a real-world scenario, the purpose of the

experiments is to show that it can also deploy

analytics pipelines at fog nodes as well as in a hybrid

manner. Moreover, we evaluate how different

application scenarios influence the viability of the

two deployment strategies by investigating the

latency of data processing as well as the overall

resource usage. In this regard, previous research of

ours has already shown, that the cloud components of

the proposed architecture are able to handle Big Data

problems in Smart Home environments, which might

also include ML technologies (Zschörnig, Windolph

et al., 2020a).

6.1 Experiments

Overall, we conducted four experiments, which

revolved around the energy consumption scenario we

described in section 2. Available energy consumption

data sources in the household were:

 35 Gosund SP111 smart plugs which were

flashed to use the Tasmota firmware

version

8.3.1

 1 Fibaro wall plug Type F

 16 Fibaro Walli switches

Each of the Gosund smart plugs sent its current

energy consumption data every 10 seconds, the

Fibaro devices every 30 seconds. The number of

https://alpinelinux.org/

https://tasmota.github.io

https://www.fibaro.com/de/products/wall-plug/

smart plugs and switches was needed to cover all

electrical consumers and circuits of the apartment.

For each experiment, an analytics pipeline was

deployed, which forecasts the energy consumption of

the household for the end of the day, the end of the

month and the end of the year. The analytics pipelines

comprised three analytics operators:

 Adder-Operator (AO): Calculates the total

energy consumption by adding the energy

consumption of individual sources.

Additionally, it writes the current timestamp

and an ID in the result message.

 Forecast-Operator (FO): Processes the

messages from the AO and forecasts the total

energy consumption value for different dates.

 Latency-Operator (LO): Calculates the latency

between the start and the end of the processing

of a message by consuming the messages of

the FO.

In order to compare different deployment

strategies as well as application scenarios, we

implemented four versions of the FO. Two as fog

(deployed at a fog node) and two as cloud analytics

operators. For every deployment layer, one of the

FOs was implemented using a simple, updating linear

regression based on Klotz (1995). The other one was

implemented utilizing the adaptive random forest

regressor, which is an online-ML algorithm based on

the work of Gomes et al. (2017). Consequently, the

result was four different experiments, which

corresponded to the four analytics pipelines

compositions:

Experiment 1 (E1): A fog-only analytics

pipeline with updating linear regression

forecasting,

Experiment 2 (E2): a fog-only analytics pipeline

with adaptive random forest regressor

forecasting,

Experiment 3 (E3): a hybrid analytics pipeline

with updating linear regression forecasting,

Experiment 4 (E4): a hybrid analytics pipeline

with adaptive random forest regressor

forecasting.

During E1 and E2, all data was processed at the

fog layer. In contrast, during E3 and E4, the data was

sent from the AO at the fog layer to the cloud layer,

processed by the FO and relayed back to LO at the

fog layer. The design of the experiments with the LO

at the end of the analytics pipeline simulates a

possible actuator, which is triggered based on the

results of the FO.

https://www.fibaro.com/de/products/smart-switches-

and-outlets/

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

828

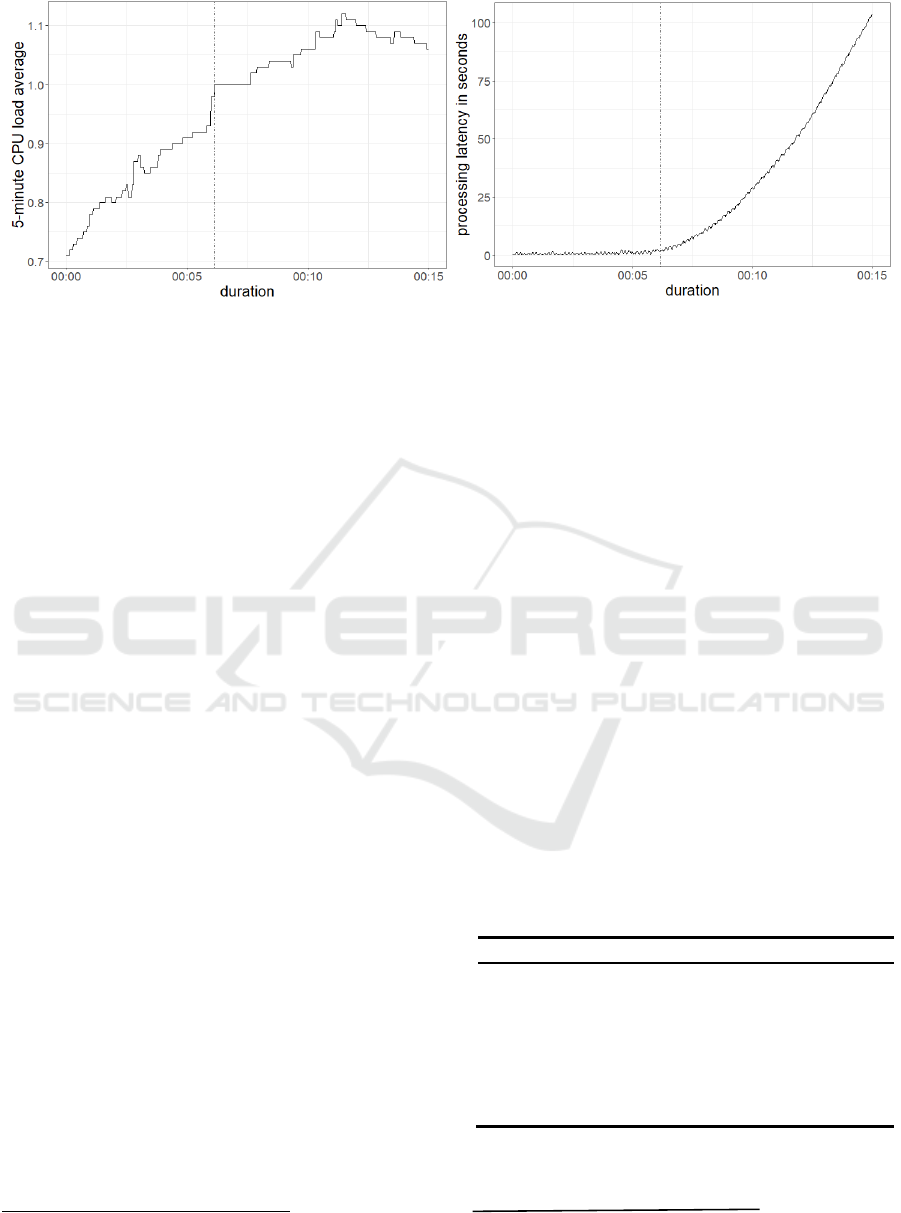

Figure 2: 5-minute CPU load average (left) and overall processing latency (right) of the Raspberry Pi during experiment 2.

The datapoint when a 5-minute CPU load average of 1 is reached is marked with a vertical line in both graphs.

6.2 System Setup & Deployment

All components of the cloud layer, including cloud

analytics operators, were deployed at a private cloud

datacenter. The cluster comprises 18 virtual machines

with 8 CPU kernels, 64 GB RAM and 256 GB of

solid-state storage, each. The underlying hypervisors

use XEON E5 CPU cores. The cloud components ran

as Docker containers on Kubernetes version 1.16.8 as

the container orchestration platform with Rancher

version 2.4.8 as the management frontend.

The components of the fog platform were

deployed on two Raspberry Pi 3, Model B Plus (Rev

1.3)

. The Docker version on both computers was

19.03.13. The fog agent was deployed solely on one

of the computers so that the measurements were not

distorted by further services. As a result, all fog

analytics operators ran on this computer as well.

6.3 Metrics & Methodology

We measured the overall processing latency of an

analytics pipeline as well as CPU load and memory

usage of the hardware, on which the analytics

operators were deployed. The processing latency was

measured by adding the current timestamp to each

message at the beginning of the processing by the

AO. At the end of an analytics pipeline the LO took

this timestamp and the now-current one and

calculated the time difference. CPU load and memory

usage of the fog analytics operators were gathered by

using the system performance analysis toolkit

Performance Co-Pilot

. Additionally, the cloud CPU

and memory metrics were collected using the cluster

monitoring tools of Rancher.

https://www.raspberrypi.org/products/raspberry-pi-3-

model-b-plus/

Each experiment was performed for one hour.

Due to the constant number of messages emitted by

the devices, the behavior of the observed metrics did

not change by prolonging the investigation period.

This was confirmed by preliminary experiments. Due

to the consistent character of the data, the first

15 minutes of the total data set were selected and

examined. This time frame included around

3500 messages emitted by the smart devices for each

experiment.

6.4 Experimental Results

The summary of the results of all experiments

regarding the overall processing latency are presented

in Table 1. The lowest mean (0.015 seconds) and

median (0.015 seconds) latency were observed during

E1. Experiment 3, in which the same processing

algorithm was used, but executed in the cloud, shows

an average latency of 0.603 seconds with a median of

0.618 seconds.

Table 1: Summary of the measured processing latency for

the first 15 minutes of all experiments in seconds.

Metric E1 E2 E3 E4

Min. 0.013 0.163 0.114 0.122

0.05

0.013 0.283 0.264 0.270

Median 0.015 3.709 0.603 0.604

Mean 0.015 20.810 0.618 0.626

0.95

0.018 86.863 0.959 0.990

0.95

-Q

0.05

0.005 86.580 0.695 0.720

Max. 0.037 103.600 3.359 3.323

Experiment 2, using a more complex online ML

algorithm, shows the highest latency of all

https://pcp.io

A Hybrid IoT Analytics Platform: Architectural Model and Evaluation

829

experiments with an average of 20.81 seconds and a

median of 3.709 seconds. The results of E4

correspond approximately to those of E3 with an

average of 0.626 seconds and a median of

0.604 seconds.

The summary of the results of all experiments

with respect to 5-minute CPU load average and

memory usage of the Raspberry Pi are shown in Table

2 and Table 3. The highest resource usage was

observed during E2 with an average CPU load of

0.976 (median=1.03) and an average memory usage

of 228 megabytes (MB) (median=228 MB). The

second highest resource usage was recorded during

E1 with an average CPU load of 0.12 (median=0.124)

and an average memory usage of 179 MB

(median=179 MB).

Table 2: Summary of the measured 5-minute CPU load

average of the Raspberry Pi for the first 15 minutes of all

experiments.

Metric E1 E2 E3 E4

Min. 0.060 0.710 0.050 0.040

0.05

0.070 0.750 0.060 0.040

Median 0.120 1.030 0.100 0.060

Mean 0.124 0.976 0.107 0.065

0.95

0.200 1.100 0.180 0.110

0.95

-Q

0.05

0.130 0.350 0.120 0.070

Max. 0.220 1.120 0.200 0.120

Table 3: Summary of the measured memory usage of the

Raspberry Pi for the first 15 minutes of all experiments in

megabytes.

Metric E1 E2 E3 E4

Min. 177 227 161 162

0.05

179 228 161 162

Median 179 228 161 162

Mean 179 228 162 162

0.95

180 230 162 162

0.95

-Q

0.05

1 2 1 0

Max. 180 230 162 162

The 5-minute CPU load of the Raspberry Pi was

at an average 0.107 (median=0.1) for E3 and 0.065

(median=0.06) for E4. The average memory usage

was at 162 MB (median=161 MB) for E3 and at

162 MB (median=162 MB) for E4. Additionally, we

gathered the 1-minute CPU load and memory usage

of the cloud operator, which was at an average 0.014

(median=0.014) and 156 MB (median=155 MB) for

E3. For E4, the average cloud operator one-minute

CPU load was at 0.034 (median=0.0314) and the

memory usage at 185 MB (median=185 MB).

Regarding the overall processing latency, the

quantile distance between Q

0.05

(5% quantile) and

0.95

(95% quantile) is 100 times larger for E2 than

for the other experiments and 3 to 6 times higher

regarding the 5-minute CPU load. This shows, that

the latency and resource usage remained at a steady

level throughout experiments 1, 3 and 4. During E2,

the memory usage also stayed constant throughout the

experiment, but CPU load and overall processing

latency increased (Figure 2). While the 5-minute CPU

load average increased from the beginning and then

remained between 1.0 and 1.1, the processing latency

only increased once the 5-minute CPU load average

was above 1.

6.5 Discussion

Regarding the results of the experiments, we

conclude, that fog-only analytics pipelines

deployments result in a lower processing latency at

the cost of higher resource usage of the utilized edge

devices. In contrast, more complex computations, for

example ML-based algorithms, may require too much

resources from edge devices. This is supported by the

results of E2, which show an increase of the

processing latency, once the CPU load crosses a

certain threshold. Experiments 3 and 4 provide

insights into the nature of hybrid deployments. Since

the measured latencies are almost the same in both

experiments, we conclude that the complexities of the

overall analytics pipelines are minor factors to

consider, because resource-intensive task may be

offloaded to the cloud. This further highlights the

relevance of hybrid deployments and addresses the

challenge of limited computing resources in smart

home environments.

While the results of the experiments seem trivial

at first glance, they confirm the relevance of the

proposed architectural solution, which before only

theoretically existed. In this context, the experiments

carried out exemplify that the architecture is

technically capable of executing analytics pipelines

that result from different requirements. This can be

transferred to other types of requirements, which may

be driven by data privacy concerns of residents or the

legislation in the operational area as laid out in section

2. Therefore, future research in this area should

investigate to what extent these requirements can be

mapped and provided so that deployment decisions

can be made automatically.

The implementation of the proposed architecture

and the conducted experiments serve as a proof of

concept and highlight its ability to deploy hybrid

analytics pipelines in smart home environments.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

830

Furthermore, the relevance of the approach is shown

by its successful implementation in real-world

environment. This in itself addresses the privacy and

security challenge, as it provides the opportunity to

deploy an analytics operator as a first control point for

privacy-sensitive data (Chiang & Zhang, 2016). The

presented fog-only experiments indicate the resilience

of the architecture against network connection losses.

Looking at the non-existing network traffic for fog-

only analytics pipelines, the network usage is reduced

from a platform providers viewpoint.

Concerning the internal validity of our results, we

recognize, that the results of our experiments may

differ based on several factors. These are general

network latency between cloud and fog nodes, local

network usage, but also the utilization of cloud and

fog resources by other processes during the execution

of the experiments. On the other hand, the

reproducibility was increased through the usage of

open-source software and a widely available and

utilized computing platform as the fog node. Finally,

the field experiments carry a high external validity,

since they were conducted in a real-world setting and

the included IoT devices were consumer hardware.

7 CONCLUSION & OUTLOOK

In this paper, we propose a fog-based analytics

architecture, which enables hybrid analytics pipeline

deployments in smart home environments. In this

regard, we provide background information about the

research area, a motivational scenario and lay out the

reasons behind this research. Furthermore, an

overview about similar works in existing scientific

literature is given. The architectural model is based

on previous works of ours and utilizes the

microservice paradigm to structure architectural

components. The presented architecture is the

technical basis for the implementation of individual

analytics pipelines in smart home environments,

which are based on the requirements of different

stakeholders. The components of the proposed

architecture as well as their interactions with each

other are presented in a conceptual model, which is

the basis for a prototypical implementation. This

prototype serves as a proof of concept and was further

utilized to perform four field experiments in a real-

world smart home environment. The results of the

experiments show that the architectural approach is

capable of mapping different deployment scenarios

and thus makes it possible to engage the requirements

of different stakeholders.

Future research regarding this field needs to

investigate, how the requirements of different interest

groups in smart home environments, but also technical

constraints, can be modeled, mapped and structured.

Furthermore, deployment preferences may be derived

from legal or social sources. The resulting data could

be used as the foundation for self-learning analytics

pipeline deployment systems. Finally, these concepts

should yield software components to be integrated in

the presented architecture in order to enable

deployment decision support.

ACKNOWLEDGEMENTS

The work presented in this paper is partly funded by

the European Regional Development Fund (ERDF)

and the Free State of Saxony (SAB 100338771 and

100400223) as well as by the German Federal

Ministry of Education and Research (BMBF

01IS20033B).

REFERENCES

451 Research. (2019). Drivers of Internet of Things (IoT)

spending worldwide as of 2019.

https://www.statista.com/statistics/1079622/iot-

spending-drivers-worldwide/

Al-Ali, A. R., Zualkernan, I. A., Rashid, M., Gupta, R., &

Alikarar, M. (2017). A smart home energy management

system using IoT and big data analytics approach. IEEE

Transactions on Consumer Electronics, 63(4), 426–

434. https://doi.org/10.1109/TCE.2017.015014

Amasyali, K., & El-Gohary, N. M. (2018). A review of

data-driven building energy consumption prediction

studies. Renewable and Sustainable Energy Reviews,

81, 1192–1205. https://doi.org/10.1016/j.rser.2017.04.

095

Bhole, M., Phull, K., Jose, A., & Lakkundi, V. (2015).

Delivering analytics services for smart homes. In 2015

IEEE Conference on Wireless Sensors (ICWiSe)

(pp. 28–33). IEEE. https://doi.org/10.1109/ICWISE.

2015.7380349

Boudreau, M.C., Gefen, D., & Straub, D. W. (2001).

Validation in Information Systems Research: A State-

of-the-Art Assessment. MIS Quarterly, 25(1), 1.

https://doi.org/10.2307/3250956

Chiang, M., & Zhang, T. (2016). Fog and IoT: An

Overview of Research Opportunities. IEEE Internet of

Things Journal, 3(6), 854–864. https://doi.org/10.1109/

JIOT.2016.2584538

Constant, N., Borthakur, D., Abtahi, M., Dubey, H., &

Mankodiya, K. (2017). Fog-Assisted wIoT: A Smart

Fog Gateway for End-to-End Analytics in Wearable

Internet of Things. http://arxiv.org/pdf/1701.08680v1

A Hybrid IoT Analytics Platform: Architectural Model and Evaluation

831

Donno, M. de, Tange, K., & Dragoni, N. (2019).

Foundations and Evolution of Modern Computing

Paradigms: Cloud, IoT, Edge, and Fog. IEEE Access, 7,

150936–150948. https://doi.org/10.1109/ACCESS.

2019.2947652 (IEEE Access, 7, 150936-150948).

Fortino, G., Giordano, A., Guerrieri, A., Spezzano, G., &

Vinci, A. (2015). A Data Analytics Schema for Activity

Recognition in Smart Home Environments. In J. M.

García-Chamizo, G. Fortino, & S. F. Ochoa (Eds.),

Lecture Notes in Computer Science. Ubiquitous

Computing and Ambient Intelligence. Sensing,

Processing, and Using Environmental Information (Vol.

9454, pp. 91–102). Springer International Publishing.

https://doi.org/10.1007/978-3-319-26401-1_9

Gomes, H. M., Bifet, A., Read, J., Barddal, J. P.,

Enembreck, F., Pfharinger, B., Holmes, G., &

Abdessalem, T. (2017). Adaptive random forests for

evolving data stream classification. Machine Learning,

106(9-10), 1469–1495. https://doi.org/10.1007/s10994-

017-5642-8

Hasan, T., Kikiras, P., Leonardi, A., Ziekow, H., &

Daubert, J. (2015). Cloud-based IoT Analytics for the

Smart Grid: Experiences from a 3-year Pilot. In D. G.

Michelson, A. L. Garcia, W.-B. Zhang, J. Cappos, & M.

E. Darieby (Chairs), Proceedings of the 10th

International Conference on Testbeds and Research

Infrastructures for the Development of Networks &

Communities (TRIDENTCOM), Vancouver, Canada.

Klotz, J. H. (1995). Updating simple Linear Regression.

Statistica Sinica, 5(1), 399–403.

http://www.jstor.org/stable/24305577

Kreps, J. (2014). Questioning the Lambda Architecture:

The Lambda Architecture has its merits, but

alternatives are worth exploring.

https://www.oreilly.com/ideas/questioning-the-

lambda-architecture

Mouradian, C., Naboulsi, D., Yangui, S., Glitho, R. H.,

Morrow, M. J., & Polakos, P. A. (2018). A

Comprehensive Survey on Fog Computing: State-of-

the-Art and Research Challenges. IEEE

Communications Surveys & Tutorials, 20(1), 416–464.

https://doi.org/10.1109/COMST.2017.2771153

OpenFog. (2017). OpenFog Reference Architecture for Fog

Computing.

Paredes ‐ Valverde, M. A., Alor ‐ Hernández, G.,

García ‐ Alcaráz, J. L., Del Salas ‐ Zárate, M. P.,

Colombo ‐ Mendoza, L. O., & Sánchez ‐

Cervantes, J. L. (2020). IntelliHome: An internet of

things‐based system for electrical energy saving in

smart home environment. Computational Intelligence,

36(1), 203–224. https://doi.org/10.1111/coin.12252

Popa, D., Pop, F., Serbanescu, C., & Castiglione, A. (2019).

Deep learning model for home automation and energy

reduction in a smart home environment platform. Neural

Computing and Applications, 31

(5), 1317–1337.

https://doi.org/10.1007/s00521-018-3724-6

Singh, S., & Yassine, A. (2019). Iot Big Data Analytics

with Fog Computing for Household Energy

Management in Smart Grids. In A.-S. K. Pathan, Z. M.

Fadlullah, & M. Guerroumi (Eds.), Lecture Notes of the

Institute for Computer Sciences, Social Informatics and

Telecommunications Engineering: Vol. 256. Smart

Grid and Internet of Things: Second EAI International

Conference, SGIoT 2018, Niagara Falls, ON, Canada,

July 11, 2018, Proceedings (Vol. 256, pp. 13–22).

Springer International Publishing.

https://doi.org/10.1007/978-3-030-05928-6_2

Siow, E., Tiropanis, T., & Hall, W. (2018). Analytics for

the Internet of Things. ACM Computing Surveys, 51(4),

1–36. https://doi.org/10.1145/3204947

Statista. (2020, November 9). Number of Smart Homes

forecast worldwide from 2017 to 2025 (in millions).

https://www.statista.com/forecasts/887613/number-of-

smart-homes-in-the-smart-home-market-worldwide

Thalheim, B. (2012). The Science and Art of Conceptual

Modelling. In A. Hameurlain (Ed.), Lecture notes in

computer science Journal subline: Vol. 7600. Special

issue on database and expert systems applications (Vol.

7600, pp. 76–105). Springer. https://doi.org/10.1007/

978-3-642-34179-3_3

vom Brocke, J., Simons, A., Niehaves, B., Riemer, K.,

Plattfaut, R., & Cleven, A. (2009). Reconstructing the

Giant: On the Importance of Rigour in Documenting

the Literature Search Process. 17th European

Conference on Information Systems, Verona, Italy.

http://aisel.aisnet.org/ecis2009/161/

Yassein, M. B., Shatnawi, M. Q., Aljwarneh, S., & Al-

Hatmi, R. (2017). Internet of Things: Survey and open

issues of MQTT protocol. In 2017 International

Conference on Engineering & MIS (ICEMIS’2017):

University of Monastir, Monastir, Tunisia, 08-10 May,

2017: Proceedings (pp. 1–6). IEEE.

https://doi.org/10.1109/ICEMIS.2017.8273112

Yousefpour, A., Fung, C., Nguyen, T., Kadiyala, K.,

Jalali, F., Niakanlahiji, A., Kong, J., & Jue, J. P.

(2019). All one needs to know about fog computing and

related edge computing paradigms: A complete survey.

Journal of Systems Architecture, 98, 289–330.

https://doi.org/10.1016/j.sysarc.2019.02.009

Zschörnig, T., Wehlitz, R., & Franczyk, B. (2019). A Fog-

enabled Smart Home Analytics Platform. In

Proceedings of the 21st International Conference on

Enterprise Information Systems (pp. 616–622).

SCITEPRESS - Science and Technology Publications.

https://doi.org/10.5220/0007750006160622

Zschörnig, T., Wehlitz, R., & Franczyk, B. (2020). IoT

Analytics Architectures: Challenges, Solution

Proposals and Future Research Directions. In F.

Dalpiaz, J. Zdravkovic, & P. Loucopoulos (Eds.),

Lecture Notes in Business Information Processing.

Research Challenges in Information Science (Vol. 385,

pp. 76–92). Springer International Publishing.

https://doi.org/10.1007/978-3-030-50316-1_5

Zschörnig, T., Windolph, J., Wehlitz, R., & Franczyk, B.

(2020a). A Cloud-based Analytics Architecture for the

Application of Online Machine Learning Algorithms

on Data Streams in Consumer-centric Internet of

Things Domains. In Proceedings of the 5th

International Conference on Internet of Things, Big

Data and Security

(pp. 189–196). SCITEPRESS -

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

832

Science and Technology Publications.

https://doi.org/10.5220/0009339501890196

Zschörnig, T., Windolph, J., Wehlitz, R., & Franczyk, B.

(2020b). A Cloud-based Analytics-Platform for User-

centric Internet of Things Domains – Prototype and

Performance Evaluation. In T. Bui (Ed.), Proceedings

of the Annual Hawaii International Conference on

System Sciences, Proceedings of the 53rd Hawaii

International Conference on System Sciences. Hawaii

International Conference on System Sciences.

https://doi.org/10.24251/HICSS.2020.808

A Hybrid IoT Analytics Platform: Architectural Model and Evaluation

833
