Generating Automatic Unit Tests of JavaScript Code from UML

Class and Activity Diagrams

Agnieszka Malanowska

and Adrianna Małkiewicz-Błotniak

Warsaw University of Technology, Institute of Computer Science, Nowowiejska 15/19, Warsaw, Poland

Keywords: Automatic Test Generation, Unit Tests, JavaScript, UML, Class Diagram, Activity Diagram, Jest, StarUML,

Test-driven Development.

Abstract: As testing phase plays a significant role in the software lifecycle, all facilitations that can speed up and

automate this process seem to be very useful. One of the biggest group of approaches covers automatic test

generation. In this paper, we describe our solution for fully automated unit test generation from UML class

and activity diagrams. We have adapted and completely redesigned two algorithms from the literature. The

first of them tests conformance of types of attributes and method return values between the class diagram and

class implementation. The second one serves as a basis for testing all paths of the activity diagram. As a result,

we generate tests in dynamically typed language, JavaScript, in the format required by Jest testing framework.

We have implemented this approach in the extensible UML2Test tool, a plug-in to StarUML modeling

environment. The tool generates complete executable unit tests from the UML model, so it can be used in

conjunction with the test-driven development methodology. Usefulness of our approach and tool was

successfully verified on the exemplary system for recruitment support.

1 INTRODUCTION

Software testing is a crucial activity necessary to

ensure that the implemented software can be released

without significant errors. Unfortunately, this process

requires also much time and effort, so all facilitations

that can speed up the testing phase of software

lifecycle are worth a careful consideration. One

category of such facilitations is test automation,

among which automatic test generation plays a

significant role. Quite often tests are generated on the

basis of the UML (OMG, 2017) model.

There are various approaches to automatic test

generation from UML diagrams. Testing compliance

of the UML model and the source code is particularly

important when the teams working on the design and

the implementation are disjoint. Checking

compatibility of types used in the implementation is

especially vital in dynamically typed programming

languages, where it is impossible to determine

variable type before the code execution. It seems that

among many test generation approaches, there is a

lack of solutions suited for dynamically typed

languages, such as JavaScript (JS). This fact and the

https://orcid.org/0000-0001-8876-9647

popularity of the UML as a modeling language and JS

as a programming language motivated our work on

the UML-based JS tests generation.

In this paper, we present an approach to fully-

automated generation of JS unit tests from the UML

class and activity diagrams. To achieve this, we have

modified two algorithms from the literature and

combined them into one solution (Małkiewicz-

Błotniak, 2020). The first algorithm we used is an

adaptation of (Pires et al., 2008) method to generate

JUnit tests which check the conformance of the class

implementation and the class diagram. The second

approach is based on the (Kurth et al., 2014) solution,

in which test data to cover all paths on the activity

diagram are obtained. Our modifications of

algorithms led to generation of complete unit tests in

JS, according to the syntax defined by Jest (Jest)

testing framework. We have also implemented them

in UML2Test tool (Małkiewicz-Błotniak, 2020), an

extensible plug-in to StarUML (StarUML) modeling

environment. The main novelty of this work is the

adaptation of algorithms to support test generation in

dynamically typed language, JS. Our contribution is

also the new design of the test generator architecture

Malanowska, A. and Małkiewicz-Błotniak, A.

Generating Automatic Unit Tests of JavaScript Code from UML Class and Activity Diagrams.

DOI: 10.5220/0010401401890196

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 189-196

ISBN: 978-989-758-508-1

189

and combination of two independent algorithms into

one useful tool, which was successfully verified on

the exemplary system for recruitment support.

The rest of the paper is organized as follows. In

Section 2, we briefly discuss the related work on

UML-based test generation. Section 3 describes the

original algorithms we have taken advantage of. In

Section 4, there is an exhaustive description of our

solution, including modifications of original

algorithms and architecture of our tool. Section 5

presents the example of usage of this tool and results

of experiments. Section 6 concludes the paper.

2 RELATED WORK

The topic of test generation is very wide and one of

its many branches uses UML model as an input.

Below we present only a small excerpt from the very

rich literature on UML-based test generation.

Different approaches exploit various types of the

UML diagrams. Generated tests can also take many

diverse forms. Although the most useful are

automatically generated tests ready to be executed,

such full solutions are not as common as one may

expect.

One of the oldest publications on test generation

from UML diagram is the one by (Offutt et al., 1999).

The authors propose the UMLTest tool which

generates system tests using UML state machine

diagram as an input. Their tool does not generate fully

automatic tests, but only test input data, test scenario

and expected results. This approach covers 3 of 4 test

coverage levels defined by the authors, i.e. transition

coverage level, full predicate coverage level and

transition-pair coverage level. The complete

sequence coverage level was not implemented, as it

requires additional information about the real use case

of the software (Offutt et al., 1999).

Similar output is also generated by the UTG tool

proposed by (Samuel et al., 2009) and implemented

in Java. In this case, the activity diagram is used to

prepare test data, test scenario and test postcondition.

The authors use program slicing approach. They map

the activity into the flow dependency graph and

execute the edge marking algorithm. This approach

covers all paths of the activity diagram. At least one

test case for each path is obtained, boundary testing

criterion is also applied.

Sequence and state machine diagrams serve as an

input to the method and tool described by (Barisas et

al., 2013). Again, only test input data and test

scenarios for manual execution are generated. They

cover integration testing level and their approach

offers twofold method of test data generation. Input

data are generated either randomly or using symbolic

execution. One of the biggest drawbacks of this

approach is that, although the generated tests should

be as independent of the application code as possible,

the tests cannot be obtained without the existing

source code and have to be created again after

introduction of changes in the code.

Quite different approach is presented by (Arora et

al., 2020). The activity diagram serves as an input for

test scenario generation. In this case, the modified ant

colony algorithm is exploited. To overcome the

difficulties resulting from this algorithm (long

execution time and danger of local optimum

selection), the authors have modified it and added the

orientation factor. As this approach is based on the

heuristic, it still takes quite long to obtain the results,

but the authors indicate that it gives better results than

traditional genetic algorithm and basic ant colony

optimization. The described method can be used only

for a concurrent part of the activity diagram.

3 ALGORITHMS USED

Our approach for JS automatic unit test generation is

based on two algorithms from the literature. Here we

present the original approaches and highlight some

issues with them.

3.1 Testing Conformance of Class

Definition with Class Diagram

The first algorithm that inspired our work was

proposed by (Pires et al., 2008). The authors describe

generation of fully automated design tests from the

class diagram using Model Driven Architecture

(MDA) approach (OMG, 2014a), implemented as an

Eclipse plug-in. They claim to have succeeded in

obtaining executable JUnit tests for simple design

rules which check the conformance of Java classes

and their design on the class diagram in terms of

(Pires et al., 2008): attributes and method signatures

(conformance of type names), generalization and

association.

Only the first category of design tests is described

in (Pires et al., 2008) and we have focused only on it.

Although the tests that only check the compatibility

of types of attributes and return values of methods

between the class diagram the source code may not

seem practically useful, especially when other

automation mechanisms (e.g. UML-based code

generation) are exploited, they turned out to be quite

valuable in our case. Firstly, in the dynamically typed

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

190

language, there is no easy way to check the

conformance of types in the implementation with

expectations. Secondly, there are still many projects

in which developers manually implement the

designed architecture. Moreover, often the design and

implementation are performed by the separate teams,

so the probability of error introduction increases. It all

convinced us that the idea of type conformance

testing is worth a new adaptation.

(Pires et al., 2008) implement their approach

using the MDA framework. They used existing UML

metamodel published by OMG as a source and Java

Abstract Syntax as a target Java metamodel available

in Eclipse. The concrete models of those source and

target metamodels are class diagrams and Java or

JUnit code. The rules of transformation between the

input and output model are defined using the ATL

language. To access the information about the code

structure, Pires et al. reuse their previously developed

DesignWizard (DesignWizard) library, which offers

an API to access the structure of the code by reading

Java bytecode. The ATL transformation rule defined

by (Pires et al., 2008) consists of names of the:

transformation module, input and output metamodels

(i.e. UML2 and Java Abstract Syntax), rule, source

element from the input metamodel (i.e. Class) and

target elements to which the source will be

transformed (i.e. Java output). The authors present

only the extract of the whole transformation rule.

At the beginning of the JUnit test generated by

(Pires et al., 2008), the DesignWizard object is

created on the basis of the indicated Java project.

Then, specific class under test is obtained from the

Java code using the DesignWizard object’s API.

Expected names and types of attributes and names

and return values of methods are read from the class

diagram and hardcoded in the string arrays. Then, two

separate loops check the conformance of types for

attributes and methods. In each case, the Java field or

method representation is obtained by the

DesignWizard object on the basis of the Java class

name and the name of the class member defined in the

UML model. Then, an assertion verifies whether the

string representing the UML type of the given

member is the same as the name of the member type

obtained from the DesignWizard representation of the

Java bytecode.

3.2 Testing Conformance of Method

Implementation with Activity

Diagram

The second approach we have taken advantage of is

proposed by (Kurth et al., 2014). That paper describes

a method of test data generation from the activity

diagram with OCL (OMG, 2014b) constraints. The

activity diagram is transformed into an AMPL

(AMPL) program describing all control flow paths of

the input diagram. Such program is then transferred

to a constraint solver to obtain values of variables for

each path of the original diagram, which form the test

data. The authors implemented their approach in the

tool called Activity Tester and claim that it can

generate fully automated unit tests in C++. Moreover,

this tool is said to be a part of the bigger Eclipse plug-

in, Partition Test Generator (ParTeG). However, the

paper (Kurth et al., 2014) focuses only on the UML-

AMPL transformation and experiments with different

constraint solvers. Generation of fully automatic C++

unit tests is not described there.

The input activity diagram supported by the

(Kurth et al., 2014) transformation should represent

one UML operation and can contain actions, control

nodes and control flows. OCL constraints can be used

for every action (as local postconditions, written in a

note) and control flow (as guards). All attributes of

the class owning the given method and all parameters

of this method can be referred to in constraints. The

constraints and properties and parameters used inside

the constraints will be represented in the resulting

AMPL model. The whole transformation is

performed by means of symbolic execution.

As the authors of (Kurth et al., 2014) indicate,

execution of each path of the activity diagram is

modelled as a series of states. They define the

activation set as a subset of all states in which the

given action or control flow is being executed and

indicate that there exists one such activation set for

each action with a local postcondition and each

control flow with a guard. OCL constraints are

represented as AMPL constraints and can be enabled

or disabled for each state (Kurth et al., 2014). Local

postconditions of actions can use the @pre mark,

which means that they refer to the value of the given

variable in the previous state. Guards describe only

the relationship between variables within a state.

Only integer, float and boolean variables are

supported in this approach.

The resulting AMPL code consists of declarations

of parameters and variables, specification of

constraints and activation sets for the constraints

(Kurth et al., 2014). The authors also point out that

boundary values of variables are much more useful

for testing purposes than the others, so they add the

linear objective function to the AMPL model to

enforce boundary values detection (Kurth et al.,

2014). The authors also introduce an early

elimination of infeasible paths (Kurth et al., 2014),

Generating Automatic Unit Tests of JavaScript Code from UML Class and Activity Diagrams

191

which uses the modification of the depth-first search

(DFS) algorithm. Feasibility of the given path is

verified by execution of the constraint solver on it.

There are also special parameters of the pruning

algorithm: number of steps of the algorithm

performed without feasibility checking, maximum

desired path length and maximum number of test

cases.

The paper (Kurth et al., 2014) mainly describes

the transformation from the activity diagram to the

AMPL program, an interface common for the

majority of constraint solvers. The AMPL model is

used as an input to the solver (selected for specific

problem nature), which is expected to generate values

of variables satisfying conditions specified on all

paths of the diagram. Those values form the test data.

Successful experiments with different types of

problems and solvers are reported by (Kurth et al.,

2014), but they are performed manually – no

automation of constraint solver usage is presented.

4 UML2Test

We have redesigned the algorithms described in

Section 3 and preserved only the core ideas of the

original methods. Those adaptations of two distinct

algorithms were also integrated into one tool,

UML2Test (Małkiewicz-Błotniak, 2020). It is a plug-

in to the StarUML (StarUML) modeler, which has a

JS API. Tests generated by UML2Test are prepared

for the Jest (Jest) testing framework and can be

executed fully automatically. As the generated tests

check the conformance of implementation with the

UML model, both the design and implementation

have to exist for the tests to be successfully created

and executed. However, to only generate tests without

running them, one does not need an existing

implementation of the designed system. It allows for

usage of our solution in a test-driven development

approach.

Decisions made during the adaptation of original

algorithms result from the selected development

environment and availability of JS libraries. As our

modifications of methods are closely related to the

UML2Test architecture, we firstly describe the latter

and then present the former.

4.1 Architecture

UML2Test consists of three main modules. The first

one loads the project from the StarUML modeler and

transforms it to the internal representation defined for

our tool. The second module is responsible for test

code generation. It prepares textual representation of

files with JS tests compatible with Jest framework.

Both modules offer easy extensibility, as they

implement simple interfaces and the rest of the

implementation refers only to those interfaces. The

third module is used to generate test cases and is

necessary only for the algorithm based on (Kurth et

al., 2014) approach. Test cases store input data and

expected output for all paths of the activity diagram.

The module responsible for test case generation

employs a constraint solver (to find test data and

expected results, as in (Kurth et al., 2014)) and a

parser (to parse OCL constraints from the activity

diagram). All modules are managed by the main class

of the plug-in, called UML2Test. The latter is run by

the StarUML environment using its public API. The

high-level illustration of UML2Test architecture is

presented in Figure 1.

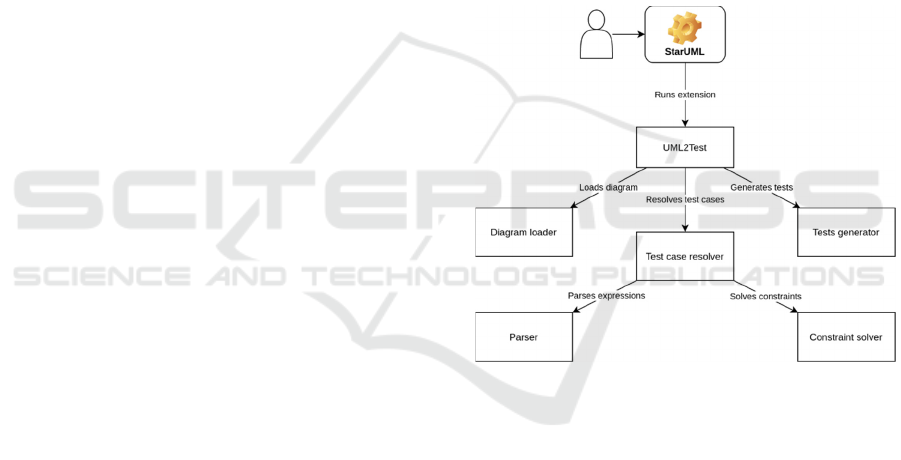

Figure 1: UML2Test architecture.

4.2 Modifications of Algorithm based

on Class Diagrams

The approach described by (Pires et al., 2008) is

based on the MDA architecture and uses a specific

DesignWizard tool to perform code inspection of Java

classes statically. Our architecture, as well as the

target language, differs completely from theirs. We

only reuse their idea that from the class diagram tests

checking conformance of types can be generated. We

perform test generation for a dynamically typed

language in accordance with UML2Test control flow.

We assume that the input class diagram is correct

and only five JS primitive types (string, number,

boolean, bigint, object) can be used on this

diagram. In the first stage, StarUML representation of

the whole project is read by UML2Test and is

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

192

transformed into our internal representation. The

transformation uses Lodash (Lodash) library as a

functional paradigm helper. JS test generator is

executed on this internal representation and prepares

the textual output, which then will be saved in the test

files. Test generation itself consists of three stages

and is repeated for each class. All members of a given

class are considered, also those inherited from

superclasses, as all generalization hierarchy is

traversed during test generation.

Firstly, the class under test from the source code

is imported into the unit test file. Then, for each

attribute which has type defined in the class diagram,

a separate test is created. Unlike (Pires et al., 2008),

we test the code written in a dynamically typed

language, so types have to be determined in runtime.

Thus, in every test an instance of the tested class is

created. In the second line of each test there is a

comparison of types. We write an assertion to check

if the type of the implemented attribute is the same as

in the UML model. The type from the UML model is

read from our internal project representation and

hardcoded in the test code. The actual attribute from

implementation is obtained dynamically from the

previously created instance of the class under test. To

check its type, we use JS typeof operator.

The last stage of class test generation is similar.

Tests are generated for each method, for which the

return type was defined and is a primitive JS type.

Again, the type returned by the implemented method

can be obtained only dynamically, so the method

needs to be executed within the test. An instance of

the class is created in every such test. Moreover, to

execute a method, correct arguments need to be

provided. We achieve this by defining mock-ups of

all parameters. The only worth information is the type

of the return value, so we can pass any values of

arguments of expected types. We randomly select

values of parameters using Chance (Chance) library.

As the tests have to be repeatable, we define a

constant seed at the first usage of this library. The

result of method execution is assigned to a variable.

Finally, the assertion checks whether the type of this

variable is compliant with the hardcoded type

obtained from the class diagram.

4.3 Modifications of Algorithm based

on Activity Diagrams

Our adaptation of the method proposed by (Kurth et

al., 2014) is also very different from the original. The

aforementioned paper describes only test data

generation, while we propose a fully automatic

approach to unit tests generation. Here we assume the

correctness of the input diagrams again. The

constraint solver we use, Constrained (Constrained),

supports only integer variables, so we assume that all

variables in the input activity diagram are integers.

We also expect that the initial node of the diagram is

related to a note with a method signature. As in the

original solution (Kurth et al., 2014), all actions can

have notes with their local postconditions, possibly

with @pre marks, and guards can be placed on

control flows. All constraints should be written

according to the specified grammar (Małkiewicz-

Błotniak, 2020) for the subset of OCL language. Test

conditions are extracted automatically from the

activity diagram.

Similarly to the adaptation described in the

previous section, we transform the StarUML project

into our own internal representation. Then, test cases,

which will be stored in test files, are obtained. Here

we use our adaptation of (Kurth et al., 2014) method.

Firstly, it is necessary to generate all possible paths in

the graph representing the input activity diagram. We

use Graphlib (Graphlib) library to perform operations

on the graph. All paths are found using the modified

version of DFS algorithm. The authors of the original

method also used modified DFS, but their

modification focused on infeasible path elimination

(Kurth et al., 2014), while our version of DFS ensures

that all of the paths are found, even if they have some

nodes in common. We achieve this by marking

currently processed node on the stack as unvisited

after successfully finding a path.

Once all paths are obtained, values of test data (i.e.

parameters of the method, referenced attributes of the

enclosing class and expected return value) for each

path are generated. They are calculated with the help

of the constraint solver, we have chosen a JS tool

named Constrained (Constrained). This solver has

some limitations, e.g. it supports only integer

variables, but has also a great advantage – it always

finds boundary values satisfying given condition, so

no separate boundary value analysis is necessary.

Before using the solver, the string representations of

constraints are parsed. We have defined a simplified

grammar of a subset of OCL language, which can be

found in (Małkiewicz-Błotniak, 2020). The parser for

this grammar is implemented with the help of Nearley

(Nearley) library and employs a lexer defined using

Moo (Moo) library. To analyze abstract syntax trees,

we use functional paradigm utilities provided by the

Lodash (Lodash) library. All new variables and

constraints are added to the Constrained solver. As

this tool supports only non-strict inequalities, we have

added a transformation that allows for usage of all

types of inequalities on the input diagram. Strict

Generating Automatic Unit Tests of JavaScript Code from UML Class and Activity Diagrams

193

inequality symbols are replaced with their equivalents

which are true for integers (as only they can be used

on the diagram), i.e. > symbol is replaced with ‘

>= 1

+’ string and < symbol is changed to ‘<= -1 +’. <>

symbol, used to express that two values are not equal,

is also defined – both rules for < and > operators are

applied. When all constraints on a given path are

parsed and transferred to the solver, the latter is used

to find values of variables that satisfy all conditions

on the path. The return value for this path is also

calculated, as it is just one of the variables specified

in OCL constraints.

Test data for all paths are then delivered to the JS

test generator, which prepares textual representation

of the test code. Firstly, there is an import of the JS

class owning the tested method. Then, separate tests

for each path are created. As those tests check the

behavioral properties of the system, the method needs

to be invoked on an instance of the tested class. Thus,

every test begins with creating such an instance.

Then, all parameters (including attributes of the given

class) are assigned values generated by the constraint

solver. Finally, an assertion checks whether the value

returned by the invocation of method on the created

instance with the specified parameters is equal to the

return value generated by the solver. At the end, the

string representation of the tests is saved in a test file.

Similarly to the authors of the original approach

(Kurth et al., 2014), we use the constraint solver to

generate values of parameters for each path. Unlike

them, we do not transform the diagrams into AMPL

model, but we pass the constraints directly to the

selected solver. We analyze the graph of activity with

the different modification of DFS than this used by

(Kurth et al., 2014). We have formally defined a

specific simplified OCL grammar and substitution

rules for some operators and built lexer and parser to

read the textual constraints. Although we guess that

Kurth et al. also must have used some parser, there is

no description of that in their paper (Kurth et al.,

2014). Moreover, we generate fully executable tests,

instead of test data only. Therefore, although the main

idea remains the same as in the original approach, we

have redesigned and reimplemented it completely,

with our own assumptions and improvements.

5 EVALUATION ON EXAMPLE

To verify the usefulness of our adaptation of

algorithms and UML2 Test tool, we have designed an

exemplary system supporting recruitment process in

a company. Due to the lack of space, we cannot

present the whole model and results here, but they can

be found in (Małkiewicz-Błotniak, 2020).

Unfortunately, we have no access to real-world UML

projects data, so we were unable to validate this tool

on the industrial example.

The purpose of the exemplary system is to

automate tasks related to recruitment tests and

accountancy. As a recruitment support, the system

estimates the level of knowledge of a candidate and

calculates the proposed salary. It is also responsible

for counting the value of the raise for an employee.

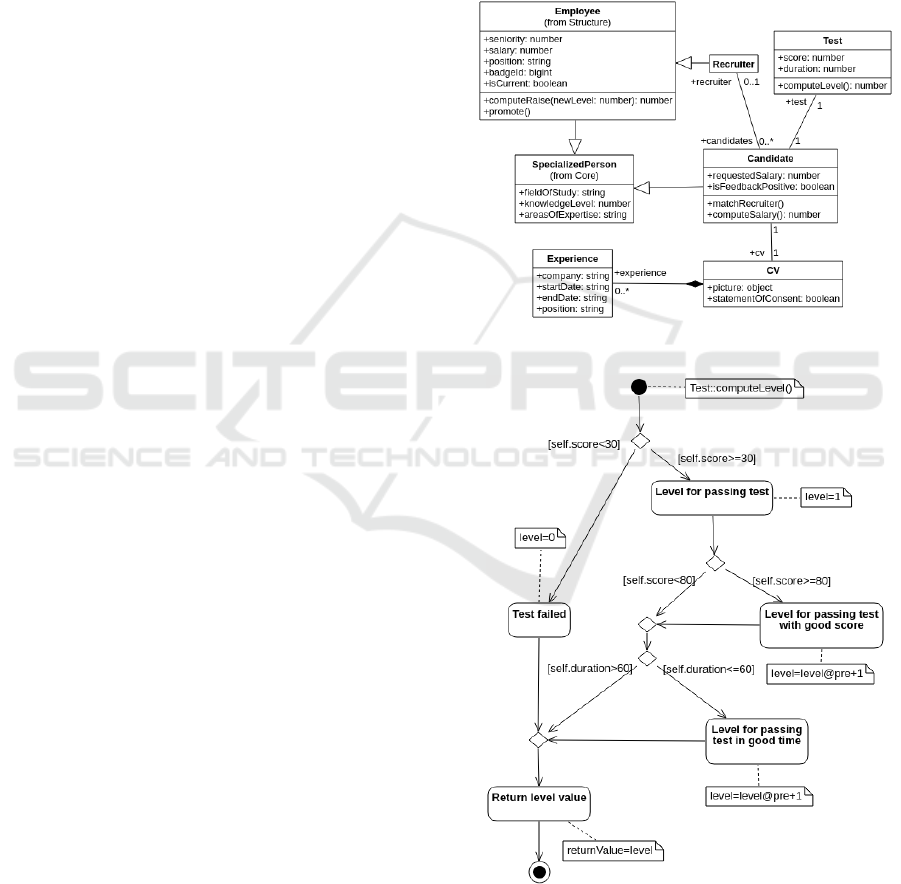

Figure 2: Class diagram for the recruitment support system.

Figure 3: Activity diagram for computeLevel method.

The StarUML project for this system consists of

three models: Core (basic classes), Structure (of a

company) and Recruitment (candidates and

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

194

recruitment data). The project contains three class

diagrams (13 classes in total) and three activity

diagrams. The latter were designed for methods that

operate on integers, as only those are supported by

our solution. For brevity, we present here only the

extracts of the whole project and generated tests. As

an example, the class diagram for the Recruitment

model is presented in Figure 2. It is a typical class

diagram, we just assume that only specific JS

primitive types can be used. Tests which check

conformance of the class implementation with its

design are very similar for each class. Below we

present three exemplary tests generated for the

Employee class.

test("checks seniority attribute to

have number type", () => {

const instance = new Employee();

expect(typeof

instance.seniority).toBe("number");

});

test("checks fieldOfStudy attribute

to have string type", () => {

const instance = new Employee();

expect(typeof

instance.fieldOfStudy).toBe("string");

});

test("checks computeRaise operation

return value to have number type", ()

=> {

const instance = new Employee();

const mockedNewLevel =

7347197741891584;

const result =

instance.computeRaise(mockedNewLevel);

expect(typeof

result).toBe("number");

});

The test file contains a set of tests dynamically

checking the conformance of types of attributes

between the diagram and implementation. They are

generated for the owned attributes of the Employee

class (first test above), attributes inherited from

superclasses (second test), return values of the owned

methods (third test) and inherited methods. If the

method has some parameters, they are mocked with

random values. UML2Test generated 13 test files

using this algorithm, as there are 13 classes in the

project. Each class contains in average 3 fields or

methods and in this case, total time necessary for test

generation was 12 ms. As a result, 70 simple unit tests

(stored in 13 files) were created.

Figure 3 presents the activity diagram for

computeLevel method. This operation is

responsible for assigning level of knowledge to the

candidate on the basis of the recruitment test score

and time. The initial node of the diagram contains a

note with method signature. All actions that cause a

change of variable values also have corresponding

notes. The @pre mark, indicating the value from the

previous state, is used. We refer to attributes of the

class owning the method under test (i.e. Test class)

using the self keyword. Local variables, such as

level and returnValue, also appear on the

diagram. It is worth noting that the activity diagram

shown in Figure 3 presents a method which operates

only on class attributes, but diagrams describing

methods which exploit both external parameters and

internal attributes of the enclosing class were also

successfully tested, what can be found in

(Małkiewicz-Błotniak, 2020).

As can be seen from the diagram, there are five

possible paths of execution of the computeLevel

method. For every path, a corresponding test was

automatically generated. Tests for two first paths of

this method look as follows.

test("checks path #1 for method

computeLevel", () => {

const instance = new Test();

instance.score = 29;

expect(instance.computeLevel()).toBe(0)

;

});

test("checks path #2 for method

computeLevel", () => {

const instance = new Test();

instance.score = 80;

instance.duration = 60;

expect(instance.computeLevel()).toBe(3)

;

});

In each test, an instance of Test class is created,

its attributes which appear on the given path are

assigned values obtained from the constraint solver

and an assertion is invoked on the expected and actual

return values. Due to the usage of the Constrained

(Constrained) solver, the attributes used within the

diagram are assigned boundary values in the test

code. In case of this algorithm, 3 test files were

generated, as there were 3 input activity diagrams. It

took 125 ms to create all 41 individual unit tests.

Although the time required for this algorithm to

complete is much bigger than for the first one, it is

still unnoticeable for a human. It suggests that the

results can be obtained in a reasonable time even for

projects with many more diagrams.

All unit tests generated by UML2Test can be

executed using Jest (Jest) testing framework.

However, if the tests are to be successfully run, a

Generating Automatic Unit Tests of JavaScript Code from UML Class and Activity Diagrams

195

ready implementation of the corresponding JS classes

has to exist. On the other hand, the implementation is

necessary only to run the tests, what allows for usage

of test-driven development approach.

6 CONCLUSIONS

Testing process is one of the most important phases

of the software lifecycle and each improvement in it

is worth a consideration. In this paper, we have

presented our solution for fully automatic unit tests

generation. The tests are created on the basis of the

UML class and activity diagrams and written in JS,

according to the rules defined by Jest (Jest) testing

framework. To achieve this, we have modified two

already existing algorithms. The first one (Pires et al.,

2008) was intended to generate JUnit tests checking

conformance of types of attributes and method return

values between class design and implementation. The

second, proposed by (Kurth et al., 2014) and based on

the usage of the constraint solver, generates test data

for all paths from the activity diagram.

We have redesigned the original methods in order

to generate executable unit tests in a dynamically

typed language, JS. We decided to use this language,

as testing conformance of types for dynamically

typed language is much more valuable than for those

typed statically. Such testing is also particularly

useful in cases when design and implementation are

prepared by separate teams. Our solution is

implemented as an extensible and easy to use

StarUML (StarUML) plug-in, called UML2Test

(Małkiewicz-Błotniak, 2020). The approach

presented in this paper was verified on the exemplary

system supporting the recruitment process with

promising results.

The most serious limitation of the approach

described here is the fact that only integers can be

specified on the input activity diagram. The other

drawback is the lack of industrial evaluation of the

approach caused by the lack of the industrial data. As

the UML2Test generates simple unit tests checking

the conformance of class member types and covering

all paths of the methods, no additional constraints,

such as pre- or postconditions referring to the state of

the whole system are generated. Finally, some

disadvantages of the approach can be caused by the

fact that we rely on the UML models as inputs.

Although the UML has some drawbacks, e.g.

diagrams can be interpreted differently or used only

partially, its main advantages are popularity and ease

of understanding. In the future, we are planning to

perform experiments with other tools, e.g. constraint

solvers, as well as further modifications of the

algorithms or additions of the new ones. For instance,

tests checking conformance of types could be

extended to cover the types of class attributes coming

from association relationships.

REFERENCES

All URLs were valid on 21.11.2020

Arora, V., Singh, M., Bhatia, R., 2020. Orientation-based

Ant colony algorithm for synthesizing the test scenarios

in UML activity diagram. Inf Softw Technol. Vol. 123.

1–21. DOI: 10.1016/j.infsof.2020.106292.

Barisas, D., Bareisa, E., Packevicius, S., 2013. Automated

Method for Software Integration Testing Based on

UML Behavioral Models. In Communications in

Computer and Information Science. Vol. 403. Springer.

272-284. DOI: 10.1007/978-3-642-41947-8_23.

Kurth, F., Schupp, S., Weißleder, S., 2014. Generating Test

Data from a UML Activity Using the AMPL Interface

for Constraint Solvers. In Seidl M., Tillmann N. (eds)

Tests and Proofs. TAP 2014. Springer. 169-186. DOI:

10.1007/978-3-319-09099-3_14.

Małkiewicz-Błotniak, A., 2020. Generating tests based on

UML models [BSc thesis]. Warsaw University of

Technology, Institute of Computer Science (in Polish).

Offutt, J., Abdurazik, A., 1999. Generating tests from UML

specifications. In Intl Conf on UML. Springer. 416-429.

DOI: 10.1007/3-540-46852-8_30.

OMG, 2014. Model Driven Architecture (MDA): MDA

Guide rev. 2.0.

OMG, 2014. Object Constraint Language: Version 2.4.

OMG, 2017. Unified Modeling Language: Version 2.5.1.

Pires, W., Brunet, J., Ramalho, F., 2008. UML-based

design test generation. In SAC '08: Proc of 2008 ACM

symposium on Applied computing. ACM. 735-740.

DOI: 10.1145/1363686.1363859.

Samuel, P., Mall, R., 2009. Slicing-based test case

generation from UML activity diagrams. ACM

SIGSOFT SEN. Vol. 34. No. 6. ACM. 1-14. DOI:

10.1145/1640162.1666579.

AMPL, https://ampl.com/.

Chance, https://chancejs.com/.

Constrained, https://github.com/Wizcorp/constrained.

DesignWizard,

https://github.com/joaoarthurbm/designwizard.

Graphlib, https://github.com/dagrejs/graphlib.

Jest, https://jestjs.io/.

Lodash, https://lodash.com/.

Moo, https://github.com/no-context/moo.

Nearley, https://nearley.js.org/.

ParTeG, http://parteg.sourceforge.net/.

StarUML, http://staruml.io/.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

196
