Functional Safety and Electric Vehicle Charging: Requirements

Analysis and Design for a Safe Charging Infrastructure System

Tommi Kivelä

1 a

, Mohamed Abdelawwad

2 b

, Marvin Sperling

1 c

, Malte Drabesch

Michael Schwarz

, Josef Börcsök

2 d

and Kai Furmans

1 e

Institute for Material Handling and Logistics (IFL), Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany

Department of Computer Architecture and System Programming, University of Kassel, Kassel, Germany

Keywords: Electric Vehicle Charging, Functional Safety, Safety-related Systems, System Design.

Abstract: As society moves from fossil fuels towards electric mobility, there’s an increasing need for charging

infrastructure for electric vehicles. Aside from a network of public charging stations, charging equipment will

also be increasingly installed in homes and used on a daily basis to charge electric vehicles (EVs) overnight.

With this increasing role of charging infrastructure in day-to-day life, safety and security should be guaranteed

for these systems. In this work we present the requirements analysis and a charging infrastructure system

design for both private and public charging stations, with the goal of fulfilling the requirements of current

functional safety and EV supply equipment (EVSE) standardization. Risk assessment for the charging process

and the derived functional safety requirements are presented. The overall system design is discussed, with the

main focus on the safety-related parts. The presented work can be used as a basis for the development of

functionally safe next generation EVSE.

1 INTRODUCTION

According to the IEA (2020), the amount of electric

vehicles (EVs) has jumped from 17 000 cars in 2010

to 7.2 million in 2019. As society moves from fossil

fuels towards electric mobility, there’s an increasing

need for charging infrastructure for EVs. Aside from

a network of public charging stations, charging

equipment will be increasingly installed in homes and

used on a daily basis to charge electric vehicles

overnight. In 2019, 7.3 million chargers worldwide

have been installed, majority of them private (IEA

2020). With this increasing role of charging

infrastructure in day-to-day life, safety and security

should be guaranteed for these systems.

In this work we present results from the research

project SiLis (“Sicheres Ladeinfrastruktursystem für

Elektrofahrzeuge”: “a safe charging infrastructure

system for EVs”). The goal of the project is to

develop a compact and cost-effective electronic

https://orcid.org/0000-0003-4795-0030

https://orcid.org/0000-0001-9501-8278

https://orcid.org/0000-0002-1970-9891

https://orcid.org/0000-0003-4394-1305

https://orcid.org/0000-0001-6009-5564

control system for both private and public 3-phase

AC (mode 3) charging stations, while fulfilling the

requirements of current functional safety and EV

supply equipment (EVSE) standardization.

The standard IEC 61851-1 (IEC 2017) defines

general and safety requirements for EVSE, but does

not currently define any functional safety

requirements in case the safety-related functions in

the charging station are implemented through

programmable electronic systems. Relevant

background regarding the requirements for charging

stations, safety engineering and functional safety, as

well as related work is discussed in section 2.

In order to define functional safety goals, a risk

assessment for the charging application was

performed, which is presented in section 3. Following

the risk assessment, a system architecture was

developed, where the safety-related and non-safety-

related functionality were separated into their

respective subsystems. The safety-related subsystem

was developed according to the standard IEC 61508

Kivelä, T., Abdelawwad, M., Sperling, M., Drabesch, M., Schwarz, M., Börcsök, J. and Furmans, K.

Functional Safety and Electric Vehicle Charging: Requirements Analysis and Design for a Safe Charging Infrastructure System.

DOI: 10.5220/0010398303170324

In Proceedings of the 7th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2021), pages 317-324

ISBN: 978-989-758-513-5

317

(IEC 2010). The developed safety subsystem includes

a safety control board with a 1oo1D architecture

(Börcsök 2004), which is responsible for the charging

control main circuit, with redundant switching

components to achieve a fail-safe design. The system

design is presented in section 4. In section 5, we finish

with a summary and a discussion of the work still to

be finished in the near future.

2 BACKGROUND

2.1 Electric Vehicle Supply Equipment

The general and safety requirements for EVSE are

provided by the IEC 61851 standard series (IEC

2017). The complete EV charging system includes

the EVSE and the functions within the EV required

for charging (IEC 2017). The EV side safety

requirements for the charging system are defined in

ISO 17409 (ISO 2020).

IEC 61851-1 (IEC 2017) defines different

configurations of the EV charging system and

different charging modes, including AC and DC

charging. The presented system targets mode 3

charging, i.e. AC charging with dedicated EVSE

permanently connected to the grid (IEC 2017).

The standard series IEC 62196 (IEC 2014) defines

standardized plugs, socket-outlets, vehicle connectors

and vehicle inlets for EV charging. Specifically, IEC

62196-2 (IEC 2016) defines standardized connectors

for use in AC charging, including the Type 2

connector, commonly used in Europe. The standards

IEC 62196-1 (IEC 2014) and IEC 61851-1 (IEC

2017) define the basic vehicle interface for AC

charging and the Control Pilot (CP)-function for basic

communication between the EVSE and the EV during

charging, allowing for continuous monitoring of the

proximity of the EV, basic signalling between the

EVSE and EV, and encoding the charging cable

current capability. The power supply to the EV shall

be energized and de-energized based on the state of

the CP signal (IEC 2017).

For this work, we assumed the use of IEC 62196-

2 (IEC 2016) conforming connectors and the basic

interface with CP function. The developed system can

optionally support high-level communication e.g.

according to ISO 15118 (ISO 2019), but the safety-

related functions are based on the basic interface.

For the purposes of the risk assessment, the

electrical basic protection requirements (IEC 2005a),

such as the IP-rating of the enclosures and connectors,

are assumed fulfilled. These basic protection and

other requirements from IEC 61851-1 (IEC 2017)

were taken into account during the development

project, but for the purposes of this paper we focus on

the main functions relevant for the development of

the safety-related control system.

In addition to the mandatory functions related to

mode 3, IEC 61851-1 (IEC 2017) sets requirements

for electrical fault protection. Fault protection

(protection against indirect contact) shall be provided

with one or more measures according to IEC 60364-

4-41 (IEC 2005a), for example, automatic

disconnection of supply. Protective earthing

conductor shall be provided and for mode 3 it shall

not be switched. A DC sensitive residual current

protective device (RCD), when using a socket-outlet

or connector according to IEC 62196 series (IEC

2014) shall be used.

To summarise, the developed charging

infrastructure system shall provide the basic vehicle

interface and the associated functions (Control pilot,

proximity detection, cable current capability

detection), as well as provide electrical fault

protection in the form of disconnection of supply in

case of overload and AC or DC fault current.

2.2 Safety Engineering &

Functional Safety

Since the system to be developed is an infrastructure

system and not part of the EV itself, the standard IEC

61508 (IEC 2010) was chosen as development

guidance and certification target. The standard

provides generic guidance for the development of

safety-related electric, electronic or programmable

electronic (E/E/PE) systems.

The goal of safety engineering is to assure the

safety of a system over its lifecycle. In the concept

phase, the system to be developed is analysed: the

hazards related to the system are first identified and

the associated risk is estimated and evaluated. Based

on the risk assessment, risk reduction measures are

designed to reduce the risks in the system to an

acceptable level. Risk reduction measures can be

passive measures, such as basic electrical isolation or

active measures, such as fault current protection. A

safety integrity level (SIL) is used to specify the

integrity requirements for a safety function, which

will be allocated to a E/E/PE-system. The standard

defines SILs 1-4, with a higher level corresponding to

higher risk reduction (IEC 2010).

Although SILs are defined in IEC 61508 in

relation to safety functions, they are used in risk

assessments as a generic measure of risk. Typical

tools for risk estimation are risk graphs and matrices.

A risk matrix should always be calibrated for the

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

318

considered application (IEC 2010). One example of a

calibrated risk matrix, from IEC 62061 (IEC 2005b),

is shown in Table 1. As a generic standard, IEC 61508

considers industrial catastrophes possible e.g. in the

process industry (up to SIL 4), whereas the IEC

62061 targets the machinery industry, where possible

risks are limited in comparison (up to SIL 3). The risk

matrix from IEC 62061 provides a fine granularity for

estimating risks related to single casualties or injuries

to individual persons, and is thus well suited also for

this application area.

The parameters F, P and W (Table 3) are summed

to calculate the risk class C, which together with the

parameter S (Table 2) is used to define the risk

estimate by look-up from Table 1. A resulting SIL-

level indicates that measures must be taken towards

risk reduction. If the risk reduction measure is

implemented with a safety-related control system,

then this estimate is allocated as the required SIL-

level for the SF. OM means that there is a remaining

unacceptable risk, but no SIL allocation is needed.

NR means that the risk is acceptable, further measures

are not necessary. For a more detailed description of

the risk parameters the reader is referred to IEC 62061

Annex A (IEC 2005b).

2.3 Related Work

Few publications seem to discuss functional safety

aspects of charging systems. Instead, scientific

literature regarding charging infrastructure tends to

focus on other aspects, for example power electronic

solutions for high power charging (Tu et al. 2019) or

smart charging strategies and grid integration (Wang

et al. 2016; Veneri 2017).

Schmittner et al. previously studied functional and

electrical safety for charging stations (2013). The

authors considered a typical implementation of a

charging station with the safety-related functions

implemented mainly through discrete

electromechanical and electronic components,

whereas we consider an integrated software

controlled system. The work used the example risk

graph from IEC 61508-5 (IEC 2010), which provides

only very rough granularity for single person injuries

or casualties.

A thorough safety assessment for EV charging

was presented by Vogt et al. (2016). They considered

several hazard types (e.g. electrical, mechanical,

ergonomic) based on ISO 12100 (ISO 2010) and

defined safety goals to be fulfilled by the EVSE or

through other means and assigned SIL-targets (with

IEC 62061 risk matrix) for each. Their work provided

a basis for the risk analysis presented here. However,

some safety goals are reached through a combination

of risk reduction measures. Thus, a more detailed

analysis is required in order to determine the required

contribution of each risk reduction measure towards

the safety goal.

Several charging systems and in-cable-charging

devices are available on the market today. To the

author’s knowledge, none of them are currently

certified with respect to functional safety.

Table 1: Risk matrix according to IEC 62061 (IEC 2005b).

S=Severity, C=Risk class, F=Frequency and duration of

exposure, P=Possibility of avoiding or limiting harm,

W=Probability of occurrence of the hazardous event,

OM=Other measures, NR=No SIL requirements.

C=F+P+W

5-7

8-10

11-13

14-15

SIL2

SIL3

SIL1

SIL2

SIL3

SIL1

SIL2

SIL1

Table 2: Values for S (IEC 2005b).

Reversible, requiring first aid

Reversible, requiring attention from a medical

practitioner

Irreversible, broken limb(s), losing finger(s)

Irreversible, death, losing an eye or arm

Table 3: Values for F, P and W (IEC 2005b).

Probable

Negligible

> 1 year

Rarely

> 2 weeks

to ≤ 1 year

Rarely

Possible

> 1 day

to ≤ 2 weeks

Likely

≤ 1 day

Impossible

Very high

3 SAFETY REQUIREMENTS

The project target was to develop a compact and cost-

effective electronic charging infrastructure system,

which integrates several functions, currently typically

implemented with multiple discrete components,

required in a charging station. In this section we

present the risk assessment for the charging

application and the defined safety requirements for

the charging infrastructure system. The charging

infrastructure system should provide a common basis

for both public and private charging. Mode 3 was the

main target, but the risk analysis was held as generic

Functional Safety and Electric Vehicle Charging: Requirements Analysis and Design for a Safe Charging Infrastructure System

319

as possible to cover the different charging

configurations defined by IEC 61851-1. The focus of

the work was on AC-charging, but the developed

safety system should also be adaptable to DC-

charging in the future.

3.1 Risk Assessment

The goal of the risk assessment was to specify the

functional safety requirements for the system. The

approach and results of Vogt et al. (2016) was taken

as a basis for the assessment. The focus of the

assessment was on electrical hazards. Basic electrical

protection against electrical hazards were considered

covered through following the product

standardisation. This includes for example fulfilling

the isolation, breaking capacity and IP-classification

requirements set for housing and cabling in IEC

61851-1 (IEC 2017) and using the charging plugs and

sockets as defined in e.g. IEC 62196-2 (IEC 2016).

Other, e.g. mechanical or ergonomic hazards were

similarly considered covered through the existing

standardisation. The hazards considered are shown in

Table 4.

Vogt et al. (2016) considered several

environmental and operational conditions. For this

work, some of the conditions were summarised to

focus on the worst case scenarios to derive the

functional safety requirements. The considered

environmental conditions and process states are

shown in Table 5. To cover all cases, the worst case

location, a public charging station on the side of a

public road and no cover or roofing, was taken as the

basis for the assessment. Assumed was, that the

vehicle fulfils ISO 17409 (ISO 2020) requirements,

which do not allow vehicle movement powered by its

own drives while it is connected to external power

supply, excluding this as a possible state. Other

possible situations where the vehicle is moving are

covered by VS2.

The considered situations were all possible

combinations of the listed weather conditions,

operating and vehicle states, except for combinations

of VS2 and A, which were not considered realistic.

For each situation, all the 4 hazards were considered.

The user of the charging station was assumed to be a

layperson with limited knowledge regarding electric

equipment. Thus in most cases a worst case

assumption has to be made about the capability of the

user to detect and avoid hazards. For each case the

initial risk was evaluated and risk reduction measures

were added until the remaining risk was considered

acceptable (result “NR” in the risk matrix in Table 1).

The considered risk reduction measures are shown in

Table 6, originating from IEC 61851-1 (IEC 2017).

Table 4: Hazards considered in the risk assessment.

Hazard

Hz1

Electric shock through contact with live electric

parts

Hz2

Electric shock through contact with live electric

parts when considering external misuse

(e.g. vandalism)

Hz3

Fire, burnout, projection of molten parts due to

arcing or sparking

Hz4

Fire, burnout, projection of molten parts due to

short-circuit or overload of the charging system

Table 5: Environmental conditions and process states.

Weather conditions

Fog or otherwise high humidity

Ice, snow or snowfall

Rain, driving or heavy rain, water splashes from

passing vehicles, or flooding

Operating states

User insert charging connector, charging

process is started

Charging connector is plugged in, charging

process ongoing

User removes charging connector, charging

process is stopped

Vehicle states

VS1

Vehicle is standing (velocity = 0)

VS2

Vehicle is moving (velocity > 0) due to external

influences.

Table 6: Considered risk reduction measures.

Risk reduction measure

RM1

Overload and short circuit protection

RM2

Fault current protection (AC & DC)

RM3

EV Proximity monitoring, energy supply only

when present and automatic disconnection by

loss of continuity (CP/Basic vehicle interface)

RM4

Charging cable capacity detection and overload

protection (CP/Basic vehicle interface)

RM5

Locking mechanism for the charging connector

(Optional requirement for modes 2-4 (IEC

2014, 2017))

A total of 53 cases were analysed. In the

following, representative examples are discussed. As

the functions related to the basic vehicle interface are

part of the risk reduction measures, the analysis

assumed that they are not yet present in the system, in

order to evaluate their required contribution to risk

reduction.

As first example, the situation of W1-A-VS1 is

considered: The user plugs the charging connector to

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

320

a standing vehicle to start the charging process. In

case of the failure of the basic protection (for example

a crack in the charging connector or isolation of the

charging cable due to e.g. equipment aging) the user

could touch live active parts and get an electric shock

(Hz1), since without prior measures the connector is

already active. The shock could in a worst case lead

to death (S=4). Assumedly the user charges their car

daily (F=5). It can be argued, that such an incident

happens only rarely considering that the charging

cable and connectors are built to last for the lifetime

of the application, but the probability is not negligible

(W=2). It might be rarely possible for a layperson to

detect and avoid the hazard (P=3). The resulting risk

estimate is SIL2 (cf. Table 1). The risk estimate for

this case is the same in all weather conditions and if

vandalism is considered (Hz2). The first risk

reduction measure used is fault current protection

(RM2). However, to ensure the effectiveness of this

measure, the charging cable should additionally

include a protective shielding (Vogt et al. 2016).

After implementing RM2, the severity is reduced to

S=2 due to the timely disconnection of power supply.

For the remaining risk, other measures (OM) are

sufficient. The addition of RM3 further reduces the

risk.

In the same situation, an internal fault in the

charging cable, connector or within the EV could

result in a short circuit of the EVSE power supply

upon inserting the cable, leading to e.g. fire (Hz4).

The other risk parameters are same as in the first case

(S=4, F=5, W=2), but for this case it is not possible

for the user to detect and avoid the hazard (P=5). The

risk estimate for this case is SIL3. First, RM1 is used,

reducing the possible severity (S=2). The remaining

risk is estimated with SIL1. As further risk reduction,

RM3 can be employed to ensure that the charging

connector is not active when plugging the vehicle in.

Even further risk reduction can be achieved with

RM4 and other measures such as user information.

As final example, consider the situation B-VS2 in

any weather condition: The vehicle is being charged,

but moves due to external influences (e.g. due to

another vehicle colliding with the EV). As a result,

the charging cable or connector breaks and sparking

or, in a worst case, arcing happens as a result. If

people are in the vicinity when this happens, death is

the worst case result (S=4). The probability of this

event can be argued to be rare or even negligible

(W=2 or 1). A layperson could in a rare case have the

possibility to both detect and avoid the hazard (P=3).

The resulting risk class is C=9 or 10 (F=5), for both

the risk estimate is SIL2. The only suitable risk

reduction measure is RM3. Further risk reduction

measures are external to the EVSE, e.g. user

information, reduced speed limits or fencing around

charging stations.

Assessing risk is always subjective (Redmill

2002). In order to keep the assessment as objective as

possible and avoid introducing significant biases, the

focus was kept on worst case estimates. The risk in

this approach is that the results might be overly

conservative. Considering that charging station usage

is still relatively limited and that as a society we have

relatively little experience over longer periods of time

in laypersons using such equipment on a daily basis,

a conservative approach seems reasonable. Once

more information and real-life experiences over the

lifecycle is gathered with the currently installed

equipment, the risk assessment could be revisited.

3.2 Functional Safety Requirements for

the Charging Station

Based on the risk assessment, the safety functions

required to reduce the risk of the hazards related to

the charging application were defined as shown in

Table 7. The defined safety functions cover the risk

reduction measures RM1-RM3 (SF1-SF3). SF4 is

additionally needed to safely activate the power

supply to allow charging in the first place. The

measures RM4 & RM5 provide further risk reduction,

but were assigned no SIL requirements.

Table 7: Safety Functions.

Description

SIL

Hazards

SF1

EVSE Overload and short

circuit protection.

SIL3

Hz4

SF2

AC & DC Fault current

protection.

SIL2

Hz1, Hz2

SF3

Proximity monitoring,

disconnection of energy

supply upon loss of

continuity.

SIL2

Hz1-Hz4

SF4

Safe start and stop of

charging process. Start only

when EV connected and self-

tests successful. Internal

system supervision and stop

upon detection of unsafe

state or internal faults.

SIL2

Hz1-Hz4

Functional Safety and Electric Vehicle Charging: Requirements Analysis and Design for a Safe Charging Infrastructure System

321

4 DESIGN

4.1 System Design

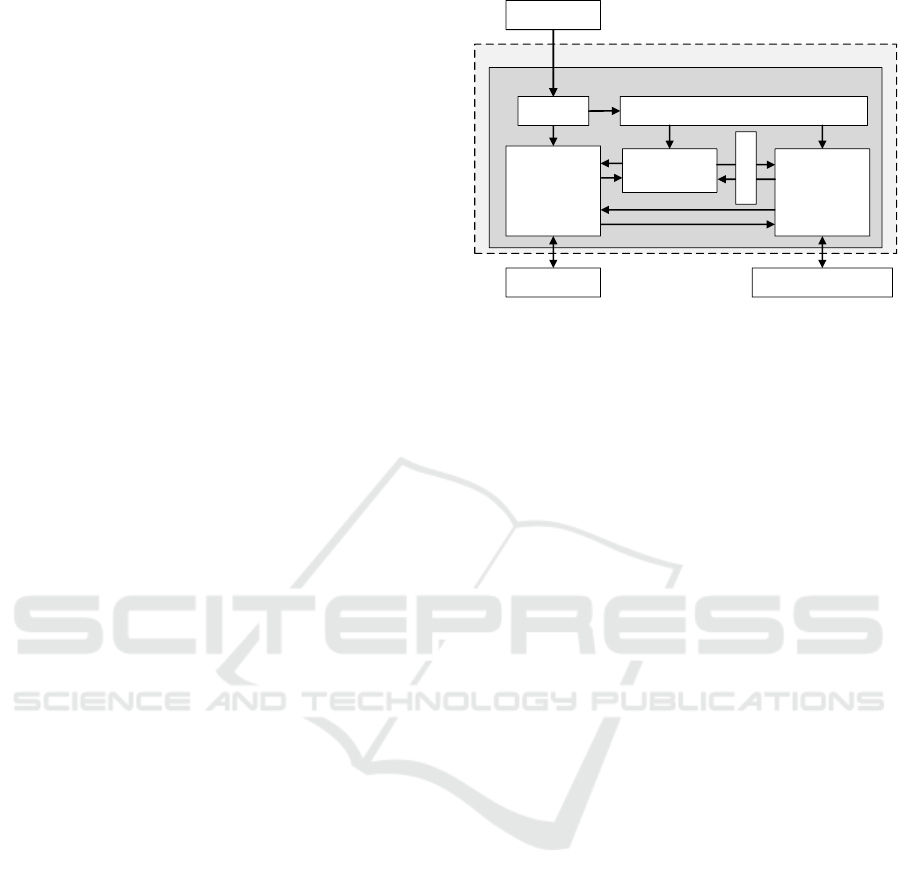

The designed overall system architecture is shown in

Figure 1. The main subsystems are the main board,

safety board (SAB), and the operational board (OPB).

The main board includes fuses and the main charging

circuit. The main charging circuit includes redundant

charging relays, to supply power to the EV, and

associated feedback signals, a fault current sensor,

current sensors, the basic vehicle interface circuitry,

DC power supply and interfaces for SAB and OPB.

The SAB is responsible for the safety-related

functions (core charging control) and the OPB for

non-safety-related functions such as energy

monitoring, EV communication, communication with

the user over a web- or application-based GUI and

with the backend servers required in public charging

for e.g. payment processing. The safety and

operational board communicate over a serial bus with

a Modbus RTU-protocol modified with additional

reliability measures. The system architecture allows

for separation and freedom from interference between

safety- and non-safety-related functions.

The SF1 (Overload protection) is implemented

through fuses on the main board. The SAB does not

take part in this SIL3-rated SF, but does participate in

the implementation of the remaining SFs, which are

all rated SIL2. Thus, the SAB development targets

systematic capability SC2 (required for SIL2).

The control loop implementing SF2 (AC & DC

Fault current protection) consists of the fault current

sensor within the main charging circuit, the SAB and

the charging relays. Detected fault current leads to

immediate disconnection of the power supply. The

chosen 30mA AC & 6mA DC fault current sensor

(Bender RCMB121) includes a self-test function.

Additionally, an independent fault current emulation

circuit is implemented as part of the main charging

circuit. Before a charging process is started, the self-

test and the independent test of the fault current

sensor are performed for fault detection.

The CP driver signal is generated by the OPB. The

SAB has a separate measurement of the CP signal to

independently detect the EV proximity and that the

charging cable is properly plugged in. The IEC

62196-2 (IEC 2016) charging connectors guarantee

that the CP-lines are connected last and disconnected

first. The SF3 is implemented with the control loop

consisting of the CP voltage measurement circuit, the

SAB and the charging relays.

SiLis Charging Infrastructure System

Main board

Safety Board

Operational

Board

Serial bus

DC Power Supply

Electric Grid

Main

Charging

Circuit

EV Web services, HMI

Fuses

Figure 1: System architecture.

The SF4 is implemented by the control loop

including the SAB and the redundant charging relays

and their contact feedbacks. For the targeted current

rating (32A), force guided relays, a typical solution

for safety-critical applications, were not available.

Thus, a redundant set of relays (the contacts in two

rows in series connection) without force guided

contacts were used (cf. 2 in Figure 3). In order to

detect faults in the relay contacts (contact welded

shut, contact remains open), a feedback signal was

included for each grid phase (L1-L3) contact. The

SAB controls each relay row separately, and thus is

capable of diagnosing each relay row separately

during energization and de-energization. If any single

relay contact is welded shut, the power supply can

still be disconnected. Additionally, the SAB and the

used safety MCU (Microcontroller unit) include

numerous self-diagnostics. Upon detection of internal

faults, the system is brought to a safe state (energy

supply de-energized).

The risk reduction measures RM4 (and the

optional RM5) were not allocated any SIL-

requirements, and thus these functions were allocated

onto the OPB instead of the SAB. For RM4 (Cable

capacity detection and overload protection), the OPB

detects the capacity through the basic vehicle

interface. The OPB utilises the current sensors in the

main circuit for charging cable protection as well as

for energy monitoring of the charging process. Upon

overload the OPB requests the SAB to stop the power

supply to the EV.

To initiate or stop the charging process, the OPB

can send requests to and get diagnostics from the SAB

through the communication interface. The SAB is in

control of and continuously monitors the charging

process and deactivates the power supply to the EV if

any faults are detected. The system design and

communication solution provides moderate

protection against cybersecurity threats. Since all

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

322

external communication is implemented on the OPB,

the SAB itself is not in direct connection to the

internet and uses direct physical digital and analogue

IO for the safety-related functions.

4.2 Safety Hardware Design

The SAB (shown in Figure 2) is responsible for

carrying out the majority of safety functions. To

achieve the safety integrity requirements, the board

was designed around a safety-certified MCU (TI

Hercules RM48). The MCU has redundant

Arithmetic Logic Units (ALUs) in lockstep, error

correction code (ECC) memory and built-in self-tests.

The SAB includes galvanic isolations for inputs,

outputs and the power supply, as well as voltage

monitoring and a two-stage hardware watchdog.

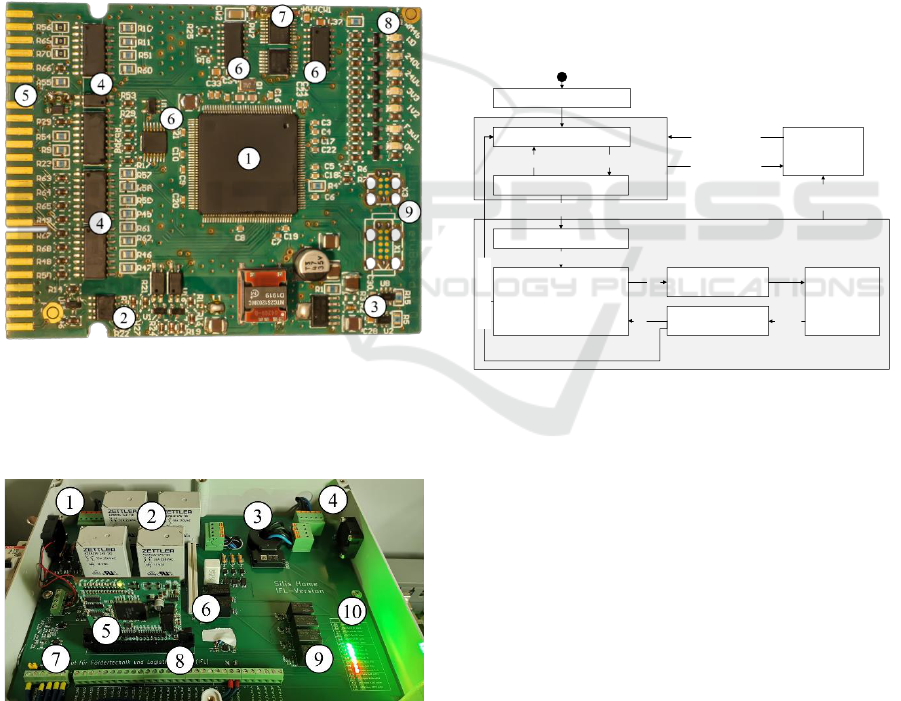

Figure 2: The safety board (SAB). 1: Safety MCU. 2: Input

voltage monitoring. 3: Internal voltage monitoring. 4:

Galvanic isolation. 5: Mainboard connector. 6: Control

logic circuitry. 7: Hardware Watchdog. 8: Status LEDs. 9:

Programming and diagnostics interface.

Figure 3: Charging circuit functional prototype. 1: Grid

connection. 2: Main relays. 3: Fault current sensor 4: EV

power connection. 5: SAB. 6: FI sensor self-test circuit. 7:

DC power terminals. 8: Measurement/Serial bus terminals.

9: CP-signal generator. 10: Status LEDs.

A prototype of the main charging circuit is shown

in Figure 3, built to allow for easy verification of the

circuit concept and safety software with additional

measurement terminals. This prototype was used to

assist the safety software development. The industrial

project partners have developed a compact

production version of the same hardware concept and

the OPB. At the time of writing the production

version is ongoing verification activities. System

validation testing in a charging station with an EV is

planned in the near future.

System- and design-FMEAs were performed for

the SAB and the safety-related parts of the main

circuit. Diagnostics and redundancy were included in

the system design to ensure that singular component

failures cannot bring the system to a hazardous state

or that faults are detected and the energy supply is de-

energized before an accident can occur. The SAB

implements a 1oo1D architecture (Börcsök 2004),

whereas the main application circuitry is redundant.

Idle

Charging sequence

Power on

Boot sequence (Self-tests)

Idle, EV not present

[EV_CP_CONN]

Idle, EV present

[!EV_CP_CONN]

Fault

FI Self-test sequence

Idle, ready to charge

[FI_Test_Req]

Relay activation

sequence

Relay deactivation

sequence

Power On

[FI_Test_OK]

[Power

_On_Req

]

[EV_CP_CONN

]

[!Power

_On_Req

|| !EV_CP_CONN

]

[!EV_CP_CONN

]

[Fault detected]

/ Immediate relay deactivation

[Fault detected]

[Reset_Req &&

Fault resetable]

Figure 4: Main state machine for the SAB software.

4.3 Safety Software Design

The design of the Safety-SW running on the SAB was

kept modular and as simple as possible for ease of

analysis. A time-triggered architecture (single main-

loop running at 1ms with a hardware timer) with a

minimum of interrupt routines was implemented. The

safety-SW executes the charging supervision

functions and handles possible incoming messages

each loop. MCU Self-tests are executed at boot time.

A high-level view of the main state machine is

shown in Figure 4. When EV presence is detected, a

test sequence for the fault current sensor is first

required. If the test is successfully executed, the

system is ready to charge. Upon request from OPB

the charging relays are activated row-by-row. Once

both rows are on, the power supply to the EV is

Functional Safety and Electric Vehicle Charging: Requirements Analysis and Design for a Safe Charging Infrastructure System

323

active. The OPB can request to turn the power off,

triggering the row-by-row de-activation sequence.

The de-activation sequence is also triggered if the

user unplugs the EV during charging. If any faults are

detected during the charging sequence, the system

transitions to the fault state accompanied by

immediate de-energization of both relay rows to bring

the charging process to a safe state. For a subset of

faults, the OPB can request a fault reset, which moves

the system back to the idle state, other faults require

cycling power to the SAB to reset.

5 CONCLUSIONS

In this work we presented a requirements analysis and

a system design for a safe electronic charging

infrastructure system. The system was designed

according to current functional safety and EVSE

standards. System validation tests with a production-

version of the SiLis-hardware and an EV is planned

for the near future. The system discussed here is a

research prototype, a safety certification of the

production version of the system is planned by the

industrial project partners in the future.

The presented work can be used as a basis for the

development of safe next generation EVSE. Even

with the urgent need for this new critical

infrastructure, the proper care should be taken in

building it. The safety of these electronically

controlled systems should be guaranteed as we move

into increasingly electrified forms of transportation.

ACKNOWLEDGEMENTS

We gratefully acknowledge that this research is

funded by the German Federal Ministry of Education

and Research (BMBF: Bundesministerium für

Bildung und Forschung) under grant number

16EMO0329. We would additionally like to thank the

partner companies, ProSystems GmbH and kortec

Industrieelektronik GmbH & Co. KG, for the

collaboration on the project.

REFERENCES

Börcsök, J. 2004. Electronic safety systems: Hardware

concepts, models, and calculations. Heidelberg:

Hüthig, 565 pp. (eng).

IEA. 2020. Global EV Outlook 2020 – Analysis - IEA.

Retrieved 4 October, 2020, from https://www.iea.org

/reports/global-ev-outlook-2020.

IEC. 2005a. Low voltage electrical installations - Part 4-41:

Protection for safety - Protection against electric shock,

IEC 60364-4-41. International Electrotechnical

Commission.

IEC. 2005b. Safety of machinery - Functional safety of

safety-related electrical, electronic and programmable

electronic control systems, IEC 62061. International

Electrotechnical Commission.

IEC. 2010. Functional safety of electrical/electronic/

programmable electronic safety-related systems, IEC

61508. International Electrotechnical Commission.

IEC. 2014. Plugs, socket-outlets, vehicle connectors and

vehicle inlets – Conductive charging of electric vehicles

– Part 1: General requirements, IEC 62196-1.

International Electrotechnical Commission.

IEC. 2016. Plugs, socket-outlets, vehicle connectors and

vehicle inlets – Conductive charging of electric vehicles

– Part 2: Part 2: Dimensional compatibility and

interchangeability requirements for a.c. pin and

contact-tube accessories, IEC 62196-2. International

Electrotechnical Commission.

IEC. 2017. Electric vehicle conductive charging system -

Part 1: General requirements, IEC 61851-1.

International Electrotechnical Commission.

ISO. 2010. Safety of machinery - General principles for

design - Risk assessment and risk reduction (ISO

12100:2010), ISO 12100. International Organization

for Standardization.

ISO. 2019. Road vehicles — Vehicle to grid

communication interface — Part 1: General

information and use-case definition, ISO 15118-1.

International Organization for Standardization.

ISO. 2020. Electrically propelled road vehicles —

Conductive power transfer — Safety requirements, ISO

17409. International Organization for Standardization.

Redmill, F. 2002. Risk analysis-a subjective process.

Engineering Management Journal 12: 91–96. doi:

10.1049/em:20020206.

Schmittner, C., G. Scharfenberg, J. Mottok, S. Strassmeier,

T. Limmer, and others. 2013. Analysis of the

Functional and Electrical Safety of Charging Stations.

Tu, H., H. Feng, S. Srdic, and S. Lukic. 2019. Extreme Fast

Charging of Electric Vehicles: A Technology

Overview. IEEE Transactions on Transportation

Electrification 5: 861–878. doi: 10.1109/TTE.2019

.2958709.

Veneri, O. 2017. Technologies and Applications for Smart

Charging of Electric and Plug-in Hybrid Vehicles.

Cham: Springer International Publishing.

Vogt, M., S. Link, K. Ritzinger, E. Ablingyte, and P.

Reindl. 2016. Sicherheitsaspekte beim Laden von

Elektrofahrzeugen. Bergisch Gladbach: Bundesanstalt

für Straßenwesen.

Wang, Q., X. Liu, Du J, and F. Kong. 2016. Smart Charging

for Electric Vehicles: A Survey From the Algorithmic

Perspective. IEEE Communications Surveys Tutorials

18: 1500–1517. doi: 10.1109/COMST.2016.2518628.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

324
